GLX-D® Advanced Digital Wireless
GLX-D® ADVANCED
DIGITAL WIRELESS
Rock-solid RF performance for multiple system installations
Groundbreaking GLX-D® Advanced Digital Wireless systems enable
exceptional digital audio clarity, intelligent rechargeability and
seamless operation—available in rack mount receiver system
configurations for use with GLX-D Advanced Frequency Managers and
accessories for small-to-medium installations.
PRODUCT HIGHLIGHTS
Automatic Frequency
Management
2.4 GHZ frequency band
Operate up to 9 compatible
systems in typical setting,
up to 11 maximum under
ideal conditions
Legendary Shure audio
quality and rugged
construction
Page 2
System Specifications
Compatibility Operate up to 9 compatible systems in typical setting, up to 11 maximum under ideal conditions
System Operating Range Indoors: Up to 100 feet (30 m) typical, with a maximum of 200 feet (60 m) under ideal conditions
Transmit Mode Shure Propietary Digital
Audio Frequency Response 20 Hz – 20 kHz Note: Dependent on microphone type
Dynamic Range 120 dB, A-weighted
Latency Groups 1 and A:
RF Sensitivity -88 dBm, typical
Total Harmonic Distortion 0.2%, typical
RF Output Power 10 mW E.I.R.P. max
Operating Temperature Range -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
Storage Temperature Range -29°C (-20°F) to 74°C (165°F)
Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces
Battery Life Up to 16 hours
Optional Accessories and Replacement Parts
PA805Z2-RSMA Passive Directional Antenna 2.4 GHz PS60 Power Supply (UA846Z2) UA802-RSMA 0.6 m (2 ft.) Reverse SMA Cable
UA8-2.4GHZ 1/2 Wave Antenna, 45 deg. (2.4 GHz) PS43 Power Supply (GLXD4R) UA806-RSMA 1.8 m (6 ft.) Reverse SMA Cable
UA505-RSMA Wall Mount for PA805-RSMA or UA8-2.4 GHz SB902 Lithium Ion Rechargeable Battery UA825-RSMA 7.6 m (25 ft.) Reverse SMA Cable
UA221-RSMA Reverse SMA Passive Antenna Splitter SBC10-USB Micro-USB Battery Charger UA850-RSMA 15.2 m (50 ft.) Reverse SMA Cable
95A32436 Reverse SMA Bulkhead Adapters SBC10-902 Standalone Single Battery Charger UA8100-RSMA 30.4 m (100 ft.) Reverse SMA Cable
Outdoors: Up to 65 feet (20 m) typical, with a maximum of 165 feet (50 m) under ideal conditions
Groups 2, 3, 4 and B:
4.0 ms
positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
NOTE: All Specifications are subject to change. Performance may vary depending on country regulations and operating environment.
7.3 ms
SBC-CAR Car Battery Charger
Component Specifications
GLX-D Advanced Passive Directional Antenna (PA805Z2-RSMA)
The GLX-D Advanced Passive Directional Antenna (PA805Z2-RSMA ) is considered a key part of any GLX-D
Advanced Digital Wireless installation. These antennas both improve reception of GLX-D transmitter signals
and minimize interference from any 2.4GHz sources near receivers with appropriate installed placement.
Frequency Range
<2:1 Voltage Standing Wave Ration (VSWR)
Antenna Gain
@ 2.45 GHz, typical
3 dB Horizontal Beam Width 100 degrees
Efficiency
@2.45 GHz, typical
Impedance 50 Ω
Polarization Linear
Front-to-back ratio
@2.45 GHz, typical
Connector Type Reverse SMA
Dimensions 105 × 164 × 27.5 mm (4.1 × 6.5 × 1.1 in.) H × W × D
Net Weight 2.5 oz. (70 g)
2050 to 2700 MHz
8 dBi
89%
24 dB
GLX-D Advanced Passive Directional
Antenna (PA805Z2-RSMA)
www.shure.com © 2017 Shure Incorporated
Page 3
Component Specifications (continued)

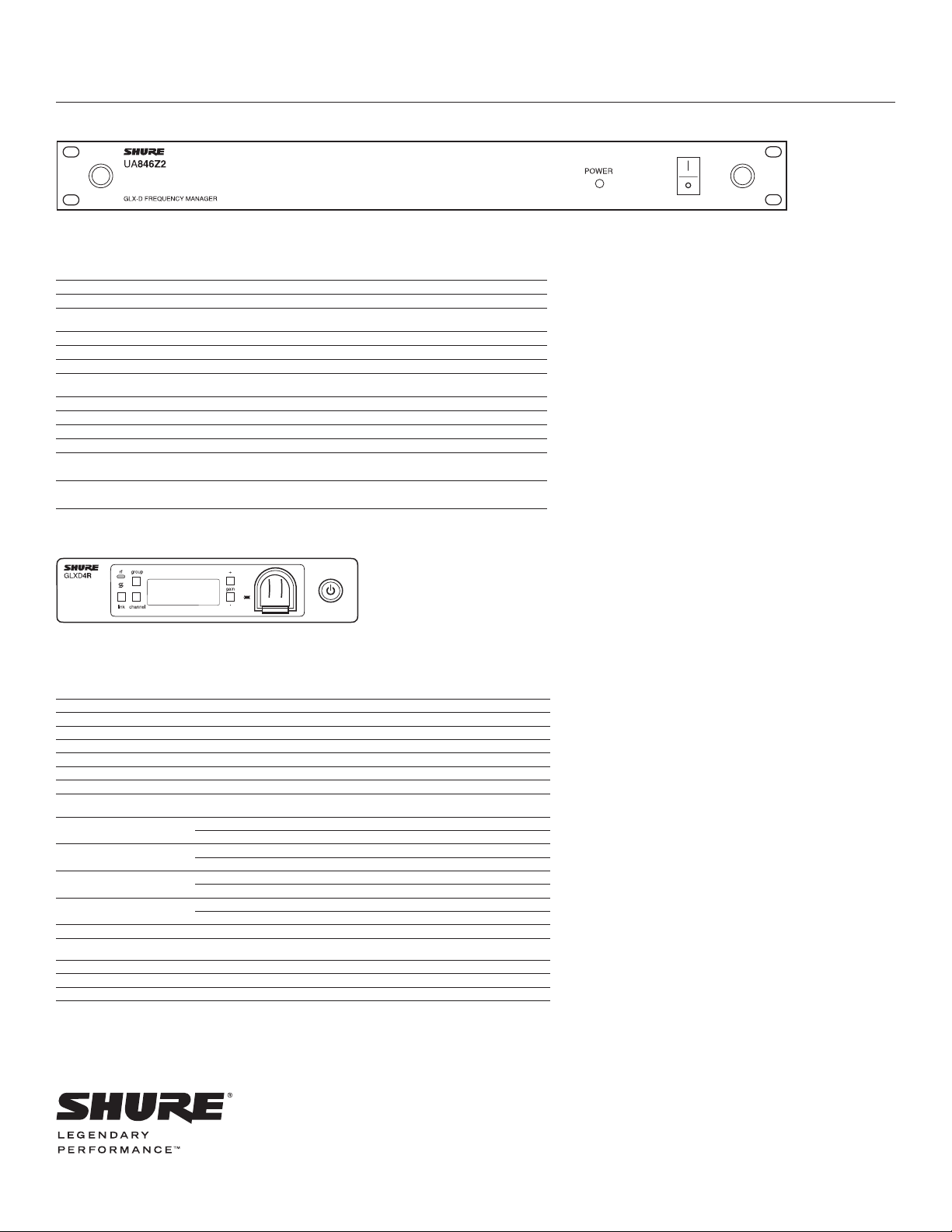

GLX-D Advanced Frequency Manager (UA846Z2)
Power Requirements 15 VDC
DC Output 15 VDC (×6)
Output Current
Combined total from all DC outputs
Operating Temperature Range −18 °C to 63 °C (0 °F to 145 °F)
Dimensions 45 × 483 × 192 mm (1.8 × 19 × 7.6 in) H × W × D
Net Weight 1.63 kg (3.6 lbs)
RF Input RF Output
Connector Type Reverse SMA Connector Type Reverse SMA
RF Frequency Range 2400 to 2483.5 MHz RF Frequency Range 2400 to 2483.5 MHz
Receiver Port Isolation 35 dB, typical Output Intercept Point (OIP3) 48 dBm, typical
Impedance 50 Ω Impedance 50 Ω
Maximum Antenna
Input Power
Maximum Receiver Port
Input Power
3.8 A, maximum
−10 dBm
+15 dBm
Reverse Isolation
Output to Input
Gain
Input to any output port
35 dB, typical
−3 to 0 dB
GLXD4R Rack Mount Receiver
Dimensions 42 × 197 × 163 mm (1.7 × 7.8 × 6.4 in.) H × W × D
Weight 907.2 g (32 oz.) without batteries
Housing Steel
Power Requirements 14 to 18 VDC (tip positive with respect to ring), 550 mA
Spurious Rejection >35 dB, typical
Gain Adjustment Range −18 to 42 dB in 1 dB steps
Phantom Power Protection Yes
Audio Output
Configuration
Impedance
Full-Scale Output
Pin Assignments
Mic/Line Switch 30 dB Pad
Receiver Antenna Input
Impedance 50 Ω
Antenna Type ½ Wave Sleeve Dipole
Maximum Input Level −20 dBm
XLR Output Balanced
6.35 mm (1/4") output Impedance balanced
XLR Output 100 Ω
6.35 mm (1/4") output 100 Ω (50 Ω, Unbalanced)
XLR LINE setting= +18 dBV, MIC setting= −12 dBV
6.35 mm (1/4") +12 dBV
XLR Output 1=ground, 2=hot, 3=cold
6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground
www.shure.com © 2017 Shure Incorporated
Page 4
Component Specifications (continued)
GLXD1 Bodypack Transmitter
Dimensions 90.4 x 64.5 x 22.9 mm (3.56 x 2.54 x 0.90 in.), H x W x D (without antenna)
Power Requirements 3.7 V Rechargeable Li-Ion
Housing Cast Metal, Black Powdercoat
Input Impedance 900 kΩ
RF Output Power 10 mW E.I.R.P. max
Transmitter Input
Connector 4-Pin male mini connector (TA4M)
Configuration Unbalanced
Maximum Input Level
(1 kHz at 1% THD)
Antenna Type Internal Monopole
Pin Assignments
TA4M
GLXD2 Handheld Transmitter
Dimensions
Weight
−8.4 dBV (7.5 Vp-p)
1: Ground (cable shield)
2: + 5 V Bias
3: Audio
4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
Model A B C
SM58 51 mm, 2.0 in. 252 mm, 9.9 in. 37 mm, 1.5 in.
BETA 58 51 mm, 2.0 in. 252 mm, 9.9 in. 37 mm, 1.5 in.
SM86 49 mm, 1.9 in. 252 mm, 9.9 in. 37 mm, 1.5 in.
BETA87A 51 mm, 2.0 in. 252 mm, 9.9 in. 37 mm, 1.5 in.
SM58 267 g (9.4 oz.) without batteries
BETA 58 221 g (7.8 oz.) without batteries
SM86 275 g (9.1 oz.) without batteries
BETA87A 264 g (9.3 oz.) without batteries
GLXD1 Bodypack Transmitter
GLXD2
on
Housing Molded Plastic
Power Requirements 3.7 V Rechargeable Li-Ion
RF Output Power 10 mW E.I.R.P. max
Maximum Input Level 145 dB SPL
GLXD2 Handheld Transmitter
www.shure.com © 2017 Shure Incorporated
