FP Wireless Systems
Featuring a comprehensive selection of system congurations with key wireless audio
technologies and components, FP Wireless provides the ability to capture crystal-clear
audio with condence. With simple and exible components, including a portable receiver
and XLR plug-on transmitter, it has never been easier for audio to be captured in the
demanding and dynamic videography and electronic eld production (EFP) environments.
Features
• Wireless portability for the freedom to go wherever the job requires
• Audio Reference Companding™ for crystal-clear audio
• Automatic Frequency Selection locates an open frequency at the touch of a button
• Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
• Up to 20 compatible systems simultaneously
• Diversity Antennas for consistent reception of signal transmission
• All components powered by 2 AA batteries – no power cord required
• XLR and 3.5mm cable output options
• Single transmitter and dual transmitter combo system options
• All FP components are compatible with SLX® Wireless systems
ApplicAtions
Event Videography
Weddings
One-on-one Interviewing
product HigHligHts
Lightweight, Portable
Receiver
XLR Plug-on, Bodypack and Handheld
Transmitter Options
Frequency Scan & Sync
Legendary Shure
Microphone Capsules
System Specications
All system and component specications subject to change
Working Range
Line of Sight
Tonekey 32.768 kHz
Audio Frequency Response 45 to 15000 Hz (±2 dB)
Total Harmonic Distortion
Ref. ±38 kHz deviation with 1 kHz tone
Dynamic Range >100 dB, A-weighted
Available Models
FP15 Portable Bodypack Wireless System for Lavalier, Headset and Instrument Microphones
FP15/83 Portable Bodypack Wireless System with WL183 Omnidirectional Lavalier Microphone
FP25/SM58 Portable Handheld Wireless System with SM58® Cardioid Microphone Capsule
FP25/VP68 Portable Handheld Wireless System with VP68 Omnidirectional Microphone Capsule
FP35 Portable Wireless System with Plug-on Transmitter
FP125/83SM58 Portable Bodypack/Handheld Wireless System with WL183 Omnidirectional Lavalier Microphone; SM58® Cardioid Microphone Capsule
FP125/83VP68 Portable Bodypack/Handheld Wireless System with WL183 Omnidirectional Lavalier Microphone; VP68 Omnidirectional Microphone Capsule
FP135 Portable Wireless System with Lavalier, Headset and Instrument Microphones; XLR Microphones
Included Accessories
WA371 Micrphone clip (FP2)
AFP301 Plug-on Transmitter belt clip and protective skin (FP3)
AFP511 Camera Shoe Mount (FP5)
WA451 TA3F-to-XLRm audio cable
WA461 TA3F-to-3.5mm dual-mono audio cable
100 m (300 ft)
Note: Actual range depends on RF signal absorption, reection and interference.
Note: Dependent on microphone type
<0.5%, typical
Frequency Range
Band Range
G4 470 - 494 MHz
G4E 470 - 494 MHz
G5 494 - 518 MHz
G5E 494 - 518 MHz
H5 518 - 542 MHz
H5E 518 - 542 MHz
J3 572 - 596 MHz
K3E 606 - 630 MHz
L4 638 - 662 MHz
L4CN 638 - 662 MHz
L4E 638 - 662 MHz
P4 702 - 726 MHz
P4CN 702 - 726 MHz
Q24 736 - 754 MHz
R13 794 - 806 MHz
R19 794 - 806 MHz
R5 800 - 820 MHz
JB 806 - 810 MHz
S6 838 - 865 MHz
Component Specications
FP1 Bodypack Transmitter
Lightweight, durable housing; for use with TA4F-connection microphones including lavaliers and headsets.
Features
• Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
• LED indicator for control lockout, IR RF sync, low battery indicator
• Audio Input Gain for adjustment of audio level
• 4-Pin Microphone Input Jack for use with lavaliers or headset microphones with TA4F connectors.
• Powered by 2AA batteries
• Rugged and lightweight Shure construction
Gain Adjustment Range −10 to +20 dBV
Input Impedance 1 MΩ
RF Output Power 10 to 30 mW
Pin Assignments
TA4M
Dimensions 108 mm x 64 mm x 19 mm (H x W x D)
Weight 81 g (3 oz.), without batteries
Housing Molded polycarbonate case
Power Requirements LR6 AA batteries, 1.5 V
Battery Life up to 12 hours (alkaline)
varies by region
1: Ground (cable shield)
2: + 5 V Bias
3: Audio
4: Tied through active load to ground (on instrument adapter cable, pin 4 oats)
FP1
Bodypack Transmitter
Component Specications
Hz
+20
FP2 Handheld Transmitter
Lightweight, durable housing; available with either the legendary Shure SM58® cardioid dynamic wireless capsule or
with the VP68 condenser omnidirectional capsule; compatible with all Shure wireless capsules.
Features
• Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
• LED indicator for control lockout, IR RF sync, low battery indicator
• Powered by 2AA batteries
• Legendary SM58® or VP68 microphone capsule options
• Rugged and lightweight Shure construction
Available Models
FP2/SM58 Handheld Transmitter with SM58® Cardioid Microphone Capsule
FP2/VP68 Handheld Transmitter with VP68 Omnidirectional Microphone Capsule
Maximum Input Level at –10 dB gain setting: +2 dBV
at 0 dB gain setting: –8 dBV
Gain Adjustment Range 10 dB
RF Output Power 10 to 30 mW
varies by region
Dimensions 254 mm X 51 mm dia. (10 X 2 in.)
Weight 290 g (10.2 oz.) without batteries
Housing Molded PC/ABS handle and battery cup
Power Requirements LR6 AA batteries, 1.5 V
Battery Life up to 12 hours (alkaline)
125 Hz
500 Hz
1000 Hz
FP2/SM58 Polar Pattern
180°
250 H z
500 H z
1000 H z
–20 dB
–15 dB
–10 dB
–5 dB
+5 dB
150°
30°
120°
60°
120°
90°
90°
60°
150°
120°
90°
60°
30°
FP2/VP68 Polar Pattern
150°
30°
2500 H z
6400 H z
10000 H z
180°
–20 dB
–15 dB
–10 dB
–5 dB
+5 dB
2000 Hz
4000 Hz
8000 Hz
150°
30°
120°
60°
FP2/SM58
Handheld Transmitter
+10
0
dB
–10
–20
20 50 100 1000 10000 20000
98765432 98765432
FP2/SM58 Handheld Transmitter
20
15
10
5
90°
0
-5
dB
-10
-15
-20
-25
-30
20 100 1k 10k 20k
FP2/VP68
Handheld Transmitter
FP2/VP68 Handheld Transmitter
Component Specications

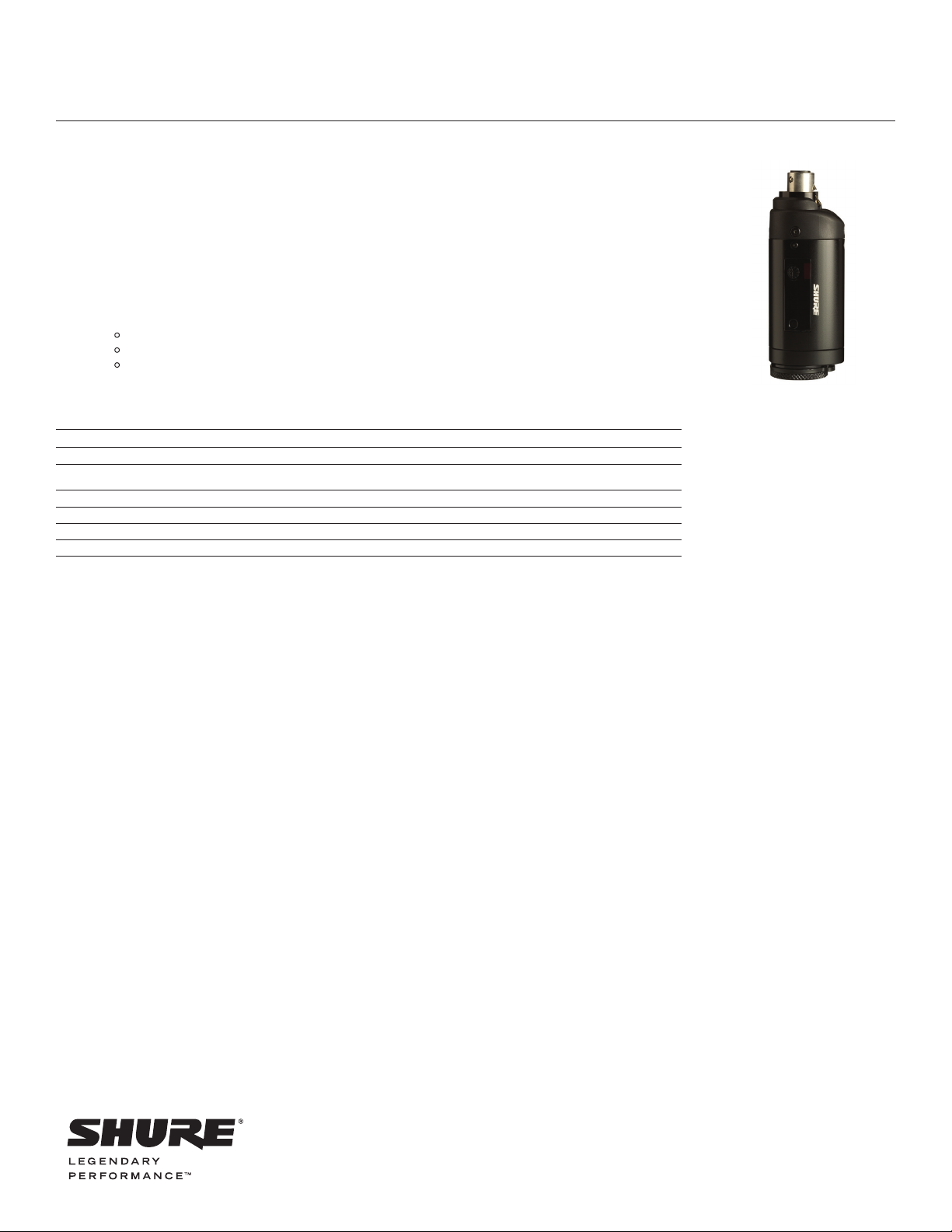

FP3 Plug-On Transmitter
Durable metal housing, ergonomically designed for comfortable grip; XLR connectivity allows for use with any wired
dynamic XLR microphone.
Features
• Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
• LED indicator for control lockout, IR RF sync, low battery indicator
• Powered by 2AA batteries
• Audio Input Gain for adjustment of audio level
• Three-stage Audio Input Level Indicator
Green: audio present
Yellow: nominal peak
Red: signal clip
• Rugged and durable Shure construction
Gain Adjustment Range 0 to +40 dBV
Input Impedance 9 kΩ
RF Output Power 10 to 30 mW
Dimensions 117 mm x 36 mm x 43 mm (H x W x D)
Weight 160 g (5.6 oz.), without batteries
Power Requirements LR6 AA batteries, 1.5 V
Battery Life up to 12 hours (alkaline)
varies by region
FP3
Plug-On Transmitter
Component Specications
FP5 Portable Wireless Receiver
Lightweight, durable housing, suitable for mounting on camera or person, diversity antennas, output via TA3F cable to
either XLR or 1/8” connectors.
Features
• Shure patented Audio Reference Companding for crystal-clear audio
• Automatic Frequency Selection locates an open frequency at the touch of a button
• Automatic Transmitter Setup instantly syncs the transmitter to the receiver frequency
• Power LED with low battery indicator
• RF LED indicates transmitter sync when illuminated
• 24 MHz bandwidth
• Up to 20 compatible systems simultaneously
• Powered by 2AA batteries – no power cord required
• Receiver output level control manages output to camera/mixer
• TA3F cable output to either XLR or 1/8” connectors (included)
• Diversity antennas for consistent reception of signal transmission
• Rugged and lightweight Shure construction
• Camera Shoe Mount (included)
Dimensions 108 mm X 64 mm X 19 mm (H x W x D)
Weight 81 g (3 oz.)
Housing Molded polycarbonate case
Sensitivity –108 dBm for 12 dB SINAD, typical
Power Requirements LR6 AA batteries, 1.5 V
Battery Life up to 12 hours (alkaline)
FP5
Portable Wireless Receiver
Audio Output
Type TA3F
Conguration Impedance balanced
Pin Assignments 1=ground, 2=hot, 3=cold
Maximum Audio Output Level
Ref. ±38 kHz deviation with 1 kHz tone
Impedance 200 Ω
–5 dBV (into 600 Ω load)
