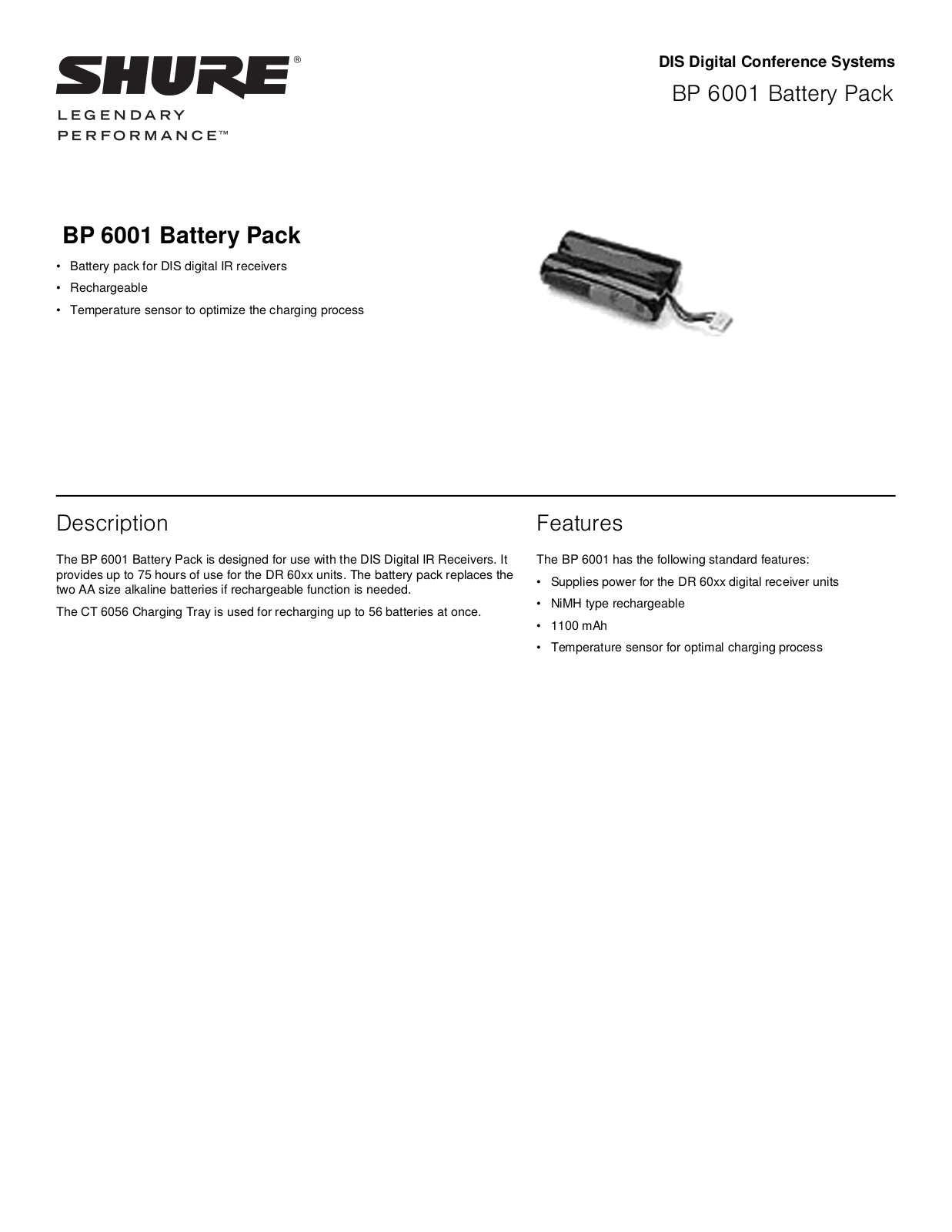

Shure BP6001 Specification Sheet

BP 6001 Battery Pack

• Battery pack for DIS digital IR receivers

• Rechargeable

• Temperature sensor to optimize the charging process

DIS Digital Conference Systems

BP 6001 Battery Pack

Description

The BP 6001 Battery Pack is designed for use with the DIS Digital IR Receivers. It
provides up to 75 hours of use for the DR 60xx units. The battery pack replaces the
two AA size alkaline batteries if rechargeable function is needed.

The CT 6056 Charging Tray is used for recharging up to 56 batteries at once.

Features

The BP 6001 has the following standard features:

• Supplies power for the DR 60xx digital receiver units

• NiMH type rechargeable

• 1100 mAh

• Temperature sensor for optimal charging process

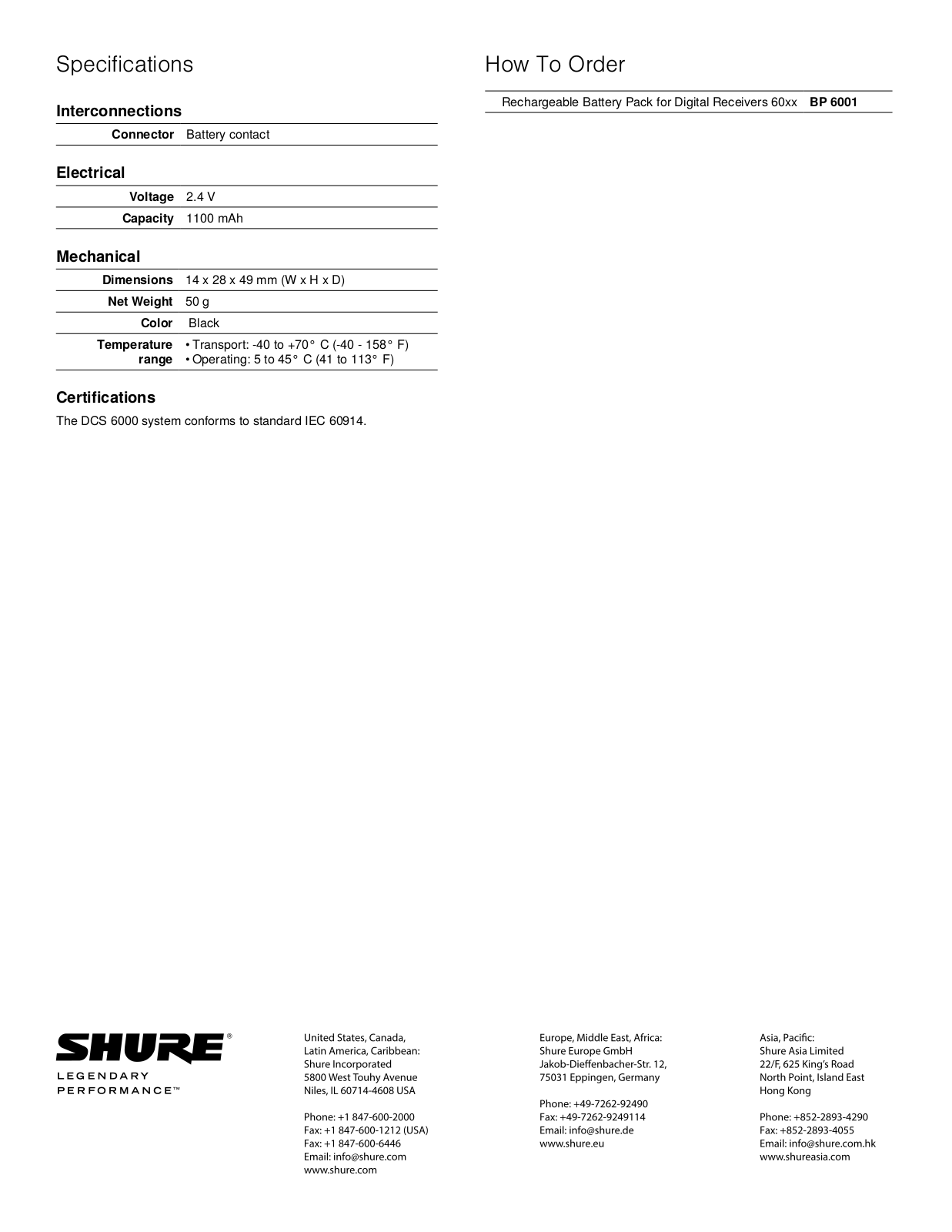

Specifications

How To Order

Interconnections

Connector Battery contact

Electrical

Voltage 2.4 V

Capacity 1100 mAh

Mechanical

Dimensions 14 x 28 x 49 mm (W x H x D)

Net Weight 50 g

Color Black

Temperature

• Transport: -40 to +70° C (-40 - 158° F)

range

• Operating: 5 to 45° C (41 to 113° F)

Certifications

The DCS 6000 system conforms to standard IEC 60914.

Rechargeable Battery Pack for Digital Receivers 60xx BP 6001
