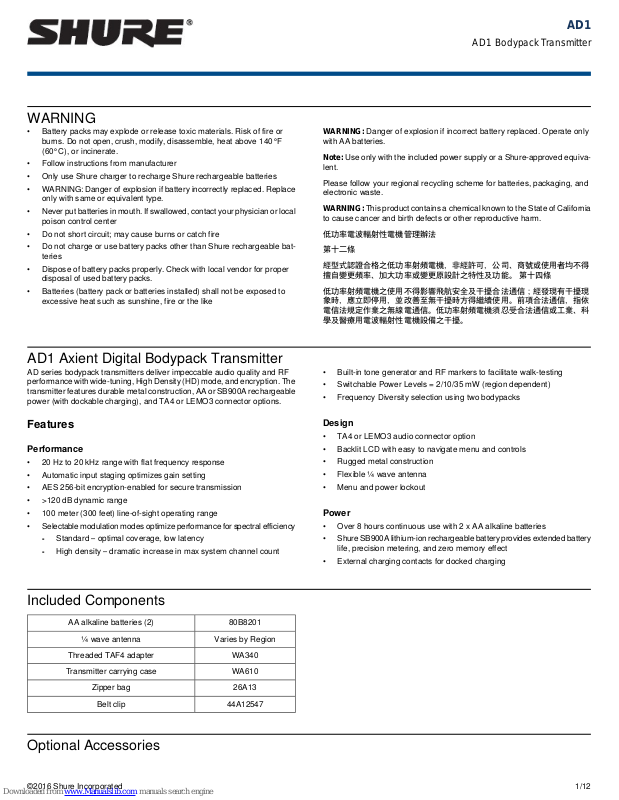

Shure AD1 User Manual

WARNING

• Battery packs may explode or release toxic materials. Risk of fire or
burns. Do not open, crush, modify, disassemble, heat above 140°F
(60°C), or incinerate.

• Follow instructions from manufacturer

• Only use Shure charger to recharge Shure rechargeable batteries

• WARNING: Danger of explosion if battery incorrectly replaced. Replace
only with same or equivalent type.

• Never put batteries in mouth. If swallowed, contact your physician or local
poison control center

• Do not short circuit; may cause burns or catch fire

• Do not charge or use battery packs other than Shure rechargeable bat­teries

• Dispose of battery packs properly. Check with local vendor for proper
disposal of used battery packs.

• Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like

AD1

AD1 Bodypack Transmitter

WARNING:Danger of explosion if incorrect battery replaced. Operate only
with AA batteries.

Note: Use only with the included power supply or a Shure-approved equiva­lent.

Please follow your regional recycling scheme for batteries, packaging, and
electronic waste.

WARNING:This product contains a chemical known to the State of California
to cause cancer and birth defects or other reproductive harm.

低功率電波輻射性電機管理辦法

第十二條

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得
擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現
象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依
電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科
學及醫療用電波輻射性電機設備之干擾。

AD1 Axient Digital Bodypack Transmitter

AD series bodypack transmitters deliver impeccable audio quality and RF
performance with wide-tuning, High Density (HD) mode, and encryption. The
transmitter features durable metal construction, AA or SB900A rechargeable
power (with dockable charging), and TA4 or LEMO3 connector options.

Features

Performance

• 20 Hz to 20 kHz range with flat frequency response

• Automatic input staging optimizes gain setting

• AES 256-bit encryption-enabled for secure transmission

• >120 dB dynamic range

• 100 meter (300 feet) line-of-sight operating range

• Selectable modulation modes optimize performance for spectral efficiency
⁃ Standard – optimal coverage, low latency
⁃ High density – dramatic increase in max system channel count

Included Components

80B8201AA alkaline batteries (2)

Varies by Region¼ wave antenna

WA340Threaded TAF4 adapter

WA610Transmitter carrying case

26A13Zipper bag

44A12547Belt clip

• Built-in tone generator and RF markers to facilitate walk-testing

• Switchable Power Levels = 2/10/35 mW (region dependent)

• Frequency Diversity selection using two bodypacks

Design

• TA4 or LEMO3 audio connector option

• Backlit LCD with easy to navigate menu and controls

• Rugged metal construction

• Flexible ¼ wave antenna

• Menu and power lockout

Power

• Over 8 hours continuous use with 2 x AA alkaline batteries

• Shure SB900A lithium-ion rechargeable battery provides extended battery
life, precision metering, and zero memory effect

• External charging contacts for docked charging

Optional Accessories

1/12©2016 Shure Incorporated

1

7 8 9 10

2

3

4

5

6

Shure IncorporatedAD1 AD1 Bodypack Transmitter

SB900ABodypack rechargeable lithium-ion battery

AXT652Y-Cable for bodypack transmitters

AXT652LEMO3LEMO Y-cable for bodypack transmitters

WA302Instrument cable

AD1 Transmitter Overview

① RF Antenna

For RF signal transmission.

② Display

View menu screens and settings. Press any control button to activate the
backlight.

③ Infrared (IR) Port

Align with the receiver IR port during an IR Sync for automated transmitter
tuning and setup.

④ Control Buttons

Use to navigate through parameter menus and to change settings.

⑤ Battery Compartment

Requires two AA batteries or Shure SB900A rechargeable battery.

⑥ AA Battery Adapter

Use to secure AA batteries. Remove when using a Shure SB900A battery.

44A12547Replacement belt clip

Instrument cable with right angle 1/4"

connector

WA304

WA661Mute Switch for Bodypack

WA662Mute Switch for 2 Bodypacks

⑩ Input Jack

Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable.
Note: A LEMO connector model variation of this transmitter is available.

⑦ SMA Connector

Connection point for RF antenna.

⑧ Power Switch

Powers the unit on or off.

⑨ Power LED

• Green = unit is powered on

• Red = low battery, Mute Mode enabled, input overload, or battery error
(see Troubleshooting)

• Amber = power switch mode: locked with switch in off position

Updating Firmware

Firmware is embedded software in each component that controls functional­ity. Periodically, new versions of firmware are developed to incorporate addi­tional features and enhancements. To take advantage of design improve­ments, new versions of the firmware can be uploaded and installed using
the Shure Update Utility. The Shure Update Utility is available for download
from http://www.shure.com/.

Firmware Versioning

When performing an update, download firmware to the receiver first, and
then update transmitters to the same firmware version to ensure consistent
operation.

The firmware numbering for Shure devices uses the following format: MA­JOR.MINOR.PATCH (e.g., 1.2.14). At a minimum, all devices on the network
(including transmitters), must have the same MAJOR and MINOR firmware
version numbers (e.g., 1.2.x).

Updating the Transmitter

1. To upload the firmware to the transmitter, go to Device Configuration>Tx
Firmware Update on the receiver.

2. Place the transmitter on its side and align the IR ports.

3. Press ENTER on the receiver to begin the download to the transmitter.
IR ports must be aligned for the entire download, which can take 50
seconds or longer.

Transmitter Controls

Use the controls to navigate through parameter menus and change values.

2017/08/032/12

exit enter

^

^

Locking the Controls

Shure

470.200MHz

7:45

AA

SB900A





Lock transmitter controls to prevent accidental or unauthorized changes to
parameters. The lock icon is shown on the home screen when the control
lock in enabled.

Shure IncorporatedAD1 AD1 Bodypack Transmitter

Acts as a 'back' button to return to previous menus or parameters

exit

enter

∨∧

Tip: Use the following control shortcuts for quick set up:

• Hold the ∧ button while powering-on to lock or unlock the transmitter
controls

• Hold the exit button while powering-on to set the transmitter RF output
to mute

1. From the Utilities menu, navigate to Lockand select one of the following:
⁃ Locked: Locks the controls
⁃ Unlocked: Unlocks the controls

2. Press enter to save.

Tip: To quickly unlock a transmitter: Press enter, select Unlocked, and press
enter.

Enters menu screens and confirms parameter changes

Use to scroll through menu screens and to change parameter

without confirming a value change

values

Home Screen Display

The home screen shows transmitter information and status.

Tip: There are four options to choose the information shown on the home
screen. Use the arrow buttons to select one of the following choices:

• Name

• Frequency Setting

• Group (G) and Channel (C)

• Device ID

The following icons appear to indicate transmitter settings:

• Battery runtime in hours and minutes or bar display

• Key: Displayed when encryption is enabled

Battery Installation

• Lock: Displayed when controls are locked

• STD: Standard Transmission Mode

• HD: High Density Transmission Mode

• Box: When the box has an "x", Mute Mode is on and engaged. If the box
is empty, Mute Mode is on, but not engaged.

① Accessing the Battery Compartment

Press the side tabs on the bodypack and open the battery door as shown to access the battery compartment.

3/122017/08/03

Battery

Battery: Alkaline

Battery

Battery: NiMH

Battery

Battery: Lithium

Correct Incorrect

Battery Info

Time: 8:15

Health: 98%

Charge: 97%

Shure IncorporatedAD1 AD1 Bodypack Transmitter

② Installing Batteries

• AA Batteries: Place batteries (note polarity markings) and AA Adaptor as shown and close the door

• Shure SB900A Battery: Place battery as shown (note polarity markings). Remove the AA adapter and set it aside. Close the door to secure the battery.

Note: If using AA batteries, set the battery type using the transmitter menu.

Setting the AA Battery Type

To ensure accurate display of transmitter runtime, set the battery type in the transmitter menu to match the installed AA battery type.
Note: If a Shure SB900A rechargeable battery is installed, selecting a battery type is not necessary and the battery type will display Shure.

1. Navigate to the Utilities and select Battery.

2. Use the ▼▲ buttons to select the installed battery type:

⁃ Alkaline = Alkaline
⁃ NiMH = Nickel Metal Hydride
⁃ Lithium = Lithium Primary

3. Press enter to save.

AA Battery Installation

Fully insert the batteries as shown to ensure proper battery contact and to allow the door to latch securely.

Shure SB900A Rechargeable Battery

Shure SB900A lithium-ion batteries offer a rechargeable option for powering
the transmitters. Batteries quickly charge to 50% capacity in one hour and
reach full charge within three hours.

Single chargers and multiple bay chargers are available to recharge the
Shure batteries.
Caution: Only charge Shure rechargeable batteries with a Shure battery
charger.

• Bars: Indicates the number of bars displayed

• Time: Battery runtime

• Charge: Percentage of charge capacity

• Health: Percentage of current battery health

• Cycle: Record of the number of charging cycles for the installed battery

• Temp: Battery temperature in Fahrenheit and Celsius

Shure SB900A Runtime

35 mW10 mW2 mW

Up to 5 hoursUp to 9 hoursUp to 9 hours

Checking Battery Info

When using an SB900A rechargeable battery, the receiver and transmitter
home screens display the number of hours and minutes remaining.

Detailed information for the battery is displayed Batterymenu of the transmit­ter: Utilities>Battery

• Battery: The chemistry type of for the installed battery (Shure, Alkaline,

Lithium, NiMH)

Important Tips for Care and Storage of Shure
Rechargeable Batteries

Proper care and storage of Shure batteries results in reliable performance
and ensures a long lifetime.

• Always store batteries and transmitters at room temperature

2017/08/034/12
