Shure A367R User Guide

WARNING: Disconnect the M367

from power source before installing

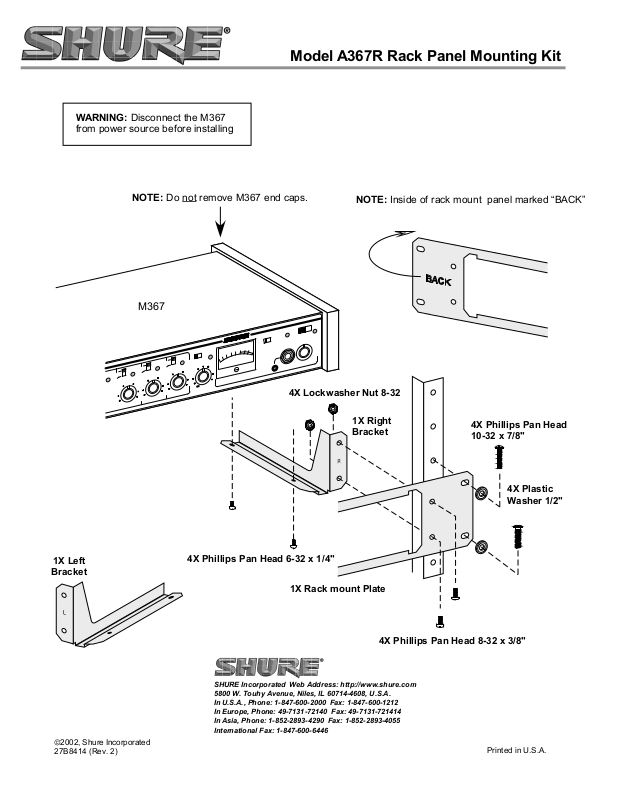

Model A367R Rack Panel Mounting Kit

NOTE: Do not

M367

remove M367 end caps.

4X Lockwasher Nut 8-32

NOTE: Inside of rack mount panel marked “BACK”

1X Right
Bracket

4X Phillips Pan Head
10-32 x 7/8"

4X Plastic
Washer 1/2"

1X Left

Bracket

2002, Shure Incorporated

e

27B8414 (Rev. 2)

4X Phillips Pan Head 6-32 x 1/4"

1X Rack mount Plate

4X Phillips Pan Head 8-32 x 3/8"
