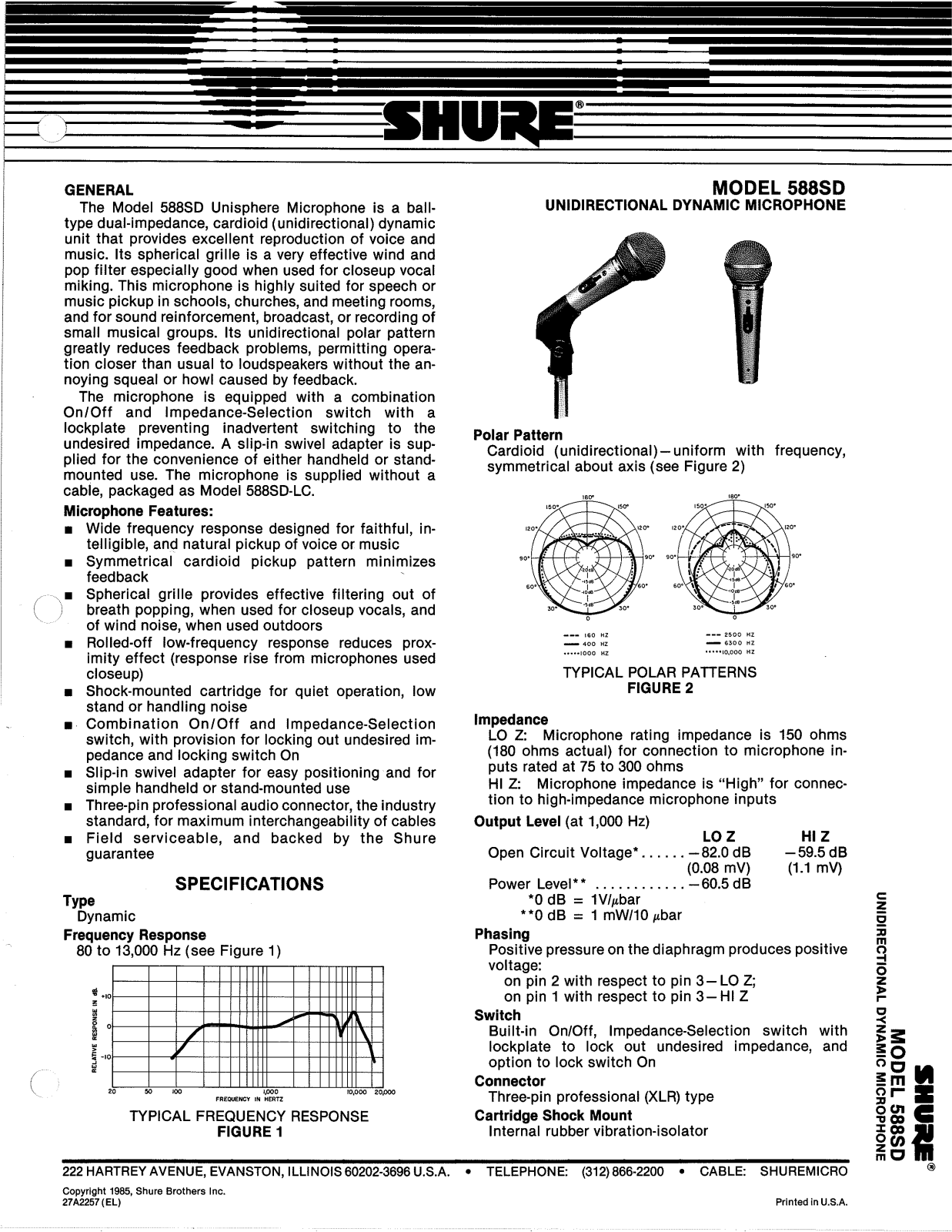

GENERAL
The Model 588SD Unisphere Microphone is a balltype dual-impedance, cardioid (unidirectional) dynamic
unit that provides excellent reproduction of voice and
music. Its spherical grille is a very effective wind and
pop filter especially good when used for
closeup vocal
miking. This microphone is highly suited for speech or
music pickup in schools, churches, and meeting rooms,
and for sound reinforcement, broadcast, or recording of
small musical groups. Its unidirectional polar pattern
greatly reduces feedback problems, permitting operation closer than usual to loudspeakers without the annoying squeal or howl caused by feedback.
The microphone is equipped with a combination
OnlOff and Im~edance-Selection switch with a
lockplate
preven'ting inadvertent switching to the
undesired impedance. A slip-in swivel adapter is supplied for the convenience of either handheld or
standmounted use. The microphone is supplied without a
cable, packaged as Model
588SD-LC.
Microphone Features:
Wide frequency response designed for faithful, intelligible, and natural pickup of voice or music
Symmetrical cardioid pickup pattern minimizes
feedback
Spherical grille provides effective filtering out of
breath popping, when used for
closeup vocals, and
of wind noise, when used outdoors
Rolled-off low-frequency response reduces proximity effect (response rise from microphones used
closeup)
Shock-mounted cartridge for quiet operation, low
stand or handling noise
Combination OnlOff and Impedance-Selection
switch, with provision for locking out undesired impedance and locking switch On
Slip-in swivel adapter for easy positioning and for
simple handheld or stand-mounted use
Three-pin professional audio connector, the industry
standard, for maximum interchangeability of cables
Field serviceable, and backed by the Shure
guarantee
SPECIFICATIONS
Type
Dynamic
Frequency Response
80 to 13,000 Hz (see Figure 1)
+I0
'u
5
-10
I
20
50
IW
FREWENCV
TYPICAL FREQUENCY RESPONSE
1.000
IN
HERTZ
FIGURE
I0,OW 20p
1
MODEL
588SD
UNIDIRECTIONAL DYNAMIC MICROPHONE
Polar Pattern
Cardioid (unidirectional)-uniform with frequency,
symmetrical about axis (see Figure 2)
---
160
-
.....
400
1000
HZ
HZ
HZ
---
-
.....
2500
6300
10.000
HZ
HZ
HZ
TYPICAL POLAR PATTERNS
FIGURE
2
Impedance
LO Z: Microphone rating impedance is 150 ohms
(180 ohms actual) for connection to microphone in-
puts rated at 75 to 300 ohms
HI Z: Microphone impedance is "High" for connec-
tion to high-impedance microphone inputs
Output Level
Open Circuit Voltage*. . . .
Power Level** . . . . .
(at 1,000
Hz)
.
. . . . .
LO
. .
-82.0 dB
(0.08
.
-60.5 dB
Z
HI
-59.5
mV) (1.1 mV)
*O dB = 1Vlpbar
**0 dB = 1 mWllO pbar
Phasing
Positive pressure on the diaphragm produces positive
voltage:
on pin
on pin 1 with respect to pin 3-HI
2
with respect to pin 3- LO
Z;
Z
Switch
Built-in OnIOff, Impedance-Selection switch with
lockplate to lock out undesired impedance, and
option to lock switch On
Connector
Three-pin professional (XLR) type
Cartridge Shock Mount
Internal rubber vibration-isolator
Z
dB
222 HARTREY AVENUE, EVANSTON, ILLINOIS 60202-3696 U.S.A. TELEPHONE: (312) 866-2200 CABLE: SHUREMICRO
Copyright
27A2257
1985,
Shure Brothers Inc.
(EL)
Printed in U.S.A.

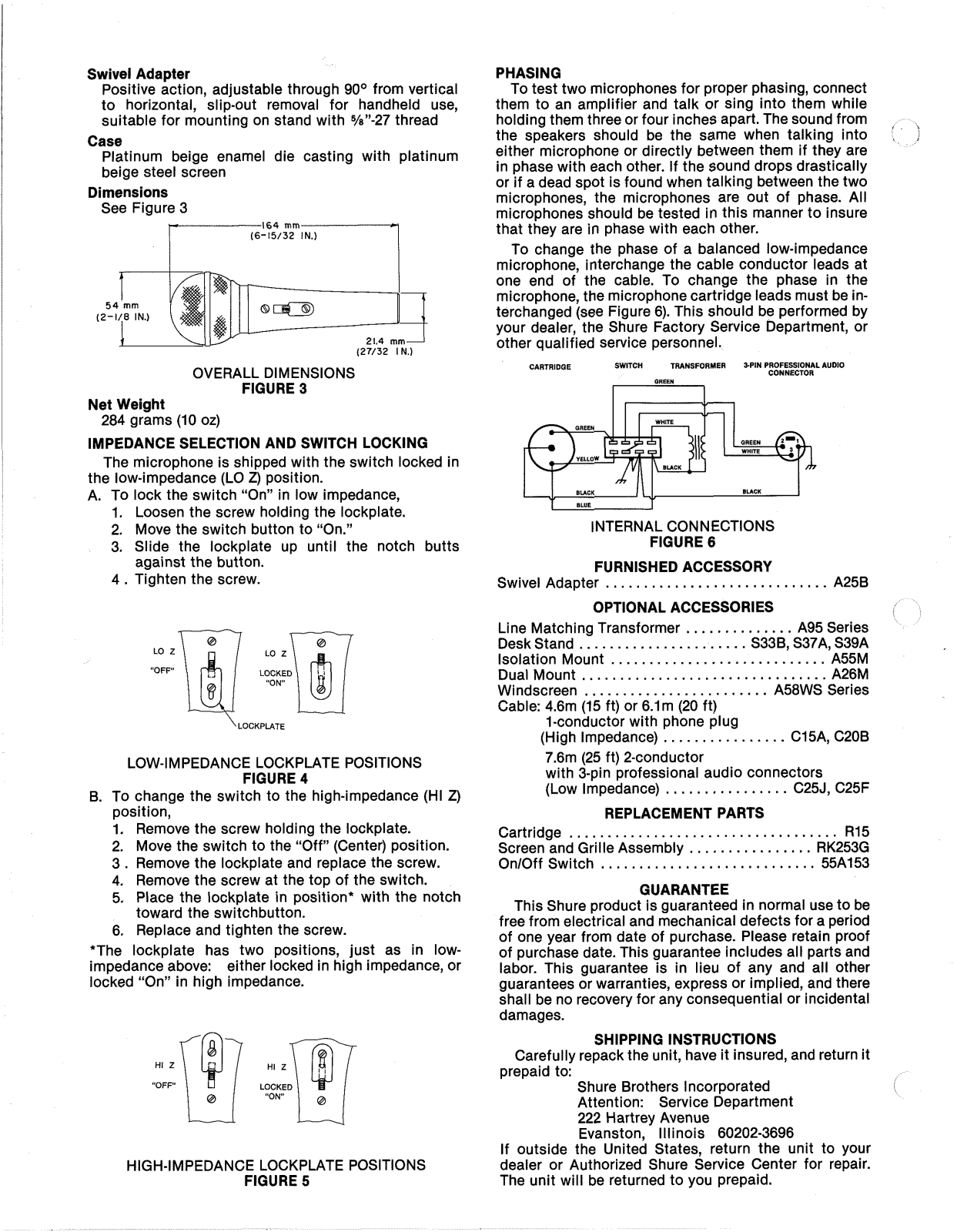

Swivel Adapter
Positive action, adjustable through 90° from vertical
to horizontal, slip-out removal for handheld use,
suitable for mounting on stand with
Case
Platinum beige enamel die casting with platinum
beige steel screen
Dimensions
See Figure 3
(6-15/32
r4
5
4
(2-1
OVERALL DIMENSIONS
Net Weight
284 grams (1 0 oz)
IMPEDANCE SELECTION AND SWITCH LOCKING
The microphone is shipped with the switch locked in
the low-impedance (LO Z) position.
A. To lock the switch
1. Loosen the screw holding the lockplate.
2. Move the switch button to "On."
3. Slide the lockplate up until the notch butts
against the button.
4.
Tighten the screw.
"OFF"
LO
zw
LOW-IMPEDANCE LOCKPLATE POSITIONS
B. To change the switch to the high-impedance (HI Z)
position,
1. Remove the screw holding the lockplate.
2. Move the switch to the "Off" (Center) position.
3 . Remove the lockplate and replace the screw.
4.
Remove the screw at the top of the switch.
5. Place the lockplate in position* with the notch
toward the switchbutton.
6.
Replace and tighten the screw.
*The lockplate has two positions, just as in
impedance above: either locked in high impedance, or
locked "On" in high impedance.
HI
Z
"OFF" LOCKED
HIGH-IMPEDANCE LOCKPLATE POSITIONS
FIGURE
"On" in low impedance,
\
LOCKPLATE
FIGURE
FIGURE
IN.)
7
3
L:K:DSjJ
"ON
4
5
%I"-27 thread
(27/32
IN.)
low-
PHASING
To test two microphones for proper phasing, connect
them to an amplifier and talk or sing into them while
holding them three or four inches apart. The sound from
the speakers should be the same when talking into
either microphone or directly between them if they are
in phase with each other. If the sound drops drastically
or if a dead spot is found when talking between the two
microphones, the microphones are out of phase. All
microphones should be tested in this manner to insure
that they are in phase with each other.
To change the phase of a balanced low-impedance
microphone, interchange the cable conductor leads at
one end of the cable. To change the phase in the
microphone, the microphone cartridge leads must be interchanged (see Figure 6). This should be performed by
your dealer, the Shure Factory Service Department, or
other qualified service personnel.
CARTRIDGE
I
1
Swivel Adapter A25B
Line Matching Transformer
Desk Stand
Isolation Mount
Dual Mount A26M
Windscreen
Cable:
Screen and Grille Assembly RK253G
4.6m (15 ft) or 6.lm (20 ft)
1-conductor with phone plug
(High Impedance)
7.6m (25 ft) 2-conductor
with 3-pin professional audio connectors
(Low Impedance) C25J, C25F
Cartridge R15
OnlOff Switch 55A153
This Shure product is guaranteed in normal use to be
free from electrical and mechanical defects for a period
of one year from date of purchase. Please retain proof
of purchase date. This guarantee includes all parts and
labor. This guarantee is in lieu of any and all other
guarantees or warranties, express or implied, and there
shall be no recovery for any consequential or incidental
damages.
Carefully repack the unit, have it insured, and return it
prepaid to:
If outside the United States, return the unit to your
dealer or Authorized Shure Service Center for repair.
The unit will be returned to you prepaid.
SWITCH TRANSFORMER
BUCK
BLUE
INTERNAL CONNECTIONS
FIGURE
FURNISHED ACCESSORY
.............................
OPTIONAL ACCESSORIES
..............
......................
............................
................................
........................
................
................
REPLACEMENT PARTS
...................................
................
............................
GUARANTEE
SHIPPING INSTRUCTIONS
Shure Brothers Incorporated
Attention: Service Department
222 Hartrey Avenue
Evanston, Illinois 60202-3696
