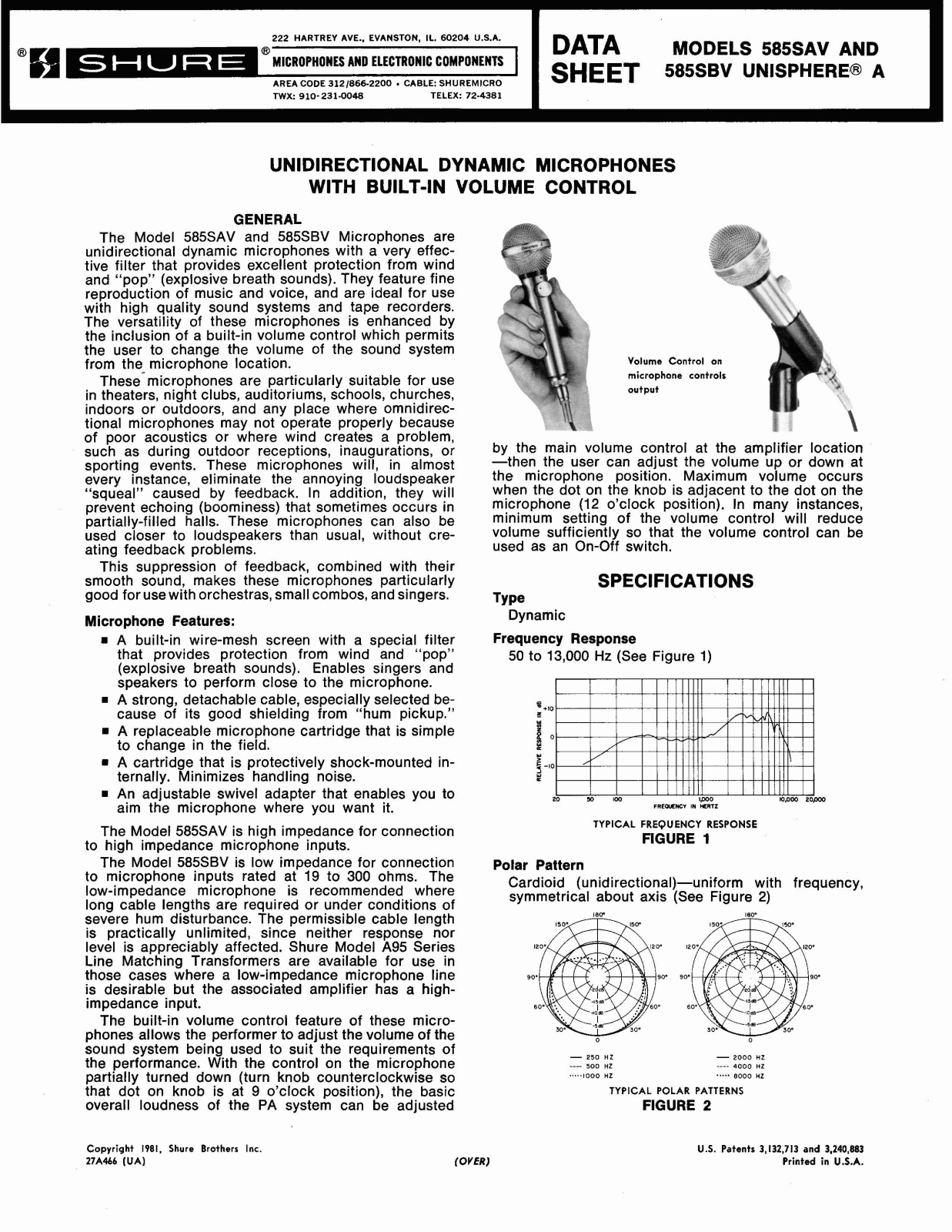

Shure 585SBV User Guide
222 HARTREY AVE.. EVANSTON, IL. 60204 U.S.A.
~3
AREA CODE 3121866-2200 . CABLE: SHUREMICRO
TWX: 910-231-0048 TELEX: 72-4381
UNIDIRECTIONAL DYNAMIC MICROPHONES
WITH BUILT-IN VOLUME CONTROL
GENERAL
The Model 585SAV and 585SBV Microphones are
unidirectional dynamic microphones with a very effective filter that provides excellent protection from wind
and "pop" (explosive breath sounds). They feature fine
reproduction of music and voice, and are ideal for use
with high quality sound systems and tape recorders.
The versatility of these microphones is enhanced by
the inclusion of a built-in volume control which permits
the user to change the volume of the sound system
from the microphone location.
~hese-microphones are particularly suitable for use
in theaters, night clubs, auditoriums, schools, churches,
indoors or outdoors, and any place where omnidirectional microphones may not operate properly because
of poor acoustics or where wind creates a problem,
such as during outdoor receptions, inaugurations, or
sporting events. These microphones will, in almost
every instance, eliminate the annoying loudspeaker
"squeal" caused by feedback. In addition, they will
prevent echoing
partially-filled halls. These microphones can also be
used closer to loudspeakers than usual, without creating feedback problems.
This suppression of feedback, combined with their
smooth sound, makes these microphones particularly
good for
Microphone Features:
to high impedance microphone inputs.
to microphone inputs rated at 19 to 300 ohms. The
low-impedance microphone is recommended where
long cable lengths are required or under conditions of
severe hum disturbance. The permissible cable length
is
level is appreciably affected. Shure Model A95 Series
Line Matching Transformers are available for use in
those cases where a low-impedance microphone line
is desirable but the associated amplifier has a
impedance input.
phones allows the performer to adjust the volume of the
sound system being used to suit the requirements of
the performance. With the control on the microphone
partially turned down (turn knob counterclockwise so
that dot on knob is at 9 o'clock position), the basic
overall loudness of the PA system can be adjusted
usewith orchestras, small combos, and singers.
A built-in wire-mesh screen with a special filter
that provides protection from wind and "pop"
(explosive breath sounds). Enables singers and
speakers to perform close to the microphone.
A strong, detachable cable, especially selected because of its good shielding from "hum pickup."
A replaceable microphone cartridge that is simple
to change in the field.
A cartridge that is protectively shock-mounted in-
ternally. Minimizes handling noise.
An adjustable swivel adapter that enables you to
aim the microphone where you want it.
The Model
The Model
practical1 y unlimited, since neither response nor
The built-in volume control feature of these micro-
(boominess) that sometimes occurs in
585SAV is high impedance for connection
585SBV is low impedance for connection
high-
MODELS 585SAV AND
SHEEP
1
DATA
by the main volume control at the amplifier location
-then the user can adjust the volume up or down at
the microphone position. Maximum volume occurs
when the dot on the knob is adjacent to the dot on the
microphone (12 o'clock position). In many instances,
minimum setting of the volume control will reduce
volume sufficiently so that the volume control can be
used as an On-Off switch.
585SBV UNISPHEREB A
Volume
Control
microphone
output
on
controls
SPECIFICATIONS
TY pe
Dynamic
Frequency Response
50 to 13,000
Polar Pattern
Cardioid (unidirectional)-uniform with frequency,
symmetrical about axis (See Figure
Hz
TYPICAL
-
250 HZ
....
500 HZ
..'..I000 HZ
(See Figure
FREQUENCY
FIGURE
TYPICAL
POLAR
FIGURE 2
1)
RESPONSE
1
-
2000 HZ
....
4000
.....
8000 HZ
PATTERNS
2)
HZ
I
Copyright
27A466 (UA)
1981.
Shure
Brothers
Inc.
(OVER)
U.S.
Patents
3,132,713
Printed
and
3,240,883
in
U.S.A.

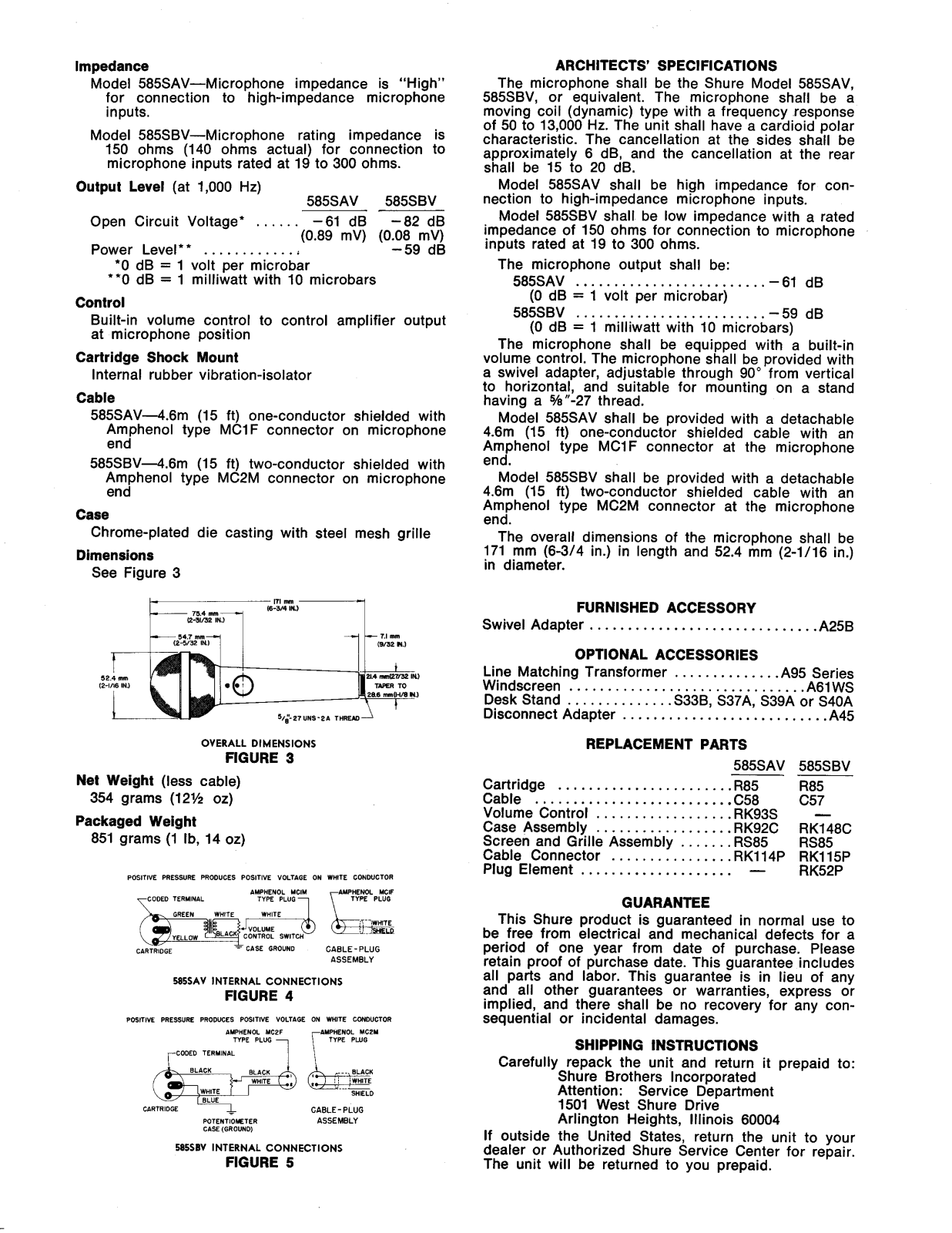

Impedance
Model
585SAV-Microphone impedance is "High"
for connection to high-impedance microphone
inputs.
Model
585SBV-Microphone rating impedance is
150 ohms (140 ohms actual) for connection to
microphone inputs rated at 19 to 300 ohms.
Output Level (at 1,000 Hz)
585SAV 585s BV
Open Circuit Voltage*
Power Level*
*
............;
......
-
61 dB -82 dB
(0.89
mV) (0.08 mV)
-59 dB
*O dB = 1 volt per microbar
**0 dB = 1
milliwatt with 10 microbars
Control
Built-in volume control to control amplifier output
at microphone position
Cartridge Shock Mount
Internal rubber vibration-isolator
Cable
585SAV4.6m (15 ft) one-conductor shielded with
Amphenol type MClF connector on microphone
end
585SBV4.6m (15 ft) two-conductor shielded with
Amphenol type MC2M connector on microphone
end
Case
Chrome-plated die casting with steel mesh grille
Dimensions
See Figure 3
ARCHITECTS' SPECIFICATIONS
The microphone shall be the Shure Model
585SAV,
585SBV, or equivalent. The microphone shall be a
moving coil (dynamic) type with a frequency response
of 50 to 13,000 Hz. The unit shall have a cardioid polar
characteristic. The cancellation at the sides shall be
approximately 6 dB, and the cancellation at the rear
shall be 15 to 20 dB.
Model
585SAV shall be
high impedance for con-
nection to high-impedance microphone inputs.
Model
585SBV shall be low impedance with a rated
impedance of 150 ohms for connection to microphone
inputs rated at 19 to 300 ohms.
The microphone output shall be:
585SAV
.........................
-
61 dB
(0 dB = 1 volt per microbar)
585SBV
..........................
59 dB
(0 dB = 1 milliwatt with 10 microbars)
The microphone shall
be equipped with a built-in
volume control. The microphone shall be provided with
a swivel adapter, adjustable through
90" from vertical
to horizontal, and suitable for mounting on a stand
having a
Model
%"-27 thread.
585SAV shall be provided with a detachable
4.6m (15 ft) one-conductor shielded cable with an
Amphenol type MClF connector at the microphone
end.
Model
4.6m (15
585SBV shall be provided with a detachable
ft)
two-conductor shielded cable with an
Amphenol type MC2M connector at the microphone
end.
The overall dimensions of the microphone shall be
171 mm (6-3/4 in.) in length and 52.4 mm (2-1/16 in.)
in diameter.
OVERALL
FIGURE
Net Weight (less cable)
354 grams
(12% oz)
Packaged Weight
851 grams
(1 Ib, 14 oz)
POSITIVE PRESSURE PRODUCES POSITIVE VOLTAGE ON WHITE CONDUCTOR
\COOED TERMINAL
ClRTRlnGF
....
585SAV
INTERNAL
FIGURE
POSITIVE PRESSURE PRODUCES POSITIVE VOLTAGE ON WHITE CONDUCTOR
rCOOEO TERMINAL
C~RTRIOGE
585SBV
AMPHENOL
7
POTENTIOHETER
CASE (GROUND)
INTERNAL
FIGURE
DIMENSIONS
AMPHENOL MClM
TYPE PLUG
-
CASE GROUND
CONNECTIONS
pw
MCZF
,
CONNECTIONS
5/;-27
UNS-ZA THRW
3
7
4
5
rAw%E"LP?%F
CABLE-PLUG
ASSEMBLY
iAMpHENoL
TYPE PWG
SHIELD
CABLE- PLUG
ASSEMBLY
MCZM
FURNISHED ACCESSORY
Swivel Adapter
.............................
.A25B
OPTIONAL ACCESSORIES
)
Line Matching Transformer
Windscreen
Desk Stand
Disconnect Adapter
...............................
..............
...........................
.............
.A95 Series
A61 WS
S33B, S37A, S39A or S40A
A45
REPLACEMENT PARTS
585SAV
Cartridge
Cable
Volume Control
Case Assembly
Screen and Grille Assembly
Cable Connector
Plug Element
.......................
..........................
..................
..................
.......
................
....................
R85
C58
RK93S
RK92C
RS85
RK114P
-
GUARANTEE
This Shure product is guaranteed in normal use to
be free from electrical and mechanical defects for a
period of one year from date of purchase. Please
retain proof of purchase date. This guarantee includes
all parts and labor. This guarantee is in lieu of any
and all other guarantees or warranties, express or
implied, and there shall be no recovery for any consequential or incidental damages.
SHIPPING INSTRUCTIONS
Carefully repack the unit and return it prepaid to:
Shure Brothers Incorporated
Attention: Service Department
1501 West Shure Drive
Arlington Heights, Illinois 60004
If outside the United States, return the unit to your
dealer or Authorized Shure Service Center for repair.
The unit will be returned to you prepaid.
