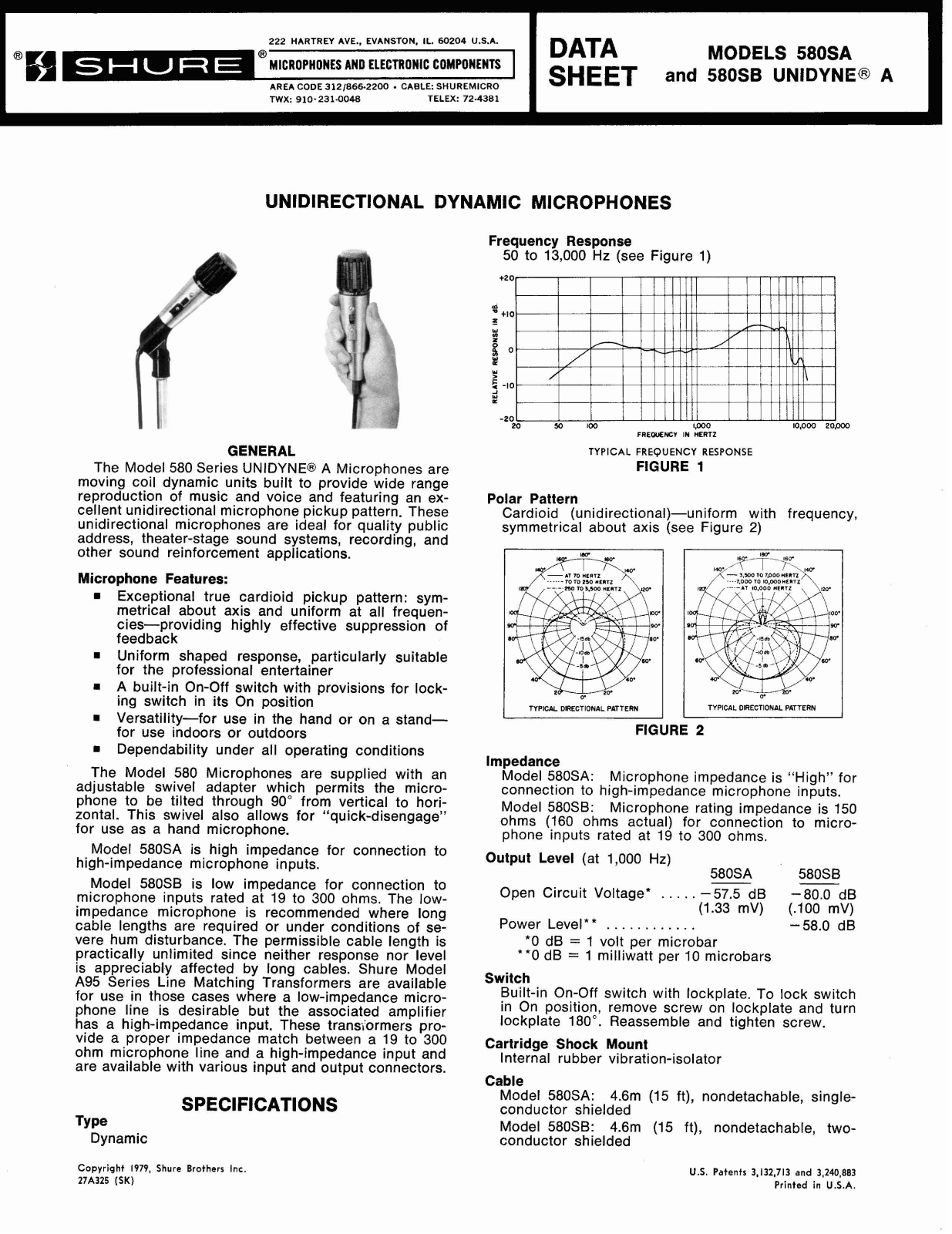

Shure 580SB, 580SA User Guide

222 HARTREY AVE.. EVANSTON. IL. 60204 U.S.A.

AREA CODE 312/866.2200 . CABLE: SHUREMICRO TWX: 910-231.0048 TELEX: 72-4381

UNIDIRECTIONAL DYNAMIC MICROPHONES

GENERAL

The Model 580 Series moving coil dynamic units built to provide wide range reproduction of music and voice and featuring an excellent unidirectional microphone pickup pattern. These unidirectional microphones are ideal for quality public address, theater-stage sound systems, recording, and other sound reinforcement applications.

UNIDYNEB A Microphones are

MODELS 580SA

SHEET

DATA

Frequency Response

50 to 13,000 Hz (see Figure 1)

+20

+I0

-I0

-20 20

100

TYPICAL

Polar Pattern

Cardioid (unidirectional)-uniform with frequency, symmetrical about axis (see Figure

and

FREWENCY

FREQUENCY

FIGURE

lUm0 10.000

HERTZ

580SB UNIDYNEB A

RESPONSE

20.003

Microphone Features:

Exceptional true cardioid pickup pattern: symmetrical about axis and uniform at all frequencies-providing highly effective suppression of

feedback

Uniform shaped response, particularly suitable

for the professional entertainer

built-in On-Off switch with provisions for lock-

ing switch in its On position

Versatility-for use in the hand or on a standfor use indoors or outdoors

Dependability under all operating conditions

The Model 580 Microphones are supplied with an adjustable swivel adapter which permits the microphone to be tilted through 90" from vertical to horizontal. This swivel also allows for "quick-disengage" for use as a hand microphone.

Model

high-impedance microphone inputs.

Model

microphone inputs rated at 19 to 300 ohms. The impedance microphone is recommended where long cable lengths are required or under conditions of severe hum disturbance. The permissible cable length is practically unlimited since neither response nor level is appreciably affected by long cables. Shure Model A95 Series Line Matching Transformers are available for use in those cases where a low-impedance microphone line is desirable but the associated amplifier has a high-impedance input. These vide a proper impedance match between a 19 to 300 ohm microphone line and a high-impedance input and are available with various input and output connectors.

580SA is high impedance for connection to 580SB is low impedance for connection to

low-

transiormers pro-

SPECIFICATIONS

TY pe

Dynamic

FIGURE

Impedance

ohms (160 ohms actual) for connection to micro-

Output Level (at 1,000

Open Circuit Voltage* Power Level

Switch

Cartridge Shock Mount

Cable

580SA:

Model connection to high-impedance microphone inputs.

580SB:

Model phone inputs rated at 19 to 300 ohms.

*O dB = 1 volt per microbar

**O

dB = 1 milliwatt per 10 microbars

Built-in On-Off switch with lockplate. To lock switch in On position, remove screw on lockplate and turn lockplate 180". Reassemble and tighten screw.

Internal rubber vibration-isolator

Model conductor shielded

580SA: 4.6m (15 ft), nondetachable, single580SB: 4.6m (15 ft), nondetachable, two-

Microphone impedance is "High" for Microphone rating impedance is 150

Hz)

* *

. .

. . . .

580SA 580SB

. .

-57.5 dB mV) (.I00 mV)

(1.33

-80.0 dB

-58.0 dB

27A325

(SK)

1979,

Shure

Brothers Inc

U.S.

Patents

3,132,713

Printed

and

3,240,883

U.S.A.

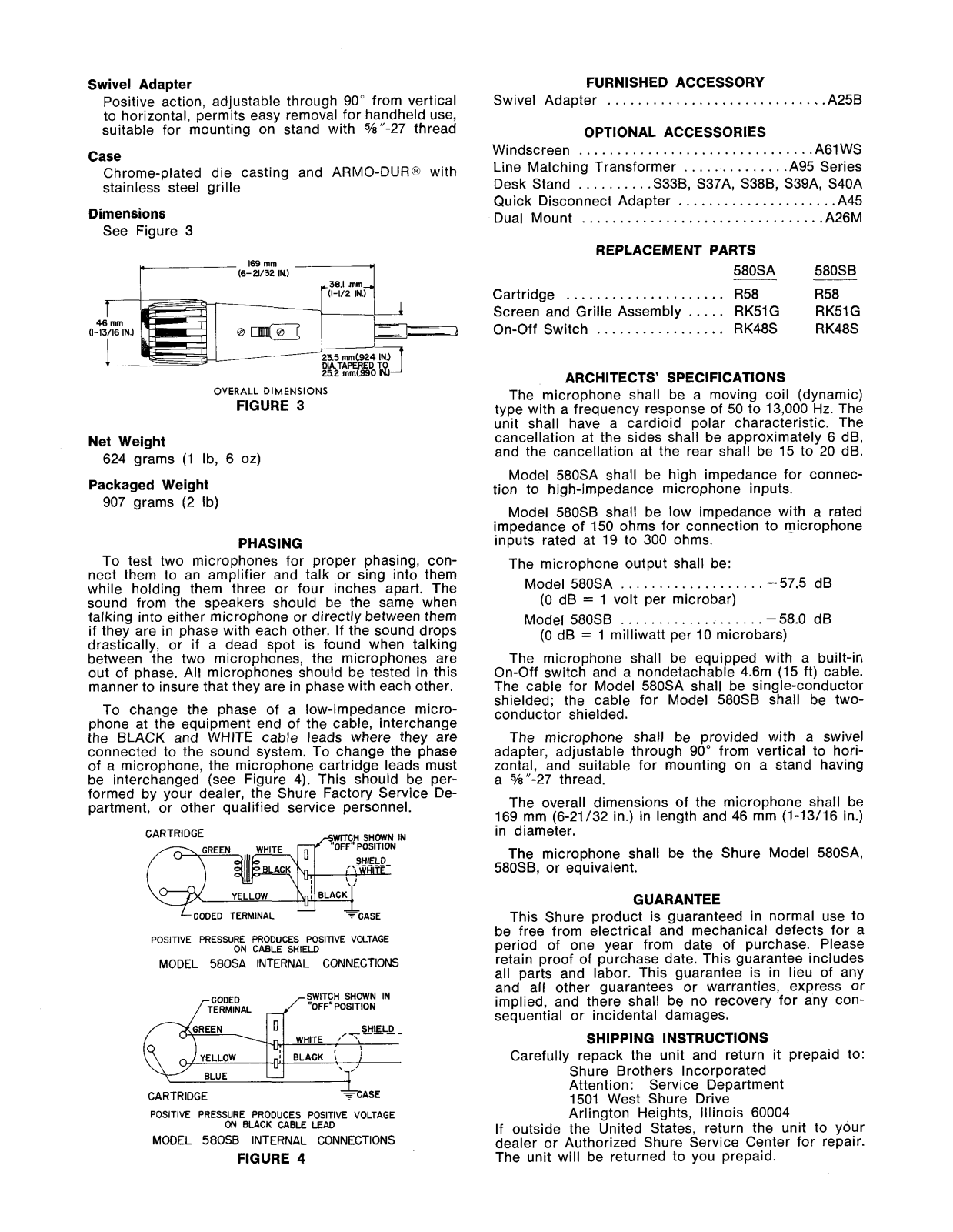

Swivel Adapter

Positive action, adjustable through 90" from vertical to horizontal, permits easy removal for handheld use,

suitable for mounting on stand with

%"-27 thread

Case

Chrome-plated die casting and ARMO-DUR@ with

stainless steel grille

Dimensions

See Figure 3

169

(6-

21/32 IN1

rnrn

FURNISHED ACCESSORY

Swivel Adapter .A25B

............................

OPTIONAL ACCESSORIES

Windscreen

Line Matching Transformer Desk Stand Quick Disconnect Adapter Dual Mount

...............................

.............

.........

.S33B, S37A, S38B, S39A, S40A

A6lWS

.A95 Series

.....................

...............................

.A26M

A45

REPLACEMENT PARTS

580SA 580SB

Cartridge R58 R58

Screen and Grille Assembly RK51G RK51G

On-Off Switch RK48S RK48S

.....................

.....

.................

OVERALL

DIMENSIONS

FIGURE

Net Weight

624 grams (1 Ib, 6 oz)

Packaged Weight

907 grams

Ib)

PHASING

To test two microphones for proper phasing, connect them to an amplifier and talk or sing into them while holding them three or four inches apart. The sound from the speakers should be the same when talking into either microphone or directly between them

if they are in phase with each other. If the sound drops drastically, or if a dead spot is found when talking between the two microphones, the microphones are out of phase. All microphones should be tested in this

manner to insure that they are in phase with each other.

To change the phase of a low-impedance micro-

phone at the equipment end of the cable, interchange the BLACK and WHITE cable leads where they are connected to the sound system. To change the phase of a microphone, the microphone cartridge leads must be interchanged (see Figure 4). This should be performed by your dealer, the Shure Factory Service Department, or other qualified service personnel.

CARTRIDGE

ARCHITECTS' SPECIFICATIONS

The microphone shall be a moving coil (dynamic)

type with a frequency response of 50 to 13,000

Hz.

The unit shall have a cardioid polar characteristic. The cancellation at the sides shall be approximately 6 dB, and the cancellation at the rear shall be 15 to 20 dB.

Model

580SA shall be high impedance for connec-

tion to high-impedance microphone inputs.

Model

580SB shall be low impedance with a rated

impedance of 150 ohms for connection to microphone

inputs rated at 19 to 300 ohms.

The microphone output shall be:

Model 580SA -57.5 dB

...................

(0 dB = 1 volt per microbar)

Model 580SB -58.0 dB

...................

(0 dB = 1 milliwatt per 10 microbars)

The microphone shall be equipped with a built-in On-Off switch and a The cable for Model shielded; the cable for Model

nondetachable 4.6m (15 ft) cable.

580SA shall be single-conductor

580SB shall be two-

conductor shielded.

The microphone shall be provided with a swivel adapter, adjustable through 90" from vertical to horizontal, and suitable for mounting on a stand having

%"-27 thread.

The overall dimensions of the microphone shall be 169 mm (6-21132 in.) in length and 46 mm (1-13116 in.) in diameter.

The microphone shall be the Shure Model

580SA,

580SB, or equivalent.

-L~~~~~

POSITIVE PRESSURE PRODUCES POSITIVE VOLTAGE

MODEL 580SA INTERNAL CONNECTIONS

TERMINAL

ON CABLE SHIELD

jSWITCH SHOWN IN

WHITE

-1

.!I

BLACK

ASE

"0FFWPOSITION

SHIELD

,-----

CARTRIDGE

POSITIVE PRESSURE PRODUCES POSITIVE VOLTAGE

MODEL 580SB INTERNAL CONNECTIONS

BLACK CABLE LEAD

FIGURE

+ASE

GUARANTEE

This Shure product is guaranteed in normal use to be free from electrical and mechanical defects for a period of one year from date of purchase. Please

retain proof of purchase date. This guarantee includes all parts and labor. This guarantee is in lieu of any and all other guarantees or warranties, express or implied, and there shall be no recovery for any consequential or incidental damages.

SHIPPING INSTRUCTIONS

Carefully repack the unit and return it prepaid to:

Shure Brothers Incorporated Attention: Service Department 1501 West Shure Drive Arlington Heights, Illinois 60004

If outside the United States, return the unit to your dealer or Authorized Shure Service Center for repair. The unit will be returned to you prepaid.
