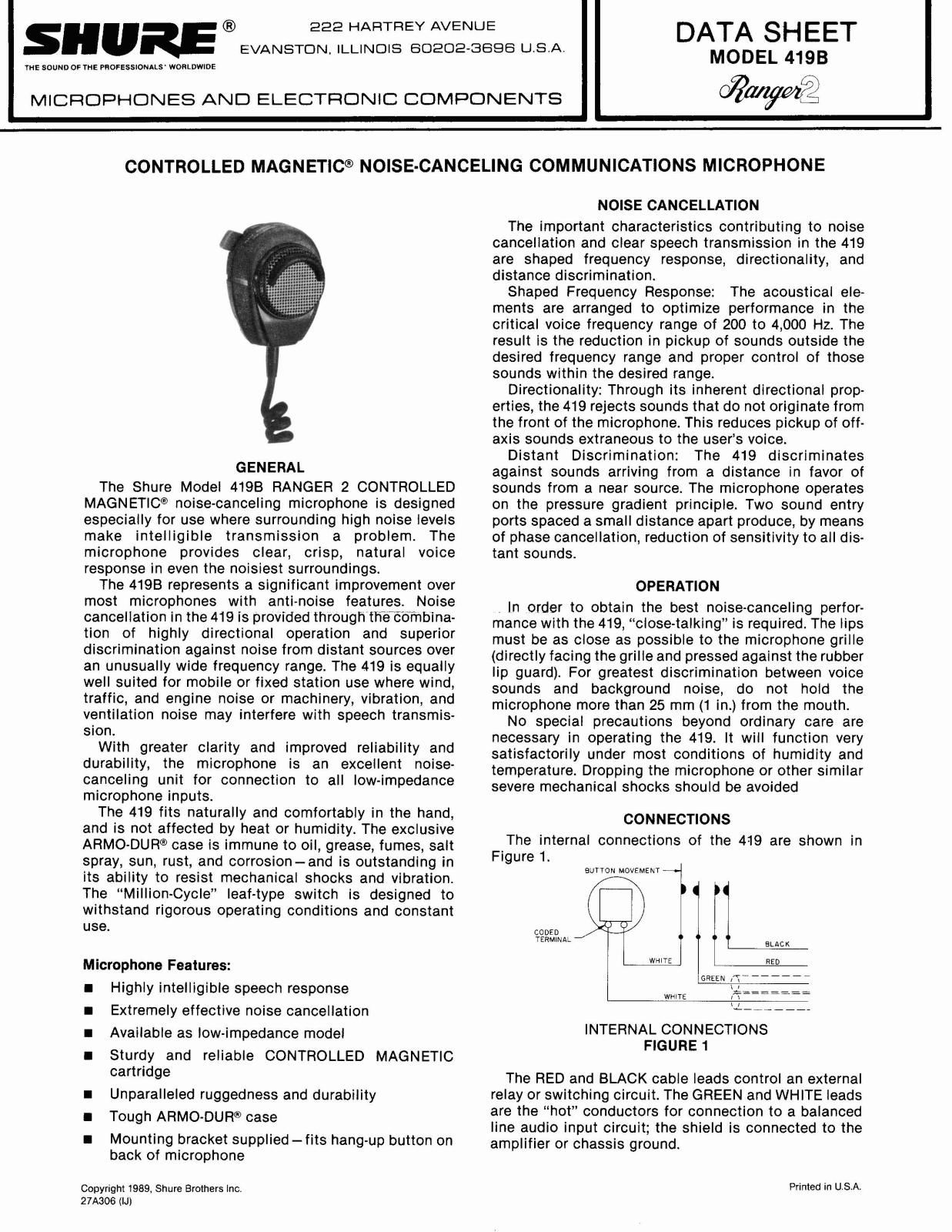

Shure 419B User Guide
222
HARTREY AVENUE
SnUm
THE SOUNDOFTHE PROFESSIONALS' WORLDWIDE
@
EVANSTON. ILLINOIS
60202-3696
MICROPHONES AND ELECTRONIC COMPONENTS
J
CONTROLLED MAGNETIC@ NOISE-CANCELING COMMUNICATIONS MICROPHONE
GENERAL
The Shure Model 4198 RANGER 2 CONTROLLED
MAGNETICa noise-canceling microphone is designed
especially for use where surrounding high noise levels
make intelligible transmission a problem. The
microphone provides clear, crisp, natural voice
response in even the noisiest surroundings.
The
4196 represents a significant improvement over
most microphones with anti-noise features. Noise
cancellation in the 419 is provided through
tion of highly directional operation and superior
discrimination against noise from distant sources over
an unusually wide frequency range. The 419 is equally
well suited for mobile or fixed station use where wind,
traffic, and engine noise or machinery, vibration, and
ventilation noise may interfere with speech transmission.
With greater clarity and improved reliability and
durability, the microphone is an excellent
canceling unit for connection to all low-impedance
microphone inputs.
The 419 fits naturally and comfortably in the hand,
and is not affected by heat or humidity. The exclusive
ARMO-DURm case is immune to oil, grease, fumes, salt
spray, sun, rust, and corrosion-and is outstanding in
its ability to resist mechanical shocks and vibration.
The "Million-Cycle" leaf-type switch is designed to
withstand rigorous operating conditions and constant
use.
th-e-combina-
noise-
USA.
DATA
MODEL
SHEET
419B
NOISE CANCELLATION
The important characteristics contributing to noise
cancellation and clear speech transmission in the 419
are shaped frequency response, directionality, and
distance discrimination.
Shaped Frequency Response: The acoustical elements are arranged to optimize performance in the
critical voice frequency range of 200 to 4,000 Hz. The
result is the reduction in pickup of sounds outside the
desired frequency range and proper control of those
sounds within the desired range.
Directionality: Through its inherent directional properties, the 419 rejects sounds that do not originate from
the front of the microphone. This reduces pickup of
off-
axis sounds extraneous to the user's voice.
Distant Discrimination: The 419 discriminates
against sounds arriving from a distance in favor of
sounds from a near source. The microphone operates
on the pressure gradient principle. Two sound entry
ports spaced a small distance apart produce, by means
of phase cancellation, reduction of sensitivity to all distant sounds.
OPERATION
In order to obtain the best noise-canceling performance with the 419, "close-talking" is required. The lips
must be as close as possible to the microphone grille
(directly facing the grille and pressed against the rubber
lip guard). For greatest discrimination between voice
sounds and background noise, do not hold the
microphone more than
25
mm (1 in.) from the mouth.
No special precautions beyond ordinary care are
necessary in operating the 419. It will function very
satisfactorily under most conditions of humidity and
temperature. Dropping the microphone or other similar
severe mechanical shocks should be avoided
CONNECTIONS
The internal connections of the 4d9 are shown in
Figure
1.
Microphone Features:
H
Highly intelligible speech response
Extremely effective noise cancellation
Available as low-impedance model
H
Sturdy and reliable CONTROLLED MAGNETIC
cartridge
Unparalleled ruggedness and durability
H
Tough ARMO-DURa case
H
Mounting bracket supplied -fits hang-up button on
back of microphone
Copyright
27A306
(IJ)
1989,
Shure
Brothers Inc.
1
WHITE
RED
'
L
- - - - -
-
- - - - - - -
,I
I
/
-
- - - - -
- -
-.
INTERNAL CONNECTIONS
FIGURE
1
The RED and BLACK cable leads control an external
relay or switching circuit. The GREEN and WHITE leads
are the "hot" conductors for connection to a balanced
line audio input circuit; the shield is connected to the
amplifier or chassis ground.
Printed
in
U.S.A.

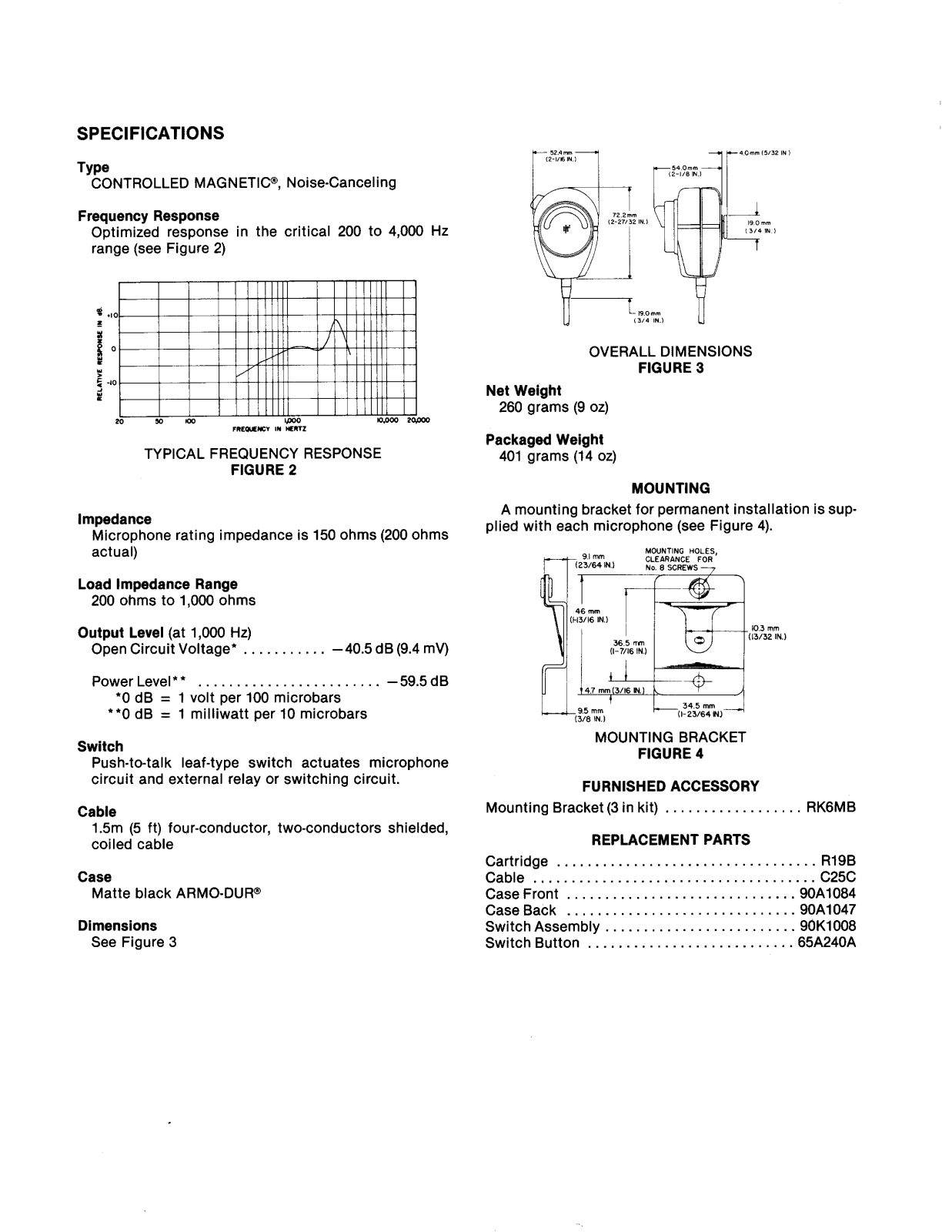

SPECIFICATIONS
Type
CONTROLLED MAGNETIC@, Noise-Canceling
Frequency Response
Optimized response in the critical 200 to 4,000 Hz
range (see Figure 2)
Net Weight
260 grams (9 oz)
OVERALL DIMENSIONS
FIGURE
3
TYPICAL FREQUENCY RESPONSE
FIGURE
2
lmpedance
Microphone rating impedance is 150 ohms (200 ohms
actual)
Load lmpedance Range
200 ohms to 1,000 ohms
Output Level
Open Circuit Voltage*
Power Level*
(at 1,000 Hz)
...........
*
........................
-40.5 dB (9.4 mV)
-59.5 dB
*O dB = 1 volt per 100 microbars
**0 dB
=
1 milliwatt per 10 microbars
Switch
Push-to-talk leaf-type switch actuates microphone
circuit and external relay or switching circuit.
Cable
1.5m (5 ft) four-conductor, two-conductors shielded,
coiled cable
Case
Matte black ARMO-DUR@
Dimensions
See Figure 3
Packaged Weight
401 grams (14 oz)
MOUNTING
A mounting bracket for permanent installation is sup-
plied with each microphone (see Figure 4).
11-7/16
IN.1
MOUNTING HOLES,
CLEARANCE FOR
No.
8
SCREWS
7
10.3
(13/32
mm
IN.)
161N,
MOUNTING BRACKET
FIGURE
4
FURNISHED ACCESSORY
Mounting Bracket (3 in kit)
..................
RK6MB
REPLACEMENT PARTS
Cartridge
Cable
CaseFront 90A1084
CaseBack 90A1047
Switch Assembly
Switch Button
..................................
.....................................
..............................
..............................
........................
...........................
.90K1008
65A240A
R19B
C25C
