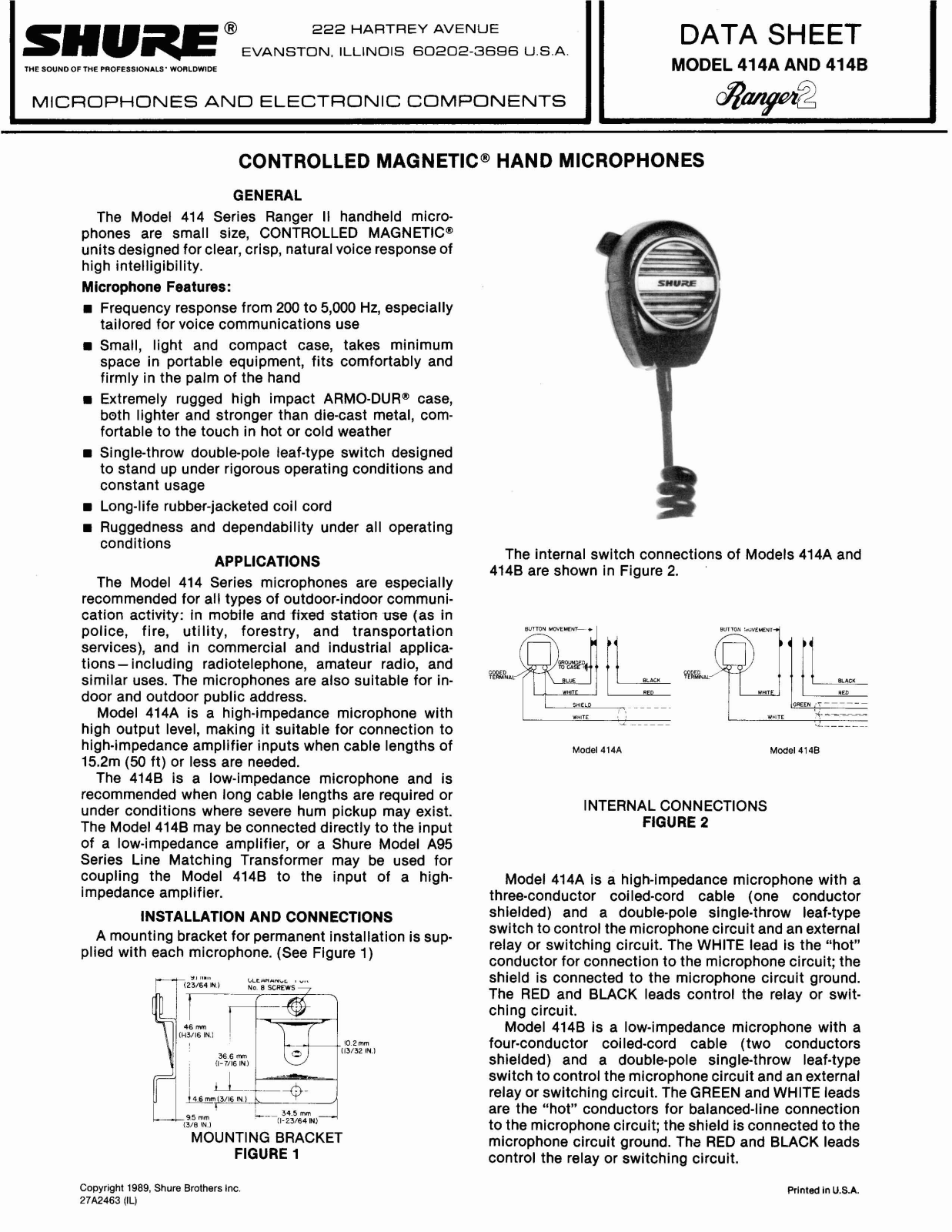

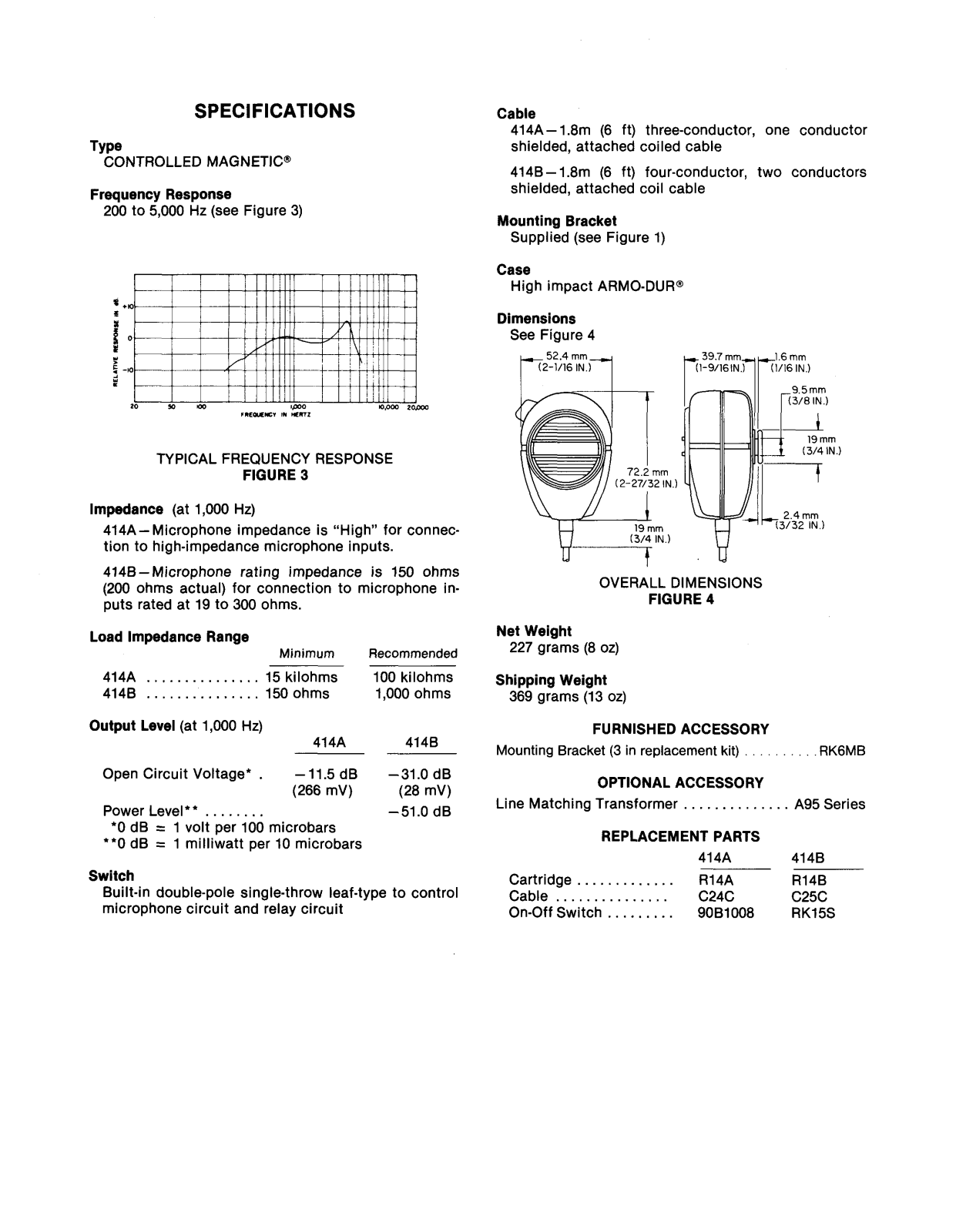

SPECIFICATIONS
Type
CONTROLLED MAGNETICB
Frequency Response
200 to 5,000 Hz (see Figure 3)
TYPICAL FREQUENCY RESPONSE
FIGURE 3
lmpedance (at 1,000 Hz)
414A-Microphone impedance is "High" for connection to high-impedance microphone inputs.
414B-Microphone rating impedance is 150 ohms
(200 ohms actual) for connection to microphone inputs rated at 19 to 300 ohms.
Load lmpedance Range |
Minimum |
Recommended |
|
||
414A . . . . . . . . . . . . . . . |
15 kilohms |
100 kilohms |
4148 . . . . . . . . . . . . . . . |
150 ohms |
1,000 ohms |
Output Level (at 1,000 Hz) |
414A |
4148 |
|
||
Open Circuit Voltage* . |
-11.5 dB |
-31.0 dB |
|
(266 mV) |
(28 mV) |
Power Level * . . . . . . . . |
|
-51.0 dB |
*O dB = 1 volt per 100 microbars |
|
**0 dB = 1 milliwatt per 10 microbars
Switch
Built-in double-pole single-throw leaf-type to control microphone circuit and relay circuit
Cable
414A-1.8m (6 ft) three-conductor, one conductor shielded, attached coiled cable
414B -1.8m (6 ft) four-conductor, two conductors shielded, attached coil cable
Mounting Bracket
Supplied (see Figure 1)
Case
High impact ARMO-DUR@
Dimensions
See Figure 4
19 rnrn
(3/4 IN.)
OVERALL DIMENSIONS
FIGURE 4
Net Weight
227 grams (8 oz)
Shipping Weight
369 grams (13 oz)
FURNISHED ACCESSORY
Mounting Bracket (3 in replacement kit) . . . . . . . . . . RKGMB
OPTIONAL ACCESSORY
Line Matching Transformer . . . . . . . . . . . . . . A95 Series
REPLACEMENT PARTS |
|
|
|
414A |
414B |
Cartridge ............. |
R14A |
R14B |
Cable . . . . . . . . . . . . . . . |
C24C |
C25C |
On-Off Switch ......... |
90B1008 |
RK15S |
