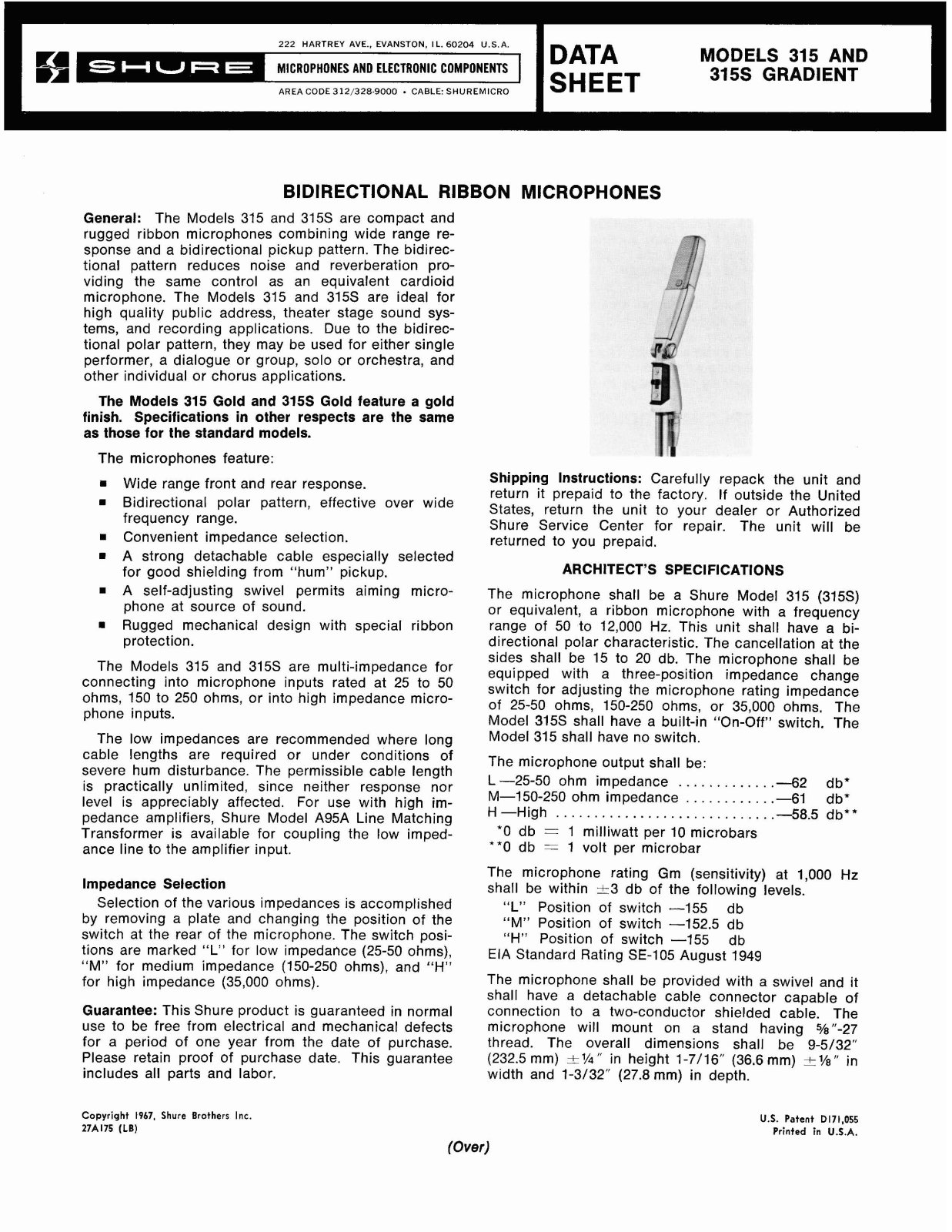

OPTIONAL ACCESSORIES
Line Matching Transformer . . . . . . . . . . . . . . . . . . A95A
Vibration-Isolation Stand . . . . . . . . . . . . . . . . . . . . S39A
Desk Stand ................................ S36A
Quick-Disconnect Isolation Unit . . . . . . . . . Model A47
REPLACEMENT COMPONENTS
Cable and Plug Assembly . . . . . . . . . . . . . . . Model C55
Important: Shure Microphone Cables are selected after exhaustive tests to insure superior performance in microphones because of low capacities, superior shielding properties and unusually long life under severe use.
Cables with plastic insulation should not be subjected to excessive soldering-iron heat. Carefully clean and tin the conductors and the connections to which the conductors are to be soldered. The soldering operation can then be done with a minimum of heat, thereby avoiding any possibility of damage to the cable.

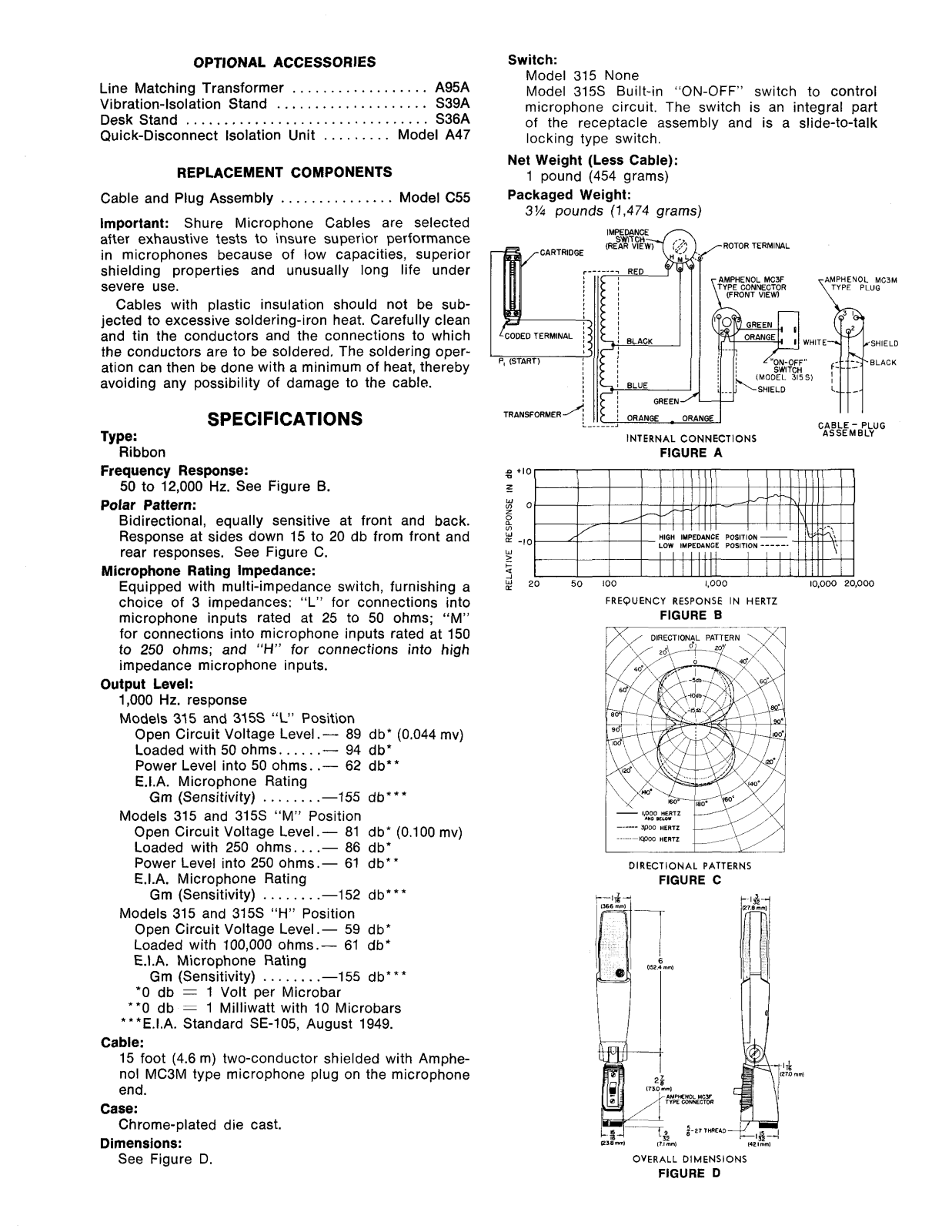

SPECIFICATIONS
Type: Ribbon
Frequency Response:
50 to 12,000 Hz. See Figure B.
Polar Pattern:
Bidirectional, equally sensitive at front and back. Response at sides down 15 to 20 db from front and rear responses. See Figure C.
Microphone Rating Impedance:
Equipped with multi-impedance switch, furnishing a choice of 3 impedances: "L" for connections into microphone inputs rated at 25 to 50 ohms; "M" for connections into microphone inputs rated at 150 to 250 ohms; and "H" for connections into high impedance microphone inputs.
Output Level: |
|
|
|
1,000 Hz. response |
|
|
|
Models 315 and 315s "L" Position |
|
||
Open Circuit Voltage Level .- |
89 db* (0.044 mv) |
||
Loaded with 50 ohms.. . . . .- |
94 db* |
||
Power Level into 50 ohms. .- |
62 db** |
||
E.I.A. Microphone Rating |
|
|
|
Gm (Sensitivity) |
. . . . . . ..-I55 |
db* * * |
|
Models 315 and 315s "M" Position |
|
||
Open Circuit Voltage Level .- |
81 db* (0.100 mv) |
||
Loaded with 250 ohms. . . .- |
86 db* |
||
Power Level into 250 ohms.- |
61 db*" |
||
E.I.A. Microphone |
Rating |
|
|
Gm (Sensitivity) |
....... .-I52 |
db*** |
|
Models 315 and 315s "H" Position |
|
||
Open Circuit Voltage Level .- |
59 db* |
||
Loaded with 100,000 ohms.- |
61 db* |
||
E.I.A. Microphone |
Rating |
|
|
Gm (Sensitivity) |
. . . . . . ..-I55 |
db*** |
*O db = 1 Volt per Microbar
**O db = 1 Milliwatt with 10 Microbars
* * *E.I.A. Standard SE-105, August 1949.
Cable:
15 foot (4.6 m) two-conductor shielded with Ampheno1 MC3M type microphone plug on the microphone end.
Case:
Chrome-plated die cast.
Dimensions:
See Figure D.
Switch:
Model 315 None
Model 315s Built-in "ON-OFF" switch to control microphone circuit. The switch is an integral part of the receptacle assembly and is a slide-to-talk locking type switch.
Net Weight (Less Cable):
1 pound (454 grams)
Packaged Weight:
3% pounds (1,474 grams)
|
CABLE - PLUG |
INTERNAL CONNECTIONS |
ASSEMBLY |
|
FIGURE A
% +IO
z
W |
0 |
v, |
$
," -,,
Idr |
|
|
|
|
a |
|
|
|
|
*O |
50 |
loo |
1,000 |
l0,OOO 20,000 |
|
FREQUENCY RESPONSE IN HERTZ
FIGURE B
DIRECTIONAL PATTERNS
FIGURE C
I
a
7 0 mm,
1421mml
OVERALL DIMENSIONS
FIGURE D
