SHUOYING DIGITAL SCIENCE and TECHNOLOGY PDV3600 User Manual

PDV3600

User’s Manual

Appearance and buttons

1. LCDdi splay screen

2. Power/Mode

3.WIFI Indicator (red)

7.Shutter /OK key

8.Camera Lens*2（220°）

9. Triangle nut

10. Access flap（USB, TF）

11.Loudspeaker

12.Microphone

13. Lanyard hole

4. Power indicator/Charging indicator

(Blue)

5.Wifi/Menu

6.Busy (red)

14. Reset Button

How to use your Wifi camera?

1. First, insert a micro SD or micro SDHC card; see the picture on the right;

SDHC above Class 6 is recommended. When the professional mode is on for video recording, Class 10 is

recommended for use.

Please close the camera when plug-in or pull-out the card.

2. Turn-on & Turn-off:

Turn-on: Press the on/off button and hold for about 2 seconds. With a sound of “Be-” from the buzzer, LCD

display screen will be on (default mode: video recording). Power indicator in red is normally on.

Power saving mode: When the camera is not under operation for 1 minute (system default), it will be in the

power saving mode. The LCD display screen will be off automatically. The camera can be activated when any

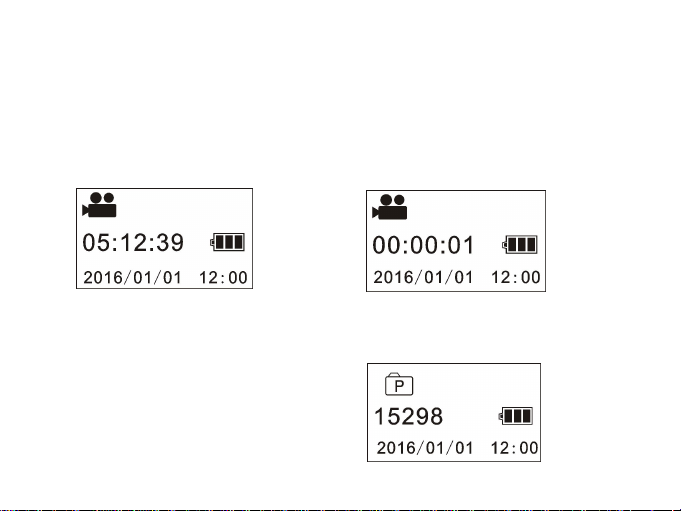

The camera has two modes, i.e. video recording and photograph shooting. They can be converted by pressing

button is pressed.

Turn-off: Press the button and hold for about 3 seconds when the camera is not in operation. With a sound

of “Be-” from the buzzer, the camera will be off.

The camera will be automatically off when it is in power saving mode for 3 minutes (system default).

“GOODBYE” will be on the LCD screen when it is off.

3. Charge the camera

Built-in rechargeable lithium battery is used for the camera:

The camera can be charged when it is connected to the computer USB with a USB cable. The power

indicator will be blue when it is charging. It shall take 4 hours because of the limited electric current of the

computer. The blue light will be off when charging is completed.

4. Function mode conversion
