SHUOYING DIGITAL SCIENCE and TECHNOLOGY DV035S User Manual

FCC part 15.21

Warning: Changes or modifications to this unit not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

FCC part 15.105

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected

- Consult the dealer or an experienced radio TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment and it also complies with Part 15 of FCC RF Rules. Operation is subject to the

following two conditions:

1) This device may not cause interference and

2) This device must accept any interference, including interference that may cause undesired

operation of the device.

Pertinent testing documentation is available for verification.

KKnnooww yyoouurr ccaammeerraa

Lens

Macro switch

Shutter ke

)

Busy light

Power ke

OK ke Direction keys: U

Down Right/ LED switch Left/ Self time

Mode key

8 9

Battery lid

Speake

Wrist strap loo

Wrist strap hole

Zoom in ke

Zoom out ke

USB/TV out port

LED light

Self timerlight(red LED

Tripod socket

SD card slot

LCD Screen

SSttaarrtt ttoo uussee

NOTE: Please insert three fresh AAA batteries and SD/SDHC memory card to

operate the camera

1. Installing Batteries

1. Open the battery lid

2. Insert three AAA alkaline batteries according to the terminals polarity location.

3. Insert the front end of the battery lid into the battery latch, press the back end of the

battery lid and then press the lid securely closing the battery compartment.

2. Using SD Card You must insert and use SD/MMC memory card; camera will store all recorded images and video on the card. Max. card size is 8GB.

Note that the card has a tiny “LOCK” slider located on the side.

Set this slider to “non-LOCK” position before inserting and taking video or still images.

1. Push the SD card into the slot until it is completely inserted.

2. To remove / replace the card, lightly press inserted card and camera will eject the

card.

3. The SD card has to be formatted first: Press OK button and then press Right

Direction key to enter Setup Menu. Press Up and Down Direction key to select ‘Format’ option. Press Right Direction key and then press Up or Down Direction key to select ‘Yes’ option. The memory card will be formatted automatically. Please note that all the previous DATA in card will be deleted when formatted.

3. Selecting Lens Mode Slide the Macro / Normal lens selector to set either Normal (for everyday use) or Macro

mode (only for close-up) depending on the distance of the main subject.

1. Normal setting is suitable for shooting subjects located 5 feet or more away

from the camera

2. Macro setting is suitable for shooting close-up subjects 1.2” – 2”away.

4. Power ON / OFF the camera

1. Power ON: press the Power key for a second or two to turn the camera ON.

2. Power OFF: press the Power key (when the camera is active) to turn the power OFF.

Auto Power OFF: When camera has been left idle for 1 minute, the camera will turn

OFF automatically. The automatic power OFF delay time can be set at 1, 3 or 5 minutes. Go to Setup Mode / Power Save and make adjustment if necessary (see also Section 11 Setup the camera).

3. Low power: When the batteries become exhausted, the LCD display will display low

battery icon and the Auto Power feature will turn the camera OFF.

5. Selecting the MODE of the camera

When activated, the camera is set in the Video (recording) mode. Press the MODE key to change or select desired mode:

Video (default mode) – recording video clips Camera mode – taking still photos, images Playback mode – playing back recorded video

or displaying still photos

6. Setting Date and Time:

Press OK button. Then press Right Direction key to enter Setup Menu. Press Up and

Down Direction key to select ‘Date & Time’ option. Then press Right Direction key and the current system date and time are displayed on the LCD screen.

To change the date and time, use the Direction key: Up or Down to adjust, Right key to

move the cursor, OK button to confirm, then OK button to Exit setup mode. To leave the date and time unaltered, press Left key and then OK key to Exit setup mode.

7. Indicators / LED lights:

Busy light - the light will turn on when the camera is busy recording video, capturing

photo, processing data, or being connected to computer.

LED light – this supporting light may be used when recording video/ pictures in dark environment. Please note that this lamp is effective for short distances only. Self Timer light – indicates that the camera Self Timer has been activated.

8. Video mode:

;

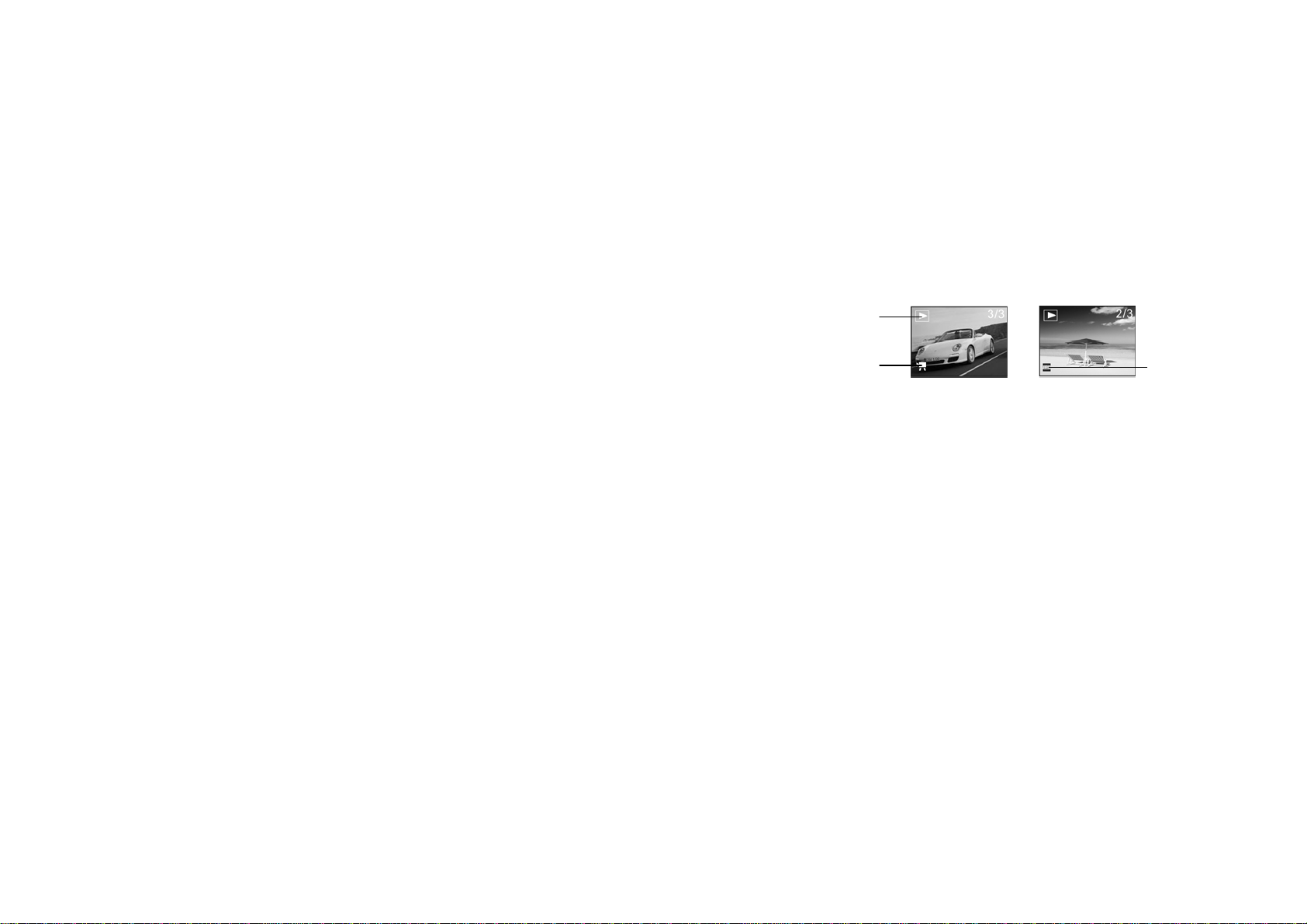

Preview mode

Video Recording Icon

SD card icon

card inserted

Battery icon

Recording the Video clip

1. Open the LCD screen.

2. Press / hold the Power key and turn the camera ON

3. Press the Shutter key to start recording video

4. To stop recording, press the Shutter key again.

Note that if the memory card is full, camera will stop recording by itself.

5. Zoom IN or zoom OUT during recording by pressing Zoom keys; camera has 4X digital zoom range.

Video resolution; it can be selected at 640x480 or 320x240

The remaining time for recorded Video; ex 1 minute 8 seconds left

Zoom ratio range

The LED Lamp is turned ON
