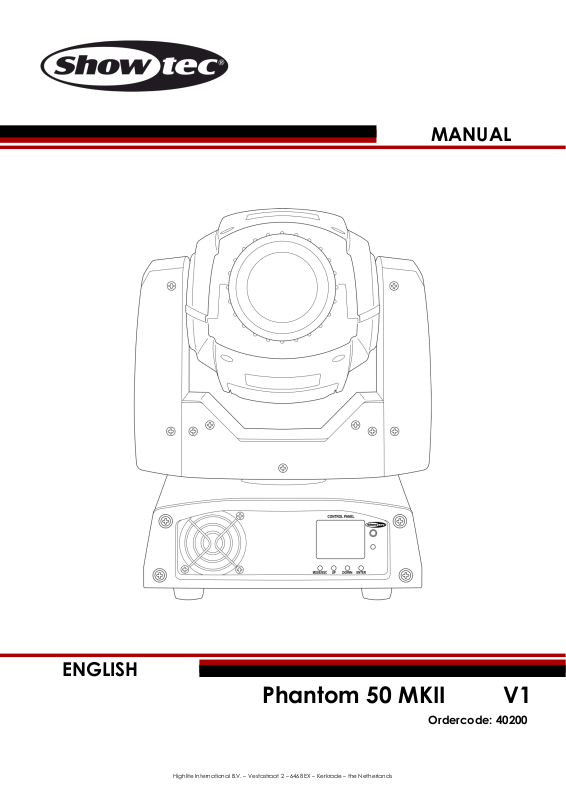

Phantom 50 MKII V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 40200
MANUAL
ENGLISH
Ordercode: 40200
Phantom 50 MKII
Table of contents
Warning ............................................................................................................................................................................... 3
Safety Instructions ......................................................................................................................................................... 3
Operating Determinations .......................................................................................................................................... 5
Rigging ............................................................................................................................................................................ 5
Connection with the mains......................................................................................................................................... 6
Return Procedure .......................................................................................................................................................... 7
Claims .............................................................................................................................................................................. 7
Description of the device ................................................................................................................................................. 8
Features .......................................................................................................................................................................... 8
Overview ........................................................................................................................................................................ 8
Frontside.......................................................................................................................................................................... 9
Backside .......................................................................................................................................................................10
Installation .........................................................................................................................................................................10
Set Up and Operation .....................................................................................................................................................10
Control Modes .............................................................................................................................................................11
One Phantom (Auto and IR) .................................................................................................................................11
One Phantom (Sound-controlled) .......................................................................................................................11
Multiple Phantoms (Master/Slave control) .........................................................................................................11
Multiple Phantoms (DMX Control) ........................................................................................................................12
Fixture Linking ...............................................................................................................................................................13
Data Cabling ...............................................................................................................................................................13
Control Panel ...............................................................................................................................................................14
Control Mode ..............................................................................................................................................................14
DMX Addressing ..........................................................................................................................................................14
Menu Overview ...........................................................................................................................................................15
Main Menu Options ....................................................................................................................................................16
DMX Addressing ..........................................................................................................................................................16
Built-in Programs Mode ..............................................................................................................................................17
1. DMX Mode ............................................................................................................................................................17
2. Auto Mode ............................................................................................................................................................17
3. Sound-controlled Mode .....................................................................................................................................17
4. Slave Mode ...........................................................................................................................................................17
5. IR Mode .................................................................................................................................................................18
5.1 Auto ......................................................................................................................................................................18
5.2. CG.Auto .............................................................................................................................................................19
5.3 GOBO.R.SP. .........................................................................................................................................................19
5.4 COLOR.R.SP ........................................................................................................................................................19
5.5 GOBO.SW ............................................................................................................................................................20
5.6 COLOR.SW ..........................................................................................................................................................20
5.7 DIMMER ...............................................................................................................................................................20
5.8 SENS ......................................................................................................................................................................21
5.9 XY Speed .............................................................................................................................................................21
5.10 Strobe.................................................................................................................................................................21
5.11 Sound .................................................................................................................................................................22
5.12 LED ......................................................................................................................................................................23
Advanced Settings .....................................................................................................................................................23
System Information .....................................................................................................................................................24
DMX Channels .............................................................................................................................................................25
Maintenance ....................................................................................................................................................................29
Replacing the Fuse .....................................................................................................................................................29
Replacing a gobo from the rotating gobo wheel ...............................................................................................30
Gobo Size ..................................................................................................................................................................30
Glass Gobo Orientation ..........................................................................................................................................31
1
Ordercode: 40200
Phantom 50 MKII
Rotating Gobo wheel and Color wheel ......................................................................................................................32
Troubleshooting ...............................................................................................................................................................33
No Light .........................................................................................................................................................................33
No Response to DMX..................................................................................................................................................33
Product Specifications ....................................................................................................................................................35
Dimensions ........................................................................................................................................................................36
Notes ..................................................................................................................................................................................38
2
Ordercode: 40200
Phantom 50 MKII
Your shipment includes:
Showtec Phantom 50 MKII
IEC power cable (1 m)
1 bracket and 2 screws for truss mounting
Safety eye
User manual
be qualified
follow the instructions of this manual
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
3
Ordercode: 40200
Phantom 50 MKII
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
• Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always
hold the fixture by the transport handles.
• Never place any material over the lens.
• Never look directly into the light source.
• Never leave any cables lying around.
• Never loosen the screws of the rotating gobo otherwise you risk opening of the ball bearing.
• Do not insert objects into air vents.
• Do not connect this device to a dimmerpack.
• Do not switch the device on and off in short intervals, as this will reduce the device’s life.
• Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Only use the device indoors, avoid contact with water or other liquids.
• Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
• Only operate the device after having familiarized with its functions.
• Avoid flames and do not put close to flammable liquids or gases.
• Always keep the case closed while operating.
• Always allow a free air space of at least 50 cm around the unit for ventilation.
• Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
• Make sure that the device is not exposed to extreme heat, moisture or dust.
• Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
• If the lens is obviously damaged, it has to be replaced.
• If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
• If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
• For adult use only. Moving head must be installed beyond the reach of children. Never leave the unit
running unattended.
• Never attempt to bypass the thermostatic switch or fuses.
• For replacement use fuses of same type and rating only.
4
Ordercode: 40200
Phantom 50 MKII
• The user is responsible for correct positioning and operating of the Phantom. The manufacturer will
not accept liability for damages caused by the misuse or incorrect installation of this device.
• This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
• During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
• Repairs, servicing and electric connection must be carried out by a qualified technician.
• WARRANTY: Till one year after date of purchase.
Operating Determinations
• This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
• The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
• The maximum ambient temperature t
• The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
• If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
• Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
= 40°C must never be exceeded.
a
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
• If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.
• Use a clamp to mount the projector, with the mounting bracket, to the trussing system.
• The projector must never be fixed swinging freely in the room.
• The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
• When rigging, derigging or servicing the projector, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.
5
Ordercode: 40200
Phantom 50 MKII
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
The Phantom can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Improper installation can cause serious injuries and/or damage of property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
6
Ordercode: 40200
Phantom 50 MKII
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of
the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement from which the obligation is resulting.
7
Ordercode: 40200
Phantom 50 MKII
Overview
Fig. 01
Description of the device
Features
The Showtec Phantom 50 MKII is a moving head fixture with high output and great effects.
• DMX-control via standard DMX-controller
• 10 built-in programs
• Basic (8CH) or Advanced (13CH) operating modes
• Adjustable Pan range: 540° / 360° / 180°
• Adjustable Tilt range: 90° / 180° / 270°
• Reversible Pan/Tilt movement
• Special: Pan/Tilt movement blackout
• Pan/Tilt resolution: 16-bit
• Control Modes: Auto, DMX-512, Master/Slave, Sound-controlled, IR mode
• Color wheel with 8 dichroic-colors and white
• Color functions: Split colors, Rainbow-flow effect
• Rotating Gobo wheel with 1 glass gobo, 6 metal gobos and open with Gobo Shake Function
• Gobo functions: Gobo-flow effect, Gobo shake
• Input Voltage: 100-240VAC, 60/50 Hz
• Continuous Power: 114W
• Housing: Black Metal & Flame-retardant plastic
• Connections: XLR Data IN/OUT (XLR 3-pin), IEC Power IN/OUT
• Fuse: F2AL/250V
• Dimensions: 205 mm x 210 mm x 330 mm (LxWxH)
• Weight: 5,8 Kg
8
Ordercode: 40200
Phantom 50 MKII
Fig. 02
Frontside
01) LED Lens
02) Cooling fan
03) LCD Display + control buttons
9
Ordercode: 40200
Phantom 50 MKII
Backside
Fig. 03
04) 3-pin DMX signal connector IN
05) 3-pin DMX signal connector OUT
06) Fuse F2AL/250V
07) IEC power connector 100-240V OUT
08) IEC power connector 100-240V IN
09) Ground/earth connection
10) Built-in microphone
Installation
Remove all packing materials from the Phantom 50 MKII. Check if all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply. The device can be sound-controlled as it is equipped
with a built-in microphone.
10
Ordercode: 40200
Phantom 50 MKII
There are 5 modes:
• Stand-alone (Auto)
• Sound-controlled
• IR Mode
• Master/Slave
• DMX-512 (8CH, 13 CH)
The pins:
01) Earth
02) Signal -
03) Signal +
Multiple Phantoms (Master/Slave control)
Fig. 04
Control Modes
One Phantom (Auto and IR)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) When the Phantom is not connected with a DMX cable, it functions as a stand-alone device.
Please see pages 17-18 for more information about the Auto Mode and IR Mode.
One Phantom (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) Turn on the music. If the device is set to sound-control, then the Phantom will react to the beat of
the music. Please see page 17 for more information about the sound-control options.
Multiple Phantoms (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Use a 3-pin XLR cable to connect the Phantom.
03) Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
You can use the same functions on the master device as described on page 17 (Auto Mode or
Sound-controlled Mode). This means that you can set your desired operation mode on the master
device and all slave devices will react the same as the master device.
11
Ordercode: 40200
Phantom 50 MKII
Multiple Phantoms DMX Set Up
Fig. 05
Multiple Phantoms (DMX Control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin XLR cable to connect the Phantoms and other devices.
04) Link the units as shown in fig. 05. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
05) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.
12
Note : Link all cables before connecting electric power
Ordercode: 40200
Phantom 50 MKII
Important:
Fixtures on a serial data link must be daisy-chained in a single line. To comply with the
EIA-485 standard, no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable,
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio Certified DMX Data Cables
• DAP Audio Basic microphone cable for allround use. bal. XLR/M 3 p. > XLR/F 3 p.
Ordercode FL01150 (1,5m.), FL013 (3m.), FL016 (6m.), FL0110 (10m.), FL0115 (15m.), FL0120 (20m.).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.).
13
Ordercode: 40200
Phantom 50 MKII
Control Panel
A) LCD Display
B) MODE button
C) UP button
D) DOWN button
E) ENTER button
Fig. 06
Display Off after 30 seconds
The Phantom 50 MKII can be operated with a controller in control mode or without the controller in
stand-alone mode.
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address, next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign DMX fixture addresses, which is the first
channel with which the Phantom will respond to the controller.
Please note, when you use the controller, the unit has 13 channels.
When using multiple Phantoms, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Phantom should be 1(001); the DMX address of the second
Phantom should be 1+13=14 (014); the DMX address of the third Phantom should be 14+13=27 (027), etc.
Please, be sure that you do not have any overlapping channels in order to control each Phantom
correctly. If two or more Phantoms are addressed similarly, they will work similarly.
Controlling:
After having addressed all Phantom fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the Phantom will automatically detect whether DMX 512 data is received or
not. If there is no data received at the DMX-input, the “LED “ on the control panel will not flash.
If not, the problem may be:
• The XLR cable from the controller is not connected with the input of the Phantom 50 MKII.
• The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
When no button is pressed for 30 seconds, the display will turn off.
To light up the display, you have to press the MODE, UP, DOWN or ENTER button.
Once you have pressed the button, the display will light up.
14
Ordercode: 40200
Phantom 50 MKII
Menu Overview
15
Ordercode: 40200
Phantom 50 MKII
DMX Address
DMX Mode / Built-in Programs / Sound-controlled / Master-Slave Mode / IR
Pan and Tilt Reverse / Screen Reverse / Pan and Tilt Angle / Sound Sensitivity /
Reset / Factory Settings
System Information
Main Menu Options
DMX Addressing
With this menu you can set the DMX address.
01) Press the MODE button, until the display shows .
02) Press the ENTER button to confirm. You can choose 512 different DMX addresses.
03) Press the UP/DOWN buttons to select the required address from .
04) Press the ENTER button to confirm the address.
16
Ordercode: 40200
Phantom 50 MKII
Built-in Programs Mode
You can select 5 different programs when using the Phantom.
01) While in the main menu, press the MODE button until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to select one of the 5 modes:
1. DMX Mode
01) When the display shows , press the ENTER button to open the menu..
02) Press the UP/DOWN buttons to toggle between the 2 channel modes:
8 channels
13 channels
03) Press the ENTER button to confirm your choice.
2. Auto Mode
01) Press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to activate the Built-in program mode.
03) The device will now run the built-in auto show.
3. Sound-controlled Mode
01) Press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to activate the sound-controlled mode.
03) The device will now react to the beat of the background music by means of the built-in
microphone.
4. Slave Mode
01) Press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to activate the slave mode.
03) The device is now operating in the slave mode. It means that it will react the same as the master
device.
17
Ordercode: 40200
Phantom 50 MKII
5. IR Mode
01) Press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to activate the IR Mode
03) Press the MODE button until the display shows:
04) Press the ENTER button to open the menu.
05) Press the UP/DOWN buttons to toggle between the following adjustable options:
5.1 Auto
5.2 CG.Auto
5.3 GOBO.R.SP.
5.4 COLOR.R.SP.
5.5 GOBO.SW
5.6 COLOR.SW
5.7 DIMMER
5.8 SENS
5.9 XY Speed
5.10 Strobe
5.11 Sound
5.12 LED
5.1 Auto
In this menu you can choose the desired built-in program.
01) Press the ENTER button to open the menu.
02) Press the UP/DOWN button to toggle between the 10 built-in programs.
03) Press the ENTER button again to confirm your choice.
04) The device will now run the desired built-in show.
18
Ordercode: 40200
Phantom 50 MKII
5.2. CG.Auto
In this menu you can set the automatic color and gobo flow.
01) Press the ENTER button to activate the automatic gobo and color flow.
02) The device will now perform the automatic random gobo and color flow.
5.3 GOBO.R.SP.
In this menu you can set the gobo rotation speed.
01) Press the ENTER button to open the menu.
02) Press the UP/DOWN buttons to set the gobo rotation speed. The adjustment range is between 0-100,
from slow to fast.
03) Press the ENTER button to store changes.
5.4 COLOR.R.SP
In this menu you can set the color wheel rotation speed.
01) Press the ENTER button to open the menu.
02) Press the UP/DOWN buttons to set the color wheel rotation speed. The adjustment range is between
0-100, from slow to fast.
03) Press the ENTER button to store changes.
19
Ordercode: 40200
Phantom 50 MKII
5.5 GOBO.SW
In this menu you can manually choose the desired gobo, which is going to be displayed.
01) Press the ENTER button to open the menu.
02) Press the UP/DOWN buttons to choose one of the available gobos. The adjustment range is between
0-8.
03) Press the ENTER button to confirm your choice.
5.6 COLOR.SW
In this menu you can manually choose the desired color, which is going to be displayed.
01) Press the ENTER button to open the menu.
02) Press the UP/DOWN buttons to choose one of the available colors. The adjustment range is between
0-9.
03) Press the ENTER button to confirm your choice.
5.7 DIMMER
In this menu you can set the dimmer intensity.
01) Press the ENTER button to open the menu.
02) Press the UP/DOWN buttons to set the dimmer brightness. The adjustment range is between 0-255,
from dark to brightest.
03) Press the ENTER button to store changes.
20
Ordercode: 40200
Phantom 50 MKII
5.8 SENS
In this menu you can set the sound sensitivity of the device.
01) Press the ENTER buton to open the menu.
02) Press the UP/DOWN buttons to set the sound sensitivity. The adjustment range is between 0-99, from
low to high sensitivity.
03) Press the ENTER button to store changes.
5.9 XY Speed
In this menu you can set the Pan/Tilt speed.
01) Press the ENTER buton to open the menu.
02) Press the UP/DOWN buttons to set the Pan/Tilt speed. The adjustment range is between 0-255, from
fast to slow.
03) Press the ENTER button to store changes.
5.10 Strobe
In this menu you can set the strobe intensity.
01) Press the ENTER buton to open the menu.
02) Press the UP/DOWN buttons to set the strobe intensity. The adjustment range is between 0-20, from
low to high intensity.
03) Press the ENTER button to store changes.
21
Ordercode: 40200
Phantom 50 MKII
5.11 Sound
In this menu you can activate the Sound-controlled mode.
01) When the display shows (see picture below), press the ENTER button to activate the Sound-controlled
mode:
02) Once the ENTER button has been pressed, the display will show the following screen:
03) The Sound-controlled mode is now active and the device will react to the beat of the background
music, with regard to the sound sensitivity setting (5.8, page 21).
22
Ordercode: 40200
Phantom 50 MKII
5.12 LED
In this menu you can turn the LED blackout ON or OFF.
01) When the display shows (see picture below), press the ENTER button to open the menu:
02) Press the UP/DOWN buttons to choose OFF.
03) The device will now perform a LED blackout and the display will show:
Advanced Settings
01) While in the main menu, press the MODE button until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to toggle between the following settings:
04) When the display shows , press the ENTER button to open the menu.
05) Press the UP and DOWN buttons to choose between ON and OFF.
06) If set to ON, the moving head will perform a horizontal (pan) flip.
23
Ordercode: 40200
Phantom 50 MKII
07) When the display shows , press the ENTER button to open the menu.
08) Press the UP/DOWN buttons to choose between ON and OFF.
09) If set to ON, the moving head will perform a vertical (tilt) flip.
10) When the display shows , press the ENTER button.
11) The LCD display will perform a vertical flip.
12) When the display shows , press the ENTER button to open the menu.
13) Press the UP/DOWN buttons to toggle between the 3 pan range choices:
180º
360º
540º
14) Press the ENTER button to confirm your choice.
15) When the display shows , press the ENTER button to open the menu.
16) Press the UP/DOWN buttons to toggle between the 3 tilt range choices:
90º
180º
270º
17) Press the ENTER button to confirm your choice.
18) When the display shows , press the ENTER button to open the menu.
19) Press the UP/DOWN buttons to increase/decrease the sound sensitivity of the device.
The adjustment range is between 001-100, from low to high sound sensitivity.
20) Press the ENTER button to store changes.
21) When the display shows , press the ENTER button.
22) The device will now perform a pan/tilt engine reset.
23) When the display shows , press the ENTER button.
24) The device will now perform a full reset and will restore the factory settings.
System Information
In this menu you can see the current active mode, the active DMX address, the current software version
and the temperature of the device.
01) While in the main menu, press the MODE until the display shows .
02) Press the ENTER button to open the menu and view the settings.
24
Ordercode: 40200
Phantom 50 MKII
0-6
Open / White
7-13
Yellow
14-20
Purple
21-27
Green
28-34
Red
35-41
Cyan
42-48
Light Green
49-55
Orange
56-64
Dark Blue
65-71
White/Yellow
72-78
Yellow/Purple
79-85
Purple/Green
86-92
Green/Red
93-99
Red/Light Blue
100-106
Light Blue/Light Green
107-113
Light Green/Orange
114-120
Orange/Dark Blue
121-127
Dark Blue/White
128-191
Clockwise rotation rainbow effect, from slow to fast
192-255
Counterclockwise rotation rainbow effect, from slow to fast
0-255
0-100% dimmer
0-3
Shutter closed
4-7
Shutter open
8-215
Strobe effect, from slow to fast (0-10 flashes/sec.)
216-255
Shutter open
DMX Channels
8 Channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Color wheel
Linear color change following the movement of the slider. Between 128 - 255, the color wheel rotates
continuously. It is known as “Rainbow” effect.
Channel 4 – Dimmer
Channel 5 – Shutter/Strobe (Dimmer must be open )
25
Ordercode: 40200
Phantom 50 MKII
0-7
Open/White
8-15
Gobo 1 (Glass)
16-23
Gobo 2 (Glass)
24-31
Gobo 3 (Metal)
32-39
Gobo 4 (Metal)
40-47
Gobo 5 (Metal)
48-55
Gobo 6 (Metal)
56-63
Gobo 7 (Metal)
64-71
Gobo Shake 7, from slow to fast
74-79
Gobo Shake 6, from slow to fast
80-87
Gobo Shake 5, from slow to fast
88-95
Gobo Shake 4, from slow to fast
96-103
Gobo Shake 3, from slow to fast
104-111
Gobo Shake 2, from slow to fast
112-119
Gobo Shake 1, from slow to fast
120-127
Open/White
128-191
Clockwise rotation rainbow effect, from slow to fast
192-255
Counterclockwise rotation rainbow effect, from slow to fast
0-7
Not functional
8-119
Clockwise rotation, from slow to fast
120-231
Counterclockwise rotation, from slow to fast
232-255
Gobo bouncing
0-15
Open
16-255
3-facet Prism Effect
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Rotating Gobo-wheel + Gobo Shake
Channel 7 – Gobo rotation
Channel 8 – Prism
13 Channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move the head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move the head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16-bit
Channel 4 – Tilt fine 16-bit
Channel 5 – PAN/TILT Speed
26
Ordercode: 40200
Phantom 50 MKII
0-6
Open / White
7-13
Yellow
14-20
Purple
21-27
Green
28-34
Red
35-41
Cyan
42-48
Light Green
49-55
Orange
56-64
Dark Blue
65-71
White/Yellow
72-78
Yellow/Purple
79-85
Purple/Green
86-92
Green/Red
93-99
Red/Light Blue
100-106
Light Blue/Light Green
107-113
Light Green/Orange
114-120
Orange/Dark Blue
121-127
Dark Blue/White
128-191
Clockwise rotation rainbow effect, from slow to fast
192-255
Counterclockwise rotation rainbow effect, from slow to fast
0-3
Shutter closed
4-7
Shutter open
8-215
Strobe effect, from slow to fast (0-10 flashes/sec.)
216-255
Shutter open
0-255
0-100% dimmer
0-7
Open/White
8-15
Gobo 1 (Glass)
16-23
Gobo 2 (Metal)
24-31
Gobo 3 (Metal)
32-39
Gobo 4 (Metal)
40-47
Gobo 5 (Metal)
48-55
Gobo 6 (Metal)
56-63
Gobo 7 (Metal)
64-71
Gobo Shake 7, from slow to fast
74-79
Gobo Shake 6, from slow to fast
80-87
Gobo Shake 5, from slow to fast
88-95
Gobo Shake 4, from slow to fast
96-103
Gobo Shake 3, from slow to fast
104-111
Gobo Shake 2, from slow to fast
112-119
Gobo Shake 1, from slow to fast
120-127
Open/White
128-191
Clockwise rotation rainbow effect, from slow to fast
192-255
Counterclockwise rotation rainbow effect, from slow to fast
Channel 6 – Color wheel
Linear color change following the movement of the slider. Between 128 - 255, the color wheel rotates
continuously. It is known as “Rainbow” effect.
Channel 7 – Shutter/Strobe (Dimmer must be open )
Channel 8 – Dimmer
Channel 9 – Rotating Gobo-wheel + Gobo Shake
27
Ordercode: 40200
Phantom 50 MKII
0-7
Not functional
8-119
Clockwise rotation, from slow to fast
120-231
Counterclockwise rotation, from slow to fast
232-255
Gobo bouncing
0-15
Open
16-255
3-facet Prism Effect
0-7
Not functional
8-27
Blackout during Pan/Tilt movement
28-67
Blackout during Gobo wheel movement
68-147
Disabled blackout during Pan/Tilt/Gobo wheel movement/Blackout during Color wheel
movement
148-157
Reset Pan
158-167
Reset Tilt
168-177
Color wheel Reset
178-187
Gobo wheel Reset
188-197
Reset Prism
198-207
Reset All channels
208-255
Not functional
0-7
Not functional
8-23
Built-in Program 1
24-39
Built-in Program 2
40-55
Built-in Program 3
56-71
Built-in Program 4
72-87
Built-in Program 5
88-103
Built-in Program 6
104-119
Built-in Program 7
120-135
Built-in Program 8
136-151
Sound-controlled Program 1
152-167
Sound-controlled Program 2
168-183
Sound-controlled Program 3
184-199
Sound-controlled Program 4
200-215
Sound-controlled Program 5
216-231
Sound-controlled Program 6
232-247
Sound-controlled Program 7
248-255
Sound-controlled Program 8
Channel 10 – Gobo rotation
Channel 11 – Prism
Channel 12 – Channel Functions
Channel 13 – Built-in Programs + Sound-controlled Programs
28
Ordercode: 40200
Phantom 50 MKII
Maintenance
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and
must not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The Phantom 50 MKII requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and
a soft cloth. Do not use alcohol or solvents.
The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the lightoutput very quickly.
The cooling-fans, color-wheel, the gobo wheel, the gobos and the internal lenses should be cleaned
monthly, with a soft brush.
Please clean internal components once a year with a light brush and vacuum cleaner.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below:
01) Unplug the unit from electric power source.
02) Insert a flat-head screwdriver into a slot in the fuse cover. Turn the screwdriver to the left, at the same
time gently push a bit (Turn and Push). The fuse will come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
29
Ordercode: 40200
Phantom 50 MKII
01) Disconnect mains power supply and set the switch to OFF.
02) Make sure that the gobo which you want to insert has the same size. For the right size, see below.
Fig. 07
Gobo Size
Fig. 08
Replacing a gobo from the rotating gobo wheel
03) Before removing the top part of the housing, make sure the lens is in the position as shown on the
left. The lens position should be on the bottom, symmetrically speaking.
04) Loosen all the four screws on the back of the housing.
05) Gently tilt the head so that the small metal housing slides out easily.
06) Turn the gobo wheel until you reach the gobo which you want to remove.
30
Ordercode: 40200
Phantom 50 MKII
Fig. 09
When an object is held up to the coated
side, there is no space between the object
and its reflection. The back edge of the
gobo cannot be seen when looking
through the coated side.
When an object is held up to the uncoated
side, there is a space between the object and
its reflection. The back edge of the gobo can
be seen when looking through the uncoated
side.
07) Gently lift up the gobo holder by 10º and then gently pull out the gobo from its position.
08) Very carefully take the gobo out of the gobo holder with a pair of pliers.
09) Place the new gobo in the gobo holder. Carefully put the pinchcock back, gently press the
pinchcock a little bit together. To do it, you can use a pair of pliers.
10) Put the gobo holder back. At first, you will notice some resistance which is caused by the way in
which the holder was built.
11) Replace the maintenance caps and fasten all the screws.
Glass Gobo Orientation
Coated glass gobos are inserted with the coating against the rim of the holder (away from the spring).
Textured gobos are inserted with the smooth side against the spring. This provides the best results when
combining rotating gobos.
31
Ordercode: 40200
Phantom 50 MKII
Rotating Gobo Wheel
Fig. 10
Color wheel
Fig. 11
Rotating Gobo wheel and Color wheel
32
Ordercode: 40200
Phantom 50 MKII
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect three potential problem areas as: the power supply, the lamp, the fuse.
01) Power supply. Check that the unit is plugged into an appropriate power supply.
02) The LED. Return the Phantom to your Showtec dealer.
03) The fuse. Replace the fuse. See page 29 for replacing the fuse.
04) If all of the above appears to be O.K., plug the unit in again.
05) If you are unable to determine the cause of the problem, do not open the Phantom, as this may
damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
33
Ordercode: 40200
Phantom 50 MKII
Problem
Probable cause(s)
Solution
One or more
fixtures do not
function at all
No power to the fixture
• Check if power is switched on and
cables are plugged in
Primary fuse blown
• Replace fuse
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected.
• Connect controller.
3-pin XLR Out of the controller
does not match XLR Out of the first
fixture on the link (i.e. signal is
reversed)
• Install a phase reversing cable
between the controller and the
first fixture on the link
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
• Check data quality. If much lower
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
disturbing the link
Bad data link connection
• Inspect connections and cables.
Correct poor connections. Repair
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
• Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
• Check address setting
One of the fixtures is defective and
disturbs data transmission on the
link
• Bypass one fixture at a time until
normal operation is restored:
unplug both connectors and
connect them directly together.
• Have the defective fixture
serviced by a qualified technician
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed)
• Install a phase-reversing cable
between the fixtures or swap pin 2
and 3 in the fixture that behaves
erratically
Shutter closes
suddenly
The color wheel, gobo wheel or a
gobo has lost its index position and
the fixture is resetting the effect
• Contact a technician for servicing
if the problem persists
No light or lamp
cuts out
intermittently
Fixture is too hot
• Allow the fixture to cool down
• Clean the fan
• Turn up the air conditioning
LEDs damaged
• Disconnect the fixture and return it
to your dealer
The power supply settings do not
match local AC voltage and
frequency
• Disconnect fixture. Check settings
and correct if necessary
34
Ordercode: 40200
Phantom 50 MKII
Model:
Showtec Phantom 50 MKII
Input Voltage:
100-240 VAC, 60/50Hz
Power consumption:
114W (full output)
DMX linking:
30pcs
Fuse:
F2AL/250V
Dimensions:
205 x 210 x 330 mm (LxWxH)
Weight:
5,8 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
8, 13 Channels
Signal input:
3-pin XLR male
Signal output:
3-pin XLR female
Electro-mechanical effects:
Focus:
Manual
Pan range:
180°/360°/540°
Tilt range:
90°/180°/270°
Dimmer:
0-100%
Strobe:
0-20Hz
Housing:
Metal & Flame retardant plastic
DMX-control:
via standard DMX-controller
On Board:
LCD display for easy setup
Control:
DMX, Auto, Sound, Slave, IR
Connections:
Dedicated Schuko to IEC & Data connector
Cooling:
Internal fan
Max. ambient temperature ta:
40°C
Max. housing temperature tB:
80°C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
1 m
Product Specifications
Design and product specifications are subject to change without prior notice.
35
Website: www.Showtec.info
Email: service@highlite.nl
Ordercode: 40200
Phantom 50 MKII
Dimensions
36
Ordercode: 40200
Phantom 50 MKII
37
Ordercode: 40200
Phantom 50 MKII
Notes
38
©2015 Showtec
Loading...
