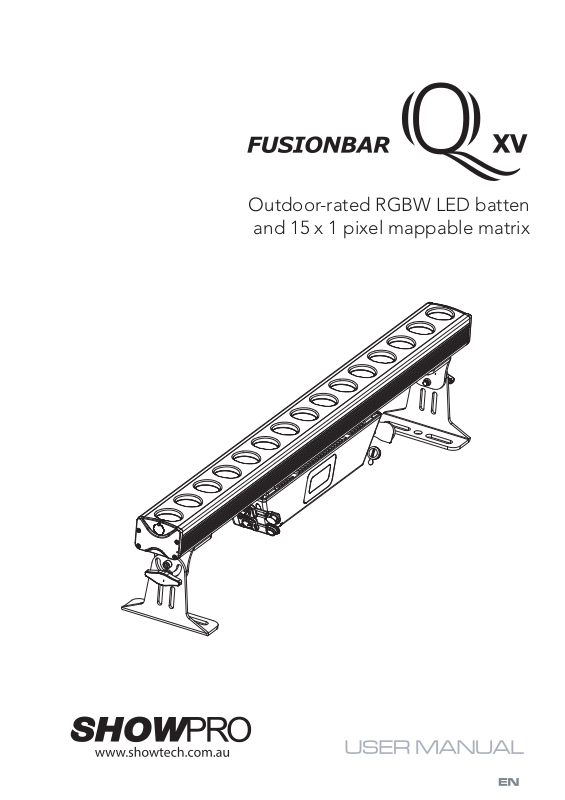

Page 1
Outdoor-rated RGBW LED batten
and 15 x 1 pixel mappable matrix
Page 2
2
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are therefore marked with
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make
risk an electric shock.
•
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
- in places subject to vibrations or bumps;
- in places with a temperature of over 40 °C.
.
an inspection or contact the manufacturer directly.
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Always additionally secure the projector with the safety rope. When carrying out any work, always comply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
Page 3
3
TABLE OF CONTENTS
Safety
General instructions
Warnings and installation precautions
General information
1 Introduction
1.2 Maintenance
Cleaning the unit
Trouble shooting
1. 3 Operating elements and connections
2 Installation
2. 1 Mounting
2.2 Dimensions
3 Functions and settings
3. 1 Operation
3. 2 Basic
3. 3 Menu structure
3. 4 Auto show
3. 5 Static mode
3. 6 Master/Slave mode
3. 7 Linking
Packing content
3. 9 DMX addressing
3. 10 Connection of the DMX line
3. 11 Construction of the DMX termination
3. 12 DMX control
3. 13 Fixture settings
3. 14 Fixture information
3. 15 White balance calibration
3. 16 W-DMX wireless setting
3.17 Factory reset
3.18 Photometrics
FUSIONBAR QXV
• Mounting bracket (2 pcs.)
• Power cable
• User manual
Page 4
4
INTRODUCTION
The FUSIONBAR QXV is an outdoor-rated Quad-color (4-in-one) RGBW one-meter LED batten
that delivers vibrant linear color washes and an individually controllable 15 x 1 pixel matrix.
FEATURES
- Deep, saturated, perfectly-mixed colors for wall grazing and linear washes
- Rugged diecast body and production-grade construction
- Color and white presets available via onboard menu or DMX
- Silent operation with advanced fanless thermal management
- Onboard library of 14 dynamic preprogrammed light shows
- Custom color mixing and adjustable white balance
- Menu display backlight auto blackout
- Four selectable dimming curves
- Power linking (IP65 PowerKon In/Out)
- W-DMX onboard
- DMX control
SPECIFICATIONS
Light Source:
Beam Angle:
Field Angle:
Output (lumens):
Output (lux):
Color Output:
Pixel Matrix:
Strobe:
Dimming:
Control:
DMX Channels:
Display:
Mains:
Consumption:
Power connections:
Data connections:
Housing:
Finish:
IP rating:
Cooling:
Ambient operating temps:
Dimensions:
Weight:
10W RGBW LED (x15)
16°
28°
3587 lm
1717 lx @ 5 meters
RGBW
15 x 1
0-30 Hz
4 dimming curve modes
DMX
4 / 6 / 10 / 60 / 65
OLED menu display
100 - 240 VAC, 50/60 Hz
162W
Seetronic IP65 PowerCon In/Out Seetronic
IP65 5-pin XLR In/Out for DMX
Diecast Aluminum
Matt e kcalb
IP65
Convection
-20° ~ 40°C
992 x 205 x 160 mm
8.6 KG
Page 5
5
- 1.2 - MAINTENANCE
MAINTENANCE AND CLEANING THE UNIT
• Make sure the area below the installation place is free from unwanted persons during setup.
• All screws used for installing the device and any of its parts should be tightly fastened and should not
be corroded.
deformation.
• The main cables must be in impeccable condition and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or
other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the
main plug from the socket. Use a soft, clean cloth moistened with a mild detergent. Then carefully wipe
the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might
penetrate the unit and cause damage to it.
TROUBLESHOOTING
Problems Possible causes Checks and remedies
No mains supply
•
• Dimmer fader set to 0
Fixture does not light up
General low light intensity
Fixture does not power up
Fixture does not respond to DMX
• All color faders set to 0
• Faulty LED
• Faulty LED board
• Dirty lens assembly
• Misaligned lens assembly
•
No power
•
Loose or damaged power cord
• Faulty internal power supply
• Wrong DMX addressing
• Damaged DMX cables
• Bouncing signals
Contact an authorized service center in case of technical problems or not reported in the table can not be
resolved by the procedure given in the table.
• Check the power supply voltage
• Increase the value of the dimmer channels
• Increase the value of the color channels
•
Replace the LED board
• Replace the LED board
•
• Install lens assembly properly
• Check for power on power outlet
Check power cord
•
• Replace internal power supply
Check control panel and unit addressing
•
• Check DMX cables
• Install terminator as suggested
Page 6
6
1.3 OPERATING ELEMENTS AND CONNECTIONS
Gore valve
DMX In
Power In
OLED display and
Menu navigation
Mounting
bracket
Tilt
locking
knob
Rear view
Safety cable
anchor
Quick-Lock
Omega Clamp
Mounts
DMX Out
Power Out
1. TILT LOCKING KNOB 6. SAFETY CABLE ANCHOR
2. MOUNTING BRACKET 7. GORE VALVE expansion valve
3. POWER OUT (Seetronic IP65 PowerCon) 8. DMX IN (Seetronic IP65 5-pin XLR)
4. DMX OUT (Seetronic IP65 5-pin XLR) 9. POWER IN (Seetronic IP65 PowerCon)
5. QUICK-LOCK MOUNTS for Omega clamps 10. OLED DISPLAY and MENU NAVIGATION
Page 7
2.2 DIMENSIONS
7
992
83
205
148.5
79
160
832
60
diameter 13
Page 8
8
- 2 - INSTALLATION
2.1 MOUNTING
FUSIONBAR QXV may be surface-mounted to an even
and be able to support a weight of 10 times of the unit’s weight.
When carrying out any installation, always comply scrupulously with all the regulations (particularly re-
• Install the projector at a suitable location by means of Quick-Lock mounting brackets (1).
• Always additionally secure the projector with the safety cable to prevent falling down (2). Attach
the safety cable
• Floor/wall mounting: a
the locking mechanism of the bracket as necessary (2).
3
2
1
Page 9
9
- 3 - FUNCTIONS AND SETTINGS
3.1 OPERATION
Connect the supplied main cable to a socket (100-240V~/50-60Hz). Then the unit is ready for operation
and can be operated via a DMX controller or it independently performs its show program in succession.
3.2 BASIC
Access control panel functions using the four panel buttons located adjacent to the OLED display.
MENU
ENTER
MENU UP DOWN ENTER
Used to access the menu or
to return a previous menu
option
Navigates downwards through
the menu list and increases
the numeric value when in a
function
Navigates upwards through
the menu list and decreases
the numeric value when in
a function
UP
DOWN
Used to select and store the
current function value or
option within a menu
Page 10
10
60 Ch
GW
Red
<0-255>
Green
<0-255>
Blue
<0-255>
White
<0-255>
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
Auto 6
Auto 7
Auto 8
Auto 9
Auto 10
Auto 11
Auto 12
Auto 13
Auto 14
Dim mer 1
Dim mer 2
Dim mer 3
3.3 MENU STRUCTURE
Main M enu Subm enu Submen u Default set tings
DMX Address <001 ~ 512>
4 C h
6 C h
DMX C hannel
Static
10 Ch
65 Ch
Fixe d Color
R
G
B
W
GB
RB
RG
RGB
RW
BW
RGW
RBW
GBW
RGBW
001
tluafeD
tluafeD 10 CH
Auto Show
Man ual Color M ixer
<1-100>
<1-100>
<1-100>
<1-100>
<1-100>
<1-100>
<1-100>
<1-100>
<1-100>
<1-100>
<1-100>
<1-100>
<1-100>
<1-100>
Default
tluafeD RGBW=25 5
Auto 1; Speed: 100
