Tracker Q4

ORDERCODE 41388

Highlite International B.V.

Vestastraat 2

6468 EX Kerkrade

The Netherlands

Phone: +31 45-5667700

Congratulations!

You have bought a great, innovative product from Showtec. The Showtec Tracker brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products. We design and manufacture professional light equipment for the entertainment industry. New products are being launched regularly. We work hard to keep you, our customer, satisfied. For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Tracker Zoom Q4™ Product Guide

Warning ......................................................................................................................................................................................................................... 2

Safety Instructions .............................................................................................................................................................................. 2

Operating Determinations ................................................................................................................................................................ 4

Rigging ................................................................................................................................................................................................ 4

Return Procedure ............................................................................................................................................................................... 5

Claims ................................................................................................................................................................................................. 5

Description of the device ......................................................................................................................................................................................... 6

Overview ............................................................................................................................................................................................ 6

Backside ............................................................................................................................................................................................. 7

Installation .................................................................................................................................................................................................................... 7

Set Up and Operation ................................................................................................................................................................................................ 7

Control Modes.................................................................................................................................................................................... 8

One Tracker (Built-in Programs, Auto Run) .................................................................................................................................. 8

One Indigo (Sound-control) ......................................................................................................................................................... 8

Multiple Trackers (Master/Slave control) ..................................................................................................................................... 8

Multiple Trackers (DMX Control) .................................................................................................................................................. 9

Fixture Linking ................................................................................................................................................................................... 10

Data Cabling ................................................................................................................................................................................... 10

Control Panel.................................................................................................................................................................................... 11

Control Mode ................................................................................................................................................................................... 11

DMX Addressing ............................................................................................................................................................................... 11

Menu Overview ................................................................................................................................................................................ 12

Main Menu Options .................................................................................................................................................................... 16

1. Address .................................................................................................................................................................................... 16

2. Personality files ........................................................................................................................................................................ 16

3. Settings ..................................................................................................................................................................................... 17

3.1 Perform ................................................................................................................................................................................... 18

3.2 Range .................................................................................................................................................................................... 19

3.3 Default ................................................................................................................................................................................... 20

3.4 Send ....................................................................................................................................................................................... 20

4. Stand-Alone ............................................................................................................................................................................. 20

4.1 Run ......................................................................................................................................................................................... 20

4.2 Edit .......................................................................................................................................................................................... 21

4.3 Send ....................................................................................................................................................................................... 22

5. Manual ..................................................................................................................................................................................... 22

5.1 Reset Options ........................................................................................................................................................................ 22

5.2 Manual control ...................................................................................................................................................................... 22

6. Service ..................................................................................................................................................................................... 23

6.1 Calibration Motors ................................................................................................................................................................ 23

6.2 Calibration Colors ................................................................................................................................................................. 23

6.3 Access Mode ........................................................................................................................................................................ 24

6.4 Info version ............................................................................................................................................................................. 25

6.5 Content / Display .................................................................................................................................................................. 25

6.6 Service ................................................................................................................................................................................... 25

DMX Channels .................................................................................................................................................................................. 26

9 Channels (Person 1) ................................................................................................................................................................. 26

15 Channels (Person 2) ............................................................................................................................................................... 27

20 Channels (Person 3) ............................................................................................................................................................... 29

7 Channels (Person 4) ................................................................................................................................................................. 32

35 Channels (Person 5) ............................................................................................................................................................... 33

44 Channels (Person 6) ............................................................................................................................................................... 36

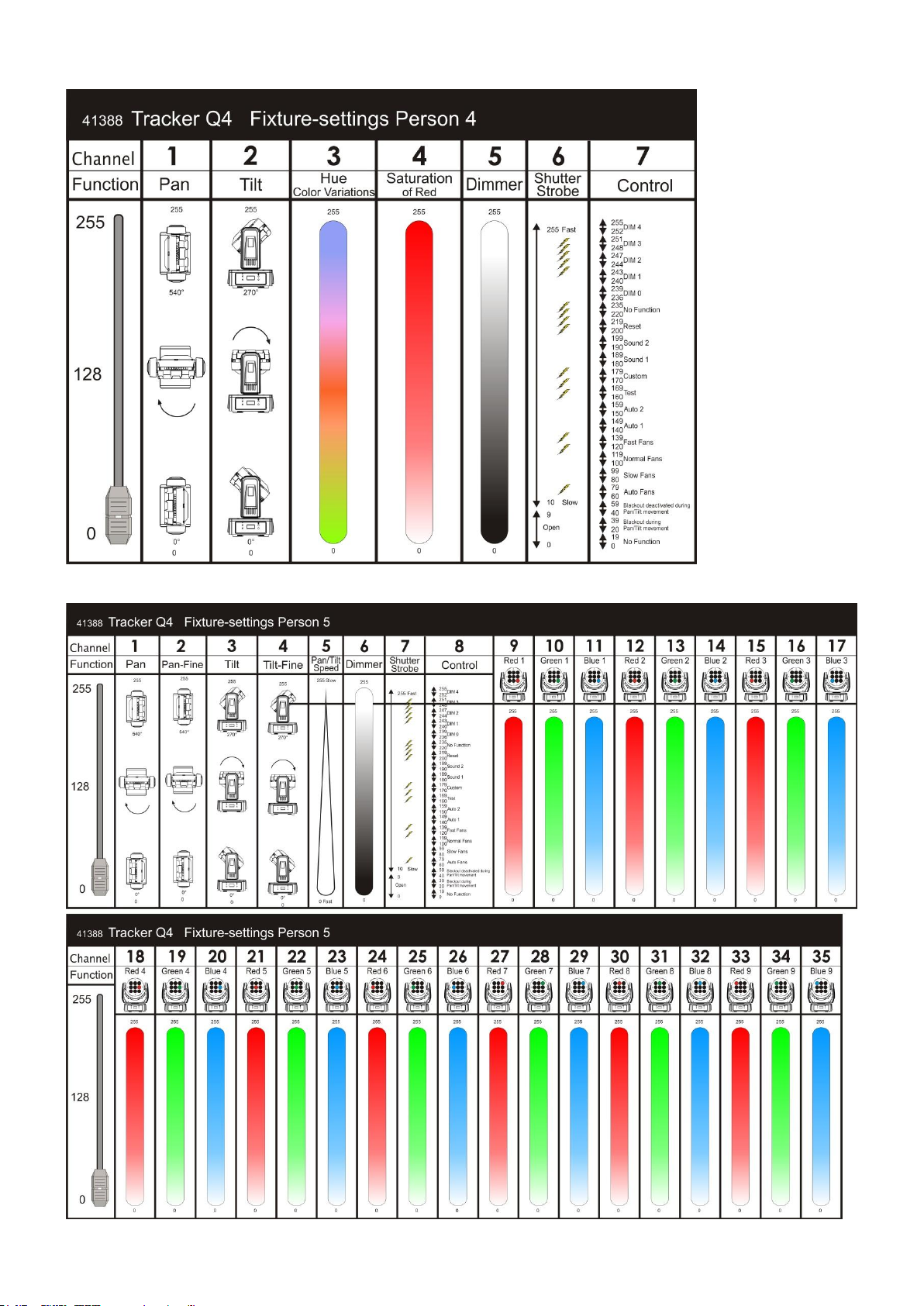

Channel / Fixture settings (Person 1-Person 6) ................................................................................................................................................. 39

Beam Angle, Intensity and Illuminance ............................................................................................................................................................. 41

Maintenance ............................................................................................................................................................................................................. 42

Replacing a Fuse ............................................................................................................................................................................. 42

Troubleshooting ......................................................................................................................................................................................................... 42

No Light ............................................................................................................................................................................................. 42

No Response to DMX ....................................................................................................................................................................... 42

Product Specification .............................................................................................................................................................................................. 44

Warning

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• Showtec Tracker LED with Powercon cable 1,5m

• 2 brackets for truss mounting

• Safety cable

• User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is significantly reduced. It is estimated that a viable lifespan of 40,000 to 50,000 hours will be achieved under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place care in providing for lower operational temperatures. This may include climatic-environmental and the reduction of overall projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

- be qualified

- follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the nonobservance of this manual or any unauthorized modification to the device.

 Never let the power-cord come into contact with other cables! Handle the power-cord and all

CAUTION ! EYEDAMAGES !

Avoid looking directly into the light source.

(meant especially for epileptics) !

connections with the mains with particular caution!

 Never remove warning or informative labels from the unit.  Never use anything to cover the ground contact.  Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged.

Always hold the fixture at the transport handles.

 Never place any material over the lens.  Never look directly into the light source.  Never leave any cables lying around.  Do not insert objects into air vents.  Do not connect this device to a dimmerpack.  Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.  Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the fixture to cool for at least 5 minutes before handling.

 Do not shake the device. Avoid brute force when installing or operating the device.  Only use device indoor, avoid contact with water or other liquids.  Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

 Only operate the device after having familiarized with its functions.  Avoid flames and do not put close to flammable liquids or gases.  Always keep case closed while operating.  Always allow free air space of at least 50 cm around the unit for ventilation.  Always disconnect power from the mains, when device is not used, before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

 Make sure that the device is not exposed to extreme heat, moisture or dust.  Make sure that the available voltage is not higher than stated on the rear panel.  Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

 If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due

to cracks or deep scratches.

 If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

 If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

 For adult use only. Movinghead must be installed out of the reach of children. Never leave the

unit running unattended.

 Never attempt to bypass the thermostatic switch or fuses.  For replacement use fuses of same type and rating only.  This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

 During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

 Repairs, servicing and electric connection must be carried out by a qualified technician.  WARRANTY: Till one year after date of purchase.

Operating Determinations

• This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

• The minimum distance between light-output and the illuminated surface must be more than 0.5 meter.

• The maximum ambient temperature t

= 45°C must never be exceeded.

• The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

• If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

• Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer !

Procedure:

 If the projector is lowered from the ceiling or high joists, professional trussing systems have to be

used.

 Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.  The projector must never be fixed swinging freely in the room.

 The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

 When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

The Tracker can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

Mounting a clamp to the underside of the Tracker Q4 moving head

Clamp

Eye for safety-cable Unlocked Locked

Improper installation can cause serious damage to people and property !

Connection with the mains

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place.

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is damaged due to shipping. Transportation damage has to be reported to us within one day after receipt of the delivery. Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless otherwise agreed in writing. Complaints against us must be made known in writing or by fax within 10 working days after receipt of the invoice. After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The Showtec Tracker is a moving-head with high output and great effects.

• Combine a beam, RGBW pixels and very fast movements in one fixture,

• The clear optical system, in combination with the RGBW LED's, creates a strong and vivid beam.

• 8 degree optical system ensuring small and razor-sharp beams

• Every pixel has full RGBW control and due to its compact size it will fit in any lightshow or venue

• Bright Output

• Multiple control Modes of LED sections

• Color Range: 16.7 million additive RGB colors with full saturation control

• Input voltage: 100-240V AC, Drive Current: 1A

• 230W max @FO

• LED Quantity: 9 X Multichip-RGBW, 4-in-1 Technology

• Electronic zoom: 8º degrees

• Output: Max. Flux: 1900lm, Peak Intensity: 100000cd

• Dimmer: 0-100% electronic dimmer

• Strobe: 0-20Hz

• RGBW Color mixing

• Fast pan and tilt movement

• DIM-4 technology to simulate a halogen dimming curve

• Color temperature presets (3200-10.000K)

• Pan 0º -- 540º, Tilt 0º -- 270º

• Pan/Tilt resolution: 8/16 bit

• Special Pan/Tilt movement blackout

• User selectable pan/tilt ranges

• Person1(9CH), Person2 (15CH), Person3 (20CH), Person4 (7CH), Person5 (35CH), Person6 (44CH)

• Connection: Powercon IN and Powercon OUT, 3 and 5 pin XLR In and Out

• IP rating: IP-20

• Less heat; Forced cooling (fan), 1 fan in the head and 1 fan in the base

• Fan Speed Control

• Bright LCD display

• Control: On-board: Display for Auto and Custom control

• Control: Auto, Sound, Custom, Master/Slave, DMX

• Fuse T3,15A / 250V

• Housing: Black Flame-retardant plastic(V0), Die-cast aluminum

• Dimensions: 282 x 190 x 400 mm (LxWxH)

• Weight: 5,8 kg

Overview

Fig. 1

1) 9x LEDs 2) Menu Buttons + LCD Display

Backside

Fig. 2

3 4 5 6 7 8 9 10

3) Powercon power connector OUT

4) Powercon power connector IN

5) Fuse T3,15A 250V

6) ON/OFF

7) DMX signal connector (IN) 3-pin

8) DMX signal connector (IN) 5-pin

9) DMX signal connector (OUT) 5-pin

10) DMX signal connector (OUT) 3-pin

Installation

Remove all packing materials from the Tracker. Check that all foam and plastic padding is removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Control Modes

There are 5 modes: • Built-in Programs

• Auto Run

• Sound-controlled

• Master/Slave

• DMX512: Person1 (9CH)

Person2 (15CH) Person3 (20CH) Person4 (7CH) Person5 (35CH) Person6 (44CH)

One Tracker (Built-in Programs, Auto Run)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Always use a safety cable (ordercode 70140 / 70141).

3. When the Tracker is not connected by a DMX-cable, it functions as a stand-alone device. Please see

page 20 for more information about the Built-in programs, Auto Run programs options.

One Indigo (Sound-control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Plug the end of the electric mains power cord into a proper electric power supply socket.

3. Turn on the music. If the device is set to sound-control, then the Indigo will react to the beat of the

music. Please see page 20 for more information about the sound-control options.

Multiple Trackers (Master/Slave control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Always use a safety cable (ordercode 70140 / 70141).

3. Use a 3-p XLR cable to connect the Tracker.

The pins:

1. Earth

2. Signal -

3. Signal +

4. Link the units as shown in (Fig. 3), Connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can

use the same functions on the master device as described on page 21 (Built-in Programs, Auto Run, Sound-controlled). This means on the master device you can set your desired operation Mode and all

slave devices will react the same as the master device.

Multiple Trackers (Master/Slave control)

Fig. 3

Multiple Trackers (DMX Control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Always use a safety cable (ordercode 70140 / 70141).

3. Use a 3-p XLR cable to connect the Tracker and other devices.

4. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket

to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

5. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the

other end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not supply power before the whole system is set up and connected properly.

Multiple Trackers DMX Set Up

Fig. 4

Note : Link all cables before connecting electric power

Fixture Linking

You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.

Important: Fixtures on a serial data link must be daisy chained in one single line. To comply with the

EIA-485 standard no more than 30 devices should be connected on one data link. Connecting more than 30 fixtures on one serial data link without the use of a DMX optically isolated splitter may result in deterioration of the digital DMX signal.

Maximum recommended DMX data link distance: 100 meters Maximum recommended number of Trackers on a DMX data link: 30 fixtures @ 220V: 12 units may be connected in series @120V: 6 units may be connected in series

Data Cabling

To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

DAP Audio Certified DMX Data Cables

• DAP Audio cable for allround use. bal. XLR/M 3 p. > XLR/F 3 p.

Ordercode FL01150 (1,5m.), FL013 (3m.), FL016 (6m.), FL0110 (10m.), FL0115 (15m.), FL0120 (20m.).

• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by

Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.).

Fig. 3

The Tracker can be operated with a controller in control mode or without the controller in stand-alone mode.

Control Panel

Fig. 6

A. LCD Display D. Up Button B. MENU button E. Down Button C. ENTER Button

Control Mode

The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.)

DMX Addressing

The control panel on the front side of the base allows you to assign the DMX fixture address, which is the first channel from which the Tracker will respond to the controller. Please note when you use the controller, the unit has 44 channels. When using multiple Trackers, make sure you set the DMX addresses right. Therefore, the DMX address of the first Tracker should be 1(001); the DMX address of the second Tracker should be 1+44=45 (045); the DMX address of the third Tracker should be 45+44=89 (089), etc. Please, be sure that you don’t have any overlapping channels in order to control each Tracker correctly. If two or more Trackers are addressed similarly, they will work similarly. For address settings, please refer to the instructions under ”Addressing’

Controlling:

After having addressed all Tracker fixtures, you may now start operating these via your lighting controller. Note: After switching on, the Tracker will automatically detect whether DMX 512 data is received or not.

If there is no data received at the DMX-input, the “LED “ on the control panel will not flash. If not, the problem may be:

• The XLR cable from the controller is not connected with the input of the Tracker.

• The controller is switched off or defective, the cable or connector is detective, or the signal wires are

swapped in the input connector.

Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure

proper transmission on the DMX data link.

Menu Overview

Once you have entered a step you will see menu 4.2.2 - 4.2.11 (Pan - Use)

Main Menu Options

Press the MODE button to scroll through 6 options of the menu:

1. Address

DMX Addressing

With this menu you can set the DMX address.

1) Press Menu, until the display shows: Address

2) Press enter to open this menu. You can choose 512 different DMX addresses.

Use the Up / Down buttons to select the required address from 001 - 512.

3) Once you have set the desired DMX address, press the enter button to store your DMX address.

2. Personality files

1) Press Menu, until the display shows: Person

2) Press Enter and use the Up/Down buttons to scroll through the personality menu.

3) You can choose 6 different personalities.

4) Once you have set the desired mode, press the enter button to store your setting.

3. Settings

3.1 Perform

1) Press Menu, until the display shows: Settings

2) Press Enter and use the Up/Down buttons until the display shows: Perform

3) Now use the Up/Down buttons to scroll through the options: Fans, PT Speed, Pan Invert, Tilt Invert,

Blackout, Dimmer, Curv, Dim Invert, Color, DMX Error, DMX Reset, Display On, Key Lock, Homepage.

4) Press enter to open one of these menus. Use the Up / Down buttons to set the desired setting.

5) Once you have set the desired mode, press the enter button to store your setting.

Fans Fan speed: Slow, Normal, Fast or Automatic PT Speed Pan/Tilt movement Speed: Fast or Slow Pan Invert For Normal/Inverted Pan control Tilt Invert Normal/Inverted Tilt control Blackout Instant: Immediate blackout when using Pan/Tilt.

Delay: 3 seconds delay before blackout when using Pan/Tilt

Dimmer DIM1, DIM2, DIM3, DIM4, OFF

When DIMMER is set to OFF, then RGBW and MASTER DIMMER are linear. Dim 1, 2, 3, 4 are speed modes of the non-linear dimmer, Dim1 is fastest, Dim4 is slowest. The factory default setting is Dim4.

Curv Allows the user to adjust the shape of the dimming curve. Dim Invert Normal/Inverted control of the Dimming function Color The Color settings menu enables you to activate/deactivate the color calibration

functions. When you have selected RGB to ON, RGB TO WHITE has been set.

This means RGB = 255, 255, 255. The color is displayed as you have calibrated the specific color in menu CALIBRATION  RGB. When it is set to NO, on RGB = 255,255,255, the RGB values are not adjusted and the output is most powerful. The RGB’ s parameter can be adjusted in CALIBRATION. When UC is selected, the RGB output is adjusted to a standard preset universal color. This

way, different versions of Tracker’s are color balanced to match each other.

DMX error Save/Blackout Menu SAVE is to save the last DMX data, in case of a DMX signal error.

Menu BLACK is to blackout the device in case of a DMX signal error. DMX Reset DMX/Display Menu DMX: To be able to reset the device via an external remote DMX controller.

Menu DISPLAY: ONLY able to reset the device via the LCD display and its menu buttons. Display On LONG/SHORT/ALWAYS Choose one of the 3 options, to determine the duration the LCD display is on. Key Lock Display Lock OFF/ON Display lock when it is not in use or at start-up Homepage DMX/NAME+DMX Menu DMX: Display the DMX address in the LCD display. Menu NAME+DMX: Display the product/manufacturer name in the LCD display.

3.2 Range

1) Press Menu, until the display shows: Settings

2) Press Enter and use the Up/Down buttons until the display shows: Range

3) Press Enter and use the Up/Down buttons to scroll through: P.Start, P.End, T.Start, T.End.

4) Press enter to open this menu. Use the Up / Down buttons to set the desired value.

5) Once you have set the desired mode, press the enter button to store your setting.

3.3 Default

1) Press Menu, until the display shows: Default

2) Enter the default password: UP > DOWN > UP > DOWN.

3) Press Enter and the device will return to the factory default setting.

3.4 Send

1) Press Menu, until the display shows: Send

2) Press Enter and use the Up/Down buttons to choose: Yes or No.

3) If you use Yes, the device will send all settings to all fixtures, currently linked via Data cable.

4. Stand-Alone

4.1 Run

DMX Active

With this menu you able to control the device by DMX.

1) Press Menu, until the display shows: Runmode.

2) Press Enter and use the Up/Down buttons to go to the Run menu.

3) Press Enter to open this menu. Scroll through the menu until the display shows DMX512.

4) Once you have set DMX control, press the enter button to store your setting. The device will be DMX

controlled.

Built-in Programs Mode

With this menu you can select 5 different Programs when using the Tracker.

1) Press Menu, until the display shows: Runmode.

2) Press Enter and use the Up/Down buttons to go to the Run menu.

3) Press Enter to open this menu. Scroll through the menu until the display shows Auto1, Auto2, Sound1,

Sound2 or Custom. You have 5 options to control the device as a stand-alone device.

4) Once you have chosen your desired mode, press the enter button to store your setting. The device will

start the built-in program.

Built-in Programs (Auto_1 + Auto_2)

The device will play its built-in stand-alone programs.

Sound-controlled Programs (Sound_1 + Sound_2)

The device will play its sound-controlled programs.

Custom Mode

For a custom program to run, you have to enter some values first. For more information, please see Runmode menu.

Run Test

With this menu you are able to test the device.

1) Press Menu, until the display shows: Runmode.

2) Press Enter and use the Up/Down buttons to go to the Run menu.

3) Press Enter to open this menu. Scroll through the menu until the display shows TEST.

4) When you press ENTER, the display will blink once and the device will start an internal test.

Slave Mode

With this menu you are able to set the device as a slave device.

1) Press Menu, until the display shows: Runmode.

2) Press Enter and use the Up/Down buttons to go to the Run menu.

3) Press Enter to open this menu. Scroll through the menu until the display shows Slave.

4) When you press ENTER, the display will blink once and the device will be in slave mode.

4.2 Edit

Once you have entered a step you will see menu 4.2.2 - 4.2.11 (Pan - Use)

1) Press Menu, until the display shows: Runmode.

2) Press Enter and use the Up/Down buttons to go to the Edit menu.

3) Press Enter and use the Up/Down buttons to scroll through the options: Step, Pan, Tilt, Red, Green, Blue,

White, Dimmer, Strobe, Time, Use.

4) Press Enter to select one of these options. Use the Up / Down buttons to set the desired setting.

5) Once you have set the desired mode, press the enter button to store your setting.

Note: If you want to circulate the created steps, please set the last step as 0.

For example, when you have 3 steps, the setting should be: Step 1 Time = 4 Use = Yes Step 2 Time = 5 Use = Yes Step 3 Time = 0 Use = Yes

4.3 Send

1) Press Menu, until the display shows: : Runmode.

2) Press Enter and use the Up/Down buttons to go to the Send menu.

3) Press Enter and use the Up/Down buttons to choose: Yes or No.

4) If you use Yes, the device will send all settings to all fixtures, currently linked via Data cable.

5. Manual

5.1 Reset Options

With this menu you can reset the device.

1) Press Menu, until the display shows: Manual.

2) Press Enter and use the Up/Down buttons to go to the Reset menu.

3) Press Enter and use the Up/Down buttons to scroll through the options: Sys reset, PT reset.

4) Press Enter to open one of these 2 menus.

5) You can choose Yes or No. Use the Up / Down buttons to select one.

6) Once you have set Yes, the device will perform a certain reset and it will take 15 seconds to reset.

5.2 Manual control

With this menu you are able to manually set, control and adjust the Tracker.

1) Press Menu, until the display shows: Manual.

2) Press Enter and use the Up/Down buttons to go to the DMXvalue menu.

3) Press Enter and use the Up/Down buttons to scroll through the options: Pan, Tilt, Red, Green, Blue,

White, Dimmer, Strobe.

4) Press Enter to select one of these options. Use the Up / Down buttons to set the desired setting.

5) Once you have set the desired mode, press the enter button to store your setting.

Sys reset: To carry out a full fixture reset

PT reset: To carry out a Pan-Tilt reset

6. Service

6.1 Calibration Motors

1) Press Menu, until the display shows: Service.

2) Press Enter and use the Up/Down buttons to go to the Calib M menu.

3) Press Enter and use the Up/Down buttons to scroll through the options: Pan, Tilt.

4) Press Enter to select one of these options. Use the Up / Down buttons to set the desired setting.

5) Once you have set the desired mode, press the enter button to store your setting.

6.2 Calibration Colors

1) Press Menu, until the display shows: Service.

2) Press Enter and use the Up/Down buttons to go to the Calib C menu.

3) Press Enter and use the Up/Down buttons to scroll through the options.

4) There are 11 pre-programmed White colors: 3200K, 3400K, 4200K, 4900K, 5600K, 5900K, 6500K, 7200K,

8000K, 8500K, 10000K and a special RGB to W. Press Enter to select one of these color temperatures.

5) You can now edit a certain color temperature, by mixing Red, Green, Blue and White. In RGB to W

mode you can only select Red, Green and Blue.

6) Use the Up / Down buttons to set the desired setting.

7) Once you have set the desired mode, press the enter button to store your setting.

6.3 Access Mode

1) Press Menu, until the display shows: Service.

2) Press Enter and use the Up/Down buttons to go to the Access menu.

3) Press Enter and use the Up/Down buttons to scroll through the options: Settings Lock, Service Lock.

4) Press Enter to open one of these menus. Use the Up / Down buttons to select On or Off.

5) Once you have set On, press the enter button to lock the device.

6) It will now take 30 seconds before the device locks itself. When you turn the device off and then on,

It’s also locked.

NOTE: In the event that the device is locked, please use the factory password below.

Factory Password: UP > DOWN > UP > DOWN

Then press ENTER to unlock the device.

When you have set all lock options to ON and you want to disable them you must unlock them separately: Settings lock OFF (6.3), Service Lock OFF (6.3), Key Lock OFF (3.1)

Settings Lock: Settings menu Lock ON/OFF

Service Lock: Service menu Lock ON/OFF

6.4 Info version

1) Press Menu, until the display shows: Service

2) Press Enter and use the Up/Down buttons to go to the Info menu.

3) Press Enter and use the Up/Down buttons to go to the Version menu.

4) Press Enter to see your Tracker Q4 version number.

6.5 Content / Display

1) Press Menu, until the display shows: Service

2) Press Enter and use the Up/Down buttons to go to the Content menu.

3) Press Enter and use the Up/Down buttons to scroll through the options: Display 1, Send.

4) Press Enter to open one of these 2 menus.

Display 1: Edit the first line of the display content

Send: Yes or No

5) If you use Yes, the device will send all settings to all fixtures, currently linked via Data cable.

6.6 Service

1) Press Menu, until the display shows: Service

2) Press Enter and use the Up/Down buttons to go to the Service Recovery menu.

3) Enter the default password: UP > DOWN > UP > DOWN

4) Press Enter and the device will reset its custom modes and return to the default values.

DMX Channels

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment White from 0 – 100%

0-255

From black to brightest

0-9

Open

10-255

Strobe effect, from slow to fast (0-10 flashes/sec.)

0-19

No Function

20-39

Blackout during Pan/Tilt movement

40-59

Disabled blackout during Pan/Tilt movement

60-79

Fan Auto activated after 5 seconds

80-99

Fan Slow activated after 5 seconds

100-119

Fan Normal activated after 5 seconds

120-139

Fan Fast activated after 5 seconds

140-149

Auto 1 activated after 5 seconds

150-159

Auto 2 activated after 5 seconds

160-169

Test activated after 5 seconds

170-179

Custom activated after 5 seconds

180-189

Sound 1 (activated after 5 seconds)

190-199

Sound 2 (activated after 5 seconds)

200-219

Reset activated after 5 seconds

220-235

No Function

236-239

DIM 0 activated after 5 seconds

240-243

DIM 1 activated after 5 seconds

244-247

DIM 2 activated after 5 seconds

248-251

DIM 3 activated after 5 seconds

252-255

DIM 4 activated after 5 seconds

9 Channels (Person 1)

Channel 1 – Horizontal movement (Pan)

Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540°and stopped at any position you wish.

Channel 2 – Vertical movement (Tilt)

Push the slider, up in order to move head vertically (TILT). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 270°and stopped at any position you wish.

Channel 3 – Red (Dimmer must be open )

Channel 4 – Green (Dimmer must be open )

Channel 5 – Blue (Dimmer must be open )

Channel 6 – White (Dimmer must be open )

Channel 7 – Dimmer intensity

Channel 8 – Shutter / Strobe (Dimmer must be open )

Channel 9 – Control

15 Channels (Person 2)

0-255

From Max Speed (0) to Min. Speed (255)

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment White from 0 – 100%

0-10

No Function

11-30

Red 100% / Green Up / Blue 0%

31-50

Red Down / Green 100% / Blue 0%

51-70

Red 0% / Green 100% / Blue Up

71-90

Red 0% / Green Down / Blue 100%

91-110

Red Up / Green 0% / Blue 100%

111-130

Red 100% / Green 0% / Blue Down

131-150

Red 100%/ Green Up / Blue Up

151-170

Red Down / Green Down / Blue100%

171-200

Red 100% / Green 100% / Blue 100% / White 100%

201-205

White: 3200K

206-210

White: 3400K

211-215

White: 4200K

216-220

White: 4900K

221-225

White: 5600K

226-230

White: 5900K

231-235

White: 6500K

236-240

White: 7200K

241-245

White: 8000K

246-250

White: 8500K

251-255

White: 10000K

Channel 1 – Horizontal movement (Pan)

Channel 2 – Pan fine 16 bit

Channel 3 – Vertical movement (Tilt)

Channel 4 – Tilt fine 16 bit

Channel 5 – PAN/TILT Speed

Channel 6 – Red (Dimmer must be open )

Channel 7 – Green (Dimmer must be open )

Channel 8 – Blue (Dimmer must be open )

Channel 9 – White (Dimmer must be open )

Channel 10 – Macro Colors

Channel 11 – Pixeleffects + Programs (0=OFF) (Color(s) + Dimmer must be open )

0-9

All static Pixels

10-19

Static Pixels 1+2+3

20-29

Static Pixels 4+5+6

30-39

Static Pixels 7+8+9

40-49

Static Pixels 1+4+7

50-59

Static Pixels 2+5+8

60-69

Static Pixels 3+6+9

70-79

Static Pixels 1+5+9

80-89

Static Pixels 3+5+7

90-99

Pixel Effect 1: Square & DOT with black (1+2+3+4+6+7+8+9, 5, 0)

100-109

Pixel Effect 2: Square & DOT (5, 1+2+3+4+6+7+8+9)

110-119

Pixel Effect 3: Vertical Lines left-to-right (1+4+7, 2+5+8, 3+6+9, 0)

120-129

Pixel Effect 4: Vertical Lines right-to-left (3+6+9, 2+5+8, 1+4+7, 0)

130-139

Pixel Effect 5: Horizontal Lines top-to-bottom with black (1+2+3, 4+5+6, 7+8+9, 0)

140-149

Pixel Effect 6: Horizontal Lines bottom-to- top with black (7+8+9, 4+5+6, 1+2+3, 0)

150-159

Pixel Effect 7: Snake with black (1, 2, 3, 4, 5, 6, 7, 8, 9, 0)

160-169

Pixel Effect 8: Bow Runner (1, 5, 9, 6, 3, 5, 7, 4, 1, 0)

170-179

Pixel Effect 9: Counter clockwise (2+5, 1+5, 4+5, 7+5, 8+5, 9+5, 6+5, 3+5)

180-189

Pixel Effect 10: Clockwise (2+5, 3+5, 6+5, 9+5, 8+5, 7+5, 4+5, 1+5)

190-199

Pixel Effect 11: Clockwise Star (2+5+8, 3+5+7, 6+5+4, 9+5+1, 8+5+2, 7+5+2, 4+5+6, 1+5+9)

200-209

Pixel Effect 12: Counterclockwise Star (2+5+8, 3+5+7, 6+5+4, 9+5+1, 8+5+2, 7+5+2, 4+5+6, 1+5+9)

210-219

Pixel Effect 13: Clockwise Dot Chase (1+9, 2+8, 3+7, 4+6)

220-229

Pixel Effect 14: Counterclockwise Dot Chase (1+9, 4+6, 7+3, 8+2)

230-239

Pixel Effect 15: Random Dot (1, 6, 5, 9, 7, 4, 1, 7, 2, 3, 9, 8, 5, 3, 2, 6, 5, 4, 3, 9, 8 )

240-249

Pixel Effect 16: Random Line (1+2, 5+8, 6+3, 1+2, 8+9, 4+5, 6+5, 3+6, 2+5, 6+9, 7+8, 3+6

250-255

Pixel Effect 17: Random Dark Spot (1+2+4+5+6+7+8+9, 1+2+3+4+6+7+8+9, 2+3+4+5+6+7+8+9,

1+3+4+5+6+7+8+9, 1+2+3+4+5+6+8+9, 1+2+3+4+5+6+7+8, 1+2+3+4+5+7+8+9, 1+2+3+4+5+6+7+8+9, 1+2+4+5+6+7+8+9, 1+2+3+4+6+7+8+9, 2+3+4+5+6+7+8+9, 1+3+4+5+6+7+8+9, 1+2+4+5+6+7+8+9, 1+3+4+5+6+7+8+9, 1+2+3+4+6+7+8+9, 1+2+3+4+5+6+8+9, 1+2+3+4+5+6+7+8, 1+2+3+4+5+6+7+8+9, 2+3+4+5+6+7+8+9, 1+2+3+5+6+7+8+9, 1+3+4+5+6+7+8+9, 1+2+3+4+5+6+7+9, 1+2+4+5+6+7+8+9, 1+2+3+4+6+7+8+9, 1+2+3+4+5+6+7+8, 1+2+3+4+6+7+8+9, 1+2+3+5+6+7+8+9,1+2+3+4+5+6+7+9, 1+3+4+5+6+7+8+9, 1+2+4+5+6+7+8+9, 1+2+3+4+5+6+7+9, 1+2+3+4+5+6+7+8)

0-255

From Max Speed (0) to Min. Speed (255)

0-255

From black to brightest

0-9

Open

10-255

Strobe effect, from slow to fast (0-10 flashes/sec.)

0-19

No Function

20-39

Blackout during Pan/Tilt movement

40-59

Disabled blackout during Pan/Tilt movement

60-79

Fan Auto activated after 5 seconds

80-99

Fan Slow activated after 5 seconds

100-119

Fan Normal activated after 5 seconds

120-139

Fan Fast activated after 5 seconds

140-149

Auto 1 activated after 5 seconds

150-159

Auto 2 activated after 5 seconds

160-169

Test activated after 5 seconds

170-179

Custom activated after 5 seconds

180-189

Sound 1 (activated after 5 seconds)

190-199

Sound 2 (activated after 5 seconds)

200-219

Reset activated after 5 seconds

220-235

No Function

236-239

DIM 0 activated after 5 seconds

240-243

DIM 1 activated after 5 seconds

244-247

DIM 2 activated after 5 seconds

248-251

DIM 3 activated after 5 seconds

252-255

DIM 4 activated after 5 seconds

Channel 12 – Program Speed

Channel 13 – Dimmer intensity

Channel 14 – Shutter / Strobe (Dimmer must be open )

Channel 15 – Control

20 Channels (Person 3)

0-255

From Max Speed (0) to Min. Speed (255)

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-10

No Function

11-30

Red 100% / Green Up / Blue 0%

31-50

Red Down / Green 100% / Blue 0%

51-70

Red 0% / Green 100% / Blue Up

71-90

Red 0% / Green Down / Blue 100%

91-110

Red Up / Green 0% / Blue 100%

111-130

Red 100% / Green 0% / Blue Down

131-150

Red 100%/ Green Up / Blue Up

151-170

Red Down / Green Down / Blue100%

171-200

Red 100% / Green 100% / Blue 100% / White 100%

201-205

White: 3200K

Channel 1 – Horizontal movement (Pan)

Channel 2 – Pan fine 16 bit

Channel 3 – Vertical movement (Tilt)

Channel 4 – Tilt fine 16 bit

Channel 5 – PAN/TILT Speed

Channel 6 – Red (Dimmer must be open )

Channel 7 – Red Fine (Dimmer must be open )

Channel 8 – Green (Dimmer must be open )

Channel 9 – Green Fine (Dimmer must be open )

Channel 10 – Blue (Dimmer must be open )

Channel 11 – Blue Fine (Dimmer must be open )

Channel 12 – White (Dimmer must be open )

Channel 13 – White Fine (Dimmer must be open )

Channel 14 – Macro Colors

206-210

White: 3400K

211-215

White: 4200K

216-220

White: 4900K

221-225

White: 5600K

226-230

White: 5900K

231-235

White: 6500K

236-240

White: 7200K

241-245

White: 8000K

246-250

White: 8500K

251-255

White: 10000K

0-9

All static Pixels

10-19

Static Pixels 1+2+3

20-29

Static Pixels 4+5+6

30-39

Static Pixels 7+8+9

40-49

Static Pixels 1+4+7

50-59

Static Pixels 2+5+8

60-69

Static Pixels 3+6+9

70-79

Static Pixels 1+5+9

80-89

Static Pixels 3+5+7

90-99

Pixel Effect 1: Square & DOT with black (1+2+3+4+6+7+8+9, 5, 0)

100-109

Pixel Effect 2: Square & DOT (5, 1+2+3+4+6+7+8+9)

110-119

Pixel Effect 3: Vertical Lines left-to-right (1+4+7, 2+5+8, 3+6+9, 0)

120-129

Pixel Effect 4: Vertical Lines right-to-left (3+6+9, 2+5+8, 1+4+7, 0)

130-139

Pixel Effect 5: Horizontal Lines top-to-bottom with black (1+2+3, 4+5+6, 7+8+9, 0)

140-149

Pixel Effect 6: Horizontal Lines bottom-to- top with black (7+8+9, 4+5+6, 1+2+3, 0)

150-159

Pixel Effect 7: Snake with black (1, 2, 3, 4, 5, 6, 7, 8, 9, 0)

160-169

Pixel Effect 8: Bow Runner (1, 5, 9, 6, 3, 5, 7, 4, 1, 0)

170-179

Pixel Effect 9: Counter clockwise (2+5, 1+5, 4+5, 7+5, 8+5, 9+5, 6+5, 3+5)

180-189

Pixel Effect 10: Clockwise (2+5, 3+5, 6+5, 9+5, 8+5, 7+5, 4+5, 1+5)

190-199

Pixel Effect 11: Clockwise Star (2+5+8, 3+5+7, 6+5+4, 9+5+1, 8+5+2, 7+5+2, 4+5+6, 1+5+9)

200-209

Pixel Effect 12: Counterclockwise Star (2+5+8, 3+5+7, 6+5+4, 9+5+1, 8+5+2, 7+5+2, 4+5+6, 1+5+9)

210-219

Pixel Effect 13: Clockwise Dot Chase (1+9, 2+8, 3+7, 4+6)

220-229

Pixel Effect 14: Counterclockwise Dot Chase (1+9, 4+6, 7+3, 8+2)

230-239

Pixel Effect 15: Random Dot (1, 6, 5, 9, 7, 4, 1, 7, 2, 3, 9, 8, 5, 3, 2, 6, 5, 4, 3, 9, 8 )

240-249

Pixel Effect 16: Random Line (1+2, 5+8, 6+3, 1+2, 8+9, 4+5, 6+5, 3+6, 2+5, 6+9, 7+8, 3+6

250-255

Pixel Effect 17: Random Dark Spot (1+2+4+5+6+7+8+9, 1+2+3+4+6+7+8+9, 2+3+4+5+6+7+8+9, 1+3+4+5+6+7+8+9, 1+2+3+4+5+6+8+9, 1+2+3+4+5+6+7+8, 1+2+3+4+5+7+8+9, 1+2+3+4+5+6+7+8+9, 1+2+4+5+6+7+8+9, 1+2+3+4+6+7+8+9, 2+3+4+5+6+7+8+9, 1+3+4+5+6+7+8+9, 1+2+4+5+6+7+8+9, 1+3+4+5+6+7+8+9, 1+2+3+4+6+7+8+9, 1+2+3+4+5+6+8+9, 1+2+3+4+5+6+7+8, 1+2+3+4+5+6+7+8+9, 2+3+4+5+6+7+8+9, 1+2+3+5+6+7+8+9, 1+3+4+5+6+7+8+9, 1+2+3+4+5+6+7+9, 1+2+4+5+6+7+8+9, 1+2+3+4+6+7+8+9, 1+2+3+4+5+6+7+8, 1+2+3+4+6+7+8+9, 1+2+3+5+6+7+8+9,1+2+3+4+5+6+7+9, 1+3+4+5+6+7+8+9, 1+2+4+5+6+7+8+9, 1+2+3+4+5+6+7+9, 1+2+3+4+5+6+7+8)

0-255

From Max Speed (0) to Min. Speed (255)

0-255

From black to brightest

0-255

From black to brightest

Channel 15 – Pixeleffects + Programs (0=OFF) (Color(s) + Dimmer must be open )

Channel 16 – Program Speed

Channel 17 – Dimmer intensity

Channel 18 – Dimmer Fine

Channel 19 – Shutter / Strobe (Dimmer must be open )

0-9

Open

10-255

Strobe effect, from slow to fast (0-10 flashes/sec.)

0-19

No Function

20-39

Blackout during Pan/Tilt movement

40-59

Disabled blackout during Pan/Tilt movement

60-79

Fan Auto activated after 5 seconds

80-99

Fan Slow activated after 5 seconds

100-119

Fan Normal activated after 5 seconds

120-139

Fan Fast activated after 5 seconds

140-149

Auto 1 activated after 5 seconds

150-159

Auto 2 activated after 5 seconds

160-169

Test activated after 5 seconds

170-179

Custom activated after 5 seconds

180-189

Sound 1 (activated after 5 seconds)

190-199

Sound 2 (activated after 5 seconds)

200-219

Reset activated after 5 seconds

220-235

No Function

236-239

DIM 0 activated after 5 seconds

240-243

DIM 1 activated after 5 seconds

244-247

DIM 2 activated after 5 seconds

248-251

DIM 3 activated after 5 seconds

252-255

DIM 4 activated after 5 seconds

Channel 20 – Control

7 Channels (Person 4)

0-255

0 – 100%

0-255

0 – 100%

0-255

From black to brightest (0 – 100%)

0-9

Open

10-255

Strobe effect, from slow to fast (0-10 flashes/sec.)

0-19

No Function

20-39

Blackout during Pan/Tilt movement

40-59

Disabled blackout during Pan/Tilt movement

60-79

Fan Auto activated after 5 seconds

80-99

Fan Slow activated after 5 seconds

100-119

Fan Normal activated after 5 seconds

120-139

Fan Fast activated after 5 seconds

140-149

Auto 1 activated after 5 seconds

150-159

Auto 2 activated after 5 seconds

160-169

Test activated after 5 seconds

170-179

Custom activated after 5 seconds

180-189

Sound 1 (activated after 5 seconds)

190-199

Sound 2 (activated after 5 seconds)

200-219

Reset activated after 5 seconds

220-235

No Function

236-239

DIM 0 activated after 5 seconds

240-243

DIM 1 activated after 5 seconds

244-247

DIM 2 activated after 5 seconds

248-251

DIM 3 activated after 5 seconds

252-255

DIM 4 activated after 5 seconds

Channel 1 – Horizontal movement (Pan)

Channel 2 – Vertical movement (Tilt)

Channel 3 – Hue (Color variations)

Channel 4 – Saturation of color Red

Channel 5 – Dimmer intensity

Channel 6 – Shutter / Strobe (Dimmer must be open )

Channel 7 – Control

35 Channels (Person 5)

0-255

From Max Speed (0) to Min. Speed (255)

0-255

From black to brightest (0 – 100%)

0-9

Open

10-255

Strobe effect, from slow to fast (0-10 flashes/sec.)

0-19

No Function

20-39

Blackout during Pan/Tilt movement

40-59

Disabled blackout during Pan/Tilt movement

60-79

Fan Auto activated after 5 seconds

80-99

Fan Slow activated after 5 seconds

100-119

Fan Normal activated after 5 seconds

120-139

Fan Fast activated after 5 seconds

140-149

Auto 1 activated after 5 seconds

150-159

Auto 2 activated after 5 seconds

160-169

Test activated after 5 seconds

170-179

Custom activated after 5 seconds

180-189

Sound 1 (activated after 5 seconds)

190-199

Sound 2 (activated after 5 seconds)

200-219

Reset activated after 5 seconds

220-235

No Function

236-239

DIM 0 activated after 5 seconds

240-243

DIM 1 activated after 5 seconds

244-247

DIM 2 activated after 5 seconds

248-251

DIM 3 activated after 5 seconds

252-255

DIM 4 activated after 5 seconds

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

Channel 1 – Horizontal movement (Pan)

Channel 2 – Pan fine 16 bit

Channel 3 – Vertical movement (Tilt)

Channel 4 – Tilt fine 16 bit

Channel 5 – PAN/TILT Speed

Channel 6 – Dimmer intensity

Channel 7 – Shutter / Strobe (Dimmer must be open )

Channel 8 – Control

Channel 9 – Red 1 (Dimmer must be open )

Channel 10 – Green 1 (Dimmer must be open )

Channel 11 – Blue 1 (Dimmer must be open )

Channel 12 – Red 2 (Dimmer must be open )

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

Channel 13 – Green 2 (Dimmer must be open )

Channel 14 – Blue 2 (Dimmer must be open )

Channel 15 – Red 3 (Dimmer must be open )

Channel 16 – Green 3 (Dimmer must be open )

Channel 17 – Blue 3 (Dimmer must be open )

Channel 18 – Red 4 (Dimmer must be open )

Channel 19 – Green 4 (Dimmer must be open )

Channel 20 – Blue 4 (Dimmer must be open )

Channel 21 – Red 5 (Dimmer must be open )

Channel 22 – Green 5 (Dimmer must be open )

Channel 23 – Blue 5 (Dimmer must be open )

Channel 24 – Red 6 (Dimmer must be open )

Channel 25 – Green 6 (Dimmer must be open )

Channel 26 – Blue 6 (Dimmer must be open )

Channel 27 – Red 7 (Dimmer must be open )

Channel 28 – Green 7 (Dimmer must be open )

Channel 29 – Blue 7 (Dimmer must be open )

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

Channel 30– Red 8 (Dimmer must be open )

Channel 31 – Green 8 (Dimmer must be open )

Channel 32 – Blue 8 (Dimmer must be open )

Channel 33 – Red 9 (Dimmer must be open )

Channel 34 – Green 9 (Dimmer must be open )

Channel 35– Blue 9 (Dimmer must be open )

44 Channels (Person 6)

0-255

From Max Speed (0) to Min. Speed (255)

0-255

From black to brightest (0 – 100%)

0-9

Open

10-255

Strobe effect, from slow to fast (0-10 flashes/sec.)

0-19

No Function

20-39

Blackout during Pan/Tilt movement

40-59

Disabled blackout during Pan/Tilt movement

60-79

Fan Auto activated after 5 seconds

80-99

Fan Slow activated after 5 seconds

100-119

Fan Normal activated after 5 seconds

120-139

Fan Fast activated after 5 seconds

140-149

Auto 1 activated after 5 seconds

150-159

Auto 2 activated after 5 seconds

160-169

Test activated after 5 seconds

170-179

Custom activated after 5 seconds

180-189

Sound 1 (activated after 5 seconds)

190-199

Sound 2 (activated after 5 seconds)

200-219

Reset activated after 5 seconds

220-235

No Function

236-239

DIM 0 activated after 5 seconds

240-243

DIM 1 activated after 5 seconds

244-247

DIM 2 activated after 5 seconds

248-251

DIM 3 activated after 5 seconds

252-255

DIM 4 activated after 5 seconds

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

Channel 1 – Horizontal movement (Pan)

Channel 2 – Pan fine 16 bit

Channel 3 – Vertical movement (Tilt)

Channel 4 – Tilt fine 16 bit

Channel 5 – PAN/TILT Speed

Channel 6 – Dimmer intensity

Channel 7 – Shutter / Strobe (Dimmer must be open )

Channel 8 – Control

Channel 9 – Red 1 (Dimmer must be open )

Channel 10 – Green 1 (Dimmer must be open )

Channel 11 – Blue 1 (Dimmer must be open )

Channel 12 – White 1 (Dimmer must be open )

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

Channel 13 – Red 2 (Dimmer must be open )

Channel 14 – Green 2 (Dimmer must be open )

Channel 15 – Blue 2 (Dimmer must be open )

Channel 16 – White 2 (Dimmer must be open )

Channel 17 – Red 3 (Dimmer must be open )

Channel 18 – Green 3 (Dimmer must be open )

Channel 19 – Blue 3 (Dimmer must be open )

Channel 20 – White 3 (Dimmer must be open )

Channel 21 – Red 4 (Dimmer must be open )

Channel 22 – Green 4 (Dimmer must be open )

Channel 23 – Blue 4 (Dimmer must be open )

Channel 24 – White 4 (Dimmer must be open )

Channel 25 – Red 5 (Dimmer must be open )

Channel 26 – Green 5 (Dimmer must be open )

Channel 27 – Blue 5 (Dimmer must be open )

Channel 28 – White 5 (Dimmer must be open )

Channel 29 – Red 6 (Dimmer must be open )

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Red from 0 – 100%

0-255

Gradual adjustment Green from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

0-255

Gradual adjustment Blue from 0 – 100%

Channel 30 – Green 6 (Dimmer must be open )

Channel 31 – Blue 6 (Dimmer must be open )

Channel 32 – White 6 (Dimmer must be open )

Channel 33 – Red 7 (Dimmer must be open )

Channel 34 – Green 7 (Dimmer must be open )

Channel 35 – Blue 7 (Dimmer must be open )

Channel 36 – White 7 (Dimmer must be open )

Channel 37 – Red 8 (Dimmer must be open )

Channel 38 – Green 8 (Dimmer must be open )

Channel 39 – Blue 8 (Dimmer must be open )

Channel 40 – White 8 (Dimmer must be open )

Channel 41 – Red 9 (Dimmer must be open )

Channel 42– Green 9 (Dimmer must be open )

Channel 43 – Blue 9 (Dimmer must be open )

Channel 44 – White 9 (Dimmer must be open )

Channel / Fixture settings (Person 1-Person 6)

Person 1

Person 2

Person 3

Person 4

Person 5

Person 6

Beam Angle, Intensity and Illuminance

Intensity Distribution

Illuminance + Distance

Maintenance

The operator has to make sure that safety-relating and machine-technical installations are to be inspected by an expert after every year in the course of an acceptance test. The operator has to make sure that safety-relating and machine-technical installations are to be inspected by a skilled person once a year. The following points have to be considered during the inspection:

1. All screws used for installing the device or parts of the device have to be tightly connected and must

not be corroded.

2. There may not be any deformations on housings, fixations and installation spots.

3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing.

4. The electric power supply cables must not show any damages or material fatigue.

The Showtec Tracker requires almost no maintenance. However, you should keep the unit clean.

Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and

then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. Do not use alcohol or solvents.

The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the lightoutput very quickly. The cooling-fans and the internal lenses should be cleaned monthly with a soft brush. Please clean internal components once a year with a light brush and vacuum cleaner.

Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.

Replacing a Fuse

Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do

so.

1. Unplug the unit from electric power source.

2. Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time

gently push a bit (Turn and Push). The fuse will come out.

3. Remove the used fuse. If brown or unclear, it is burned out.

4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to

use a fuse of the same type and specification. See the product specification label for details.

Troubleshooting

No Light

This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. Response: Suspect three potential problem areas: the power supply, the LEDs, the fuse.

1. Power supply. Check that the unit is plugged into an appropriate power supply.

2. The LEDs. Return the Tracker to your Showtec dealer.

3. The fuse. Replace the fuse. See page 42 for replacing the fuse.

No Response to DMX

Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction.

1. Check the DMX setting. Make sure that DMX addresses are correct.

2. Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.

Try your DMX control again.

3. Determine whether the controller or light effect is at fault. Does the controller operate properly with

other DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light effect to a qualified technician.

See next page for more problem solving.

Problem

Probable cause(s)

Remedy

One or more fixtures are completely dead.

No power to the fixture

• Check that power is switched on and cables are plugged in. If the problem persists contact your dealer for servicing.

Fixtures reset correctly, but all respond erratically or not at all to the controller.

The controller is not connected.

• Connect controller.

3-pin XLR Out of the controller does not match XLR Out of the first fixture on the link (i.e. signal is reversed).

• Install a phase reversing cable between the controller and the first fixture on the link.

Fixtures reset correctly, but some respond erratically or not at all to the controller.

Poor data quality

• Check data quality. If much lower than 100 percent, the problem may be a bad data link connection, poor quality or broken cables, missing termination plug, or a defective fixture disturbing the link.

Bad data link connection

• Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.

Data link not terminated with 120 Ohm termination plug.

• Insert termination plug in output jack of the last fixture on the link.

Incorrect addressing of the fixtures.

• Check address setting.

One of the fixtures is defective and disturbs data transmission on the link.

• Bypass one fixture at a time until normal operation is regained: unplug both connectors and connect them directly together.

• Have the defective fixture serviced by a qualified technician.

3-pin XLR Out on the fixtures does not match (pins 2 and 3 reversed).

• Install a phase-reversing cable between the fixtures or swap pin 2 and 3 in the fixture, that behaves erratically.

Shutter closes suddenly

The color wheel has lost its index position and the fixture is resetting the effect.

• Contact a technician for servicing the problem persists.

No light or lamp cuts out intermittently

Fixture is too hot.

• Allow fixture to cool.

• Contact your dealer for servicing or

cleaning the fan.

• Make sure air vents at control panel and front lens are not blocked.

• Turn up the air conditioning .

LEDs damaged

• Disconnect fixture and return to your dealer.

The power supply settings do not match local AC voltage and frequency.

• Disconnect fixture. Check settings and correct if necessary.

Product Specification

Model: Showtec Tracker Voltage: 100-240V-50Hz (CE) Power 230W max @FO Fuse T3,15A / 250V Dimensions: 282 x 190 x 400 mm (LxWxH) Weight: 5,8 kg

Operation and Programming

Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) Set Up and Addressing: LED control panel DMX Channels: Person1(9CH), Person2 (15CH), Person3 (20CH), Person4 (7CH), Person5 (35CH), Person6 (44CH) Signal input 3 and 5-pin XLR male Signal output 3 and 5-pin XLR female

Electro-mechanical effects

The clear optical system, in combination with the RGBW LED's, creates a strong and vivid beam. Every pixel has full RGBW control and due to its compact size it will fit in any lightshow or venue The Tracker Q4 is a true workhorse, which fits perfectly in any show or venue. Connection: Powercon IN and Powercon OUT, 3 and 5 pin XLR In and Out Less heat; Forced cooling (fan), 1 fan in the head and 1 fan in the base Multiple control Modes of LED sections Color Range: 16.7 million additive RGB colors with full saturation control Drive Current: 1A LED Quantity: 9 X Multichip-RGBW, 4-in-1 Technology Electronic zoom: 8º degrees Output: Max. Flux: 1900lm, Peak Intensity: 100000cd Dimmer: 0-100% electronic dimmer Strobe: 0-20Hz RGBW Color mixing Fast pan and tilt movement DIM-4 technology to simulate a halogen dimming curve Color temperature presets (3200-10.000K) Pan 0º -- 540º Tilt 0º -- 270º Pan/Tilt resolution: 8/16 bit Special Pan/Tilt movement blackout User selectable pan/tilt ranges Bright Output IP rating: IP-20 Fan Speed Control Bright LCD display Control: On-board: Display for Auto and Custom control Control: Auto, Sound, Custom, Master/Slave, DMX Housing: Black Flame-retardant plastic(V0), Die-cast aluminum Max. ambient temperature ta: 40°C; Max. housing temperature tB: 80°C

Minimum distance:

Minimum distance from flammable surfaces: 0.5m Minimum distance to lighted object: 1.3m

Design and product specifications are subject to change without prior notice.

Website: www.Showtec.info

Email: service@highlite.nl

SHOWTEC tracker q4,Expression 6000 Q4 Zoom,Expression Zoom 8000 Q4,Expression 8000 Q4 Zoom,41358,Expression 8000 Q4 Zoom V2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
