Showtec Techno Derby User Manual
Techno Derby V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 43156
MANUAL
ENGLISH
Ordercode: 43156
Techno Derby
Table of contents
Warning ............................................................................................................................................................................... 2
Unpacking Instructions ................................................................................................................................................. 2
LED Expected Lifespan ................................................................................................................................................ 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 4
Connection with the mains......................................................................................................................................... 5
Return Procedure .......................................................................................................................................................... 6
Claims .............................................................................................................................................................................. 6
Description of the device ................................................................................................................................................. 7
Overview ........................................................................................................................................................................ 7
Backside ......................................................................................................................................................................... 8
Installation ........................................................................................................................................................................... 8
Set Up and Operation ....................................................................................................................................................... 8
Control Modes ............................................................................................................................................................... 9
One Techno Derby (Stand-alone) ......................................................................................................................... 9
One Techno Derby (Sound-controlled) ................................................................................................................ 9
Multiple Techno Derbys (Master/Slave Mode) .................................................................................................... 9
Multiple Techno Derbys (DMX Control) ...............................................................................................................10
Fixture Linking ...............................................................................................................................................................11
Data Cabling ...............................................................................................................................................................11
Control Panel ...............................................................................................................................................................12
Control Mode ..............................................................................................................................................................12
DMX Addressing ..........................................................................................................................................................12

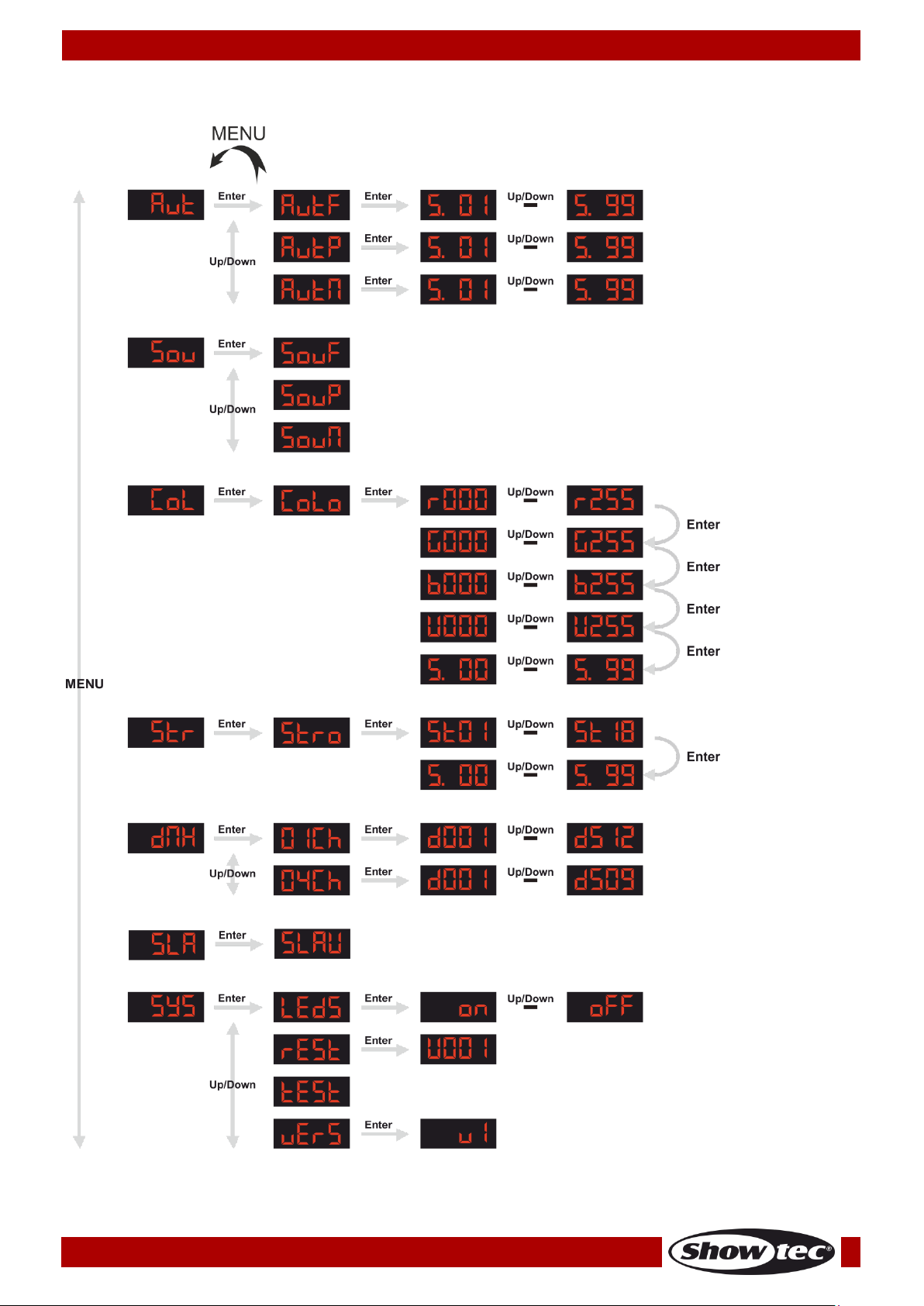

Menu Overview ...........................................................................................................................................................13
Main Menu Options ....................................................................................................................................................14
1. Built-in Shows ........................................................................................................................................................14
2. Sound-controlled .................................................................................................................................................14
3. Color Settings .......................................................................................................................................................15
4. Strobe Shows ........................................................................................................................................................15
5. DMX-512 Mode ....................................................................................................................................................15
6. Master/Slave Mode ............................................................................................................................................15
7. System Settings ....................................................................................................................................................16
Remote Control ...........................................................................................................................................................17
DMX Channels .............................................................................................................................................................17
1 channel ..................................................................................................................................................................17
4 channels ................................................................................................................................................................18
Maintenance ....................................................................................................................................................................19
Replacing the Fuse .....................................................................................................................................................19
Troubleshooting ...............................................................................................................................................................19
No Light .........................................................................................................................................................................19
No Response to DMX..................................................................................................................................................19
Product Specifications ....................................................................................................................................................21
Dimensions ........................................................................................................................................................................22
Notes ..................................................................................................................................................................................23
1
Ordercode: 43156
Techno Derby
Your shipment includes:
• Showtec Techno Derby
• IEC power cable (1,75 m)
• Remote control
• User manual
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
• be qualified
• follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
2
Ordercode: 43156
Techno Derby
This device contains no user-serviceable parts. Refer to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
• Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Never lift the fixture holding it by the projector-head, as the mechanics may be damaged.
Always hold the fixture by the transport handles.
• Never place any material over the lens.
• Never look directly into the light source.
• Never leave any cables lying around.
• Never loosen the screws of the gobo, otherwise you risk opening of the ball bearing.
• Do not insert objects into air vents.
• Do not connect this device to a dimmerpack.
• Do not switch the device on and off in short intervals, as this will reduce the device’s life.
• Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Only use the device indoors, avoid contact with water or other liquids.
• Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
• Only operate the device after having familiarized with its functions.
• Avoid flames and do not put close to flammable liquids or gases.
• Always keep the case closed while operating.
• Always allow a free air space of at least 50 cm around the unit for ventilation.
• Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
• Make sure that the device is not exposed to extreme heat, moisture or dust.
• Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
• If the lens is obviously damaged, it has to be replaced.
• If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device.
Leave the device switched off until it has reached room temperature.
• If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
• For adult use only. The moving head must be installed beyond the reach of children. Never leave the
unit running unattended.
• Never attempt to bypass the thermostatic switch or fuses.
• For replacement use fuses of same type and rating only.
• The user is responsible for correct positioning and operating of the Techno Derby. The manufacturer
will not accept liability for damages caused by the misuse or incorrect installation of this device.
• This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
• During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
• Repairs, servicing and electric connection must be carried out by a qualified technician.
• WARRANTY: Till one year after date of purchase.
3
Ordercode: 43156
Techno Derby
Operating Determinations
• This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
• The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
• The maximum ambient temperature t
• The relative humidity must not exceed 50 % with ambient temperature of 40° C.
• If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
• Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
= 40°C must never be exceeded.
a
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other safety
issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer!
Procedure:
• If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.
• Use a clamp to mount the projector, with the mounting bracket, to the trussing system.
• The projector must never be fixed swinging freely in the room.
• The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
• When rigging, de-rigging or servicing the projector, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.
The Techno Derby can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
4
Ordercode: 43156
Techno Derby
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
Mounting a clamp to the Techno Derby
Improper installation can cause serious injuries to people and/or damage of property !
Connection with the mains
Connect the device to the mains with the power plug.
Always check if the right color cable is connected to the right place.
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries to people and/or damage of property!
5
Ordercode: 43156
Techno Derby
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
6
Ordercode: 43156
Techno Derby
Overview
Fig. 01
01) Cooling fan
02) Ground/earth connection
03) Mounting bracket with inclined screw
04) Adjustment screw
05) Safety eye
06) LED lens
07) Strobe lens
Description of the device
Features
The Showtec Techno Derby is a light fixture with high output and great effects.
• Power: 100~240VAC 60/50Hz
• Power consumption: 30W
• 4-digit LED display
• 1 and 4 DMX channels
• Colors: Red, Green, Blue, White
• Control modes: Auto, Sound, Master/Slave, DMX-512
• Built-in automatic shows
• Metal & Flame-retardant plastic housing
• DMX Data IN/OUT
• Light source: 4 x 3W LED
• Strobe: 16 x 0,5W
• Fuse: T1A/250V
• Control protocol: DMX-512
• Dimensions: 265 mm x 190 mm x 190 mm (LxWxH)
• Weight: 1,5 kg
7
Loading...
