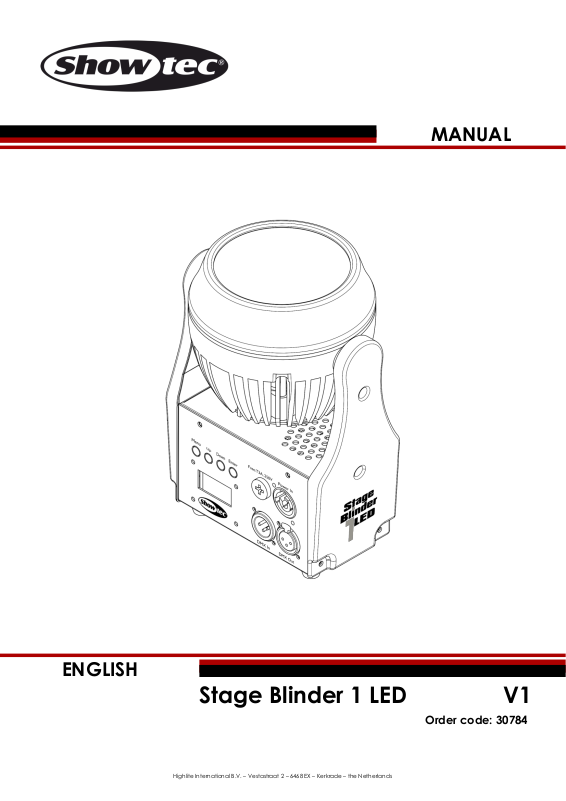

SHOWTEC Stage Blinder 1 LED User Manual

Stage Blinder 1 LED V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
MANUAL
ENGLISH
1
Order code: 30784
Stage Blinder 1 LED
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 4
Connection with the Mains ......................................................................................................................................... 5
Return Procedure .......................................................................................................................................................... 6
Claims .............................................................................................................................................................................. 6
Description of the Device ................................................................................................................................................ 7

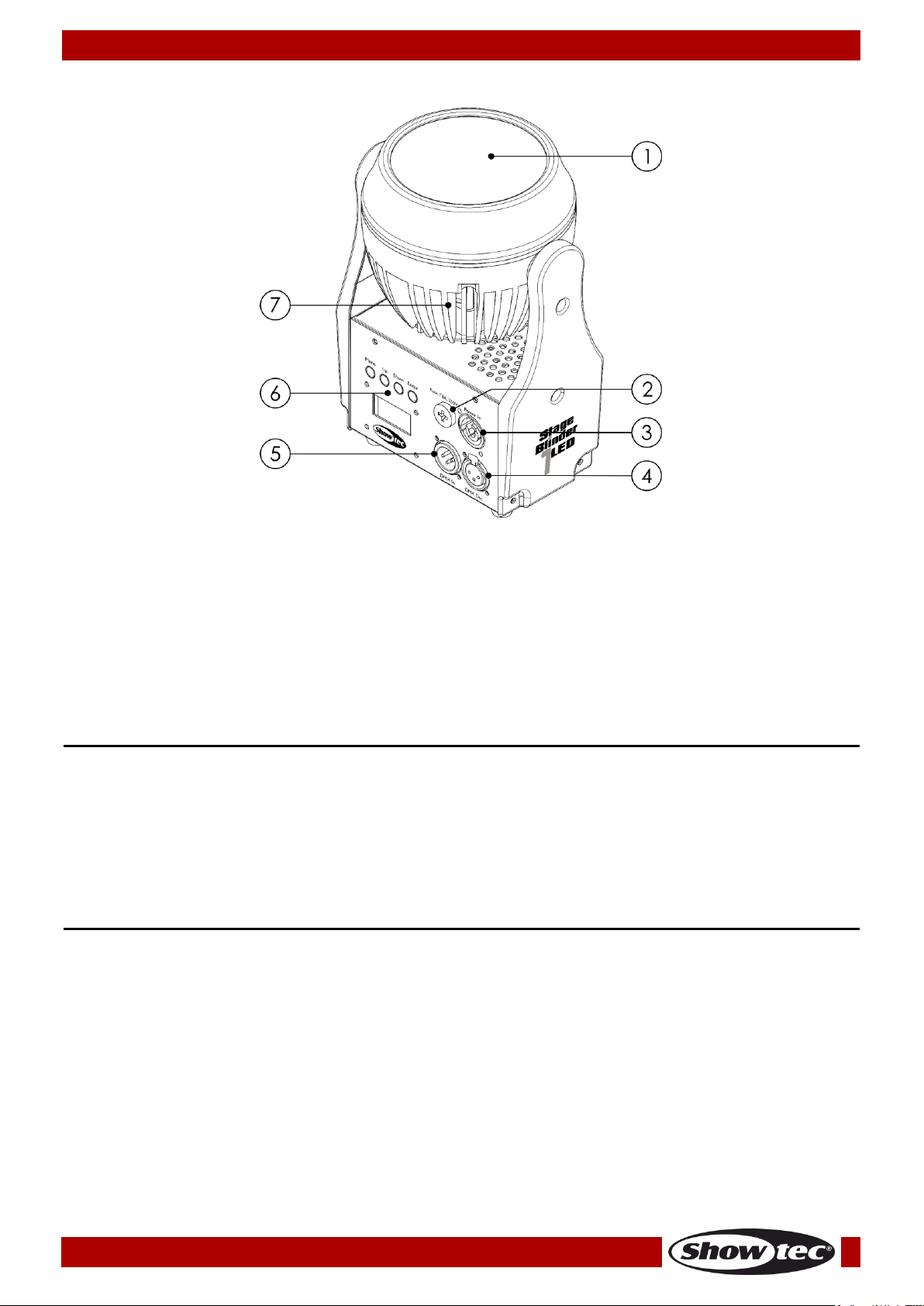

Overview ........................................................................................................................................................................ 8
Installation ........................................................................................................................................................................... 8
Setup and Operation ........................................................................................................................................................ 8
Control Modes ............................................................................................................................................................... 8
One Stage Blinder (Manual) .................................................................................................................................... 8
Multiple Stage Blinders (DMX Control) ................................................................................................................... 9
Fixture Linking ...............................................................................................................................................................10

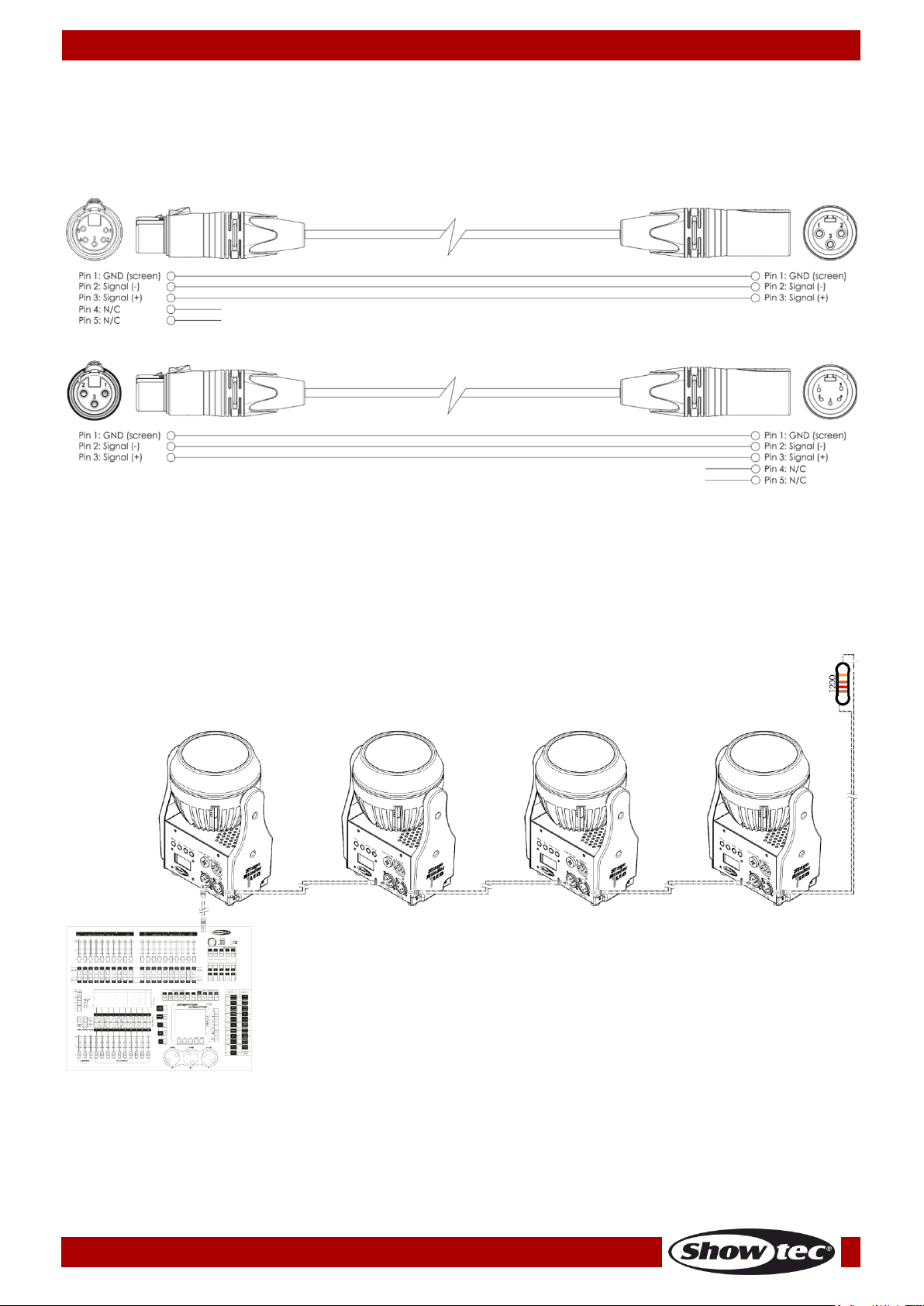

Data Cabling ...............................................................................................................................................................10

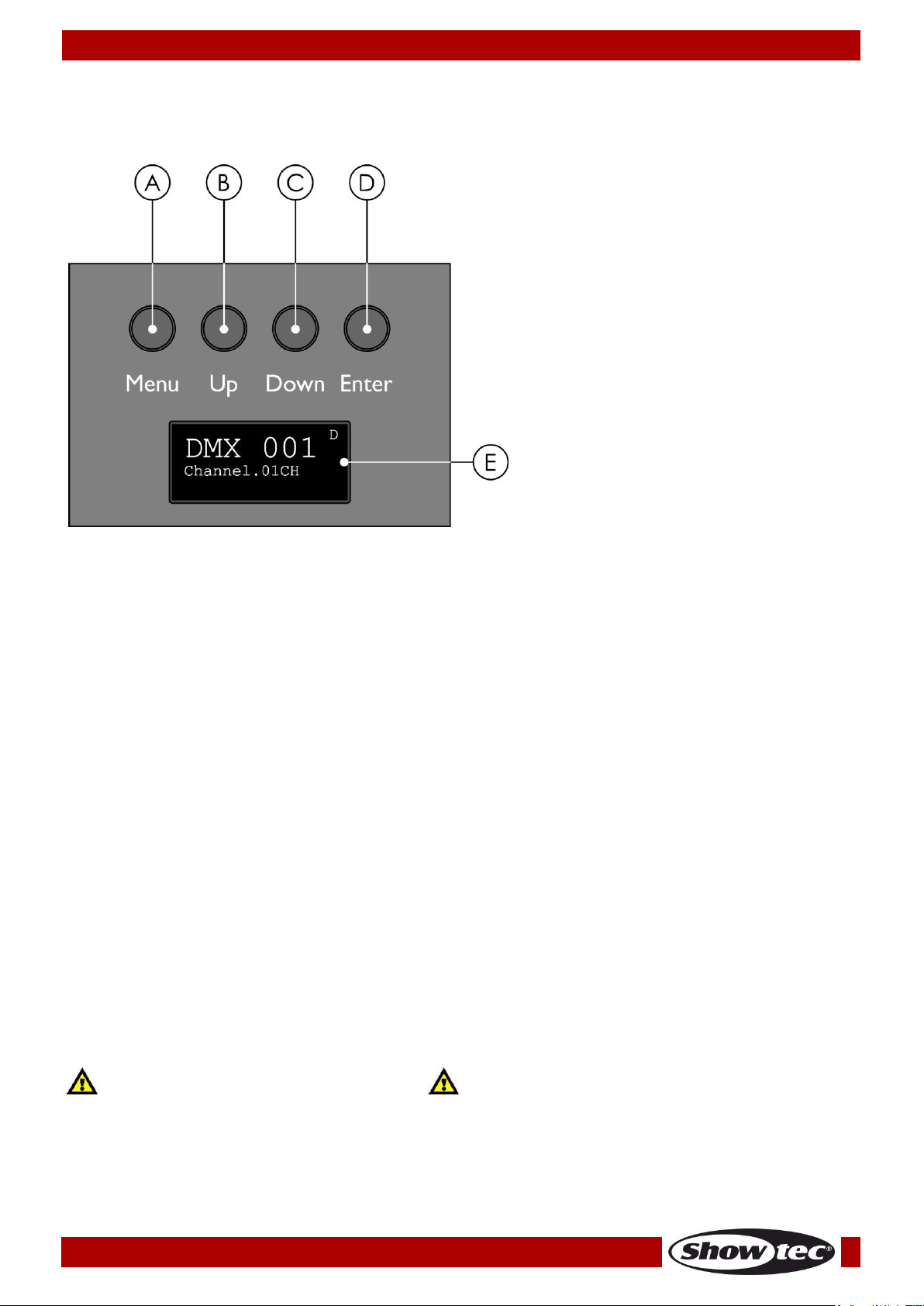

Control Panel ...............................................................................................................................................................11
DMX Addressing ..........................................................................................................................................................11

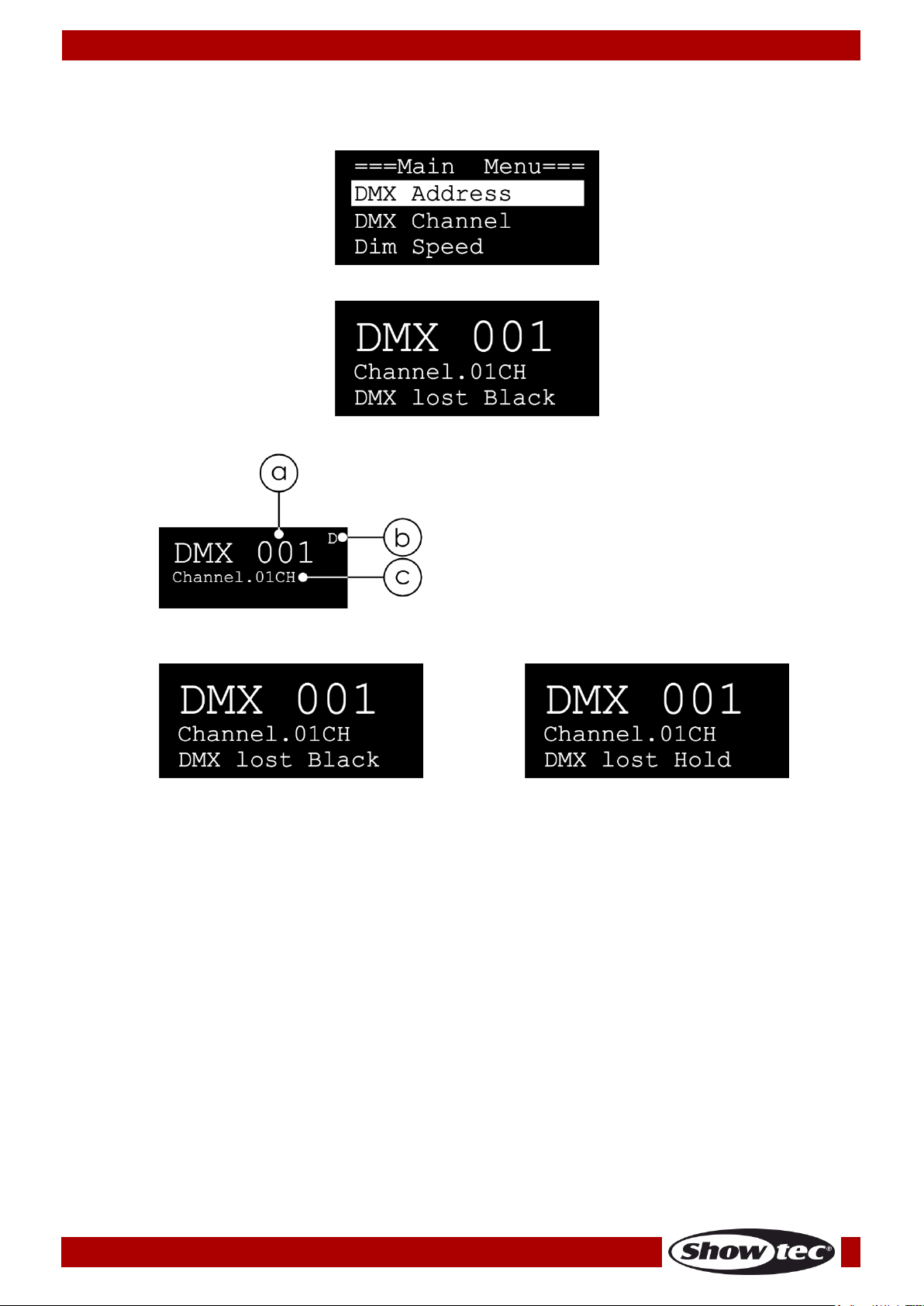

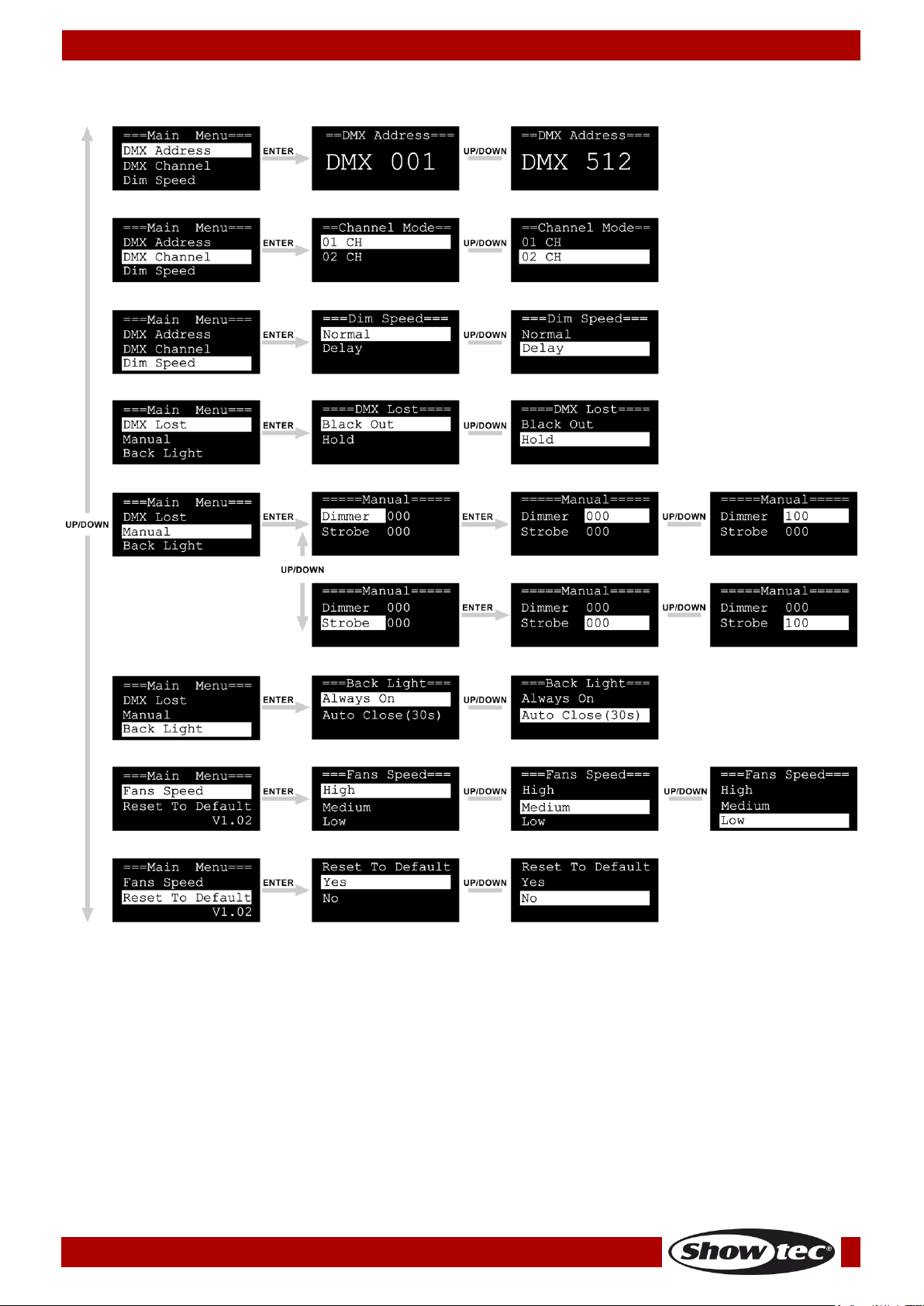

Menu Overview ...........................................................................................................................................................12

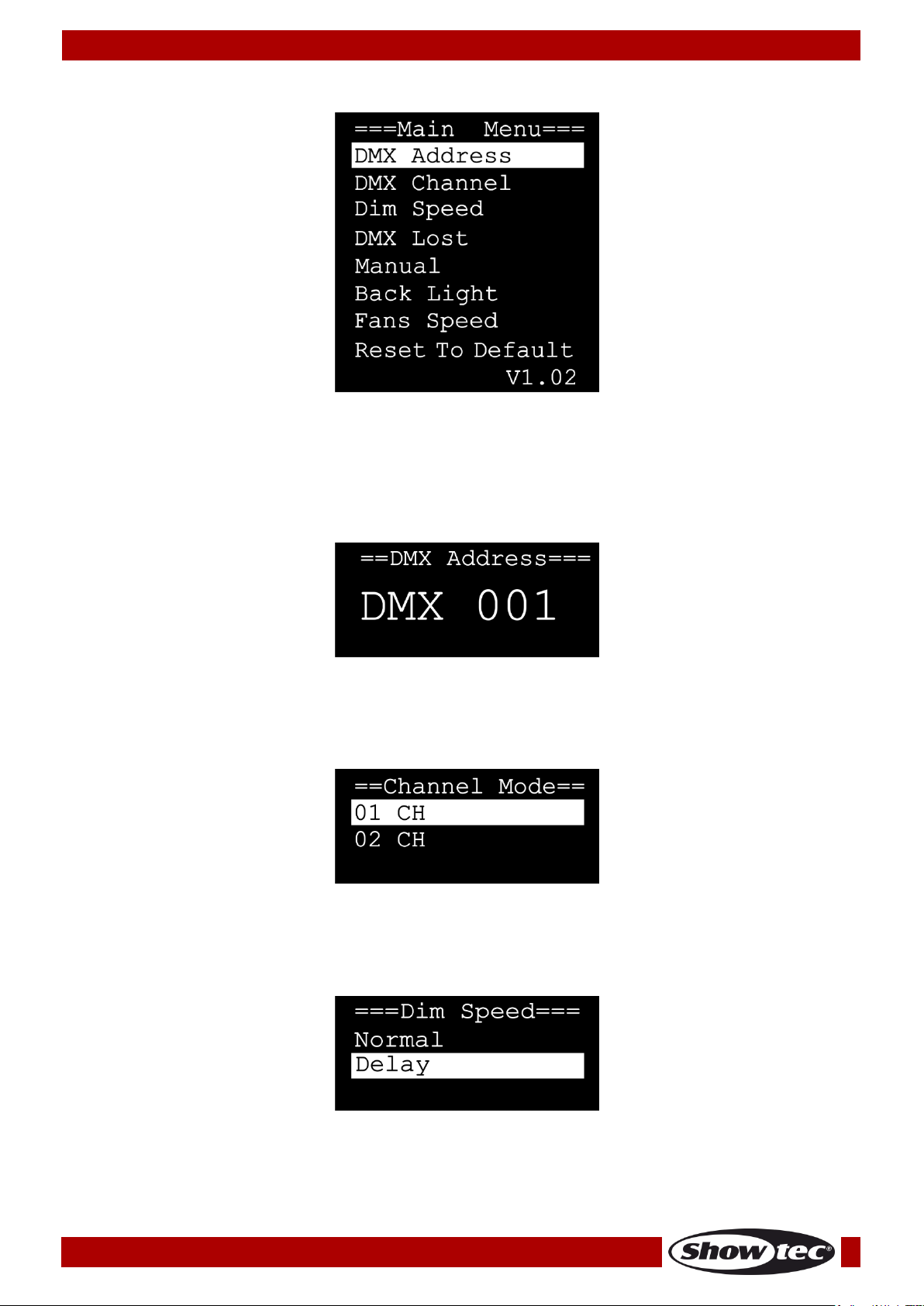

Main Menu Options ....................................................................................................................................................13
1. DMX Address ........................................................................................................................................................14
2. DMX Channel .......................................................................................................................................................14
3. Dim Speed ............................................................................................................................................................14

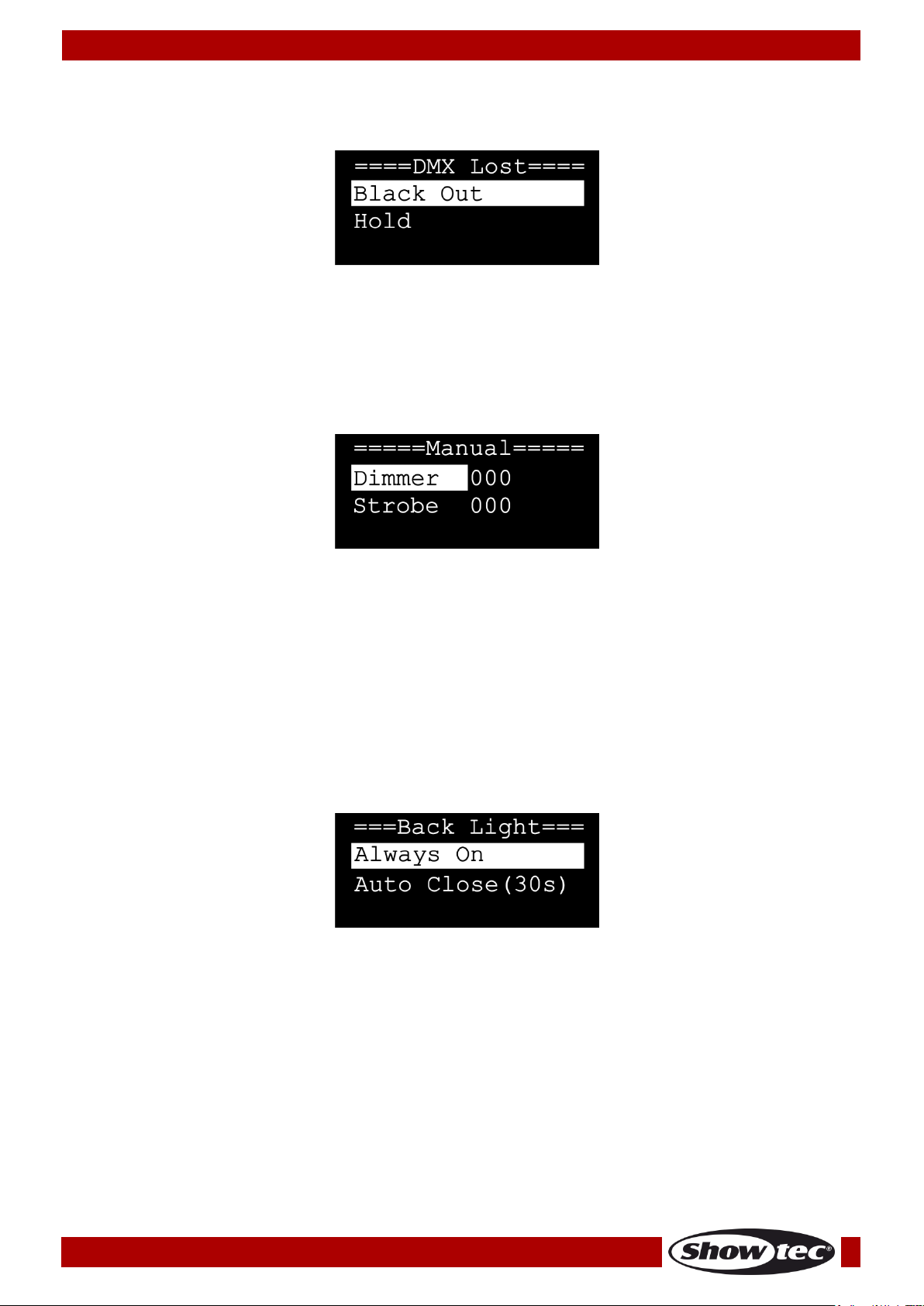

4. DMX Lost ................................................................................................................................................................15
5. Manual ...................................................................................................................................................................15
6. Back Light ..............................................................................................................................................................15

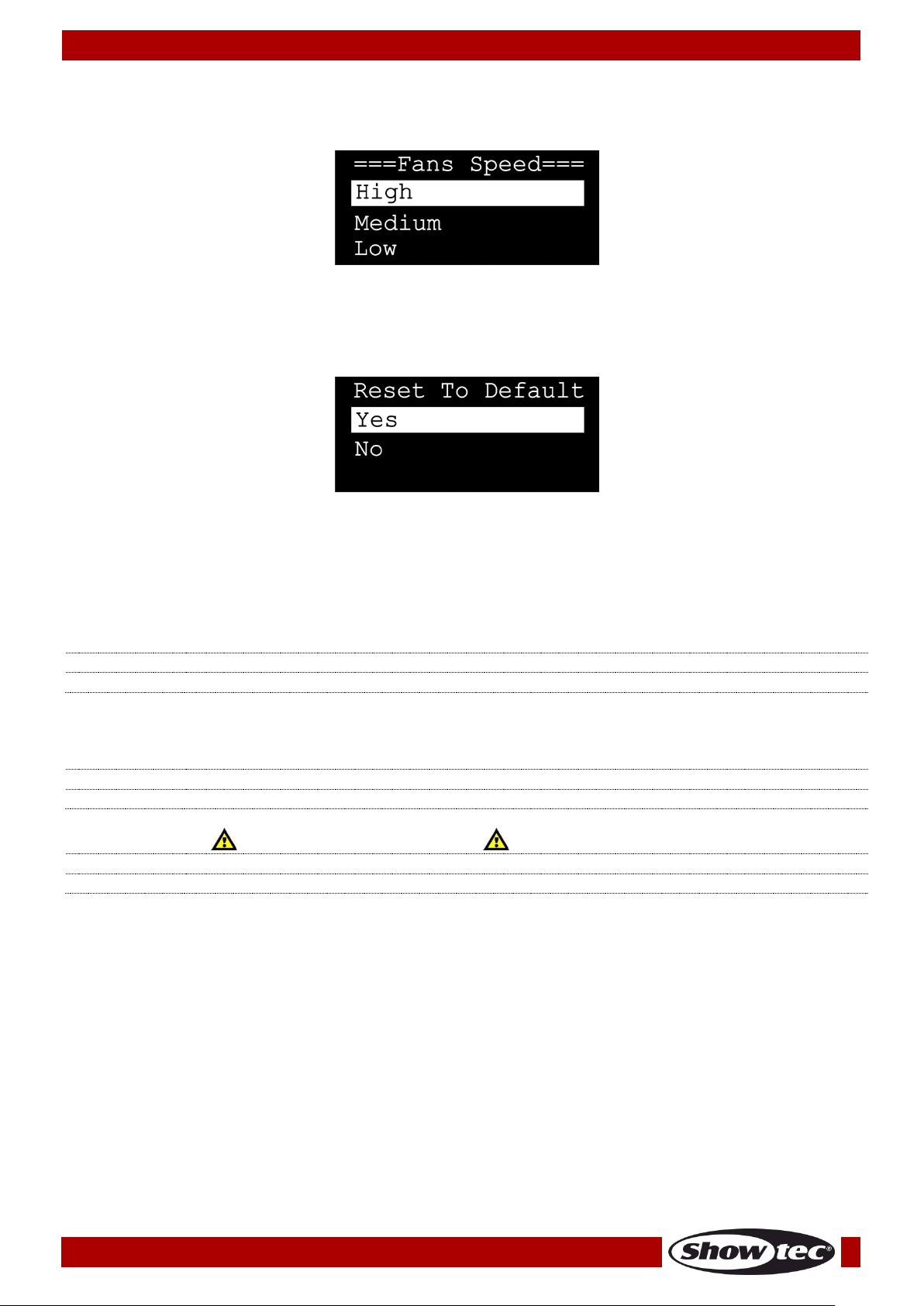

7. Fans Speed ...........................................................................................................................................................16
8. Reset to Default ...................................................................................................................................................16
DMX Channels .............................................................................................................................................................16
1 Channel ..................................................................................................................................................................16
2 Channels ................................................................................................................................................................16
Maintenance ....................................................................................................................................................................17
Replacing a Fuse ........................................................................................................................................................17
Troubleshooting ...............................................................................................................................................................17
No Light .........................................................................................................................................................................17
No Response to DMX..................................................................................................................................................17
Product Specifications ....................................................................................................................................................19

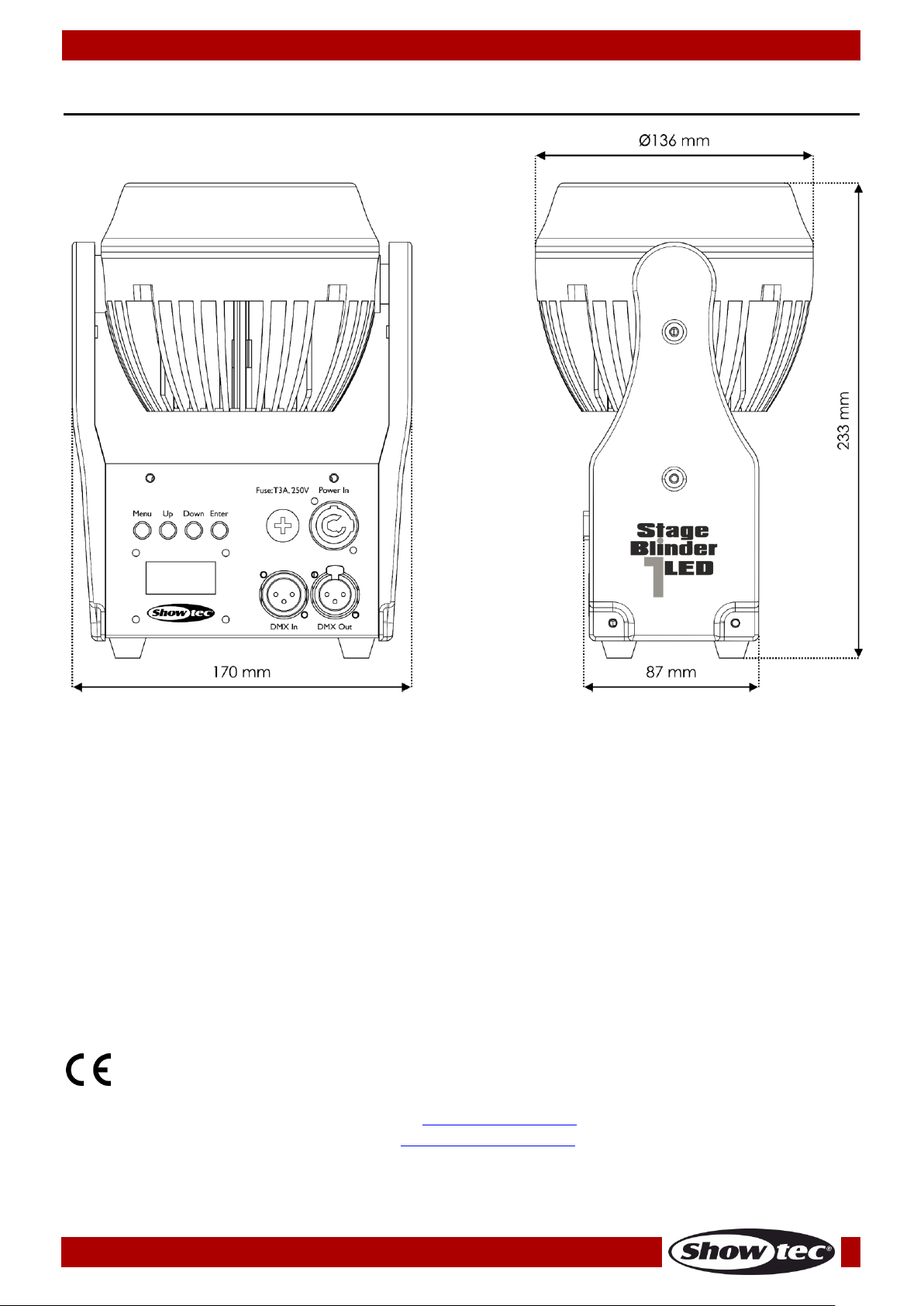

Dimensions ........................................................................................................................................................................20
2
Order code: 30784
Stage Blinder 1 LED
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
Showtec Stage Blinder 1 LED
Pro power to Schuko power cable (1,5 m)
Safety eye
User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is significantly reduced. If improving your lifespan expectancy is of a higher priority, place care in providing for lower operational temperatures. This may include climatic-environmental and the reduction of overall projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
3
Order code: 30784
Stage Blinder 1 LED
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.
Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
Never modify, bend, mechanically strain, put pressure on, pull or heat up the power cord.
Never strain the cable insert or the female part in the device. There must always be sufficient cable
going to the device. Otherwise, the cable will be damaged, which can cause serious damage.
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the device holding it by the projector-head, as the mechanics may be damaged.
Never place any material over the LEDs or lens.
Never look directly into the light source.
Never leave any cables lying around.
Never use the device during thunderstorms, unplug the device immediately.
Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach, as they are potential sources of danger.
Do not insert objects into air vents.
Do not open the device and do not modify the device.
Do not connect this device to a dimmer pack.
Do not switch the device on and off in short intervals, as this will reduce the device’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes hot). Allow
the device to cool for at least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use the device indoors, avoid contact with water or other liquids.
Only operate the device after having checked if the housing is firmly closed and all screws are tightly
fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep the case closed while operating.
Always allow a free air space of at least 80 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than the one stated on the device.
Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
Make sure that the core diameter of extension cords and power cords is sufficient for the required
power consumption of the device.
If the LEDs are obviously damaged, they have to be replaced to prevent their function from being
impaired, due to cracks or deep scratches.
If the external cable is damaged, it has to be replaced by a qualified technician.
If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. The device must be installed beyond the reach of children. Never leave the unit
running unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the device. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection Class I. Therefore it is essential to connect the yellow/green
conductor to earth.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
4
Order code: 30784
Stage Blinder 1 LED
Operating Determinations
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light output and the illuminated surface must be bigger than 0,8 m.
In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely
disconnect from power source via breaker or by unplugging.
The maximum ambient temperature t
a
= 40 °C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.
If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.
Do not attempt the installation yourself! Always let the installation be carried out by an authorized dealer!
Procedure:
If the Stage Blinder is lowered from the ceiling or high joists, professional trussing systems have to be
used.
Use a clamp to mount the Stage Blinder, with the mounting bracket, to the trussing system.
The Stage Blinder must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
When rigging, derigging or servicing the Stage Blinder, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
5
Order code: 30784
Stage Blinder 1 LED
The Stage Blinder 1 LED can be placed on a flat surface or fitted to any kind of truss with a clamp.
Improper installation can cause serious damage to people and property!
Connection with the Mains
Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property!
6
Order code: 30784
Stage Blinder 1 LED
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is
the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short­comings and/or visible defects, or perform this check after our announcement that the goods are at their disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is damaged due to shipping. Transportation damage has to be reported to us within one day after receipt of the delivery. Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless otherwise agreed in writing. Complaints against us must be made known in writing or by fax within 10 working days after receipt of the invoice. After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting.
7
Order code: 30784
Stage Blinder 1 LED
Description of the Device
Features
The Showtec Stage Blinder 1 LED is an audience blinder with one pod. The unit can be controlled by DMX and holds an 80-Watt Dual White COB. It has compact design and features tungsten simulation.
Punchy single LED blinder
Input voltage: 100-240 V AC, 50/60 Hz
Power consumption: 85 W max
Refresh rate: 3100 Hz
DMX channels: 1- and 2-channel mode
Light source: 1 x 80 W (2 x 40 W) dual-white (1800 K/3060 K) COB LED
Color temperature: 2490 K
Output: 4190 lm
Pod movement: +/- 180° smooth adjustment
Beam angle: 65,5°
Field angle: 99,5°
Dimmer: 0-100 %
Strobe frequency: 0,6-18 Hz
IP rating: IP20
Housing: metal/plastic
Housing color: black
DMX control: via standard DMX controller
Display: OLED
Control: manual, DMX-512
Connections: pro power connector IN, 3-pin DMX XLR connector IN/OUT
Cooling: cooling fans
Fuse: T3A, 250 V
Dimensions: 233 x 170 x 87 mm (L x W x H)
Weight: 2 kg
Note: Knowledge of DMX is required to fully utilize this unit.
