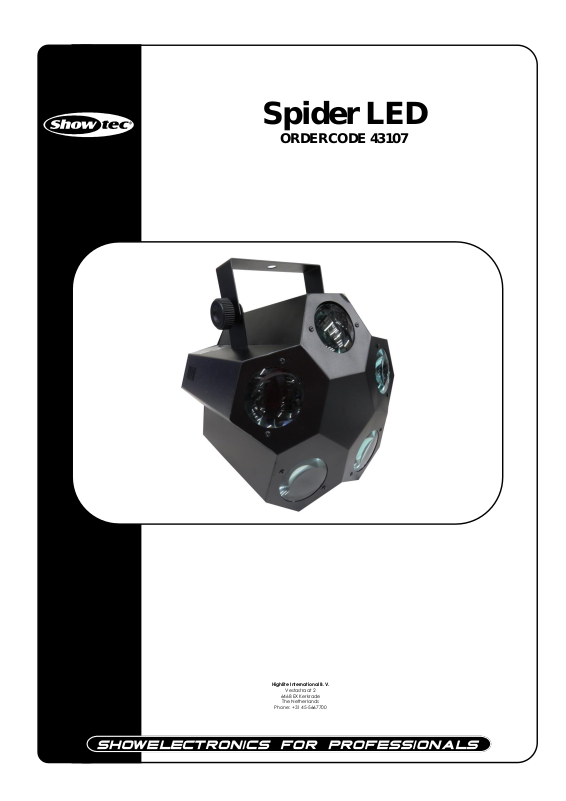

Spider LED
ORDERCODE 43107
Highlite International B.V.
Vestastraat 2
6468 EX Kerkrade
The Netherlands
Phone: +31 45-5667700
Page 2
Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec Spider LED brings excitement to any venue. Whether you want simple plug-&-play action or
a sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [email protected]
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!
Page 3
1
Showtec
Showtec Spider LED ™ Product Guide
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 4
Return Procedure .......................................................................................................................................................... 5
Claims .............................................................................................................................................................................. 5
Description of the device ................................................................................................................................................. 6

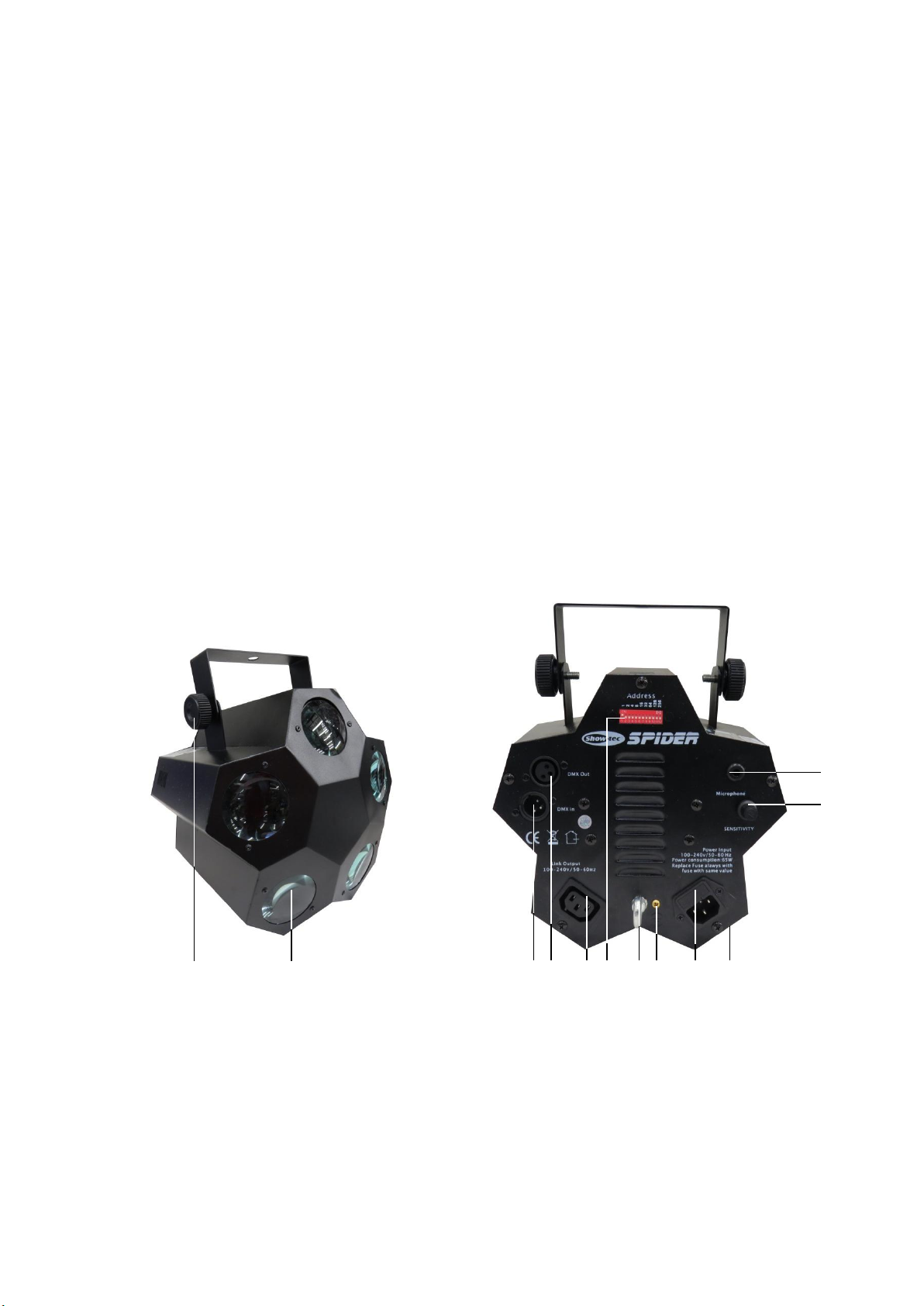

Overview ........................................................................................................................................................................ 6
Set Up and Operation ....................................................................................................................................................... 7
Control Modes ............................................................................................................................................................... 7
One Spider LED (Auto Run Programs) .................................................................................................................. 7
One Spider LED (Sound-control)............................................................................................................................ 8

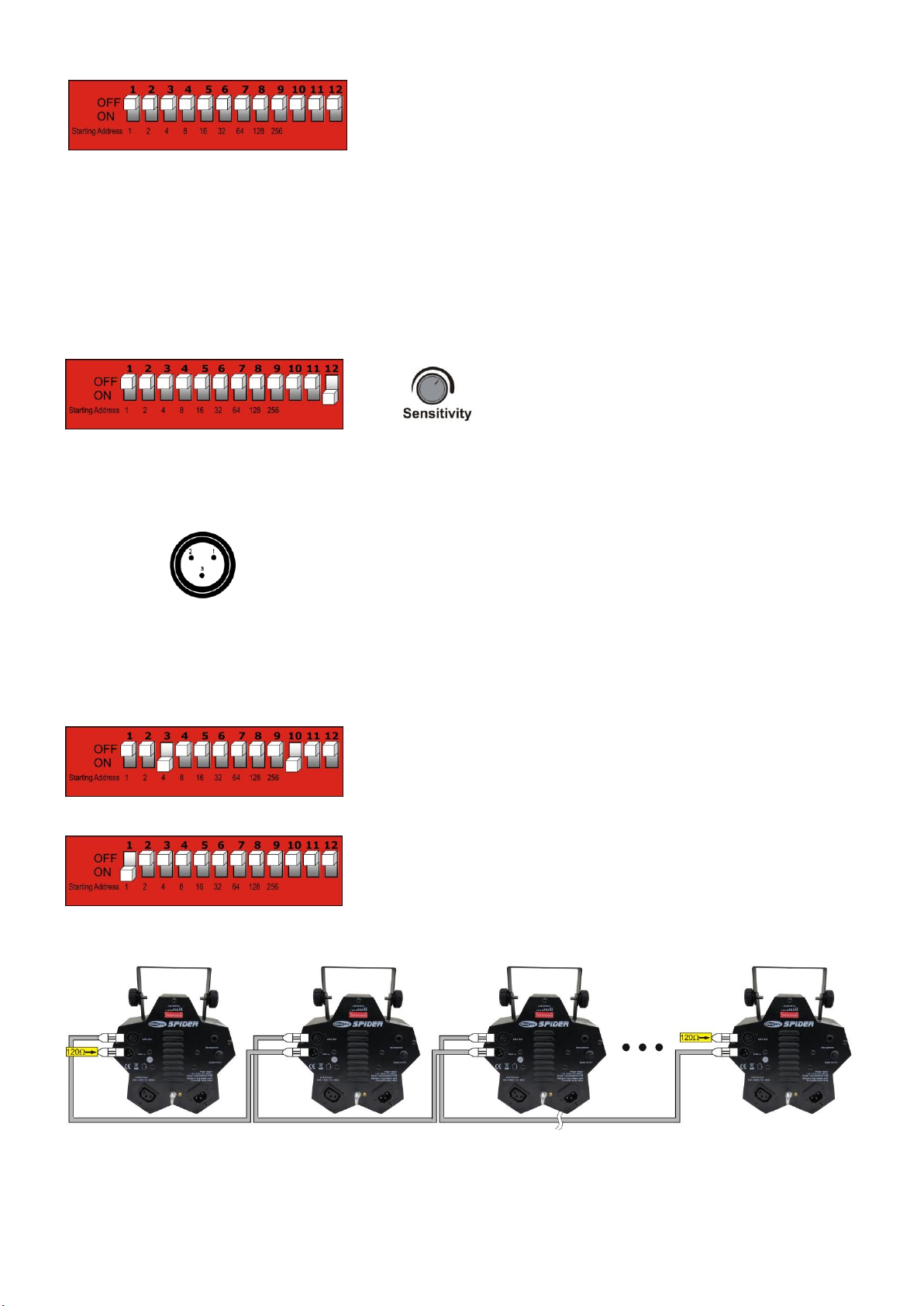

Multiple Spider LEDs (Master/Slave control) ........................................................................................................ 8
Multiple Spider LEDs (DMX Control) ...................................................................................................................... 9
Fixture Linking ............................................................................................................................................................... 10
Data Cabling ............................................................................................................................................................... 10

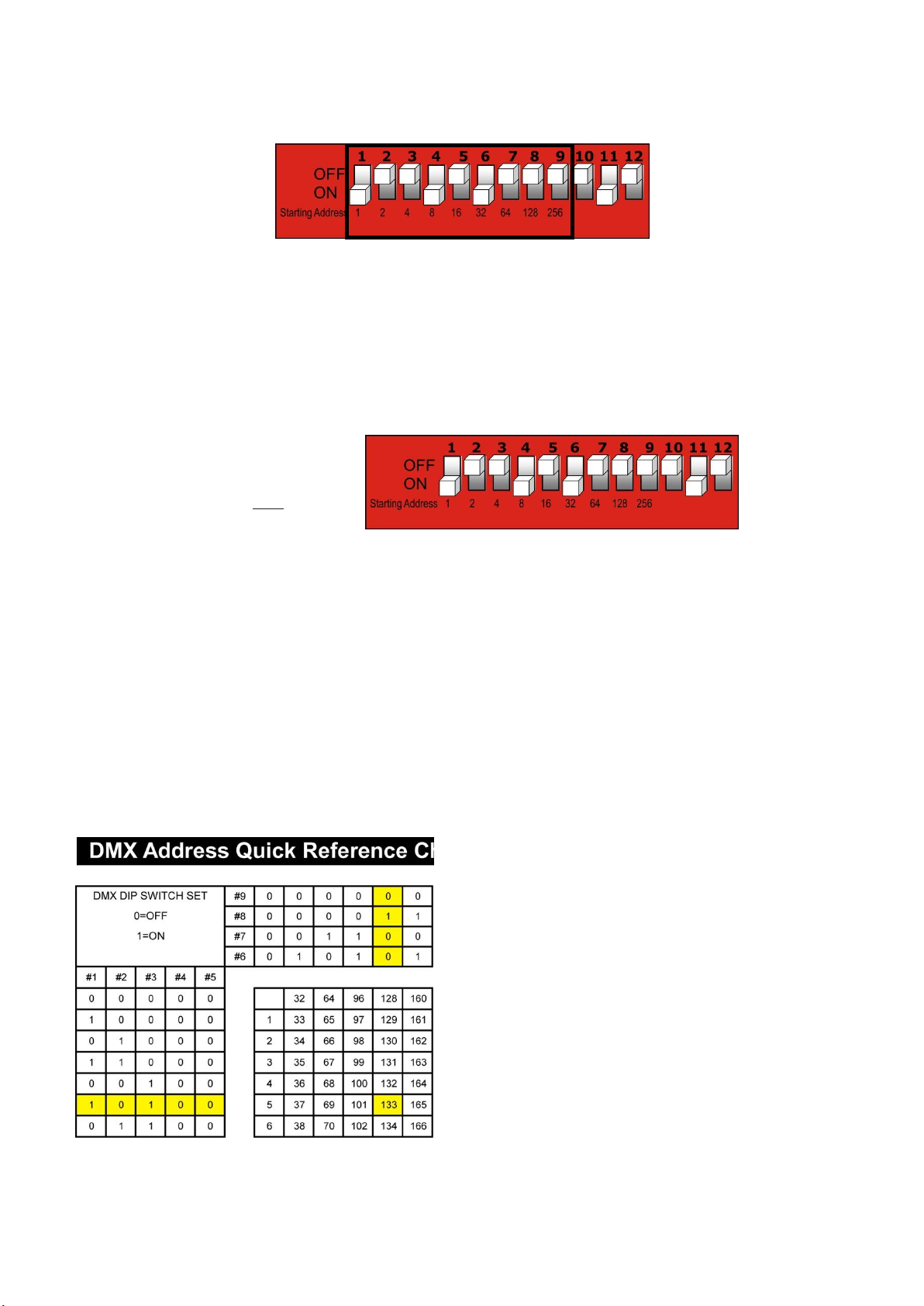

Dipswitch setting for DMX Mode.............................................................................................................................. 11

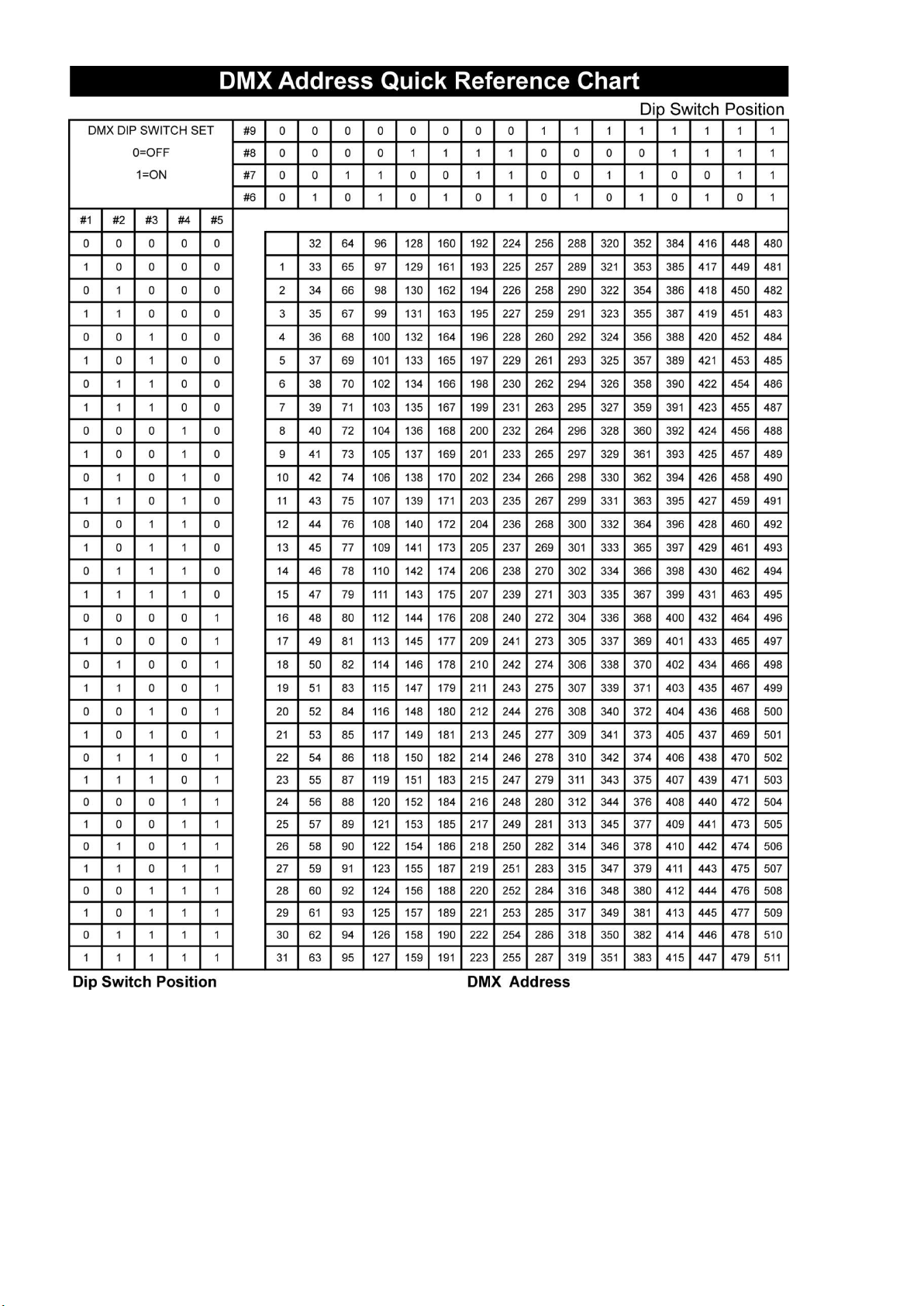

DMX Quick Reference Chart .................................................................................................................................... 12
DMX Channels ............................................................................................................................................................. 13
10 Channels ............................................................................................................................................................. 13
Maintenance .................................................................................................................................................................... 14
Replacing a Fuse ........................................................................................................................................................ 14
Troubleshooting ............................................................................................................................................................... 15
No Light ......................................................................................................................................................................... 15
No Response to DMX.................................................................................................................................................. 15
Product Specification ..................................................................................................................................................... 17
Page 4
2
Warning
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
• Showtec Spider LED including hanging bracket
• IEC powercable 1,5m
• User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. It is estimated that a viable lifespan of 40,000 to 50,000 hours will be achieved
under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place
care in providing for lower operational temperatures. This may include climatic-environmental and the
reduction of overall projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
- be qualified
- follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
Page 5
3
IMPORTANT:
CAUTION ! EYEDAMAGES !.
Avoid looking directly into the light source.
(meant especially for epileptics) !
The manufacturer will not accept liability for any resulting damages caused by the nonobservance of this manual or any unauthorized modification to the device.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Do not open the device and do not modify the device.
Never use anything to cover the ground contact.
Never leave the device run without a lamp!
Never look directly into the light source.
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this would reduce the device’s life.
Do not shake the device. Avoid brute force when installing or operating the device. The Spider
LED reacts very sensitive to movement.
Never use the device during thunderstorms, unplug the device immediately.
Only use device indoor, avoid contact with water or other liquids.
Do not touch the device’s housing bare-handed during its operation (housing becomes hot).
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep case closed while operating.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only
handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Only install the device with the hanging-bracket.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the device and the power-
cord from time to time.
If the external cable is damaged, it has to be replaced by a qualified technician.
If the lens or glass is obviously damaged, it has to be replaced. So that its functions are not
impaired, due to cracks or deep scratches.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your device. Leave
the device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit
running unattended.
For replacement use fuses of same type and rating only.
Allow time to cool down, before replacing lamp.
The user is responsible for correct positioning and operating of the Spider LED. The manufacturer
will not accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
Page 6
4
Operating Determinations
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NUL
YELLOW/GREEN
GREEN
GREEN
EARTH
• This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
• The minimum distance between light-output and the illuminated surface must be more than 0.5 meter.
• The maximum ambient temperature t
• The relative humidity must not exceed 50 % with an ambient temperature of 45° C.
• If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
• Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
= 45°C must never be exceeded.
a
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other
safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the Spider LED is lowered from the ceiling or high joists, professional trussing systems have to be
used.
Use a clamp to mount the Spider LED, with the mounting-bracket, to the trussing system.
The Spider LED must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net
or safety-cable.
When rigging, derigging or servicing the device, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Make sure that the device is always connected properly to the earth!
Page 7
5
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [email protected] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
1) Your name
2) Your address
3) Your phone number
4) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
Page 8
6
Description of the device
Features
The Showtec Spider LED is a light effect with high output and great effects.
• New and exciting lighting effect which creates a flowering effect
• Wide Beam angle
• Vivid colors
• DMX Control
• Exciting Flower effect
• 5 lenses ensure razor sharp beams
• Pre-programmed shows are perfectly synchronized to the beat of the music by its built-in music control
• Light Source: 320 LEDs (120 red, 120 green, 80 blue)
• Power Input: 100-230V 50/60Hz
• Long LED lifetime
• Peak Power 63 Watt
• Continuous Power 45 Watt
• Control: Auto Run, Sound, Master/Slave, DMX
• Sound-active program selectable by DMX
• Music-controlled via built-in microphone
• DMX Channels: 10
• Powerconnector: IEC In and IEC Out
• Data Connector: In/Out (XLR 3 Pin)
• Strobe: 0-20Hz
• Plug & Play
• Stand-alone
• Fuse 2A / 250V

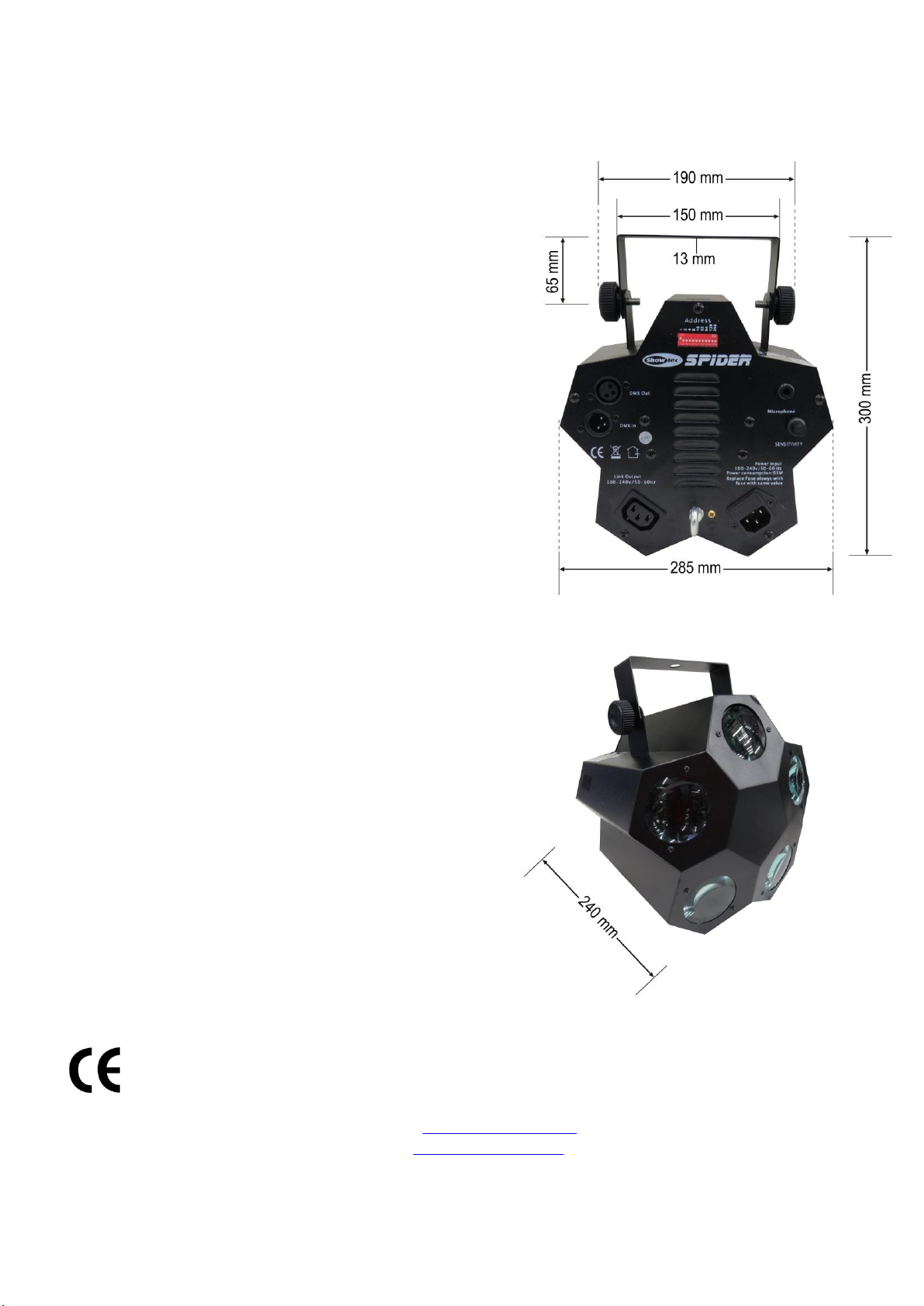

• Dimensions: 285 x 240 x 300 mm (LxWxH)
• Weight: 2,94 kg
• Optional Accessories: IEC cables, 90465, 90446, 90466, 43098
Overview
11
12
1 2 3 4 5 6 7 8 9 10
1) Adjustment screw 7) Safety eye
2) 5 Lenses 8) Earth connection
3) 3-pin DMX IN 9) IEC Power IN + Fuse 2A 250V
4) 3-pin DMX OUT 10) Earth connection (on the bottom)
5) IEC Power OUT 11) Built-in Microphone
6) Dipswitches 12) Audio Sensitivity
Fig. 1
Page 9
7
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Remove all packing materials from the Spider LED. Check that all foam and plastic padding is removed.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Control Modes
There are 4 modes: • Auto Run Programs
• Sound-controlled
• Master/Slave
• DMX512
One Spider LED (Auto Run Programs)
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. Plug the end of the electric mains power cord into a proper electric power supply socket.
3. When the Spider LED is not connected by a DMX-cable, it functions as a stand-alone device.
Dipswitch #10 must always be set to OFF for custom control
You can set dipswitch #1, #2, #3, #4, #5, #7, #8 or #9 to your desired operating mode.
Single LED move from left to right and up to down
Single row LED move from up to down
Single row LED move from left to right
LED move from up to down and lift to right
LED flash and move from up to down and lift to right
LED1.2.3.4 eye light bounce-Slow
LED1.2.3.4 eye light bounce-Medium
LED1.2.3.4 eye light bounce-Fast
Strobe
Page 10
8
Auto program
One Spider LED (Sound-control)
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. Plug the end of the electric mains power cord into a proper electric power supply socket.
3. The dipswitces have no influence during the Sound controlled modus.
4. When the Spider LED is not connected by a DMX-cable, it functions as a stand-alone device
5. For sound control dipswitch #12 must be set to ON. The other dipswitches must be OFF.
Turn on the music, then the fixture will react to the beat of the music. You can also adjust the
Sensitivity, by using the sensitivity control.
Multiple Spider LEDs (Master/Slave control)
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. Plug the end of the electric mains power cord into a proper electric power supply socket.
3. Use a 3-p XLR cable to connect the Spider LED.
The pins: 1. Earth
2. Signal -
4. Link the units as shown in (Fig. 2), Connect a DMX signal cable from the first unit's DMX "out" socket to
3. Signal +
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on page 7+8 (Auto Run or Music control).
This means on the master device you can set your desired operation Mode and all slave devices will
react the same as the master device.
Master Control: Use dipswitch #1-#12 to play your the desired
mode.
Slave Control: Dipswitch #1 should be ON
Multiple Spider LEDs (Master/Slave control)

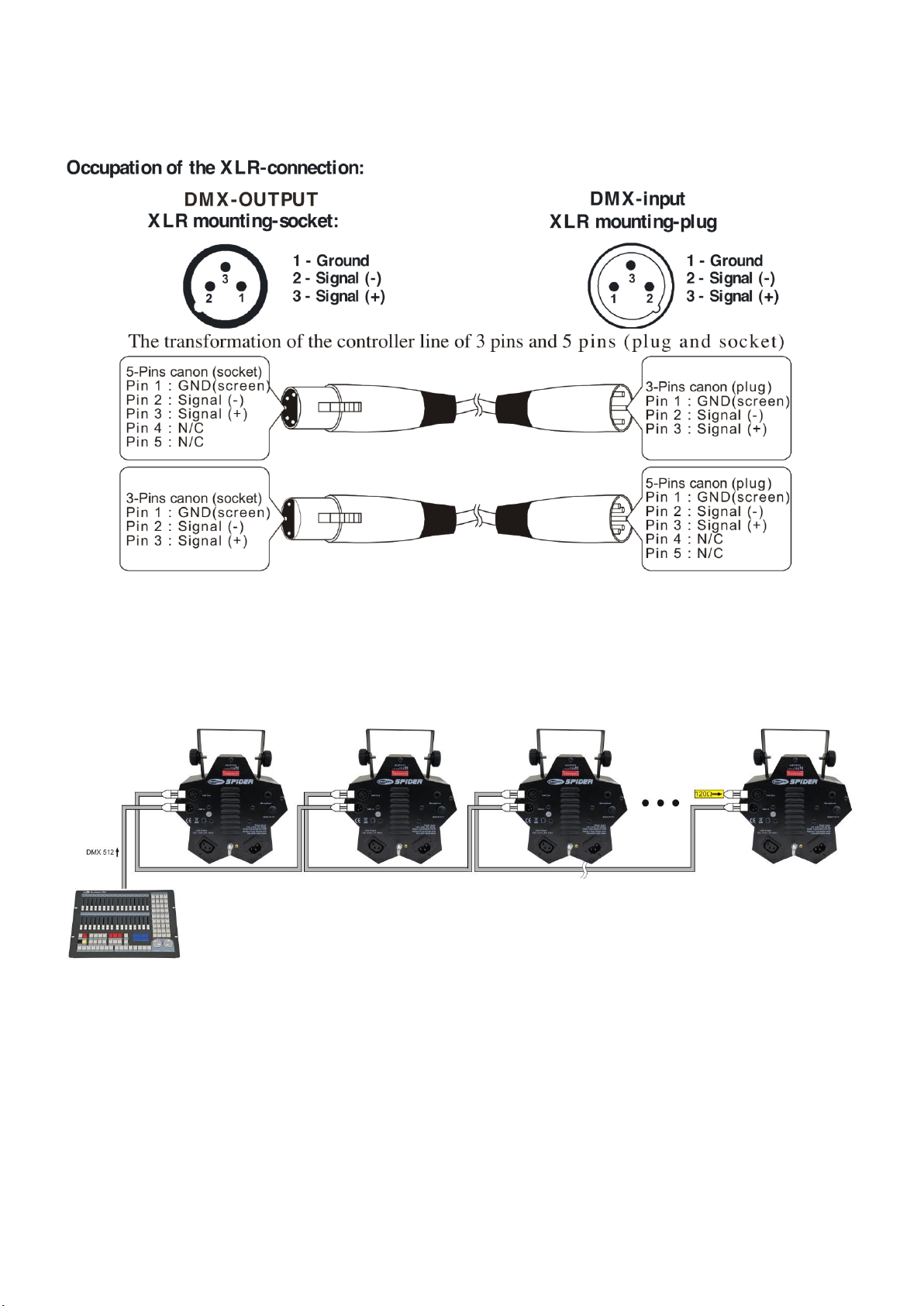

Fig. 2
Page 11
9
Multiple Spider LEDs (DMX Control)
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. Always use a safety cable (ordercode 70140 / 70141).
3. Use a 3-p XLR cable to connect the Spider LED and other devices.
4. Link the units as shown in (figure 3), Connect a DMX signal cable from the first unit's DMX "out" socket
to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
5. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.
Multiple Spider LEDs DMX Set Up
Fig. 3
Note : Link all cables before connecting electric power
Controlling:
After having addressed all Spider LED fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the Spider LED will automatically detect whether DMX 512 data is received or
not. If there is no data received, the problem may be:
• The XLR cable from the controller is not connected with the input of the Spider LED.
• The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
Page 12
10
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Important: Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of Spider LEDs on a DMX data link: 30 fixtures
Data Cabling
To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio Certified DMX Data Cables
• DAP Audio cable for allround use. bal. XLR/M 3 p. > XLR/F 3 p.
Ordercode FL01150 (1,5m.), FL013 (3m.), FL016 (6m.), FL0110 (10m.), FL0115 (15m.), FL0120 (20m.).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.).
Page 13
11
Dipswitch setting for DMX Mode
DMX products must have their own "address" to receive DMX signals.
Addresses on the controller are set by flipping the appropriate DMX dip switches #1 - #9.
You need to know that DMX address settings are the sum of the dip switch values.
A standard DMX address for a Showtec Spider LED, which has 10 channels is as follow:
Example
Spider LED Address Value DMX Dip Switches "ON"
Unit 5 41 #1 , #4, #6
Switch Value
#1 1
#4 8
#6 32 +
Total sum 41
Explanation: Since each unit has 10 channels, each address advances 10 values (See Address Value
above).
Once address values are determined, add DMX dip switch values to obtain the appropriate address
(DMX Dip Switches "ON") for each unit. Flip appropriate DMX dip switches on each unit.
Example:
1. If you want to give a Spider LED DMX address 133, you first have to find the number 133 in the DMX
Chart. (See page 11+12)
2. Then look at the left side (Dip Switches #1-#5) horizontally from 133.
In the Table you’ll see #1=ON, #2=OFF, #3=ON, #4=OFF, #5=OFF.
3. Finally look at the upper side of the table (Dip Switches #6-#9) vertically from 133.
In the Table you’ll see #6=OFF, #7=OFF, #8=ON, #9=OFF.
Page 14
12
DMX Quick Reference Chart

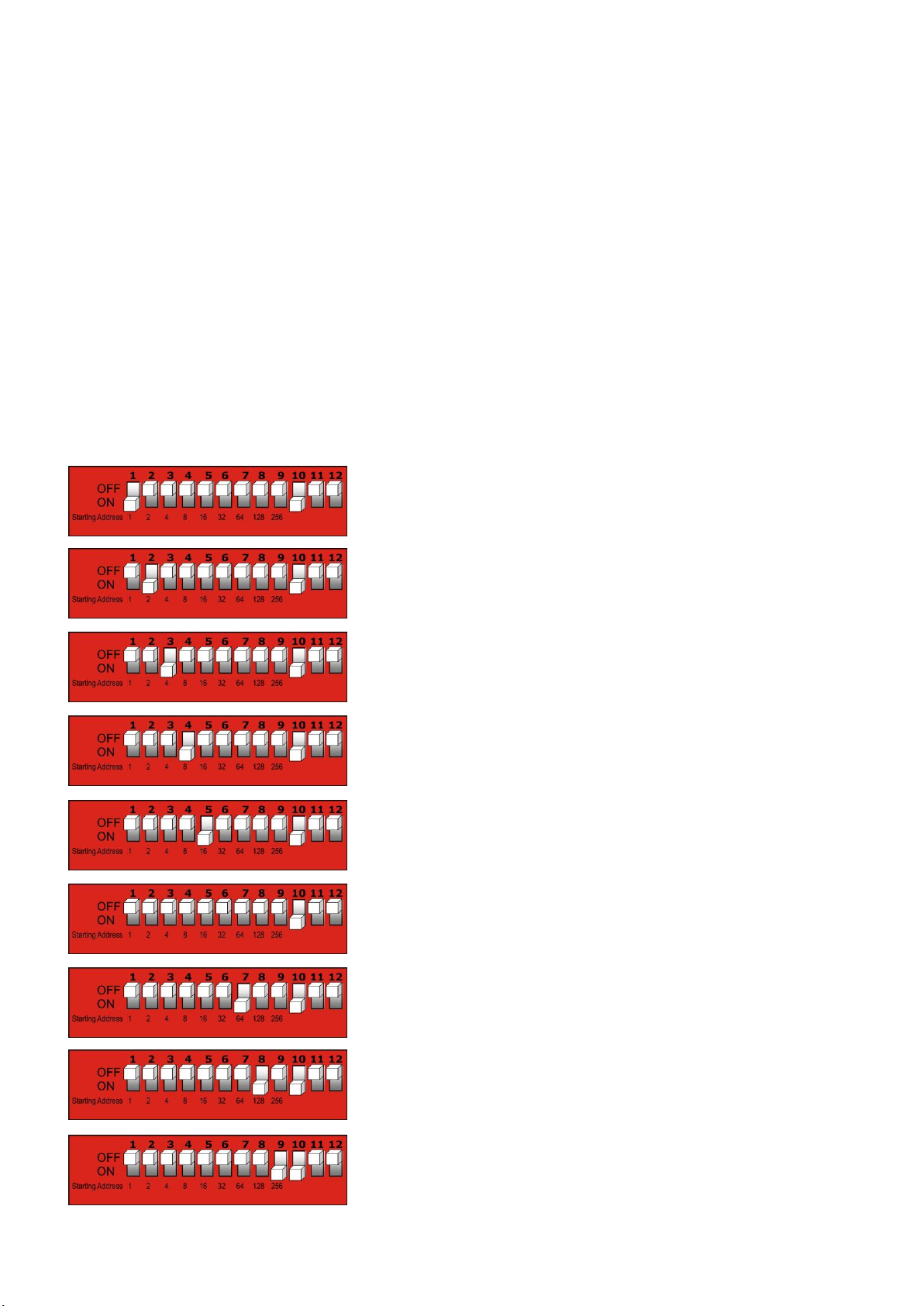

Page 15
13
DMX Channels
0-14
Blackout
15-19
Red
20-24
Green
25-29
Blue
30-34
Red + Green
35-39
Red + Blue
40-44
Green + Blue
45-49
Red + Green + Blue
50-199
Program Mode (Select Program with CH2)
200-255
Sound-controlled
0-7
Built-in Program 1
8-15
Built-in Program 2
16-23
Built-in Program 3
24-31
Built-in Program 4
32-39
Built-in Program 5
40-47
Built-in Program 6
48-55
Built-in Program 7
56-63
Built-in Program 8
64-71
Built-in Program 9
72-79
Built-in Program 10
80-87
Built-in Program 11
88-95
Built-in Program 12
96-103
Built-in Program 13
104-111
Built-in Program 14
112-119
Built-in Program 15
120-127
Built-in Program 16
128-135
Built-in Program 17
136-143
Built-in Program 18
144-151
Built-in Program 19
152-159
Built-in Program 20
160-167
Built-in Program 21
168-175
Built-in Program 22
176-183
Built-in Program 23
184-191
Built-in Program 24
192-199
Built-in Program 25
200-207
Built-in Program 26
208-215
Built-in Program 27
216-223
Built-in Program 28
224-231
Built-in Program 29
232-239
Built-in Program 30
240-247
Built-in Program 31
248-255
Built-in Program 32
0-255
Speed from slow to fast
0-255
Up to down equalizer effect from slow to fast
10 Channels
Channel 1 – Colors, Program Mode and Sound Active Mode
Channel 2 – Built-in programs (Only works when CH1 is set between 50-199 )
Channel 3 – Speed (Only works when CH1 is set between 50-199 )
Channel 4 – LED movement 1 (Only works when CH1 is set between 50-199 )
Page 16
14
0-255
Left to right from slow to fast
0-255
Inside to outside from slow to fast
0-255
Up to down, left to right, inside to outside from slow to fast
0-255
Strobe from slow to fast
0-14
Full On
15-255
Dimmer intensity from black to brightest
0-63
5 lenses illuminated
64-127
4 lenses illuminated
128-190
3 lenses illuminated
191-255
2 lenses illuminated
Channel 5 – LED movement 2 (Only works when CH1 is set between 50-199 )
Channel 6 – LED movement 3 (Only works when CH1 is set between 50-199 )
Channel 7 – LED movement 4 (Only works when CH1 is set between 50-199 )
Channel 8 – Strobe
Channel 9 – Dimmer (Only works when CH1 is set between 15-99 )
Channel 10 – Lens Selection (Only works when CH1 is set between 15-99 )
Maintenance
The Showtec Spider LED requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and
a soft cloth. Do not use alcohol or solvents. Keep connections clean. Disconnect electric power, and
then wipe the connections with a damp cloth. Make sure connections are thoroughly dry before linking
equipment or supplying electric power.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by an expert after every four years in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
1. All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
2. There may not be any deformations on housings, fixations and installation spots.
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
4. The electric power supply cables must not show any damages or material fatigue.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do
so.
1. Unplug the unit from electric power source.
2. Insert a screwdriver into the slot in the fuse cover. Gently pry up the fuse cover. The fuse will come out.
3. Remove the used fuse. If brown or unclear, it is burned out.
4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
Page 17
15
Troubleshooting
No Light
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect three potential problem areas: the power supply, the LEDs, the fuse.
1. Power supply. Check that the unit is plugged into an appropriate power supply.
2. The LEDs. Return the Spider LED to your Showtec dealer.
3. The fuse. Replace the fuse. See page 14 for replacing the fuse.
4. If all of the above appears to be O.K., plug the unit in again.
5. If you are unable to determine the cause of the problem, do not open the Spider LED, as this may
damage the unit and the warranty will become void.
6. Return the device to your Showtec dealer.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
1. Check the DMX setting. Make sure that DMX addresses are correct.
2. Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
3. Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
Page 18
16
Problem
Probable cause(s)
Remedy
One or more
fixtures are
completely dead.
No power to the fixture
• Check that power is switched on
and cables are plugged in.
Primary fuse blown.
• Replace fuse.
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller.
The controller is not connected.
• Connect controller.
3-pin XLR Out of the controller
does not match XLR Out of the first
fixture on the link (i.e. signal is
reversed).
• Install a phase reversing cable
between the controller and the first
fixture on the link.
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller.
Poor data quality
• Check data quality. If much lower
than 100 percent, the problem may
be a bad data link connection, poor
quality or broken cables, missing
termination plug, or a defective
fixture disturbing the link.
Bad data link connection
• Inspect connections and cables.
Correct poor connections. Repair or
replace damaged cables.
Data link not terminated with 120
Ohm termination plug.
• Insert termination plug in output jack
of the last fixture on the link.
Incorrect addressing of the fixtures.
• Check address setting.
One of the fixtures is defective and
disturbs data transmission on the
link.
• Bypass one fixture at a time until
normal operation is regained: unplug
both connectors and connect them
directly together.
• Have the defective fixture serviced
by a qualified technician.
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed).
• Install a phase-reversing cable
between the fixtures or swap pin 2
and 3 in the fixture, that behaves
erratically.
No light
Fixture is too hot.
• Allow fixture to cool.
• Clean fan.
• Make sure air vents at control panel
and front lens are not blocked.
• Turn up the air conditioning .
LEDs damaged
• Disconnect fixture and return to your
dealer.
The power supply settings do not
match local AC voltage and
frequency.
• Disconnect fixture. Check settings
and correct if necessary.
Page 19
17
Product Specification
Model: Showtec Spider LED
• New and exciting lighting effect which creates a flowering effect
• Pre-programmed shows are perfectly synchronized to the beat of the music by its built in music control
• Wide Beam angle
• Vivid colors
• DMX Control
• Exciting Flower effect
• 5 lenses ensure razor sharp beams
• Light Source: 320 LEDs (120 red, 120 green, 80 blue)
• Power Input: 100-230V 50/60Hz
• Long LED lifetime
• Peak Power 63 Watt
• Continuous Power 45 Watt
• Control: Auto Run, Sound, Master/Slave, DMX
• Sound-active program selectable by DMX
• Music-controlled via built-in microphone
• DMX Channels: 10
• Powerconnector: IEC In and IEC Out
• Data Connector: In/Out (XLR 3 Pin)
• Strobe: 0-20Hz
• Plug & Play
• Stand-alone
• Fuse 2A / 250V
• Dimensions: 285 x 240 x 300 mm (LxWxH)
• Weight: 2,94 kg
• Optional Accessories: IEC cables, 90465, 90446, 90466, 43098
Minimum distance:
Minimum distance from flammable surfaces: 0.5m
Minimum distance to lighted object: 0.8m
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: [email protected]
Page 20
Loading...
