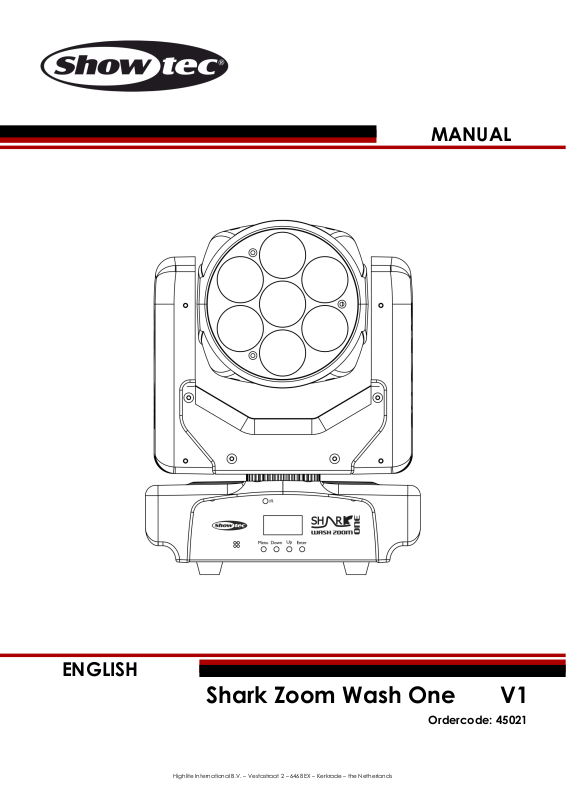

Showtec Shark Zoom Wash ONE V1 User Manual

Shark Zoom Wash One V1

Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Ordercode: 45021

MANUAL

ENGLISH

Ordercode: 45021

Shark Zoom Wash One

Table of contents

Warning ............................................................................................................................................................................... 2

Safety Instructions ......................................................................................................................................................... 2

Operating Determinations .......................................................................................................................................... 4

Rigging ............................................................................................................................................................................ 4

Connection with the mains......................................................................................................................................... 5

Return Procedure .......................................................................................................................................................... 5

Claims .............................................................................................................................................................................. 5

Description of the device ................................................................................................................................................. 6

Frontside.......................................................................................................................................................................... 6

Backside ......................................................................................................................................................................... 7

Installation ........................................................................................................................................................................... 7

Set Up and Operation ....................................................................................................................................................... 7

Control Modes ............................................................................................................................................................... 8

One Shark (Auto mode, Built-in Programs) ........................................................................................................... 8

One Shark (Sound-controlled) ................................................................................................................................ 8

Multiple Sharks (Master/Slave Control) .................................................................................................................. 8

Multiple Sharks (DMX Control) ................................................................................................................................. 9

Fixture Linking ............................................................................................................................................................... 10

Data Cabling ............................................................................................................................................................... 10

Control Panel ............................................................................................................................................................... 11

DMX Control Mode ..................................................................................................................................................... 11

DMX Addressing .......................................................................................................................................................... 11

Menu Overview ........................................................................................................................................................... 12

Main Menu Options .................................................................................................................................................... 12

1. DMX Address ........................................................................................................................................................ 13

2. DMX Channel ....................................................................................................................................................... 13

3. Running Mode ...................................................................................................................................................... 13

4. Programs ............................................................................................................................................................... 14

5. Settings ................................................................................................................................................................... 14

5.1. Calibration ......................................................................................................................................................... 15

6. System Info ............................................................................................................................................................ 15

Remote Control ........................................................................................................................................................... 16

DMX Channels ............................................................................................................................................................. 17

8 Channels ................................................................................................................................................................ 17

15 Channels .............................................................................................................................................................. 18

Maintenance ....................................................................................................................................................................20

Replacing the Fuse ..................................................................................................................................................... 20

Troubleshooting ...............................................................................................................................................................20

No Light ......................................................................................................................................................................... 20

No Response to DMX.................................................................................................................................................. 20

Product Specifications ....................................................................................................................................................22

Dimensions ........................................................................................................................................................................23

Notes ..................................................................................................................................................................................24

Ordercode: 45021

Shark Zoom Wash One

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

● Showtec Shark Zoom Wash One

● Mounting bracket with safety eye

● IR-remote

● IEC cable (length 1,5 m)

● User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower operational temperatures. This may include climatic-environmental and the reduction of overall projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

● be qualified

● follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device. To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual. Please consider that damages caused by manual modifications to the device are not subject to warranty. This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 45021

Shark Zoom Wash One

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.

 Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

 Never remove warning or informative labels from the unit.  Never use anything to cover the ground contact.  Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged.  Never place any material over the lens.  Never look directly into the light source.  Never leave any cables lying around.  Do not insert objects into air vents.  Do not connect this device to a dimmerpack.  Do not switch the device on and off in short intervals, as this would reduce the device’s life.  Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the fixture to cool for at least 5 minutes before handling.

 Do not shake the device. Avoid brute force when installing or operating the device.  Only use device indoor, avoid contact with water or other liquids.  Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

 Only operate the device after having familiarized with its functions.  Avoid flames and do not put close to flammable liquids or gases.  Always keep case closed while operating.  Always allow free air space of at least 50 cm around the unit for ventilation.  Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

 Make sure that the device is not exposed to extreme heat, moisture or dust.  Make sure that the available voltage is not higher than stated on the rear panel.  Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

 If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to

cracks or deep scratches.

 If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

 If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

 For adult use only. Device must be installed out of the reach of children. Never leave the unit running

unattended.

 Never attempt to bypass the thermostatic switch or fuses.  For replacement use fuses of same type and rating only.  The user is responsible for correct positioning and operating of the Shark Zoom Wash One. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.

 This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

 Repairs, servicing and electric connection must be carried out by a qualified technician.  WARRANTY: Till one year after date of purchase.

Ordercode: 45021

Shark Zoom Wash One

Operating Determinations

 This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

 The minimum distance between light-output and the illuminated surface must be more than 1 meter.  The maximum ambient temperature ta = 40°C must never be exceeded.  The relative humidity must not exceed 50 % with an ambient temperature of 40° C.  If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

 Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer !

Procedure:

 If the Shark is lowered from the ceiling or high joists, professional trussing systems have to be used.  Use a clamp to mount the Shark, with the mounting-bracket, to the trussing system.  The Shark must never be fixed swinging freely in the room.  The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

 When rigging, derigging or servicing the Shark, always make sure, that the area below the installation

place is blocked and staying in the area is forbidden.

The Shark Zoom Wash One can be placed on a flat stage floor or mounted to any kind of truss by means of the mounting bracket.

Improper installation can cause serious damage to people and property!

Ordercode: 45021

Shark Zoom Wash One

Connection with the mains

Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE

GROUND

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper inside the box:

01) Your name.

02) Your address.

03) Your phone number.

04) A brief description of the symptoms.

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is damaged due to shipping. Transportation damage has to be reported to us within one day after receipt of the delivery. Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless otherwise agreed in writing. Complaints against us must be made known in writing or by fax within 10 working days after receipt of the invoice. After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting.

Ordercode: 45021

Shark Zoom Wash One

Description of the device

Features

The Showtec Shark Zoom Wash One is a compact washlight with high output and great effects.

 Compact washlight  IR remote included  RGBW Colors  Input Voltage: 100-240 VAC, 50/60Hz  Power consumption: 80W max. at full output  Light Source: 7x15W RGBW 4-in-1 LED  Lux@2m: 19100 (6º)  Control protocol: DMX-512  DMX Channels: 8 or 15 Channels  Control modes: Auto, Built-in programs, Sound-controlled, Master/Slave, DMX-512, IR  Dimmer: 0-100%  Strobe: 0-20Hz  Zoom: Motorized  Pan: 0º-540º  Tilt: 0º-270º  Pan/Tilt resolution: 16 bit  Beam angle: 6º-36º  Power Connections: IEC Power connector IN  Data Connections: 3-pin XLR IN/OUT  Fuse: F2AL/250V  Housing: Black Metal & Flame-retardant plastic  Dimensions: 215 x 145 x 300 mm (LxWxH)  Weight: 4,2 kg

Note: Knowledge of DMX is required to fully utilize this unit.

Frontside

Fig. 01

01) 7x15W RGBW 4-in-1 LED

02) IR receiver

03) Built-in microphone

04) OLED display + control buttons

Ordercode: 45021

Shark Zoom Wash One

Backside

Fig. 02

05) 3-pin DMX signal connector IN

06) 3-pin DMX signal connector OUT

07) IEC power connector IN + Fuse F2AL/250V

08) Air intake grill

Installation

Remove all packing materials from the Shark Zoom Wash One. Check if all foam and plastic padding is removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Ordercode: 45021

Shark Zoom Wash One

Control Modes

There are 5 modes:

• Auto mode

• Built-in programs

• Sound-controlled

• Master/Slave Mode

• DMX-512 (8CH, 15CH)

One Shark (Auto mode, Built-in Programs)

01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) When the Shark is not connected with a DMX-cable, it functions as a stand-alone device. Please see

page 13 for more information about the Auto mode and Built-in programs.

One Shark (Sound-controlled)

01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) Turn on the music. If the device is set to sound-control, then the Shark will react to the beat of the

music. Please see page 13 for more information about the Sound-control options.

Multiple Sharks (Master/Slave Control)

01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) Use a 3-pin XLR cable to connect the Shark and other devices.

The pins:

01) Earth

02) Signal (-)

03) Signal (+)

05) Link the units as shown in (Fig.03). Connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can use the same functions on the master device as described on page 13 (Auto mode, Built-in programs, Sound controlled). This means that you can set your desired operation mode on the master device and all slave devices will react the same as the master device.

Multiple Sharks (Master/Slave Set Up)

Fig. 03
