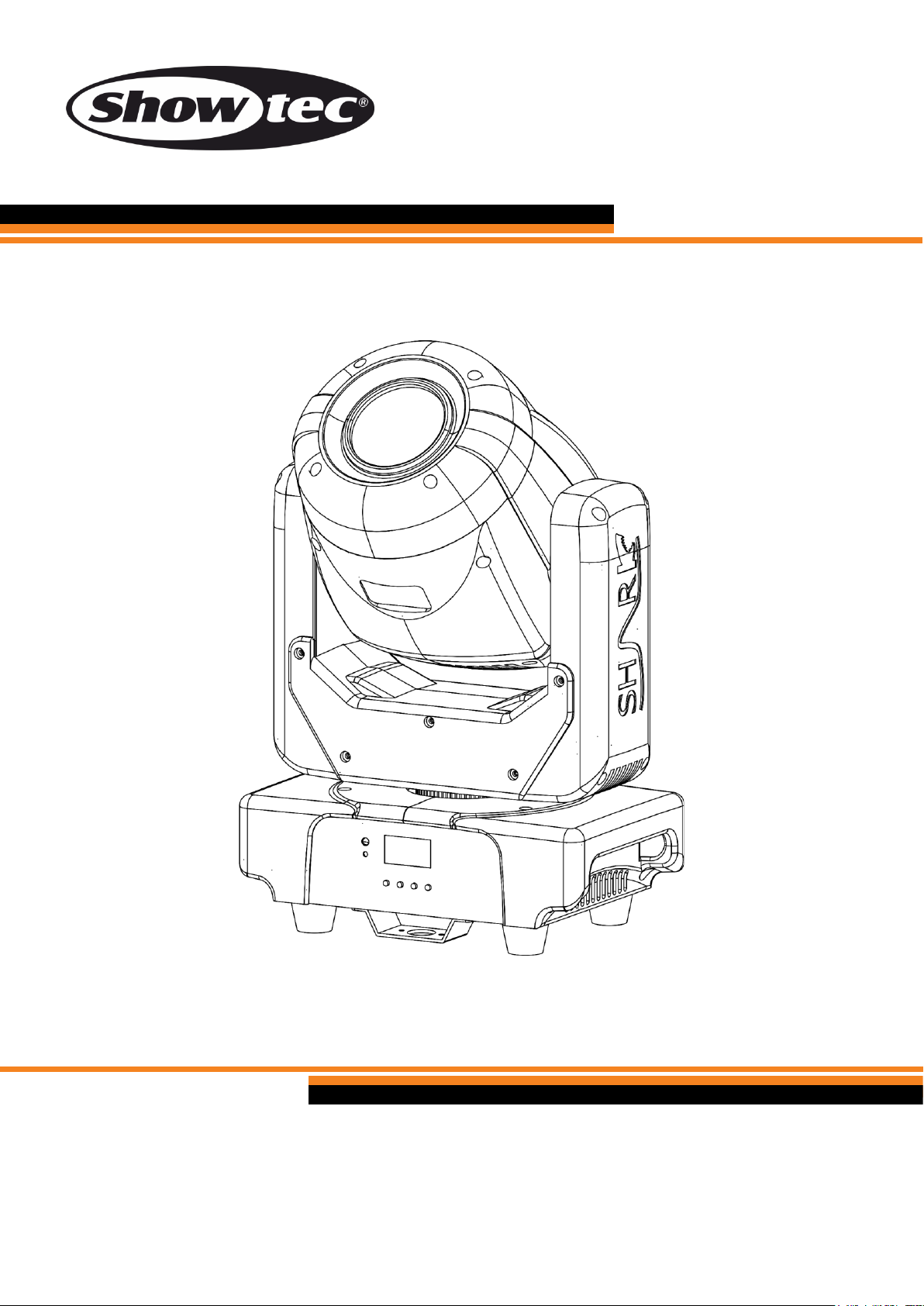

Shark Spot Two
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Product code: 45030
Firmware version: 2.0.1
USER MANUAL
ENGLISH
V1
1
Shark Spot Two
Product code: 45030
Preface
Thank you for purchasing this Showtec product.
The purpose of this user manual is to provide instructions for the correct and safe use of this product.
Keep the user manual for future reference as it is an integral part of the product. The user manual shall be
stored at an easily accessible location.
This user manual contains information concerning:
● Safety instructions
● Intended and non-intended use of the device
● Installation and operation of the device
● Maintenance procedures
● Troubleshooting
● Transport, storage and disposal of the device
Non-observance of the instructions in this user manual may result in serious injuries and damage of
property.
©2022 Showtec. All rights reserved.
No part of this document may be copied, published or otherwise reproduced without the prior written
consent of Highlite International.
Design and product specifications are subject to change without prior notice.
For the latest version of this document and other language versions, please visit our website
www.highlite.com or contact us at service@highlite.com.
Highlite International and its authorized service providers are not liable for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or
reliance on the information contained in this document.
2
Shark Spot Two
Product code: 45030
Table of contents
1. Introduction .......................................................................................................................................................... 4
Before Using the Product .................................................................................................................................. 4
Intended Use ....................................................................................................................................................... 4
Product Lifespan ................................................................................................................................................. 4
LEDs Lifespan ....................................................................................................................................................... 4
Text Conventions ................................................................................................................................................ 4
Symbols and Signal Words ................................................................................................................................ 5
Symbols on the Information Label .................................................................................................................. 5
2. Safety .................................................................................................................................................................... 6
Warnings and Safety Instructions .................................................................................................................... 6
Requirements for the User ................................................................................................................................. 8
3. Description of the Device ................................................................................................................................... 9
Front View ............................................................................................................................................................ 9
Back View ............................................................................................................................................................ 9
Bottom View ......................................................................................................................................................10
Product Specifications ....................................................................................................................................11
Dimensions .........................................................................................................................................................12
4. Installation .......................................................................................................................................................... 13
Safety Instructions for Installation ..................................................................................................................13
Personal Protective Equipment .....................................................................................................................13
Installation Site Requirements ........................................................................................................................13
Rigging ...............................................................................................................................................................14
Connecting to Power Supply .........................................................................................................................15
Power Linking of Multiple Devices .................................................................................................................15
5. Setup ................................................................................................................................................................... 16
Warnings and Precautions .............................................................................................................................16
Stand-alone Setup ...........................................................................................................................................16
DMX Connection ..............................................................................................................................................16
DMX-512 Protocol .......................................................................................................................................16
DMX Cables .................................................................................................................................................17
Master/Slave Setup ....................................................................................................................................17
DMX Linking ..................................................................................................................................................18
DMX Addressing ..........................................................................................................................................18
6. Operation ........................................................................................................................................................... 19
Safety Instructions for Operation ...................................................................................................................19
Control Modes ..................................................................................................................................................19
Control Panel ....................................................................................................................................................20
Start-up ...............................................................................................................................................................20
Menu Overview ................................................................................................................................................21
Main Menu Options .........................................................................................................................................22
DMX Address ...............................................................................................................................................22
DMX Channel ..............................................................................................................................................22
Running Mode .............................................................................................................................................23
Programs ......................................................................................................................................................23

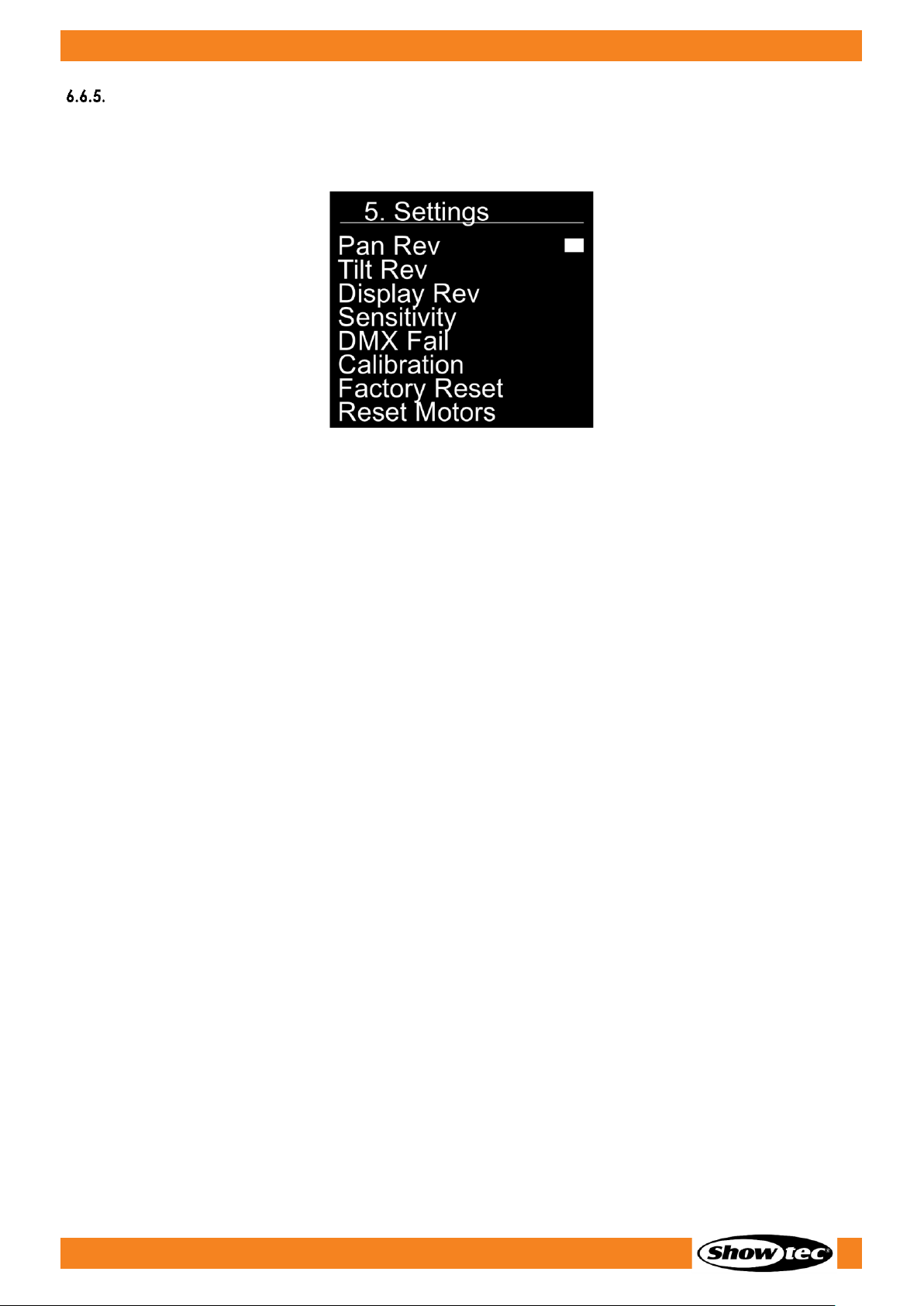

Settings ..........................................................................................................................................................24
Calibration ...........................................................................................................................................25
System Info ...................................................................................................................................................25
Remote Control ................................................................................................................................................26
DMX Channels ..................................................................................................................................................27
8 channels, 15 channels ............................................................................................................................27
Rotating Gobo Wheel and Color Wheel .....................................................................................................28
7. Troubleshooting ................................................................................................................................................. 29
3
Shark Spot Two
Product code: 45030
8. Maintenance ..................................................................................................................................................... 30
Safety Instructions for Maintenance .............................................................................................................30
Preventive Maintenance ................................................................................................................................30
Basic Cleaning Instructions .......................................................................................................................30
Corrective Maintenance ................................................................................................................................31
Replacing the Fuse .....................................................................................................................................31

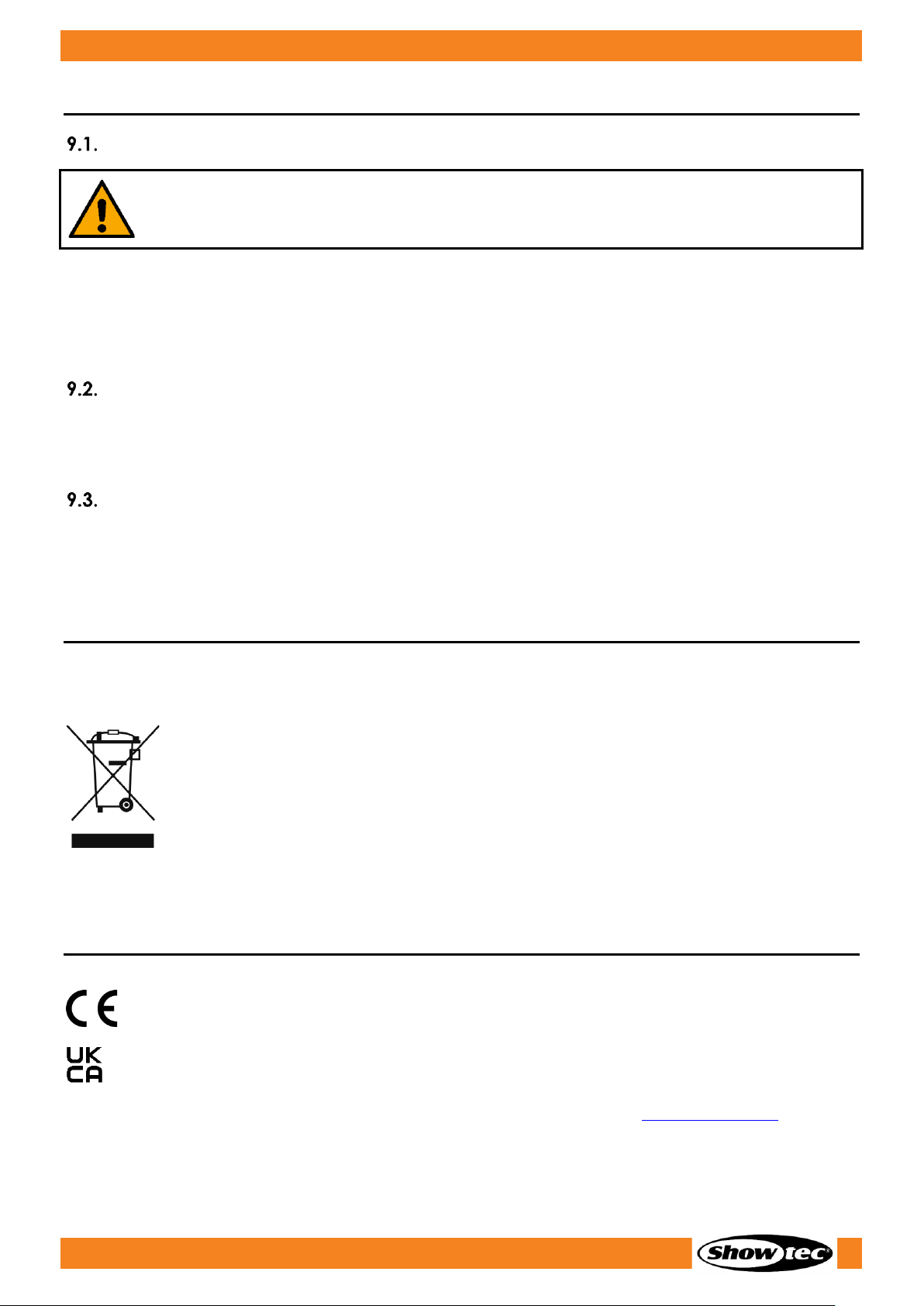

9. Deinstallation, Transportation and Storage .................................................................................................... 32
Instructions for Deinstallation ..........................................................................................................................32
Instructions for Transportation ........................................................................................................................32
Storage ...............................................................................................................................................................32
10. Disposal .............................................................................................................................................................. 32
11. Approval ............................................................................................................................................................. 32
4
Shark Spot Two
Product code: 45030
1. Introduction
Before Using the Product
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your
Highlite International dealer.
Your shipment includes:
● Showtec Shark Spot Two
● Schuko to Power Pro cable (1,5 m)
● Safety eye
● 1x Quick-lock bracket
● Remote control
● User manual
Fig. 01
Intended Use
This device is intended for professional use as a moving head. It is not suitable for households and for
general lighting.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Product Lifespan
This device is not designed for permanent operation. Disconnect the device from the electrical power
supply when the device is not in operation. This will reduce the wear and will improve the device’s
lifespan.
LEDs Lifespan
The light output of the LEDs gradually decreases over time (lumen depreciation). High operating
temperatures contribute to this process. You can extend the lifespan of the LEDs by providing adequate
ventilation and operating the LEDs at the lowest possible brightness.
Text Conventions
Throughout the user manual the following text conventions are used:
● Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons”
5
Shark Spot Two
Product code: 45030
● References: References to chapters and parts of the device are in bold lettering, for example:
“Refer to 2. Safety”, “turn the adjustment handle (05)”
● 0–255: Defines a range of values
● Notes: Note: (in bold lettering) is followed by useful information or tips

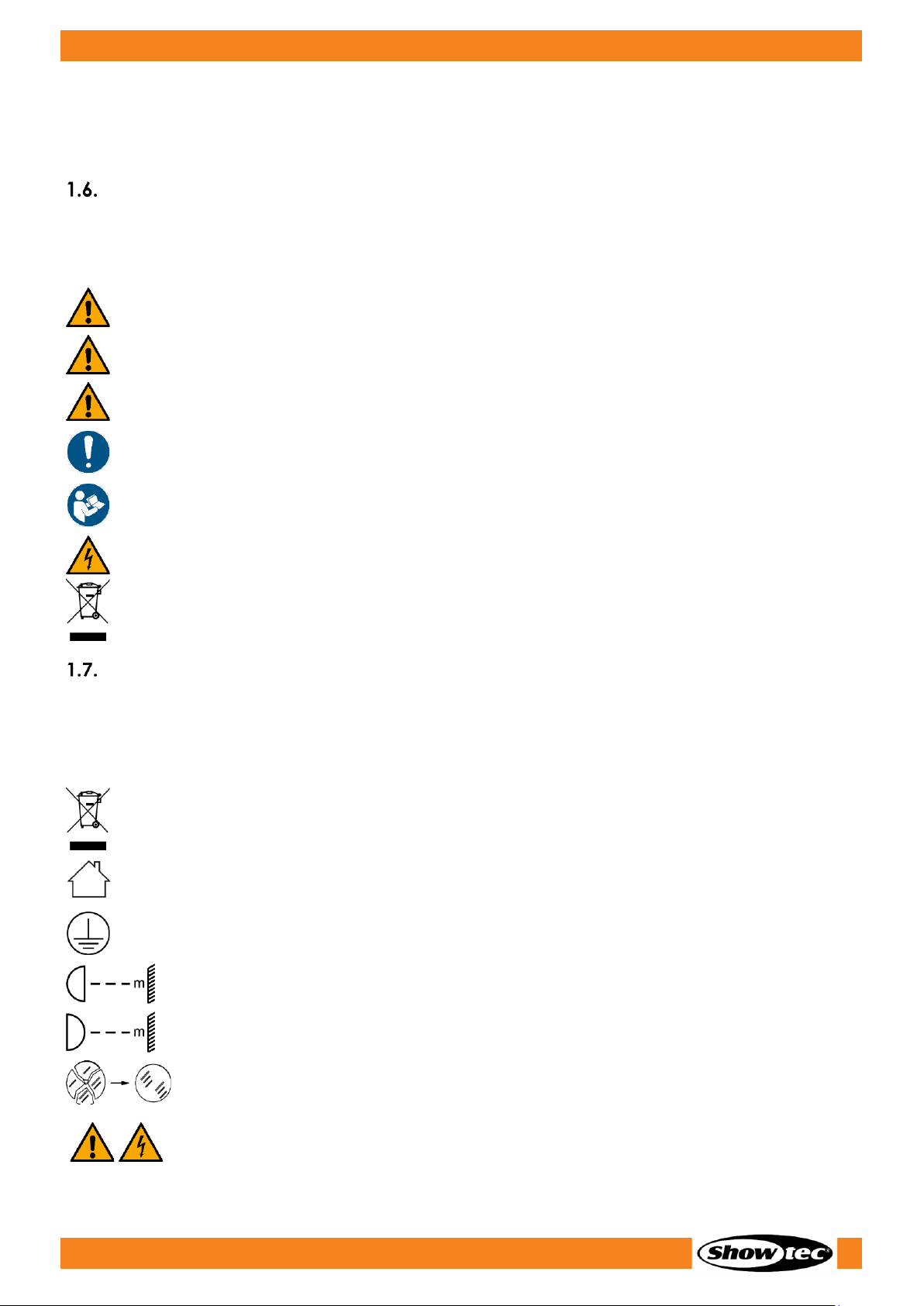

Symbols and Signal Words
Safety notes and warnings are indicated throughout the user manual by safety signs.
Always follow the instructions provided in this user manual.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
Attention
Indicates important information for the correct operation and use of the
product.
Important
Read and observe the instructions in this document.
Electrical hazard
Provides important information about the disposal of this product.
Symbols on the Information Label
This product is provided with an information label. The information label is located on the mounting
bracket of the device.
The information label contains the following symbols:
This device shall not be treated as household waste.
This device is designed for indoor use.
This device falls under IEC protection class I.
Minimum distance from lighted objects.
Minimum distance from other objects.
Replace any cracked protective shield.
Caution: Risk of electric shock. Do not open.
Caution: To reduce the risk of electrical shock, do not remove cover. No userserviceable parts inside. Refer servicing to qualified personnel.
6
Shark Spot Two
Product code: 45030
2. Safety
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
Warnings and Safety Instructions
DANGER
Danger for children
For adult use only. The device must be installed beyond the reach of children.
● Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach. Packaging material is a potential source of danger for children.
DANGER
Electric shock caused by dangerous voltage inside
There are areas within the device where dangerous touch voltage may be present.
● Do not open the device or remove any covers.
● Do not operate the device if the covers or the housing are open. Before operation, check if the
housing is firmly closed and all screws are tightly fastened.
● Disconnect the device from electrical power supply before service and maintenance, and when the
device is not in use.
DANGER
Electric shock caused by short-circuit
This device falls under IEC protection class I.
● Make sure that the device is electrically connected to ground (earth). Connect the device only to a
socket-outlet with ground (earth) connection.
● Do not cover the ground (earth) connection.
● Do not bypass the thermostatic switch or fuses.
● Do not let the power cable come into contact with other cables. Handle the power cable and all
connections with the mains with caution.
● Do not modify, bend, mechanically strain, put pressure on, pull or heat up the power cable.
● Make sure that the power cable is not crimped or damaged. Examine the power cable periodically
for any defects.
● Do not immerse the device in water or other liquids. Do not install the device in a location where
flooding may occur.
● Do not use the device during thunderstorms. Disconnect the device from the electrical power supply
immediately.
7
Shark Spot Two
Product code: 45030
WARNING
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at
strobe lights.
Attention
Power supply
● Before connecting the device to the power supply, make sure that the current, voltage and
frequency match the input voltage, current and frequency specified on the information label on the
device.
● Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the
required power consumption of the device.
Attention
General safety
● Do not connect the device to a dimmer pack.
● Do not switch the device on and off in short intervals. This decreases the device’s life.
● Do not shake the device. Avoid brute force when installing or operating the device.
● Change the lens or the LEDs if they are visibly damaged to such an extent that their effectiveness is
impaired, for example by cracks or deep scratches. Contact your Highlite International dealer for
more information, as servicing can be performed only by instructed or skilled persons.
● If the device is dropped or struck, disconnect the device from the electrical power supply
immediately.
● If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it
on immediately. Let the device reach room temperature before switching it on, otherwise it may be
damaged by the formed condensation.
● If the device fails to work properly, discontinue the use immediately.
Attention
For professional use only
This device shall be used only for the purposes it is designed for.
This device is designed to be used as a professional moving head. Any incorrect use may lead to
hazardous situations and result in injuries and material damage.
● This device is not suitable for households and for general lighting.
● This device is not designed for permanent operation.
● This device does not contain user-serviceable parts. Unauthorized modifications to the device will
render the warranty void. Such modifications may result in injuries and material damage.
8
Shark Spot Two
Product code: 45030
Attention
Before each use, examine the device visually for any defects.
Make sure that:
● All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
● The safety devices are not damaged.
● There are no deformations on housings, fixations and installation points.
● The lens is not cracked or damaged.
● The power cables are not damaged and do not show any material fatigue.
Attention
Do not expose the device to conditions that exceed the rated IP class conditions.
This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater
than 12 mm, such as fingers, and no protection against harmful ingress of water.
Requirements for the User
This product may be used by ordinary persons. Maintenance may be carried by ordinary persons.
Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite
International dealer for more information.
Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled
person, for specific tasks and work activities associated with the installation, service and maintenance of
this product, so that they can identify risks and take precautions to avoid them.
Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards
associated with the installation, service and maintenance of this product.
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons
include not only users of the product but also any other persons that may have access to the device or
who may be in the vicinity of the device.
9
Shark Spot Two
Product code: 45030
3. Description of the Device
The Showtec Shark Spot Two is a 90-watt LED moving head suitable for indoor use. Fifty percent more
powerful than the Shark Spot One (45023), it has seven dichroic colours plus white and a 3-facet prism,
giving it everything it needs to put on a colourful and dynamic light display. Six gobos add to its range of
impressive effects, while the motorised focus can be used to ensure that everything looks razor sharp.
Other features include dim and strobe functions. The Shark Spot Two can run in DMX, auto or sound
modes as a master or slave, or it can be operated using the included remote control. Settings can be
changed directly on the fixture using the built-in OLED display.
Front View
01) Lens / 1x 90 W CW LED module
02) Infrared Eye
03) DMX LED
04) OLED display + control buttons
Fig. 02
Back View
05) 3-pin DMX signal connector IN
06) 3-pin DMX signal connector OUT
07) ON / OFF
08) Fuse F4AL / 250 V
09) Power Pro connector IN
10) Power Pro connector OUT
Fig. 03
10
Shark Spot Two
Product code: 45030
Bottom View
11) Mounting holes for quick lock bracket
12) Safety Eye hole
Fig. 04
11
Shark Spot Two
Product code: 45030
Product Specifications
Model:
Shark Spot Two
Electrical:
Input voltage:
100–240 V AC, 50/60 Hz
Power consumption:
130 W
Fuse:
F4AL, 250 V
Physical:
Dimensions:
246 x 154 x 355 mm (L x W x H) (including bracket)
Weight:
6,2 kg
Optics:
Light source:
1x 90 W CW LED module
Dimmer:
0–100 %
Focus:
Motorized
Prism:
3-facet
Beam angle:
15°
Strobe:
0–25 Hz
Lux @2m
22111 lx
Lux @3m
9827 lx
Lux @5m
3538 lx
Lumen Total:
2923 lm
Dichroic Colour Wheel 1
7 + open
Gobo Wheel 1
6 + Open (Glass + Metal)
CRI:
81,5
Pan:
540 °
Tilt
210 °
Operation and control:
Control:
Stand-alone (Static, Auto, Built-in Programs, Manual, IR Remote Control)
Master/Slave
DMX-512
DMX channels:
8 channels
15 channels
Control panel:
OLED display and buttons
Connections:
Power connections:
Pro power connectors IN/OUT
Data connections:
3-pin DMX connectors IN/OUT
Signal pinouts:
Pin 1 (ground), pin 2 (-), pin 3 (+)
Construction:
Housing:
Plastic
Color:
Black
IP rating:
IP20
Cooling:
Axial Fan
Thermal:
Maximum ambient temperature ta:
40 °C
Minimum ambient temperature:
-5 °C
Minimum distance:
Minimum distance from flammable surfaces:
0,8 m
Minimum distance to lighted object:
0,8 m
12
Shark Spot Two
Product code: 45030
Dimensions
Fig. 05
Fig. 06
Fig. 07
Fig. 08
13
Shark Spot Two
Product code: 45030
4. Installation
Safety Instructions for Installation
WARNING
Incorrect installation can cause serious injuries and damage of property.
If trussing systems are used, installation must be carried out only by instructed or skilled persons.
Follow all applicable European, national and local safety regulations concerning rigging and trussing.
Personal Protective Equipment
During installation and rigging wear personal protective equipment in compliance with the national and
site-specific regulations.
Installation Site Requirements
● The device can be used only indoors.
● The device can be mounted to a truss or other rigging structure in any orientation.
● The minimum distance between the light output and the illuminated surface must be bigger
than 0,8 m.
● The maximum ambient temperature t
a
= 40 °C must never be exceeded.
14
Shark Spot Two
Product code: 45030
Rigging
The device can be positioned on a flat surface or mounted to a truss or other rigging structure in any
orientation. Make sure that all loads are within the pre-determined limits of the supporting structure.
CAUTION
Restrict the access under the work area during rigging and/or derigging.
To mount the device, follow the steps below:
Install the safety eye, supplied with the device, in the safety eye hole (12), as shown in Fig. 09. Make
sure that you use clamps suitable for attaching the device to a truss.
Fig. 09
Fasten the quick lock bracket, supplied with the device, on the mounting holes for quick lock
bracket (11), as shown in Fig. 10.
Fig. 10
Attach the device to the supporting structure. Make sure that the device cannot move freely.
Secure the device with a secondary suspension, for example a safety cable. Make sure that the
secondary suspension can hold 10 times the weight of the device. If possible, the secondary
suspension should be attached to a supporting structure independent of the primary suspension. Put
the safety cable through the safety eye as shown in Fig. 10.
15
Shark Spot Two
Product code: 45030
Connecting to Power Supply
DANGER
Electric shock caused by short-circuit
The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other
voltage or frequency to the device.
This device falls under IEC protection class I. Make sure that the device is always electrically connected
to the ground (earth).
Before connecting the device to the socket-outlet:
● Make sure that the power supply matches the input voltage specified on the information label on
the device.
● Make sure that the socket-outlet has ground (earth) connection.
Connect the device to the socket-outlet with the power plug. Do not connect the device to a dimmer
circuit, as this may damage the device.
Power Linking of Multiple Devices
This device supports power linking. Power can be relayed to another device via the power OUT
connector. Note that the input and the output connectors have different designs: one type cannot be
connected to the other.
Power linking of multiple devices must be carried out only by instructed or skilled persons.
WARNING
Incorrect power linking may lead to overload of the electrical circuit and result in serious
injuries and damage of property.
To prevent overload of the electrical circuit, when power linking multiple devices:
● Use cables with sufficient current-carrying capacity. The power cable supplied with the device is not
suitable for power linking of multiple devices.
● Make sure that the total current draw of the device and all connected devices does not exceed the
rated capacity of the power cables and the circuit breaker.
● Do not link more devices on one power link than the maximum recommended number.
Maximum recommended number of devices:
● at 100–120 V: 5 devices Shark Spot Two
● at 200–240 V: 10 devices Shark Spot Two
16
Shark Spot Two
Product code: 45030
5. Setup
Warnings and Precautions
DANGER
Electric shock caused by short-circuit
Attention
Connect all data cables before supplying power.
Disconnect power supply before connecting or disconnecting data cables.
Stand-alone Setup
When the Shark Spot Two is not connected to a controller or to other devices, it functions as a standalone device.
For more information about the control modes, refer to 6.2. Control Modes on page 19.
DMX Connection
DMX-512 Protocol
You need a DMX serial data link to run light shows of one or more devices using a DMX-512 controller or
to run synchronized shows of two or more devices set in a master/slave control mode.
The Shark Spot Two has 3-pin DMX signal IN and OUT connectors.
The pin assignment is as follows:
● 3-pin: pin 1 (ground), pin 2 (-), pin 3 (+)
Devices on a serial data link must be daisy-chained in a single line. The number of devices that you can
control on one data link is limited by the combined number of the DMX channels of the connected
devices and the 512 channels available in one DMX universe.
To comply with the TIA-485 standard, no more than 32 devices should be connected on one data link.
In order to connect more than 32 devices on one data link, you must use a DMX optically isolated
splitter/booster, otherwise this may result in deterioration of the DMX signal.
Note:
● Maximum recommended DMX data link distance: 300 m
● Maximum recommended number of devices on a DMX data link: 32 devices
17
Shark Spot Two
Product code: 45030

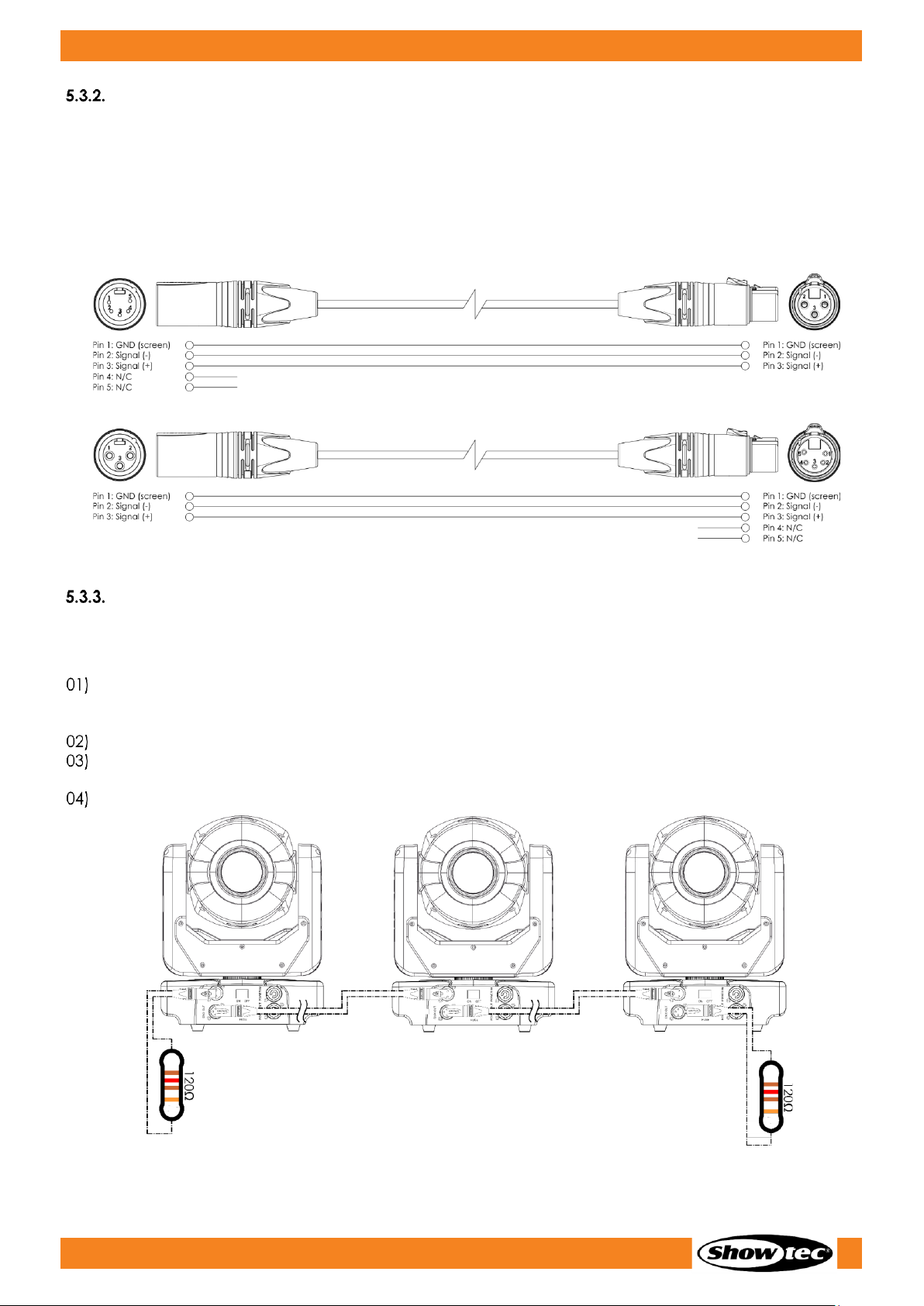

DMX Cables
Shielded twisted-pair cables with 3-pin XLR connectors must be used for reliable DMX connection. You
can purchase DMX cables directly from your Highlite International dealer or make your own cables.
If you use 3-pin XLR audio cables for DMX data transmission, this may lead to signal degradation and
unreliable operation of the DMX network.
When you make your own DMX cables, make sure that you connect the pins and wires correctly as
shown in Fig. 11.
Fig. 11
Master/Slave Setup
The Shark Spot Two supports master/slave control mode. To connect multiple devices in a master/slave
setup, follow the steps below:
Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a
3-pin DMX cable. The first connected device in the setup will be automatically recognized as the
master device.
Repeat step 1 to connect all devices as shown in Fig. 12.
Set all subsequent devices in the setup as slave devices. See 6.6.3 Run Mode on page 23 for more
information.
Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device in the setup.
Fig. 12
18
Shark Spot Two
Product code: 45030

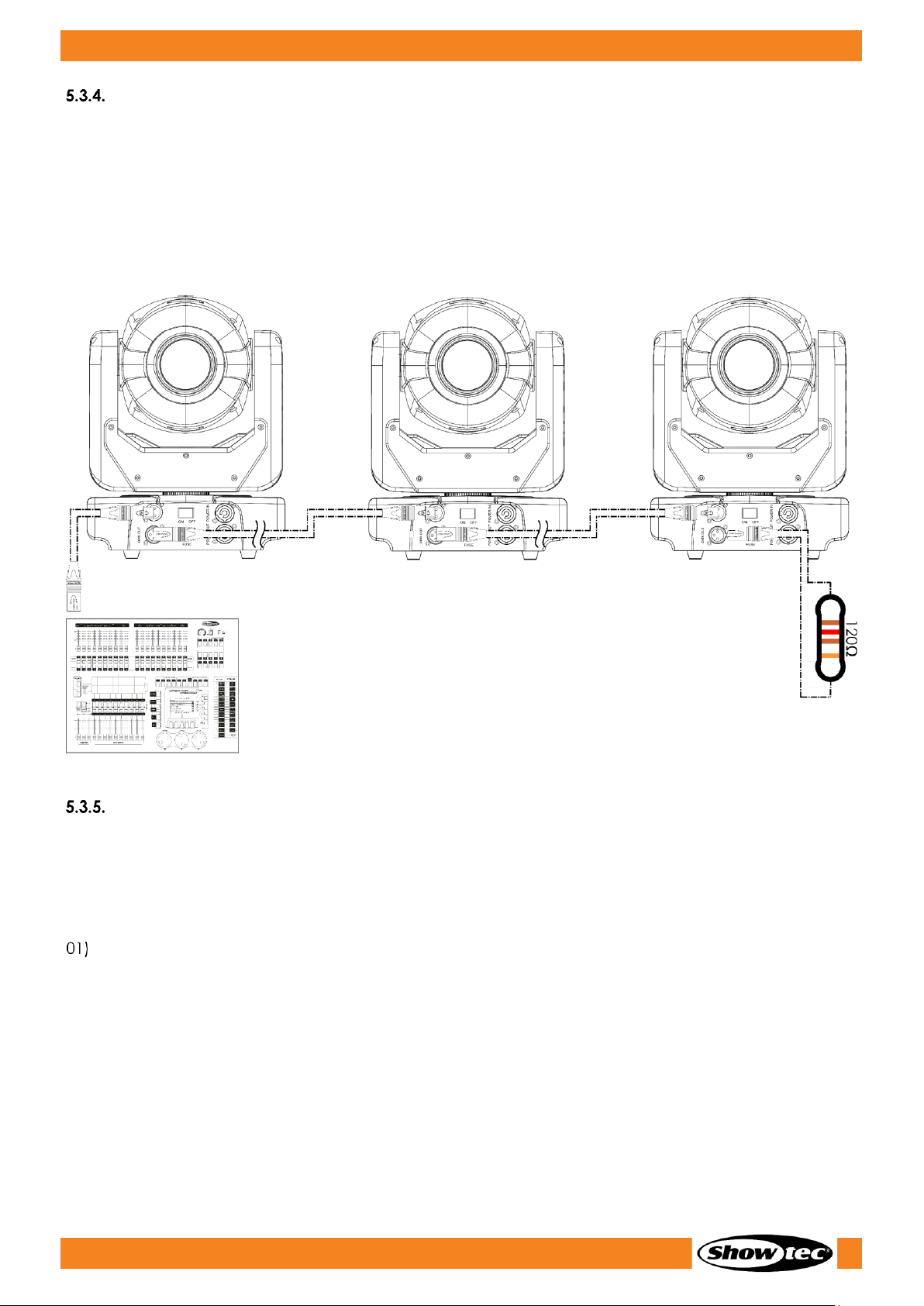

DMX Linking
To connect multiple devices on one DMX data link, follow the steps below:
01) Use a 3-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN
connector of the first device.
02) Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a
3-pin DMX cable.
03) Repeat step 2 to connect all devices in a daisy-chain as shown in Fig. 13.
04) Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data
link.
Fig. 13
DMX Addressing
In a setup with multiple devices, make sure that you set the DMX starting address of each device
correctly. The Shark Spot Two has 2 personalities: 8 channels and 15 channels.
If you want to connect multiple devices on one data link and use them in 15-channel mode, for
example, follow the steps below:
Set the starting address of the 1
st
device on the data link to 1 (001).
02) Set the starting address of the 2
nd
device on the data link to 16, as 1 + 15 = 16.
03) Set the starting address of the 3
rd
device on the data link to 31, as 16 + 15 = 31.
04) Continue assigning the starting addresses of the remaining devices by adding each time 15 to the
previous number.
Make sure that you do not have any overlapping channels in order to control the Shark Spot Two
correctly. If two or more devices are addressed similarly, they will work similarly.
19
Shark Spot Two
Product code: 45030
6. Operation
Safety Instructions for Operation
Attention
This device must be used only for the purposes it is designed for.
This device is intended for professional use as a moving head. It is not suitable for households and for
general lighting.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Attention
Power supply
Before connecting the device to the power supply, make sure that the current, voltage and frequency
match the input voltage, current and frequency specified on the information label on the device.
Control Modes
The Shark Spot Two can be operated with a DMX controller, or without a DMX controller as a stand-alone
device or in a master/slave setup.
The Shark Spot Two supports the following control modes:
● Stand-alone: Auto operation mode, programs, sound)
● Master/Slave: Auto operation mode, programs, sound
● DMX-512: 2 channel modes (8 and 15 channels)
For more information about how to connect the devices, refer to 5. Setup on pages 16–18.
In auto operation mode you can run the auto program or one of the 9 built-in auto programs.
To run the separate auto program without a DMX controller, activate Auto menu. See 6.6.3. Running
Mode on page 23 for more information.
To run one of the 9 programs without a DMX controller, activate Programs menu. See 6.6.4 Programs on
page 23 for more information.
For more information about sound-controlled operation mode see 6.6.3. Running Mode on page 23.
To operate the device with a DMX controller:
Select DMX mode in the Run Mode menu. See 6.6.3. Running Mode on page 23 for more information.
Set the DMX starting address of the device in the DMX Address menu. See 6.6.1. DMX Address on
page 22 for more information.
03) Select the DMX channel mode in the DMX Configuration menu. See 6.6.2. DMX Channel on page 22
for more information. See 6.8. DMX Channels on page 27 for complete overview of all DMX channels.
20
Shark Spot Two
Product code: 45030

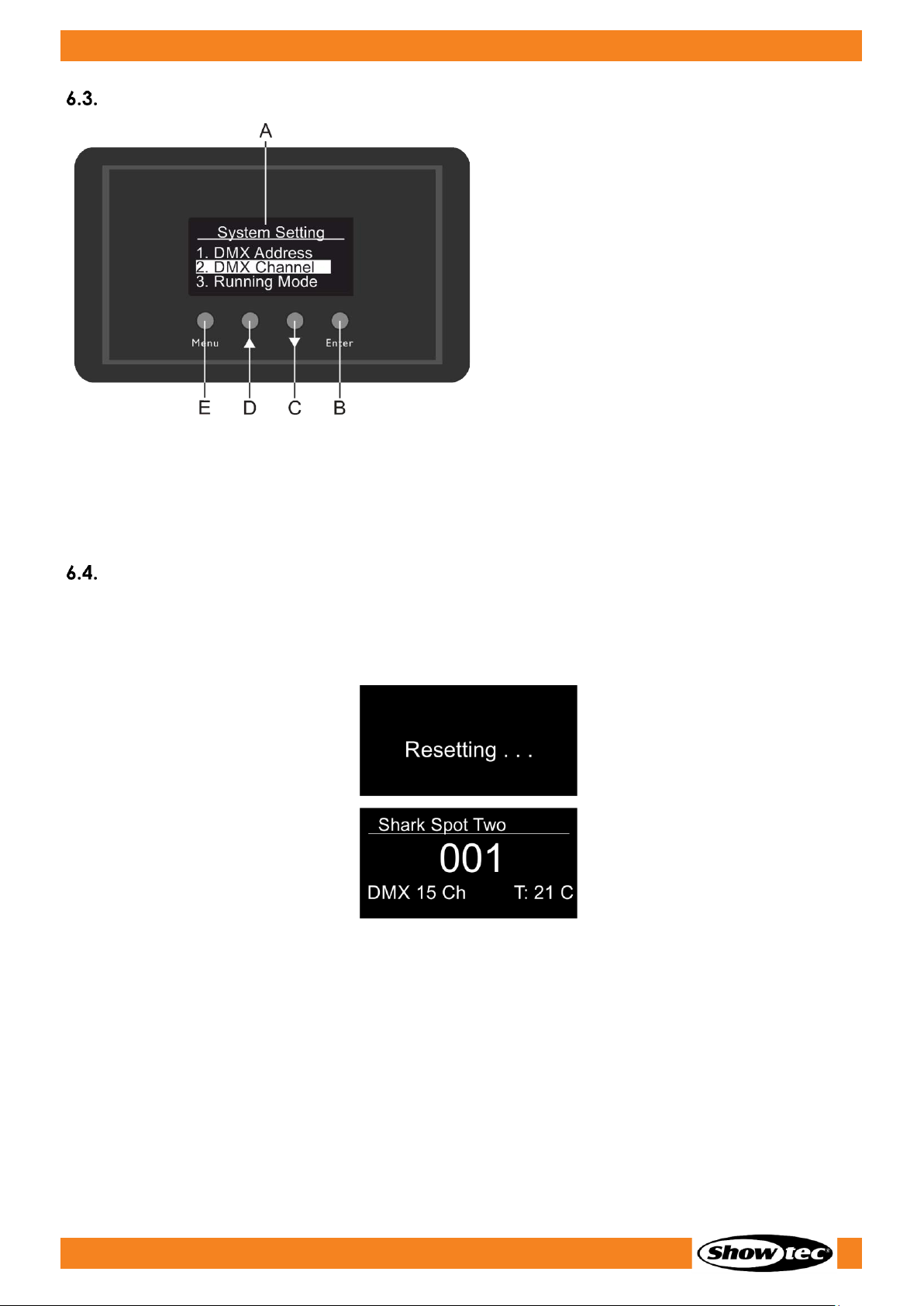

Control Panel
A) LED DISPLAY
B) ENTER button
C) DOWN button
D) UP button
E) MENU button
Fig. 14
● Use the MENU button to open the main menu or to exit the current submenu and return to the main
menu.
● Use the UP/DOWN buttons to navigate through the menus or to increase/decrease numeric values.
● Use the ENTER button to open the desired menu, to confirm your choice or to set the currently
selected value.
Start-up
Upon start-up the display shows a splash screen with the Showtec logo.
Afterwards the display shows the start screen. The start screen provides information about the
temperature of the LEDs, the DMX starting address of the device, and the selected DMX channel mode:
Press the ENTER button or the UP/DOWN buttons to enter the main menu.
Note:
If no button is pressed, after 25 seconds of inactivity the display will turn off. Press any button to turn the
display on.
21
Shark Spot Two
Product code: 45030

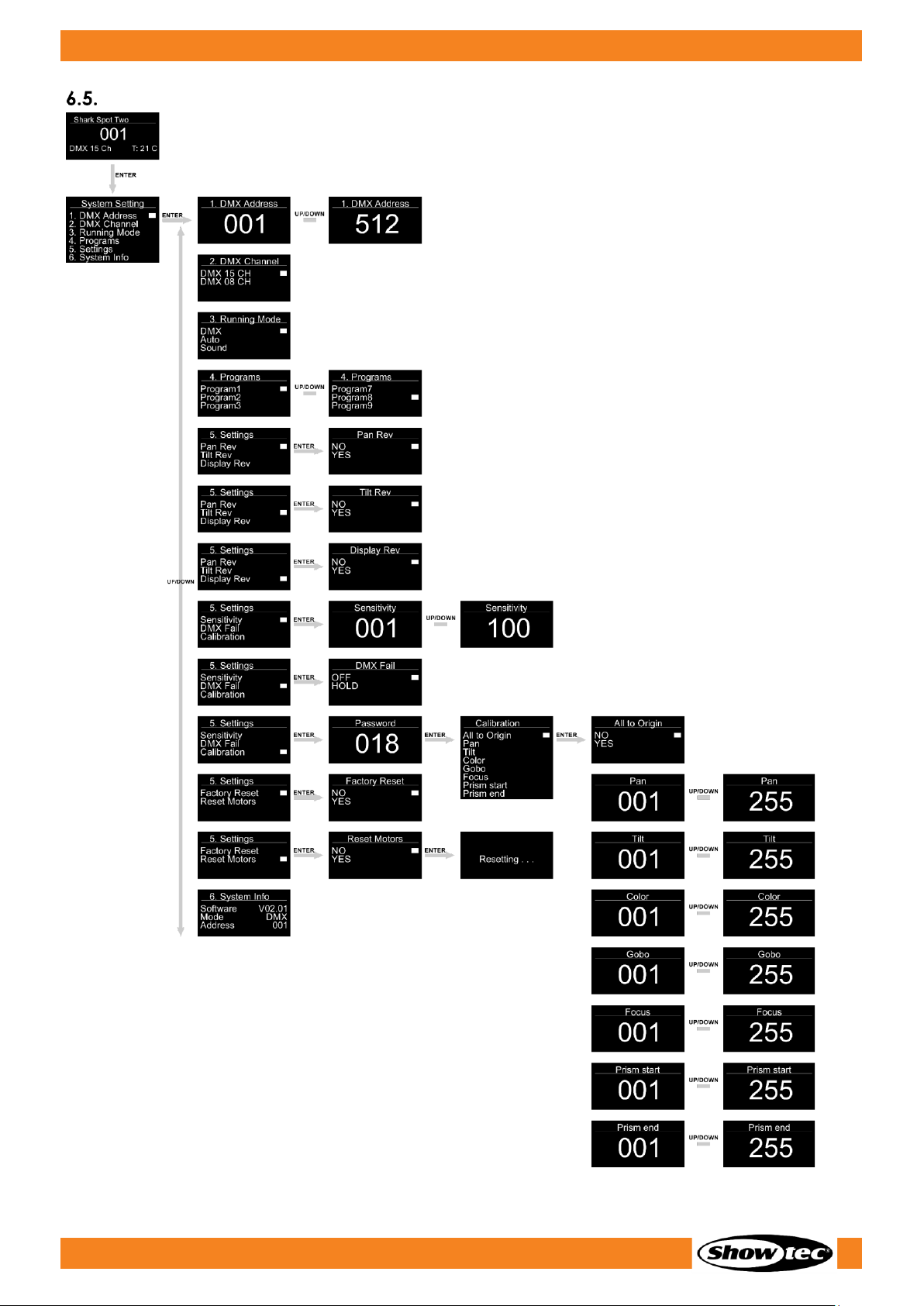

Menu Overview
22
Shark Spot Two
Product code: 45030
Main Menu Options
The main menu has the following options:
01) Press the UP/DOWN buttons to navigate through the main menu.
02) Press the ENTER button to open the submenus.
Note:
One of the submenus require a password. The default password is 018.
DMX Address
In this menu you can set the DMX starting address of the device.
Press the UP/DOWN buttons to select the DMX starting address of the device. The selection range
depends on the active DMX channel mode:
● 8 CH: 001–505
● 15 CH: 001–498
Press the ENTER button to save the changes.
DMX Channel
In this menu you can choose a DMX configuration.
01) In main menu, press the UP/DOWN buttons until the display shows DMX CHANNEL.
02) Press the ENTER button to open the menu. The display will show:
03) Press the UP/DOWN buttons to choose 8 or 15 DMX channels.
04) Press the ENTER button to confirm the desired DMX channels.
23
Shark Spot Two
Product code: 45030
Running Mode
In this menu you can set the control mode of the device.
01) Press the UP/DOWN buttons to select one of the 3 operation modes. The display will show:
02) The operation modes are:
DMX: DMX mode (Also used for Master-Slave setting)
Auto: The Shark will run the built-in programs
Sound: The Shark will react to the beat of the background music
03) Press the ENTER button to confirm your choice.
Programs
In this menu you can run individual built-in programs.
01) Press the UP/DOWN buttons to select one of the 9 built-in programs. The display will show:
02) Press the ENTER button to confirm your choice.
03) The device will now run the chosen built-in program
24
Shark Spot Two
Product code: 45030
Settings
In this menu you can set the Shark’s settings.
01) Press the UP/DOWN buttons to select the desired submenu. The display will show:
02) Press the ENTER button to enter the desired submenu.
03) The submenus are:
Pan Rev: Pan reverse. Press the UP/DOWN buttons to choose between NO/YES.
Tilt Rev: Tilt reverse. Press the UP/DOWN buttons to choose between NO/YES.
Display Rev: Display reverse. Press the UP/DOWN buttons to choose between NO/YES.
Sensitivity: Sound sensitivity. Press the UP/DOWN buttons to set between 001–100, from OFF to
high sound sensitivity.
DMX Fail: To adjust the behaviour of the device in case of a DMX signal error. Press the UP/DOWN
buttons to choose between OFF and Hold. Choose OFF and the device will blackout its output,
when a DMX signal error occurs. Choose Hold and the device will fall back on the last properly
working DMX signal from before the DMX signal error, which ensures undisrupted performance.
Calibration: See page 25 for more information.
Factory Reset: Restore default settings. Press the UP/DOWN buttons to choose between YES/NO.
Reset Motors: Reset the motors responsible for the movement of the moving head.
04) Once you have adjusted the settings, press the ENTER button to save changes.
25
Shark Spot Two
Product code: 45030
Calibration
In this menu you can set the initial movement and color parameters of the Shark.
01) Once you have chosen CALIBRATION (see page 25) press the ENTER button to open the menu.
02) You will now need to insert the password, in order to access the menu. Press the UP/DOWN buttons
until the display shows 018 and press the ENTER button to confirm. The display will show:
03) The submenus are:
All To Origin: Restore default calibration settings.
Pan: Set the initial pan position.
Tilt: Set the initial tilt position.
Color: Set the initial color position.
Gobo: Set the initial gobo position.
Focus: Set the initial focus position.
Prism Start: Set the initial prism start position.
Prism End: Set the initial prism end position.
04) Once you have chosen the option which you would like to adjust, press the ENTER button to open
the menu. The adjustment ranges are from 001–255.
05) Press the UP/DOWN buttons to adjust settings and press the ENTER button to save changes.
System Info
In this menu you can view the status of the Shark.
01) Press the ENTER button to open the menu. The display will show:
02) It is now possible to view the current software version, currently active operation mode and the DMX
starting address.
26
Shark Spot Two
Product code: 45030
Remote Control
Fig. 15
Button
Function
Description
ON/OFF
Double-press the button (within 5 seconds) to switch IR
mode ON or OFF.
Reset
Press the button to reset settings.
LEDs ON/OFF
Press the button to switch the LEDs ON/OFF.
Colors
Press the button to switch colors.
Gobos
Press the button to switch gobos.
Gobo rotation
Press the button to switch gobo rotation ON/OFF.
Prism
Press the button to switch the prism ON/OFF.
Prism Rotate
Press the buttons to set the prism rotation. There are 9 steps
(0-100%).
Position
Press the button to set a position. There are 8 static positions.
Focus +/-
Press the button to set focus (0-100%).
Dimmer +/-
Press the buttons to set the dimmer brightness. There are 8
steps (0-100%).
Strobe
Press the button to set the strobe frequency. There are 8
steps (from low to high frequency).
Clear settings
Press the button to clear gobo, gobo rotation, color, strobe
and prism settings.
Function buttons
Press the buttons while in Auto, Sound-controlled or Pan/tilt
manual mode.
Auto mode
Press the button to activate Auto mode. Press the 1-8
buttons to select the desired built-in program.
Sound-controlled mode
Press the button to activate Sound-controlled mode. Press
the 1-9 buttons to set sound sensitivity (from low to high
sensitivity).
Pan/tilt manual
Press the button to activate manual positioning. Pan/tilt will
be reset to their center position. Press the 5, 6, 8, 9 buttons to
manually set pan/tilt.
27
Shark Spot Two
Product code: 45030
DMX Channels
8 channels, 15 channels
8 CH
15 CH
Function
Value
Setting
1 1 Pan
000–255
Pan adjustment 0°–540°
2 Pan Fine
000–255
Pan adjustment, 16-bit
2 3 Tilt
000–255
Tilt adjustment 0°–210°
4 Tilt Fine
000–255
Tilt adjustment, 16-bit
3 5 Pan/Tilt Speed
000–255
From fast to slow
4 6 Master Dimmer
000–255
From low to high intensity (0–100 %)
5 7 Strobe
000–003
Shutter open
004–099
Linear strobe, from low to high frequency (0–25 Hz)
100–149
Pulse strobe, from slow to fast
150–199
Lightning strobe, from slow to fast
200–249
Random strobe, from slow to fast
250–255
Shutter open
8 Color Wheel
000–007
White / Open
008–015
White + Red
016–023
Red
024–031
Red + Yellow
032–039
Yellow
040–047
Yellow + Cyan
048–055
Cyan
056–063
Cyan + Green
064–071
Green
072–079
Green + Orange
080–087
Orange
088–095
Orange + Magenta
096–103
Magenta
104–111
Magenta + Blue
112–119
Blue
120–127
Blue + White
128–189
Counterclockwise color flow (CCW), from fast to
slow
190–193
Stop
194–255
Clockwise color flow (CW), from slow to fast
9 Gobo Wheel
000–015
White / Open
016–030
Gobo 1
031–045
Gobo 2
046–060
Gobo 3
061–075
Gobo 4
076–090
Gobo 5
091–105
Gobo 6
106–119
Rotating Gobo 1 shake effect, from slow to fast
120–133
Rotating Gobo 2 shake effect, from slow to fast
134–147
Rotating Gobo 3 shake effect, from slow to fast
148–161
Rotating Gobo 4 shake effect, from slow to fast
162–175
Rotating Gobo 5 shake effect, from slow to fast
176–189
Rotating Gobo 6 shake effect, from slow to fast
190–221
Clockwise rotation (CW) gobo flow from slow to
fast
222–223
Stop
224–255
Counter-clockwise rotation (CCW) gobo flow from
slow to fast
28
Shark Spot Two
Product code: 45030
10
Gobo rotation
000–127
Gobo indexing (0–720°)
128–188
Counter-clockwise gobo rotation, from fast to slow
189–193
Stop
194–255
Clockwise gobo rotation, from slow to fast
6
11
Focus
000–255
Motorized focus, from small to big
12
Prism (3-facet)
000–127
Prism Off
128–255
Prism On
13
Prism Rotation
000–005
No Function
006–255
Prism rotation, from slow to fast
7
14
Auto Programs
000–015
No function
016–041
Program 1
042–067
Program 2
068–093
Program 3
094–115
Program 4
116–141
Program 5
142–167
Program 6
168–193
Program 7
194–209
Program 8
210–219
Program 9
220–255
Sound-controlled from low to high sensitivity
8
15
Reset
000–250
No function
251–255
Reset (after 3 sec)
Note:
Make sure that the Master Dimmer channel is open in order to see the light output.
Rotating Gobo Wheel and Color Wheel
Fig. 16
Fig. 17
29
Shark Spot Two
Product code: 45030
7. Troubleshooting
This troubleshooting guide contains solutions to problems which can be carried out by an ordinary
person. The device does not contain user-serviceable parts.
Unauthorized modifications to the device will render the warranty void. Such modifications may result in
injuries and material damage.
Refer servicing to instructed or skilled persons. Contact your Highlite International dealer in case the
solution is not described in the table.
Problem
Probable cause(s)
Solution
The device does not
function at all
No power to the device
● Check if power is switched on and
cables are plugged in
Internal fuse is blown
● Disconnect the device and contact
your Highlite International dealer
The device responds
erratically
The factory settings of the device
are changed
● Reset the device’s parameters to the
default factory settings. See 6.6.5.1.
Calibration on page 25
The device does not
respond to DMX
control
The controller is not connected
● Connect the controller
The signal is reversed. The 3-pin
DMX OUT of the controller does not
match the DMX IN of the device
● Install a phase-reversing cable
between the controller and the device
The controller is defective
● Try using another controller
The device responds
erratically to DMX
control
Bad data link connection
● Examine connections and cables.
Correct poor connections. Repair or
replace damaged cables
The data link is not terminated with
a 120 Ω termination plug
● Insert a termination plug in the DMX
OUT connector of the last device on
the link
Incorrect addressing
● Check address settings and correct, if
necessary
In case of a setup with multiple
devices, one of the devices is
defective and disturbs data
transmission on the link
● To find out which device is defective,
bypass one device at a time until
normal operation is restored
No light or LEDs cut
out intermittently
LEDs are damaged
● Disconnect the device and contact
your Highlite International dealer
The power supply settings do not
match local AC voltage and
frequency
● Disconnect the device. Check the
settings and correct, if necessary
30
Shark Spot Two
Product code: 45030
8. Maintenance
Safety Instructions for Maintenance
DANGER
Electric shock caused by dangerous voltage inside
Disconnect power supply before servicing or cleaning.
Preventive Maintenance
Attention
Before each use, examine the device visually for any defects.
Make sure that:
● All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
● The safety devices are not damaged.
● There are no deformations on housings, fixations and installation points.
● The lens is not cracked or damaged.
● The power cables are not damaged and do not show any material fatigue.
Basic Cleaning Instructions
The external lens of the device must be cleaned periodically in order to optimize the light output. The
cleaning schedule depends on the conditions at the site where the device is installed. When smoke or
fog machines are used at the site, the device will need more frequent cleaning. On the other hand, if the
device is installed in well-ventilated area, it will need less frequent cleaning. To establish a cleaning
schedule, examine the device at regular intervals during the first 100 hours of operation.
To clean the device, follow the steps below:
Disconnect the device from the electrical power supply.
Allow the device to cool down for at least 5 minutes.
03) Remove the dust collected on the external surface with dry compressed air and a soft brush.
04) Clean the lens with a damp cloth. Use a mild detergent solution.
05) Dry the lens carefully with a lint-free cloth.
06) Clean the DMX and other connections with a damp cloth.
Attention
● Do not immerse the device in liquid.
● Do not use alcohol or solvents.
● Make sure that the connections are fully dry before connecting the device to the power supply and
to other devices.
31
Shark Spot Two
Product code: 45030
Corrective Maintenance
The device does not contain user-serviceable parts Do not open the device and do not modify the
device.
Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for
more information.
Replacing the Fuse
DANGER
Electric shock caused by short-circuit
Do not bypass the thermostatic switch or fuses.
For replacement use fuses of the same type and rating only.
Power surges, short-circuit or incorrect electrical power supply may cause a fuse to burn out. If the fuse
burns out, the device will not function anymore. If this happens, follow the steps below.
01) Disconnect the device from the electrical power supply.
02) Allow the device to cool down for at least 20 minutes.
03) Loosen the fuse cover with a screwdriver and remove the fuse holder.
04) If the fuse is brown or unclear, it is burned out. Remove the old fuse.
05) Insert a new fuse in the fuse holder. Make sure that the type and the rating of the replacement fuse
are the same as the ones specified on the information label of the product.
06) Replace the fuse holder in the opening and tighten the fuse cover.
32
Shark Spot Two
Product code: 45030
9. Deinstallation, Transportation and Storage
Instructions for Deinstallation
WARNING
Incorrect deinstallation can cause serious injuries and damage of property.
● Let the device cool down before dismounting.
● Disconnect power supply before deinstallation.
● Always observe the national and site-specific regulations during deinstallation and derigging of the
device.
● Wear personal protective equipment in compliance with the national and site-specific regulations.
Instructions for Transportation
● Use the original packaging to transport the device, if possible.
● Always observe the handling instructions printed on the outer carton box, for example: “Handle with
care”, “This side up”, “Fragile”.
Storage
● Clean the device before storing. Follow the cleaning instructions in chapter 8.2.1. Basic Cleaning
Instructions on page 30.
● Store the device in the original packaging, if possible.
10. Disposal
Correct disposal of this product
Waste Electrical and Electronic Equipment
This symbol on the product, its packaging or documents indicates that the product
shall not be treated as household waste. Dispose of this product by handing it to the
respective collection point for recycling of electrical and electronic equipment. This is
to avoid environmental damage or personal injury due to uncontrolled waste
disposal. For more detailed information about recycling of this product contact the
local authorities or the authorized dealer.
11. Approval
Check the respective product page on the website of Highlite International (www.highlite.com) for an
available declaration of conformity.
33
