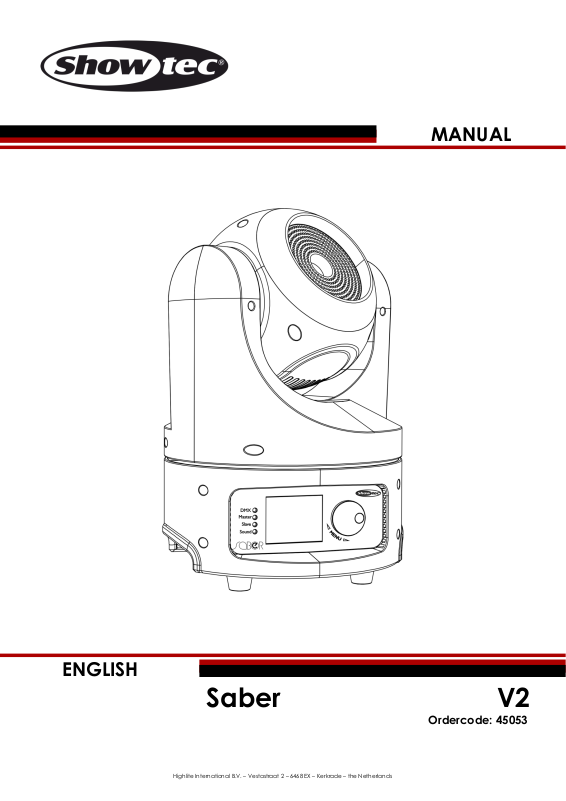

Saber V2
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 45053
MANUAL
ENGLISH
Ordercode: 45053
Saber
Table of contents
Warning ............................................................................................................................................................................... 3
Safety Instructions ......................................................................................................................................................... 3
Operating Determinations .......................................................................................................................................... 5
Rigging ............................................................................................................................................................................ 5
Mounting a bracket and quick-locks to the underside of the Saber. ................................................................ 5
Connection with the mains......................................................................................................................................... 6
Return Procedure .......................................................................................................................................................... 7
Claims .............................................................................................................................................................................. 7
Description of the device ................................................................................................................................................. 8
Overview ........................................................................................................................................................................ 8
Frontside.......................................................................................................................................................................... 9
Backside ....................................................................................................................................................................... 10
Installation .........................................................................................................................................................................10
Set Up and Operation .....................................................................................................................................................10
Control Modes ............................................................................................................................................................. 11
One Saber (Built-in Programs and Manual) ........................................................................................................ 11
One Saber (Sound-controlled) .............................................................................................................................. 11
Multiple Sabers (Master/Slave Control) ............................................................................................................... 11
Multiple Sabers (DMX Control) .............................................................................................................................. 12
Fixture Linking ............................................................................................................................................................... 13
Data Cabling ............................................................................................................................................................... 13
Control Panel ............................................................................................................................................................... 14
DMX Control Mode ..................................................................................................................................................... 14
DMX Addressing .......................................................................................................................................................... 14
Menu Overview ........................................................................................................................................................... 15
Main Menu Options .................................................................................................................................................... 16
1. DMX-512 ................................................................................................................................................................ 16
2. Channel Mode ..................................................................................................................................................... 17
3. Run Mode .............................................................................................................................................................. 17
3.1 DMX Mode .......................................................................................................................................................... 17
3.2 Master Mode ...................................................................................................................................................... 17
3.3 Slave Mode ......................................................................................................................................................... 18
3.4 Sound Mode ....................................................................................................................................................... 18
3.5 Manual Mode .................................................................................................................................................... 18
4. Functions Mode ................................................................................................................................................... 19
4.1 Pan Invert ............................................................................................................................................................ 19
4.2 Tilt Invert ............................................................................................................................................................... 19
4.3 Dimmer Curve .................................................................................................................................................... 20
4.4 DMX Fail Curve ................................................................................................................................................... 20
4.5 Display ................................................................................................................................................................. 20
4.6 Back Light ............................................................................................................................................................ 21
4.7 Reset..................................................................................................................................................................... 21
4.8 Factory Sets......................................................................................................................................................... 21
4.9 Auto Test .............................................................................................................................................................. 21
4.10 Calibration menu ............................................................................................................................................ 22
5. Version ................................................................................................................................................................... 22
DMX Channels ............................................................................................................................................................. 23
10 Channels .............................................................................................................................................................. 23
14 Channels .............................................................................................................................................................. 25
18 Channels .............................................................................................................................................................. 27
Maintenance ....................................................................................................................................................................30
Replacing the Fuse ..................................................................................................................................................... 30
1
Ordercode: 45053
Saber
Troubleshooting ...............................................................................................................................................................30
No Light ......................................................................................................................................................................... 30
No Response to DMX.................................................................................................................................................. 31
Product Specifications ....................................................................................................................................................32
Dimensions ........................................................................................................................................................................33
Notes ..................................................................................................................................................................................34
2
Ordercode: 45053
Saber
Your shipment includes:
● Showtec Saber
● Mounting bracket with 2 mounting screws
● Pro Power connector to Schuko cable (length 1,5 m)
● User manual
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
● be qualified
● follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
3
Ordercode: 45053
Saber
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged.
Never place any material over the lens.
Never look directly into the light source.
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this would reduce the device’s life.
Do not touch the device’s housing bare-handed during its operation. Allow the fixture to cool for at
least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoor, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep case closed while operating.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to
cracks or deep scratches.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. Device must be installed out of the reach of children. Never leave the unit running
unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Saber. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
4
Ordercode: 45053
Saber
Operating Determinations
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 1 meter.
The maximum ambient temperature ta = 40°C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the Saber is lowered from the ceiling or high joists, professional trussing systems have to be used.
Use a clamp to mount the Saber, with the mounting-bracket, to the trussing system.
The Saber must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
When rigging, derigging or servicing the Saber, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
Mounting a bracket and quick-locks to the underside of the Saber.
5
Ordercode: 45053
Saber
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
The Saber can be placed on a flat stage floor or be mounted to any kind of truss by means of a
mounting bracket with quick-locks.
Improper installation can cause serious damage to people and property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property!
6
Ordercode: 45053
Saber
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name.
02) Your address.
03) Your phone number.
04) A brief description of the symptoms.
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
7
Ordercode: 45053
Saber
Fig. 01
Description of the device
Features
The Showtec Saber is a compact moving head in a stylish round design with high output and great
effects.
Included: Pro Power connector to Schuko cable (length 1,5 m) and mounting bracket
Extreme fast movements
Onboard: Bright LCD display for easy setup
Input voltage: 100-240 VAC, 50/60Hz
Power consumption: 70W max. at full output
LED Source: 1x60W RGBW LED (Osram Ostar)
Control mode: Auto, Manual, Sound-controlled, Master/Slave, DMX512
Preset colors, built-in color jump and fade programs are selectable by DMX
DMX Modes: 10, 14, 18 Channels
DMX-control via standard DMX-controller
Beam angle: 4º
94mm 4° Lens
Dimmer: 0-100% electronic dimmer
Compact Powerful Beam
IFS Technology
Strobe: 0-20Hz
Dimmer curves: Linear, Square, I-Square, S curve
RGBW Color mixing
Pan 0º -- 540º + continuous
Tilt 0º -- 270º + continuous
Pan/Tilt resolution: 16 bit
Special: Pan/ Tilt reverse & Black out by DMX
On-Board: Display including gravity sensor
Lux @ 2m: 38370lux
Power Connections: Blue Pro Power connector IN and Grey Pro Power connector OUT
Data Connections: 3-pin DMX IN and OUT
Fuse: T2L/250V
Working temperature: -10º C~40º C
Housing: Black Flame-retardant plastic, die-cast aluminum
Dimensions: 215 x 330 mm (DxH)
Weight: 5,2 kg
Overview
8
Ordercode: 45053
Saber
Fig. 02
Frontside
01) Control LEDs
02) LCD Display
03) 1 X 60W RGBW LED (Osram Ostar)
04) MENU control
NOTE: Knowledge of DMX is required to fully utilize this unit.
9
Ordercode: 45053
Saber
Fig. 03
Backside
05) Power switch ON/OFF
06) Blue Pro Power connector IN
07) Ground/earth connection
08) Grey Pro Power connector OUT
09) Fuse T2L/250V
10) 3-pin DMX signal connector OUT
11) 3-pin DMX signal connector IN
Installation
Remove all packing materials from the Saber. Check if all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
10
Ordercode: 45053
Saber
There are 5 modes:
• Built-in programs (Master Mode)
• Manual
• Sound-controlled
• Master/Slave Mode
• DMX-512 (10CH, 14CH, 18CH)
The pins:
01) Earth
02) Signal (-)
03) Signal (+)
Fig. 04
Control Modes
One Saber (Built-in Programs and Manual)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Saber is not connected with a DMX-cable, it functions as a stand-alone device. Please see
page 17 and 18 for more information.
One Saber (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) Turn on the music. If the device is set to sound-control, then the Saber will react to the beat of the
music. Please see page 18 for more information about the sound-control options.
Multiple Sabers (Master/Slave Control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Sabers.

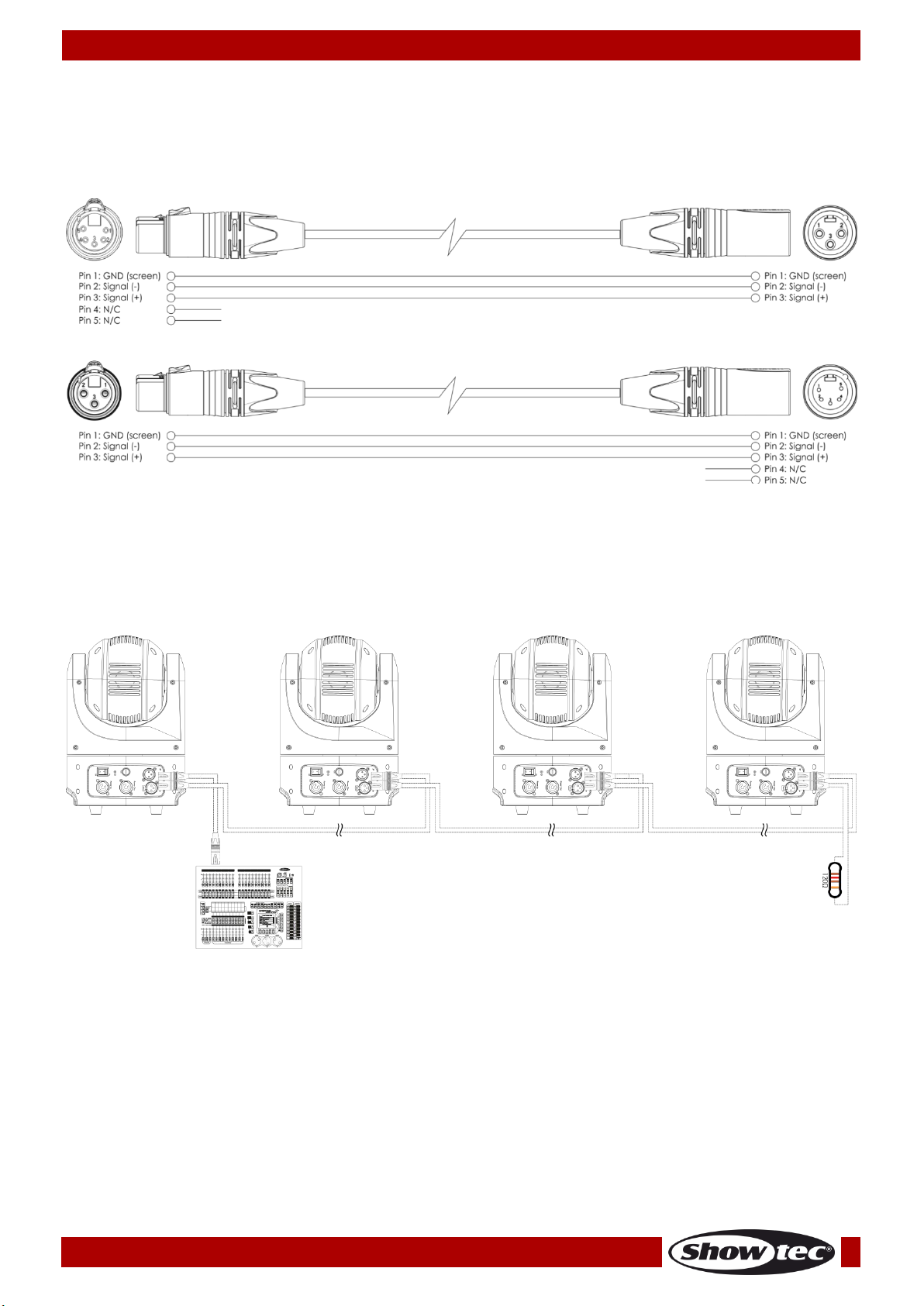

05) Link the units as shown in (Fig.04). Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on pages 17-18. This means that you can
set your desired operation mode on the master device and all slave devices will react the same as
the master device.
Multiple Sabers (Master/Slave Set Up)
11
Ordercode: 45053
Saber
Fig. 05
Multiple Sabers (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Saber and other devices.
05) Link the units as shown in (Fig.05), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's Pro Power socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Sabers (DMX Set Up)
12
Note : Link all cables before connecting electric power
Ordercode: 45053
Saber
Important:
Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of Phantom Beams on a DMX data link: 30 fixtures
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Data Cabling
To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
• DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode
FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
• DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
• DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
• DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30.
The Saber can be operated with a controller in control mode or without the controller in stand-alone
mode.
13
Ordercode: 45053
Saber

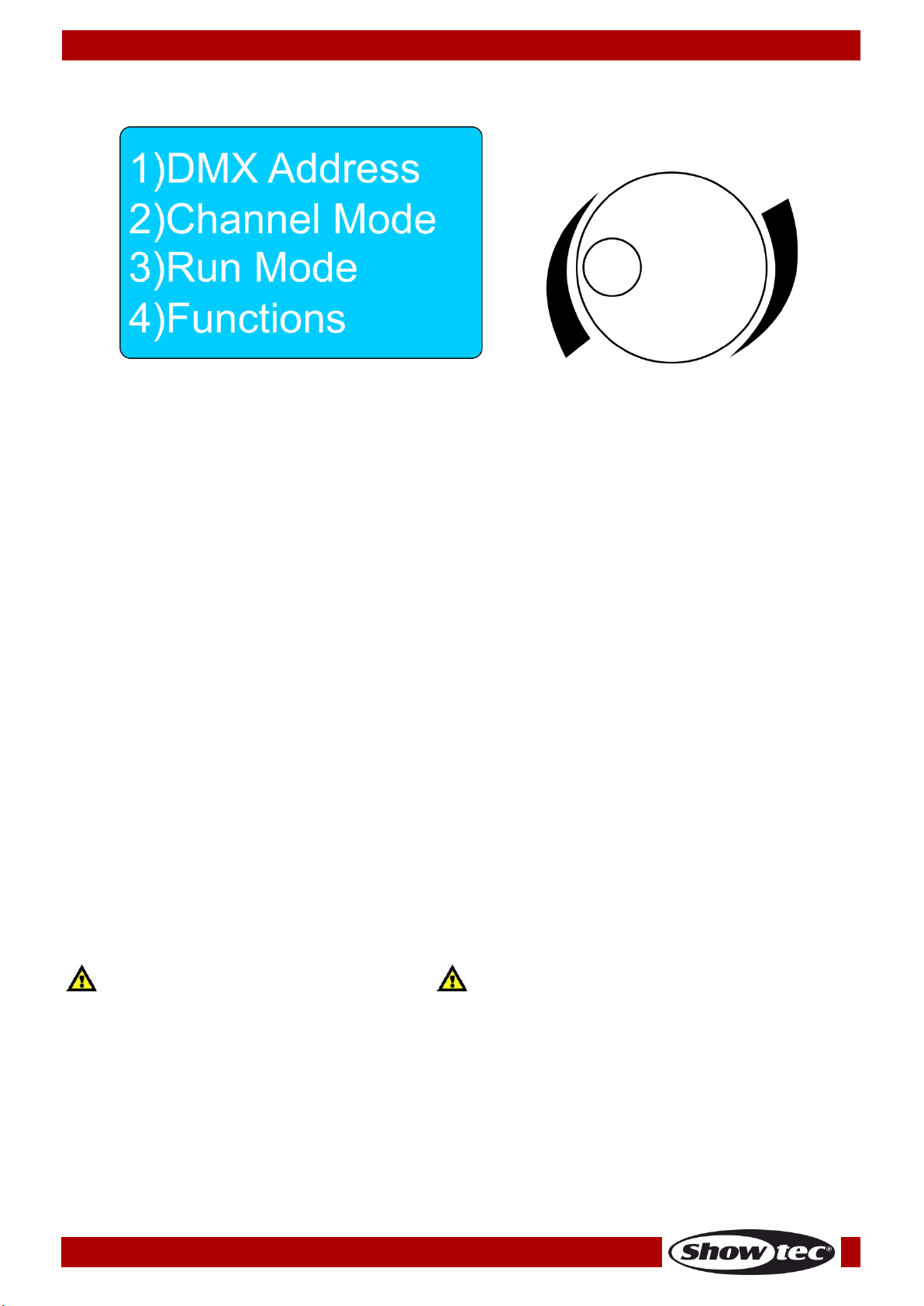

Press and turn the control to navigate
through the menu options
Fig. 06
Display Off after 15 seconds
Control Panel
DMX Control Mode
The fixtures are individually addressed on a data-link and connected to the controller. When a DMX
signal is present, the DMX LED will blink.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Saber will respond to the controller.
Please note when you use the controller, the unit has 18 channels.
When using multiple Sabers make sure you set the DMX addresses right.
Therefore, the DMX address of the first Saber should be 1(001); the DMX address of the second Saber
should be 1+18=19 (019); the DMX address of the third Saber should be 19+18=37 (037), etc.
Please, be sure that you do not have any overlapping channels in order to control each Saber correctly.
If two or more Sabers are addressed similarly, they will work similarly.
Controlling:
After having addressed all Saber fixtures, you may now start operating these via your lighting controller.
Note: After switching on, the Saber will automatically detect whether DMX 512 data is received or not. If
there is no data received at the DMX-input, the DMX LED will not blink.
The problem may be:
The XLR cable from the controller is not connected with the input of the Saber.
The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
When no button is pressed for 15 seconds in the DMX mode, the display will turn off.
To light up the display, you have to press or turn the MENU control (03).
Once you have pressed or turned the control, the display will light up.
You can adjust this function in the menu “Functions”, see page 21.
14
Ordercode: 45053
Saber
Menu Overview
15
Ordercode: 45053
Saber
There are 5 menu modes:
• 1. DMX-512
• 2. Channel Mode
• 3. Run Mode
• 4. Functions
• 5. Version
The Saber will only show its entire version number at start-up !
Main Menu Options
1. DMX-512
01) While in main menu, turn the MENU control (03) until the display shows:
02) Press the MENU control (03) to enter the menu.
03) The display will show:
04) Turn the MENU control (03) to set the desired DMX address.
05) The adjustment range is between 001-512.
06) Press the MENU control (03) to confirm the DMX address.
16
Ordercode: 45053
Saber
2. Channel Mode
01) While in main menu, turn the MENU control (03) until the display shows:
02) Press the MENU control (03) to enter the menu.
03) Turn the MENU control (03) to toggle between the 3 available channel modes:
10 channels
14 channels
18 channels
04) Press the MENU control (03) to choose the desired channel mode.
05) For more information about the DMX channels and their functions, see pages 23-29.
3. Run Mode
01) While in main menu, turn the MENU control (03) until the display shows:
02) Press the MENU control (03) to enter the menu.
03) Turn the MENU control (03) to toggle between the 5 available modes:
DMX
Master
Slave
Sound
Manual
04) Press the MENU control (03) to open the mode of your choice.
3.1 DMX Mode
01) Press the MENU control (03) to confirm the DMX mode.
3.2 Master Mode
01) Turn the MENU control (03) to choose one of 8 built-in auto shows:
Showmode 01 – Showmode 08
02) Press the MENU control (03) to confirm your choice.
03) The device will now run the desired auto show.
17
Ordercode: 45053
Saber
3.3 Slave Mode
01) Turn the MENU control (03) to choose one of 2 built-in Slave modes.
02) Turn the MENU control (03) to toggle between the 2 slave functions:
Slave1 (normal slave mode)
Slave2 (mirror slave mode)
03) Press the MENU control (03) to confirm your preferred slave mode.
04) The device is now operating in slave mode and it will react the same as the master device (Slave1),
or it will mirror the actions of the master device (Slave2).
3.4 Sound Mode
01) Turn the MENU control (03) to choose Sound and press the MENU control (03) to enter the menu.
02) The display will show:
03) Turn the MENU control (03) to adjust the sound sensitivity of the device. The adjustment range is
between 000-255, from low to high sensitivity.
04) Press the MENU control (03) to confirm the changes.
3.5 Manual Mode
01) Turn the MENU control (03) to toggle between the 7 available functions:
Pan (Pan adjustment)
Tilt (Tilt adjustment)
Red (Red LED intensity)
Green (Green LED intensity)
Blue (Blue LED intensity)
White (White LED intensity)
Strobe (Strobe intensity)
02) The adjustment range of each function is between 000-255.
03) Once the value has been set, press the MENU control (03) to confirm the changes.
04) Turn the MENU control (03) to choose EXIT.
18
Ordercode: 45053
Saber
4. Functions Mode
01) While in main menu, turn the MENU control (03) until the display shows:
02) Press the MENU control (03) to enter the menu.
03) Turn the MENU control (03) to toggle between the 9 available functions:
Pan Invert
Tilt Invert
Dimmer Curve
DMX Fail
Display
Back Light
Reset
Factory Sets
Auto Test
4.1 Pan Invert
01) Press the MENU control (03) to enter the menu.
02) Turn the MENU control (03), choose Normal and press the MENU control (03) to deactivate pan
inversion.
03) Turn the MENU control (03), choose Invert and press the MENU control (03) to activate pan inversion.
04) Press the MENU control (03) to confirm the changes.
4.2 Tilt Invert
01) Press the MENU control (03) to enter the menu.
02) Turn the MENU control (03), choose Normal and press the MENU control (03) to deactivate tilt
inversion.
03) Turn the MENU control (03), choose Invert and press the MENU control (03) to activate tilt inversion.
04) Press the MENU control (03) to confirm the changes.
19
Ordercode: 45053
Saber
4.3 Dimmer Curve
01) Press the MENU control (03) to enter the menu.
02) Turn the MENU control (03) to toggle between the 4 available modes:
Square Law
Linear
S-curve
InvSquare Law
03) Press the MENU control (03) to confirm the mode of your choice.
4.4 DMX Fail
With this menu you can determine the behaviour of the Saber in case of DMX failure.
01) Press the MENU control (03) to enter the menu.
02) Turn the MENU control (03) to toggle between the 4 available modes:
Off (DMX signal lost, device stops)
Hold (DMX signal lost, device will memorize the last successfully received DMX signal and will
continue using it until DMX signal reception is restored)
Auto (DMX signal lost, device starts an auto program)
Sound (DMX signal lost, device becomes sound active)
03) Press the MENU control (03) to confirm the mode of your choice.
4.5 Display
01) Press the MENU control (03) to enter the menu.
02) Turn the MENU control (03) to toggle between the 3 options:
Auto Rotate (Display flips accordingly to the position of the fixture)
Normal
Inverted (horizontal flip)
03) Press the MENU control (03) to confirm the mode of your choice.
20
Ordercode: 45053
Saber
4.6 Back Light
01) Press the MENU control (03) to enter the menu.
02) Turn the MENU control (03) to toggle between the 3 options:
ON (Display continuously ON)
OFF (Display turns OFF after 15 seconds)
Adjust (Display brightness)
04) Turn the MENU control (03) to choose Adjust and press the MENU control (03) to enter the menu.

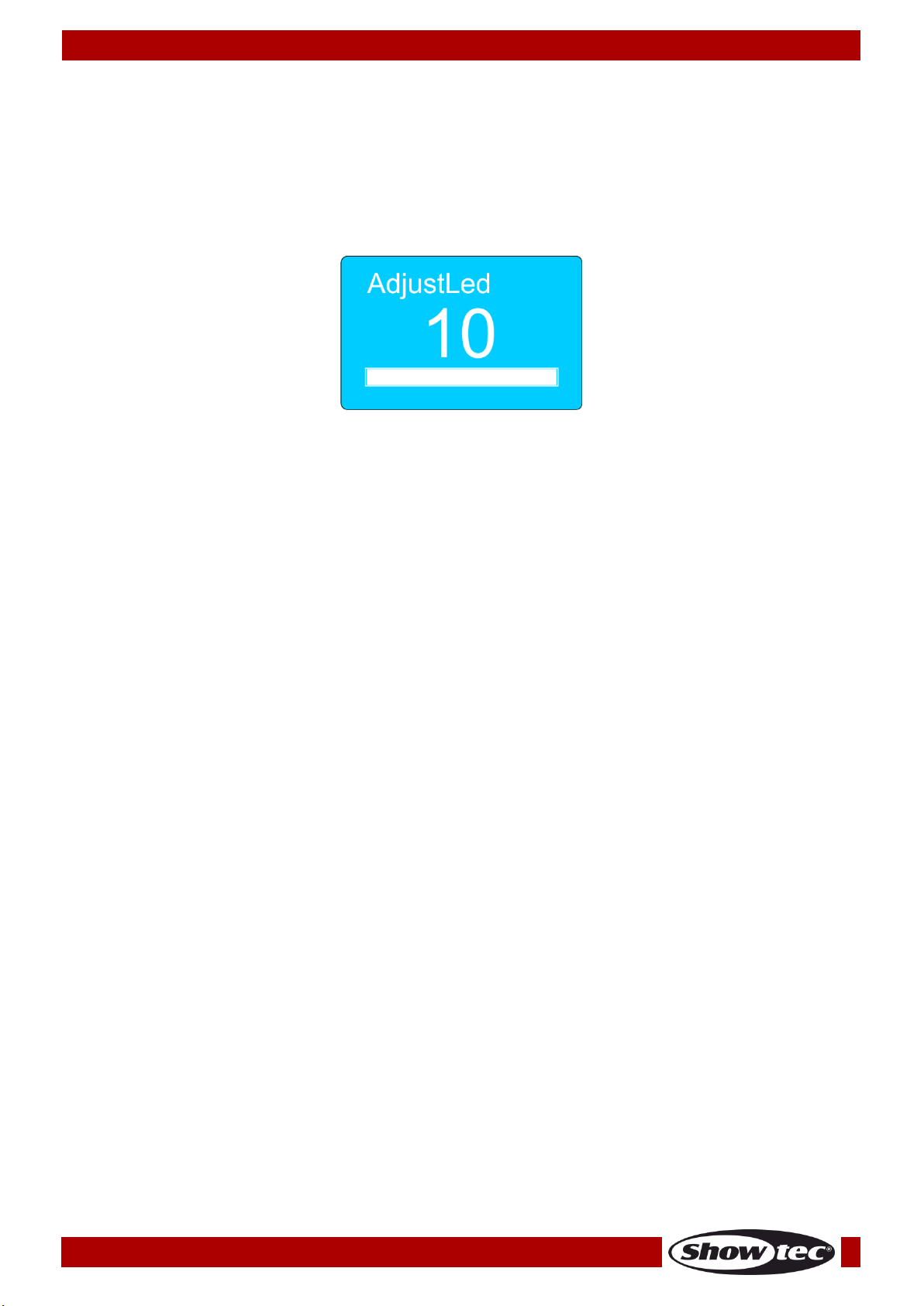

05) The display will show:
06) Turn the MENU control (03) to adjust the brightness. The adjustment range is between 01-10, from
dark to brightest.
07) Press the MENU control (03) to confirm the changes.
4.7 Reset
03) Press the MENU control (03) to enter the menu.
04) Turn the MENU control (03), choose Yes and press the MENU control (03) to reset the motor of the
Saber.
05) Turn the MENU control (03), choose No and press the MENU control (03) to cancel the reset function.
06) Press the MENU control (03) to confirm the changes.
4.8 Factory Sets
01) Press the MENU control (03) to enter the menu.
02) Turn the MENU control (03), choose Yes and press the MENU control (03) to restore the factory
default settings.
03) Turn the MENU control (03), choose No and press the MENU control (03) to return to the main menu.
04) Press the MENU control (03) to confirm the changes.
4.9 Auto Test
01) Press the MENU control (03) to enter the menu.
02) Turn the MENU control (03), choose Test and press the MENU control (03) to perform a full test of all
the available functions.
03) Turn the MENU control (03), choose Exit and press the MENU control (03) to return to the main menu.
04) Press the MENU control (03) to confirm the changes.
21
Ordercode: 45053
Saber
4.10 Calibration menu
01) While in main menu, turn the MENU control (03) until the display shows:
02) Press the MENU control (03) for 3 seconds until the display shows:
03) Turn the MENU control (03) to enter the password 088 and press the MENU control (03) to confirm.
The display will show now:
04) Turn the MENU control (03) to toggle between the 3 available functions and press the MENU control
(03) to confirm:
Pan calibration from 0-255
Tilt calibration from 0-255
Default (reset the pan and tilt functions to the factory settings)
5. Version
01) Press the MENU control (03) to enter the menu.
02) The display is now showing the current software version, installed on the Saber:
22
Ordercode: 45053
Saber
Channel 3 – Continuous pan
0-15
No function
16-135
Clockwise rotation, from slow to fast
136-255
Counterclockwise rotation, from slow to fast
Channel 4 – Continuous tilt
0-15
No function
16-135
Clockwise rotation, from slow to fast
136-255
Counterclockwise rotation, from slow to fast
Channel 5 – Dimmer
0-255
From dark to brightest
Channel 6 – Strobe (CH5 must be set between 001-255 and CH7 between 008-255 )
0-10
Off
11-128
Random strobe intensity, from slow to fast
129-255
Linear strobe intensity, from slow to fast
Channel 7 – Color Macro (CH5 must be set between 001-255 )
0-7
No function
8-13
Color1(R255, G000, B000, W000)
14-20
Color2(R255, G000, B000, W100)
21-27
Color3(R255, G000, B000, W200)
28-34
Color4(R255, G050, B000, W000)
35-41
Color5(R255, G150, B000, W000)
42-48
Color6(R255, G255, B000, W000)
49-55
Color7(R255, G255, B000, W075)
56-62
Color8(R000, G255, B000, W255)
63-69
Color9(R000, G255, B000, W150)
70-76
Color10(R000, G255, B000, W050)
77-83
Color11(R000, G255, B000, W000)
84-90
Color12(R000, G255, B050, W000)
91-97
Color13(R000, G255, B150, W000)
98-104
Color14(R000, G255, B255, W000)
105-111
Color15(R000, G255, B255, W075)
112-118
Color16(R000, G255, B255, W150)
119-125
Color17(R000, G100, B255, W255)
126-132
Color18(R000, G000, B255, W100)
133-139
Color19(R000, G000, B255, W050)
140-146
Color20(R000, G000, B255, W000)
147-153
Color21(R075, G000, B255, W000)
154-160
Color22(R160, G000, B255, W000)
DMX Channels
10 Channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment, between 0-255. The head can be turned by 540° and stopped at any position
you wish.
Channel 2 – Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment, between 0-255. The head can be turned by 270° and stopped at any position
you wish.
23
Ordercode: 45053
Saber
161-167
Color23(R255, G000, B255, W000)
168-174
Color24(R255, G000, B175, W000)
175-181
Color25(R255, G000, B100, W000)
182-188
Color26(R255, G000, B100, W050)
189-195
Color27(R255, G000, B025, W050)
196-202
Color28(R255, G000, B025, W025)
203-209
Color29(R255, G000, B025, W000)
210-216
Color30(R000, G000, B000, W255)
217-223
Color31(R075, G075, B000, W255)
224-230
Color32(R000, G000, B100, W255)
231-255
Color33(R255, G255, B255, W255)
Channel 8 – Color Flow (CH5 must be set between 001-255 )
0-15
No function
16-31
Color Jump1
32-47
Color Jump2
48-63
Color Jump3
64-79
Color Jump4
80-95
Color Jump5
96-111
Color Jump6
112-127
Color Jump7
128-143
Color Jump8
144-159
Color Fade1
160-175
Color Fade2
176-191
Color Fade3
192-207
Color Fade4
208-223
Color Fade5
224-239
Color Fade6
240-255
Color Fade7
Channel 9 – Color Flow Speed (CH5 must be set between 001-255 and CH8 between 016-255 )
0-255
From slow to fast
Channel 10 – Functions
0-5
No function
6-10
Show1
11-20
Show2
21-30
Show3
31-40
Show4
41-50
Show5
51-60
Show6
61-70
Show7
71-80
Show8
81-90
Slave1
91-96
Slave2
97-160
Sound sensitivity from low sensitivity to high sensitivity
161-170
Pan invert
171-180
Tilt invert
181-190
Pan normal
191-200
Tilt normal
201-220
Black out during pan/ tilt movement
221-240
Reset (after 5 seconds)
241-255
No function
24
Ordercode: 45053
Saber
Channel 5 – Pan / Tilt speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Continuous pan
0-15
No function
16-135
Clockwise rotation, from slow to fast
136-255
Counterclockwise rotation, from slow to fast
Channel 7 – Continuous tilt
0-15
No function
16-135
Clockwise rotation, from slow to fast
136-255
Counterclockwise rotation, from slow to fast
Channel 8 – Dimmer
0-255
From dark to brightest
Channel 9 – Strobe (CH8 and CH11, CH12, CH13 or CH14 must be set between 001-255 )
0-10
Off
11-128
Random strobe intensity, from slow to fast
129-255
Linear strobe intensity, from slow to fast
Channel 10 – Functions
0-5
No function
6-10
Show1
11-20
Show2
21-30
Show3
31-40
Show4
41-50
Show5
51-60
Show6
61-70
Show7
71-80
Show8
81-90
Slave1
91-96
Slave2
97-160
Sound sensitivity from low sensitivity to high sensitivity
161-170
Pan invert
171-180
Tilt invert
181-190
Pan normal
191-200
Tilt normal
201-220
Black out during pan/ tilt movement
221-240
Reset (after 5 seconds)
241-255
No function
14 Channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment, between 0-255. The head can be turned by 540° and stopped at any position
you wish.
Channel 2 – Pan fine 16 bit
Channel 3 – Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment, between 0-255. The head can be turned by 270° and stopped at any position
you wish.
Channel 4 – Tilt fine 16 bit
25
Ordercode: 45053
Saber
Channel 11 – Red color intensity
(CH8 must be set between 001-255 )
0-255
Gradual adjustment Red from 0 – 100%
Channel 12 – Green color intensity
(CH8 must be set between 001-255 )
0-255
Gradual adjustment Green from 0 – 100%
Channel 13 – Blue color intensity
(CH8 must be set between 001-255 )
0-255
Gradual adjustment Blue from 0 – 100%
Channel 14 – White color intensity
(CH8 must be set between 001-255 )
0-255
Gradual adjustment White from 0 – 100%
26
Ordercode: 45053
Saber
Channel 5 – Pan / Tilt speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Continuous pan
0-15
No function
16-135
Clockwise rotation, from slow to fast
136-255
Counterclockwise rotation, from slow to fast
Channel 7 – Continuous tilt
0-15
No function
16-135
Clockwise rotation, from slow to fast
136-255
Counterclockwise rotation, from slow to fast
Channel 8 – Dimmer
0-255
From dark to brightest
Channel 9 – Linear Strobe
(CH8, CH15, CH16, CH17 or CH18 must be set between 001-255 and CH11 between 008-255 )
0-10
Off
11-255
Strobe intensity, from slow to fast
Channel 10 – Random Strobe
(CH8, CH15, CH16, CH17 or CH18 must be set between 001-255 and CH11 between 008-255 )
0-10
Off
11-255
Strobe intensity, from slow to fast
Channel 11 – Color Macro
(CH8 must be set between 001-255 ,CH11 has priority over CH15, CH16, CH17, CH18)
0-7
No function
8-13
Color1(R255, G000, B000, W000)
14-20
Color2(R255, G000, B000, W100)
21-27
Color3(R255, G000, B000, W200)
28-34
Color4(R255, G050, B000, W000)
35-41
Color5(R255, G150, B000, W000)
42-48
Color6(R255, G255, B000, W000)
49-55
Color7(R255, G255, B000, W075)
56-62
Color8(R000, G255, B000, W255)
63-69
Color9(R000, G255, B000, W150)
70-76
Color10(R000, G255, B000, W050)
77-83
Color11(R000, G255, B000, W000)
18 Channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment, between 0-255. The head can be turned by 540° and stopped at any position
you wish.
Channel 2 – Pan fine 16 bit
Channel 3 – Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment, between 0-255. The head can be turned by 270° and stopped at any position
you wish.
Channel 4 – Tilt fine 16 bit
27
Ordercode: 45053
Saber
84-90
Color12(R000, G255, B050, W000)
91-97
Color13(R000, G255, B150, W000)
98-104
Color14(R000, G255, B255, W000)
105-111
Color15(R000, G255, B255, W075)
112-118
Color16(R000, G255, B255, W150)
119-125
Color17(R000, G100, B255, W255)
126-132
Color18(R000, G000, B255, W100)
133-139
Color19(R000, G000, B255, W050)
140-146
Color20(R000, G000, B255, W000)
147-153
Color21(R075, G000, B255, W000)
154-160
Color22(R160, G000, B255, W000)
161-167
Color23(R255, G000, B255, W000)
168-174
Color24(R255, G000, B175, W000)
175-181
Color25(R255, G000, B100, W000)
182-188
Color26(R255, G000, B100, W050)
189-195
Color27(R255, G000, B025, W050)
196-202
Color28(R255, G000, B025, W025)
203-209
Color29(R255, G000, B025, W000)
210-216
Color30(R000, G000, B000, W255)
217-223
Color31(R075, G075, B000, W255)
224-230
Color32(R000, G000, B100, W255)
231-255
Color33(R255, G255, B255, W255)
Channel 12 – Color Flow
(CH8 must be set between 001-255 , CH12 has priority over CH15, CH16, CH17, CH18)
0-15
No function
16-31
Color Jump1
32-47
Color Jump2
48-63
Color Jump3
64-79
Color Jump4
80-95
Color Jump5
96-111
Color Jump6
112-127
Color Jump7
128-143
Color Jump8
144-159
Color Fade1
160-175
Color Fade2
176-191
Color Fade3
192-207
Color Fade4
208-223
Color Fade5
224-239
Color Fade6
240-255
Color Fade7
Channel 13 – Color Flow Speed (CH12 must be set between 016-255 )
0-255
From slow to fast
Channel 14 – Functions
0-5
No function
6-10
Show1
11-20
Show2
21-30
Show3
31-40
Show4
41-50
Show5
51-60
Show6
61-70
Show7
71-80
Show8
81-90
Slave1
28
Ordercode: 45053
Saber
91-96
Slave2
97-160
Sound sensitivity from low sensitivity to high sensitivity
161-170
Pan invert
171-180
Tilt invert
181-190
Pan normal
191-200
Tilt normal
201-220
Black out during pan/ tilt movement
221-240
Reset (after 3 seconds)
241-255
No function
Channel 15 – Red color intensity
(CH8 must be set between 001-255 )
0-255
Gradual adjustment Red from 0 – 100%
Channel 16 – Green color intensity
(CH8 must be set between 001-255 )
0-255
Gradual adjustment Green from 0 – 100%
Channel 17 – Blue color intensity
(CH8 must be set between 001-255 )
0-255
Gradual adjustment Blue from 0 – 100%
Channel 18 – White color intensity
(CH8 must be set between 001-255 )
0-255
Gradual adjustment White from 0 – 100%
29
Ordercode: 45053
Saber
Maintenance
The Showtec Saber requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and
then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft
cloth. Do not use alcohol or solvents. The front glass panel will require weekly cleaning, as smoke-fluid
tends to build up residues, reducing the light-output very quickly. Do not immerse in liquid.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do
so.
01) Unplug the unit from electric power source.
02) Insert a screwdriver into the slot in the fuse cover. Turn the fuse holder counterclockwise. The fuse will
come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse holder. Be sure
to use a fuse of the same type and specification. See the product specification label for details.
Troubleshooting
No Light
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect three potential problem areas as: the power supply, the LED, the fuse.
01) Power supply. Check if the unit is plugged into an appropriate power supply.
02) The LEDs. Return the Saber to your Showtec dealer.
03) The fuse. See page 30 for replacing the fuse
04) If all of the above appears to be O.K., plug the unit in again.
05) If you are unable to determine the cause of the problem, do not open the Saber, as this may
damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
30
Ordercode: 45053
Saber
Problem
Probable cause(s)
Solution
One or more
fixtures do not
function at all
No power to the fixture
• Check if power is switched on and
cables are plugged in
Primary fuse blown
• Replace fuse
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected.
• Connect controller.
3-pin XLR Out of the controller
does not match XLR Out of the first
fixture on the link (i.e. signal is
reversed)
• Install a phase reversing cable
between the controller and the
first fixture on the link
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
• Check data quality. If much lower
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
disturbing the link
Bad data link connection
• Inspect connections and cables.
Correct poor connections. Repair
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
• Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
• Check address setting
One of the fixtures is defective and
disturbs data transmission on the
link
• Bypass one fixture at a time until
normal operation is restored:
unplug both connectors and
connect them directly together.
• Have the defective fixture
serviced by a qualified technician
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed)
• Install a phase-reversing cable
between the fixtures or swap pin 2
and 3 in the fixture that behaves
erratically
No light or lamp
cuts out
intermittently
Fixture is too hot
• Allow the fixture to cool down
• Clean the fan
• Make sure air vents in control
panel and the front lens are not
blocked
• Turn up the air conditioning
LEDs damaged
• Disconnect the fixture and return it
to your dealer
The power supply settings do not
match local AC voltage and
frequency
• Disconnect fixture. Check settings
and correct if necessary
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
31
Ordercode: 45053
Saber
Model:
Showtec Saber
Input Voltage:
100-240 VAC, 50/60Hz
Power consumption:
70W max. at full output
DMX linking:
30pcs
Fuse:
T2L/250V
Dimensions:
215 x 330 mm (DxH)
Weight:
5,2 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
10, 14, 18
Signal input:
3-pin XLR male
Signal output:
3-pin XLR female
Electro-mechanical effects:
LED Quantity:
1x60W RGBW LED (Osram Ostar)
Colormixing:
RGBW
Beam angle:
4°
Optics
94mm 4°
Pan / Tilt range
540° + continuous/ 270° + continuous
Dimmer:
0-100%
Strobe:
0-20Hz
DMX-control:
via standard DMX-controller
On Board:
LCD display for easy setup
Control:
Auto, Manual, Sound-controlled, Master/Slave, DMX512
Housing:
Black Flame-retardant plastic, die-cast aluminum
Power Connections:
Blue Pro Power connector IN and Grey Pro Power
connector OUT
Data Connections
3-pin DMX IN and OUT
Dimmer curves:
Linear, Square, I-Square, S curve
Special:
Pan/ Tilt reverse & Black out by DMX
IFS Technology
On-Board:
Display including gravity sensor
Lux @ 2m:
38370lux
Cooling:
Internal fans
Working temperature:
--10º C~40º C
Included:
Schuko to Pro Power connector cable (length 1,5 m)
and mounting bracket with 2 screws
Max. ambient temperature ta: 40°C
Max. housing temperature tB: 80°C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
1 m
Product Specifications
Website: www.Showtec.info
Email: service@highlite.nl
32
Ordercode: 45053
Saber
Dimensions
33
Ordercode: 45053
Saber
Notes
34
©2016 Showtec
Loading...
