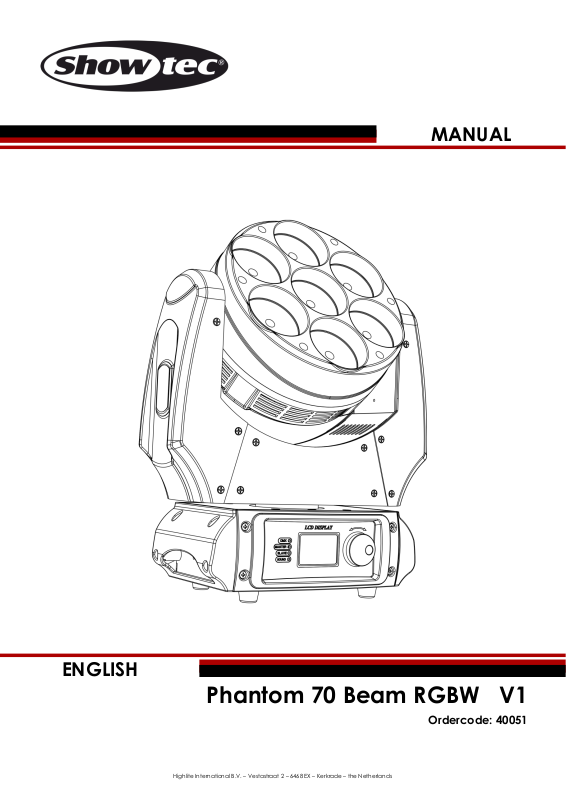

SHOWTEC Phantom 70 Beam RGBW V1, Phantom 70 Beam RGBW, Saber User Manual
Phantom 70 Beam RGBW V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 40051
MANUAL
ENGLISH
Ordercode: 40051
Phantom 70 Beam RGBW
Table of contents
Warning ............................................................................................................................................................................... 3
Safety Instructions ......................................................................................................................................................... 3
Operating Determinations .......................................................................................................................................... 5
Rigging ............................................................................................................................................................................ 5
Mounting a bracket and quick-locks to the underside of the Phantom 70 Beam RGBW. ............................ 5
Connection with the mains......................................................................................................................................... 6
Return Procedure .......................................................................................................................................................... 7
Claims .............................................................................................................................................................................. 7
Description of the device ................................................................................................................................................. 8
Overview ........................................................................................................................................................................ 8
Frontside.......................................................................................................................................................................... 9
Backside ....................................................................................................................................................................... 10
Installation .........................................................................................................................................................................10
Set Up and Operation .....................................................................................................................................................10
Control Modes ............................................................................................................................................................. 11
One Phantom 70 Beam RGBW (Built-in Programs and Manual) .................................................................... 11
One Phantom 70 Beam RGBW (Sound-controlled) .......................................................................................... 11
Multiple Phantom Beams (Master/Slave Control) ............................................................................................. 11
Multiple Phantom Beams (DMX Control) ............................................................................................................ 12
Fixture Linking ............................................................................................................................................................... 13
Data Cabling ............................................................................................................................................................... 13
Control Panel ............................................................................................................................................................... 14
DMX Control Mode ..................................................................................................................................................... 14
DMX Addressing .......................................................................................................................................................... 14
Menu Overview ........................................................................................................................................................... 15
Main Menu Options .................................................................................................................................................... 16
1. DMX-512 ................................................................................................................................................................ 16
2. Channel Mode ..................................................................................................................................................... 17
3. Run Mode .............................................................................................................................................................. 17
3.1 DMX Mode .......................................................................................................................................................... 17
3.2 Master Mode ...................................................................................................................................................... 17
3.3 Slave Mode ......................................................................................................................................................... 18
3.4 Sound Mode ....................................................................................................................................................... 18
3.5 Manual Mode .................................................................................................................................................... 18
4. Functions Mode ................................................................................................................................................... 19
4.1 Pan Invert ............................................................................................................................................................ 19
4.2 Tilt Invert ............................................................................................................................................................... 19
4.3 Dimmer Curve .................................................................................................................................................... 20
4.4 DMX Fail Curve ................................................................................................................................................... 20
4.5 Display ................................................................................................................................................................. 20
4.6 Back Light ............................................................................................................................................................ 21
4.7 Reset..................................................................................................................................................................... 21
4.8 Factory Sets......................................................................................................................................................... 21
4.9 Auto Test .............................................................................................................................................................. 21
5. Version ................................................................................................................................................................... 21
DMX Channels ............................................................................................................................................................. 22
8 Channels ................................................................................................................................................................ 22
Black out during pan/ tilt movement ................................................................................................................... 23
12 Channels .............................................................................................................................................................. 23
16 Channels .............................................................................................................................................................. 25
Black out during pan/ tilt movement ................................................................................................................... 26
Maintenance ....................................................................................................................................................................28
Replacing the Fuse ..................................................................................................................................................... 28
1
Ordercode: 40051
Phantom 70 Beam RGBW
Troubleshooting ...............................................................................................................................................................28
No Light ......................................................................................................................................................................... 28
No Response to DMX.................................................................................................................................................. 29
Product Specifications ....................................................................................................................................................30
Dimensions ........................................................................................................................................................................31
Notes ..................................................................................................................................................................................32
2
Ordercode: 40051
Phantom 70 Beam RGBW
Your shipment includes:
● Showtec Phantom 70 Beam RGBW
● Mounting bracket with 2 mounting screws
● Pro Power connector to Schuko cable (length 1,5 m)
● User manual
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
● be qualified
● follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
3
Ordercode: 40051
Phantom 70 Beam RGBW
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged.
Never place any material over the lens.
Never look directly into the light source.
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this would reduce the device’s life.
Do not touch the device’s housing bare-handed during its operation. Allow the fixture to cool for at
least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoor, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep case closed while operating.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to
cracks or deep scratches.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. Device must be installed out of the reach of children. Never leave the unit running
unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Phantom 70 Beam RGBW. The
manufacturer will not accept liability for damages caused by the misuse or incorrect installation of
this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
4
Ordercode: 40051
Phantom 70 Beam RGBW
Operating Determinations
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 1 meter.
The maximum ambient temperature ta = 40°C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the Phantom 70 Beam RGBW is lowered from the ceiling or high joists, professional trussing systems
have to be used.
Use a clamp to mount the Phantom 70 Beam RGBW, with the mounting-bracket, to the trussing
system.
The Phantom 70 Beam RGBW must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
When rigging, derigging or servicing the projector, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
Mounting a bracket and quick-locks to the underside of the Phantom 70 Beam RGBW.
5
Ordercode: 40051
Phantom 70 Beam RGBW
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
The Phantom 70 Beam RGBW can be placed on a flat stage floor or be mounted to any kind of truss by
means of a mounting bracket with quick-locks.
Improper installation can cause serious damage to people and property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property!
6
Ordercode: 40051
Phantom 70 Beam RGBW
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name.
02) Your address.
03) Your phone number.
04) A brief description of the symptoms.
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
7
Ordercode: 40051
Phantom 70 Beam RGBW
Fig. 01
Description of the device
Features
The Showtec Phantom 70 Beam RGBW is a moving-head with high output and great effects
The clear optical system, in combination with the RGBW LEDs, creates a vivid beam
8 degree optical system ensuring small and razor-sharp beams
Onboard: Bright LCD display for easy setup
Input voltage: 100-240 VAC, 60/50Hz
Power consumption: 90W max. at full output
LED Quantity: 7 X 10W RGBW 4-in-1 LEDs
Control mode: Auto, Manual, Sound-controlled, Master/Slave, DMX512
Preset colors, built-in color jump and fade programs are selectable by DMX
Special: Pan/ Tilt reverse & Black out by DMX
DMX Modes: 8, 12, 16 Channels
DMX-control via standard DMX-controller
Beam angle: 5º
60mm 5° Optics
Dimmer: 0-100% electronic dimmer
Compact Powerful Beam
IFS Technology
Strobe: 0-20Hz
Dimmer curves: Linear, Square, I-Square, S curve
RGBW Color mixing
Pan 0º -- 540º, Tilt 0º -- 270º
Pan/Tilt resolution: 16 bit
On-Board: Display including gravity sensor
Lux @ 2m: 27150lux
Connections: Blue Pro Power connector IN and Grey Pro Power connector OUT
Data Connections: 3-pin DMX IN and OUT
Fuse: T3A/250V
Working temperature: -10⁰C~40⁰C
Housing: Black Flame-retardant plastic, Die-cast aluminum
Dimensions: 310 x 150 x 382 mm (LxWxH)
Weight: 6,4 kg
Included: Pro Power connector to Schuko cable (length 1,5 m) and mounting bracket
Overview
8
Ordercode: 40051
Phantom 70 Beam RGBW
Fig. 02
Frontside
01) 7 X 10W RGBW 4-in-1 LEDs
02) Control LEDs
03) LCD Display
04) MENU control
NOTE: Knowledge of DMX is required to fully utilize this unit.
9
Ordercode: 40051
Phantom 70 Beam RGBW
Fig. 03
Backside
05) Fuse T3A/250V
06) 3-pin DMX signal connector IN
07) 3-pin DMX signal connector OUT
08) Blue Pro Power connector IN
09) Grey Pro Power connector OUT
10) Power switch ON/OFF
11) Ground/earth connection
Installation
Remove all packing materials from the Phantom 70 Beam RGBW. Check if all foam and plastic padding
is removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
10
Loading...
