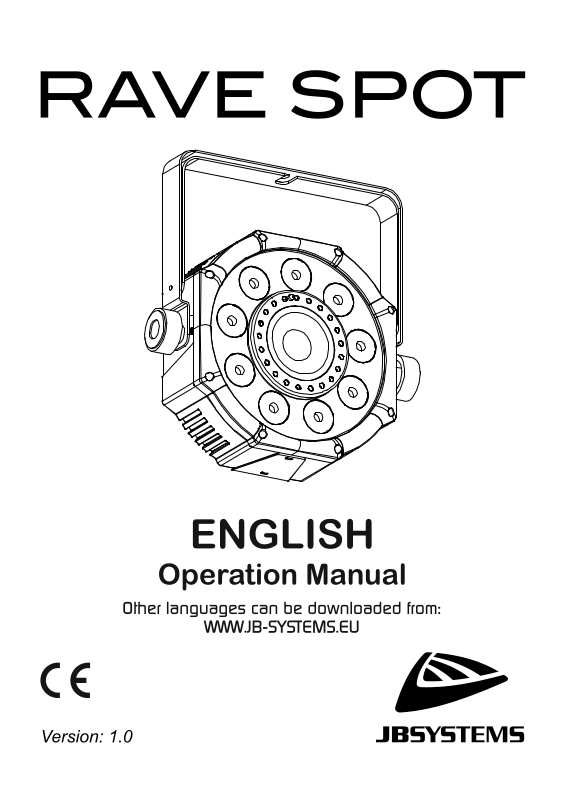

ENGLISH USER MANUAL
JB SYSTEMS® 1/12 RAVE SPOT
OPERATION MANUAL
Thank you for buying this JB Systems® product. To take full advantage of all possibilities and for your own
safety, please read these operating instructions very carefully before you start using this unit.
FEATURES
• 3 effects in one single unit !
• 9x8W Red-Green-Blue-UV Leds for colored beams + UV/Blacklight effect
• 1 central COB 30W RGB led
• Led Strobe: 21x 0.5W White Leds
• Use the unit in any way you like it !
• Standalone: sound activated (internal mic) or automatic shows. IR remote controller included.
• Master/slave function for wonderful synchronized shows when several units are used.
• DMX-control: via 1, 2, 4, 6, 9 or 22 Channels.
• 4-digit LED display for easy menu navigation
• Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (optional, Briteq® code 4645)
• IEC mains input + output for easy linking (check out our combi cables)
BEFORE USE
• Before you start using this unit, please check if there’s no transportation damage. Should there be any, do
not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary
for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused
by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects
or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user
manual.
Check the contents:
Check that the cardboard box contains the following items:
• RAVE SPOT unit
• Mains cable
• IR Remote controller
• Operating instructions
ENGLISH USER MANUAL
JB SYSTEMS® 2/12 RAVE SPOT
SAFETY INSTRUCTIONS:
CAUTION: To reduce the risk of electric shock, do not remove the top cover.
No user-serviceable parts inside. Refer servicing to qualified service
personnel only.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use
or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of
important operation and maintenance (servicing) instructions in the literature accompanying this
appliance.
This symbol means: indoor use only.
This symbol means: Read instructions.
This symbol determines: the minimum distance from lighted objects. The minimum distance between
light-output and the illuminated surface must be more than 1 meter.
• To protect the environment, please try to recycle the packing material as much as possible.
• A new light effect sometimes causes some unwanted smoke and/or smell. This is normal and disappears
after some minutes.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when
bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full
performance or may even cause damages.
• This unit is for indoor use only.
• Don’t place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign
object enters the unit, immediately disconnect the mains power.
• Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture
must be fixed at least 50cm from surrounding walls.
• Don’t cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
• The save ambient temperature is between 15° & 40°C. Don’t use this unit at higher ambient temperatures.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
• Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for
electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The power cord should always be in perfect condition. Switch the unit immediately off when the power cord
is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• Never let the power-cord come into contact with other cables!
• This fixture must be earthed to in order comply with safety regulations.
• Don’t connect the unit to any dimmer pack.
• Always use an appropriate and certified safety cable when installing the unit.
• In order to prevent electric shock, do not open the cover. Apart from the lamp and mains fuse there are no
user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same
type and electrical specifications!
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• The housing and the lenses must be replaced if they are visibly damaged.
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.
Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering
from epilepsy.
CAUTION
ENGLISH USER MANUAL
JB SYSTEMS® 3/12 RAVE SPOT
DESCRIPTION:
1. MAINS OUTPUT: you can use our “combi cables” and this IEC output to easily daisy-chain the next unit.
2. MAINS INPUT: with IEC socket and integrated fuse holder; connect the supplied mains cable here.
3. FUSE HOLDER: holds a slow blow 1.6A/250V glass fuse to protect the internal electronic circuits.
4. DMX INPUT: 3pin male XLR-connector used to connect universal DMX-cables. This input receives
instructions from a DMX-controller or the Master unit in Master/slave mode.
5. SAFETY EYEBOLT: used to attach a safety cable when the unit is rigged (see “overhead rigging”)
6. M-DMX INPUT: Please note that this USB-connector is NOT used for updates or to connect the unit to a
PC! Instead this USB-connector makes it very easy to add wireless DMX to the unit! Just add the
(optional) WTR-DMX DONGLE from BRITEQ® and you will get wireless DMX! Moreover you will be able
to connect other DMX-controlled equipment to the DMX-output so you can share the wireless DMX
function with all connected units! No extra settings to be made in the setup menu, just follow the
procedure in the user manual supplied with the WTR-DMX DONGLE from BRITEQ®. The separate
WTR-DMX DONGLE is available from WWW.BRITEQ-LIGHTING.COM (order code: 4645)
7. VENTILATION OPENING: used for the cooling of the unit. Do not cover the opening !
8. USB CONNECTOR: used for connecting the WTR-DMX DONGLE (order code 04645) for wireless DMX
in combination with our M-DMX TRANSCEIVER (order code 04646). Don’t use this connector for
connection with a PC!
ENGLISH USER MANUAL
JB SYSTEMS® 4/12 RAVE SPOT
9. BUTTONS:
10. DISPLAY: shows the various menus and the selected functions.
11. SENSITIVITY KNOB: The unit works to rhythm of the beat when used in standalone or master/slave
mode. With this knob you can set the input sensitivity of the build-in microphone.
12. INTERNAL MICROPHONE: The built-in microphone is used to synchronize the show to the beat of the
music.
OVERHEAD RIGGING
• Important: The installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/or damage to property. Overhead rigging requires
extensive experience! Working load limits should be respected, certified installation materials
should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The
fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where persons may walk by or be
seated.
• Before rigging make sure that the installation area can hold a minimum point load of 10times the device’s
weight.
• Always use a certified safety cable that can hold 12 times the weight of the device when installing the unit.
This secondary safety attachment should be installed in a way that no part of the installation can drop
more than 20cm if the main attachment fails.
• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don’t cover any ventilation openings as this may result in overheating.
• The operator has to make sure that the safety-relating and machine-technical installations are approved by
an expert before using them for the first time. The installations should be inspected every year by a skilled
person to be sure that safety is still optimal.
[MENU]
To browse the different menu options
[UP]
To go forward in the selected functions or to increase a value
[DOWN]
To go backward in the selected functions or to decrease a value
[ENTER]
To confirm the selected functions
ENGLISH USER MANUAL
JB SYSTEMS® 5/12 RAVE SPOT
HOW TO SET UP AND CONTROL THE UNIT
You can operate the unit in 4 ways:
1) MUSIC CONTROLLED MODE:
The unit runs a preprogrammed sequence to the
rhythm of the music. Select this mode when only 1 unit
is used (standalone) or when the unit is placed as the
first (master) unit in a chain with several units.
• Press the [MENU] button until the display shows:
[Sou]
• Now use the [UP] or [DOWN] to browse the different
sound modes.
• Press the [ENTER] button to select the desired
sound mode:
• With the [UP] & [DOWN] buttons, you can choose
different programs for the selected sound mode. (see
above)
• Press the [ENTER] button to confirm your choice.
• Put on some music and set the sensitivity of the
microphone by using the sensitivity knob (11) so that
the effect reacts perfectly to the sound level of your
music.
You can connect several units together: just put the first
unit of the chain in one of the sound activated effect
modes and all other units in “Slave mode” (display
shows “SLA”) to make them all work in perfect sync!
Note: When no music is detected, the output of the unit
will be shut off (blackout).
2) FULL AUTOMATIC MODE:
The unit automatically runs a preprogrammed
sequence. Select this mode when only 1 unit is used
(standalone) or when the unit is placed as the first
(master) unit in a chain with several units.
• Press the [MENU] button until the display shows [Aut]
• Now use the [UP] or [DOWN] to browse the different
automatic modes.
• Press the [ENTER] button to select the desired
automatic mode:
• With the [UP] & [DOWN] buttons, you can choose
different programs for the selected sound mode. (see
above)
• Press the [ENTER] button to confirm your choice.
• Now use the [UP] or [DOWN] buttons to select the
speed:
o S 1 = Slowest speed
o S 100 = Fastest speed
• Press the [ENTER] button to confirm your choice.
You can connect several units together: just put the first
unit of the chain in one of the automatic effect modes and all other units in “Slave mode” (display shows
“SLA”) to make them all work in perfect sync!
3) SLAVE MODE:
The unit follows the instructions given by the first unit (master) in the chain. Like this you can obtain nice
synchronized shows.
• Connect the DMX input of the unit to the DMX output of the previous unit in the chain.
ENGLISH USER MANUAL
JB SYSTEMS® 6/12 RAVE SPOT
• Press the FUNC-button until the display shows [SLA]
• Press the ENTER-button to confirm your choice.
You can connect several units together. Please put the first unit of the chain in “Music or automatic mode”
and all other units in “Slave mode” to make them all work in perfect sync!
4) DMX512 MODE:
The projector can be controlled by any standard DMX-controller in 6 different DMX-modes.
• Press the [MENU] button until the display shows [dMH]
• Press the [ENTER] button
• The display will show the actual DMX address
• Press [ENTER] to enter the setup
• Use the [UP] or [DOWN] buttons to select the DMX mode you want to use. [1Ch], [2Ch], [4Ch], [6Ch],
[9Ch] or [22Ch]
• Press the [ENTER] button to confirm your choice.
• Use the [UP] or [DOWN] buttons to select the desired DMX address
• Press the [ENTER] button to confirm the DMX address
Note: the display blinks when the unit is in DMX-mode and no DMX-signal is detected.
Some more information on DMX512:
The DMX-protocol is a widely used high speed signal to control intelligent light
equipment. You need to “daisy chain” your DMX controller and all the connected light
effects with a good quality XLR M/F balanced cable. To prevent strange behavior of the
light effects, due to interferences, you must use a 90Ω to 120Ω terminator at the end of
the chain. Never use Y-splitter cables, this simply won’t work!
Each effect in the chain needs to have its proper starting address so it knows which commands from the
controller it has to decode.
ENGLISH USER MANUAL
JB SYSTEMS® 7/12 RAVE SPOT
1CH Mode :
DMX
Channel
DMX-value
function
remarks
1
000-015
Blackout
016-023
Program 1
Speed slow-fast
024-031
Program 2
"
032-039
Program 3
"
040-047
Program 4
"
048-055
Program 5
"
056-063
Program 6
"
064-071
Program 7
"
072-079
Program 8
"
080-087
Program 9
"
088-095
Program 10
"
096-103
Program 11
"
104-111
Program 12
"
112-119
Program 13
"
120-127
Program 14
"
128-135
Program 15
"
136-143
Program 16
"
144-151
Program 17
"
152-159
Program sound 1
Sound activated
160-167
Program sound 2
"
168-175
Program sound 3
"
176-183
Program sound 4
"
184-191
Program sound 5
"
192-199
Program sound 6
"
200-207
Program sound 7
"
208-215
Program sound 8
"
216-223
Program sound 9
"
224-231
Program sound 10
"
232-239
Program sound 11
"
240-247
Program sound 12
"
248-255
Program sound 13
"
2CH Mode :
DMX
Channel
DMX-value
function
remarks
1
000-015
Blackout
016-023
Program 1
Speed slow-fast
024-031
Program 2
"
032-039
Program 3
"
ENGLISH USER MANUAL
JB SYSTEMS® 8/12 RAVE SPOT
040-047
Program 4
"
048-055
Program 5
"
056-063
Program 6
"
064-071
Program 7
"
072-079
Program 8
"
080-087
Program 9
"
088-095
Program 10
"
096-103
Program 11
"
104-111
Program 12
"
112-119
Program 13
"
120-127
Program 14
"
128-135
Program 15
"
136-143
Program 16
"
144-151
Program 17
"
152-159
Program sound 1
Sound activated
160-167
Program sound 2
"
168-175
Program sound 3
"
176-183
Program sound 4
"
184-191
Program sound 5
"
192-199
Program sound 6
"
200-207
Program sound 7
"
208-215
Program sound 8
"
216-223
Program sound 9
"
224-231
Program sound 10
"
232-239
Program sound 11
"
240-247
Program sound 12
"
248-255
Program sound 13
"
2
000-255
Dimmer 0-100%
4CH Mode : (Ledcon 02 Mk2)
DMX
Channel
DMX-value
function
remarks
1
000-255
Red color dimmer
2
000-255
Green color dimmer
3
000-255
Blue color dimmer
4
000-190
Master Dimmer 0% - 100%
191-200
Sound
201-247
Strobe Slow to fast
248-255
Master Dimmer 100% (full
on)
ENGLISH USER MANUAL
JB SYSTEMS® 9/12 RAVE SPOT
6CH Mode :
DMX
Channel
DMX-value
function
remarks
1
000-255
Red color dimmer
2
000-255
Green color dimmer
3
000-255
Blue color dimmer
4
000-255
White color dimmer
5
000-255
Amber color dimmer
6
000-255
UV color dimmer
9CH Mode :
DMX
Channel
DMX-value
function
remarks
1
000-255
Master Dimmer 0% - 100%
2
000-007
Full on
008-037
Random strobe
038-067
Sound strobe
068-255
Strobe speed : Slow to fast
3
000-007
No function
008-247
Color fade : Slow to fast
248-255
Sound Chase
4
000-255
Red color dimmer
5
000-255
Green color dimmer
6
000-255
Blue color dimmer
7
000-255
No function
8
000-255
No function
9
000-255
UV color dimmer
22CH Mode :
DMX
Channel
DMX-value
function
remarks
1
000-255
Red color dimmer
Zone 1
2
000-255
Green color dimmer
3
000-255
Blue color dimmer
4
000-255
UV color dimmer
5
000-005
No function
006-250
Strobe Slow to fast
251-255
Sound
6
000-255
Red color dimmer
Zone 2
7
000-255
Green color dimmer
8
000-255
Blue color dimmer
ENGLISH USER MANUAL
JB SYSTEMS® 10/12 RAVE SPOT
9
000-255
UV color dimmer
10
000-005
No function
006-250
Strobe Slow to fast
251-255
Sound
11
000-255
Red color dimmer
Zone 3
12
000-255
Green color dimmer
13
000-255
Blue color dimmer
14
000-255
UV color dimmer
15
000-005
No function
006-250
Strobe Slow to fast
251-255
Sound
16
000-255
Red color dimmer
Center
17
000-255
Green color dimmer
18
000-255
Blue color dimmer
19
000-005
No function
006-250
Strobe Slow to fast
251-255
Sound
20
000-005
No function
White strobe leds
006-020
Full on
021-250
Strobe Slow to fast
251-255
Sound activated strobe
21
000-005
No function
006-019
Program 1
020-034
Program 2
035-048
Program 3
049-063
Program 4
064-077
Program 5
078-092
Program 6
093-106
Program 7
107-121
Program 8
122-135
Program 9
136-150
Program 10
151-164
Program 11
165-179
Program 12
180-193
Program 13
194-208
Program 14
209-222
Program 15
223-237
Program 16
238-255
Program 17
22
000-250
Program speed
Slow to fast
251-255
Sound activated program
ENGLISH USER MANUAL
JB SYSTEMS® 11/12 RAVE SPOT
IR REMOTE CONTROLLER
EXTRA MENU OPTIONS
Press the [MENU] button till [SYS] appears on the display
Press [ENTER] and use the [UP] & [DOWN] buttons to browse the different options:
• [LEdS]: use this option to select if the display needs to go out when it is not used or if it has to be lit
all the time
• [LEdr]: use this option to reverse the display. This can be useful when the unit is positioned upside-
down.
• [rESt]: use this option to restore the initial factory settings.
MAINTENANCE
• Make sure the area below the installation place is free from unwanted persons during servicing.
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.
During inspection the following points should be checked:
• All screws used for installing the device and any of its parts should be tightly fastened and may not be
corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any
deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a
small problem is detected.
• In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be
cleaned monthly.
• The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.
• The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics.
• Clean with a soft cloth using normal glass cleaning products.
• Always dry the parts carefully.
• Clean the external optics at least once every 30 days.
• Clean the internal optics at least every 90 days.
Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!
SPECIFICATIONS
This device was designed to produce decorative effect lighting and is used in light show systems.
This unit is radio-interference suppressed. This product meets the requirements of the current European and
national guidelines. Conformity has been established and the relevant statements and documents have been
deposited by the manufacturer.
Button
Function
Description
ON/OFF
To switch the effect On or Off
AUTO
To select programs 1-17
SOUND
To select sound activated programs 1-13
No function
No function
No function
AUTO / SOUND
To toggle between automatic and sound mode
PAUSE
To pause the program
COLOR SELECT
To select colors 1 - 24
SPEED
Select the speed for the automatic programs
ENGLISH USER MANUAL
JB SYSTEMS® 12/12 RAVE SPOT
Mains Input: AC 100~240V, 50/60Hz
Fuse: 250V 1.6A slow blow (20mm glass)
Max. Power consumption: 78W
Sound Control: Internal microphone
DMX connections: 3pin XLR male / female
DMX channels: 1 / 2 / 4 / 6 / 9 / 22 channels
Par LEDs: 9x8Watt Red-Green-Blue-UV Led’s
Center LED: 1x30Watt RGB Led
Strobe LEDs: 21x 0.5Watt LEDs
Working temperature: 10°C to 40°C
Size: 280x275x76mm
Weight: 1,81 kg
All the information is subject to change without prior notice You can download the latest version of this user
manual on our website: www.jb-systems.eu
Loading...
