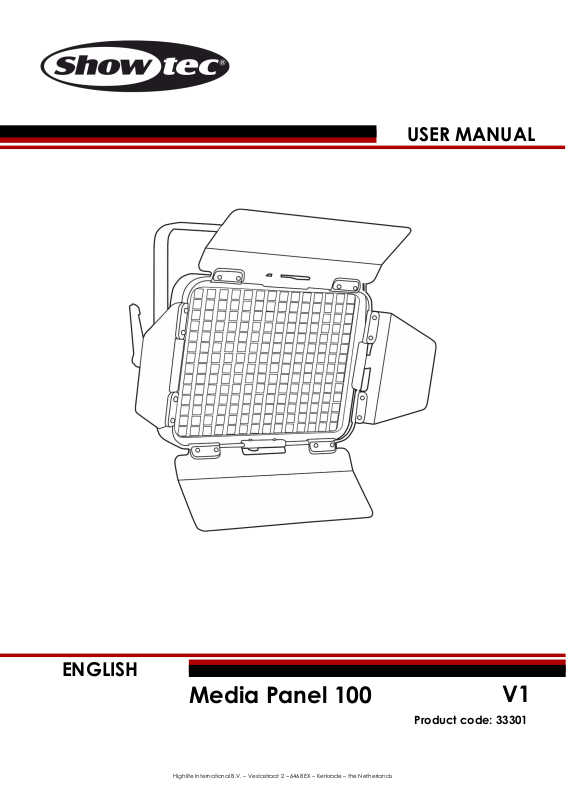

Page 1
Media Panel 100
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Product code: 33301
USER MANUAL
ENGLISH
V1
Page 2
1
Media Panel 100
Product code: 33301
Preface
Thank you for purchasing this Showtec product.
The purpose of this user manual is to provide instructions for the correct and safe use of this product.
Keep the user manual for future reference as it is an integral part of the product. The user manual shall be
stored at an easily accessible location.
This user manual contains information concerning:
● Safety instructions
● Intended and non-intended use of the device
● Installation and operation of the device
● Maintenance procedures
● Troubleshooting
● Transport, storage and disposal of the device
Non-observance of the instructions in this user manual may result in serious injuries and damage of
property.
©2021 Showtec. All rights reserved.
No part of this document may be copied, published or otherwise reproduced without the prior written
consent of Highlite International.
Design and product specifications are subject to change without prior notice.
For the latest version of this document, please visit our website www.highlite.com or contact us at
service@highlite.com.
Highlite International and its authorized service providers are not liable for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or
reliance on the information contained in this document.
Page 3
2
Media Panel 100
Product code: 33301
Table of contents
1. Introduction .......................................................................................................................................................... 3
Before Using the Product .................................................................................................................................. 3
Intended Use ....................................................................................................................................................... 3
Product Lifespan ................................................................................................................................................. 3
LEDs Lifespan ....................................................................................................................................................... 3
Text Conventions ................................................................................................................................................ 4
Symbols and Signal Words ................................................................................................................................ 4
Symbols on the Information Label .................................................................................................................. 5
2. Safety .................................................................................................................................................................... 6
Warnings and Safety Instructions .................................................................................................................... 6
Requirements for the User ................................................................................................................................. 8
3. Description of the Device ................................................................................................................................... 9
Front View ............................................................................................................................................................ 9
Back View ..........................................................................................................................................................10
Product Specifications ....................................................................................................................................11
Optional Accessories .......................................................................................................................................12
Dimensions .........................................................................................................................................................12
4. Installation .......................................................................................................................................................... 13
Safety Instructions for Installation ..................................................................................................................13
Personal Protective Equipment .....................................................................................................................13
Installation Site Requirements ........................................................................................................................13
Rigging ...............................................................................................................................................................14
Angle Adjustment .......................................................................................................................................16
Barndoor Installation ..................................................................................................................................17
Free-standing Bracket Installation ...........................................................................................................18
Connecting to Power Supply .........................................................................................................................19
5. Setup ................................................................................................................................................................... 20
Warnings and Precautions .............................................................................................................................20
Stand-alone Setup ...........................................................................................................................................20
6. Operation ........................................................................................................................................................... 21
Safety Instructions for Operation ...................................................................................................................21
Control Mode ....................................................................................................................................................21
Control Panel ....................................................................................................................................................22
Start-up ...............................................................................................................................................................22
Dimmer .........................................................................................................................................................22
7. Troubleshooting ................................................................................................................................................. 23
8. Maintenance ..................................................................................................................................................... 24
Safety Instructions for Maintenance .............................................................................................................24
Preventive Maintenance ................................................................................................................................24
Basic Cleaning Instructions .......................................................................................................................25
Corrective Maintenance ................................................................................................................................25
9. Deinstallation, Transportation and Storage .................................................................................................... 26
Instructions for Deinstallation ..........................................................................................................................26
Instructions for Transportation ........................................................................................................................26
Storage ...............................................................................................................................................................26
10. Disposal .............................................................................................................................................................. 26
11. Approval ............................................................................................................................................................. 26
Page 4
3
Media Panel 100
Product code: 33301
1. Introduction
Before Using the Product
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your
Highlite International dealer.
Your shipment includes:
● Showtec Media Panel 100
● Schuko to IEC power cable (1,5 m)
● Four-blade barndoor
● Spigot adapter
● Power adapter
● User manual
Fig. 01
Intended Use
This device is intended for professional use as an indoor spot. It is suitable only for indoor installation.
This device is not suitable for households and for general lighting.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Product Lifespan
This device is not designed for permanent operation. Disconnect the device from the electrical power
supply when the device is not in operation. This will reduce the wear and will improve the device’s
lifespan.
LEDs Lifespan
The light output of the LEDs gradually decreases over time (lumen depreciation). High operating
temperatures contribute to this process. You can extend the lifespan of the LEDs by providing adequate
ventilation and operating the LEDs at the lowest possible brightness.
Page 5
4
Media Panel 100
Product code: 33301
Text Conventions
Throughout the user manual the following text conventions are used:
● Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons”
● References: References to chapters and parts of the device are in bold lettering, for example:
“Refer to 2. Safety”, “turn the adjustment screw (02)”
● 0–255: Defines a range of values
● Notes: Note: (in bold lettering) is followed by useful information or tips
Symbols and Signal Words
Safety notes and warnings are indicated throughout the user manual by safety signs.
Always follow the instructions provided in this user manual.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
Attention
Indicates important information for the correct operation and use of the
product.
Important
Read and observe the instructions in this document.
Electrical hazard
Hot surface
Eye damage hazard
Provides important information about the disposal of this product.
Page 6
5
Media Panel 100
Product code: 33301
Symbols on the Information Label
This product is provided with an information label. The information label is located on the backside of the
device.
The information label contains the following symbols:
This device shall not be treated as household waste.
This device falls under IEC protection class I.
Replace any cracked protective shield.
Minimum distance from lighted objects.
Caution: Risk of electric shock. Do not open.
Caution: To reduce the risk of electrical shock, do not remove cover. No userserviceable parts inside. Refer servicing to qualified personnel.
Page 7
6
Media Panel 100
Product code: 33301
2. Safety
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
Warnings and Safety Instructions
DANGER
Danger for children
For adult use only. The device must be installed beyond the reach of children.
● Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach. Packaging material is a potential source of danger for children.
DANGER
Electric shock caused by dangerous voltage inside
There are areas within the device where dangerous touch voltage (> 120 V DC) may be present.
● Do not open the device or remove any covers.
● Do not operate the device if the covers or the housing are open. Before operation, check if the
housing is firmly closed and all screws are tightly fastened.
● Disconnect the device from electrical power supply before service and maintenance, and when the
device is not in use.
DANGER
Electric shock caused by short-circuit
This device falls under IEC protection class I.
● Make sure that the device is electrically connected to ground (earth). Connect the device only to a
socket-outlet with ground (earth) connection.
● Do not cover the ground (earth) connection.
● Do not bypass the thermostatic switch or fuses.
● For replacement use fuses of the same type and rating only.
● Do not let the power cable come into contact with other cables. Handle the power cable and all
connections with the mains with caution.
● Do not modify, bend, mechanically strain, put pressure on, pull or heat up the power cable.
● Make sure that the power cable is not crimped or damaged. Examine the power cable periodically
for any defects.
● Do not immerse the device in water or other liquids. Do not install the device in a location where
flooding may occur.
● Do not use the device during thunderstorms. Disconnect the device from the electrical power supply
immediately.
Page 8
7
Media Panel 100
Product code: 33301
WARNING
Risk of burns due to hot surface
The surface and the inner parts of the device can become very hot during operation.
● Do not touch the device during operation.
● Allow the device to cool down for at least 15 minutes before handling.
WARNING
Possible eye damage caused by high light intensity
Possibly hazardous optical radiation emitted from this device.
● Do not look at the operating light source. May be harmful to the eye.
● Do not look at the light source with optical instruments that may concentrate the light output.
● Make sure that persons are not looking directly into the light source when the device lights up
suddenly. This can happen when the device is powered or when it receives DMX signal, or when
certain menu items are selected.
● Disconnect power supply before servicing.
● Wear protective goggles if looking into light source during service or maintenance.
Attention
Power supply
● Before connecting the device to the power supply, make sure that the current, voltage and
frequency match the input voltage, current and frequency specified on the information label on the
device.
● Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the
required power consumption of the device.
Attention
General safety
● Do not connect the device to a dimmer pack.
● Do not switch the device on and off in short intervals. This decreases the device’s life.
● Do not shake the device. Avoid brute force when installing or operating the device.
● Change the lens or the LEDs if they are visibly damaged to such an extent that their effectiveness is
impaired, for example by cracks or deep scratches. Contact your Highlite International dealer for
more information, as servicing can be performed only by instructed or skilled persons.
● If the device is dropped or struck, disconnect the device from the electrical power supply
immediately.
● If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it
on immediately. Let the device reach room temperature before switching it on, otherwise it may be
damaged by the formed condensation.
● If the device fails to work properly, discontinue the use immediately.
Page 9
8
Media Panel 100
Product code: 33301
Attention
For professional use only
This device shall be used only for the purposes it is designed for.
This device is designed to be used as an indoor spot. Any incorrect use may lead to hazardous situations
and result in injuries and material damage.
● This device is not suitable for households and for general lighting.
● This device is not designed for permanent operation.
● This device does not contain user-serviceable parts. Unauthorized modifications to the device will
render the warranty void. Such modifications may result in injuries and material damage.
Attention
Before each use, examine the device visually for any defects.
Make sure that:
● All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
● The safety devices are not damaged.
● There are no deformations on housings, fixations and installation points.
● The lens is not cracked or damaged.
● The power cables are not damaged and do not show any material fatigue.
Attention
Do not expose the device to conditions that exceed the rated IP class conditions.
This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater
than 12 mm, such as fingers, and no protection against harmful ingress of water.
Requirements for the User
This product may be used by ordinary persons. Maintenance may be carried by ordinary persons.
Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite
dealer for more information.
Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled
person, for specific tasks and work activities associated with the installation, service and maintenance of
this product, so that they can identify risks and take precautions to avoid them.
Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards
associated with the installation, service and maintenance of this product.
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons
include not only users of the product but also any other persons that may have access to the device or
who may be in the vicinity of the device.
Page 10
9
Media Panel 100
Product code: 33301
3. Description of the Device
The Media Panel 100 a bright 100 watt Daylight White Video LED Panel suited for various studio and video
applications. A V-Mount Battery Holder is optional for mobile use (ordercode 33310). This optional
accessory requires a 42V battery life pack.
Front View
Fig. 02
01) Adjustment screw
02) Mounting bracket
03) Barndoor
04) 392x 0,5 W White LED
Page 11
10
Media Panel 100
Product code: 33301
Back View
Fig. 03
05) LED Display
06) Dimmer control
07) ON/OFF
08) 24 V DC power adapter IN
Page 12
11
Media Panel 100
Product code: 33301
Product Specifications
Model:
Media Panel 100
Electrical:
Input voltage:
100–240 V AC, 50/60 Hz
Power Connector in
Low Voltage DC plug
Power consumption:
100 W
Physical:
Dimensions:
487 x 337 x 55 mm (LxWxH)
Weight:
2,6 kg
Optics:
Light source:
392x 0,5 W White LED
Dimmer:
0–100 %
CCT
5000 K
CRI
98
Lumen Total
7829 lm
Lux @ 2m
2231 lx
Lux @ 3m
892 lx
Beam Angle Circular
87 °
Field Angle Circular
143 °
Operation and control:
Control:
Manual
Control panel:
LED display
Connections:
Power connections:
IEC cable connected to 24 V DC adapter
Construction:
Housing:
Metal
Color:
Dark Gray
IP rating:
IP20
Cooling:
Convection
16mm Spigot
Thermal:
Maximum ambient temperature ta:
45 °C
Minimum Operating Temperature
0 °C
Maximum housing temperature tc:
65 °C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
0,8 m
Page 13
12
Media Panel 100
Product code: 33301
Optional Accessories
The Media Panel is delivered with accessories. You can additionally purchase the following accessory:
Product code: 33310 (Showtec A V-Mount Battery Holder is optional for mobile use)
Dimensions
Fig. 04
Page 14
13
Media Panel 100
Product code: 33301
4. Installation
Safety Instructions for Installation
WARNING
Incorrect installation can cause serious injuries and damage of property.
If trussing systems are used, installation must be carried out only by instructed or skilled persons.
Follow all applicable European, national and local safety regulations concerning rigging and trussing.
Personal Protective Equipment
During installation and rigging wear personal protective equipment in compliance with the national and
site-specific regulations.
Installation Site Requirements
● The device can be used only indoors.
● The device can be mounted to a truss or other rigging structure in any orientation.
● The minimum distance to other objects must be bigger than 0,5 m.
● The minimum distance between the light output and the illuminated surface must be bigger than
0,8 m.
● The maximum ambient temperature ta = 40 °C must never be exceeded.
● The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.
Page 15
14
Media Panel 100
Product code: 33301
Rigging
The device can be positioned on a flat surface or mounted to a truss or other rigging structure in any
orientation. Make sure that all loads are within the pre-determined limits of the supporting structure.
Fig. 05
CAUTION
Restrict the access under the work area during rigging and/or derigging.
Page 16
15
Media Panel 100
Product code: 33301
To mount the device, follow the steps below:
01) Use a clamp to attach the device to the supporting structure, as shown in Fig. 05. Make sure that the
device cannot move freely.
02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the
secondary suspension can hold 10 times the weight of the device. If possible, the secondary
suspension should be attached to a supporting structure independent of the primary suspension. Put
the safety cable through the mounting bracket (02), as shown in Fig. 05.
Fig. 06
Page 17
16
Media Panel 100
Product code: 33301
Angle Adjustment
You can adjust the angle of the device with the adjustment screw (01).
01) Turn the adjustment screw (01) counterclockwise to release it.
02) Tilt the device to the desired angle (see Fig. 06).
03) Turn the adjustment screw (01) clockwise to tighten it. Make sure that the device cannot move freely
after the adjustment screw (01) is tightened.
Fig. 07
Page 18
17
Media Panel 100
Product code: 33301
Barndoor Installation
The accessory frame is equipped with a spring-loaded clip. This prevents the barndoor from falling out.
Install the barndoor frame (see Fig. 08).
Hold the spring-loaded clip and pull it upwards on the top of the device and pull it downwards at
the bottom (see Fig. 09).
Release each spring-loaded clip once it is over the designated mounting hole at the bottom and the
top of the device (see Fig. 10).
Fig. 08
Fig. 09
Fig. 10
Page 19
18
Media Panel 100
Product code: 33301
Free-standing Bracket Installation
Put the free-standing bracket on the Media Panel.
Install all elements as shown in Fig. 11.
Tighten the screws.
Fig. 11
Page 20
19
Media Panel 100
Product code: 33301
Connecting to Power Supply
DANGER
Electric shock caused by short-circuit
The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other
voltage or frequency to the device.
This device falls under IEC protection class I. Make sure that the device is always electrically connected
to the ground (earth).
Before connecting the device to the socket-outlet:
● Make sure that the power supply matches the input voltage specified on the information label on
the device.
● Make sure that the socket-outlet has ground (earth) connection.
Connect the device to the socket-outlet with a power plug. Do not connect the device to a dimmer
pack, as this may damage the device.
Page 21
20
Media Panel 100
Product code: 33301
5. Setup
Warnings and Precautions
Attention
Connect the cable before supplying power.
Stand-alone Setup
The Media Panel functions as a stand-alone device, It cannot be connected to a controller or to other
devices. It can be only be operated manually.
For more information about the control mode, refer to 6.2. Control Mode on page 21.
Page 22
21
Media Panel 100
Product code: 33301
6. Operation
Safety Instructions for Operation
Attention
This device must be used only for the purposes it is designed for.
This device is intended for professional use as an indoor spot. It is suitable only for indoor installation.
This device is not suitable for households and for general lighting.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Attention
Power supply
Before connecting the device to the power supply, make sure that the current, voltage and frequency
match the input voltage, current and frequency specified on the information label on the device.
Control Mode
The Media Panel supports the following control mode:
● Stand-alone: Dimmer
To operate the device manually as a stand-alone device:
01) Adjust the light intensity. See 6.4.1. Dimmer on page 22 for more information.
Page 23
22
Media Panel 100
Product code: 33301
Control Panel
A) LED display
B) Dimmer control
Fig. 15
● Use the Dimmer Control to increase/decrease numeric dimmer values.
Start-up
The display will show the current software version.
Dimmer
In this menu you can set the dimmer.
01) Turn the control wheel to set the dimmer intensity. The adjustment range is 0–100%, from dark to
brightest.
Page 24
23
Media Panel 100
Product code: 33301
7. Troubleshooting
This troubleshooting guide contains solutions to problems which can be carried out by an ordinary
person. The device does not contain user-serviceable parts.
Unauthorized modifications to the device will render the warranty void. Such modifications may result in
injuries and material damage.
Refer servicing to instructed or skilled persons. Contact your Highlite International dealer in case the
solution is not described in the table.
Problem
Probable cause(s)
Solution
The device does not
function at all
No power to the device
● Check if power is switched on and
cables are plugged in
Internal fuse is blown
● Disconnect the device and contact
your Highlite International dealer
No light or LEDs cut
out intermittently
LEDs are damaged
● Disconnect the device and contact
your Highlite International dealer
The power supply settings do not
match local AC voltage and
frequency
● Disconnect the device. Check the
settings and correct, if necessary
Page 25
24
Media Panel 100
Product code: 33301
8. Maintenance
Safety Instructions for Maintenance
DANGER
Electric shock caused by dangerous voltage inside
Disconnect power supply before servicing or cleaning.
WARNING
Risk of burns due to hot surface
Allow the device to cool down for at least 15 minutes before servicing or cleaning.
Preventive Maintenance
Attention
Before each use, examine the device visually for any defects.
Make sure that:
● All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
● The safety devices are not damaged.
● There are no deformations on housings, fixations and installation points.
● The lens is not cracked or damaged.
● The power cables are not damaged and do not show any material fatigue.
Page 26
25
Media Panel 100
Product code: 33301
Basic Cleaning Instructions
The external lens of the device must be cleaned periodically in order to optimize the light output. The
cleaning schedule depends on the conditions at the site where the device is installed. When smoke or
fog machines are used at the site, the device will need more frequent cleaning. On the other hand, if the
device is installed in well-ventilated area, it will need less frequent cleaning. To establish a cleaning
schedule, examine the device at regular intervals during the first 100 hours of operation.
To clean the device, follow the steps below:
Disconnect the device from the electrical power supply.
Allow the device to cool down for at least 15 minutes.
03) Remove the dust collected on the external surface with dry compressed air and a soft brush.
04) Clean the lens with a damp cloth. Use a mild detergent solution.
05) Dry the lens carefully with a lint-free cloth.
06) Clean the DMX and other connections with a damp cloth.
Attention
● Do not immerse the device in liquid.
● Do not use alcohol or solvents.
● Make sure that the connections are fully dry before connecting the device to the power supply and
to other devices.
Corrective Maintenance
The device does not contain user-serviceable parts. Do not open the device and do not modify the
device.
Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for
more information.
Page 27
26
Media Panel 100
Product code: 33301
9. Deinstallation, Transportation and Storage
Instructions for Deinstallation
WARNING
Incorrect deinstallation can cause serious injuries and damage of property.
● Let the device cool down before dismounting.
● Disconnect power supply before deinstallation.
● Always observe the national and site-specific regulations during deinstallation and derigging of the
device.
● Wear personal protective equipment in compliance with the national and site-specific regulations.
Instructions for Transportation
● Use the original packaging to transport the device, if possible.
● Always observe the handling instructions printed on the outer carton box, for example: “Handle with
care”, “This side up”, “Fragile”.
Storage
● Clean the device before storing. Follow the cleaning instructions in chapter 8.2.1. Basic Cleaning
Instructions on page 25.
● Store the device in the original packaging, if possible.
10. Disposal
Correct disposal of this product
Waste Electrical and Electronic Equipment
This symbol on the product, its packaging or documents indicates that the product
shall not be treated as household waste. Dispose of this product by handing it to the
respective collection point for recycling of electrical and electronic equipment. This
is to avoid environmental damage or personal injury due to uncontrolled waste
disposal. For more detailed information about recycling of this product contact the
local authorities or the authorized dealer.
11. Approval
Check the respective product page on the website of Highlite International (www.highlite.com) for an
available declaration of conformity.
Page 28
©2021 Showtec
Loading...
