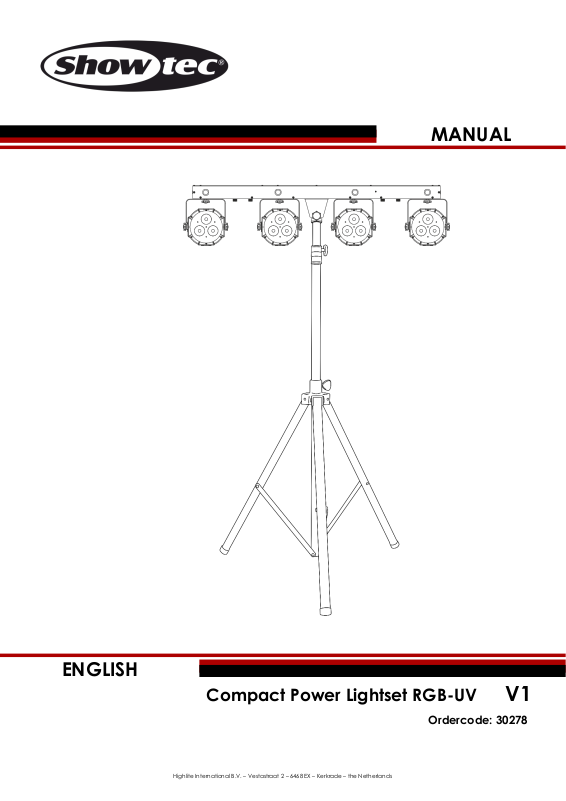

SHOWTEC COMPACT POWER LIGHTSET RGB-UV V1, 30278 User Manual
Compact Power Lightset RGB-UV V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 30278
MANUAL
ENGLISH
1
Ordercode: 30278
Compact Power Lightset RGB-UV
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 3
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 4
Connection with the mains......................................................................................................................................... 5
Return Procedure .......................................................................................................................................................... 6
Claims .............................................................................................................................................................................. 6
Description of the device ................................................................................................................................................. 7
Overview ........................................................................................................................................................................ 8
Installation ........................................................................................................................................................................... 9
Set Up and Operation ....................................................................................................................................................... 9
Control Modes ............................................................................................................................................................... 9
One Compact Power Lightset (Auto, Manual) ................................................................................................... 9
One Compact Power Lightset (Sound-controlled) ............................................................................................. 9
Multiple Compact Power Lightsets (Master/Slave Mode) ................................................................................. 9
Multiple Compact Power Lightsets (DMX Control) ...........................................................................................10
Fixture Linking ...............................................................................................................................................................11
Data Cabling ...............................................................................................................................................................11
Control Panel ...............................................................................................................................................................12
Control Mode ..............................................................................................................................................................12
DMX Addressing ..........................................................................................................................................................12
Menu Overview ...........................................................................................................................................................13
Main Menu Options ....................................................................................................................................................14
1. Auto Mode ............................................................................................................................................................14
1.1 PAR / Derby mode ............................................................................................................................................14
1.2 Mix mode ............................................................................................................................................................14
1.3 Flash mode .........................................................................................................................................................15
2. Sound-controlled .................................................................................................................................................15
2.1 PAR / Derby mode ............................................................................................................................................15
2.2 Mix mode ............................................................................................................................................................15
2.3 Flash mode .........................................................................................................................................................15
3. Manual Mode.......................................................................................................................................................15
4. Master / Slave Mode ...........................................................................................................................................16
5. DMX Mode ............................................................................................................................................................16
6. Settings ...................................................................................................................................................................16
7. Footswitch Function (footswitch included!) ...................................................................................................17
DMX Channels .............................................................................................................................................................18
4 Channels ................................................................................................................................................................18
8 channels .................................................................................................................................................................19
25 channels ...............................................................................................................................................................20
Maintenance ....................................................................................................................................................................23
Replacing the Fuse .....................................................................................................................................................23
Troubleshooting ...............................................................................................................................................................23
No Light .........................................................................................................................................................................23
No Response to DMX..................................................................................................................................................24
Product Specifications ....................................................................................................................................................25
Dimensions ........................................................................................................................................................................26
2
Ordercode: 30278
Compact Power Lightset RGB-UV
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
Showtec Compact Power LIghtset
RGB-UV
IEC power cable (4,70 m)
2 adjustment screws
2 mounting brackets
2 carrying bags
Tripod
User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
3
Ordercode: 30278
Compact Power Lightset RGB-UV
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always
hold the fixture by the transport handles.
Never place any material over the lens.
Never look directly into the light source.
Never leave any cables lying around.
Never loosen the screws of the rotating gobo otherwise you risk opening of the ball bearing.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this will reduce the device’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use the device indoors, avoid contact with water or other liquids.
Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep the case closed while operating.
Always allow a free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
If the lens is obviously damaged, it has to be replaced.
If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
4
Ordercode: 30278
Compact Power Lightset RGB-UV
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. Moving head must be installed beyond the reach of children. Never leave the unit
running unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Compact Power Lightset. The
manufacturer will not accept liability for damages caused by the misuse or incorrect installation of
this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
Operating Determinations
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
The maximum ambient temperature t
a
= 40°C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
● If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.
● Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.
● The projector must never be fixed swinging freely in the room.
● The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
a safety cable.
● When rigging, derigging or servicing the projector, always make sure that the area below the
installation is unavailable for any unauthorized persons.
5
Ordercode: 30278
Compact Power Lightset RGB-UV
The Compact Power Lightset RGB-UV can be fitted to a wall with mounting brackets or mounted to a
tripod.
Improper installation can cause serious injuries and damage of property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
Make sure that the device is always connected properly to the earth!
6
Ordercode: 30278
Compact Power Lightset RGB-UV
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
7
Ordercode: 30278
Compact Power Lightset RGB-UV
Description of the device
Features
The Compact Power Lightset RGB-UV is a lightset which combines a traditional lightset with extra effects.
It offers 4 LED strobes in order to create an extra effect to your show. Moreover the parcans are
equipped with UV Led' as well in order to create creepy blacklight effects.
The Compact Power Lightset RGB-UV can be controlled by DMX or by the foot controller which is
included. In order to make the set plug-and-play, a carrying bag and stand are included.
Input Voltage: 100-240V, 60/50Hz
Power consumption: 45W
Built-in strobe and UV LEDs for extra effect
Control modes: Auto, Manual mode, Sound-controlled, Master/Slave, DMX
Sound-controlled via built-in microphone
DMX-controlled via DMX controller
DMX modes: 4, 8, 25 channels
Clear 4-digit LED display for easy setup
Strong metal housing
Light source:
Strobe: 4x 1W White, 4x 1W UV
0 – 18Hz, Current
300mA
LED Spot: 4-in-1 RGB-UV LEDs
Lux@2m: 1205
Colors: RGB-UV
Power: 6x8W 4-in-1
Current: 350mA
Beam angle: 15°
Power Connection: IEC 100-240V (IN & OUT)
Data Connector: 3-pin XLR (IN/OUT)
Cooling: Convection (no fans) which eliminates the emission of noise
Working temperature: -10°C - 40°C
Footswitch frequency: 433mHz
Footswitch unobstructed Range: 30m
Fuse 1,5L/250V
Dimensions: 1032 x 457 x 145 mm (LxWxH) (excl. tripod)
Weight: 4,9 kg (excl. tripod)
Included: wireless foot controller, 2 adjustment screws, 2 mounting brackets, carrying bags, IEC
power cable, tripod/stand included
Tripod
Height: 1,25 – 2,5 m
Footspace: 1,0 m
Weight: 3,2 kg
Optional Accessory
V23GA 12V Battery for remote controllers, ordercode SPAC0000
8
Ordercode: 30278
Compact Power Lightset RGB-UV
Overview
Fig. 01
01) 4-in-1 RGB-UV LEDs
02) 4x 1W White, 4x 1W UV
03) Built-in Microphone
04) IR sensor (Not functional)
Fig. 02
05) 3-pin DMX signal connector OUT
06) 3-pin DMX signal connector IN
07) Ground/earth connection
08) IEC power connector 100-240V OUT
09) IEC power connector 100-240V IN + Fuse 1,5L/250V
10) Audio Sensitivity
11) WDMX Antenna for Wireless Footpedal
12) 4-digit LED display + control buttons
13) IR sensor (Not functional)
9
Ordercode: 30278
Compact Power Lightset RGB-UV
Installation
Remove all packing materials from the Compact Power Lightset RGB-UV. Check if all foam and plastic
padding is removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply. The device can be sound-controlled as it is equipped
with a built-in microphone.
Control Modes
There are 5 modes:
Auto Mode
Manual Mode (Static Color Mode)
Sound-controlled
Master/Slave
DMX-512
One Compact Power Lightset (Auto, Manual)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Compact Power Lightset is not connected with a DMX-cable, it functions as a stand-alone
device.
05) Please see pages 14-16 for more information about the Auto Mode and Manual Mode.
One Compact Power Lightset (Sound-controlled)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Compact Power Lightset is not connected with a DMX-cable, it functions as a stand-alone
device.
05) Please see page 14 for more information about the Sound-controlled Mode.
Multiple Compact Power Lightsets (Master/Slave Mode)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Compact Power Lightset.
The pins:
01) Earth
02) Signal (-)
03) Signal (+)
05) Link the units as shown in Fig. 02, connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on pages 14-16 (Built-in, Auto or Soundcontrolled). This means that you can set your desired operation mode on the master device and all
slave devices will react the same as the master device.
