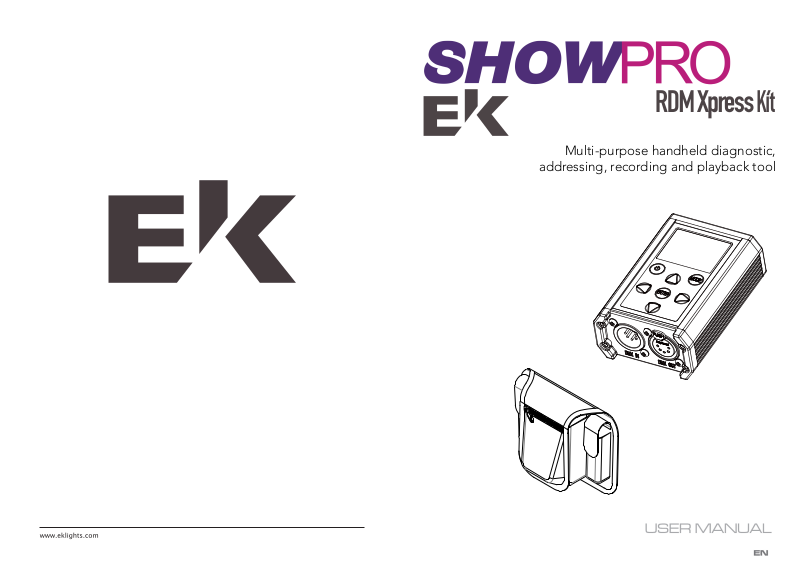

Multi-purpose handheld diagnostic,
addressing, recording and playback tool
2
INTRODUCTION
RDM Xpress Kit is a multi-purpose handheld diagnostic, addressing, recording and
playback tool.
FEATURES
- Rechargeable handheld multifunction RDM & DMX tool kit
- Works as a portable DMX controller and recorder
- Remote device management of RDM-capable xtures
- Scrolling menu with up-down and left-right navigation buttons
FUNCTIONS & SPECIFICATIONS
RDM: Fixture discovery, addressing, attribute editing
DMX: Send, receive, record, playback
Cable: Built-in cable tester
Adapters: Includes (2) adapters for 3-to-5 pin conversion
Portable: Handy carrying case included
Power: Rechargeable lithium ion battery
Display: FTF display with scrolling menu and navigation
Dimensions: 100 x 70 x 39 mm
Weight: 0.35 kg
PACKAGE CONTENTS
- RDM Xpress Kit
- USB to Micro-USB charging cable
- Carrying case
- Adapter set
- Warranty Card
- User Manual
FUNCTION MENU CHART
No RDM compatible products
connected to the RDM Xpress Kit
Shows information about each
controllable
Normal
Adjust each channel individually
Adjust all channels together in
preconfigured increments.
Decimal
Determines how the dimmer
screen
Clear All Channels
Sets all channels to “0”
Up/
Speed
Left/
Fade
Uses Left/Right keys to adjust the
sequence
Enter: Play/Stop
Plays the DMX sequence
Scene
ce
1 - 32
Delete
Sequence
Store Scene
Records current DMX values
Loads a previously recorded
scene
Decimal
Percent
Records the current DMX values as a
scene
Load Scene
Playing Scene 1–32
Scene 1–32
Loads a previously recorded scene
Tests the cable for any breaks or
Off
Power saver feature is turned off
1 Minute
Product is powered off after 1 min of
inactivity
5 Minute
Product is powered off after 5 min of
inactivity
10 Minute
Product is powered off after 10 min of
inactivity
No Fixtures Found!
3
RDM
Send DMX
Discovering...
000
T001
255
–
T512
(000
100)
Show Level As
–
–
Sequence
* (choose from list
of products
connected)
Edit Mode
Dmx
Load Scene
Play
Sequence
Edit
Sequence
* (choose from the
attributes unique to
each product)
All
Percent
–
0.1”–
60.0”
0.0”–
60.0”
End Of
Sequen
–
Down:
Right:
Step
001
100
No/Yes
Scene
1–32
product. Some attributes will allow
changes to be made. See each
individual products User Manual to
determine which attributes are
levels are displayed on the
Uses Up/Down keys to adjust the
Speed of the sequence
Fade Time of each step in the
Set-up and edit the DMX
sequence
Deletes/reset the DMX sequence
Receive
DMX
R001–R512
Cable Test In –––––– –––––– Out
Power
Options
Info
Show Level As
Store Scene Scene 1–32
version: Vx.x
UID: xxxxxxxxxxxxx
Determines how the dimmer levels
are displayed on the screen
shorts in the line
Displays version and unit identifier
4 5
Navigate LEFT
through menu
Navigate RIGHT
through menu
CONTROL PANEL OVERVIEW
ENTER button:
Press to conrm displayed
menu option or to select
currently displayed values
On/O button
MODE button:
Press to exit current
function or menu
Navigate UP through menu
or increase numeric values
Navigate DOWN through menu
or decrease numeric values
6
No RDM compatible products
connected to the RDM Xpress Kit
Shows information about each
controllable
Normal
Adjust each channel individually
Adjust all channels together in
preconfigured increments.
Decimal
Determines how the dimmer
screen
Clear All Channels
Sets all channels to “0”
Up/
Speed
Left/
Fade
Uses Left/Right keys to adjust the
sequence
Enter: Play/Stop
Plays the DMX sequence
Scene
ce
1 - 32
Delete
Sequence
Store Scene
Records current DMX values
Loads a previously recorded
scene
Decimal
Percent
Records the current DMX values as a
scene
Load Scene
Playing Scene 1–32
Scene 1–32
Loads a previously recorded scene
Tests the cable for any breaks or
Off
Power saver feature is turned off
1 Minute
Product is powered off after 1 min of
inactivity
5 Minute
Product is powered off after 5 min of
inactivity
10 Minute
Product is powered off after 10 min of
inactivity
CABLE TEST DISPLAY KEY
EXAMPLE 1 : GOOD
EXAMPLE 2 : PIN 2 BAD
EXAMPLE 3 : PIN 1 SHORTED TO PIN 3
7
