ShoreLand'r TA1032 User Manual
ACCESS ORY
TA1032
Post Loadguide

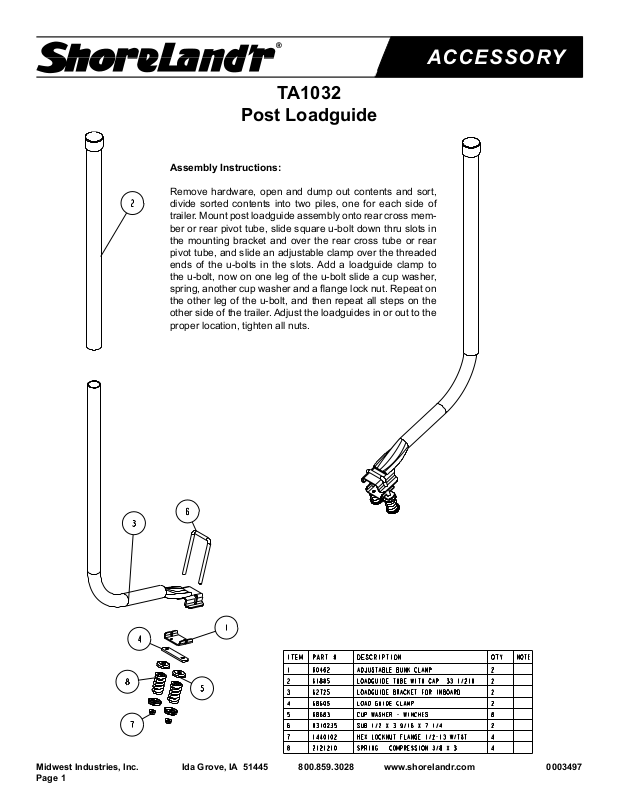

Assembly Instructions:
Remove hardware, open and dump out contents and sort,
divide sorted contents into two piles, one for each side of
trailer. Mount post loadguide assembly onto rear cross member or rear pivot tube, slide square u-bolt down thru slots in
the mounting bracket and over the rear cross tube or rear
pivot tube, and slide an adjustable clamp over the threaded
ends of the u-bolts in the slots. Add a loadguide clamp to
the u-bolt, now on one leg of the u-bolt slide a cup washer,
spring, another cup washer and a flange lock nut. Repeat on
the other leg of the u-bolt, and then repeat all steps on the
other side of the trailer. Adjust the loadguides in or out to the
proper location, tighten all nuts.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003497
