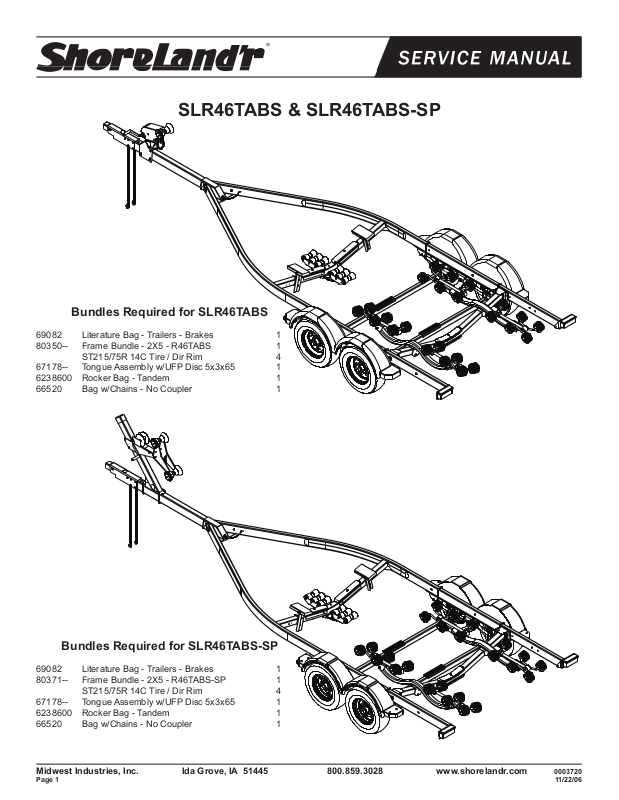

ShoreLand'r SLR46TABS User Manual
®
SLR46TABS & SLR46TABS-SP
Bundles Required for SLR46TABS
69082 Literature Bag - Trailers - Brakes 1
80350-- Frame Bundle - 2X5 - R46TABS 1
ST215/75R 14C Tire / Dir Rim 4
67178-- Tongue Assembly w/UFP Disc 5x3x65 1
6238600 Rocker Bag - Tandem 1
66520 Bag w/Chains - No Coupler 1
Bundles Required for SLR46TABS-SP
69082 Literature Bag - Trailers - Brakes 1
80371-- Frame Bundle - 2X5 - R46TABS-SP 1
ST215/75R 14C Tire / Dir Rim 4
67178-- Tongue Assembly w/UFP Disc 5x3x65 1
6238600 Rocker Bag - Tandem 1
66520 Bag w/Chains - No Coupler 1
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003720
Page 1 11/22/06

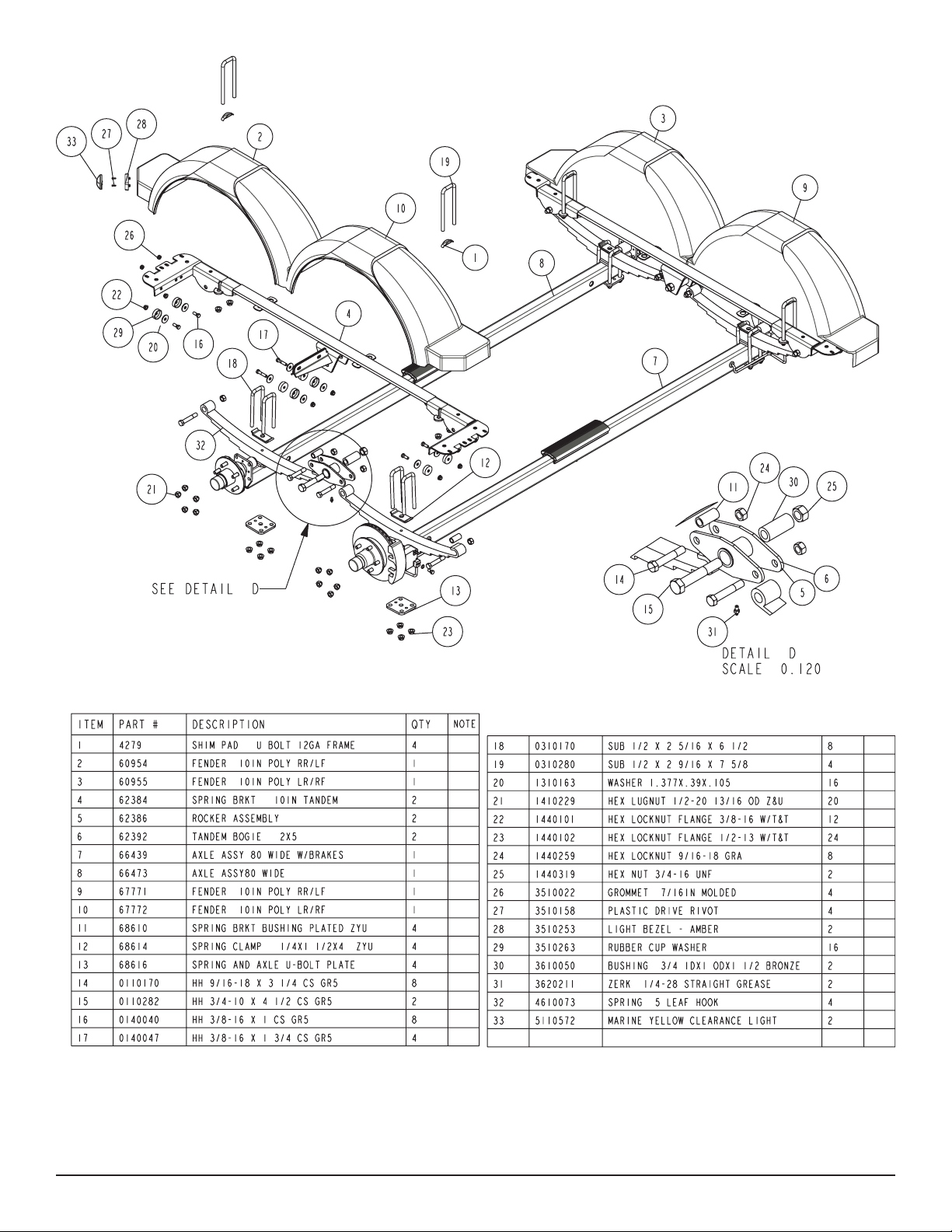

Diagram A
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003720
Page 2 11/22/06
Refer to your ShoreLand’r Owner’s
Guide and other decals on trailer for
additional information.
SAFETY INSTRUCTIONS
4810709
Proper tongue weight must be maintained.
Rev C 8/28/06
Before towing, check the following to ensure
that:
1. All parts, bolts, nuts and wheel lug
nuts are tight.
2. All wheel lug nuts must be tightened
to a minimum torque rating of 85 ft/lb.
3. Lug nuts must be re-torqued after the
first 50 miles, then periodically there
after.
4. Tires are inflated to manufacturer’s
standards. (See tire sidewall)
5. Wheel bearings have adequate
grease.
6. Hitch ball is the proper diameter and
has a rating equal to or greater than
the GVWR of the trailer.
7. Coupler is properly attached and
secured to coupler ball.
8. Trailer safety chains are crossed
under the tongue and attached to
towing vehicle.
9. All lights are operational. Note: It is
recommended that the trailer lights
be disconnected before backing into
the water.
10. Tie downs, winch strap and bow eye safety chain are secure.
11. Trailer tongue jack is in up or travel
position.
FINAL ASSEMBLY INSTRUCTIONS
Remove the hardware bag from the frame, remove parts and sort
by size.
ShoreLand’r offers their product line in either galvanized or painted
nish. When ordering parts it is important that you specify the nish
or color you have on your product. The ve (5) digit number along
with a two (2) digit space _ _, note the parts which can be purchased
with various nishes. When ordering these items use the ve (5) digit
number along with a two (2) digit sufx for the proper nish.
00..........Galvanized
01..........Arctic White
03..........Black
33..........Galvanized w/Black Plastic Parts
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003720
Page 3 11/22/06
Diagram B
TONGUE
The tongue is shipped separate of the frame. Locate the appropriate tongue and install by sliding it in the front of the tongue channel.
Line the holes in the tongue with the holes in the tongue channel.
Install the 1/2” x 4” hex bolt in the front cross hole and secure with
a 1/2” lock nut.
Remove the wire harness from the rear of the tongue. Place the
wire harness and the brake line through the hole provided in the
tongue cover plate. See Detail A in Diagram A. Secure the tongue
cover plate in position with the same 1/2” x 1-1/2” hex bolt that secures the back on the tongue to the tongue channel of the frame.
Secure with 1/2” lock nut. Tighten both bolts just installed.
Plug the tongue wire harness ends into the frame harnesses by
matching colors and ends. Push the extra wire provided either into
the rear of the tongue or remove the grommet in the side frame
and place the extra wire in the side frame. Replace grommet just
removed.
SAFETY CHAINS
Locate the 1/2” x 1-1/4” hex bolt. Slip the bolt through a 1/2” at
washer, then place through the last link of one of the safety chains.
Place a second at washer on the bolt and insert through the hole
as shown in Diagram B. Secure with a 1/2” ange lock nut. Tighten.
Repeat this process on the second safety chain on the opposite
side of the tongue. Assembly is complete.
BRAKE LINE
Locate the brass brake line coupling. Remove the plastic cap and
thread the brake line coming out the rear of the tongue into one
end of the coupling. Bend the line in a smooth gradual radius being
careful not to kink the line. Bend so it can be mated to the brake
line from the side frame. Once aligned, thread the side frame brake
line into the other end of the coupling. Tighten both lines into the
coupling.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003720
Page 4 11/22/06
Diagram C
WINCH POST ASSEMBLY
The height that the bow eye is placed in your boat will determine
the length winch post required. Once this is determined, attach the
winch base to the tongue with three 1/2” x 4-1/2” carriage bolts and
lock nuts.
Align the holes in the Prole 2000 mounting channel with the holes
in the top of the winch base. Attach the front of the winch head
mounting channel to the base by placing a 1/2” x 4-1/2” hex bolt
through the hole closest to the front of the winch base. Secure with
a lock nut. Do not tighten.
Note that the winch head can now be rotated either up or down.
Identify the correct hole combination to use to position the bow eye
roller just above the bow eye of your boat. When determined, secure in this position by placing the bushing as shown in Diagram C
inside the winch base so it aligns with the hole just identied for the
proper adjustment. Insert another 1/2” x 4-1/2” hex bolt through the
determined mounting hole in the mounting channel and winch base
making sure the bolt passes through the bushing as well. Secure
with a 1/2” lock nut. Tighten all bolts.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0003720
Page 5 11/22/06
