ShoreLand'r SLDB14A-00STS User Manual
®
SLDB14A-00STS
Drift Boat - Galvanized W/7 Tongue
Tire Size &
Carrying Capacity Chart
Tire Load Carrying
Size Range Capacity
ST155/80R13 C 1100 lbs.p/tire
Refer to tire side wall for correct tire pressure.
Bundles Required
2 4300209 ST155/80R13C Tire/Galv Dir Rim
1 62340 Literature Bag - Trailers
1 6578000 Tongue 3X3X14 Ga. X 7
1 6672800 Frame Bundle - Drift Boat
1 6672900 Hardware Box - Drift Boat
Tongue Weight Adjustment
Approximate Tongue Weight for Best Towing.
NOTE: Axle is NOT adjustable. Shift load to obtain
proper tongue weight. Tongue weight should be 5-7%
of total gross weight of trailer and load combined.
Assembly Instructions
Axle:
Place one (1) of the spring bushings into the rear of
the spring bracket and secure with a 1/2 X 3 hex
bolt and a 1/2 flange lock nut. Repeat on the other
side of the trailer. Position the axle under the frame,
then hook the spring loop around the bushing just
installed. Raise the axle assembly up so that the front
of the spring line up with the front spring bracket hole.
Insert the 9/16 X 3-1/4 hex bolt and secure with a 9/
16 hex lock nut. Repeat on the other side of the axle.
Tighten all fasteners. Do not overtighten. The spring
must have room enough to move.
Tires:
Mount the tire and rim assemblies using 80-90 ft./lbs.
of torque on the lug nuts using a proper tightening
procedure.
Rear Keel Roller:
Mount the 8 keel roller assembly to the rear
crossmember using two (2) 1/2 X 3 hex bolts, two
(2) 1/2 pyramidal lock washers, two (2) 1/2 flat
washers and two (2) 1/2 hex finish nuts. Refer to
parts drawing for placement.
Front Keel Roller:
Mount the 8 keel roller assembly to the front
crossmember using two (2) 1/2 X 1-1/4 hex bolts,
two (2) 1/2 pyramidal lock washers, two (2) 1/2 flat
washers and two (2) 1/2 hex finish nuts. Refer to
parts drawing for placement.
Bunk:
Mount the bunks to the two (2) middle crossmembers
continue to page 4
Material List for the SLDB14A-00STS
NOTE: ShoreLandr offers their product line in either galvanized or painted finish. When ordering parts it is important that
you specify the finish or color you have on your product. The five digit number along with a two digit space _ _, notes the
parts which can be purchased with various finishes. When ordering these items use the five digit prefix and include the
following two digit suffix for proper finish.
Suffix Finish / Color
00 or G Galvanized
03 or BK Black
REF# PART# DESCRIPTION QTY
1 4270 BOW ROLLER PIN .................................. 1
2 6060000 WINCH STAND ASSY ............................. 1
3 6061800 8" ROLLER ASSY .................................... 2
4 6240600 FENDER SUPPORT BRKT ..................... 4
5 6278000 SPRING BRACKET BOLT ON ................ 2
6 6330700 SMALL WINCH BRACKET ...................... 1
7 6546200 FRAME WMENT - FISH 56 .................... 1
8 6552600 REAR CROSS WMENT - FISHING......... 1
9 65528 8IN KEEL ROLLER .................................. 2
10 6578000 TONGUE 7' - FISHING SERIES .............. 1
11 6672400 BUNK BRKT - DRIFT BOAT.................... 4
12 6672500 BUNK ASSY W/BRKTS - DRIFT BOAT .. 2
13 6672600 REAR CROSS WMENT - DRIFT BOAT .. 1
14 6672700 REARCROSS ROLLER ASSY ................ 1
15 0110037 HH 3/8-16 X 1 1/4 CS GR5 ..................... 2
16 0110060 HH 3/8-16 X 4 CS GR5 ............................ 3
17 0110107 HH 1/2-13 X 3 CS GR5 ............................ 4
18 0110114 HH 1/2-13 X 4 CS GR5 ............................ 1
19 0110170 HH 9/16-18 X 3 1/4 CS GR5 ................... 2
20 0120052 HH 3/8-16 X 2 3/4 CS GR5 ..................... 4
21 0140040 HH 3/8-16 X 1 CS GR5 ............................ 4
22 0140090 HH 1/2-13 X 1 CS GR5 ............................ 3
23 0140092 HH 1/2-13 X 1 1/4 CS GR5 ..................... 2
24 0210102 CARR 3/8-16 X 1 GR5 ............................. 1
25 0210133 CARR 3/8-16 X 4 GR5 ............................. 6
26 0210137 CARR 3/8-16 X 5 FULL THREAD GR5 ... 2
27 0810126 SCREW SELFTAP TYPE B 1/4X1/2 ....... 4
28 0810925 SCREW SELFDRILL HWH #10-16 X 3/4 4
29 0810930 SCREW SELFTAP #10-12X1-1/4 - A ...... 8
30 0810945 SCREW SELFDRILL 1/4-14X3/4............ 1
31 1310040 LOCKWASHER 1/2 S/T MED.................. 4
32 1310045 LOCKWASHER 1/2 PYRAMIDAL ........... 4
33 1310130 WASHER SAE FLAT 3/4 ......................... 8
REF# PART# DESCRIPTION QTY
34 1340030 LOCKWASHER 3/8 S/T MED.................. 2
35 1340095 WASHER USS FLAT 3/8 ......................... 10
36 1410109 HEX NUT FINISH 3/8-16 ......................... 2
37 1410219 PUSHNUT PALNUT 1/2 ZP..................... 2
38 1440101 FLANGE LOCKNUT SMALL 3/8-16 ........ 20
39 1440102 FLANGE LOCKNUT SMALL 1/2-13 ........ 6
40 1440159 HEX NUT FINISH 1/2-13 ......................... 4
41 1440259 HEX LOCKNUT 9/16-18 GRA ................. 2
42 1540350 BULL RING PLAIN................................... 8
43 2210141 CHAIN 3/16X12 LINK WITH 835 ............. 1
44 2210142 CHAIN 3/16X20 LINK CHAIN .................. 2
45 3110241 WINCH HANDLE ..................................... 1
46 3110340 WINCH DL1100 W/ STRAP..................... 1
47 3310010 COUPLER #980 P2 ASSEMBLED .......... 1
48 3510030 GROMMET 7/8IN MOLDED ................... 6
49 3510036 ROLLER 4IN WOBBLE 3/4IN ID ........... 4
50 3510063 3" BOW ROLLER ..................................... 1
51 3510123 FENDER FISHING TADPULL POLY ..... 2
52 3910045 BUNKWOOD 2 X 4 X 8FT FIR .............. 2
- 5110080 HARNESS - TONGUE - 13'10" ................ 1
53 5110100 METAL FRAME CLIP - SMALL ............... 2
54 5110348 BO LICENSE PLATE BRACKET ............. 1
55 5110377 TAILLIGHT RIGHT DRYLAUNCH ....... 1
56 5110378 TAILLIGHT LEFT DRYLAUNCH ......... 1
57 5110427 SIDE MARKER LIGHT............................. 2
- 5110481 FRAME HARNESS 56" FISH SERIES ... 1
58 S-215 8" ROLLER PIN ....................................... 2
59 S-217 8" ROLLER BRACKET ............................ 2
60 S-2029 SPRING BUSHING SPACER .................. 2
61 S-3390 STEP PAD RIGHT 2 1/2 X 7 ................ 1
62 S-3391 STEP PAD LEFT 2 1/2 X 7................... 1
63 S-3443 23"WINCH STAND CHANNEL ................ 1
64 S-2219G BOLT ON TONGUE STAND ................... 1
DECAL:
-- 4810500 DECAL SM SHORELANDR ................... 2
-- 4811409 DECAL SM WAVE - RIGHT .................... 1
-- 4811408 DECAL SM WAVE - LEFT ....................... 1
-- 4850360 DECAL NMMA CERTIFIED TRAILER .... 1
-- 4810709 DECAL TRAILER CAUT/WARN .............. 1
ASSEMBLIES AND/OR OPTIONS:

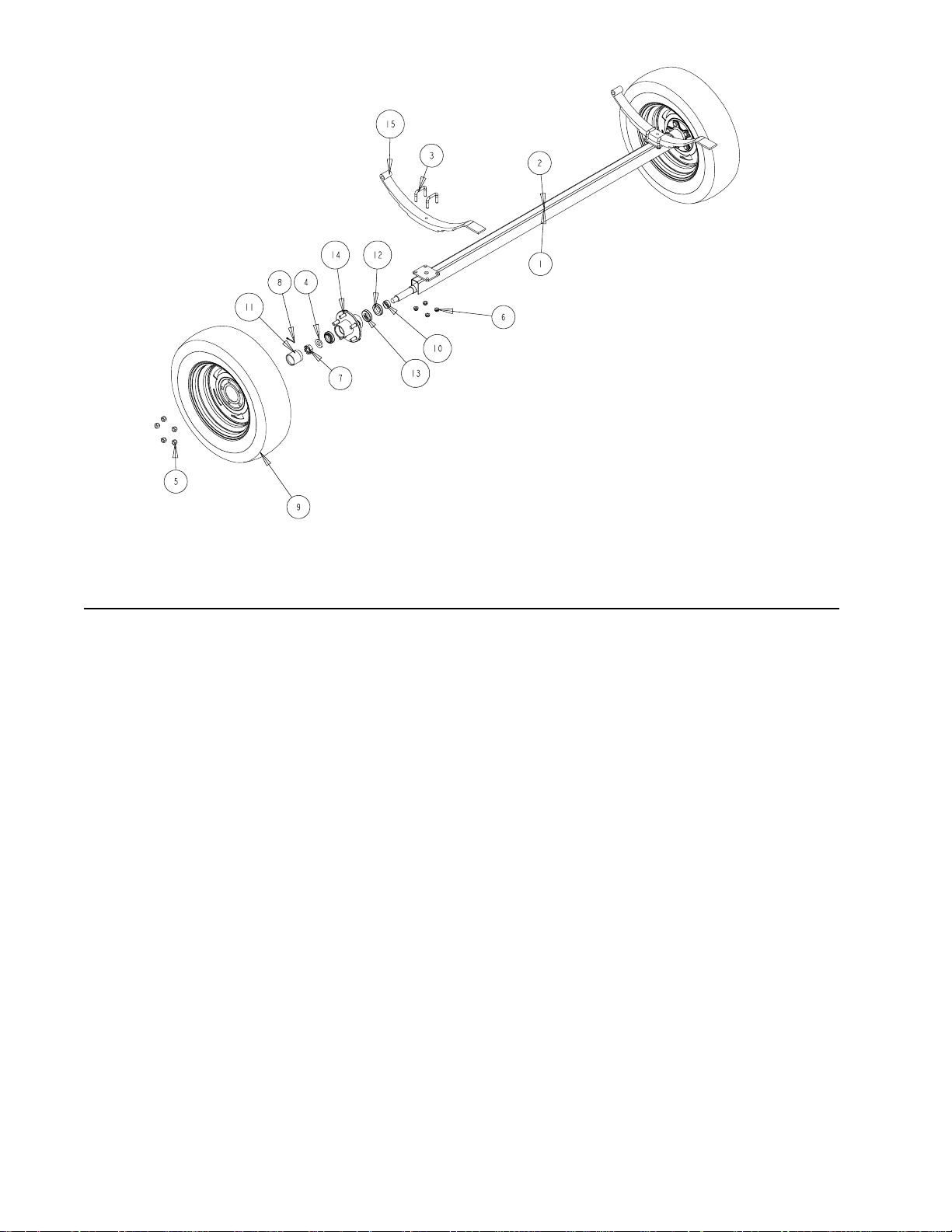

6444900 AXLE ASSEMBLY
0160033 PPB0160033 BOLT BAG
66725 BUNK ASSY W/BRACKETS - DRIFT BOAT
6672700 REAR ROLLER CROSS ASSY - DRIFT BOAT
Tools Required for Assembly
3/4 Wrench/Socket
3/8 Wrench/Socket
5/16 Socket (Sidelights)
9/16 Wrench/Socket
Cable/Wire (to run harness/light wires)
7/8 Wrench/Socket
13/16 Wrench/Socket
