ShoreLand'r LUB29CBLWTMH User Manual
LUB29CBLWTMH
LUB29CBLWTMH (All Colors) Bundles Required:
* ST215/75R14-C Tire/Alum Star Rim................3
69082 Literature Bag – Brake Trailers ........................1

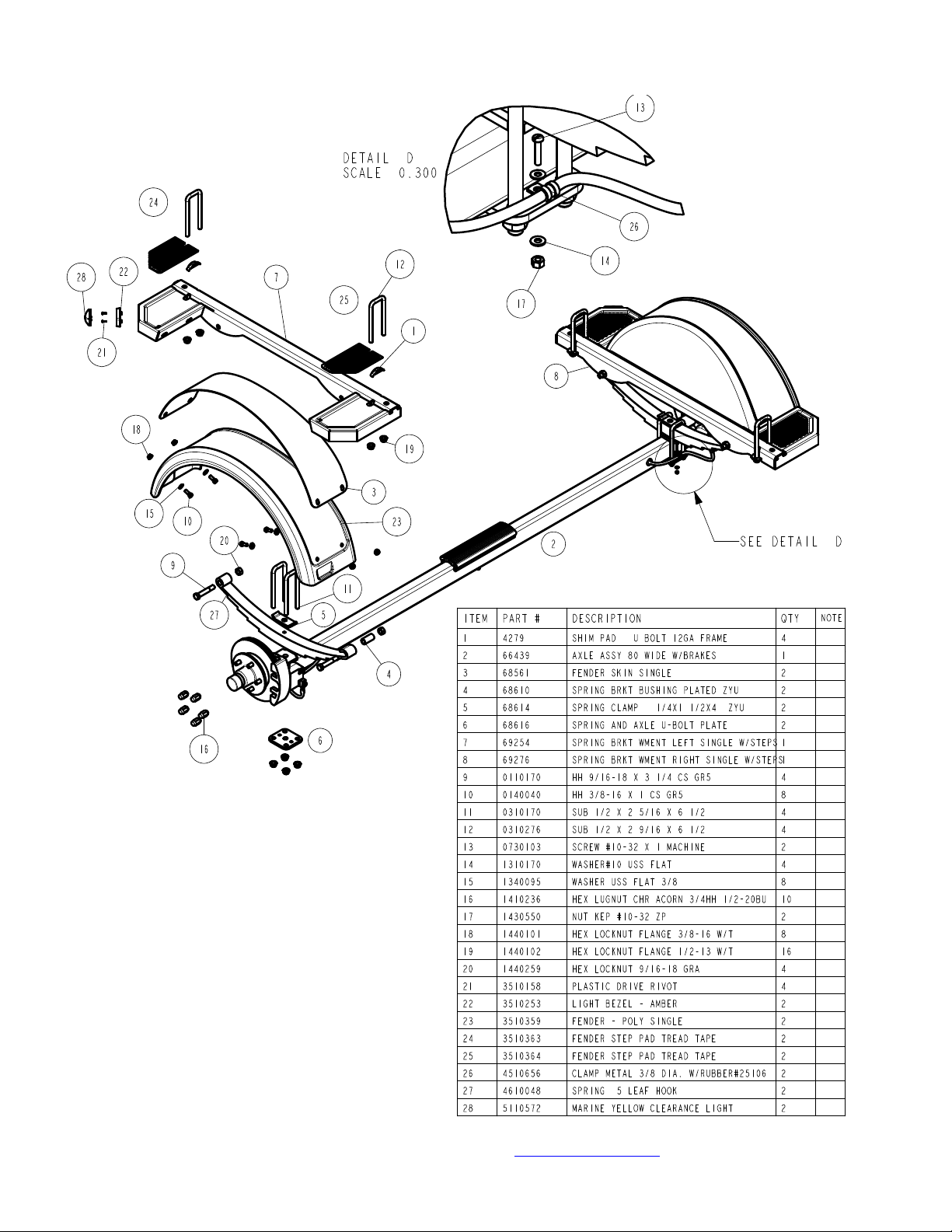

80520_ _ Frame Bundle – LUB29CBLW.........................1
69557_ _ Swingtongue Assy Disc 5in M..........................1

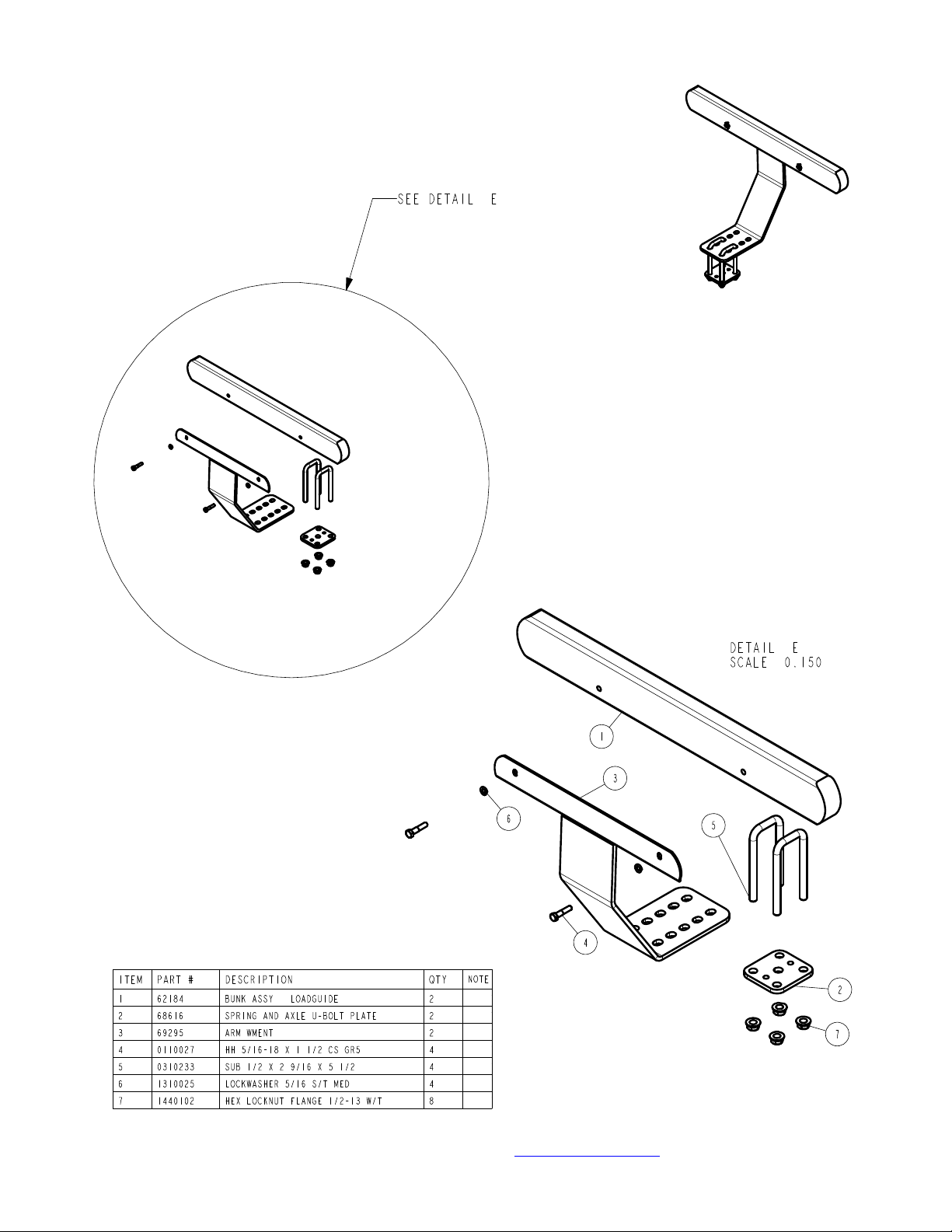

LU0106-_ _ Loadguide Lund 2X4 Frame 5 Hole .................1
TA0028-_ _ Spare Tire Kit2X4&5” Frames 5-Bolt................1
*Check with your dealer/customer service representative for current tire/rim
assembly part number.
Shoreland’r
ordering parts, it is important that you specify the finish or color
you have on your product. The 5-digit number along with a 2digit space _ _, note that the parts can be purchased in
various finishes.
00 .........Galvanized w/ White Plastic Components
01 .........White
03 .........Black
14……...Blue
22……...Red
24……...Majestic Red
offers its product line in painted finishes. When
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004332
Page 1 of 10 3/16/2011
Recommended carrying capacity is based on shipping weight of the trailer with standard equipment. Adding
optional equipment may decrease the trailer’s carrying capacity.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004
Page 2 of 10
3/16/2011
332
Tire Size and Carrying Capacity Chart
Tire Size
GVWR
Carrying Capacity
Axle
Refer to the tire side wall for correct tire pressure.
ST215/75R14-C
3740 lb.
2900 lb.
Standard (1-Brake)
Consumer / Owner:
Your
to fit your boat. If properly maintained it will give your boat
maximum support and many years of care free service.
Follow these instructions before using your trailer:
Read your
decals on the trailer.
Wash and wax your trailer regularly. Always rinse your
trailer after each use, especially when boating in salt or
brackish water.
Re-check all fasteners for tightness before towing.
Contact your authorized
experience a problem with your trailer. To locate a d ealer,
please use
For further information or assistance, contact
at 1-800-859-3028 or visit
trailer is designed, assembled and pre-adjusted
Lund
Shoreland’r Owner’s Guide
Shoreland’r
www.shorelandr.com
www.shorelandr.com
- dealer locator feature.
and all safety
dealer if you
Shoreland’r
.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004332
Page 3 of 10 3/16/2011
