ShoreLand'r DUPT2347TABB User Manual
DUPT2347TABB
DUPT2347TABB (All Colors) Bundles Required:
* ST185/80R13-C Tire/T-Silver Dir Rim..............4
69082 Literature Bag – Brake Trailers ........................1
80864_ _ Frame Bundle – DUPT2347TABB....................1
69677_ _ Tongue Assy 90 IN Pontoon Disc ....................1
69352 Brake Kit Tandem Axle Connect Hose .............1

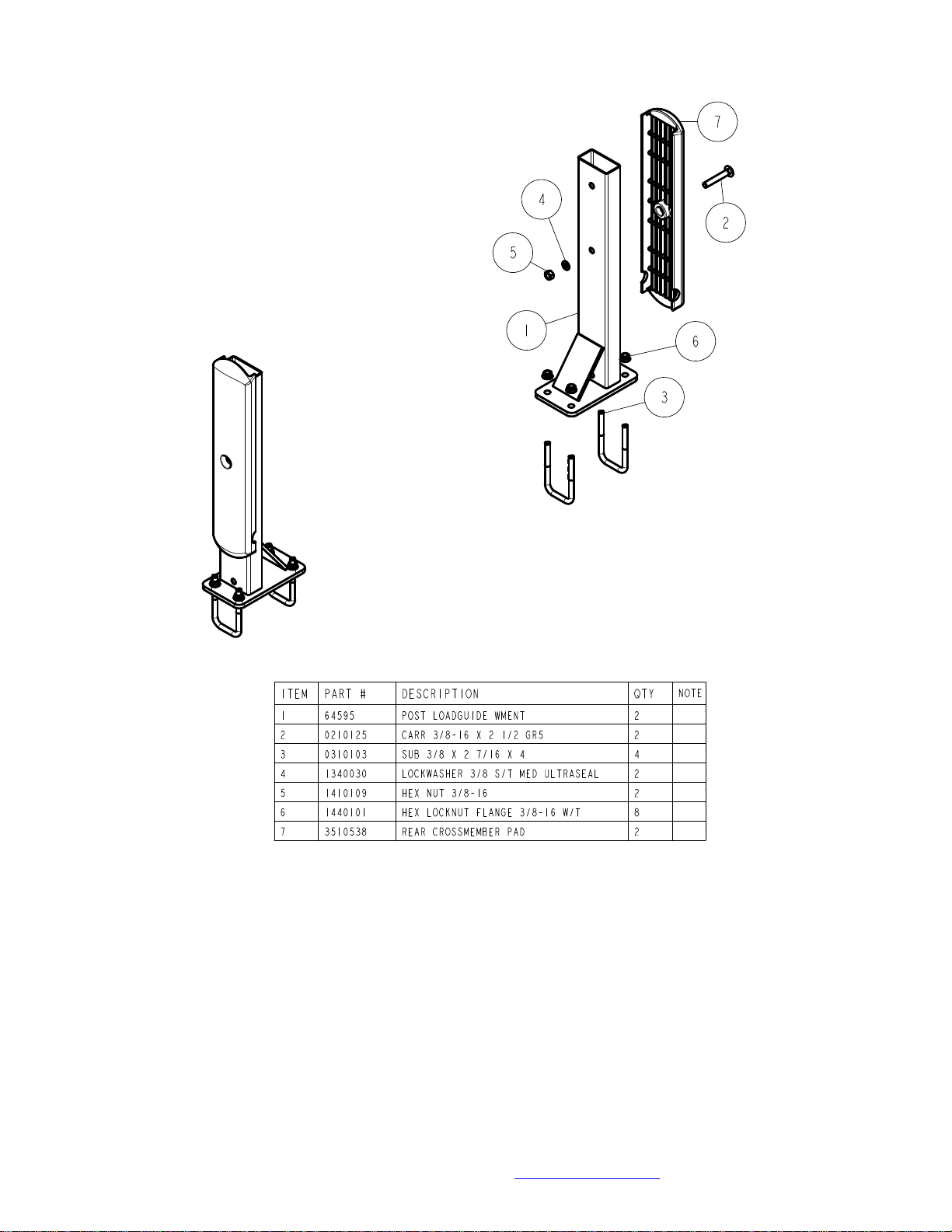

TA1139-_ _ Pontoon Loadguide Kit.....................................1
*Check with your dealer/customer service representative for current tire/rim
assembly part number.
Recommended carrying capacity is based on shipping weight of the trailer with standard equipment. Adding
optional equipment may decrease the trailer’s carrying capacity.
Shoreland’r
ordering parts, it is important that you specify the finish or color
you have on your product. The 5-digit number along with a 2digit space _ _, note that the parts can be purchased in
various finishes.
03 .........Black
33……...Galvanized w/Black Plastic Components
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com
offers its product line in painted finishes. When
0004394
Page 1 of 10 8/3/2011
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004394
Page 2 of 10 8/3/2011
Consumer / Owner:
Your
Duhamel Dewar
pre-adjusted to fit your boat. If properly maintained it will
give your boat maximum support and many years of care
free service.
Follow these instructions before using your trailer:
Read your
decals on the trailer.
Wash and wax your trailer regularly. Always rinse your
trailer after each use, especially when boating in salt or
brackish water.
Re-check all fasteners for tightness before towing.
Contact your authorized
experience a problem with your trailer. To locate a dealer,
please use
For further information or assistance, contact
at 1-800-859-3028 or visit
Shoreland’r Owner’s Guide
www.shorelandr.com
trailer is designed, assembled and
and all safety
Shoreland’r
www.shorelandr.com
dealer if you
- dealer locator feature.
Shoreland’r
.
Tire Size and Carrying Capacity Chart
Tire Size
GVWR
Carrying Capacity
Axle
Refer to the tire side wall for correct tire pressure.
ST185/80R13-C
5920 lb.
4700 lb.
Tandem (Two-Brake)
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorelandr.com 0004394
Page 3 of 10 8/3/2011
