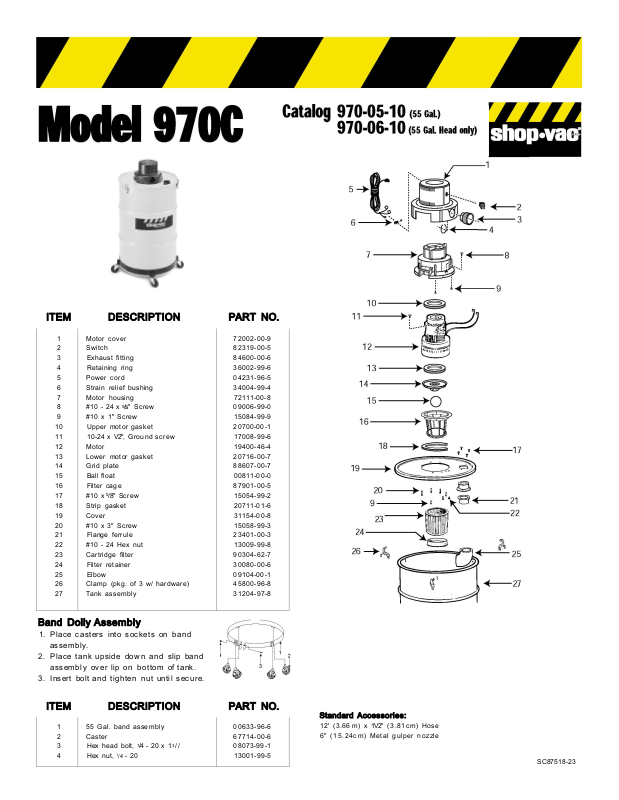

Shop Vac 970c Owner's Manual

ITEM DESCRIPTION PART NO.

1 Motor cover 72002-00-9
2 Switch 82319-00-5
3 Exhaust fitting 84600-00-6
4 Retaining ring 36002-99-6
5 Power cord 04231-96-5
6 Strain relief bushing 34004-99-4
7 Motor housing 72111-00-8
8 #10 - 24 x 5/s" Screw 09006-99-0

9 #10 x 1" Screw 15084-99-9
10 Upper motor gasket 20700-00-1
11 10-24 x V2", Ground screw 17008-99-6
12 Motor 19400-46-4
13 Lower motor gasket 20716-00-7
14 Grid plate 88607-00-7
15 Ball float 00811-00-0
16 Filter cage 87901-00-5
17 #10 x 5/8" Screw 15054-99-2
18 Strip gasket 20711-01-6
19 Cover 31154-00-8
20 #10 x 3" Screw 15058-99-3
21 Flange ferrule 23401-00-3
22 #10 - 24 Hex nut 13009-99-8
23 Cartridge filter 90304-62-7
24 Filter retainer 30080-00-6
25 Elbow 09104-00-1
26 Clamp (pkg. of 3 w/ hardware) 45800-96-8
27 Tank assembly 31204-97-8

Band Dolly Assembly

1. Place casters into sockets on band
assembly.

2. Place tank upside down and slip band
assembly over lip on bottom of tank.

3. Insert bolt and tighten nut until secure.

ITEM DESCRIPTION PART NO.

1 55 Gal. band assembly 00633-96-6
2 Caster 67714-00-6
3 Hex head bolt, 1/4 - 20 x 13// 08073-99-1
4 Hex nut,

1

/4 - 20 13001-99-5

Standard Accessories:

12' (3.66 m) x 1V2" (3.81cm) Hose
6" (15.24cm) Metal gulper nozzle

SC87518-23
