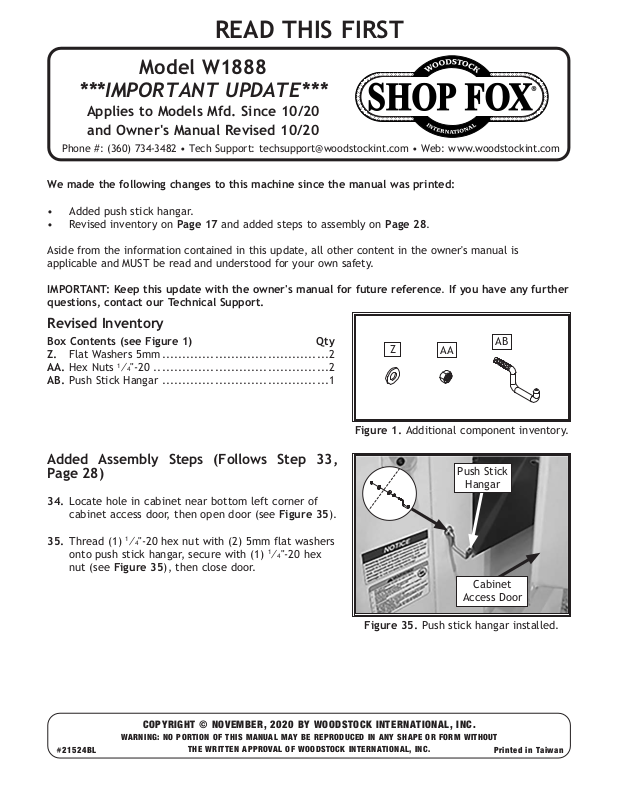

READ THIS FIRST

Model W1888

***IMPORTANT UPDATE***

Applies to Models Mfd. Since 10/20

and Owner's Manual Revised 10/20

Phone #: (360) 734-3482 • Tech Support: [email protected] • Web: www.woodstockint.com

We made the following changes to this machine since the manual was printed:

• Added push stick hangar.

• Revised inventory on Page 17 and added steps to assembly on Page 28.

Aside from the information contained in this update, all other content in the owner's manual is applicable and MUST be read and understood for your own safety.

IMPORTANT: Keep this update with the owner's manual for future reference. If you have any further questions, contact our Technical Support.

Revised Inventory

Box Contents (see Figure 1) Qty

Z. Flat Washers 5mm .........................................2

Hex Nuts 1⁄4"-20 ...........................................2

AA.

Push Stick Hangar .........................................1

AB.

Added Assembly Steps (Follows Step 33, Page 28)

34. Locate hole in cabinet near bottom left corner of

cabinet access door, then open door (see Figure 35).

Thread (1) 1⁄4"-20 hex nut with (2) 5mm flat washers

35.

onto push stick hangar, secure with (1) nut (see Figure 35), then close door.

⁄4"-20 hex

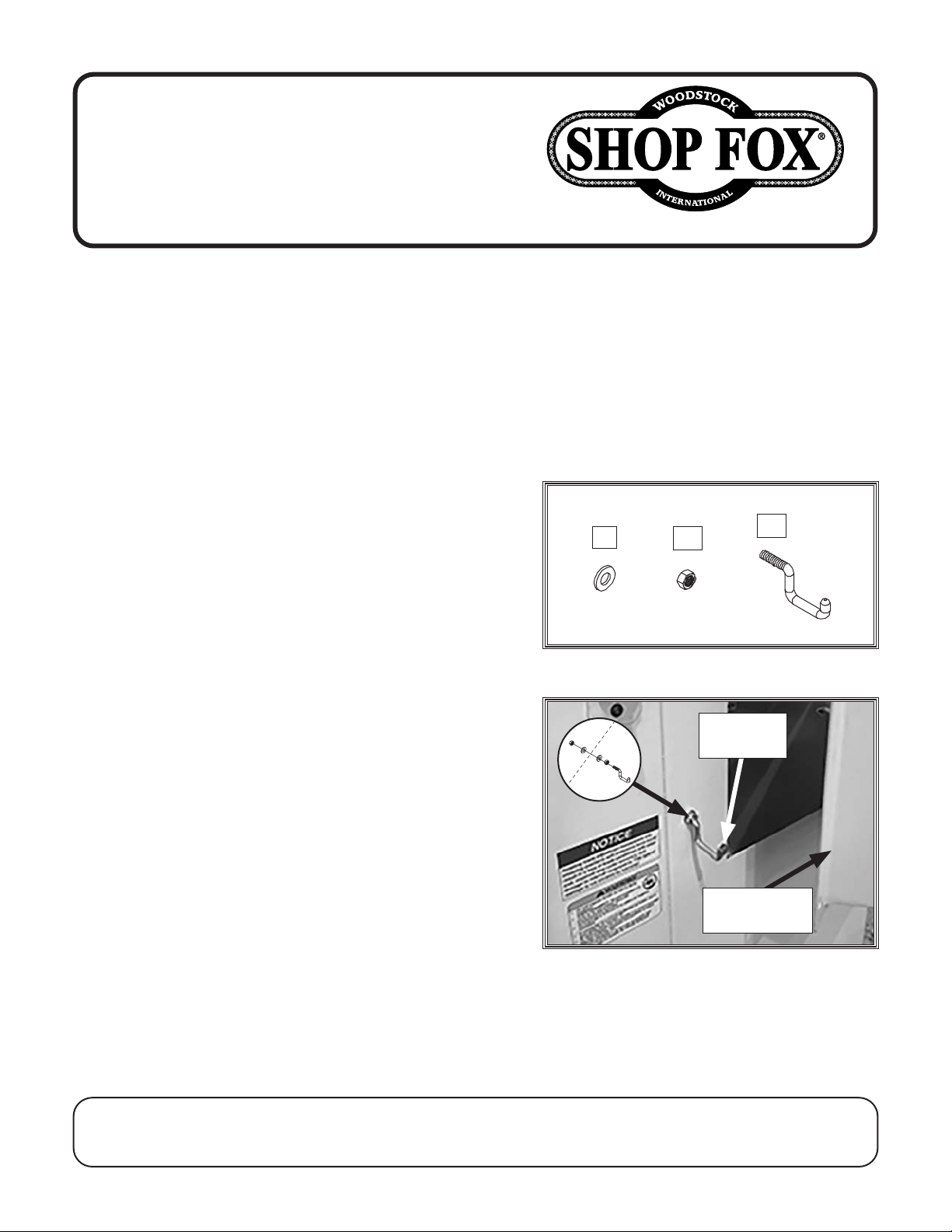

Figure 1. Additional component inventory.

Push Stick

Hangar

Cabinet

Access Door

Figure 35. Push stick hangar installed.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

Printed in Taiwan#21524BL

Page 2

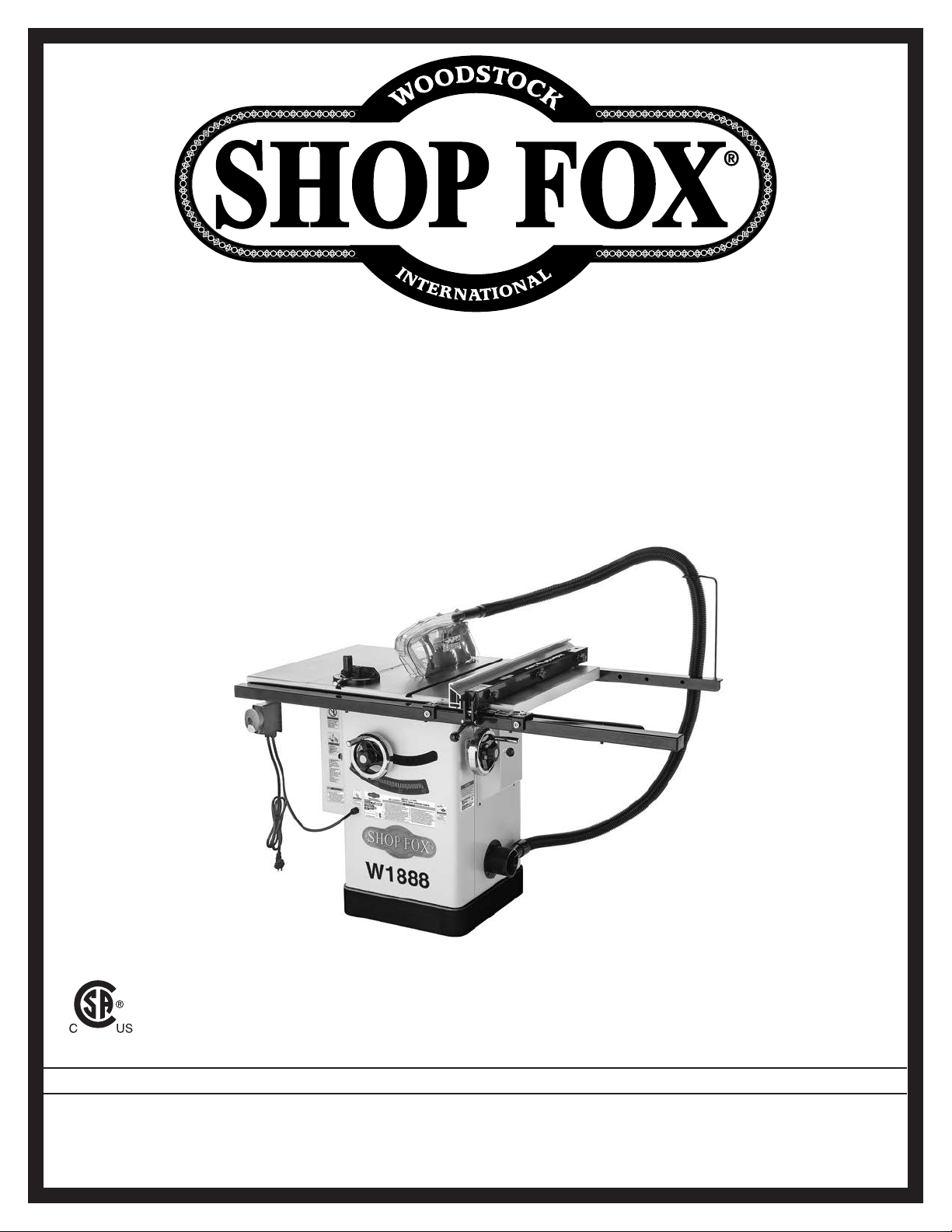

MODEL W1888

10" HYBRID TABLE SAW

W/RIVING KNIFE

OWNER'S MANUAL

601745

Phone: (360) 734-3482 • Online Technical Support: [email protected]

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

V2.10.20

(FOR MODELS MANUFACTURED SINCE 10/20)

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

#20868AI Printed in Taiwan

Page 3

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 4

Contents

INTRODUCTION .....................................2

Woodstock Technical Support Machine Specifications Identification Controls & Components

SAFETY ...............................................8

Standard Machinery Safety Instructions Additional Safety for Table Saws Preventing Kickback Protecting Yourself From Kickback Glossary of Terms

ELECTRICAL ....................................... 13

Circuit Requirements Grounding Requirements Extension Cords Converting Voltage to 230V

SETUP .............................................. 16

Unpacking Items Needed for Setup Inventory Hardware Recognition Chart Cleaning Machine Machine Placement Assembly Dust Collection Test Run

OPERATIONS....................................... 31

General Workpiece Inspection Non-Through & Through Cuts Blade Size Requirements Blade Selection Blade Installation Blade Guard Assembly Riving Knife Ripping Crosscutting Miter Cuts Blade Tilt/Bevel Cuts Dado Cutting Rabbet Cutting Resawing

........................................... 42

..................................... 6

................................ 14

....................................... 16

........................................ 17

......................................... 22

................................. 29

.......................................... 30

.......................................... 31

................................. 34

..................................... 41

..................................... 43

....................................... 44

.................................... 45

................................. 48

......................................... 50

.......................... 3

........................... 11

.............................. 12

.......................... 13

............................... 20

............................ 21

.......................... 32

.............................. 36

......................... 38

.......................... 45

.................. 2

......................... 7

...... 8

............ 10

.......... 11

...................... 14

.................. 15

....................... 16

................. 19

................ 33

...................... 34

SHOP-MADE SAFETY ACCESSORIES ............ 55

Featherboards Push Sticks Push Blocks Narrow-Rip Auxiliary Fence & Push Block Outfeed & Support Tables Crosscut Sled

ACCESSORIES ...................................... 63

Table Saw Accessories

MAINTENANCE .................................... 64

General Cleaning & Protecting Lubrication

SERVICE ............................................ 66

General Blade Tilt Stops Miter Slot to Blade Parallelism Spreader or Riving Knife Alignment Fence Adjustments Fence Scale Calibration Table/Dado Insert Adjustment Miter Gauge Adjustments Belt Tension & Replacement Troubleshooting Electrical Safety Instructions Electrical Components Wiring Diagram

PARTS .............................................. 84

Body Trunnion Power Switch Blade Guard Miter Gauge Fence Rails Labels & Cosmetics

WARRANTY ........................................ 93

.......................................... 64

.......................................... 66

.............................................. 84

............................................. 90

.............................................. 91

.................................. 55

...................................... 58

...................................... 59

.. 60

.................... 62

.................................... 62

......................... 63

......................... 64

...................................... 65

................................. 66

............... 68

......... 70

............................. 72

....................... 75

............... 76

..................... 77

................. 78

................................. 79

................. 81

........................ 82

................................. 83

......................................... 85

................................... 87

..................................... 88

..................................... 89

............................ 92

SAFETYINTRODUCTION

SETUPELECTRICAL MAINTENANCE

OPERATIONS

SERVICE PARTS

USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!

Page 5

Model W1888 (For Machines Mfd. Since 10/20)

INTRODUCTION

Woodstock Technical Support

This machine has been specially designed to provide many years of trouble-free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product.

We stand behind our machines! In the event that questions arise about your machine, please contact Woodstock International Technical Support at (360) 734-3482 Ext. 2 or send e-mail to: [email protected]. Our knowledgeable staff will help you troubleshoot problems and process warranty claims.

If you need the latest edition of this manual, you can download it from: http://www.woodstockint.com/manuals.

If you have comments about this manual, please contact us at:

Woodstock International, Inc.

Attn: Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

Email: [email protected]

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.
