MODEL W1872 

16" VS SCROLL SAW 

W/FOOT PEDAL

OWNER'S MANUAL

(FOR MODELS MANUFACTURED SINCE 06/20)

Phone: [phone] • Online Technical Support: [email protected]

COPYRIGHT © APRIL, 2019 BY WOODSTOCK INTERNATIONAL, INC., REVISED JUNE 2021 (BL)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

#20206AL  Printed in China

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property
damage from negligence, improper training, machine modifications or
misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Contents

INTRODUCTION .....................................2

Woodstock Technical Support
Machine Specifications
Identification
Controls & Components

SAFETY ............................................... 7

Standard Machinery Safety Instructions
Additional Safety for Scroll Saws

ELECTRICAL ....................................... 10

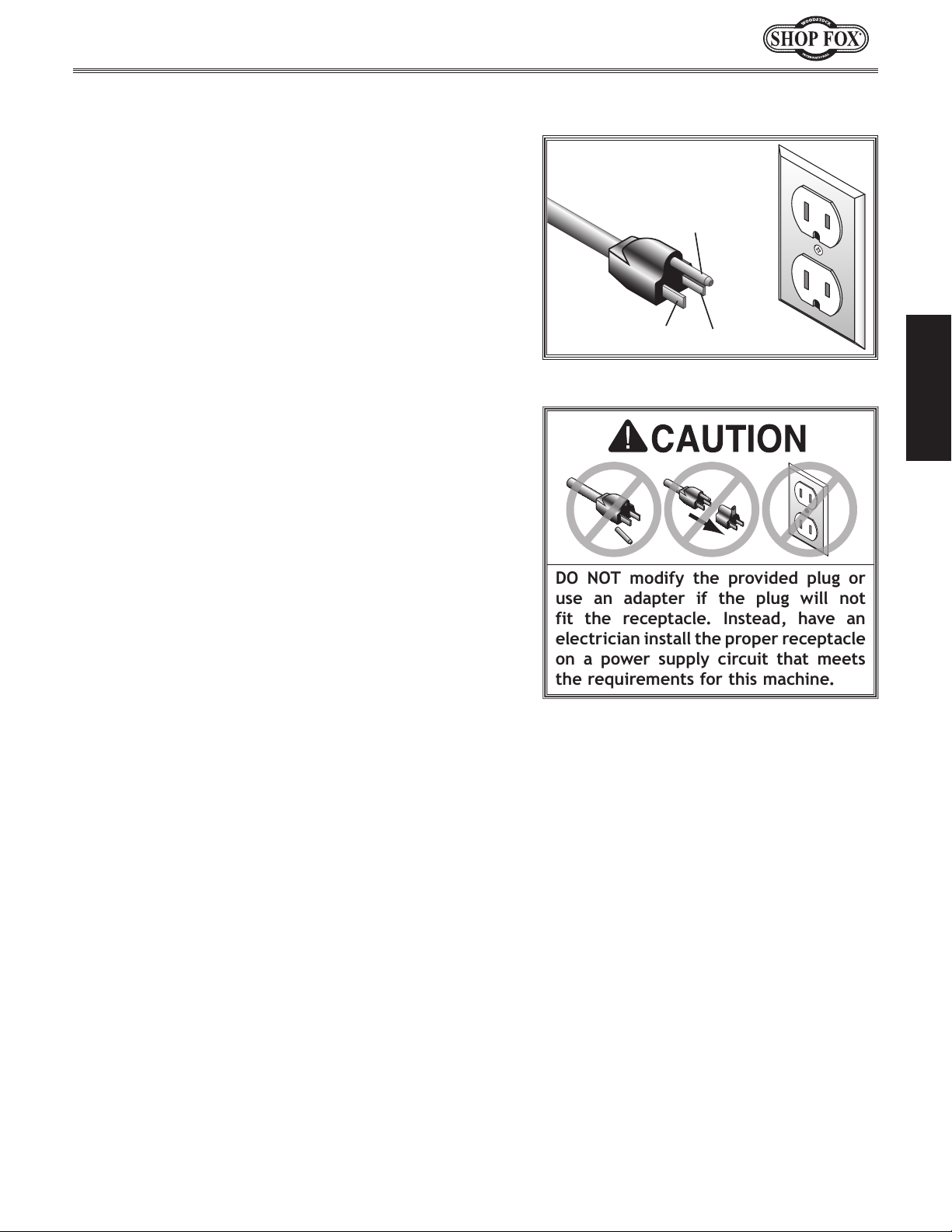

Circuit Requirements
Grounding Requirements
Extension Cords

SETUP .............................................. 12

Unpacking

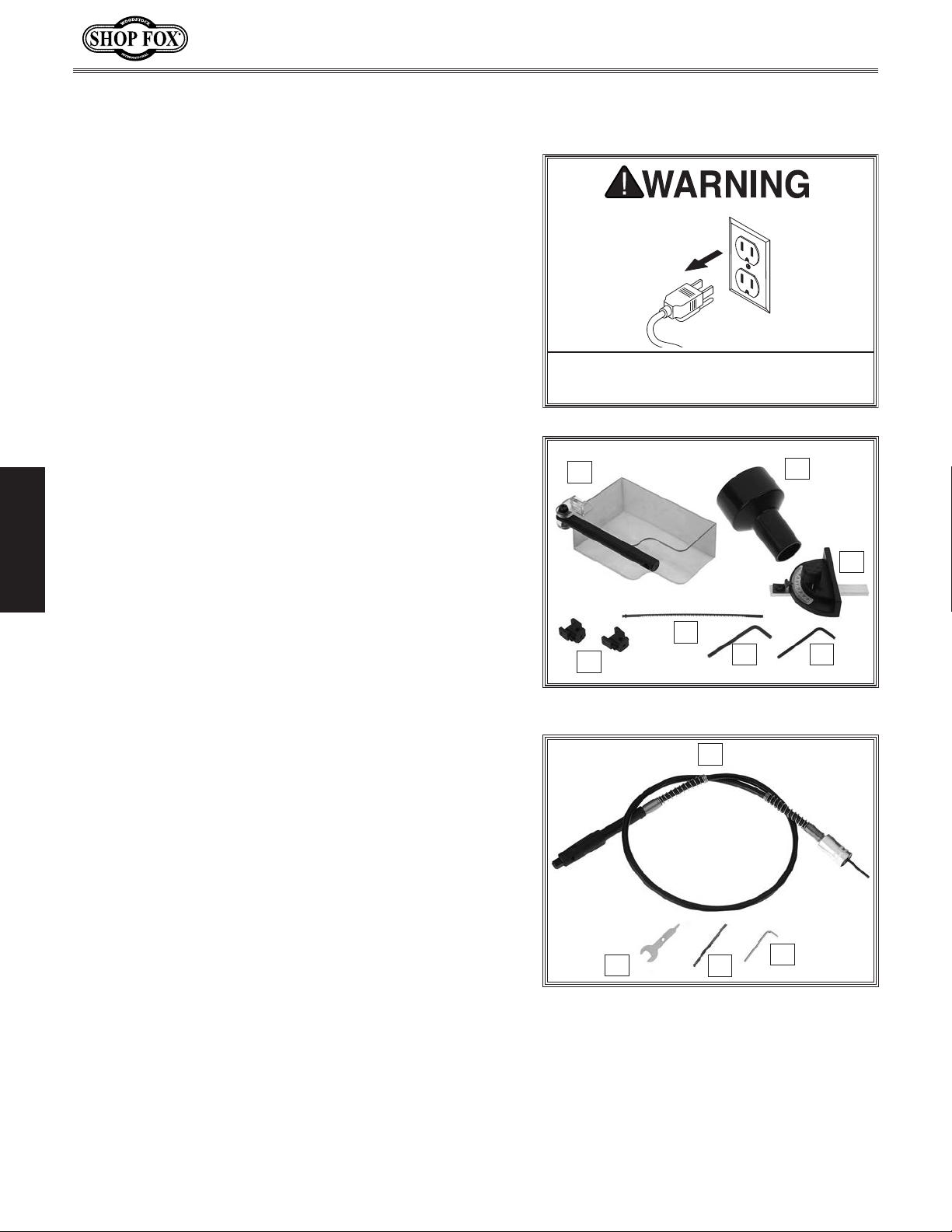

Inventory
Machine Placement

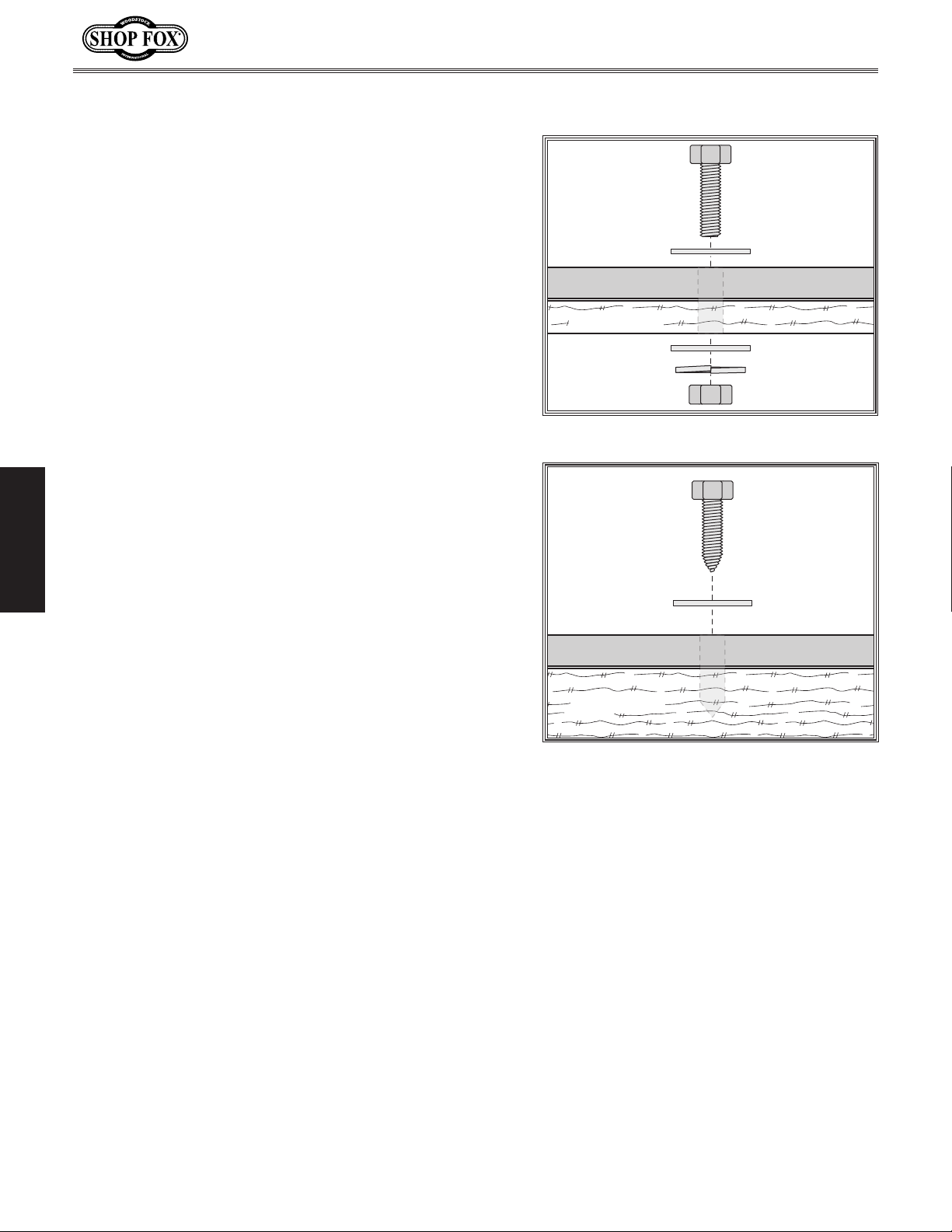

Bench Mounting................................. 14

Assembly

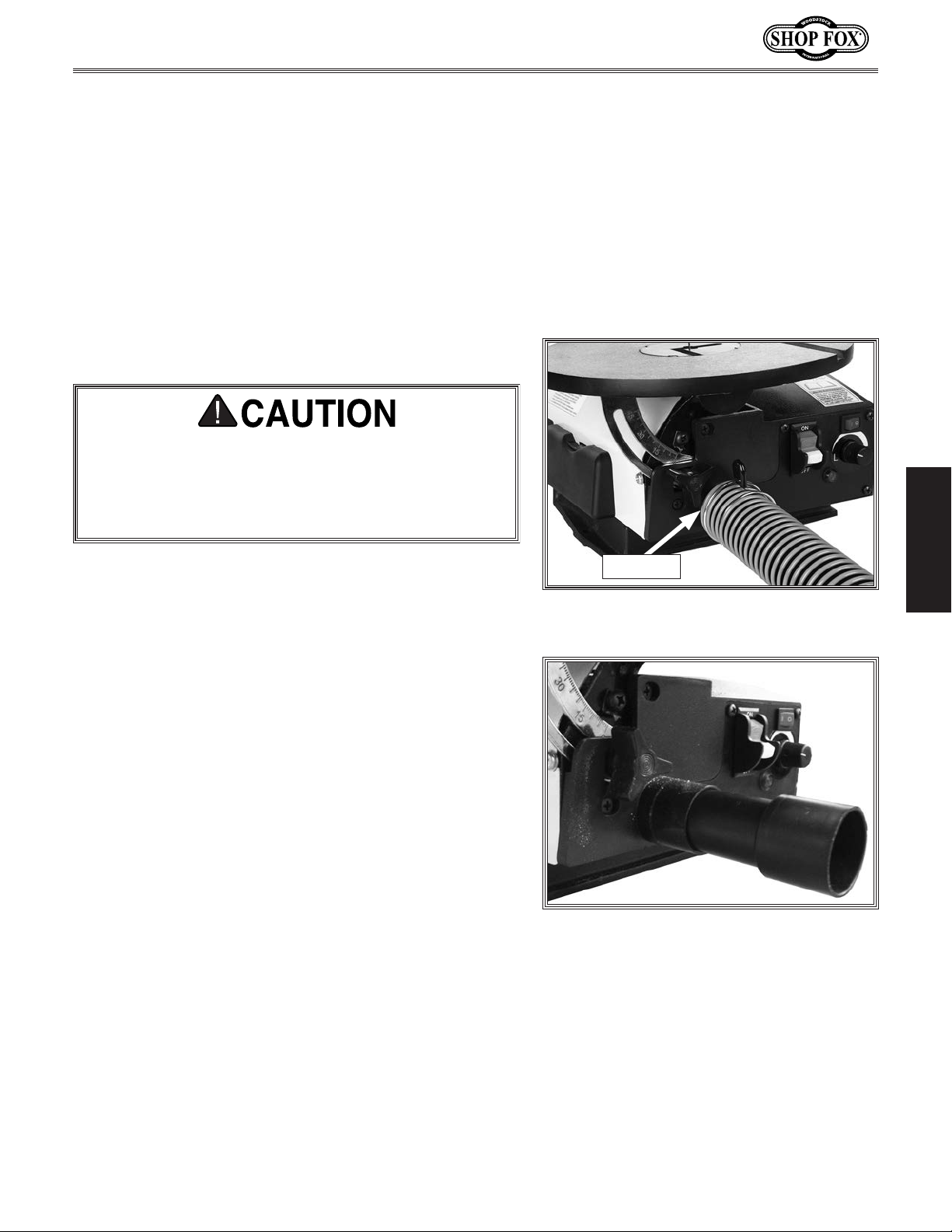

Dust Collection
Test Run

OPERATIONS....................................... 19

General
Workpiece Inspection

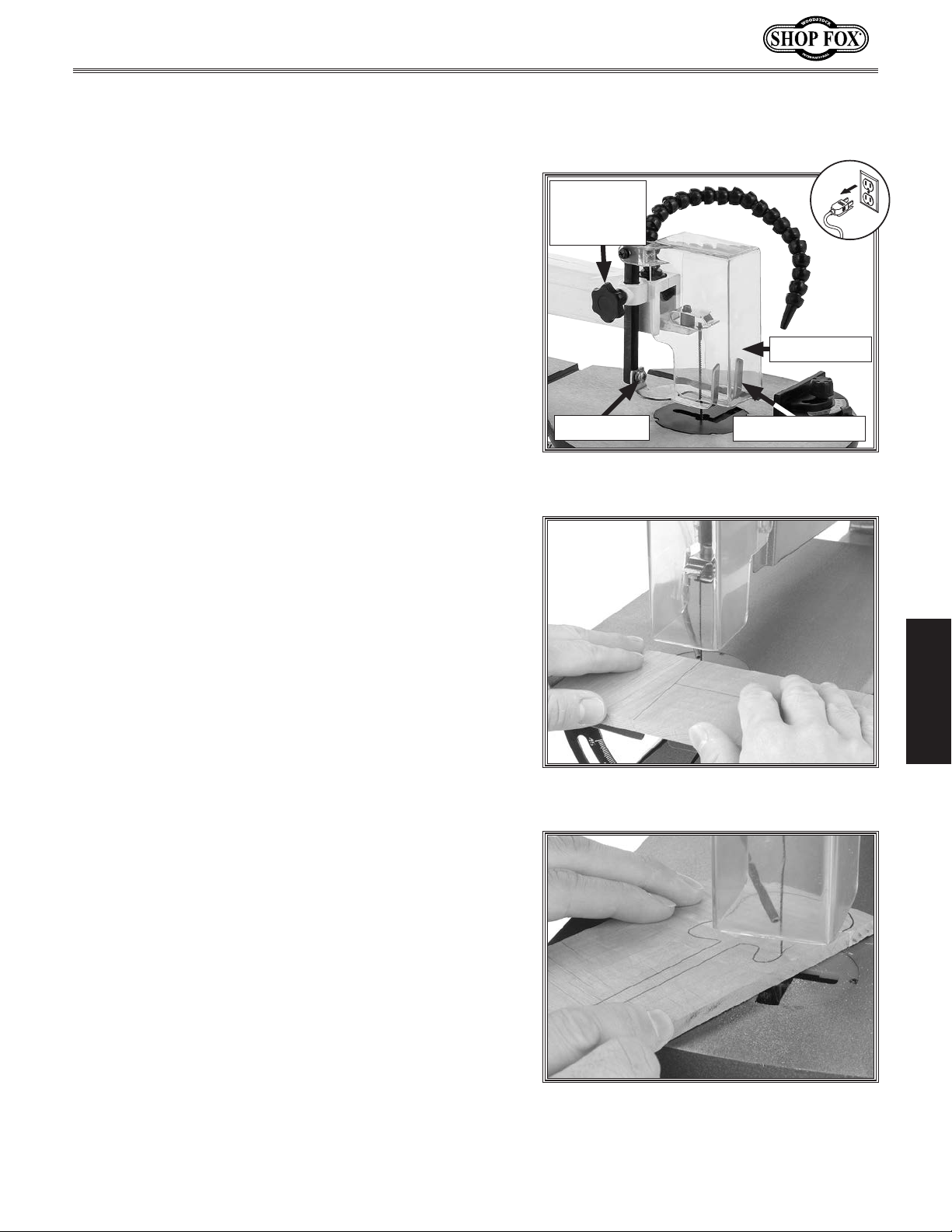

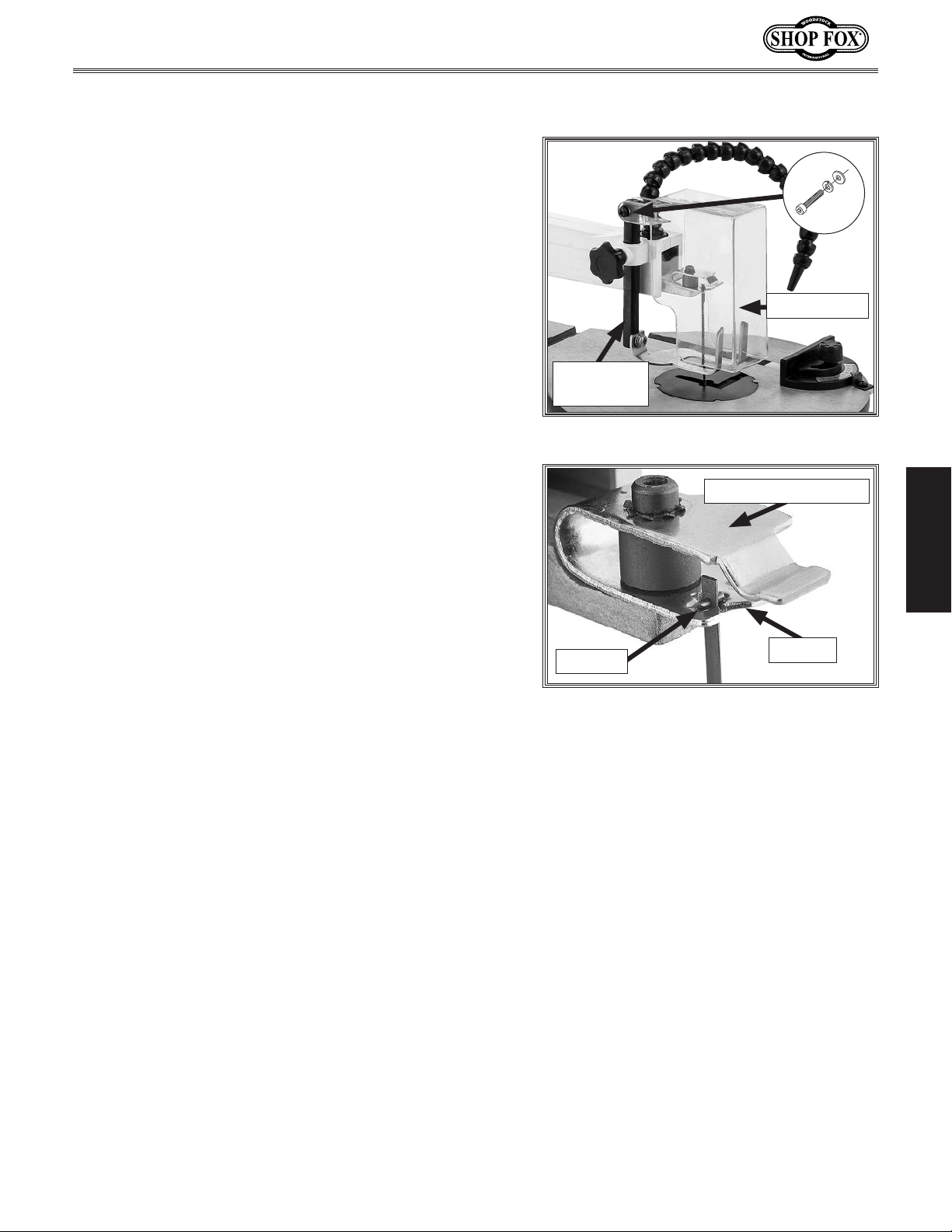

Hold-Down Shoe & Blade Guard
Chip Blower
Standard Scroll Cuts
Blade Tension
Bevel Cuts

Inside Cuts....................................... 23

Blade Speed
Blade Selection

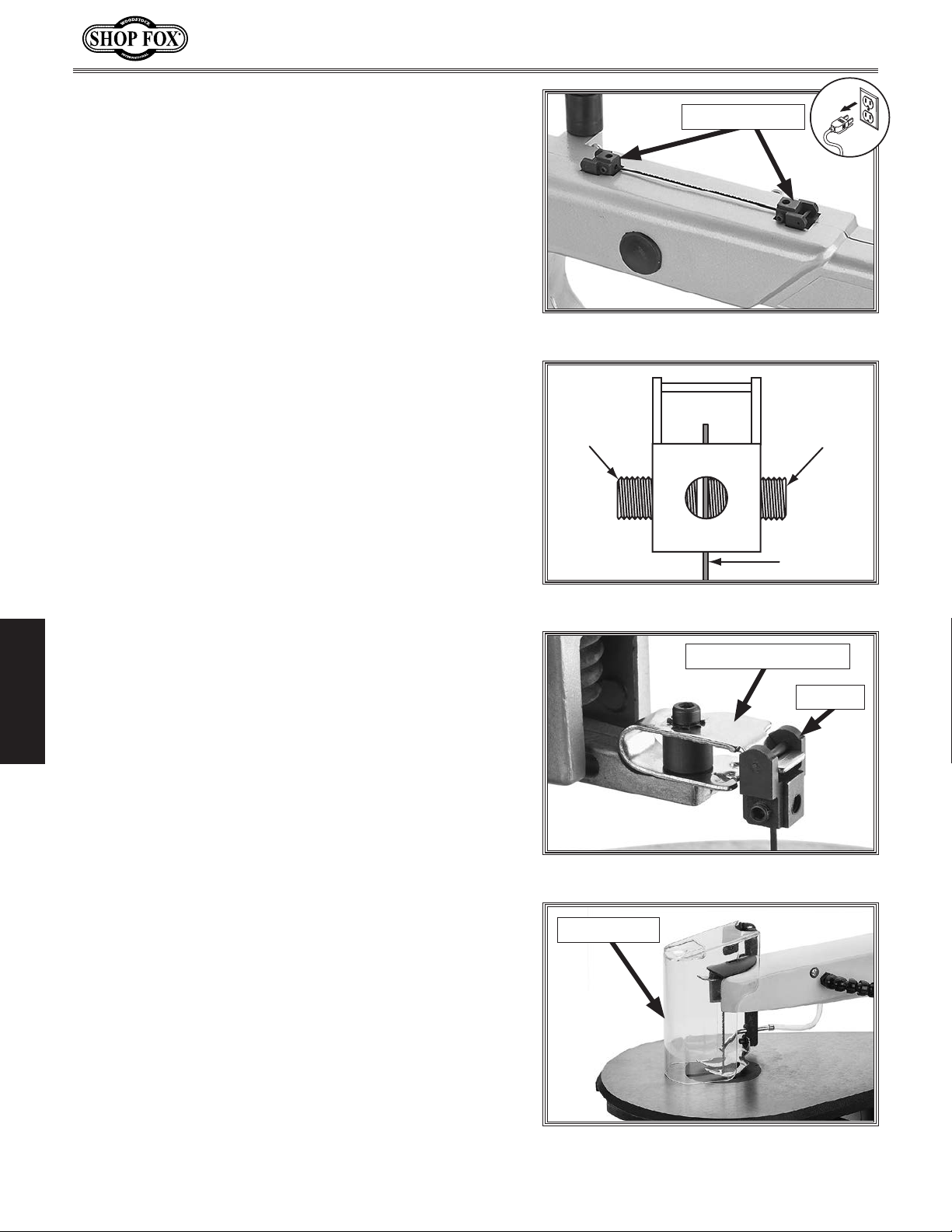

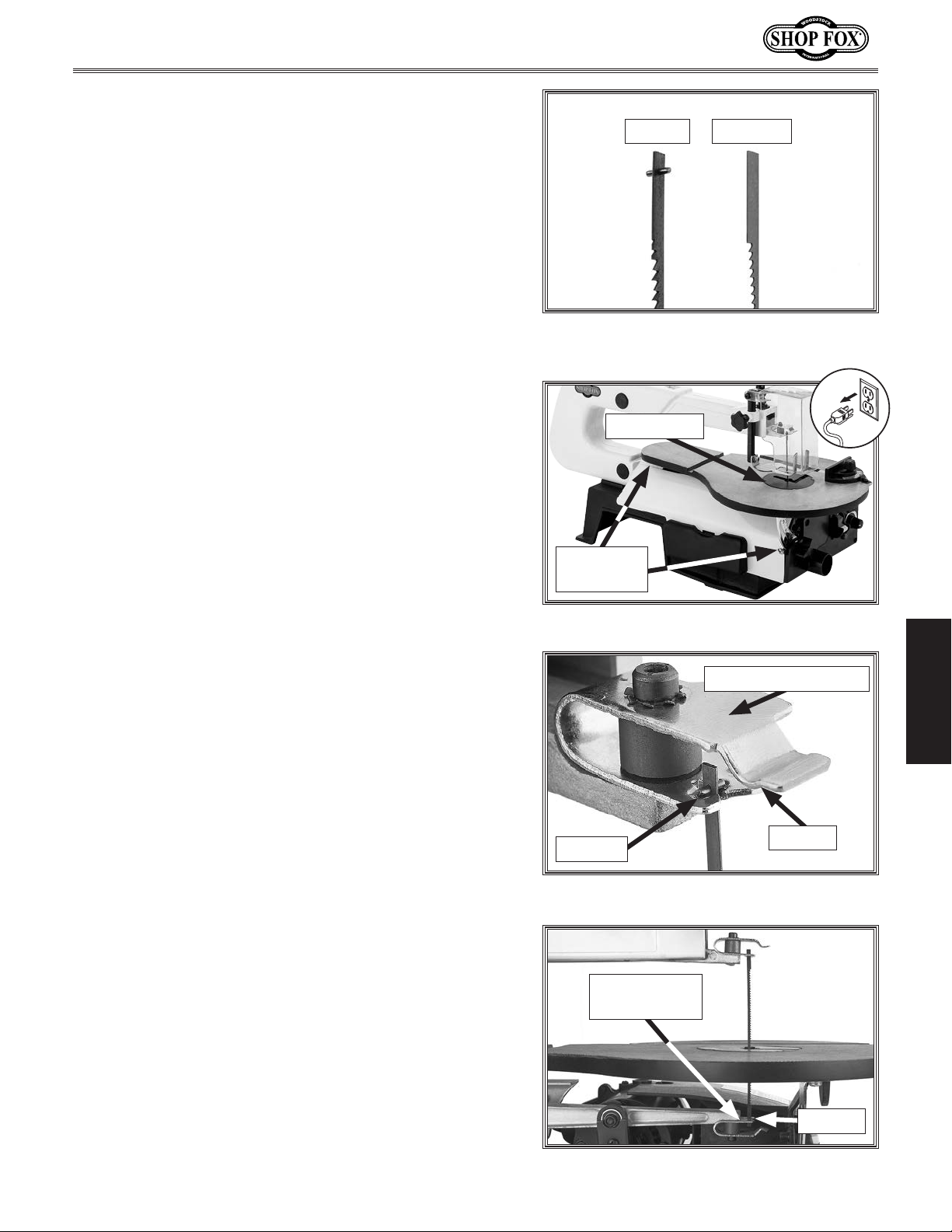

Installing Pin-End Blades
Installing Plain-End Blades

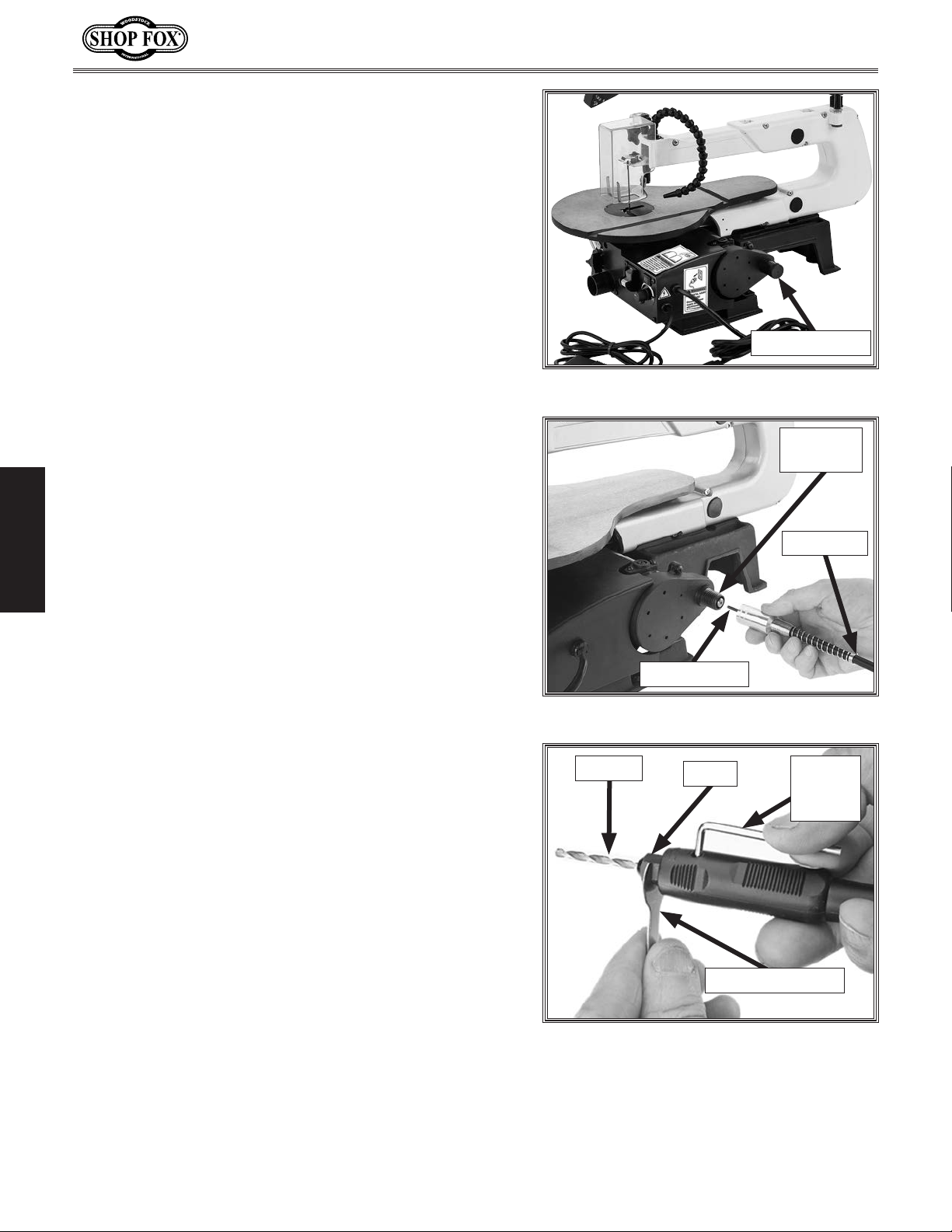

Using Flex-Shaft Tool

..................................... 5

................................ 11

....................................... 12

........................................ 12

......................................... 15

................................. 17

.......................................... 18

.......................................... 19

..................................... 21

................................... 22

....................................... 22

..................................... 24

................................. 24

.......................... 3

.......................... 10

............................ 13

.......................... 20

........................... 21

.......................... 26

.................. 2

......................... 6

...... 7

.............. 9

...................... 11

............. 21

...................... 25

.................... 26

ACCESSORIES ...................................... 27

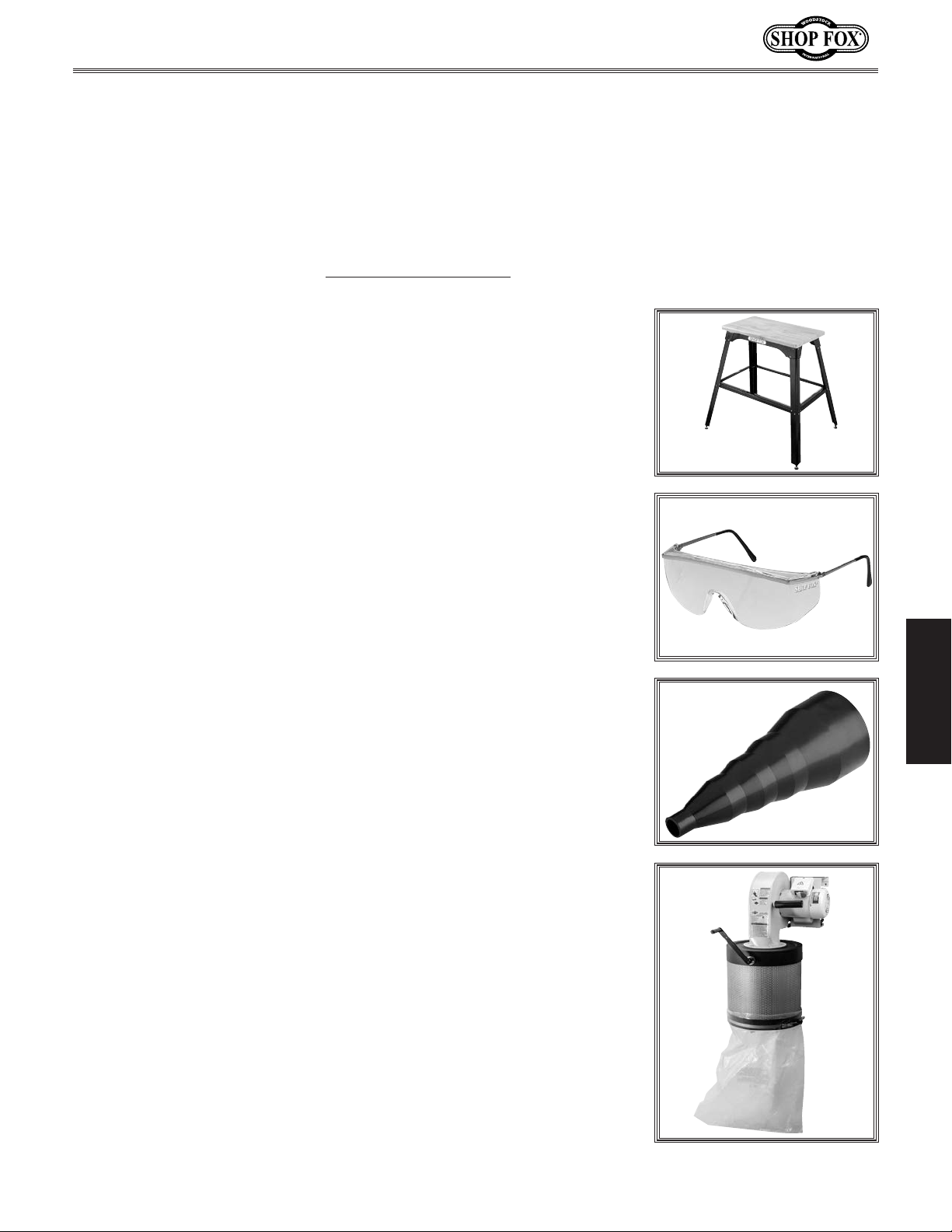

Scroll Saw Accessories

MAINTENANCE .................................... 28

General
Cleaning & Protecting
Lubrication

SERVICE ............................................ 29

General
Calibrating Table Tilt

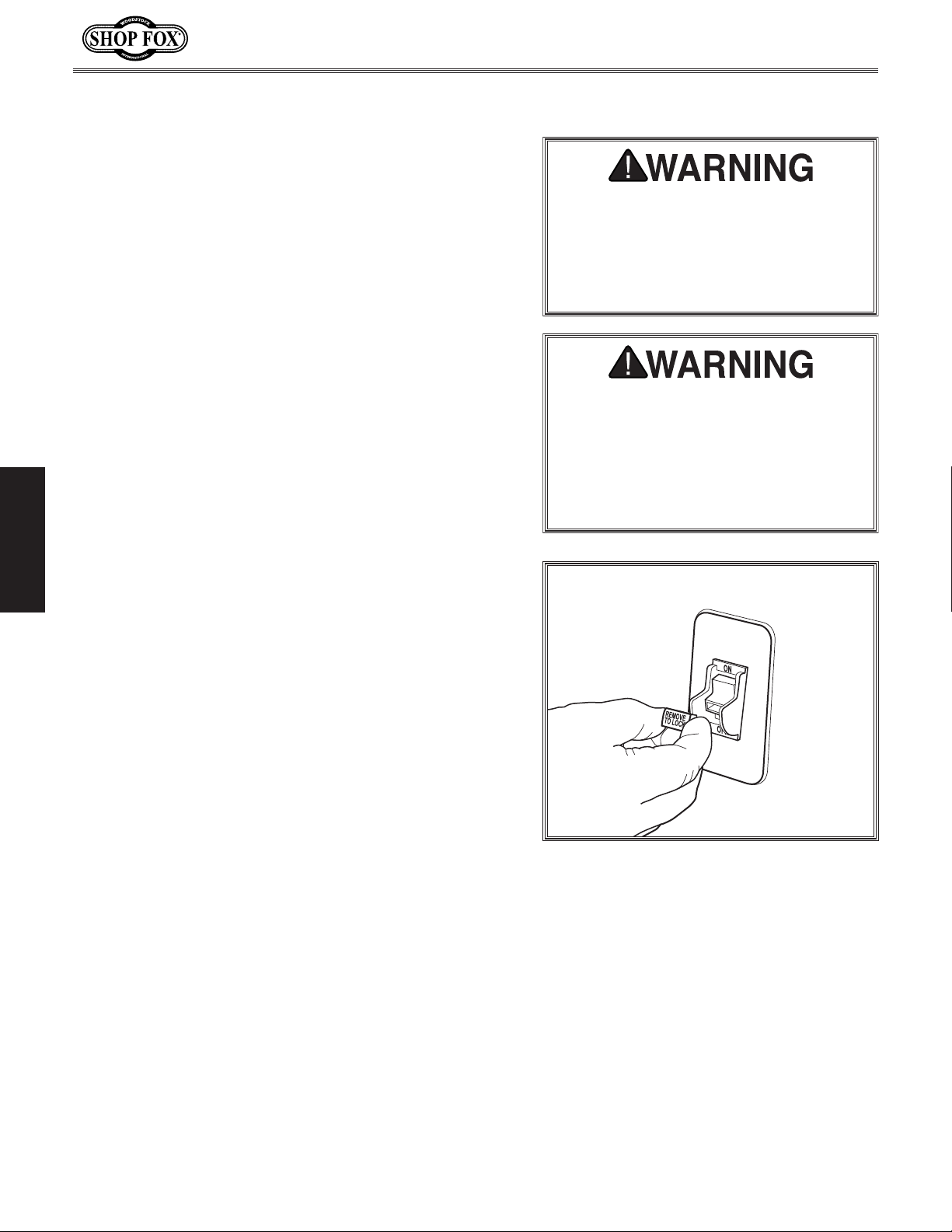

Replacing Fuse
Replacing Motor Brushes
Replacing Timing Belt
Troubleshooting

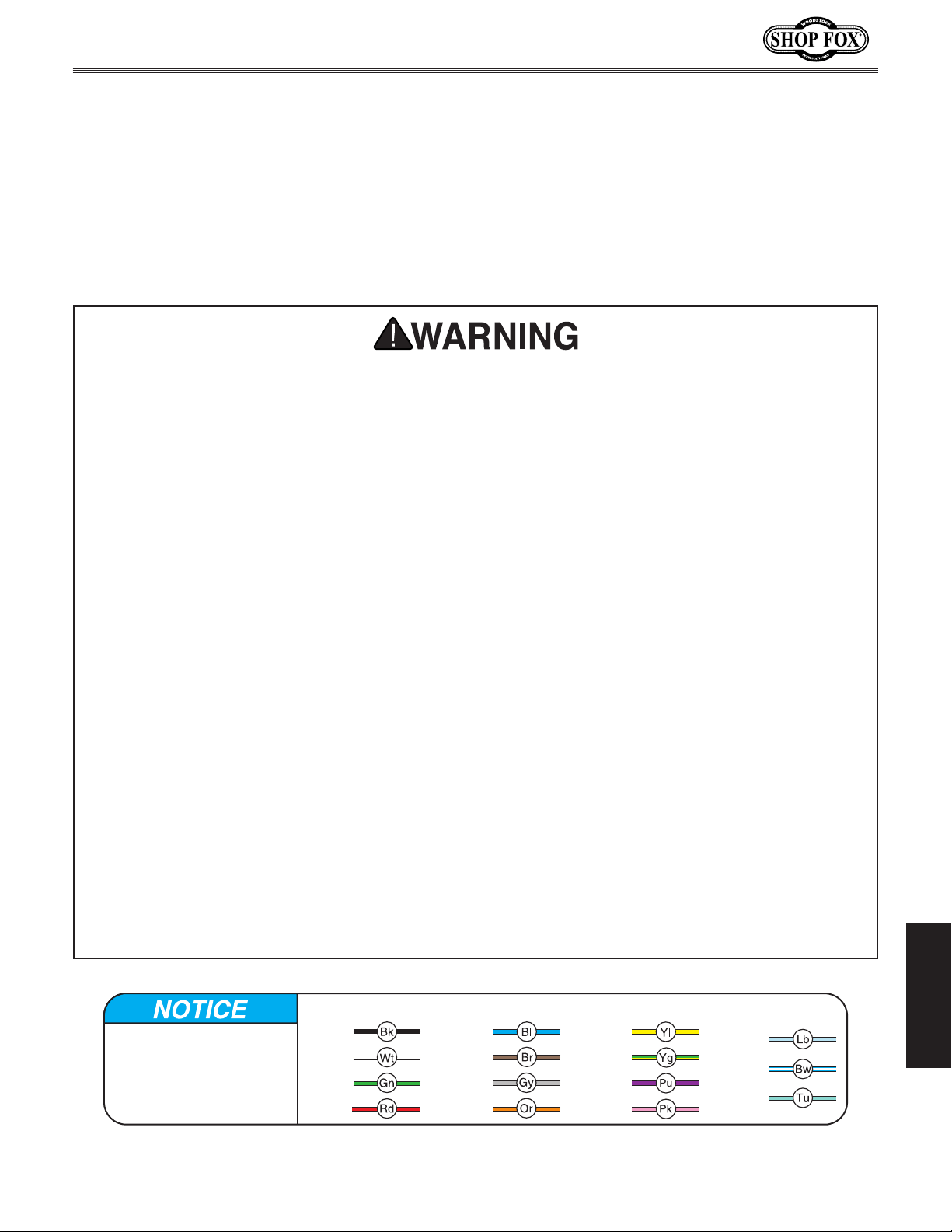

Electrical Safety Instructions

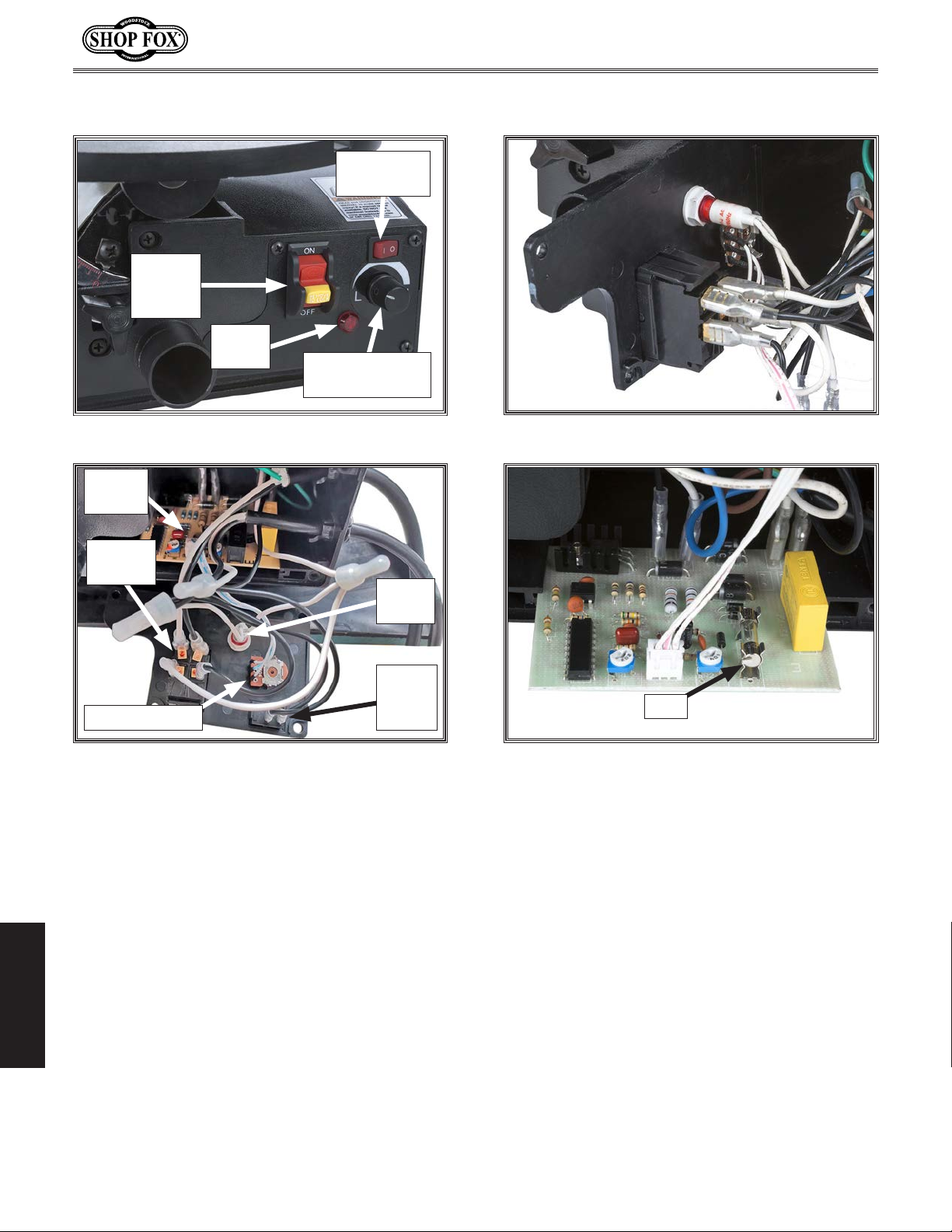

Electrical Components

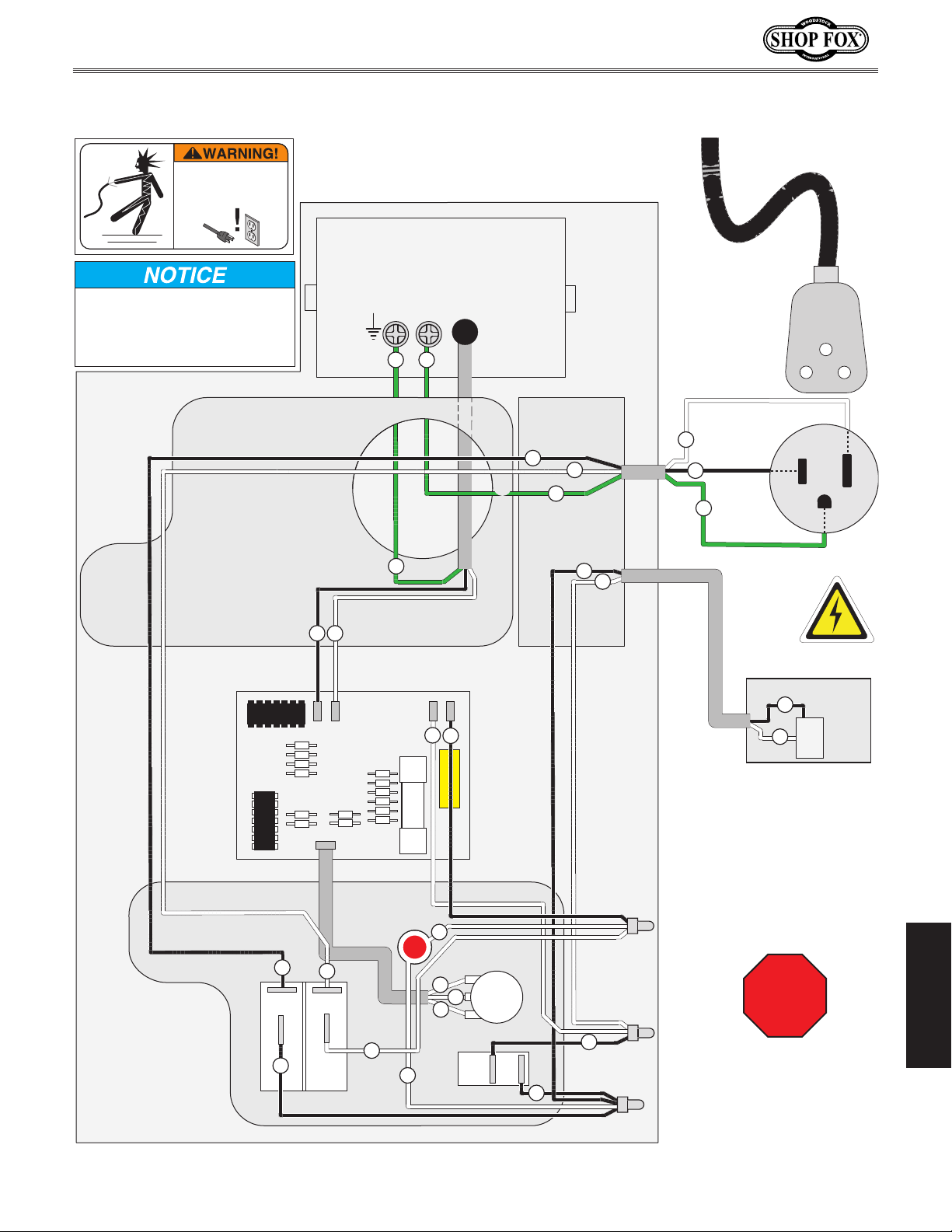

Wiring Diagram

PARTS .............................................. 36

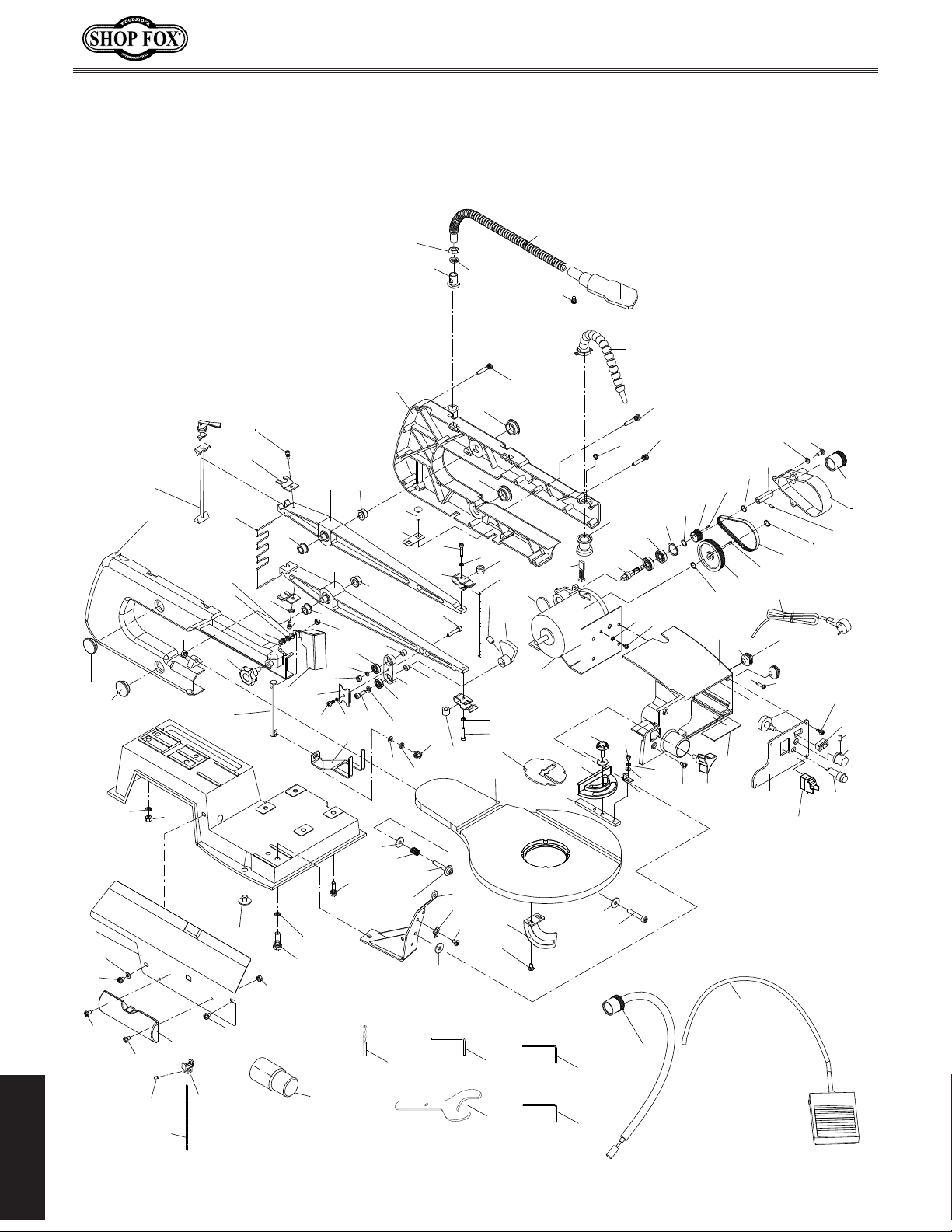

Main

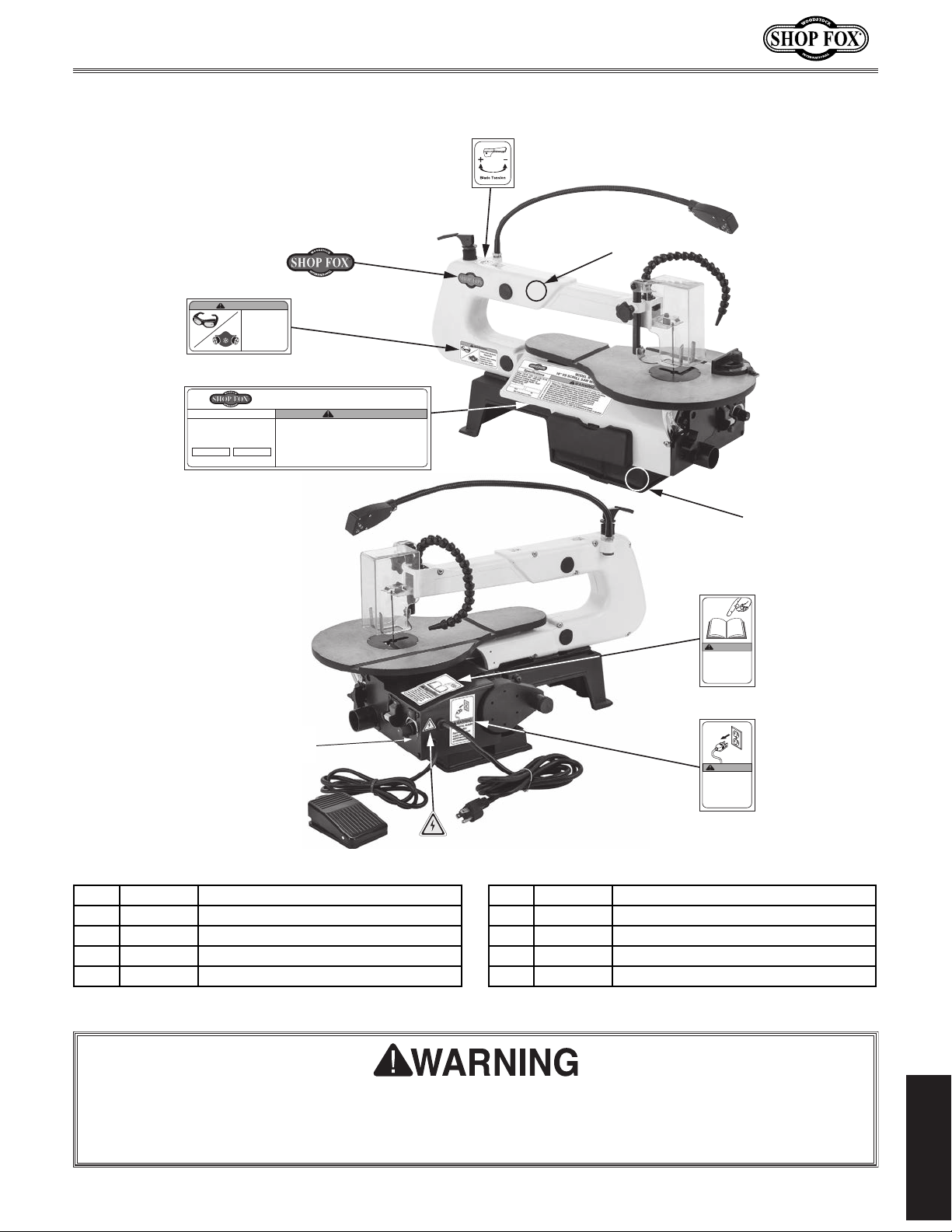

Labels & Cosmetics

WARRANTY ........................................ 41

.......................................... 28

...................................... 28

.......................................... 29

.................................. 30

................................. 32

................................. 35

.............................................. 36

......................... 27

......................... 28

.......................... 29

...................... 30

......................... 31

................. 33

........................ 34

............................ 39

SAFETYINTRODUCTION

SETUPELECTRICAL MAINTENANCE

OPERATIONS

USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!

SERVICE PARTS

Model W1872 (For Machines Mfd. Since 06/20)

INTRODUCTION

INTRODUCTION

Woodstock Technical Support

This machine has been specially designed to provide many years of trouble-free service. Close attention
to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to
include the basic information for safety, setup, operation, maintenance, and service of this product.

We stand behind our machines! In the event that questions arise about your machine, please contact
Woodstock International Technical Support at [phone] Ext. 2 or send e-mail to: techsupport@
woodstockint.com. Our knowledgeable staff will help you troubleshoot problems and process warranty
claims.

If you need the latest edition of this manual, you can download it from http://www.woodstockint.com/
manuals.
If you have comments about this manual, please contact us at:

Woodstock International, Inc.

Attn: Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

Email: [email protected]

-2-

Model W1872 (For Machines Mfd. Since 06/20)

MACHINE

SPECIFICATIONS

© Woodstock International, Inc. • Phone #: [phone] • Web: www.shopfox.biz

MODEL W1872

16" VS SCROLL SAW W/FOOT PEDAL

Product Dimensions

Weight ................................................................................................................... 27 lbs.

Width (side-to-side) x Depth (front-to-back) x Height .................................................13 x 25 x 20 in.

Foot Print (Length x Width) ...................................................................................15-1/2 x 9 in.

Shipping Dimensions

Type ................................................................................................................... Cardboard

Content ..................................................................................................................Machine

Weight .....................................................................................................................32 lbs.

Length/Width/Height ........................................................................................27 x 13 x 16 in.

INTRODUCTION

Electrical

Power Requirement.............................................................................. 120V, Single-Phase, 60 Hz

Full-Load Current Rating ................................................................................................. 1.2A

Minimum Circuit Size ....................................................................................................... 15A

Cord Length ................................................................................................................. 6 ft.

Cord Gauge ..............................................................................................................18 AWG

Included Plug Type ........................................................................................................ 5-15

Switch ..................................................................................... Toggle Switch w/Removable Key

Motors

Main

Horsepower ....................................................................................................... 1/8 HP

Phase .........................................................................................................Single-Phase

Amps .................................................................................................................. 1.2A

Speed ..................................................................................................... 550 - 1650 RPM

Type ..............................................................................................................DC Motor

Power Transfer (Blade) .................................................................................... Direct Drive

Power Transfer (Rotary Tool) .......................................................................................Belt

Bearings ......................................................................... Shielded & Permanently Lubricated

Main Specifications

Capacities

Depth of Throat ....................................................................................................16 in.

Maximum Cutting Depth ..........................................................................................16 in.

Maximum Cutting Height at 90 Degrees ......................................................................... 2 in.

Maximum Cutting Height at 45 Degrees ......................................................................... 1 in.

Table Size ................................................................................................ 10 x 16-1/4 in.

Table Tilt .......................................................................................................... Left 45

Blade Information

Blade Type .............................................................................................................. Pin

Blade Size ....................................................................................................... 5-1/4 in.

Stroke per Minute ...................................................................................... 550 - 1650 SPM

Stroke Length ..................................................................................................... 3/4 in.

-3-

Rotary Tool Information

Speed Range ...........................................................................................1650 - 4800 RPM

INTRODUCTION

Other

Maximum Collet Chuck Capacity ............................................................................... 1/8 in.

Flex-Shaft Length .............................................................................................. 3-1/2 ft.

Construction

Table ......................................................................................................Cast Aluminum

Frame .....................................................................................................Cast Aluminum

Lamp ................................................................................................................... LED

Blade Guard ........................................................................................................Plastic

Paint Type/Finish ....................................................................................... Powder Coated

Other Related Information

Foot Pedal Cord Length ...........................................................................................52 in.

Number of Dust Ports ................................................................................................... 1

Dust Port Size ................................................................................................... 1-1/4 in.

Country of Origin ......................................................................................................... China

Warranty ................................................................................................................. 2 Years

Approximate Assembly & Setup Time ...........................................................................15 Minutes

Serial Number Location .................................................................................... Machine ID Label

ISO 9001 Factory ..............................................................................................................No

Certified by a Nationally Recognized Testing Laboratory (NRTL) .....................................................No

Model W1872 (For Machines Mfd. Since 06/20)

Features

Flex-Shaft Rotary Tool Attachment
Foot Pedal for Motor Control
LED Work Light and Chip Blower
Variable Speed

Accessories

Rotary Tool
Pinless Blade Adapters

Single Pinless Blade
Miter Gauge
Dust Port Adapter (1-1/2 in.)

-4-

Model W1872 (For Machines Mfd. Since 06/20)

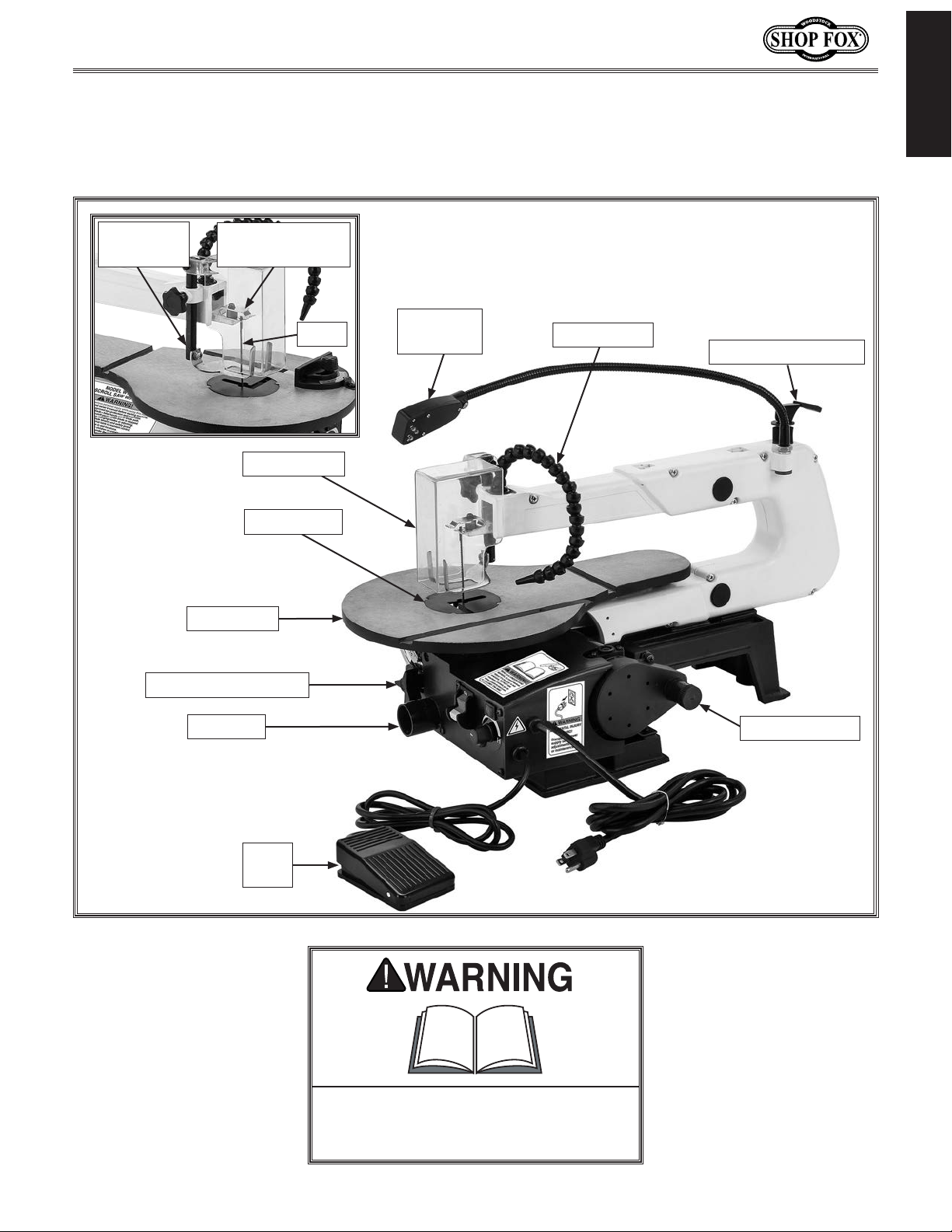

Become familiar with the names and locations of the controls and features shown below to better

Identification

INTRODUCTION

Hold-Down

Shoe Rod

Upper Mounting

Arm

Blade Guard

Table Insert

Work Table

Blade

LED Work

Lamp

Chip Blower

Blade Tension Knob

Table Tilt Lock Knob

Dust Port

Foot

Pedal

Flex-Shaft Cap

To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.

-5-

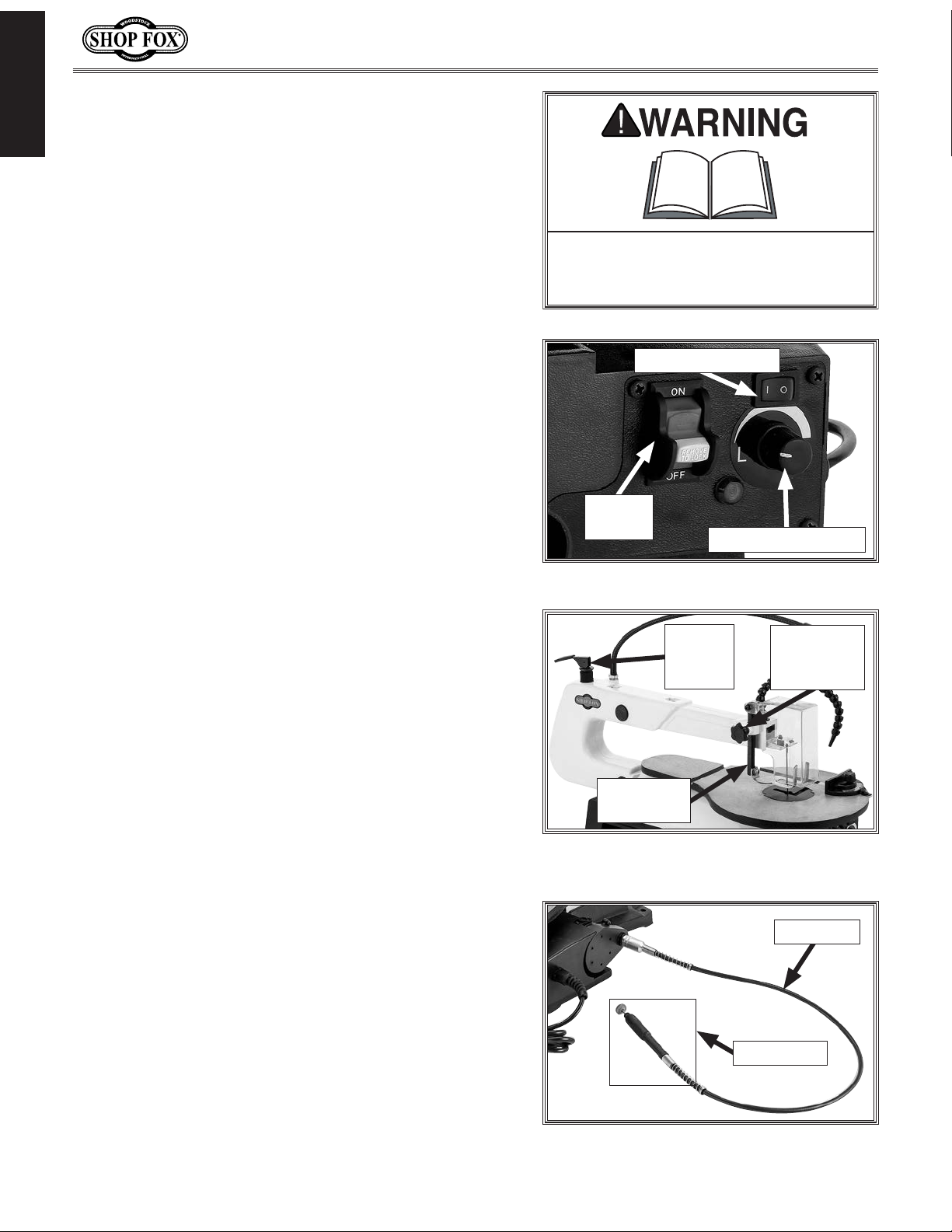

Controls & Components

Refer to Figures 1–3 and the following descriptions to

INTRODUCTION

become familiar with the basic controls and components
of this machine. Understanding these items and how they
work will help you understand the rest of the manual and
stay safe when operating this machine.

Model W1872 (For Machines Mfd. Since 06/20)

To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.

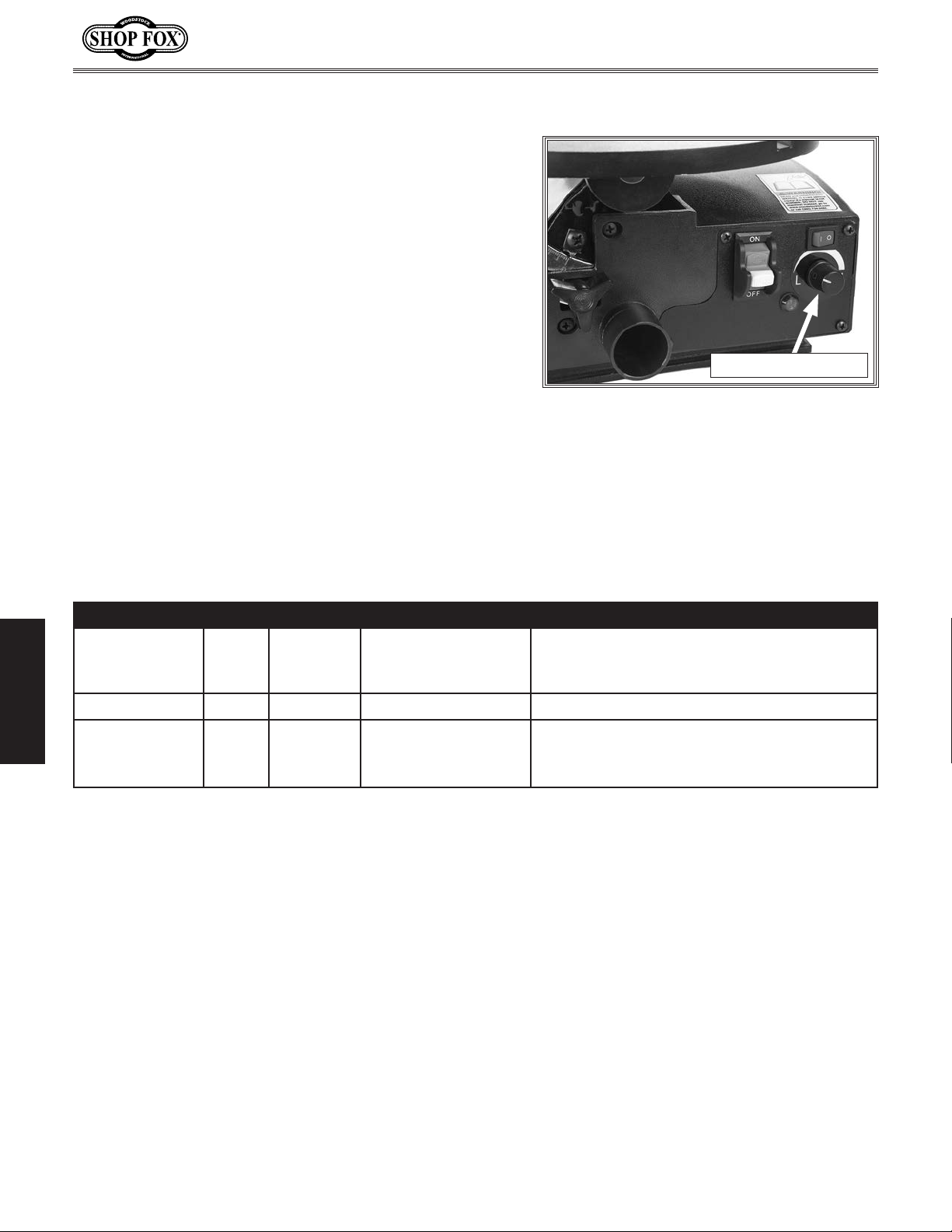

Variable-Speed Dial: Adjusts blade speed from 530-1560

RPM.

ON/OFF Switch: Starts and stops motor. Remove disabling
key to disable switch.

Foot/Pedal Switch: Turn ON to operate machine with
foot pedal.

Hold-Down Shoe: Holds down workpiece as blade moves
during operation. Move hold-down shoe to thickness of
workpiece.

Hold-Down Shoe Lock Knob: Locks hold-down shoe rod
in position.

Foot Pedal Switch

ON/OFF

Switch

Figure 1. Power and speed controls.

Hold-Down

Shoe

Variable-Speed Dial

Blade

Tension

Knob

Hold-Down

Shoe Lock

Knob

Flex-Shaft: Connects rotary tool to scroll saw.

Blade Tension Knob: Turn clockwise to increase blade

tension; turn counterclockwise to decrease blade tension.

Foot Pedal: Used to turn ON scroll saw and rotary tool.

-6-

Figure 2. Hold-down shoe and height

knob.

Flex-Shaft

Rotary Tool

Figure 3. Flex-shaft and rotary tool.

Model W1872 (For Machines Mfd. Since 06/20)

SAFETY

OWNER’S MANUAL.

TRAINED OPERATORS ONLY.

DANGEROUS ENVIRONMENTS.

MENTAL ALERTNESS REQUIRED.

electrical components or improperly grounded

manual uses a series of symbols and signal words intended to convey the level of importance of the
safety messages. The progression of symbols is described below. Remember that safety messages by

SAFETY

For Your Own Safety,

Read Manual Before Operating Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This

themselves do not eliminate danger and are not a substitute for proper accident prevention mea­sures—this responsibility is ultimately up to the operator!

NOTICE

Standard Machinery Safety Instructions

Standard Machinery Safety Instructions

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury.

This symbol is used to alert the user to useful information about
proper operation of the equipment or a situation that may cause
damage to the machinery.

SAFETY

Read and understand this

owner’s manual BEFORE using machine.

have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this
machine. When machine is not being used,
disconnect power, remove switch keys, or
lock-out machine to prevent unauthorized
use—especially around children. Make
workshop kid proof!

machinery in areas that are wet, cluttered,
or have poor lighting. Operating machinery
in these areas greatly increases the risk of
accidents and injury.

alertness is required for safe operation of
machinery. Never operate under the influence
of drugs or alcohol, when tired, or when
distracted.

Untrained operators

Do not use

Full mental

ELECTRICAL EQUIPMENT INJURY RISKS. You can

be shocked, burned, or killed by touching live

machinery. To reduce this risk, only allow an
electrician or qualified service personnel to
do electrical installation or repair work, and
always disconnect power before accessing or
exposing electrical equipment.

DISCONNECT POWER FIRST. Always disconnect

machine from power supply BEFORE making
adjustments, changing tooling, or servicing
machine. This eliminates the risk of injury
from unintended startup or contact with live
electrical components.

EYE PROTECTION. Always wear ANSI-approved

safety glasses or a face shield when operating
or observing machinery to reduce the risk of
eye injury or blindness from flying particles.
Everyday eyeglasses are not approved safety
glasses.

-7-

WEARING PROPER APPAREL. Do not wear

clothing, apparel, or jewelry that can become

HAZARDOUS

HEARING PROTECTION.

REMOVE ADJUSTING TOOLS.

INTENDED USAGE.

AWKWARD POSITIONS.

CHILDREN & BYSTANDERS.

GUARDS & COVERS.

FORCING MACHINERY. Do not force machine. It

will do the job safer and better at the rate for

loss of control. Before starting, verify machine

malfunction, leading to serious personal injury

from heated surfaces, high traffic areas, harsh

entangled in moving parts. Always tie back
or cover long hair. Wear non-slip footwear to
avoid accidental slips, which could cause loss
of workpiece control.

DUST. Dust created while using

SAFETY

machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of
dust hazards associated with each workpiece
material, and always wear a NIOSH-approved
respirator to reduce your risk.

Always wear hearing
protection when operating or observing
loud machinery. Extended exposure to this
noise without hearing protection can cause
permanent hearing loss.

Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys,
wrenches, or any other tools on machine.
Always verify removal before starting!

Only use machine for its
intended purpose—never make modifications
without prior approval from Woodstock
International. Modifying machine or using
it differently than intended will void the
warranty and may result in malfunction or
mechanical failure that leads to serious
personal injury or death!

Keep proper footing and
balance at all times when operating machine.
Do not overreach! Avoid awkward hand
positions that make workpiece control difficult
or increase the risk of accidental injury.

Keep children and
bystanders at a safe distance from the work
area. Stop using machine if they become a
distraction.

Model W1872 (For Machines Mfd. Since 06/20)

which it was designed.

NEVER STAND ON MACHINE. Serious injury may

occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during

operation greatly increases risk of injury or

is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for
recommended accessories. Using improper
accessories will increase risk of serious injury.

UNATTENDED OPERATION. To reduce the risk

of accidental injury, turn machine OFF and
ensure all moving parts completely stop
before walking away. Never leave machine
running while unattended.

MAINTAIN WITH CARE. Follow all maintenance

instructions and lubrication schedules to
keep machine in good working condition. A
machine that is improperly maintained could

or death.

CHECK DAMAGED PARTS. Regularly inspect

machine for any condition that may affect
safe operation. Immediately repair or replace
damaged or mis-adjusted parts before
operating machine.

MAINTAIN POWER CORDS. When disconnecting

cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the
cord may damage the wires inside, resulting
in a short. Do not handle cord/plug with wet
hands. Avoid cord damage by keeping it away

chemicals, and wet/damp locations.

accidental contact with moving parts or flying
debris—make sure they are properly installed,
undamaged, and working correctly.

Guards and covers reduce

EXPERIENCING DIFFICULTIES. If at any time

you experience difficulties performing the
intended operation, stop using the machine!

-8-

Contact Technical Support at [phone].

Model W1872 (For Machines Mfd. Since 06/20)

Additional Safety for Scroll Saws

Serious cuts or amputation can occur from contact with the moving saw blade during operation or
if blade breakage occurs. To reduce this risk, anyone operating this machine MUST completely heed
the hazards and warnings below.

SAFETY

HAND PLAC E M E NT. Never position fingers or

hands in line with the blade. If the workpiece
or your hands slip, serious personal injury
could occur.

INTENDED USE. This machine is intended for

cutting natural and man-made wood products,
and laminate covered wood products. This
machine is NOT designed to cut metal, glass,
stone, tile, etc.

BLADE

BLA

BLADE SPEED. Always allow blade to reach full

BLADE CONTROL. To avoid serious personal

CONDITION. Do not operate with dull,

cracked, or badly worn blade. Dull blades
require more effort to perform the cut and
increase the risk of kickback. Inspect blades
for cracks and missing teeth before each use.

DE TENSION. To avoid mishaps that could

result in operator injury, make sure blade
teeth face down toward the table and the
blade is properly tensioned before operating.

speed before starting the cut. Moving the
workpiece into a blade that is not at full
speed could cause the blade to break or grab
the workpiece and draw the operator’s hands
into the blade.

injury, DO NOT attempt to stop or slow the
blade with your hand or the workpiece. Allow
the blade to stop on its own.

BLADE GUARD. When properly adjusted, the

blade guard helps protect the operator’s
hands and fingers from accidental contact
with the moving blade. ONLY operate this
scroll saw with the blade guard in the proper
position. Keep the guard as close as possible
to the workpiece without interfering with the
intended operation.

CUTTING TECHNIQUES. Plan your operation so

the blade always cuts to the outside of the
workpiece. DO NOT back the workpiece away
from the blade while the saw is running,
as this could cause kickback and personal
injuries. If you need to back the workpiece
out of blade, turn scroll saw OFF and wait
for the blade to come to a complete stop.
DO NOT twist or put excessive stress on
the blade or it could damage/break blade.
Instead, use relief cuts for curve cuts that
may twist the blade.

LEAVING WORK AREA. Never leave a machine

running unattended. Allow the scroll saw to
come to a complete stop before you leave it
unattended.

SMALL WORKPIECE HANDLING. If your hands

slip while guiding small workpieces with your
fingers during a cut, amputation or laceration
injuries could occur. Always support/feed the
workpiece with push sticks, jig, vise, or some
type of clamping fixture.

FEED RATE. To avoid the risk of the workpiece

slipping and causing operator injury, always
feed stock evenly and smoothly. DO NOT
force or twist the blade while cutting,
especially when cutting small curves.

CUT-OFF PIECES. Never use your hands to move

cut-offs away from the blade while the saw
is running. If a cut-off becomes trapped
between the blade and table insert, turn the
saw OFF and allow the blade to completely
stop before removing it.

-9-

Model W1872 (For Machines Mfd. Since 06/20)

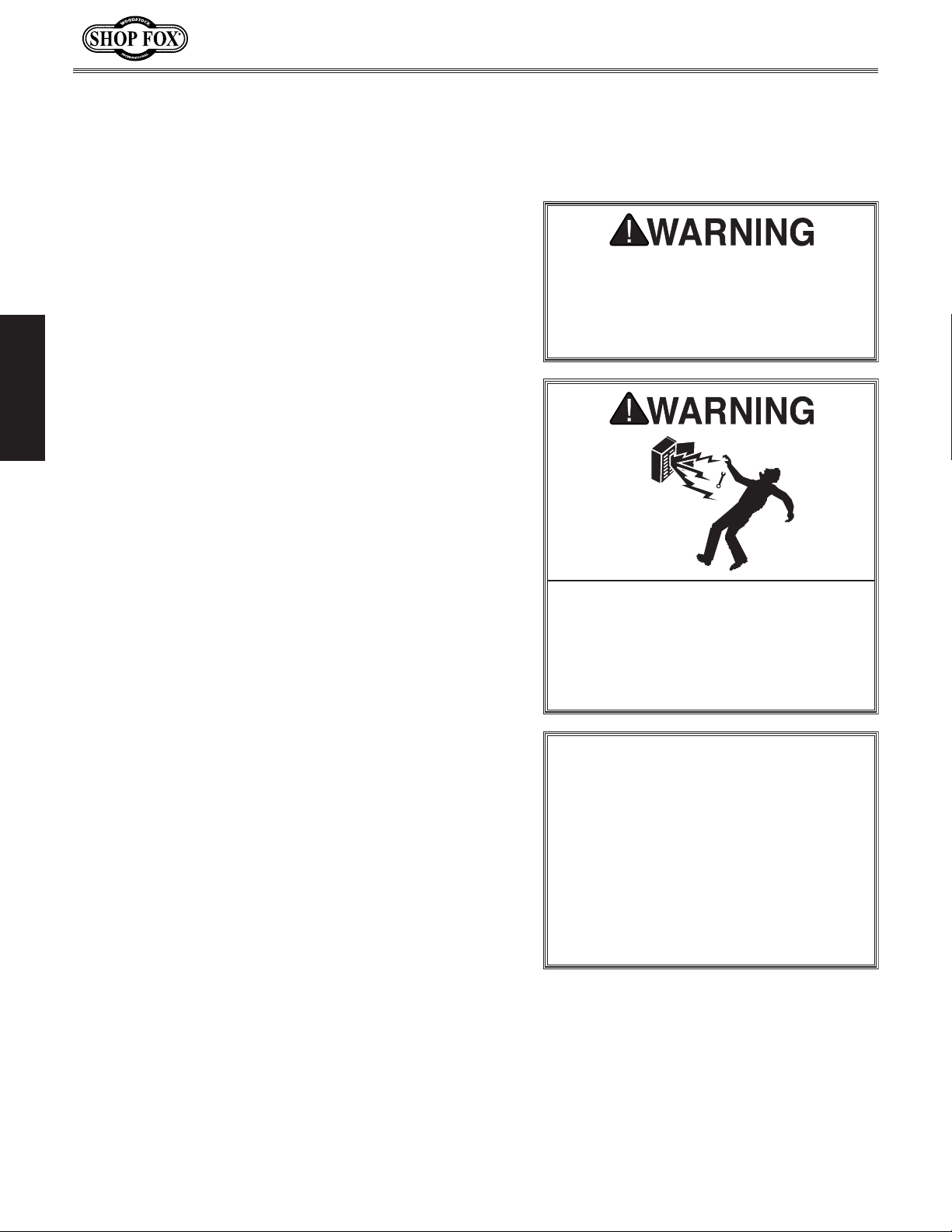

This machine must be connected to the correct size and
type of power supply circuit, or fire or electrical damage
may occur. Read through this section to determine if an
adequate power supply circuit is available. If a correct
circuit is not available, a qualified electrician MUST install
one before you can connect the machine to power.

A power supply circuit includes all electrical equipment
between the breaker box or fuse panel in the building
and the machine. The power supply circuit used for
this machine must be sized to safely handle the full­load current drawn from the machine for an extended
period of time. (If this machine is connected to a circuit
protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply
circuit that has a verified ground and meets the following
requirements:

The full-load current rating is the amperage a machine
draws at 100% of the rated output power. On machines
with multiple motors, this is the amperage drawn by the
largest motor or sum of all motors and electrical devices
that might operate at one time during normal operations.

or machine damage. To reduce this risk,

where only one machine will be running

multiple machines will be running at the

ELECTRICAL

Circuit Requirements

The machine must be properly set up
before it is safe to operate. DO NOT
connect this machine to the power
source until instructed to do so later
in this manual.

ELECTRICAL

Full-Load Current Rating

Full-Load Current Rating at 120V ................. 1.2 Amps

Circuit Requirements for 120V

Circuit Type .......110V, 115V, 120V, 60 Hz, Single-Phase

Circuit Size ............................................. 15 Amps

Plug/Receptacle .................................... NEMA 5-15

Incorrectly wiring or grounding this
machine can cause electrocution, fire,

only an electrician or qualified service
personnel should do any required
electrical work on this machine.

NOTICE

The circuit requirements listed in this
manual apply to a dedicated circuit—

at a time. If this machine will be
connected to a shared circuit where

same time, consult with an electrician
to ensure that the circuit is properly
sized for safe operation.

-10-

Model W1872 (For Machines Mfd. Since 06/20)

This machine MUST be grounded. In the event of certain
types of
a path of least resistance for electric current
order

Improper connection of the equipment-grounding

will
increase
insulation
grounding
cord or plug is necessary, do not connect the equipment­grounding

Check with a qualified electrician or service personnel
if
or if
properly grounded.
plug is damaged or worn, disconnect it from power, and
immediately replace it with a new one.

DO NOT modify the provided plug or
use an adapter if the plug will not
fit the receptacle. Instead, have an
electrician install the proper receptacle
on a power supply circuit that meets
the requirements for this machine.

We do not recommend using an extension cord with

Any extension cord used with this machine must contain a

plug and receptacle, and

meet the following requirements:

This machine is equipped with a power cord with an
equipment-grounding
plug
a matching
grounded in accordance with local codes and ordinances.

Grounding Requirements

malfunctions or breakdowns, grounding provides

to travel—in

to reduce the risk of electric shock.

wire

the risk of electric shock. The wire with green

(with/without yellow stripes) is the equipment-

wire. If repair or replacement of the power

wire to a live (current carrying) terminal.

you do not understand these grounding requirements,

you are in doubt about whether the tool is

If you ever notice that a cord or

For 120V Connection

wire and NE M A 5-15 grounding

(see figure). The plug must only be inserted into

receptacle that is properly installed and

120V

5-15 PLUG

Figure 4. NEMA 5-15 plug & receptacle.

GROUNDED

5-15 RECEPTACLE

Grounding Pin

Neutral Hot

ELECTRICAL

Extension Cords

this machine. Extension cords cause voltage drop, which
may damage electrical components and shorten motor
life. Voltage drop increases with longer extension cords
and smaller gauge sizes (higher gauge numbers indicate
smaller sizes).

ground wire, match the required

Minimum Gauge Size at 120V ...................... 16 AWG

Maximum Length (Shorter is Better) ................50 ft.

-11-

SETUP

This machine has been carefully packaged for safe
transportation. If you notice the machine has been
damaged during shipping, please contact your authorized
Shop Fox dealer immediately.

The following is a list of items shipped with your machine.
Before beginning setup, lay these items out and inventory
them.

Note:

check around/inside the machine and packaging materials.
Often, these items get lost in packaging materials while
unpacking or they are pre-installed at the factory.

Unpacking

Inventory

If you cannot find an item on this list, carefully

Model W1872 (For Machines Mfd. Since 06/20)

Keep machine disconnected from
power until instructed otherwise.

Box Inventory (Figure 5) Qty

A. Blade Guard ................................................1

SETUP

Dust Port Adapter .........................................1

B.

Miter Gauge ................................................1

C.

Hex Wrench 4mm ..........................................1

D.

Hex Wrench 2.5mm .......................................1

E.

Pin-End Blade 18 TPI ......................................1

F.

Blade Adapters .............................................2

G.

Flex-Shaft Rotary Tool (Figure 6)

H. Flex-Shaft Rotary Tool ....................................1

Collet Locking Pin 3mm ..................................1

I.

Drill Bit 1⁄8" .................................................1

J.

Collet Chuck Wrench ......................................1

K.

A

F

G

Figure 5. Box inventory items.

H

B

C

DE

-12-

K

Figure 6. Flex-shaft inventory items.

J

I

Model W1872 (For Machines Mfd. Since 06/20)

Refer to the Machine Specifications for the
weight and footprint specifications of your
machine. Some workbenches may require
additional reinforcement to support the weight
of the machine and workpiece materials.

Consider anticipated workpiece sizes and
additional space needed for auxiliary stands,
work tables, or other machinery when
establishing a location for this machine in the
shop. Below is the minimum amount of space
needed for the machine.

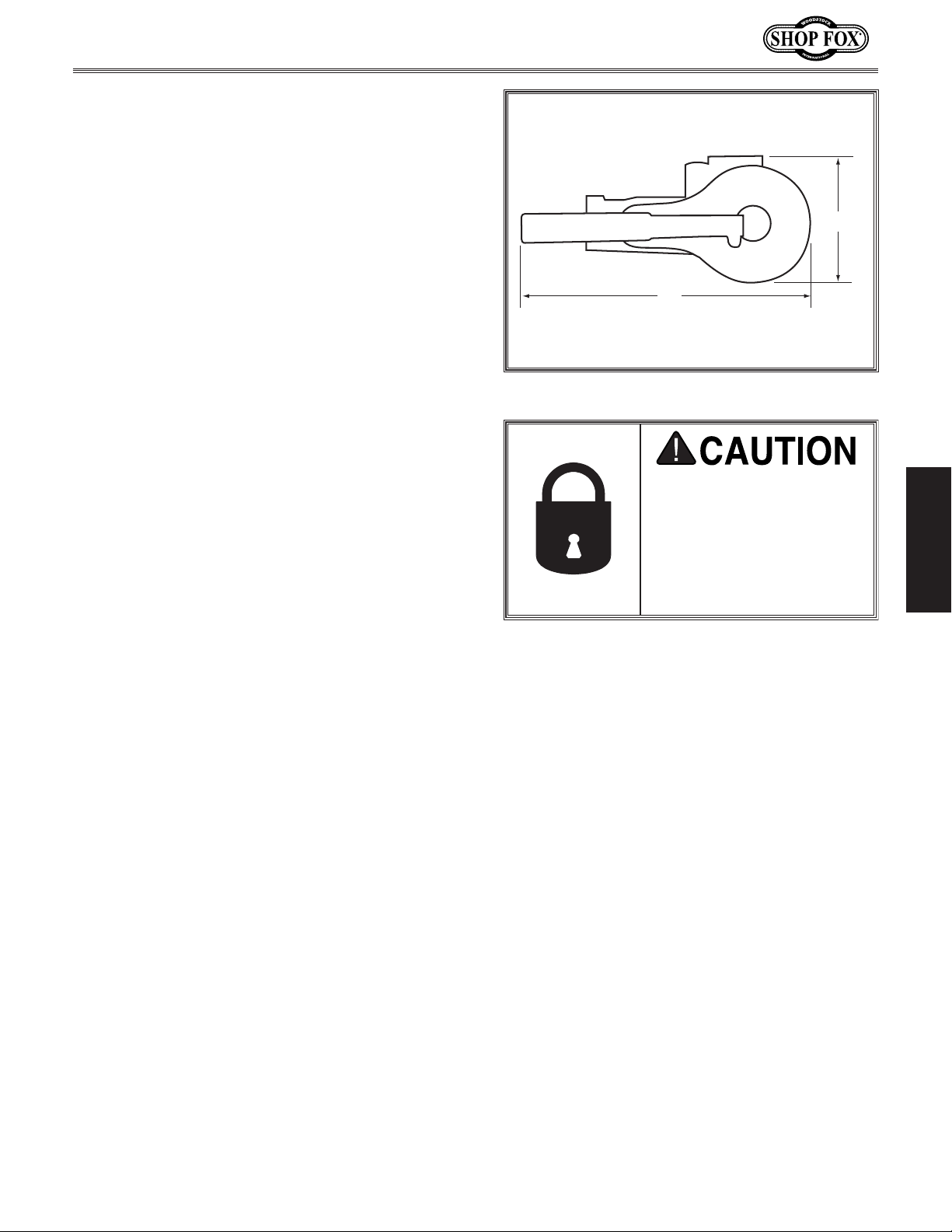

Machine Placement

Workbench Load

13"

Placement Location

25"

Figure 7. Minimum working clearances.

INJURY HAZARD! Untrained
users can injure themselves
with this machine. Restrict
access to machine when
you are away, especially if
it is installed where chil­dren are present.

SETUP

-13-

Bench Mounting

The base of this machine has mounting holes that allow it
to be fastened to a workbench or other mounting surface
to prevent it from moving during operation and causing
accidental injury or damage.

The strongest mounting option is a "Through Mount" (see
example) where holes are drilled all the way through the
workbench—and hex bolts, washers, and hex nuts are
used to secure the machine in place.

Another option is a "Direct Mount" (see example) where
the machine is secured directly to the workbench with lag
screws and washers.

Number of Mounting Holes .................................. 3

Diameter of Mounting Hardware Needed ..............3⁄8"

Model W1872 (For Machines Mfd. Since 06/20)

Bolt

Flat Washer

Machine Base

Workbench

Flat Washer

Lock Washer

Hex Nut

Figure 8. Typical "Through Mount" setup.

Lag Screw

SETUP

Flat Washer

Machine Base

Workbench

Figure 9. Typical "Direct Mount" setup.

-14-

Model W1872 (For Machines Mfd. Since 06/20)

Before beginning the assembly process, refer to Items
Needed for Setup

Ensure all parts have been properly cleaned of any
heavy-duty rust-preventative applied at the factory (if
applicable). Be sure to complete all steps in the assembly
procedure prior to performing the

or connecting

the machine to power.

Assembly

and gather everything you need.

Test Run

To assemble machine, do these steps:

1. Remove pre-installed cap screw, lock washer, and

flat washer from top of hold-down shoe rod shown in
Figure 10.

Attach blade guard to top of hold-down shoe rod

2.

with cap screw, lock washer, and flat washer (see
Figure 10).

Pivot guard up and down to ensure it moves

3.

smoothly. If necessary, loosen mounting screw to
allow movement.

Verify blade pins are seated in V-notch indents, as

4.

shown in Figure

Pinch blade and move it side to side with light

5.

pressure to verify it is tensioned so it will not come
off during operation. If adjustments are necessary,
refer to

Blade Tension instructions on Page 22.

11.

Blade Guard

Hold-Down

Shoe Rod

Figure 10. Blade guard installed.

Upper Mounting Arm

Pin-Ends

Figure 11. V-notch indent.

V-Notch

SETUP

-15-

6. Remove flex-shaft cap shown in Figure 12.

Insert inner spindle of flex-shaft into threaded shaft

7.

in saw, then turn flex-shaft clockwise to tighten, as
shown in

Figure 13.

Model W1872 (For Machines Mfd. Since 06/20)

Flex-Shaft Cap

Figure 12. Flex-shaft cap location.

Threaded

Shaft

Flex-Shaft

SETUP

Inner Spindle

Figure 13. Example flex-shaft installation.

Insert included drill bit or a tool bit (not included)

8.

into flex-shaft collet.

Insert collet locking pin into hole on collet and

9.

tighten bit with 9mm flat wrench by turning
clockwise, as shown in

Figure 14.

Drill Bit

Collet

9MM Flat Wrench

Collet

Locking

Pin

-16-

Figure 14. Securing drill bit in flex-shaft

collet.

Model W1872 (For Machines Mfd. Since 06/20)

Do not confuse this CFM recommendation with the rating
of the dust collector. To determine the CFM at the dust
port, you must consider these variables: (1) CFM rating of
the dust collector, (2) hose type and length between the
dust collector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines throughout
the system. Explaining how to calculate these variables
is beyond the scope of this manual. Consult an expert or
purchase a good dust collection “how-to” book.

Dust Collection

Recommended CFM at Dust Port: ................ 100 CFM

This machine creates substantial amounts of dust
during operation. Breathing airborne dust on a regu­lar basis can result in permanent respiratory illness.
Reduce your risk by wearing a respirator and captur­ing the dust with a dust collection system.

SETUP

Item(s) Needed Qty

Dust Collection System
Dust Hose 1
Hose Clamps 1

To connect a dust collection hose, do these steps:

1. Fit a 11⁄4" dust hose over dust port, as shown in
Figure

Tug hose to make sure it does not come off.

2.

Note: A tight fit is necessary for proper

performance.

If needed, use the included dust port adapter, as

3.

shown in
clamps.

1

⁄4" ..................................................1

1

⁄4" ...............................................2

15, and secure in place with hose clamp.

Figure 16. This will require (2) 11⁄2" hose

........................................1

Dust Port

Figure 15. Dust port connected to dust

collection system.

Figure 16. Dust port adapter.

-17-

Test Run

performed. Operating an improperly set

Once assembly is complete, test run the machine to
ensure it is properly connected to power and safety
components are functioning properly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from power,
and fix the problem BEFORE operating the machine again.
The

section of this

manual can help.

Troubleshooting table in the SERVICE

The Test Run consists of verifying the following: 1) The
motor powers up and runs correctly, and 2) the switch
disabling key disables switch properly.

To test run the machine, do these steps:

1. Clear all setup tools away from machine.

2. Make sure blade is properly installed and tensioned,

and that blade guard is in down position.

Model W1872 (For Machines Mfd. Since 06/20)

Serious injury or death can result
from using this machine BEFORE
understanding its controls and related
safety information. DO NOT operate, or
allow others to operate, machine until
the information is understood.

DO NOT start machine until all
preceding setup instructions have been

up machine may result in malfunction
or unexpected results that can lead
to serious injury, death, or machine/
property damage.

SETUP

Rotate variable-speed dial counterclockwise all the

3.

way.

Connect machine to power supply.

4.

5. Firmly hold flex-shaft rotary tool.

6. Turn machine ON, verify motor operation and

variable-speed dial, and then turn machine OFF.

Motor should run smoothly, without unusual noises.

7. Remove switch disabling key, as shown in Figure 17.

Try to start machine with switch. Machine should not

8.

start.

— If machine does not start, switch disabling feature

is working as designed.

— If machine does start, immediately stop machine.

The switch disabling feature is not working
correctly. This safety feature must work properly
before proceeding with regular operations. Call
Tech Support for help.

Remove flex-shaft rotary tool until you need to

9.

operate it, and re-install flex-shaft cap.

Figure 17. Removing switch disabling key

from toggle switch.

-18-

Model W1872 (For Machines Mfd. Since 06/20)

This machine will perform many types of operations
that are beyond the scope of this manual. Many of these
operations can be dangerous or deadly if performed
incorrectly.

The instructions in this section are written with the
understanding that the operator has the necessary
knowledge and skills to operate this machine. If at any
time you are experiencing difficulties performing any
operation, stop using the machine!

The overview below provides the novice machine operator
with a basic understanding of how the machine is used
during operation, so the machine controls/components
discussed later in this manual are easier to understand.
Due to its generic nature, this overview is
to be an instructional guide.

OPERATIONS

General

To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.

NOT intended

To complete a typical operation, the operator does the
following:

Examines workpiece to make sure it is suitable for

1.

cutting.

If necessary, adjusts table tilt to correct angle of

2.

desired cut.

Loosens hold-down shoe height knob, adjusts blade

3.

guard height to just clear workpiece (no more than

1

⁄4"), then retightens hold-down shoe height knob.

Verifies workpiece can safely pass all the way

4.

through blade without interference from other
objects.

Puts on safety glasses and a respirator.

5.

6. Starts dust collector and turns machine ON.

To reduce the risk of eye injury and
long-term respiratory damage, always
wear safety glasses and a respirator
while operating this machine.

If you are an inexperienced operator,
we strongly recommend that you read
books or trade articles, or seek training
from an experienced operator of this
type of machinery before performing
unfamiliar operations. Above all, safety

must come first!

OPERATIONS

Sets saw blade speed.

7.

8. Holds workpiece firmly and flat against table and

then pushes workpiece into blade at a steady and
controlled rate until cut is complete.

Rotates variable-speed dial to slowest speed, then

9.

turns machine OFF.

-19-

Model W1872 (For Machines Mfd. Since 06/20)

Basic Functions of a Scroll Saw

A properly adjusted scroll saw performs many
types of cuts with ease and accuracy. It is
capable of performing these types of cuts:

Straight Cuts

• Miters, angles and compound angles,
ripping, and crosscutting

Irregular Cuts

• Simple and complex curves, duplicate
parts, circles, and beveled curves

Basic Cutting Tips

Basic tips to follow when operating a scroll saw:

• Typically, a scroll saw blade stays sharp

• Best cutting results will be achieved when

1

from
on how blade is used and type of material
being cut.

cutting workpieces less than 1" thick. When
cutting workpieces thicker than 1", move
workpiece through the blade very slowly.

⁄2 hour to 2 hours of use, depending

Workpiece Inspection

Some workpieces are not safe to cut or may
require modification before they can be made
safe to cut.

inspecting all workpieces for the following:

• Material Type: This machine is intended

for cutting natural and man-made wood
products, laminate covered wood products,
and some plastics. Cutting drywall or
cementitious backer board creates
extremely fine dust and may reduce the
life of the bearings. This machine is NOT
designed to cut metal, glass, stone, tile,
etc.; cutting these materials with a scroll
saw may lead to injury.

• Foreign Objects: Nails, staples, dirt,

rocks and other foreign objects are often
embedded in wood. While cutting, these
objects can become dislodged and hit the
operator, cause kickback, or break the
blade, which might then fly apart. Always
visually inspect your workpiece for these
items. If they can't be removed, DO NOT
cut the workpiece.

Before cutting, get in the habit of

• Blades dull much faster when cutting

plywood, hardwoods, and laminates.

• Exerting excessive side pressure on blade

OPERATIONS

greatly increases chance of blade breakage.

• Plan cut before starting curves. Make relief

cuts in waste areas near tight inside curves
or leave tight inside curves for a second
pass to minimize backing out. Cut sharp
outside curves by cutting past curve and
looping around to cut from different angle.

• When approaching tight radius, slow down

feed rate, but don’t stop. Give teeth time
to make cut. Forcing workpiece through
curve will cause blade to twist or break.

• If cut produces waste in curve’s interior,

turn power OFF and wait until all motion
stops before removing waste.

• Scroll saw blades have a tendency to drift.

This is compensated by adjusting the feed
direction.

• Large/Loose Knots: Loose knots can

become dislodged during the cutting
operation. Large knots can cause kickback
and machine damage. Choose workpieces
that do not have large/loose knots or plan
ahead to avoid cutting through them.

• Wet or "Green" Stock: Cutting wood

with a moisture content over 20% causes
unnecessary wear on the blades, increases
the risk of kickback, yields poor results.

• Excessive Warping: Workpieces with

excessive cupping, bowing, or twisting are
dangerous to cut because they are unstable
and often unpredictable when being
cut. DO NOT use workpieces with these
characteristics!

• Minor Warping: Workpieces with slight

cupping can be safely supported if the
cupped side faces the table. On the
contrary, a workpiece supported on the
bowed side will rock during a cut and could
cause kickback or severe injury.

-20-

Model W1872 (For Machines Mfd. Since 06/20)

Hold-Down Shoe

& Blade Guard

The hold-down shoe and blade guard are mounted on the
same rod and are adjusted together. The hold-down shoe
keeps the workpiece from raising up from the force of the
moving blade. The blade guard helps prevent debris from
flying at the operator and acts as a barrier between the
blade and the operator's hands, thus reducing the risk of
accidental contact.

Item(s)

Hex Wrench 4mm

To adjust hold-down shoe and blade guard, do these
steps:

1.

2. Loosen hold-down shoe lock knob and shoe screw

3.

Note: When tilting table for angle cutting

Needed Qty

...............................................1

DISCONNECT MACHINE FROM POWER!

shown in Figure 18.

Adjust shoe so it is no more than 1⁄16" above

workpiece.

operations, adjust shoe so it is parallel with table.

Hold-Down

Shoe Lock

Knob

Blade Guard

Shoe Screw

Figure 18. Hold-down shoe and blade

guard assembly.

Hold-Down Shoe

OPERATIONS

Lower blade guard over shoe.

4.

5. Re-tighten hold-down lock knob and shoe screw, then

verify workpiece moves smoothly under shoe.

Chip Blower

The chip blower moves air across the blade to keep wood
debris away from the line of the cut. This makes it easier
to follow your cutting lines with accuracy.

Standard Scroll Cuts

For standard scroll cutting, follow the pattern line on the
workpiece by pushing and turning the workpiece at the
same time, which allows the kerf of the cut to make way
for the turn.

DO NOT turn the workpiece without pushing it through
the blade at the same time; otherwise, the blade could
twist and break. See
standard scroll cutting.

Figures 19–20 for examples of

Figure 19. Example of making a straight

cut.

Figure 20. Example of making a curved

cut.

-21-

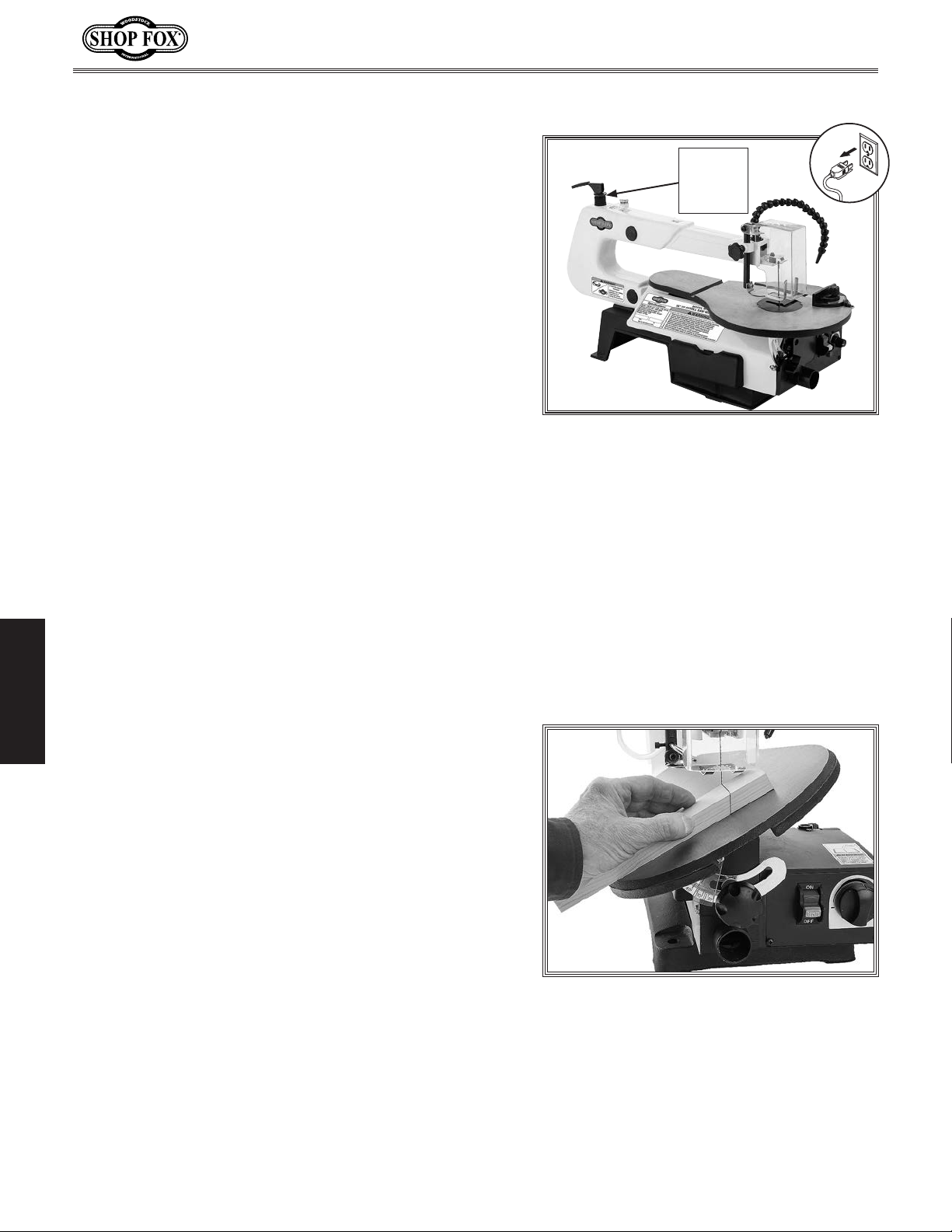

Blade Tension

If the blade is not tensioned enough, it will drift while
cutting, making it difficult to follow your cutting lines. If
the blade is tensioned too tightly, it can break or cause
damage to the saw.

Model W1872 (For Machines Mfd. Since 06/20)

Blade

Tension

Knob

Adjust blade tension using the knob shown in Figure
Turn the blade tension knob clockwise to increase the
blade tension and counterclockwise to decrease it.

To check/adjust blade tension, do these steps:

1. DISCONNECT MACHINE FROM POWER!

2. Pivot blade guard up.

3. Pinch blade and move it side to side with light

pressure to check tension. When properly tensioned,
center of blade will deflect only slightly when
moved, and blade ends will remain firmly in
position.

Tighten/loosen blade as necessary and pivot blade

4.

guard down. Perform a test cut on a scrap piece
of wood and repeat this entire procedure if further
adjustments are necessary.

21.

Figure 21. Location of blade tension knob.

Bevel Cuts

Bevel cuts can be used for miters, cope joints, and

OPERATIONS

making relief or recessed projects.

To make a bevel cut, do these steps:

1. Draw your cutting path pattern on workpiece.

2. Adjust table to desired angle.

3. Turn machine ON, then feed workpiece slowly

and evenly into blade. Remember not to force
workpiece. Allow the blade to do the cutting
according to the rate it was designed for (see
Figure 22).

Turn machine OFF, then wait until blade stops

4.

before removing any chips/dust near blade that
didn't get removed by chip blower.

Figure 22. Example of making a bevel cut.

-22-

Model W1872 (For Machines Mfd. Since 06/20)

Inside Cuts

Inside cuts can be easily made with your scroll saw by
threading the blade through a hole drilled in the workpiece.
The flex-shaft rotary tool on the W1872 can be used to
assist with this drilling.

To make an inside cut, do these steps:

1. Drill a 1⁄4" hole in the workpiece inside scrap area of

internal cut.

DISCONNECT MACHINE FROM POWER!

2.

3. Remove blade from saw.

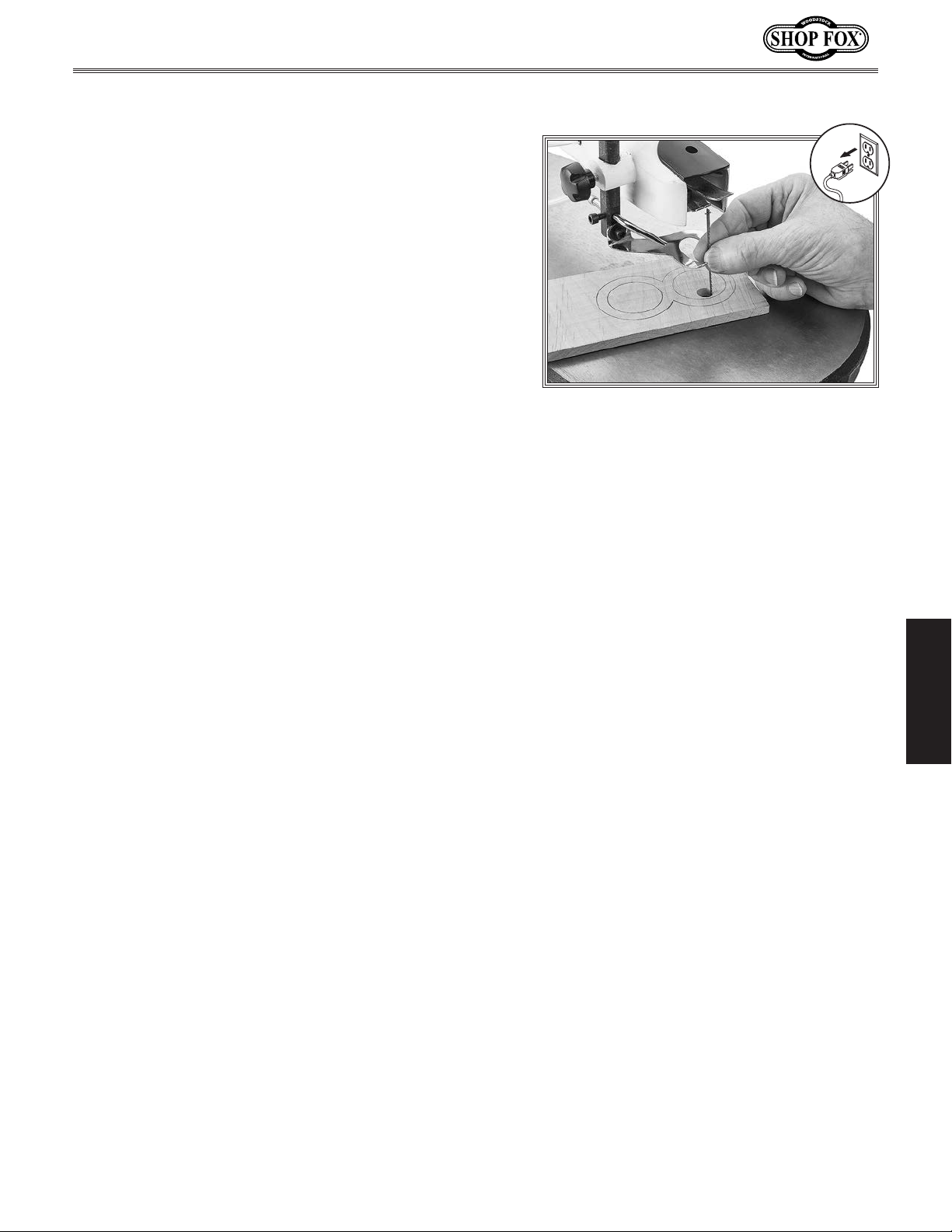

4. Insert blade through previously drilled hole in

workpiece (see Figure 23).

Note: If using a plain-end blade, remove one blade

adapter to allow the blade to be inserted through
the workpiece, then re-install the adapter on the
blade.

Figure 23. Example of installing blade for

an inside cut.

Re-install blade.

5.

6. Adjust hold-down shoe and guard, connect saw to

power, then perform cut.

When finished, disconnect saw from power, remove

7.

blade from saw and workpiece, remove workpiece,
then re-install blade on saw.

OPERATIONS

-23-

Blade Speed

The variable-speed dial shown in Figure 24 adjusts the
blade speed between 550–1650 SPM (strokes per minute).

To reduce the risk of injury from unexpected fast speed
at startup, always rotate the variable-speed dial to its
slowest setting when starting/stopping the scroll saw.

Model W1872 (For Machines Mfd. Since 06/20)

Variable-Speed Dial

Figure

24. Variable-speed dial.

Blade Selection

Scroll saw blades are classified as either "pin-end" (mounting pins in the ends of the blade) or "plain
end" (no pins). The blade included with your scroll saw is a "pin-end" blade. However, the W1872 can use
"plain-end" blades using the included adapters.

The typical format for blade identification is:

Teeth Per Inch Width Thickness Strokes Per Minute Workpiece Material

10 TPI 0.110" 0.020" 120 0–1650 General purpose cutting. Hard and soft

woods between
plastics, paper, felt, and bone.

15 TPI 0.110 " 0.020" 700–1200 Thin wood and plastic between

OPERATIONS

18 TPI 0.095" 0.010" 550–70 0 Tight radius cutting in thin hard and soft

woods between
pieces of bone, plastics, and veneer.

Figure 25. Blade Identification.

Note: There may be other numbers or letters that have meaning for a particular type of blade. Always

refer to the manufacturer's technical data for a complete explanation when choosing a scroll saw blade.

3

⁄16"–2". Also good for

3

⁄32" –1⁄2".

3

⁄32"– 1⁄8". Also good for thin

-24-

Model W1872 (For Machines Mfd. Since 06/20)

Installing Pin-End Blades

The V-notches of the upper and lower blade holders are
designed to hold pin-end blades (see Figure 26).

Item(s) Needed Qty

Phillips Head Screwdriver .....................................1

To install a pin-end blade, do these steps:

DISCONNECT MACHINE FROM POWER!

1.

2. Rotate blade tension knob counterclockwise to

decrease blade tension.

Position hold-down shoe at maximum height and

3.

swing blade guard up and out of the way to give you
working room.

Remove table insert, then use Phillips head

4.

screwdriver to remove screws from lower arm guard
shown in

Figure 27.

Pin-End

Figure 26. Pin-end and plain-end blade

comparison.

Table Insert

Plain-End

5.

Push down on upper blade mounting arm shown

in Figure 28, slide blade out of upper and lower
mounting arms, and then remove blade.

Slide saw blade through table hole so teeth face

6.

down and forward (see Figure 29).

Position lower pin-ends underneath V-notch in lower

7.

blade holder, as shown in Figure 29.

Note: Wiggle the blade end back and forth with

slight pressure to make sure the pins are seated in
the indents of the mounting arm.

Push upper blade mounting arm down, then slide

8.

upper pin-ends onto V-notch of the blade holder, as
shown in

Replace table insert and arm guard.

9.

10. Tension blade.

Figure 28.

Arm Guard

Screws

Figure 27. Table insert and arm guard.

Upper Mounting Arm

Pin-Ends

Figure 28. Upper blade mounting arm.

Lower

Mounting Arm

V-Notch

OPERATIONS

-25-

V-Notch

Figure 29. Lower blade mounting arm.

Model W1872 (For Machines Mfd. Since 06/20)

Installing Plain-End Blades

The V-notches of the upper and lower blade holders are
designed to hold pin-end blades. However, with the use
of the blade adapters, plain-end blades can be used with
your scroll saw.

Item(s) Needed Qty

Hex Wrench 2.5mm .............................................1

To install a plain-end blade, do these steps:

DISCONNECT MACHINE FROM POWER!

1.

2. Repeat Steps 1–5 on Page 25.

Loosen blade adapter set screws to allow saw blade

3.

ends to slide into adapters (see Figure 31).

Place adapters and blade in indents on top arm, as

4.

shown in Figure 30, with blade facing up.

Thread one set screw in until it just makes contact

5.
with blade. Then tighten other set screw (see Figure

31).

Blade Adapters

Figure 30. Adapters in indexing slots.

Set

Screw

Figure 31. Plain-end blade adapter.

Set

Screw

Blade

Tighten remaining adapter set screws to secure blade.

6.

Slide one end of blade assembly through hold-down

7.

shoe, and place adapter over upper mounting arm

Figure 32).

(see

OPERATIONS

While holding adapter, press it down and install

8.

other adapter on lower mounting arm (see
on Page 25).

Replace table insert and arm guard, adjust hold-

9.

down shoe, then tension blade.

Using Flex-Shaft Tool

To operate flex-shaft rotary tool, do these steps:

1. Position guard so it covers hold-down shoe and

touches table (see Figure 33).

Hold flex-shaft rotary tool, turn power ON, and

2.

select desired speed for operation using variable
speed dial.

Upper Mounting Arm

Adapter

Figure 29

Figure 32. Blade adapter installed.

Blade Guard

After completing work with flex-shaft rotary tool,

3.

remove it from machine and re-install flex-shaft cap.

Figure 33. Blade guard position example.

-26-

Model W1872 (For Machines Mfd. Since 06/20)

ACCESSORIES

Scroll Saw Accessories

The following Scroll Saw accessories may be available through your local Woodstock International
Inc. Dealer. If you do not have a dealer in your area, these products are also available through online
dealers. Please call or e-mail Woodstock International Inc. Customer Service to get a current listing of
dealers at: 1-800-840-8420 or at [email protected].

D2 056 —Tool Ta ble
Great for bench-top tools like scroll saws. Support cross braces on top
provide incredible strength and capacity. Flared legs and adjustable
rubber feet ensure stability and reduce machine vibration. Butcher
block laminate table top measures 13" x 23" and is 30
measures 21" x 32". 700 lb. capacity.

1

⁄2" tall. Bottom

D2675—Safety Glasses Metal Frame
A metal band across the top of these glasses are not only stylish, but
it adds strength. This band is linked to the metal ear pieces through a
tough hinge. These glasses have a wide field of view and side shields
for added protection. Exceeds ANSI Z87.1 - 1989 standards for impact
resistance.

D4251—Universal Adapter
Reduce dust collection hose from 4" to 1" OD in 2
steps. Simply cut off what you don't need. Heavy wall thickness stands
up to hose clamp pressure.

W1844—Wall-Mount Dust Collector with Canister Filter
Equipped with a 1 HP motor that provides 537 CFM air suction through
a 4" intake hole.

3

⁄4", 23⁄8" and 17⁄8" OD

OPERATIONS

-27-

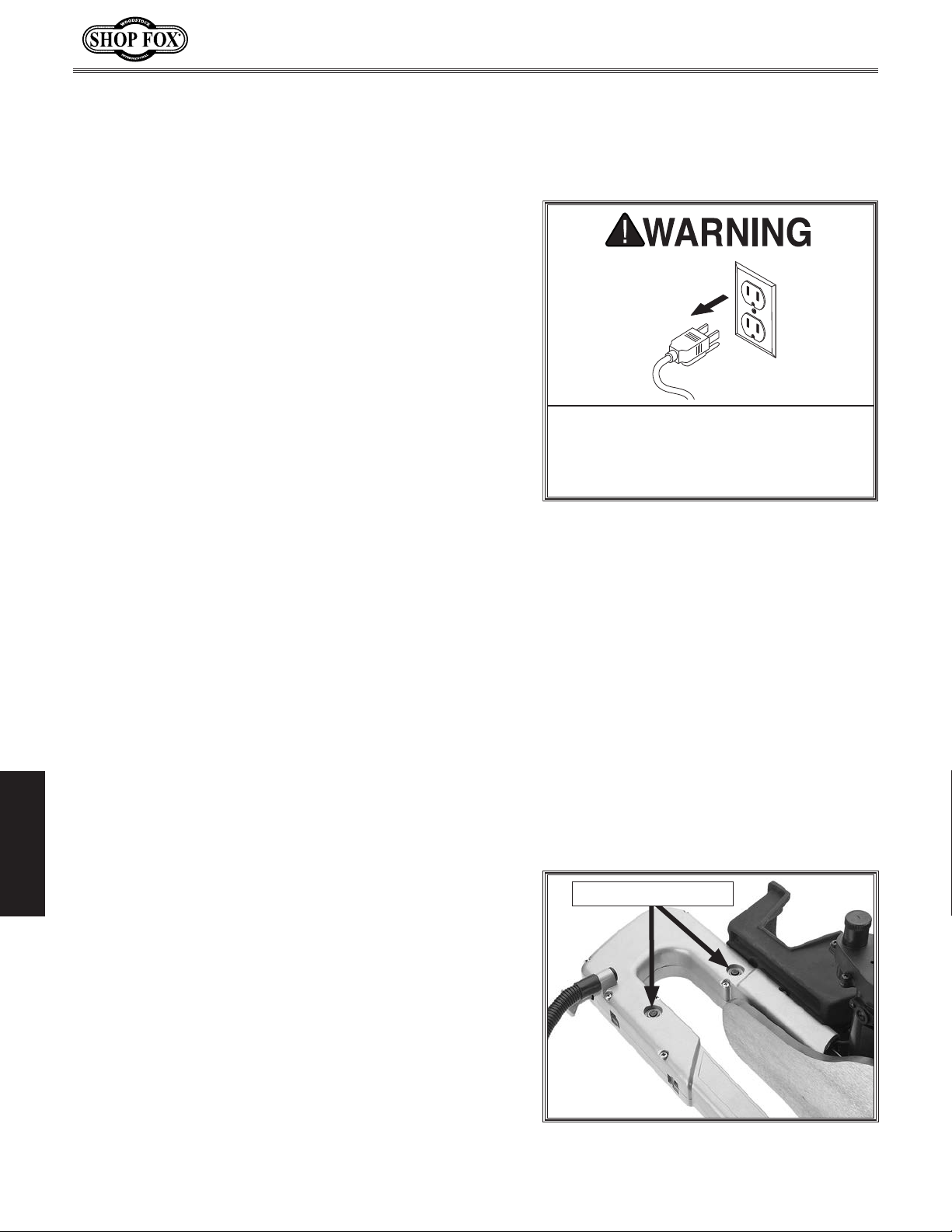

MAINTENANCE

General

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine immediately
if you ever observe any of the items below and fix the
problem before continuing operations:

• Loose mounting bolts.

• Damaged saw blade.

• Worn or damaged wires.

• Any other unsafe condition.

• Oil bearings, see below.

Model W1872 (For Machines Mfd. Since 06/20)

MAKE SURE that your machine is
unplugged during all maintenance
procedures! If this warning is ignored,
serious personal injury may occur.

Cleaning & Protecting

Cleaning Model W1872 is relatively easy. Vacuum excess
wood chips and sawdust, and wipe off remaining dust with
a dry cloth. If any resin has built up, use a resin dissolving
cleaner to remove it. Keep your table rust-free with
regular applications of quality lubricants. If excessive
sawdust accumulates around the motor, remove arm guard
and remove sawdust with a vacuum.

Lubrication

The upper and lower arms have two sleeve bearings each
that require lubrication with SAE 30 oil after every 8
hours of machine use.

To lubricate sleeve bearings, do these steps:

MAINTENANCE

1.

DISCONNECT MACHINE FROM POWER!

2. Remove plastic caps to expose sleeve bearing ends

Figure 34).

(see

Sleeve Bearing Ends

Lay saw flat on its side (see Figure 34), then apply a

3.

generous amount of light machine oil to cups around
bearing ends. Let oil seep into bearings for 1-2 hours.

Wipe off excess oil, turn saw over, and repeat Step 3

4.

with remaining two bearings.

Replace plastic caps before beginning operation.

5.

-28-

Figure 34. Plastic caps removed to expose

sleeve bearing ends.

Model W1872 (For Machines Mfd. Since 06/20)

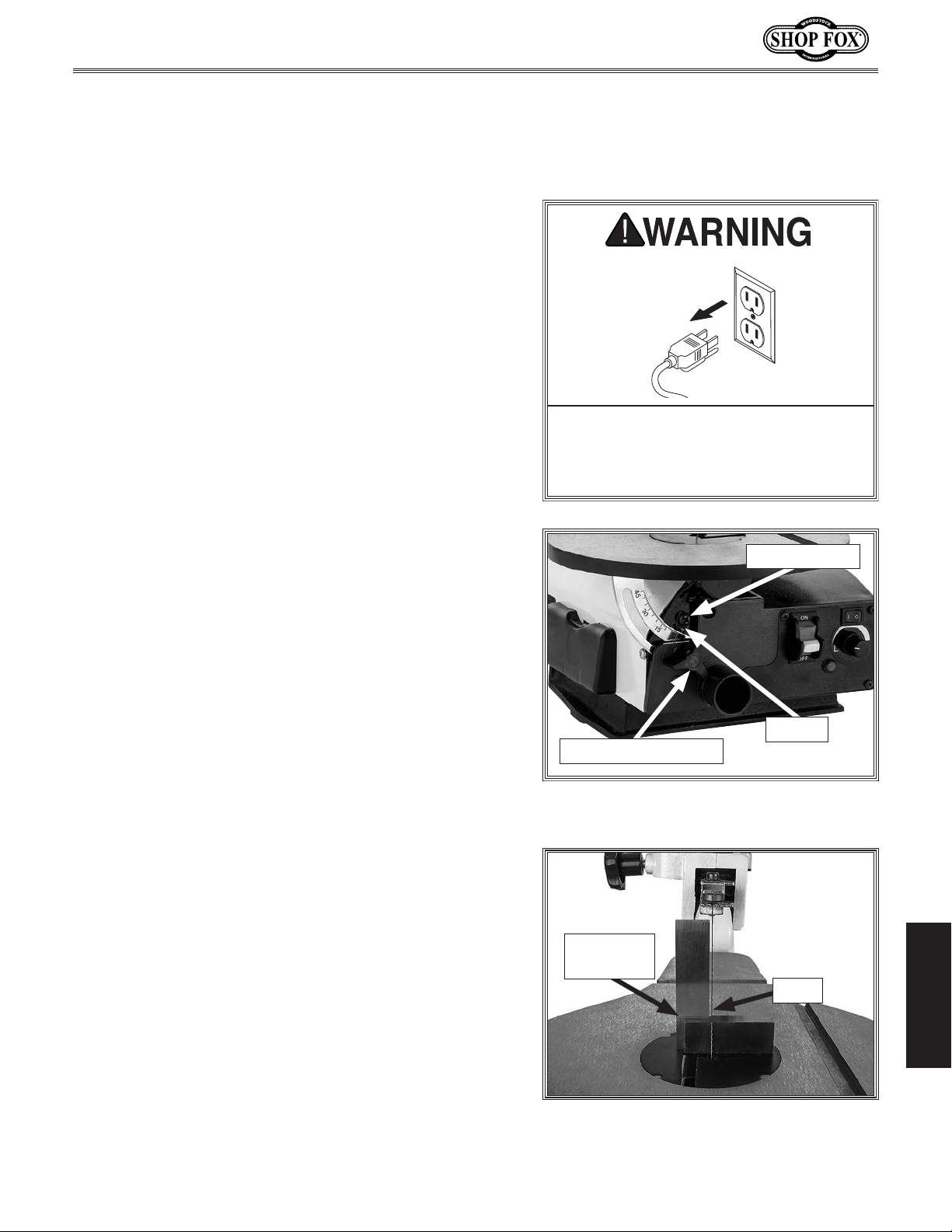

This section covers the most common service adjustments
or procedures that may need to be made during the life
of your machine.

If you require additional machine service not included
in this section, please contact Woodstock International
Technical Support at [phone] or send e-mail to:
[email protected].

SERVICE

General

Calibrating Table Tilt

The table tilt lock knob and tilt scale are used to tilt the
table for horizontal angle cuts.

Note: The table tilt scale is only an approximate scale
and should not be used when precise angle measurements
are required for the operation.

Item(s) Needed Qty

Phillips Screwdriver #2 .........................................1

Wrench 10mm
Machinist's Square 2"

To calibrate table tilt, do these steps:

1. DISCONNECT MACHINE FROM POWER!

Raise hold-down shoe to maximum height and lock it

2.

in place.

Loosen table tilt lock knob (see Figure 35).

3.

...................................................1

...........................................1

MAKE SURE that your machine is
unplugged during all service proce­dures! If this warning is ignored, seri­ous personal injury may occur.

Pointer Screw

Pointer

Table Tilt Lock Knob

Figure 35. Components for calibrating

table tilt.

Place machinist's square behind blade, as shown in

4.
Figure 36.

Adjust table to be square with blade, then tighten

5.

lock knob.

Loosen pointer screw, adjust tip to 0° mark on scale,

6.

then tighten screw to secure setting.

-29-

Machinist's

Square

Blade

Figure 36. Squaring table to blade.

SERVICE

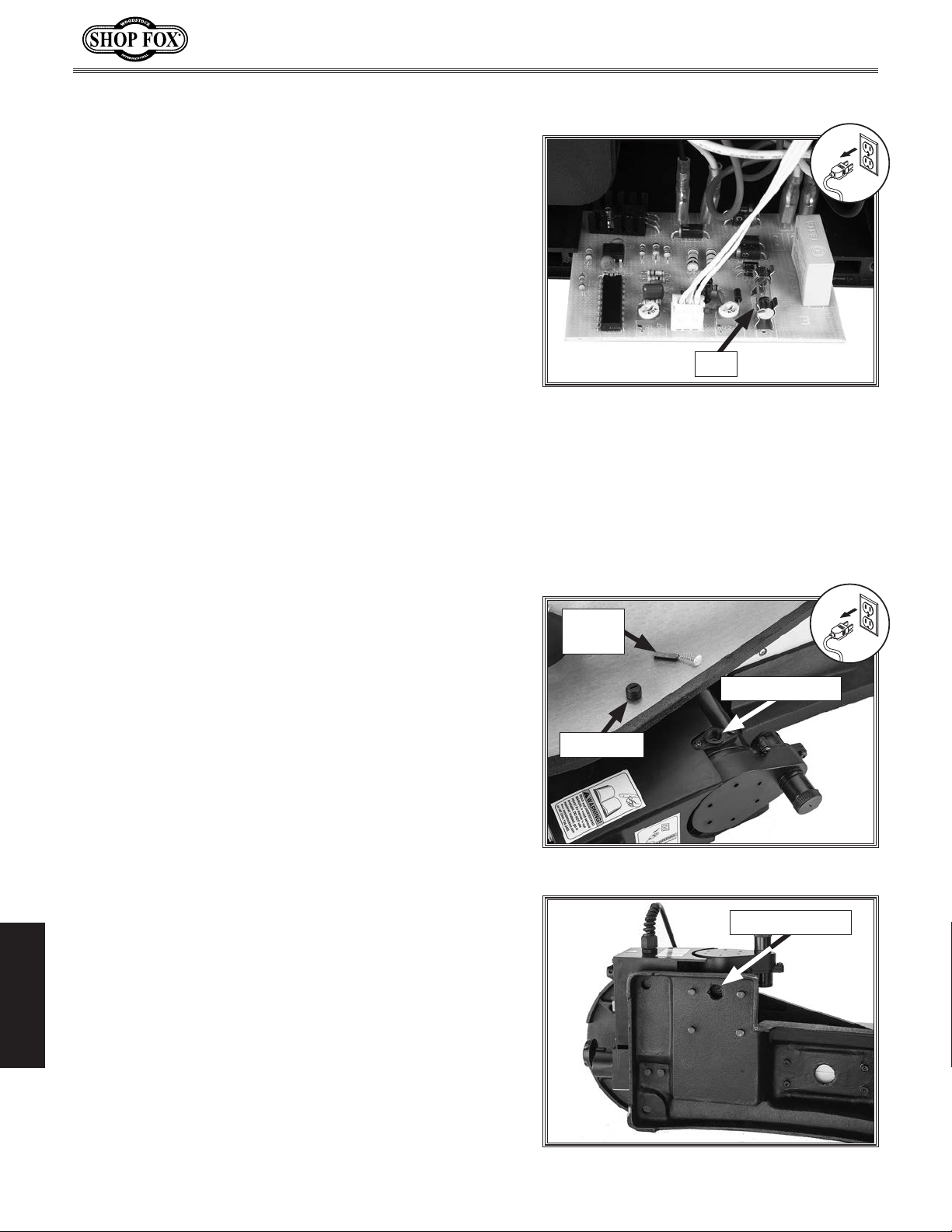

Replacing Fuse

The purpose of the fuse is to protect the motor and
circuit board.

If the fuse blows, the light will turn ON but the motor
will not start. You can verify if the fuse has blown or not
by holding it up to the light and inspecting the element
inside the glass (the element looks like a thin wire). If the
fuse is blown the element will be broken in half.

Item(s) Needed Qty

Fuse 5A 250V 0.18" Fast-Acting, Glass .......................1

To replace the fuse, do these steps:

1. DISCONNECT MACHINE FROM POWER!

2. Remove switch cover, slide circuit board partially

out, remove fuse (see
one.

Figure 37), and install a new

Model W1872 (For Machines Mfd. Since 06/20)

Fuse

Figure 37. Fuse location on circuit board.

Re-install circuit board and cover.

3.

Replacing Motor Brushes

The motor brushes wear with use. When they require
replacement, the motor will stop operating correctly,
fail to start, or cut in and out during operation. Always
replace both brushes at the same time.

Item(s) Needed Qty

Flat Head Screwdriver .........................................1

Motor Brushes (X1872126)

To inspect/replace motor brushes, do these steps:

1. DISCONNECT MACHINE FROM POWER!

Remove upper motor brush cap and motor brush,

2.

as shown in
replace cap.

Turn machine on its side.

3.

Figure 38, then install new brush and

.....................................2

Motor
Brush

Brush Location

Brush Cap

Figure 38. Upper motor brush location.

Brush Location

SERVICE

4. Remove lower brush cap and motor brush, accessing
them through a hole in bottom of base (see
Figure 39).

Replace brush assembly and secure with brush cap.

5.

Figure 39. Lower motor brush location.

-30-

Model W1872 (For Machines Mfd. Since 06/20)

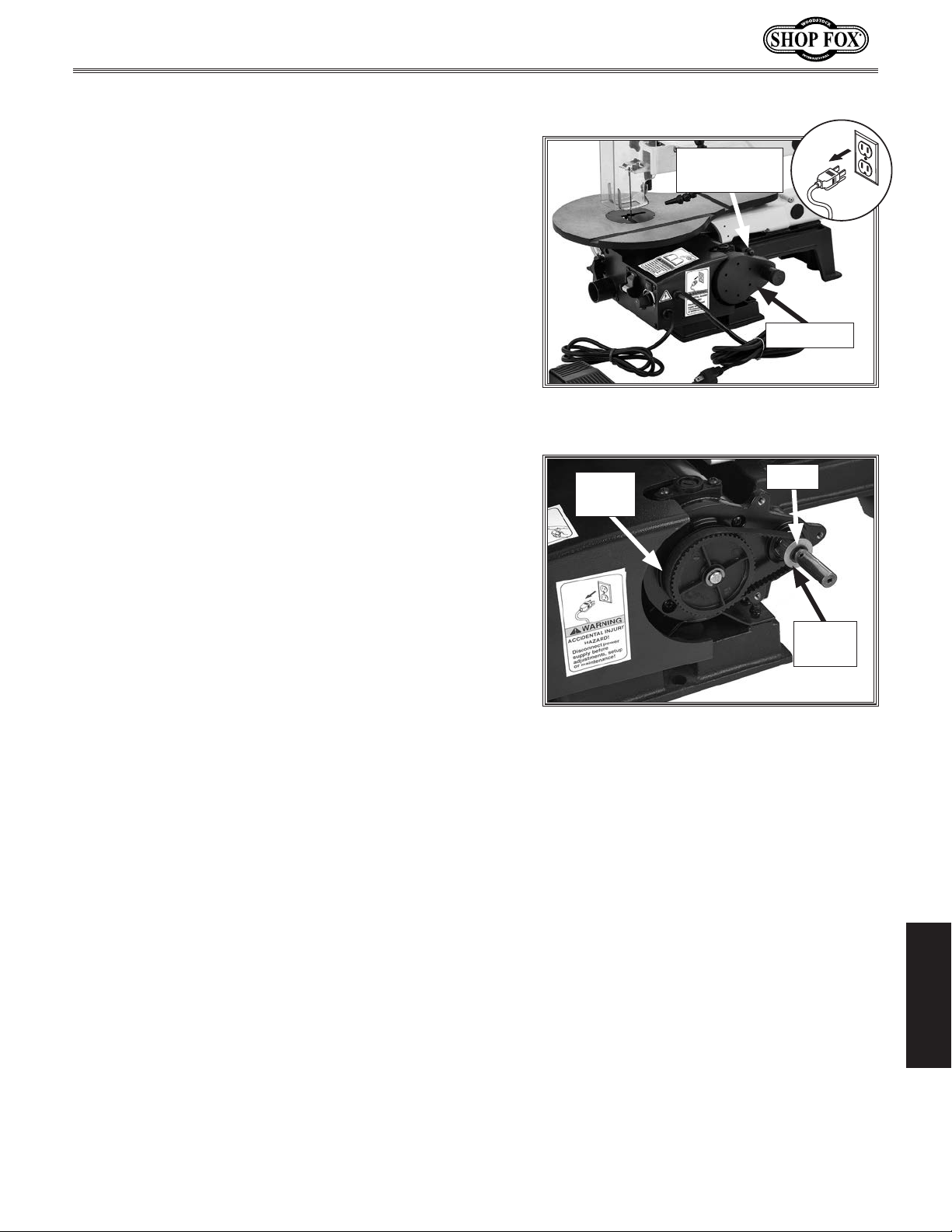

Replacing Timing Belt

If you hear unusual sounds coming from the motor or
notice that the flex-shaft rotary tool stops working, the
timing belt may be broken. If this happens, it must be
replaced before further operation to avoid damaging the
plastic motor pulley.

To replace timing belt, do these steps:

1. DISCONNECT MACHINE FROM POWER!

Phillips Head

Screw

2. Remove flex-shaft rotary tool, if installed.

Remove three screws that secure belt cover (see

3.
Figure 40), then remove cover.

Remove E-clip and flat washer from drive shaft (see

4.
Figure 41), remove timing belt from pulleys, then

slide new timing belt onto pulleys.

Re-install belt cover with screws removed in Step 3,

5.

then re-install flex-shaft rotary tool.

Belt Cover

Figure 40. Timing belt cover screw

location.

Timing

Belt

Figure 41. Timing belt and pulleys.

E-Clip

Flat

Washer

-31-

SERVICE

Model W1872 (For Machines Mfd. Since 06/20)

The following troubleshooting tables cover common problems that may occur with this machine. If you
need replacement parts or additional troubleshooting help, contact our Technical Support.

Note:

available, your original purchase receipt. This information is required to properly assist you.

Troubleshooting

Before contacting Tech Support, find the machine serial number and manufacture date, and if

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Machine does not
start, or power
supply fuse/breaker
trips immediately
after startup.

Machine stalls or is
underpowered.

Machine has vibra­tion or noisy
operation.

Blade will not stay
on layout line.

Excessive blade
breakage.

1. Variable-speed potentiometer at fault.

2. Switch disabling key removed.

3. Power supply circuit breaker tripped or
fuse blown.

4. Incorrect power supply voltage or circuit
size.

5. Circuit board at fault.

6. Motor at fault.

1. Blown fuse.

2. Incorrect workpiece material.

3. Feed rate/cutting speed too fast.

4 Machine undersized for task.

5. Motor brushes at fault.

6. Motor has overheated.

1. Motor or component loose.

2. Blade at fault.

3. Incorrectly mounted to workbench.

4. Motor mount loose/broken.

1. Blade not tensioned correctly.

2. Too much pressure applied to workpiece.

3. Blade holders not aligned correctly.

1. Blade not tensioned correctly.

2. Not using relief cuts when cutting tight
curves; twisting blade.

3. Wrong blade for operation.

4. Too much pressure on blade.

5. Incorrect blade for cutting task.

1. Test/repair if at fault.

2. Install switch disabling key.

3. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

4. Ensure correct power supply voltage and circuit
size.

5. Inspect/replace if at fault.

6. Test/repair/replace.

1. Replace fuse/ensure no shorts.

2. Inspect/replace if wrong material.

3. Decrease feed rate/cutting speed.

4. Use correct blade/reduce feed rate or depth of cut.

5. Remove/replace brushes (refer to Page 30).

6. Let motor cool; reduce workload.

1. Replace damaged or missing bolts/nuts or tighten if
loose.

2. Replace warped/bent blade.

3. Tighten mounting hardware (refer to Page 14).

4. Tighten/replace.

1. Properly tension blade (refer to Page 22).

2. Reduce feed rate and pressure on workpiece.

3. Re-adjust blade holders so they are aligned in a
straight line with saw.

1. Properly tension blade (refer to Page 22).

2. Use more relief cuts for tight turns; reduce feed
rate; do not twist blade—allow blade to do the
work.

3. Refer to the Blade Selection Chart on Page 24 and
use correct blade for operation.

4. Reduce pressure on workpiece as it passes through
blade.

5. Select correct blade for task.

SERVICE

-32-

Model W1872 (For Machines Mfd. Since 06/20)

These pages are current at the time of printing. However, in the spirit of improvement, we may make
changes to the electrical systems of future machines. Compare the manufacture date of your machine to

If there are differences between your machine and what is shown in this section, call Technical Support

for assistance BEFORE making any changes to the wiring on your machine. An updated

machine before calling. This information can be found on the main machine label.

Electrical Safety Instructions

the one stated in this manual, and study this section carefully.

at [phone]
wiring diagram may be available. Note: Please gather the serial number and manufacture date of your

SHOCK HAZARD. Working on wiring that is

connected to a power source is extremely
dangerous. Touching electrified parts will
result in personal injury including but not
limited to severe burns, electrocution,
or death. Disconnect the power from
the machine before servicing electrical
components!

QUALIFIED ELECTRICIAN. Due to the inherent

hazards of electricity, only a qualified
electrician should perform wiring tasks on
this machine. If you are not a qualified
electrician, get help from one before
attempting any kind of wiring job.

WIRE CONNECTIONS. All connections must

be tight to prevent wires from loosening
during machine operation. Double-check all
wires disconnected or connected during any
wiring task to ensure tight connections.

WIRE/COMPONENT DAMAGE. Damaged wires

or components increase the risk of serious
personal injury, fire, or machine damage. If
you notice that any wires or components are
damaged while performing a wiring task,
replace those wires or components before
completing the task.

MODIFICATIONS. Using aftermarket parts or

modifying the wiring beyond what is shown
in the diagram may lead to unpredictable
results, including serious injury or fire.

MOTOR WIRING. The motor wiring shown

in these diagrams is current at the time
of printing, but it may not match your
machine. Always use the wiring diagram
inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors

and power inverters store an electrical
charge for up to 10 minutes after being
disconnected from the power source.
To reduce the risk of being shocked,
wait at least this long before working on
capacitors.

CIRCUIT REQUIREMENTS. You MUST follow

the requirements at the beginning of this
manual when connecting your machine to a
power source.

EXPERIENCING DIFFICULTIES. If you are

experiencing difficulties understanding
the information included in this section,
contact our Technical Support at

[phone].

SERVICE

WIRING DIAGRAM COLOR KEY

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.shopfox.biz.

BLACK

WHITE

GREEN

RED

BLUE

BROWN

GRAY

ORANGE

-33-

YELLOW
YELLOW

GREEN
PURPLE

PINK

LIGHT
BLUE

BLUE
WHITE

TUR­QUOISE

ON/OFF

Toggle

Switch

Power

Light

Model W1872 (For Machines Mfd. Since 06/20)

Electrical Components

Foot Pedal

Switch

Variable-Speed

Dial

Figure 42. Controls.

Circuit

Board

ON/OFF

Switch

Potentiometer

Figure 43. Junction box wiring.

Power

Light

Foot

Pedal

Switch

Figure 44. Switch connections.

Fuse

Figure 45. Circuit board.

SERVICE

-34-

Model W1872 (For Machines Mfd. Since 06/20)

LED Light

Wiring Diagram

SHOCK HAZARD!
Disconnect power
before working on
wiring

The motor wiring shown here is
current at the time of printing, but
it may not match your machine.
Always use the wiring diagram inside
the motor junction box.

Junction

Box

(Rear)

Gn Gn

Gn

Motor

Junction

Box

(Side)

Bk

Wt

Gn

2-AA Batteries

Neutral

Wt

Hot

Bk

Gn

Ground

Bk

Wt

5-15 Plug

Circuit

Board

Junction Box

Cover

Bk

+CT CT

Bk

4

5

KEDU HY-7

Bk

125V

Toggle Safety Switch

Wt

Power Light

Wt

1

2

20A

KEDE k1-2

AC 230V
50/60HZ

Wt

5A 250V

Wt

Wt

FUSE

Bk

Wt

Potentiometer

Wt

Wt

C104

Wt

Foot Pedal Switch

120 VAC

Bk

Wt

LECI MS801

250V

16A

Foot Pedal

Read

Page 33

SERVICE

STOP

Before

Bk

Bk

Wiring

-35-

Model W1872 (For Machines Mfd. Since 06/20)

PARTS

Main

7

3
117

1

68

62

1

34
35

70

21

101

71

25

126

68

100

99

98

57

111

112

57

83

102

28

84

26

68

17

23

84

32

97

67

92

48

17

32

24

85

86

1

87

77

72

88

86

76

86

96

73

54V2

89

88

82

78

116

74

95

75

79

90

86

91

93

94

115

66

81

80

65

114

27

19

13

11

16

16

49

13

41

124

55

15

14

16

40

42

107

20

40

39

12

50

56

44

57

16

37

30

29

39

119

121

58

125

108

38

120

59

9

105

10

122

46

47

123

22

1

118

53

11

2

8

7

6

5

4

103

68

104

106

33

31

36

43

52

51

34

113

7

7

32

69

45
32

33

64

63

60

61

52

109

110

PARTS

-36-

Model W1872 (For Machines Mfd. Since 06/20)

REF PART # DESCRIPTION REF PART # DESCRIPTION

Main Parts List

1 X1872001 PH LP HD SCR M5-. 8 X 8 59 X1872059 CAP SCREW M6-1 X 40
2 X1872002 HEX NUT M4-.7 60 X1872060 TABLE SUPPORT
3 X1872003 SIDE COVER ( LEFT) 61 X1872061 POINTER
4 X1872004 HEX NUT M6- 1 62 X1872062 TABLE TILT SCALE
5 X1872005 LOCK W ASHER 6MM 63 X1872063 TABLE
6 X1872006 BASE 64 X1872064 TABLE INSERT
7 X1872007 DUST CAP 65 X1872065 POWER INDICATOR LIGH T 120V
8 X1872008 ARM HOUSING (LEFT) 66 X1872066 FOOT PEDAL ON/OFF SWITCH
9 X1872009 TENSION BOLT ASSEMBLY 67 X1872067 FLAT WASHER 4MM
10 X1872010 ARM SPRING 68 X1872068 PHLP HD SCR M4-.7 X 8
11 X1872011 PRESSURE PLATE 69 X1872069 SET SCR M8- 1 X 12
12 X1872012 LOCK W ASHER 4MM 70 X1872070 ECCENTRI C CO UNTERW EIGHT
13 X1872013 PH LP HD SCR M4-. 7 X 10 71 X1872071 MOTOR 1/8H P 115V DC 1-P H
14 X1872014 ARM ASSEMBLY ( LOWER) 72 X1872072 J UNCTION B OX
15 X1872015 ARM ASSEMBLY ( UPP ER) 73 X1872073 ST RAIN RELIEF TY PE-1 M17
16 X1872016 SINTERED BUSHING 16 X 18 X 9.5 IRON 74 X 1872074 PHLP HD SCR M4-.7 X 10
17 X1872017 PH LP HD SCR M4-. 7 X 6 75 X1872075 POTENT IOMETER C104
19 X1872019 ARM HOUSING (RIGHT) 76 X1872076 CIRCUIT BOARD
20 X1872020 LOCK W ASHER 5MM 77 X1872077 KNOB BO LT M6- 1 X 16, 3- LOB E, D30
21 X1872021 PH LP HD SCR M5-. 8 X 35 78 X1872078 SWITCH COVER
22 X1872022 RUBBER FOOT 79 X1872079 TOGGLE SWITCH KEDU HY7
23 X1872023 RIGID AIR HOSE W /NOZZLE 16 X 266 80 X1872080 VARIABLE SPEED DIAL
24 X1872024 PH LP HD SCR M5-. 8 X 28 81 X1872081 SET SCREW M5-. 8 X 6 CONE-PT
25 X1872025 LIGHT POST W/THREADED END M10-1 82 X 1872082 POW ER CORD 18G 3W 72" 5-15P
26 X1872026 LED LIGHT ASSEMBLY 83 X1872083 SHAFT
27 X1872027 TH READED SLEEVE W/FLANGE M10-1 X 22 84 X1872084 BALL BEARING 608Z Z
28 X1872028 RUBBER BELLOWS 85 X 1872085 EXT R ETAINING RI NG 22MM
29 X1872029 CONNECTO R P LAT E 86 X1872086 EXT RET AINING RING 6MM
30 X1872030 CARRIAGE BOLT M6-1 X 20 87 X1872087 SMALL PULLEY 20OD X 10
31 X1872031 BLADE SUPPORT (UPPER) 88 X1872088 KEY 3 X 3 X 8
32 X1872032 LOCK W ASHER 4MM 89 X1872089 CO UPLING
33 X1872033 CAP SCREW M4-.7 X 20 90 X1872090 PHLP HD SCR M5-.8 X 12
34 X1872034 SPACER 4 X 12 X 9.5MM 91 X 1872091 SAFETY CAP
35 X1872035 BLADE 0.066" 15-TPI PIN END 92 X1872092 FLEX IB LE SH AFT
36 X1872036 CAP SCREW M5-.8 X 25 93 X1872093 BELT CO VER
37 X1872037 SPACER 5 X 9.5 X 6 (UPP ER) 94 X1872094 ROLL P IN 3 X 8
38 X1872038 ECCENTRIC CONNECTOR 95 X1872095 TIMING B ELT 234.95 X 5MM
39 X1872039 BALL BEARING 625-2RS 96 X1872096 LARGE PULLEY 56OD X 10ID
40 X1872040 HEX NUT M5-.8 97 X1872097 MITER GAUGE SCALE POINTER
41 X1872041 ECCENTRIC CONNECTOR PLATE 98 X1872098 KNOB BO LT M5- .8 X 16, D20, ROUND
42 X1872042 PH LP HD SCR M4-. 7 X 10 99 X1872099 MITER GAUGE BO DY
43 X1872043 SPACER 5 X 9.5 X 4 (LOWER) 100 X1872100 MITER GAUGE BA R
44 X1872044 CAP SCREW M5-.8 X 16 101 X 1872101 DUST COVER
45 X1872045 BLADE SUPPORT (LOWER) 102 X1872102 CAP SCREW M6-1 X 25
46 X1872046 KNOB BOLT M6-1 X 12, 6-LOBE, D34 103 X1872103 TOOL BOX
47 X1872047 HOLD-DOWN SHOE ROD 104 X1872104 SET SCREW M5-.8 X 8
48 X1872048 PH LP HD SCR M5-. 8 X 30 105 X 1872105 BLADE ADAPTER
49 X1872049 BLADE GUARD 106 X1872106 BLADE 0.066" 18-TPI PLAIN END
50 X1872050 HOLD-DOWN SHOE 107 X 1872107 DUST PORT ADAPTER 1-1/4" X 1- 1/2"
51 X1872051 FLAT WASHER 6MM 108 X 1872108 DRILL BIT 3.2MM
52 X1872052 PH LP HD SCR M6-1 X 10 109 X1872109 COLLET LOCKING PIN
53 X1872053 PH LP HD SCR M5-. 8 X 25 110 X 1872110 FLAT WRENCH 9MM OPEN-END
54V2 X1872054V2 FOOT PEDAL, PLASTIC V2.06. 20 111 X 1872111 HEX WRENCH 3MM
55 X1872055 HEX BOLT M8-1.25 X 16 112 X1872112 HEX WRENCH 2.5MM
56 X1872056 HEX BOLT M6-1 X 20 113 X 1872113 LOCK WASHER 10MM
57 X1872057 FLAT WASHER 6 X 12 X 1MM 114 X 1872114 HEX NUT M10-1 TH IN
58 X1872058 COMPRESSION SPRING 1 X 10 X 13 115 X 1872115 TAP SCREW M4-.7 X 10

PARTS

-37-

Model W1872 (For Machines Mfd. Since 06/20)

Main Parts List (Cont.)

REF PART # DESCRIPTION REF PART # DESCRIPTION

116 X1872116 FLAT WASHER 5MM 122 X1872122 LOCK WASHER 5MM
117 X1872117 FLAT WASHER 5MM 123 X1872123 FLAT WASHER 5MM
118 X1872118 LOCK WASHER 4MM 124 X1872124 LOCK WASHER 8MM
119 X1872119 LOCK WASHER 5MM 125 X1872125 FLAT WASHER 6MM
120 X1872120 LOCK WASHER 6MM 126 X1872126 CARBON MOTOR BRUSH 2-PC SET
121 X1872121 FLAT WASHER 6MM

PARTS

-38-

Model W1872 (For Machines Mfd. Since 06/20)

REF PART # DESCRIPTION REF PART # DESCRIPTION

Labels & Cosmetics

210

WARNING!

EYE/LUNG INJURY

HAZARD!

Specifications

Date

Mfd. for Woodstock in China

Always wear safety
glasses and a
respirator when
using this machine.

MODEL W1872

16" VARIABLE-SPEED SCROLL

SAW WITH FOOT PEDAL

To reduce the risk of serious personal injury while using this machine:

1. Read and understand the manual before starting.

2. Always wear an ANSI-approved dust mask eye protection.

3. Plug power cord into grounded outlet only.

4. Keep hands clear of moving parts on the saw.

5. Do not wear loose clothing, gloves, or jewelry.

6. Secure long hair and long sleeve shirts

7. Unplug power before changing blades or adjusting.

8. Before starting saw, make sure it rests securely on a flat, level surface.

9. Never cut stock that contains nails or staples.

Serial #

10. Do not operate when tired or under the influence of drugs or alcohol.

WARNING!

209

Motor: 1/8 HP, 1.2 Amp, 115V, 1-Ph, 60 Hz
Stroke Speed: 550 - 1650 RPM
Maximum Cutting Thickness: 2"

208

Maximum Cutting Depth: 15-3/4"
Blade Stroke: 3/4"
Weight: 27 Lbs.

201

202

203

204

205

Use Existing Label

207

WARNING!

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.woodstockint.com
or call [phone].

WARNING

ACCIDENTAL INJURY

HAZARD!
Disconnect power
supply before
adjustments, setup
or maintenance!

206

201 X1872201 BLADE TENSION KNOB LABEL 206 X1872206 ELECTRICITY WARNING LABEL
202 X1872202 TOUCH-UP PAINT, SHOP FOX WHITE 207 X1872207 VARIABLE SPEED DIAL LABEL
203 X1872203 TOUCH-UP PAINT, SHOP FOX BLACK 208 X1872208 MACHINE ID LABEL
204 X1872204 READ MANUAL LABEL 209 X1872209 RESPIRATOR/GLASSES LABEL
205 X1872205 DISCONNECT POWER LABEL 210 X1872210 SHOP FOX LOGO LABEL

Safety labels warn about machine hazards and how to prevent serious personal injury. The owner
of this machine MUST maintain the original location and readability of all labels on this machine.
If any label is removed or becomes unreadable, REPLACE that label before allowing machine to
be operated again. Contact us at [phone] or www.woodstockint.com to order new labels.

-39-

PARTS

WARRANTY

WARRANTY

Woodstock International, Inc. warrants all Shop Fox machinery to be free of defects from workmanship
and materials for a period of two years from the date of original purchase by the original owner. This
warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents,
lack of maintenance, or reimbursement of third party expenses incurred.

Woodstock International, Inc. will repair, replace, or arrange for a dealer refund, at its expense and
option, the Shop Fox machine or machine part proven to be defective for its designed and intended
use, provided that the original owner returns the product prepaid to an authorized warranty or repair
facility as designated by our Bellingham, Washington office with proof of their purchase of the product
within two years, and provides Woodstock International, Inc. reasonable opportunity to verify the
alleged defect through inspection. If it is determined there is no defect, or that the defect resulted
from causes not within the scope of Woodstock International Inc.'s warranty, then the original owner
must bear the cost of storing and returning the product.

This is Woodstock International, Inc.’s sole written warranty and any and all warranties that may be
implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited
to the duration of this written warranty. We do not warrant that Shop Fox machinery complies with
the provisions of any law, acts or electrical codes. We do not reimburse for third party repairs. In no
event shall Woodstock International, Inc.’s liability under this limited warranty exceed the purchase
price paid for the product, and any legal actions brought against Woodstock International, Inc. shall be
tried in the State of Washington, County of Whatcom. We shall in no event be liable for death, injuries
to persons or property or for incidental, contingent, special or consequential damages arising from the
use of our products.

Every effort has been made to ensure that all Shop Fox machinery meets high quality and durability
standards. We are commited to continuously improving the quality of our products, and
right to change specifications at any time

To register the warranty, go to
You will be directed to the Warranty Registration page on www.woodstockint.com. Enter all applicable
production information.

https://www.woodstockint.com/warranty, or scan the QR code below.

.

WARRANTY

WOODSTOCKINT.COM

reserve the
