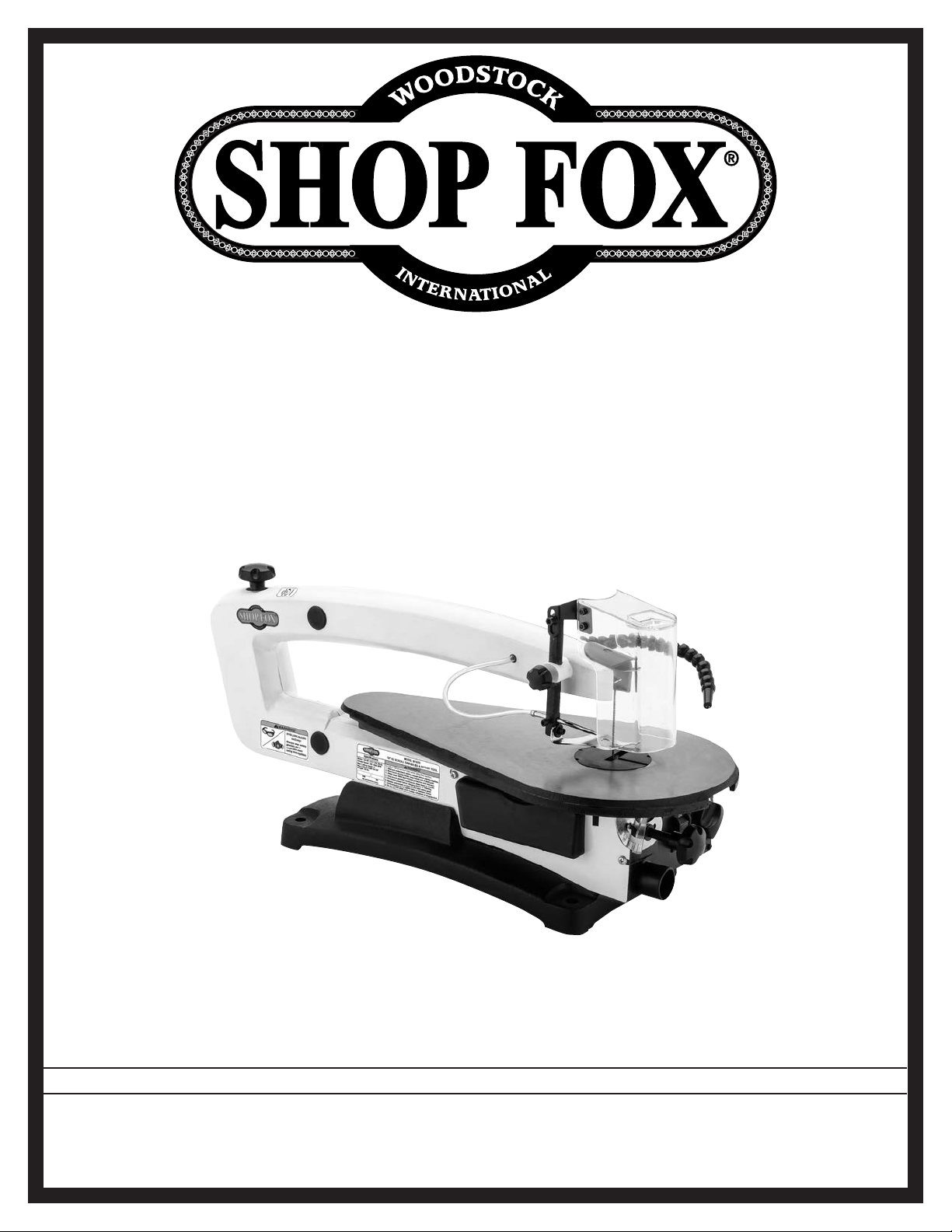

Shop Fox W1870 User guide

MODEL W1870 

18" VS SCROLL SAW 

w/LED & ROTARY TOOL

OWNER'S MANUAL

(FOR MODELS MANUFACTURED SINCE 03/19)

Phone: [phone] • Online Technical Support: [email protected]

COPYRIGHT © MARCH, 2019 BY WOODSTOCK INTERNATIONAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

#W1870AL  Printed in China

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property
damage from negligence, improper training, machine modifications or
misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Contents

INTRODUCTION .....................................2

Woodstock Technical Support .................. 2

Machine Specifications .......................... 3

Identification ..................................... 5

Controls & Components ......................... 6

SAFETY ............................................... 7

Standard Machinery Safety Instructions ...... 7

Additional Safety for Scroll Saws .............. 9

ELECTRICAL ....................................... 10

Circuit Requirements .......................... 10

Grounding Requirements ...................... 11

Extension Cords ................................ 11

SETUP .............................................. 12

Unpacking ....................................... 12

Inventory ........................................ 12

Cleaning Machine ............................... 13

Machine Placement ............................ 13

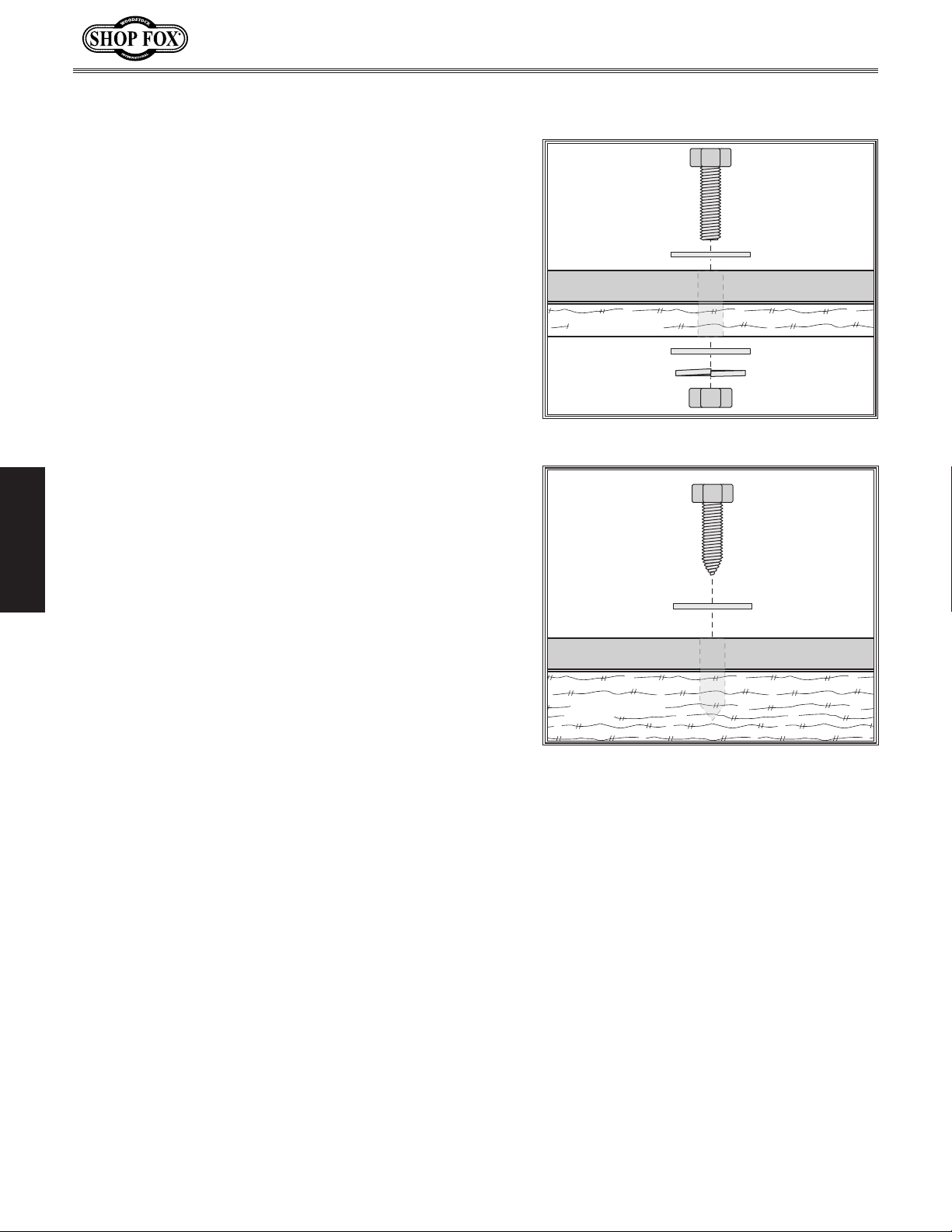

Bench Mounting................................. 14

Assembly ......................................... 15

Dust Collection ................................. 17

Test Run .......................................... 18

ACCESSORIES ...................................... 27

Scroll Saw Accessories ......................... 27

MAINTENANCE .................................... 28

General .......................................... 28

Cleaning & Protecting ......................... 28

Lubrication ...................................... 28

SERVICE ............................................ 29

General .......................................... 29

Calibrating Table Tilt .......................... 29

Replacing Fuse .................................. 30

Replacing Motor Brushes ...................... 30

Replacing Timing Belt ......................... 31

Troubleshooting ................................. 32

Electrical Safety Instructions ................. 33

Electrical Components ........................ 34

Wiring Diagram ................................. 35

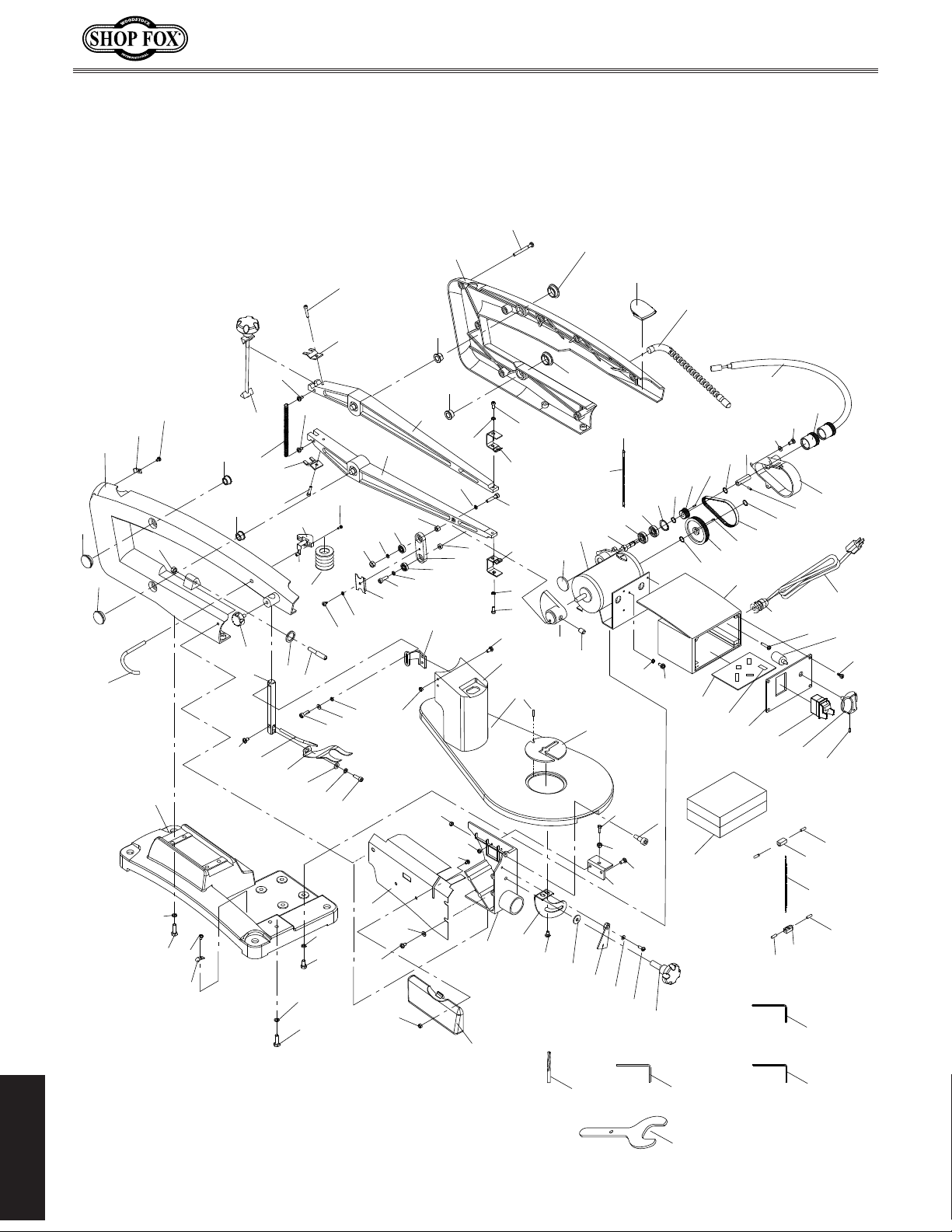

PARTS .............................................. 36

Main .............................................. 36

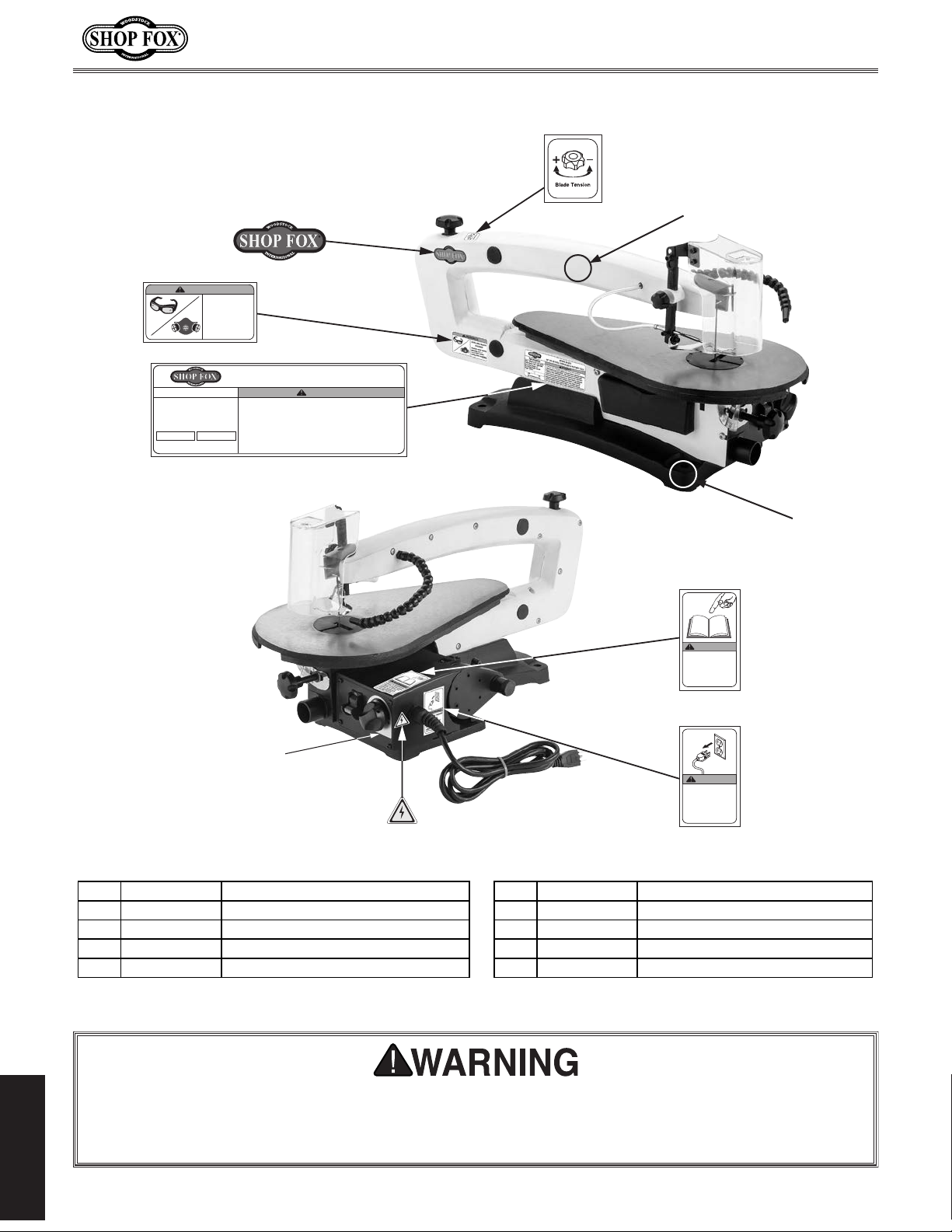

Labels & Cosmetics ............................ 38

WARRANTY ........................................ 41

SAFETYINTRODUCTION

SETUPELECTRICAL MAINTENANCE

OPERATIONS....................................... 19

General .......................................... 19

Workpiece Inspection .......................... 20

Hold-Down Shoe & Blade Guard ............. 21

Air Nozzle ....................................... 21

Standard Scroll Cuts ........................... 21

Blade Tension ................................... 22

Bevel Cuts ....................................... 22

Inside Cuts....................................... 23

Blade Speed ..................................... 24

Blade Selection ................................. 24

Installing Pin-End Blades ...................... 25

Installing Plain-End Blades .................... 26

Flex-Shaft Tool .................................. 26

OPERATIONS

SERVICE PARTS

USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!

Model W1870 (For Machines Mfd. Since 03/19)

INTRODUCTION

INTRODUCTION

Woodstock Technical Support

This machine has been specially designed to provide many years of trouble-free service. Close attention
to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to
include the basic information for safety, setup, operation, maintenance, and service of this product.

We stand behind our machines! In the event that questions arise about your machine, please contact
Woodstock International Technical Support at [phone] Ext. 2 or send e-mail to: techsupport@
woodstockint.com. Our knowledgeable staff will help you troubleshoot problems and process warranty
claims.

If you need the latest edition of this manual, you can download it from http://www.woodstockint.com/
manuals.
If you have comments about this manual, please contact us at:

Woodstock International, Inc.

Attn: Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

Email: [email protected]

-2-

Model W1870 (For Machines Mfd. Since 03/19)

MACHINE

SPECIFICATIONS

© Woodstock International, Inc. • Phone #: [phone] • Web: www.shopfox.biz

MODEL W1870

18 " VS SCROLL SAW W/LED & ROTARY TOOL

Product Dimensions

Weight ................................................................................................................... 38 lbs.

Width (side-to-side) x Depth (front-to-back) x Height ........................................... 14 x 27-1/2 x 21 in.

Foot Print (Length x Width) ...................................................................................16-1/2 x 9 in.

Shipping Dimensions

Type ................................................................................................................... Cardboard

Content ..................................................................................................................Machine

Weight .....................................................................................................................43 lbs.

Length/Width/Height ........................................................................................31 x 15 x 16 in.

INTRODUCTION

Electrical

Power Requirement.............................................................................. 120V, Single-Phase, 60 Hz

Full-Load Current Rating ................................................................................................. 1.2A

Minimum Circuit Size ....................................................................................................... 15A

Cord Length ................................................................................................................. 6 ft.

Cord Gauge ..............................................................................................................18 AWG

Included Plug Type ........................................................................................................ 5-15

Switch ..................................................................................... Toggle Switch w/Removable Key

Motors

Main

Horsepower ....................................................................................................... 1/6 HP

Phase .........................................................................................................Single-Phase

Amps .................................................................................................................. 1.2A

Speed ..................................................................................................... 550 - 1650 RPM

Type ............................................................................................................. Universal

Power Transfer (Blade) .................................................................................... Direct Drive

Power Transfer (Rotary Tool) .......................................................................................Belt

Bearings ......................................................................... Shielded & Permanently Lubricated

Main Specifications

Capacities

Depth of Throat ....................................................................................................18 in.

Maximum Cutting Depth .................................................................................... 18-1/8 in.

Maximum Cutting Height at 90 Degrees ......................................................................... 2 in.

Maximum Cutting Height at 45 Degrees ...................................................................... 5/8 in.

Table Size ..........................................................................................10-1/4 x 19-3/16 in.

Table Tilt ........................................................................................Left 45, Right 15 deg.

Blade Information

Blade Type .............................................................................................................. Pin

Blade Size ....................................................................................................... 6-1/4 in.

Stroke Per Minute ...................................................................................... 550 - 1600 SPM

Stroke Length ..................................................................................................... 3/4 in.

-3-

Rotary Tool Information

Speed Range ...........................................................................................1650 - 4800 RPM

INTRODUCTION

Other

Maximum Collet Chuck Capacity ............................................................................... 1/8 in.

Flex-Shaft Length .............................................................................................. 3-1/2 ft.

Construction

Table ....................................................................................... Precision-Ground Cast Iron

Frame .....................................................................................................Cast Aluminum

Lamp ................................................................................................................... LED

Blade Guard ........................................................................................................Plastic

Paint Type/Finish ....................................................................................... Powder Coated

Other Related Information

Number of Dust Ports ................................................................................................... 1

Dust Port Size ................................................................................................... 1-1/4 in.

Country of Origin ......................................................................................................... China

Warranty ................................................................................................................. 2 Years

Approximate Assembly & Setup Time ...........................................................................15 Minutes

Serial Number Location .................................................................................... Machine ID Label

ISO 9001 Factory ..............................................................................................................No

Certified by a Nationally Recognized Testing Laboratory (NRTL) .....................................................No

Model W1870 (For Machines Mfd. Since 03/19)

Features

Flex-Shaft Rotary Tool Attachment
Precision-Ground Cast-Iron Table
LED Work Light
Chip Blower
Variable-Speed Control

Accessories

Rotary Tool with Tool Kit
Pinless Blade Adapters

Single Pinless Blade

-4-

Model W1870 (For Machines Mfd. Since 03/19)

Become familiar with the names and locations of the controls and features shown below to better

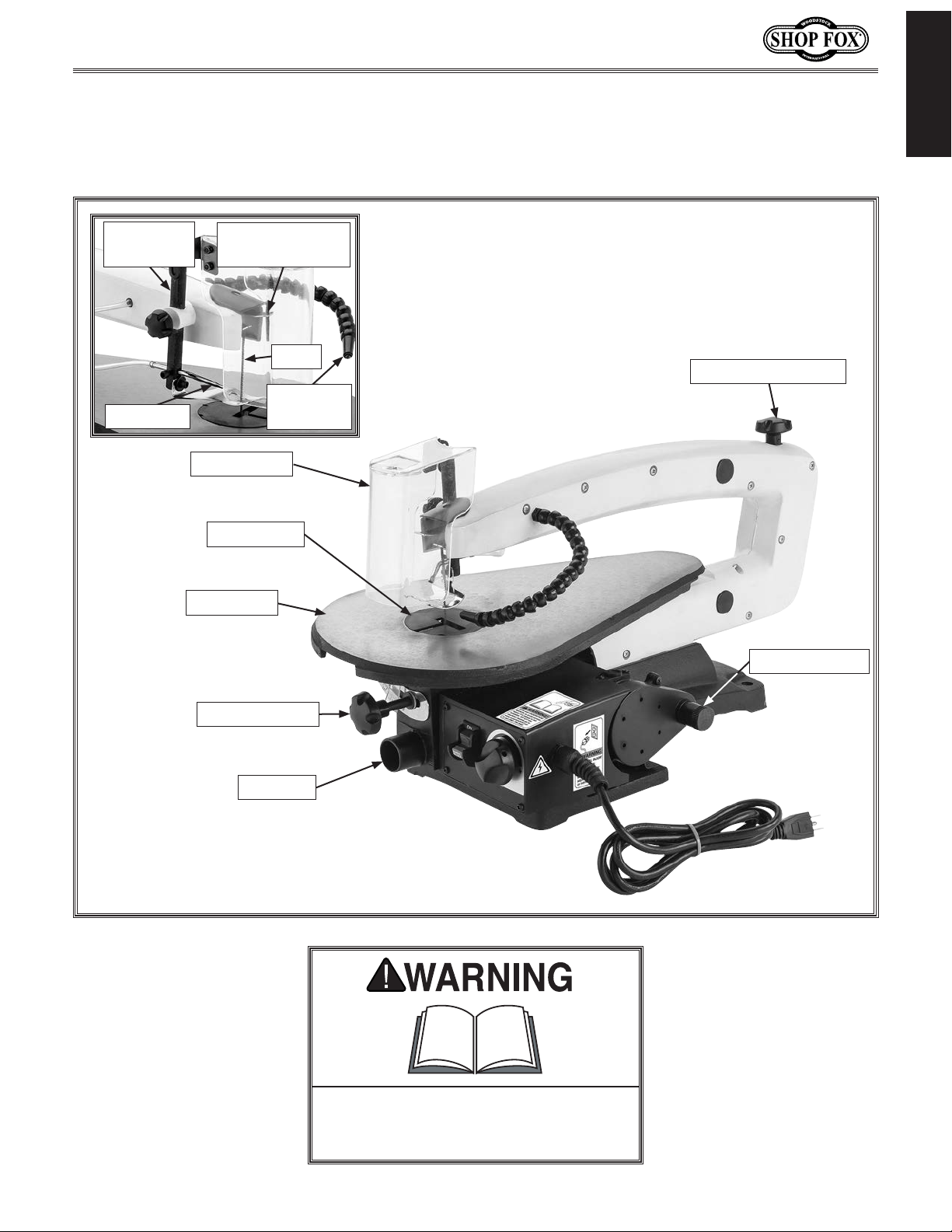

Identification

INTRODUCTION

Hold-Down

Shoe Rod

Air Nozzle

Upper Mounting

Arm

Blade

Blade Tension Knob

LED Work

Lamp

Blade Guard

Table Insert

Work Table

Flex-Shaft Cap

Table Tilt Knob

Dust Port

To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.

-5-

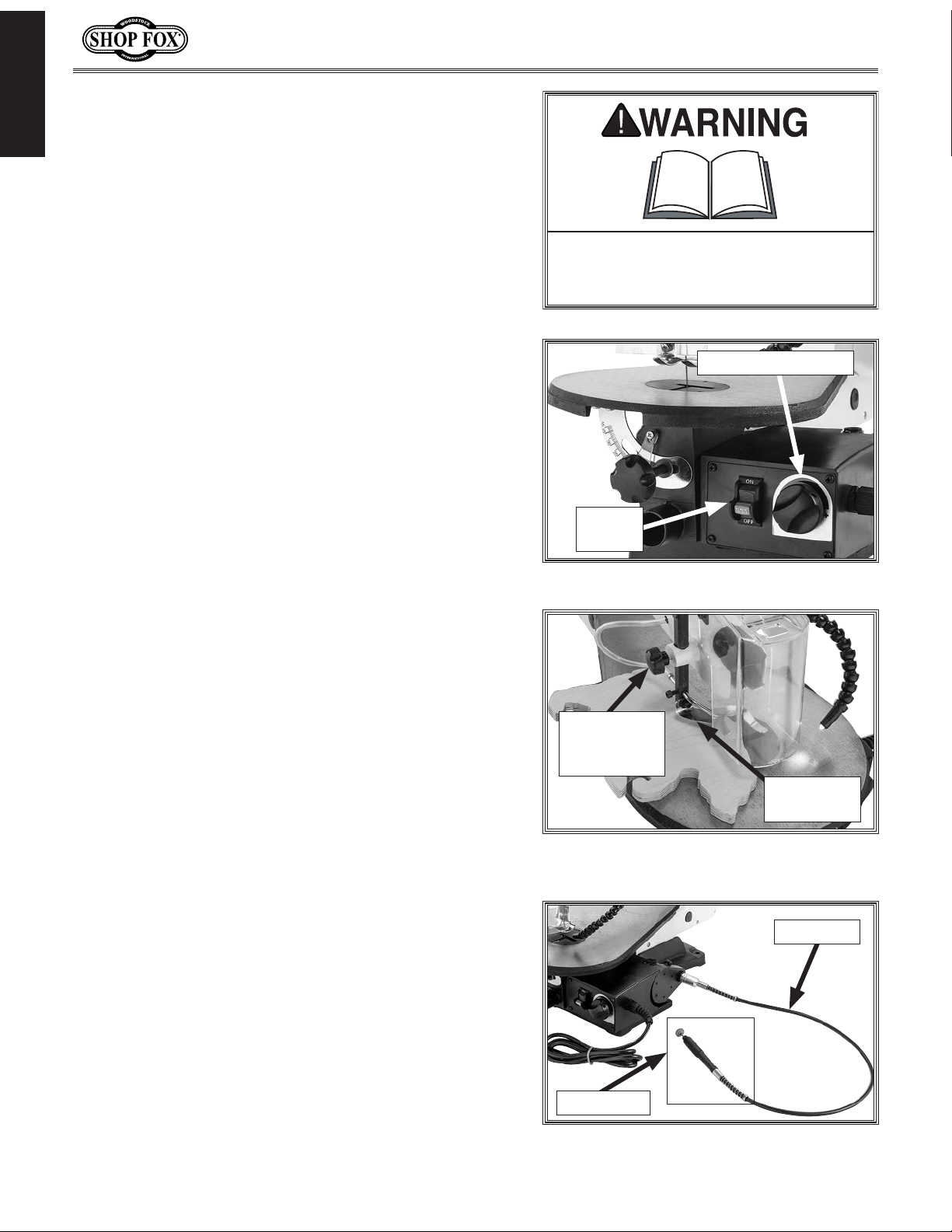

Controls & Components

Refer to Figures 1–3 and the following descriptions to

INTRODUCTION

become familiar with the basic controls and components
of this machine. Understanding these items and how they
work will help you understand the rest of the manual and
stay safe when operating this machine.

Variable-Speed Dial: Adjusts blade speed from 530-1560
RPM.

On/Off Switch: Starts and stops motor. Remove switch
disabling key to disable switch.

Hold-Down Shoe: Helps hold down workpiece as
blade moves up and down, and adjusts to thickness of
workpiece.

Hold-Down Shoe Height Knob: Locks hold-down shoe rod
in position.

Model W1870 (For Machines Mfd. Since 03/19)

To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.

Variable-Speed Dial

Rotary Tool: A tool for sanding, drilling, routing, and
grinding.

Flex-Shaft: A flexible shaft that connects the rotary tool
to the scroll saw.

Blade Tension Knob: Turn clockwise to increase blade
tension. Turn counterclockwise to decrease blade
tension.

On/Off

Switch

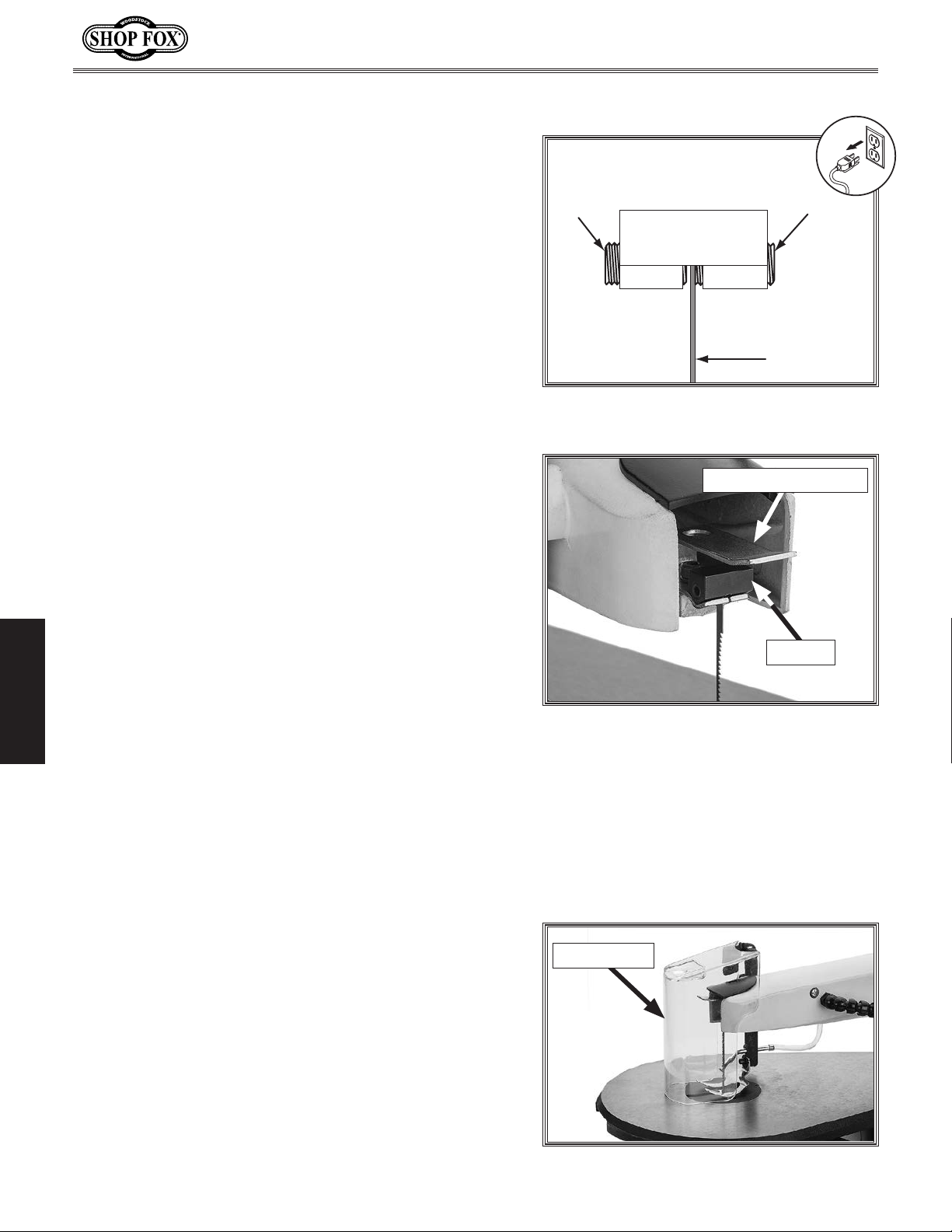

Figure 1. Power and speed controls.

Hold-Down

Shoe Height

Knob

Hold-Down

Shoe

Figure 2. Hold-down shoe and height

knob.

Flex-Shaft

-6-

Rotary Tool

Figure 3. Flex-shaft and rotary tool.

Model W1870 (For Machines Mfd. Since 03/19)

SAFETY

OWNER’S MANUAL.

TRAINED OPERATORS ONLY.

DANGEROUS ENVIRONMENTS.

MENTAL ALERTNESS REQUIRED.

electrical components or improperly grounded

manual uses a series of symbols and signal words intended to convey the level of importance of the
safety messages. The progression of symbols is described below. Remember that safety messages by

SAFETY

For Your Own Safety,

Read Manual Before Operating Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This

themselves do not eliminate danger and are not a substitute for proper accident prevention mea­sures—this responsibility is ultimately up to the operator!

NOTICE

Standard Machinery Safety Instructions

Standard Machinery Safety Instructions

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury.

This symbol is used to alert the user to useful information about
proper operation of the equipment or a situation that may cause
damage to the machinery.

SAFETY

Read and understand this

owner’s manual BEFORE using machine.

have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this
machine. When machine is not being used,
disconnect power, remove switch keys, or
lock-out machine to prevent unauthorized
use—especially around children. Make
workshop kid proof!

machinery in areas that are wet, cluttered,
or have poor lighting. Operating machinery
in these areas greatly increases the risk of
accidents and injury.

alertness is required for safe operation of
machinery. Never operate under the influence
of drugs or alcohol, when tired, or when
distracted.

Untrained operators

Do not use

Full mental

ELECTRICAL EQUIPMENT INJURY RISKS. You can

be shocked, burned, or killed by touching live

machinery. To reduce this risk, only allow an
electrician or qualified service personnel to
do electrical installation or repair work, and
always disconnect power before accessing or
exposing electrical equipment.

DISCONNECT POWER FIRST. Always disconnect

machine from power supply BEFORE making
adjustments, changing tooling, or servicing
machine. This eliminates the risk of injury
from unintended startup or contact with live
electrical components.

EYE PROTECTION. Always wear ANSI-approved

safety glasses or a face shield when operating
or observing machinery to reduce the risk of
eye injury or blindness from flying particles.
Everyday eyeglasses are not approved safety
glasses.

-7-

WEARING PROPER APPAREL. Do not wear

clothing, apparel, or jewelry that can become

HAZARDOUS

HEARING PROTECTION.

REMOVE ADJUSTING TOOLS.

INTENDED USAGE.

AWKWARD POSITIONS.

CHILDREN & BYSTANDERS.

GUARDS & COVERS.

FORCING MACHINERY. Do not force machine. It

will do the job safer and better at the rate for

loss of control. Before starting, verify machine

malfunction, leading to serious personal injury

from heated surfaces, high traffic areas, harsh

entangled in moving parts. Always tie back
or cover long hair. Wear non-slip footwear to
avoid accidental slips, which could cause loss
of workpiece control.

DUST. Dust created while using

SAFETY

machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of
dust hazards associated with each workpiece
material, and always wear a NIOSH-approved
respirator to reduce your risk.

Always wear hearing
protection when operating or observing
loud machinery. Extended exposure to this
noise without hearing protection can cause
permanent hearing loss.

Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys,
wrenches, or any other tools on machine.
Always verify removal before starting!

Only use machine for its
intended purpose—never make modifications
without prior approval from Woodstock
International. Modifying machine or using
it differently than intended will void the
warranty and may result in malfunction or
mechanical failure that leads to serious
personal injury or death!

Keep proper footing and
balance at all times when operating machine.
Do not overreach! Avoid awkward hand
positions that make workpiece control difficult
or increase the risk of accidental injury.

Keep children and
bystanders at a safe distance from the work
area. Stop using machine if they become a
distraction.

Model W1870 (For Machines Mfd. Since 03/19)

which it was designed.

NEVER STAND ON MACHINE. Serious injury may

occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during

operation greatly increases risk of injury or

is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for
recommended accessories. Using improper
accessories will increase risk of serious injury.

UNATTENDED OPERATION. To reduce the risk

of accidental injury, turn machine OFF and
ensure all moving parts completely stop
before walking away. Never leave machine
running while unattended.

MAINTAIN WITH CARE. Follow all maintenance

instructions and lubrication schedules to
keep machine in good working condition. A
machine that is improperly maintained could

or death.

CHECK DAMAGED PARTS. Regularly inspect

machine for any condition that may affect
safe operation. Immediately repair or replace
damaged or mis-adjusted parts before
operating machine.

MAINTAIN POWER CORDS. When disconnecting

cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the
cord may damage the wires inside, resulting
in a short. Do not handle cord/plug with wet
hands. Avoid cord damage by keeping it away

chemicals, and wet/damp locations.

accidental contact with moving parts or flying
debris—make sure they are properly installed,
undamaged, and working correctly.

Guards and covers reduce

EXPERIENCING DIFFICULTIES. If at any time

you experience difficulties performing the
intended operation, stop using the machine!

-8-

Contact Technical Support at [phone].

Model W1870 (For Machines Mfd. Since 03/19)

Additional Safety for Scroll Saws

Serious cuts or amputation can occur from contact with the moving saw blade during operation or
if blade breakage occurs. To reduce this risk, anyone operating this machine MUST completely heed
the hazards and warnings below.

SAFETY

HAND PLAC E M E NT. Never position fingers or

hands in line with the blade. If the workpiece
or your hands slip, serious personal injury
could occur.

INTENDED USE. This machine is intended for

cutting natural and man-made wood products,
and laminate covered wood products. This
machine is NOT designed to cut metal, glass,
stone, tile, etc.

BLADE CONDITION. Do not operate with dull,

cracked or badly worn blade. Dull blades
require more effort to perform the cut and
increase the risk of kickback. Inspect blades
for cracks and missing teeth before each use.

BLADE TENSION. To avoid mishaps that could

result in operator injury, make sure the blade
teeth face down toward the table and the
blade is properly tensioned before operating.

BLADE SPEED. Always allow the blade to come

to full speed before starting the cut. Moving
the workpiece against a blade that is not at
full speed could cause the blade to break or
grab the workpiece and draw the operator’s
hands into the blade.

BLADE CONTROL. To avoid serious personal

injury, DO NOT attempt to stop or slow the
blade with your hand or the workpiece. Allow
the blade to stop on its own.

FEED RATE. To avoid the risk of the workpiece

slipping and causing operator injury, always
feed stock evenly and smoothly. DO NOT
force or twist the blade while cutting,
especially when sawing small curves.

BLADE GUARD. The blade guard protects the

operator’s hands and fingers from the moving
blade. ONLY operate this scroll saw with the
blade guard in the proper position. Keep the
guard as close as possible to the workpiece
without interfering with the intended
operation.

CUTTING TECHNIQUES. Plan your operation so

the blade always cuts to the outside of the
workpiece. DO NOT back the workpiece away
from the blade while the saw is running,
which could cause kickback and personal
injuries. If you need to back the workpiece
out, turn the scroll saw OFF and wait for the
blade to come to a complete stop. DO NOT
twist or put excessive stress on the blade
that could damage it. Instead, use relief cuts
for curve cuts that may twist the blade.

LEAVING WORK AREA. Never leave a machine

running unattended. Allow the scroll saw to
come to a complete stop before you leave it
unattended.

SMALL WORKPIECE HANDLING. If your hands

slip while holding small workpieces with your
fingers during a cut, amputation or laceration
injuries could occur. Always support/feed the
workpiece with push sticks, jig, vise, or some
type of clamping fixture.

CUT-OFF PIECES. Never use your hands to move

cut-offs away from the blade while the saw
is running. If a cut-off becomes trapped
between the blade and table insert, turn the
saw OFF and allow the blade to completely
stop before removing it.

-9-

Model W1870 (For Machines Mfd. Since 03/19)

This machine must be connected to the correct size and
type of power supply circuit, or fire or electrical damage
may occur. Read through this section to determine if an
adequate power supply circuit is available. If a correct
circuit is not available, a qualified electrician MUST install
one before you can connect the machine to power.

A power supply circuit includes all electrical equipment
between the breaker box or fuse panel in the building
and the machine. The power supply circuit used for
this machine must be sized to safely handle the full­load current drawn from the machine for an extended
period of time. (If this machine is connected to a circuit
protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply
circuit that has a verified ground and meets the following
requirements:

The full-load current rating is the amperage a machine
draws at 100% of the rated output power. On machines
with multiple motors, this is the amperage drawn by the
largest motor or sum of all motors and electrical devices
that might operate at one time during normal operations.

or machine damage. To reduce this risk,

a dedicated circuit—

where only one machine will be running

multiple machines will be running at the

ELECTRICAL

Circuit Requirements

The machine must be properly set up
before it is safe to operate. DO NOT
connect this machine to the power
source until instrtucted to do so later
in this manual.

ELECTRICAL

Full-Load Current Rating

Full-Load Current Rating at 120V ................. 1.2 Amps

Circuit Requirements for 120V

Circuit Type .......110V, 115V, 120V, 60 Hz, Single-Phase

Circuit Size ............................................. 15 Amps

Plug/Receptacle .................................... NEMA 5-15

Incorrectly wiring or grounding this
machine can cause electrocution, fire,

only an electrician or qualified service
personnel should do any required
electrical work on this machine.

NOTICE

The circuit requirements listed in this
manual apply to

at a time. If this machine will be
connected to a shared circuit where

same time, consult with an electrician
to ensure that the circuit is properly
sized for safe operation.

-10-

Model W1870 (For Machines Mfd. Since 03/19)

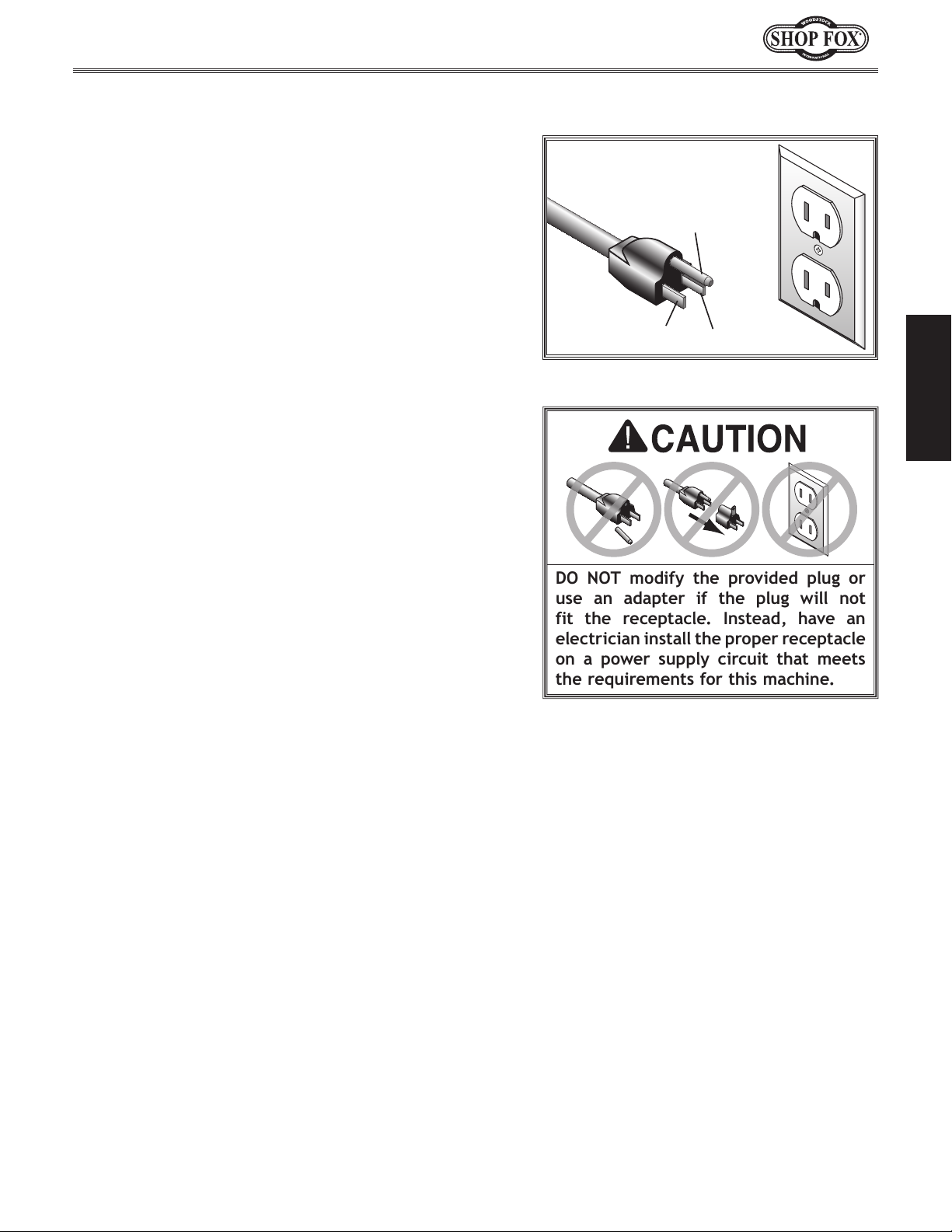

This machine MUST be grounded. In the event of certain
types of
a path of least resistance for electric current
order

Improper connection of the equipment-grounding

will
increase
insulation
grounding
cord or plug is necessary, do not connect the equipment­grounding

Check with a qualified electrician or service personnel
if
or if
properly grounded.
plug is damaged or worn, disconnect it from power, and
immediately replace it with a new one.

DO NOT modify the provided plug or
use an adapter if the plug will not
fit the receptacle. Instead, have an
electrician install the proper receptacle
on a power supply circuit that meets
the requirements for this machine.

We do not recommend using an extension cord with

Any extension cord used with this machine must contain a

plug and receptacle, and

meet the following requirements:

This machine is equipped with a power cord with an
equipment-grounding
plug
a matching
grounded in accordance with local codes and ordinances.

Grounding Requirements

malfunctions or breakdowns, grounding provides

to travel—in

to reduce the risk of electric shock.

wire

the risk of electric shock. The wire with green

(with/without yellow stripes) is the equipment-

wire. If repair or replacement of the power

wire to a live (current carrying) terminal.

you do not understand these grounding requirements,

you are in doubt about whether the tool is

If you ever notice that a cord or

For 120V Connection

wire and NE M A 5-15 grounding

(see figure). The plug must only be inserted into

receptacle that is properly installed and

120V

5-15 PLUG

Figure 4. NEMA 5-15 plug & receptacle.

GROUNDED

5-15 RECEPTACLE

Grounding Pin

Neutral Hot

ELECTRICAL

Extension Cords

this machine. Extension cords cause voltage drop, which
may damage electrical components and shorten motor
life. Voltage drop increases with longer extension cords
and smaller gauge sizes (higher gauge numbers indicate
smaller sizes).

ground wire, match the required

Minimum Gauge Size at 120V ...................... 14 AWG

Maximum Length (Shorter is Better) ................50 ft.

-11-

SETUP

This machine has been carefully packaged for safe
transportation. If you notice the machine has been
damaged during shipping, please contact your authorized
Shop Fox dealer immediately.

The following is a list of items shipped with your machine.
Before beginning setup, lay these items out and inventory
them.

Note:

check around/inside the machine and packaging materials.
Often, these items get lost in packaging materials while
unpacking or they are pre-installed at the factory.

Unpacking

Inventory

If you cannot find an item on this list, carefully

Model W1870 (For Machines Mfd. Since 03/19)

Keep machine disconnected from
power until instructed otherwise.

A

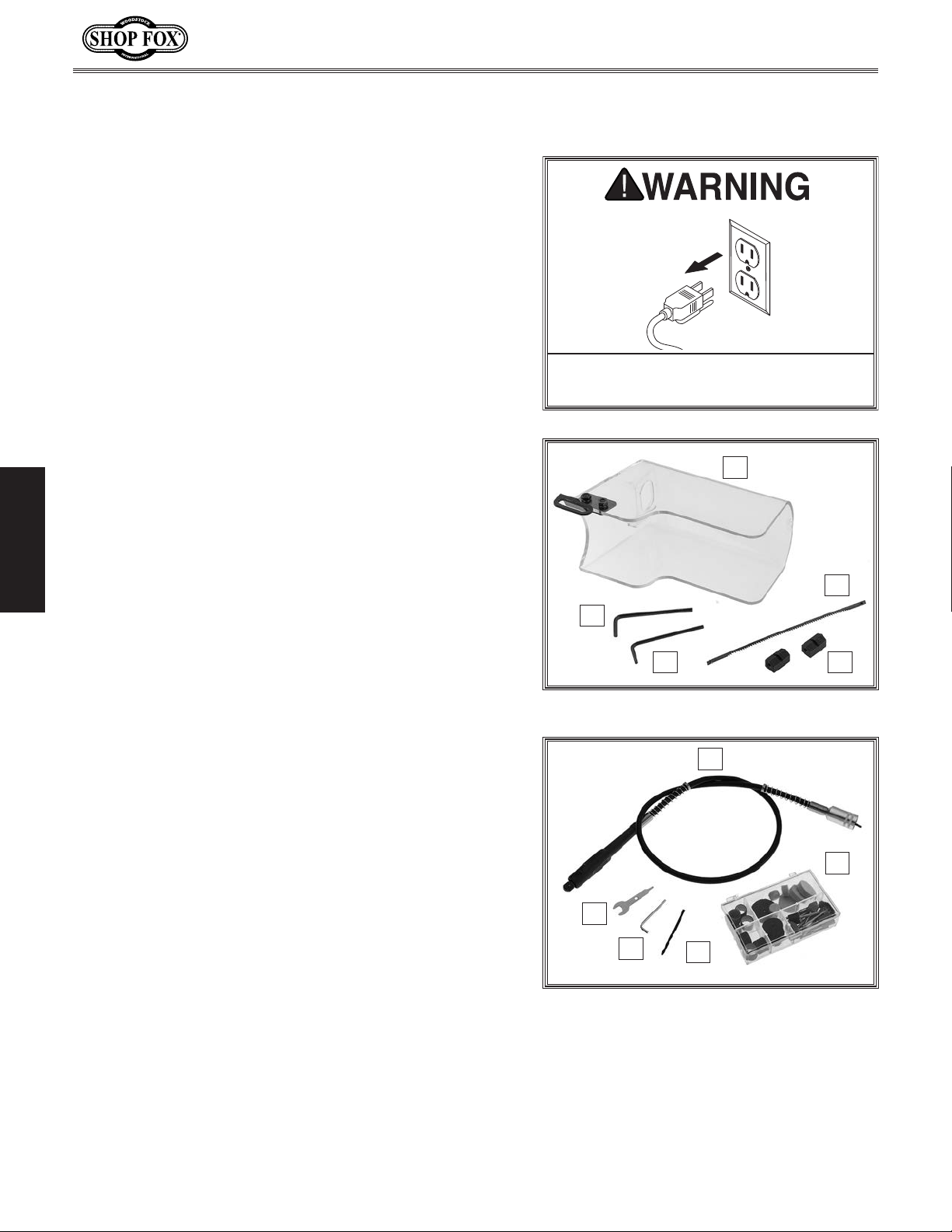

Box Inventory (Figure 5) Qty

SETUP

A. Blade Guard ................................................1

B. Pin-End Blade 18 TPI ......................................1

C. Blade Adapters .............................................2

D. Hex Wrench 2.5mm .......................................1

E. Hex Wrench 4mm ..........................................1

Flex-Shaft Rotary Tool (Figure 6)

F. Flex-Shaft Rotary Tool ....................................1

G. Flex-Shaft Rotary Tool Kit ................................1

H. Drill Bit

I. Collet Locking Pin 3mm ..................................1

J. Collet Chuck Wrench ......................................1

1

⁄8" .................................................1

E

Figure 5. Box inventory items.

F

J

I

H

B

CD

G

Figure 6. Flex-shaft inventory items.

-12-

Model W1870 (For Machines Mfd. Since 03/19)

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but
it will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper
care of your machine's unpainted surfaces.

There are many ways to remove this rust
preventative, but the following steps work well
in a wide variety of situations. Always follow the
manufacturer’s instructions with any cleaning
product you use and make sure you work in a
well-ventilated area to minimize exposure to
toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

3.

4.

Refer to the Machine Specifications for the
weight and footprint specifications of your
machine. Some workbenches may require
additional reinforcement to support the weight
of the machine and workpiece materials.

Consider anticipated workpiece sizes and
additional space needed for auxiliary stands,
work tables, or other machinery when
establishing a location for this machine in the
shop. Below is the minimum amount of space
needed for the machine.

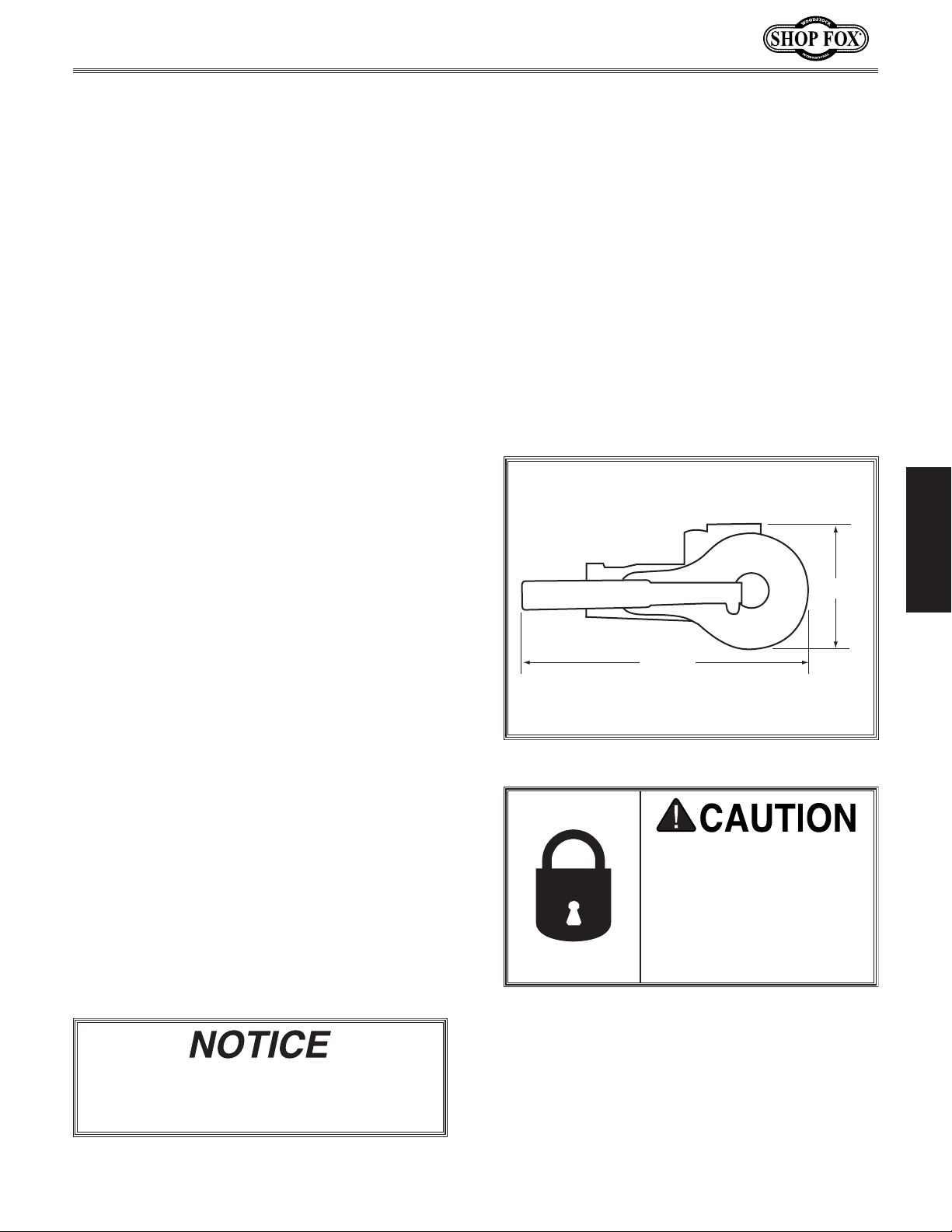

Cleaning Machine

Machine Placement

Workbench Load

Placement Location

SETUP

14"

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it
soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/

degreaser is effective, the rust
preventative will wipe off easily. If you
have a plastic paint scraper, scrape off as
much as you can first, then wipe off the
rest with the rag.

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a
quality metal protectant to prevent rust.

271/2"

Figure 7. Minimum working clearances.

INJURY HAZARD! Untrained
users can injure themselves
with this machine. Restrict
access to machine when
you are away, especially if
it is installed where chil­dren are present.

Avoid chlorine-based solvents, such as
acetone or brake parts cleaner, that may
damage painted surfaces.

-13-

Bench Mounting

The base of this machine has mounting holes that allow it
to be fastened to a workbench or other mounting surface
to prevent it from moving during operation and causing
accidental injury or damage.

The strongest mounting option is a "Through Mount" (see
example) where holes are drilled all the way through the
workbench—and hex bolts, washers, and hex nuts are
used to secure the machine in place.

Another option is a "Direct Mount" (see example) where
the machine is secured directly to the workbench with lag
screws and washers.

Model W1870 (For Machines Mfd. Since 03/19)

Number of Mounting Holes .................................. 3

Diameter of Mounting Hardware Needed ..............

SETUP

3

⁄8"

Bolt

Flat Washer

Machine Base

Workbench

Flat Washer

Lock Washer

Hex Nut

Figure 8. Typical "Through Mount" setup.

Lag Screw

Flat Washer

Machine Base

Workbench

Figure 9. Typical "Direct Mount" setup.

-14-

Model W1870 (For Machines Mfd. Since 03/19)

Before beginning the assembly process, refer to Items
Needed for Setup

Ensure all parts have been properly cleaned of any
heavy-duty rust-preventative applied at the factory (if
applicable). Be sure to complete all steps in the assembly
procedure prior to performing the

or connecting

the machine to power.

Assembly

and gather everything you need.

Test Run

To assemble machine, do these steps:

1. Remove pre-installed cap screw, lock washer, and

flat washer from top of hold-down shoe rod shown in

Figure 10.

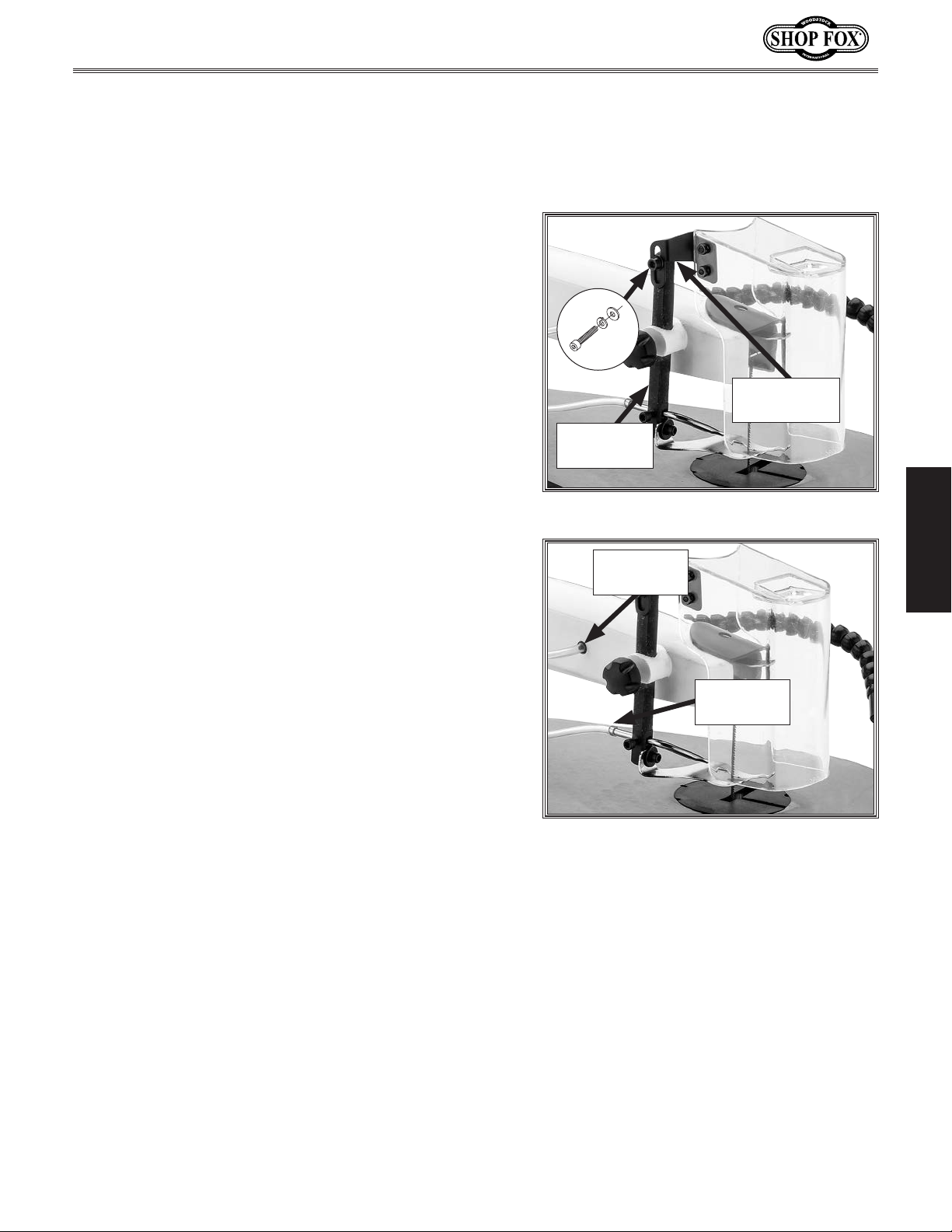

2. Attach blade guard bracket to top of hold-down shoe

rod with cap screw, lock washer, and flat washer (see
Figure 10).

Blade Guard

Bracket

Hold-Down

Shoe Rod

3. Pivot guard up and down to ensure it moves

smoothly. If necessary, loosen mounting screw to
allow movement.

4. Connect air tubing to backside of air nozzle, as
shown in Figure 11.

5. Verify blade pins are seated in V-notch indents, as
shown in Figure 27 on Page 25.

6. Pinch blade and move it side to side with light
pressure to verify it is tensioned enough that it will
not come off during operation. If adjustments are
necessary, refer to Blade Tension instructions on

Page 22.

Figure 10. Blade guard installed.

Air Tubing

Connection

Air Tubing

Connection

Figure 11. Air tubing connections.

SETUP

-15-

7. Remove flex-shaft cap shown in Figure 12.

Model W1870 (For Machines Mfd. Since 03/19)

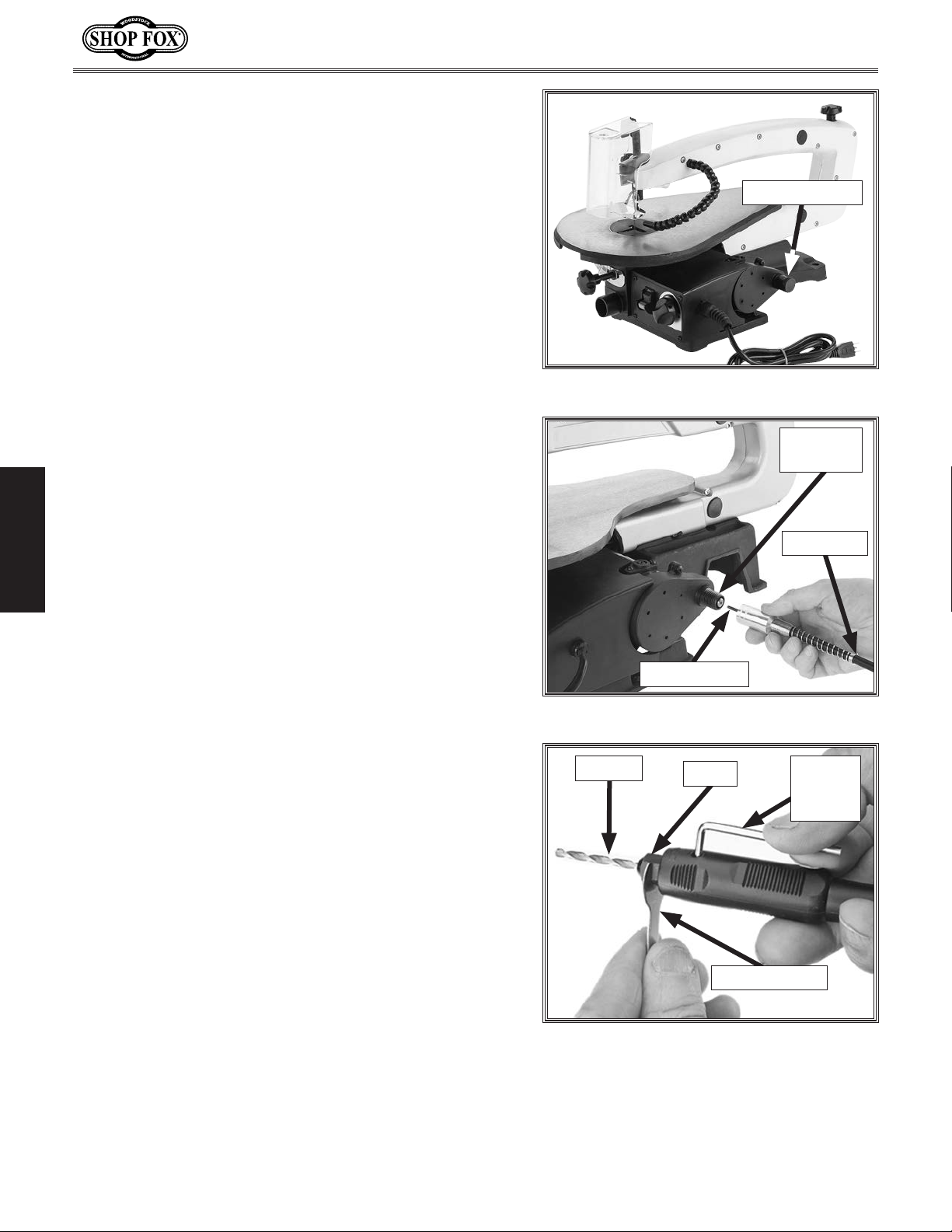

Flex-Shaft Cap

Figure 12. Flex-shaft cap location.

8. Insert inner spindle of flex-shaft into threaded shaft,
then thread on flex-shaft, as shown in Figure 13.

SETUP

9. Insert included drill bit or a tool bit (not included)
into flex-shaft collet.

10. Insert collet locking pin into hole on collet and
tighten bit with collet wrench by turning clockwise,
as shown in Figure 14.

Threaded

Shaft

Flex-Shaft

Inner Spindle

Figure 13. Installing flex-shaft.

Drill Bit

Collet

Locking

Collet

Pin

-16-

Collet Wrench

Figure 14. Securing drill bit in flex-shaft

collet.

Model W1870 (For Machines Mfd. Since 03/19)

Do not confuse this CFM recommendation with the rating
of the dust collector. To determine the CFM at the dust
port, you must consider these variables: (1) CFM rating of
the dust collector, (2) hose type and length between the
dust collector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines throughout
the system. Explaining how to calculate these variables
is beyond the scope of this manual. Consult an expert or
purchase a good dust collection “how-to” book.

Dust Collection

Recommended CFM at Dust Port: ................ 150 CFM

This machine creates substantial amounts of dust
during operation. Breathing airborne dust on a regu­lar basis can result in permanent respiratory illness.
Reduce your risk by wearing a respirator and captur­ing the dust with a dust collection system.

SETUP

Item(s) Needed Qty

Dust Collection System ........................................1

Dust Hose 1
Hose Clamp 1

To connect a dust collection hose, do these steps:

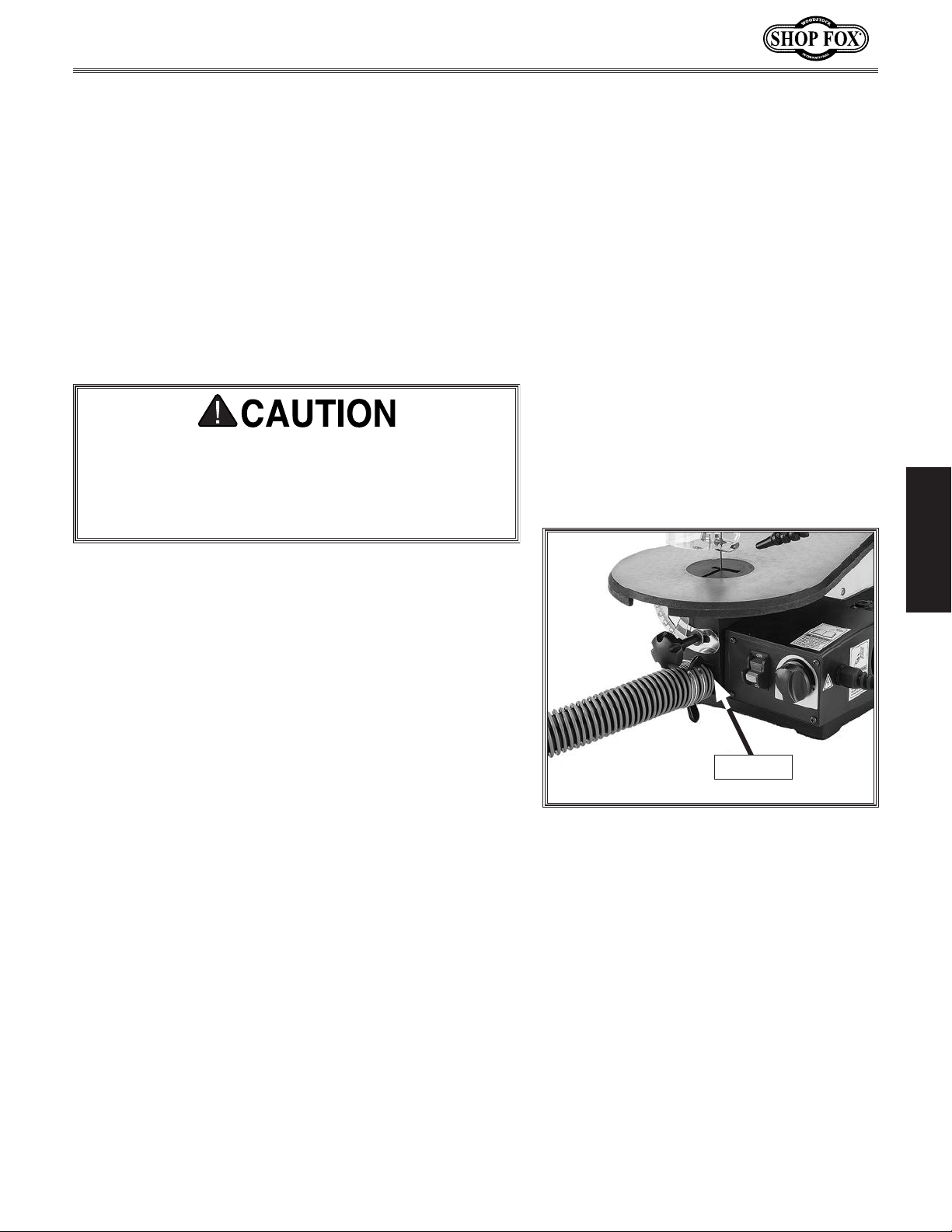

1. Fit a 1
Figure 15, and secure in place with hose clamp.

2. Tug hose to make sure it does not come off.

Note: A tight fit is necessary for proper

performance.

1

⁄4" ..................................................1

1

⁄4" ................................................1

1

⁄4" dust hose over dust port, as shown in

Dust Port

Figure 15. Dust port connected to dust

collection system.

-17-

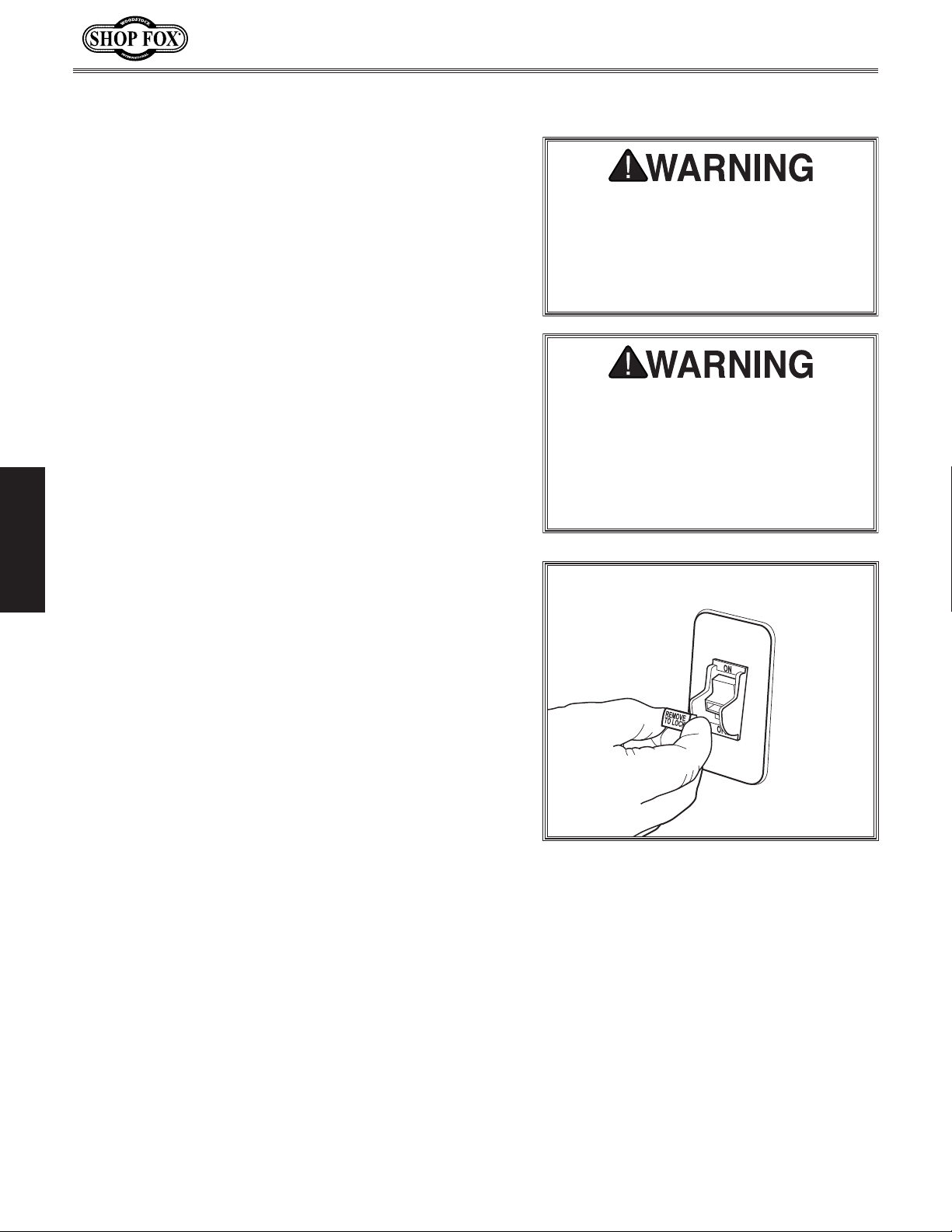

Test Run

performed. Operating an improperly set

Once assembly is complete, test run the machine to
ensure it is properly connected to power and safety
components are functioning properly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from power,
and fix the problem BEFORE operating the machine again.
The

section of this

manual can help.

Troubleshooting table in the SERVICE

The Test Run consists of verifying the following: 1) The
motor powers up and runs correctly, and 2) removing
switch disabling key from toggle switch functions properly.

To test run the machine, do these steps:

1. Clear all setup tools away from machine.

2. Make sure blade is properly installed and tensioned,

and that blade guard is in the down position.

Model W1870 (For Machines Mfd. Since 03/19)

Serious injury or death can result
from using this machine BEFORE
understanding its controls and related
safety information. DO NOT operate, or
allow others to operate, machine until
the information is understood.

DO NOT start machine until all
preceding setup instructions have been

up machine may result in malfunction
or unexpected results that can lead
to serious injury, death, or machine/
property damage.

SETUP

3. Rotate variable-speed dial counterclockwise all the
way.

4. Connect machine to power supply.

5. Firmly hold flex-shaft rotary tool.

6. Turn machine ON, verify motor operation, and then

turn machine OFF.

Motor should run smoothly, without unusual noises.

7. Remove switch disabling key, as shown in Figure 16.

8. Try to start machine with switch. Machine should not

start.

— If the machine does not start, the switch disabling

feature is working as designed.

— If the machine does start, immediately stop

the machine. The switch disabling feature is
not working correctly. This safety feature must
work properly before proceeding with regular

9. Remove flex-shaft rotary tool until you need to

operations. Call Tech Support for help.

operate it, and re-install flex-shaft cap.

Figure 16. Removing switch disabling key

from toggle switch.

-18-

Model W1870 (For Machines Mfd. Since 03/19)

This machine will perform many types of operations
that are beyond the scope of this manual. Many of these
operations can be dangerous or deadly if performed
incorrectly.

The instructions in this section are written with the
understanding that the operator has the necessary
knowledge and skills to operate this machine. If at any
time you are experiencing difficulties performing any
operation, stop using the machine!

The overview below provides the novice machine operator
with a basic understanding of how the machine is used
during operation, so the machine controls/components
discussed later in this manual are easier to understand.
Due to its generic nature, this overview is
to be an instructional guide.

OPERATIONS

General

To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.

NOT intended

To complete a typical operation, the operator does the
following:

1. Examines workpiece to make sure it is suitable for
cutting.

2. Adjusts table tilt, if necessary, to correct angle of
desired cut.

3. Loosens hold-down shoe height knob, adjusts blade
guard height to just clear the workpiece (no more

1

⁄4"), then retightens hold-down shoe height

than
knob.

4. Checks to make sure workpiece can safely pass all
the way through blade without interference from
other objects.

5. Puts on safety glasses and respirator.

6. Starts dust collector and turns machine ON.

7. Holds workpiece firmly and flat against table and

then pushes workpiece into blade at a steady and
controlled rate until cut is complete.

8. Rotates variable-speed dial to slowest speed, then
turns machine OFF.

-19-

To reduce the risk of eye injury and
long-term respiratory damage, always
wear safety glasses and a respirator
while operating this machine.

If you are an inexperienced operator,
we strongly recommend that you read
books or trade articles, or seek training
from an experienced operator of this
type of machinery before performing
unfamiliar operations. Above all, safety

must come first!

OPERATIONS

Model W1870 (For Machines Mfd. Since 03/19)

Basic Functions of a Scroll Saw

A properly adjusted scroll saw performs many
types of cuts with ease and accuracy. It is
capable of performing these types of cuts:

Straight Cuts

• Miters, angles and compound angles,
ripping, and crosscutting

Irregular Cuts

• Simple and complex curves, duplicate
parts, circles, and beveled curves

Basic Cutting Tips

Basic tips to follow when operating a scroll saw:

• Typically, a scroll saw blade stays sharp

• Best cutting results will be achieved when

1

from
on how blade is used and type of material
being cut.

cutting workpieces less than 1" thick. When
cutting workpieces thicker than 1", move
workpiece through the blade very slowly.

⁄2 hour to 2 hours of use, depending

Workpiece Inspection

Some workpieces are not safe to cut or may
require modification before they can be made
safe to cut. Before cutting, get in the habit of

inspecting all workpieces for the following:

• Material Type: This machine is intended

for cutting natural and man-made wood
products, laminate covered wood products,
and some plastics. Cutting drywall or
cementitious backer board creates
extremely fine dust and may reduce the
life of the bearings. This machine is NOT
designed to cut metal, glass, stone, tile,
etc.; cutting these materials with a scroll
saw may lead to injury.

• Foreign Objects: Nails, staples, dirt,

rocks and other foreign objects are often
embedded in wood. While cutting, these
objects can become dislodged and hit the
operator, cause kickback, or break the
blade, which might then fly apart. Always
visually inspect your workpiece for these
items. If they can't be removed, DO NOT
cut the workpiece.

• Blades dull much faster when cutting

plywood, hardwoods, and laminates.

• Exerting excessive side pressure on blade

OPERATIONS

greatly increases chance of blade breakage.

• Plan cut before starting curves. Make relief

cuts in waste areas near tight inside curves
or leave tight inside curves for a second
pass to minimize backing out. Cut sharp
outside curves by cutting past curve and
looping around to cut from different angle.

• When approaching tight radius, slow down

feed rate, but don’t stop. Give teeth time
to make cut. Forcing workpiece through
curve will cause blade to twist or break.

• If cut produces waste in curve’s interior,

turn power OFF and wait until all motion
stops before removing waste.

• Scroll saw blades have a tendency to drift.

This is compensated by adjusting the feed
direction.

• Large/Loose Knots: Loose knots can

become dislodged during the cutting
operation. Large knots can cause kickback
and machine damage. Choose workpieces
that do not have large/loose knots or plan
ahead to avoid cutting through them.

• Wet or "Green" Stock: Cutting wood

with a moisture content over 20% causes
unnecessary wear on the blades, increases
the risk of kickback, yields poor results.

• Excessive Warping: Workpieces with

excessive cupping, bowing, or twisting are
dangerous to cut because they are unstable
and often unpredictable when being
cut. DO NOT use workpieces with these
characteristics!

• Minor Warping: Workpieces with slight

cupping can be safely supported if the
cupped side faces the table. On the
contrary, a workpiece supported on the
bowed side will rock during a cut and could
cause kickback or severe injury.

-20-

Model W1870 (For Machines Mfd. Since 03/19)

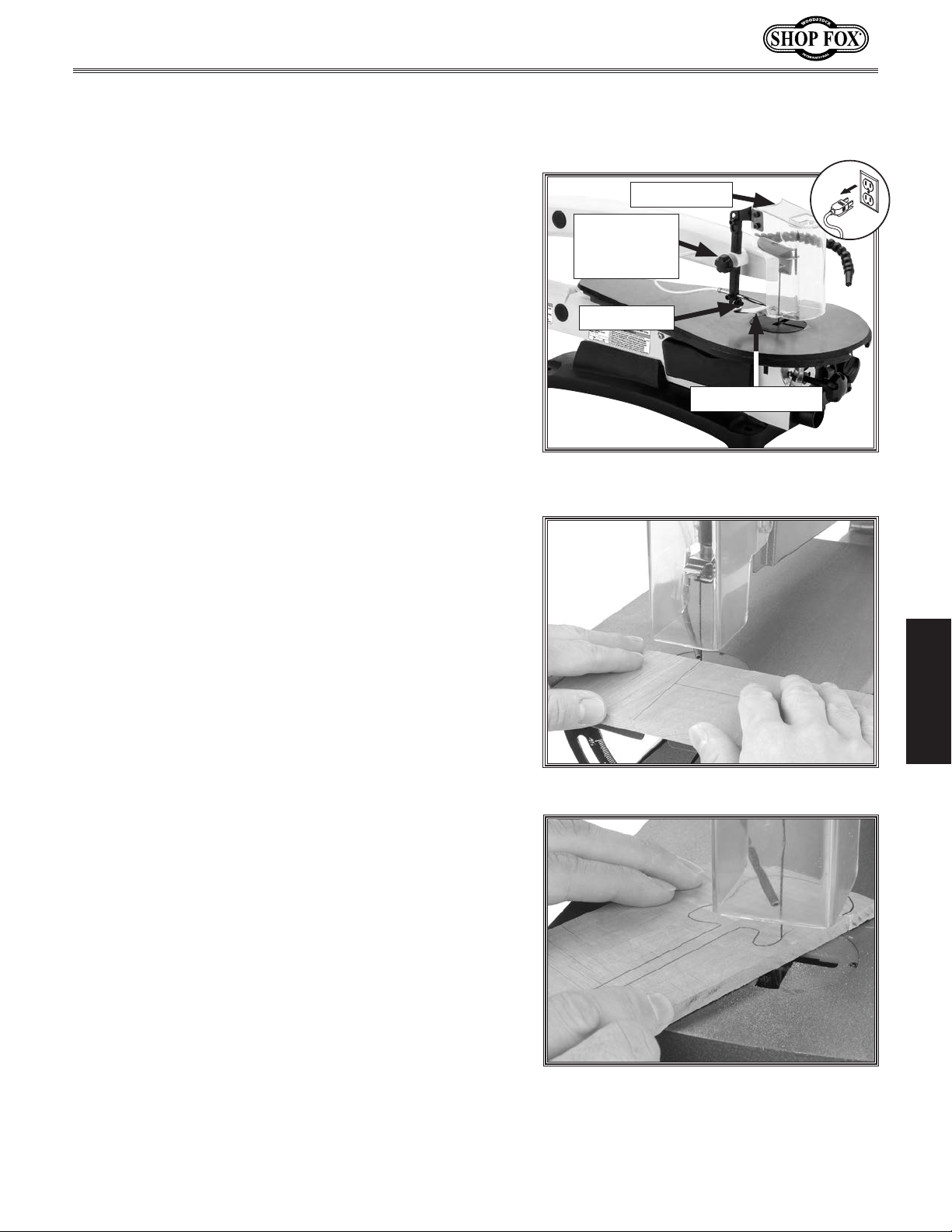

Hold-Down Shoe &

Blade Guard

The hold-down shoe and blade guard are mounted on the
same rod and are adjusted together. The hold-down shoe
keeps the workpiece from raising up from the force of the
moving blade. The blade guard helps prevent debris from
flying at the operator and acts as a barrier between the
blade and the operator's hands, thus reducing the risk of
accidental contact.

Item(s) Needed Qty

Hex Wrench 4mm ...............................................1

To adjust hold-down shoe and blade guard, do these
steps:

1. DISCONNECT MACHINE FROM POWER!

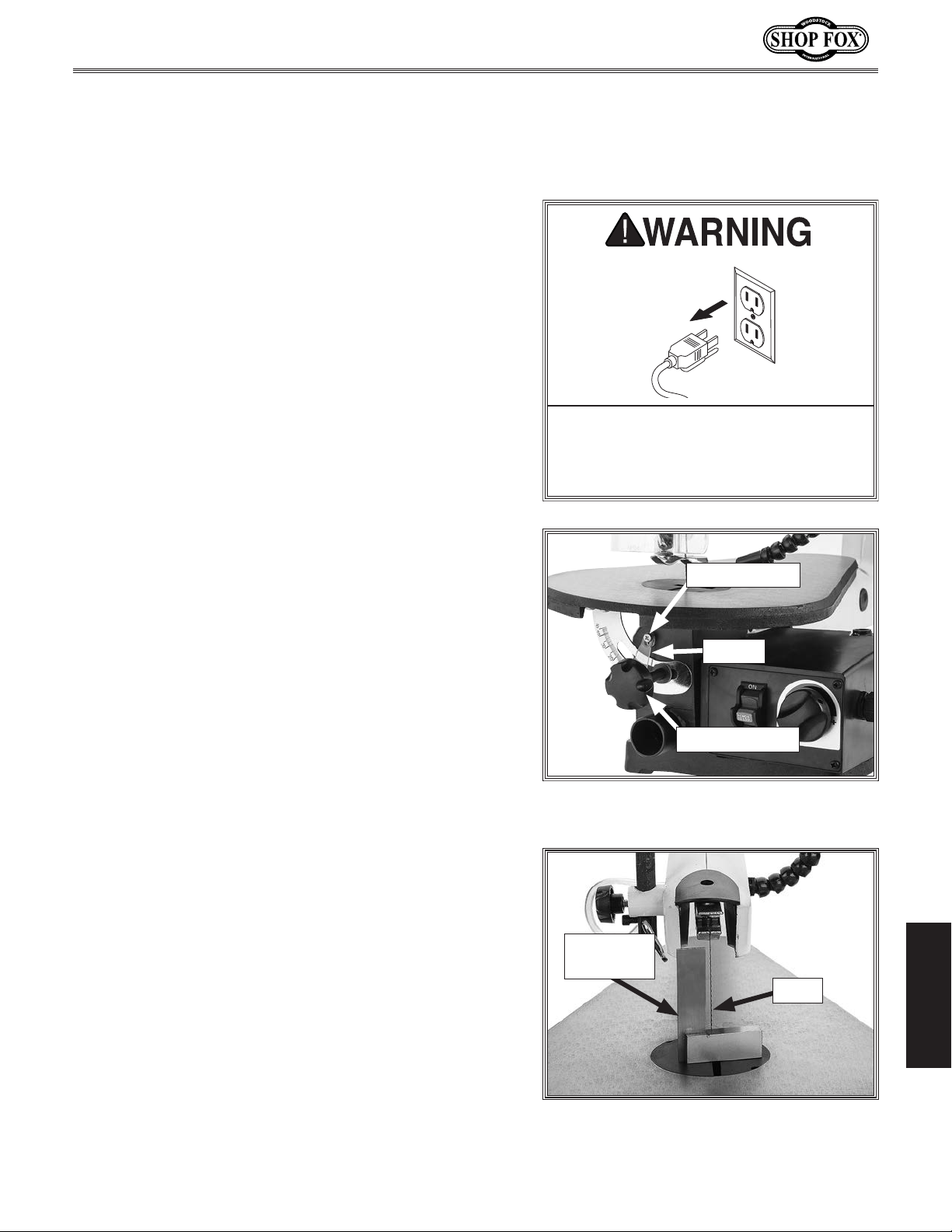

2. Loosen hold-down shoe height knob and shoe screw

shown in Figure 17.

1

3. Adjust shoe so it is no more than
workpiece.

Note: When tilting table for your cutting operation,

adjust shoe so it remains parallel with table.

⁄16" above

Blade Guard

Hold-Down

Shoe Height

Knob

Shoe Screw

Hold-Down Shoe

Figure 17. Hold-down shoe and blade

guard assembly.

OPERATIONS

4. Lower blade guard over shoe.

5. Re-tighten hold-down height knob and shoe screw,

then verify workpiece moves smoothly under shoe.

Air Nozzle

The air nozzle blows air at the blade to keep wood debris
away from the line of the cut. This makes it easier to
follow your cutting lines with accuracy.

Standard Scroll Cuts

For standard scroll cutting, follow the pattern line on the
workpiece by pushing and turning the workpiece at the
same time, which allows the kerf of the cut to make way
for the turn.

DO NOT turn the workpiece without pushing it through
the blade at the same time; otherwise, the blade could
twist and break. See Figures 18–19 for examples of
standard scroll cutting.

Figure 18. Example of making straight cut.

Figure 19. Example of making curved cut.

-21-

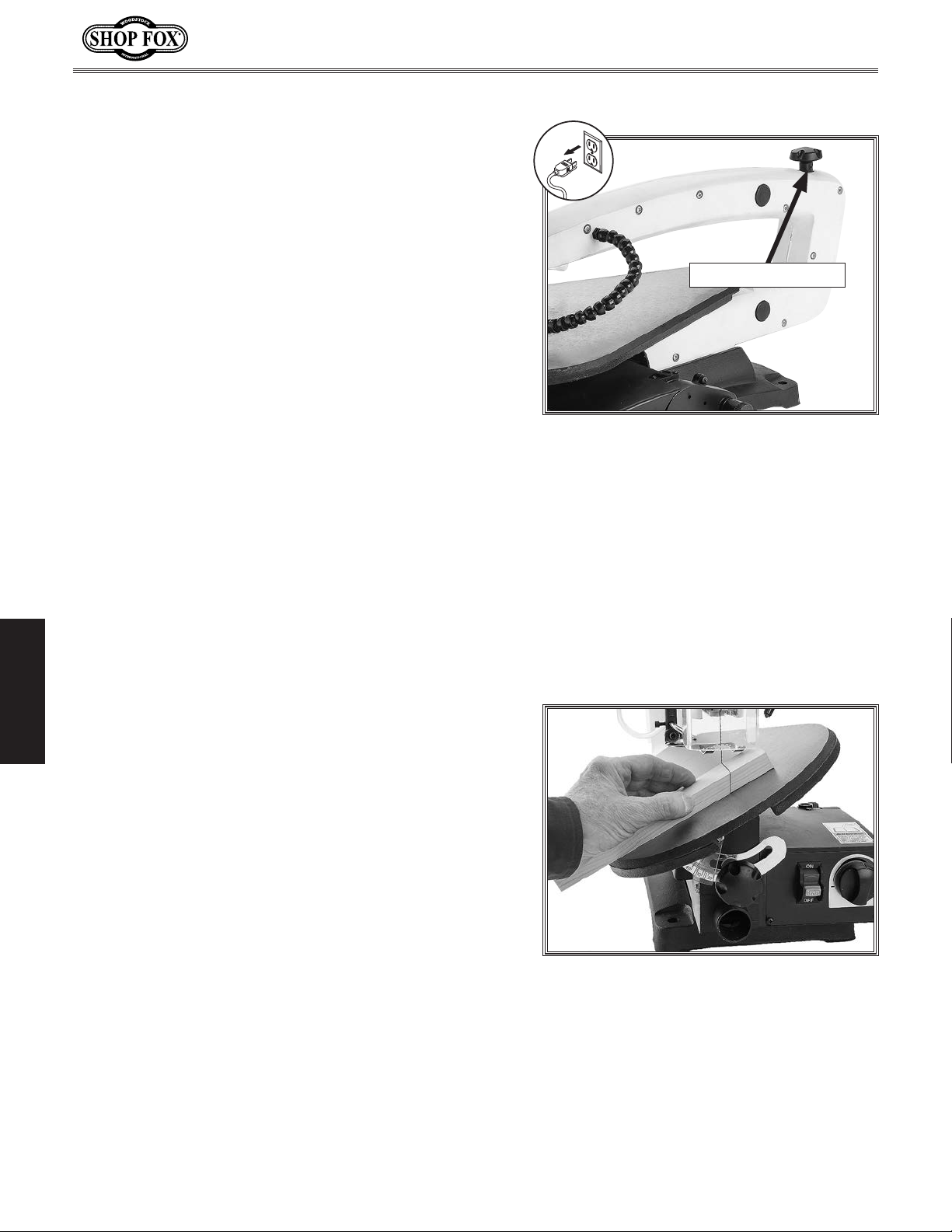

Blade Tension

Adjust blade tension using the knob shown in Figure 20.
Turn the blade tension knob clockwise to increase the
blade tension and counterclockwise to decrease it.

If the blade is not tensioned enough, it will drift while
cutting, making it difficult to follow your cutting lines. If
the blade is tensioned too tightly, it can break or cause
damage to the saw.

To check/adjust blade tension, do these steps:

1. DISCONNECT MACHINE FROM POWER!

2. Pivot blade guard up.

3. Pinch blade and move it side to side with light

pressure to check tension. When properly tensioned,
blade will deflect only slightly when moved, and
ends will remain firmly in position.

Model W1870 (For Machines Mfd. Since 03/19)

Blade Tension Knob

Figure 20. Location of blade tension knob.

4. Tighten/loosen blade as necessary and pivot blade

guard down. Perform a test cut on a scrap piece
of wood and repeat this entire procedure if further
adjustments are necessary.

Bevel Cuts

Bevel cuts can be used for miters, cope joints, and
making relief or recessed projects.

OPERATIONS

To make a bevel cut, do these steps:

1. Draw your pattern as described in the previous

sections.

2. Adjust table to desired angle.

3. Turn machine ON, feed work piece slowly and evenly
into blade, remembering not to force workpiece (see
Figure 21).

4. Turn machine OFF, then wait until blade stops

before removing waste near blade.

Figure 21. Example of making a bevel cut.

-22-

Model W1870 (For Machines Mfd. Since 03/19)

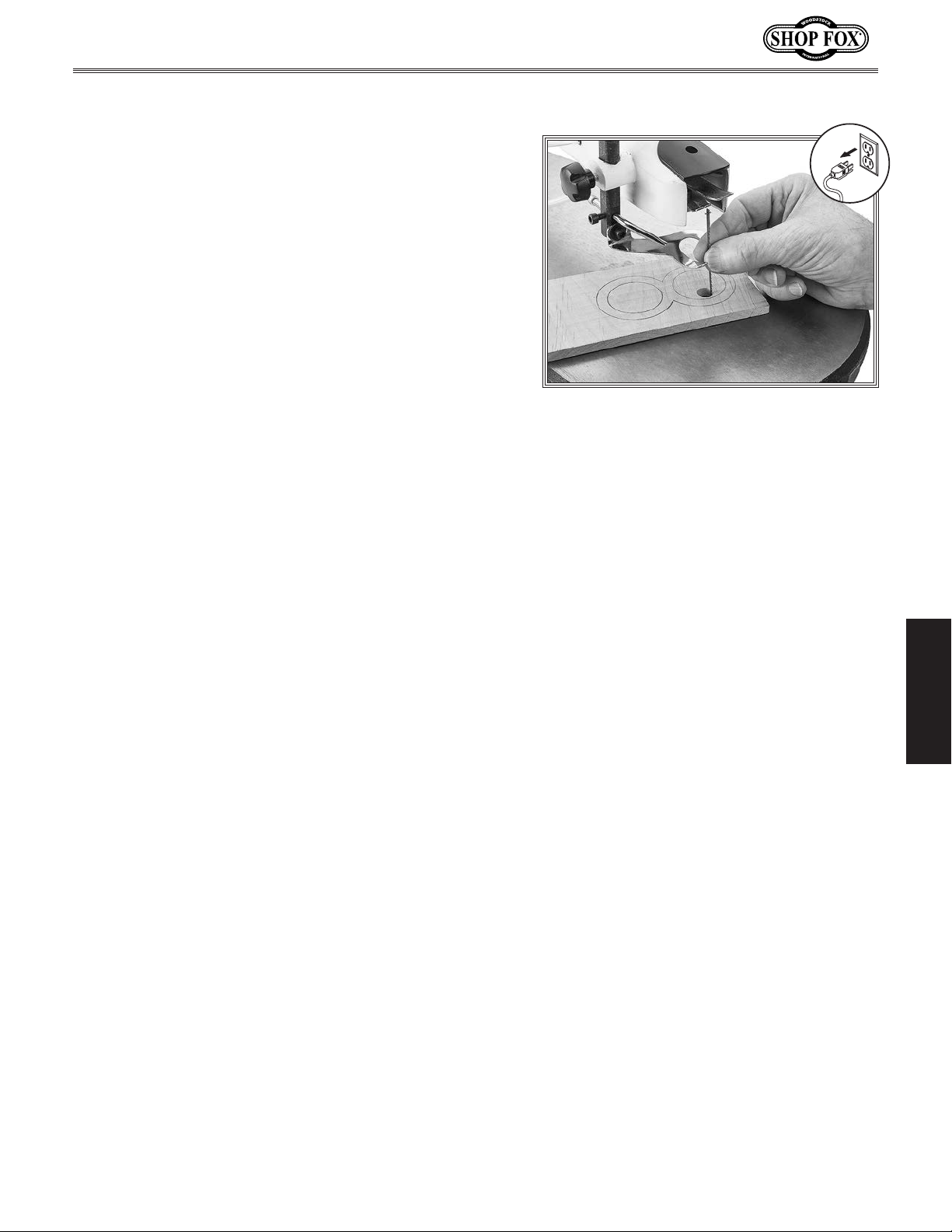

Inside Cuts

Inside cuts can be easily made with your scroll saw by
threading the blade through a hole drilled in the workpiece.
The flex-shaft rotary tool on the W1870 can be used to
assist with drilling.

To make an inside cut, do these steps:

1

1. Drill a
internal cut.

2. DISCONNECT MACHINE FROM POWER!

3. Remove blade from saw.

4. Insert blade through previously drilled hole in

workpiece (see Figure 22).

Note: If using a plain end blade, remove one blade

adapter to allow the blade to be inserted through
the workpiece, then re-install the adapter on the
blade.

⁄4" hole in the workpiece inside waste area of

Figure 22. Example of installing blade for

an inside cut.

5. Re-install blade.

6. Adjust hold-down shoe and guard, connect saw to

power, then perform cut.

7. When finished, disconnect saw from power, remove
blade from saw and workpiece, remove workpiece,
then re-install blade on saw.

OPERATIONS

-23-

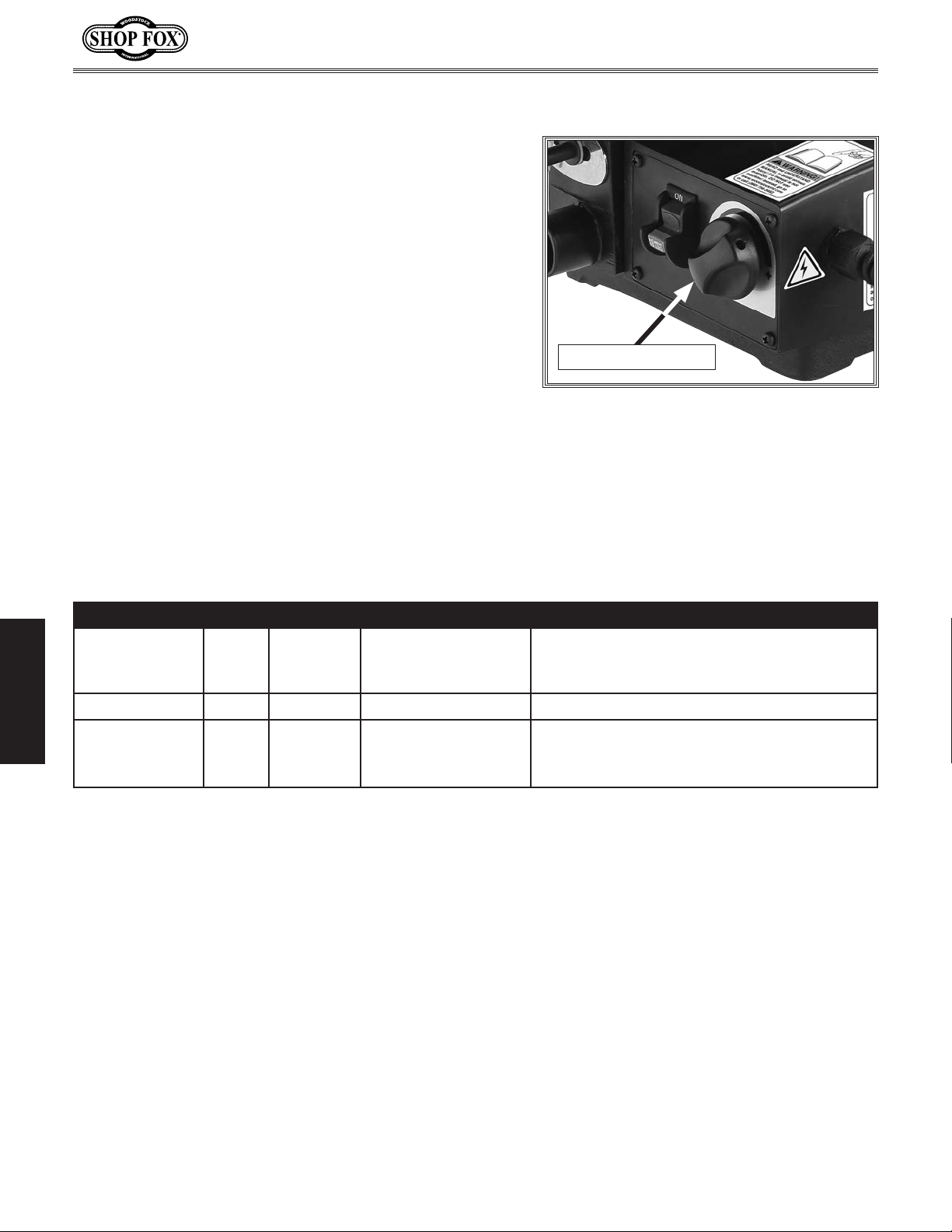

Blade Speed

The variable-speed dial shown in Figure 23 adjusts the
blade speed between 550–1650 SPM (strokes per minute).

To reduce the risk of injury from unexpected fast speed
at startup, always rotate the variable-speed dial to its
slowest setting when starting/stopping the scroll saw.

Blade Selection

Model W1870 (For Machines Mfd. Since 03/19)

Variable-Speed Dial

Figure 23. Variable-speed dial.

Scroll saw blades are classified as either "pin-end" (mounting pins in the ends of the blade) or "plain end"
(no pins). The lade included with your scroll saw is a "pin-end" blade. However, the W1870 can use "plain
end" blades using the included adapters.

The typical format for blade identification is:

Teeth Per Inch Width Thickness Strokes Per Minute Workpiece Material

10 TPI 0.110" 0.020" 120 0–1650 General purpose cutting. Hard and soft

woods between
plastics, paper, felt, and bone.

15 TPI 0.110 " 0.020" 700–1200 Thin wood and plastic between

OPERATIONS

18 TPI 0.095" 0.010" 550–70 0 Tight radius cutting in thin hard and soft

woods between
pieces of bone, ivory, plastics and veneer.

Figure 24. Blade Identification.

Note: There may be other numbers or letters that have meaning for a particular type of blade. Always

refer to the manufacturer's technical data for a complete explanation when choosing a scroll saw blade.

3

⁄16"–2". Also good for

3

⁄32" –1⁄2".

3

⁄32"– 1⁄8". Also good for thin

-24-

Model W1870 (For Machines Mfd. Since 03/19)

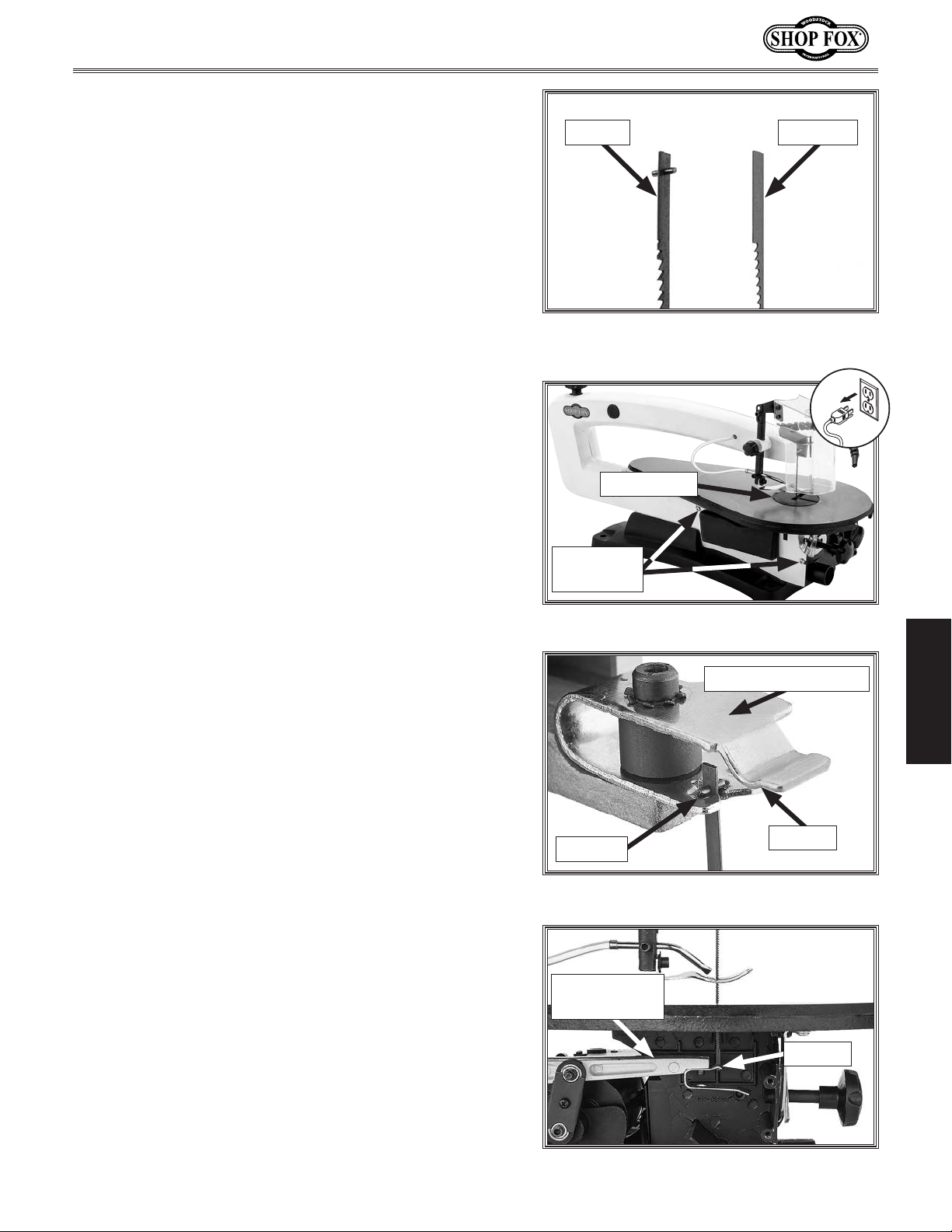

Installing Pin-End Blades

The V-notches of the upper and lower blade holders are
designed to hold pin-end blades (see Figure 25).

Item(s) Needed Qty

Phillips Head Screwdriver .....................................1

To install a pin-end blade, do these steps:

1. DISCONNECT MACHINE FROM POWER!

2. Rotate blade tension knob counterclockwise to

decrease blade tension.

3. Position hold-down shoe at maximum height and
swing blade guard up and out of way to give you
working room.

Pin-End Plain-End

Figure 25. Pin-end and plain-end blade

comparison.

4. Remove table insert, then use Phillips head screw­driver to remove screws from lower arm guard shown
in Figure 26.

5. Push down on upper blade mounting arm shown
in Figure 27, slide blade out of upper and lower
mounting arms, then remove it.

6. Slide saw blade through table hole so teeth face
down and forward (See Figure 28).

7. Position lower pin-ends underneath V-notch in lower
blade holder, as shown in Figure 28.

Note: Wiggle the blade end back and forth with

slight pressure to make sure the pins are seated in
the indents of the mounting arm.

8. Push upper blade mounting arm down, then slide
upper pin-ends onto V-notch of the blade holder, as
shown in Figure 27.

9. Replace table insert and arm guard.

Table Insert

Arm Guard

Screws

Figure 26. Table insert and arm guard.

Upper Mounting Arm

Pin-Ends

Figure 27. Upper blade mounting arm.

Lower

Mounting Arm

V-Notch

OPERATIONS

10. Tension blade.

V-Notch

Figure 28. Lower blade mounting arm.

-25-

Installing Plain-End Blades

Set

Screw

Blade

Set

Screw

Set

The V-notches of the upper and lower blade holders are
designed to hold pin-end blades. However, with the use
of the blade adapters, plain-end blades (see Figure 25 on

Page 25) can be used with your scroll saw.

Item(s) Needed Qty

Hex Wrench 2.5mm .............................................1

To install a plain-end blade, do these steps:

1. DISCONNECT MACHINE FROM POWER!

2. Repeat Steps 1–5 on Page 25.

3. Loosen blade adapter set screws to allow saw blade
ends to slide into adapters, as illustrated in Figure

29.

4. Thread one set screw in until it just makes contact

with blade. Then tighten other set screw, as
illustrated in Figure 29.

Model W1870 (For Machines Mfd. Since 03/19)

Set

Screw

Figure 29. Plain-end blade inserted into

blade adapter.

Upper Mounting Arm

Set

Screw

Blade

5. Place other blade adapter on opposite end. Tighten
remaining adapter set screws to secure blade.

6. Slide one end of blade assembly through hold­down shoe, and place the adapter over the upper
mounting arm (see Figure 30).

7. While holding the adapter, press it down and install

OPERATIONS

the other adapter on the lower mounting arm (see
Figure 28 on Page 25).

8. Replace the table insert and arm guard, adjust the

hold-down shoe, then tension the blade.

Flex-Shaft Tool

To operate flex-shaft rotary tool, do these steps:

1. Position guard so it covers hold-down shoe and
touches table (See Figure 31).

2. Hold flex-shaft rotary tool, turn power ON, and

select desired speed for operation using variable
speed dial.

Adapter

Figure 30. Adapter with plain-end blade

installed on upper mounting arm.

Blade Guard

3. After completing work with flex-shaft rotary tool,
remove it from machine and re-install flex-shaft cap.

-26-

Figure 31. Guard position.

Model W1870 (For Machines Mfd. Since 03/19)

ACCESSORIES

Scroll Saw Accessories

The following Scroll Saw accessories may be available through your local Woodstock International
Inc. Dealer. If you do not have a dealer in your area, these products are also available through online
dealers. Please call or e-mail Woodstock International Inc. Customer Service to get a current listing of
dealers at: 1-800-840-8420 or at [email protected].

D2 056 —Tool Ta ble
Great for bench-top tools like scroll saws. Support cross braces on top
provide incredible strength and capacity. Flared legs and adjustable
rubber feet ensure stability and reduce machine vibration. Butcher
block laminate table top measures 13" x 23" and is 30
measures 21" x 32". 700 lb. capacity.

1

⁄2" tall. Bottom

D2675—Safety Glasses Metal Frame
A metal band across the top of these glasses are not only stylish, but
it adds strength. This band is linked to the metal ear pieces through a
tough hinge. These glasses have a wide field of view and side shields
for added protection. Exceeds ANSI Z87.1 - 1989 standards for impact
resistance.

D4251—Universal Adapter
Reduce dust collection hose from 4" to 1" OD in 2
steps. Simply cut off what you don't need. Heavy wall thickness stands
up to hose clamp pressure.

W1844—Wall-Mount Dust Collector with Canister Filter
Equipped with a 1 HP motor that provides 537 CFM air suction through
a 4" intake hole.

3

⁄4", 23⁄8" and 17⁄8" OD

OPERATIONS

-27-

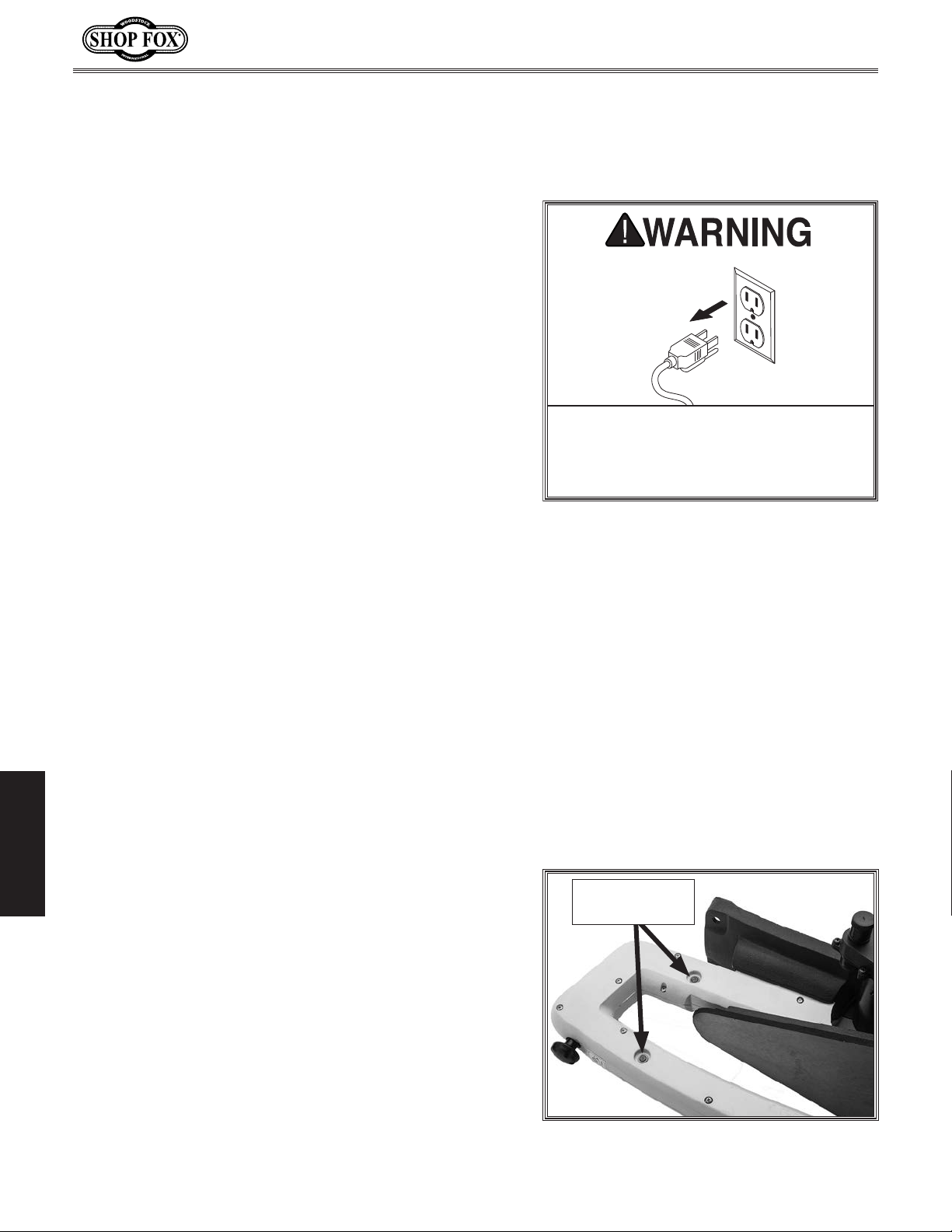

MAINTENANCE

General

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To maintain a low risk of injury and proper machine
operation, if you ever observe any of the items below,
shut down the machine immediately and fix the problem
before continuing operations:

• Loose mounting bolts.

• Damaged saw blade.

• Worn or damaged wires.

• Any other unsafe condition.

• Oil bearings, see below.

Model W1870 (For Machines Mfd. Since 03/19)

MAKE SURE that your machine is
unplugged during all maintenance
procedures! If this warning is ignored,
serious personal injury may occur.

Cleaning & Protecting

Cleaning Model W1870 is relatively easy. Vacuum excess
wood chips and sawdust, and wipe off remaining dust with
a dry cloth. If any resin has built up, use a resin dissolving
cleaner to remove it. Keep your table rust-free with
regular applications of quality lubricants. If excessive
sawdust accumulates around the motor, remove arm guard
and remove sawdust with a vacuum.

Lubrication

The upper and lower arms have two sleeve bearings each
that require lubrication with SAE 30 oil after every 8
hours of machine use.

To lubricate sleeve bearings, do these steps:

MAINTENANCE

1. DISCONNECT MACHINE FROM POWER!

2. Remove plastic caps to expose sleeve bearing ends

(see Figure 32).

Sleeve Bearing

Ends

3. Lay saw flat on side, then apply generous amount of
light machine oil to cups around bearing ends. Let
oil seep into bearings for 1-2 hours.

4. Wipe off excess oil, turn saw over, and repeat Step 3
to remaining two bearings.

5. Replace plastic caps before beginning operation.

-28-

Figure 32. Plastic caps removed to expose

sleeve bearing ends.

Model W1870 (For Machines Mfd. Since 03/19)

This section covers the most common service adjustments
or procedures that may need to be made during the life
of your machine.

If you require additional machine service not included
in this section, please contact Woodstock International
Technical Support at [phone] or send e-mail to:
[email protected].

SERVICE

General

Calibrating Table Tilt

The table lock knob and tilt scale are used to tilt the
table for horizontal angle cuts.

Note: The table tilt scale is only an approximate scale
and should not be used when precise angle measurements
are required for the operation.

Item(s) Needed Qty

Phillips Screwdriver #2 .........................................1

Wrench 10mm ...................................................1

Machinist's Square 2" ...........................................1

To calibrate table tilt, do these steps:

1. DISCONNECT MACHINE FROM POWER!

2. Raise hold-down shoe to maximum height and lock it

in place.

3. Loosen table tilt lock knob (see Figure 33).

MAKE SURE that your machine is
unplugged during all service proce­dures! If this warning is ignored, seri­ous personal injury may occur.

Pointer Screw

Pointer

Table Tilt Knob

Figure 33. Components for calibrating

table tilt.

4. Place machinist's square behind blade, as shown in
Figure 34.

5. Adjust table to be square with blade, then tighten

lock knob.

6. Loosen pointer screw, adjust tip to 0° mark on scale,
then tighten screw to secure setting.

-29-

Machinist's

Square

Blade

Figure 34. Squaring table to blade.

SERVICE

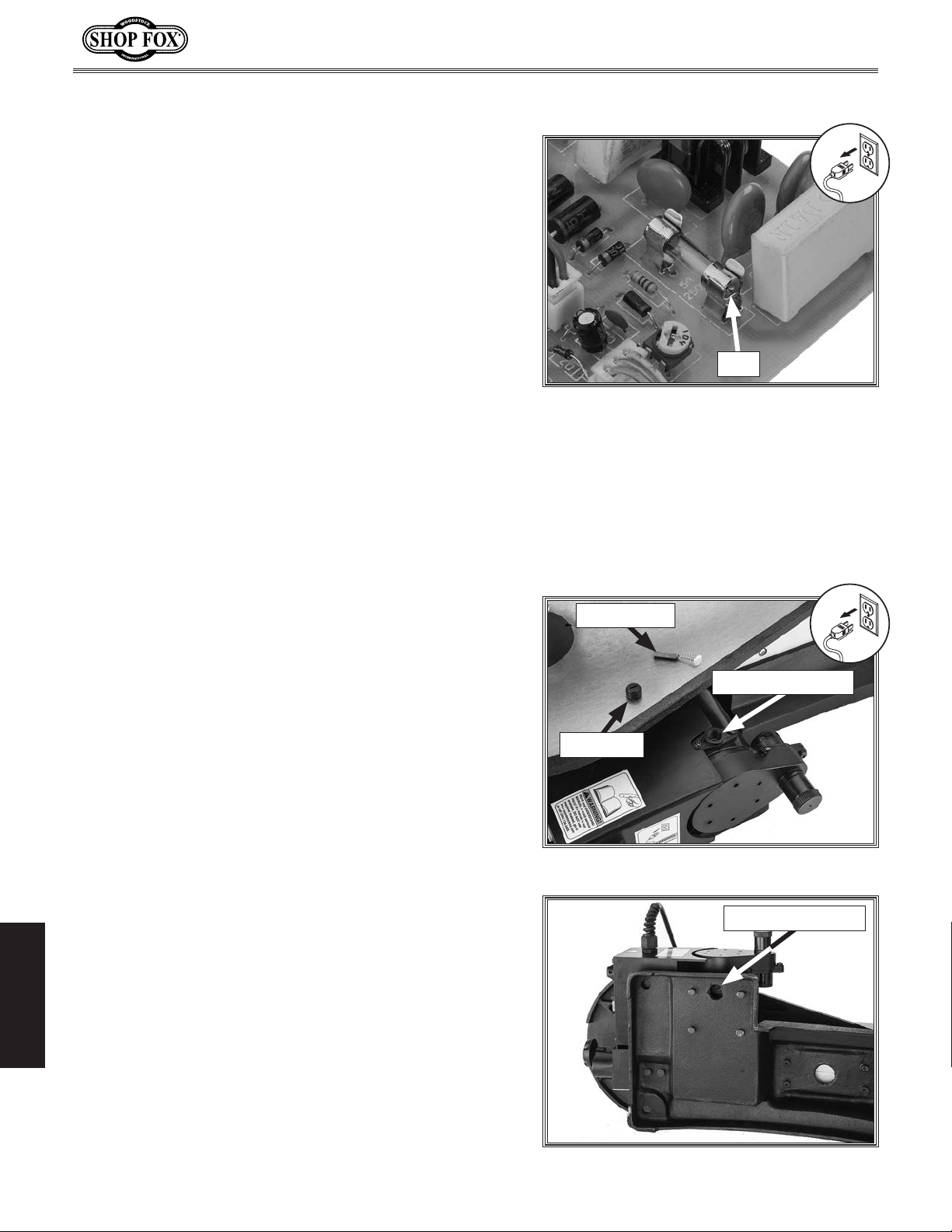

Replacing Fuse

The purpose of the fuse is to protect the motor and
circuit board.

If the fuse blows, the light will turn ON but the motor
will not start. You can verify if the fuse has blown or not
by holding it up to the light and inspecting the element
inside the glass (the element looks like a thin wire). If the
fuse is blown the element will be broken in half.

Item(s) Needed Qty

Fuse 5A 250V 0.18" Fast-Acting, Glass .......................1

To replace the fuse, do these steps:

1. DISCONNECT MACHINE FROM POWER!

2. Remove switch cover, slide circuit board partially

out, remove fuse (see Figure 35), and install a new
one.

Model W1870 (For Machines Mfd. Since 03/19)

Fuse

Figure 35. Fuse location on circuit board.

3. Re-install circuit board and cover.

Replacing Motor Brushes

The motor brushes wear with use. When they require
replacement, the motor will stop operating correctly,
fail to start, or cut in and out during operation. Always
replace both brushes at the same time.

Item(s) Needed Qty

Flat Head Screwdriver .........................................1

To inspect/replace the motor brushes, do these steps:

1. DISCONNECT MACHINE FROM POWER!

2. Remove upper motor brush cap and motor brush,

as shown in Figure 36, then install new brush and
replace cap.

3. Turn machine on its side.

Motor Brush

Location of Brush

Brush Cap

Figure 36. Upper motor brush location.

Location of Brush

4. Remove lower brush cap and motor brush, accessing

SERVICE

them through a hole in bottom of base (see Figure

37).

5. Replace brush assembly and secure with brush cap.

Figure 37. Lower motor brush location.

-30-

Model W1870 (For Machines Mfd. Since 03/19)

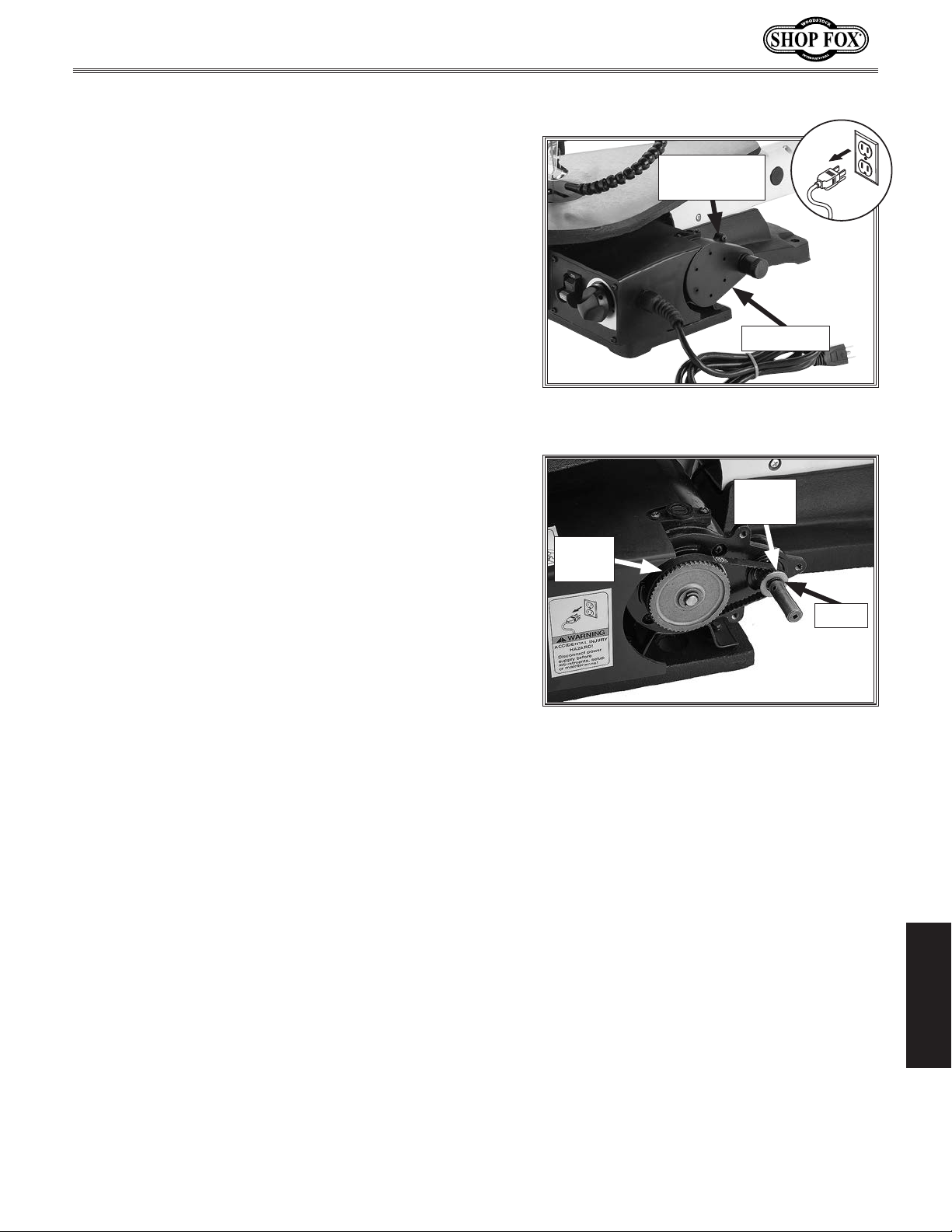

Replacing Timing Belt

If you hear unusual sounds coming from the motor or
notice that the flex-shaft rotary tool stops working, the
timing belt may be broken. If this happens, it must be
replaced before further operation to avoid damaging the
motor pulley.

To replace timing belt, follow these steps:

1. DISCONNECT MACHINE FROM POWER!

Phillips Head

Screw

2. Remove flex-shaft rotary tool, if installed.

3. Remove three screws that secure belt cover shown in
Figure 38, then remove cover.

4. Remove E-clip and flat washer from drive shaft

shown in Figure 39, remove timing belt from
pulleys, then slide new timing belt onto pulleys.

5. Re-install belt cover with screws removed in Step 3,
then re-install flex-shaft rotary tool.

Belt Cover

Figure 38. Timing belt cover screw

location.

Flat

Washer

Timing

Belt

E-Clip

Figure 39. Timing belt and pulleys.

-31-

SERVICE

Model W1870 (For Machines Mfd. Since 03/19)

The following troubleshooting tables cover common problems that may occur with this machine. If you
need replacement parts or additional troubleshooting help, contact our Technical Support.

Note:

available, your original purchase receipt. This information is required to properly assist you.

Troubleshooting

Before contacting Tech Support, find the machine serial number and manufacture date, and if

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Machine does not
start, or power
supply fuse/breaker
trips immediately
after startup.

Machine stalls or is
underpowered.

Machine has vibra­tion or noisy
operation.

Blade will not stay
on layout line.

Excessive blade
breakage.

1. Variable-speed potentiometer at fault.

2. Switch disabling key removed.

3. Power supply circuit breaker tripped or
fuse blown.

4. Incorrect power supply voltage or circuit
size.

5. Circuit board at fault

6. Motor at fault.

1. Blown fuse.

2. Incorrect workpiece material.

3. Feed rate/cutting speed too fast.

4 Machine undersized for task.

5. Motor brushes at fault.

6. Motor has overheated.

1. Motor or component loose.

2. Blade at fault.

3. Incorrectly mounted to workbench.

4. Motor mount loose/broken.

1. Blade not tensioned correctly.

2. Too much pressure applied to workpiece.

3. Blade holders not aligned correctly.

1. Blade not tensioned correctly.

2. Not using relief cuts when cutting tight
curves; twisting blade.

3. Wrong blade for operation.

4. Too much pressure on blade.

5. Incorrect blade for cutting task.

1. Test/repair if at fault.

2. Install switch disabling key.

3. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

4. Ensure correct power supply voltage and circuit
size.

5. Inspect/replace if at fault.

6. Test/repair/replace.

1. Replace fuse/ensure no shorts.

2. Inspect/replace if wrong material.

3. Decrease feed rate/cutting speed.

4. Use correct blade/reduce feed rate or depth of cut.

5. Remove/replace brushes (refer to Page 30).

6. Let motor cool; reduce workload.

1. Replace damaged or missing bolts/nuts or tighten if
loose.

2. Replace warped/bent blade.

3. Tighten mounting hardware (refer to Page 14).

4. Tighten/replace.

1. Properly tension blade (refer to Page 22).

2. Reduce feed rate and pressure on workpiece.

3. Re-adjust blade holders so they are aligned in a
straight line with saw.

1. Properly tension blade (refer to Page 22).

2. Use more relief cuts for tight turns; reduce feed
rate; do not twist blade—allow blade to do the
work.

3. Refer to the Blade Selection Chart on Page 24 and
use correct blade for operation.

4. Reduce pressure on workpiece as it passes through
blade.

5. Select correct blade for task.

SERVICE

-32-

Model W1870 (For Machines Mfd. Since 03/19)

These pages are current at the time of printing. However, in the spirit of improvement, we may make
changes to the electrical systems of future machines. Compare the manufacture date of your machine to

If there are differences between your machine and what is shown in this section, call Technical Support

for assistance BEFORE making any changes to the wiring on your machine. An updated

machine before calling. This information can be found on the main machine label.

Electrical Safety Instructions

the one stated in this manual, and study this section carefully.

at [phone]
wiring diagram may be available. Note: Please gather the serial number and manufacture date of your

SHOCK HAZARD. Working on wiring that is

connected to a power source is extremely
dangerous. Touching electrified parts will
result in personal injury including but not
limited to severe burns, electrocution,
or death. Disconnect the power from
the machine before servicing electrical
components!

QUALIFIED ELECTRICIAN. Due to the inherent

hazards of electricity, only a qualified
electrician should perform wiring tasks on
this machine. If you are not a qualified
electrician, get help from one before
attempting any kind of wiring job.

WIRE CONNECTIONS. All connections must

be tight to prevent wires from loosening
during machine operation. Double-check all
wires disconnected or connected during any
wiring task to ensure tight connections.

WIRE/COMPONENT DAMAGE. Damaged wires

or components increase the risk of serious
personal injury, fire, or machine damage. If
you notice that any wires or components are
damaged while performing a wiring task,
replace those wires or components before
completing the task.

MODIFICATIONS. Using aftermarket parts or

modifying the wiring beyond what is shown
in the diagram may lead to unpredictable
results, including serious injury or fire.

MOTOR WIRING. The motor wiring shown

in these diagrams is current at the time
of printing, but it may not match your
machine. Always use the wiring diagram
inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors

and power inverters store an electrical
charge for up to 10 minutes after being
disconnected from the power source.
To reduce the risk of being shocked,
wait at least this long before working on
capacitors.

CIRCUIT REQUIREMENTS. You MUST follow

the requirements at the beginning of this
manual when connecting your machine to a
power source.

EXPERIENCING DIFFICULTIES. If you are

experiencing difficulties understanding
the information included in this section,
contact our Technical Support at

[phone].

SERVICE

WIRING DIAGRAM COLOR KEY

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.shopfox.biz.

BLACK

WHITE

GREEN

RED

BLUE

BROWN

GRAY

ORANGE

-33-

YELLOW
YELLOW

GREEN
PURPLE

PINK

LIGHT
BLUE

BLUE
WHITE

TUR­QUOISE

ON/OFF

Safety

Switch

Model W1870 (For Machines Mfd. Since 03/19)

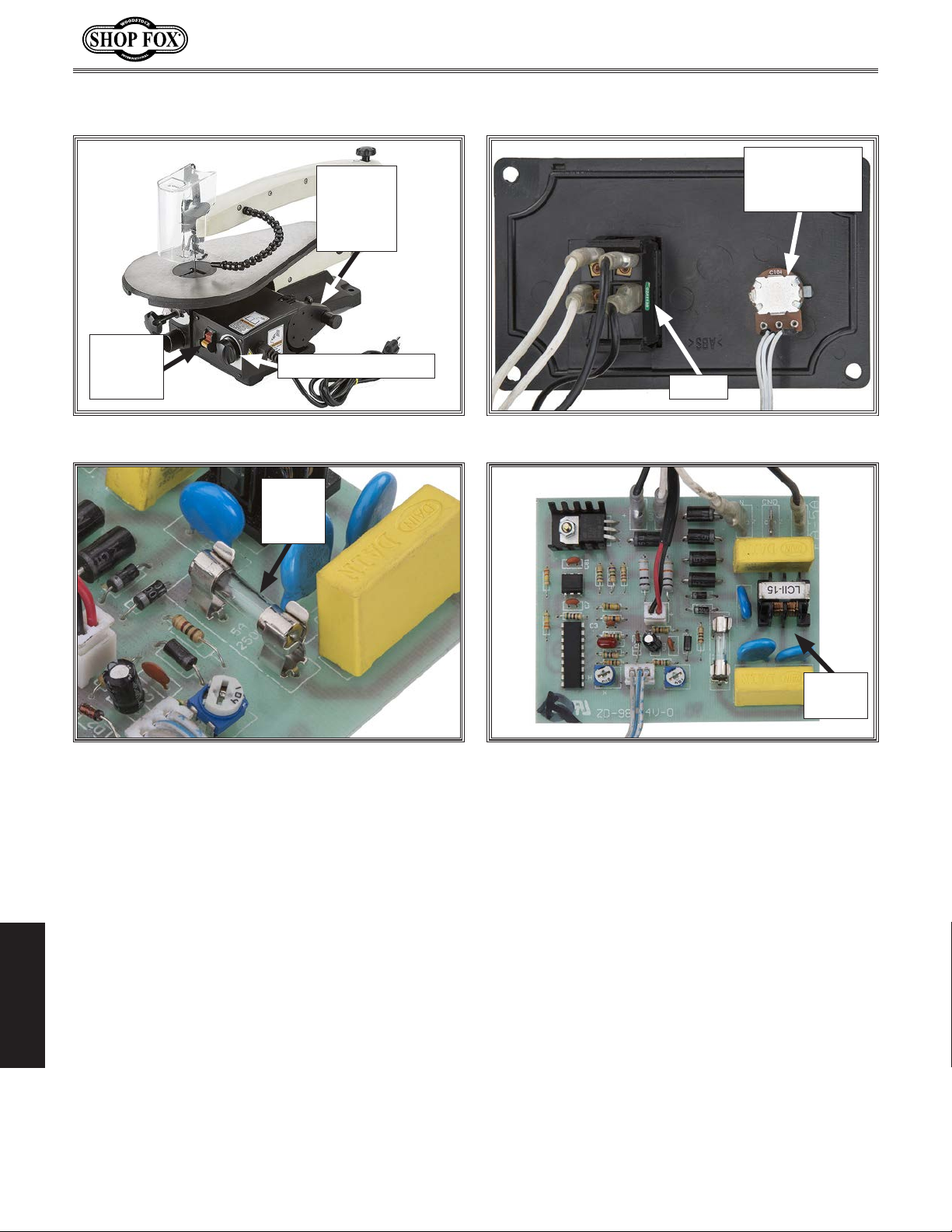

Electrical Components

DC Motor

1

⁄6 HP

530-1560

RPM

Variable-Speed Dial

Potentiometer

for Variable-

Speed Dial

Switch

Figure 40. Location of electrical components.

Fuse

5A

250V

Figure 41. Fuse.

Figure 42. Back of switch plate.

Circuit

Board

Figure 43. Electrical connections.

SERVICE

-34-

Model W1870 (For Machines Mfd. Since 03/19)

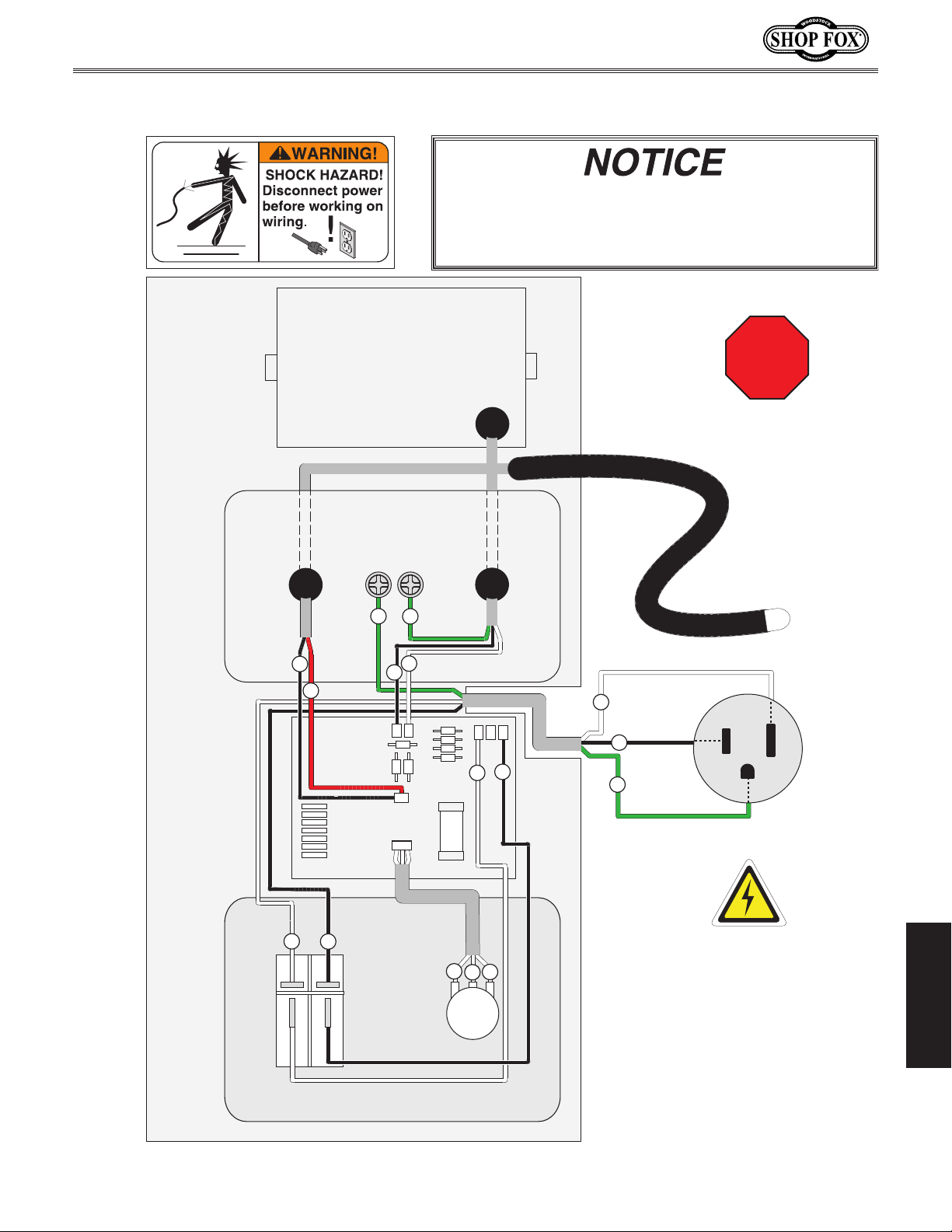

Wiring Diagram

This motor wiring diagram is current at the time of
printing; however, always use the diagram on the
inside of the junction box cover when rewiring your
motor!

Read

Page 33

Circuit

Board

Motor

Back of Junction Box

Gn

Bk

Rd

Bk

STOP

Before

Wiring

LED

Light

120V

Gn

Wt

Neutral

Hot

Bk

Gn

Ground

Wt

Bk

Wt

Switch

Cover

Plate

ZD-98F94V-0

Bk

Wt

LoadLine

Toggle Safety Switch

KEDU HY7

Fuse

5A/250V

Wt

Wt

Wt

C104

VS Dial Potentiometer

-35-

5-15 Plug

120 VAC

SERVICE

13

Model W1870 (For Machines Mfd. Since 03/19)

PARTS

Main

22

21

9

69

23

71

49

30

32

20

31

70

104

12

33

12

31

105
72

27

35

34

6

54

28

72
52

36

28

27
26

55

62

26

16

84

74

56

85

9

89

42

64

90

91

89

79

73

57

29

86

63

87

104

58

107

106

59

88

87

27

61

81

60

89

98

79-1

92

91

80

78

100

97

77

49

24

82

89

93

76

25

96

25

65

94

75

41

81

95

83

108

38

24

24

15

103

15

13

48

51

40

99

50

2

103

43

1

31

19

39

33

31

10

37

14

38

31

49

30

46

53

2
1

16

71

5

4

11

9

10

9

8

7

2

3

5

4

12

12

46

18

17

44
45

47

110

109

111

66

PARTS

-36-

Model W1870 (For Machines Mfd. Since 03/19)

REF PAR T # DES CRIPTION REF PAR T # DES CRIPTION

54 X1870054 FRONT HOUSING W/DUST PORT 111 X 1870111 COLLET CHUCK WRENCH 9.5MM

Main Parts List

1 X1870001 HEX BOLT M6-1 X 20 55 X1870055 SCALE
2 X1870002 FLAT WASHER 6MM 56 X1870056 FENDER WASHER 6MM
3 X1870003 HEX BOLT M6-1 X 25 57 X1870057 POINT ER
4 X1870004 CORD CLAMP PLATE 58 X1870058 FLAT WASHER 4MM
5 X1870005 PH LP HD SCR M4-. 7 X 6 59 X1870059 PH LP HD SCR M4-. 7 X 12
6 X1870006 STORAGE COMPARTMENT 60 X1870060 KNOB BOLT M6-1 X 13, D44, 5-LOBE
7 X1870007 BASE 61 X1870061 SHOULDER SCREW M6-1 X 11, 8 X 11
8 X1870008 AIR HOSE 6 X 216MM CLEAR 62 X1870062 TAB LE W/R OLL P IN 3 X 8MM
9 X1870009 DUST CAP 63 X1870063 TABLE I NSERT
10 X1870010 HEX NUT M5-.8 64 X1870064 ACCESSORY TOOL KIT
11 X1870011 LEFT ARM HOUSING 65 X1870065 HEX WRENCH 2.5MM
12 X1870012 OI L SLEEVE BEARING 66 X1870066 HEX WRENCH 4MM
13 X1870013 PH LP HD SCR M4-. 7 X 10 69 X1870069 HOUSING COVER
14 X1870014 FLAT WASHER 4MM 70 X1870070 BLADE GUARD CONNECTIO N PLATE
15 X1870015 PRESSURE PLATE 71 X1870071 HEX NUT M4-.7
16 X1870016 PH LP HD SCR M5-. 8 X 8 72 X1870072 PH LP HD SCR M4-. 7 X 8
17 X1870017 ARM SPRING 73 X1870073 SET SCREW M8-1.25 X 12
18 X1870018 TENSION BOLT ASSEMBLY 74 X1870074 ECCENT RIC COUNTERW EIG HT
19 X1870019 LOWER ARM ASSEMBLY 75 X1870075 SET SCREW M5-.8 X 6
20 X1870020 UPP ER ARM ASSEMBLY 76 X1870076 VARIABLE-SP EED DIAL
21 X1870021 RIGHT ARM HOUSING 77 X1870077 TOGGLE SWITCH KEDU HY7
22 X1870022 PH LP HD SCR M5-. 8 X 50 78 X1870078 SWITCH COVER
23 X1870023 LAMP ASSEMBLY 79 X1870079 CIRCUIT BOARD
24 X1870024 SET SCREW M5-.8 X 8 DOG PT 79-1 X1870079-1 FUSE 5A 250V 0.18" FAST-ACTING, G LASS
25 X1870025 BLADE ADAPTER 80 X1870080 JUNCTIO N BO X
26 X1870026 CAP SCREW M4-.7 X 10 81 X1870081 PHLP HD SCR M4-.7 X 10
27 X1870027 EXT TOOTH WASHER 4MM 82 X1870082 STRAIN RELIEF TYPE-3 M16-1.5
28 X1870028 BLADE SUPPORT 83 X1870083 POWER CORD 18G 3W 72" 5-15P
29 X1870029 BLADE (PIN-END) 15T 84 X1870084 DUST COVER
30 X1870030 CAP SCREW M5-.8 X 16 85 X1870085 MOTOR 1/6HP 120VDC
31 X1870031 FLAT WASHER 5MM 86 X1870086 SHAFT
32 X1870032 UPPER SPACER 6 X 9.5MM 87 X1870087 BALL BEARING 608-2RS
33 X1870033 BALL BEARING 625Z Z 88 X1870088 EXT RET AINING R ING 22MM
34 X1870034 LOW ER SP ACER 4 X 9.5MM 89 X 1870089 E-CLI P 6MM
35 X1870035 ECCENTRIC CONNECTOR 90 X1870090 DR IVEN PULLEY
36 X1870036 CAP SCREW M5-.8 X 30 91 X1870091 KEY 3 X 3 X 8
37 X1870037 ECCENTRIC CONNECTOR PLATE 92 X1870092 CO UPL ING
38 X1870038 TAP SCREW 4.2 X 9.5 93 X1870093 PHLP HD S CR M5- .8 X 12
39 X1870039 PH LP HD SCR M3-. 5 X 10 94 X1870094 SHAFT GUARD
40 X1870040 BELLOWS CONNECTOR PLATE 95 X1870095 P ULLEY COVER
41 X1870041 BLADE (PLAIN-END) 18T 96 X 1870096 ROLL P IN 3 X 8MM
42 X1870042 PH LP HD SCR M4-. 7 X 8 W /WASHER 97 X1870097 TIMING BELT 74XXL 234.95 X 5MM
43 X1870043 BELLOWS 98 X1870098 DRIVING PULLEY
44 X1870044 KNOB BOLT M6-1 X 10, D27, 4-LOBE 99 X1870099 FENDER WASHER 5MM
45 X1870045 HOLD-DOWN SHOE ROD 100 X 1870100 FLEXIBLE SHAFT
46 X1870046 CAP SCREW M5-.8 X 10 103 X1870103 PH LP HD SCR M4-. 7 X 12
47 X1870047 AIR NOZZLE 5.2 X 73MM 104 X1870104 HEX NUT M6-1
48 X1870048 HOLD-DOWN SHOE 105 X 1870105 LOCK NUT M4-.7
49 X1870049 FLAT WASHER 5MM 106 X 1870106 SUPPORT BRACKET
50 X1870050 SHOULDER SCREW M5-.8 X 23, 8 X 25 107 X 1870107 HEX B OLT M6-1 X 20
51 X1870051 FLAT WASHER 8MM 108 X 1870108 POTENTIOMETER C104 50V
52 X1870052 BLADE GUARD 109 X 1870109 COLLET LOCKING PIN 3MM
53 X1870053 SIDE COVER 110 X 1870110 DRILL B IT 1/8

-37-

PARTS

REF PART # DESCRIPTION REF PART # DESCRIPTION

209

210

WARNING!

EYE/LUNG INJURY

Always wear safety
glasses and a
respirator when
using this machine.

Model W1870 (For Machines Mfd. Since 03/19)

Labels & Cosmetics

201

202

HAZARD!

Motor: 1/6 HP, 120V, 1-Ph, 60 Hz
Stroke Speed: 550 - 1650 SPM
Max Cutting Height: 2"

208

Max Cutting Depth: 18-1/8"
Weight: 38 lbs.

Date

Mfd. for Woodstock in China

Use Existing Label

Specifications

18" VS SCROLL SAW W/LED & ROTARY TOOL

To reduce risk of serious injury while using this machine:

1. Read and understand owner’s manual before starting machine.

2. Never touch moving blade—keep hands out of blade path.

3. Always wear ANSI-approved eye protection and respirator.

4. Only remove jammed cutoff pieces when blade is stopped.

5. Disconnect power before changing blades or adjusting.

6. Maintain adjustment of blade tension and safety guard.

SN

7. Hold workpiece firmly against table to maintain control.

8. Do not operate when tired or under influence of drugs/alcohol.

MODEL W1870

WARNING!

207

206

WARNING!

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.woodstockint.com
or call [phone].

WARNING

ACCIDENTAL INJURY

HAZARD!
Disconnect power
supply before
adjustments, setup
or maintenance!

203

204

205

201 X1870201 BLADE TENSION KNOB LABEL 206 X1870206 ELECTRICITY LABEL
202 X1870202 TOUCH-UP PAINT, SHOP FOX WHITE 207 X1870207 VARIABLE-SPEED DIAL LABEL
203 X1870203 TOUCH-UP PAINT, SHOP FOX BLACK 208 X1870208 MACHINE ID LABEL
204 X1870204 READ MANUAL LABEL 209 X1870209 RESPIRATOR/GLASSES LABEL
205 X1870205 DISCONNECT POWER LABEL 210 X1870210 SHOP FOX LOGO

Safety labels warn about machine hazards and how to prevent serious personal injury. The owner
of this machine MUST maintain the original location and readability of all labels on this machine.
If any label is removed or becomes unreadable, REPLACE that label before allowing machine to
be operated again. Contact us at [phone] or www.woodstockint.com to order new labels.

PARTS

-38-

Model W1870 (For Machines Mfd. Since 12/18)

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

Woodstock international inc.
p.o. box 2309
bellingham, Wa 98227-2309

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY

Woodstock International, Inc. warrants all Shop Fox machinery to be free of defects from workmanship

facility as designated by our Bellingham, Washington office with proof of their purchase of the product

implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited

price paid for the product, and any legal actions brought against Woodstock International, Inc. shall be
tried in the State of Washington, County of Whatcom. We shall in no event be liable for death, injuries

WARRANTY

and materials for a period of two years from the date of original purchase by the original owner.
This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or
accidents, lack of maintenance, or reimbursement of third party expenses incurred.

Woodstock International, Inc. will repair, replace, or arrange for a dealer refund, at its expense and
option, the Shop Fox machine or machine part proven to be defective for its designed and intended
use, provided that the original owner returns the product prepaid to an authorized warranty or repair

within two years, and provides Woodstock International, Inc. reasonable opportunity to verify the
alleged defect through inspection. If it is determined there is no defect, or that the defect resulted
from causes not within the scope of Woodstock International Inc.'s warranty, then the original owner
must bear the cost of storing and returning the product.

This is Woodstock International, Inc.’s sole written warranty and any and all warranties that may be

to the duration of this written warranty. We do not warrant that Shop Fox machinery complies with
the provisions of any law, acts or electrical codes. We do not reimburse for third party repairs. In no
event shall Woodstock International, Inc.’s liability under this limited warranty exceed the purchase

to persons or property or for incidental, contingent, special or consequential damages arising from the
use of our products.

Every effort has been made to ensure that all Shop Fox machinery meets high quality and durability
standards. We are commited to continuously improving the quality of our products, and reserve the
right to change specifications at any time.
