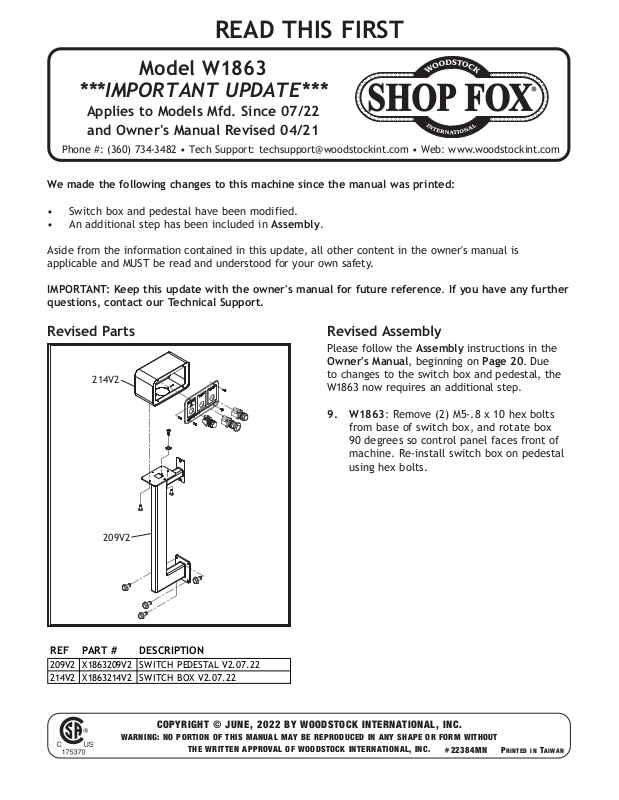

Page 1
READ THIS FIRST
Model W1863
***IMPORTANT UPDATE***
Applies to Models Mfd. Since 07/22
and Owner's Manual Revised 04/21
Phone #: (360) 734-3482 • Tech Support: [email protected] • Web: www.woodstockint.com
We made the following changes to this machine since the manual was printed:
• Switch box and pedestal have been modified.
• An additional step has been included in Assembly.
Aside from the information contained in this update, all other content in the owner's manual is
applicable and MUST be read and understood for your own safety.
IMPORTANT: Keep this update with the owner's manual for future reference. If you have any further
questions, contact our Technical Support.

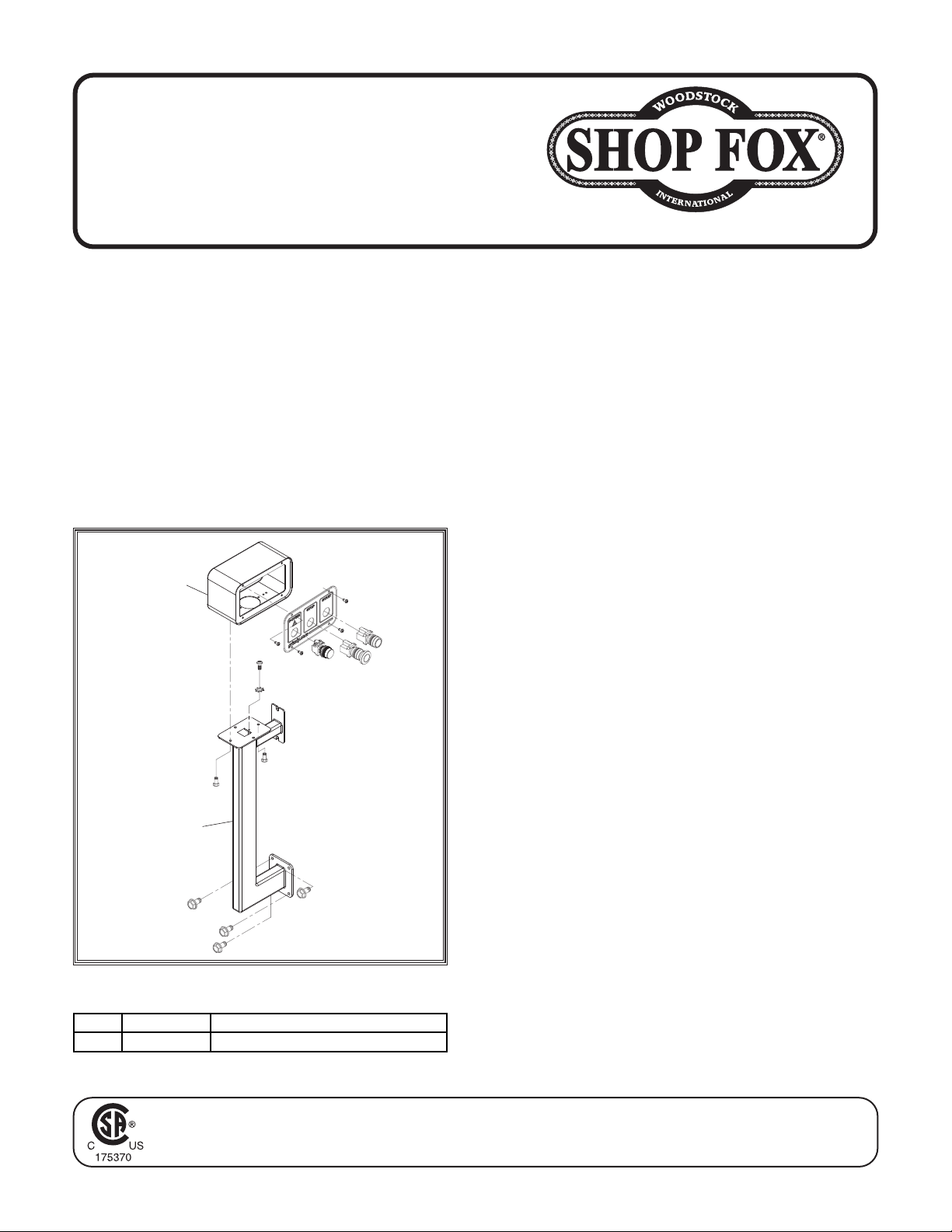

Revised Parts
214V2
209V2
Revised Assembly
Please follow the Assembly instructions in the
Owner's Manual, beginning on Page 20. Due
to changes to the switch box and pedestal, the
W1863 now requires an additional step.
. W1863: Remove (2) M5-.8 x 10 hex bolts
9
from base of switch box, and rotate box
90 degrees so control panel faces front of
machine. Re-install switch box on pedestal
using hex bolts.
REF PAR T # DESCRIPTION
209V2 X1863209V2 SWITCH PEDESTAL V2.07.22
214V2 X1863214V2 SWITCH BOX V2.07.22
COPYRIGHT © JUNE, 2022 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORT ION OF THIS MANUAL M AY BE REP RODUCED I N ANY SHA PE OR FORM WI THOUT
THE WRITT EN APPR OVAL OF WOODSTOC K INTER NATIO NAL, INC.
PR INTED I N TA IWA N#22384MN
Page 2

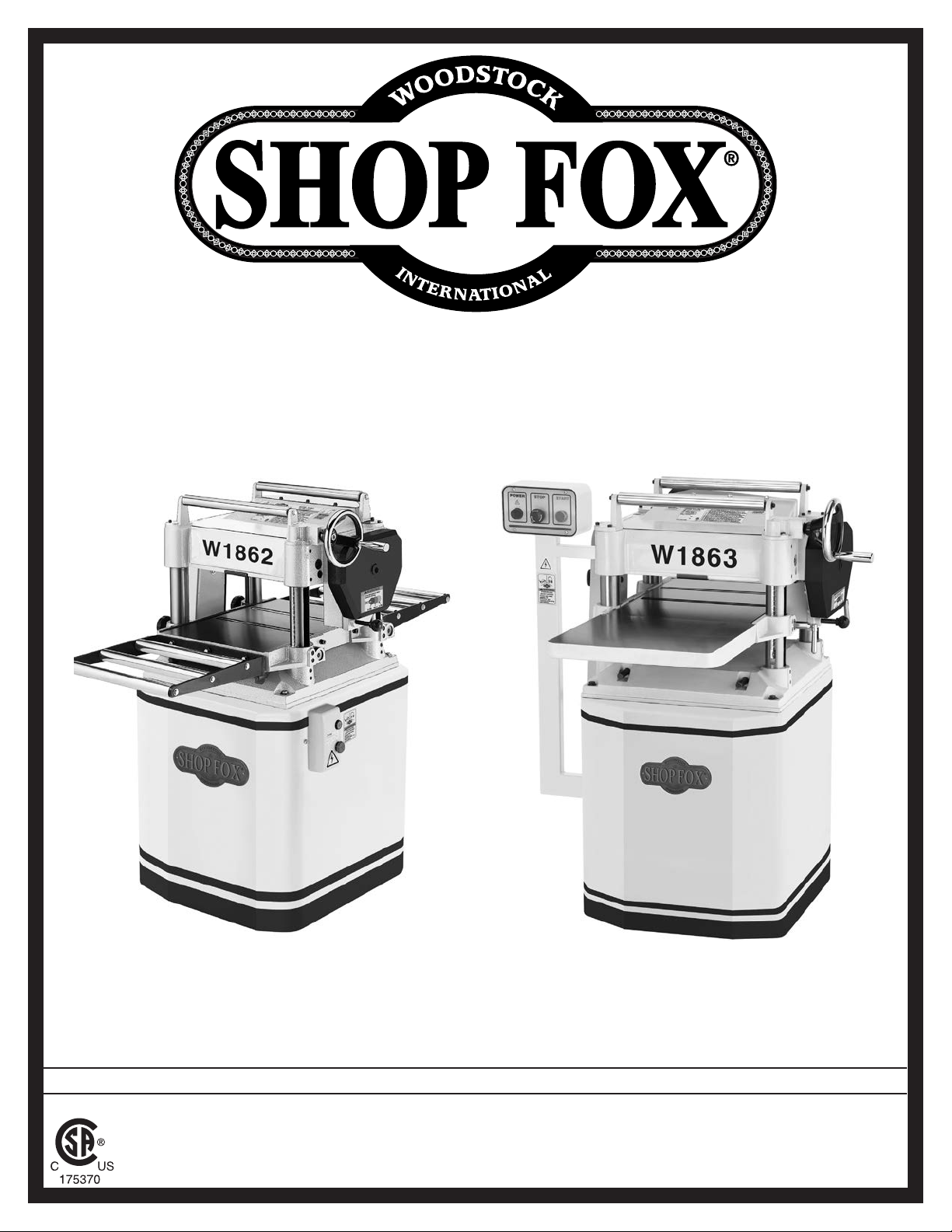

MODEL W1862/W1863
15" PLANERS
OWNER'S MANUAL
(FOR MODELS MANUFACTURED SINCE 11/20)
Phone: (360) 734-3482 • Online Technical Support: [email protected]
COPYRIGHT © DECEMBER, 2018 BY WOODSTOCK INTERNATIONAL, INC. REVISED APRIL, 2021 (JL)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
#WK19893 Printed in Taiwan
Page 3
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property
damage from negligence, improper training, machine modifications or
misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Page 4
Contents
INTRODUCTION .....................................2
Machine Description
Woodstock Technical Support
W1862 Machine Specifications
W1863 Machine Specifications
Identification

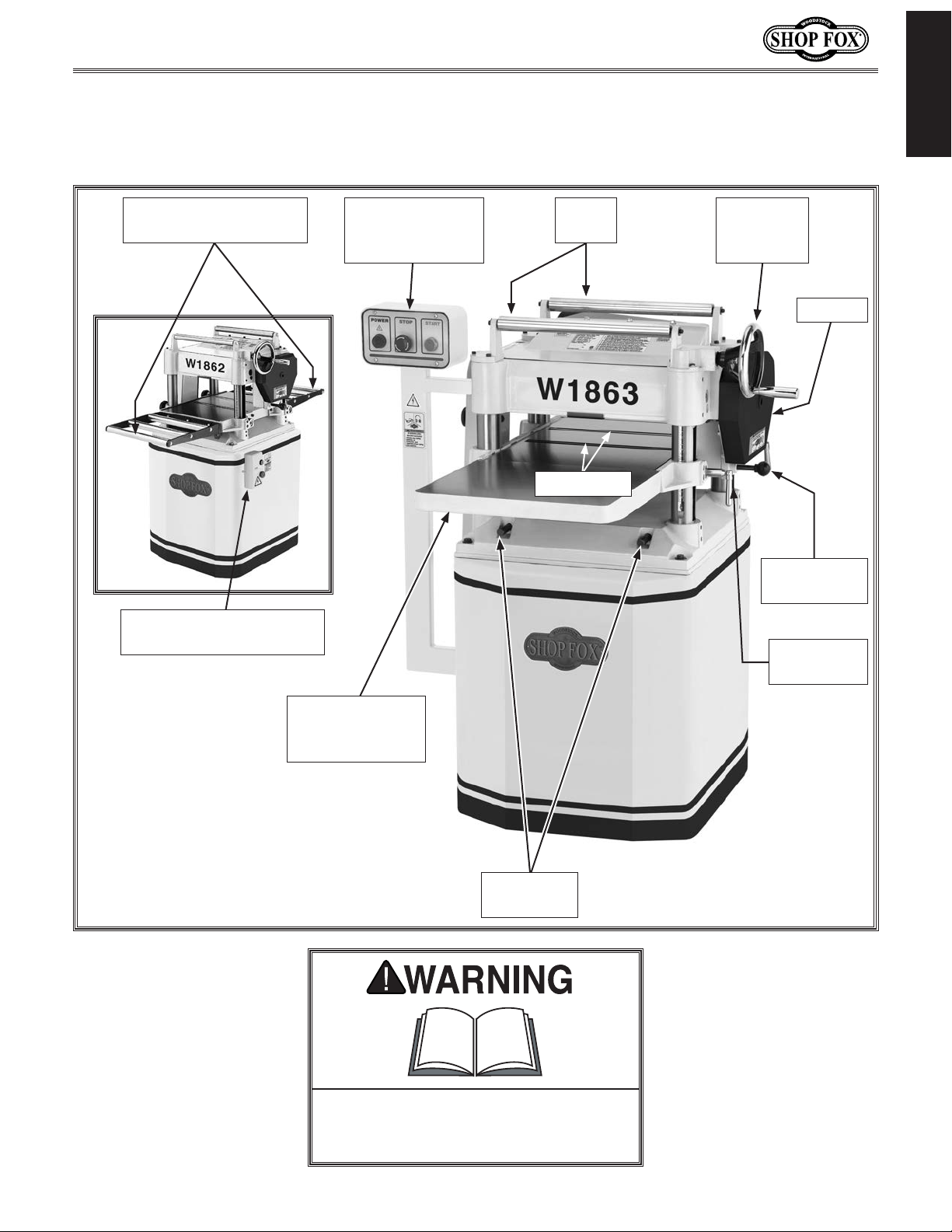

Controls & Components
Internal Components
SAFETY ............................................. 10
Standard Machinery Safety Instructions
Additional Safety for Planers
ELECTRICAL ....................................... 13
Circuit Requirements

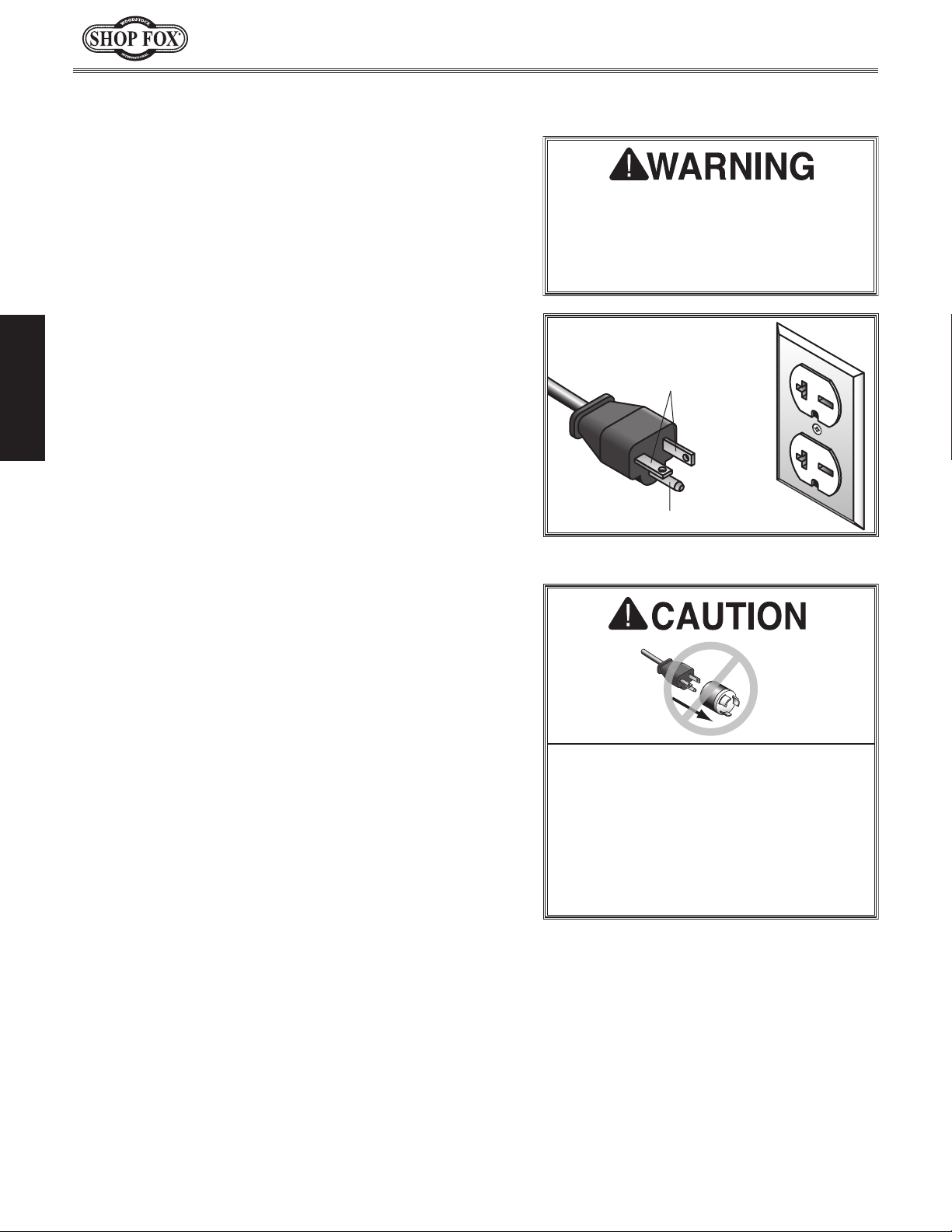

Grounding Requirements
Extension Cords
SETUP .............................................. 15
Unpacking
Items Needed for Setup
Inventory
Cleaning Machine

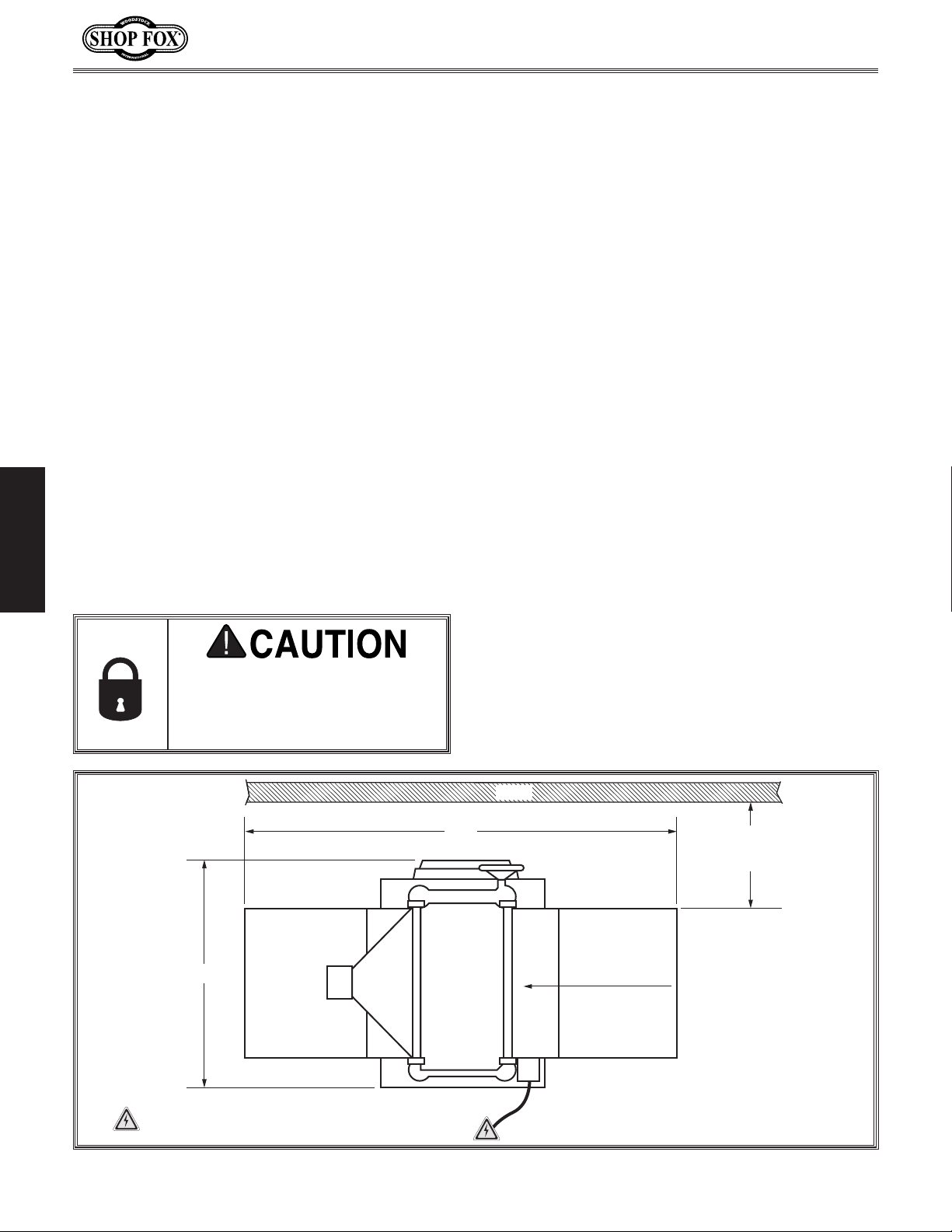

Machine Placement

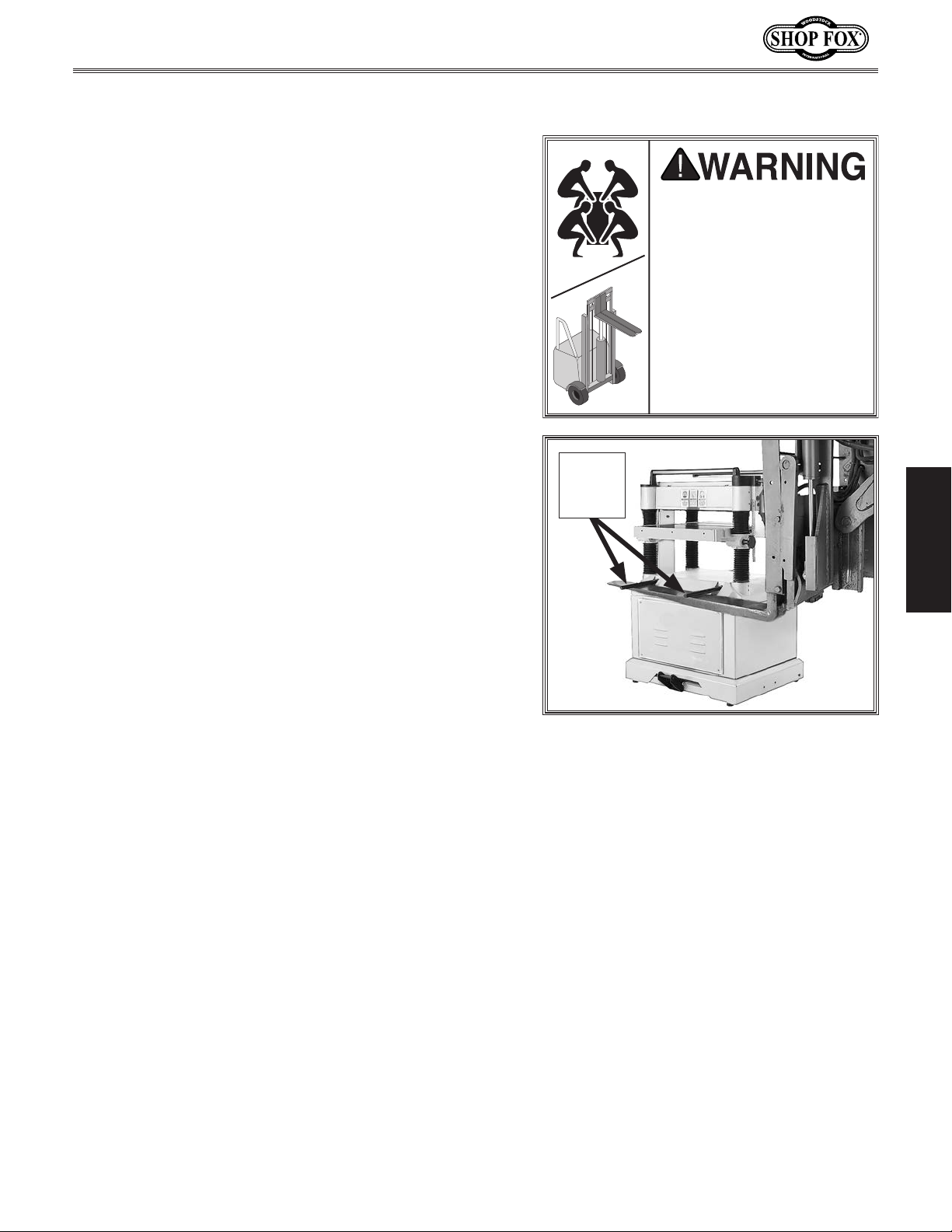

Lifting & Moving

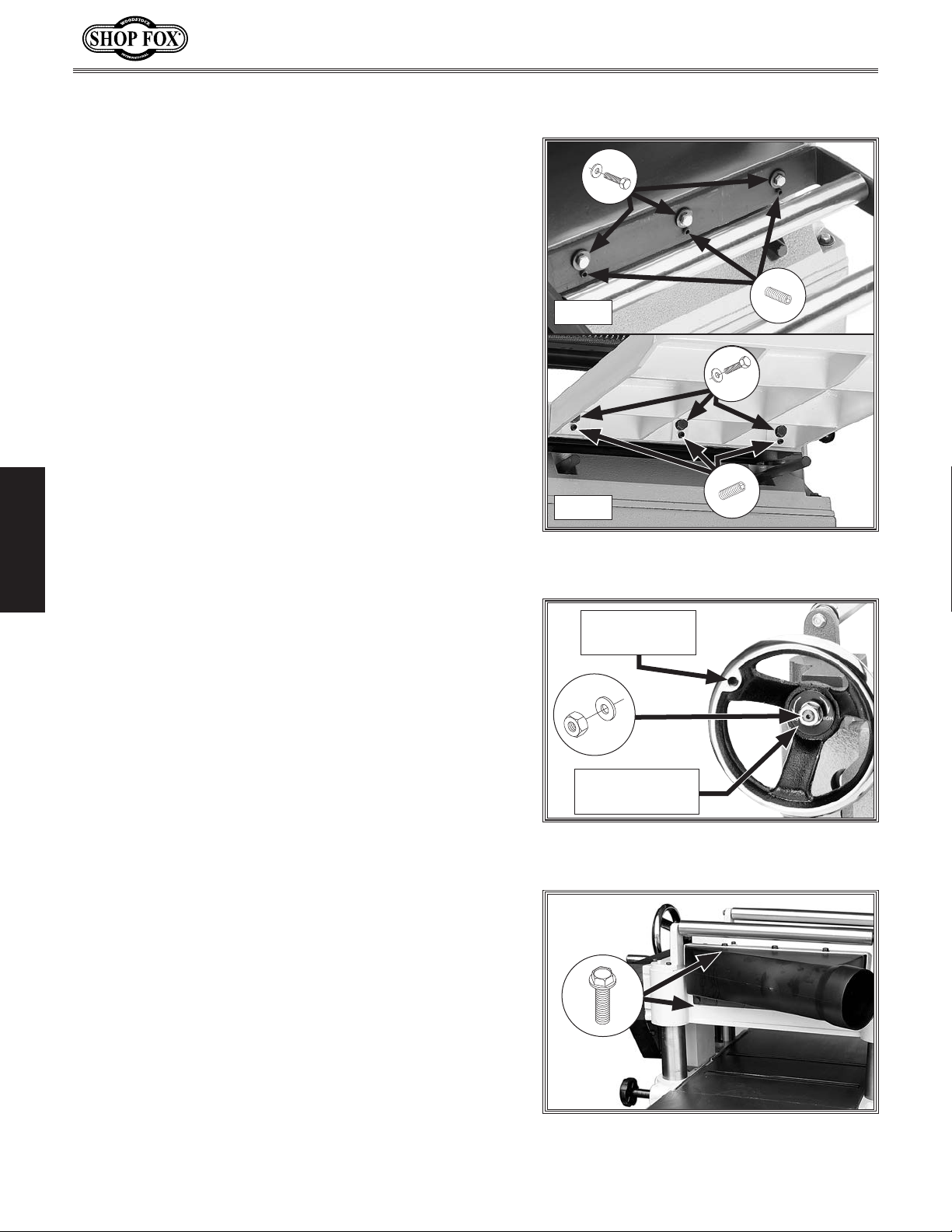

Assembly
Dust Collection

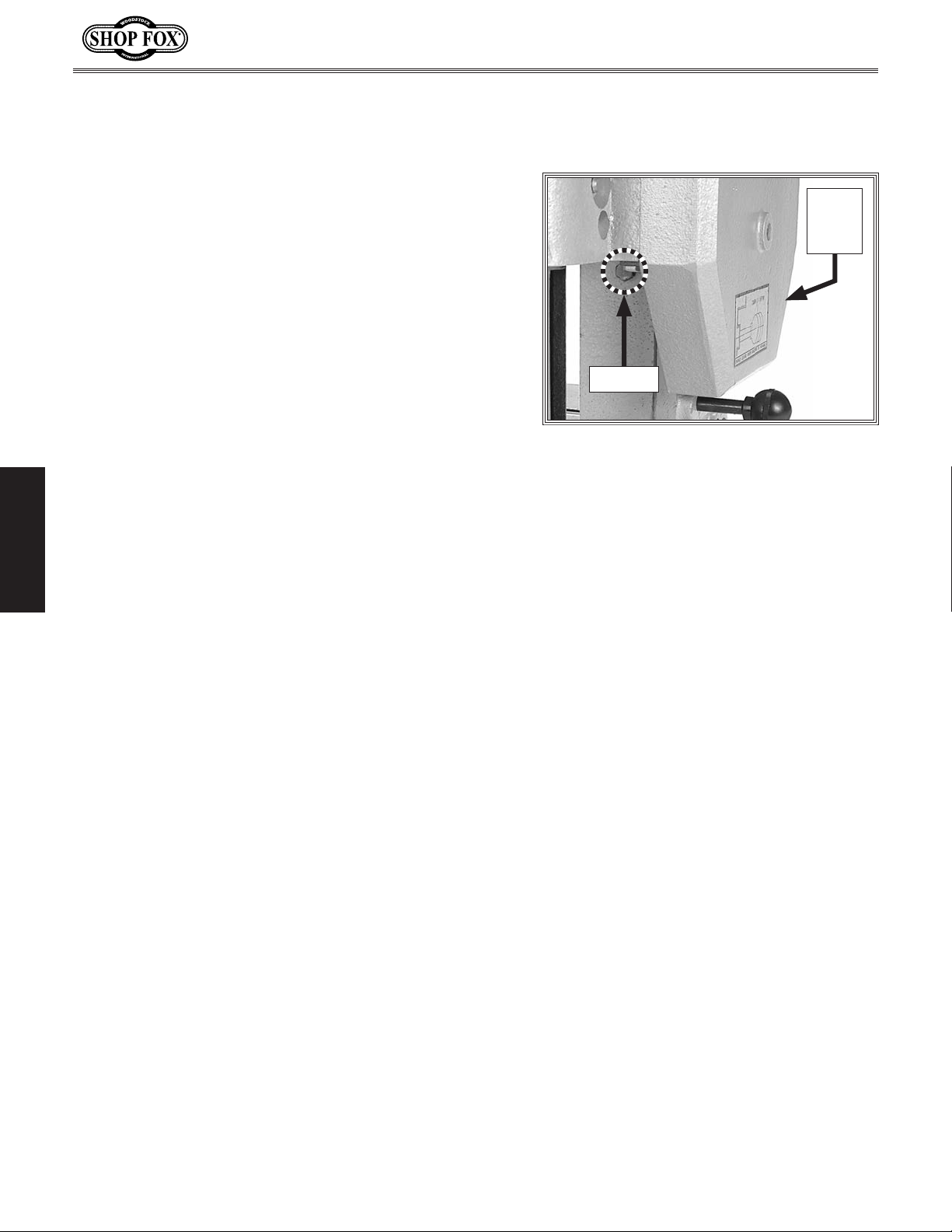

Checking Gearbox Oil Level
Test Run
Recommended Adjustments
OPERATIONS....................................... 25
Operation Overview
Workpiece Inspection
Wood Types
Planing Tips
Cutting Problems
Depth of Cut
Bed Roller Height
Setting Feed Rate
Adjusting/Replacing Knives
(W1862)

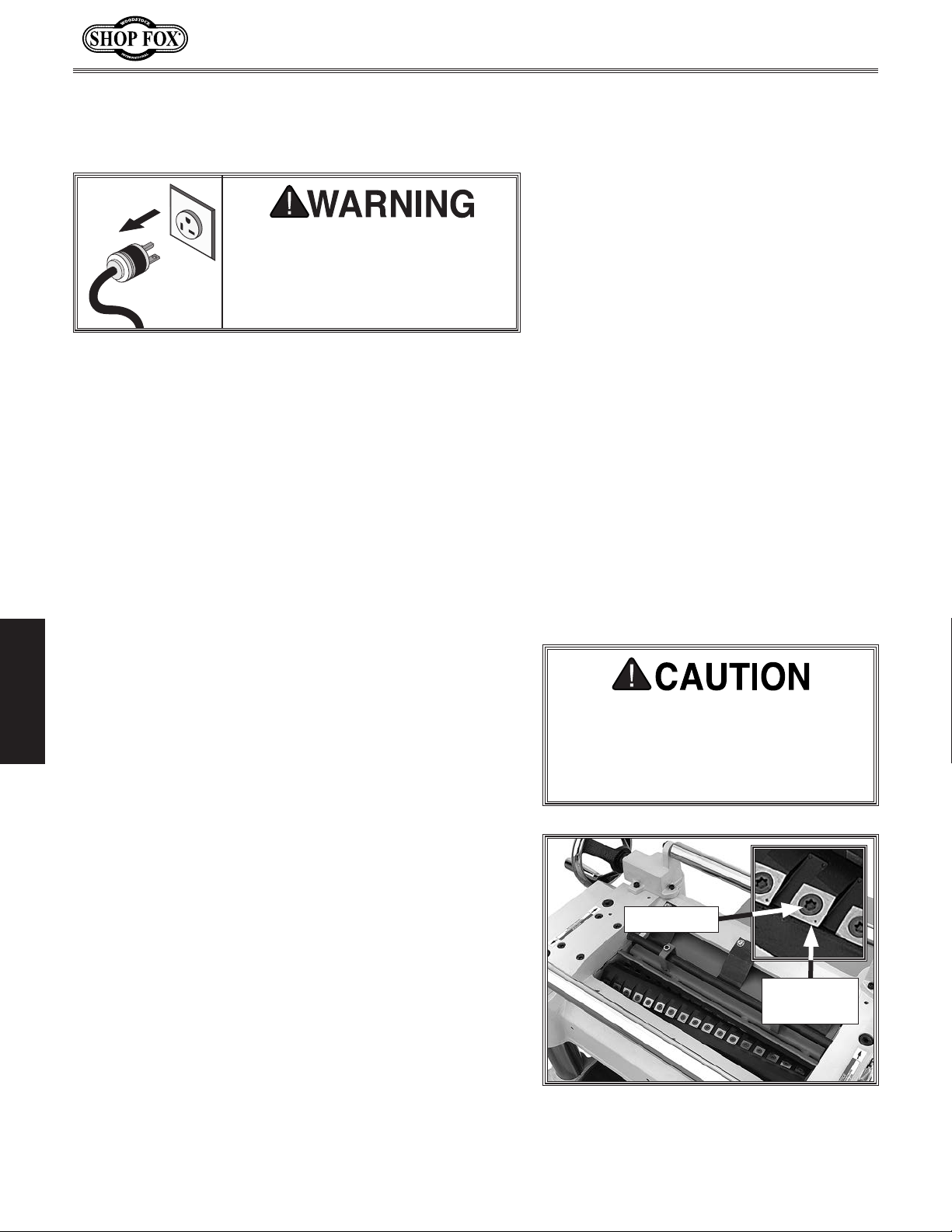

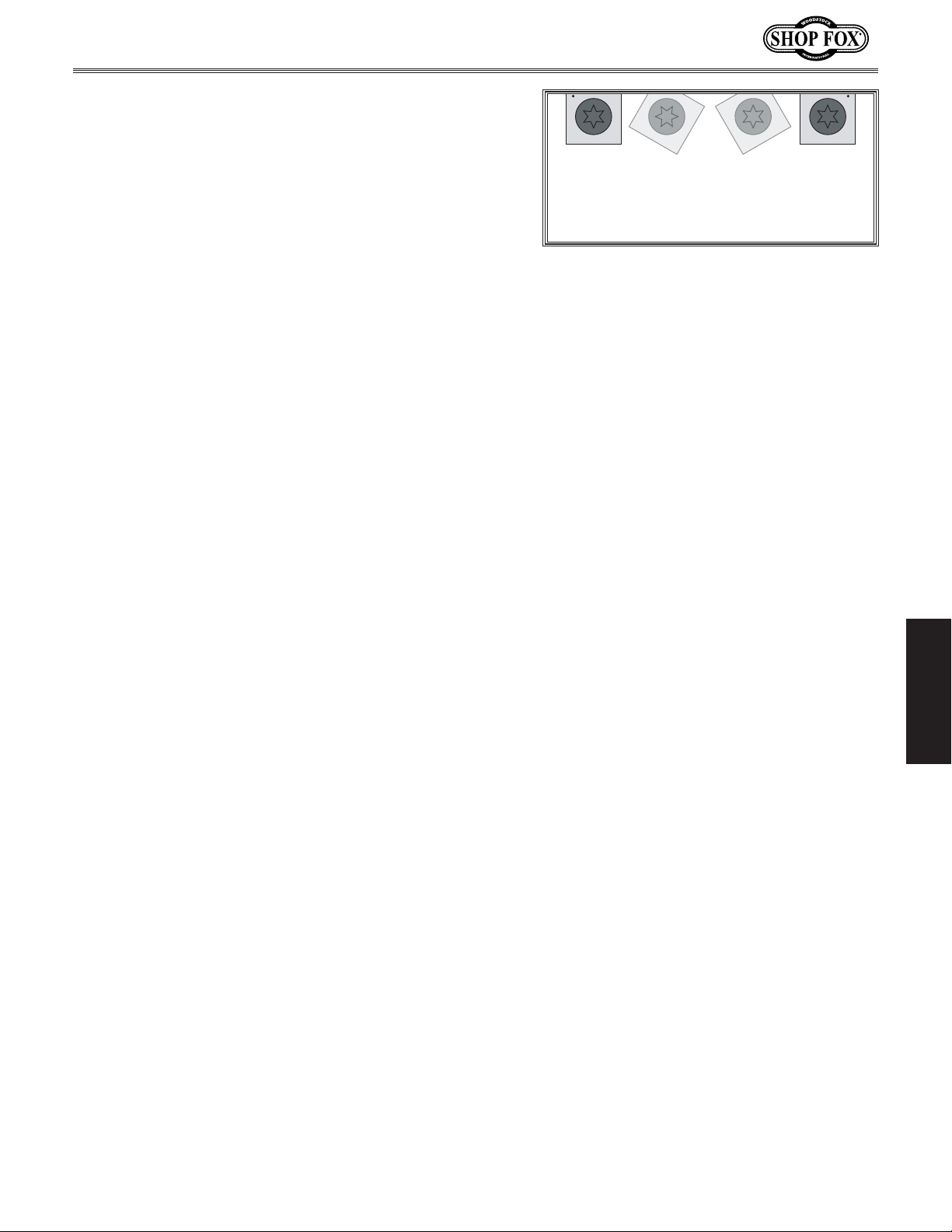

Rotating/Replacing Cutterhead Inserts
(W1863)
..................................... 7
....................................... 15
........................................ 16
......................................... 20
.......................................... 23
...................................... 26
..................................... 27
.................................... 29
.......................................... 31
...............................................34
............................. 2
.................. 2
................. 3
................. 5
......................... 8
............................ 9
.... 10
................. 12
.......................... 13
...................... 14
................................ 14
....................... 15
............................... 17
............................ 18
................................ 19
................................. 21
.................. 22
.................. 24
........................... 25
.......................... 26
............................... 27
.............................. 29
.............................. 31

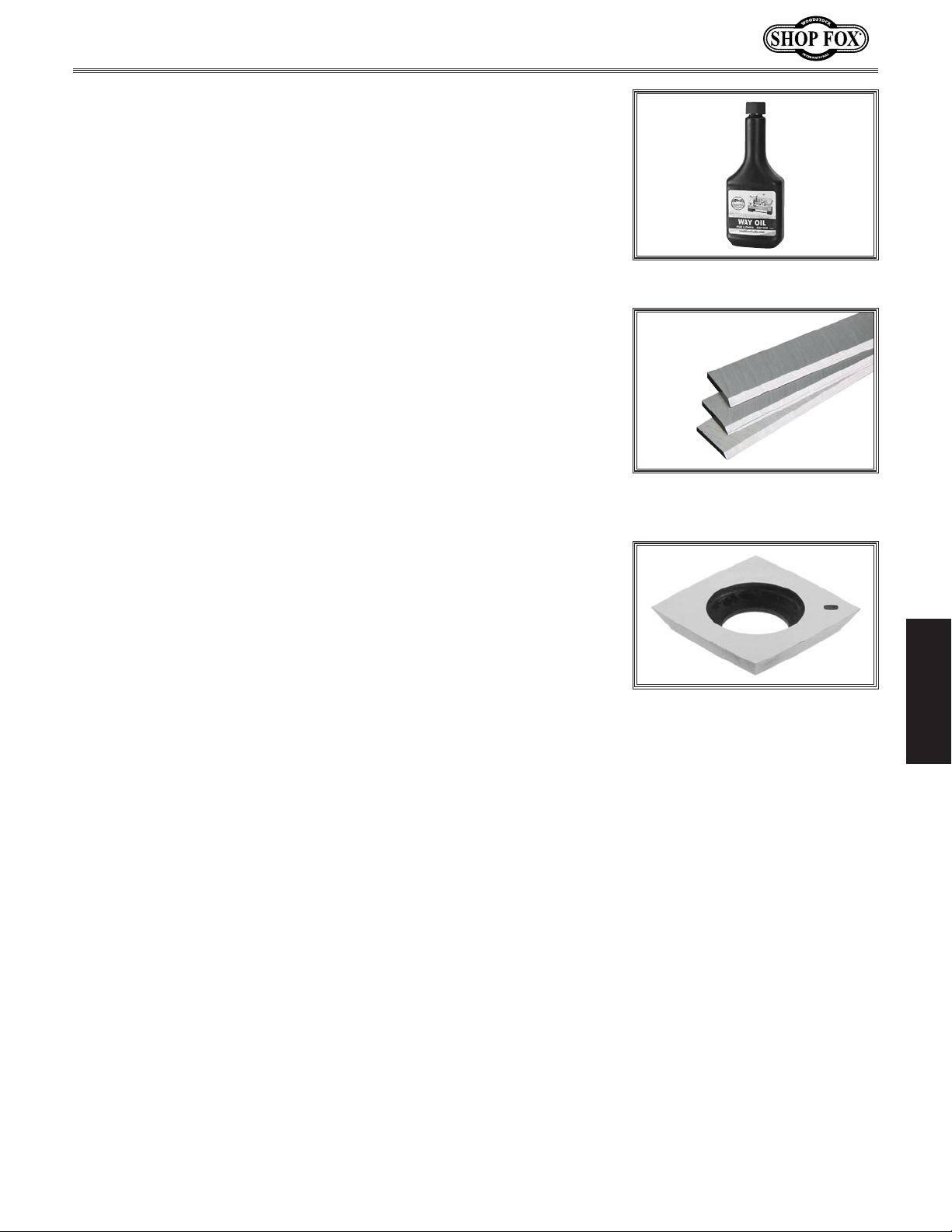

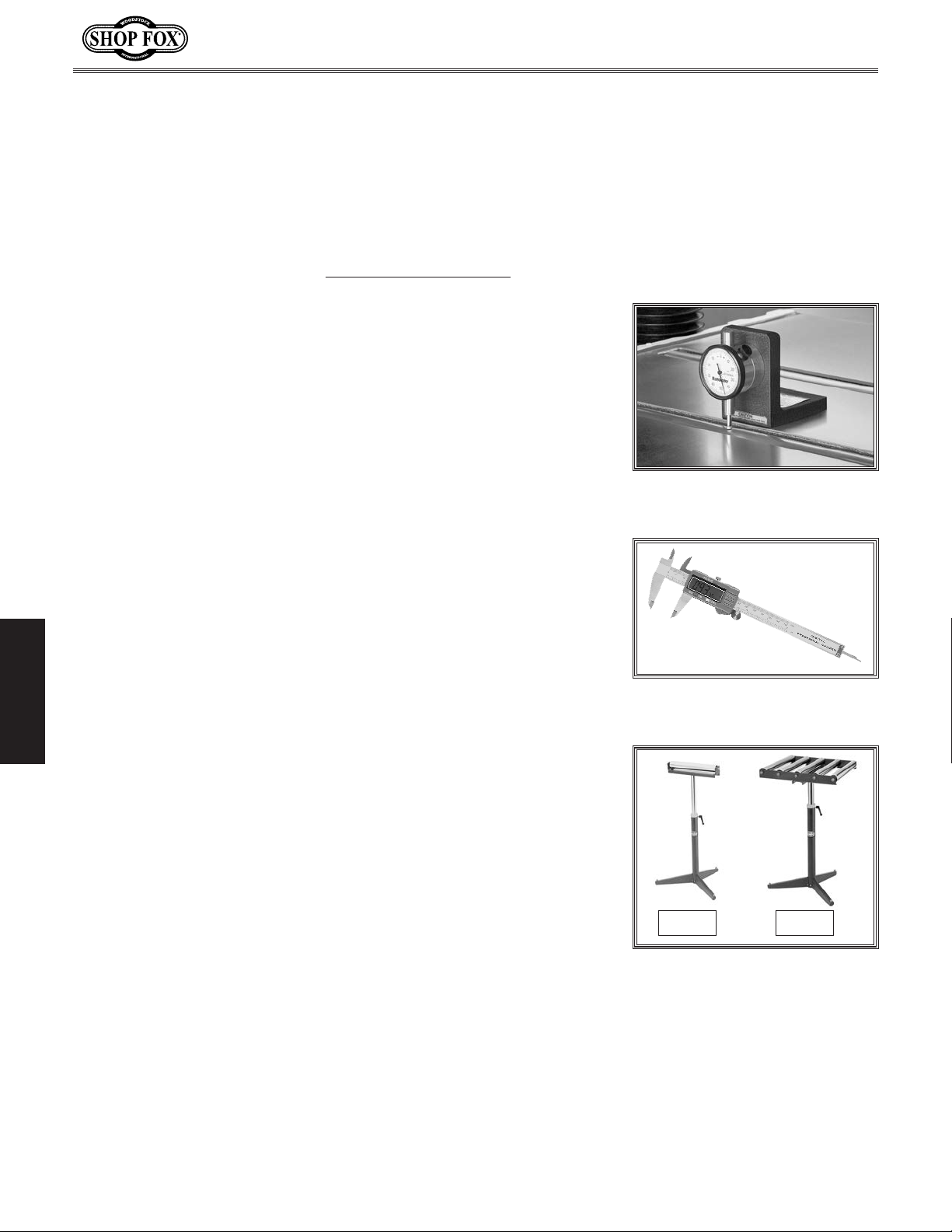

ACCESSORIES ...................................... 36
Planer Accessories
MAINTENANCE .................................... 38
Schedule
Cleaning & Protecting
Lubrication
SERVICE ............................................ 41
General

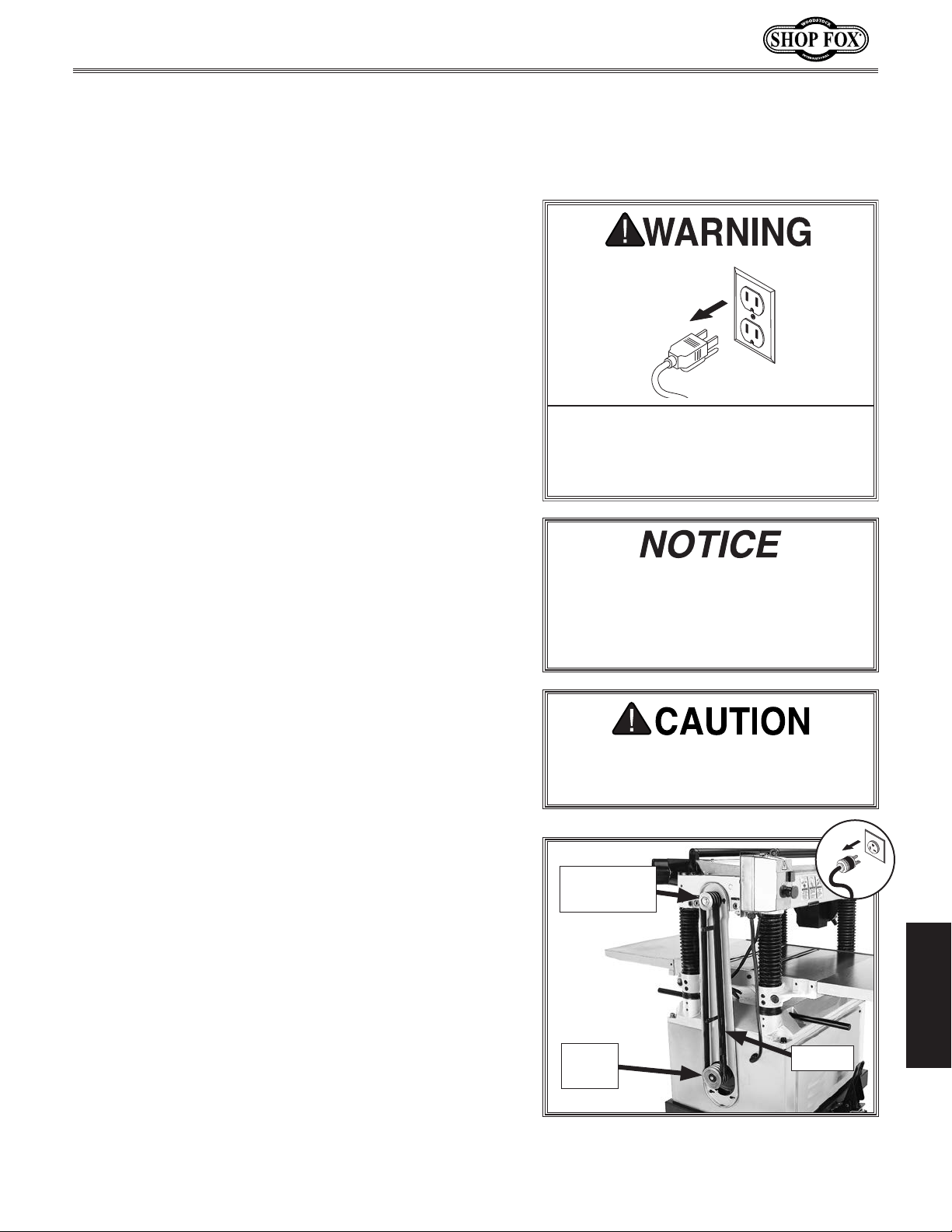

Tensioning/Replacing V-Belts
Pulley Alignment

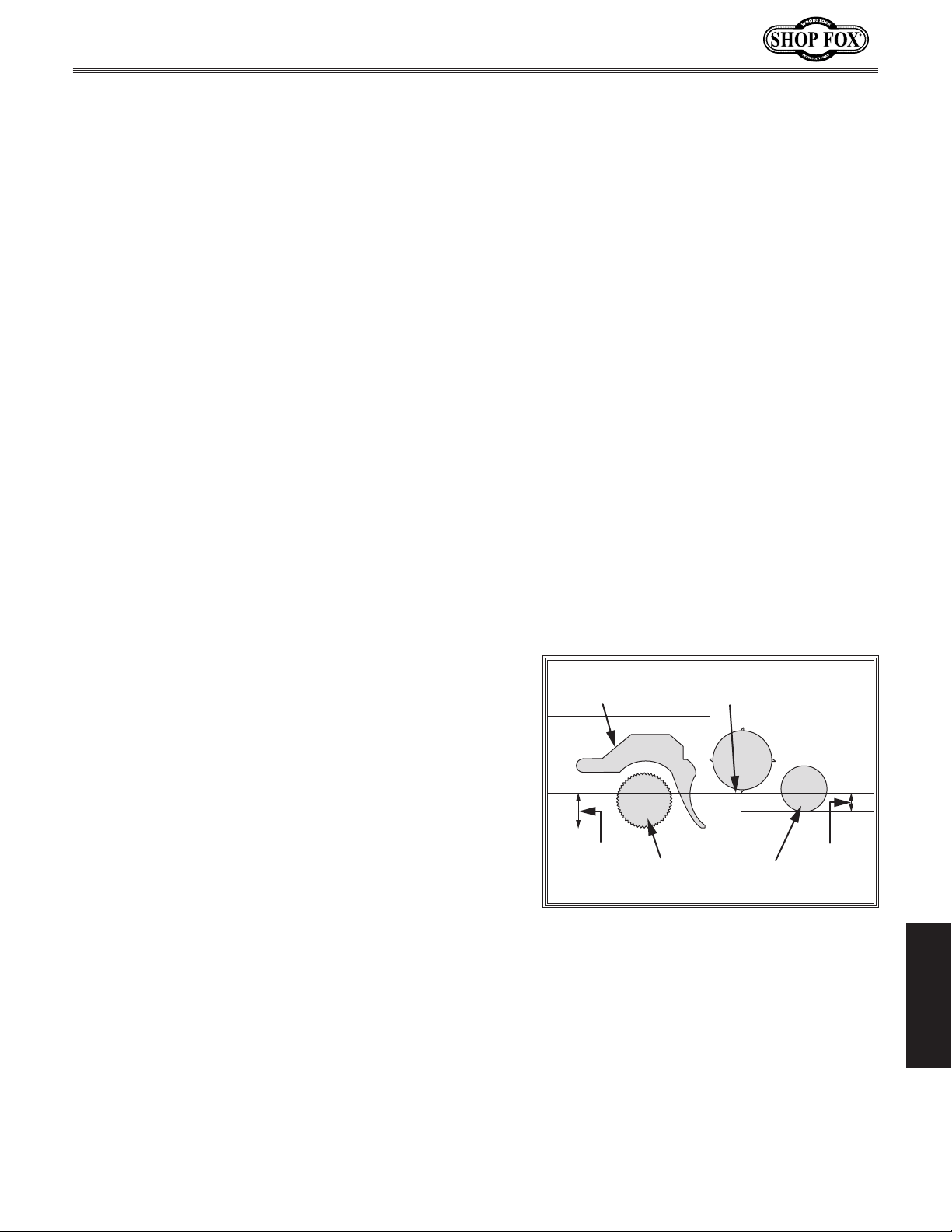

Feed Rollers & Chip Breaker Heights
Adjusting Roller Spring Tension
Positioning Chip Deflector
Calibrating Table Elevation Scale
Checking Anti-Kickback Fingers

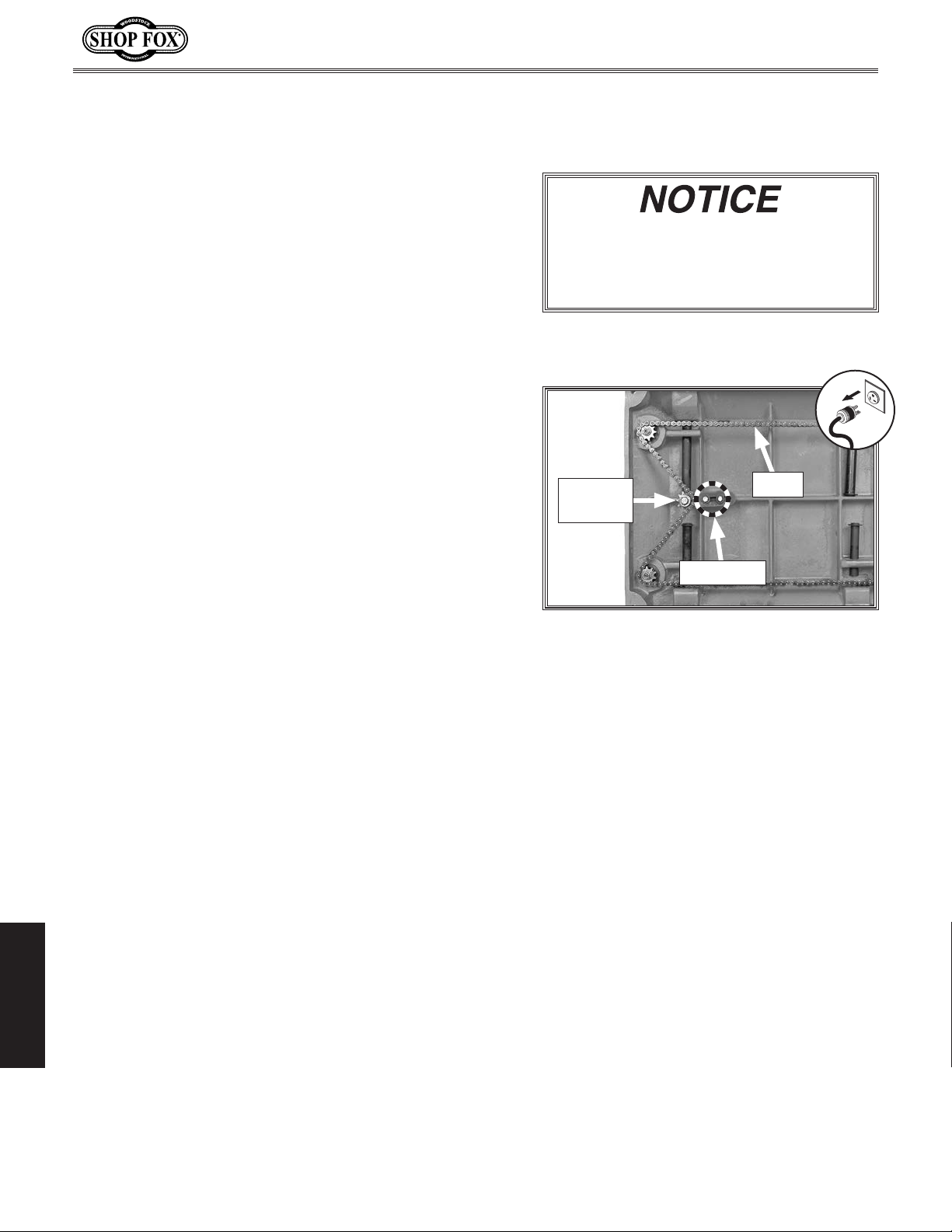

Tensioning Table Height Chain
Adjusting Table Parallelism
Troubleshooting
Electrical Safety Instructions
W1862 Wiring Diagram
W1862 Electrical Components

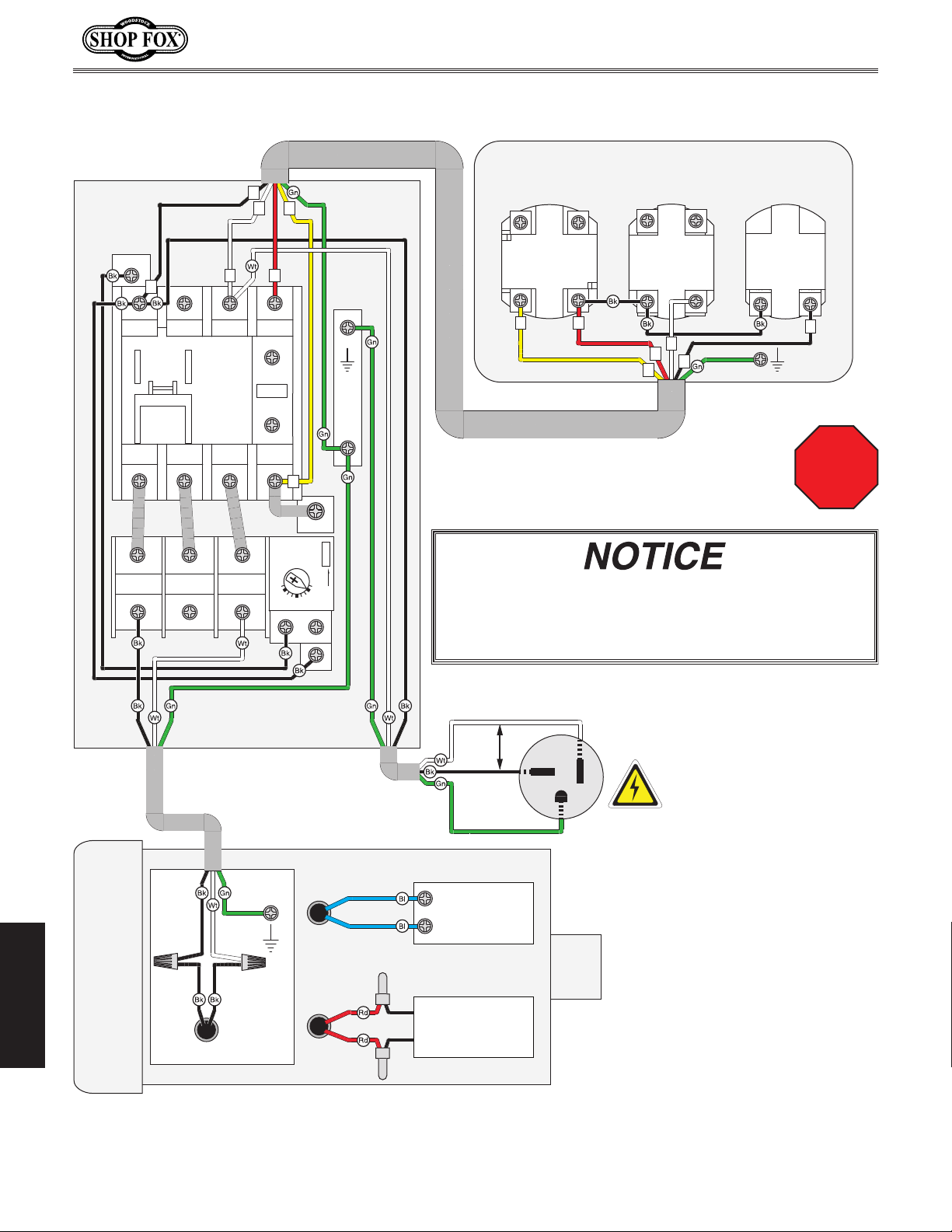

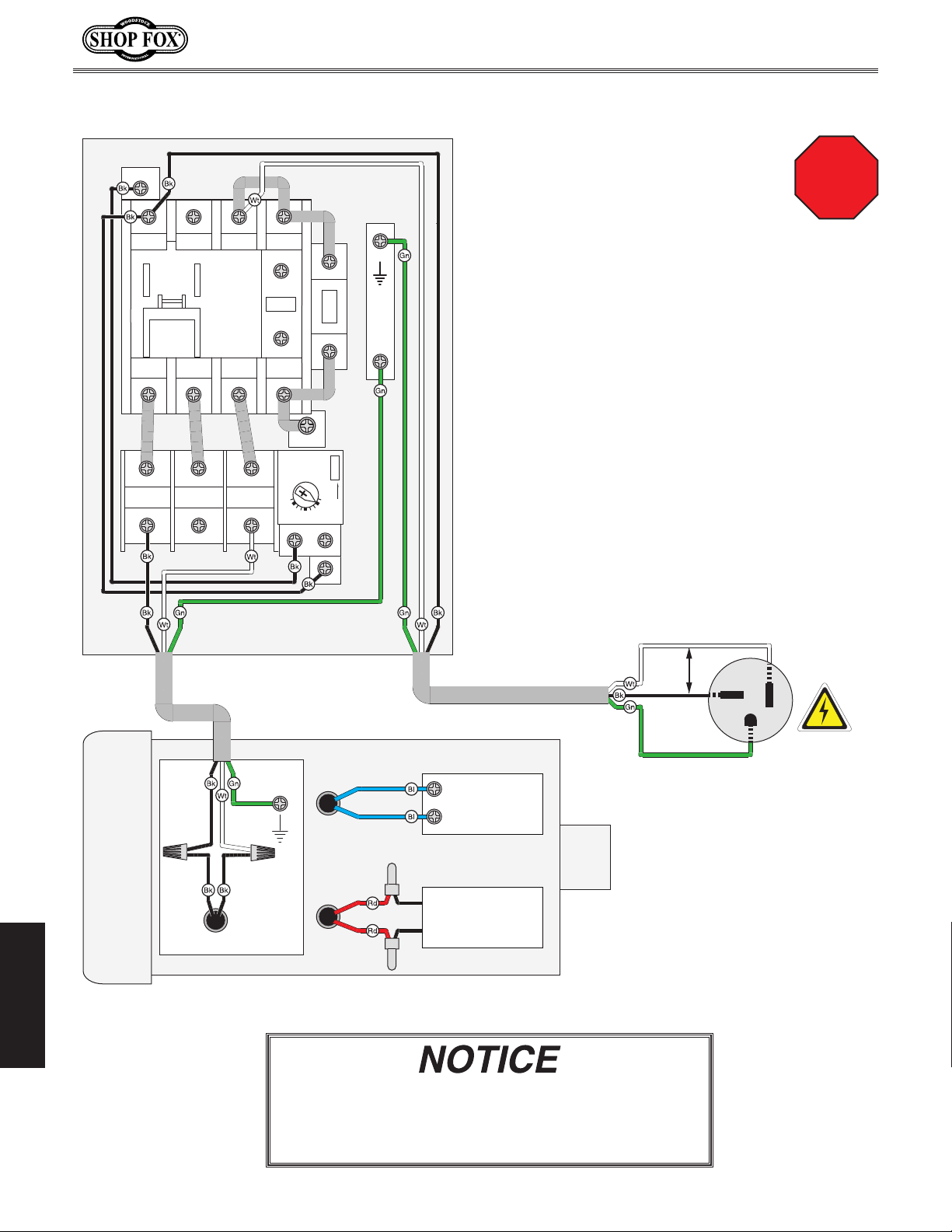

W1863 Wiring Diagram

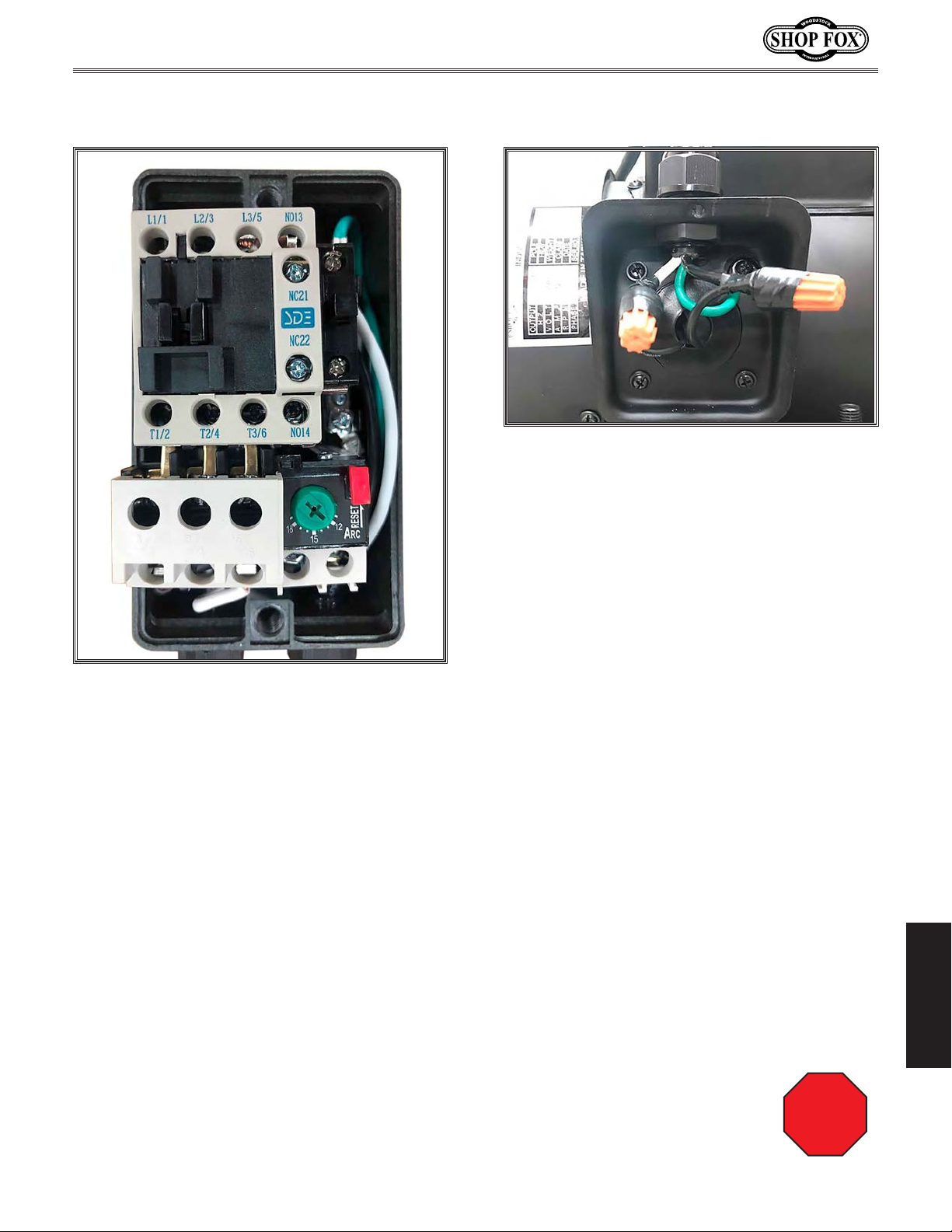

W1863 Electrical Components
PARTS .............................................. 60
Main
W1862 Stand & Motor

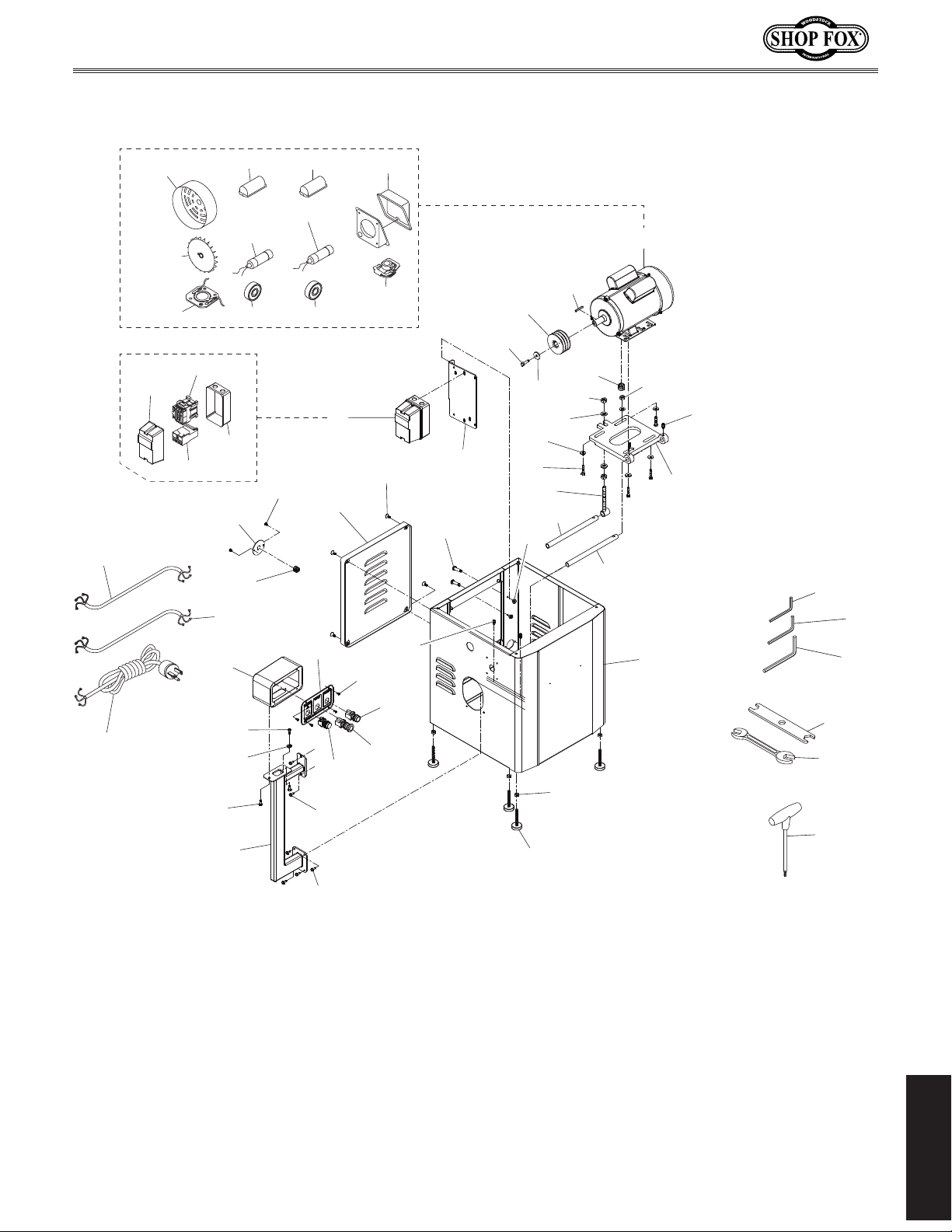

W1863 Stand & Motor

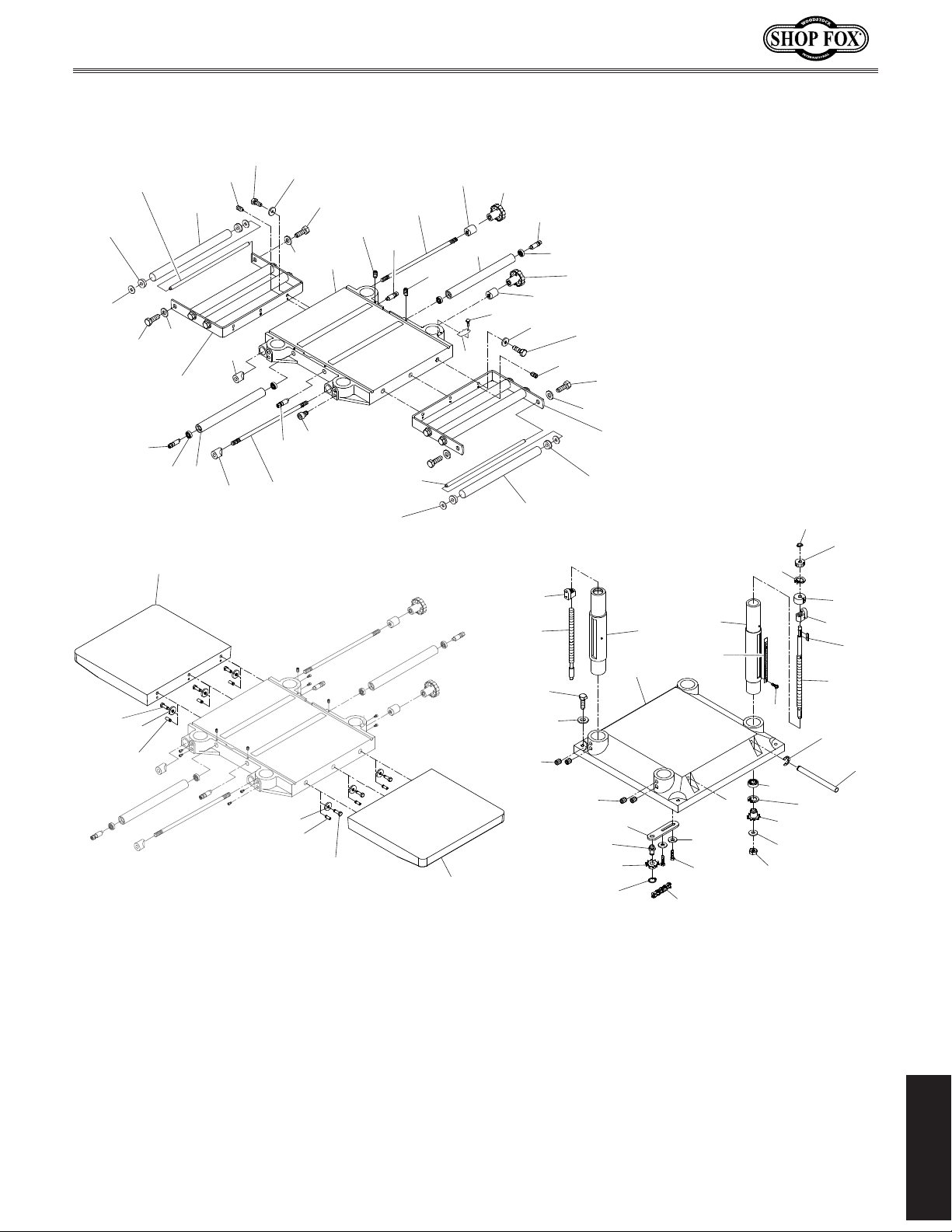

Table & Base

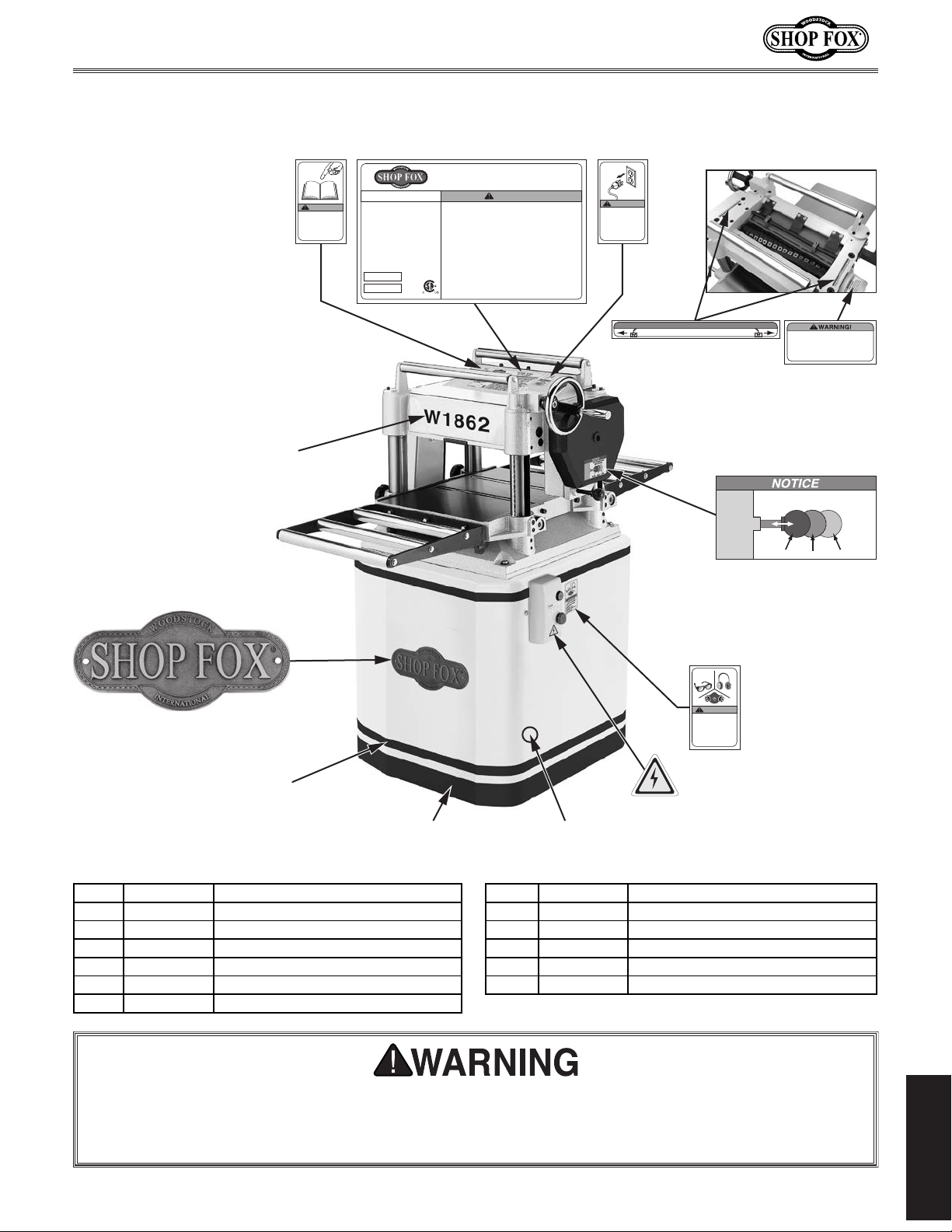

W1862 Labels & Cosmetics
W1863 Labels & Cosmetics
WARRANTY ........................................ 73
......................................... 38
...................................... 38
.......................................... 41
.............................................. 60
............................. 36
......................... 38
................. 41
............................... 42
....... 43
.............. 47
.................... 48
............ 49
.............. 49
............... 50
................... 51
................................. 53
................. 55
........................ 56
............... 57
........................ 58
............... 59
......................... 63
......................... 65
.................................... 67
................... 69
................... 70
SAFETYINTRODUCTION
SETUPELECTRICAL MAINTENANCE
OPERATIONS
SERVICE PARTS
USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!
Page 5
Model W1862/W1863 (For Machines Mfd. Since 11/20)
INTRODUCTION
INTRODUCTION
Machine Description
Models W1862 and W1863 are CSA-certified, 3 HP, 15" planers with the following differences:
• Model W1862 has a 3-knife cutterhead, magnetic ON/OFF switch mounted to the cabinet stand, and
roller extension tables.
• Model W1863 has a helical cutterhead, pedestal-mounted control panel with magnetic ON/OFF
switch, and cast-iron extension tables.
Woodstock Technical Support
This machine has been specially designed to provide many years of trouble-free service. Close attention
to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.
Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to
include the basic information for safety, setup, operation, maintenance, and service of this product.
We stand behind our machines! In the event that questions arise about your machine, please contact
Woodstock International Technical Support at (360) 734-3482 Ext. 2 or send e-mail to: techsupport@
woodstockint.com. Our knowledgeable staff will help you troubleshoot problems and process warranty
claims.
If you need the latest edition of this manual, you can download it from http://www.woodstockint.com/
manuals.
If you have comments about this manual, please contact us at:
Woodstock International, Inc.
Attn: Technical Documentation Manager
P.O. Box 2309
Bellingham, WA 98227
Email: [email protected]
-2-
Page 6
Model W1862/W1863 (For Machines Mfd. Since 11/20)
MODEL W1862
15" PLANER
Product Dimensions
Weight.......................................................................................................... 445 lbs.
Width (side‐to‐side) x Depth (front‐to‐back) x Height........................................ 32 x 48 x 44 in.
Footprint (Length x Width)......................................................................... 21‐1/2 x 21 in.
Shipping Dimensions
Type....................................................................................................... Wood Crate
Content........................................................................................................ Machine
Weight.......................................................................................................... 517 lbs.
Length x Width x Height........................................................................... 30 x 27 x 51 in.
Must Ship Upright.................................................................................................. Yes
INTRODUCTION
Electrical
Power Requirement.................................................................... 230V, Single‐Phase, 60 Hz
Full‐Load Current Rating......................................................................................... 12A
Minimum Circuit Size............................................................................................. 20A
Connection Type......................................................................................... Cord & Plug
Power Cord Included.............................................................................................. Yes
Power Cord Length.............................................................................................. 10 ft.
Power Cord Gauge............................................................................................ 12 AWG
Plug Included....................................................................................................... Yes
Included Plug Type............................................................................................... 6‐20
Switch Type................................................. Magnetic Switch w/Thermal Overload Protection
Motors
Main
Horsepower................................................................................................. 3 HP
Phase.............................................................................................. Single‐Phase
Amps.......................................................................................................... 12A
Speed.................................................................................................. 3450 RPM
Type......................................................................... TEFC Capacitor‐Start Induction
Power Transfer ........................................................................... Triple V‐Belt Drive
Bearings............................................................... Shielded & Permanently Lubricated
Centrifugal Switch/Contacts Type................................................................. External
-3-
Page 7
Main Specifications
INTRODUCTION
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Main Specifications
Max. Cut Width........................................................................................... 15 in.
Max. Cut Height............................................................................................ 6 in.
Min. Stock Length......................................................................................... 6 in.
Min. Stock Thickness.................................................................................. 3/16 in.
Max. Stock Thickness..................................................................................... 6 in.
Number of Cuts Per Inch............................................................................... 63, 78
Number of Cuts Per Minute............................................................................ 15,000
Cutterhead Speed................................................................................... 5000 RPM
Planing Feed Rate................................................................................. 16, 28 FPM
Max. Cut Depth Planing Full Width................................................................. 3/32 in.
Max. Cut Depth Planing 6‐Inch Wide Board......................................................... 1/8 in.
Cutterhead Info
Cutterhead Type........................................................................................ 3 Knife
Cutterhead Diameter ..................................................................................... 3 in.
Number of Knives.............................................................................................. 3
Knife Type........................................................................... HSS, Single‐Sided, Solid
Knife Size Length......................................................................................... 15 in.
Knife Size Width........................................................................................... 1 in.
Knife Size Thickness.................................................................................... 1/8 in.
Knife Adjustment.................................................................... Springs or Jack Screws
Table Info
Table/Headstock Movement............................................................................. 6 in.
Table Bed Size Length................................................................................... 20 in.
Table Bed Size Width.................................................................................... 15 in.
Table Bed Size Thickness................................................................................. 2 in.
Number of Bed Rollers........................................................................................ 2
Floor‐to‐Table Height.............................................................................. 29 ‐ 35 in.
Roller Ext. Table Size Length.......................................................................... 15 in.
Roller Ext. Table Size Width........................................................................... 15 in.
Roller Ext. Table Size Thickness................................................................... 1‐1/2 in.
Construction
Table............................................................................. Precision‐Ground Cast Iron
Body.................................................................................................... Cast Iron
Stand........................................................................................................ Steel
Cutterhead Assembly..................................................................................... Steel
Infeed Roller.................................................................................... Serrated Steel
Outfeed Roller................................................................................... Smooth Steel
Paint Type/Finish............................................................................. Powder Coated
Other
Table/Headstock Locks.................................................................................... Yes
Measurement Scale............................................................................. Inch & Metric
Number of Dust Ports......................................................................................... 1
Dust Port Size.............................................................................................. 4 in.
Mobile Base............................................................................................. D2057A
-4-
Page 8
Model W1862/W1863 (For Machines Mfd. Since 11/20)
02'(/:
3/$1(5:,7++(/,&$/&877(5+($'
Product Dimensions
Weight.......................................................................................................... 476 lbs.
Width (side‐to‐side) x Depth (front‐to‐back) x Height........................................ 37 x 48 x 44 in.
Footprint (Length x Width)......................................................................... 21‐1/2 x 21 in.
Shipping Dimensions
Type....................................................................................................... Wood Crate
Content........................................................................................................ Machine
Weight.......................................................................................................... 553 lbs.
Length x Width x Height........................................................................... 29 x 36 x 52 in.
Must Ship Upright.................................................................................................. Yes
INTRODUCTION
Electrical
Power Requirement.................................................................... 230V, Single‐Phase, 60 Hz
Full‐Load Current Rating......................................................................................... 12A
Minimum Circuit Size............................................................................................. 20A
Connection Type......................................................................................... Cord & Plug
Power Cord Included.............................................................................................. Yes
Power Cord Length.............................................................................................. 10 ft.
Power Cord Gauge............................................................................................ 12 AWG
Plug Included....................................................................................................... Yes
Included Plug Type............................................................................................... 6‐20
Switch Type................................................. Magnetic Switch w/Thermal Overload Protection
Motors
Main
Horsepower................................................................................................. 3 HP
Phase.............................................................................................. Single‐Phase
Amps.......................................................................................................... 12A
Speed.................................................................................................. 3450 RPM
Type......................................................................... TEFC Capacitor‐Start Induction
Power Transfer ........................................................................... Triple V‐Belt Drive
Bearings............................................................... Shielded & Permanently Lubricated
Centrifugal Switch/Contacts Type................................................................. External
-5-
Page 9
INTRODUCTION
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Main Specifications
Main Specifications
Max. Cut Width........................................................................................... 15 in.
Max. Cut Height............................................................................................ 6 in.
Min. Stock Length......................................................................................... 6 in.
Min. Stock Thickness.................................................................................. 3/16 in.
Max. Stock Thickness................................................................................ 6‐1/8 in.
Number of Cuts Per Inch.............................................................................. 83, 104
Number of Cuts Per Minute............................................................................ 20,000
Cutterhead Speed................................................................................... 5000 RPM
Planing Feed Rate................................................................................. 16, 20 FPM
Max. Cut Depth Planing Full Width................................................................. 3/32 in.
Max. Cut Depth Planing 6‐Inch Wide Board......................................................... 1/8 in.
Cutterhead Info
Cutterhead Type........................................................................................ Helical
Cutterhead Diameter ..................................................................................... 3 in.
Number of Cutter Spirals..................................................................................... 4
Number of Indexable Cutters............................................................................... 52
Cutter Insert Size Length.............................................................................. 15 mm
Cutter Insert Size Width............................................................................... 15 mm
Cutter Insert Size Thickness.......................................................................... 2.5 mm
Table Info
Table/Headstock Movement............................................................................. 6 in.
Table Bed Size Length................................................................................... 48 in.
Table Bed Size Width.................................................................................... 15 in.
Table Bed Size Thickness................................................................................. 2 in.
Number of Bed Rollers........................................................................................ 2
Floor‐to‐Table Height.............................................................................. 29 ‐ 35 in.
Construction
Table............................................................................. Precision‐Ground Cast Iron
Body.................................................................................................... Cast Iron
Stand........................................................................................................ Steel
Cutterhead Assembly..................................................................................... Steel
Infeed Roller.................................................................................... Serrated Steel
Outfeed Roller................................................................................... Smooth Steel
Paint Type/Finish............................................................................. Powder Coated
Other
Table/Headstock Locks.................................................................................... Yes
Measurement Scale............................................................................. Inch & Metric
Number of Dust Ports......................................................................................... 1
Dust Port Size.............................................................................................. 4 in.
Mobile Base............................................................................................. D2057A
Other
Country of Origin ............................................................................................. Taiwan
Warranty ....................................................................................................... 2 Years
Approximate Assembly & Setup Time ...................................................................... 1 Hour
Serial Number Location ................................................................. ID Label on Upper Cover
ISO 9001 Factory .................................................................................................. Yes
Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................... Yes
-6-
Page 10
Model W1862/W1863 (For Machines Mfd. Since 11/20)

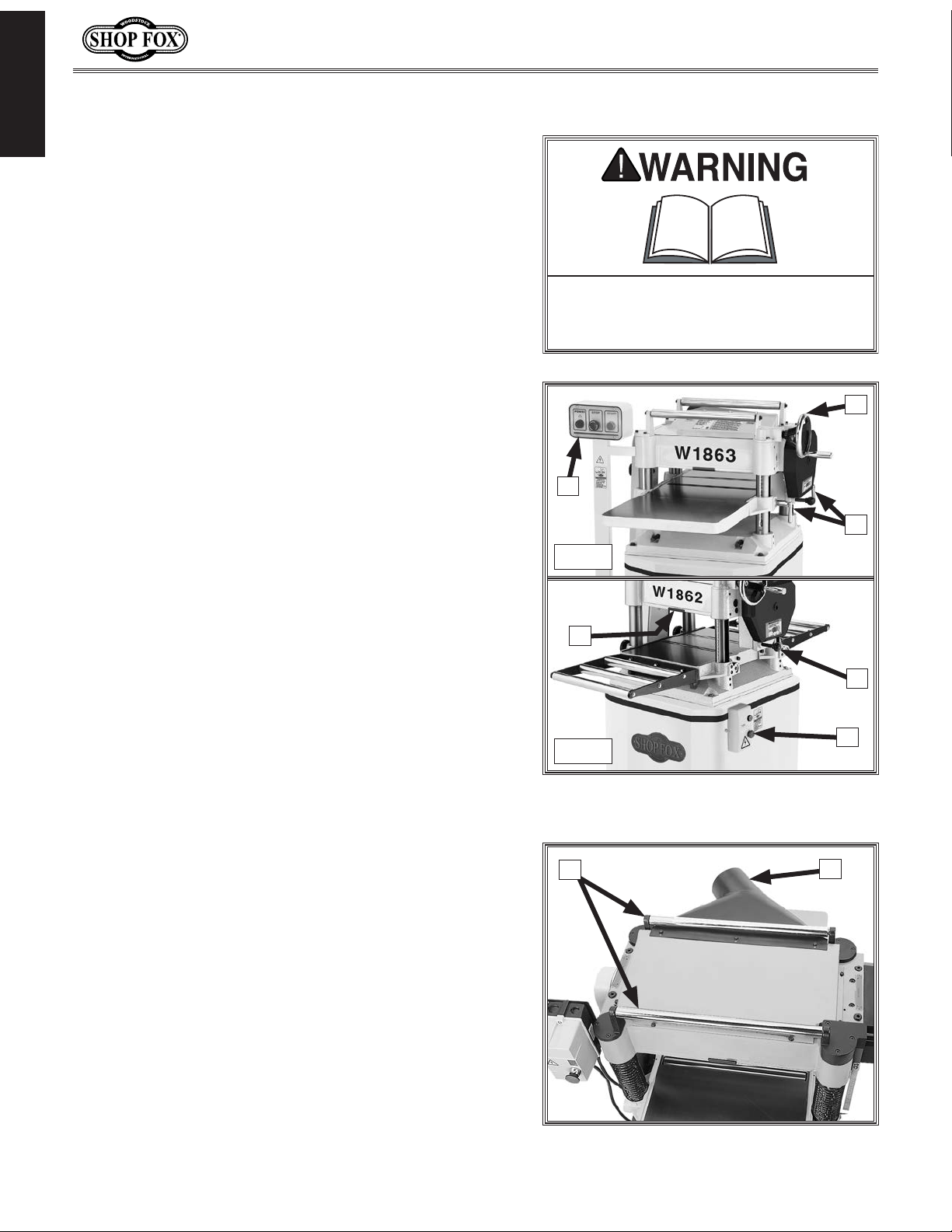

Become familiar with the names and locations of the controls and features shown below to better
Identification
INTRODUCTION
Roller Extension Tables
(W1862)
Magnetic ON/OFF Switch
(W1862)
Control Panel for
Magnetic Switch
(W1863)
Return
Rollers
Bed Rollers
Table
Height
Handwheel
Gearbox
Feed Rate
Control Knob
Table Locks
(1 of 2)
Cast-Iron
Extension Tables
(W1863)
Lifting Bars
(2 of 4)
To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.
-7-
Page 11
Controls & Components
Refer to the Figures 1–2 and the following descriptions to
INTRODUCTION
become familiar with the basic controls and components
of this machine. Understanding these items and how they
work will help you understand the rest of the manual and
stay safe when operating this machine.
A. Control Panel for Magnetic Switch (W1863):
— Green START button turns motor ON.
— Power indicator light illuminates when motor is
turned ON.
— Red STOP button turns motor OFF; for safety
purposes, this button remains depressed and
prevents restarting until reset. Reset by rotating
clockwise until it pops out.
Table Height Handwheel: Raises and lowers table to
B.
accommodate different workpiece thicknesses. One
complete revolution of handwheel moves the table
approximately 2mm (0.08").
C. Table Locks: Secure table height position so they
don't shift during cutting operation.
Model W1862/W1863 (For Machines Mfd. Since 11/20)
To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.
B
A
C
W1863
D. Depth Limiter: Limits depth of cut to a maximum of
1
⁄8" at full width.
Feed Rate Control Knob: Selects 28 FPM feed rate
E.
when pushed in and 16 FPM feed rate when pulled
out.
Magnetic ON/OFF Switch (W1862):
F.
— Green start button turns motor ON.
— Red Stop button turns motor OFF; for safety
purposes, this button remains depressed and
prevents restarting until reset. Reset by rotating
clockwise until it pops out.
Return Rollers: Assist sliding workpiece back to
G.
operator following planing operation.
H. Dust Port: 4" dust port connects to a dust-collection
system to extract shavings and dust during
operation.
D
W1862
Figure 1. Table elevation and feed
controls.
G
E
F
H
-8-
Figure
2. Example of return rollers and
dust port.
Page 12
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Internal Components
Front Rear
C
D
E
INTRODUCTION
A
Workpiece

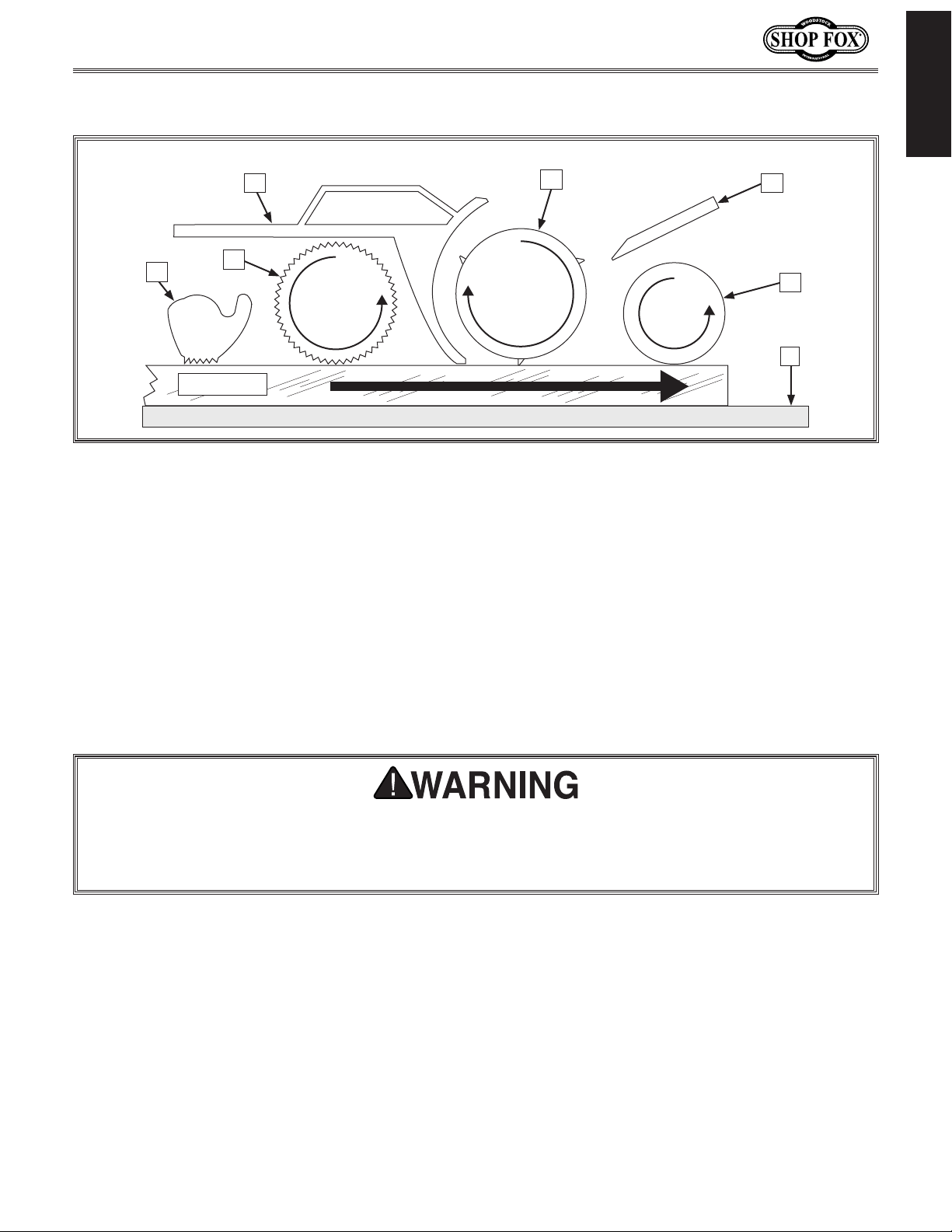

Figure
A.
Anti-Kickback Fingers: Provide additional
safety for the operator.
B. Serrated Infeed Roller: Pulls the workpiece
toward the cutterhead.
C. Chip Breaker: Breaks off chips created by
the cutterhead to prevent tear out and
diverts the chips to the dust port.
D. Cutterhead: Holds the knives/inserts that
remove material from the workpiece.
B
3. Workpiece path and major planing components (side cutaway view).
F
G
. Chip Deflector: Directs chips into the dust
E
port.
. Outfeed Roller: Pulls the workpiece
F
through the planer.
. Planer Table: Provides a smooth and level
G
path for the workpiece as it moves through
the planer.
Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect
and caution to decrease the risk of operator injury. If normal safety precautions are overlooked
or ignored, serious personal injury may occur.
-9-
Page 13
Model W1862/W1863 (For Machines Mfd. Since 11/20)
SAFETY
OWNER’S MANUAL.
TRAINED OPERATORS ONLY.
DANGEROUS ENVIRONMENTS.
MENTAL ALERTNESS REQUIRED.
electrical components or improperly grounded
manual uses a series of symbols and signal words intended to convey the level of importance of the
safety messages. The progression of symbols is described below. Remember that safety messages by
SAFETY
For Your Own Safety,
Read Manual Before Operating Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
SAFETY
themselves do not eliminate danger and are not a substitute for proper accident prevention measures—this responsibility is ultimately up to the operator!
NOTICE
Standard Machinery Safety Instructions
Standard Machinery Safety Instructions
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury.
This symbol is used to alert the user to useful information about
proper operation of the equipment or a situation that may cause
damage to the machinery.
Read and understand this
owner’s manual BEFORE using machine.
have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this
machine. When machine is not being used,
disconnect power, remove switch keys, or
lock-out machine to prevent unauthorized
use—especially around children. Make
workshop kid proof!
machinery in areas that are wet, cluttered,
or have poor lighting. Operating machinery
in these areas greatly increases the risk of
accidents and injury.
alertness is required for safe operation of
machinery. Never operate under the influence
of drugs or alcohol, when tired, or when
distracted.
Untrained operators
Do not use
Full mental
ELECTRICAL EQUIPMENT INJURY RISKS. You can
be shocked, burned, or killed by touching live
machinery. To reduce this risk, only allow an
electrician or qualified service personnel to
do electrical installation or repair work, and
always disconnect power before accessing or
exposing electrical equipment.
DISCONNECT POWER FIRST. Always disconnect
machine from power supply BEFORE making
adjustments, changing tooling, or servicing
machine. This eliminates the risk of injury
from unintended startup or contact with live
electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating
or observing machinery to reduce the risk of
eye injury or blindness from flying particles.
Everyday eyeglasses are not approved safety
glasses.
-10-
Page 14
Model W1862/W1863 (For Machines Mfd. Since 11/20)
WEARING PROPER APPAREL. Do not wear
HAZARDOUS
HEARING PROTECTION.
REMOVE ADJUSTING TOOLS.
INTENDED USAGE.
AWKWARD POSITIONS.
CHILDREN & BYSTANDERS.
GUARDS & COVERS.
FORCING MACHINERY. Do not force machine. It
will do the job safer and better at the rate for
loss of control. Before starting, verify machine
malfunction, leading to serious personal injury
from heated surfaces, high traffic areas, harsh
clothing, apparel, or jewelry that can become
entangled in moving parts. Always tie back
or cover long hair. Wear non-slip footwear to
avoid accidental slips, which could cause loss
of workpiece control.
DUST. Dust created while using
machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of
dust hazards associated with each workpiece
material, and always wear a NIOSH-approved
respirator to reduce your risk.
Always wear hearing
protection when operating or observing
loud machinery. Extended exposure to this
noise without hearing protection can cause
permanent hearing loss.
machinery can become dangerous projectiles
upon startup. Never leave chuck keys,
wrenches, or any other tools on machine.
Always verify removal before starting!
intended purpose—never make modifications
without prior approval from Woodstock
International. Modifying machine or using
it differently than intended will void the
warranty and may result in malfunction or
mechanical failure that leads to serious
personal injury or death!
balance at all times when operating machine.
Do not overreach! Avoid awkward hand
positions that make workpiece control difficult
or increase the risk of accidental injury.
bystanders at a safe distance from the work
area. Stop using machine if they become a
distraction.
Only use machine for its
Tools left on
Keep proper footing and
Keep children and
which it was designed.
NEVER STAND ON MACHINE. Serious injury may
occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during
operation greatly increases risk of injury or
is stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for
recommended accessories. Using improper
accessories will increase risk of serious injury.
UNATTENDED OPERATION. To reduce the risk
of accidental injury, turn machine OFF and
ensure all moving parts completely stop
before walking away. Never leave machine
running while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to
keep machine in good working condition. A
machine that is improperly maintained could
or death.
CHECK DAMAGED PARTS. Regularly inspect
machine for any condition that may affect
safe operation. Immediately repair or replace
damaged or mis-adjusted parts before
operating machine.
MAINTAIN POWER CORDS. When disconnecting
cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the
cord may damage the wires inside, resulting
in a short. Do not handle cord/plug with wet
hands. Avoid cord damage by keeping it away
chemicals, and wet/damp locations.
SAFETY
accidental contact with moving parts or flying
debris—make sure they are properly installed,
undamaged, and working correctly.
Guards and covers reduce
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the
intended operation, stop using the machine!
-11-
Contact Technical Support at (360) 734-3482.
Page 15
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Amputation, serious cuts, entanglement, or death can occur from contact with rotating cutterhead
KICKBACK.
AVOID CONTACT WITH MOVING PARTS.
DULL/DAMAGED KNIVES/INSERTS.
INSPECTING STOCK.
BODY PLACEMENT.
GRAIN DIRECTION.
angle with the wood grain.
To reduce the risk
of kickback, never start planer with workpiece
Additional Safety for Planers
or other moving parts! Flying chips can cause eye injuries or blindness. Workpieces or knives
thrown by cutterhead can strike nearby operator or bystanders with deadly force. To reduce risk
of these hazards, operator and bystanders MUST completely heed hazards and warnings below.
SAFETY
kickback and kickback-related injuries.
“Kickback” occurs during operation when
the workpiece is ejected from the machine
at high speed. Kickback is commonly caused
by poor workpiece selection, unsafe feeding
techniques, or improper machine setup/
maintenance. Kickback injuries typically occur
as follows: (1) operator/bystanders are struck
by the workpiece, resulting in impact injuries
(i.e., blindness, broken bones, bruises, death);
(2) operator’s hands are pulled into blade,
resulting in amputation or severe lacerations.
remove guards/covers or reach inside the
planer during operation or while connected to
power. You could be seriously injured if you
accidentally touch the spinning cutterhead
or get entangled in moving parts. If a
workpiece becomes stuck or sawdust removal
is necessary, turn planer OFF and disconnect
power before clearing.
sharp, undamaged knives/inserts. Dull or
damaged knives/inserts increase the risk of
kickback.
kickback injuries or machine damage,
thoroughly inspect and prepare the workpiece
before cutting. Verify workpiece is free of
nails, staples, loose knots or foreign material.
Workpieces with minor warping should be
jointed first or planed with the cupped side
facing the table.
Know how to reduce the risk of
To reduce the risk of
Never
Only use
PLANING CORRECT MATERIAL. Only plane
natural wood stock with this planer. DO NOT
plane MDF, OSB, plywood, laminates or other
synthetic materials that can break up inside
the planer and be ejected towards operator.
LOOKING INSIDE PLANER. Wood chips fly around
inside the planer at a high rate of speed
during operation. To avoid injury from flying
material, DO NOT look inside planer during
operation.
CUTTING LIMITATIONS. To reduce the risk of
kickback hazards or damage to the machine,
do not exceed the maximum depth of cut or
minimum board length and thickness found
in the Data Sheet. Only feed one board at a
time.
INFEED ROLLER CLEARANCE. The infeed
roller is designed to pull material into the
spinning cutterhead. To reduce the risk of
entanglement, keep hands, clothing, jewelry,
and long hair away from the infeed roller
during operation.
FEED WORKPIECE PROPERLY.
touching cutterhead. Allow cutterhead to
reach full speed before feeding, and do not
change feed speed during cutting operation.
WORKPIECE SUPPORT. To reduce the risk of
kickback, always make sure workpiece can
move completely across table without rocking
or tipping. Use auxiliary support stands for
long stock.
during the entire operation to avoid getting
hit if kickback occurs.
hard on the planer and may cause kickback.
Plane in the same direction or at a slight
Stand to one side of planer
Planing across the grain is
SECURE KNIVES/INSERTS. Loose knives or
improperly set inserts can become dangerous
projectiles or cause machine damage. Always
verify knives/inserts are secure and properly
adjusted before operation.
-12-
Page 16
Model W1862/W1863 (For Machines Mfd. Since 11/20)
This machine must be connected to the correct size and
type of power supply circuit, or fire or electrical damage
may occur. Read through this section to determine if an
adequate power supply circuit is available. If a correct
circuit is not available, a qualified electrician MUST install
one before you can connect the machine to power.
A power supply circuit includes all electrical equipment
between the breaker box or fuse panel in the building
and the machine. The power supply circuit used for
this machine must be sized to safely handle the fullload current drawn from the machine for an extended
period of time. (If this machine is connected to a circuit
protected by fuses, use a time delay fuse marked D.)
The full-load current rating is the amperage a machine
draws at 100% of the rated output power. On machines
with multiple motors, this is the amperage drawn by the
largest motor or sum of all motors and electrical devices
that might operate at one time during normal operations.
or machine damage. To reduce this risk,
where only one machine will be running
multiple machines will be running at the
This machine is prewired to operate on a power supply
circuit that has a verified ground and meets the following
requirements:
ELECTRICAL
Circuit Requirements
The machine must be properly set up
before it is safe to operate. DO NOT
connect this machine to the power
source until instructed to do so later
in this manual.
ELECTRICAL
Full-Load Current Rating
Full-Load Current Rating at 230V ................ 12 Amps
Circuit Requirements
Nominal Voltage ................. 208V, 220V, 230V, 240V
Cycle ........................................................60 Hz
Phase .................................................... 1-Phase
Power Supply Circuit ................................ 20 Amps
Plug/Receptacle ................................... NEMA 6-20
Cord .................“S”-Type, 3-Wire, 12 AWG, 300 VAC
Incorrectly wiring or grounding this
machine can cause electrocution, fire,
only an electrician or qualified service
personnel should do any required
electrical work on this machine.
NOTICE
The circuit requirements listed in this
manual apply to a dedicated circuit—
at a time. If this machine will be
connected to a shared circuit where
same time, consult with an electrician
to ensure that the circuit is properly
sized for safe operation.
-13-
Page 17
Model W1862/W1863 (For Machines Mfd. Since 11/20)
This machine MUST be grounded. In the event of certain
types of
a path of least resistance for electric current
order
Improper connection of the equipment-grounding
will
increase
insulation
grounding
cord or plug is necessary, do not connect the equipmentgrounding
Check with a qualified electrician or service personnel
if
or if
properly grounded.
plug is damaged or worn, disconnect it from power, and
immediately replace it with a new one.
This machine is equipped with a power cord that has an
equipment-grounding
The plug
receptacle
(
accordance with local codes and ordinances.
We do not recommend using an extension cord with
Any extension cord used with this machine must contain a
plug and receptacle, and
meet the following requirements:
the available receptacle or the machine
Grounding Requirements
malfunctions or breakdowns, grounding provides
to travel—in
to reduce the risk of electric shock.
wire
the risk of electric shock. The wire with green
(with/without yellow stripes) is the equipment-
wire. If repair or replacement of the power
The machine must be properly set up
before it is safe to operate. DO NOT
connect this machine to the power
source until instructed to do so later
in this manual.
wire to a live (current carrying) terminal.
you do not understand these grounding requirements,
ELECTRICAL
you are in doubt about whether the tool is
If you ever notice that a cord or
For 230V Connection
wire and NE M A 6-20 grounding plug.
must only be inserted into a matching
see Figure) that is properly installed and grounded in
Extension Cords
this machine. Extension cords cause voltage drop, which
may damage electrical components and shorten motor
life. Voltage drop increases with longer extension cords
and smaller gauge sizes (higher gauge numbers indicate
smaller sizes).
ground wire, match the required
Minimum Gauge Size at 230V ...................... 12 AWG
Maximum Length (Shorter is Better) ................50 ft.
GROUNDED
6-20 RECEPTACLE
Current Carrying Prongs
6-20 PLUG
Grounding Pin
Figure 4. NEMA 6-20 plug & receptacle.
No adapter should be used with the
required plug. If the plug does not fit
must be reconnected to a different
type of circuit, the reconnection must
be made by an electrician or qualified
service personnel and it must comply
with all local codes and ordinances.
-14-
Page 18
Model W1862/W1863 (For Machines Mfd. Since 11/20)
This machine has been carefully packaged for safe
transportation. If you notice the machine has been
damaged during shipping, please contact your authorized
Shop Fox dealer immediately.
The following items are needed, but not included, to set
up your machine.

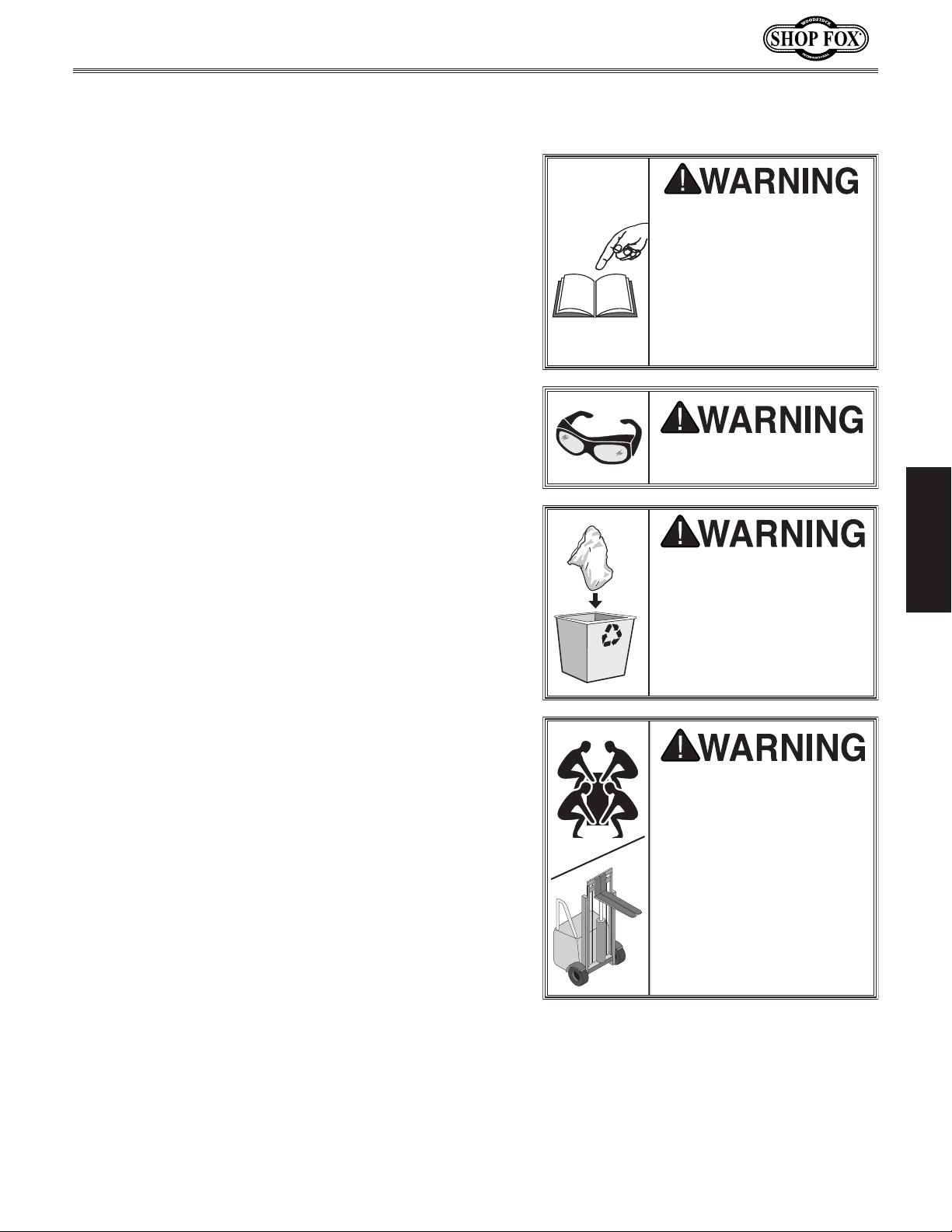

This machine presents
serious injury hazards
to untrained users. Read
to become familiar with
tions before starting the
Immediately discard all
materials to eliminate
Straining or crushing
improperly lifting the
parts. To reduce this
SETUP
Unpacking
through this entire manual
the controls and opera-
Items Needed for Setup
Description Qty
• Additional People ..........................................1
• Safety Glasses ................................ 1 Per Person
• Forklift (rated for at least 750 lbs.) ....................1
• Cleaner/Degreaser ............................ As Needed
• Disposable Shop Rags ......................... As Needed
• Phillips Screwdriver #2 ...................................1
• Flat Head Screwdriver ....................................1
• Wrench or Socket 12mm, 14mm ...................1 Ea.
• Hex Wrenches 3, 4, 5, 6, 8mm .....................1 Ea.
• Straightedge 4' .............................................1
• Dust-Collection System ...................................1
• Dust Hose 4" (length as needed) ........................1
• Hose Clamps 4" ............................................2
• Gearbox Oil ..................................... As Needed
machine!
Wear safety glasses during
entire setup process!
SETUP
SUFFOCATION HAZARD!
plastic bags and packing
choking/suffocation
hazards for children and
animals.
HEAVY LIFT!
injury may occur from
machine or some of its
risk, get help from other
people and use a forklift
(or other lifting equipment) rated for weight of
machine.
-15-
Page 19
Inventory
The following is a list of items shipped with your machine.
Before beginning setup, lay these items out and inventory
them.
Note:
check around/inside the machine and packaging materials.
Often, these items get lost in packaging materials while
unpacking or they are pre-installed at the factory.
If you cannot find an item on this list, carefully

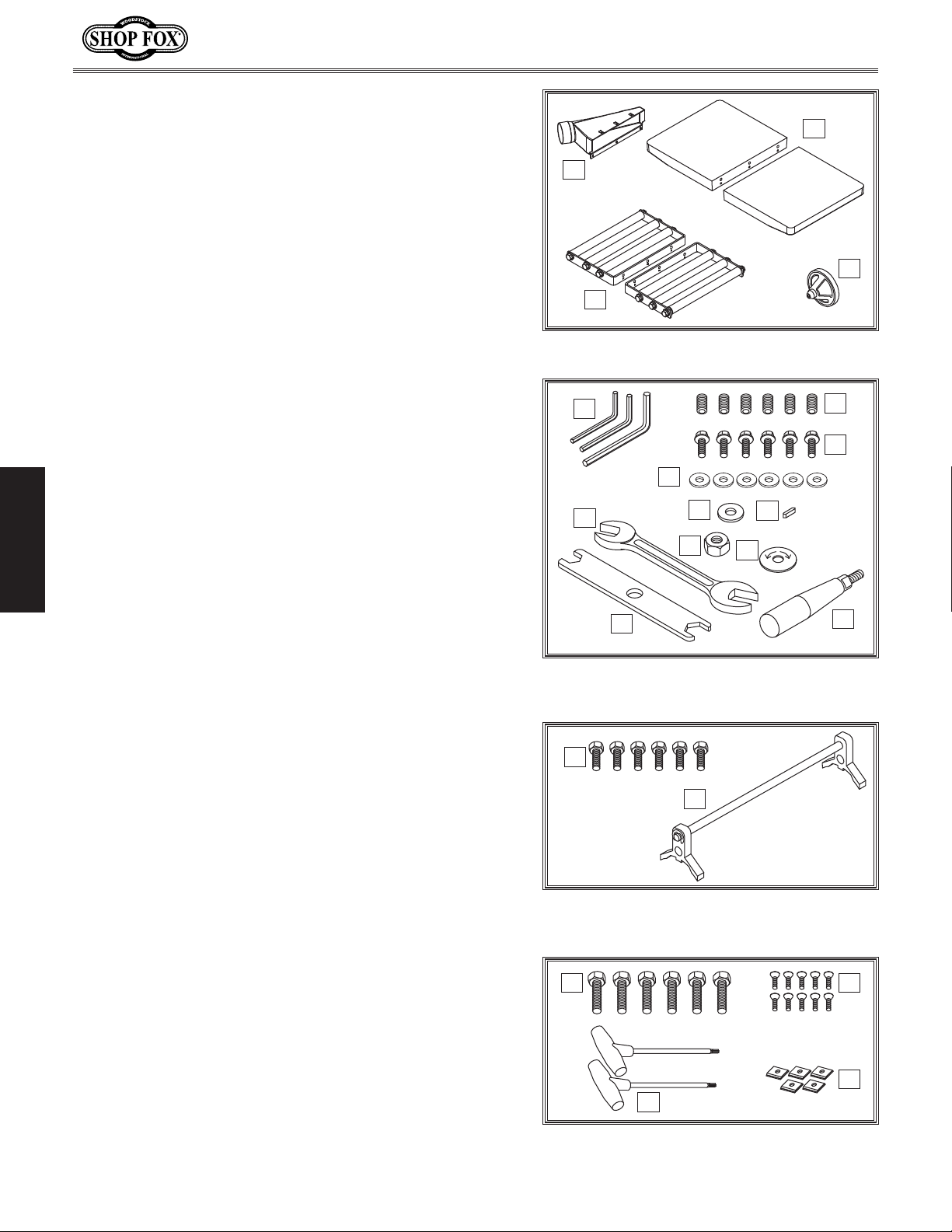

Box 1 (Figure 5) Qty
A. Planer Unit (Not Shown)..................................1
B. Dust Port ....................................................1
C. Cast-Iron Extension Tables (W1863) ....................2
Roller Extension Tables (W1862) ........................2
D.
. Table Elevation Handwheel ..............................1
E
Tools and Hardware (Figure 6)
Flat Wrench 10/13mm ....................................1
F.
G. Open-End Wrench 12/14mm .............................1
. Hex Wrenches 3, 4, 6mm ...........................1 Ea.
H
. Set Screws M8-1.25 x 12 (Ext. Tables) .................6
I
SETUP
. Flange Bolts M6-1 x 12 (Dust Port) .....................6
J
. Flat Washers 8mm (Ext. Tables) .........................6
K
Key 4 x 4 x 10 (Handwheel)..............................1
L.
. LOW/HIGH Direction Label (Handwheel) ..............1
M
. Handwheel Handle (Handwheel) ........................1
N
. Hex Nut M10-1.25 (Handwheel) .........................1
0
. Flat Washer 10mm (Handwheel) ........................1
P
Model W1862/W1863 (For Machines Mfd. Since 11/20)
C
B
E
D
Figure 5. Box inventory.
H
K
G
F
Figure 6. Tools and hardware.
P
O
L
M
LOW HIGH
I
J
N
W1862 Only (Figure 7)
. Hex Bolts M8-1.25 x 20 (Ext. Tables) ...................6
Q
. Knife-Setting Jig
R
Knife-Setting Jig Foot ..................................2
—
Knife-Setting Jig Shaft .................................1
—
E-Clip 9mm ...............................................4
—
W1863 Only (Figure 8)
. Hex Bolts M8-1.25 x 25 (Ext. Tables) ...................6
S
. Flat Head Torx Screws #10-32 x 1⁄2" ................. 10
T
. Indexable Carbide Inserts 15 x 15 x 2.5 ...............5
U
. T-Handle Torx Wrenches T-25 ............................2
V
Q
R
Figure 7. Tools and hardware (W1862
only).
S T
U
V
Figure 8. Tools and hardware (W1863
only).
-16-
Page 20
Model W1862/W1863 (For Machines Mfd. Since 11/20)
To prevent
machine, the factory has coated t
of your machine
compound
I
be difficult to
coating is as easy as possible, please gather the correct
cleaner, lubricant, and tools listed below:
• Cleaner/degreaser
and grease
• Safety glasses & disposable gloves
•
• Disposable Rags
To
1.
2.
3
4
5
6
immediately coat with a quality metal protectant.
Cleaning Machine
corrosion during shipment and storage of your
with a heavy-duty rust prevention
.
f you are unprepared or impatient, this compound can
remove. To ensure that the removal of this
designed to remove storage wax
Solvent brush or paint brush
remove rust preventative coating, do these steps:
DISCONNECT MACHINE FROM POWER!
he bare metal surfaces
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avoid
using these products
to clean machinery.
Many cleaning solvents
are toxic if inhaled.
Minimize your risk
by only using these
products in a well
ventilated area.
SETUP
Put on safety glasses and disposable gloves.
. Coat the rust preventative with a liberal amount of
cleaner/degreaser, then let it soak for 5–10 minutes.
. Wipe off surfaces. If your cleaner/degreaser is
effective, the coating will wipe off easily.
Tip: An easier way to clean off thick coats of rust
preventative from flat surfaces is to use a PLASTIC
paint scraper to scrape off the majority of the
coating before wiping it off with your rag. (Do
not use a metal scraper or you may scratch your
machine.)
. Repeat cleaning steps as necessary until all of the
compound is removed.
. To prevent rust on freshly cleaned surfaces,
In a pinch, automotive degreasers,
mineral spirits or WD•40 can be used
to remove rust preventative coating.
Before using these products, though,
test them on an inconspicuous area of
your paint to make sure they will not
damage it.
-17-
Page 21
Machine Placement
Weight Load
Refer to the
weight of your machine. Make sure that the
surface upon which the machine is placed will
bear the weight of the machine, additional
equipment that may be installed on the
machine, and the heaviest workpiece that will
be used. Additionally, consider the weight of
the operator and any dynamic loading that may
occur when operating the machine.
Space Allocation
Consider the largest size of workpiece that
will be processed through this machine and
provide enough space around the machine
for adequate operator material handling or
the installation of auxiliary equipment. With
permanent installations, leave enough space
around the machine to open or remove doors/
covers as required by the maintenance and
service described in this manual.
required space allocation.
Physical Environment
The physical environment where your machine is
operated is important for safe operation and the
ambient temperature range exceeds 41°–104°F;
(non-condensing); or the environment is subject
source. Make sure all power cords are protected
chemicals, or other hazards. Make sure to leave
Machine Specifications for the
Model W1862/W1863 (For Machines Mfd. Since 11/20)
longevity of its components. For best results,
operate this machine in a dry environment
that is free from excessive moisture, hazardous
chemicals, airborne abrasives, or extreme
conditions. Extreme conditions for this type
of machinery are generally those where the
the relative humidity range exceeds 20–95%
to vibration, shocks, or bumps.
Electrical Installation
Place this machine near an existing power
SETUP
See below for
Children or untrained people
may be seriously injured by this
machine. Only install in an access
restricted location.
32"
Port
from traffic, material handling, moisture,
access to a means of disconnecting the power
source or engaging a lockout/tagout device.
48"
Lighting
Lighting around the machine must be adequate
enough that operations can be performed
safely. Shadows, glare, or strobe effects that
may distract or impede the operator must be
eliminated.
Wall
Min. 30"
for Maintenance
Feed DirectionDust
= Electrical Connection
Figure 9. Working clearances.
-18-
Page 22
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Straining or crushing
improperly lifting the
parts. To reduce this
Lifting & Moving
The planer is equipped with four lifting bars that extend
in order to lift and place the planer.
To lift and place the planer, extend the lifting bars and
use a forklift to lift the machine off the pallet, as shown
Figure 10, then set the planer down in a suitable
in
location and return the lifting bars to their original
position.
Tip: When positioning lift forks, place shop rags or
cardboard between forks and cabinet stand to avoid
scratching paint.
Lifting
Bars
(2 of 4)
HEAVY LIFT!
injury may occur from
machine or some of its
risk, get help from other
people and use a forklift
(or other lifting equipment) rated for weight of
machine.
SETUP
Figure 10. Example of lifting planer with
forklift.
-19-
Page 23
Assembly
Before beginning the assembly process, refer to Items
Needed for Setup
Ensure all parts have been properly cleaned of any
heavy-duty rust-preventative applied at the factory (if
applicable). Be sure to complete all steps in the assembly
procedure prior to performing the Test Run or connecting
and gather everything you need.
To assemble planer, do these steps:
1. W1863: Attach each cast-iron extension table to
planer table with (3) M8-1.25 x 25 hex bolts and
(3) 8mm flat washers (see
tighten hex bolts at this time.
W1862: Attach each roller extension table to planer
table with (3) M8-1.25 x 20 hex bolts and (3) 8mm
flat washers (see
hex bolts at this time.
Thread (3) M8-1.25 x 12 set screws into each
2.
SETUP
extension table at locations shown in
Figure 11). Do not fully tighten
Figure 11). Do not fully
Figure 11.
Model W1862/W1863 (For Machines Mfd. Since 11/20)
x 3
W1862
x 3
x 3
W1863
Figure 11. Extension table mounting
locations.
x 3
x 3
Using a straightedge as a guide, rotate set screws
3.
until extension tables are aligned with main table,
then fully tighten hex bolts installed during
Note: Bed rollers will give you a false reading
with your straightedge if they are raised above
table. Move them down or work around them when
leveling extension wings (refer to Bed Roller Height
on Page 29 for details).
. Insert key into keyway on handwheel shaft on top of
4
planer.
. Line up notch in handwheel bore with key, then slide
5
handwheel onto shaft.
. Slide LOW/HIGH direction label onto handwheel
6
shaft, and secure handwheel with 10mm flat washer
and M10-1.25 hex nut (see
. Thread handwheel handle into handwheel (see
7
Figure 12), and tighten with wrench.
Figure 12).
Step 1.
Install Handle
Here
x 1
LOW/HIGH
Direction Label
Figure 12. Table elevation handwheel
installed.
x 6
. Attach dust port to planer with (6) M6-1 x 12 flange
8
bolts (see
Figure 13).
Figure 13. Dust port installed.
-20-

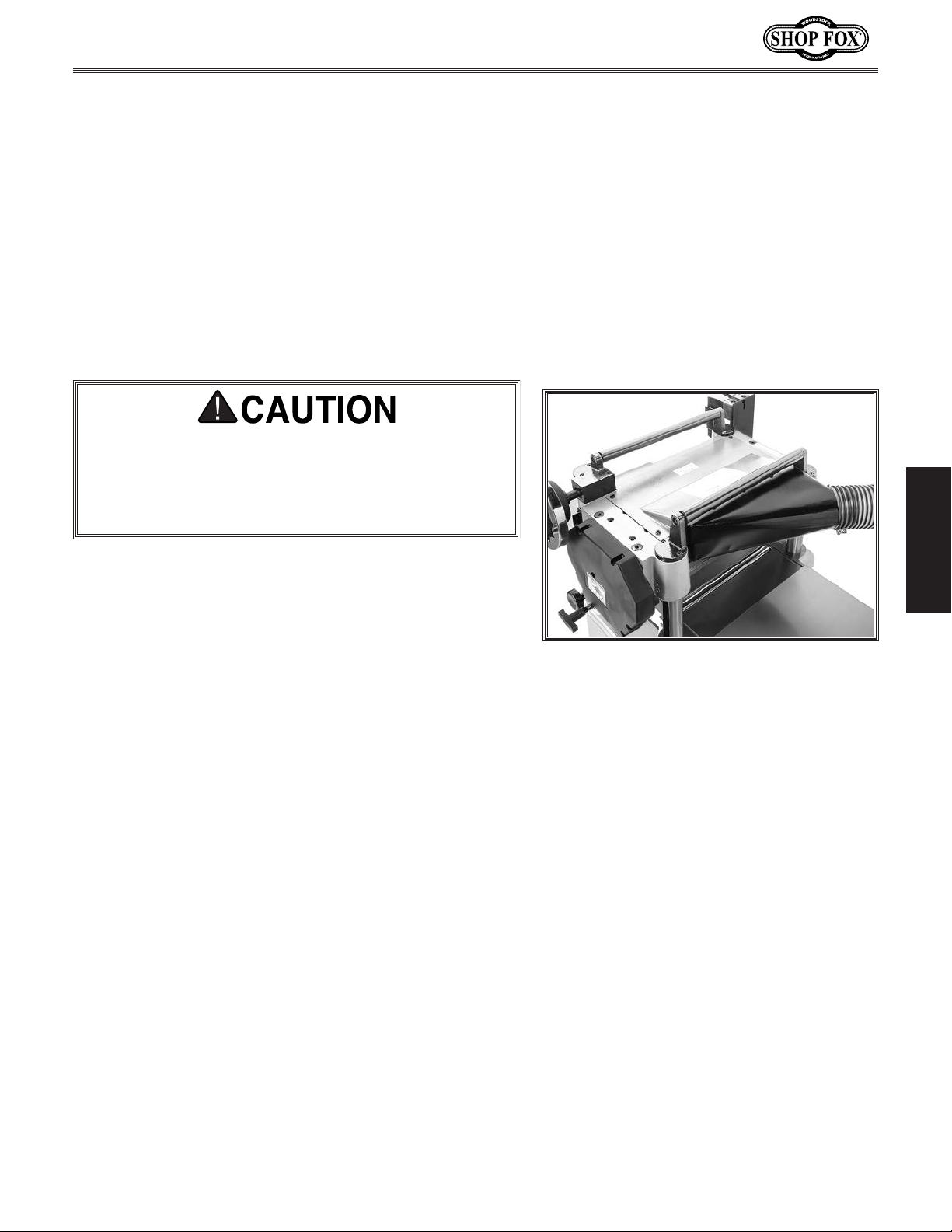

Page 24
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Do not confuse this CFM recommendation with the rating
of the dust collector. To determine the CFM at the dust
port, you must consider these variables: (1) CFM rating of
the dust collector, (2) hose type and length between the
dust collector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines throughout
the system. Explaining how to calculate these variables
is beyond the scope of this manual. Consult an expert or
purchase a good dust collection “how-to” book.
Dust Collection
Recommended CFM at Dust Port: ................ 400 CFM
This machine creates substantial amounts of dust
during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness.
Reduce your risk by wearing a respirator and capturing the dust with a dust collection system.
SETUP
To connect the machine to a dust-collection system, fit a
4" dust hose over the dust port, and secure in place with
a hose clamp (see
it does not come off.
Note: A tight fit is necessary for proper performance.
Figure 14). Tug the hose to make sure
Figure 14. Dust hose connected to dust
port.
-21-
Page 25
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Checking Gearbox Oil
Level
Before starting your machine for the first time, check the
gearbox oil level. The proper oil level is just even with
the bottom of the fill plug hole. The gearbox uses ISO 320
gear oil. However, SAE 140 gear oil or SAE 85W–140 multiweight gear oil may also be used as alternatives. DO NOT
mix oil types.
Note: For easier access to the fill plug, remove the drive
chain cover (see Figure 15).
Drive
Chain
Cover
To check gearbox oil level, do these steps:
1. Remove gearbox fill plug (see Figure 15).
Wipe clean the 6mm hex wrench that came with
2.
your machine, dip the short end of it inside fill hole,
and then remove it.
If the end of the hex wrench is coated with oil,
—
SETUP
Note: We recommend that you replace the gearbox oil
after the first 20 hours of operation. This is a normal
break-in procedure and will help maximize the service life
of the machine by flushing away any particles from the
break-in and manufacturing process.
then the gearbox oil level is okay. Replace the fill
plug and continue setup.
If the end of the hex wrench is not coated with
—
oil, then you need to add more oil. Refer to
Gearbox
do this.
Oil on Page 40 for instructions on how to
Figure
Fill Plug
15. Location of gearbox fill plug.
-22-
Page 26
Model W1862/W1863 (For Machines Mfd. Since 11/20)
performed. Operating an improperly set
Once assembly is complete, test run the machine to
ensure it is properly connected to power and safety
components are functioning properly.
If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from power,
and fix the problem BEFORE operating the machine again.
The
section of this
manual can help.
Test Run
Troubleshooting table in the SERVICE
The Test Run consists of verifying the following: 1) The
motor powers up and runs correctly, and 2) the STOP/
reset button safety feature functions properly.
To test run machine, do these steps:
Serious injury or death can result
from using this machine BEFORE
understanding its controls and related
safety information. DO NOT operate, or
allow others to operate, machine until
the information is understood.
DO NOT start machine until all
preceding setup instructions have been
1. Clear all setup tools and loose objects away from
machine.
2. Push STOP button in.
3. Connect machine to power supply.
4. Twist STOP button clockwise until it springs out (see
Figure 16). This resets the switch so the machine
can start.
Press START button to turn machine ON. Verify motor
5.
starts up and runs smoothly without any unusual
problems or noises.
Press STOP button to turn machine OFF.
6.
WITHOUT resetting STOP button, try to start machine
7.
by pressing the START button. The machine should
not start.
— If the machine does not start, the STOP
button safety feature is working correctly.
Congratulations! Test Run is complete.
up machine may result in malfunction
or unexpected results that can lead
to serious injury, death, or machine/
property damage.
I
S
W
T
T
STOP Button
Figure 16. Resetting the switch.
SETUP
— If the machine does start with the STOP button
pushed in, immediately disconnect power to the
machine. The STOP button safety feature is not
working correctly and must be replaced before
further using the machine. Call Tech Support for
help.
-23-
Page 27
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Recommended
Adjustments
The adjustments listed below have been performed at
the factory. However, because of the many variables
involved with shipping, we recommend that you verify the
adjustments to ensure the best possible results from your
new machine.
Step-by-step instructions for these adjustments can be
found in the SERVICE section starting on
Factory adjustments that should be verified:
• Tensioning/replacing V-belts (Page 41).
• Calibrating table elevation scale (Page 49).
• Pulley alignment (Page 42).
Page 41.
After approximately 16 hours of
operation, V-belts will stretch and seat
into pulley grooves and need to be
properly tensioned to avoid severely
reducing life of V-belts. Refer to
Tensioning/Replacing V-Belts on Page
41 for detailed instructions.
SETUP
-24-
Page 28
Model W1862/W1863 (For Machines Mfd. Since 11/20)
The purpose of this overview is to provide the novice
machine operator with a basic understanding of how
the machine is used during operation, so the
controls
easier to understand.
Due to the generic nature of this overview, it is
intended to be an instructional guide. To learn more
about specific operations,
seek
operators
manual by reading "how-to" books, trade magazines, or
websites.
OPERATIONS
Operation Overview
machine
/components discussed later in this manual are
not
read this entire manual and
additional training from experienced machine
, and do additional research outside of this
To complete a typical operation, the operator does the
following:
Examines workpiece to make sure it is suitable for
1.
planing.
Puts on safety glasses or face shield, a respirator,
2.
and hearing protection.
Places workpiece on table with flat side down
3.
and correctly adjusts table height for workpiece
thickness and depth of cut.
— If workpiece is bowed, operator surface planes
workpiece on a jointer until one side is flat. Doing
so ensures that it sits solidly on planer table
during operation.
When all safety precautions have been taken, turns
4.
planer ON.
To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.
Eye injuries, respiratory problems, or
hearing loss can occur while operating
this tool. Wear personal protective
equipment to reduce your risk from
these hazards.
If you are an inexperienced operator,
we strongly recommend that you read
books or trade articles, or seek training
from an experienced operator of this
type of machinery before performing
unfamiliar operations. Above all, safety
must come first!
OPERATIONS
Stands to one side of planer path to reduce risk of
5.
kickback injuries, then feeds workpiece into planer
until infeed roller grabs it.
Note: Infeed and outfeed rollers control feed rate
of workpiece as it passes through planer. Operator
should not push or pull on workpiece.
If cut is too deep and bogs down planer, operator
—
immediately reduces depth of cut.
-25-
6. Once workpiece is clear of outfeed
roller and stops moving, operator
removes workpiece from outfeed
table and measures thickness. If
further planing is required, operator
raises table slightly (
table height handwheel), then feeds
workpiece into front of planer again.
Operator continues process until
7.
desired thickness is achieved, then
turns machine OFF.
1
⁄4 to 1⁄2 turn of
Page 29
Workpiece Inspection Wood Types
Some workpieces are not safe to use or may
require modification before they are.
cutting,
following:
• Material Type:
other material that may break apart during
• Foreign Objects:
• Large/Loose Knots:
workpieces that do not
• Wet or "Green" Stock:
with a high water content. Wood with more
than 20% moisture content or wood exposed
• Excessive Warping:
dangerous to cut because they are unstable
• Minor
bowed side will rock during operation and
The species of wood, as well as its condition,
greatly affects the depth of cut the planer can
effectively take with each pass.
The chart in the figure below shows the Janka
Hardness Rating for a number of commonly used
species. The larger the number, the harder
the workpiece, and the less material should be
removed in any one pass for good results.
Note:
in pounds of force required to embed a 0.444"
steel ball into the surface of the wood to a
depth equal to half the ball's diameter.
Before
inspect all workpieces for the
This machine is only
OPERATIONS
intended for workpieces of natural wood
fiber. Attempting to use workpieces of any
operation could lead to serious personal
injury and property damage.
Inspect workpiece for
defects and foreign objects (nails, staples,
embedded gravel, etc,). If you have
any question about the quality of your
workpiece, DO NOT use it. Remember,
wood stacked on a concrete floor can have
small pieces of stone or concrete pressed
into the surface.
Loose knots can
become dislodged during operation. Large
knots can cause kickback and machine
damage. Always use
have large/loose knots.
Avoid using wood
to excessive moisture (such as rain or
snow), will cut poorly and cause excessive
wear to the machine. Excess moisture
can also hasten rust and corrosion of the
machine and/or individual components.
excessive cupping, bowing, or twisting are
and often unpredictable when being
cut. DO NOT use workpieces with these
characteristics!
cupping can be safely supported if the
cupped side is facing the table. On the
contrary, a workpiece supported on the
Workpieces with
Cupping: Workpieces with slight
Model W1862/W1863 (For Machines Mfd. Since 11/20)
The Janka Hardness Rating is expressed
Janka
Species
Ebony 3220
Red Mahogany 2697
Rosewood 178 0
Red Pine 1630
Sugar Maple 1450
White Oak 1360
White Ash 1320
American Beech 1300
Red Oak 1290
Black Walnut 1010
Teak 1000
Black Cherry 950
Cedar 900
Sycamore 770
Douglas Fir 660
Chestnut 540
Hemlock 500
White Pine 420
Basswood 410
Eastern White Pine 380
Balsa 100
Figure 17. Janka Hardness Rating for some
common wood species.
Hardness
-26-
Page 30
Model W1862/W1863 (For Machines Mfd. Since 11/20)
• Inspect your workpiece for twisting or
• Scrape off all glue when planing glued-up
• DO NOT plane more than one piece at a
• Never remove more than the recommended
remove a small amount of material on each
• Support the workpiece on both ends. Get
• Measure the workpiece thickness with
• Carefully inspect all stock to make sure
that may damage your knives/inserts, cause
• When possible, plane equal amounts on
• Use the entire width of the planer to
Your knives/inserts will remain sharp much
• To avoid "chip marks," always plane WITH
• Plane ONLY natural wood fiber. Do not
that could break up in the planer and cause
• Always flatten cupped or warped
workpieces on a jointer before planing.
Below is a list of wood characteristics you
may encounter when planing. The following
descriptions of defects will give you some
possible answers to problems you may encounter
while planing different materials. Possible
solutions follow the descriptions.
Chipped Grain
Problem:
the grain, planing workpieces with knots or
excessive amount of cross grain, or using dull
knives/inserts.
Note:
highly figured wood.
Solution: Decrease the depth of cut. Reduce the
feed rate. Inspect your workpiece and determine
if its grain pattern is causing the problem. If the
workpiece does not show substantial crossgrain,
inspect your knives/inserts.
Fuzzy Grain
Problem: Usually caused by surfacing workpieces
with too high of a moisture content. Sometimes
fuzzy grain is an unavoidable characteristic of
some woods, such as basswood. Fuzzy grain can
also be caused by dull knives/inserts.
Solution:
meter. If moisture is greater than 20%, sticker
the workpiece and allow it to dry. Otherwise,
inspect the knife/insert condition.
Snipe
Problem
material removed than the rest of the board.
Usually caused when the workpiece is not
properly supported as it goes through the
machine. In many cases, however, a small
amount of snipe is inevitable.
Solution: Hold workpiece up slightly as it leaves
the outfeed end of the planer. The best way
to deal with snipe is by planing the workpiece
longer than your intended work length and then
cutting off the excess after planing is completed.
Planing Tips Cutting Problems
cupping, and surface one face on a jointer
if necessary before planing workpiece.
panels. Dried glue can quickly dull knives/
inserts.
time.
amount of material on each pass. Only
pass when planing wide or dense stock.
assistance from another person if you are
planing a long workpiece, or use roller
stands to support the workpiece.
calipers to get exact results.
it is free of large knots or foreign objects
kickback, or be ejected from the planer.
each side of the board to reduce the
chance of twisting or cupping.
wear knives/inserts evenly. With narrow
workpieces, alternate between far left,
far right, and the middle of the table.
longer.
Usually a result of cutting against
Some amount of chipping is normal with
OPERATIONS
Check the workpiece with a moisture
: Occurs when board ends have more
the grain direction of the wood. Never
plane cross-grain or end-grain.
plane wood composites or other materials
operator injury or damage to planer.
-27-
Page 31
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Chip Marks or Indentations
Problem: Chip indentation or chip bruising is the
result of wood chips not being ejected from the
machine. Instead they are carried around the
cutterhead, deposited on the planed surface and
crushed by the outfeed roller. Some causes of
chip indentation are:
•
•
have a tendency to
•
igh moisture content (over 20%) or surface
•
•
Solution:
•
Use a proper dust-collection system; adjust
•
•
Pitch & Glue Buildup
Problem:
cutterhead will cause overheating by decreasing
cutting sharpness while increasing drag in the
feed mechanism. This can result in scorched
workpieces, uneven knife
chat t er.
Solution:
Rippled Cut
Problem:
face of workpiece are caused by excessive
outfeed roller pressure or excessive feed rate.
Glue/resin buildup on the rollers and
/insert marks, and
Wood chips/sawdust not being properly
expelled from the cutterhead.
The type of workpiece being planed.
Certain species of wood
chip bruise.
H
moisture (refer to Workpiece Inspection).
Dull knives/inserts.
Excessive depth of cut.
chip deflector in or out as necessary.
Workpiece must be completely dry,
preferably kiln-dried (KD). Air-dried (AD)
lumber must be seasoned properly and
have no surface moisture. DO NOT surface
OPERATIONS
partially-air-dried (PAD) workpiece.
Make sure planer knives/inserts are sharp.
Clean the rollers and cutterhead.
Regularly spaced indentations across
-28-
Page 32
Model W1862/W1863 (For Machines Mfd. Since 11/20)
The depth of cut on a planer means the amount of
material that is removed from the top of the workpiece as
it passes underneath the cutterhead.
The depth of cut is set by adjusting the distance of the
table below the cutterhead. This distance is the thickness
of the workpiece minus the depth of cut.
depth of cut
handwheel on the right side of the machine. Rotating the
handwheel clockwise raises the table.
Although the correct depth of cut varies according to
wood hardness and workpiece width, we recommend
maximum depth of cut
A series of light cuts will give better end results and put
less stress on the planer than trying to take off too much
material in a single pass.
The depth of cut can be referenced directly from the
inch/millimeter scale on the front of the planer, as shown.
Note:
not intended for low-tolerance, precision results.
Depth of Cut
Table Movement per Handwheel Revolution
One Full Revolution ...............................2mm (0.08")
Material Thickness Range
Minimum–Maximum Stock Thickness .................3⁄16"–6"
The planing
is controlled by using the table height
Table
Height
Handwheel
Depth-of-Cut
Indicator &
Scale

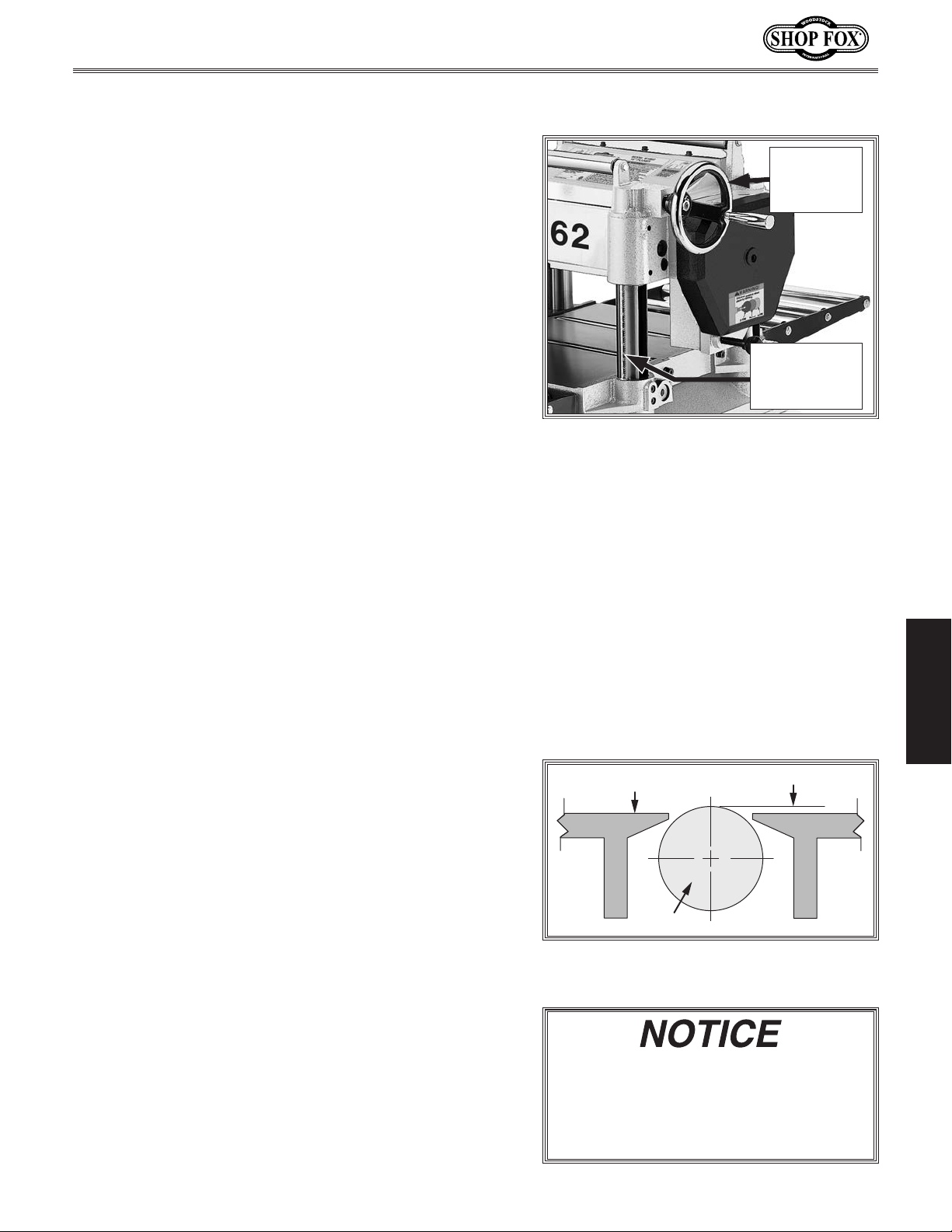

Figure 18. Location of depth-of-cut
controls (W1862 shown).
(per pass) be no more than 1⁄16".
The scale functions as a general guide only, and is
Bed Roller Height Range ........................0.002"–0.020"
The correct height of the bed rollers will vary, depending
on the type of material you intend to plane. However, as
a general rule, keep the bed roller height within 0.002"–
0.020" above the table surface, as illustrated in
When planing rough stock, set the rollers high to keep the
lumber from dragging along the bed. When planing milled
lumber, set the rollers low to help minimize snipe.
To ensure accurate results and make the adjustment
process quicker and easier, we recommend using a
Rotacator (refer to
height from the table surface. If a Rotacator is not
available, a straightedge and feeler gauges can be used,
but care must be taken to achieve accurate results.
Bed Roller Height
Figure 19.
Page 36) to gauge the bed roller
the
Table
Roller
Figure 19. Recommended bed roller height
above the table surface.
Bed rollers that are not adjusted to the
correct height or out of alignment with
each other can cause poor finishes,
inconsistent planing thickness, and
other undesirable results.
0.002"–0.020"
OPERATIONS
-29-
Page 33
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Items Needed Qty
Hex Wrench 3mm ...............................................1
Open-End Wrench 12mm.......................................1
Straightedge 36"
Feeler Gauge Set
Rotacator (optional, Page
To adjust bed rollers, do these steps:
1. DISCONNECT MACHINE FROM POWER!
Completely lower table to give yourself enough room
2.
to work.
3. Loosen set screws (see Figure 20) above each of
four roller adjustment cams (there are two on each
side of planer).
4. Rotate eccentric adjustment cams to raise or lower
bed rollers to desired height above table surface.
................................................1
...............................................1
36) ................................1
Set Screws
5. Verify both sides of each roller are at the same
height, then re-tighten set screws to secure in place.
6. Re-check roller heights to make sure they did not
change while being secured.
— If roller heights are not correct, repeat this
procedure until they are.
OPERATIONS
Adjustment
Cams

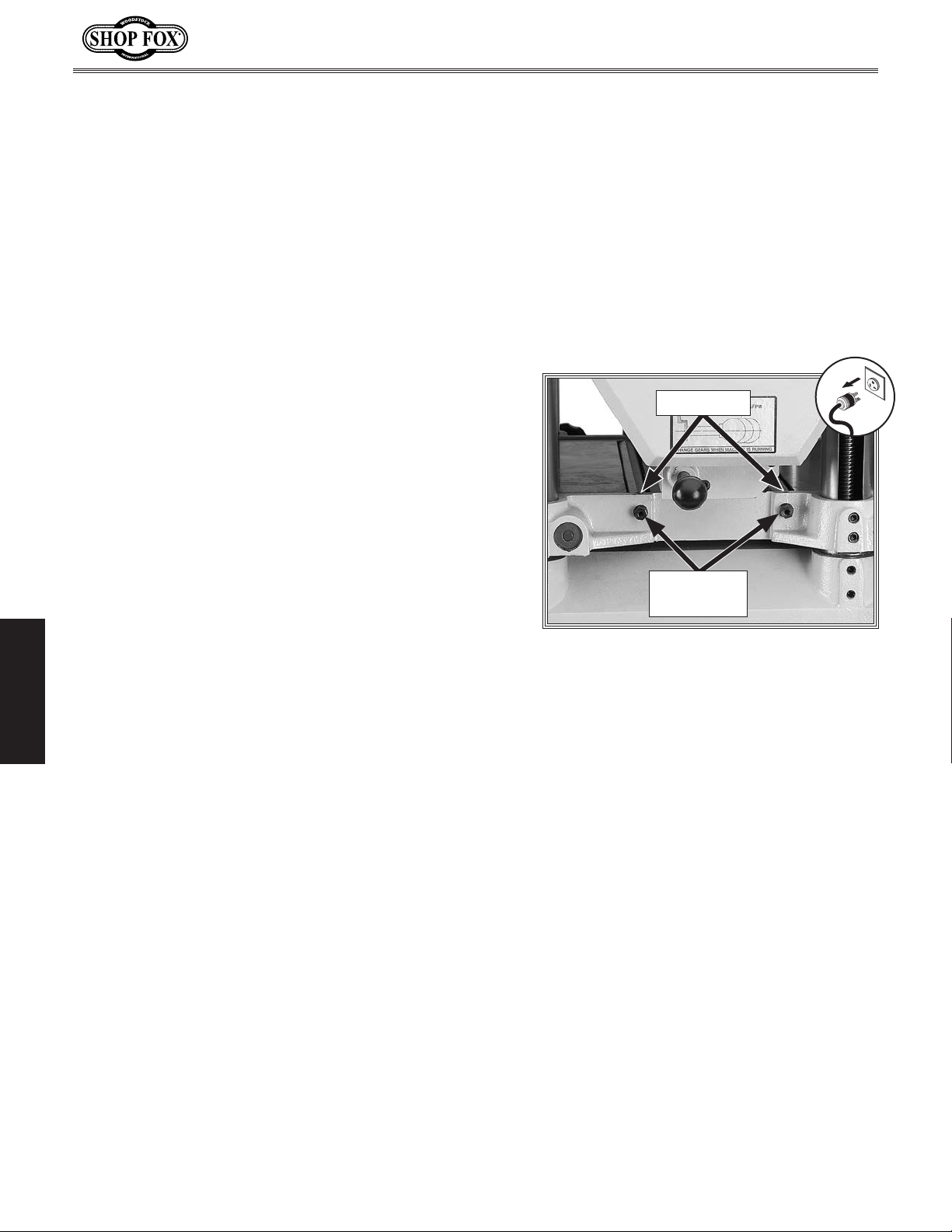

Figure 20. Bed roller height controls.
-30-
Page 34
Model W1862/W1863 (For Machines Mfd. Since 11/20)
The infeed and outfeed rollers move the workpiece
through the planer while keeping it flat and providing a
consistent rate of movement. The speed that these rollers
move the workpiece through the planer is the feed rate.
Generally, low feed rates are used for dimensioning, while
higher feed rates are used for finishing.
The figure below illustrates the three different positions
of the feed rate control knob:
• Push knob in to use high feed rate.
• Pull the knob out to use the low feed rate.
• Move knob to center position to place gearbox in
can result in severe
Setting the height of the knives correctly is crucial to the
proper operation of your planer and is very important in
keeping the knives sharp. If one knife protrudes higher
than the others, it will do the majority of the work, dull
much faster, and produce poor cutting results.
The knife-setting jig included with this planer is designed
to set the knives
the cutterhead surface
Note:
remove the knife from the cutterhead during
the following procedure. Thoroughly clean out any debris
from the knife slots before replacing the knives.
Setting Feed Rate
High Feed Rate .......................................... 28 FPM
Low Feed Rate
.......................................... 16 FPM
High
Low
Neutral

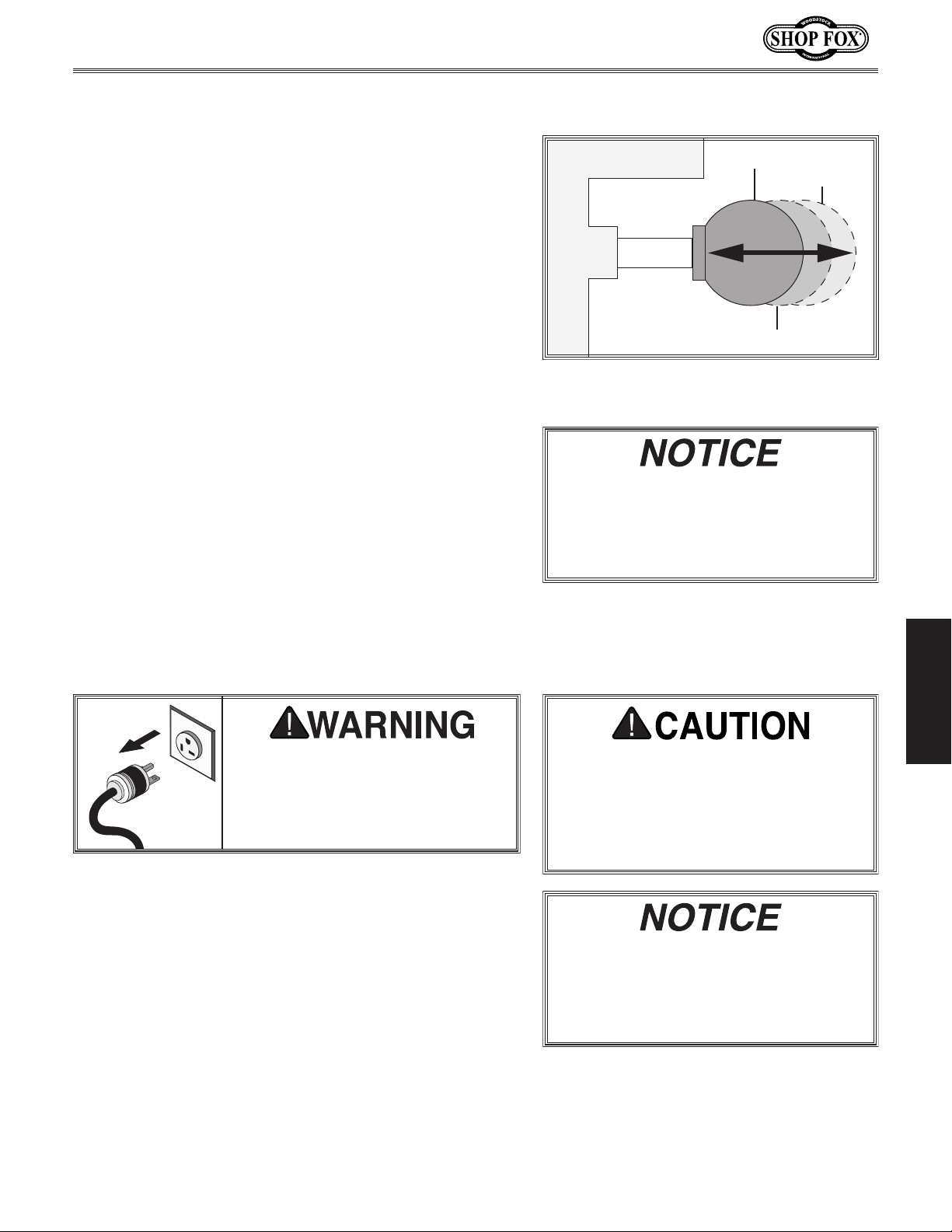

Figure 21. Feed rate control knob
positions.
Only change the feed rate when the
planer is running, but DO NOT attempt
to change the feed rate during any
cutting operations or damage to the
gearbox will result.
Adjusting/Replacing
Knives (W1862)
To reduce risk of shock or
accidental startup, always
disconnect machine from power
before adjustments, maintenance,
or service.
If you need to replace or sharpen a knife, you can
at a uniform distance of 0.070" above
.
Step 4 of
OPERATIONS
Cutterhead knives are extremely sharp.
Contact with knives
cuts. Take great caution whenever
working with or around cutterhead
knives. Wear heavy leather gloves to
reduce risk of severe cuts.
To maintain accurate and consistent
planing results, we do not recommend
sharpening knives yourself. Instead,
just replace dull knives or have them
professionally sharpened.
-31-
Page 35
Model W1862/W1863 (For Machines Mfd. Since 11/20)
To adjust height of knives, do these steps:
1.
2.
3.
4. Remove belt cover, then rotate cutterhead pulley to
provide access to one of the knives.
5. Loosen cutterhead gib bolts until knife is completely
6.
to right.
Items Needed Qty
Phillips Screwdriver #2 .........................................1
Wrench or Socket 12mm, 13mm
Hex Wrench 3mm
Knife-Setting Jig
Heavy Leather Gloves
...............................................1
................................................1
.................................... 1 Pair
.........................1 Ea.
Gib Bolt
Knife
Spring
Loosen
DISCONNECT MACHINE FROM POWER!
Remove dust hood and top cover to expose
cutterhead.
Put on heavy leather gloves.
Note: The cutterhead for Model W1862 ships with
both springs and jack screws to adjust the knife
height (see Figure 22)—which one you use is up to
your personal preference. However, if you use the
springs, you must first remove the jack screws from
the cutterhead before proceeding.
— The advantage of using springs is that springs
maintain a constant upward pressure on the knives
while using the knife-setting jig during
— The advantage of using jack screws is that once
you set the proper height of the screws, they
OPERATIONS
should require little to no adjustment when
replacing the knives.
Tighten
Gib
Jack Screw

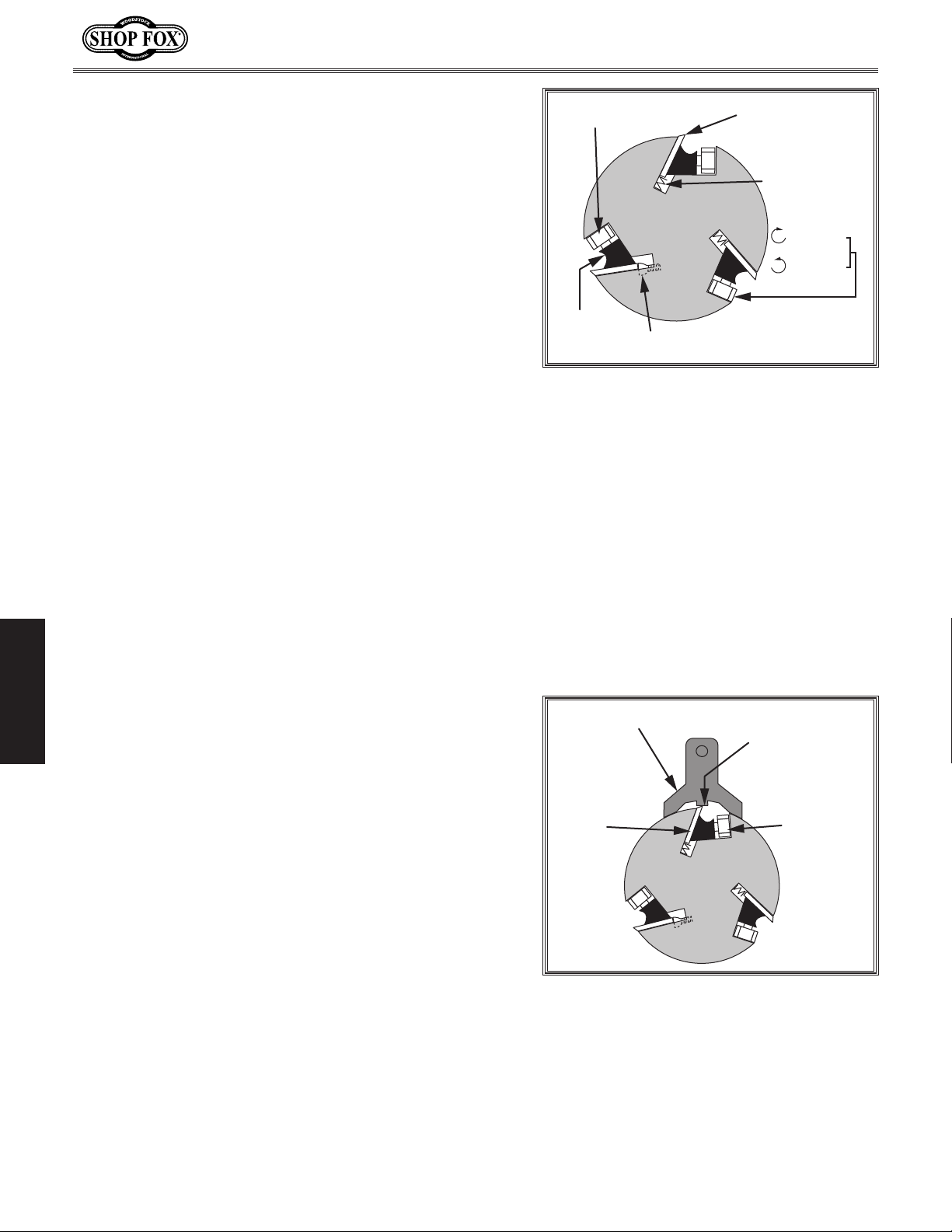

Figure 22. W1862 cutterhead components.
Step 6.
Knife-Setting Jig
Center Pad
loose.
— If you are replacing the knives, remove the old
knife and install the new one, making sure the
beveled edge of the new knife is facing the
correct direction.
Position knife-setting jig over knife so that knife
edge is directly under center pad, as shown in Figure
Gib BoltKnife
Figure 23. Knife-setting jig correctly
positioned over knife.
-32-
Page 36
Model W1862/W1863 (For Machines Mfd. Since 11/20)
9. Repeat Step 8, snugging gib bolts a little more.
10.
11. Repeat Steps 4–8 for remaining knives.
7. Jack Screws: Insert hex wrench into access holes in
cutterhead (see
to raise or lower knife until it barely touches center
pad of knife-setting jig with all legs of jig still firmly
on cutterhead, then snug gib bolts enough to hold
knife in place without fully tightening gib bolts (see
Figure 25).
Springs: Insert hex wrench into access holes in
cutterhead (see
Push down on knife jig until all legs of jig are firmly
on cutterhead and knife just touches center pad
of jig, then tighten gib bolts enough to hold knife
in place without fully tightening gib bolts (see
Figure 25).
Figure 24), and rotate jack screws
Figure 24), and remove jack screws.
Jack
Screw
Access
Holes

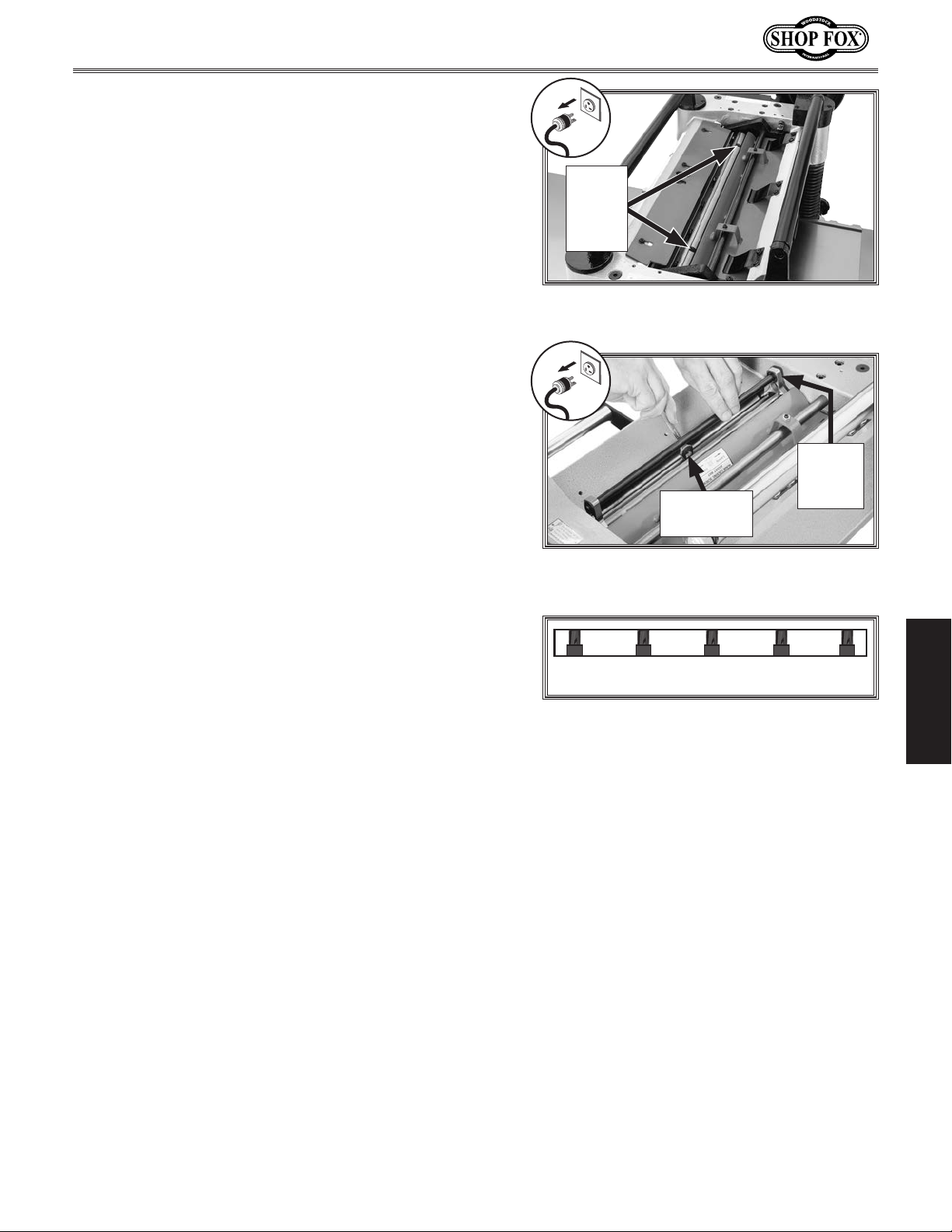

Figure 24. Jack screw access holes in
cutterhead.
Knife-
Setting
Tightening
Gib Bolt
Jig
8. Incrementally snug gib bolts in an even manner,
starting at middle and working your way to ends by
alternating left and right, as illustrated in
Repeat Step 8, this time fully tightening all gib
bolts.
Figure 26.
Figure 25. Using knife-setting jig to set
knife height.
5
Figure 26. Gib bolt tightening sequence.
3
1
2
4
OPERATIONS
-33-
Page 37
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Rotating/Replacing
Cutterhead Inserts (W1863)
To reduce risk of shock or
accidental startup, always
disconnect machine from power
before adjustments, maintenance,
or service.
The helical cutterhead is equipped with indexable carbide
inserts that can each be rotated to reveal one of four
cutting edges. If one edge of the insert becomes dull or
damaged, simply rotate it 90° to reveal a fresh cutting
edge, as described on
Items Needed Qty
Phillips Screwdriver #2 .........................................1
Wrench or Socket 12mm, 13mm
Torque Wrench
T-25 Torx Bit
Heavy Leather Gloves
Light Machine Oil
..................................................1
.....................................................1
Page 35.
..............................1
.................................... 1 Pair
................................... As Needed
To rotate or replace a helical cutterhead insert, do
these steps:
1. DISCONNECT MACHINE FROM POWER!
OPERATIONS
2. Remove dust port, top cover, and belt cover.
3. Put on heavy leather gloves to protect your fingers
and hands.
4. Remove any sawdust or debris from head of insert,
Torx screw, and surrounding area (see
5. Remove Torx screw and insert, then clean all dust
and debris from both parts and cutterhead pocket.
Note: Proper cleaning of insert, Torx screw, and
cutterhead pocket is critical to achieving a smooth
finish. Dirt or dust trapped between insert and
cutterhead will raise insert, and make marks on
your workpiece when planing.
Tip: Use low-pressure compressed air or a vacuum
nozzle to clean out cutterhead pocket.
Figure 27).
The carbide inserts are very sharp and
can quickly cut your hands. ALWAYS
use caution and heavy leather gloves
when handling these parts to reduce
the risk of personal injury.
Torx Screw
Cutterhead
Insert
Figure 27. W1863 cutterhead inserts and
Torx screws.
-34-
Page 38
Model W1862/W1863 (For Machines Mfd. Since 11/20)
6. Rotate insert 90° and install so that a fresh cutting
edge faces outward (see
— When all four insert cutting edges have been used,
replace insert with a new one. Always position
new insert reference dot in same position to aid in
rotational sequencing.
Figure 28).
7. Lubricate Torx screw threads with a very small
amount of light machine oil, wipe excess off, and
torque screw to 50–55 inch/pounds.
Note: If too much oil is applied to the threads,
excess oil will attempt to squeeze out of the
threaded hole and raise insert during installation,
bringing it out of height alignment.
Figure 28. Insert rotating sequence.
OPERATIONS
-35-
Page 39
Model W1862/W1863 (For Machines Mfd. Since 11/20)
ACCESSORIES
Planer Accessories
The following planer accessories may be available through your local Woodstock International Inc.
Dealer. If you do not have a dealer in your area, these products are also available through online
dealers. Please call or e-mail Woodstock International Inc. Customer Service to get a current listing of
dealers at: 1-800-840-8420 or at [email protected].
W1218A—Rotacator™ Precision Planer Tool
The Rotacator is a dial indicator on a magnetic base, designed
for quickly and accurately setting the critical tolerances needed
when making planer adjustments. Perfect for adjusting infeed/
outfeed rollers, pressure bars, chip breakers, and bed rollers. Also
a great setup tool for other machines! Accurate to 0.001". Indicator
rotates 360°.
Figure 29. W1218A Rotacator™
Precision Planer Tool.
D4112—Fractional Digital Caliper 6"
Large LCD readout converts to decimal inch, fractional inch, and
millimeters, with the push of a button. Measure internal and
external dimensions, depth, steps, and differential measurements.
Features thumb roll and stainless steel construction. Range: 0-6",
0-150mm. Resolution: 0.0005", 0.01mm,
OPERATIONS
D2273—
Large diameter ball bearing roller stand features smooth operation
for a variety of processing and work support applications. Heavy
pedestal base is stable and secure.
D2274 —5-
For greater work stability and support, this 5 roller stand features
large diameter, ball bearing rollers mounted on a sturdy adjustable
pedestal base.
Single Roller Stand
Roller Stand
1
⁄128".
Figure 30. Model D4112
Fractional Digital Caliper 6".
D2273 D2274
Figure 31. Models D2273 and
D2274 Roller Stands.
-36-
Page 40
Model W1862/W1863 (For Machines Mfd. Since 11/20)
SB1365—South Bend Way Oil-ISO 68
Engineered for the high pressure exerted on horizontal or vertical
ways and slides. Protects against rust and corrosion. Ensures stickfree, smooth motion which maximizes finishes and extends the life
of your machine. Won’t gum up! 12 oz. AMGA#2 (ISO 68 Equivalent).
For W1862:
D3301—15" Planer Knives, Set of 3
These planer knives are made from high-speed steel and fit Model
W1862 15" Planer. Set of 3.
Figure 32. SB1365 Way Oil.
Figure 33. D3301 15" Planer
Knives.
For W1863:
D4297—Indexable Carbide Inserts, 10 Pack
These Indexable Carbide Inserts are designed for use in helical and
spiral cutterhead systems and made to last up to 10 times longer
than a set of HSS steel inserts. Made of solid carbide. Size: 15 x 15
x 2.5mm.
OPERATIONS
Figure 34. D4297 Indexable
Carbide Inserts.
-37-
Page 41
Model W1862/W1863 (For Machines Mfd. Since 11/20)
MAINTENANCE
Cleaning & Protecting
MAKE SURE that your machine
is unplugged during all maintenance procedures! If this
warning is ignored, serious
personal injury may occur.
Schedule
For optimum performance from your machine,
follow this maintenance schedule and refer to
any specific instructions given in this section.
Note: This maintenance schedule is based on
average daily usage. Adjust the maintenance
schedule to match your usage, to keep your
planer running smoothly, and to protect your
investment.
Ongoing
• Clean machine and protect unpainted castiron surfaces.
• Lubricate feed roller bushings (Page 39).
• Tighten loose mounting bolts.
• Check/sharpen/replace damaged or worn
knives/inserts (Page 31).
• Check/repair/replace worn/damaged wires.
• Resolve any other unsafe condition.
Every 40 Hours of Operation
• Clean cutterhead and, for W1863, check
knife height (
• Lubricate table columns and leadscrews
(Page 39).
MAINTENANCE
Every 160 Hours of Operation
• Check/tension/replace V-belts (Page 41).
• Clean/vacuum dust buildup from inside
cabinet and off motor.
• Lubricate table height worm gear
(Page 39).
• Lubricate table height chain and sprockets
(Page 39).
• Lubricate drive chain and sprockets
(Page 40).
Page 31).
Vacuum excess wood chips and sawdust, and
wipe off the remaining dust with a dry cloth.
If any resin has built up, use a resin-dissolving
cleaner to remove it.
Protect the unpainted cast-iron table by wiping
it clean after every use—this ensures moisture
from wood dust does not remain on bare metal
surfaces. Keep your table rust-free with regular
applications of quality lubricants.
Lubrication
Failure to follow reasonable lubrication
practices as instructed in this manual for
your machine could lead to premature failure
of components and void the warranty.
This planer features bearings that are lubricated
and sealed at the factory. These bearing do not
require any further attention unless they need
to be replaced. If a bearing fails, your planer
will probably develop a noticeable rumble or
vibration, which will increase when the machine
is under a load. The bearings are standard
sizes and can be replaced through Woodstock
International.
Follow the maintenance schedule on this page
and the procedures beginning on
properly lubricate the other planer components,
which are essential for long life and trouble-free
operation of your planer.
Page 39 to
Yearly
• Change gearbox oil (Page 40).
-38-
Page 42
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Feed Roller Bushings
Oil Type ..........................SB1365 or ISO-68 Equivalent
Oil Amount
Frequency
The infeed and outfeed rollers rotate inside bushing
blocks on both ends of the rollers. Add 2–3 drops of ISO
68 machine oil to the center hole of the four feed roller
tension adjustment bolts on top of the head casting, as
shown in
............................................ 2–3 Drops
........................ Every 8 Hours of Operation
Figure 35.
Columns & Leadscrews
Oil Type ..........................SB1365 or ISO-68 Equivalent
Oil Amount
Grease Type
Frequency
The table rides on the columns and is moved by the
rotation of the leadscrews inside the columns. Loosen
the dust sleeve (see
and leadscrews. Apply a thin coat of ISO 68 machine oil
to the outside surface of the columns and brush on a
light application of multi-purpose grease to the leadscrew
threads. Move the table up and down to distribute the
lubricant.
............................................ Thin Coat
.................................NLGI#2 Equivalent
...................... Every 40 Hours of Operation
Figure 36) to access the columns
Lubricate
Here

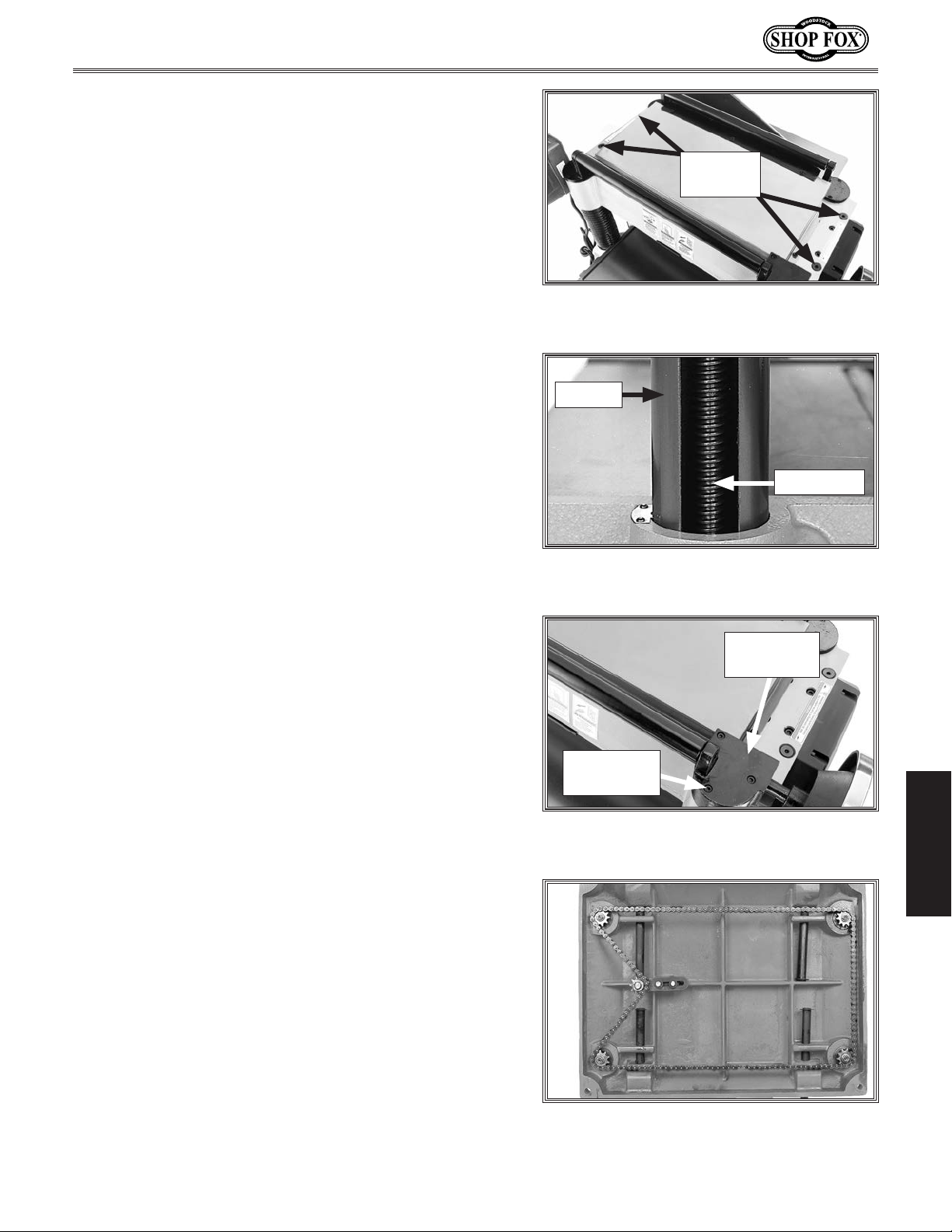

Figure 35. Lubrication locations for feed
roller bushings.
Column
Leadscrew
Figure
36. Location of column and
leadscrew.
Table Height Worm Gear
Grease Type .................................NLGI#2 Equivalent
Frequency
Remove the three cap screws that secure the worm
gear housing (see
handwheel assembly off the machine. Clean away any
debris from the housing and gears, then brush on a
moderate amount of multi-purpose grease to the gear
teeth.
..................... Every 160 Hours of Operation
Figure 37), then lift the housing and
Table Height Chain & Sprockets
Grease Type .................................NLGI#2 Equivalent
Frequency
The table leadscrews are synchronized by the table height
chain and sprockets located underneath the planer base
(see
away debris and grime, then brush on a light coat of
multi-purpose grease to the chain and sprockets.
..................... Every 160 Hours of Operation
Figure 38). Use shop rags and mineral spirits to clean
Worm Gear
Housing
Cap Screws
(1 of 3)
Figure 37. Example of table height worm
gear housing.
MAINTENANCE
-39-
Figure 38. Table height chain and
sprockets as viewed from underneath the
base.
Page 43
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Drive Chain & Sprockets
Grease Type .................................. Synthetic Grease
Frequency
The infeed and outfeed rollers receive the transferred
power from the cutterhead through the drive chain
system on the right side of the machine, as shown in
Figure 39.
Remove the table height handwheel and the safety covers
attached to the inside of the drive chain cover, then
remove the cover to access these parts.
Use shop rags and mineral spirits to clean away any debris
and grime, then brush on a light coat of multi-purpose
grease to the chain and sprockets.
..................... Every 160 Hours of Operation
Gearbox Oil
Oil Type ...................................................ISO-320
Oil Amount
Frequency
................................................ 20 Oz.
.................After First 20 Hours, Then Yearly

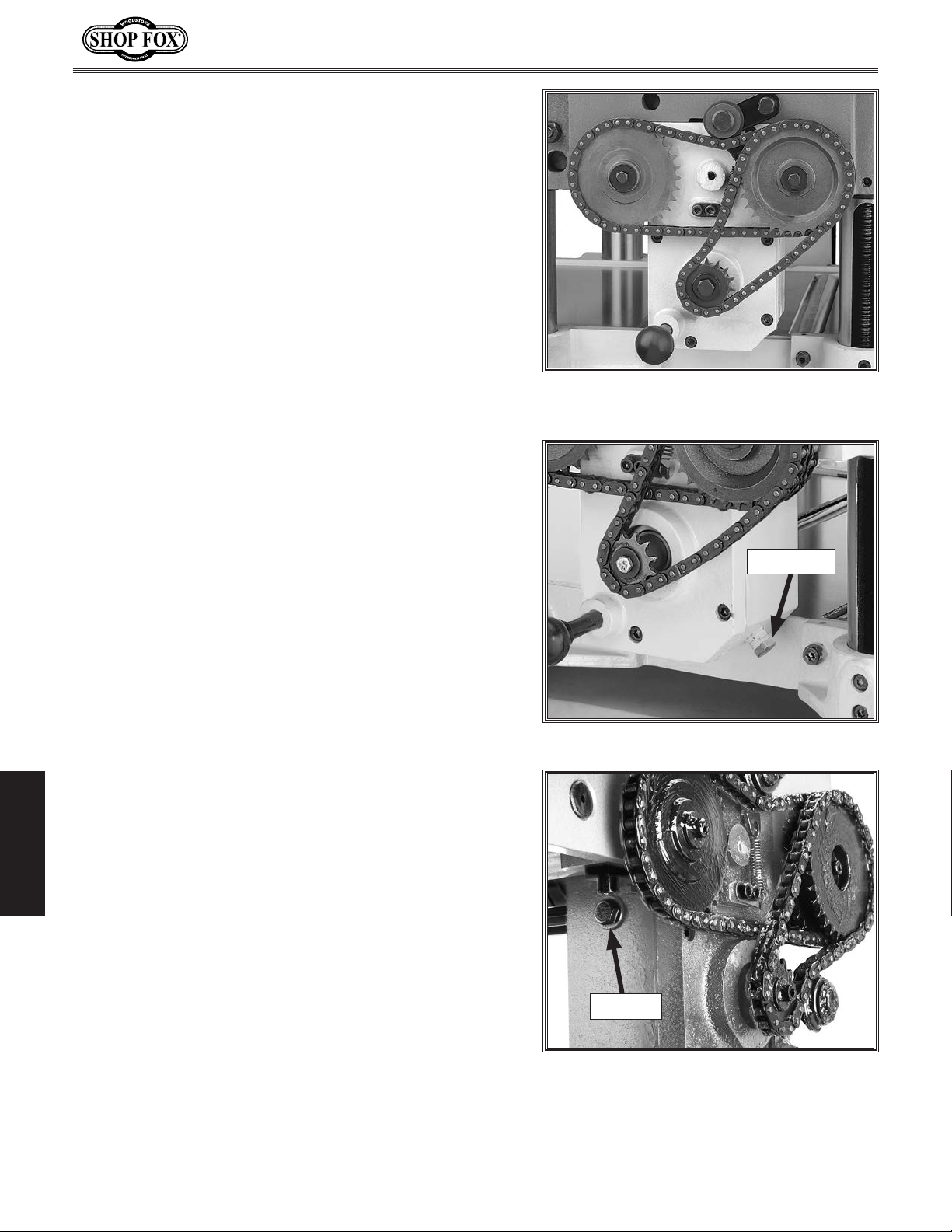

Figure 39. Example of drive chains and
sprockets for infeed and outfeed rollers.
Note: We recommend that you replace the gearbox oil
after the first 20 hours of operation. This is a normal
break-in procedure and will help maximize the service life
of the machine by flushing away any particles from the
break-in and manufacturing process.
Although it is not necessary to remove the drive chain
cover to access the fill and drain plugs, it is more
convenient to do so (see
gearbox oil with ISO 320 or equivalent oil until it just
reaches the fill plug.
Figures 40–41). Replace the
MAINTENANCE
Drain Plug
Figure 40. Example of gearbox drain plug.
Fill Plug
-40-
Figure 41. Example of gearbox fill plug.
Page 44
Model W1862/W1863 (For Machines Mfd. Since 11/20)
This section covers the most common service adjustments
or procedures that may need to be made during the life
of your machine.
If you require additional machine service not included
in this section, please contact Woodstock International
Technical Support at (360) 734-3482 or send e-mail to:
[email protected].
SERVICE
General
Tensioning/Replacing
V-Belts
Three V-belts transfer power from the motor to the
cutterhead, and then to the infeed and outfeed rollers
with the use of the drive chain system. To ensure
efficient transfer of power to these systems, make sure
the V-belts are always properly tensioned and in good
condition.
If the V-belts are worn, cracked, or damaged, replace
them. Always replace the V-belts with a matched set of
three, or belt tension may not be even among the belts,
causing premature belt failure.
Items Needed Qty
Phillips Screwdriver #2 .........................................1
Open-End Wrench 16mm.......................................1
To tension/replace V-belts, do these steps:
1. DISCONNECT MACHINE FROM POWER!
2. Remove V-belt cover from left side of machine to
expose belts, as shown in Figure 42.
MAKE SURE that your machine is
unplugged during all service procedures! If this warning is ignored, serious personal injury may occur.
After approximately 16 hours of
operation, V-belts will stretch and seat
into pulley grooves and need to be
properly tensioned to avoid severely
reducing life of V-belts.
V-belts and pulleys will be hot after
operation. Allow them to cool before
handling.
Cutterhead
Pulley
Note: A collection of black belt dust at the bottom
of the belt cover is normal during the life of the
belts.
-41-
Motor
Pulley
Figure 42. Example of belt cover removed
to expose V-belts and pulleys.
V-Belts
SERVICE
Page 45
Model W1862/W1863 (For Machines Mfd. Since 11/20)
3. Remove front cabinet cover to access motor, as
shown in Figure 43.
If V-belts need to be replaced, raise motor to release
4.
belt tension (see Step 5 for instructions), roll belts
off pulleys, then replace with a matched set of 3.
To adjust V-belt tension, loosen top motor mount
5.
hex nut (see Figure 43), then adjust bottom hex nut
to raise or lower motor.
Motor Mount
Hex Nuts

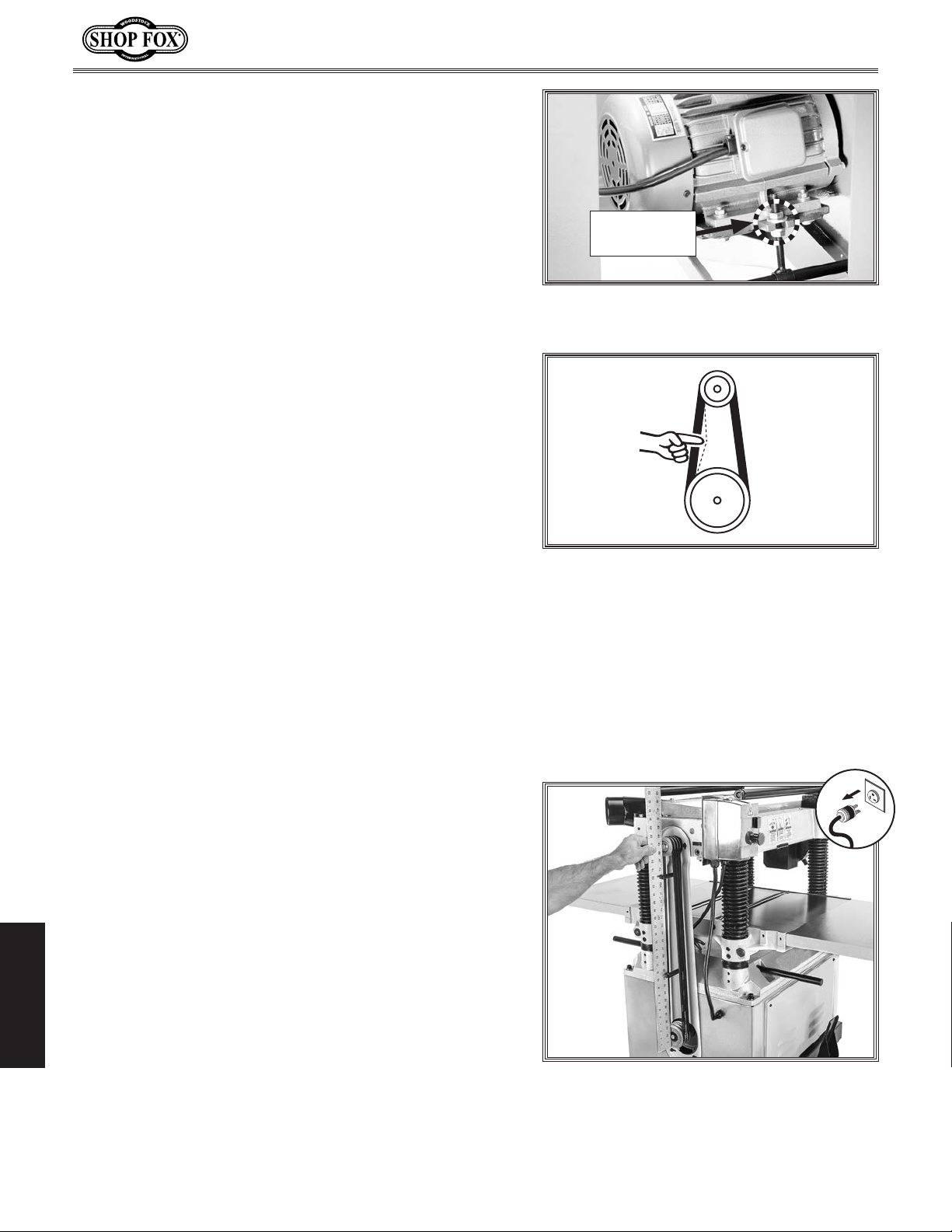

Figure 43. Example of front cabinet cover
removed to access motor.
Note: V-belts are correctly tensioned when there
is approximately
pressure is applied to belts midway between
pulleys, as illustrated in Figure 44.
After V-belts are correctly tensioned, tighten top
6.
motor mount hex nut, then re-install cabinet cover
and belt cover.
3
⁄4" deflection when moderate
Pulley Alignment
Pulley alignment prevents premature V-belt wear and
unnecessary load on the motor. The pulleys are aligned
when they are parallel and in the same plane as each
other.
Items Needed Qty
Straightedge 3' ..................................................1
Wrench or Socket 14mm, 17mm
.........................2 Ea.
Cutterhead
Approximately
3
⁄4" Deflection
Figure 44. Belt deflection when V-belts
are correctly tensioned.
Pulley
Motor
Pulley
To check/re-align pulleys, do these steps:
1. DISCONNECT MACHINE FROM POWER!
Remove belt cover, then use straightedge to check
2.
pulley alignment, as shown in Figure 45.
— If pulleys are parallel and in the same plane, no
adjustment is necessary. Re-install belt cover.
SERVICE
— If pulleys are not parallel or in the same plane,
remove motor access panel, then proceed to
Step 3.
Figure 45. Example of checking pulley
alignment.
-42-
Page 46
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Loosen four motor mount bolts, shift motor until
3.
pulleys are aligned, then re-tighten motor mount
bolts.
Re-check pulleys and repeat Step 3 as necessary until
4.
pulleys are aligned, then re-tighten all fasteners,
and replace belt cover and motor access panel.
Feed Rollers & Chip
Breaker Heights
It is essential that the feed rollers and chip breaker are
set at the correct distance below the cutterhead knives at
BDC (bottom dead center) to ensure that the workpiece
moves through the planer evenly and the correct distance
from the cutterhead knives.
To ensure accurate results and make the adjustment
process quicker and easier, we recommend using a
Rotacator for these adjustments (refer to Accessories).
If a Rotacator is not available, a 6' 2x4 cut into two even
sized pieces and a feeler gauge set can be used, but
care must be taken when jointing the wood to achieve
accurate results.
Dist. Below Knife/Insert at BDC (Figure 46)
A. Infeed Roller ........................................ 0.040"
B. Chip Breaker ........................................ 0.040"
C. Outfeed Roller ...................................... 0.020"
Using a Rotacator
Items Needed Qty
Phillips Screwdriver #2 .........................................1
Hex Wrenches 3mm, 5mm
Wrench or Socket 10mm
Rotacator (see
To use a Rotacator, do these steps:
1. DISCONNECT MACHINE FROM POWER!
2. Make sure knives are set to correct height (refer to
Adjusting/Replacing Knives on Page 31 for detailed
instructions). If machine is helical cutterhead,
make sure all inserts are properly installed (refer to
Rotating/Replacing Cutterhead Inserts on Page 33
for detailed instructions).
Page 36) .......................................1
................................ 1 Ea.
.................................. 1 Ea.
Chip
Breaker
A & B
Figure 46. Planer component
recommended clearances (illustration is
(Bottom Dead Center)
Infeed
Roller
not to scale).
BDC
C
Outfeed
Roller
SERVICE
-43-
Page 47
Model W1862/W1863 (For Machines Mfd. Since 11/20)
3. Lower table at least 4" below head casting, then lock
it in place.
4. Remove dust port, top cover, belt cover, and drive
chain cover.
5. Using your Rotacator, find bottom dead center
(BDC) of any knife/insert edge by slowly rocking
cutterhead pulley back and forth, then set Rotacator
dial to "0" (see
6. Move feed speed knob to neutral position to allow
infeed roller to freely rotate.
7. Keeping Rotacator dial at "0", position it under righthand side of infeed roller and find BDC of a serrated
edge by rocking infeed roller back and forth.
8. Loosen jam nuts and use set screws on each side
of feed roller (see
infeed roller bushing block until Rotacator dial shows
0.040", which is the recommended distance for
infeed roller below cutterhead.
Figure 47).
Figure 48) to adjust height of

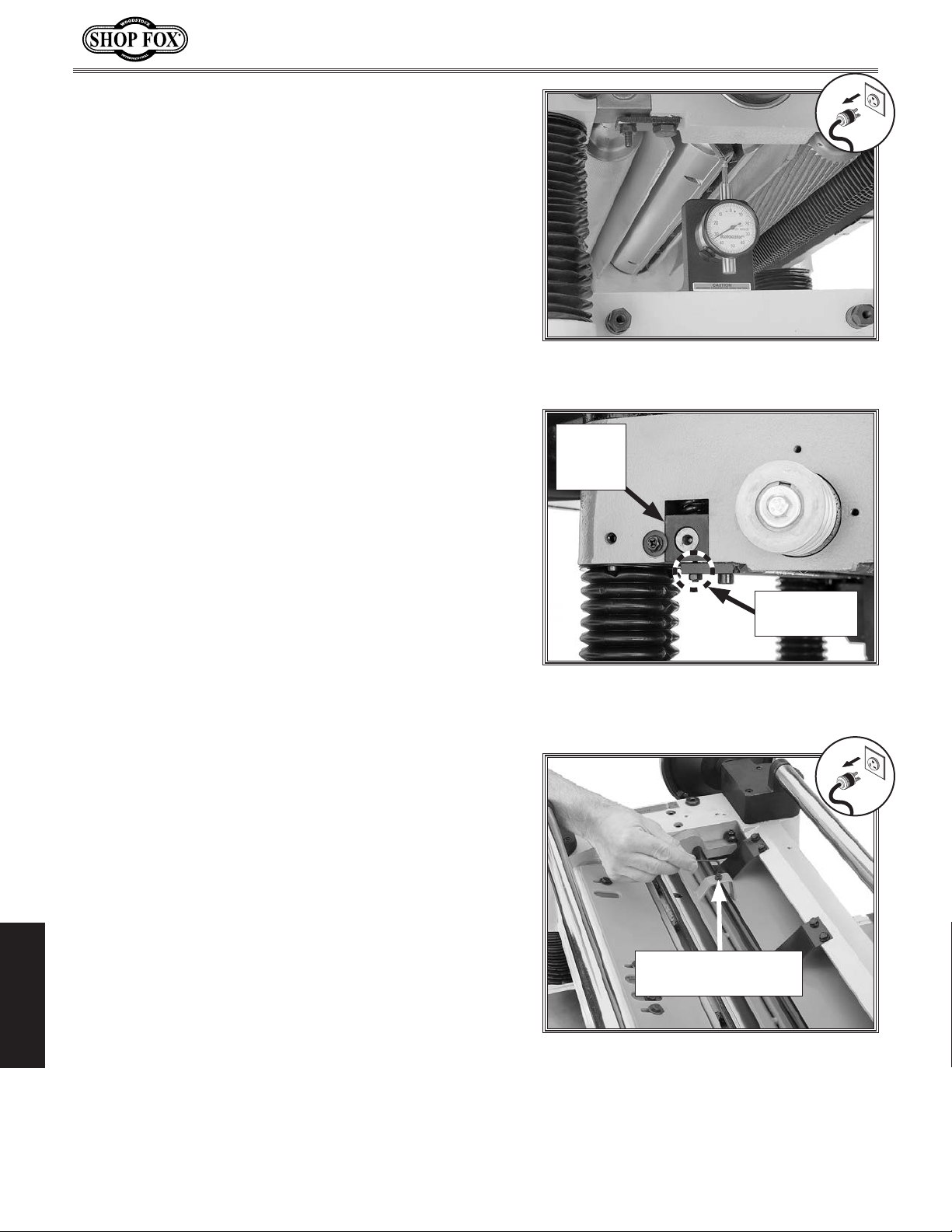

Figure 47. Example of using a Rotacator to
find BDC.
Roller
Bushing
Block
9. Repeat Steps 7–8 on left side of infeed roller.
10. Re-check both sides of infeed roller and, if
necessary, make further adjustments until infeed
roller height from side-to-side is 0.040" below BDC of
cutterhead knife, then retighten both jam nuts.
11. Keeping same "0" reference on Rotacator dial from
Step 5, repeat Steps 7–10 for outfeed roller, but
adjust it until it is 0.020" below BDC of cutterhead
knife.
12. Using same "0" reference on Rotacator dial from
Step 5, perform similar steps as described previously
to adjust height of chip breaker to its recommended
specification given at beginning of this subsection.
The adjustment controls are shown in
13. Re-install belt cover, top cover, drive chain cover,
and dust port.
Figure 49.
SERVICE
Jam Nut
& Set Screw
Figure 48. Example of infeed roller
bushing block and height adjustment
controls.
Adjustment Jam Nut
& Set Screw
Figure 49. Example of adjusting chip
breaker height.
-44-
Page 48
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Using Wood Blocks
s Needed Qty
Item
Phillips Screwdriver #2 .........................................1
Hex Wrench 3mm, 5mm
Wrench or Socket 10mm
2x4 6' Long
Feeler Gauge Set
To use wood blocks, do these steps:
1. Build wood blocks by cutting a straight 6-foot-long
2x4 in half.
Note: Having the wood blocks at an even height is
critical to the accuracy of your overall adjustments.
For best results, make the 2x4 square with a jointer
and table saw before cutting it in half.
2. W1862 Only: Make sure knives are set to correct
height (refer to
Page 31 for detailed instructions).
.......................................................1
...............................................1
.......................................1
.......................................1
Adjusting/Replacing Knives on
Wood Blocks
36"
3. DISCONNECT MACHINE FROM POWER!
4. Lower bed rollers below table surface (refer to Bed
Roller Height on Page 29 for detailed instructions).
5. Place wood blocks along sides of table, as illustrated
Figure 50.
in
6. Remove dust port, top cover, belt cover, and drive
chain cover.
7. Raise table until wood blocks get close to
cutterhead.
8. Use belt to rotate cutterhead and continue raising
table until blocks just barely touch cutterhead
knife/insert at its lowest point of rotation (BDC).
9. Lock table in place. Upward pressure of wood blocks
will be holding infeed and outfeed rollers, chip
breaker, and pressure bar at same level as knife/
insert at BDC.

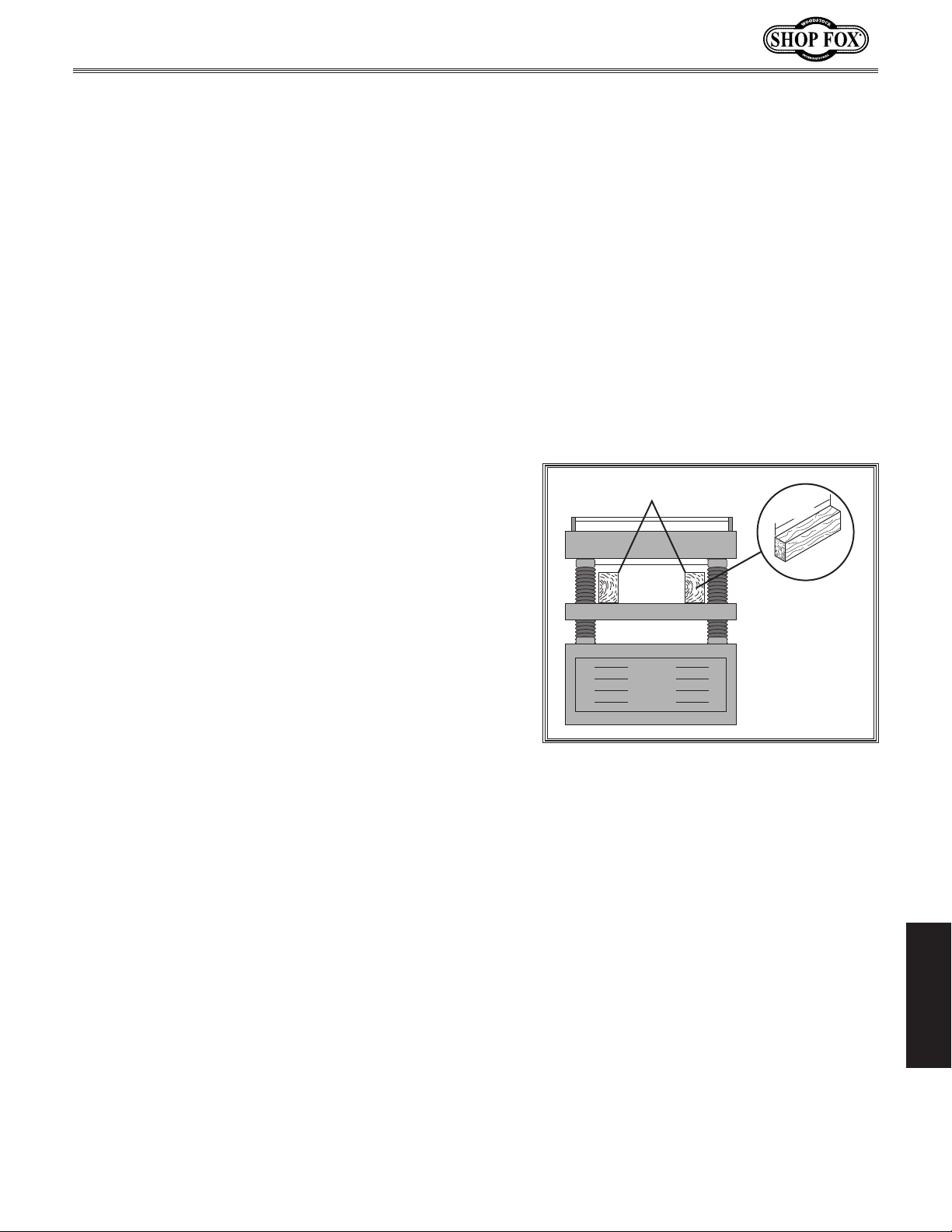

Figure 50. Wood blocks properly
positioned on the planer table.
SERVICE
-45-
Page 49
Model W1862/W1863 (For Machines Mfd. Since 11/20)
10. Loosen jam nuts and set screws on each side of
infeed roller (see
11. Using a feeler gauge, adjust set screw so it is 0.040"
from roller bushing block (see
tighten jam nut. Repeat on other side of infeed
roller.
12. Repeat Steps 10–11 with outfeed roller, only adjust
the gaps to 0.020".
13. Loosen jam nuts and set screws on each side of chip
breaker (see
Figure 51).
Figure 51), then
Figure 52).
Roller
Bushing
Block
Insert Feeler
Gauge Here
Jam Nut
& Set Screw

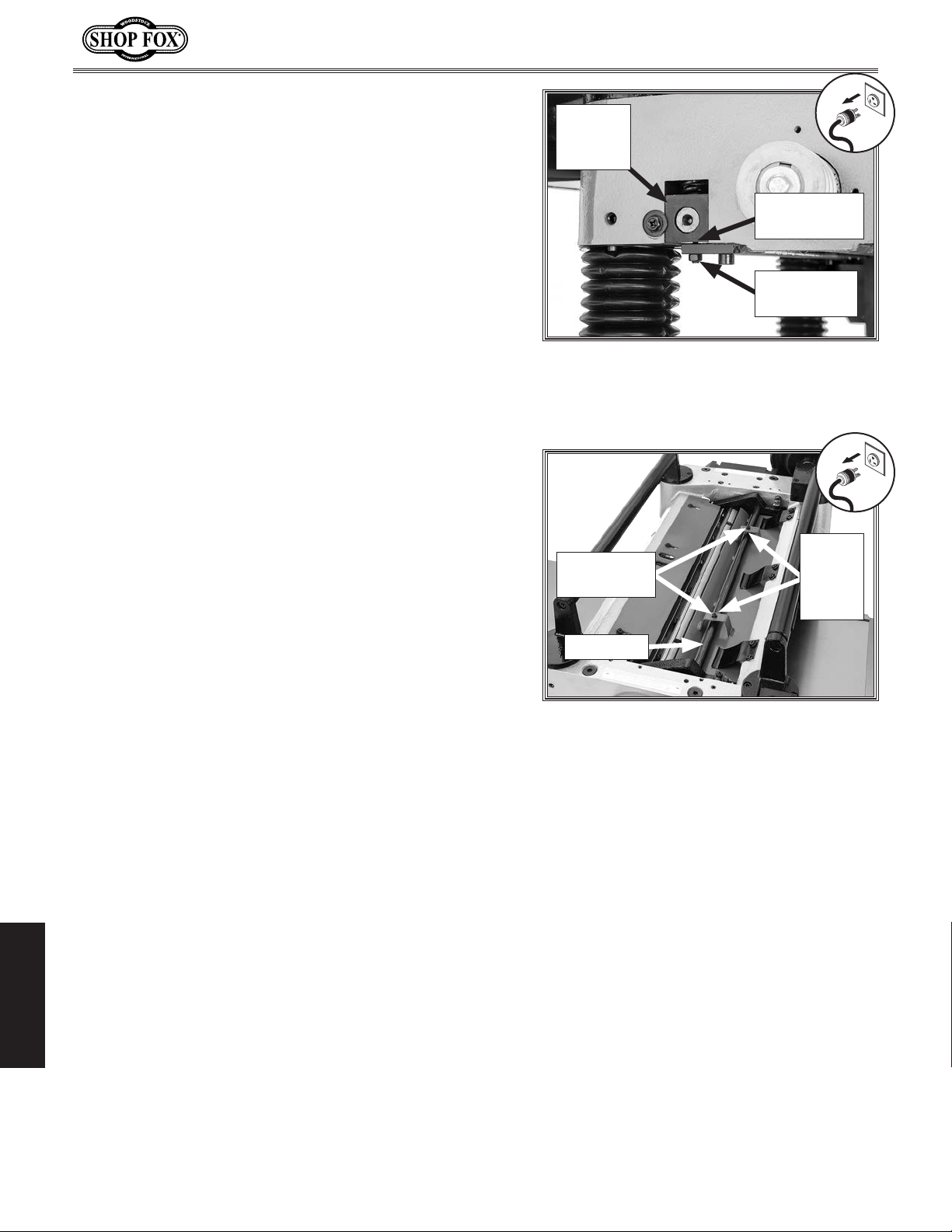

Figure 51. Example of feeler gauge
location for adjusting infeed roller height
when using wood blocks (one of two
locations shown).
14. Using a feeler gauge, adjust set screw so it is 0.040"
from cross bar (see
nut. Repeat on other side of chip breaker.
15. Re-install belt cover, top cover, drive chain cover,
and dust port.
Figure 52), then tighten jam
Insert
Jam Nut &
Set Screw
Cross Bar
Figure 52. Example of feeler gauge
locations for adjusting chip breaker height
when using wood blocks.
Feeler
Gauge
Here
SERVICE
-46-
Page 50
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Adjusting Roller Spring
Tension
The infeed and outfeed rollers keep the workpiece moving
through the planer. Springs exert downward pressure
on the feed rollers while allowing them to raise with an
uneven workpiece surface. Proper spring tension is crucial
to keep the workpiece moving through the planer during
operation.
The ideal feed-roller spring tension varies depending
upon the type of wood you plane. When adjusting spring
tension, keep the following in mind:
• If you are planing milled lumber with a consistent
surface, use less spring tension to reduce the risk of
marring the workpiece.
• If you are planing rough lumber with inconsistent
surfaces, use greater spring tension to keep the
stock moving through the planer.
• If the workpiece consistently stops feeding during
operation, the spring tension may need to be
increased.
Items Needed Qty
Hex Wrench 5mm ...............................................1
To adjust feed-roller spring tension, do these steps:
1. DISCONNECT MACHINE FROM POWER!
2. Rotate tension screws (shown to the right) clockwise
to increase tension or counterclockwise to decrease
tension.
Tension
Screws

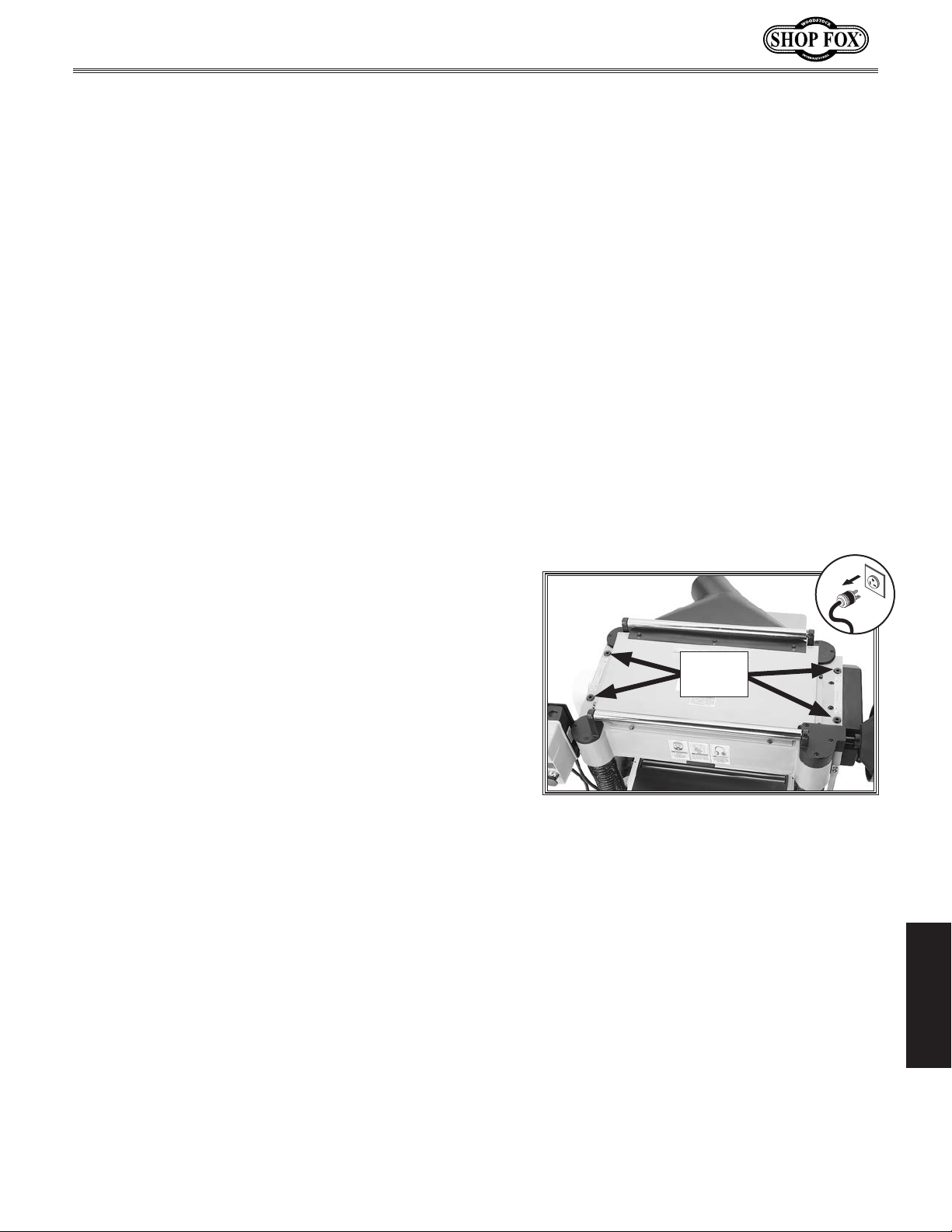

Figure 53. Example of roller spring tension
adjustment screws.
SERVICE
-47-
Page 51
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Positioning Chip Deflector
Chip Deflector Gap Setting
If Planer Used w/Dust Collector ...........................1⁄4''
If Planer Used w/o Dust Collector
When properly distanced from the cutterhead, the chip
deflector directs the chips into the dust hood, and keeps
them from falling onto the outfeed roller and being
pressed into the workpiece.
Items Needed Qty
Wrench or Socket 10mm .......................................1
Hex Wrench 5mm
To adjust chip deflector gap, do these steps:
1. DISCONNECT MACHINE FROM POWER!
...............................................1
.......................1⁄16''
2. Remove dust hood, top cover, and belt cover.
3. Use cutterhead pulley to rotate cutterhead until
a knife/insert reaches closest distance to chip
deflector (see Figure to the right), then measure
distance between knife/insert and chip deflector.
4. If distance measured in Step 3 is not equal to
correct chip deflector gap setting, then loosen
flange bolts (see
deflector and adjust gap to correct setting.
5. Re-tighten flange bolts, then replace belt cover, top
cover, and dust port.
Figure 54) that secure chip
Chip
Deflector
Flange
Bolts
(1 of 3)

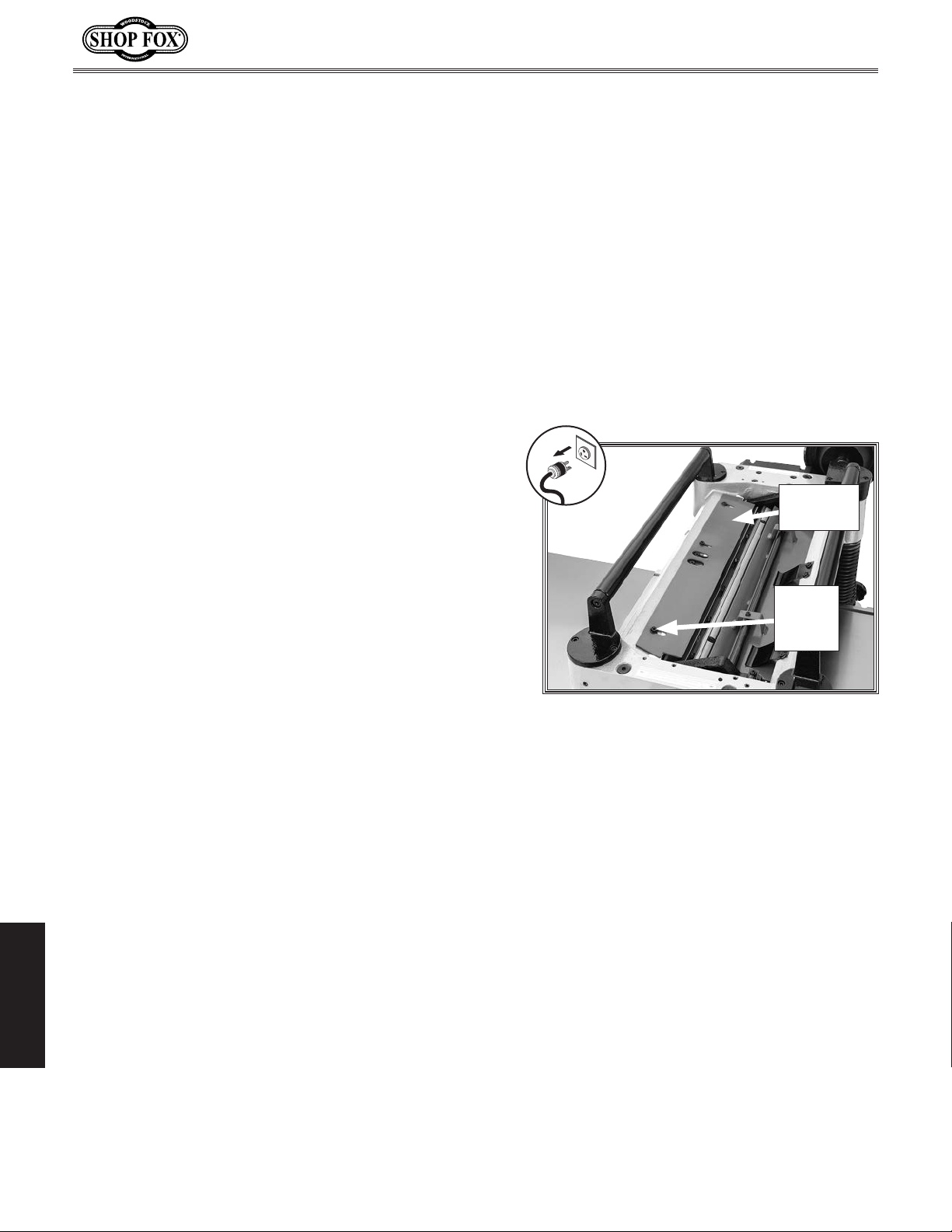

Figure 54. Example of chip deflector and
mounting hardware.
SERVICE
-48-
Page 52
Model W1862/W1863 (For Machines Mfd. Since 11/20)

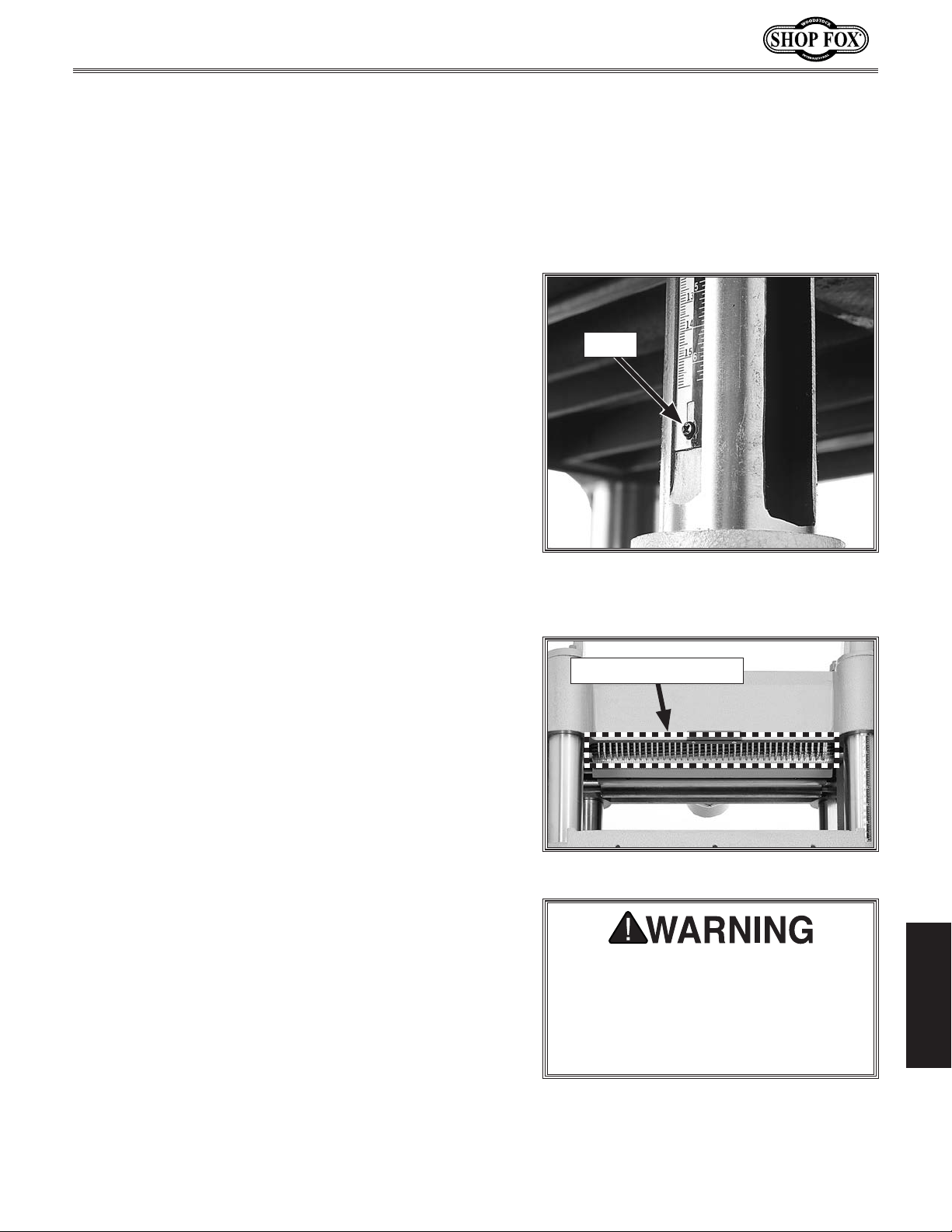

Calibrating Table
Elevation Scale
Although correctly set at the factory, the table elevation
scale can be adjusted for accuracy if necessary.
Items Needed Qty
Phillips Screwdriver #2 .........................................1
Scrap Piece of Stock
Calipers
...........................................................1
............................................1
To calibrate table elevation scale, do these steps:
1. Plane a scrap piece of stock until it is flat and of
even thickness along its length.
Note: Turn board over between each pass.
2. Use calipers to measure board thickness.
3. If there is a discrepancy between board thickness
and reading on table elevation scale, loosen the
screw shown in
then re-tighten screw.
Figure 55, adjust scale as necessary,
Checking Anti-Kickback
Fingers
The anti-kickback fingers are an important safety feature
of your planer. The fingers hang from a rod suspended
across the head casting and in front of the infeed roller,
as shown. This design allows the workpiece to easily enter
the planer but reduces the risk of kickback by digging into
the workpiece if it moves backward.
Screw
Figure 55. Location of adjustment screw
for table elevation scale.
Anti-Kickback Fingers
Check the anti-kickback fingers regularly to ensure they
swing freely and easily. If the fingers do not swing freely
and easily, first clean them with a wood-resin solvent,
then inspect them for damage. If any of the fingers are
damaged, the device must be replaced before using the
machine.
Do not apply oil or other lubricants to the anti-kickback
fingers that will attract dust and restrict free movement
of the fingers.
-49-
Figure 56. Anti-kickback fingers.
Proper operation of anti-kickback
fingers is critical for safe operation of
this planer. DO NOT operate planer if
anti-kickback fingers are not operating
correctly. Failure to heed this warning
could result in serious personal injury.
SERVICE
Page 53
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Tensioning Table Height
Chain
The table height chain transfers movement from the
elevation handwheel to the columns that control table
height. The chain drive can be adjusted to remove slack
if the chain stretches over time or is loosened during
table leveling procedures.
Items Needed Qty
Phillips Screwdriver #2 .........................................1
Wrench or Socket 12mm
To adjust table height chain tension, do these steps:
1. DISCONNECT MACHINE FROM POWER!
2. Remove motor access panel to access table height
chain shown in
3. Loosen the two chain tension lock bolts, then push
idler sprocket against chain with moderate pressure
to eliminate slack in chain. While maintaining
pressure on idler sprocket, re-tighten lock bolts (see
Figure 57).
4. Clean and lubricate chain and sprockets (refer to
Table Height Chain & Sprockets on Page 39 for
detailed instructions), then re-install motor access
panel.
.......................................1
Figure 57.
DO NOT let chain fall off sprockets. It
can be very difficult to return chain
to its proper location on sprockets
without changing table adjustments.
Idler
Sprocket
Lock Bolts
Figure 57. Table height chain adjustment
(shown without stand for purpose of
illustration).
Chain
SERVICE
-50-
Page 54
Model W1862/W1863 (For Machines Mfd. Since 11/20)

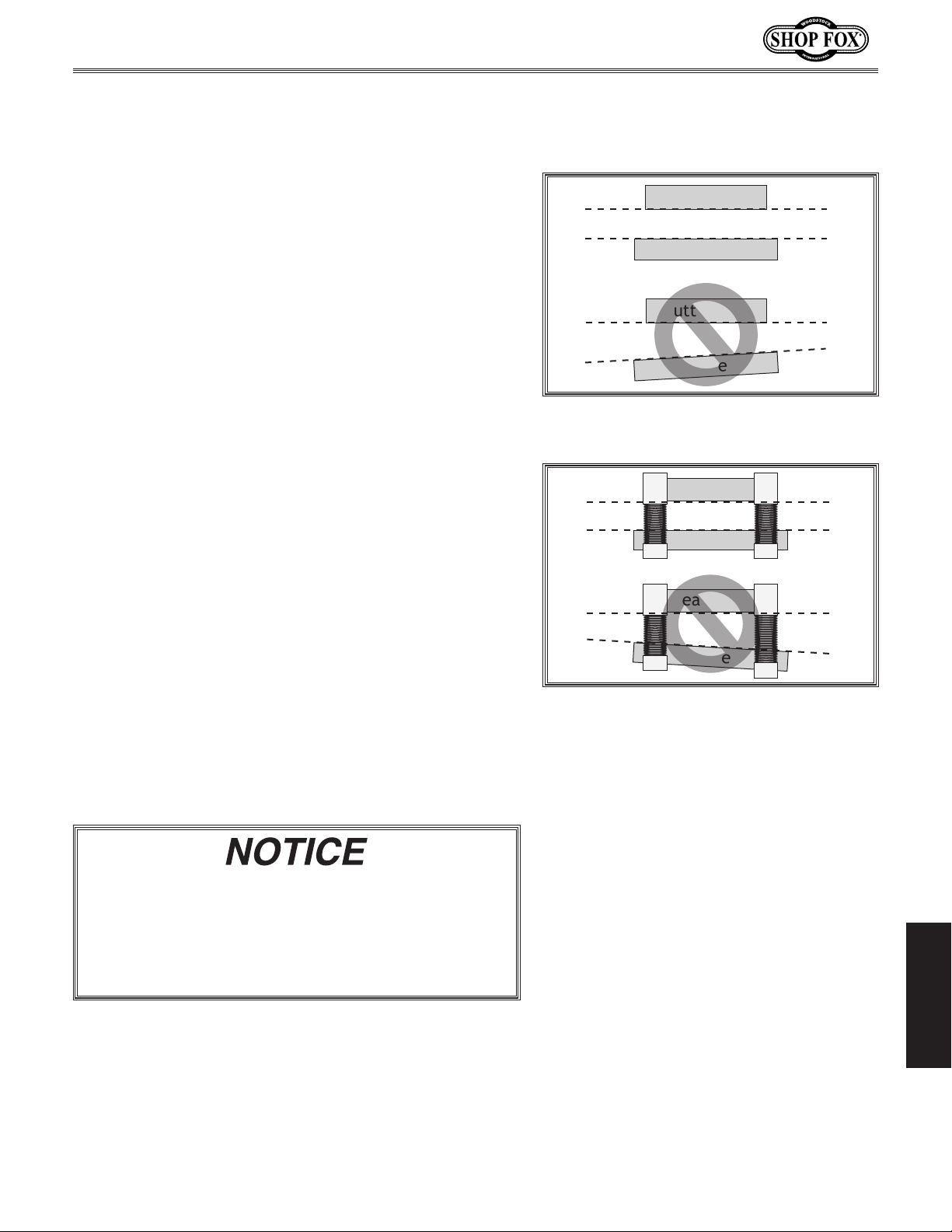

Adjusting Table
Parallelism
Maximum Allowable Tolerances:
Cutterhead/Table Side-to-Side ........................ 0.002"
Head Casting/Table Front/Back
Table parallelism is critical to the operation of the
machine. As such, it is essential that the table is parallel
with the cutterhead (within 0.002") from side-to-side, as
illustrated in
How the table sits in relation to the head casting from
front-to-back is also important (see
the feed rollers, pressure bar, and chip breaker will
be adjusted off the table position, the tolerances on
the front-to-back positioning are not as critical as the
cutterhead/table side-to-side positioning. Therefore,
the maximum allowable tolerance for the front-to-back
parallelism is not more than 0.020".
Figure 58.
Table Parallelism Inspection
Use your Rotacator to inspect the table parallelism. If
you do not have a Rotacator, a wood block and feeler
gauges may be used, but extra care must be taken to
ensure accuracy. If the table is not within the maximum
allowable tolerances, it must be adjusted.
....................... 0.020"
Figure 59). Because
Cutterhead
Parallel Parallel
Table
SIDE-TO-SIDE
Cutterhead
Not-Parallel Not-Parallel
Table
Figure 58. Side-to-side parallelism of table
and cutterhead.
Headstock
Parallel Parallel
Table
FRONT BACK
Headstock
Not-Parallel Not-Parallel
Table
FRONT
VIEW
Table Parallelism Adjustments
The table is adjusted by turning the chain sprockets
underneath the table for movements over 0.008" or by
adjusting how the table is mounted on the columns for
movements under 0.008".
When making adjustments, tighten fasteners after
each step to ensure the accuracy of your tests. When
adjusting the chain sprockets, keep in mind that if
the chain becomes too loose, it will fall off of all the
sprockets, and returning it to its proper location can
be extremely difficult.
Figure 59. Front-to-back parallelism of
table and cutterhead.
SERVICE
-51-
Page 55
Model W1862/W1863 (For Machines Mfd. Since 11/20)
To adjust table parallelism, do these steps:
1. DISCONNECT MACHINE FROM POWER!
2. Remove cabinet panel and locate chain on underside
of table.
3. Loosen idler sprocket (see Chain Tension
instructions on
4. Move chain away from sprocket you want to adjust
so only that sprocket can be rotated independent of
chain.
Note: If the left side of the table is too high, the
left two sprockets will need to be adjusted. Each
tooth on the sprocket represents .008" of vertical
movement as the cogs are turned. Make sure, as you
turn the sprockets, to keep an accurate tooth count
to ensure that the table is adjusted equally.
Page 50).
5. Mark location of one tooth of sprocket that you are
adjusting.
6. Carefully rotate sprocket (clockwise to lower table;
counterclockwise to raise table) just enough to
position next tooth at marked location, then fit
chain around sprocket again.
7. Repeat Steps 4–6 with each sprocket that needs to
be adjusted until table-to-cutterhead clearance is
within 0.008
8. Make sure chain is properly fitted on sprockets, then
re-tighten idler sprocket and lock bolts.
9. If necessary, micro-adjust table position by loosening
cap screws shown in
lowering table until it is properly aligned with
cutterhead.
Note: This process may require adjusting the
columns on both the left and right hand sides until
you find the correct combination.
" from one side to the other.
Figure 60 and raising or

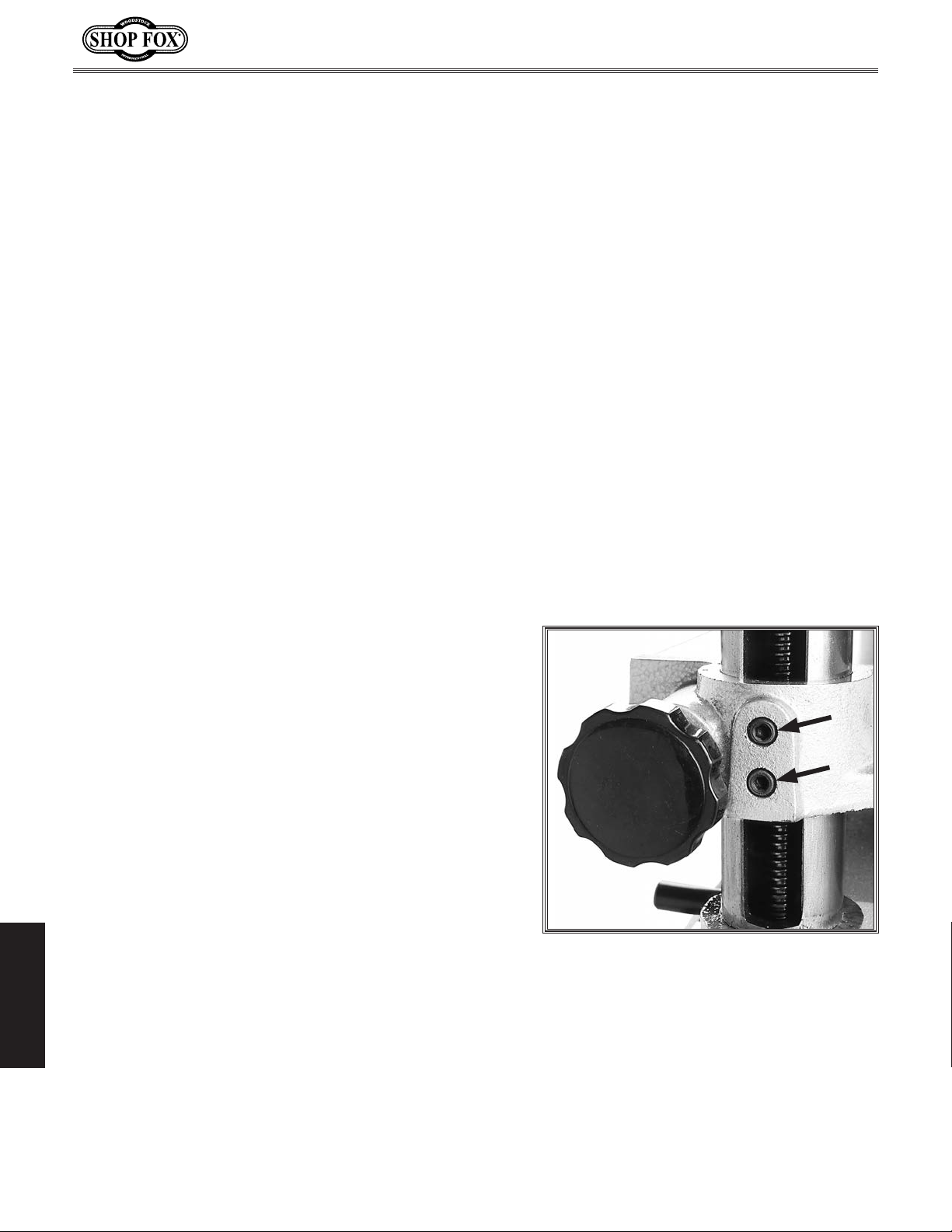

Figure 60. Location of table micro-
adjustment screws (one side shown only).
SERVICE
-52-
Page 56
Model W1862/W1863 (For Machines Mfd. Since 11/20)
The following troubleshooting tables cover common problems that may occur with this machine. If you
need replacement parts or additional troubleshooting help, contact our Technical Support.
Note:
available, your original purchase receipt. This information is required to properly assist you.
Troubleshooting
Before contacting Tech Support, find the machine serial number and manufacture date, and if
Motor and Electrical
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Machine does not
start, or power
supply breaker
trips immediately
after startup.
Machine stalls or
is underpowered.
Machine has
vibration or noisy
operation.
1. Stop button depressed/at fault.
2. Incorrect power supply voltage or circuit size.
3. Thermal overload relay has tripped.
4. Power supply circuit breaker tripped or fuse
blown.
5
. Motor wires connected incorrectly.
6. Wiring open/has high resistance.
7. Start button switch at fault.
8
. Centrifugal switch/contact points at fault.
9
. Start capacitor at fault.
10. Thermal overload relay has tripped.
11. Contactor not energized; has poor contacts.
12
. Motor at fault.
1. Machine undersized for task.
2. Workpiece not suitable for machine.
3. Motor overheated, causing thermal overload
to trip.
4
. Belt(s) slipping; oil/grease on belt(s).
5
. Dull knives/inserts.
6
. Dust-collection problem causing internal
components to clog up with shavings.
7
. Motor wired incorrectly.
8. Centrifugal switch/contact points at fault.
9
. Run capacitor at fault.
10. Pulley slipping on shaft.
11. Contactor not energized/has poor contacts.
12. Motor bearings at fault.
1. Motor or component loose.
2. V-belt(s) worn,loose, or slapping cover.
3
. Pulley loose.
4
. Bed rollers protruding unevenly.
5. Plastic chip deflector hitting knives.
6. Motor fan rubbing on fan cover.
7. Knives/gibs at fault.
8
. Cutterhead bearings at fault.
9
. Motor bearings at fault.
1. Rotate button head to reset; replace if at fault.
2. Ensure correct power supply voltage and circuit
size.
3.
Reset; adjust trip load dial if necessary; replace.
4
. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.
5
. Correct motor wiring connections.
6. Check/fix broken, disconnected, or corroded wires.
7. Replace switch.
8. Adjust/replace centrifugal switch/contact points if
available.
9
. Test/replace if at fault.
10. Reset; adjust trip load dial if necessary; replace.
11. Test all legs for power/replace.
12. Test/repair/replace.
1. Reduce feed rate/depth of cut.
2. Only cut wood/ensure moisture is below 20%.
3. Allow motor to cool, reset overload if necessary,
and reduce depth of cut.
4
. Clean/tension/replace belt(s) (Page 41); align pul-
leys (
Page 42).
5.
Sharpen/replace knives (Page 31), or replace
inserts (
6.
Clear blockages in dust chute/ducting, ensure dust
collector is operating efficiently.
7
. Wire motor correctly.
8. Adjust/replace centrifugal switch/contact points if
available.
9
. Test/repair/replace.
10. Tighten loose pulley; replace pulley/shaft if damaged.
11
. Test all legs for power/replace.
12. Test/repair/replace.
1. Inspect/tighten loose bolts/nuts; replace damaged
components.
2
. Tension/replace belts as a matched set (Page 41).
3
. Re-align/replace shaft, pulley set screw, and key.
4. Adjust bed rollers (Page 29).
5
. Adjust chip deflector (Page 48); replace if neces-
sary.
6
. Fix/replace fan cover; replace loose/damaged fan.
7. Sharpen/replace knives; set knife alignment/height
correctly (
8
. Replace bearing(s).
9. Test by rotating shaft; rotational grinding/loose
shaft requires bearing replacement.
Page 34).
Page 31).
SERVICE
-53-
Page 57
Machine Operation
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Excessive snipe
(gouge in end
of board that is
uneven with rest
of cut).
Note: A small
amount of snipe
is inevitable with
all types of planers. The key is
minimizing it as
much as possible.
Workpiece stops/
slows in middle
of cut.
Chipping (consistent pattern).
Chipping/
indentation in
workpiece surface (inconsistent
pattern).
Fuzzy grain.
Long lines or
ridges that run
along length of
board.
Uneven cutting
marks, wavy
surface, or chatter marks across
face of board.
SERVICE
Glossy sur face. 1. Knives/inserts are dull.
If workpiece
twists in
machine.
1. One or both of bed rollers are set too high.
2. Outfeed extension slopes down or is not level
with main table.
3. Chip breaker set too low.
4. Workpiece is not supported as it leaves
planer.
5. Some snipe is inevitable.
1. Taking too heavy of a cut.
2. One or both of bed rollers are set too low or
too high.
3. Chip breaker or pressure bar set too low.
4. Feed rollers set too low or too high.
5. Pitch and glue buildup on planer components.
1. Knots or conflicting grain direction in wood.
2. Taking too deep of a cut.
3
. Feeding workpiece too fast.
4
. Mis-adjusted chip breaker.
5
. Nicked or chipped knife/insert.
1. Chips aren't being properly expelled from
cutterhead.
2. Chip breaker not set correctly.
1. Wood may have high moisture content or surface wetness.
2. Dull knives/inserts.
1. Nicked or chipped knife/inserts.
1. Feeding workpiece too fast.
2. Chip breaker or pressure bar set unevenly or
not low enough.
3. Knives not installed evenly/inserts not properly installed.
4. Worn cutterhead bearings.
2. Feeding workpiece too slow.
3. Cutting depth too shallow.
1. Feed rollers not parallel with table.
Model W1862/W1863 (For Machines Mfd. Since 11/20)
1. Lower bed rollers (Page 29).
2. Shim outfeed extension wing level with main table.
3. Raise height of chip breaker (Page 43).
4. Hold workpiece up slightly as it leaves outfeed end
of planer.
5. Plane lumber longer than your intended workpiece
length, then cut off excess after planing complete.
1. Take a lighter cut.
2. Adjust bed rollers (Page 29).
3. Raise height of chip breaker or pressure bar (Page
43).
4. Adjust feed rollers (Page 43).
5
. Clean internal cutterhead components with a
pitch/resin-dissolving solvent.
1. Inspect workpiece for knots and grain direction;
only use clean stock, and cut WITH the grain.
2
. Take a smaller depth of cut. (Reduce cutting depth
when planing hard woods.)
3
. Slow down feed rate.
4
. Adjust both sides of chip breaker to correct height.
5
. Replace affected knife (Page 31), or have it sharp-
ened; rotate/replace insert (
1. Use a proper dust-collection system.
2. Correctly adjust chip breaker (Page 43).
1. Check moisture content is below 20% and allow to
dry if moisture is too high.
2. Replace knives (Page 31) or have them professionally sharpened; rotate/replace inserts (
1. Replace knives (Page 31) or have them professionally sharpened; rotate/replace inserts (
1. Slow down feed rate.
2. Adjust height of chip breaker (Page 43).
3. Adjust knives with knife gauge (Page 31); remove
inserts, properly clean mounting pocket and reinstall (
4. Replace cutterhead bearings.
1. Replace knives (Page 31) or have them professionally sharpened; rotate/replace inserts (
2. Increase feed rate.
3. Increase depth of cut.
1. Adjust feed rollers (Page 43).
Page 34).
Page 34).
Page 34).
Page 34).
Page 34).
-54-
Page 58
Model W1862/W1863 (For Machines Mfd. Since 11/20)
These pages are current at the time of printing. However, in the spirit of improvement, we may make
changes to the electrical systems of future machines. Compare the manufacture date of your machine to
If there are differences between your machine and what is shown in this section, call Technical Support
for assistance BEFORE making any changes to the wiring on your machine. An updated
machine before calling. This information can be found on the main machine label.
Electrical Safety Instructions
the one stated in this manual, and study this section carefully.
at (360) 734-3482
wiring diagram may be available. Note: Please gather the serial number and manufacture date of your
SHOCK HAZARD. Working on wiring that is
connected to a power source is extremely
dangerous. Touching electrified parts will
result in personal injury including but not
limited to severe burns, electrocution,
or death. Disconnect the power from
the machine before servicing electrical
components!
QUALIFIED ELECTRICIAN. Due to the inherent
hazards of electricity, only a qualified
electrician should perform wiring tasks on
this machine. If you are not a qualified
electrician, get help from one before
attempting any kind of wiring job.
WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening
during machine operation. Double-check all
wires disconnected or connected during any
wiring task to ensure tight connections.
WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious
personal injury, fire, or machine damage. If
you notice that any wires or components are
damaged while performing a wiring task,
replace those wires or components before
completing the task.
MODIFICATIONS. Using aftermarket parts or
modifying the wiring beyond what is shown
in the diagram may lead to unpredictable
results, including serious injury or fire.
MOTOR WIRING. The motor wiring shown
in these diagrams is current at the time
of printing, but it may not match your
machine. Always use the wiring diagram
inside the motor junction box.
CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical
charge for up to 10 minutes after being
disconnected from the power source.
To reduce the risk of being shocked,
wait at least this long before working on
capacitors.
CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this
manual when connecting your machine to a
power source.
EXPERIENCING DIFFICULTIES. If you are
experiencing difficulties understanding
the information included in this section,
contact our Technical Support at
(360) 734-3482.
SERVICE
WIRING DIAGRAM COLOR KEY
The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.shopfox.biz.
BLACK
WHITE
GREEN
RED
BLUE
BROWN
GRAY
ORANGE
-55-
YELLOW
YELLOW
GREEN
PURPLE
PINK
LIGHT
BLUE
BLUE
WHITE
TURQUOISE
Page 59
A
L1/1 L3/5
L2/3
SDE
MA-18
240V
Model W1862/W1863 (For Machines Mfd. Since 11/20)
W1862 Wiring Diagram
NO13
NC21
SDE
NC22
Ground
Read
Page 55
STOP
Before
Wiring
T2/4
T1/2 T3/6
1/2
MOTOR (230V)
NO14
RA-20
AMP
3/4
5/6
18
15
96
MAGNETIC SWITCH
ASSEMBLY SDE MP-18
GND
B
RESET
12
ARC
98
95
Hot
230
VAC
6-20 Plug
Hot
G
Start Capacitor
400uF
125VAC
Ground
Run Capacitor
70uF
250VAC
SERVICE
This motor wiring diagram is current at the time of
printing; however, always use the diagram on the
inside of the junction box cover when rewiring your
motor!
-56-
Page 60
Model W1862/W1863 (For Machines Mfd. Since 11/20)
W1862 Electrical Components
Figure 62. W1862 motor junction box.
Figure 61. W1862 magnetic switch with cover
removed.
Read
Page 55
STOP
Before
Wiring
SERVICE
-57-
Page 61
Model W1862/W1863 (For Machines Mfd. Since 11/20)
W1863 Wiring Diagram
CONTROL PANEL (viewed from behind)
A
4
L1/1 L3/5
T1/2 T3/6
1/2
L2/3
T2/4
3/4
1
SDE
MA-18
240V
5/6
4
1
NC21
NC22
6
NO13
SDE
NO14
96
5
5
RA-20
AMP
18
15
START STOP POWER
22
14
5
Ground
21 13
13
6
21
14
X1X222
4
1
6
4
5
Ground
Page 55
Read
STOP
Before
Wiring
B
RESET
12
ARC
98
95
This motor wiring diagram is current at the time of
printing; however, always use the diagram on the
inside of the junction box cover when rewiring your
motor!
MAGNETIC SWITCH
ASSEMBLY SDE MP-18
Hot
230
VAC
6-20 Plug
Hot
G
Ground
Start Capacitor
MOTOR (230V)
GND
SERVICE
400uF
125VAC
Run Capacitor
70uF
250VAC
-58-
Page 62
Model W1862/W1863 (For Machines Mfd. Since 11/20)

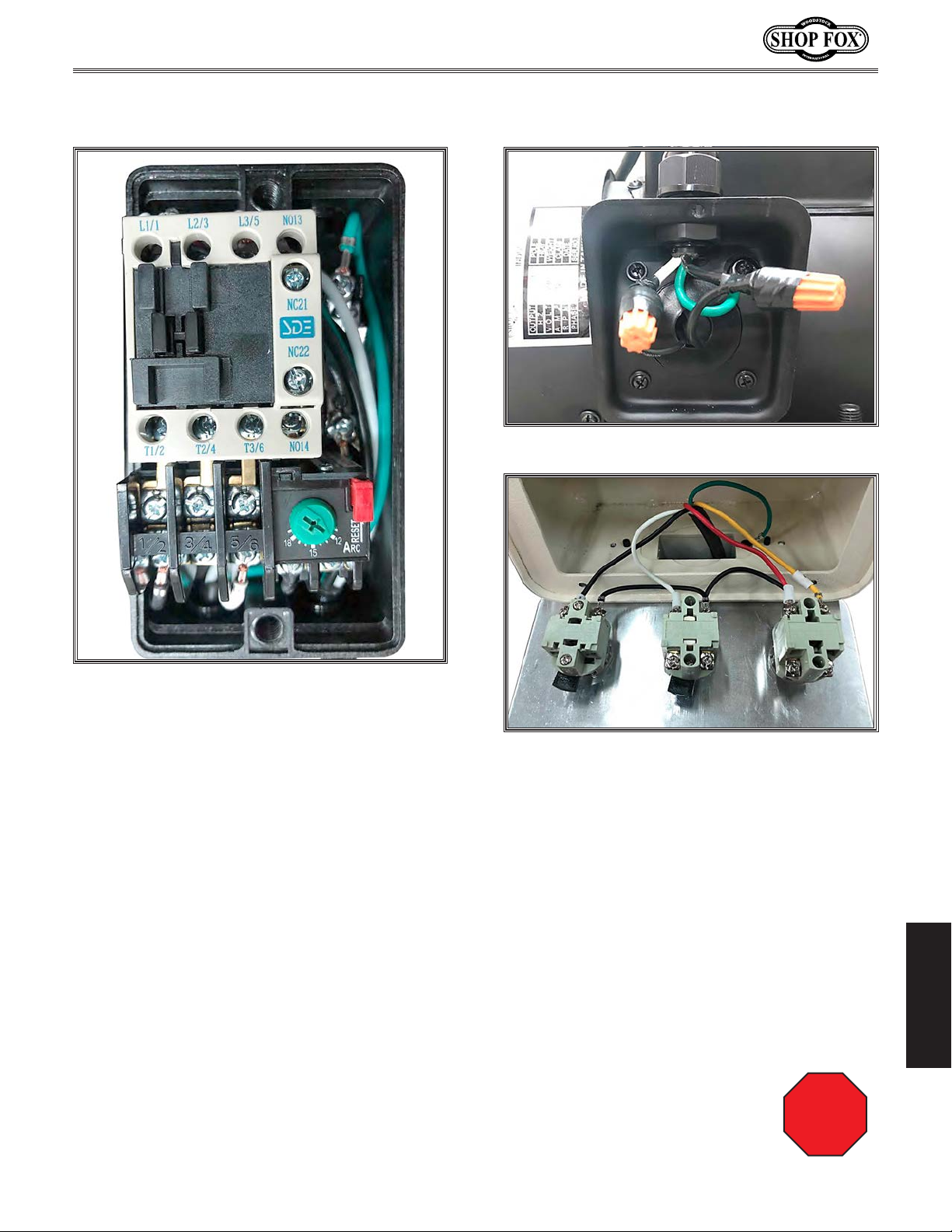

W1863 Electrical Components
Figure 64. W1863 motor junction box.
Figure 63. W1863 magnetic switch with cover
removed.
Figure 65. W1863 control panel.
STOP
Read
Page 55
Before
Wiring
SERVICE
-59-
Page 63
Model W1862/W1863 (For Machines Mfd. Since 11/20)
(W1863)

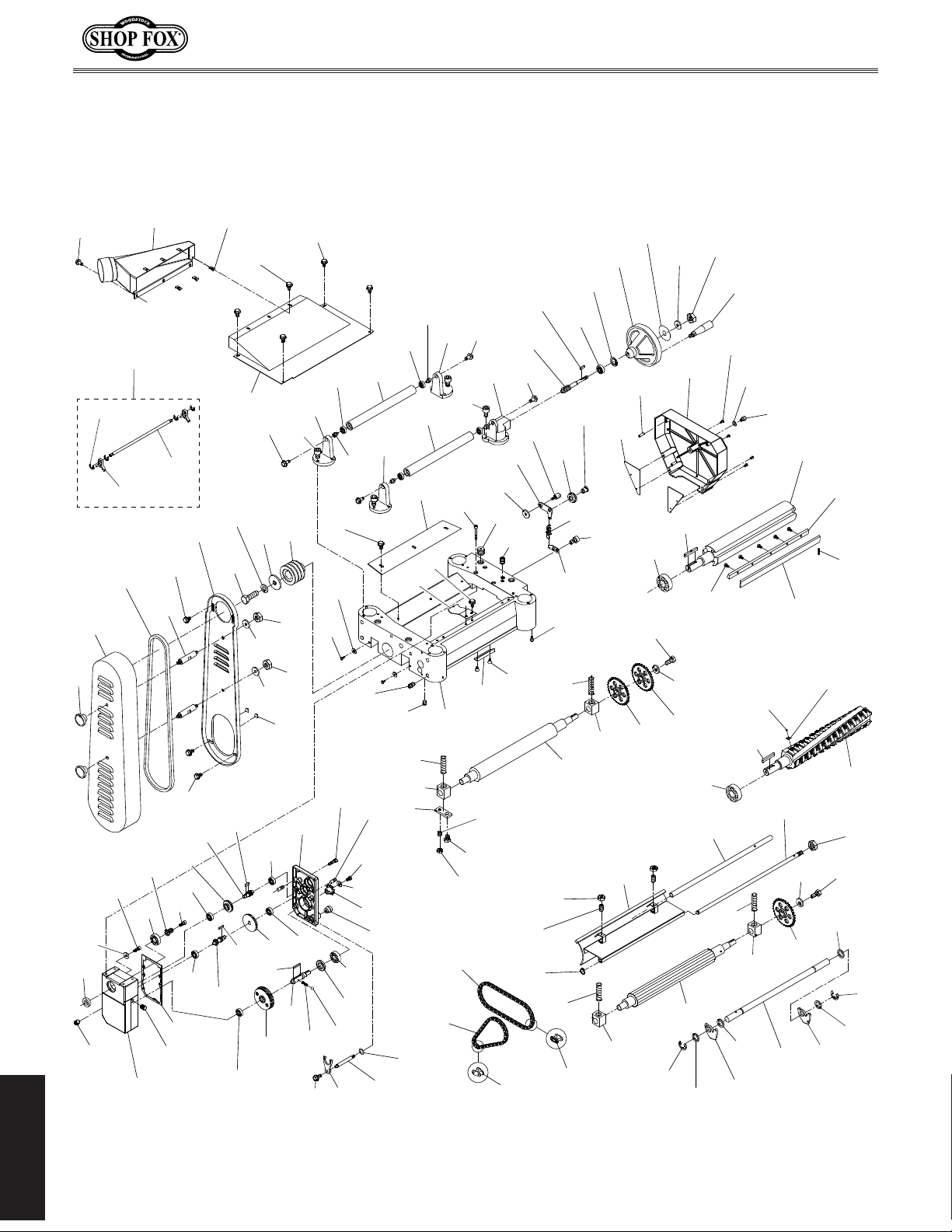

PARTS
Main
5
153 (W1862)
153-1
153-2
3
2
1
73
58
91
90
92
179
75
74
153-3
5
4
5
78
77
200
77
93
90
6
79
181
192
191
101
84V2
77
13
80
5
10
7
85
94V2
5
7
77
86
11
8
186
96
17
8
81
18
77
97
5
174
30
29
31
114
55
156
19
173
172
5
34
32
33
39
40
199
48
53
51
114
63
48
158
95
5
28
48
50
104
178
25
49
18
171
17
37
5
54
52
83
9
51
60
88
108
178
108
18
95
5
190
26
46
47
76
82
59
190
89
87
100
99
98
103
102
5
73
49
20
188
148
49
35
21
41
59
57
22
43
(W1862)
190
61
67
36
71
106
41
68
23
64
24
195
194
140-1
(W1863)
43
48
49
68
69
193
140
(W1862)
155
(W1862)
65
190
72
70
202
(W1862)
97
140-2
(W1863)
140
66
59
68
67
68
69
PARTS
-60-
Page 64
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Main Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 X1862001 KNOB 5/16-18, D1-3/4, ROUND 54 X1862054 DEPTH LIMITER
2 X1862002 PULLEY/BELT COVER 55 X1862055 FLAT HD SCR M5-.8 X 12
3 X1862003 V-BELT M58 3L580 57 X1862057 SPROCKET 31T
4 X1862004 STANDOFF-HEX MM 5/16-18 X 3/8, 3 58 X1862058 FENDER WASHER 6 X 20 X 3MM
5 X1862005 FLANGE BOLT M6-1 X 12 59 X1862059 HEX BOLT M6-1 X 16
6 X1862006 PULLEY GUARD 60 X1862060 CHAIN 06B-1 X 63 (31 LINKS)
7 X1862007 FLAT WASHER 5/16 61 X1862061 SPROCKET 31T
8 X1862008 HEX NUT 5/16-18 63 X1862063 EXT RETAINING RING 12MM
9 X1862009 HEX BOLT M8-1.25 X 20 64 X1862064 CHIP BREAKER ADJUSTMENT ROD
10 X1862010 FENDER WASHER 8 X 30 X 4MM 65 X1862065 CHIP BREAKER PIVOT ROD
11 X1862011 CUTTERHEAD PULLEY 66 X1862066 HEX NUT M12-1.75
13 X1862013 UPPER COVER 67 X1862067 E-CLIP 15MM
17 X1862017 CAP SCREW M6-1 X 20 68 X1862068 SPACER
18 X1862018 RETURN ROLLER BRACKET 69 X1862069 ANTI-KICKBACK FINGER
19 X1862019 KEY 4 X 4 X 10 70 X1862070 ANTI-KICKBACK SHAFT
20 X1862020 HANDWHEEL TYPE-3 151D X 10B-K X 3/8-16 71 X1862071 INFEED ROLLER
21 X1862021 HANDWHEEL DIRECTION LABEL 72 X1862072 SPROCKET 31T
22 X1862022 FLAT WASHER 10MM 73 X1862073 CAP SCREW M6-1 X 12
23 X1862023 HEX NUT M10-1.25 74 X1862074 BALL BEARING 6204-2NSE
24 X1862024 REVOLVING HANDLE 1 X 3-9/16, 3/8-16 X 1/2 75 X1862075 GEAR 16T
25 X1862025 CHIP DEFLECTOR 76 X1862076 CAP SCREW M6-1 X 25
26 X1862026 HEX BOLT M6-1 X 12 77 X1862077 BALL BEARING 6201ZZ
28 X1862028 FLAT SPRING 84 X 46 X 0.6MM 78 X1862078 GEAR 47T
29 X1862029 TENSIONING SET SCREW M22-1.5 X 20 79 X1862079 GEARED SHAFT 18T
30 X1862030 SPACER 8.2 X 22 X 3MM 80 X1862080 KEY 5 X 5 X 10
31 X1862031 CHAIN TENSIONER 81 X1862081 GEARBOX COVER
32 X1862032 SHOULDER BOLT M8-1.25 X 14, 4 X 12 82 X1862082 LOCATING PIN 8 X 7.55 X 7.95
33 X1862033 IDLER WHEEL 83 X1862083 SET SCREW M6-1 X 16
34 X1862034 IDLER SHAFT 84V2 X1862084V2 GEARED SHAFT 28T/18T V2.02.19
35 X1862035 ROLL PIN 6 X 20 85 X1862085 KEY 6 X 6 X 40
36 X1862036 DRIVE CHAIN COVER 86 X1862086 GEAR 71T
37 X1862037 CAP SCREW M8-1.25 X 50 87 X1862087 KNOB 3/8-16, D1-1/4, BALL
39 X1862039 EXTENSION SPRING 1 X 8.5 X 33 88 X1862088 CHAIN 06B-1 X 47 (23 LINKS)
40 X1862040 SPRING BRACKET 89 X1862089 SPROCKET 12T W/KEY
41 X1862041 BALL BEARING 6205-2RS 90 X1862090 OIL PLUG 1/4 NPT X 3/4"
43 X1862043 KEY 8 X 8 X 36 91 X1862091 OIL SEAL 28 X 40 X 8
46 X1862046 SET SCREW M10-1.5 X 12 92 X1862092 GEARBOX
47 X1862047 SET SCREW M8-1.25 X 10 93 X1862093 GASKET
48 X1862048 COMPRESSION SPRING 3.5 X 19.7 X 70 94V2 X1862094V2 COMBO GEAR 86T/96T V2.02.19
49 X1862049 BUSHING BLOCK 95 X1862095 BEARING SHAFT
50 X1862050 BUSHING BLOCK PLATE 96 X1862096 GEAR SHAFT
51 X1862051 HEX NUT M6-1 97 X1862097 COMPRESSION SPRING 0.6 X 5.9 X 16
52 X1862052 HEAD CASTING 98 X1862098 STEEL BALL 6MM
53 X1862053 OUTFEED ROLLER 99 X1862099 OIL SEAL 25 X 47 X 6
-61-
PARTS
Page 65
Model W1862/W1863 (For Machines Mfd. Since 11/20)
156 X1862156 HALF LINK 202 X 1862202 GIB (W1862)
Main Parts List (Cont.)
REF PA RT # DESCRIPTION REF PAR T # DESCRIPTION
100 X1862100 BALL BEARING 6204ZZ 158 X1862158 MASTER LINK
101 X1862101 KEY 5 X 5 X 12 171 X1862171 WORM GEAR HOUSING
102 X1862102 SHIFTING FORK 172 X 1862172 WORM SHAFT
103 X1862103 SHIFTING SHAFT 173 X1862173 BALL BEARING 6200ZZ
104 X1862104 O-RING 12 X 1.5 S12. 5 174 X 1862174 INT RETAINING RING 30MM
106 X1862106 GIB B OLT M8-1. 25 X 10 ( W1862) 178 X1862178 RETURN ROLLER
108 X1862108 BALL BEARING 608ZZ 179 X1862179 DUST HOOD
114 X1862114 SET SCREW M6-1 X 12 181 X 1862181 CLIP -ON NUT M6-1
140 X1862140 CUTTERHEAD 15" 3-KNIFE (W 1862) 186 X1862186 PULLEY GUARD PLATE
140 X1863140 HELICAL CUTTERHEAD 15" (W1863) 188 X1862188 GEARB OX CO VER PLATE
140-1 X 1863140-1 FLAT HEAD TORX 10-32 X 1/2 (W1863) 190 X1862190 FENDER W ASHER 6.2 X 22 X 3
140-2 X 1863140-2 CARBIDE INSERTS 15 X 15 X 2.5MM-10 PK 191 X1862191 HEX BOLT M8-1.25 X 30
148 X1862148 CH IP B REAKER 192 X 1862192 LOCK WASH ER 8MM
153 X1862153 KNIFE-SETTING JIG ASSEMBLY (W1862) 193 X1862193 CAP SCREW M8-1.25 X 10
153-1 X 1862153-1 E-CLIP 9MM (W1862) 194 X1862194 FLAT WASHER 8MM
153-2 X 1862153-2 KNIFE-SETTING JIG FOOT (W1862) 195 X 1862195 P HLP HD SCR M4-.7 X 8
153-3 X 1862153-3 KNIFE-SETTING JIG SHAFT (W1862) 199 X1862199 CAP SCREW M5-.8 X 6
155 X1862155 PLANER KNIVES 15" H SS, SET OF 3 (W 1862) 200 X 1862200 CAP SCREW M6-1 X 25
PARTS
-62-
Page 66
Model W1862/W1863 (For Machines Mfd. Since 11/20)

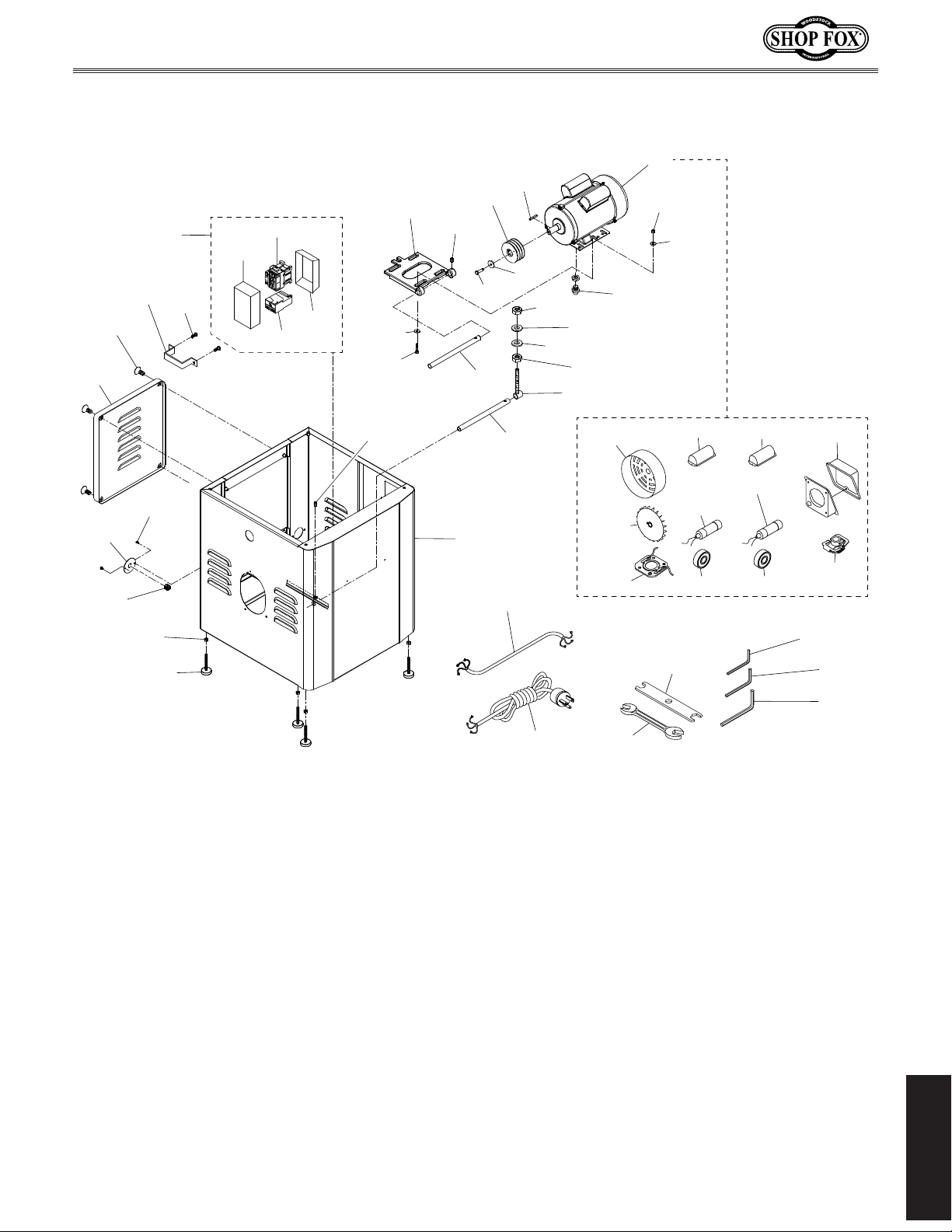

W1862 Stand & Motor
150
147
167
151
142
143
145
45
175
45-1
45-3
45-4
146
45-2
42
201
152
168
16
149
62
42
157
160
160
16
154
203
12
198
62
196
147
141
151
166
165
149-1
149-5
149-8
164
149-2 149-3
149-6
149-9 149-10
163
149-4
149-7
149-11
162
161
159
-63-
PARTS
Page 67
Model W1862/W1863 (For Machines Mfd. Since 11/20)
149-8 X1862149-8 CONTACT PLATE
W1862 Stand & Motor Parts List
REF PA RT # DESCRIPTION REF PA RT # DESCRIPTION
12 X1862012 STRAIN RELIEF TYP E-1 7/16 149-9 X1862149-9 BALL BEARING 6205ZZ (FRONT)
16 X1862016 H EX NUT M10-1.25 149-10 X1862149-10 BALL BEARING 6203ZZ (REAR)
42 X1862042 FLAT WASH ER 8 X 22 X 3MM 149-11 X1862149-11 CENTRIFUGAL SWITCH
45 X1862045 MAGNETIC SWITCH ASSY MP-18 150 X1862150 MOTOR PULLEY
45-1 X1862045-1 MAGNETIC SWITCH COVER (FRONT) 151 X1862151 P LATE CO NNECTING ROD
45-2 X1862045-2 MAGNETI C SWITCH CO VER (REAR) 152 X1862152 KEY 5 X 5 X 30
45-3 X1862045-3 CONTACTOR SDE MA-18 220- 240V 154 X1862154 ROD END BOLT M10-1.5 X 100, ID 16.5MM
45-4 X1862045-4 OL RELAY SDE RA- 20 12-18A 157 X1862157 S TRAIN RELIEF TYPE- 3 PG13. 5
62 X1862062 H EX NUT M8-1.25 159 X1862159 HEX WRENCH 6MM
141 X1862141 CABINET STAND 160 X 1862160 FENDER WASHER 10 X 28 X 3MM
142 X1862142 MOTOR ACCESS PANEL 161 X1862161 HEX WRENCH 4MM
143 X1862143 FLAT HD SCR M6-1 X 20 162 X1862162 H EX WRENCH 3MM
145 X1862145 SWITCH MOUNT BRACKET 163 X1862163 FLAT WRENCH 10 X 13MM OPEN-ENDS
146 X1862146 MOTOR MOUNT PLATE 164 X1862164 W RENCH 12 X 14MM OPEN-ENDS
147 X1862147 SET SCREW M6- 1 X 12 165 X1862165 P OW ER CORD 12G 3W 150" 6-20P
149 X1862149 MOTOR 3HP 230V 1-PH 166 X 1862166 SW ITCH CORD 12G 3W 30"
149-1 X1862149-1 MOTOR FAN COVER 167 X1862167 H EX B OLT M8-1.25 X 25
149-2 X1862149-2 CAPACITOR COVER (START) 168 X1862168 FENDER W ASHER 8 X 30 X 4MM
149-3 X1862149-3 CAPACITOR COVER (RUN) 175 X 1862175 PH LP HD SCR M5-.8 X 10
149-4 X1862149-4 MOTOR JUNCTION BOX 196 X1862196 FOOT M8-1.25 X 67, D36
149-5 X1862149-5 MOTOR FAN 198 X 1862198 PH LP HD SCR M6-1 X 8
149-6 X1862149-6 S CAPACITOR 400M 125V 1-9/16 X 3-1/2 201 X1862201 H EX B OLT M8-1.25 X 40
149-7 X1862149-7 R CAPACITOR 70M 250V 1-9/16 X 3-1/2 203 X1862203 STRAIN RELIEF MOUNTING PLATE
PARTS
-64-
Page 68
Model W1862/W1863 (For Machines Mfd. Since 11/20)
W1863 Stand & Motor
166
149-1
149-5
149-8
45-1
45-3
45-4
149-2
149-6
45-2
203
149-9
12
198
149-3
149-7
149-10
45
142
149-4
149-11
143
206
204
167
150
201
205
168
42
154
160
151
152
157
16
149
62
147
146
151
162
165
214
211
209
208
213
212
215
210
219
210
216
217
218
147
196
62
141
161
159
163
164
207
-65-
PARTS
Page 69
Model W1862/W1863 (For Machines Mfd. Since 11/20)
157 X1863157 STRAI N RELI EF TY PE-3 P G13. 5
W1863 Stand & Motor Parts List
REF PA RT # DESCRIPTION R EF PAR T # DESCRIPTION
12 X1863012 STRAIN RELIEF TYPE-1 7/16 159 X 1863159 HEX WRENCH 6MM
16 X1863016 HEX NUT M10-1. 25 160 X 1863160 FENDER WASHER 10 X 28 X 3MM
42 X1863042 FLAT WASHER 8 X 22 X 3MM 161 X 1863161 HEX WRENCH 4MM
45 X1863045 MAGNETIC SWITCH ASSY MP-18 162 X 1863162 HEX WRENCH 3MM
45-1 X1863045- 1 MAGNETIC SWITCH COVER (FRONT) 163 X1863163 FLAT W RENCH 10 X 13MM OPEN-ENDS
45-2 X1863045- 2 MAGNETI C SWITCH CO VER (REAR) 164 X 1863164 WRENCH 12 X 14MM OPEN-ENDS
45-3 X1863045- 3 CONTACTOR SDE MA-18 220- 240V 165 X1863165 POWER CORD 12G 3W 138" 6-20P
45-4 X1863045- 4 OL R ELAY SDE RA- 20 12-18A 166 X1863166 SWITCH CORD 12G 4W 79"
62 X1863062 HEX NUT M8-1. 25 167 X1863167 HEX BOLT M8-1.25 X 25
141 X1863141 CABINET STAND 168 X 1863168 FENDER WASH ER 8 X 30 X 4MM
142 X1863142 MOTOR ACCESS PANEL 196 X1863196 FOOT M8-1.25 X 67, D36
143 X1863143 FLAT H D SCR M6-1 X 20 198 X1863198 PHLP HD SCR M6-1 X 8
146 X1863146 MOTOR MOUNT PLATE 201 X1863201 HEX BOLT M8-1.25 X 40
147 X1863147 SET SCREW M6-1 X 12 203 X1863203 STRAIN RELIEF MOUNTING PLATE
149 X1863149 MOTOR 3H P 230V 1-PH 204 X1863204 SWITCH MOUNTING PLATE
149-1 X1863149-1 MOTOR FAN COVER 205 X 1863205 H EX NUT M6-1
149-2 X1863149-2 CAPACITOR COVER (START) 206 X1863206 P HLP HD SCR M6-1 X 16
149-3 X1863149-3 CAPACITOR COVER (RUN) 207 X1863207 T-HANDLE TORX DRIVER T-25
149-4 X1863149-4 MOTOR JUNCTION BOX 208 X1863208 MOTOR CO RD 12G 3W 33"
149-5 X1863149-5 MOTOR FAN 209 X 1863209 SWITCH PEDESTAL
149-6 X1863149-6 S CAPACITOR 400M 125V 1-9/16 X 3-1/2 210 X1863210 FLANGE BOLT M6-1 X 12
149-7 X1863149-7 R CAPACITOR 70M 250V 1-9/16 X 3-1/2 211 X1863211 HEX BOLT M5-.8 X 10
149-8 X1863149-8 CONTACT PLATE 212 X1863212 EXT TOOTH WASHER 4MM
149-9 X1863149-9 BALL BEARING 6205ZZ (FRONT) 213 X1863213 PHLP H D SCR M4-.7 X 8
149-10 X1863149-10 BALL BEARING 6203ZZ (REAR) 214 X1863214 SWITCH BOX
149-11 X1863149-11 CENTRIFUGAL SWITCH 215 X1863215 SWITCH PLATE
150 X1863150 MOTOR PULLEY 216 X1863216 P HLP HD SCR M5-.8 X 10
151 X1863151 PLATE CONNECTING RO D 217 X1863217 START SWITCH
152 X1863152 KEY 5 X 5 X 30 218 X1863218 STOP SWITCH
154 X1863154 ROD END BOLT M10-1.5 X 100, I D 16.5MM 219 X1863219 POWER INDICATOR LIGHT 220V 25MM RED
PARTS
-66-
Page 70
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Table & Base
(W1862)
27
(W1862)
56
(W1862)
14
38
176
(W1862)
107
180
105
(W1863)
182
189
(W1862)
197
105
109
44
111
111
14
107
112
187
197
176
170
113
185
(W1862)
(W1862)
107
38
56
112
185
115
177
109
110
116
(W1862)
117
118
107
115
187
189
144
182
180
110
44
(W1862)
14
176
197
105
(W1862)
27
125
119
130
131
135
136
137
138
117
15
139
132
133
44
182
44
14
105
(W1863)
-67-
169
169
123
122
121
124
120
187
126
134
127
128
129
183
184
PARTS
Page 71
Model W1862/W1863 (For Machines Mfd. Since 11/20)
Table & Base Parts List
REF PART # DESC RIPTION REF PART # DESC RIPTION
14 X1862014 HEX BO LT M8-1.25 X 20 127 X1862127 BALL BEARING 6202ZZ
15 X1862015 KEY 4 X 4 X 10 128 X1862128 INT RETAI NING RI NG 35MM
27 X1862027 ROLLER BUSHING, P LASTIC (W1862) 129 X1862129 SPROCKET 10T
38 X1862038 ROLLER AXLE (W1862) 130 X1862130 SCALE COLUMN
44 X1862044 SET SCREW M8-1.25 X 10 131 X1862131 SCALE
56 X1862056 FLAT WASHER 10 X 25 X 3MM (W1862) 132 X1862132 PHLP HD SCR M3-.5 X 6
105 X1862105 ROLLER EXTENSION TAB LE FRAME ( W1862) 133 X 1862133 E-CLIP 12MM
105 X1863105 EXTENSION TABLE (W 1863) 134 X1862134 LIFTING BAR
107 X1862107 ECCENTRIC SHAFT 135 X1862135 EX T R ETAINING RING 10MM
109 X1862109 TABLE ROLLER 136 X1862136 GEAR 14T
110 X1862110 KNOB 6-LOBE M12-1.75, D53 137 X1862137 INT RETAINING RING 38MM
111 X1862111 THREADED G IB 138 X 1862138 SPACER
112 X1862112 LOCKING ROD 139 X1862139 LEADSCREW, PRIMARY
113 X1862113 MAI N TAB LE (W 1862) 144 X1862144 HEX BOLT M8-1.25 X 45
113 X1863113 MAI N TAB LE (W 1863) 169 X1862169 SET SCREW M10- 1.5 X 12
115 X1862115 GIB 170 X1862170 CAP SCREW M6-1 X 20
116 X1862116 RIVET 2 X 5MM 176 X 1862176 H EX BOLT M6-1 X 12
117 X1862117 LEADSCREW NUT 177 X1862177 POINTER
118 X1862118 LEADSCREW, SECONDARY 180 X1862180 BALL BEARING 608-2RS
119 X1862119 COLUMN 182 X1862182 FLAT WASHER 8MM
120 X1862120 CH AIN #410 X 134 183 X1862183 FLAT WASHER 10MM
121 X1862121 EXT RETAINING RING 15MM 184 X1862184 HEX NUT M10-1.5
122 X1862122 IDLER S PROCKET 10T 185 X 1862185 SET SCREW M6-1 X 12
123 X1862123 IDLER S HAFT 187 X1862187 SPACER 8 X 22 X 3MM
124 X1862124 IDLER B RA CKET 189 X1862189 EXTENSION TAB LE ROLLER (W1862)
125 X1862125 BASE 197 X1862197 FENDER WASH ER 6 X 20 X 3MM
126 X1862126 HEX BOLT M8-1.25 X 25
PARTS
-68-
Page 72
Model W1862/W1863 (For Machines Mfd. Since 11/20)
W1862
301
307V2 X1862307V2 SHIFT GEARBOX NOTICE V2.02.19
W1862 Labels & Cosmetics
302 303V2 304
MODEL W1862
15" PLANER
To reduce the risk of serious injury when using this machine:
1. Read and understand owner’s manual before operating.
2. Always wear approved safety glasses and respirator.
3. Disconnect power before changing blades, removing
4. Only plug power cord into a grounded outlet.
5. Do not wear loose clothing, gloves, jewelry, or other items
6. Ensure machine is correctly set up before starting.
7. Do not plane two boards of varying thickness at same time.
8. Never plane material smaller than 6" long or
9. Keep fingers clear of pinch point between stock and table.
10. Stand clear of board ends during cutting operation.
11. Knives are sharp! Use extreme caution when servicing.
12. Never reach into cutting area while machine is running.
13. Do not expose to rain or use in damp or wet locations.
14. Prevent unauthorized use by children or untrained users.
WARNING!
parts, or doing maintenance, service, or adjustments.
that can get entangled. Tie back long hair and roll up sleeves.
3
/16" thick.
ACCIDENTAL INJURY
Disconnect power
supply before
adjustments, setup
or maintenance!
WARNING
READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.woodstockint.com
or call (360) 734-3482.
Specifications
Motor: 3 HP, 230V, 1-Ph, 60 Hz
Full-Load Current Rating: 12A
Cutterhead: 3 Knife, 3" Dia.
Replacement Knives: D4614
Cutterhead Speed: 5000 RPM
Feed Rates: 16 & 28 FPM
Max. Depth of Cut: 1/8"
Min. Stock Thickness: 3/16"
Min. Stock Length: 6"
Max. Cutting Width: 15"
Max. Cutting Height: 6"
Weight: 445 lbs.
Date
S/N
Mfd. for Grizzly in Taiwan
175370
WARNING
HAZARD!
Add SAE 30 oil every 24 hours of operation.
Note: Similar headstock
shown as example.
NOTICE
305
To reduce the risk of serious personal
injury, do not remove this cover while the
machine is running or connected to power.
Always disconnect power before servicing.
307V2
Only shift gearbox when
planer is running.
28 FPM
INJURY HAZARD!
306
Neutral
16 FPM
313
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 X1862301 MODEL NUMBER LABEL 308 X1862308 EYE/EAR/LUNG INJURY LABEL
302 X1862302 READ MANUAL LABEL 309 X1862309 ELECTRICITY LABEL
303V2 X1862303V2 MACHINE ID LABEL V2.02.19 310 X1862310 TOUCH-UP PAINT, SHOP FOX WHITE
304 X1862304 DISCONNECT POWER LABEL 311 X1862311 BLACK STRIPE TAPE (LOWER)
305 X1862305 ADD OIL NOTICE 312 X1862312 BLACK STRIPE TAPE (UPPER)
306 X1862306 BELT COVER WARNING LABEL 313 X1862313 SHOP FOX NAMEPLATE-MEDIUM
Safety labels warn about machine hazards and how to prevent serious personal injury. The owner
of this machine MUST maintain the original location and readability of all labels on this machine.
If any label is removed or becomes unreadable, REPLACE that label before allowing machine to
be operated again. Contact us at (360) 734-3482 or www.woodstockint.com to order new labels.
312
WARNING
308
EYE/EAR/LUNG
INJURY HAZARD!
Always wear safety
glasses, ear
protection, and
respirator when using
this machine.
309
310311
PARTS
-69-
Page 73
Model W1862/W1863 (For Machines Mfd. Since 11/20)

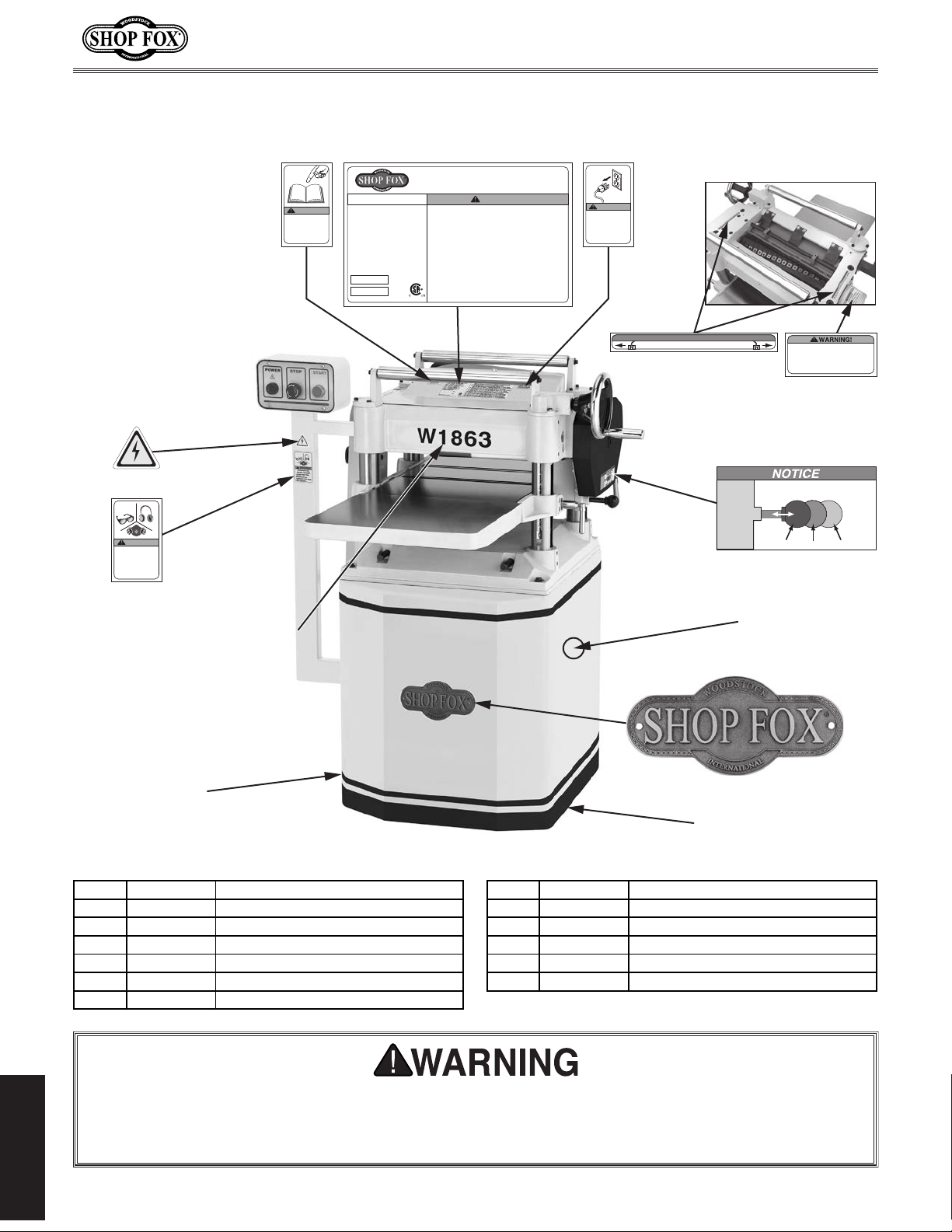

W1863 Labels & Cosmetics
309
308
WARNING
EYE/EAR/LUNG
INJURY HAZARD!
Always wear safety
glasses, ear
protection, and
respirator when using
this machine.
302 303V2 304
MODEL W1863
To reduce the risk of serious injury when using this machine:
1. Read and understand owner’s manual before operating.
2. Always wear approved safety glasses and respirator.
3. Disconnect power before changing blades, removing
4. Only plug power cord into a grounded outlet.
5. Do not wear loose clothing, gloves, jewelry, or other items
6. Ensure machine is correctly set up before starting.
7. Do not plane two boards of varying thickness at same time.
8. Never plane material smaller than 6" long or
9. Keep fingers clear of pinch point between stock and table.
10. Stand clear of board ends during cutting operation.
11. Knives are sharp! Use extreme caution when servicing.
12. Never reach into cutting area while machine is running.
13. Do not expose to rain or use in damp or wet locations.
14. Prevent unauthorized use by children or untrained users.
WARNING!
parts, or doing maintenance, service, or adjustments.
that can get entangled. Tie back long hair and roll up sleeves.
3
/16" thick.
ACCIDENTAL INJURY
Disconnect power
supply before
adjustments, setup
or maintenance!
WARNING
READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.woodstockint.com
or call (360) 734-3482.
Specifications
Motor: 3 HP, 230V, 1-Ph, 60 Hz
Full-Load Current Rating: 12A
Cutterhead: 4 Spirals, 52 Inserts
Replacement Inserts: D4297
Cutterhead Speed: 5000 RPM
Feed Rates: 16 & 28 FPM
Max. Depth of Cut: 1/8"
Min. Stock Thickness: 3/16"
Min. Stock Length: 6"
Max. Cutting Width: 15"
Max. Cutting Height: 6"
Weight: 476 lbs.
Date
S/N
Mfd. for Grizzly in Taiwan
15" PLANER W/HELICAL CUTTERHEAD
175370
WARNING
HAZARD!
Add SAE 30 oil every 24 hours of operation.
Note: Similar cutterhead
shown as example.
NOTICE
305
To reduce the risk of serious personal
injury, do not remove this cover while the
machine is running or connected to power.
Always disconnect power before servicing.
307V2
Only shift gearbox when
planer is running.
28 FPM
INJURY HAZARD!
306
Neutral
16 FPM
310
W1863
301
312
311
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 X1863301 MODEL NUMBER LABEL 308 X1863308 EYE/EAR/LUNG INJURY LABEL
302 X1863302 READ MANUAL LABEL 309 X1863309 ELECTRICITY LABEL
303V2 X1863303V2 MACHINE ID LABEL V2.02.19 310 X1863310 TOUCH-UP PAINT, SHOP FOX WHITE
304 X1863304 DISCONNECT POWER LABEL 311 X1863311 BLACK STRIPE TAPE (LOWER)
305 X1863305 ADD OIL NOTICE 312 X1863312 BLACK STRIPE TAPE (UPPER)
306 X1863306 BELT COVER WARNING LABEL 313 X1863313 SHOP FOX NAMEPLATE-MEDIUM
307V2 X1863307V2 SHIFT GEARBOX NOTICE V2.02.19
313
Safety labels warn about machine hazards and how to prevent serious personal injury. The owner
of this machine MUST maintain the original location and readability of all labels on this machine.
If any label is removed or becomes unreadable, REPLACE that label before allowing machine to
be operated again. Contact us at (360) 734-3482 or www.woodstockint.com to order new labels.
PARTS
-70-
Page 74
Model W1862/W1863 (For Machines Mfd. Since 02/19)
Page 75
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
Woodstock international inc.
p.o. box 2309
bellingham, Wa 98227-2309
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Page 76
WARRANTY
Woodstock International, Inc. warrants all Shop Fox machinery to be free of defects from workmanship
and materials for a period of two years from the date of original purchase by the original owner. This
warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents,
lack of maintenance, or reimbursement of third party expenses incurred.
Woodstock International, Inc. will repair, replace, or arrange for a dealer refund, at its expense and
option, the Shop Fox machine or machine part proven to be defective for its designed and intended
use, provided that the original owner returns the product prepaid to an authorized warranty or repair
facility as designated by our Bellingham, Washington office with proof of their purchase of the product
within two years, and provides Woodstock International, Inc. reasonable opportunity to verify the
alleged defect through inspection. If it is determined there is no defect, or that the defect resulted
from causes not within the scope of Woodstock International Inc.'s warranty, then the original owner
must bear the cost of storing and returning the product.
This is Woodstock International, Inc.’s sole written warranty and any and all warranties that may be
implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited
to the duration of this written warranty. We do not warrant that Shop Fox machinery complies with
the provisions of any law, acts or electrical codes. We do not reimburse for third party repairs. In no
event shall Woodstock International, Inc.’s liability under this limited warranty exceed the purchase
price paid for the product, and any legal actions brought against Woodstock International, Inc. shall be
tried in the State of Washington, County of Whatcom. We shall in no event be liable for death, injuries
to persons or property or for incidental, contingent, special or consequential damages arising from the
use of our products.
Every effort has been made to ensure that all Shop Fox machinery meets high quality and durability
standards. We are commited to continuously improving the quality of our products, and
right to change specifications at any time
WARRANTY
.
reserve the
Page 77
Loading...
