Shop Fox W1858, W1857 User guide

MODEL W1857/W1858 

175370

8" DOVETAIL JOINTER

W/MOBILE BASE

OWNER'S MANUAL

(FOR MODELS MANUFACTURED SINCE 01/21)

Phone: [phone] • Online Technical Support: [email protected]

COPYRIGHT © NOVEMBER, 2018 BY WOODSTOCK INTERNATIONAL, INC.,  REVISED SEPTEMBER, 2021 (BL) 

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

#19891ES  Printed in Taiwan

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property
damage from negligence, improper training, machine modifications or
misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Contents

INTRODUCTION .....................................2

Machine Differences
Woodstock Technical Support
Machine Specifications (W1857)
Machine Specifications (W1858)

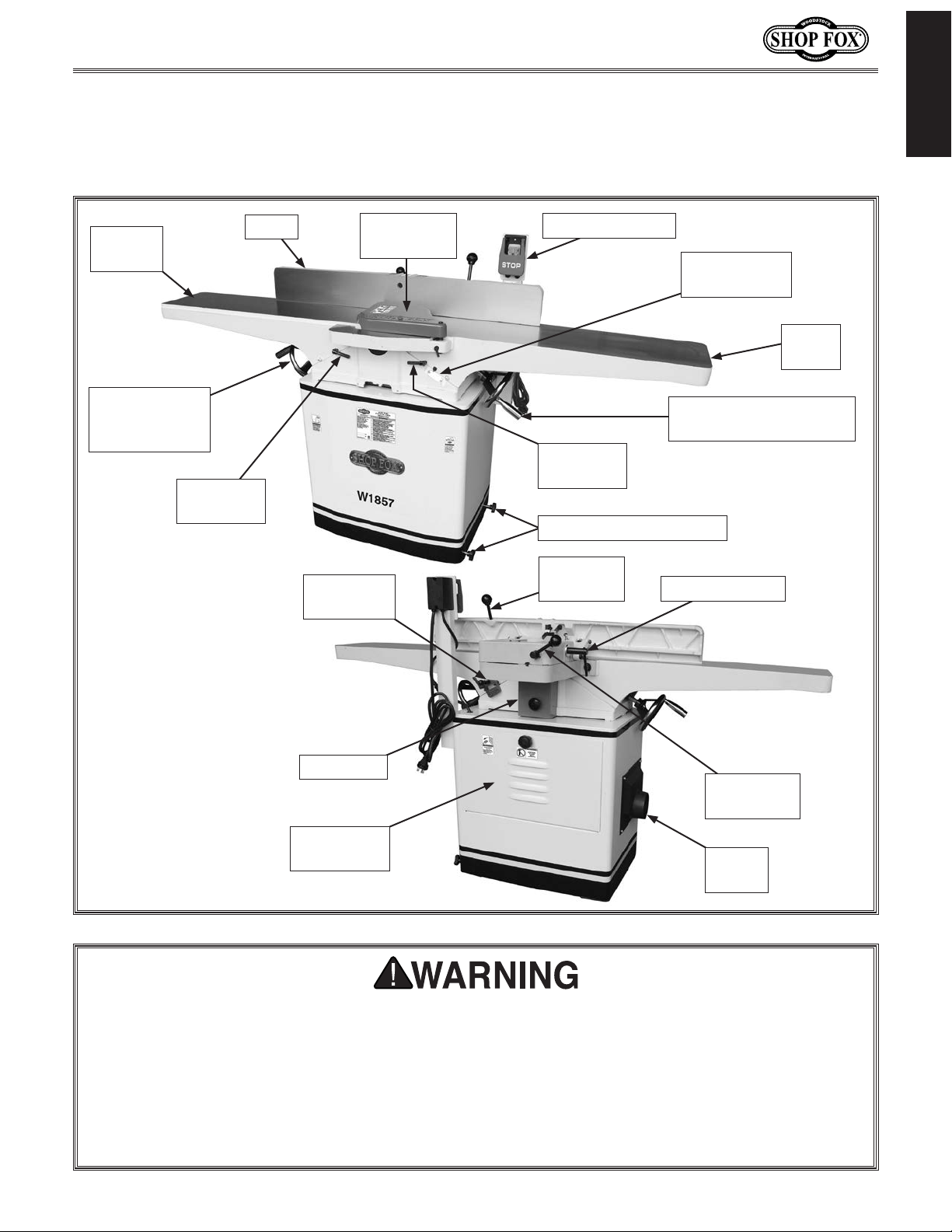

Identification

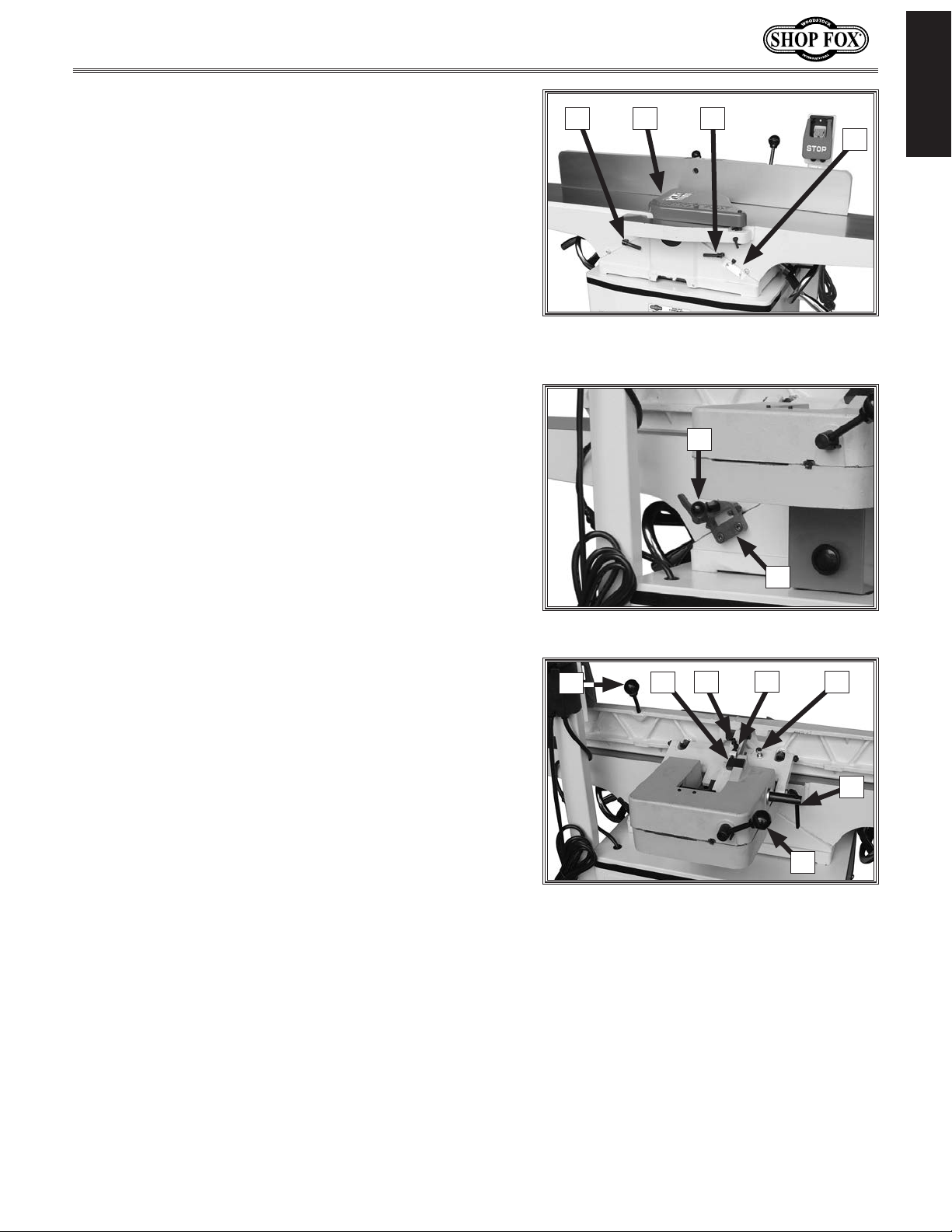

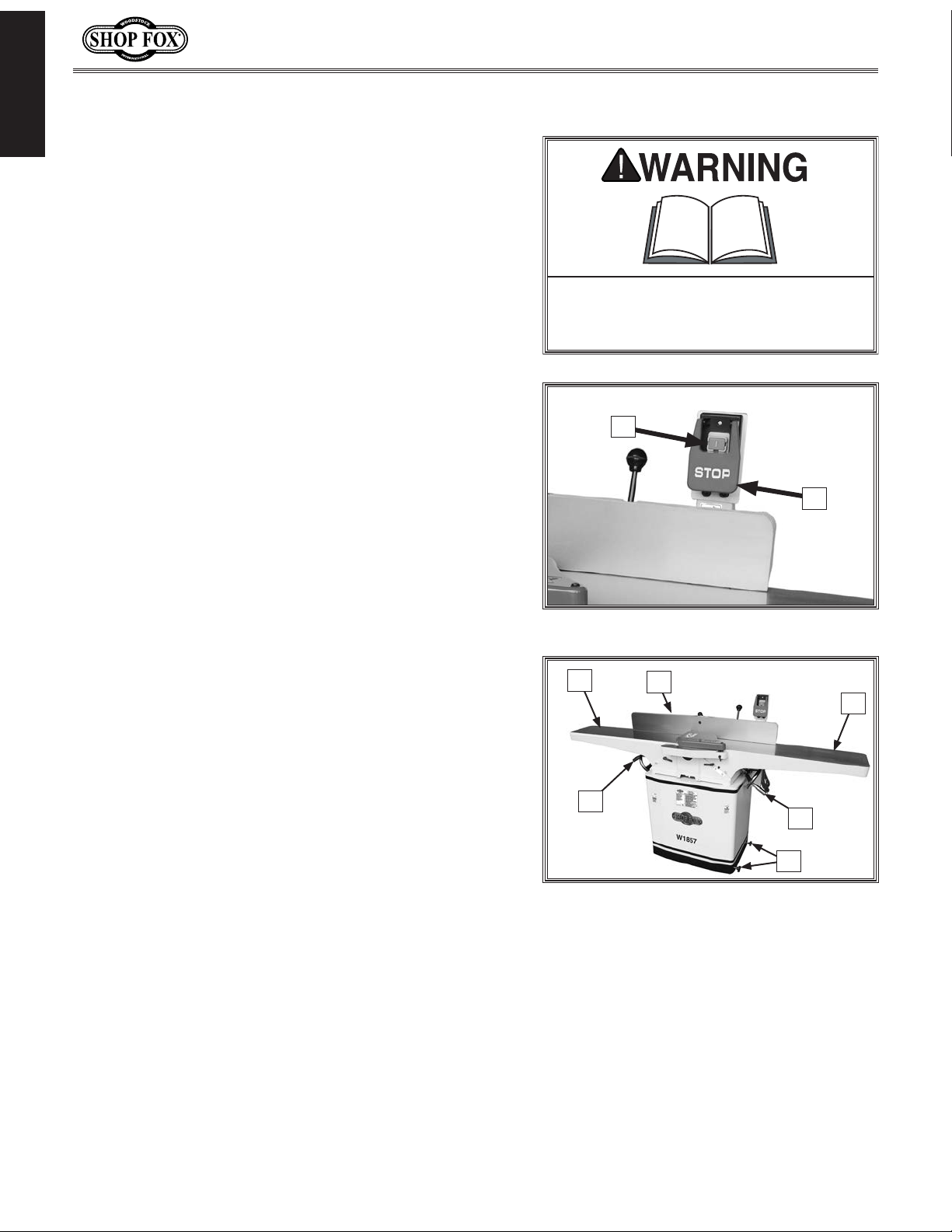

Controls & Components

SAFETY ............................................. 10

Standard Machinery Safety Instructions
Additional Safety for Jointers

ELECTRICAL ....................................... 13

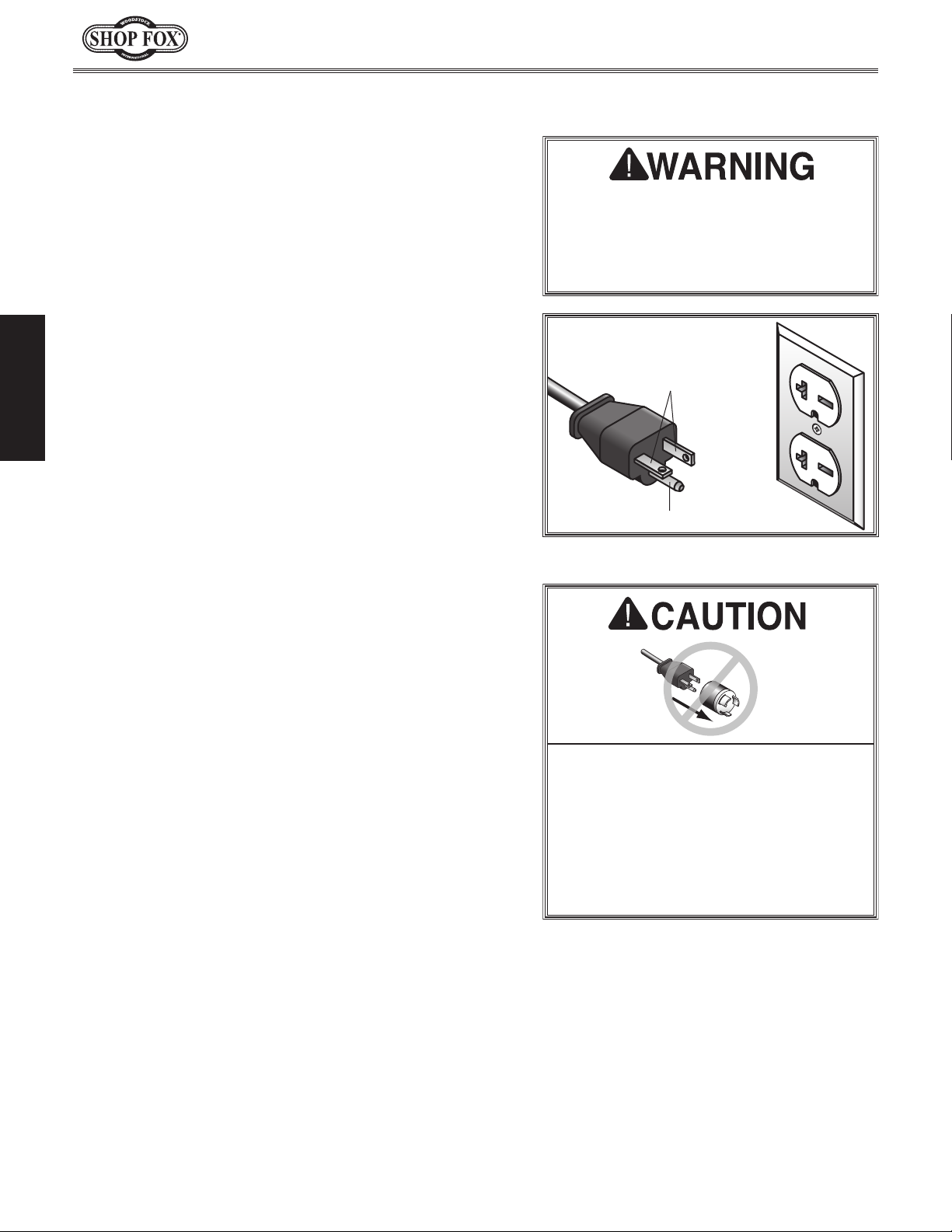

Circuit Requirements
Grounding Requirements
Extension Cords

SETUP .............................................. 15

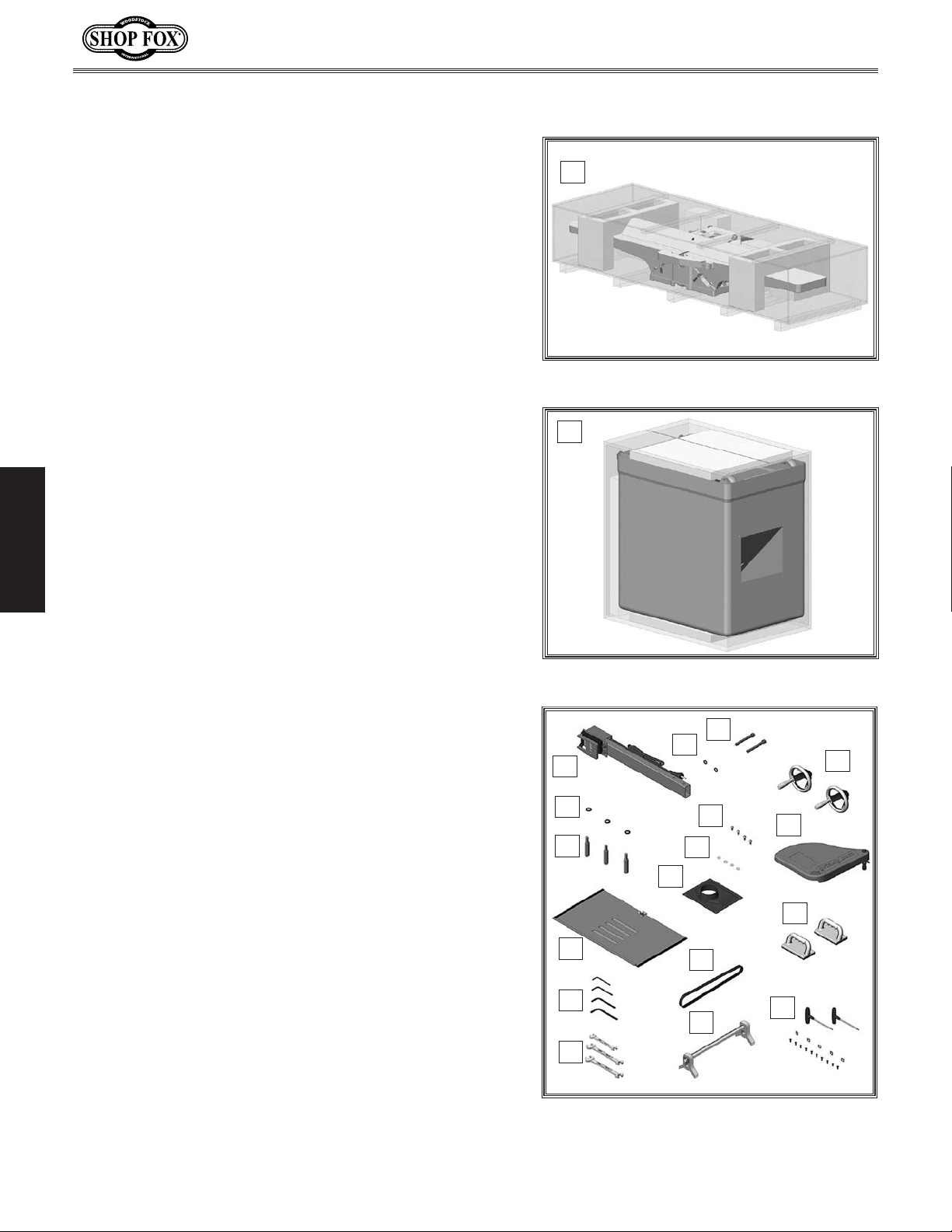

Unpacking
Items Needed for Setup
Inventory
Cleaning Machine

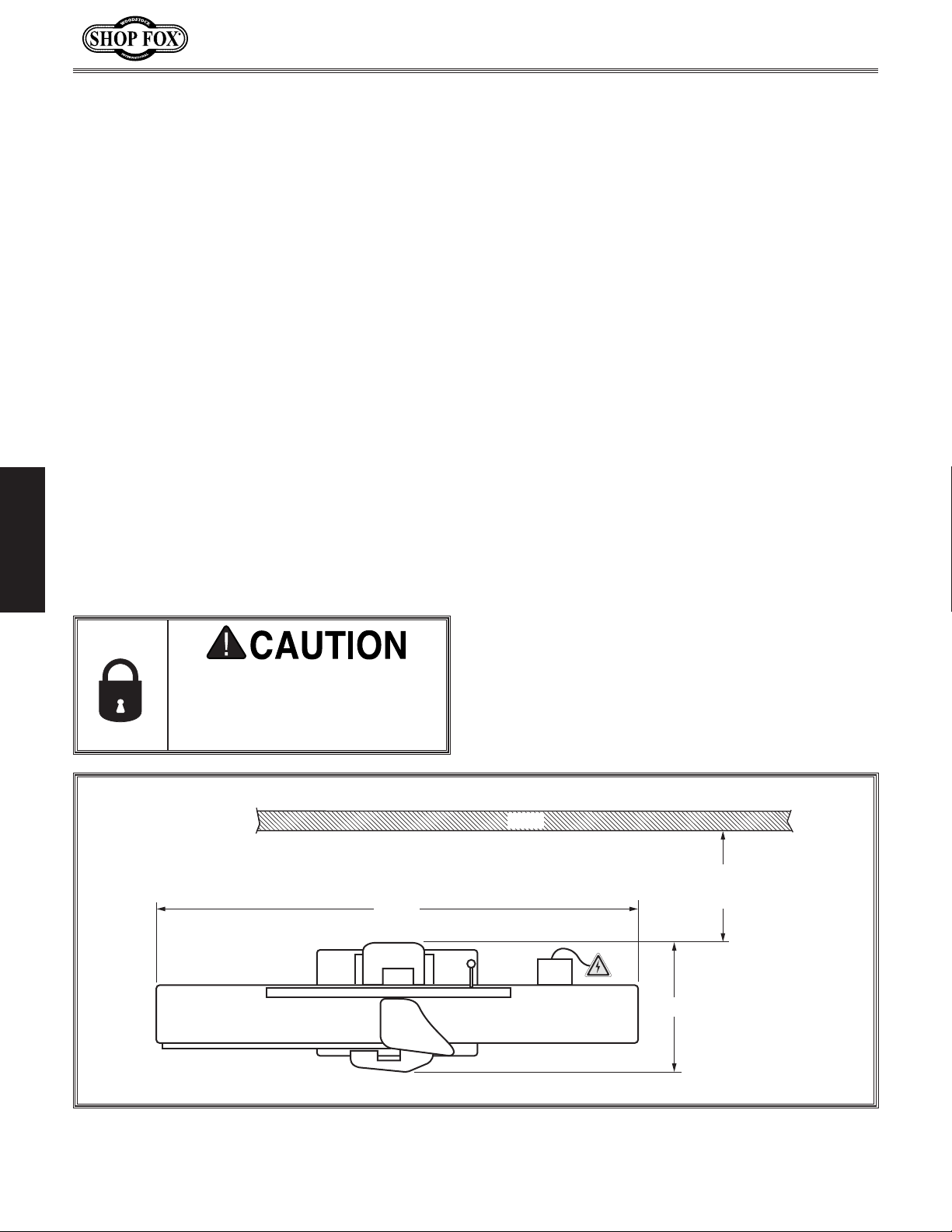

Machine Placement
Assembly

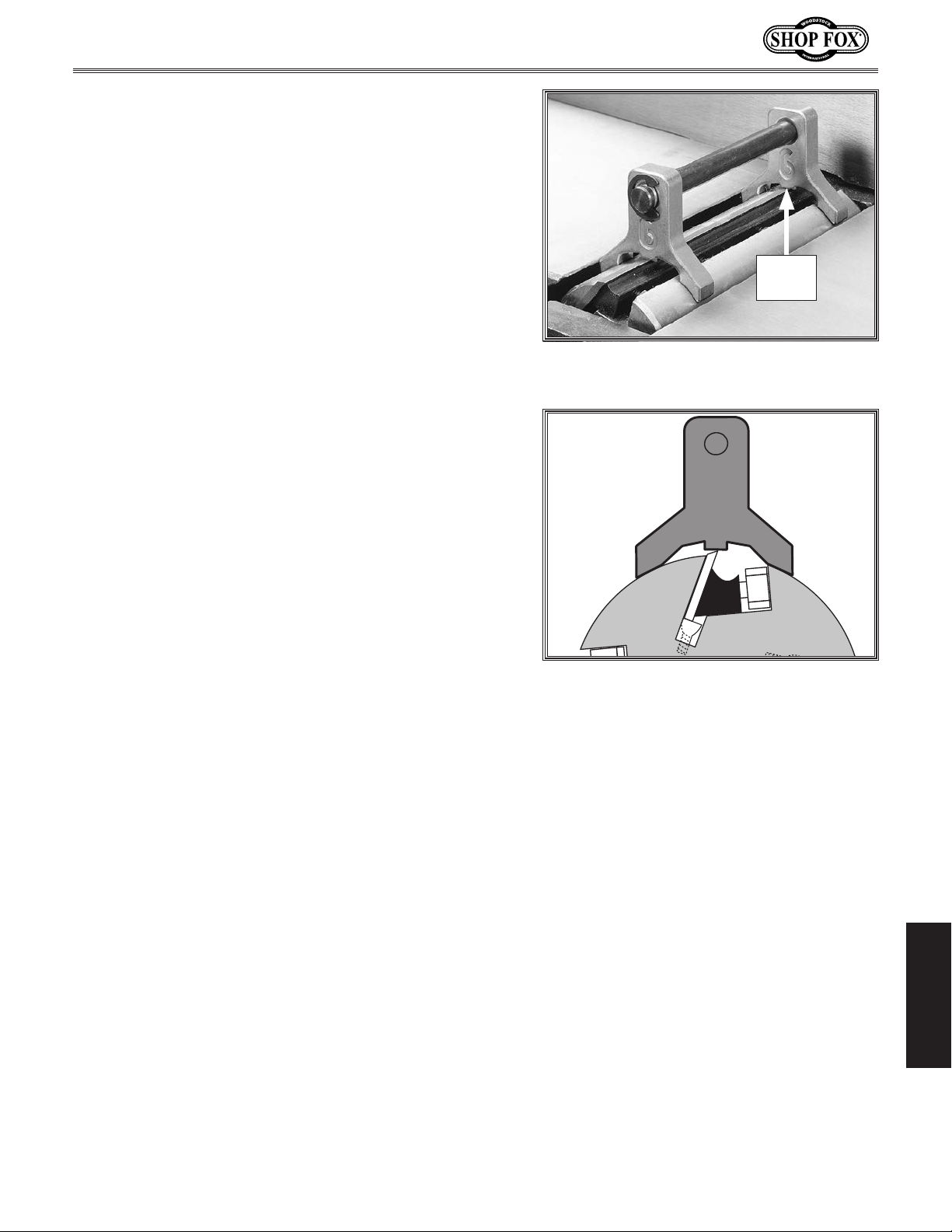

Knife-Setting Jig (W1857)

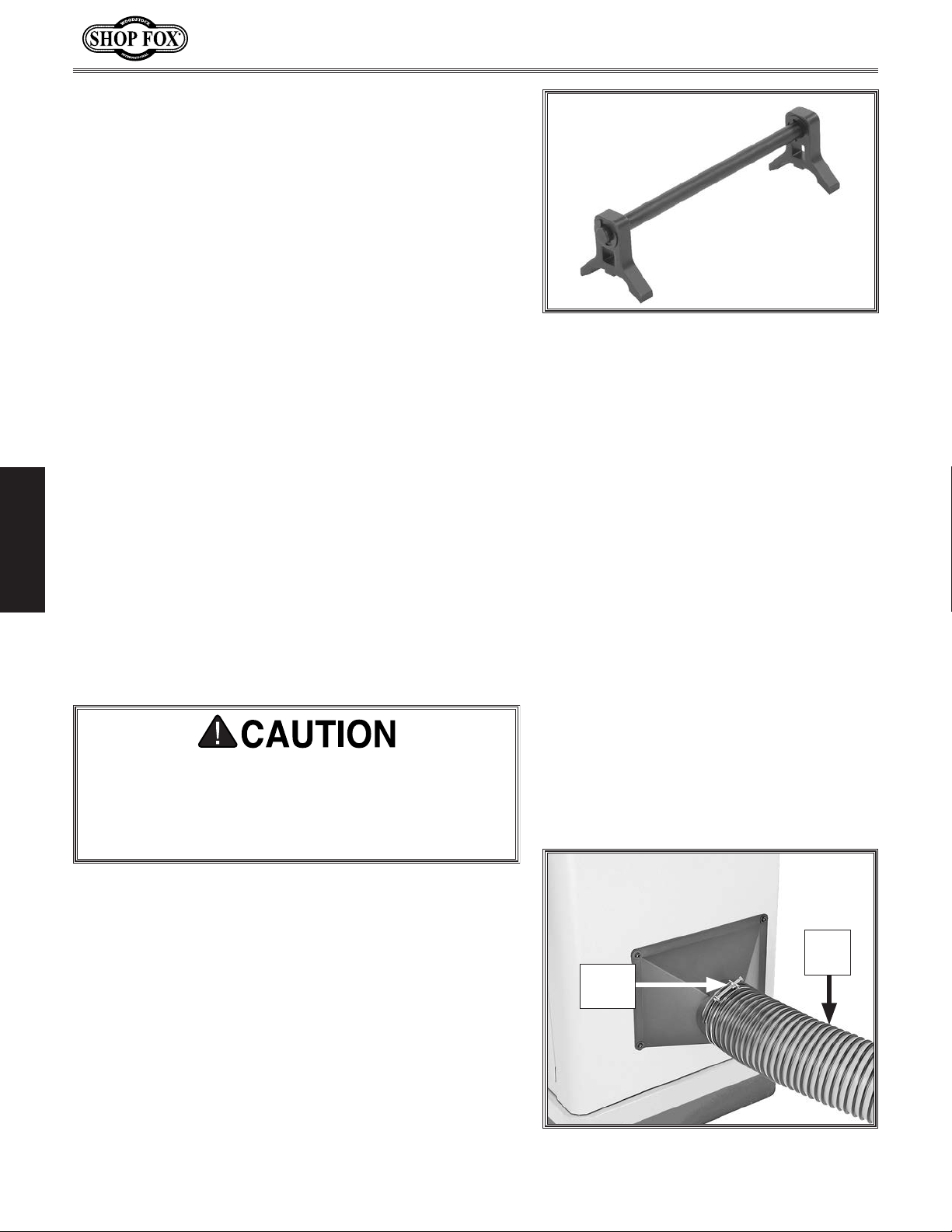

Dust Collection
Test Run
Tensioning Belt

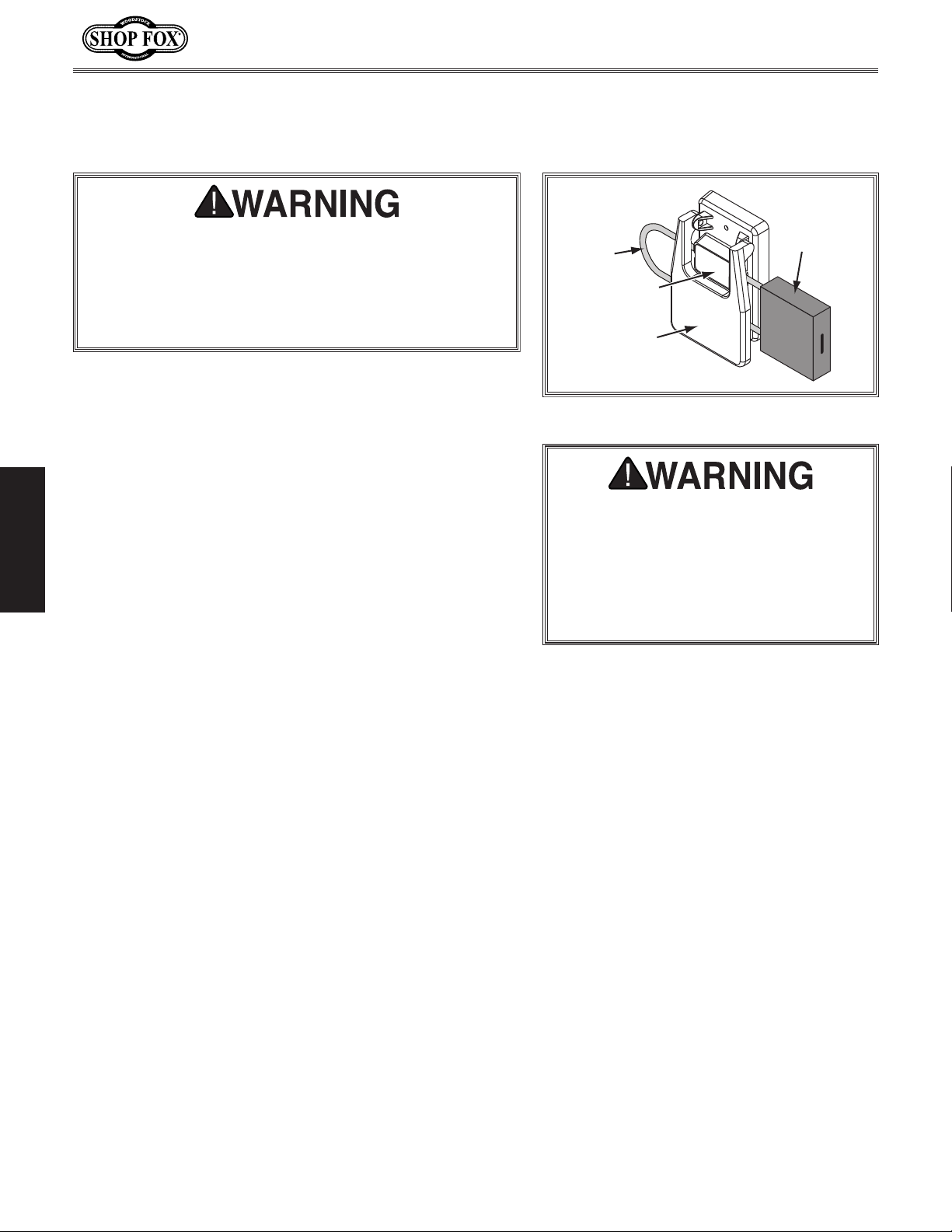

Disabling & Locking Switch

..................................... 7

....................................... 15

........................................ 16

......................................... 19

.......................................... 25

............................. 2

.................. 2

............... 3

............... 5

......................... 8

.... 10

................ 12

.......................... 13

...................... 14

................................ 14

....................... 15

............................... 17

............................ 18

..................... 24

................................. 24

................................. 25

................... 26

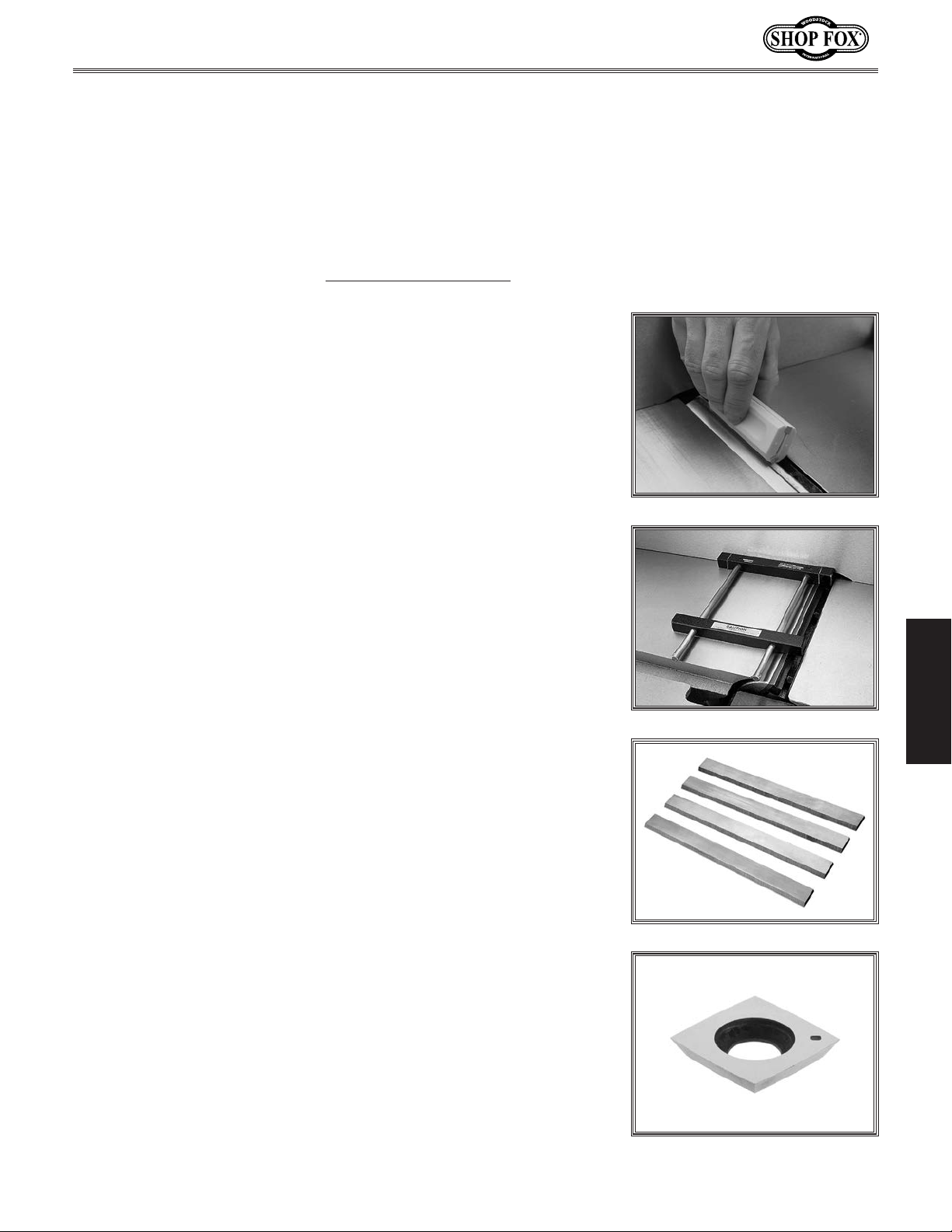

ACCESSORIES ...................................... 37

Jointer Accessories

MAINTENANCE .................................... 39

General
Cleaning & Protecting
Lubrication

SERVICE ............................................ 41

General

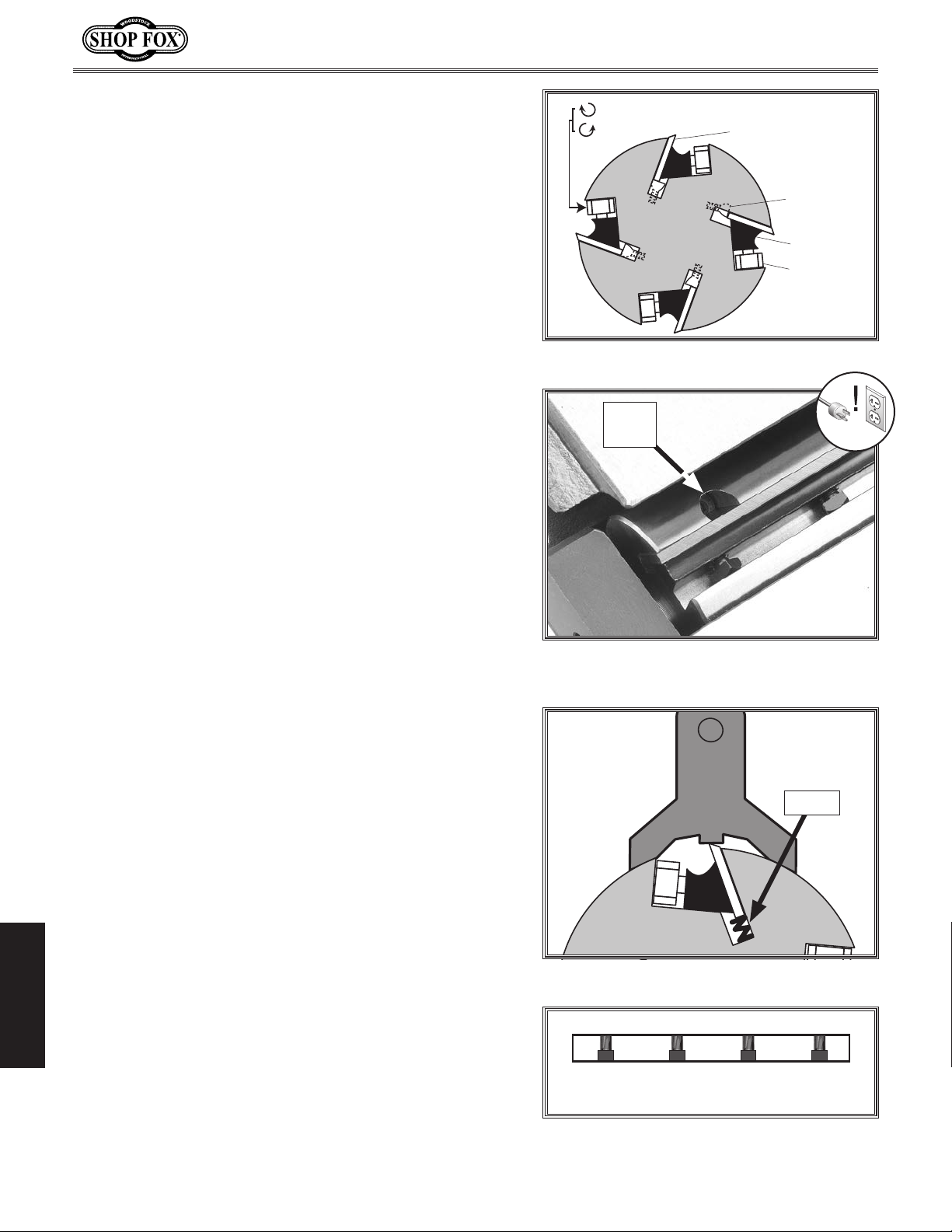

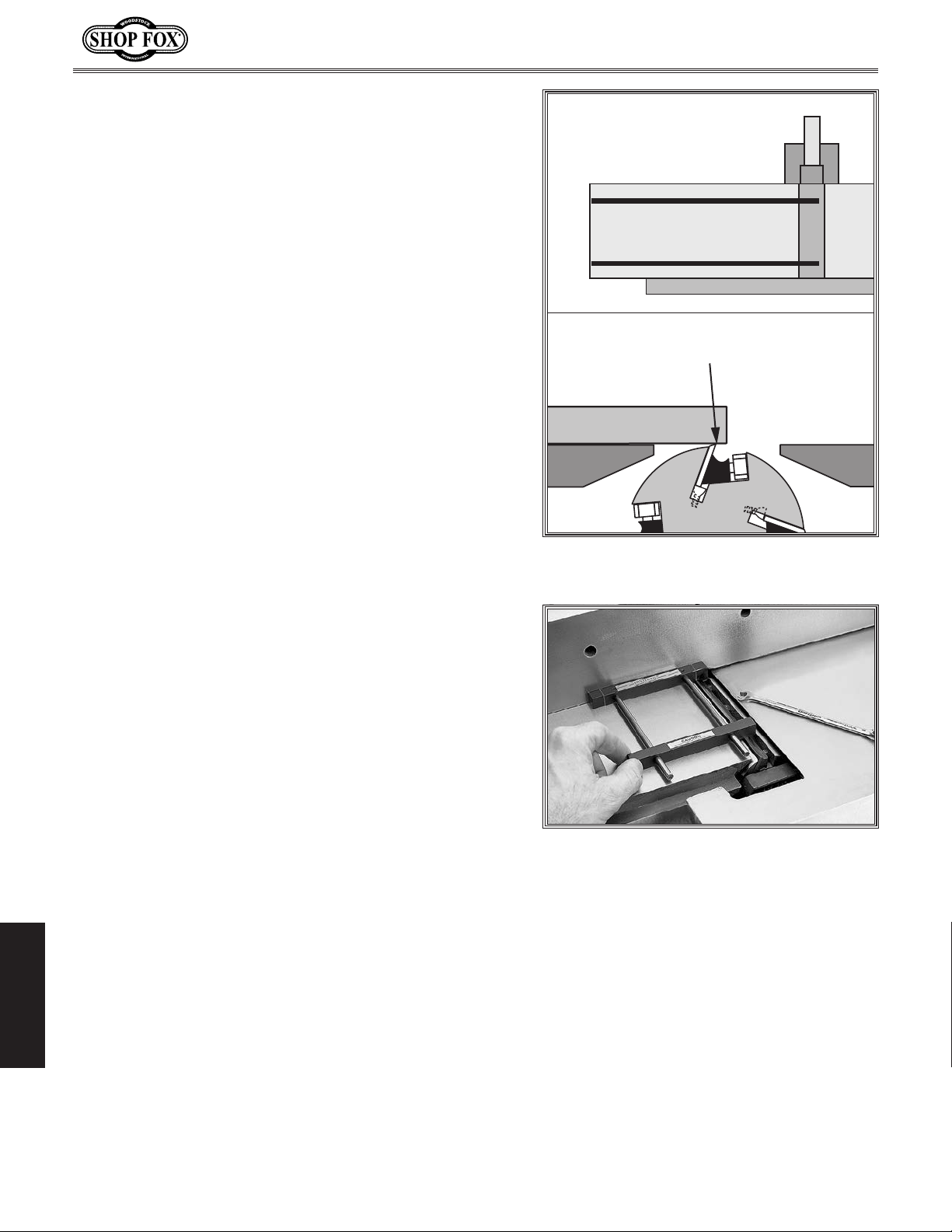

Setting/Replacing Knives (W1857)

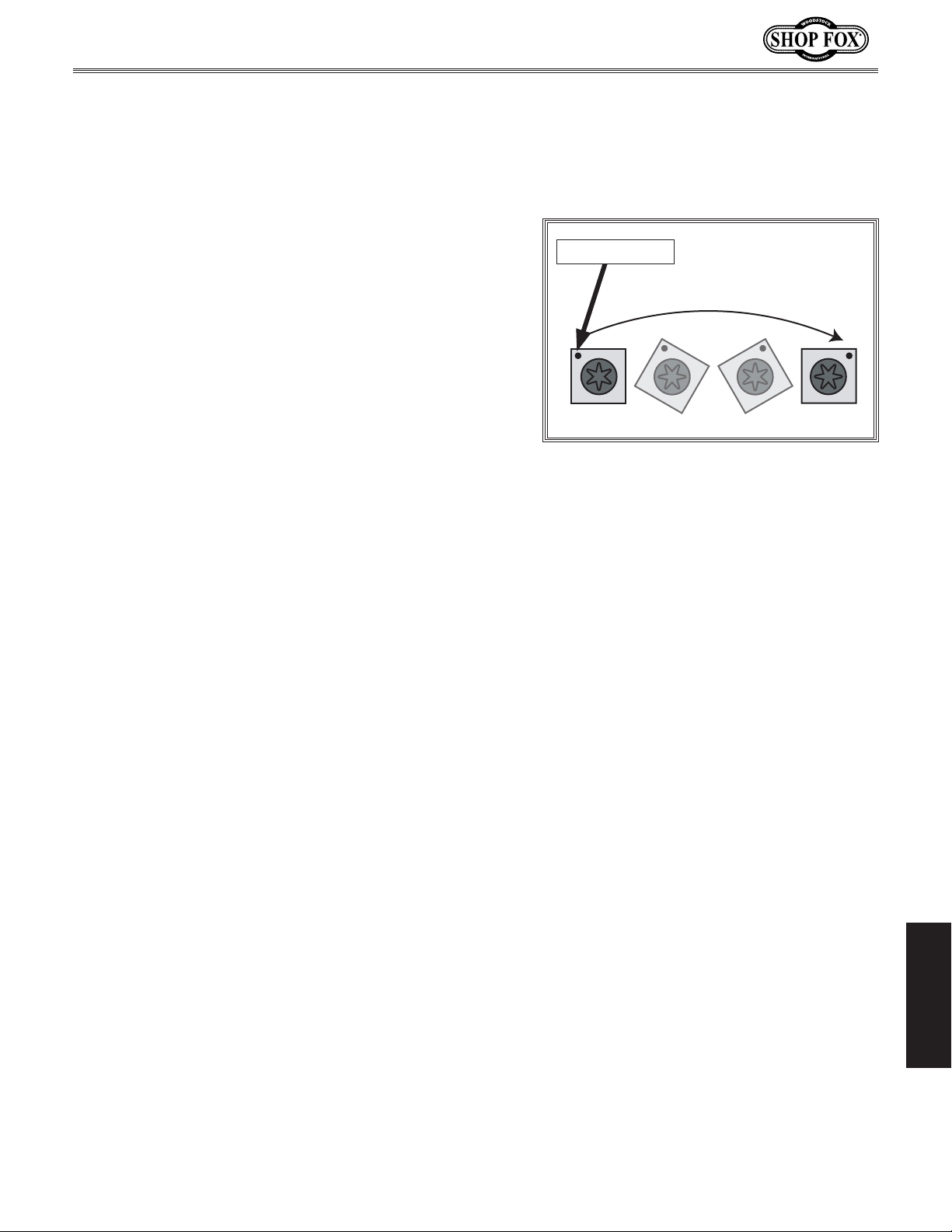

Rotating/Replacing Helical
Cutterhead Inserts (W1858)

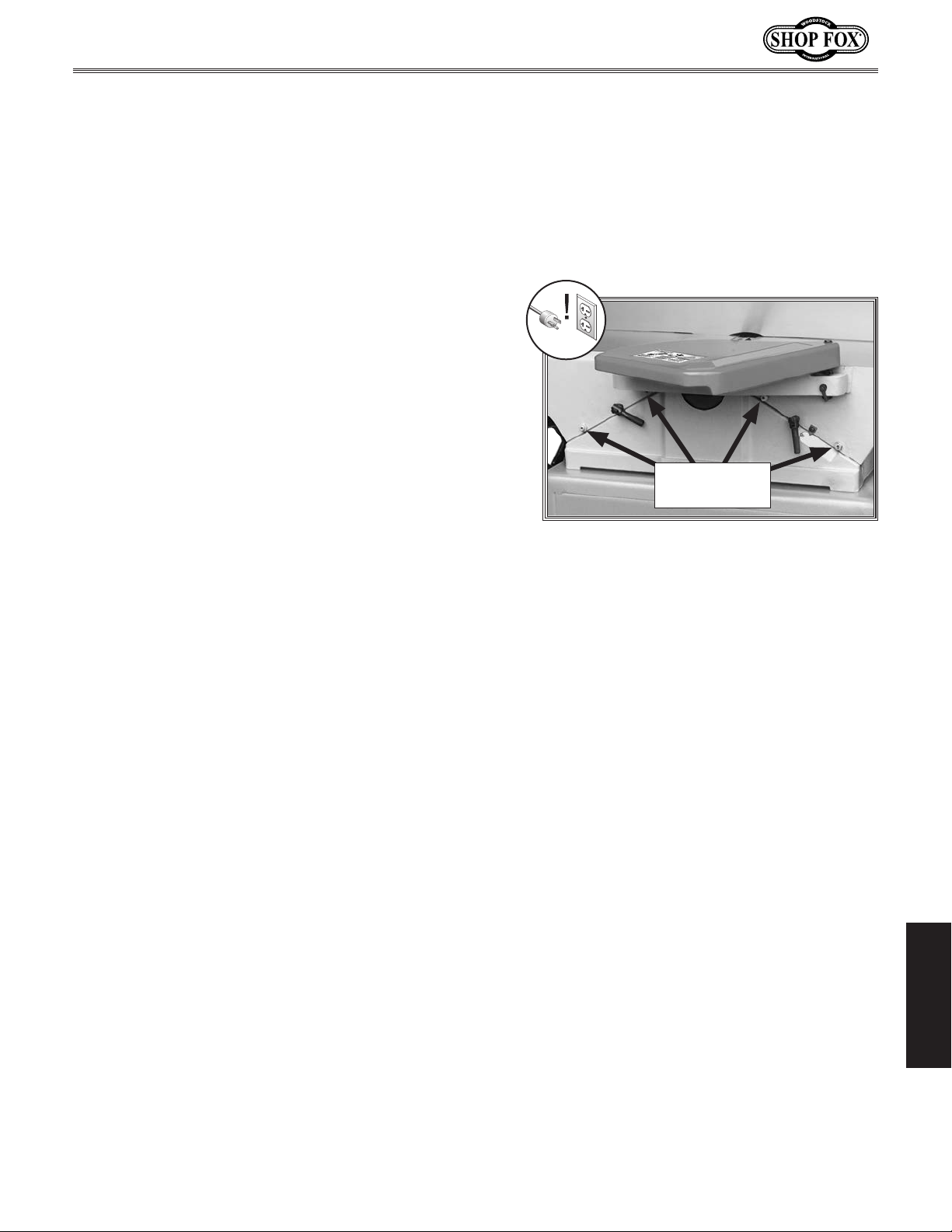

Adjusting Gibs
Checking/Adjusting Table Parallelism

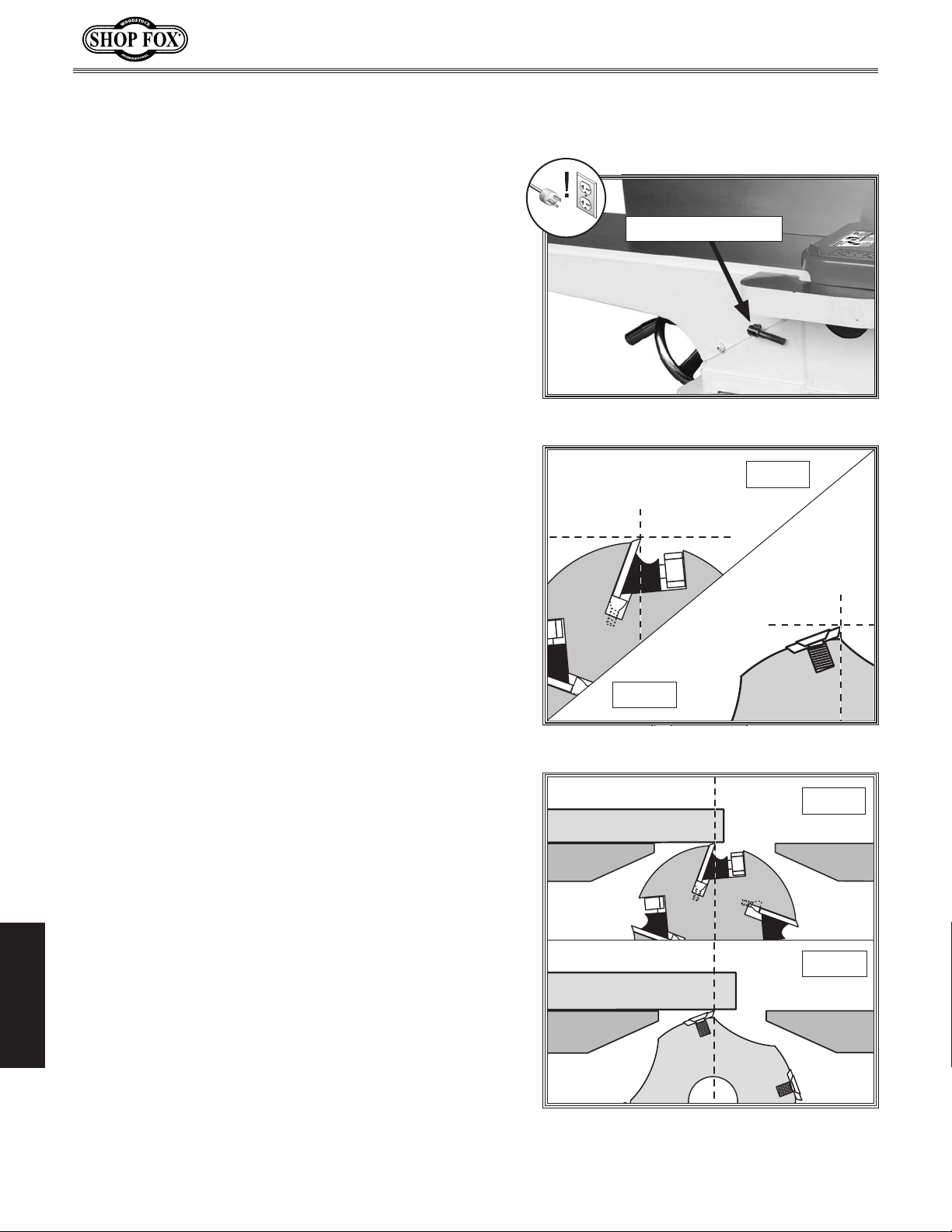

Setting Outfeed Table Height
Setting Fence Stops
Calibrating Depth-of-Cut Scale

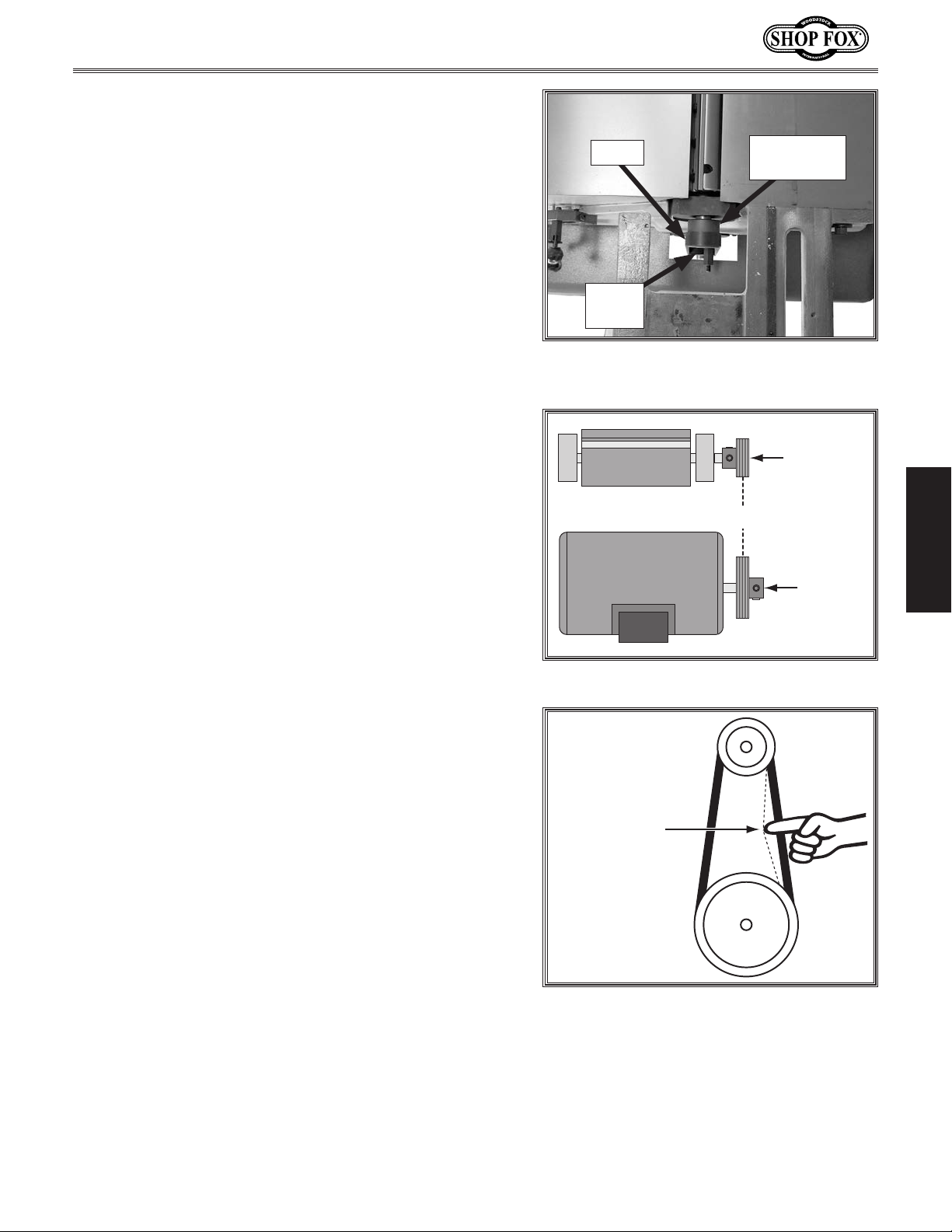

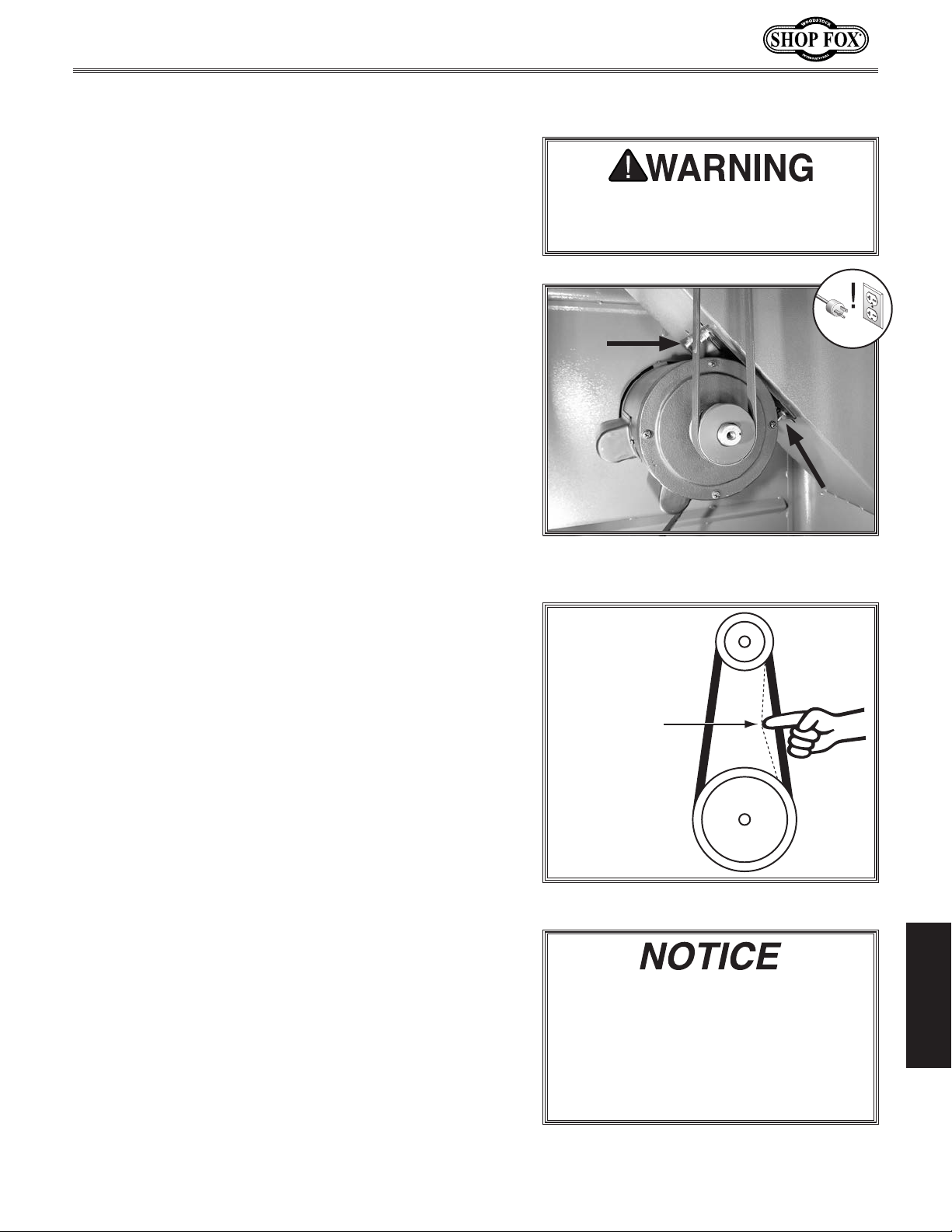

Tensioning/Replacing Belt

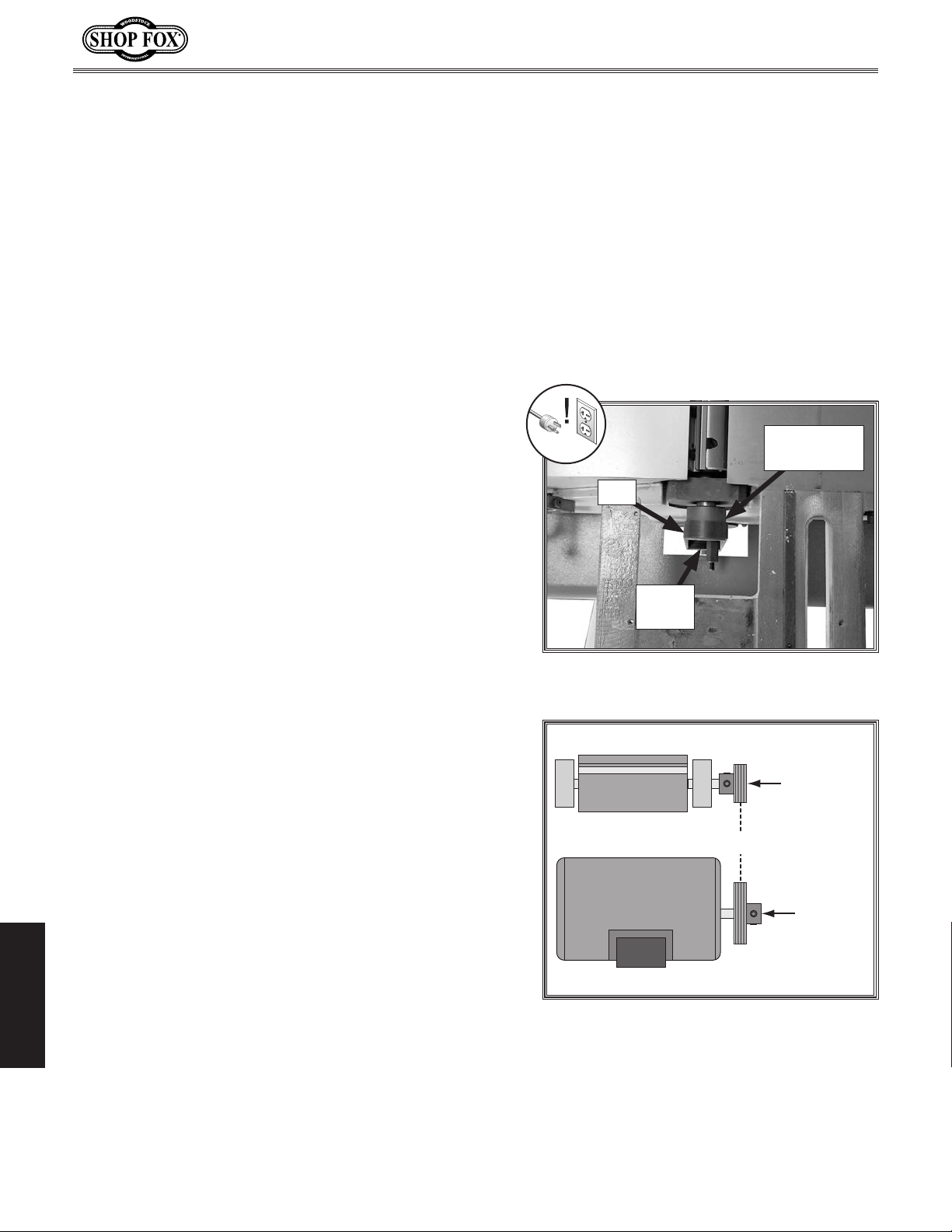

Checking/Aligning Pulleys
Checking/Adjusting Cutterhead Guard
Troubleshooting
Electrical Safety Instructions

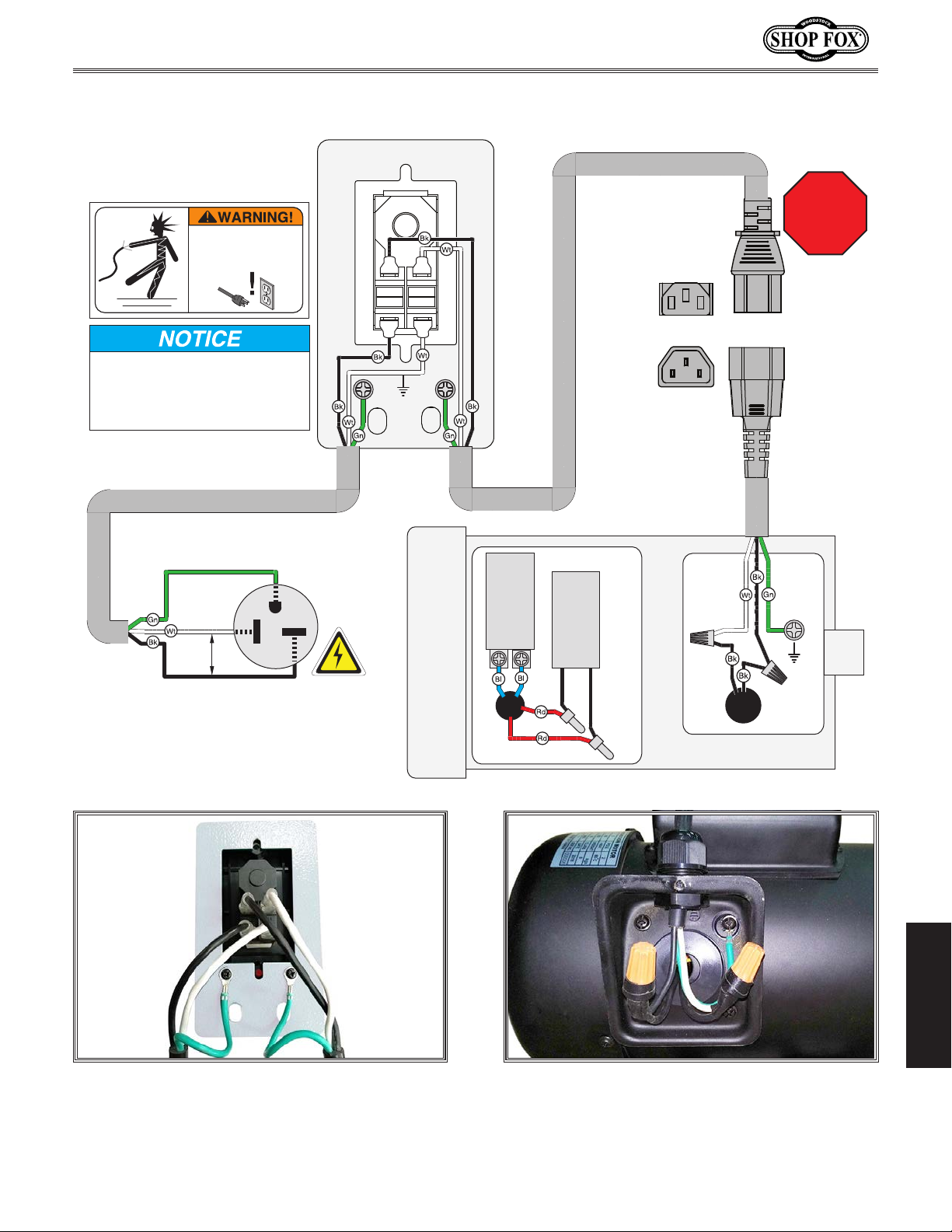

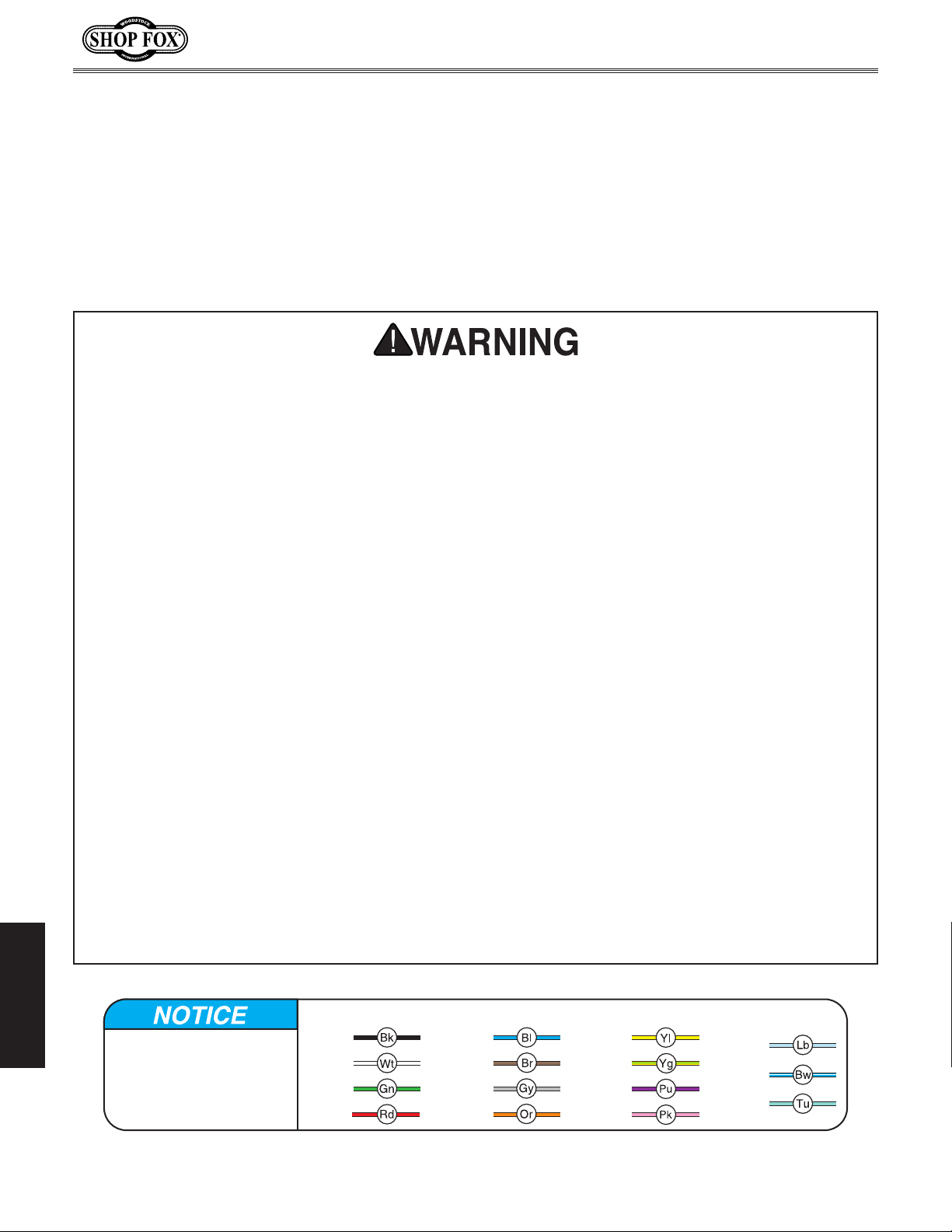

Wiring Diagram

PARTS .............................................. 62

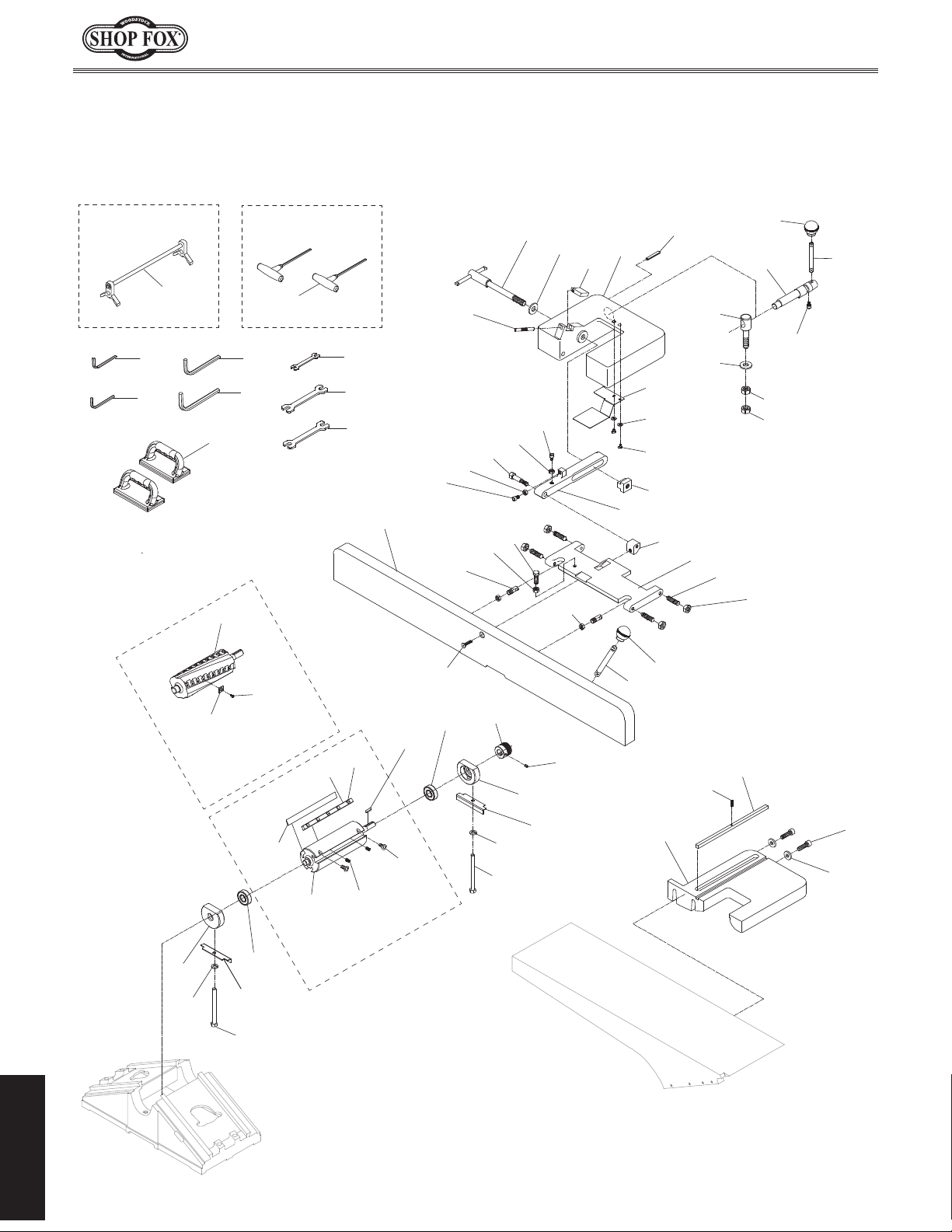

Fence & Cutterhead

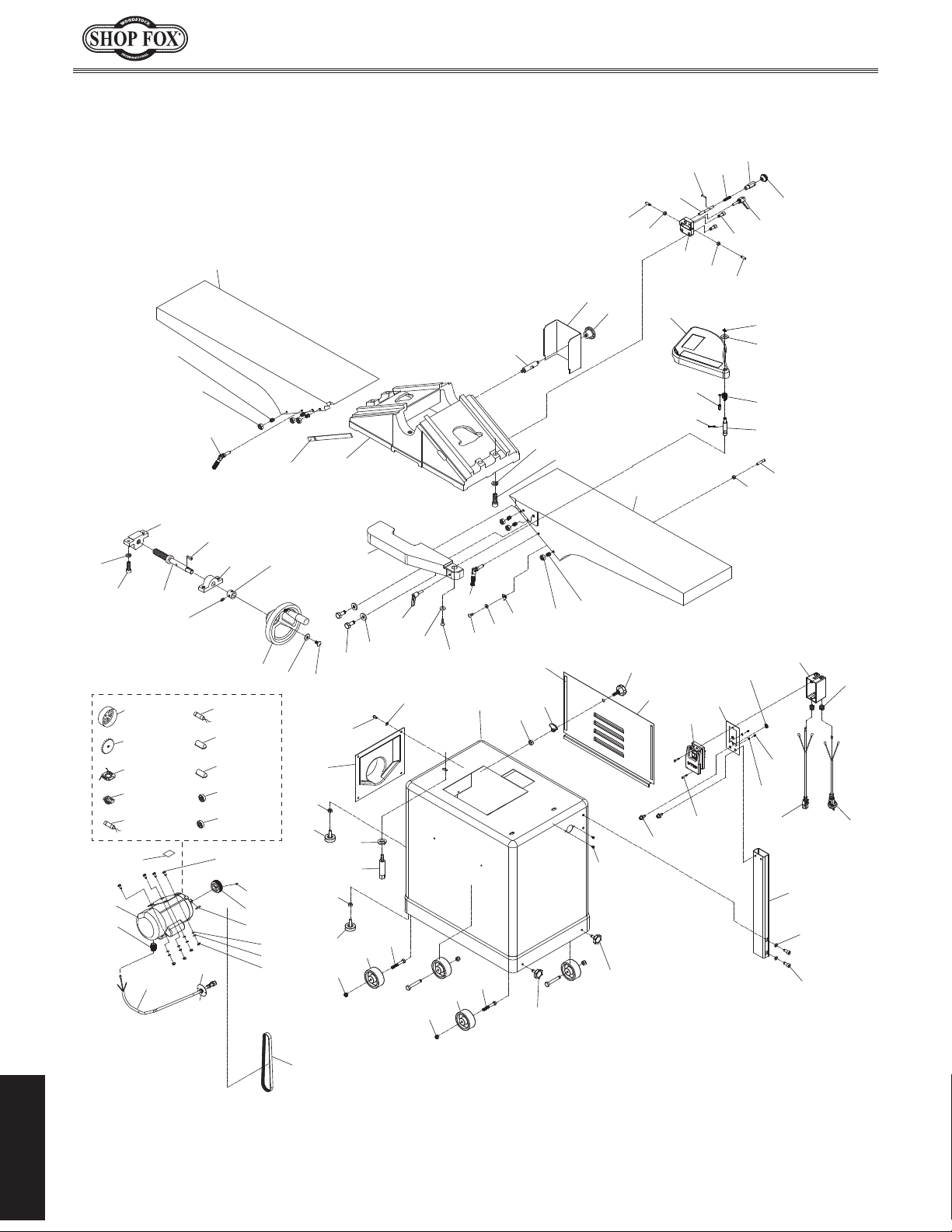

Tables, Base, Stand & Motor

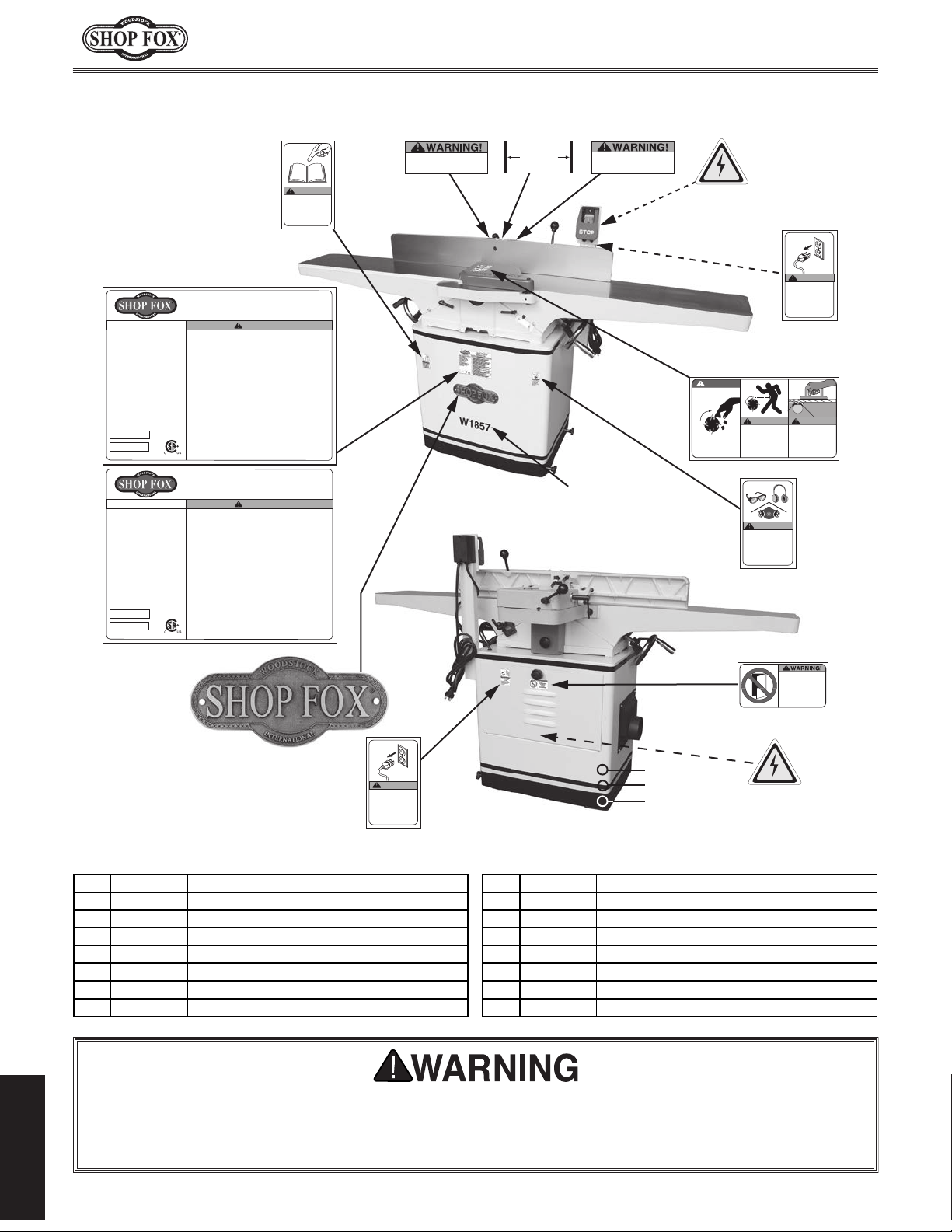

Labels & Cosmetics

.......................................... 39

...................................... 40

.......................................... 41

............................. 37

......................... 39

........... 41

.................. 45

.................................. 47

...... 48

................ 50

............................ 51

.............. 54

.................... 55

.................... 56

..... 57

................................. 58

................. 60

................................. 61

........................... 62

................. 63

............................ 66

SAFETYINTRODUCTION

SETUPELECTRICAL MAINTENANCE

OPERATIONS

OPERATIONS....................................... 27

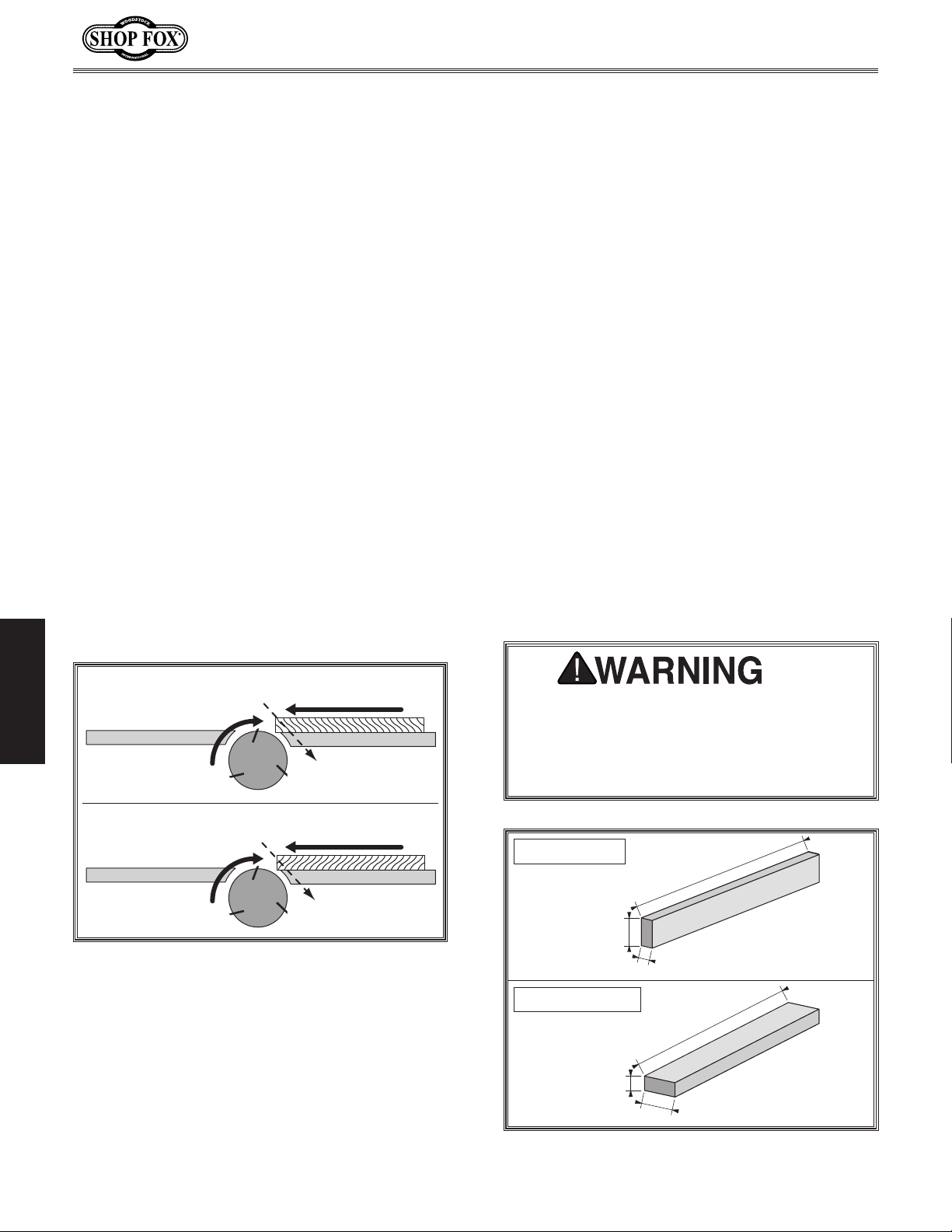

General

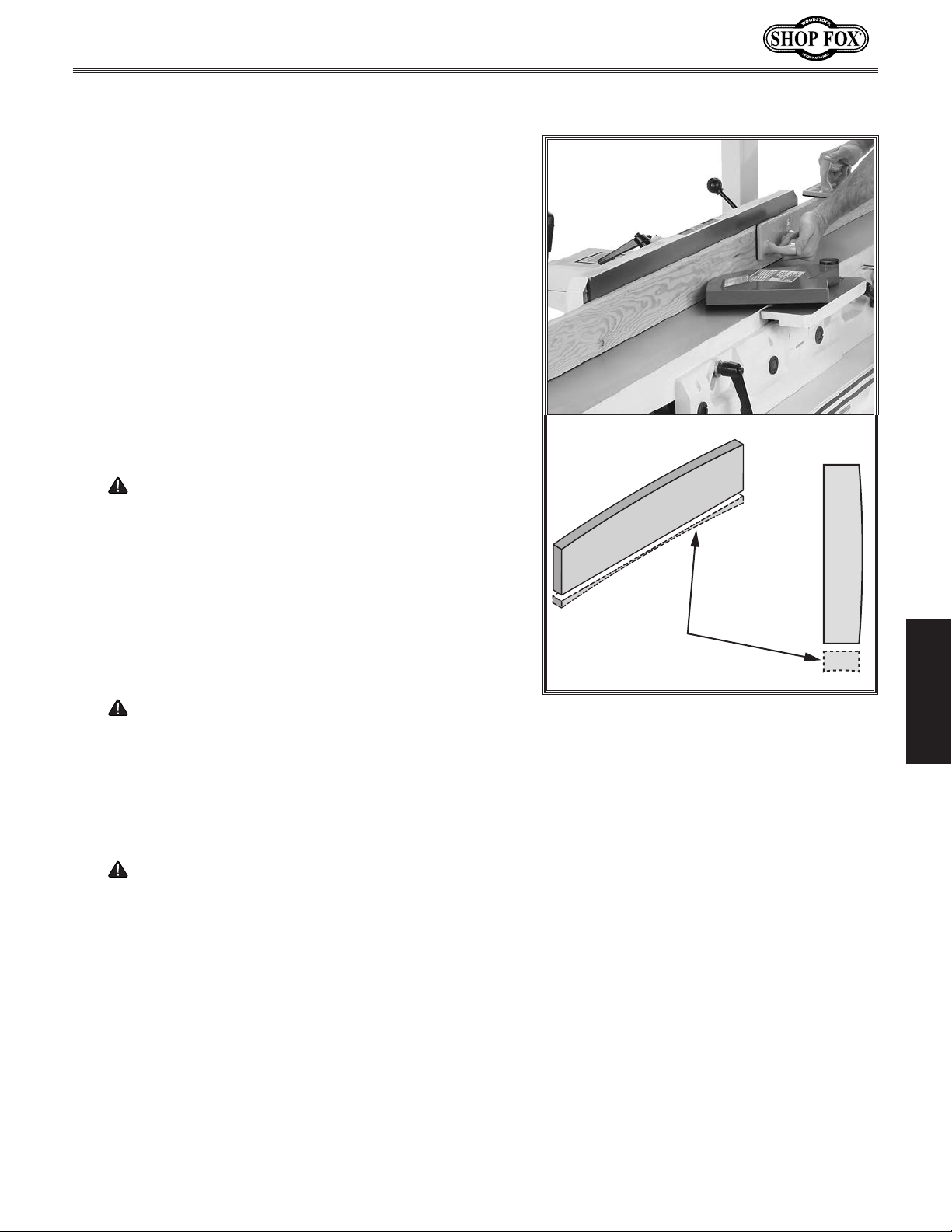

Stock Inspection

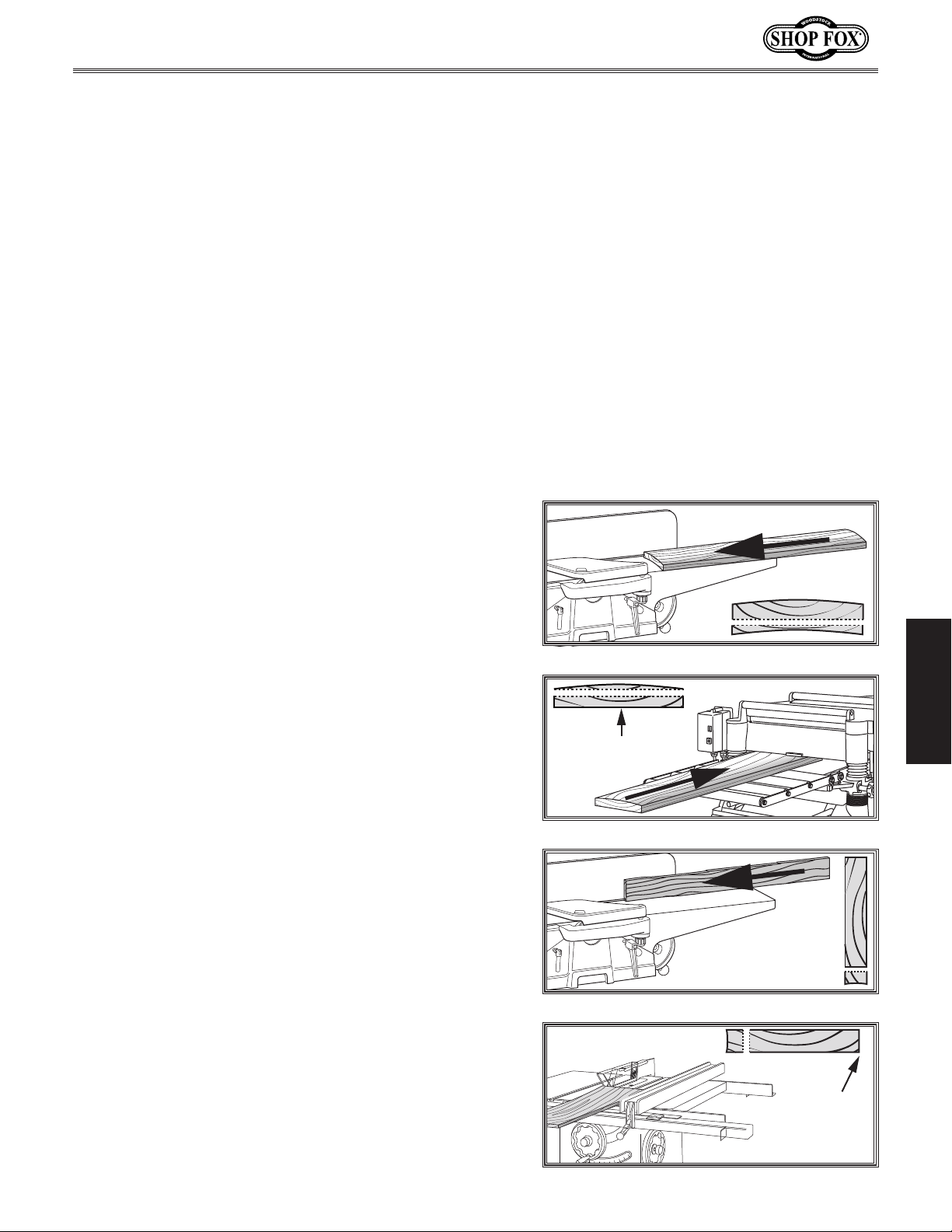

Squaring Stock
Surface Planing

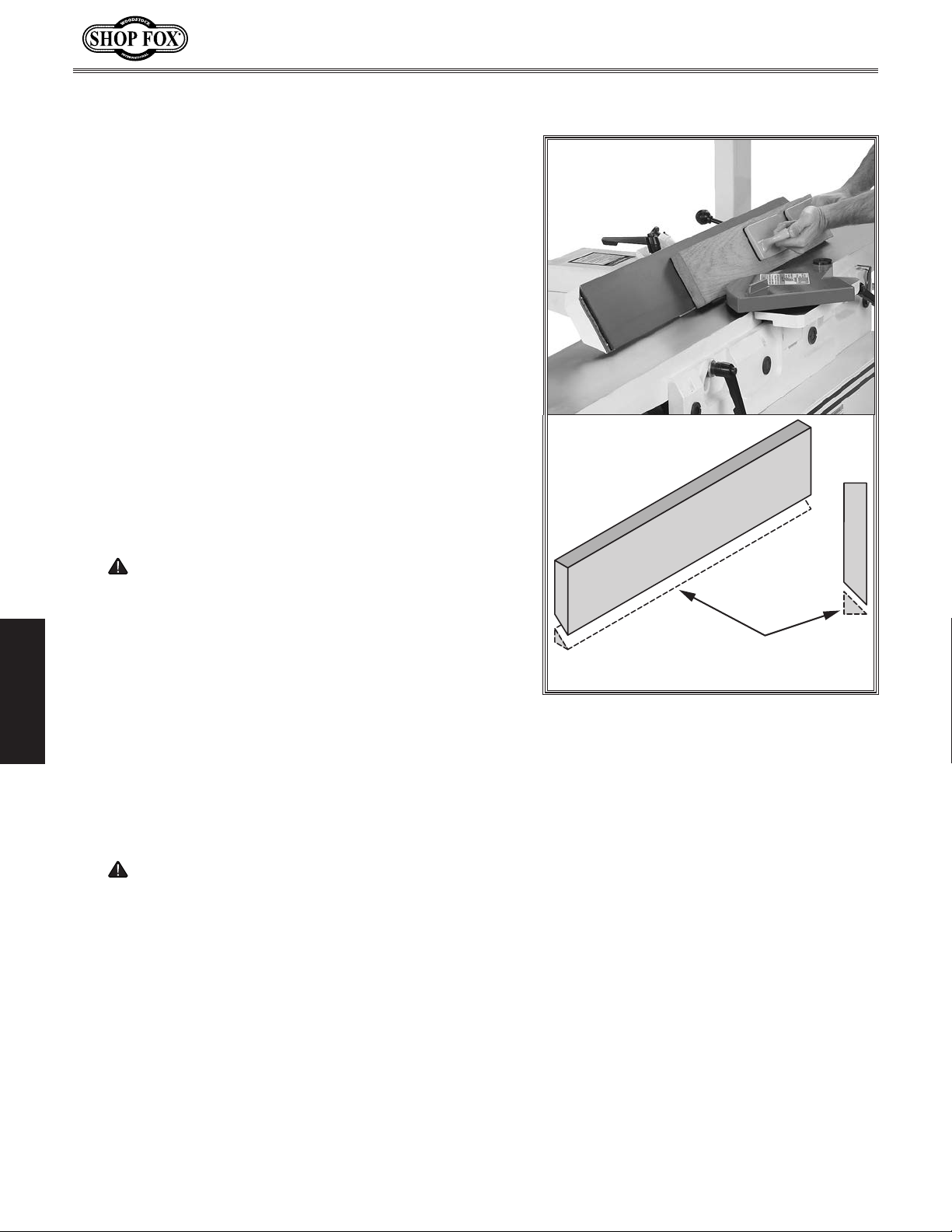

Edge Jointing
Bevel Cutting

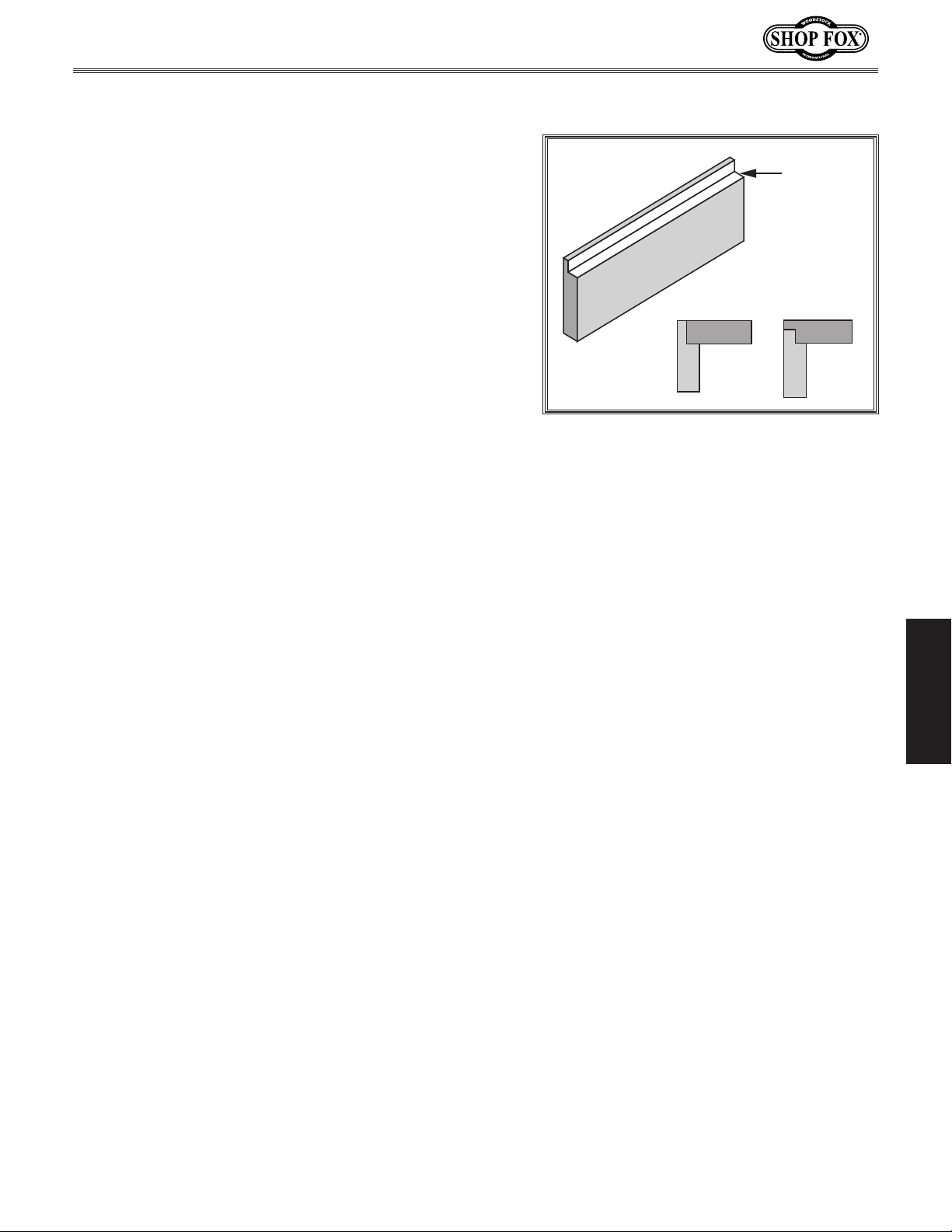

Rabbet Cutting
Setting Depth of Cut

.......................................... 27

................................ 28

.................................. 29

................................. 30

................................... 31

................................... 32

................................. 33

........................... 35

WARRANTY ........................................ 69

USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!

SERVICE PARTS

Model W1857/W1858 (For Machines Mfd. Since 01/21)

INTRODUCTION

INTRODUCTION

Machine Differences

Models W1857 and W1858 are 3 HP, 8" x 72" jointers with the following differences:

• Model W1857 has a 4-knife cutterhead with high-speed steel knives.

• Model W1858 has a helical cutterhead with 4 helicals and 36 indexable carbide inserts.

Woodstock Technical Support

This machine has been specially designed to provide many years of trouble-free service. Close attention
to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to
include the basic information for safety, setup, operation, maintenance, and service of this product.

We stand behind our machines! In the event that questions arise about your machine, please contact
Woodstock International Technical Support at [phone] or send e-mail to: tech-support@shopfox.
biz. Our knowledgeable staff will help you troubleshoot problems and process warranty claims.

If you need the latest edition of this manual, you can download it from http://www.shopfox.biz.
If you have comments about this manual, please contact us at:

Woodstock International, Inc.

Attn: Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

Email: [email protected]

-2-

Machine Specifications (W1857)

Model W1857/W1858 (For Machines Mfd. Since 01/21)

MODEL W1857

8" DOVETAIL JOINTER WITH MOBILE BASE

Product Dimensions

Weight.......................................................................................................... 335 lbs.

Width (side‐to‐side) x Depth (front‐to‐back) x Height.............................. 72‐1/2 x 25‐1/2 x 42 in.

Footprint (Length x Width)......................................................................... 23‐1/2 x 17 in.

Shipping Dimensions

Carton #1

Type................................................................................................ Wood Crate

Content................................................................................................. Machine

Weight................................................................................................... 373 lbs.

Length x Width x Height..................................................................... 74 x 25 x 15 in.

Must Ship Upright........................................................................................... Yes

Carton #2

Type............................................................................................. Cardboard Box

Content.................................................................................................... Stand

Weight................................................................................................... 115 lbs.

Length x Width x Height..................................................................... 26 x 18 x 27 in.

Must Ship Upright........................................................................................... Yes

Electrical

Power Requirement.................................................................... 230V, Single‐Phase, 60 Hz

Motor Size......................................................................................................... 3 HP

Full‐Load Current Rating......................................................................................... 12A

Minimum Circuit Size............................................................................................. 20A

Connection Type......................................................................................... Cord & Plug

Power Cord Included.............................................................................................. Yes

Power Cord Length............................................................................................... 6 ft.

Power Cord Gauge............................................................................................ 14 AWG

Plug Included....................................................................................................... Yes

Included Plug Type............................................................................................... 6‐20

Switch Type................................................... Push Button Magnetic w/Large Shut‐Off Paddle

INTRODUCTION

Motors

Main

Horsepower................................................................................................. 3 HP

Phase.............................................................................................. Single‐Phase

Amps.......................................................................................................... 12A

Speed.................................................................................................. 3450 RPM

Type......................................................................... TEFC Capacitor‐Start Induction

Power Transfer ..................................................................................... Belt Drive

Bearings................................................................. Sealed & Permanently Lubricated

Centrifugal Switch/Contacts Type................................................................. External

-3-

Main Specifications

INTRODUCTION

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Main Specifications

Jointer Size................................................................................................. 8 in.

Bevel Jointing................................................................................. 0 – 45 deg. L/R

Maximum Width of Cut................................................................................... 8 in.

Maximum Depth of Cut................................................................................ 1/8 in.

Minimum Workpiece Length............................................................................ 10 in.

Minimum Workpiece Thickness....................................................................... 1/2 in.

Maximum Rabbeting Depth............................................................................ 1/2 in.

Number of Cuts Per Minute............................................................................ 22,000

Fence Information

Fence Length............................................................................................. 38 in.

Fence Width........................................................................................... 1‐1/4 in.

Fence Height.......................................................................................... 4‐5/8 in.

Fence Stops.................................................................................. 45, 90, 135 deg.

Cutterhead Information

Cutterhead Type........................................................................................ 4 Knife

Cutterhead Diameter............................................................................... 3‐1/16 in.

Cutterhead Speed................................................................................... 5500 RPM

Knife Information

Number of Knives.............................................................................................. 4

Knife Type................................................................................... HSS, Single‐Sided

Knife Length................................................................................................ 8 in.

Knife Width.............................................................................................. 3/4 in.

Knife Thickness......................................................................................... 1/8 in.

Knife Adjustment.................................................................... Jack Screws or Springs

Table Information

Table Length.............................................................................................. 72 in.

Table Width................................................................................................ 9 in.

Table Thickness....................................................................................... 1‐3/4 in.

Floor to Table Height.................................................................................... 32 in.

Table Adjustment Type.......................................................................... Handwheels

Table Movement Type...................................................................... Dovetailed Ways

Construction

Body Assembly........................................................................................ Cast Iron

Cabinet............................................................................................. Sheet Metal

Fence Assembly................................................................. Precision‐Ground Cast Iron

Guard...................................................................................... Die‐Cast Aluminum

Table............................................................................. Precision‐Ground Cast Iron

Paint Type/Finish............................................................................. Powder Coated

Other Information

Number of Dust Ports......................................................................................... 1

Dust Port Size.............................................................................................. 4 in.

Mobile Base............................................................................................. Built‐In

-4-

Machine Specifications (W1858)

Model W1857/W1858 (For Machines Mfd. Since 01/21)

MODEL W1858

8" DOVETAIL JOINTER WITH HELICAL CUTTERHEAD & MOBILE BASE

Product Dimensions

Weight.......................................................................................................... 335 lbs.

Width (side‐to‐side) x Depth (front‐to‐back) x Height.............................. 72‐1/2 x 25‐1/2 x 42 in.

Footprint (Length x Width)......................................................................... 23‐1/2 x 17 in.

Shipping Dimensions

Carton #1

Type................................................................................................ Wood Crate

Content................................................................................................. Machine

Weight................................................................................................... 373 lbs.

Length x Width x Height..................................................................... 74 x 25 x 15 in.

Must Ship Upright........................................................................................... Yes

Carton #2

Type............................................................................................. Cardboard Box

Content.................................................................................................... Stand

Weight................................................................................................... 115 lbs.

Length x Width x Height..................................................................... 26 x 18 x 27 in.

Must Ship Upright........................................................................................... Yes

Electrical

Power Requirement.................................................................... 230V, Single‐Phase, 60 Hz

Motor Size......................................................................................................... 3 HP

Full‐Load Current Rating......................................................................................... 12A

Minimum Circuit Size............................................................................................. 20A

Connection Type......................................................................................... Cord & Plug

Power Cord Included.............................................................................................. Yes

Power Cord Length............................................................................................... 6 ft.

Power Cord Gauge............................................................................................ 14 AWG

Plug Included....................................................................................................... Yes

Included Plug Type............................................................................................... 6‐20

Switch Type................................................... Push Button Magnetic w/Large Shut‐Off Paddle

INTRODUCTION

Motors

Main

Horsepower................................................................................................. 3 HP

Phase.............................................................................................. Single‐Phase

Amps.......................................................................................................... 12A

Speed.................................................................................................. 3450 RPM

Type......................................................................... TEFC Capacitor‐Start Induction

Power Transfer ..................................................................................... Belt Drive

Bearings................................................................. Sealed & Permanently Lubricated

Centrifugal Switch/Contacts Type................................................................. External

-5-

Main Specifications

Main Specifications

INTRODUCTION

Fence Information

Cutterhead Information

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Jointer Size................................................................................................. 8 in.

Bevel Jointing................................................................................. 0 – 45 deg. L/R

Maximum Width of Cut................................................................................... 8 in.

Maximum Depth of Cut................................................................................ 1/8 in.

Minimum Workpiece Length............................................................................ 10 in.

Minimum Workpiece Thickness....................................................................... 1/2 in.

Maximum Rabbeting Depth............................................................................ 1/2 in.

Number of Cuts Per Minute............................................................................ 22,000

Fence Length............................................................................................. 38 in.

Fence Width........................................................................................... 1‐1/4 in.

Fence Height.......................................................................................... 4‐5/8 in.

Fence Stops.................................................................................. 45, 90, 135 deg.

Cutterhead Type........................................................................................ Helical

Cutterhead Diameter............................................................................... 3‐1/16 in.

Number of Cutter Spirals..................................................................................... 4

Number of Indexable Cutters............................................................................... 36

Cutterhead Speed................................................................................... 5500 RPM

Cutter Insert Information

Cutter Insert Type........................................................................ Indexable Carbide

Cutter Insert Length.................................................................................... 15 mm

Cutter Insert Width..................................................................................... 15 mm

Cutter Insert Thickness............................................................................... 2.5 mm

Table Information

Table Length.............................................................................................. 72 in.

Table Width................................................................................................ 9 in.

Table Thickness....................................................................................... 1‐3/4 in.

Floor to Table Height.................................................................................... 32 in.

Table Adjustment Type.......................................................................... Handwheels

Table Movement Type...................................................................... Dovetailed Ways

Construction

Body Assembly........................................................................................ Cast Iron

Cabinet............................................................................................. Sheet Metal

Fence Assembly................................................................. Precision‐Ground Cast Iron

Guard...................................................................................... Die‐Cast Aluminum

Table............................................................................. Precision‐Ground Cast Iron

Paint Type/Finish............................................................................. Powder Coated

Other Information

Number of Dust Ports......................................................................................... 1

Dust Port Size.............................................................................................. 4 in.

Mobile Base............................................................................................. Built‐In

-6-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Become familiar with the names and locations of the controls and features shown below to better

Identification

INTRODUCTION

Outfeed

Table

Outfeed Table

Adjustment

Handwheel

Outfeed

Table Lock

Fence

Cutterhead

Infeed

Depth Stop

Guard

ON/STOP Switch

Depth-of-Cut

Adjustment Handwheel

Infeed

Table Lock

Mobile Base Lock Knobs

Fence Tilt

Handle

Fence Tilt Lock

Scale

Infeed

Table

Infeed Table

Belt Cover

Fence Lock

Lever

Rear Access

Panel

For Your Own Safety Read Instruction Manual Before Operating Jointer

a) Wear eye protection.
b) Always keep cutterhead and drive guards in place and in proper operating condition. If

removed, ALWAYS replace cutterhead guard immediately after rabbeting operations.
c) Never make cuts deeper than 1⁄8" per pass.
d) Always use hold-down or push blocks when jointing material narrower than 3" or planing

material thinner than 3".
e) Never perform jointing, planing, or rabbeting cuts on pieces shorter than 10" in length.

-7-

4" Dust

Port

Controls & Components

Refer to the Figures 1–5 and the following descriptions to

INTRODUCTION

become familiar with the basic controls and components
of this machine. Understanding these items and how they
work will help you understand the rest of the manual and
stay safe when operating this machine.

A. ON Button: Push to start motor. Insert padlock

through button to disable (padlock not included).

B. STOP Paddle: Push to stop motor.

C. Outfeed Table: Supports workpiece after it passes

over cutterhead. For optimum results, outfeed table
must be properly adjusted even with highest point of
cutterhead knives/inserts.

D. Fence: Supports workpiece laterally as it moves

across cutterhead; determines angle of cut when
edge or bevel jointing.

Model W1857/W1858 (For Machines Mfd. Since 01/21)

To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.

A

B

E. Infeed Table: Supports workpiece before it reaches

cutterhead. Position of infeed table relative to
cutterhead knives/inserts determines depth of cut.

F. Infeed Table Adjustment Handwheel: Rotate to

adjust position of infeed table (when infeed table
lock is loosened).

G. Mobile Base Lock Knobs: Tighten to secure jointer

in position; loosen to move jointer.

H. Outfeed Table Adjustment Handwheel: Rotate to

adjust position of outfeed table (when outfeed table
lock is loosened). Only used when setting outfeed
table even with cutterhead knives/inserts.

Figure 1. ON/STOP controls.

C

H

Figure 2. Table controls and components,

fence, and mobile base lock knobs.

D

E

F

G

-8-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

I. Outfeed Table Lock: Tighten to secure outfeed

table position; loosen for table adjustment.

J. Cutterhead Guard: Covers cutterhead until

workpiece pushes guard out of the way during
operation. When workpiece leaves cutterhead, guard
springs back to its starting position.

K. Infeed Table Lock: Tighten to secure infeed table

position; loosen for table adjustment.

INTRODUCTION

J KI

L

L. Depth-of-Cut Scale: Shows depth of cut (per pass).

M. 1⁄8" Infeed Table Stop Release Knob: Pull and hold

1

knob out to lower infeed table more than

⁄8". Infeed

table stop automatically sets depth of cut stop

1⁄8".

at

N. Infeed Depth Stop: Use to adjust infeed table

between finish/final cuts and shaping/heavy cuts.
Also limits movement range of infeed table.

O. Fence Tilt Handle: Use to tilt fence throughout its

range of motion from 45° inward to 45° outward
(135°). (Fence tilt lock must be loosened first.)

P. 90° Stop Block: Swivels to engage with 90° stop

bolt. When engaged, stops fence at 90°. When
disengaged, allows bevel cuts greater than 90°.

Q. 45° Inward Fence Stop: Stops fence at 45° inward.

R. 90° Fence Stop: Stops fence at 90°.

Figure 3. Table locks, cutterhead guard,

and depth-of-cut scale.

M

N

Figure 4. Infeed table stops.

Q

O

P

R

S

M

S. 45° Outward Fence Stop: Stops fence at 45°

outward (135°).

T. Fence Tilt Lock: Tighten to secure fence at any

position in available tilt range.

IMPORTANT: Always tighten tilt lock before starting

machine—even when fence is resting against stops.

U. Fence Lock Lever: Secures fence position.

-9-

T

U

Figure 5. Fence controls and components.

Model W1857/W1858 (For Machines Mfd. Since 01/21)

SAFETY

OWNER’S MANUAL.

TRAINED OPERATORS ONLY.

DANGEROUS ENVIRONMENTS.

MENTAL ALERTNESS REQUIRED.

electrical components or improperly grounded

manual uses a series of symbols and signal words intended to convey the level of importance of the
safety messages. The progression of symbols is described below. Remember that safety messages by

SAFETY

For Your Own Safety,

Read Manual Before Operating Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This

SAFETY

themselves do not eliminate danger and are not a substitute for proper accident prevention mea­sures—this responsibility is ultimately up to the operator!

NOTICE

Standard Machinery Safety Instructions

Standard Machinery Safety Instructions

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury.

This symbol is used to alert the user to useful information about
proper operation of the equipment or a situation that may cause
damage to the machinery.

Read and understand this

owner’s manual BEFORE using machine.

have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this
machine. When machine is not being used,
disconnect power, remove switch keys, or
lock-out machine to prevent unauthorized
use—especially around children. Make
workshop kid proof!

machinery in areas that are wet, cluttered,
or have poor lighting. Operating machinery
in these areas greatly increases the risk of
accidents and injury.

alertness is required for safe operation of
machinery. Never operate under the influence
of drugs or alcohol, when tired, or when
distracted.

Untrained operators

Do not use

Full mental

ELECTRICAL EQUIPMENT INJURY RISKS. You can

be shocked, burned, or killed by touching live

machinery. To reduce this risk, only allow an
electrician or qualified service personnel to
do electrical installation or repair work, and
always disconnect power before accessing or
exposing electrical equipment.

DISCONNECT POWER FIRST. Always disconnect

machine from power supply BEFORE making
adjustments, changing tooling, or servicing
machine. This eliminates the risk of injury
from unintended startup or contact with live
electrical components.

EYE PROTECTION. Always wear ANSI-approved

safety glasses or a face shield when operating
or observing machinery to reduce the risk of
eye injury or blindness from flying particles.
Everyday eyeglasses are not approved safety
glasses.

-10-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

WEARING PROPER APPAREL. Do not wear

HAZARDOUS

HEARING PROTECTION.

REMOVE ADJUSTING TOOLS.

INTENDED USAGE.

AWKWARD POSITIONS.

CHILDREN & BYSTANDERS.

GUARDS & COVERS.

FORCING MACHINERY. Do not force machine. It

will do the job safer and better at the rate for

loss of control. Before starting, verify machine

malfunction, leading to serious personal injury

from heated surfaces, high traffic areas, harsh

clothing, apparel, or jewelry that can become
entangled in moving parts. Always tie back
or cover long hair. Wear non-slip footwear to
avoid accidental slips, which could cause loss
of workpiece control.

DUST. Dust created while using

machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of
dust hazards associated with each workpiece
material, and always wear a NIOSH-approved
respirator to reduce your risk.

Always wear hearing
protection when operating or observing
loud machinery. Extended exposure to this
noise without hearing protection can cause
permanent hearing loss.

machinery can become dangerous projectiles
upon startup. Never leave chuck keys,
wrenches, or any other tools on machine.
Always verify removal before starting!

intended purpose—never make modifications
without prior approval from Woodstock
International. Modifying machine or using
it differently than intended will void the
warranty and may result in malfunction or
mechanical failure that leads to serious
personal injury or death!

balance at all times when operating machine.
Do not overreach! Avoid awkward hand
positions that make workpiece control difficult
or increase the risk of accidental injury.

bystanders at a safe distance from the work
area. Stop using machine if they become a
distraction.

Only use machine for its

Tools left on

Keep proper footing and

Keep children and

which it was designed.

NEVER STAND ON MACHINE. Serious injury may

occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during

operation greatly increases risk of injury or

is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for
recommended accessories. Using improper
accessories will increase risk of serious injury.

UNATTENDED OPERATION. To reduce the risk

of accidental injury, turn machine OFF and
ensure all moving parts completely stop
before walking away. Never leave machine
running while unattended.

MAINTAIN WITH CARE. Follow all maintenance

instructions and lubrication schedules to
keep machine in good working condition. A
machine that is improperly maintained could

or death.

CHECK DAMAGED PARTS. Regularly inspect

machine for any condition that may affect
safe operation. Immediately repair or replace
damaged or mis-adjusted parts before
operating machine.

MAINTAIN POWER CORDS. When disconnecting

cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the
cord may damage the wires inside, resulting
in a short. Do not handle cord/plug with wet
hands. Avoid cord damage by keeping it away

chemicals, and wet/damp locations.

SAFETY

accidental contact with moving parts or flying
debris—make sure they are properly installed,
undamaged, and working correctly.

Guards and covers reduce

EXPERIENCING DIFFICULTIES. If at any time

you experience difficulties performing the
intended operation, stop using the machine!

-11-

Contact Technical Support at [phone].

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Serious cuts, amputation, entanglement, or death can occur from contact with rotating cutterhead

Additional Safety for Jointers

or other moving components! Flying chips from cutting operations can cause eye injuries or
blindness. Workpieces or inserts/knives thrown by cutterhead (kickback) can strike nearby operator
or bystanders with deadly force. To reduce the risk of serious personal injury from these hazards,
operator and bystanders MUST completely heed the hazards and warnings below.

SAFETY

KICKBACK. Occurs when workpiece is ejected

from machine at high rate of speed.
Kickback injuries occur from getting struck
by workpiece or hands being pulled into
cutterhead. To reduce risk of kickback,
only use proper workpieces, safe feeding
techniques, and proper machine setup.

GUARD REMOVAL. Operating jointer without

guards exposes operator to knives/inserts
and other hazardous moving parts. Except
when rabbeting, never operate jointer or
allow it to be connected to power if any
guards are removed. Turn jointer OFF
and disconnect power before clearing
any shavings or sawdust from around
cutterhead. After rabbeting or maintenance
is complete, immediately replace all
guards and ensure they are properly
installed/adjusted before resuming regular
operations.

DULL/DAMAGED KNIVES/INSERTS. Dull or

damaged knives/inserts increase risk of
kickback and cause poor workpiece finish.
Only use sharp, undamaged knives/inserts.

OUTFEED TABLE ALIGNMENT. Setting outfeed

table too high can cause workpiece to hit
table or get stuck while feeding. Setting
outfeed table too low may cause workpiece
to rock or shift while feeding. Both results
will increase risk of kickback. Always keep
outfeed table even with knives/inserts at
highest point during rotation.

INSPECTING STOCK. Impact injuries or kickback

may result from using improper workpieces.
Thoroughly inspect and prepare workpiece
before cutting. Verify workpiece is free of
nails, staples, loose knots or other foreign
material.

MAXIMUM CUTTING DEPTH. To reduce risk of

kickback, never cut deeper than

1

⁄8".

GRAIN DIRECTION. Jointing against the grain or

end grain can increase the risk of kickback.
It also requires more cutting force, which
produces chatter or excessive chip out.
Always joint or surface plane with the grain.

CUTTING LIMITATIONS. Cutting workpieces

that do not meet minimum dimension
requirements can result in kickback or
accidental contact with cutterhead. Never
perform jointing, planing, or rabbeting cuts
on pieces smaller than specified in data sheet.

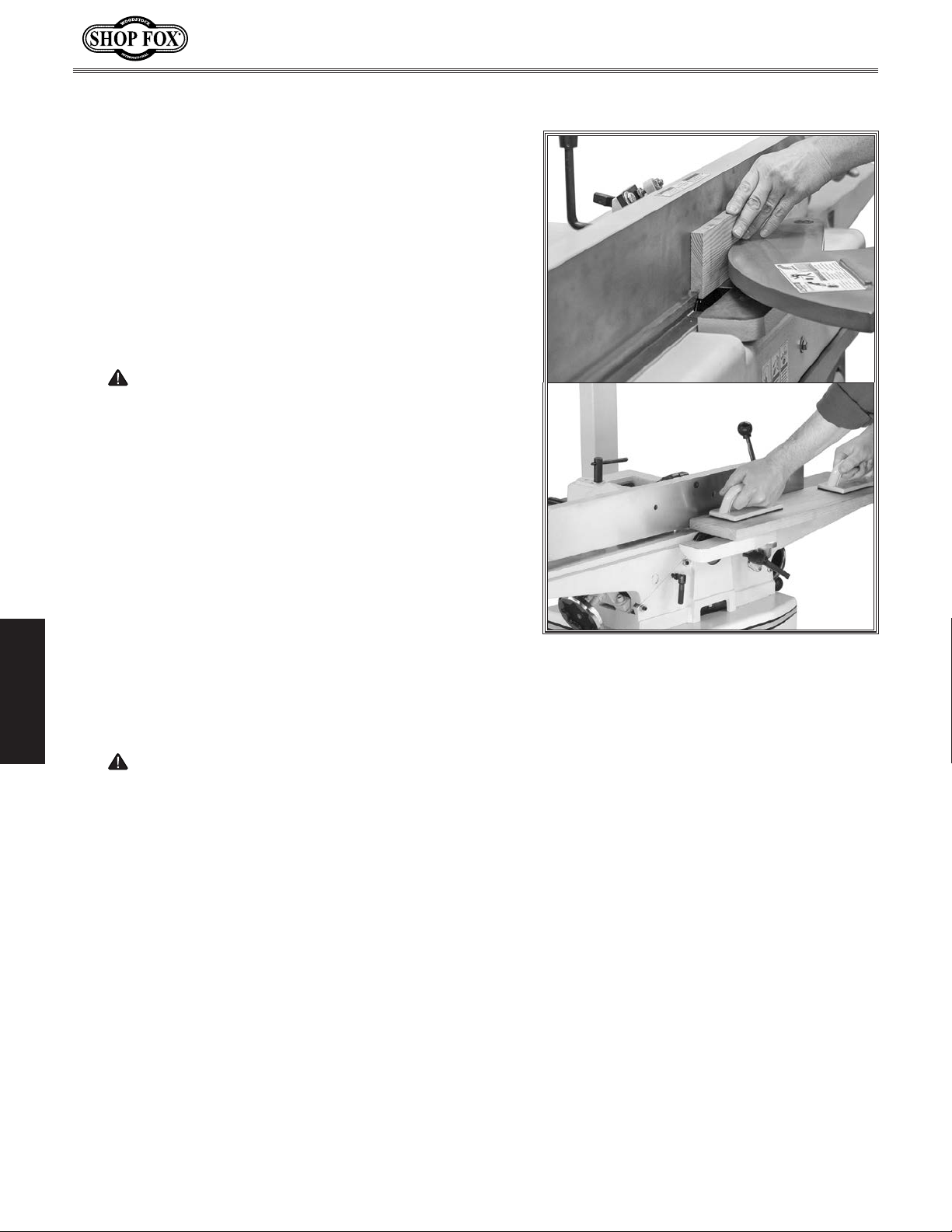

PUSH BLOCKS. Push blocks reduce risk of

accidental cutterhead contact with hands.
Always use push blocks when planing
materials less than 3" high or wide. Never
pass your hands directly over cutterhead
without a push block.

WORKPIECE SUPPORT. Poor workpiece support

or loss of workpiece control while feeding
will increase risk of kickback or accidental
contact with cutterhead. Support workpiece
with fence continuously during operation.
Support long stock with auxiliary table if
necessary.

FEED WORKPIECE PROPERLY. Kickback or

accidental cutterhead contact may result if
workpiece is fed into cutterhead the wrong
way. Allow cutterhead to reach full speed
before feeding. Never start jointer with
workpiece touching cutterhead. Always feed
workpiece from infeed side to outfeed side
without stopping until cut is complete. Never
move workpiece backwards while feeding.

SECURE KNIVES/INSERTS. Loose knives or

improperly set inserts can be thrown from
cutterhead with dangerous force. Always
verify knives/inserts are secure and properly
adjusted before operation. Straight knives
should never project more than
from cutterhead body.

1

⁄8" (0.125")

-12-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

This machine must be connected to the correct size and
type of power supply circuit, or fire or electrical damage
may occur. Read through this section to determine if an
adequate power supply circuit is available. If a correct
circuit is not available, a qualified electrician MUST install
one before you can connect the machine to power.

A power supply circuit includes all electrical equipment
between the breaker box or fuse panel in the building
and the machine. The power supply circuit used for
this machine must be sized to safely handle the full­load current drawn from the machine for an extended
period of time. (If this machine is connected to a circuit
protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply
circuit that has a verified ground and meets the following
requirements:

The full-load current rating is the amperage a machine
draws at 100% of the rated output power. On machines
with multiple motors, this is the amperage drawn by the
largest motor or sum of all motors and electrical devices
that might operate at one time during normal operations.

or machine damage. To reduce this risk,

where only one machine will be running

multiple machines will be running at the

ELECTRICAL

Electrical

Circuit Requirements

The machine must be properly set up
before it is safe to operate. DO NOT
connect this machine to the power
source until instructed to do so later
in this manual.

ELECTRICAL

Full-Load Current Rating

Full-Load Current Rating at 230V ................ 12 Amps

Circuit Requirements

Circuit Type ............ 220V/240V, 60 Hz, Single-Phase

Circuit Size ............................................ 20 Amps

Plug/Receptacle ................................... NEMA 6-20

Incorrectly wiring or grounding this
machine can cause electrocution, fire,

only an electrician or qualified service
personnel should do any required
electrical work on this machine.

NOTICE

The circuit requirements listed in this
manual apply to a dedicated circuit—

at a time. If this machine will be
connected to a shared circuit where

same time, consult with an electrician
to ensure that the circuit is properly
sized for safe operation.

-13-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

This machine MUST be grounded. In the event of certain
types of
a path of least resistance for electric current
order

Improper connection of the equipment-grounding

will
increase
insulation
grounding
cord or plug is necessary, do not connect the equipment­grounding

Check with a qualified electrician or service personnel
if
or if
properly grounded.
plug is damaged or worn, disconnect it from power, and
immediately replace it with a new one.

We do not recommend using an extension cord with

Any extension cord used with this machine must contain a

plug and receptacle, and

meet the following requirements:

the available receptacle or the machine

Grounding Requirements

malfunctions or breakdowns, grounding provides

to travel—in

to reduce the risk of electric shock.

wire

the risk of electric shock. The wire with green

(with/without yellow stripes) is the equipment-

wire. If repair or replacement of the power

The machine must be properly set up
before it is safe to operate. DO NOT
connect this machine to the power
source until instructed to do so later
in this manual.

wire to a live (current carrying) terminal.

you do not understand these grounding requirements,

ELECTRICAL

you are in doubt about whether the tool is

If you ever notice that a cord or

For 220V Connection

This machine is equipped with a power cord that has
an equipment-grounding wire and NEMA 6-20 grounding
plug (see figure). The plug must only be inserted into
a matching receptacle that is properly installed and
grounded in accordance with local codes and ordinances.

Extension Cords

this machine. Extension cords cause voltage drop, which
may damage electrical components and shorten motor
life. Voltage drop increases with longer extension cords
and smaller gauge sizes (higher gauge numbers indicate
smaller sizes).

ground wire, match the required

Minimum Gauge Size at 220V ...................... 12 AWG

Maximum Length (Shorter is Better) ................50 ft.

GROUNDED

6-20 RECEPTACLE

Current Carrying Prongs

6-20 PLUG

Grounding Pin

Figure 6. NEMA 6-20 plug & receptacle.

No adapter should be used with the
required plug. If the plug does not fit

must be reconnected to a different
type of circuit, the reconnection must
be made by an electrician or qualified
service personnel and it must comply
with all local codes and ordinances.

-14-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

This machine has been carefully packaged for safe
transportation. If you notice the machine has been
damaged during shipping, please contact your authorized
Shop Fox dealer immediately.

The following items are needed, but not included, to set
up your machine.

Immediately discard all
plastic bags and packing
materials to eliminate

This machine presents
serious injury hazards
to untrained users. Read

to become familiar with

tions before starting the

Straining or crushing

improperly lifting the

parts. To reduce this

SETUP

Unpacking

through this entire manual

the controls and opera-

Items Needed for Setup

Description Qty

• Additional People ................................ ....... 1-3

• Safety Glasses .........................................1 ea.

• Leather Gloves .................................. 1 Pair ea.

• Cleaner/Degreaser ............................ As Needed

• Disposable Rags ................................ As Needed

• Lifting Equipment (Min. 600-lb Rating):

—Forklift or Hoist .........................................1

—Lifting Slings .............................................2

• Precision Straightedge 3' .................................1

• Phillips Screwdriver #2 ...................................1

• Dust-Collection System ...................................1

• 4" Dust Hose (length as needed) ........................1

• 4" Hose Clamp ..............................................1

machine!

Wear safety glasses during
entire setup process!

SETUP

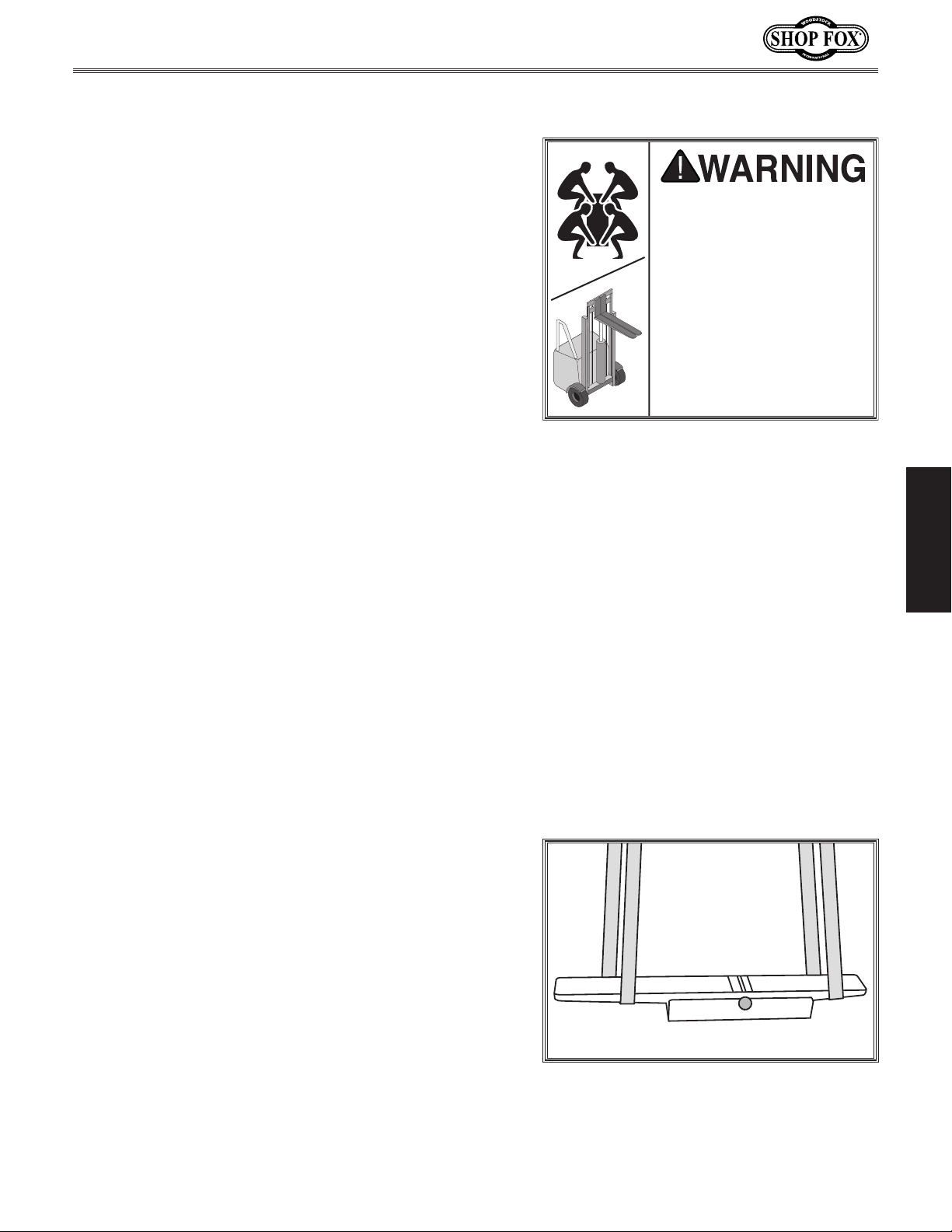

HEAVY LIFT!

injury may occur from

machine or some of its

risk, get help from other
people and use a forklift
(or other lifting equip­ment) rated for weight of
machine.

SUFFOCATION HAZARD!

choking/suffocation
hazards for children and
animals.

-15-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

The following is a list of items shipped with your machine.
Before beginning setup, lay these items out and inventory
them.

Note:

check around/inside the machine and packaging materials.
Often, these items get lost in packaging materials while
unpacking or they are pre-installed at the factory.

Inventory

If you cannot find an item on this list, carefully

Wood Crate (Figure 7) Qty

A. Table Assembly .............................................1

A

Cardboard Box (Figure 8) Qty

B. Stand ........................................................1

Loose Items (Figure 9) Qty

C. Switch Pedestal Assembly ................................1

Lock Washers 8mm (Pedestal) ...........................2

D.

Cap Screws M8-1.25 x 70 (Pedestal) ....................2

E.

Handwheels .................................................2

F.

Lock Washers 10mm (Table) .............................3

G.

SETUP

Hex Standoffs 3⁄8"-16 x 3⁄4" x 3 5⁄16" (Table) ...........3

H.

4" Dust Port .................................................1

I.

Flat Washers 1⁄4" (Dust Port) .............................4

J.

Phillips Head Screws 1⁄4"-20 x 1⁄2" (Dust Port) ........4

K.

Cutterhead Guard Assembly .............................1

L.

. Rear Access Panel .........................................1

M

Push Blocks .................................................2

N.

Belt ..........................................................1

O.

Hex Wrenches 3, 4, 5, 6mm ........................1 Ea.

P.

Open-End Wrenches 8/10, 11/13, 12/14mm .....1 Ea.

Q.

Knife-Setting Jig (W1857)

R.

—E-Clips .....................................................4

—Knife Jig Feet ............................................2

—Knife Jig Rod .............................................1

Cutterhead Tools and Hardware (W1858)

S.

—T-Handle Torx Driver T-25 ..............................2

—Torx Screws T-25 #10-32 x 1⁄2" ....................... 10

—Indexable Inserts 15 x 15 x 2.5mm ...................5

Figure 7. Inventory—wood crate.

B

Figure 8. Inventory—cardboard box.

E

D

C

G

H

K

J

I

L

N

F

-16-

M

P

Q

Figure 9. Inventory—loose items.

O

S

R

Model W1857/W1858 (For Machines Mfd. Since 01/21)

To prevent
machine, the factory has coated t
of your machine
compound

I
be difficult to
coating is as easy as possible, please gather the correct
cleaner, lubricant, and tools listed below:

• Cleaner/degreaser
and grease

• Safety glasses & disposable gloves

•

• Disposable Rags

To

1.

2.

3

4

5

6

immediately coat with a quality metal protectant.

Cleaning Machine

corrosion during shipment and storage of your

with a heavy-duty rust prevention

.

f you are unprepared or impatient, this compound can

remove. To ensure that the removal of this

designed to remove storage wax

Solvent brush or paint brush

remove rust preventative coating, do these steps:

DISCONNECT MACHINE FROM POWER!

he bare metal surfaces

Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avoid
using these products
to clean machinery.
Many cleaning solvents
are toxic if inhaled.
Minimize your risk
by only using these
products in a well
ventilated area.

SETUP

Put on safety glasses and disposable gloves.

. Coat the rust preventative with a liberal amount of

cleaner/degreaser, then let it soak for 5–10 minutes.

. Wipe off surfaces. If your cleaner/degreaser is

effective, the coating will wipe off easily.

Tip: An easier way to clean off thick coats of rust
preventative from flat surfaces is to use a PLASTIC
paint scraper to scrape off the majority of the
coating before wiping it off with your rag. (Do
not use a metal scraper or you may scratch your
machine.)

. Repeat cleaning steps as necessary until all of the

compound is removed.

. To prevent rust on freshly cleaned surfaces,

In a pinch, automotive degreasers,
mineral spirits or WD•40 can be used
to remove rust preventative coating.
Before using these products, though,
test them on an inconspicuous area of
your paint to make sure they will not
damage it.

-17-

Machine Placement

Weight Load

Refer to the
weight of your machine. Make sure that the
surface upon which the machine is placed will
bear the weight of the machine, additional
equipment that may be installed on the
machine, and the heaviest workpiece that will
be used. Additionally, consider the weight of
the operator and any dynamic loading that may
occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that
will be processed through this machine and
provide enough space around the machine
for adequate operator material handling or
the installation of auxiliary equipment. With
permanent installations, leave enough space
around the machine to open or remove doors/
covers as required by the maintenance and
service described in this manual.

required space allocation.

Physical Environment

The physical environment where your machine is
operated is important for safe operation and the

ambient temperature range exceeds 41°–104°F;

(non-condensing); or the environment is subject

source. Make sure all power cords are protected

chemicals, or other hazards. Make sure to leave

Machine Specifications for the

Model W1857/W1858 (For Machines Mfd. Since 01/21)

longevity of its components. For best results,
operate this machine in a dry environment
that is free from excessive moisture, hazardous
chemicals, airborne abrasives, or extreme
conditions. Extreme conditions for this type
of machinery are generally those where the

the relative humidity range exceeds 20–95%

to vibration, shocks, or bumps.

Electrical Installation

Place this machine near an existing power

SETUP

See below for

Children or untrained people
may be seriously injured by this
machine. Only install in an access
restricted location.

721/2"

from traffic, material handling, moisture,

access to a means of disconnecting the power
source or engaging a lockout/tagout device.

Lighting

Lighting around the machine must be adequate
enough that operations can be performed
safely. Shadows, glare, or strobe effects that
may distract or impede the operator must be
eliminated.

Wall

Min. 30"

for Maintenance

251/2"

Figure 10. Working clearances.

-18-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Before beginning the assembly process, refer to Items
Needed for Setup

Ensure all parts have been properly cleaned of any
heavy-duty rust-preventative applied at the factory (if
applicable). Be sure to complete all steps in the assembly
procedure prior to performing the Test Run or connecting

Straining or crushing

improperly lifting the

parts. To reduce this

Assembly

and gather everything you need.

HEAVY LIFT!

injury may occur from

This jointer is equipped with a mobile base to allow
moving and placing of machine without power lifting
equipment. DO NOT attempt to lift or move jointer
without necessary assistance from other people. If using
power lifting equipment (such as a forklift or crane), each
piece of lifting equipment must be rated for
600 lbs. to support dynamic loads that may be applied
while lifting.

Review the
a permanent location for the jointer.

Note: Do not destroy cardboard box or wood shipping
crate and packaging until after Test Run.

To assemble machine, do these steps:

1. Open cardboard box and place stand upright.

2. Tighten mobile base lock knobs (see Figure 2 on
Page 8) to secure stand in position.

Electrical section (see Page 13), then prepare

at least

machine or some of its

risk, get help from other
people and use a forklift
(or other lifting equip­ment) rated for weight of
machine.

SETUP

Remove top and sides of wood shipping crate, then

3.

place small items aside in safe location.

With help from another person, remove fence

4.

assembly, including belt cover, from table assembly
and set aside in safe location.

If lifting table assembly without power lifting

5.

equipment, lift table assembly off shipping pallet
with help of three people and carefully place it on
top of stand. Proceed to

IMPORTANT: Tighten table locks to prevent

damaging tables.

If lifting table assembly with power lifting

6.

equipment, attach lifting slings to table assembly, as
shown in
stand.

Figure 11, and carefully place it on top of

Step 7.

Figure 11. Lifting slings properly

positioned.

-19-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

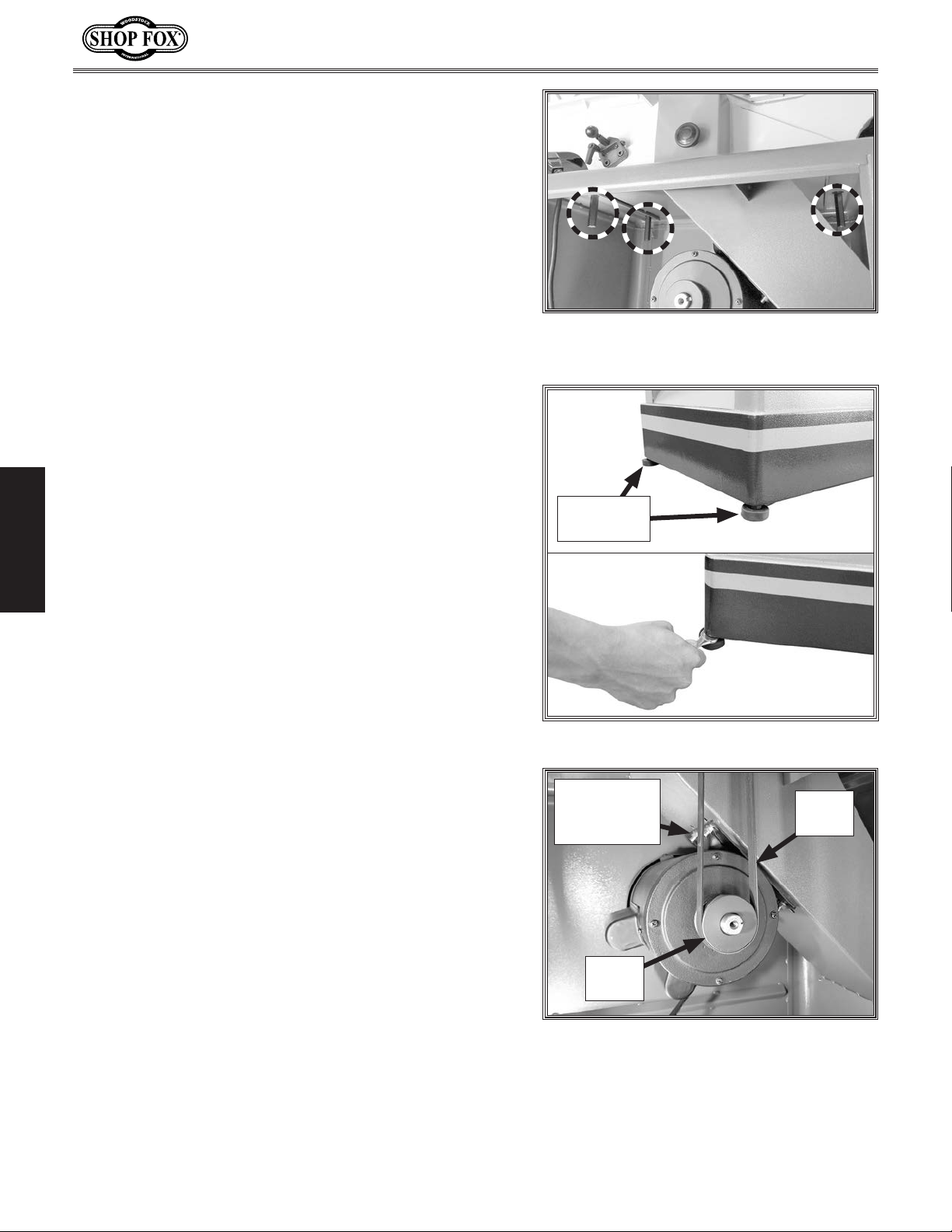

7. Adjust position of table assembly so cutterhead
pulley and motor pulley are aligned, and then secure
table assembly to stand with

3

⁄4" x 3 5⁄16" and (3) 10mm lock washers (see

16 x

Figure

12).

(3) hex standoffs 3⁄8"-

8. Adjust feet (see Figure 13) as necessary until jointer
is stable without any rocking or wobbling.

IMPORTANT: Ensure jointer is stable and unable to

accidently move prior to operations.

Figure 12. Table assembly secured to

stand.

Adjustable

Feet

SETUP

Figure 13. Stabilizing jointer.

9.

Loosen motor mount fasteners shown in Figure 14.

DO NOT completely remove fasteners.

Slide motor upward, place poly-V belt around

10.

cutterhead pulley and motor pulley, then slide motor
down to rest on belt (see Figure

14).

Motor Mount

Fastener

(1 of 4)

Poly-V

Belt

-20-

Motor

Pulley

Figure 14. V-belt installed.

Model W1857/W1858 (For Machines Mfd. Since 01/21)

11. Look down length of belt and pulley faces to check
pulley alignment (see Figure

s 15–16). If available

use a narrow straightedge against pulley faces to
check alignment.

— If pulleys are aligned, proceed to Step 14.

— If pulleys are not aligned, perform Steps 12–13.

Loosen motor pulley set screw and cutterhead pulley

12.

set screw and align both pulleys. (Use straightedge if
needed.)

13. Tighten set screws and repeat Step 10 to verify
proper pulley alignment. Pulleys should be aligned,
as shown in Figure

16, when belt is properly

tensioned.

V-Belt

Cutterhead

Pulley

Motor

Pulley

Figure 15. Checking pulley alignment

(viewed from above).

Cutterhead

Pulley

Alignment

SETUP

14.

Adjust belt tension by applying downward pressure

on motor until there is approximately

1

⁄4" deflection

when belt is pushed with moderate force, as shown
in Figure

17.

Note: After the first 16 hours of operation,

re-tension the belt, as it will stretch and seat
during this time, which causes it to lose the initial
tension you set.

Tighten motor mount fasteners (see Figure 14 on

15.
Page 20).

Re-install fence assembly, including belt cover.

16.

Motor

Pulley

Figure 16. Proper pulley alignment.

Cutterhead Pulley

Approximately

1

⁄4" Deflection

Motor Pulley

Figure 17. Checking for proper belt

tension.

-21-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

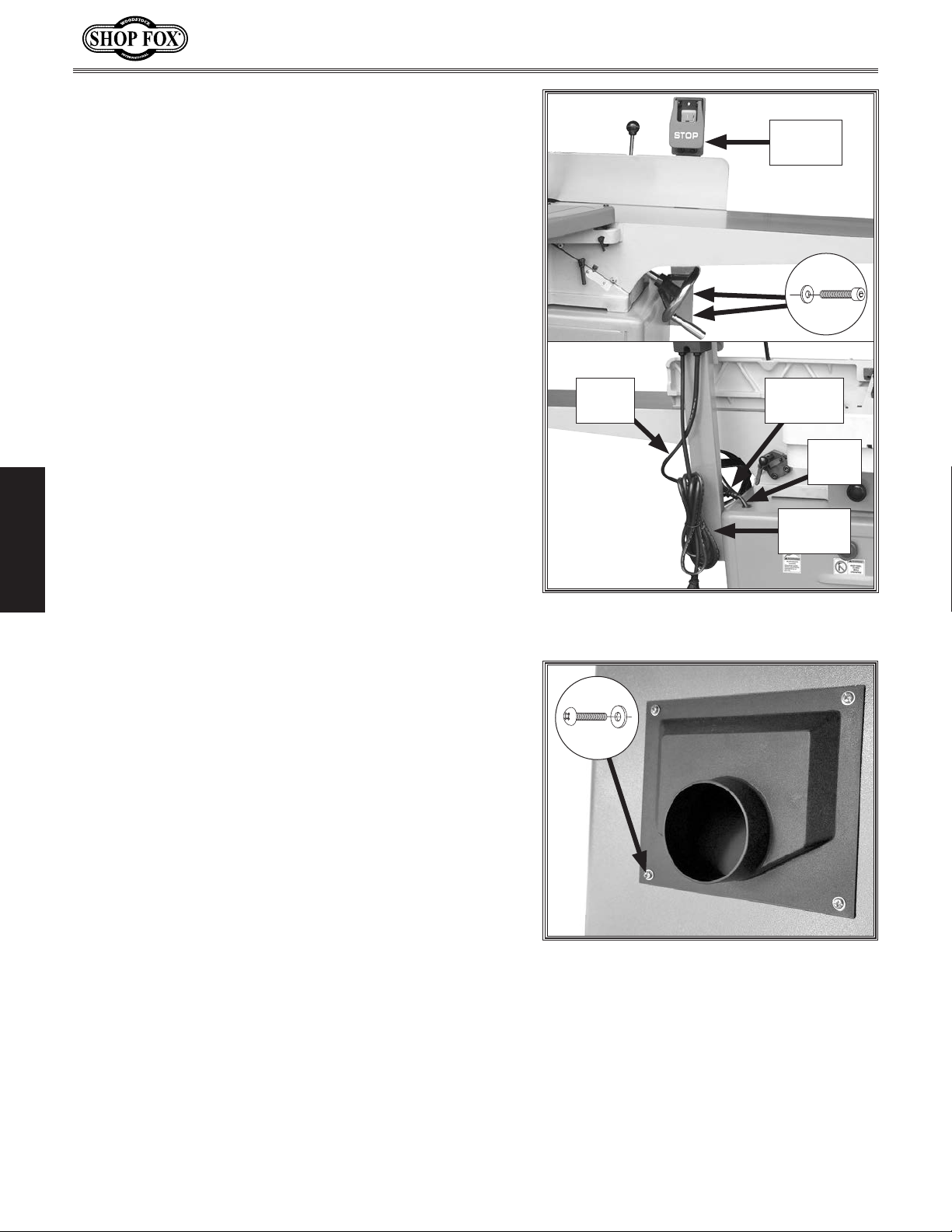

17. Attach switch pedestal to stand with (2) M8-1.25
x 70 cap screws and (2) 8mm lock washers (see
Figure 18).

Connect switch cord to motor cord (see Figure 18).

18.

Note: The switch cord and motor cord have

matching plugs for easy connection.

Switch

Pedestal

Switch

Cord

Matching

Plugs

Motor

Cord

Switch

Pedestal

SETUP

Figure 18. Switch pedestal attached to

stand and cords connected.

19.

Install dust port with (4) 1⁄4"-20 x 1⁄2" Phillips head

screws and (4)

1

⁄4" flat washers (see Figure 19).

x 4

-22-

Figure 19. Dust port installed.

Model W1857/W1858 (For Machines Mfd. Since 01/21)

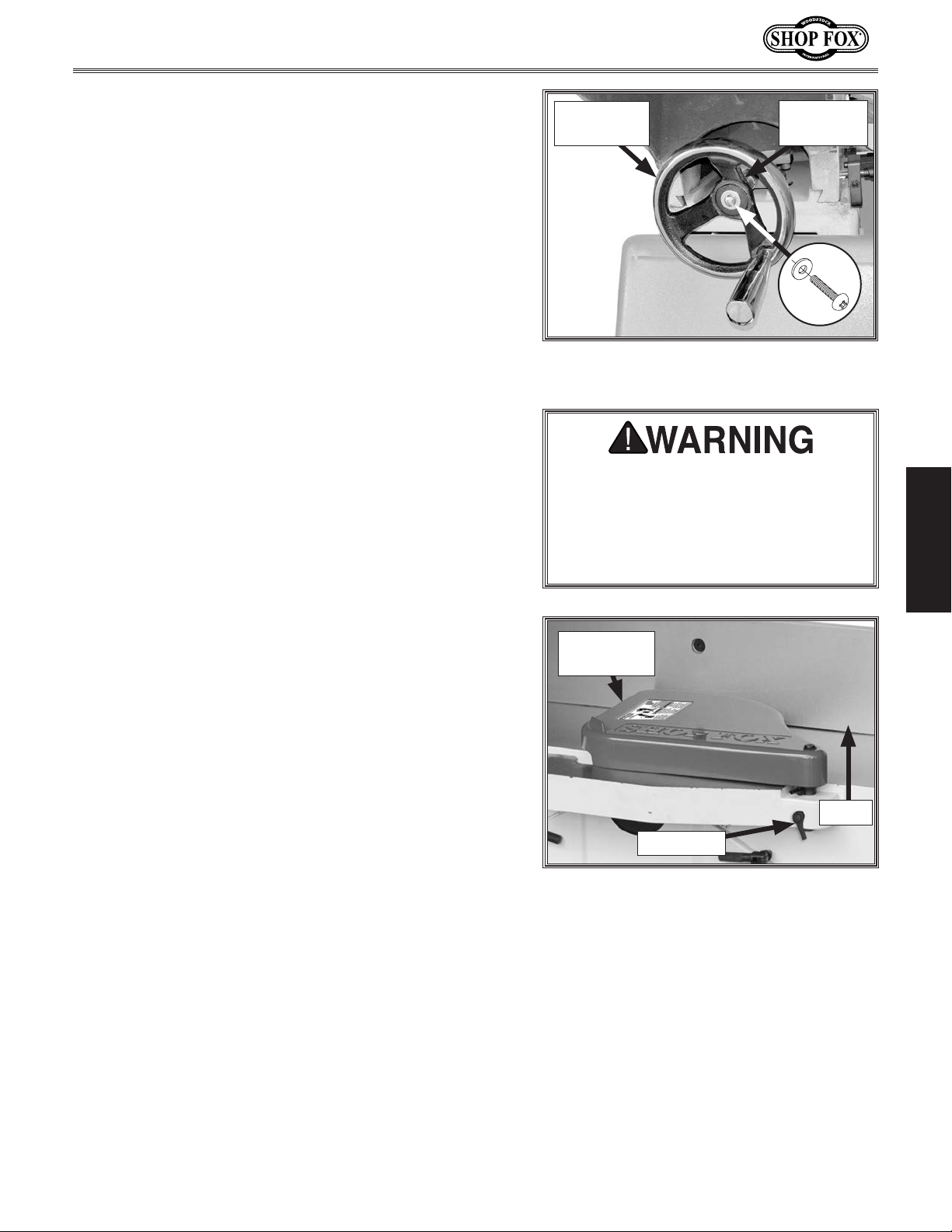

20. Slide handwheels onto leadscrews, and secure with

5

pre-installed

8.5 x 23 x 2mm fender washers (see Figure

Verify outfeed table height is set correctly with

21.

⁄16"-18 x 1⁄2" Phillips head screws and

20).

knives/inserts at top dead center (TDC) (refer to
Setting Outfeed Table Height on Page 50) and all
knives/inserts are securely tightened in cutterhead.

22. Set fence to 90° and move it all the way back.

Remove pre-installed button head cap screw and

23.

fender washer from bottom of cutterhead guard
shaft; then loosen shaft lock and insert shaft into
mounting hole, positioned so guard rests against
fence.

Tighten shaft lock to secure setting, then install

24.

button head cap screw and fender washer.

Handwheel

(1 of 2)

Leadscrew

(1 of 2)

x 2

Figure 20. Handwheel secured to

leadscrew (1 of 2).

The cutterhead guard is a critical safety
feature of this jointer. You MUST verify
its operation before using the jointer!
Failure to properly install this guard
will greatly increase risk of serious
personal injury.

SETUP

Verify proper operation of cutterhead guard by

25.

setting fence to 90°, moving fence to rear of table,
then pulling cutterhead guard back and letting it go.
It should spring back over cutterhead and contact
fence without dragging across outfeed table.

— If cutterhead guard does not spring back over

cutterhead and contact fence, or if it drags across
outfeed table, then it must be adjusted (refer to
Checking/Adjusting Cutterhead Guard on Page 57
for instructions).

Cutterhead

Guard

Fence

Shaft Lock

Figure 21. Cutterhead guard contacting

fence.

-23-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Do not confuse this CFM recommendation with the rating
of the dust collector. To determine the CFM at the dust
port, you must consider these variables: (1) CFM rating of
the dust collector, (2) hose type and length between the
dust collector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines throughout
the system. Explaining how to calculate these variables
is beyond the scope of this manual. Consult an expert or
purchase a good dust collection “how-to” book.

Knife-Setting Jig (W1857)

Assemble the knife-setting jig (see Figure 22) using the
knife-setting jig rod, feet, and E-clips.

Dust Collection

Recommended CFM at Dust Port: ................ 400 CFM

Figure 22. Knife-setting jig assembly

(W1857 only).

SETUP

This machine creates substantial amounts of dust
during operation. Breathing airborne dust on a regu­lar basis can result in permanent respiratory illness.
Reduce your risk by wearing a respirator and captur­ing the dust with a dust collection system.

Item(s) Needed Qty

Dust-Collection System
Dust Hose 4"
Hose Clamps 4"

To connect a dust-collection hose, do these steps:

.....................................................1

..................................................2

........................................1

Dust

Hose

Hose

Clamp

1. Fit a 4" dust hose over the dust port, as shown in
Figure

Tug the hose to make sure it does not come off.

2.

Note: A tight fit is necessary for proper

performance.

23, and secure it in place with a hose clamp.

Figure 23. Example of dust hose

connected to dust port.

-24-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

performed. Operating an improperly set

Once assembly is complete, test run the machine to
ensure it is properly connected to power and safety
components are functioning properly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from power,
and fix the problem BEFORE operating the machine again.
The

section of this

manual can help.

Test Run

Troubleshooting table in the SERVICE

To test run the machine, do these steps:

Serious injury or death can result
from using this machine BEFORE
understanding its controls and related
safety information. DO NOT operate, or
allow others to operate, machine until
the information is understood.

1. Clear all setup tools away from machine.

2. Connect machine to power supply.

3. Push ON button to start machine. A correctly

operating machine runs smoothly with little or no
vibration or rubbing noises.

Push STOP paddle to stop machine. Congratulations!

4.

The Test Run is complete.

Tensioning Belt

The final step in the setup process must be done after
approximately 16 hours of operation. During this first
16 hours, the belt will stretch and seat into the pulley
groove. After this time, you must re-tension the belt to
avoid slippage and burn out. Refer to Page
are ready to perform this important adjustment.

Note: Pulleys and belt can get hot. This is a normal
condition. Allow them to cool before making adjustments.

55 when you

DO NOT start machine until all
preceding setup instructions have been

up machine may result in malfunction
or unexpected results that can lead
to serious injury, death, or machine/
property damage.

SETUP

A small amount of black belt dust at the bottom of the
belt housing is normal during the life of the machine and
does not indicate a problem with the machine or belt.

-25-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

The switch can be disabled and locked by inserting a
padlock through the ON/START button, as shown. Locking
the switch in this manner can prevent unauthorized
operation of the machine, which is especially important
if the machine is not stored inside an access-restricted
building.

IM P O R TANT:

only restricts its function. It is not a substitute for
disconnecting power from the machine when adjusting or
servicing.

Children or untrained people can be killed or

with unsupervised operation. To help prevent

Disabling & Locking

Switch

seriously injured by this machine. This risk increases

unsupervised operation, disable and lock the switch
before leaving machine unattended! Place key in a
well-hidden or secure location.

Locking the switch with a padlock

SETUP

Shaft

ON / START

Button

OFF / STOP

Paddle

Figure 24. Switch disabled by padlock.

The padlock shaft diameter is important
to the disabling function of the switch.
Use padlocks with a maximum shaft
diameter of 4mm. With any padlock
used to lock the switch, test the switch
after installation to ensure that it is
properly disabled.

Padlock

-26-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

This machine will perform many types of operations
that are beyond the scope of this manual. Many of these
operations can be dangerous or deadly if performed
incorrectly.

The instructions in this section are written with the
understanding that the operator has the necessary
knowledge and skills to operate this machine. If at any
time you are experiencing difficulties performing any
operation, stop using the machine!

The overview below provides the novice machine operator
with a basic understanding of how the machine is used
during operation, so the machine controls/components
discussed later in this manual are easier to understand.
Due to its generic nature, this overview is
to be an instructional guide.

OPERATIONS

General

To reduce your risk of serious injury
or damage to the machine, read this
entire manual BEFORE using machine.

NOT intended

To complete a typical operation with the jointer, the
operator does the following:

1. Examines workpiece to verify it is safe and suitable

for cutting.

Adjusts fence for width of workpiece and locks it in

2.

place.

Adjusts fence tilt, if necessary.

3.

4. Adjusts infeed table height to set depth of cut per

pass.

Puts on safety glasses, respirator, and any other

5.

required protective equipment.

Starts jointer.

6.

7. Using push blocks as needed, holds workpiece firmly

against infeed table and fence, and feeds workpiece
into cutterhead at a steady and controlled rate until
entire length of workpiece has been cut and it clears
the cutterhead on the outfeed table side.

Repeats cutting process described above until

8.

desired results are achieved.

Stops jointer.

9.

-27-

To reduce the risk of eye injury and
long-term respiratory damage, always
wear safety glasses and a respirator
while operating this machine.

If you are an inexperienced operator,
we strongly recommend that you read
books or trade articles, or seek training
from an experienced operator of this
type of machinery before performing
unfamiliar operations. Above all, safety

must come first!

OPERATIONS

Model W1857/W1858 (For Machines Mfd. Since 01/21)

/4" Min.

/4" Min.

Stock Inspection

Follow these rules when choosing and jointing
stock:

• DO NOT joint or surface plane stock that
contains large or loose knots. Injury to the

operator or damage to the workpiece can
occur if a knot becomes dislodged during
the cutting operation.

• DO NOT joint or surface plane against the
grain direction. Cutting against the grain
increases the likelihood of kickback, as well
as tear-out on the workpiece.

• Jointing and surface planing with the

grain produces a better finish and is safer
for the operator. Cutting with the grain

is described as feeding the stock on the
jointer so the grain points down and toward
you as viewed on the edge of the stock (see
Figure below).

Note: If the grain changes direction along

the edge of the board, decrease the
cutting depth and make additional passes.

Stock Inspection

Stock Inspection Requirements

• Scrape all glue off the workpiece before
jointing. Glue deposits on the workpiece,
hard or soft, will gum up the cutterhead
and produce poor results.

• Remove foreign objects from the
workpiece. Make sure that any stock you
process with the jointer is clean and free
of dirt, nails, staples, tiny rocks or any
other foreign objects that could damage
the cutterhead. These particles could also
cause a spark as they strike the cutterhead
and create a fire hazard.

IMPORTANT: Wood stacked on a concrete

or dirt surface can have small pieces of
concrete or stone pressed into the surface.

• Make sure all stock is sufficiently dried
before jointing. Wood with a moisture
content over 20% will cause unnecessary
wear on the cutters and poor cutting
results. Excess moisture can also hasten
rust and corrosion.

OPERATIONS

CORRECT

ROTATION

OUTFEED TABLE

FEED DIRECTION

INFEED TABLE

With Grain

INCORRECT

ROTATION

OUTFEED TABLE

FEED DIRECTION

INFEED TABLE

Against Grain

Figure 25. Proper grain alignment with

cutterhead.

• Only cut natural wood. This jointer is only

designed for cutting natural wood stock.
Never use it to cut MDF, particle board,
plywood, laminates, drywall, backer board,
metals, glass, stone, tile, products with
lead-based paint, or products that contain
asbestos. Cutting these may lead to injury
or machine damage.

Make sure your workpiece exceeds the
minimum dimension requirement shown
below, before processing it through the
jointer, or the workpiece may break or kick
back during the operation.

Edge Jointing

10" Min.

3

/4" Min.

1

Surface Planing

10" Min.

1

/2" Min.

3

Figure 26. Minimum stock dimensions for

jointer.

-28-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Squaring Stock

Squaring stock means making it flat and parallel along
both length and width, and making the length and width
perpendicular to one another.

The purpose of squaring stock is to prepare it for accurate
cuts and construction later on.

A properly "squared up" workpiece is essential for tasks
such as accurate table saw cuts, glue-ups/laminations,
cutting accurate bevels on a bandsaw, and many other
applications where one surface of a workpiece is used to
reference another.

Item(s) Needed Qty

Jointer ............................................................1

Planer
Table Saw

.............................................................1

........................................................1

Squaring stock involves four steps performed in the
order below:

1. Surface Plane on Jointer—Concave face of

workpiece is surface planed flat with jointer.

2. Surface Plane on a Thickness Planer—Opposite face

of workpiece is surface planed flat with a thickness
planer.

3. Edge Joint on Jointer—Concave edge of workpiece

is jointed flat with jointer.

OPERATIONS

Previously Surface

Planed Face

4. Rip Cut on a Table Saw—Jointed edge of workpiece

is placed against a table saw fence and opposite
edge cut off.

-29-

Previously

Jointed

45

30

15

Edge

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Surface Planing

The purpose of surface planing (see Figure 27) on the
jointer is to make one flat face on a piece of stock to
prepare it for thickness planing on a planer.

To surface plane on jointer, do these steps:

Inspect stock to ensure it is safe and suitable for the

1.

operation (refer to

Set infeed table height to desired cutting depth for

2.

each pass.

Stock Inspection on Page 28).

surface planing

Failure to use push blocks when surface
planing could result in your hands
contacting rotating cutterhead, which
will cause serious personal injury.
ALWAYS use push blocks when surface
planing on jointer!

3.

4.

5. Place workpiece firmly against fence and infeed

6.

OPERATIONS

CAUTION: To minimize risk of kickback, do not

exceed a cutting depth of
planing.

Set fence to 90°.

Start jointer.

table with concave side facing down, as shown in

Figure 27.

CAUTION: To ensure workpiece remains stable

during cut, concave sides of workpiece must face
toward table and fence.

Feed workpiece completely across cutterhead while

keeping it firmly against fence and tables during the
entire cut.

CAUTION: Keep hands at least 4" away from

cutterhead during the entire cut. Instead of allowing
a hand to pass directly over cutterhead, lift it up
and over cutterhead, and safely reposition it on the
outfeed side to continue supporting workpiece. Use
push blocks whenever practical to further reduce
risk of accidental hand contact with cutterhead.

1

⁄16" per pass when surface

Removed

Surface

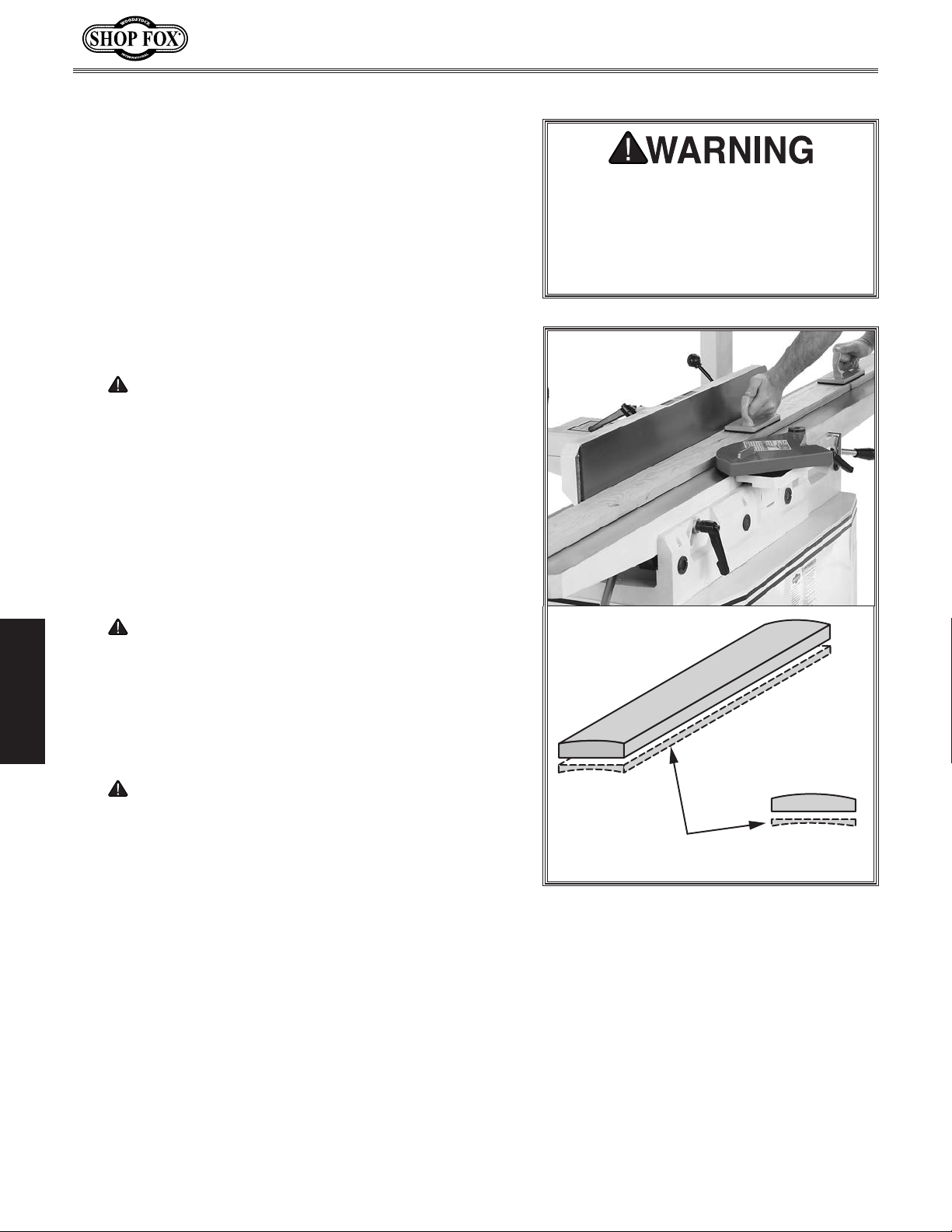

Figure 27. Example of a typical surface

planing operation.

Repeat Step 6 until entire surface is flat.

7.

Tip: When squaring up stock, cut opposite side of

workpiece with a planer instead of the jointer to
ensure both sides are parallel.

-30-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Edge Jointing

Edge jointing (see Figure 28) produces a flat and true
surface along the side of a workpiece by removing uneven
areas. It is an essential step for squaring up warped or
rough stock and when preparing a workpiece for joinery
or finishing.

edge jointing

To edge joint on jointer, do these steps:

Inspect stock to ensure it is safe and suitable for the

1.

operation (refer to

Surface plane workpiece (refer to Surface Planing

2.
Page 30).

on

Set infeed table height to desired cutting depth for

3.

each pass.

Stock Inspection on Page 28).

4.

5.

6. Place workpiece firmly against fence and infeed

CAUTION: To ensure workpiece remains stable

7.

CAUTION: Keep hands at least 4" away from

CAUTION: To minimize risk of kickback, do not

exceed a cutting depth of

Set fence to 90°.

Start jointer.

table with concave side facing down, as shown in

Figure

during cut, concave sides of workpiece must face
toward table and fence.

Feed workpiece completely across cutterhead while

keeping it firmly against fence and tables during the
entire cut.

cutterhead during the entire cut. Instead of allowing
a hand to pass directly over cutterhead, lift it up
and over cutterhead, and safely reposition it on the
outfeed side to continue supporting workpiece. Use
push blocks whenever practical to further reduce
risk of accidental hand contact with cutterhead.

28.

1

⁄8" per pass.

Removed

Surface

Figure 28. Example of a typical edge

jointing operation.

OPERATIONS

Repeat Step 6 until the entire edge is flat.

8.

Tip: When squaring up stock, cut opposite edge of

workpiece with a table saw instead of the jointer—
otherwise, both edges of workpiece will not be
parallel with each other.

-31-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Bevel Cutting

Bevel cuts (see Figure 29) can be made by setting the
fence at the desired angle and feeding the workpiece
firmly along the fence face, with the bottom inside corner
firmly against the table. The cutting process typically
requires multiple passes or cuts to bevel the entire edge
of a workpiece.

To bevel cut on jointer, do these steps:

Inspect stock to ensure it is safe and suitable for the

1.

operation (refer to

Surface plane workpiece (refer to Surface Planing

2.
Page 30).

on

Edge joint workpiece (refer to Edge Jointing on

3.

Page 31).

Stock Inspection on Page 28).

Set infeed table height to cutting depth desired for

4.

each pass.

CAUTION: Cutting depth for bevel cuts is

typically between
hardness and width of stock.

Set fence tilt to desired angle of cut.

5.

Place workpiece against fence and infeed table.

6.

Start jointer.

7.

1

⁄16" and 1⁄8", depending on

OPERATIONS

8. With a push block in your leading hand, press

workpiece against table and fence with firm
pressure, and feed workpiece over cutterhead with a
push block in your trailing hand.

CAUTION: When your leading hand gets within

4" of the cutterhead, lift it up and over cutterhead,
and place push block on portion of the workpiece
once it is 4" past cutterhead. Now, focus your
pressure on outfeed end of the workpiece while
feeding, and repeat same action with your trailing
hand when it gets within 4" of cutterhead. To help
keep your hands safe, DO NOT let them get closer
than 4" from moving cutterhead at any time during
operation!

Removed

Surface

Figure 29. Example of a 45° bevel cutting

operation.

Repeat cutting process, as necessary, until you are

7.

satisfied with the results.

-32-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Rabbet Cutting

A rabbet cut removes a portion of a workpiece edge, so
it fits together with an opposing, equally sized rabbet
cut on another workpiece (see
classic method of joining two workpieces that is simple,
yet strong.

This jointer can be used to make high-quality rabbet cuts,
but there are some situations—whether it is due to an
excessively large/small workpiece size or rabbet cutting
width/depth—when it will not be safe or appropriate for
making the rabbet cut on this jointer. In these cases, you
need to use another tool or method for rabbet cutting
that will be a safer alternative.

Figures 30–31). This is a

Removed

Surface

Rabbet Joints

A rabbet cut can alternatively be made using a table saw,
router, or even a hand saw. As with any type of cutting
operation, always consider your safety first and use good
judgement!

Typically, rabbet cutting with a jointer requires
the cutterhead guard to be removed first, so the
workpiece can slide along the rabbeting ledge during
the cut. However, it is possible to make rabbet cuts
with workpieces up to 1" thick without removing the
cutterhead guard. This is done by performing the rabbet
cut with the workpiece on end (similar to when you are
edge jointing).

Figure 30. Rabbet joints.

OPERATIONS

-33-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

To rabbet cut on jointer, do these steps:

Inspect stock to ensure it is safe and suitable for the

1.

operation (refer to

Surface plane workpiece (refer to Surface Planing

2.
Page 30).

on

Edge joint workpiece (refer to Edge Jointing on

3.

Stock Inspection on Page 28).

Page 31).

Set infeed table height to desired cutting depth for

4.

each pass.

CAUTION: For safety reasons, cutting depth

1

should never exceed

Remove cutterhead guard if necessary to perform

5.

operation (see

Set fence to 90° and near front of jointer, so amount

6.

Figure 30).

⁄8" per pass.

of exposed cutterhead in front of fence matches size
of desired rabbet.

Start jointer.

7.

8. Place workpiece firmly against fence and infeed

table.

Feed workpiece completely across cutterhead while

9.

keeping it firmly against fence and tables during
entire cut.

OPERATIONS

CAUTION: Keep hands at least 4" away from

cutterhead during the entire cut. Instead of allowing
a hand to pass directly over cutterhead, lift it up
and over cutterhead, and safely reposition it on the
outfeed side to continue supporting workpiece. Use
push blocks whenever practical to further reduce
risk of accidental hand contact with cutterhead.

Figure 31. Examples of typical rabbet

cutting operations.

Repeat Step 7 until rabbet is cut to depth.

10.

Re-install cutterhead guard if removed in Step 3.

11.

-34-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Setting Depth of Cut

The depth of cut on a jointer affects the amount of
material removed from the bottom of the workpiece as it
passes over the cutterhead.

The depth of cut is set by adjusting the height of the
infeed table relative to the outfeed table and cutterhead
knives/inserts at top dead center (TDC).

1

This jointer is equipped with a

⁄8" infeed table stop.

This prevents the table from accidently being lowered

1

below

⁄8", which is the maximum depth of cut for surface

planing and edge jointing.

Adjusting Infeed Table Height

To adjust the infeed table height, loosen the infeed table
lock (see
to raise or lower the table, and then tighten the lock to
secure the setting.

To lower the infeed table below the
release knob (see
then tighten the lock to secure the setting.

Figure 32), rotate the infeed table handwheel

Figure 33), adjust the table height, and

Setting Depth of Cut

Adjusting Infeed Table Height

1

⁄8" stop, pull the

DO NOT exceed 1⁄8" depth of cut per
pass when edge jointing and 1⁄16" depth
of cut per pass when surface planing on
this machine or kickback and serious
injury may occur!

Infeed

Table Lock

Infeed Table

Handwheel

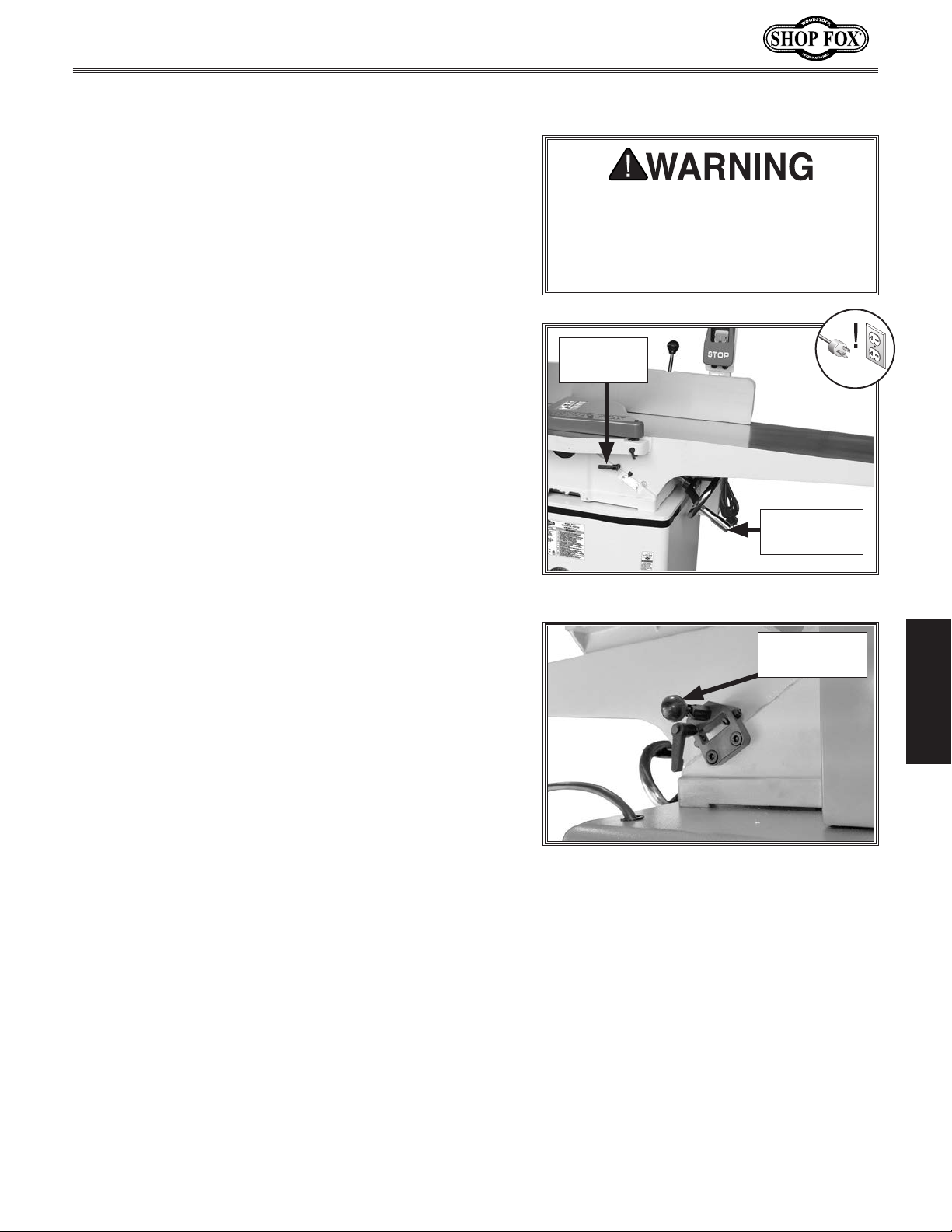

Figure 32. Infeed table height controls.

Infeed Table

Release Knob

Figure 33. Infeed table height controls.

OPERATIONS

-35-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

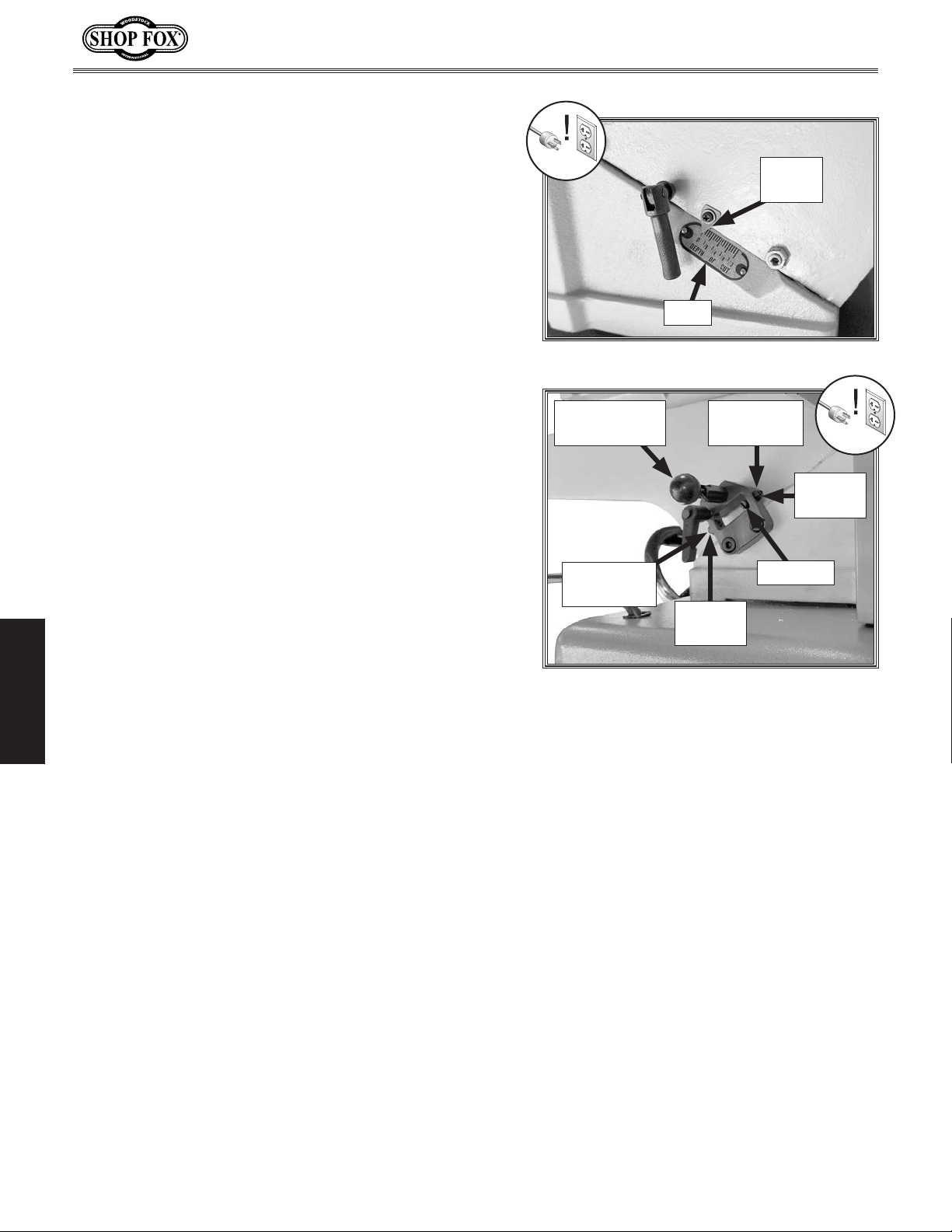

Depth-of-Cut Scale

The depth of cut can be referenced directly from the
depth scale located on the front of the jointer (see
Figure 34).

Depth of Cut Scale

Note: The depth scale can be calibrated or "zeroed" if it is
not correct. (Refer to Calibrating Depth-of-Cut Scale on
Page 54.)

Infeed Positive Stops

The infeed table has positive-stop screws (see Figure 35)
that allow you to quickly adjust the infeed table between
finish/final cuts and shaping/heavy cuts and the maximum
depth of cut of

The lower positive stop sets the bottom range of table
movement (maximum depth of cut); the upper positive
stop sets the top range of table movement (minimum
depth of cut). Jam nuts lock positive-stop screws in
position so they will not move during operation.

1

⁄2" when rabbeting.

Positive Stop Screws

Scale

Pointer

Scale

Figure 34. Depth-of-cut scale components.

Infeed Table

Release Knob

Upper Stop

Screw

Upper

Jam Nut

We recommend setting the lower stop screw at
upper stop screw can be set anywhere between 0" and

1

⁄16". The 1⁄8" infeed table stop is factory set and cannot

be adjusted.

Item(s) Needed Qty

Wrench 13mm ...................................................1

Hex Wrench 4mm

...............................................1

To adjust infeed positive-stop screws, do these steps:

OPERATIONS

DISCONNECT MACHINE FROM POWER!

1.

Loosen jam nuts on both stop screws (see Figure 35).

2.

Raise table to minimum desired depth of cut, then

3.

tighten upper stop screw (see Figure 35) until it
contacts table. Tighten jam nut to secure stop screw
in position.

Lower table to maximum desired depth of cut, then

4.

tighten lower stop screw until it contacts table.
Tighten jam nut to secure stop screw in position.

1

⁄2". The

Lower Stop

Table Pin

Screw

Lower

Jam Nut

Figure 35. Positive-stop components for

infeed table.

Note: If you need to lower the infeed table more

1

⁄8", then pull and hold the 1⁄8" depth stop

than
release knob (see Figure 35) while lowering infeed
table.

-36-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

ACCESSORIES

Jointer Accessories

The following jointer accessories may be available through your local Woodstock International Inc.
Dealer. If you do not have a dealer in your area, these products are also available through online
dealers. Please call or e-mail Woodstock International Inc. Customer Service to get a current listing of
dealers at: 1-800-840-8420 or at [email protected].

D1123—Jointer/Planer Knife Hone

This handy tool sharpens flat and beveled surfaces quickly and easily.
Great for touch-ups.

W1211A—Jointer Pal® Magnetic Knife Gauge
(For HSS & Cobalt Knives)

This magnetic knife-setting system lets you set jointer knives in perfect
alignment every time!

D3634—HSS Jointer Knives, 4 Pk.

8" x 3⁄4" x 1⁄8" replacement HSS jointer knives for Model W1857.

D4297—Indexable Carbide Inserts, 10-Pk.

15 x 15 x 2.5mm replacement indexable carbide inserts for Model
W1858.

OPERATIONS

-37-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

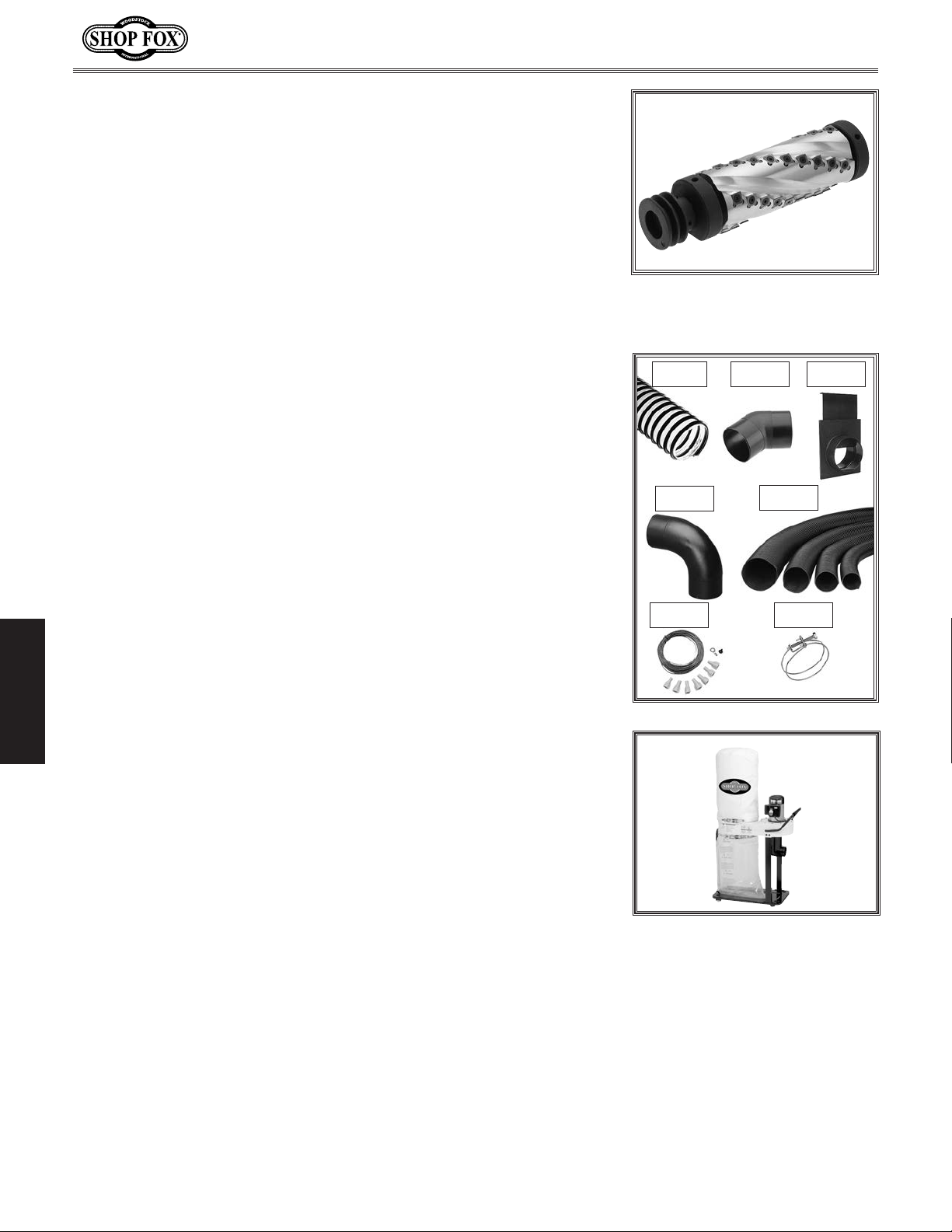

D4501—8" Indexable Spiral Cutterhead

Spiral cutterhead upgrade for Model W1857. Spiral cutterheads with
indexable carbide inserts provide a number of advantages over
traditional straight-knife cutterheads. Carbide inserts stay sharp up to
10 times longer than regular HSS knives and each insert features four
separate sharpened edges, so there's far less overall down time from
changing/adjusting knives. When the inserts do finally get dull, simply
rotate each one 90° to expose another set of factory-sharp cutting
edges. And since the inserts are indexable, they are automatically set
to the perfect height when installed—meaning no more time spent
fussing with a knife-setting jig. Best of all, spiral cutterheads leave a
smoother surface, especially when surfacing wood with figured grain.

D4206—Clear Flexible Hose 4" x 10'
D4256—45° Elbow 4"
W1007—Plastic Blast Gate 4"
W1017—90° Elbow 4"
D4216—Black Flexible Hose 4" x 10'
W1053—Anti-Static Grounding Kit
W1317—Wire Hose Clamp 4"

We've handpicked a selection of commonly used dust-collection
components for machines with 4" dust ports.

W1727—1 HP Dust Collector

OPERATIONS

Specifications: • 1 HP, 120V/240V, single-phase motor • 800 CFM air
suction capacity • 5.67" static pressure • One 4" intake hole • 9"
balanced steel, radial fin impeller • 2.1 cubic feet of bag capacity •
15 3⁄4" x 39 3⁄4" base on casters for portability • 2.5-micron bag filtration

• Power-coated finish for durability • 54 1⁄2" height with bag inflated.

D4026

W1017

W1053

D4256 W1007

D4216

W1317

-38-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

MAINTENANCE

General

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To maintain a low risk of injury and proper machine
operation, if you ever observe any of the items below,
shut down the machine immediately and fix the problem
before continuing operations:

• Loose mounting bolts.

• Dust or debris on and around machine.

• Dull or damaged cutterhead knives/inserts.

• Unprotected cast-iron surfaces.

• Worn or damaged wires.

• Any other unsafe condition.

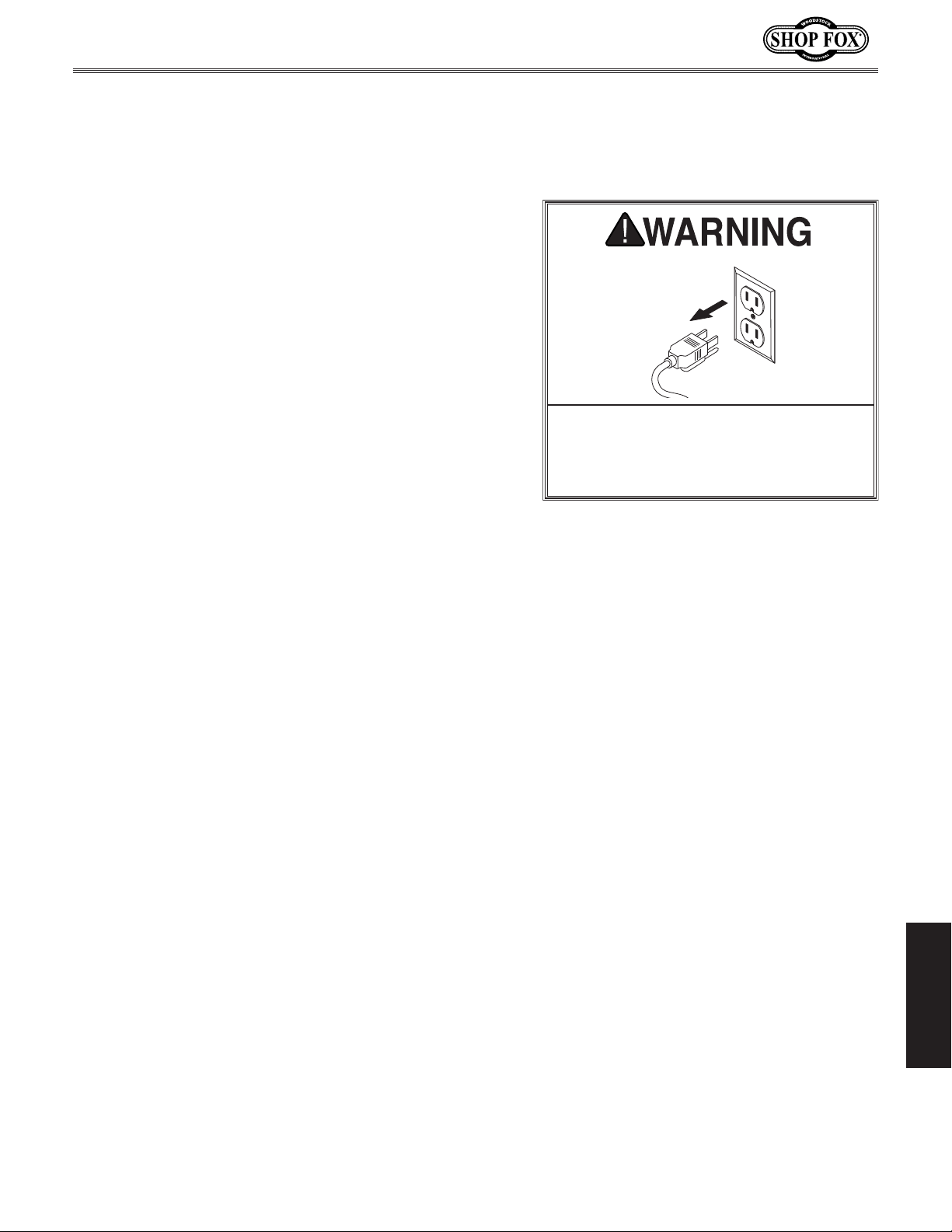

MAKE SURE that your machine is
unplugged during all maintenance
procedures! If this warning is ignored,
serious personal injury may occur.

Monthly Check

• Clean and lubricate table ways, leadscrews, and

fence pivot points (

• V-belt tension, damage, or wear.

• Clean/vacuum dust buildup from inside stand and off

of motor.

Page 40).

Cleaning & Protecting

Cleaning the Model W1857/W1858 is relatively easy.
Vacuum excess wood chips and sawdust, and wipe off the
remaining dust with a dry cloth. If any resin has built up,
use a resin dissolving cleaner to remove it.

Protect the unpainted cast iron table by wiping it clean
after every use—this ensures moisture from wood dust
does not remain on bare metal surfaces. Keep your table
rust-free with regular applications of quality lubricants.

MAINTENANCE

-39-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

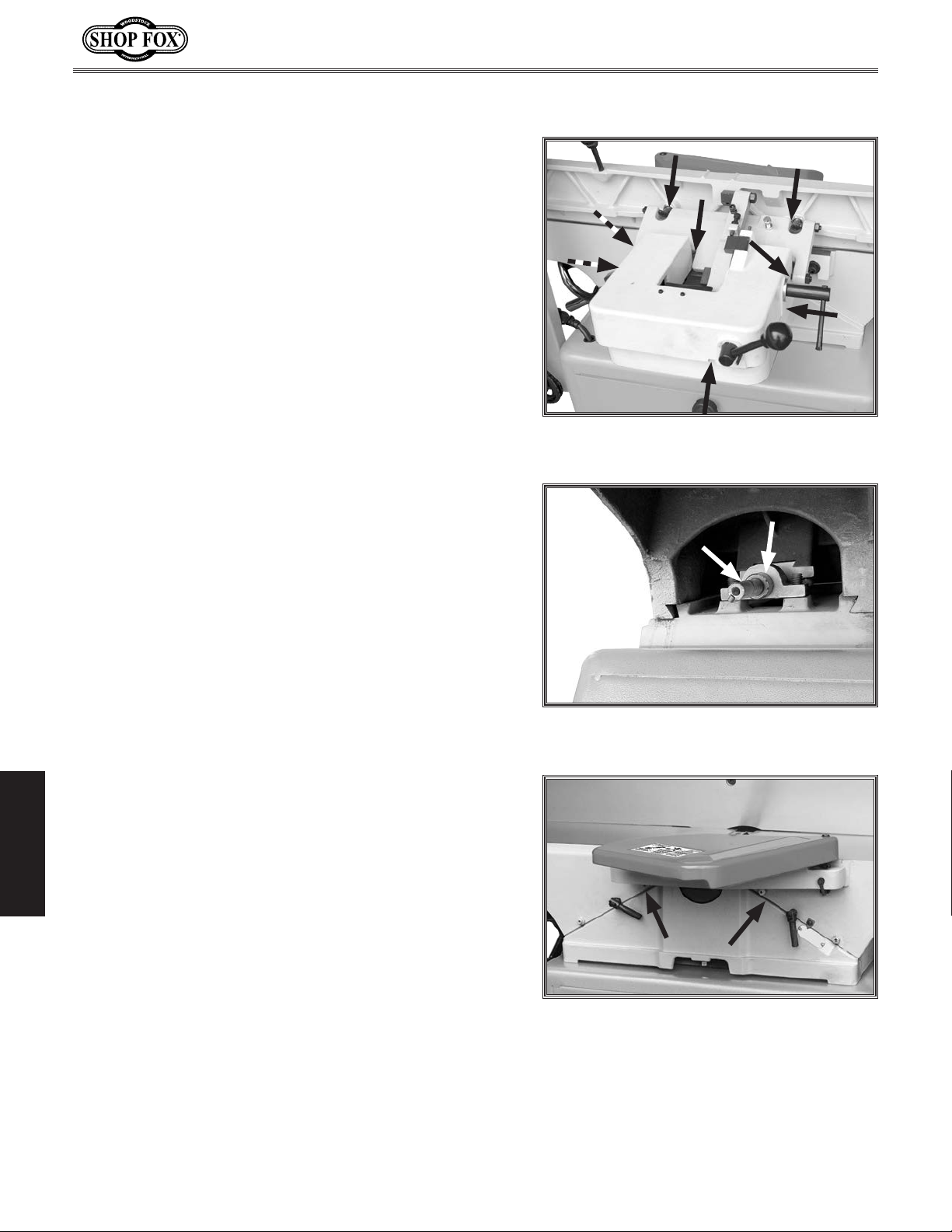

Lubrication

Since all bearings are sealed and permanently lubricated,
simply leave them alone until they need to be replaced.
DO NOT lubricate them.

It is essential to clean components before lubricating
them because dust and chips build up on lubricated
components and make them hard to move. Simply adding
more grease to them will not yield smooth moving
components.

Lubr ication

Item(s)

Pump-Type Oil Can .............................................1

Mineral Spirits
Clean Shop Rags

Needed Qty

....................................... As Needed

..................................... As Needed

Fence & Carriage

Oil Type .......................................ISO 68 Equivalent

Oil Amount
Lubrication Frequency

Clean fence pivot points and carriage ways (see Figure
with mineral spirits and shop rags, allow to dry, then
lubricate with light machine oil. Wipe off excess oil.

............................................ 1–2 Drops

...............Monthly, or As Needed

36)

Leadscrews

Oil Type .......................................ISO 68 Equivalent

Oil Amount
Frequency

Clean leadscrews (see Figure
shop rags, allow to dry, then lubricate with light machine
oil. Wipe off excess oil.

............................................ 1–2 Drops

..............................Monthly, or As Needed

37) with mineral spirits and

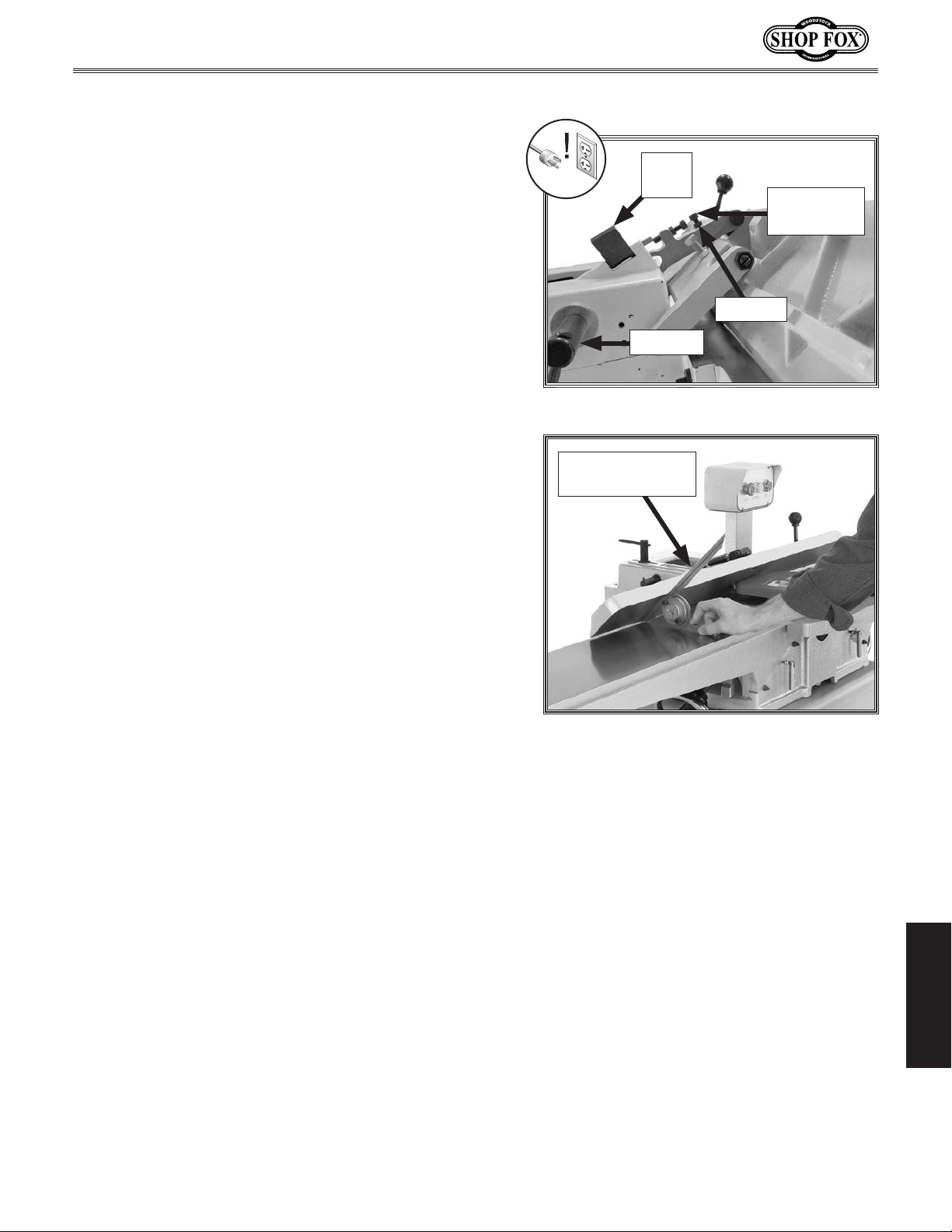

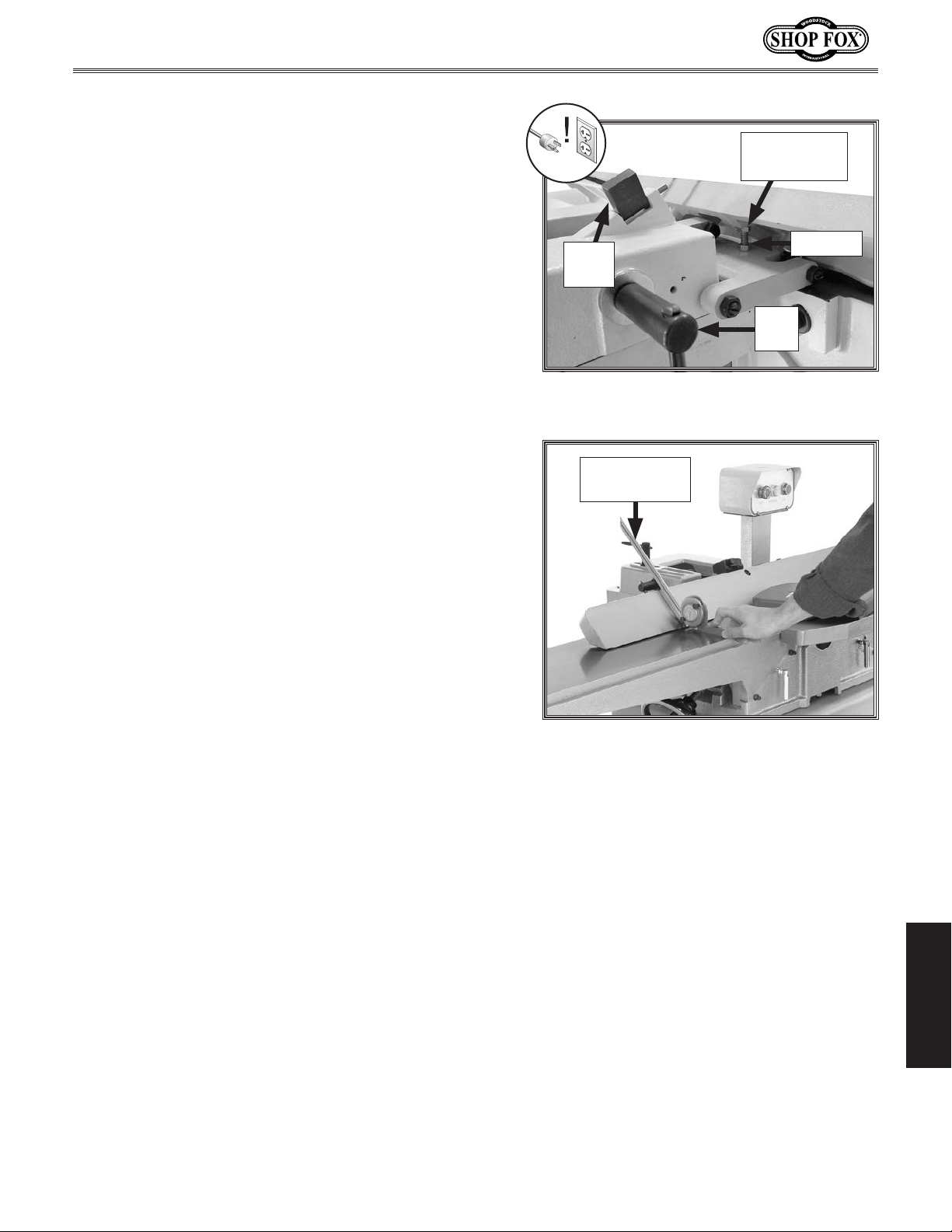

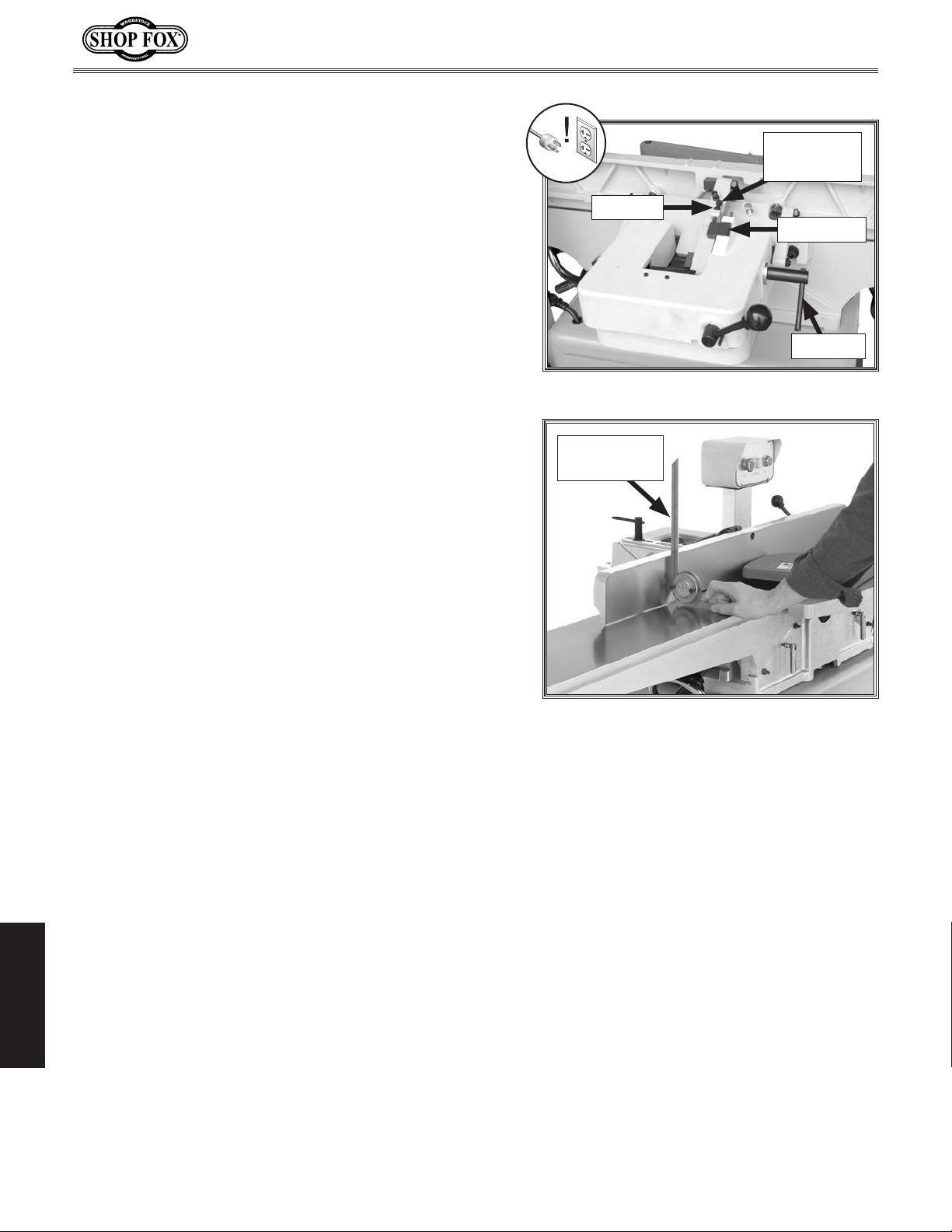

Figure 36. Fence and carriage lubrication

locations.

Figure 37. Leadscrew lubrication locations

(handwheel removed for clarity).

Table Ways

Oil Type .......................................ISO 68 Equivalent

Oil Amount
Lubrication Frequency

MAINTENANCE

Lower infeed and outfeed tables to access ways. Clean
ways with mineral spirits and shop rags, allow to dry,
then lubricate with light machine oil at top of each way
(see Figure
oil. Wipe off excess oil.

............................................ 1–2 Drops

...............Monthly, or As Needed

38). Move tables up and down to distribute
Figure 38. Location to lubricate table

ways.

-40-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

This section covers the most common service adjustments
or procedures that may need to be made during the life
of your machine.

If you require additional machine service not included
in this section, please contact Woodstock International
Technical Support at [phone] or send e-mail to:
[email protected].

SERVICE

General

Setting/Replacing Knives

Inspecting Knives

(W1857)

Setting the knives correctly is crucial to the proper
operation of the jointer and it plays an important role
in keeping the knives sharp. If one knife is higher than
the others, it will do the majority of the work, and thus,
become dull much faster.

The cutterhead on this jointer comes with both jack
screws and springs for setting knife height. Which one
you choose is a matter of personal preference. However,
only one of these options is needed to set the knives.
The advantage of using springs is that springs maintain a
constant upward pressure on the knives while using the
knife-setting jig. The advantage of using jack screws is
that once you set the proper height of the screws, they
should require little to no adjustment when replacing
knives.

There are two options for setting the knives—the
straightedge method and the knife-setting jig method.
Each option has advantages and disadvantages; the
correct one for you will be a matter of personal
preference. For best results, the tables must be parallel
with each other (refer to
Parallelism) and the outfeed table height must be
properly set (refer to

Checking/Adjusting Table

Setting Outfeed Table Height).

MAKE SURE that your machine is
unplugged during all service proce­dures! If this warning is ignored, seri­ous personal injury may occur.

SERVICE

-41-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Black Lines Represent
Straightedge Positions
From Overhead View

Straightedge Method

A high quality straightedge (or Jointer Pal) is held flat
against the outfeed table and the knife heights are set to
the bottom of the straightedge, as shown. Because the
knife projection height from the cutterhead is dependent
on the outfeed table height, the outfeed table must be
set as described in
Page 50 for this method to work correctly.

When using the straightedge method to set the knives,
you will not need to move the outfeed table once it is set
and you will always be assured that the knives are even
with the outfeed table in their highest point of rotation
(TDC)—even if the cutterhead is not perfectly parallel
with the outfeed table.

Setting Outfeed Table Height on

Black Lines Represent
Straightedge Positions
From Overhead View

Knife at TDC

Item(s)

Precision Straightedge or Knife-Setting Jig .................1

Hex Wrench 3mm

Open-End Wrench 10mm.......................................1

To check knife height with a straightedge, do these
steps:

1.

2. Remove cutterhead guard or block it open.

3. Using a straightedge on outfeed table, check height

Needed Qty

DISCONNECT MACHINE FROM POWER!

of each knife at positions as shown in Figure 39.

— Knives are set correctly when they just touch

bottom of straightedge at TDC in each of
straightedge positions.

— If knives do not touch straightedge or they lift

up at any position, then those knives need to be
adjusted (refer to

e 44).

Pag

...............................................1

Setting/Replacing Knives on

Straightedge

Outfeed Infeed

Figure 39. Setting knife height with a

straightedge.

Figure 40. Setting knife height with a

Jointer Pal

®

.

SERVICE

-42-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

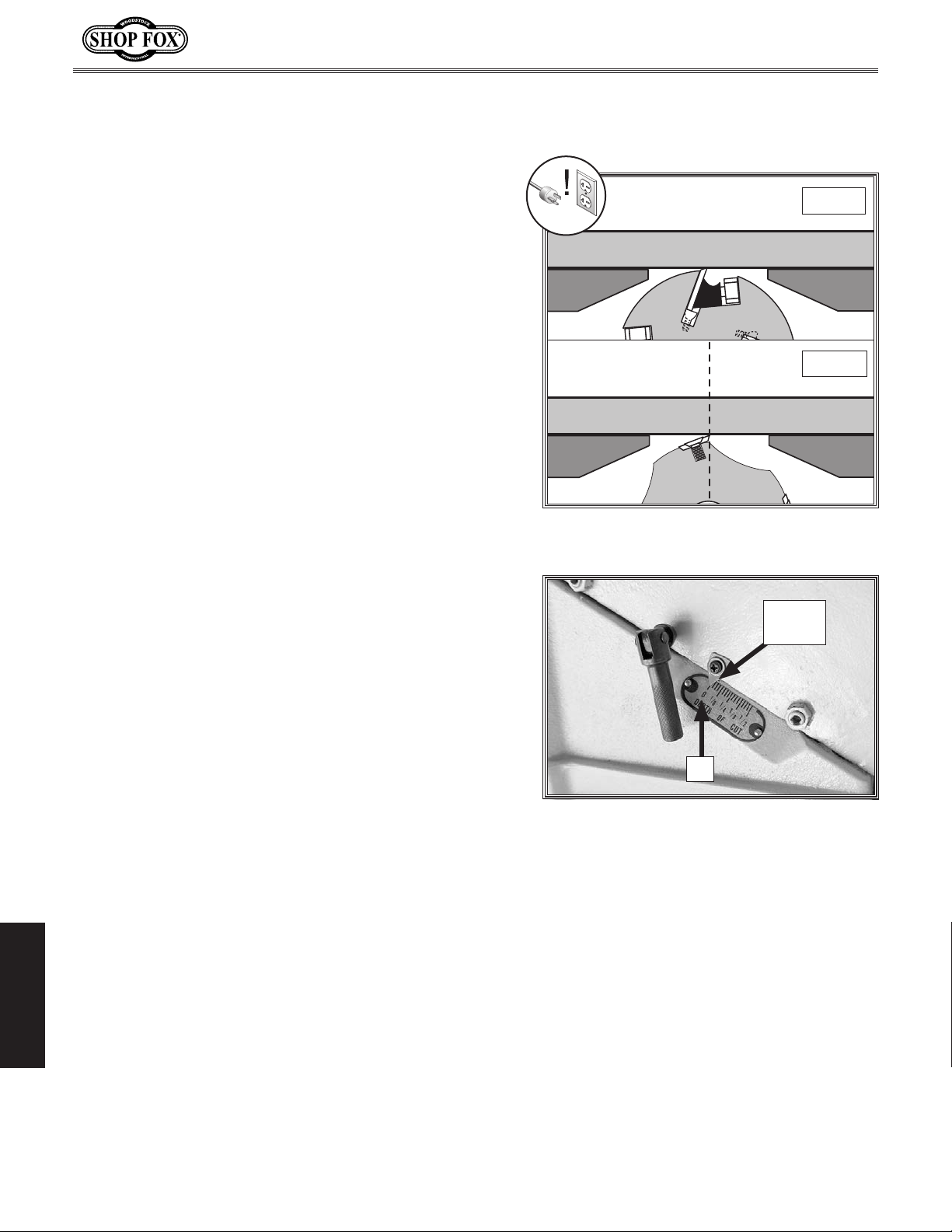

Knife-Setting Jig Method

The infeed table is lowered to fit the jig on the
cutterhead, as shown, and the knife heights are set to
just touch the middle pad of the jig. The knife-setting jig
included with the jointer is designed to set all the knives
evenly and at the correct height in the cutterhead.

To check knife height with a knife-setting jig, do these
steps:

DISCONNECT MACHINE FROM POWER!

1.

Middle

Pad

2. Remove cutterhead guard or block it open.

3. Lower infeed table to 1⁄2" scale mark.

Place knife-setting jig on cutterhead, directly over a

4.

knife.

Closely examine how jig touches cutterhead and

5.

knife. Knife is set correctly when, on each side of
cutterhead, both legs of jig sit firmly on cutterhead
body and middle pad of jig just touches top edge of
knife.

— If jig does not sit as described, then that knife

must be reset. Repeat this inspection with other
knives before resetting. (Refer to

Knives on Page 44.)

Setting/Replacing

Figure 41. Example of knife-setting jig

positioned over cutterhead knife.

Figure 42. Using knife-setting jig to set

knife height.

-43-

SERVICE

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Setting/Replacing Knives

1. DISCONNECT MACHINE FROM POWER!

Remove cutterhead guard from table and lower

2.

infeed table to 1⁄2" on depth-of-cut scale. This will
provide unrestricted access to cutterhead.

Remove cabinet rear access panel to expose

3.

cutterhead pulley.

Rotate cutterhead pulley to provide good access to

4.

cutterhead knives.

Loosen cutterhead gib bolts, starting in the middle,

5.

and alternating back and forth until all gib bolts are
loose, but not falling out.

The first time you set or replace a knife, remove

the gib and knife from cutterhead. Clean gib and
clean inside cutterhead slot to remove all pitch or
sawdust. Coat knife and gib with a metal protectant.

Setting Replacing Knives

Loosen
Tighten

Figure 43. Cutterhead profile diagram.

Jack

Screw

Knife

Jack
Screw

Gib

Gib Bolt

Position knife jig over knife. Loosen gib bolts until

6.

knife is completely loose.

Jack Screws—Access jack screws through holes in

7.

cutterhead (see Figure
rotate jack screws to raise or lower knife. When
knife is set correctly, it will barely touch the bottom
of the straightedge or the middle pad of the knife
jig. Snug gib bolts just tight enough to hold knife in
place. Repeat with remaining knives.

Springs—Push knife down with straightedge or

middle pad of knife-setting jig (see Figure
straightedge flat against outfeed table. If using jig,
keep feet pressed evenly against cutterhead. Tighten
gib bolts just enough to hold knife in place. Repeat
with remaining knives.

Rotate cutterhead to reveal the first knife you

8.

started with. Lightly snug all gib bolts, alternating
from one side to the other, and working from the
ends to the middle. Repeat with remaining knives.

44). Using a hex wrench,

45). Keep

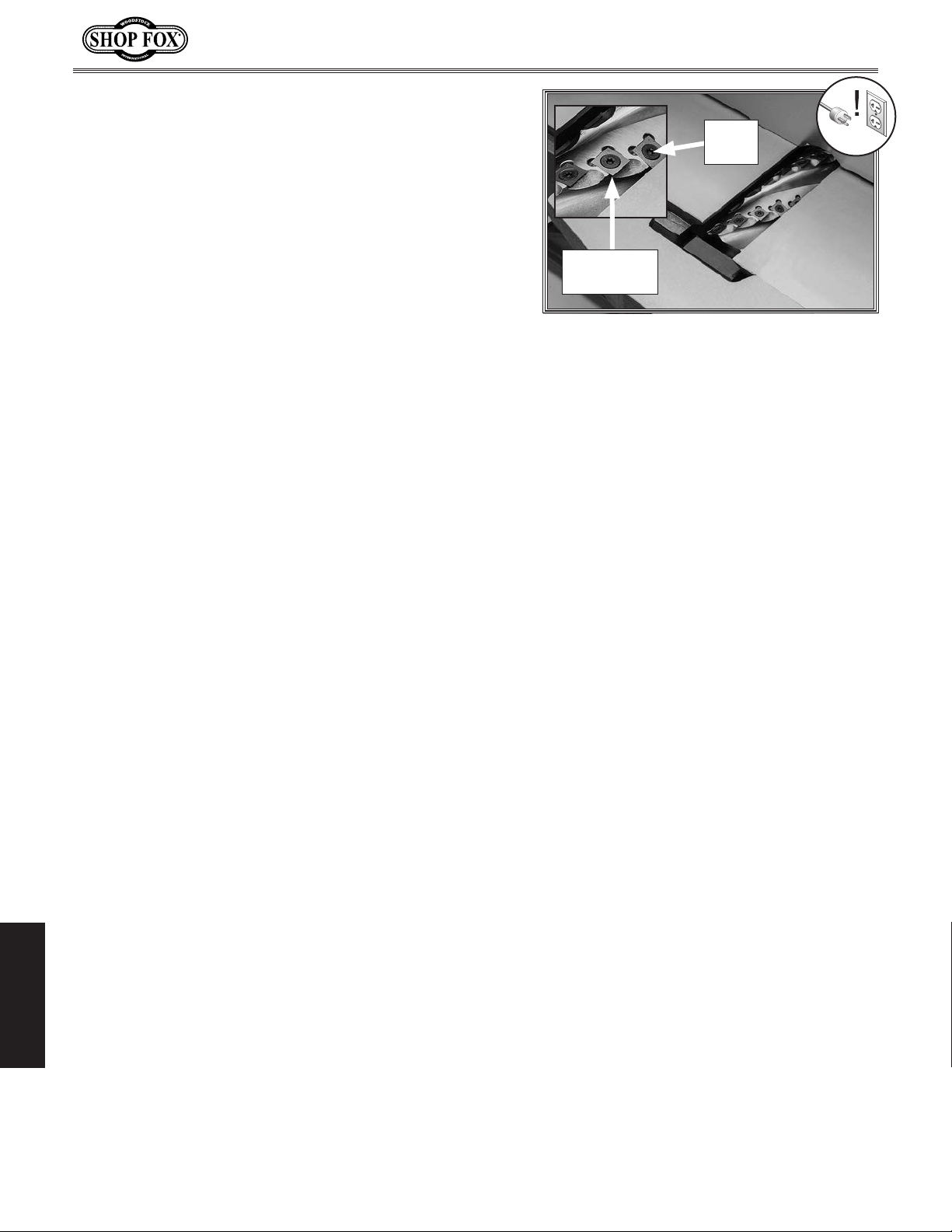

Figure 44. Location of jack screw access

hole.

Spring

Figure 45. Location of spring.

SERVICE

as you did in the previous step.

Make sure outfeed table is set even with the new

10.

knives at top dead center.

Replace cutterhead guard and cabinet rear access

11.

panel.

-44-

3

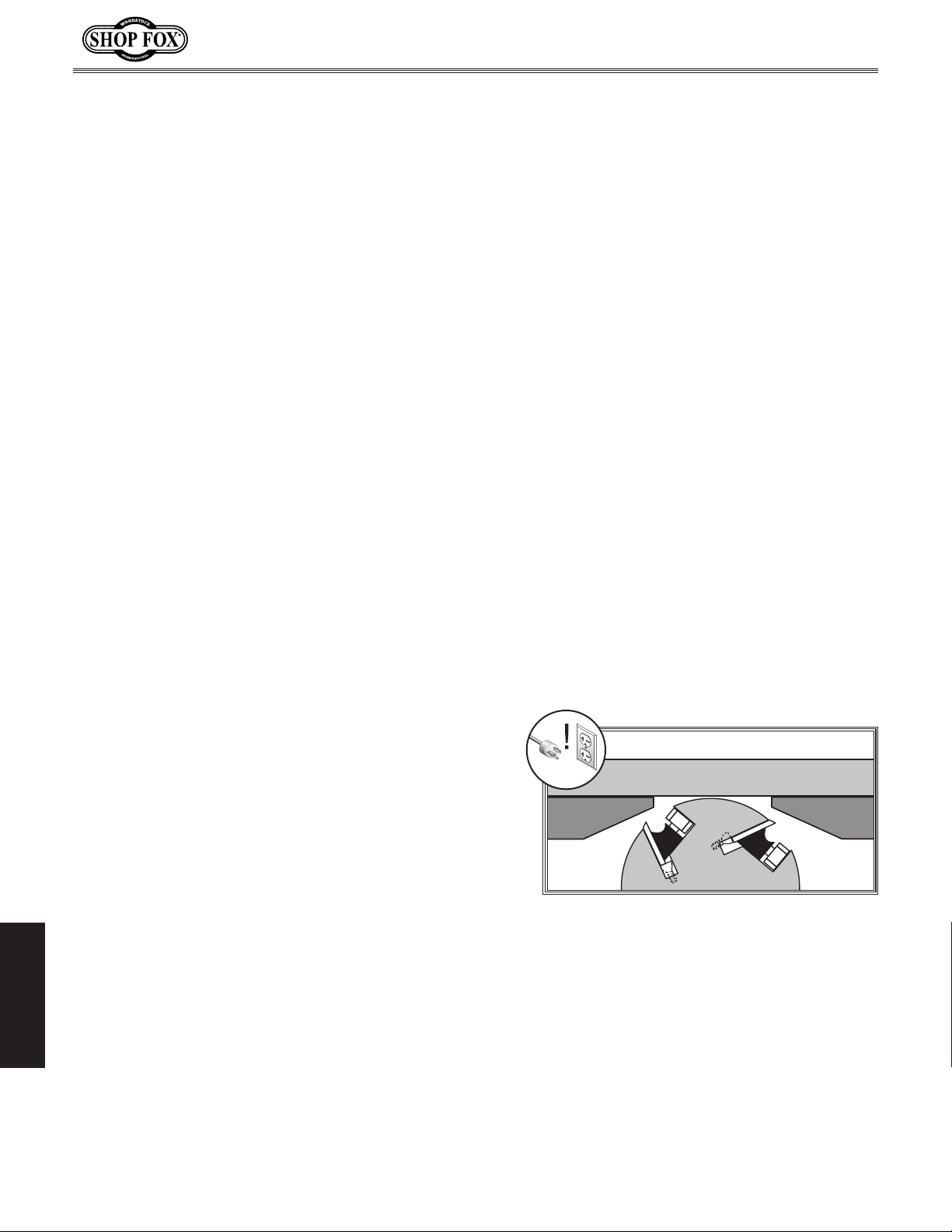

Figure 46. Gib bolt tightening sequence.

1

42

Tighten each gib bolt in the same alternating manner

9.

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Rotating/Replacing

Helical Cutterhead Inserts

(W1858)

The helical cutterhead is equipped with 4-sided indexable
carbide inserts. Each insert can be removed, rotated,
and re-installed to use any one of its four cutting edges.
Therefore, if one cutting edge becomes dull or damaged,
simply rotate it 90° (see
edge.

The inserts have a reference dot on one corner. The
position of the reference dot on installed inserts can
be used to track which edges are sharp/unused and
which edges are dull or damaged. Replace inserts once
the reference dot has been rotated back to its original
position.

Figure 47) to use a sharp cutting

Rotating Replacing Cutterhead Inserts

Reference Dot

Figure 47. Insert rotating sequence.

Item(s)

Carbide Inserts 15 x 15 x 2.5mm ................. As Needed

Torx Head Screws T-25 #10-32 x
Torque Wrench
T-25 Torx Bit

To rotate or replace helical cutterhead insert, do these
steps:

1.

2. Remove cutterhead guard from table, and lower

3.

4.

5.

Needed Qty

1

⁄2" ............. As Needed

..................................................1

.....................................................1

DISCONNECT MACHINE FROM POWER!

infeed table as far down as it will go.

Remove cover to get access to cutterhead pulley.

Taking care not to pinch your hand between belt

and pulley, rotate pulley as needed to make inserts
accessible for removal.

Put on heavy leather gloves to protect fingers and

hands.

SERVICE

-45-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

6. Carefully clean away all sawdust or debris from top

of insert, Torx screw, and surrounding area (see
Figure 48).

Remove Torx screw and insert, then carefully clean

7.

away all dust and debris from insert and insert
pocket in cutterhead.

Torx

Screw

IMPORTANT: This step is critical for achieving a

smooth finish with cutting operations. Dirt or dust
trapped under insert during installation will slightly
raise insert in cutterhead, which will leave marks on
workpiece after jointing.

Tip: Use low-pressure compressed air or a vacuum

nozzle to clean cutterhead pocket.

Re-install insert with a sharp cutting edge facing

8.

outward. Make sure insert is properly seated in
cutterhead pocket before securing.

— If all four insert cutting edges have been used,

replace insert with a new one. Always position
reference dot in same position when installing a
new insert to aid in rotational sequencing.

Lubricate Torx screw threads with a small amount of

9.

light machine oil, wipe excess off, and torque screw
to 48–50 inch/pounds.

IMPORTANT: If too much oil is applied to the

threads, excess will attempt to squeeze out of
threaded hole as you install insert and force it to
raise slightly, making it out of alignment.

Cutterhead

Insert

Figure 48. Example of cutterhead inserts

and Torx screws.

SERVICE

-46-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Adjusting Gibs

The function of the table gibs is to eliminate excessive
play in the table movement. The gibs also control how
easy it will be to move the tables up and down.

Item(s)

Open-End Wrench 13mm.......................................1

Hex Wrench 4mm

To adjust table gibs, do these steps:

1.

2.

3.

Needed Qty

...............................................1

Loosen (4) infeed table gib jam nuts on front of

table/fence assembly (see Figure

Oil table ways if needed (refer to Lubrication on

40).

Page

Evenly tighten gib set screws a small amount,

then check tables by moving them up and down.
Adjust set screws as needed until friction of table
movement is balanced between minimal play and
ease of movement.

49).

Adjusting Gibs

Gib Jam Nuts

& Set Screws

Figure 49. Infeed table gib controls.

Note: Tighter gibs reduce play but make it harder to

adjust tables.

Tighten jam nuts to secure setting.

4.

Set outfeed table height (refer to Setting Outfeed

5.
Table Height on Page 50).

SERVICE

-47-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Checking/Adjusting Table

Parallelism

The infeed and outfeed tables must be parallel with each
other in order to produce a straight, jointed edge. When
the tables are not parallel with each other, the jointer
will produce workpieces that are cupped (concave) or
bowed (convex) along their length.

Checking Adjusting Table Parallelism

Table parallelism is factory-set and should not normally
need to be adjusted when the machine is new. However,
after prolonged use, or if the machine has been jarred
during lifting or transportation, it may become necessary
to adjust the table parallelism.

Table parallelism is adjusted by inserting shims between
the dovetailed ways of the outfeed table to make it
parallel with the infeed table. Once this adjustment is
made, the outfeed table height should not need to be
adjusted again.

Item(s)

Precision Straightedge 3'.......................................1

Feeler Gauge Set
Metal Shims

To check/adjust table parallelism, do these steps:

1. DISCONNECT MACHINE FROM POWER!

2.

3.

4.

Needed Qty

...............................................1

.......................................... As Needed

Set outfeed table height (refer to Setting Outfeed

Table Height on Page 50).

Move cutterhead guard out of the way and slide

fence all the way back.

Rotate cutterhead until knife/insert is not at TDC,

extend straightedge over both tables, raise infeed
table until it contacts straightedge (see
then lock infeed table.

Figure 50),

Straightedge

InfeedOutfeed

Figure 50. Checking table parallelism.

SERVICE

-48-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

5. Look down length of straightedge on outfeed side
to see if there are any noticeable gaps between
straightedge and outfeed table. Do this at both front
and rear of table.

— If there are no gaps, and the straightedge makes

full contact with both tables at front and rear,
the tables are parallel with each other and no
adjustments are necessary.

— If there are gaps anywhere between one of the

tables and the straightedge, the tables are not
parallel to each other and must be adjusted.
Proceed to

Insert feeler gauge between table and straightedge

6.

where gap is greatest (see Figure 51). Maximum
allowable tolerance is 0.003".

Loosen outfeed table locks. Place shims between

7.

dovetailed ways (see Figure 52) until outfeed table
is within 0.003" of parallel with infeed table at front
and rear of tables.

Re-check outfeed table height (refer to Setting

8.
Outfeed Table Height on Page 50), and re-adjust if

necessary.

Step 6.

Insert Feeler Gauge

Where Gap is Greatest

Straightedge

Outfeed

Figure 51. Example of feeler gauge

location for checking table parallelism.

Possible Shim

Locations

Figure 52. Locations to place shims when

adjusting table parallelism.

Infeed

-49-

SERVICE

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Top Dead

Center

Setting Outfeed Table

Height

To help ensure safe operation and best cutting results,
set the outfeed table height level with the knives/inserts
when they are at top-dead-center (TDC). If the outfeed
table is set too low, the workpiece will be tapered from
front to back or there will be snipe (a gouge in end of
board that is uneven with rest of cut). If the outfeed
table is set too high, the workpiece will hit the edge of
the outfeed table during operation, increasing the chance
of kickback.

Setting Outfeed Table Height

Outfeed Table Lock

Item(s)

Precision Straightedge 4'.......................................1

Open-End Wrench 16mm.......................................1

To set outfeed table height, do these steps:

1.

2.

3.

4.

5.

6.

Needed Qty

DISCONNECT MACHINE FROM POWER!

Remove cutterhead guard and fence, then open belt

cover.

W1857 Only: Make sure knife heights are set

correctly (refer to

44).

Page

Loosen outfeed table lock (see Figure 53).

Place straightedge on outfeed table so it extends

over cutterhead.

Use motor pulley to rotate cutterhead until one

knife or insert is at TDC (its highest point during
rotation), as shown in

Setting/Replacing Knives on

Figure 54.

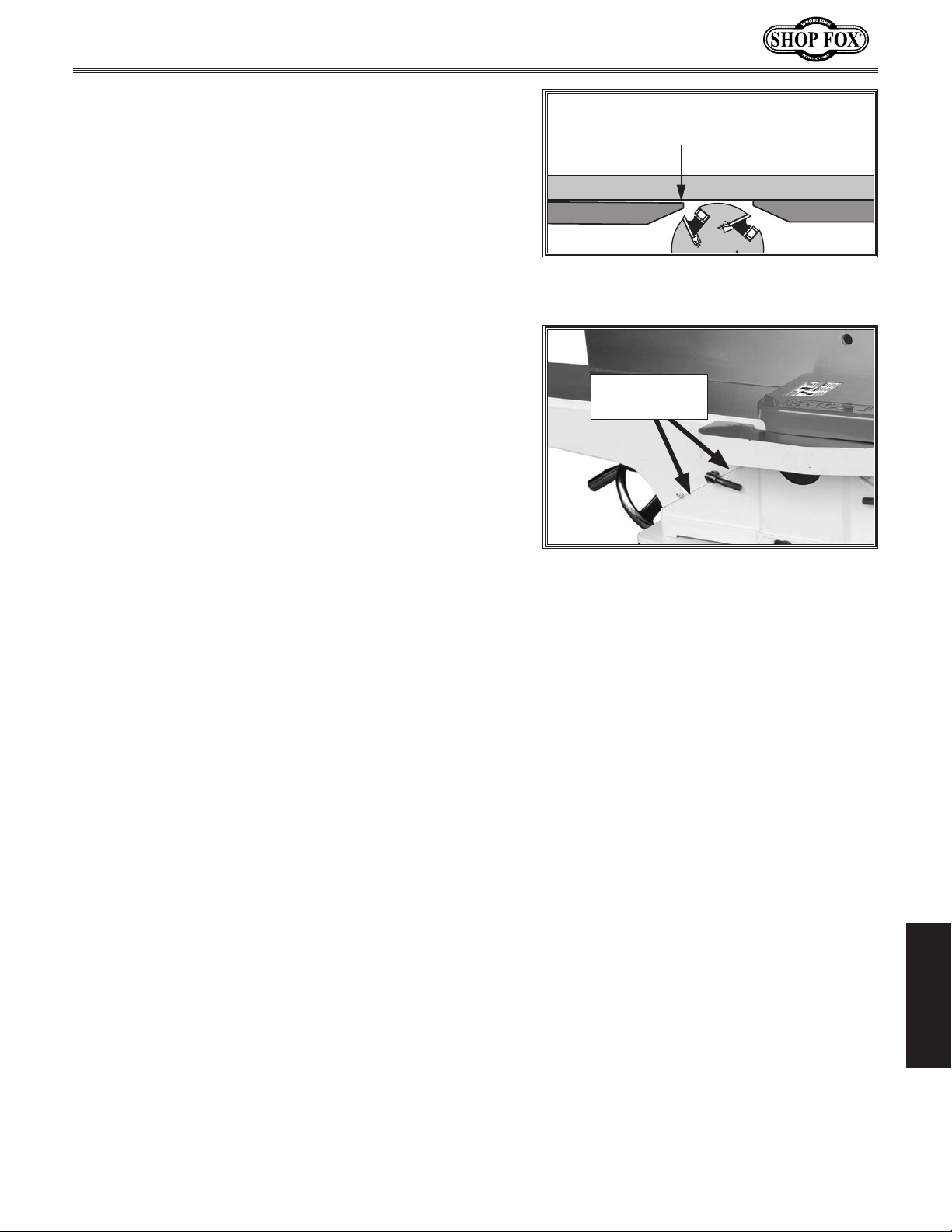

Figure 53. Location of outfeed table lock.

Top Dead

Center

W1858

Figure 54. Knife or insert at TDC.

Straightedge

W1857

W1857

7.

8.

9.

SERVICE

10.

Use outfeed table lever to set outfeed table so knife

or insert barely touches straightedge, as shown in
Figure 55.

Tighten outfeed table lock so outfeed table will not

move during operation.

Re-install cutterhead guard and fence, then close

belt cover.

Verify proper operation of cutterhead guard (refer to

Checking/Adjusting Cutterhead Guard on Page 57).

-50-

Outfeed Infeed

W1858

Straightedge

Outfeed Infeed

Figure 55. Using straightedge to check

outfeed table height.

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Setting Fence Stops

The fence stops simplify the task of adjusting the fence to
45° inward, 90°, and 45° outw ard (135°).

Item(s)

Open-End Wrench 14mm.......................................1

Sliding Bevel

Needed Qty

.....................................................1

Setting 45° Inward Stop

1. DISCONNECT MACHINE FROM POWER!

Setting Fence Stops

Stop

Block

45° Inward

Stop Bolt

Jam Nut

2. Loosen fence tilt lock, rotate stop block up, then tilt
fence approximately 45° inward onto stop bolt (see

Figure

Place sliding bevel set to 45° against fence and

3.

table, as shown in

Loosen jam nut on 45° inward stop bolt and adjust

4.

stop bolt until fence is exactly 45° inward while
resting on stop bolt (see Figure
then retighten jam nut.

56).

Figure 57.

56). Verify angle,

Tilt Lock

Figure 56. Fence set to 45° inward.

Sliding Bevel Set

to 45° Inward

Figure 57. Example of adjusting fence to

45° inward.

-51-

SERVICE

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Setting 90° Stop

1. DISCONNECT MACHINE FROM POWER!

2. Loosen fence tilt lock, rotate stop block down, and

position fence approximately 90° onto stop cap
screw (see

3. Place sliding bevel set to 90° against fence and
table, as shown in

Loosen jam nut on 90° stop cap screw and adjust cap

4.

screw until fence is exactly 90° while cap screw is
resting on stop block (see Figure
then retighten jam nut.

Figure 58).

Figure 59.

58). Verify angle,

90° Stop

Cap Screw

Jam Nut

Stop Block

Tilt Lock

Figure 58. Fence set to 90°.

Sliding Bevel

Set to 90°

Figure 59. Example of adjusting fence to

90°.

SERVICE

-52-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Setting 45° Outward (135°) Stop

1. DISCONNECT MACHINE FROM POWER!

2. Loosen fence tilt lock, rotate stop block up, then tilt

fence approximately 45° outward (135°) onto stop
bolt (see Figure

60).

45° Outward

Stop Bolt

3. Place sliding bevel set to 135° against fence and
table, as shown in

Loosen jam nut on 45° outward stop bolt and adjust

4.

stop bolt until fence is exactly 45° outward (135°)
outward while resting on stop bolt (see Figure
Verify angle, then retighten jam nut.

Figure 61.

60).

Stop

Block

Figure 60. Fence set to 45° outward

(135°).

Sliding Bevel

Set to 135°

Jam Nut

Tilt

Lock

Figure 61. Example of adjusting fence to

45° outward (135°).

SERVICE

-53-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Calibrating Depth-of-Cut

Scale

For best cutting results, calibrate or "zero" the depth-of­cut scale so cutting depth shown on the scale matches the
actual cutting depth (per pass).

Item(s)

Precision Straightedge 4'.......................................1

Phillips Screwdriver #2

To calibrate the depth-of-cut scale, do these steps:

1.

Needed Qty

.........................................1

DISCONNECT MACHINE FROM POWER!

Calibrating Depth Scale

W1857

Straightedge

InfeedOutfeed

W1858

Make sure outfeed table height is set correctly (refer

2.

Setting Outfeed Table Height on Page 50).

to

Move cutterhead guard out of the way and slide

3.

fence all the way back, then place straightedge
across infeed and outfeed tables.

Adjust the infeed table until it is even with the

4.

outfeed table (see

Loosen Phillips head screw, adjust scale pointer to

5.

"0," then re-tighten screw (see

Figure 62).

Figure 63).

Straightedge

InfeedOutfeed

Figure 62. Infeed table even with outfeed

table.

Scale

Pointer

"0"

Figure 63. Depth-of-cut scale set to "0".

SERVICE

-54-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Tensioning/Replacing Belt

To ensure optimum power transmission from the motor to
the cutterhead, the belt must be in good condition (free
from cracks, fraying and wear) and properly tensioned.

Tensioning Replacing Belt

Item(s) Needed Qty

Replacement Belt (X1857083) ................................1

Phillips Screwdriver #2
Open-End or Socket Wrench 13mm

Tensioning Belt

1. DISCONNECT MACHINE FROM POWER!

2. Remove rear access panel on stand.

Loosen motor mount fasteners shown in Figure 64.

3.

DO NOT completely remove motor mount fasteners.

Press down on motor to keep tension on belt, and

4.

then tighten motor mount bracket fasteners (see

Figure

Press belt with moderate pressure in center to check

5.

belt tension. Belt is correctly tensioned when there
is approximately
shown in

64).

Figure 65.

.........................................1

..........................1

1

⁄4" deflection when pushed, as

Belts and pulleys will be hot after
operation. Allow them to cool before
handling.

Figure 64. Location of motor mount

fasteners (3 of 4 shown).

Cutterhead Pulley

— If there is more than 1⁄4" deflection when

you check belt tension, repeat the tensioning
procedure until it is correct.

Replace rear access panel.

6.

Replacing Belt

1. DISCONNECT MACHINE FROM POWER!

2. Remove fence, belt cover and rear access panel on

stand.

Loosen motor mount bracket fasteners shown in

3.
Figure 64.

Use a 2x4 as leverage to lift motor as you remove

4.

belt and replace it with a new one. Make sure belt is
seated in pulley groove.

Follow Steps 4–5 in Tensioning Belt procedure to set

5.

correct belt tension.

Approximately

1

⁄4" Deflection

Motor Pulley

Figure 65. Checking belt deflection.

After approximately 16 hours of
operation, belts will stretch and
seat into pulley grooves. The belts
need to be re-tensioned after this
initial break-in period to ensure
optimum power transfer and
maximum overall life of the belts.

SERVICE

Replace rear access panel.

6.

-55-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Checking/Aligning Pulleys

Pulley alignment is an important factor in power
transmission and belt life. The pulleys should be parallel
to each other and in the same plane (coplaner) for
optimum performance.

Each pulley can be adjusted by loosening the set screw
that secures the pulley to the shaft, sliding the pulley in/
out, and retightening the set screw to lock the pulley in
place.

Item(s) Needed Qty

Precision Straightedge (Optional) ............................1

Hex Wrench 3mm
Phillips Screwdriver #2

...............................................1

.........................................1

Checking Aligning Pulleys

To align pulleys, do these steps:

DISCONNECT MACHINE FROM POWER!

1.

2. Remove fence, belt cover, and rear access panel on

stand.

Look down length of belt and pulley faces to check

3.

pulley alignment (see Figure
use a narrow straightedge against pulley faces to
check alignment.

— If pulleys are aligned, proceed to Step 7.

— If pulleys are not aligned, perform Steps 4 – 6.

Remove belt (refer to Tensioning/Replacing Belt on

4.

55).

Page

Loosen motor pulley set screw and cutterhead

5.

pulley set screw, and then align both pulleys. (Use
straightedge if needed.)

s 66–67). If available

Cutterhead

Pulley

Belt

Motor

Pulley

Figure 66. Checking pulley alignment

(viewed from above).

Cutterhead

Pulley

Alignment

Tighten set screws, replace belt, and repeat Step 3

6.

to verify proper pulley alignment. Pulleys should
be aligned, as shown in Figure
properly tensioned.

Re-install fence, belt cover, and rear access panel.

7.

67, when belt is

Figure 67. Proper pulley alignment.

Motor

Pulley

SERVICE

-56-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Checking/Adjusting

Cutterhead Guard

The cutterhead guard is designed to reduce the risk of
accidental contact with hands or fingers with the spinning
cutterhead. When properly installed and functioning
correctly, the guard automatically rotates clear of the
cutterhead during the cutting operation and then springs
back over the cutterhead as soon as the operation is
complete.

In order to function as intended, the guard must be
installed as low as possible over the infeed table without
actually touching it, and it must have enough spring
tension at the mounting shaft to quickly reposition
itself against the fence after it is rotated away from the
cutterhead and released. Before performing rabbeting
operation, adjust guard height to just clear outfeed table.

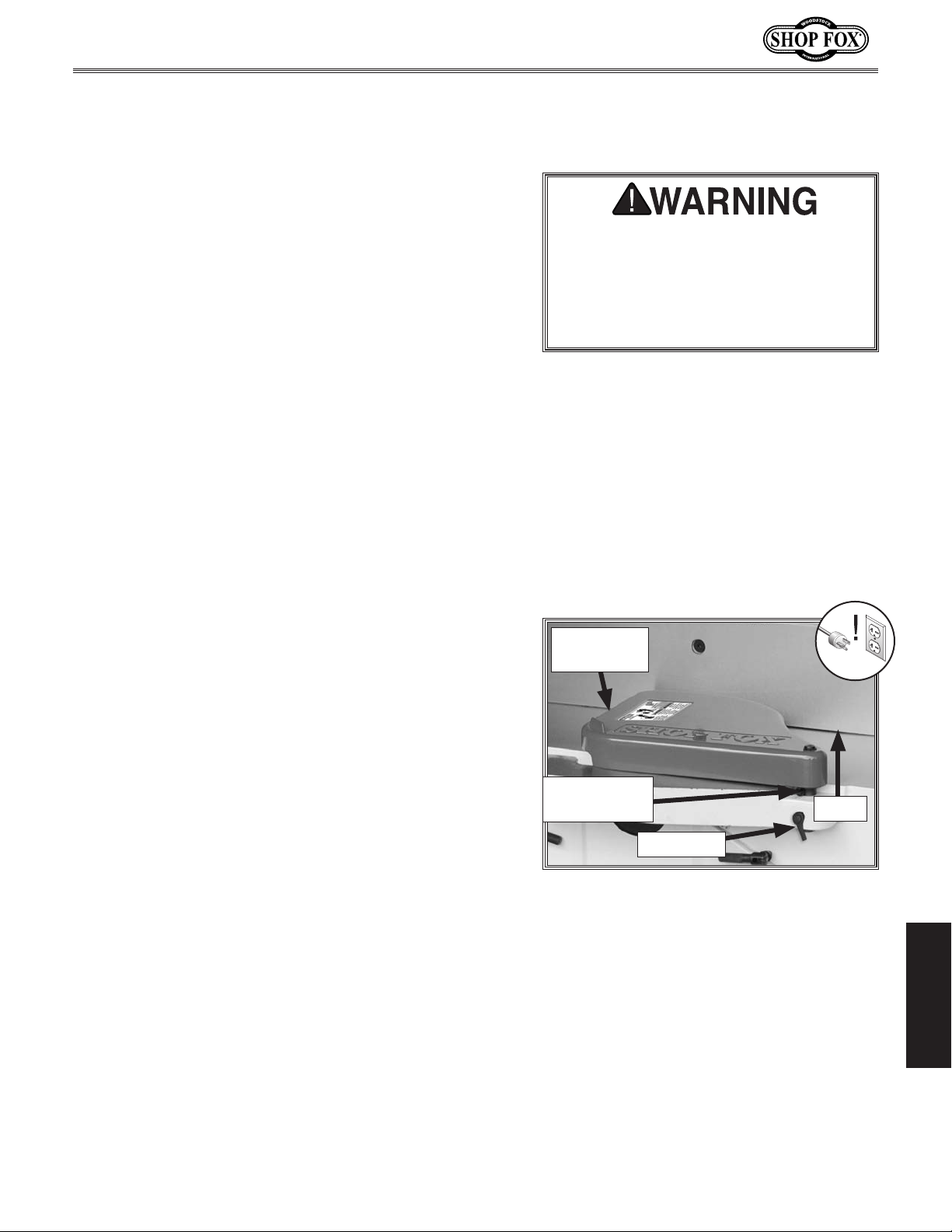

Adjusting Cutterhead Guard

The cutterhead guard is a critical safety
feature of this jointer. You MUST install
and verify its operation before using the
jointer! Failure to properly install this
guard will greatly increase the risk of
serious personal injury.

To check/adjust cutterhead guard for proper operation,
do these steps:

1. DISCONNECT MACHINE FROM POWER!

2. Set fence to 90° and move it all the way back, then

pull cutterhead guard (see
go.

— If cutterhead guard springs back over cutterhead,

contacts fence, and does not drag across infeed
table, then it is properly adjusted.

— If cutterhead guard does not spring back over

cutterhead, does not contact fence, or drags
across infeed table, then proceed to

Loosen shaft lock (see Figure 68) that secures

3.

cutterhead guard shaft to machine.

Lift cutterhead guard so shaft (see Figure 68) clears

4.

hole, rotate guard clockwise, re-install guard so it
is resting against fence, then tighten shaft lock (see

Figure 68).

Figure 68) back and let it

Step 3.

Cutterhead

Guard

Cutterhead

Guard Shaft

Shaft Lock

Figure 68. Cutterhead guard components.

Fence

SERVICE

Re-test, and if necessary, repeat Steps 3–4 until

5.

cutterhead guard is properly adjusted.

-57-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

The following troubleshooting tables cover common problems that may occur with this machine. If you
need replacement parts or additional troubleshooting help, contact our Technical Support.

Note:

available, your original purchase receipt. This information is required to properly assist you.

Troubleshooting

Before contacting Tech Support, find the machine serial number and manufacture date, and if

Motor and Electrical

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Machine does not
start or a breaker
trips immediately
after startup.

Machine stalls or is
underpowered.

Machine has vibra­tion or noisy
operation.

1

. Incorrect power supply voltage/circuit

size.

2

. Power supply circuit breaker tripped/fuse

blown.

3

. Motor wires connected incorrectly.

4. Wiring open/has high resistance.

5. ON button at fault.

6. Start capacitor at fault.

7. Centrifugal switch at fault.
8

. Motor at fault.

1. Workpiece material not suitable.

2. Excessive feed rate.

3. Excessive depth of cut.
4

. Dull knives/inserts.

5. Belt slipping or pulleys misaligned.

6

. Dust collection blockage.

7

. Motor overheated.

8. Pulley slipping on shaft.

9

. Run capacitor at fault.

10

. Centrifugal switch at fault.

11

. Motor bearings at fault.

12

. Motor at fault.

1. Mobile base lock knobs loose or stand feet
not adjusted properly.

2

. Motor or other component loose.

3

. Belt worn or loose.

4

. Motor fan rubbing on fan cover.

5

. Pulley loose or misaligned.

6

. Dull knives/inserts.

7. Cutterhead bearings at fault.

8. Centrifugal switch at fault.

9. Motor bearings at fault.

1. Ensure correct power supply voltage/circuit size.

2

. Ensure circuit is sized correctly and free of shorts.

Reset circuit breaker or replace fuse.

3

. Correct motor wiring connections (Page 61).

4

. Check/fix broken, disconnected, or corroded wires.

5. Test/replace switch.
6

. Test/replace capacitor.

7

. Adjust/replace centrifugal switch if available.

8. Test/repair/replace.

1. Ensure workpiece is suitable for jointing (Page 28).

2. Reduce feed rate.

3. Reduce depth of cut (Page 35).

4.

Sharpen/replace knives (Page 44); rotate/replace

inserts (

5

. Tension/replace belt (Page 55); ensure pulleys are

aligned (

6.

Clear blockages, seal leaks, use smooth wall duct,

eliminate bends, close other branches.

7

. Clean motor, let cool, and reduce workload.

8

. Tighten/replace loose pulley/shaft, replace shaft

key; tighten pulley set screw (

9

. Test/repair/replace.

10. Adjust/replace centrifugal switch if available.

11. Test/repair/replace.

12. Test/repair/replace.

. Tighten mobile base lock knobs or adjust stand feet

1

to stabilize machine.

2

. Replace missing bolts/nuts, or tighten if loose.

3

. Inspect/tension or replace belt (Page 55).

4

. Fix/replace fan cover; replace loose/damaged fan.

5

. Secure pulley on shaft or realign (Page 56).

6

. Sharpen/replace knives (Page 44); rotate/replace

inserts (

7

. Replace bearing(s).

8. Adjust/replace centrifugal switch if available.

9. Test/repair/replace.

Page 45).

Page 56).

Page 56).

Page 45).

SERVICE

-58-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Machine Operation

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Table is hard to
adjust.

Excessive snipe
(gouge in end
of board that is
uneven with rest of
cut).

Workpiece stops in
middle of cut.

Workpiece chipping,
tear-out, indenta­tions, or overall
rough cuts.

Fuzzy grain left in
workpiece.

Long lines or
ridges that run
along length of
workpiece.

Uneven cutter
marks, wavy sur­face, or chatter
marks across face
of workpiece.

Glossy surface;
scorching or
burn marks on
workpiece.

Workpiece is con­cave or convex
along its length
after jointing.

Workpiece edges
not square; tapered
cut produced.

1. Table lock engaged/partially engaged.

2. Table stop blocking movement.

3

. Table gibs out of adjustment.

1. Outfeed table set too low.

2. Knives set too high (W1857).

3. Operator pushing down on trailing end of
workpiece as it leaves cutterhead.

1. Outfeed table set too high. 1. Align outfeed table with cutterhead knife/insert at

1. Workpiece not suitable for jointing.

2. Operator not feeding workpiece to cut
"with" the grain.

3.

Feed rate too fast.

4. Excessive depth of cut.

5

. Dull knives/inserts.

6

. Dust collection problems.

1. Wood has high moisture content.

2. Dull knives/inserts.

1. Nicked or chipped knives/inserts.

2. Inserts not consistently tightened/torqued
(W1858).

3. Dirt or debris under inserts (W1858).

1. Feeding workpiece too fast.

2. Knives not properly adjusted (W1857).

3. Dirt or debris under inserts (W1857).

1. Feed rate too slow.

2. Dull knives/inserts.

1. Workpiece not held with even pressure
against outfeed table during cut.

2. Workpiece excessively bowed or warped,
not suitable for jointing.

3. Tables are not parallel with cutterhead and
each other.

1. Fence not square to table(s); fence tilt
unlocked.

2

. Inserts not consistently tightened/torqued.

3. Warped infeed or outfeed table.

1. Completely loosen table lock (Page 9).

2. Loosen/reset table stop (Page 36).
3

. Adjust table gibs (Page 47).

1. Align outfeed table with cutterhead knife/insert at

top dead center (Page 50).

2. Adjust height of knives evenly with outfeed table

(Page 44).

3. Reduce/eliminate downward pressure on trailing
end of workpiece as it leaves cutterhead.

top dead center (Page 50).

1. Ensure workpiece is suitable for jointing (Page 28).

2. Turn workpiece 180° before feeding again.

3. Reduce feed rate.

4. Reduce depth of cut (Page 35).

5. Sharpen/replace knives (Page 44); rotate/replace
inserts (

6. Clear blockages, seal leaks, move machine closer to
dust collector, upgrade dust collector.

1. Ensure wood moisture content is less than 20%.
Allow to dry if necessary.

2. Sharpen/replace knives (Page 44); rotate/replace
inserts (

1. Replace knives (Page 44); rotate/replace inserts
(

2. Tighten/torque all inserts consistently when rotat­ing/replacing (

3. Remove inserts, properly clean mounting pocket
and re-install (Page 45).

1. Reduce feed rate.

2. Properly adjust knives (Page 44).

3. Remove inserts, properly clean mounting pocket,
and re-install (Page 45).

1. Increase feed rate.

2. Sharpen/replace knives (Page 44); rotate/replace
inserts (

1. Apply even downward pressure against workpiece
through entire travel along outfeed side during cut.

2. Ensure workpiece is suitable for jointing (Page 28).

3. Check/Adjust table parallelism (Page 48).

1. Square fence to table(s) (Page 51); lock fence.

2. Tighten/torque all inserts consistently when rotat­ing/replacing (

3. Regrind/replace table.

Page 45).

Page 45).

Page 45).

Page 45).

Page 45).

Page 45).

SERVICE

-59-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

These pages are current at the time of printing. However, in the spirit of improvement, we may make
changes to the electrical systems of future machines. Compare the manufacture date of your machine to

If there are differences between your machine and what is shown in this section, call Technical Support

for assistance BEFORE making any changes to the wiring on your machine. An updated

machine before calling. This information can be found on the main machine label.

Electrical Safety Instructions

the one stated in this manual, and study this section carefully.

at [phone]
wiring diagram may be available. Note: Please gather the serial number and manufacture date of your

SHOCK HAZARD. Working on wiring that is

connected to a power source is extremely
dangerous. Touching electrified parts will
result in personal injury including but not
limited to severe burns, electrocution,
or death. Disconnect the power from
the machine before servicing electrical
components!

QUALIFIED ELECTRICIAN. Due to the inherent

hazards of electricity, only a qualified
electrician should perform wiring tasks on
this machine. If you are not a qualified
electrician, get help from one before
attempting any kind of wiring job.

WIRE CONNECTIONS. All connections must

be tight to prevent wires from loosening
during machine operation. Double-check all
wires disconnected or connected during any
wiring task to ensure tight connections.

WIRE/COMPONENT DAMAGE. Damaged wires

or components increase the risk of serious
personal injury, fire, or machine damage. If
you notice that any wires or components are
damaged while performing a wiring task,
replace those wires or components before
completing the task.

MODIFICATIONS. Using aftermarket parts or

modifying the wiring beyond what is shown
in the diagram may lead to unpredictable
results, including serious injury or fire.

MOTOR WIRING. The motor wiring shown

in these diagrams is current at the time
of printing, but it may not match your
machine. Always use the wiring diagram
inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors

and power inverters store an electrical
charge for up to 10 minutes after being
disconnected from the power source.
To reduce the risk of being shocked,
wait at least this long before working on
capacitors.

CIRCUIT REQUIREMENTS. You MUST follow

the requirements at the beginning of this
manual when connecting your machine to a
power source.

EXPERIENCING DIFFICULTIES. If you are

experiencing difficulties understanding
the information included in this section,
contact our Technical Support at

[phone].

SERVICE

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.shopfox.biz.

BLACK

WHITE

GREEN

RED

BLUE

BROWN

GRAY

ORANGE

-60-

YELLOW
YELLOW

GREEN
PURPLE

PINK

LIGHT
BLUE

BLUE
WHITE

TUR­QUOISE

WIRING DIAGRAM COLOR KEY

Model W1857/W1858 (For Machines Mfd. Since 01/21)

wiring

Paddle Switch

(viewed from behind)

SHOCK HAZARD!
Disconnect power
before working on
wiring

The motor wiring shown here is
current at the time of printing, but
it may not match your machine.
Always use the wiring diagram inside
the motor junction box.

Wiring Diagram

ON/STOP Switch

KJD17B-16

220-240V

14

24
23

13

Ground

Read

Page 60

STOP

Before
Wiring

Ground

Hot

230
VAC

Hot

G

6-20 Plug

Motor

400MFD 125VAC

Start Capacitor

Run Capacitor

70uF 250VAC

Ground

Motor Junction Box

SERVICE

-61-

Figure 70. Motor junction box connections.Figure 69. On/Off switch connections.

Model W1857/W1858 (For Machines Mfd. Since 01/21)

PARTS

Fence & Cutterhead

(W1857 Only)

111

130

131

(W1858 Only)

132

136

117

40

40-2

40-3

(W1858 Only)

111

40-5

133

134

135

40-6

12

37

8

16

36

13

24

5

6

28

26
26

23

1

2

7

8

9

10

9

15

14

11

39

38

35

4

3

18

65

27

17

25

29

63

19

20

21

22

5

23

33

32

34

31

35

42V2

40-4

36

686868

41V2

40-2

40

(W1857 Only)

40-3

42V2

41V2

30

PARTS

-62-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Fence & Cutterhead Parts List

REF P ART # DESCRIPTION REF PART # DESCRIPTI ON

1 X1857001 FENCE TILT LOCK LEVER 1/2-12 33 X1857033 KEY 9.5 X 9.5 X 268
2 X1857002 FL AT WASHER 1 3MM 34 X1857034 CAP SCREW 3/8-16 X 1-1/2
3 X1857003 STOP BLOCK 35 X1857035 BEARING BLOCK
4 X1857004 FENCE CARRI AGE 36 X1857036 BALL BEARING 6204-2NSE
5 X1857005 BALL KNOB 3/8-16, D1-5/16 37 X1857037 KEY 5 X 5 X 30
6 X1857006 ECCENTRIC SHAFT 3/8-16, 5-1/4L 38 X1857038 SE T SCREW M6-1 X 8
7 X1857007 DOWEL PIN 5 X 50 39 X1857039 CUTTERHEAD PULLEY
8 X1857008 CAP SCREW 1/4-20 X 1-1/4 40 X1857040 CUTTERHEAD 8" 4-KNIFE (W1857)
9 X1857009 HEX NUT 1/4-20 40-2 X1857040-2 COMPRESSION SPRING (W1857)
10 X1857010 SHOULDER BOLT 5/16-18 X 11/16, 3/8 X 1 40-3 X1857040-3 FLAT HD CAP SCR M5-.8 X 12 (W1857)
11 X1857011 HEX NUT 1/2-20 THIN 40-4 X1857040-4 KNIFE 8 X 3/4 X 1/8 HSS (W1857)
12 X1857012 F EN CE 40-5 X1857040-5 KNIFE GIB (W1857)
13 X1857013 STUD-SE 1/2-20, 1-3/8, 11/16 40-6 X1857040-6 KNIFE GIB BOLT 1/4-28 X 1/4 (W1857)
14 X1857014 HEX NUT 5/16-18 40 X1858040 HELICAL CUTTERHEAD 8" (W1858)
15 X1857015 HEX BOLT 5/16-18 X 1-1/4 40-2 X1858040-2 FLAT HD TORX SCR T-25 10-32 X 1/2 (W1858)
16 X1857016 FLAT HD CAP SCR 5/16-18 X 1-1/2 40-3 X1858040-3 CARBIDE INSERT 15 X 15 X 2.5MM (W1858)
17 X1857017 FENDER WASHER 1/2 41V2 X1857041V2 HEX BOLT 3/8-24 X 4-1/4 V2.01.21
18 X1857018 FENCE LINK 42V2 X1857042V2 LOCK WASHER 9MM V2.01.21
19 X1857019 T-NUT 1/2-12 63 X1857063 PHLP HD SCR 1/4-20 X 1/2
20 X1857020 F EN CE BLOCK 65 X1857065 ROLL PIN 4 X 25
21 X1857021 FENCE SWIVEL BASE 68 X1857068 BEARING BLOCK PLATE
22 X1857022 SET SCREW 3/8-16 X 1-1/2 CONE-PT 111 X1857111 KNIFE-SETTING JIG (W1857)
23 X1857023 STUD-DE 3/8-16 X 3-1/8, 3/8 111 X1858111 TORX DRIVER T-25 (W1858)
24 X1857024 HEX NUT 3/8-16 THIN 117 X1857117 PUSH BL OCK
25 X1857025 SAF ETY PLATE 130 X1857130 HEX WRENCH 3MM
26 X1857026 HEX NUT 1/2-12 131 X1857131 HEX WRENCH 4MM
27 X1857027 CAMLOCK STUD 1/2-12 X 1-1/2, 3-1/2L 132 X1857132 HEX WRENCH 5MM
28 X1857028 CAP SCREW 1/4-20 X 1/2 133 X1857133 WRENCH 8 X 10 OPEN-ENDS
29 X1857029 F LAT WASHER 1/4 134 X1857134 WRENCH 12 X 14 OPEN-ENDS
30 X1857030 FENCE BASE 135 X1857135 WRENCH 11 X 13 OPEN-ENDS
31 X1857031 F LAT WASHER 3/8 136 X1857136 HEX WRENCH 6MM
32 X1857032 ROLL PIN 4 X 20

-63-

PARTS

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Tables, Base, Stand & Motor

98

86-6

86

54

86-5

107

86-10

86-11

86-12

86-13

86-14

86-7

110

106

101

93

59

86-9

86-8

104

100

86-15

86-16

85V2

105

86-16

86-17

86-18

70

86-4
86-3
86-2

84
69

14

109

108

71

125

124

72

76

125

124

102

77

89

64

67

78

79

88

31

66V2

87

140

29

89

141

88

59

62

80

87

61

46

60

75

82

90

99

74

101

92

43

110

123

90

44

47

103

73

48

81

97

50

45

51

49

115

116

91

48

127

52

120

47

53

55

137

14

129

56

113
118

114

112

128

121

57

58

119

126

122

96

94

95

83

PARTS

-64-

Model W1857/W1858 (For Machines Mfd. Since 01/21)

REF P ART # DES CRIPTION REF P ART # DESCRIPTI ON

Tables, Base, Stand & Motor Parts List

14 X1857014 HEX NUT 5/16-18 86-11 X1857086-11 MOTOR FAN
29 X1857029 FLAT WASHER 1/4 86-12 X1857086-12 CON TACT PLATE
31 X1857031 FLAT WASHER 3/8 86-13 X1857086-13 CE NTRIF UGAL SWITCH
43 X1857043 BELT COVER 86-14 X1857086-14 S CAPACITOR 400M 125V 1-1/2 X 3-1/2
44 X1857044 KNOB 5/16-18, D1-3/4, ROUND 86-15 X1857086-15 R CAPACITOR 70M 250V 1-1/2 X 3-1/2
45 X1857045 CUTTERHE AD GUARD 86-16 X1857086-16 CAPACITOR COVER
46 X1857046 STANDOFF-HEX MM 5/16-18 X 3/8, 3 86-17 X1857086-17 BALL BEARING 6205ZZ (FRONT)
47 X1857047 SET SCREW 1/4-20 X 3/4 86-18 X1857086-18 BALL BEARI NG 620 3ZZ (REAR)
48 X1857048 HEX NUT 1/4-20 87 X1857087 WHEEL AXLE 3/8-16 X 1-3/16, 2-1/2L
49 X1857049 D EPTH STOP BLOCK 88 X1857088 WHEEL
50 X1857050 SHAFT W/HOLE 2-3/4L 89 X1857089 LOCK NUT 3/8-16
51 X1857051 ROLL PIN 3 X 20 90 X1857090 KNOB BOLT 6-LOBE 5/16-18 X 3/4
52 X1857052 COMPRESSI ON SPRIN G 91 X1857091 ON/OFF BUTTON KEDU KJD17B-230V-S
53 X1857053 SPRING SLEEVE 92 X1857092 CAP SCREW 1/2-12 X 1-3/4
54 X1857054 CAP SCREW 3/8-16 X 1-1/4 93 X1857093 SET SCREW 1/4-20 X 1/4
55 X1857055 CAP SCREW 5/16-18 X 3/4 94 X1857094 LOCK WASH ER 8 MM
56 X1857056 ADJUSTABLE HANDLE 2L, 1/4-20 X 1 95 X1857095 CAP SCREW M8-1.25 X 70
57 X1857057 BALL KNOB 1/4-20, D7/8 96 X1857096 SWI TCH PEDESTAL
58 X1857058 SET SCREW 5/16-18 X 3/4, 1-5/16, SLOTTED 97 X1857097 CAP SCREW M8-1.25 X 20 W/WASHERS
59 X1857059 FOLDING HANDLE 2-1/4L, 5/16-18 X 1-3/16 98 X1857098 LOCK WASHER 3/8
60 X1857060 SCALE POINTER 99 X1857099 LOCK WASHER 1/2
61 X1857061 F LAT W ASHER 4MM 100 X1857100 KEY 5 X 5 X 22
62 X1857062 PHLP HD SCR 8/32 X 1/4 101 X1857101 HEX NUT 5/16-18
64 X1857064 HEX BOLT 3/8-16 X 1 102 X1857102 TABLE BASE
66V2 X1857066V2 GUARD LOCK HANDLE V2.07.19 103 X1857103 INFEED TABLE
67 X1857067 RABBETING TABLE 104 X1857104 OUTFEED TABLE
69 X1857069 LOCK WASHER 5/16 105 X1857105 LEADSCREW SUPPORT
70 X1857070 TABLE HAND WHEEL W/ HANDL E 106 X1857106 LEADSCREW BRACKET
71 X1857071 FENDER WASHER 8MM 107 X1857107 LEADSCREW
72 X1857072 PHLP HD SCR 5/16-18 X 1/2 108 X1857108 LEADSCREW COLLAR
73 X1857073 KNOB BOLT 5-LOBE 3/8-16 X 1, D1-3/4 109 X1857109 TABLE GI B
74 X1857074 L ATCH 110 X1857110 SET SCREW 5/16-18 X 1-1/4 CONE-PT
75 X1857075 HEX NUT 3/8-16 112 X1857112 GUARD PI VOT SHAFT
76 X1857076 D UST PORT 4 " 113 X1857113 EXT RETAINING RING 11MM
77 X1857077 PHLP HD SCR 1/4-20 X 1/2 114 X1857114 TORSION SPRI NG
78 X1857078 LOCK WASHER 10MM 115 X1857115 ROLL PIN 6 X 28
79 X1857079 STANDOFF HEX 3/8-16 X 3/4, 3-5/16L 116 X1857116 ROLL PIN 5 X 28
80 X1857080 CABI NE T STAND 118 X1857118 FLAT WASHER 12MM
81 X1857081 RE AR ACCESS PANEL 119 X1857119 SWITCH BOX
82 X1857082 F OAM PAD 120 X1857120 SWI TCH PLATE
83 X1857083 POLY-V BELT 350J7 121 X1857121 SWITCH CORD 14G 3W 20"
84 X1857084 FLAT WASHER 5/16 122 X1857122 POWER CORD 14G 3W 10' 6-20P
85V2 X1857085V2 CARRIAGE BOLT 5/16-18 X 3/4 123 X1857123 TAP SCRE W M6 X 8
86 X1857086 MOTOR 3HP 230V 1-PH 124 X1857124 ADJUSTABLE FOOT M8-1 .25
86-2 X1857086-2 KEY 5 X 5 X 30 125 X1857125 HEX NUT M8-1.25
86-3 X1857086-3 MOTOR PULLEY 126 X1857126 STRAIN RELIEF TYPE-1 5/8"
86-4 X1857086-4 SET SCREW M6-1 X 8 127 X1857127 PHLP HD SCR M4-.7 X 25
86-5 X1857086-5 MOTOR LABEL 128 X1857128 PHLP HD SCR M4-.7 X 6
86-6 X1857086-6 STRAIN RELIEF TYPE-3 PG13.5 129 X1857129 EXT TOOTH W ASHER 4MM
86-7 X1857086-7 MOTOR CORD 14G 3W 32" 137 X1857137 GROUND LABEL
86-8 X1857086-8 STRAIN RELIEF TYPE-1 3/4" 140 X1857140 FENDER WASHER 6.7 X 19 X 2MM
86-9 X1857086-9 BACKING BOARD 141 X1857141 BUTTON HD CAP SCR M6-1 X 12
86-10 X1857086-10 MOTOR FAN COVER

PARTS

-65-

Specifications

Motor: 3 HP, 230V, Single-Phase, 60 Hz
Full-Load Current: 12A
Cutterhead: 4-Knife, 3-1/16" Dia.
Knife Size: 8" x 3/4" x 1/8"
Replacement Knives: D3634
Cutterhead Speed: 5500 RPM
Cuts Per Minute: 22,000
Fence Tilt: 45º, 90º, 135º
Table Size: 72" x 9"
Max. Depth of Cut Per Pass: 1/8"
Max. Rabbeting Depth: 1/2"
Weight: 373 lbs.

Date

S/N

Specifications

Date

S/N

175370

175370

Mfd. for Woodstock in Taiwan

Motor: 3 HP, 230V, Single-Phase, 60 Hz
Full-Load Current: 12A
Cutterhead: Helical w/Indexable Inserts
Insert Size: 15 x 15 x 2.5mm
Number of Inserts: 36
Replacement Inserts: D4297
Cutterhead Speed: 5500 RPM
Cuts Per Minute: 22,000
Fence Tilt: 45º, 90º, 135º
Table Size: 72" x 9"
Max. Depth of Cut Per Pass: 1/8"
Max. Rabbeting Depth: 1/2"
Weight: 373 lbs.

Mfd. for Woodstock in Taiwan

Labels & Cosmetics

WARNING!

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.woodstockint.com
or call [phone].

MODEL W1857

8" DOVETAIL JOINTER

w/MOBILE BASE

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Except when rabbeting, keep all guards in place and in proper
operating condition. Always replace guard after rabbeting.

5. Never edge-joint stock smaller than 10" long, 3/4" wide, and 1/4" thick.

6. Never face-plane stock smaller than 10" long, 3/4" wide, and 1/2" thick.

7. Always use push blocks when face planing.

8. Keep hands at least 12" away from cutterhead.

9. Never cut deeper than 1/8" on a single pass.

10. Be aware of "kickback" hazards and how to prevent them.

11. Turn motor OFF and disconnect power before changing blades,
adjusting tables/fence, or servicing.

12. Tie back long hair, roll up sleeves, and DO NOT wear loose clothing,

13. Before starting, ensure tables are adjusted properly, blades are

14. Do not joint boards with cracks, loose knots, or any defects.

15. DO NOT expose to rain or use in wet conditions.

16. Always support workpiece against fence and table when cutting.

17. Always feed workpiece against cutterhead rotation. Never move

18. Prevent unauthorized use by children or untrained users;
restrict access or disable machine when unattended.

w/HELICAL CUTTERHEAD & MOBILE BASE

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Except when rabbeting, keep all guards in place and in proper
operating condition. Always replace guard after rabbeting.

5. Never edge-joint stock smaller than 10" long, 3/4" wide, and 1/4" thick.

6. Never face-plane stock smaller than 10" long, 3/4" wide, and 1/2" thick.

7. Always use push blocks when face planing.

8. Keep hands at least 12" away from cutterhead.

9. Never cut deeper than 1/8" on a single pass.

10. Be aware of "kickback" hazards and how to prevent them.

11. Turn motor OFF and disconnect power before changing inserts,
adjusting tables/fence, or servicing.

12. Tie back long hair, roll up sleeves, and DO NOT wear loose clothing,

13. Before starting, ensure tables are adjusted properly, blades are

14. Do not joint boards with cracks, loose knots, or any defects.

15. DO NOT expose to rain or use in wet conditions.

16. Always support workpiece against fence and table when cutting.

17. Always feed workpiece against cutterhead rotation. Never move

18. Prevent unauthorized use by children or untrained users;
restrict access or disable machine when unattended.

WARNING!

gloves, or jewelry.

secure, and jointer is stable.

Never attempt any operation free-handed.

workpiece backward while feeding.

MODEL W1858

8" DOVETAIL JOINTER

WARNING!

gloves, or jewelry.

secure, and jointer is stable.

Never attempt any operation free-handed.

workpiece backward while feeding.

202

201

Model W1857/W1858 (For Machines Mfd. Since 01/21)

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

203

Cutterhead

exposed
between

these lines.

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

203204

209

W1857

W1858

207

205

DANGER!

ROTATING

CUTTERHEAD BELOW!

Use this guard for all
possible operations, and
immediately reinstall it
following operations that
require its removal.

208

WARNING

ACCIDENTAL INJURY

206

WARNING! WARNING!

KICKBACK HAZARD!

1. Ensure outfeed table is
even with knives/inserts.

2. Never exceed the
maximum depth of cut.

3. Do not stand directly
behind workpiece.

INJURY HAZARD!

To reduce risk of short
and long-term injury,
wear safety glasses,
hearing protection, and
a respirator when using
this machine.

WARNING!

HAZARD!
Disconnect power
supply before
adjustments, setup
or maintenance!

PUSH BLOCKS!

Push blocks minimize the
possibility of operators
hands contacting the
cutterhead while cutting.

ALWAYS USE

210

211

WARNING

ACCIDENTAL INJURY

HAZARD!
Disconnect power
supply before
adjustments, setup
or maintenance!

206

212
213
214

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 XP1857201 MACHINE ID LABEL (W1857) 208 XP1857208 EYES EARS LUNGS WARNING LABEL
201 XP1858201 MACHINE ID LABEL (W1858) 209 XP1857209 MODEL NUMBER LABEL (W1857)
202 XP1857202 READ MANUAL LABEL 209 XP1858209 MODEL NUMBER LABEL (W1858)
203 XP1857203 CUTTERHEAD WARNING LABEL 210 XP1857210 SHOPFOX NAMEPLATE-LARGE
204 XP1857204 CUTTERHEAD EXPOSED LABEL 211 XP1857211 PANEL CLOSED WARNING LABEL
205 XP1857205 ELECTRICITY LABEL 212 XP1857212 TOUCH-UP PAINT, SHOP FOX WHITE
206 XP1857206 DISCONNECT POWER LABEL 213 XP1857213 BLACK TRIM TAPE
207 XP1857207 CUTTERHEAD GUARD LABEL 214 XP1857214 TOUCH-UP PAINT, SHOP FOX BLACK

Safety labels warn about machine hazards and how to prevent serious personal injury. The owner
of this machine MUST maintain the original location and readability of all labels on this machine.
If any label is removed or becomes unreadable, REPLACE that label before allowing machine to
be operated again. Contact us at [phone] or www.woodstockint.com to order new labels.

PARTS

-66-

205

KEEP PANEL

CLOSED

WHILE

OPERATING!

WARRANTY

warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents,

WARRANTY

WARRANTY

Woodstock International, Inc. warrants all Shop Fox machinery to be free of defects from workmanship
and materials for a period of two years from the date of original purchase by the original owner. This

lack of maintenance, or reimbursement of third party expenses incurred.

Woodstock International, Inc. will repair, replace, or arrange for a dealer refund, at its expense and
option, the Shop Fox machine or machine part proven to be defective for its designed and intended
use, provided that the original owner returns the product prepaid to an authorized warranty or repair
facility as designated by our Bellingham, Washington office with proof of their purchase of the product
within two years, and provides Woodstock International, Inc. reasonable opportunity to verify the
alleged defect through inspection. If it is determined there is no defect, or that the defect resulted
from causes not within the scope of Woodstock International Inc.'s warranty, then the original owner
must bear the cost of storing and returning the product.

This is Woodstock International, Inc.’s sole written warranty and any and all warranties that may be
implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited
to the duration of this written warranty. We do not warrant that Shop Fox machinery complies with
the provisions of any law, acts or electrical codes. We do not reimburse for third party repairs. In no
event shall Woodstock International, Inc.’s liability under this limited warranty exceed the purchase
price paid for the product, and any legal actions brought against Woodstock International, Inc. shall be
tried in the State of Washington, County of Whatcom. We shall in no event be liable for death, injuries
to persons or property or for incidental, contingent, special or consequential damages arising from the
use of our products.

Every effort has been made to ensure that all Shop Fox machinery meets high quality and durability
standards. We are commited to continuously improving the quality of our products, and reserve the
right to change specifications at any time.

To register the warranty, go to https://www.woodstockint.com/warranty, or scan the QR code below.
You will be directed to the Warranty Registration page on www.woodstockint.com. Enter all applicable
production information.

WARRANTY

WOODSTOCKINT.COM
