Page 1

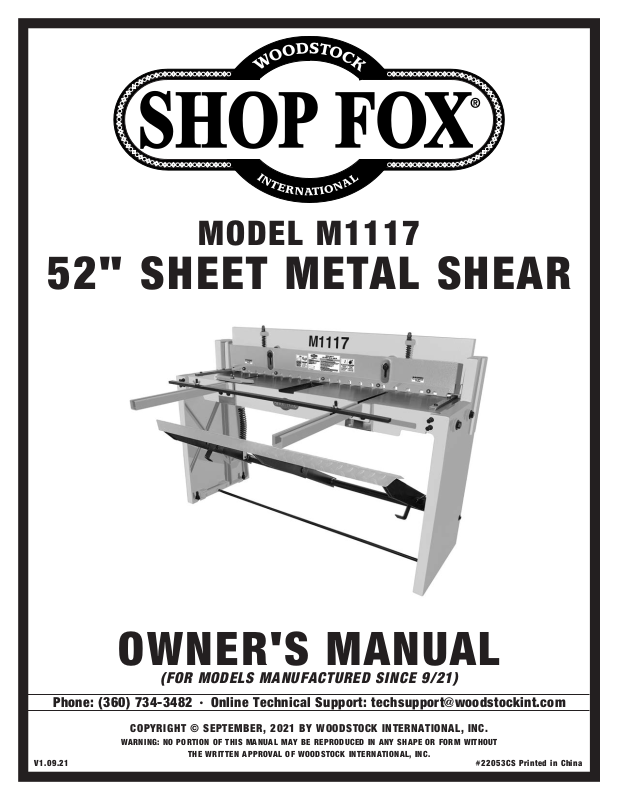

MODEL M1117

52" SHEET METAL SHEAR

OWNER'S MANUAL

(FOR MODELS MANUFACTURED SINCE 9/21)

Phone: (360) 734-3482 • Online Technical Support: [email protected]

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

V1.09.21

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

#22053CS Printed in China

Page 2

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 3

Contents

INTRODUCTION .....................................2

Woodstock Technical Support Machine Specifications Identification Controls & Components

SAFETY ............................................... 6

Standard Machinery Safety Instructions Additional Safety for Metal Shears

SETUP ................................................ 9

Unpacking Items Needed for Setup Hardware Recognition Chart Inventory Cleaning Machine Machine Placement

Lifting & Placing................................ 14

Anchoring to Floor Assembly

OPERATIONS....................................... 19

Operation Overview Cutting Tips Adjusting Rear Work Stop Adjusting Front Work Stop Using Bevel Gauge

..................................... 4

......................................... 9

........................................ 11

......................................... 16

..................................... 20

.......................... 3

............................... 12

............................ 13

............................. 15

........................... 19

............................. 21

.................. 2

......................... 5

...... 6

............ 8

......................... 9

................. 10

..................... 20

.................... 21

ACCESSORIES ...................................... 22

Metal Shear Accessories

MAINTENANCE .................................... 24

General Cleaning & Protecting Lubrication

SERVICE ............................................ 27

General Adjusting Gibs Sharpening/Replacing Blade Adjusting Blade Gap Adjusting Blade Bow Adjusting Return Spring Tension Squaring Front Scales Adjusting Hold-Down/Blade Guard Troubleshooting

PARTS .............................................. 34

Main Labels & Cosmetics

WARRANTY ........................................ 37

.......................................... 24

...................................... 25

.......................................... 27

.................................. 27

................................. 33

.............................................. 34

....................... 22

......................... 24

.................. 28

........................... 29

........................... 30

............. 31

.......................... 31

.......... 32

............................ 36

SAFETYINTRODUCTION

SETUPELECTRICAL MAINTENANCE

OPERATIONS

USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!

SERVICE PARTS

Page 4

Model M1117 (For Machines Mfd. Since 9/21)

INTRODUCTION

Woodstock Technical Support

This machine has been specially designed to provide many years of trouble-free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation.

Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product.

We stand behind our machines! In the event that questions arise about your machine, please contact Woodstock International Technical Support at (360) 734-3482 Ext. 2 or send e-mail to: [email protected]. Our knowledgeable staff will help you troubleshoot problems and process warranty claims.

If you need the latest edition, you can download it from http://www.woodstockint.com/manuals. If you have comments about this manual, please contact us at:

Woodstock International, Inc.

Attn: Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

Email: [email protected]

-2-

Page 5

Model M1117 (For Machines Mfd. Since 9/21)

MODEL M1117

52" SHEET METAL SHEAR

Product Dimensions

Weight.......................................................................................................... 982 lbs.

Width (side‐to‐side) x Depth (front‐to‐back) x Height........................................ 62 x 74 x 42 in.

Footprint (Length x Width).............................................................................. 60 x 21 in.

Shipping Dimensions

Type....................................................................................................... Wood Crate

Content........................................................................................................ Machine

Weight........................................................................................................ 1120 lbs.

Length x Width x Height........................................................................... 67 x 30 x 46 in.

Must Ship Upright.................................................................................................. Yes

INTRODUCTION

Main Specifications

Capacities

Maximum Width.......................................................................................... 52 in.

Maximum Thickness Mild Steel.................................................................... 16 Gauge

Maximum Thickness at Half Width Mild Steel................................................... 14 Gauge

Maximum Thickness at Full Width Mild Steel.................................................... 16 Gauge

Aluminum............................................................................................. 12 Gauge

Soft Brass............................................................................................. 14 Gauge

Annealed Phosphor Bronze......................................................................... 17 Gauge

Soft Copper........................................................................................... 14 Gauge

Hard Copper.......................................................................................... 14 Gauge

ABS Plastic............................................................................................... 2.2mm

Stainless Steel........................................................................................ 20 Gauge

Maximum Beam Lift.................................................................................. 1‐3/4 in.

Bed Height Above Floor............................................................................ 42‐1/8 in.

Working Height...................................................................................... 31‐1/4 in.

Front Stop Scale Range........................................................................ 0 ‐ 12‐1/2 in.

Rear Stop Scale Range............................................................................... 0 ‐ 33 in.

Construction

Frame....................................................................................................... Steel

Head and Tail Supports.................................................................................. Steel

Shear Table........................................................................................... Cast Iron

Shear Hold‐Down Clamp............................................................................. Cast Iron

Shear Blades................................................................................. 9CrSi Alloy Steel

Other

Country of Origin ............................................................................................... China

Warranty ....................................................................................................... 2 Years

Approximate Assembly & Setup Time ................................................................. 30 Minutes

Serial Number Location .......................................................................... Machine ID Label

-3-

Page 6

INTRODUCTION

Become familiar with the names and locations of the controls and features shown below to better

Model M1117 (For Machines Mfd. Since 9/21)

Identification

Front Extension

Arm (1 of 2)

Foot Pedal

Rear Work Stop

Support Rod

Bevel Gauge

Front

Work Stop

(1 of 2)

Blade Bow

Table

Hold-Down/

Blade Guard

Front Scale

(1 of 2)

Rear

Work Stop

Rear Scale

(1 of 2)

Micro-Adjustable

Rear Work Stop

Assembly (1 of 2)

USE this and other machinery with caution and respect. Always consider safety first, as it applies to your individual working conditions. No list of safety guidelines can be complete—every shop environment is

To reduce your risk of serious injury or damage to the machine, read this entire manual BEFORE using machine.

-4-

different. Failure to follow guidelines could result in serious personal injury, damage to equipment or poor work results.

Extension

Spring

(1 of 2)

Page 7

Model M1117 (For Machines Mfd. Since 9/21)

Controls & Components

Refer to the Figures 1-3 and the following descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and stay safe when operating this machine.

A. Hold-Down/Blade Guard: Holds down workpiece and

protects user from blades during shearing operation.

INTRODUCTION

B. Table: Supports infeed side of workpiece.

C. Bevel Gauge: Secures front edge of angled

workpieces.

D. Foot Pedal: Controls cutting action of upper blade.

E. Front Extension Arm (1 of 2): Provides infeed

support for large workpieces and extends front work stop and bevel track.

F. Front Work Stop: Adjusts on front extension arms

and holds workpiece in place during shearing operation.

G. Front Scale (1 of 2): Indicates distance from cutting

line; keeps workpiece square with blades.

H. Rear Work Stop Support Rod (1 of 2): Supports

work stop and has scale for approximate positioning 0-33".

I. Rear Work Stop Indicator: Indicates rear work stop

position on scale.

Figure 1. Infeed components and controls.

Figure 2. Outfeed components and

controls.

J. Micro-Adjustment Knob (1 of 2): Fine-tunes rear

work stop position.

K. Rear Work Stop Lock Knob (1 of 2): Loosen to

adjust rear work stop position; tighten to secure.

L. Micro-Adjustment Lock Knob (1 of 2): Loosen to

fine-tune rear work stop position; tighten to secure.

M. Rear Work Stop: Adjusts on rear work stop support

rods to measure workpieces for repeatable cuts.

N. Blade Bow: Adjusts to keep upper blade straight

along its length.

-5-

Figure 3. Location of blade bow rod.

Page 8

Model M1117 (For Machines Mfd. Since 9/21)

SAFETY

OWNER’S MANUAL.

TRAINED OPERATORS ONLY.

DANGEROUS ENVIRONMENTS.

MENTAL ALERTNESS REQUIRED.

electrical components or improperly grounded

manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by

SAFETY

For Your Own Safety,

Read Manual Before Operating Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This

SAFETY

themselves do not eliminate danger and are not a substitute for proper accident prevention measures—this responsibility is ultimately up to the operator!

NOTICE

Standard Machinery Safety Instructions

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury.

This symbol is used to alert the user to useful information about proper operation of the equipment or a situation that may cause damage to the machinery.

Read and understand this

owner’s manual BEFORE using machine.

have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make workshop kid proof!

machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

Untrained operators

Do not use

Full mental

ELECTRICAL EQUIPMENT INJURY RISKS. You can

be shocked, burned, or killed by touching live

machinery. To reduce this risk, only allow an electrician or qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. Always disconnect

machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This eliminates the risk of injury from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved

safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are not approved safety glasses.

-6-

Page 9

Model M1117 (For Machines Mfd. Since 9/21)

WEARING PROPER APPAREL. Do not wear

HAZARDOUS

HEARING PROTECTION.

REMOVE ADJUSTING TOOLS.

INTENDED USAGE.

AWKWARD POSITIONS.

CHILDREN & BYSTANDERS.

GUARDS & COVERS.

FORCING MACHINERY. Do not force machine. It

will do the job safer and better at the rate for

loss of control. Before starting, verify machine

malfunction, leading to serious personal injury

from heated surfaces, high traffic areas, harsh

clothing, apparel, or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to avoid accidental slips, which could cause loss of workpiece control.

DUST. Dust created while using

machinery may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material, and always wear a NIOSH-approved respirator to reduce your risk.

Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

intended purpose—never make modifications without prior approval from Woodstock International. Modifying machine or using it differently than intended will void the warranty and may result in malfunction or mechanical failure that leads to serious personal injury or death!

balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

Only use machine for its

Tools left on

Keep proper footing and

Keep children and

which it was designed.

NEVER STAND ON MACHINE. Serious injury may

occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during

operation greatly increases risk of injury or

is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase risk of serious injury.

UNATTENDED OPERATION. To reduce the risk

of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance

instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could

or death.

CHECK DAMAGED PARTS. Regularly inspect

machine for any condition that may affect safe operation. Immediately repair or replace damaged or mis-adjusted parts before operating machine.

MAINTAIN POWER CORDS. When disconnecting

cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside, resulting in a short. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away

chemicals, and wet/damp locations.

SAFETY

accidental contact with moving parts or flying debris—make sure they are properly installed, undamaged, and working correctly.

Guards and covers reduce

EXPERIENCING DIFFICULTIES. If at any time

you experience difficulties performing the intended operation, stop using the machine!

-7-

Contact Technical Support at (360) 734-3482.

Page 10

Model M1117 (For Machines Mfd. Since 9/21)

FINGER AMPUTATION.

CAPACIT Y.

BLADE CONDITION.

SHEAR BLADE ADJUSTMENT.

PROPER WORKPIECE MATERIAL.

WORK AREA

hand positions where a sudden slip could cause

before performing any adjustments, service, or

Before using machine, carefully

play, and ensure guards are properly installed.

Sheet metal cut-off

cut-off sheet metal pieces from the floor after

Serious cuts, amputation, or death can occur from contact with shear blades during operation,

Additional Safety for Metal Shears

adjustment, or maintenance. To reduce this risk, anyone using this machine MUST completely heed the hazards and warnings below.

down can easily pinch, crush, or amputate

SAFETY

fingers or other body parts. Always keep hands, fingers, and other body parts away from blades and hold-down (point-of-operation) during shearing operations.

Exceeding cutting capacity of shear may result in breakage or machine damage that ejects dangerous metal debris at operator or bystanders. Only use sheet metal within the rated capacity of this shear (refer to the Machine Specifications).

properly adjusted blades will reduce risk of injury from breakage or sharp burrs left on workpiece. Always keep blades properly adjusted and sharp.

or replacing shear blades, always wear heavy leather gloves to protect hands and wear safety glasses to protect eyes.

intended for cutting ferrous and non-ferrous mild sheet metal or flat stock. Do not attempt to cut round metal stock, glass, wood, drywall, backer board, plywood, or other material not intended for this machine. Cutting incorrect materials can produce unexpected results, which increases risk of injury, and may result in damage to machine.

. Provide sufficient clearance

around machine to permit safe use by regular operators and performance of maintenance procedures. Keep work area clear of materials or substances that may create a slip, trip, or fall hazard.

The shear blades or hold-

Sharp, undamaged, and

When adjusting

Shear is only

SHARP METAL EDGES. The sharp metal edges of

sheet metal can easily cut fingers, hands, and other body parts. Always wear heavy leather gloves when handling sheet metal. Always chamfer and deburr sharp metal workpiece edges.

OPERATOR POSITION. Avoid awkward body and

your hand or body to enter point-of-operation or make accidental contact with shear blades.

MAINTENANCE/SERVICE. Always wait for all

moving parts to come to a complete stop

maintenance. Do not contact foot pedal while performing these adjustments.

GUARDS. Keep all guards in place, properly

positioned, and in working order. Never operate shear with blade guard removed. If blade guard is removed or not properly positioned, fingers may accidentally be cut or amputated by shear blades. Always position guard just high enough to allow workpiece to enter, but not high enough for fingers.

CHECK MACHINE.

check components for wear that could affect operation. Check blade alignment and gib

DO NOT operate machine until all defects are corrected.

STRAY SHEET METAL PIECES.

pieces left on the floor can easily slide under foot and cause falling injuries. Always remove

operation. Keep work area clean.

-8-

Page 11

Model M1117 (For Machines Mfd. Since 9/21)

This machine has been carefully packaged for safe transportation. If you notice the machine has been damaged during shipping, please contact your authorized Shop Fox dealer immediately.

The following items are needed, but not included, to set up your machine.

This machine presents serious injury hazards to untrained users. Read

to become familiar with

tions before starting the

Straining or crushing

improperly lifting the

parts. To reduce this

SETUP

Unpacking

through this entire manual

the controls and opera-

Items Needed for Setup

Description Qty

• Safety Glasses for Each Person ......................1 Pr.

• Disposable Rags ................................ As Needed

• Disposable Gloves ............................. As Needed

• Cleaner/Degreaser ............................ As Needed

• Lifting Equipment (Rated for 1500 lbs.) ...............1

• Another Person .............................................1

• Floor Mounting Hardware .................... As Needed

• Precision Level .............................................1

• Wrench or Socket 10, 12mm ........................1 Ea.

• Tape Measure ...............................................1

machine!

Wear safety glasses during entire setup process!

SETUP

HEAVY LIFT!

injury may occur from

machine or some of its

risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of machine.

-9-

Page 12

Model M1117 (For Machines Mfd. Since 9/21)

Hardware Recognition Chart

USE THIS CHART TO IDENTIFY HARDWARE DURING THE INVENTORY/ASSEMBLY PROCESS.

⁄4"

⁄8"

⁄2"

⁄8"

⁄16" INCH APART

SETUP

LINES ARE

⁄16"

⁄4"

⁄8"

⁄4"

⁄2" ⁄4"

⁄4"

⁄2"

⁄4"

#10

⁄4"

⁄16"

⁄8"

⁄16"

⁄2"

8mm

⁄16"

WASHERS ARE MEASURED BY THE INSIDE DIAMETER

#10

⁄8"

4mm

10mm

⁄8"

⁄16"

5mm

12mm

⁄2"

6mm

⁄4"

5mm 10mm 15mm 20mm 25mm 30mm 35mm

MEASURE BOLT DIAMETER BY PLACING INSIDE CIRCLE

40mm 45mm 50mm 55mm

LINES ARE 1MM APART

60mm 65mm 70mm 75mm

4mm

5mm

6mm

8mm

10mm

12mm

16mm

Cap Screw

Hex Bolt

External Retaining Ring

Key

Carriage Bolt

Flat Head Screw

Internal Retaining Ring

Flat Washer

Flange Bolt

Tap Screw

E-Clip

Lock Washer

Button Head Screw

Set Screw

Lock Nut

Hex Nut

Phillips Head Screw

Wing Nut

Hex Wrench

-10-

Page 13

Model M1117 (For Machines Mfd. Since 9/21)

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

Note: If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Loose Inventory (Figure 4): Qty

A. Front Extension Arms .....................................2

B. Rear Work Stop Support Rods ............................2

Front Work Stop ...........................................1

D. Rear Work Stop Assemblies ..............................2

E. Rear Work Stop ............................................1

Bevel Gauge ................................................1

Fasteners (Figure 5): Qty

G. T-Bolts M12-1.75 x 45 .....................................3

Hex Bolts M12-1.75 x 30 ..................................4

I. Hex Bolts M10-1.5 x 20 ...................................2

J. Flat Washers 12mm .......................................7

K. Flat Washers 10mm .......................................2

L. Wing Nuts M12-1.75 .......................................3

Cotter Pins M3 x 50 .......................................4

Clevis Pins 12 x 45mm ....................................4

Clevis Pins 12 x 88mm ....................................2

Figure 4. Loose inventory.

SETUP

-11-

Figure 5. Fasteners.

Page 14

To prevent machine, the factory has coated t of your machine compound

I be difficult to coating is as easy as possible, please gather the correct cleaner, lubricant, and tools listed below:

• Cleaner/degreaser and grease

• Safety glasses & disposable gloves

•

• Disposable Rags

immediately coat with a quality metal protectant.

Cleaning Machine

corrosion during shipment and storage of your

with a heavy-duty rust prevention

f you are unprepared or impatient, this compound can

remove. To ensure that the removal of this

designed to remove storage wax

Solvent brush or paint brush

remove rust preventative coating, do these steps:

DISCONNECT MACHINE FROM POWER!

Model M1117 (For Machines Mfd. Since 9/21)

he bare metal surfaces

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avoid using these products to clean machinery. Many cleaning solvents are toxic if inhaled. Minimize your risk by only using these products in a well ventilated area.

SETUP

Put on safety glasses and disposable gloves.

. Coat the rust preventative with a liberal amount of

cleaner/degreaser, then let it soak for 5–10 minutes.

. Wipe off surfaces. If your cleaner/degreaser is

effective, the coating will wipe off easily.

Tip: An easier way to clean off thick coats of rust preventative from flat surfaces is to use a PLASTIC paint scraper to scrape off the majority of the coating before wiping it off with your rag. (Do not use a metal scraper or you may scratch your machine.)

. Repeat cleaning steps as necessary until all of the

compound is removed.

. To prevent rust on freshly cleaned surfaces,

In a pinch, automotive degreasers, mineral spirits or WD•40 can be used to remove rust preventative coating. Before using these products, though, test them on an inconspicuous area of your paint to make sure they will not damage it.

-12-

Page 15

Model M1117 (For Machines Mfd. Since 9/21)

Physical Environment

The physical environment where the machine is operated is important for safe operation and longevity of components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range is outside 41°–104°F; the relative humidity range is outside 20–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/ covers as required by the maintenance and service described in this manual.

required space allocation.

Weight Load

machine. Only install in an access

Machine Placement

Refer to the Machine Specifications for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

SETUP

See below for

Keep Area

Unobstructed

Figure 6. Minimum working clearances.

74"

-13-

Children or untrained people may be seriously injured by this

restricted location.

62"

Keep Area

Unobstructed

Page 16

Lifting & Moving

Straining or crushing

improperly lifting the

parts. To reduce this

Use a forklift (or other type of lifting equipment) with lifting straps to move the machine to your desired location. All lifting equipment should be rated for at least 1500 pounds.

Model M1117 (For Machines Mfd. Since 9/21)

HEAVY LIFT!

To lift and move machine, do these steps:

1. Place shipping crate near installation location, then

remove crate top and sides and set small items aside.

Unbolt machine from shipping pallet.

Place lifting straps under shear table at locations

shown in Figure 7. Straps should be spread as wide as possible.

With help of another person to steady load, use

SETUP

forklift or crane to lift machine from pallet and move to desired location.

injury may occur from

machine or some of its

risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of machine.

Figure 7. Example of lifting straps placed

under shear table for lifting.

-14-

Page 17

Model M1117 (For Machines Mfd. Since 9/21)

Anchoring machinery to the floor prevents tipping or shifting and reduces vibration that may occur during operation, resulting in a machine that runs slightly quieter and feels more solid.

If the machine will be installed in a commercial or workplace setting, or if it is permanently connected (hardwired) to the power supply, local codes may require that it be anchored to the floor.

If not required by any local codes, fastening the machine to the floor is an optional step. If you choose not to do this with your machine, we recommend placing it on machine mounts, as these provide an easy method for leveling and they have vibration-absorbing pads.

Lag shield anchors with lag screws (see Figure) are a popular way to anchor machinery to a concrete floor, because the anchors sit flush with the floor surface, making it easy to unbolt and move the machine later, if needed. However, anytime local codes apply, you MUST follow the anchoring methodology specified by the code.

Anchoring to Floor

Number of Mounting Holes .................................. 4

Diameter of Mounting Hardware ........................5⁄8"

Lag Screw

Flat Washer

Anchoring to Concrete Floors

Machine Base

Lag Shield Anchor

Concrete

Drilled Hole

Figure 8. Popular method for anchoring

machinery to a concrete floor.

SETUP

-15-

Page 18

Assembly

Before beginning the assembly process, refer to Items Needed for Setup

Ensure all parts have been properly cleaned of any heavy-duty rust-preventative applied at the factory (if applicable). Be sure to complete all steps in the assembly procedure prior to performing the

or connecting

the machine to power.

and gather everything you need.

Test Run

To assemble machine, do these steps:

Model M1117 (For Machines Mfd. Since 9/21)

1. Use level to check shear table.

— If table is level, no adjustment is required. Proceed

to Step 2.

— If table is not level, use shims between floor and

base to level machine before proceeding. Leveling shear helps blades and other components remain straight and flat during life of machine so machine can continue to cut straight and square.

SETUP

. Cut cable ties securing foot pedal to table.

. Have another person press and hold foot pedal about

halfway through full range of movement.

. Insert (2) 12 x 45mm clevis pins in holes in foot

pedal frame and secure with (2) M3 x 50 cotter pins, as shown in Figure 9.

. Attach (2) front extension arms to shear table with

(4) M12-1.75 x 30 hex bolts and 12mm flat washers (see Figure 10).

x 2

Figure 9. Location of hole in foot pedal

frame (1 of 2 shown).

Front

Extension Arm

(1 of 2)

Figure 10. Front extension arms attached

to shear table.

x 4

Note: Arm T-slots must line up with table T-slots,

and surfaces must be flush (see Figure 11).

Figure 11. Extension arm correctly

installed.

-16-

Page 19

Model M1117 (For Machines Mfd. Since 9/21)

6. Install (1) M12-1.75 x 45 T-bolt in each T-slot and

secure front work stop to extension arms using (2) 12mm flat washers and M12-1.75 wing nuts (see

Figure 12).

. Insert (2) rear work stop support rods in holes shown

in Figure 13.

. Secure rear work stop support rods in place by

tightening pre-installed hex bolts (see Figure 13).

Extension Arm

(1 of 2)

x 2

Front

Work Stop

Figure 12. Front work stop secured to

extension arms.

Hex Bolt

SETUP

Note: Rear work stop support rods should extend

same distance from back of machine. If one rod extends farther than the other, adjust hex bolts and rods until even.

. Install (2) rear work stop assemblies onto rear work

stop support rods and tighten each micro-adjustment knob completely to eliminate space shown in Figure 14.

Rear Work

Stop Support

Rod (1 of 2)

Figure 13. Rear work stop support rod

installed on machine.

Micro-Adjustment Knob

Rear Work Stop

Assembly

Eliminate This

Space

-17-

Figure 14. Rear work stop assembly

installed on rear work stop support rod.

Page 20

10. Align each work stop indicator to the same number

on rear work stop support rod scales, then tighten micro-adjustment lock knobs and rear work stop lock knobs (see Figure 15).

Model M1117 (For Machines Mfd. Since 9/21)

Work Stop

Indicator

Rear Work Stop

Lock Knob

. Attach rear work stop to rear work stop assemblies

with (2) M10-1.5 x 20 hex bolts and 10mm flat washers, as shown in Figure 16.

Micro-Adjustment

Lock Knob

Figure 15. Rear work stop assembly

components.

Rear Work

Stop Assembly

SETUP

x 2

Rear

Work

Stop

Figure 16. Rear work stop attached to

rear work stop assembly.

-18-

Page 21

Model M1117 (For Machines Mfd. Since 9/21)

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the controls easier to understand.

Due to the generic nature of this overview, it is intended to be an instructional guide. To learn more about specific operations, seek operators manual by reading "how-to" books, trade magazines, or websites.

OPERATIONS

Operation Overview

/components discussed later in this manual are

machine

not

read this entire manual and

additional training from experienced machine

, and do additional research outside of this

To complete a typical operation, the operator does the following:

Examines workpiece to make sure it is within

capacities of machine.

Adjusts rear work stop length for cut.

3. Puts on safety glasses, leather boots, and leather

gloves.

Places workpiece on front extension arms.

5. Slides workpiece under blade guard and upper blade,

and up against rear work stop.

6. Adjusts front work stop (or bevel gauge, if angled

workpiece) against workpiece to keep shearing force from pushing workpiece forward.

To reduce your risk of serious injury or damage to the machine, read this entire manual BEFORE using machine.

Bodily injury could result from using this machine. Always wear safety glasses, leather work boots, and heavy duty leather work gloves when operating this machine or whenever handling sheet metal.

Shear blades or hold-down/blade guard can easily pinch, crush, or amputate fingers or other body parts. Always keep body parts away from blades and hold-down during operation.

OPERATIONS

With balanced and stable body position, firmly

presses down on foot pedal to make cut.

Raises foot pedal and either removes workpiece or

repeats Steps 5-7 to make additional cuts.

If you are an inexperienced operator, we strongly recommend that you read books or trade articles, or seek training from an experienced operator of this type of machinery before performing unfamiliar operations. Above all, safety

must come first!

-19-

Page 22

Cutting Tips

• Never attempt to cut any workpiece narrower than

⁄2". The workpiece must be long enough to be

engaged by the hold-down/blade guard.

Model M1117 (For Machines Mfd. Since 9/21)

Shearing Action

• Keep the upper blade properly adjusted to the lower

blade (refer to Adjusting Blade Gap on Page 29 for detailed instructions). This will help ensure good cutting results and avoid blade damage.

Before each operation, clean cut-offs or debris away

• from the shear.

• Use the foot pedal to engage the hold-down/blade guard with the workpiece, then pause to check the workpiece position. If the workpiece position is correct, continue lowering the foot pedal to complete the cut.

• The shearing action of the blades works similarly to a pair of scissors (see illustration in Figure 17). Use even pressure on the foot pedal throughout the entire cut to produce a straight, even cut.

Adjusting Rear Work Stop

Upper Blade

Lower Blade

Figure 17. Blade shearing action.

The rear work stop is used for making repetitive cuts of the same length. The micro-adjustment assemblies allow for precise positioning of the work stop.

OPERATIONS

To adjust rear work stop, do these steps:

1. Loosen (2) rear work stop lock knobs and (2) micro- adjustment lock knobs (see Figure 18).

. Slide rear work stop evenly along support rods so

work stop leading edge is at approximate desired distance from cutting edges of blades.

Note: Use scales on top of support rods for

approximate positioning. Use fine ruler or tape measure for more precise positioning.

. Use micro-adjustment knob on each assembly to

adjust work stop in small, precise amounts until they are exactly where needed (see Figure 18).

Note: Move work stop evenly on both sides to keep

it parallel with the blades.

Micro-Adjustment

Knob

Micro-Adjustment

Lock Knob

Figure 18. Rear work stop adjustment

components.

Rear Work

Stop

Lock Knob

-20-

Page 23

Model M1117 (For Machines Mfd. Since 9/21)

4. Tighten micro-adjustment lock knobs to secure rear work stop position.

Adjusting Front Work Stop

The front work stop keeps the shearing blades from pushing the workpiece forward during cutting operations. Use the following steps to adjust the front work stop to the front workpiece edge once the workpiece has been inserted under the blade guard and is ready to be sheared.

To adjust front work stop, do these steps:

Wing Nut

(1 of 2)

1. Loosen (2) front work stop wing nuts (see

Figure 19).

. Adjust front work stop against front workpiece edge

and tighten wing nuts to secure.

Using Bevel Gauge

The bevel gauge can be installed in place of the front work stop to support workpieces that have an angled front edge.

To use bevel gauge, do these steps:

1. Loosen (2) front work stop wing nuts (see Figure 20).

. Slide front work stop out of front extension arms to

remove (see Figure 20).

. Position workpiece on table and under blade guard

for shearing operation.

Front

Work Stop

Figure 19. Location of front work stop

wing nuts.

Front Extension

Arm (1 of 2)

Front

Work Stop

Figure 20. Front work stop components.

Wing Nut

(1 of 2)

OPERATIONS

4. Install (1) M12-1.75 x 45 T-bolt in T-slot and secure bevel gauge to extension arm or table against workpiece front edge with (1) 12mm flat washer and M12-1.75 wing nut (see Figure 21).

Note: Figure 21 shows bevel gauge installed in left

T-slot, but it can be installed in either side. Install the bevel gauge in the best position to secure your workpiece for the operation.

-21-

Bevel Gauge

Extension Arm

Figure 21. Bevel gauge installed to

support angled front workpiece edge.

Page 24

Model M1117 (For Machines Mfd. Since 9/21)

ACCESSORIES

Metal Shear Accessories

The following accessories may be available through your local Woodstock International Inc. Dealer. If you do not have a dealer in your area, these products are also available through online dealers. Please call or e-mail Woodstock International Inc. Customer Service to get a current listing of dealers at: 1-800-8408420 or at [email protected].

D3042 Double Suction Cup handles plate glass, glass mirrors,

The and sheet metal with safety and security. Cam-action levers make placement and removal quick and easy.

The M1052 3-In-1 Sheet Metal Machine has a 12" wide capacity and three sheet metal functions in one unit. There is no need to spend extra money and tie up shop space with three single-use machines. You will love the convenience and accuracy of this do-itall machine! Maximum capacity of 22 gauge and a roll diameter of

⁄2".

OPERATIONS

The D3269 Deluxe Shop Tool Bag is perfect for the mobile craftsman who has a tool for everything. The deluxe shop bag features 18 easy access pockets, ballistic nylon construction, huge carrying capacity and a detachable shoulder strap that quickly clips on or off. Interior measures 17" L x 9 and fully opened.

⁄2" W and 12" when unzipped

-22-

Page 25

Model M1117 (For Machines Mfd. Since 9/21)

The D2273 Single Roller Stand features convenient hand knobs for fast height adjustment. The super heavy-duty roller stand is invaluable for supporting work on machines of varying heights.

The M1040 8" Plate Shear and M1041 12" Plate Shear are the fastest way to cut sheet metal, plate stock, and round stock to size. Both of these shears can be mounted for stationary use and feature compound lever action for tremendous mechanical advantage. Plate

capacity:

⁄16" (7 gauge).

The M1012 48" Pan and Box Brake is great for forming extra-wide or long pieces of sheet metal. When bolted to a concrete floor, the M1012 bends boxes or pans up to 6" deep, material up to 48" wide, and 12-gauge thick mild steels, from 0-135 degrees! Removable and adjustable 3", 4", and 25" fingers can accommodate a variety of metal widths.

OPERATIONS

-23-

Page 26

MAINTENANCE

General

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, stop operations immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Loose mounting bolts.

• Loose or damaged blade guard.

• Worn or damaged blades.

• Loose or bent rear work stop support rods.

• Any other unsafe condition.

Model M1117 (For Machines Mfd. Since 9/21)

Daily Maintenance

• Clean and protect blades and bare cast iron surfaces.

• Lubricate pivot points.

Weekly Maintenance

• Lubricate shearing blades, gibs, and slides.

Cleaning & Protecting

Cleaning the Model M1117 is relatively easy. Use a brush to clear away any metal debris from the blades, the blade guard, and the table.

Protect the unpainted cast iron table and blades by wiping with regular applications of quality metal protectant.

MAINTENANCE

-24-

Page 27

Model M1117 (For Machines Mfd. Since 9/21)

Lubrication

There are a number of parts on this machine that undergo a lot of movement and must remain lubricated for smooth operation and long life.

Pivot Pins

Oil Type .......................................ISO 32 Equivalent

Oil Amount Lubrication Frequency

Items

Wire Brush Shop Rags

Light Machine Oil or ISO 32 Equivalent.......... As Needed

Use a wire brush to clean any built-up grease from pivot pins (see Figure lubricant to the exposed portions of all four pivot pins. Keep your hands and fingers away from shearing area and press down on the foot pedal a few times to distribute the lubricant.

............................................ 1–2 Drops

.................................... Daily

Needed Qty

.......................................................1

............................................ As Needed

22) before applying a few drops of

Figure 22. Location of pivot pins (2 of 4

shown).

Shearing Blades

Oil Type .......................................ISO 68 Equivalent

Oil Amount Lubrication Frequency

Items

Protective Gloves Shop Rags Mineral Spirits

Light Machine Oil or ISO 68 Equivalent.......... As Needed

While wearing protective gloves, use a rag and mineral spirits to clean away grease and built-up grime from the surfaces of the shearing blades (see Figure blades are dry, apply oil to the surfaces with a clean rag.

............................................ 1–2 Drops

................................. Weekly

Needed Qty

...........................................1 Pr.

............................................ As Needed

....................................... As Needed

23). Once the

Surface of

Shearing Blade

MAINTENANCE

Figure 23. Location of lower shearing

blade surface.

-25-

Page 28

Gibs & Slides

Oil Type .......................................ISO 68 Equivalent

Oil Amount Lubrication Frequency

Item

Needed Qty

Light Machine Oil or ISO 68 Equivalent.......... As Needed

............................................ 1–2 Drops

................................. Weekly

Model M1117 (For Machines Mfd. Since 9/21)

Apply a few drops of oil at each gib (see Figure weekly to keep the upper blade and hold-down/blade guard moving smoothly.

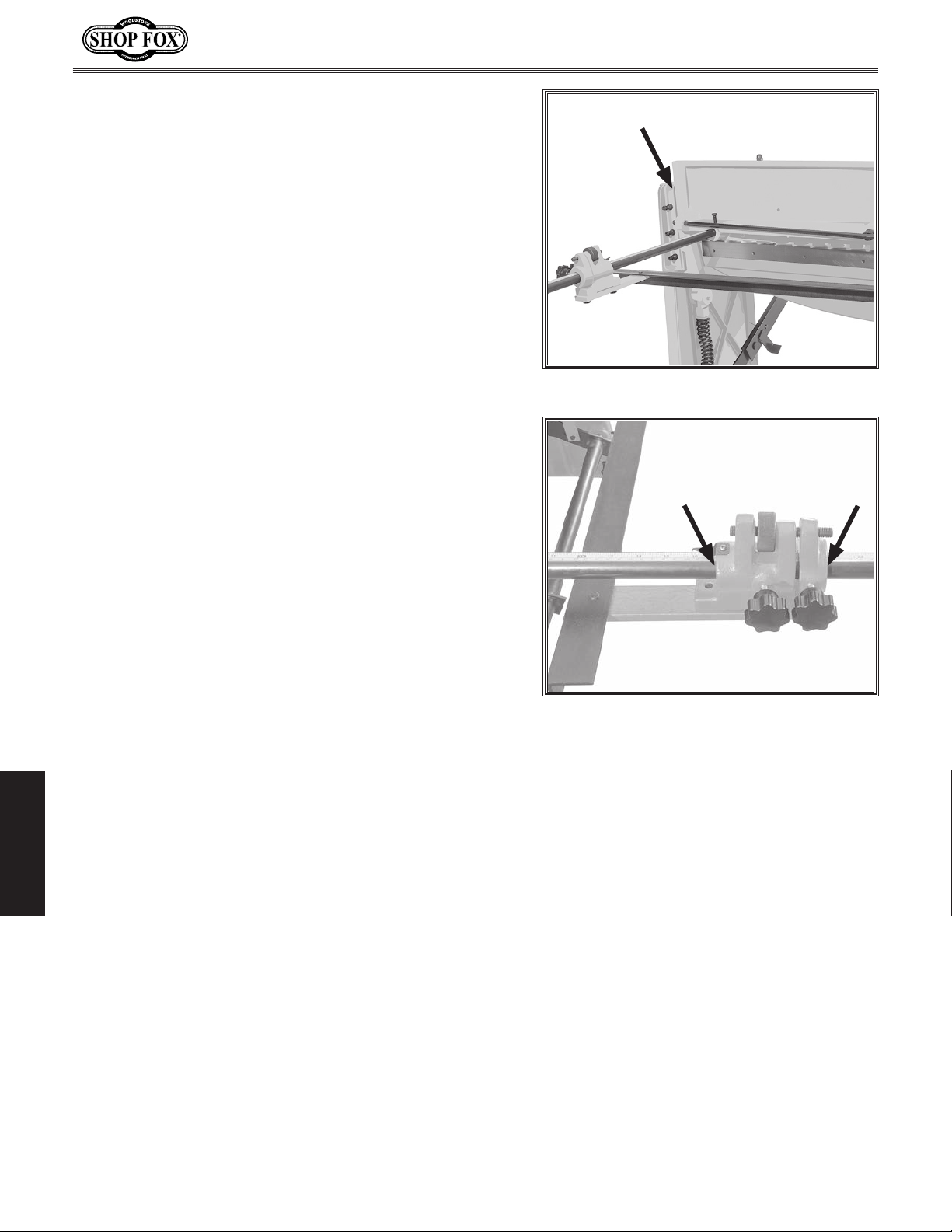

24)

Rear Work Stop Assemblies

Oil Type .......................................ISO 68 Equivalent

Oil Amount Lubrication Frequency

Items

Shop Rags Mineral Spirits

Light Machine Oil or ISO 68 Equivalent.......... As Needed

The rear work stop assemblies must slide smoothly in order to achieve accurate measurements when shearing. Clean the rear work stop support rods with mineral spirits when you have any trouble adjusting the rear work stop position. Apply a few drops of oil to the locations shown in Figure

............................................ 1–2 Drops

............................. As Needed

Needed Qty

............................................ As Needed

....................................... As Needed

25 on each assembly.

Figure 24. Gib and slide lubrication point.

Figure 25. Rear work stop assembly

lubrication locations.

MAINTENANCE

-26-

Page 29

Model M1117 (For Machines Mfd. Since 9/21)

This section covers the most common service adjustments or procedures that may need to be made during the life of your machine.

If you require additional machine service not included in this section, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: [email protected].

SERVICE

General

Adjusting Gibs

The gibs are responsible for the amount of play in the upper blade. They should only be adjusted if the foot pedal is difficult to lower or if all the other blade adjustment have been verified as correct, and the quality of cut is still poor.

Tools Needed Qty

Hex Wrench 8mm ...............................................1

Open-End Wrench 17mm.......................................1

To adjust gibs, do these steps:

. Loosen (3) jam nuts on each gib (see Figure 26).

. Adjust (3) gib screws on each side of shear in small,

equal increments (see Figure 26). Test for binding or play after each adjustment by pushing or pulling top of cutter bar.

— If foot pedal is difficult to lower and blades are

binding, adjust screws counterclockwise.

— If too much play of in upper blade is resulting in

poor quality of cuts, adjust screws clockwise.

. Tighten jam nuts to secure gib adjustments.

x 3

SERVICE

Figure 26. Location of gib screws and jam

nuts.

-27-

Page 30

Sharpening/Replacing

Blade

The upper blade of the Model M1117 has two cutting edges so that if one cutting edge becomes dull, you can reverse the blade and use the fresh, sharp cutting edge.

If both the upper blade cutting edges are dull, or the cutting edge of the lower blade is dull, sharpen the blade(s) on a surface grinder and make sure the blade is flat along the entire length. Re-sharpen each blade edge as needed until it is too thin to safely install (as described in the following steps), then replace the blade. We recommend you keep an extra set of blades on hand to avoid any downtime.

Items Needed Qty

Another Person ..................................................1

Protective Gloves (For Each Person) Hex Wrench 8mm Surface Grinder Mineral Spirits Shop Rags Metal Protectant New Upper Blade (#XM1117024)

New Lower Blade (#XM1117025).................. As Needed

............................................ As Needed

...............................................1

.................................................1

....................................... As Needed

.................................... As Needed

.....................1 Pr.

.................. As Needed

Model M1117 (For Machines Mfd. Since 9/21)

Shear blades are sharp. Wear protective gloves when handling blades to prevent laceration injuries.

x 8

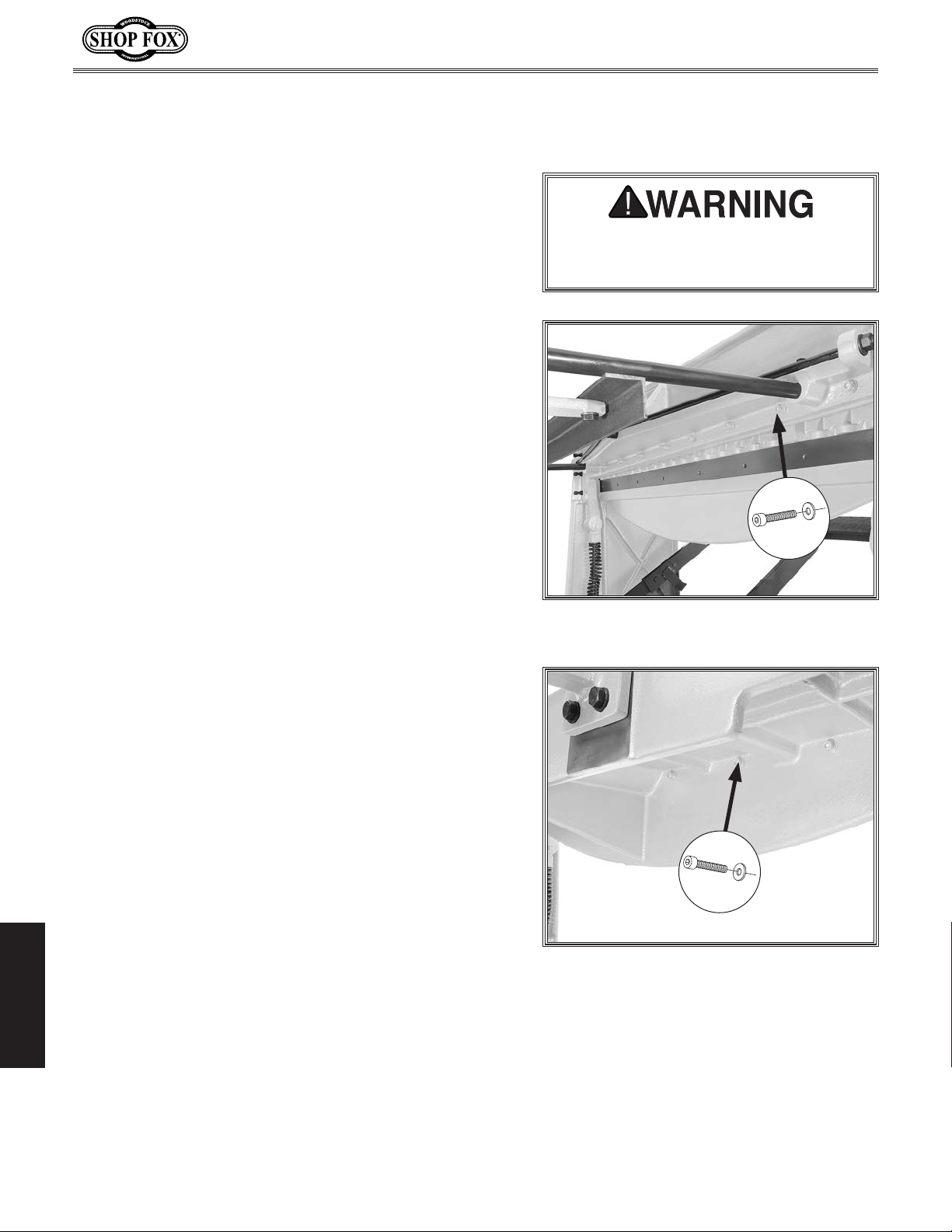

Figure 27. Upper blade cap screws and

flat washers.

To sharpen/replace blade, do these steps:

1. Have another person support blade while you remove

(8) cap screws and flat washers to remove blade (see

Figures 27-28).

. Reverse blade (upper blade only) or sharpen on a

surface grinder.

. Clean blade with mineral spirits, then apply thin

coat of quality metal protectant.

. Install blade using hardware removed in Step 1.

— If blade is so thin after sharpening that securing

cap screws extend beyond opposite side of cutting edge, replace blade.

SERVICE

x 8

Figure 28. Lower blade cap screws and

flat washers.

-28-

Page 31

Model M1117 (For Machines Mfd. Since 9/21)

Adjusting Blade Gap

The gap between the upper and lower blades (as they pass each other) must remain even along the length of the blades to produce clean cuts. Initially, this adjustment has been made at the factory. However, over time and with normal wear, you may need to adjust the blade gap.

If the blade gap is too wide, the workpiece will not cut correctly and show signs of bending, ripping, or tearing. If the blade gap is too narrow, the upper blade will bind when lowering past the lower blade and the cutting edges may become damaged.

Items Needed Qty

Scrap Paper .......................................... As Needed

Wrench or Socket 24mm Open-End Wrenches 17mm Feeler Gauge 0.002"

.......................................1

....................................2

............................................1

To adjust blade gap, do these steps:

1. Make cuts on piece of paper along full length of

shear blades.

— If paper cuts cleanly on full length of shear blades,

blade gap requires no adjustment.

— If paper does not cut cleanly on only one end of

shear, lower blade needs to be adjusted on that end. Proceed to Step 2.

— If paper does not cut cleanly along the entire

length of blades, both ends of lower blade need to be adjusted. Proceed to Step 2.

— If paper cuts cleanly on ends but not center of

blades, or it cuts cleanly in center but not ends, blade bow needs to be adjusted (refer to Adjusting Blade Bow on Page 30 for detailed instructions).

. Loosen (2) table bolts, (2) table adjustment bolts,

and (2) jam nuts on side of shear that needs adjustment (see Figure 29).

. Use foot pedal to lower and hold upper blade in

lowest position.

Table Adjustment

Bolt (1 of 2)

SERVICE

Table Bolt

(1 of 2)

. Insert feeler gauge between blades on side that

needs adjustment, then turn table adjustment bolts to move table and lower blade until lower blade makes light contact with feeler gauge against upper blade.

Jam Nut

(1 of 2)

Figure 29. Location of blade gap

adjustment components.

-29-

Page 32

5. Tighten (2) jam nuts and (2) table bolts to secure blade gap adjustment.

. Repeat Step 1 to check adjustment.

— If paper still does not cut cleanly, but blade gap

adjustment is correct, blade(s) may need to be sharpened (refer to Sharpening/Replacing Blade on Page 28 for detailed instructions).

Adjusting Blade Bow

The blade bow is used to keep the upper blade straight along its full length by adjusting the amount of force that the bow exerts on the blade ends.

The blade bow is adjusted by adjusting the bow jam nut on the centering rod (see Figure 30).

Model M1117 (For Machines Mfd. Since 9/21)

Bow Jam Nut

Items Needed Qty

Open-End Wrench 24mm.......................................1

Scrap Paper

To adjust blade bow, do these steps:

1. Perform Step 1 of Adjusting Blade Gap on Page 29

to determine if blade needs bow adjustment. Adjust blade gap, if necessary, before proceeding.

— If paper cuts cleanly on ends but not center of

— If paper cuts cleanly on center but not end of

.......................................... As Needed

blades, adjust bow jam nut clockwise while testing results until paper cuts cleanly along entire length of blades.

blades, adjust bow jam nut counterclockwise while testing results until paper cuts cleanly along entire length of blades.

Figure 30. Location of bow jam nut.

SERVICE

-30-

Page 33

Model M1117 (For Machines Mfd. Since 9/21)

Adjusting

Return Spring Tension

The tension of the return springs can be adjusted to increase or decrease the return rate.

Tool Needed Qty

Open-End Wrench 24mm.......................................1

To adjust return spring tension, do these steps:

1. Adjust (2) return spring hex nuts in small, equal

increments (see Figure 31).

— To increase return rate, tighten hex nuts against

springs.

— To decrease return rate, loosen hex nuts.

Squaring Front Scales

For the front scales to work properly, these scales must be square to the blades.

Tools Needed Qty

Machinist's Square ..............................................1

Wrench or Socket 13mm

To square front scales, do these steps:

.......................................1

Return Spring

(1 of 2)

Return Spring

Hex Nut

(1 of 2)

Figure 31. Return spring tension

adjustment components.

1. Use foot pedal to lower and hold blade guard in lowest position.

. Place machinist's square against blade guard and

front scale.

— If scale is square to blade guard, no adjustment is

necessary.

— If scale is not square to blade guard, proceed to

Step 3.

. Loosen (2) hex bolts for front scale that needs

adjustment (see Figure 32).

. Place one side of machinist's square against blade

guard and adjust front scale against other side of square.

. Tighten hex bolts from Step 3 to secure position.

-31-

x 2

SERVICE

Figure 32. Location of front scale hex

bolts.

Page 34

Adjusting

Hold-Down/Blade Guard

When the upper blade is lowered, the blade guard is also engaged to contact and secure the workpiece during the cutting operation. The blade guard must be parallel with the table to correctly secure workpieces.

Tools Needed Qty

Feeler Gauge Set ...............................................1

Wrench or Socket 19mm

Adjusting Blade Guard Clearance

For an extra thin or thick workpiece, the guard can be adjusted for the correct amount of clearance to secure it.

To adjust blade guard clearance, do these steps:

1. Loosen (2) blade guard hex bolts (see Figure 33).

.......................................1

Model M1117 (For Machines Mfd. Since 9/21)

. Adjust blade guard up or down to accommodate

workpiece thickness.

. Tighten (2) blade guard hex bolts to secure.

. Place edge of workpiece under blade guard, then use

foot pedal to confirm workpiece is secured by guard.

. Refer to following section to verify guard parallelism.

Adjusting Blade Guard Parallel With Table

1. Use foot pedal to lower and hold blade guard in

lowest position.

. Insert largest feeler gauge that will fit between

hold-down finger and table on right end of blade guard (see Figure 34).

. Repeat Step 2 on left end of blade guard.

— If both hold-down fingers are same distance from

table, no adjustment is required.

x 2

Figure 33. Location of blade guard hex

bolts.

Hold-Down Finger

Feeler Gauge

— If both hold-down fingers are not same distance

SERVICE

from table, proceed to Step 4.

. Loosen blade guard hex bolt on side of blade guard

that needs adjustment.

. Adjust blade guard until entire length is same

distance from table, then tighten hex bolt.

-32-

Figure 34. Using feeler gauge to check

blade guard clearance.

Page 35

Model M1117 (For Machines Mfd. Since 9/21)

The following troubleshooting tables cover common problems that may occur with this machine. If you need replacement parts or additional troubleshooting help, contact our Technical Support.

Note:

available, your original purchase receipt. This information is required to properly assist you.

Troubleshooting

Before contacting Tech Support, find the machine serial number and manufacture date, and if

Operations

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Shear will not

cut workpiece.

Cuts are not

square.

Poor quality of

cuts (ripping or

tear ing).

Foot pedal

difficult to use.

1. Workpiece thickness exceeds shear capacity.

2. Not enough pressure applied to foot pedal.

3. Blades worn or damaged. 4

. Blade gap not correct.

. Hold-down/blade guard is not adjusted

correctly.

1. Rear work stop is not parallel with blades.

2. Blade gap not correct.

3. Blade bow is not correct. 4

. Hold-down/blade guard is not adjusted

correctly.

1. Blade gap not correct.

2. Blades worn or damaged.

3. Hold-down/blade guard is not adjusted correctly.

. Gibs too loose.

1. Blade gap not correct.

2. Pivot pins need lubrication.

3. Gibs too tight.

1. Only use workpiece material that is within shear

capacity (Page 3).

2. Safely increase pressure on foot pedal.

3. Sharpen/replace blades (Page 28). 4

. Properly adjust blade gap (Page 29).

. Properly adjust hold-down/blade guard (Page 32).

1. Properly adjust rear work stop parallel with blades

(Page 20).

2. Properly adjust blade gap (Page 29).

3. Properly adjust blade bow (Page 30). 4

. Properly adjust hold-down/blade guard (Page 32).

1. Properly adjust blade gap (Page 29).

2. Sharpen/replace blades (Page 28).

3. Properly adjust hold-down/blade guard (Page 32).

. Tighten gib screws (Page 27).

1. Properly adjust blade gap (Page 29).

2. Lubricate pivot pins (Page 25).

3. Loosen gib screws (Page 27).

-33-

SERVICE

Page 36

Model M1117 (For Machines Mfd. Since 9/21)

PARTS

Main

PARTS

-34-

Page 37

Model M1117 (For Machines Mfd. Since 9/21)

Main Parts List

REF PAR T # DESCRIPTION REF PAR T # DESCRIPTION

1 XM1117001 TABLE 41 XM1117041 COMPRESSION SPRING 8 X 46 X 275 2 XM1117002 CUTTER BAR 42 XM1117042 SPR ING CAP 3 XM1117003 HOLD DOWN 43 X M1117043 PIVOT BLOCK 4 XM1117004 SIDE PANEL (RIGHT) 44 XM1117044 P IVOT BRACK ET 5 XM1117005 SIDE PANEL (LEFT) 45 XM1117045 STUD-UDE M16-2 X 320, 2, 16 6 XM1117006 EXTENSION ARM 46 XM1117046 FLAT WASH ER 16MM 7 XM1117007 HEX BOLT M12-1.75 X 30 47 XM1117047 H EX NUT M16-2 8 XM1117008 COMPRESSIO N SPRING 3 X 22 X 165 48 XM1117048 SPR ING MOUNTING BRACKET 9 XM1117009 STUD-UDE M12-1.75 X 220, 25, 45 49 XM1117049 H EX BOLT M10-1.5 X 25 10 XM1117010 ACORN NUT M12-1.75 50 XM1117050 H EX NUT M16-2 11 XM1117011 H EX B OLT M12-1.75 X 80 51 X M1117051 CLEVIS PIN 12 X 88MM 12 XM1117012 FLAT WASH ER 12MM 52 X M1117052 CLEVIS PIN 12 X 45MM 13 XM1117013 BLADE GUARD 53 XM1117053 HINGE PIN 14 XM1117014 P HLP HD SCR M6-1 X 15 54 XM1117054 FOOT PEDAL ASSEMBLY 15 XM1117015 90- DEG STOP 55 X M1117055 STUD-DE M16-2 X 1480, 60 16 XM1117016 TABLE SCALE 56 X M1117056 CLEVIS PIN 20 X 36MM 17 XM1117017 H EX B OLT M8-1.25 X 25 57 XM1117057 H EX BOLT M12-1.75 X 25 18 XM1117018 H EX B OLT M10-1.5 X 60 58 XM1117058 H EX BOLT M10-1.5 X 25 19 XM1117019 H EX B OLT M10-1.5 X 50 59 XM1117059 REAR WORK STOP 20 XM1117020 FLAT WASH ER 10MM 60 X M1117060 REAR WORK STOP MOUNT 21 XM1117021 H EX B OLT M16-2 X 120 61 XM1117061 MICRO-ADJUSTMENT BLOCK 22 XM1117022 FLAT WASH ER 16MM 62 X M1117062 KNOB M10-1.5, D35, ROUND KD 23 XM1117023 H EX NUT M16-2 63 XM1117063 STUD-FT M10-1.5 X 90 24 XM1117024 UPPER BLADE 64 XM1117064 H EX BOLT M10-1.5 X 30 25 XM1117025 LOWER BLADE 65 XM1117065 KNOB BOLT M8-1. 25 X 25, 6-LOBE, D35 26 XM1117026 CAP SCREW M10-1. 5 X 45 66 XM1117066 REAR WORK STOP ADJUSTMENT BLOCK 27 XM1117027 CAP SCREW M10-1. 5 X 50 67 XM1117067 CONNECTING ST UD BRACKET 28 XM1117028 FLAT WASH ER 10MM 68 X M1117068 HEX BOLT M10-1.5 X 20 29 XM1117029 FLAT WASH ER 10MM 69 X M1117069 SUPPORT ROD 31 XM1117031 GIB 70 XM1117070 H EX NUT M16-2 32 XM1117032 CAP SCREW M10-1. 5 X 45 71 XM1117071 FRONT WORK STOP 33 XM1117033 H EX NUT M10-1.5 72 XM1117072 FLAT WASH ER 12MM 34 XM1117034 BLADE BOW ROD 73 XM1117073 T-BOLT M12-1.75 X 45 35 XM1117035 FLAT WASH ER 14MM 74 X M1117074 WING NUT M12-1.75 36 XM1117036 H EX NUT M14-2 75 XM1117075 BEVEL G AUGE 37 XM1117037 B OW BOLT M16-2 X 60 76 XM1117076 COTTER PIN M3 X 50 STANDARD 38 XM1117038 H EX NUT M12-1.75 77 XM1117077 FLAT WASHER 6MM 39 XM1117039 FLAT WASH ER 16MM 78 X M1117078 SUPPORT ROD SCALE 40 XM1117040 H EX B OLT M10-1.5 X 40

-35-

PARTS

Page 38

Model M1117 (For Machines Mfd. Since 9/21)

M1117

102

Labels & Cosmetics

101

WARNING! WARNING!

READ and UNDERSTAND MANUAL to avoid serious injury! If a manual is not available, DO NOT use machine! Instead, go to www.woodstockint.com or call (360) 734-3482.

105

WARNING!

DO NOT REMOVE

GUARD!

108

AMPUTATION

HAZARD!

Keep hands and fingers out of blade path when shearing or serious injury will occur!

103

WARNING!

LACERATION

HAZARD!

Wear gloves while handling metal and chamfer and deburr sharp metal edges.

104

105

WARNING!

DO NOT REMOVE

GUARD!

106

107

MODEL M1117

52" SHEET METAL SHEAR

Specifications

Max. Stock Width: 52" Max. Thickness, Mild Steel, Half Width: 14 Ga. Max. Thickness, Mild Steel, Full Width: 16 Ga. Max. Beam Lift: 1-3/4" Front Stop Scale Range: 0–12-1/2" Rear Stop Scale Range: 0–33" Weight: 982 lbs.

Date

Mfd. for Woodstock in China

S/N

To reduce risk of serious injury while using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear ANSI-approved eye protection and heavy leather gloves.

3. Chamfer and deburr sharp metal edges before and after cutting.

4. Always keep guards in place and in working order.

5. Secure shear to floor before using.

6. Always keep hands and fingers away from blade.

7. Do not exceed rated capacity of this shear.

8. Do not cut wire or nails.

9. Rotate or sharpen dull blades.

10. Do not place foot under foot pedal.

11. Do not operate under influence of drugs or alcohol or when tired.

12. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

WARNING!

REF PAR T # DESCRIPTION REF PAR T # DESCRIPTION

101 X M1117101 MANUAL/EYE INJURY LABEL 105 XM1117105 DO NOT REMO VE GUARD LABEL 102 X M1117102 MODEL NUMBER LABEL 106 XM1117106 TOUCH-UP PAINT, SHOP FOX WHITE 103 X M1117103 AMPUTATION/LACERATION LABEL 107 XM1117107 MACHINE ID LAB EL 104 X M1117104 TOUCH - UP PAINT , CAUTION YELLO W 108 XM1117108 SHOP FOX NAMEPLATE SMALL

Safety labels warn about machine hazards and how to prevent serious personal injury. The owner of this machine MUST maintain the original location and readability of all labels on this machine. If any label is removed or becomes unreadable, REPLACE that label before allowing machine to be operated again. Contact us at (360) 734-3482 or www.woodstockint.com to order new labels.

PARTS

-36-

Page 39

warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents,

WARRANTY

Woodstock International, Inc. warrants all Shop Fox machinery to be free of defects from workmanship and materials for a period of two years from the date of original purchase by the original owner. This

lack of maintenance, or reimbursement of third party expenses incurred.

Woodstock International, Inc. will repair, replace, or arrange for a dealer refund, at its expense and option, the Shop Fox machine or machine part proven to be defective for its designed and intended use, provided that the original owner returns the product prepaid to an authorized warranty or repair facility as designated by our Bellingham, Washington office with proof of their purchase of the product within two years, and provides Woodstock International, Inc. reasonable opportunity to verify the alleged defect through inspection. If it is determined there is no defect, or that the defect resulted from causes not within the scope of Woodstock International Inc.'s warranty, then the original owner must bear the cost of storing and returning the product.

This is Woodstock International, Inc.’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant that Shop Fox machinery complies with the provisions of any law, acts or electrical codes. We do not reimburse for third party repairs. In no event shall Woodstock International, Inc.’s liability under this limited warranty exceed the purchase price paid for the product, and any legal actions brought against Woodstock International, Inc. shall be tried in the State of Washington, County of Whatcom. We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special or consequential damages arising from the use of our products.

Every effort has been made to ensure that all Shop Fox machinery meets high quality and durability standards. We are commited to continuously improving the quality of our products, and reserve the right to change specifications at any time.

To register the warranty, go to https://www.woodstockint.com/warranty, or scan the QR code below. You will be directed to the Warranty Registration page on www.woodstockint.com. Enter all applicable production information.

WARRANTY

WOODSTOCKINT.COM

Page 40
