Page 1
MODEL D3240
REF PART # DESCRIPTION Qty
1 XD3240001 HANDLE 1
2 XD3240002 PLATFORM 1
3 XD3240003 SWIVEL CASTER 2
4 XD3240004 CASTER 2
5 XPB26M HEX BOLT M8-1.25 X 30 2
6 XPLW06M LOCK WASHER 10MM 16
7 XPW01M FLAT WASHER 8MM 2
8 XPB31M HEX BOLT M10-1.5 X 40 16
9 XPLW04M LOCK WASHER 8MM 2
10 XD3240010 SHOP FOX LOGO STICKER 1
11 XPW04M FLAT WASHER 10MM 16
1
2
3
4
5
6
7
8
9
10
11

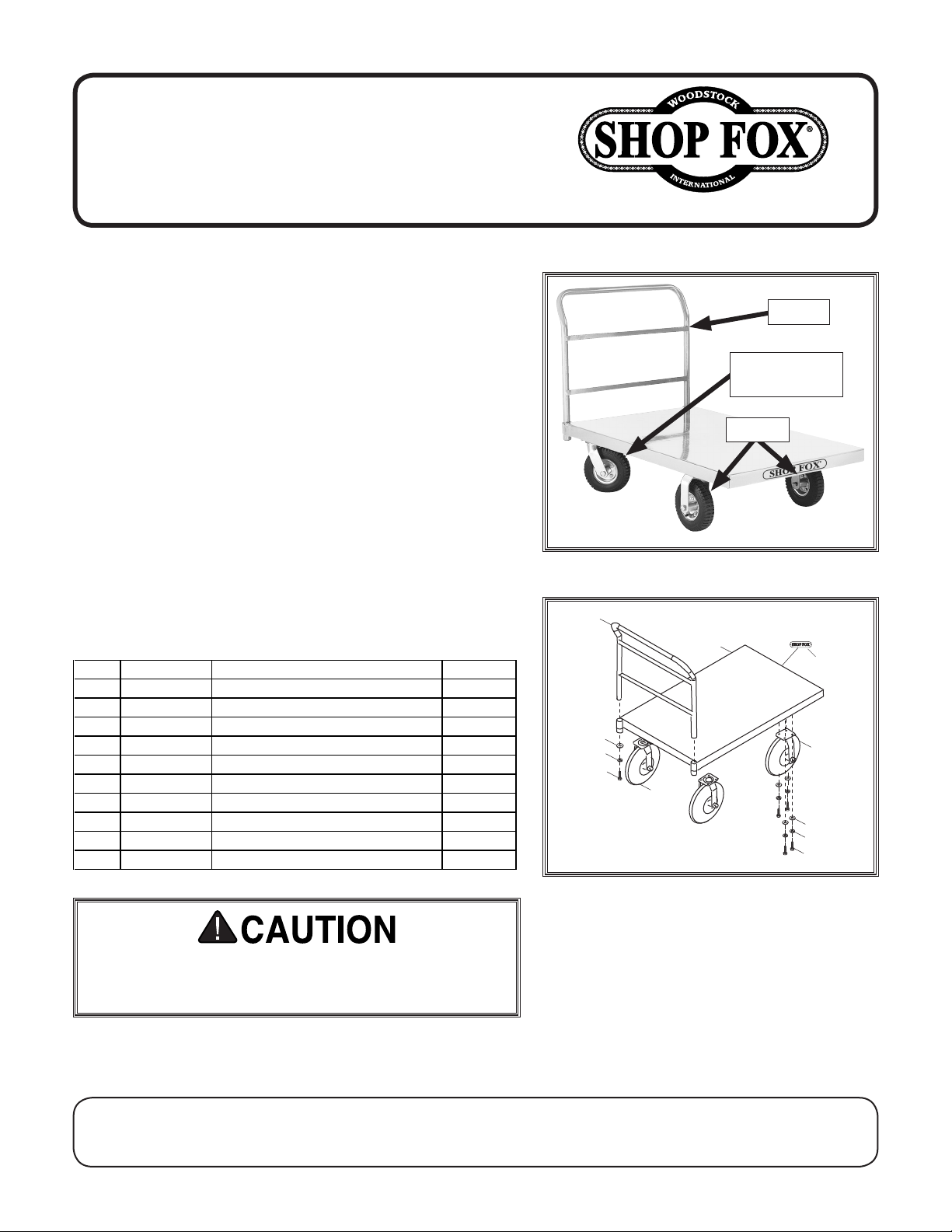

PLATFORM TRUCK
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: [email protected] • Web: www.shopfox.biz
Assembly
1. Attach the (2) swivel casters on the handle end of
the plaform truck using (8) M10-1.5 x 40 hex bolts,
10mm lock washers, and 10mm flat washers.
2. Attach the (2) casters on the other end of the
platform truck using (8) M10-1.5 x 40 hex bolts,
10mm lock washers, and 10mm flat washers.
3. Attach the handle to the platform truck using (2)
M-1.25 x 30 hex bolts, 8mm lock washers, and 8mm
flat washers.
Handle
Swivel Caster
(1 of 2)
Casters
Parts & Inventory
This platform truck is NOT a toy. Never ride or convey
passengers on the truck. Do not let children use the
truck unsupervised.
COPYRIGHT © NOVEMBER, 2003 BY WOODSTOCK INTERNATIONAL, INC. REVISED JUNE, 2012 (KN)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Figure 1. Platform truck components.
Figure 2. Model D3240 parts breakdown.
Printed in China#5877JT
