Shiro SX User Manual

SX MP3 Digital Audio Player (USB 2.0)

User Guide

Version 1.1

Table of Contents

Notice 3 Operation Buttons 3 Package Includes 4 LCD Information 5 Power On & Off 6 Playing Music 6 Menu Functions 7 Recording Operation 10 Playing Recorded File 11 Recording Setting 11 FM Function 13 Deleting File 14 Setting Equalizer 15 Setting Repeat Mode 16 Setting Auto Shut Down 17 Setting Different Language (Optional) 18 Setting A-B Clipping 19 Viewing Player Information 19 Connecting Player to Computer 20 Minimum System Requirements 21 Troubleshooting Guide 21 Technical Specifications 23

Notice

1. If the player is not used for a long duration, please remove the battery to avoid battery leakage.

2. Do not use the player in extreme hot, cold, dusty or wet environment.

3. Unlock the lock switch before using the player.

4. Do not drop the player from great heights.

5. Under normal volume condition, the player can last up to 8 hours on a single AAA battery. Please take note this battery lifespan will vary depending on the condition & manufacturer of the battery. Please replace the battery when the battery icon is the unit turns off and cannot be powered up at all.

6. To avoid static charge on the player, do not use it on extreme dry environment.

Operation Buttons

VOLUME + or -

FORWARD or REWIND

HOLD Button

A – B/Rec Button Equalizer Button Play/Pause/Power On/Off Button

Insert the SD/MMC Card according to the orientation shown

Package Includes

• Installation CD

• USB Cable

• Earphone

• User Guide

• AAA Battery

For desktop PC or laptop using USB 1.1 interface, data transfer rate would be up to a maximum of 12Mbps in accordance with the standard.

Connect the USB cable from here to the Computer USB port

LCD Information

Current Mode

Current

Music/Total Music

Loop Mode

Equalizer

Volume Hold/Locked

Battery

Playing Time

-B Clipping

Singer Detail

File Name

The loop mode includes Repeat Track, Repeat All, Shuffle, Shuffle Repeat, Normal mode.

Power On & Off

To power on the player, please press the Play/Pause button. After 2 seconds, you will see the word Power On appearing.

To power off the player, please press and hold the Play/Pause button until all the indication on the LCD disappears.

Playing Music

1. When pressing Play/Pause button, you will see the below picture showing the player in Music mode.

2. When you press Play/Pause button again, the player will either play or pause the song. It will show you the current number song played/total number of songs and playing time.

3. If you would like to choose to the next or previous song, press the Left/Right (FF/REW) button.

4. You can press VOL+ or VOL- to adjust volume. The volume picture will adjust accordingly as well. There are 32 levels of adjustment you can select.

5. To fast forward or rewind, press and hold the Left/Right (FF/REW) button.

Menu Functions

1. When the player is turned on, press Menu button to go to the mode you need.

2. You can select Music, Voice, FM Tuner, Setting, Delete File, Information, Record, Language Setting (Optional) and Return.

3. You can choose the item by pressing the Left/Right button. To enter the mode, press the Menu button.

4. Choose Music will go to Music mode. This is the mode where you can enjoy your MP3/WMA/WAV songs.

5. Choose Voice will go to voice mode, this is the mode where you can record voice (press and hold the A-B button) or listen to your recorded audio file in WAV format.

6. Choose FM Tuner to enter radio mode.

7. Choose Record to enter recording mode.

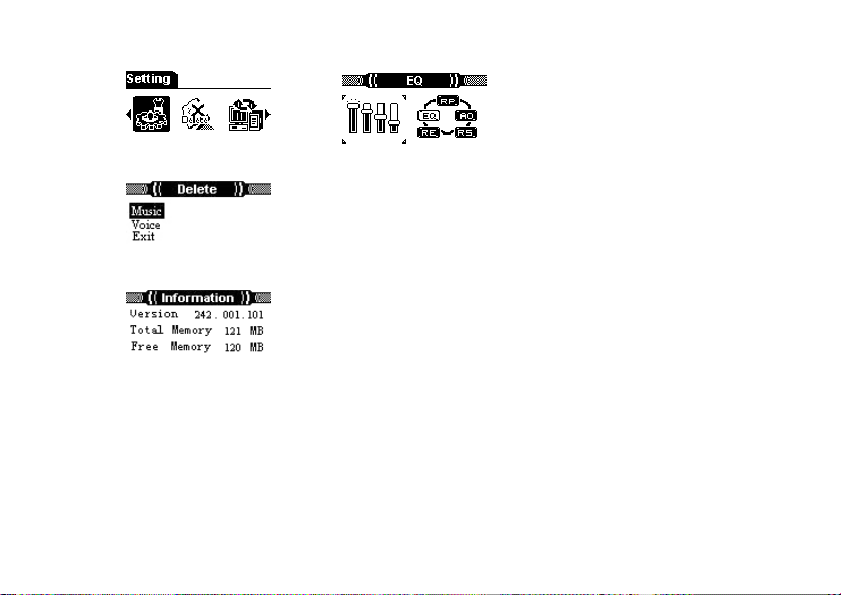

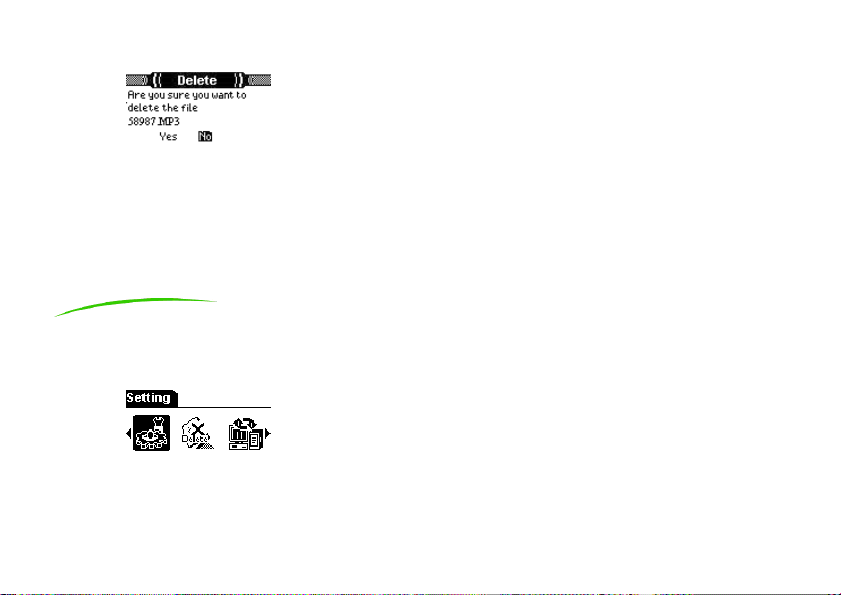

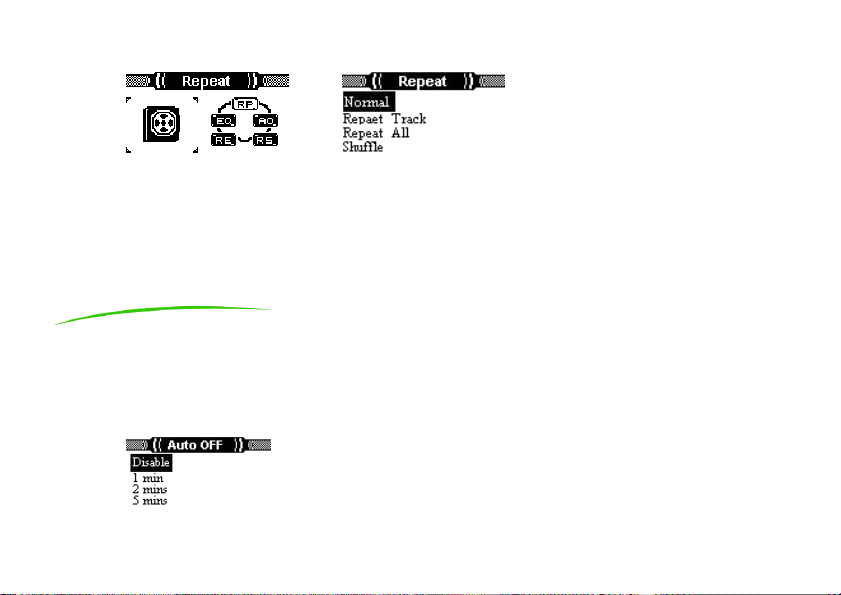

8. Choose Setting to enter player configuration menu. You can set EQ, Repeat Mode, Auto Off, Recording Settings or Return to Main Menu. Navigate different configuration using the Left/Right button.
