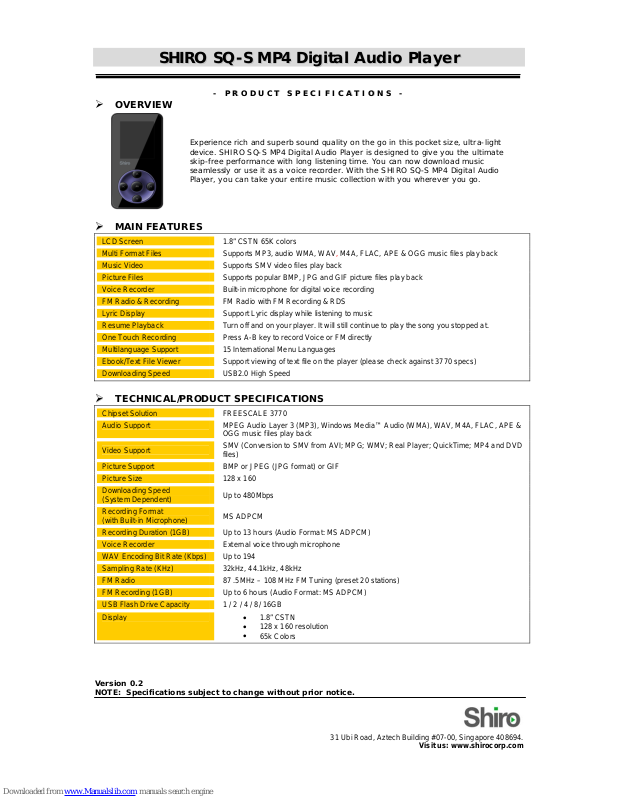

Shiro SQ-S Specifications

SSHHIIRROO SSQQ--SS MMPP44 DDiiggiittaall AAuuddiioo PPllaayyeerr

 OVERVIEW

- PPRROODDUUCCTT SSPPEECCIIFFIICCAATTIIOONNSS -

Experience rich and superb sound quality on the go in this pocket size, ultr a- light
device. SHIRO SQ-S MP4 Digital Audio Player is desig ned t o give you the u ltimat e
skip-free performance with long listening time. You can now download music
seamlessly or use it as a voice recorder. With the SHIRO SQ-S MP4 Digital Audio
Player, you can take your entire music collection with you wherever you go.

MAIN FEATURES



LCD Screen 1.8” CSTN 65K colo rs
Multi Format Files Supports MP3, audio WMA, WAV, M4A, FLAC, APE & OGG music files play back
Music Video Supports SMV video file s play back
Picture Files Supports popular BMP , JPG and GIF picture files play back
Voice Recorder Built-in microphone for digital voice recording
FM Radio & Recording FM Radio with FM Recording & RDS
Lyric Display Support Lyric display while listening to music
Resume Playback Turn off and on your player. It will still continue to play the song you stopped at.
One Touch Recording Press A-B key to record Voice or FM directly
Multilanguage Support 15 International Menu Languages
Ebook/Text File Viewer Support viewing of text file on the player (please check against 3770 specs)
Downloading Speed USB2.0 High Speed

TECHNICAL/PRODUCT SPECIFICATIONS



Chipset Solution FREESCALE 3770
Audio Support MPEG Audio Layer 3 (MP3), Windows Media™ Audio (WMA), WAV, M4A, FLAC, APE &

Video Support
Picture Support BMP or JPEG (JPG format) or GIF

Picture Size 128 x 160
Downloading Speed

(System Dependent)
Recording Format

(with Built-in Microphone)
Recording Duration (1GB) Up to 13 hours (Audio Format: MS ADPCM)
Voice Recorder External voice through microphone
WAV Encoding Bit Rate (Kbps) Up to 194
Sampling Rate (KHz) 32kHz, 44.1kHz, 48kHz
FM Radio 87 .5MHz – 108 MHz FM Tuning (preset 20 stations)
FM Recording (1GB) Up to 6 hours (Audio Format: MS ADPCM)
USB Flash Drive Capacity 1 / 2 / 4 / 8/ 16GB
Display

OGG music files play back
SMV (Conversion to SMV from AVI; MPG; WMV; Real Player; QuickTime; MP4 and DVD

files)

Up to 480Mbps

MS ADPCM

• 1.8” CSTN

• 128 x 160 resolution

•

65k Colors

Version 0.2
NOTE: Specifications subject to change without prior notice.

31 Ubi Road, Aztech Building #07-00, Singapore 408694.

Visit us: www.shirocorp.com

SSHHIIRROO SSQQ--SS MMPP44 DDiiggiittaall AAuuddiioo PPllaayyeerr

External Card Slot No expansion card slot
ID3 Tag Support Yes
Album Art Support Yes
Scrolling Synchronous Lyrics LRC format Version 0.2
Conversion Format to SMV 1. AVI format file (*.avi)

Sound Equalizer Preset sound equalizer to select Normal, Rock, Classic, Treble, Pop, Jazz, Bass mode

Playback Sequence Select Normal, Repeat Track, Repeat All, Shuffle Once, Repeat Shuffle for music

A-B Content Clipping Selected content clipping function (A-B mode)
Ebook/Text File Viewer Text format file (*.txt)
ScreenSaver (second) Up to 120
Storage Media On board skip-free Flash
Language 15 (English, Russian, German, Portuguese, Spanish, French, Polish, Czech, Turkish,

Host Interface High Speed USB 2.0
Plug-and-Play Via USB port
Maximum Output 10mW+10mW
Signal to Noise Ratio 90 dB
Frequency Response 20Hz to 20KHz
Data Retention Period Over 10 years
Erase and Write Cycle Up to 10000 times
Power Supply

Bulk Material for Solar cell Monocrystalline Silicon (c-Si) (TBD)
Maximum Power for Solar Cell 0.2W
Charging Duration (hr) 1) Up to 4 hours (via USB bus)

Playback duration (hr) Music – Up to 38 hours (LCD Off)

Dimension With solar cell : 11mm (H) x 42mm(W) x 86mm(L) (TBD)

Weight 40 gram with battery.
Regulatory Approval FCC, CE, ROHS

SYSTEM REQUIREMENTS



Computer/Processor
Memory 32 MB or higher

Hard Disk 20 MB or higher hard-disk space available
Drive CD-ROM drive
Host Interface USB port
Operating System

2. Windows® Media format file (*.wmv)

and User EQ

playback sequence

Italian, Hungarian, Slovak, Dutch, S. Chinese, T.Chinese)

• Lithium Polymer battery for music listening

• USB bus powered between 4.0V to 5.0V for data access and charging

• Solar cell for charging

2) Up to 6 hours [via solar cell with full sun (120,000LUX)]

Video – Up to 10 hours

Without solar cell : 9.8 (H) x 42mm (W) x 86mm (L) (TBD)

Intel® Pentium® or AMD 233 MHZ or higher processor

Windows 2000/XP/Vista

••

Windows Media Player version 9/10/11

••

Macintosh OS 10.5

••

Version 0.2
NOTE: Specifications subject to change without prior notice.

31 Ubi Road, Aztech Building #07-00, Singapore 408694.

Visit us: www.shirocorp.com
