Shiro SD8301 User Manual
• User Manual •
SD8301
Digital Enhanced Cordless Communication
UUsseerr MMaannuuaall
Contents
What the symbols means 2
The handset and base unit--buttons and functions 3
Setting up your telephone 4
Connection and conditions for use
How many phones you can connect
Radio signals between handset and base unit
Choosing a site for the base unit

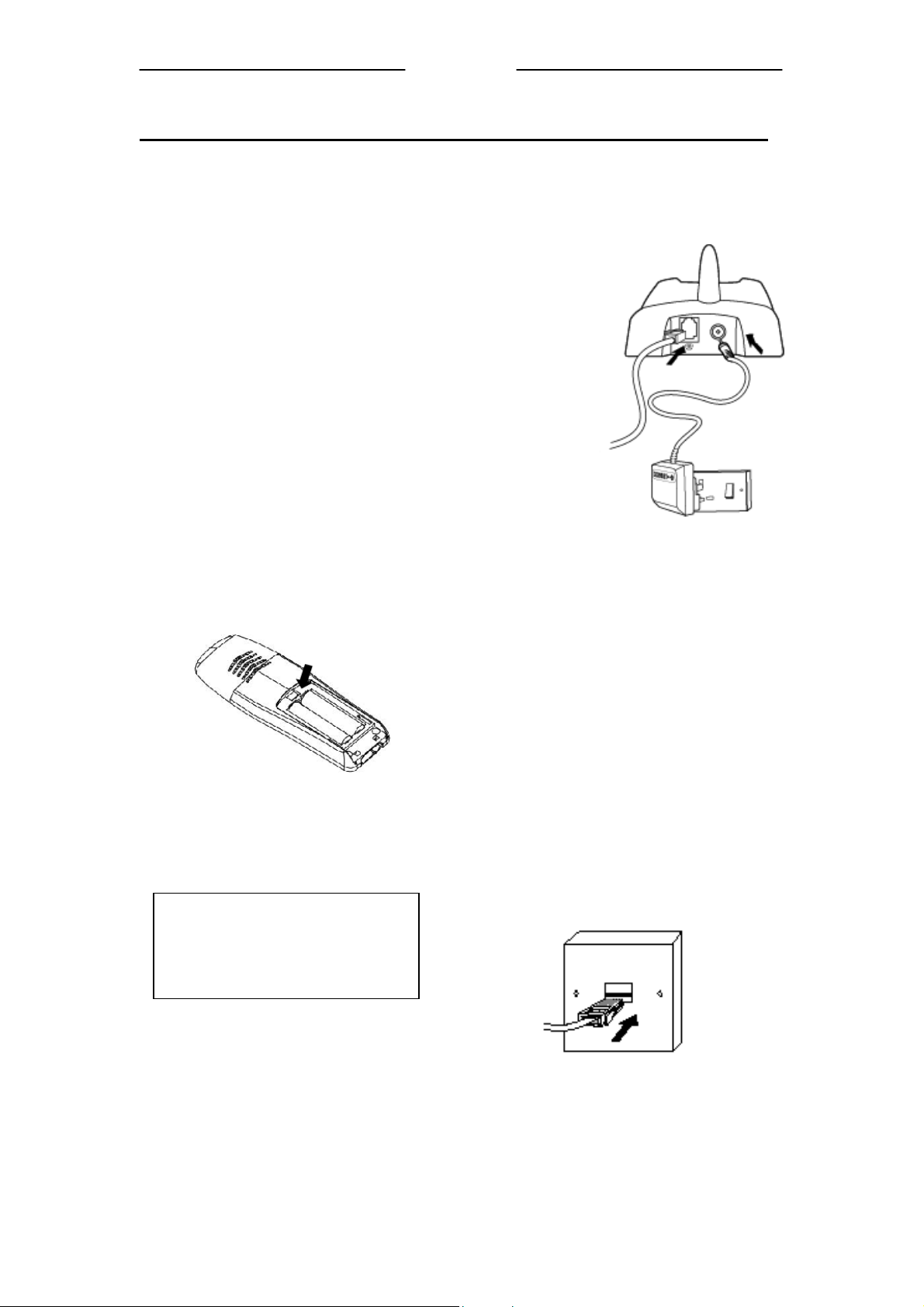

Installation 5
Important safety information 6
Warranty information 6
Making and answering calls 7
Make a call, Answer a call, End a call, Redial a call, Save a call,
Earpiece volume, muting the mouthpiece
Message Function 7
Conference Calls 8
Phone book 8
Storing names/numbers, deleting numbers, editing numbers
Call logs 9
Handset Setting 9
Key tone, EXT/INT volume, EXT/INT melody, Handset name,
Language, Auto talk, Keypad lock/unlock
Base Setting 10
Call barring, Base melody, Base volume, LCR, Dial mode,
Reset base, Change base PIN
Extra Setting 11
Resetting the system 12
Handset registration 12
Intercom and transfer 12
Make an intercom call, End an intercom call, Transfer a call
Troubleshooting 13
Technical Details 14
Declaration of Conformity 14
1
UUsseerr MMaannuuaall
WHAT THE SYMBOLS MEAN
Battery charge level
Whenever this shows ‘nearly empty’ ( ), put the handset on the base unit to charge the
batteries. While the battery is being charged, the level shown will keep changing.
Mute
Your handset's microphone is muted.
Signal level
Shows the strength of the signal between the handset and base unit, and flashes when you
are out of range of the base unit, when the level is low, or the symbol is flashing, move
closer to base unit.
Phone
To indicate there is a missed call.
Speakerphone
Your handset’s loudspeaker is on.
Messages
Message has been received.
Lock
Your handset’s keypad is locked.
2
UUsseerr MMaannuuaall
KEYPAD DESCRIPTION (HANDSET + BASE UNIT)
Press to enter menu and submenu mode;
Press to confirm selection;
With the key “ * ” to lock or
unlock the keypad;
Up and Down Button
In standby mode, press to enter
phonebook menu;
Press during programming to go
back to the previous option, or
to clear digits from the display.
Press during a call to mute the
mouthpiece
Press during programming to
move through the menu.
Press during a call to change
the volume in the earpiece.
Press to begin, answer and
end a telephone call.
P
You need the Recall
function if your phone is
connected to a PABX, or if
you use select services;
When you make an
outside call, press to
transfer it to another
handset.
PAGE
The IN USE light comes
on when you have a
connection to the
telephone line.
SMS Button
Press this to go SMS
mode directly while the
handset is in idle mode.
Press to make an intercom
call (if you have more
than one handset)
Speakerphone Button
Press to turn the
speakerphone ON/OFF
PAUSE Button
Press to insert PAUSE
while dialing out
The CHARGE light comes on
when the handset's
batteries are being charged.
HANDSET LOCATOR
Press this to make the handset
ring, if you cannot remember
where you put it.
Press it again to stop the
handset ringing.
Before you can use the handset to
make calls for the first time, you
will need to fit and fully charge the
battery for 15 hours.
3
UUsseerr MMaannuuaall
SETTING UP YOUR TELEPHONE
Connection and conditions for use
You can connect your phone to a direct exchange line (DEL), a line connected to a local
exchange, with its own phone number; to an extension socket connected to a DEL; or to an
extension on an approved compatible PBX. Do not connect the Phone as an extension to a
payphone.
How many phones can you connect?
The ringer equivalence numbers (RENs) of all instruments (phones, fax machines, etc.)
connected to an exchange line must not add up to more than 4, otherwise, one or more of
them may not ring and/or answer calls correctly. The Phone has a REN of 1, and most other
telephones have a REN of 1 unless marked otherwise.
Radio signals between handset and base unit
To use your handset and base unit together, you must be able to establish a radio link
between them. Be aware that:
• Sitting the base unit as high as possible will give better results, in a two-storey
house, the best position may be on the first-floor landing.
• Any large metal object, like a fridge, a mirror or a filing cabinet, between the
handset and base unit may block the radio signal.
• Other solid structures, like walls, may reduce the signal strength.
Choosing a site for the base unit
The base unit should be placed on a level surface, in a position where:
• The adapter plug will reach a 230 V AC switched mains supply socket; never try to
lengthen the mains power cable.
• The telephone cable will reach your telephone line socket or extension socket.
• It is not close to another telephone, this can cause radio interference.
• It is not close to a sink, bath or shower, or anywhere else where it might get wet.
• It is not close to other electrical equipment, fridges, washing machines, microwave
ovens, TVs, fluorescent lights, etc.
What's in this pack
Please check the box contents for completeness.
If any parts are missing, return complete box to your
supplier.
• The cordless handset
• The base unit
• Rechargeable battery cell(AAA size x 2 PCS)
• A telephone line cable (different from country to
country)
• A mains power lead and adaptor (different from
country to country)
• Charger pods (not available for single handset)
• User manual
Note: Keep your proof of purchase to support any guarantee
4
