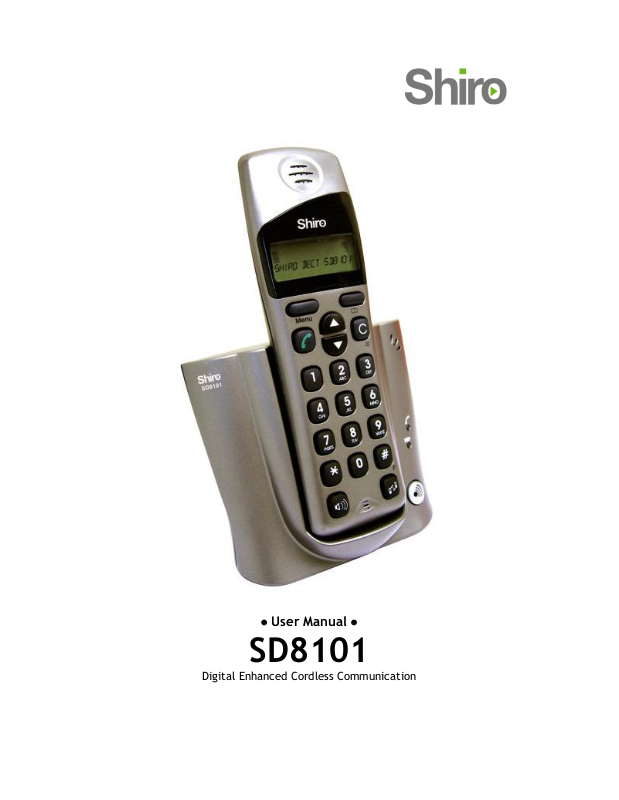

SD8101
Digital Enhanced Cordless Communication
UUsseerr MMaannuuaall
Contents
What the symbols means 2
The handset and base unit--buttons and functions 3
Setting up your telephone 4
Connection and conditions for use
How many phones you can connect
Radio signals between handset and base unit
Choosing a site for the base unit
Installation 6
Important safety information 8
Warranty information 9
Making and answering calls 10
Make a call, Answer a call, End a call, Redial a call, Save a call,
Earpiece volume, muting the mouthpiece
Phone book 11
Storing names/numbers, deleting numbers, editing numbers
Call logs 12
Handset Setting 13
Key tone, EXT/INT volume, EXT/INT melody, Handset name,
Language, Auto talk, Keypad lock/unlock
Base Setting 16
Call barring, Base melody, Base volume, LCR, Dial mode,
Reset base, Change base PIN
Baby Call (Baby sitter's call) 20
Enter Baby call, Exit Baby call, Set Baby call number,
Change Baby call number
Resetting the system 21
Handset registration 21
Intercom and transfer 22
Make an intercom call, End an intercom call, Transfer a call
Troubleshooting 23
Technical Details 25
Declaration of Conformity 26
1
UUsseerr MMaannuuaall
What the symbols mean
Battery charge level
Whenever this shows ‘nearly empty’ ( ), put the handset on the base unit
to charge the batteries. While the battery is being charged, the level shown
will keep changing.
Outside call
You are connected to an outside call.
Intercom call
You are connected to an intercom call
.
Phone book
Show the names and numbers of stored record.
Mute
Your handset's microphone is muted.
Up and down arrows
To browse through the programming menu for more options.
Signal level
Shows the strength of the signal between the handset and base unit, and
flashes when you are out of range of the base unit, when the level is low, or
the symbol is flashing, move closer to base unit.
Speakerphone
Your handset’s loudspeaker is on when LCD appear this icon
2
UUsseerr MMaannuuaall
The handset and base unit
MENU button
Press to enter menu mode and
enter sub-menu. Press the key
" to lock or unlock the
"
keypad.
CALL button
Press to begin, answer and end
a telephone call.
UP and DOWN button
PHONEBOOK button
In standby mode, press to enter
phonebook menu
Press to confirm selection.
You need the button if you phone is
Connected to a PABX.
CLEAR button
Press and hold (2-3 seconds) to switch
the handset on and off
Press during programming to go back
to the previous option, or to clear
digits one by one from the display.
Press during a call to mute the
microphone
In standby mode, press to show
phonebook list
Press during programming to
move through the menu.
Press during a call to change the
volume in the earpiece.
SPEAKERPHONE button
Press to turn the
speakerphone ON/OFF
Before you can use the handset to
make calls for the first time, you
will need to fit and fully charge the
battery for 15 hours.
IN USE light
The IN USE light comes on when you
have a connection to the telephone
CHARGE light
The CHARGE light comes on when the
handset's batteries are being charged.
HANDSET LOCATOR button
Press this to make the handset ring,
if you cannot remember where you put it.
Press it again to stop the handset ringing.
INT button
Press to make an intercom call
you have more than one handset)
(if
3
UUsseerr MMaannuuaall
Setting up your telephone
Connection and conditions for use
You can connect your SD8101 to a direct exchange line (DEL), a line
connected to a local exchange, with its own phone number; to an extension
socket connected to a DEL; or to an extension on an approved compatible
PBX. Do not connect the SD8101 as an extension to a payphone.
How many phones can you connect?
The ringer equivalence numbers (RENs) of all instruments (phones, fax
machines, etc.) connected to an exchange line must not add up to more
than 4, otherwise, one or more of them may not ring and/or answer calls
correctly. The SD8101 has a REN of 1, and most other telephones have a REN
of 1unless marked otherwise.
Radio signals between handset and base unit
To use your handset and base unit together, you must be able to establish a
radio link between them. Be aware that:
• Sitting the base unit as high as possible will give better results, in a
two-storey house, the best position may be on the first-floor landing.
• Any large metal object, like a fridge, a mirror or a filing cabinet,
between the handset and base unit may block the radio signal.
• Other solid structures, like walls, may reduce the signal strength.
Choosing a site for the base unit
The base unit should be placed on a level surface, in a position where:
• The mains adapter plug will reach a 230-V AC switched mains supply
socket; never try to lengthen the mains power cable.
• The telephone cable will reach your telephone line socket or
extension socket.
•
It is not close to another telephone, this can cause radio interference.
• It is not close to a sink, bath or shower, or anywhere else where it
might get wet.
It is not close to other electrical equipment, fridges, washing
•
machines, microwave ovens, TVs, fluorescent lights, etc.
4
What's in this pack
Please check the box contents for completeness.
If any parts are missing, return complete box to
your supplier.
• The cordless handset
• The base unit
• Rechargeable battery pack
• A telephone line cable (different from country to
country)
A mains power lead and adaptor
•
to country)
Charger pods (not available for single handset)
•
• User manual
Note: Keep your proof of purchase to support any warranty
claim.
UUsseerr MMaannuuaall
(different from country
5
UUsseerr MMaannuuaall
Installation
1. Choose a suitable site for the base unit
Make sure it is not near to another telephone, nor to other
electrical equipment.
2. Plug the mains power
lead and the telephone
line cord into the rear of
the base unit
3. Plug the mains adapter
into a 230 V AC, 50 Hz
mains socket, with the
switch on the socket set to OFF
Note: The illustration of adaptor may vary from
country to country.
4. Switch on mains power at the socket
5. Fit the battery in the handset(s)
Insert the battery pack as shown
Fit the battery compartment cover,
Sliding it until it clicks firmly into
position.
6
UUsseerr MMaannuuaall
6. Connect the base unit to the telephone line
Switch off power at the mains socket.
Insert the telephone line plug into the socket.
Switch mains power back on.
Make sure the mains socket is
switched on if you want to use
the phone---it will not work
without electrical power.
Use the plug to raise the
shutter before pushing it into
the socket
Note:
1. The charger pod does not have a
connection to the telephone line.
2. The illustration of telephone's socket
may vary from country to country.
7
UUsseerr MMaannuuaall
Important safety information
This equipment is not designed for making emergency calls in the event of a power
failure. Alternative arrangements should be made for access to emergency services.
(This means that you should also have a basic phone that does not need mains
power, connected to your line so that you can make calls during a power failure)
People with a heart pacemaker should consult their doctor before using the
telephone.
If you wear a hearing aid, you should note SD8101 works by transmitting radio
waves between base and handset that may cause a humming noise.
1. DO NOT clean any part of your phone with benzene, thinner or other solvent
chemicals, which may cause permanent damage to your phone. This damage is not
covered by the Guarantee. When necessary, clean it with a damp cloth.
Cleaning it with a wet cloth may give you an electric shock.
2. DO NOT use this equipment in places where volatile or explosive materials may
be present.
3. DO NOT let the base unit get wet. Electrical equipment can cause serious injury
if used while you are wet or standing in water. NEVER use your phone during a
thunderstorm. Unplug the base unit from the telephone line and the mains socket
when there are storms in your area. Damage caused by lightning is not covered by
the Guarantee.
4. The SD8101 will produce a certain amount of heat during operation. For this
reason it is recommended that this equipment is NOT placed in direct contact with
antique, veneered or delicate furniture surfaces.
5. DO NOT dispose batteries with normal household waste.
6. The SD8101 DECT phone emits radio signals which could interfere with other
electronic equipment, computers, radio, TV set, clock radio alarms, etc.
A distance of at least one meter should be maintained between SD8101 base
station and other equipment. This will minimize the risk of such interference.
7. When you do not need to carry your handsets around, leave them on the base
unit or charger pod, to keep the batteries charged.
8. If you hear a warning tone as move around during a call, and/ or the sound in
the earpiece becomes faint or distorted; you may be going out of range of the base
unit.
Move nearer to the base unit within 20 seconds, until the tone stops. Otherwise
your call may be cut off.
8
UUsseerr MMaannuuaall
Warranty Information
Your phone is covered by a 12-month warranty from the date of purchase
shown on your sales receipt. The warranty does not cover the batteries,
misuse or damage caused by a storm or excessive voltages.
If you have any problems using the phone, check the Troubleshooting
section at the back of this manual. If you need to return your SD8101 to our
Repair Center while it is under guarantee, there will be some handling
charge.
9
UUsseerr MMaannuuaall
Making and answering calls
To switch the handset ON or OFF
Press and hold the CLEAR button for 2-3 seconds to switch the handset
ON or OFF.
To make a call
1. Key in the telephone number (If you make a mistake, press
CLEAR
press and hold CLEAR button.)
2. Press and hold the CALL
Or you also can dial the stored number through PHONEBOOK
Note: You can dial the number after you press and hold the CALL
button if you need, but you won't be able to correct any mistakes if you do
it in this way.
When you dial the outside line access digit (e.g. 9) then the telephone
number, press and hold the "#" button about 2 seconds for a pause.
button to clear digits from the display. To clear all digits,
button.
button.
To answer a call
When the handset and base unit ring, press the CALL button to answer
a call, and the symbol
When the AUTO TALK is turned on, you can simply answer the call by lifting
the handset from the base unit (see AUTO TALK).
or appears in the display.
To end a call
Press the CALL button to end a call.
To redial a call
In standby mode, press CLEAR then UP/DOWN button, the display
shows the number you dialed or received. Then press CALL
redial the number.
button to
To save a call
After you dial or receive a call, you can press MENU button to save it.
Earpiece volume
During a call, to adjust the volume of the earpiece:
Press the UP
or DOWN button to change the volume (1 to 10).
10
UUsseerr MMaannuuaall
Muting the mouthpiece
To put a call "on hold", so that the person on the other hand end cannot
hear you:
Press the CLEAR
While the mouthpiece is muted, you cannot press any number key to send
digits down the line.
To get back to the call:
Press the CLEAR
button once
button again.
Phone Book
Up to 30 records could be stored in each handset's Phone Book. Each record
can store up to 20 digits, and names of up to eight characters could be
stored with the number. In standby mode, press UP/DOWN
show phonebook list. There are two ways to enter phonebook.
In standby mode, press PHONEBOOK
through MENU
and UP/DOWN button to enter phonebook.
button to enter phonebook; or
To store a number into phonebook
1. Press PHONEBOOK button, or through MENU then UP/DOWN
button to
button to the location PHONEBOOK
2. Press the PHONEBOOK
The display shows ADD
3. Press the PHONEBOOK
the number
4. Press the PHONEBOOK
button
button again, then key in the name and
button to confirm
To clear a number from phonebook
1. Press PHONEBOOK button, or through MENU then UP/DOWN
button to the location PHONEBOOK
2. Press PHONEBOOK
to the location DELETE
3. Press PHONEBOOK
button to scroll the stored names and numbers
4. Press the PHONEBOOK
button again, then scroll UP/DOWN button
button to confirm, then press UP/DOWN
to delete the name and number
11
UUsseerr MMaannuuaall
To modify (change) a number in phonebook
1. Press the PHONEBOOK button, or through MENU then
UP/DOWN
2. Press the PHONEBOOK
button, the display shows the stored names and numbers
3. Press the PHONEBOOK
button to the location PHONEBOOK
button to confirm, then press UP/DOWN
button, and modify the number
To clear all numbers from phonebook
1. Press the PHONEBOOK button, or through MENU then
UP/DOWN
2. Press the PHONEBOOK
button to the location DEL ALL
3. Press the PHONEBOOK
button to the location PHONEBOOK
button again, then scroll UP/DOWN
button to delete all numbers
Call Logs
Call Logs store information related to received calls, missed calls and dialed
calls. The SD8101 can store up to a maximum of 30 calls, consisting of 10
received, missed and dialed calls respectively.
To check call records
1. Press the MENU button. The display shows CALLLOGS.
2. Press the PHONEBOOK
the locations MISSED, RECEIVED, or DIALLED calls.
You will see either names or numbers
button, then scroll UP/DOWN button to
.
To dial a number from call logs
1. Ensure the required name/number is visible on the display.
2. Press CALL
button.
12
UUsseerr MMaannuuaall
Handset Setting
Key tone on and off
Each time you press a key on your handset, you hear a tone. You can turn
this off if needed.
1. Press the MENU
location HANDSET.
2. Press the PHONEBOOK
The display shows KEYTONE.
3. Press the PHONEBOOK
The display shows ON or OFF?
4. Press the PHONEBOOK button to confirm.
Ringer Volume (EXT)
You have a choice of five volume levels (1 to 5).
1. Press the MENU
location HANDSET.
2. Press the PHONEBOOK
to the location EXT VOL.
3. Press the PHONEBOOK
The display shows the current volume level.
4. Press UP/DOWN
button, then press UP/DOWN button to the
button.
, then UP/DOWN button.
button, then press UP/DOWN button to the
button, then press UP/DOWN button
button.
button to change the volume.
5. Press the PHONEBOOK
want.
button to confirm the volume level you
Ringer Volume (INT)
You have a choice of five volume levels (1 to 5).
1. Press the MENU
location HANDSET.
2. Press the PHONEBOOK
the location INT VOL.
3. Press the PHONEBOOK
The display shows the current volume level.
4. Press UP/DOWN
5. Press the PHONEBOOK
want.
button, then press UP/DOWN button to the
button, then press UP/DOWN button to
button.
button to change the volume.
button to confirm the volume level you
13
UUsseerr MMaannuuaall
Ringer Melody (EXT)
You have a choice of 9 ringing melodies
1. Press the MENU
location HANDSET.
2. Press the PHONEBOOK
the location EXT RING.
3. Press the PHONEBOOK
The display shows the current melody.
4. Press UP/DOWN
5. Press the PHONEBOOK
button, then press UP/DOWN button to the
button, then press UP/DOWN button to
button.
button to change the melody.
button to confirm the melody you want.
Ringer Melody (INT)
You have a choice of 9 ringing melodies
1. Press the MENU button, then press UP/DOWN button to the
location HANDSET.
2. Press the PHONEBOOK
to the location INT RING.
button, then press UP/DOWN button
3. Press the PHONEBOOK
The display shows the current melody.
4. Press UP/DOWN
5. Press the PHONEBOOK
button to change the melody.
button.
button to confirm the melody you want.
Your handset name
1. Press the MENU button, then press UP/DOWN button to the
location HANDSET.
2. Press the PHONEBOOK
to the location SET NAME.
3. Press the PHONEBOOK
The display shows the current name.
4. Press the CLEAR
key in your chosen name.
5. Press the PHONEBOOK
button, then press UP/DOWN button
button.
button repeatedly to clear the display, then
button to confirm.
14
UUsseerr MMaannuuaall
Display language
You can change the default language to any language you prefer.
1. Press the MENU
location HANDSET.
2. Press the PHONEBOOK
again to the location LANGUAGE.
3. Press the PHONEBOOK
The display shows the current language.
4. Press UP/DOWN
5. Press the PHONEBOOK
button then press UP/DOWN button to the
button then press UP/DOWN button
button.
button to the language you prefer.
button to confirm.
Auto Talk
Normally, you need to press the CALL button to answer an incoming call.
But with AUTOTALK turned on, when your handset is resting on the base
unit and it rings for an incoming call, you can answer the call by simply
lifting the handset. To turn auto-talk ON/OFF:
1. Press the MENU button then UP/DOWN button to HANDSET.
2. Press the PHONEBOOK
AUTOTALK.
3. Press the PHONEBOOK
OFF?
button then UP/DOWN button to
button again, the display shows ON? /
4. Press the PHONEBOOK
If you have turned auto-talk on, do not press the CALL button after
!
you've answered a call by lifting the handset,
disconnected.
button to confirm.
otherwise, the call will be
To Lock /Unlock the keypad
Press MENU button and “ “ button consecutively to lock or unlock the
keypad.
15
UUsseerr MMaannuuaall
Base Setting (Default PIN No: 0000)
To set call barring number
1. Press MENU button then UP/DOWN button until the display
shows BASE SET.
2. Press the PHONEBOOK
3. Key in your PIN number and press the PHONEBOOK
press UP/DOWN
4. Press the PHONEBOOK
The display shows one of the numbers from 1 to 5 (You can set
maximum call barring numbers), and then key in the telephone
number you want to set call barring.
5. Press PHONEBOOK
Key in the handset number that you want to set call barring.
6. Press PHONEBOOK
button to the location BARRING.
button, the display shows PIN?
button, then
button, then UP/DOWN button
button, then the display shows HS?
button to confirm.
To delete call barring number
1. Press MENU button then UP/DOWN button until the display
shows BASESET.
2. Press the PHONEBOOK
3. Key in your PIN number.
button, the display shows PIN?
4. Press the PHONEBOOK
location BARRING.
5. Press the PHONEBOOK
number you set.
6. Press the CLEAR
7. Press PHONEBOOK
button to delete the number.
button, then UP/DOWN button to the
button, the display shows the call barring
button to confirm.
Base Melody
You have a choice of nine ringing melodies for the base unit
1. Press MENU
BASESET.
2. Press PHONEBOOK
3. Press PHONEBOOK
location B MELODY.
4. Press UP/DOWN
button then UP/DOWN button to the location
button and Key in the PIN number.
button then UP/DOWN button to the
button to change the melody.
16
UUsseerr MMaannuuaall
5. Press the PHONEBOOK button to confirm the melody you want.
Base Volume
You have a choice of five volume levels (1-5)
1. Press MENU
BASESET.
2. Press PHONEBOOK
3. Press PHONEBOOK
location B VOLUME.
The display shows the current volume level.
4. Press UP/DOWN
5. Press the PHONEBOOK
want.
button then UP/DOWN button to the location
button and Key in the PIN number.
button then UP/DOWN button to the
button to change the volume.
button to confirm the volume level you
Least call route (LCR) function (Optional)
With the LCR function, the phone will automatically replace a long number
with a comparative short number, to simplify the process of dialing a long
number. For example, if the user program to replace "00" with "1790900",
then when he dials
"006567417211", then the phone will automatically replace the number to
be dialed out as "17909006567417211". To set LCR:
1. Press MENU
BASESET.
button then UP/DOWN button to the location
2. Press the PHONEBOOK
3. Key in your PIN number and press the PHONEBOOK
UP/DOWN
4. Press the PHONEBOOK
5. Key in the short number you want to replace the long number.
6. Press the PHONEBOOK
shows LONG.
7. Key in the long number.
8. Press the PHONEBOOK
button to the location LCR.
button, the display shows PIN?
button, the display shows SHORT.
button to confirm, then the display
button to confirm.
button, then
17
UUsseerr MMaannuuaall
PABX function
With the PABX function, the phone will automatically pause for 3 seconds
once the initial string of the phone number matches the PABX code. For
example, if the user program to enter "9" as PABX code, then when he dials
"98118118", then the phone will dial “9” first then pause for 3 seconds
follow by “8118118”. To set PABX:
1. Press MENU
button then UP/DOWN button to the location
BASE SET
2. Press the PHONEBOOK
3. Key in your PIN number and press the PHONEBOOK
UP/DOWN
button to the location PABX
4. Press the PHONEBOOK
may press UP/DOWN
5. Press the PHONEBOOK
button, the display shows PIN?
button, then
button, the display shows PABX 1. You
button to select PABX 2.
button, the display shows EMPTY, key in
the code. The maximum PABX code length is 5 digits.
6. Press the PHONEBOOK
button to confirm
FLASH function
With the FLASH function, you may select Short or Long flash time for your
PABX. You may activate FLASH by pressing PHONEBOOK button. To set
FLASH:
1. Press MENU
button then UP/DOWN button to the location
BASE SET
2. Press the PHONEBOOK
button, the display shows PIN?
3. Key in your PIN number and press the PHONEBOOK
UP/DOWN
4. Press the PHONEBOOK
may press UP/DOWN
5. Press the PHONEBOOK
button to the location FLASH
button, the display shows SHORT? You
button to select LONG?
button to confirm
button, then
18
UUsseerr MMaannuuaall
To Set Dial Mode
You can change dial mode to TONE or PULSE dialing.
To set dial mode:
1. Press MENU
BASESET.
2. Press the PHONEBOOK
3. Key in your PIN number and press the PHONEBOOK
press UP/DOWN
4. Press UP/DOWN
dialing.
button, then UP/DOWN button to the location
button, the display shows PIN?
button, then
button to the location DIAL MODE.
button to change Dial mode as TONE or PULSE
To reset base
1. Press MENU button, then UP/DOWN button to the location
BASESET.
2. Press the PHONEBOOK
3. Key in your PIN number and press the PHONEBOOK
UP/DOWN
4. Press PHONEBOOK
5. Press PHONEBOOK
button, and go back to B RESET.
button to the location B RESET.
button, the display shows PIN?
button, then
button, then the display shows RESET?
button to confirm, or Press CLEAR
To change base PIN
1. Press MENU button, then UP/DOWN button to the location
BASESET.
2. Press the PHONEBOOK
3. Key in your PIN number and press the PHONEBOOK
UP/DOWN
4. Press the PHONEBOOK
5. Key in the new PIN number, and press PHONEBOOK
display shows PIN?
6. Key in the new PIN number again, and press PHONEBOOK
to confirm.
button to the location SET PIN? or MAST PIN?
button, the display shows PIN?
button, then
button, the display shows PIN?.
button, the
button
19
UUsseerr MMaannuuaall
Baby Call
With baby call option turned on, you cannot make any outside call except to
a number you have programmed in. When you press any digital key, the
programmed number will be dialed out automatically.
To enter Baby call mode
1. Press the MENU button, then UP/DOWN button until the
display shows BABYCALL.
2. Press the PHONEBOOK
location ENABLE?
3. Press the PHONEBOOK
BC MODE to enter Baby call mode.
To exit Baby call mode
1. In Babycall mode, press the MENU button, the display shows
DISABLE?
2. Then press PHONEBOOK
button, then UP/DOWN button to the
button to confirm, and the display shows
button to exit Baby call mode.
To set the Baby Call number
1. Press MENU
shows BABYCALL.
2. Press the PHONEBOOK
the display shows SET NUM.
3. Press the PHONEBOOK
(If you make a mistake, press the CLEAR
from the display)
button, then UP/DOWN button until the display
button, then UP/DOWN button until
button and Key in the number
button to delete digits
4. Press the PHONEBOOK
BC MODE.
button to confirm, and the display shows
To change the Baby call number
1. Press MENU button, then UP/DOWN button go to the location
BABYCALL.
2. Press the PHONEBOOK
stored number.
3. Press and hold the CLEAR
4. Key in the new number and press the PHONEBOOK
button again, the display shows the
button to clear the display.
button.
20
UUsseerr MMaannuuaall
Resetting the system
If you have set a PIN and forgotten it, you need to reset the system. The PIN
will be reset to 0000. If you reset the system, you will lose all stored
information (including numbers in memory) and all features will return to
their default settings.
While you are resetting the system, you should disconnect the telephone
line cord from the back of the base unit, so you won't be interrupted by
incoming calls. To reset the system without the PIN:
1. Disconnect the power lead from the back of the base unit
2. Press and hold the HANDSET LOCATOR
3. Connect the power lead into the back of the base unit. After you hear
"beep" sound for five times, then release the LOCATOR
4. You will hear confirmation tone from the base unit.
button in the base unit
button
Handset registration
Your SD8101 is supplied with the handset already registered to the base unit,
and you shouldn't need to register it. But if you've bought extra handsets
separately, you'll need to register each one to your original base unit.
Maximum 4 handsets can be registered to one base.
To register a handset
1. Press and hold the Handset locator button on the base unit for a
while, until you hear "beep" sound twice continuously.
2. Press the MENU
location REGISTER.
button, then press UP/DOWN button to the
3. Press the PHONEBOOK
to the location SUB BASE.
4. Press the PHONEBOOK
The display shows BASE? 1 2 3 4
5. Key in a base unit number
The display shows SEARCH + selected number. After a while, when
the handset finds the base unit, the display shows PIN.
6. Key in your pin (default 0000) and press PHONEBOOK
If the display says NOT REG, check to see if you key in the correct PIN,
then repeat the registration procedure again from step 1.
button, then press UP/DOWN button
button again
21
to confirm
UUsseerr MMaannuuaall
Intercom and transfer
To make an intercom call
To make a call to another handset
1. Press the INTERCOM
You hear Dial tone.
2. Key in the number of the other handset.
On the other handset's display, your number appears, and the INT symbol
flashes. Then the other handset user presses the CALL
connect the call.
For details of how to change the ringing melody and volume for intercom
calls, see "INT MELODY" and "INT VOLUME" on "HANDSET SETTING" part.
button.
button to
To end an intercom call
Press the CALL button on your handset
The other person will hear Busy tone, and should also press the CALL
button to hand up.
To transfer a call
When you have made or answered an outside call, to transfer it to another
handset:
Press the INTERCOM
handset.
The outside call is put on hold. When the other handset answers, you can
speak to the user. If the other handset does not answer, you can get back
to the outside call by pressing the INT button again.
To transfer the outside call to the other handset:
Press the CALL
button and key in the number of the other
button to hang up and transfer the call
22
UUsseerr MMaannuuaall
Troubleshooting
If you experience difficulties with the working of your SD8101, refer to the
advice given below.
1. "The handset does not ring"
Check the base unit's mains power adaptor is plugged in and power is
switched on. The base unit needs mains power for normal operation of the
phone, not just for charging the batteries.
Make sure you are using the telephone line cable that was supplied with
your
SD8101. Other telephone line cables might not work..
2. "There is no dial tone"
Check that the handset is registered to the base station.
Check that the line cord is securely connected at both ends and is
undamaged.
Check the power to the base station is on and connected.
3. "The base does not ring."
Check that the base power is ON, and the base ringer is set ON.
Check that the line cord is correctly fitted and undamaged.
4. "The CHARGE light on the base unit does not come on."
Check the handset is properly stationed.
Check the connections between the base unit and mains power socket.
Clean the battery charging contacts with a dry cloth.
5. "When I press the CALL button, I hear a loud noise."
The strange noise is caused by interference. Disconnect the mains power
lead from the back of the base unit, and then wait for 30 seconds before
reconnecting it.
6. "There is 'beep' sound while I am on a call."
You may be going out of range of the base unit. Move closer, or your call
may be cut off.
Check the Battery Level symbol on the display. If it is low, recharge the
batteries.
7. "I cannot make or answer calls."
Move the handset closer to the base unit.
23
UUsseerr MMaannuuaall
Try a different location for the base unit, perhaps higher, or further from
other electrical equipment.
Check the Battery Level symbol on the display. If it is low, replace the
handset on the base unit to recharge the batteries.
Switch off power at the mains socket, wait for a few seconds and then
switch back on.
8. "The handset’s battery are running low within an hour or two."
Before you used the handset for the first time, you should have left it on the
base unit for up to 15 hours to charge the battery fully.
You may need to replace the battery.
9. "Last Number Redial and/or memory dialing don't work on a PBX."
When you first make a call, try press the # button for a pause between the
outside line access digit and the telephone number.
You should later be able to redial the number.
10 "I cannot transfer a call."
Make sure the other handset is within range of the base unit, and is not busy
on a call.
Make sure you are keying in the correct number for the other handset.
24
UUsseerr MMaannuuaall
K
Technical Details
Full DECT GAP Compatible system
Standard
Frequency range
Channel bandwidth
Modulation
Operating range
Operating time
Temperature range
Electrical power
PABX compatibility
1.88 to 1.9 GHz
1.728 MHz
GMS
Up to 300 m outdoors;
Up to 50 m indoors
Standby time: 100 hours
Talking time: 8 hours
Operating 00C to 400C
Storage -200C to 600C
Handset---one 2.4 V 550 mAH NiMH,
rechargeable battery pack
Base unit---input 230 V AC, 50 Hz;
output AC 9 V, 300 mA.
Pause length: 3 seconds.
Signaling type: DTMF (dual-tone multifrequency)
Pulse dialing
25
UUsseerr MMaannuuaall
Declaration of Conformity
The SD8101 complies with the essential protective requirements and
objectives of:
• EC R& TTE Directive 1999/5/EC
• EC Low Voltage Directive 73/23/EEC
• EC EMC Directive 89/336/EEC
And conforms to the following relevant harmonized standards:
• Radio: TBR 6
• EMC: EN 301489
• Safety: EN 60950, EN 41003
• Other: TBR 22
26
Loading...
