• User Manual •
SB3125
Basic Phone
SB3125 User Guide
!
Please ensure the phone is placed in a dry and ventilated place without corrosive air.
FEATURES：
Pulse/Tone selectable
•
• Ringer Hi/Lo selectable
• In Use LED indicator
• Pause, Flash, Mute and Redial function
TAB LE OF CO NT EN T
PRODUCT OVERVIEW: .................................................................................... 2
1. SWITCH OPERATION:.................................................................................. 2
RINGER switch ......................................................................................... 2
PULSE/TONE switch ...................................................................................2
2. FUNCTION KEY OPERATION: ......................................................................... 3
FLASH key (600ms) ................................................................................ 3
MUTE key ............................................................................................... 3
REDIAL key ............................................................................................. 3
PAUSE key .............................................................................................. 3
P-T key.................................................................................................. 3
3. ADDITIONAL NOTES: .................................................................................. 3
IN USE LED ............................................................................................. 3
TROUBLESHOOTING GUIDE:............................................................................. 3
DECLARATION OF CONFORMITY:........................................................................ 3
1
SB3125 User Guide

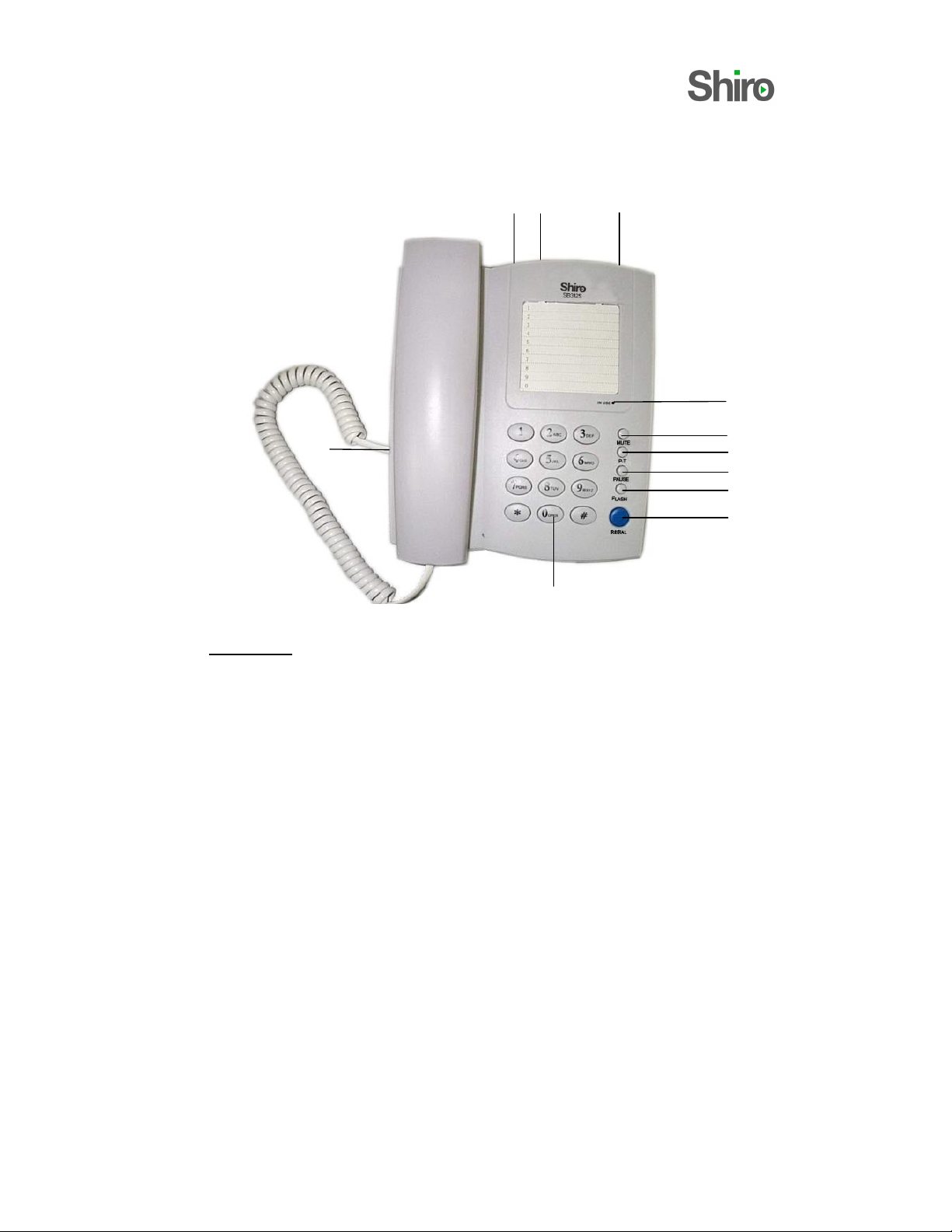

PRODUCT OVERVIEW:
8
Description:
1. IN USE LED
2. MUTE key
3. P-T key
4. PAUSE key
5. FLASH key
6. REDIAL key
7. 0-9/#/* key
8. Handset Cord jack
9. RINGER HI/LO switch
10. PULSE/TONE switch
11. TEL LINE jack
9 10
7
11
1
2
3
4
5
6
1. SWITCH OPERATION:
RINGER switch
You can set the ringer HI/LO volume using the switch.
PULSE/TONE switch
You can set the PULSE/TONE dial mode using the switch.
2
SB3125 User Guide
2. FUNCTION KEY OPERATION:
FLASH key (600ms)
In the on-hook mode, press this key to auto-hang up for 600ms, after that you can press
REDIAL key or dial out another number.
MUTE key
While you are on the line, if you do not want the remote party to hear you, just press and
hold the MUTE key.
REDIAL key
In the handset off-hook mode, press this key to redial the last dialed number.
PAUSE k ey
In the handset off-hook mode, press the PABX external line key, e.g. “9” follow by this key to
include a 3 seconds pause before dialing subsequent numbers.
P-T key
After switching to Pulse mode, you may press this key to change the dial mode to Tone.
3. ADDITIONAL NOTES:
IN USE LED
While handset is off hook, the LED will turn on.
TROUBLESHOOTING GUIDE:
(Q) I do not hear any dial tone from the handset.
(A) Ensure the handset cord is connected correctly to the handset cord jack at the base.
Ensure you have plug in the telephone cable from the telephone to the wall socket correctly.
If the problem persists, please check with your local dealer.
DECLARATION OF CONFORMITY:
The telephone complies with the essential protective requirements and objectives of:
• EC R& TTE Directive 1999/5/EC
• EC Low Voltage Directive 73/23/EEC
• EC EMC Directive 89/336/EEC
•
And conforms to the following relevant harmonized standards:
• EMC: EN55022, EN55024
• Safety: EN 60950
Created on 28
Please visit us at www.shirocorp.com
th
October 2005. SB3125 Basic Phone.
.
3
