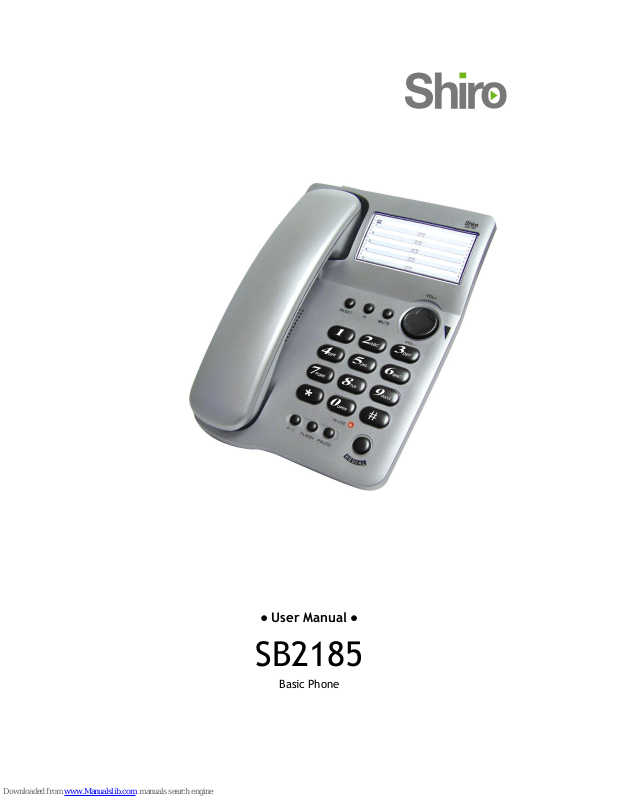

User Manual •
•
SB2185
Basic Phone
SB2185 User Guide
!
Please ensure the phone is placed in a dry and ventilated place without corrosive air.
FEATURES：
Pulse/Tone selectable
•
• Ringer Hi/Lo selectable
• In Use LED indicator
• Pause, Flash, Mute and Redial function
TABLE O F C O NTEN T
PRODUCT OVERVIEW .....................................................................................2
1. SWITCH OPERATION................................................................................... 3
RINGER switch .........................................................................................3
PULSE/TONE switch ...................................................................................3
VOLUME ADJUSTMENT switch........................................................................3
2. FUNCTION KEY OPERATION .......................................................................... 3
FLASH key (600ms).................................................................................... 3
MUTE key ...............................................................................................3
R and REDIAL key......................................................................................3
PAUSE key .............................................................................................. 3
P-T key.................................................................................................. 3
3. ADDITIONAL NOTES ...................................................................................3
IN USE LED INDICATOR ................................................................................3
TROUBLESHOOTING GUIDE.............................................................................. 3
DECLARATION OF CONFORMITY ........................................................................4
1
SB2185 User Guide
11
PRODUCT OVERVIEW
12
13
14
1
2
3
4
5
8 9 10
Description:
1. RESET key 11. Handset Cord jack
2. R key 12. RINGER HI/LO switch
3. MUTE key 13. TONE/PULSE switch
4. VOLUME ADJUSTMENT switch 14. TEL LINE jack
5. 0-9/*/# key
6. In Use LED indicator
7. REDIAL key
8. PAUSE key
9. FLASH key
10. P-T KEY
6
7
2
SB2185 User Guide
1. SWITCH OPERATION
RINGER switch
You can set the ringer HI/LO volume using the switch.
PULSE/TONE switch
You can set the PULSE/TONE dial mode using the switch.
VOLUME ADJUSTMENT switch
You can set the volume either to VOL+(HI) or VOL- (LO) by pressing and holding the switch.
2. FUNCTION KEY OPERATION
FLASH key (600ms)
In the on-hook mode, press this key to auto-hang up for 600ms, after that you can press
REDIAL or R key or dial out another number.
MUTE key
While you are on the line, if you do not want the remote party to hear you, just press and
hold the MUTE key.
R and REDIAL key
In the handset off-hook mode, press this key to redial the last dialed number.
PAUS E key
In the handset off-hook mode, press the PABX external line key, e.g. “9” follow by this key to
include a 3 seconds pause before dialing subsequent numbers.
P-T key
You can set the pulse dial mode to tone dial mode by pressing this key.
3. ADDITIONAL NOTES
IN USE LED INDICATOR
When the handset is off hook mode, the LED will turn on.
TROUBLESHOOTING GUIDE
(Q) I do not hear any dial tone from the handset.
(A) Ensure the handset cord is connected correctly to the handset cord jack at the base.
Ensure you have plug in the telephone cable from the telephone to the wall socket correctly.
If the problem persists, please check with your local dealer.
3
SB2185 User Guide
DECLARATION OF CONFORMITY
The telephone complies with the essential protective requirements and objectives of:
• EC R& TTE Directive 1999/5/EC
• EC Low Voltage Directive 73/23/EEC
• EC EMC Directive 89/336/EEC
And conforms to the following relevant harmonized standards:
• EMC: EN55022, EN55024
• Safety: EN 60950
Created on 9
th
November 2005. SB2185 Basic Phone.
Please visit us at www.shirocorp.com
