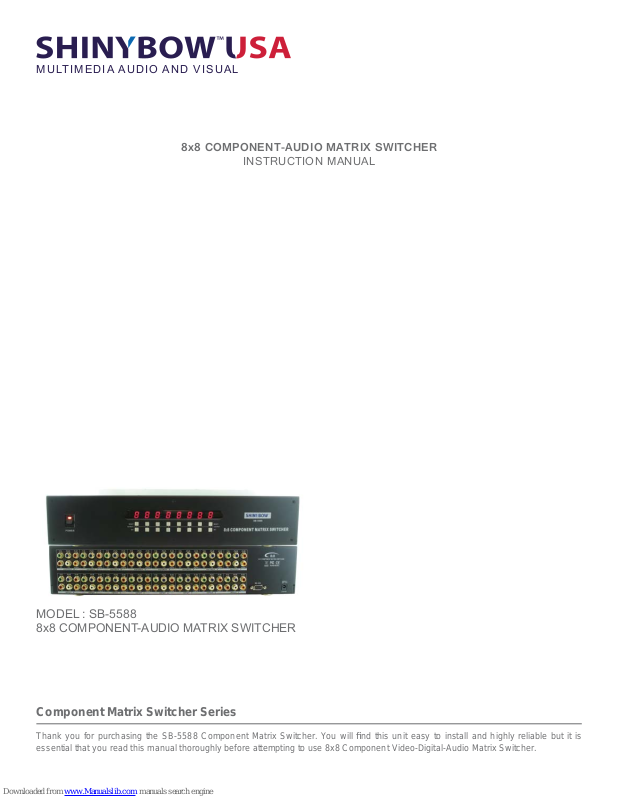

MULTIMEDIA AUDIO AND VISUAL
8x8 COMPONENT-AUDIO MATRIX SWITCHER
INSTRUCTION MANUAL
MODEL : SB-5588
8x8 COMPONENT-AUDIO MATRIX SWITCHER
Component Matrix Switcher Series
Thank you for purchasing the SB-5588 Component Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is
essential that you read this manual thoroughly before attempting to use 8x8 Component Video-Digital-Audio Matrix Switcher.
SAFETY INFORMATION
1. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
2. Read all documentation before operating your equipment. Retain all documentation for future reference.
3. Follow all instructions printed on unit chassis for proper operation.
4. Do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
5. Make sure power outlets conform to the power requirements listed on the back of the unit.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
8. Mains voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
9. Power down & disconnect unit from mains voltage before making connections.
10. Never hold a power switch in the “ON” position.
11. Do not use the unit near stoves, heat registers, radiators, or other heat Producing devices.
12. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
fl ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign matter.
13. Do not remove the cover. Removing the cover will expose you to potentially dangerous voltages. There are no user serviceable parts
inside.
14. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
15. Non-use periods. The power cord of equipment should be unplugged from the outlet when left unused for a long period of time.
16. Service Information Equipment should be serviced by qualifi er service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain
D. The equipment does not appear to operate normally, or exhibits a marked change in performance
E. The equipment has been dropped, or the enclosure damaged.
IMPORTANT SAFETY INSTRUCTIONS
To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference.
To reduce the risk of electric shock, do not remove the cover from the unit. No user serviceable parts inside. Refer servicing to qualifi ed personnel.
To reduce the risk of fi re, do not expose the unit to rain, water or excessive moisture.
Do not force switched or external connections.
When moving the unit disconnect the serial port connections fi rst then the power cable and fi nally the interconnecting cables to other devices.
Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Use a clean dry cloth.
Installation of this unit should be in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL
TABLE OF CONTENTS & INTRODUCTION
INTRODUCTION ..................................................3
FEATURES & SPECIFICATIONS ...........................4
FRONT PANEL .....................................................5
REAR PANEL ........................................................6
REMOTE CONTROL ............................................7
RS-232 SERIAL INTERFACE ...............................8
RS-232 PROTOCOL COMMANDS ........................9
TYPICAL APPLICATION ....................................10
LIMITED WARRANTY ........................................11
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK),
NO USER SERVICEABLE PARTS INSIDE,
REFER SERVICING TO QUALIFIED SERVICE PERSONAL.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
This symbol is intended to alert the user to the presence of uninsulated of
uninsulated “dangerous voltage” within the products enclosure that enclosure
that may be of suffi cient magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the presence of important operational
and maintenance (serving) instructions in the literature accompanying the
appliance.
To prevent electric shock do not use this (polarized) plug with an extension cord,
receptacle or other outlet unless the blades can be fully inserted to prevent blade
exposure. To prevent electric shock, match wide blade of plug to wide slot, fully insert.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING!
INTRODUCTION
Congratulations on your purchase of one of the most innovative Component/Digital/Audio matrix switching products on the market Today.
The SB-5588 is a true Matrix Routing Switcher for Component Video, Digital and Stereo Audio signals. It is a 8 individual Component inputs
with 8 individual Component outputs. Because it is a matrix router, any input may be routed to any output; or the same input may be routed
to all outputs or any combination. It completely eliminates the need to constantly move around audio and video input and output cables.
The SB-5588 is useful for Matrix signals from AV source devices (such as: VCRs, Camcorders, Video Game Consoles, Video CDs, DVDs,
Satellite Receivers, CAT5 Set Top Boxes, etc.) to AV destination devices (such as: LCD TV, HDTV, Plasma displays, Projectors, etc.).
Selection of inputs is made via the Front Panel push buttons or an Infrared Remote Control unit or RS-232 control by computer.
PACKAGE CONTENTS
1. Main console unit
2. Operating Instructions
3. IR Remote Controller (SW-5588A)
4. 19 inch 2D(2U) high Ear mount pair
5. RS-232 DRV package
6. Power Supply 12VDC, Universal Type 50/60Hz, 100~230 VAC
To prevent damage to your television equipment use only the supplied
AC Adaptor and make the power connections to your television
Safety Notice!
3
FEATURES & SPECIFICATIONS
FEATURES
1. Supports 8x inputs to 8x outputs Component Video(YPBPR) Matrix Switcher
2. Input/Output signals via Component Video(YPBPR), Digital(PCM), Stereo Audio(AR/AL)
3. Higher Video Bandwidth 325MB each path signals.
4. Supported HDTV high defi nition resolutions 408p, 576i/p, 720p, 1080i/1080p
5. Digital Audio (PCM) and Composite Video compliant
6. Compatible with all Component Video devices, Plasma TV display and HDTV
7. Supported RS-232 serial interface protocol commands list
8. Control PC RS-232 Drive compatible with win-95/98/2000/xp
9. Various User Interface controls:
Attached Window based control software for Desktop or NB control by RS-232 port
Manual controlled by Front Panel button
IR remote control
10. Support desktop with Ear mount and 19 inch Rack mountable type panel
11. Power supply DC12Volt, Universal Type Switch 100~230VAC, 50/60Hz
SPECIFICATIONS
Type of Switcher: 8 in To 8 out, Component Video-Digital-Audio Matrix Switcher
I/O Signals: Component Video (YPBPR) 0.5~1.0Vpp, DDC 5Vpp,
Digital Audio (PCM), Via 1x RCA connector
Stereo Audio (AR/AL), Via 2x RCA connector(Red/white)
Video Bandwidth: 325MHz (-3db), 200mVp-p
Video Supported: Higher resolution formats 480i/p, 720p & 1080i/p
Audio Supported: Digital Audio(PCM) and Stereo Audio(AR/AL)
Low all Hostile Crosstalk: -83 db@5MHz
Controls: IR remote, Select buttons on the front panel & RS-232
PC RS-232 Control: RS-232 interface serial via DRV on a PC
Gain Control: 60MHz 0.1 db gain fl atness
Chassis Material: Metial (T=1mm)
Safety Approvals: CE, FCC, RoHS(2002/95/EC)
Dimensions (LWH): 19 x 7.87 x 3.46 in
Power Supply: DC12V / 2A (consumption 1.6A Max)
Use Universal Switch Type 50/60Hz,100~230 VAC
Net Weight: 5.42 lbs
As product improvements are continuous, specifi cations are subject to change without notice.
4
FRONT PANEL
FRONT PANEL
1 POWER SWITCH
The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power.
2 OUTPUT SOURCES STATUS LED DISPLAY
Output channel 1 to 8 show from LED display illuminates red to indicate that a video source is present on that input.
3 INPUT SOURCES SELECT BUTTONS
A separate output-1 To 8 source select buttons are provided for each destination. Select sources are 1-8 Component Video-Audio.
4 SOURCES SETUP BUTTONS
Setup the input sources 1 ~ 8 channel
5 IR SENSOR
The IR sensor receives IR commands from the supplied remote controller.
6 19 INCH EAR MOUNT PAIR
19 inch 2U(2D) high case Ear Mount pair Part number : 2U-440L
EXP. : HOW TO SWITCH CH-08 WHEN WORKING ON CH-01
Please press < Select > push button till CH-08, then press < SET > push button to confi rm.
PS : If without press < SET > push button to confi rm within 1 second, LED display will fl ash fi ve times for time interval and return back to CH-01.
OPERATING THE UNIT
Once you have connected the SB-5588 as described above, you must be certain that the input are being fed appropriate signals and are
not suffering from signal loss due to cabling problems or problems with the source device.
If the input signals to the SB-5588 are appropriate, switch the power switch to <ON> and you should see and hear the signals on the
devices you have connected to the various output connectors of the SB-5588.
POWER AND CONNECTIONS
This unit is not disconnected from the AC power source as long as it is connected to the wall outlet. The off state for this unit is called
standby mode. In standby mode the unit is designed to consume a reduced quantity of power compared to normal operating modes.
When not using the unit for a long period of time. Insure that the AC power cord is disconnected from the wall outlet.
The AC wall outlet should be installed near to the unit and be easily accessible.
Do not plug in or attempt to operate an obviously damaged unit.
5
REAR PANEL
REAR PANEL
1 DC POWER INLET
The SB-5588 is fi tted with a DC power plug-park input
connector. Please ensure that the plug-park used is of an
approved type and is of suffi cient current carrying capacity
with the correct voltage and connector polarity. 12Volt DC
power supply 2A Max.
2 RS-232 CONNECTION
RS-232 control port to allow for interfacing to a PC, Such as
a computer or touch panel control, to the SB-5588 switcher
via this DB-9pin Female connector for serial RS-232 control.
3 INPUTS-1~8 COMPONENT-DIGITAL-AUDIO
Connect a signal source of Component Video (YPBPR)/
digital Audio (PCM) /Stereo Audio devise to 8:8 switcher.
Input 1~8 port source signals :
- Component Video (YPBPR), 3x RCA Connectors
- Digital Audio (PCM), 1x RCA Connector
- Stereo Audio (AR/AL), 2x RCA Connectors
4 OUTPUTS-1~8 COMPONENT-DIGITAL-AUDIO
Connect a signal source of Component Video(YPBPR)/
digital Audio (PCM)/Stereo Audio devise to 8:8 switcher.
Output 1~8 display port signals :
- Component Video (YPBPR), 3x RCA Connectors
- Digital Audio (PCM), 1x RCA Connector
- Stereo Audio (AR/AL), 2x RCA Connectors
Power Jack:
DC Jack - Inner OD
Outside OD
Power input - 12VDC, 3A
Remote port :
DB-9pin Female connector
Component Video (YPBPR) Via 3x RCAs
Digital Audio (PCM) Via 1x RCA connector
Stereo Audio (AR/AL) Via 2x RCA connectors
Note : With 6x RCA female connectors
Component Video (YPBPR) Via 3x RCAs
Digital Audio (PCM) Via 1x RCA connector
Stereo Audio (AR/AL) Via 2x RCA connectors
Note : With 6x RCA female connectors
ᴓ 2.1mm (+ )
ᴓ 5.5mm (GND)
CONNECTING THE HARDWARE
Please study the panel drawings below and become familiar with the signal input-output, Power requirements plus any controls
present.
Before using the SB-5588, please take the time to make certain that the device you wish to connect to its inputs is functioning properly
in all respects. Verify that the video and audio signals are present and are being displayed properly on a suitable device.
If all is well connect the appropriate cables between the output of the device you wish to distribute to output(s) of the SB-5588 to the
carious devices you wish to feed a signal to. Lastly, connect the AC to DC adaptor, connect the DC connector to the SB-5588 fi rst
and then plug the adaptor into a functional AC outlet.
6
REMOTE CONTROL
Before making any connections to the SB-5588. Observe the following:
> Ensure the mains voltage supply matches the label on the
supplied plug- Pack (+/- 10%)
> Ensure that the power switch is OFF
> Ensure that all system grounds (earth) are connected to a
common point.
> Avoid powering equipment within a system from multiple
power sources that may be separated by large distances
> Connect all audio video sources and destination equipment
> Power up all source and destination audio-visual sources
> For each destination output select the appropriate input source
by using the front panel input 1~8 select buttons. The
supplied IR remote control. Or through the RS-232 serial
communications port.
> Upon power up the switcher will return to its last used setting
before Powered down.
REMOTE CONTROL
IR REMOTE CONTROL KEY :
1 2 SWITCH 1 POWER ON or OFF
Controller with a separate power ON and OFF
3 OUTPUT 1~8 DISPLAYS SELECTION
Output -1 : TV-1 Component Video (YPBPR) HDTV Display
Output -2 : TV-2 Component Video (YPBPR) HDTV Display
Output -3 : TV-3 Component Video (YPBPR) HDTV Display
Output -4 : TV-4 Component Video (YPBPR) HDTV Display
Output -5 : TV-5 Component Video (YPBPR) HDTV Display
Output -6 : TV-6 Component Video (YPBPR) HDTV Display
Output -7 : TV-7 Component Video (YPBPR) HDTV Display
Output -8 : TV-8 Component Video (YPBPR) HDTV Display
4 INPUT 1~8 SOURCES SETUP
Input -1 : AV-1 Component Video (YPBPR) Signal source device
Input -2 : AV-2 Component Video (YPBPR) Signal source device
Input -3 : AV-3 Component Video (YPBPR) Signal source device
Input -4 : AV-4 Component Video (YPBPR) Signal source device
Input -5 : AV-5 Component Video (YPBPR) Signal source device
Input -6 : AV-6 Component Video (YPBPR) Signal source device
Input -7 : AV-7 Component Video (YPBPR) Signal source device
Input -8 : AV-8 Component Video (YPBPR) Signal source device
7
RS-232 SERIAL INTERFACE
RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM
RS-232 SERIAL INTERFACE
Pin RS-232 Defi nition
1 -------- Not used
2 TX Transmitter
3 RX Receiver
4 -------- Not used
5 GND Ground
6 -------- Not used
7 -------- Not used
8 -------- Not used
9 -------- Not used
RS-232
The switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC or similar third party control system.
The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. When the
unit recognizes a complete command it will perform the requested action - there is no delimiter character required.
The unit does not send out a message when a value is changed from the front panel or by IR control. If the unit needs to be controlled
via the front panel in addition to the RS-232 control, you should regularly poll the unit status to ensure the control system
accurately refl ects the current settings.
PROTOCOL COMMANDS
To Switch Inputs to Outputs
Unit will respond with
SBUD0XOY - Where X is Input Number (1-8) and Y is Output Number (1-8)
Example : Send Input 8 to Output 7
SBI08O07 - Send
SBI0XO0Y - Where X is Output Number (1-8) and Y is Number (1-8)
SBUD08O7 - Rcvd
8
MORE STUFF FOR SB-5588
RS-232 SERIAL COMMANDS
on. The Video and Audio outputs will also mute. While the unit is turned off by RS-232 it will continue to accept and
act upon switching commands. For example, if the unit is in the off mode (via RS-232) and you send a command
to switch an input to an output, that route will complete and the video and audio will now appear on that channel only.
The front panel LED for that particular output will also show the input selected (for that single output channel only). The
remaining LED’s will remain off and video and audio outputs muted. The unit will still return status and change messages
in response to commands sent while in Power Off state. A hard reset command (SBALLRST) will return the unit to
normal operation and also unlock the front panel
Power Off mode.
Unit will respond with
Example: Put Unit in Standby (Soft Power)
FRONT PANEL LOCK
Note: Turning the unit System Power Off over RS-232 will distinguish the LED display leaving only the Power Switch LED
SBSYSMOF - Put system into Standby (Soft Power Off)
SBSYSMON - Bring unit out of Standby (Soft Power On)
SBALOFAK - Unit is in Standby
SBALONAK - Unit is no longer in Standby
SBSYSMOF -Send
SBALOFAK -Rcvd
Unit will respond with
Example: Lock Front Panel Buttons
UNIT RESET
SBALLRST - Reset every output to Input 1
Unit will respond with
Example: Reset all outputs to Input 1
Note: Hard resetting the unit will unlock the Front Panel controls.
SBSYSMLK - When front panel is locked, changes can only be made by RS-232
SBSYSMUK - Front Panel Unlock
SBSYSLOK - Front Panel has been Locked
SBSYSULK - Front Panel has been Unlocked
SBSYSMLK -Send
SBSYSLOK -Rcvd
SBRSTACK - Unit has reset each Output to Input 1
SBALLRST -Send
SBRSTACK -Rcvd
9
TYPICAL APPLICATION
SHINYBOW SB-5588 V2
8x Component sources to 8x Component Output Matrix Switcher
INSTALLING
CONTROL PORTS :
1. IR REMOTE - IR Remote Controller
2. RS-232 Interface - RS-232 interface system
INPUTS 1 ~ 8 PORT HD SOURCE SIGNALS :
COMPONENT VIDEO - Component Video (YPBPR), connector with RCA
DIGITAL - Digital Audio (PCB), connector with RCA
AUDIO - Stereo Audio (AR/AL), connector with RCA
OUTPUT 1 ~ 8 PORT HDTV DISPLAY SIGNALS :
COMPONENT VIDEO - Component Video (YPBPR), connector with RCA
DIGITAL - Digital Audio (PCB), connector with RCA
AUDIO - Stereo Audio (AR/AL), connector with RCA
SB-5588 SUPPORT COMPONENT EIGHT INPUTS MATRIX TO EIGHT SWITCH OUTPUTS
SUPPORT CONTROL IR & RS-232 INTERFACE SYSTEM PORTS.
10
LIMITED WARRANTY
SHINYBOW WARRANTY
SHINYBOW Technology warrants this product against defects in materials and workman ship for a period of 3 years from the date of purchase. Please be sure to send
in your warranty registration card promptly, as the warranty will not be active without registration.
Should this product, in SHINYBOW Technology’s opinion, after inspection, prove defective within this warranty period, SHINYBOW Technology, at its option, will repair
or replace this product without charge, to whatever extent it shall deem necessary to restore said product to proper operation condition. This does not extend the
warranty period.
This warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, and abnormal operating conditions or
non-SHINYBOW Technology authorized modifi cation to the product.
If repairs are necessary under the warranty policy, the original purchaser must return the product to local distributor, freigh t prepaid. After repairs are complete, the
product will be returned.
REGULATORY COMPLIANCE
The product complies with the relevant standards for CE, FCC and RoHS approval.
The power Adaptor/Supply has been tested for compliance with UL.CSA and CE standards.
TROUBLESHOOTING
If you experience a <no signal> with this switcher or distributor outputs, fi rst make certain that there is a signal being fed to its inputs from the connected device is
acceptable.
Disconnect the cables from the switcher or distributor inputs and connect them directly to an appropriate monitoring device. If you do not see or hear a signal the
problem may well be he signal source itself. Also check that the AC outlet you have used to power the switcher or distributor is actually providing power as a wall switch
often controls an AC outlet.
Verify that there is power to the device. If the unit is receiving power, the power on indicator light in the power switch should be glowing.
The second most common problem with the switcher or distributor revolves around the cables, Inspect the cables for loose connectors or cable damage such as
crushed cable or cables with cuts or nicks. Replace any cable exhibiting these problems.
We recommend using the highest quality cables so that you can achieve the best results. Poor quality cables provide will poor quality signals.
DISCLAIMER OF WARRANTIES AND LIABILITY
Neither Shinybow nor its suppliers or licensors makes any warranty whatsoever, including without limitation, that any defects will be corrected; including the accuracy,
completeness, reliability, availability , suitability, quality, non-infringement, operation or result obtained from the use of any content, product or service provided accessible
from or distributed through Shinybow.
ALL CONTENT, PRODUCTS AND SERVICES INCLUDED IN OR ACCESSIBLE ARE PROVIDED “AS IS” AND WITHOUT WARRANTIES OR REPRESENTATIONS
OF ANY KIND (EXPRESS, IMPLIED AND STATUTORY, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF TITLE AND NON-INFRINGEMENT AND THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE), ALL OF WHICH SHINYBOW DISCLAIMS TO THE FULLEST
EXTENT PERMITTED BY LAW. YOUR USE OF THE CONTENT, PRODUCTS AND SERVICES IS AT YOUR SOLE RISK.
To the extent permitted under applicable law, no responsibility is assumed for any injury and/or damage to persons, animals or property as a matter of products liability,
negligence or otherwise, or from any use or operation of any ideas, instructions, methods, products or procedures contained.
TO THE EXTENT PERMITTED UNDER APPLICABLE LAW , IN NO EVENT SHALL SHINYBOW OR ITS SUPPLIERS OR LICENSORS BE LIABLE FOR ANY DAMAGES
(INCLUDING, WITHOUT LIMIT A TION, CONSEQUENTIAL, SPECIAL, INCIDENT AL, INDIRECT , OR SIMILAR DAMAGES, PERSONAL INJURY (INCLUDING DEATH),
LOSS OF PROFITS, CORRUPTION OR LOSS OF DATA, BUSINESS INTERRUPTION OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES) ARISING OUT
OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF CONTENT, PRODUCTS OR SERVICES, OR SHALL THE LIABILITY OF SHINYBOW OR
ITS SUPPLIERS AND LICENSORS EXCEED A SUM EQUAL TO THE FEES PAID BY YOU HEREUNDER, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Shinybow does not claim ownership, endorse or take responsibility for any third-party products, information, guidelines, materials or services that may be offered,
advertised, provided or incorporated in the content, products or services.
INDEMNIFICATION
You hereby agree to indemnify and hold Shinybow, its directors, offi cers, shareholders, predecessors, successors in interest, employees, agents, suppliers and
licensors harmless from and against any and all third-party claims of liability, losses, damages and costs, including, without limitation, reasonable attorneys’ fees, arising
out of or in connection with your use of or inability to use the content, products or services.
11
MULTIMEDIA AUDIO AND VISUAL
1399 Wildfi re Lane | Frisco, TX 75034
1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com
www.shinybowusa.com
Loading...
