Shinybow USA SB-3691 Instruction Manual

In st ru ction Manual

Part No.: ENCL003691000A0

Thank you for purchasing the SB-3691 2x1 HDMI™ PiP/PoP Selector switch Scaler. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use Selector switcher.

MultiVideo Digital Converter Series

2x1 HDMI™ PiP/PoP SELECTOR SWITCH SCALER

MODEL : SB-3691

M U LTIMEDIA A U D I O A N D V I S U A L

Version No.: 3691-20150519-003

SAFETY INFORMATION

THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL

1.

Save the carton and packing material even if the equipment has

arrived in good condition. Should you ever need to ship the unit, use only the original

factory packing.

2.

Read all documentation before operating your equipment. Retain

all documentation for future reference.

3. Follow all instructions printed on unit chassis for proper operation.

4. Do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.

5. Make sure power outlets conform to the power requirements listed on the back of the unit.

6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not likely to be walked on

or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit

7. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the means of grounding of

a piece of equipment is not defeated.

8. Mains voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC voltage is not covered by

any warranty.

9.

Power down & disconnect unit from mains voltage before making connections.

10.

Never hold a power switch in the ＂ON＂ position.

11. Do not use the unit near stoves, heat registers, radiators, or other heat Producing devices.

12. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal flow of air around the unit,

13.

such as a bed, rug, carpet,

or completely enclosed rack. If the unit is used in an extremely dusty or smoky environment, the unit should be

Periodically ＂blown free＂ of foreign matter.

14.

Do not remove the cover. Removing the cover will expose you to potentially dangerous voltages. There are no user serviceable parts inside.

15.

Do not drive the inputs with a signal level greater than that required

to drive equipment to full output.

16.

Non-use periods. The power cord of equipment should be unplugged from the outlet when left unused for a long period of time.

Service Information Equipment should be serviced by qualifier service personnel when:

A. The power supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the equipment.

C. The equipment has been exposed to rain

D. The equipment does not appear to operate normally, or exhibits a marked change in performance

E. The equipment has been dropped, or the enclosure damaged.

from the appliance.

IMPORTANT SAFETY INSTRUCTIONS

To insure th e best f rom this pr oduc t, please r ead th is manual c aref ully. Kee p it in a safe pl ace fo r future re fere nce.

To reduce th e risk o f electri c shoc k, do not rem ove th e cover fro m the un it. No user s ervi ceable pa rts in side. Ref er ser vicing to q uali fied pers on ne l.

To reduc e th e ri sk o f fi re, do no t ex po se t he unit t o ra in , wa te r or exce ss iv e mo is ture.

Do not f or ce s wi tc hed or ex te rn al c onnec ti on s.

When m ov in g th e un it disc on ne ct t he seri al p or t co nn ectio ns f ir st t hen the p ow er c ab le a nd fina ll y th e in te rco nn ec ti ng c ables t o ot he r de vices .

Do not a tt em pt t o cl ean the u ni t wi th c he mic al s ol ve nt s or aero so l cl ea ne rs, a s th is m ay d am age the u ni t. U se a c le an dry cl ot h.

Inst al la ti on o f this un it s ho ul d be in a coo l dr y pl ac e, a way fro m so ur ce s of exce ss iv e he at , vibra ti on , du st , moist ur e an d co ld.

PAGE 03SB-3691 INSTRUCTION & OPERATION MANUAL

TABLE OF CONTENTS

This symbol is intended to alert the user to the presence of uninsulated

enclosure tha may be of sufficientmagnitude to constitue a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operational and maintenance (serving) instructions in the literature accompanying the appliance.

T prevent electric shock do not use this (polarised) plug with an o extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. T prevent electric shock, match wide blade of plug to wide slot, o

fully insert.

Caution:

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK),

NO USER

SERVICEABLE PARTS INSIDE,

REFER SERVICING TO QUALIFIED SERVICE PERSONAL.

WARNING!

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK

T

I

DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

.

DO NOT OPEN

of uninsulated “dangerous voltage” within the products enclosure that

RISK OF ELECTRIC SHOCK

TABLE OF CONTENTS

INSTRUCTIONS

FEATURES

FRONT PANEL - 1 Select Buttons

FRONT PANEL - 2 Function Keys

REAR

SPECIFICATIONS

HDMI (PC) INPUT/OUTPUT RESOLUTION

HDMI INPUT/OUTPUT RESOLUTION

TYPICAL APPLICATIONS

IR REMOTE CONTROL

IR DATA CODES

RS-232 SERIES INTERFACE CONTROL

FRONT PANEL - PiP Button

FRONT PANEL - PoP Button

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

_____________________________________________________

INTRODUCTION AND PACKAGE CONTENTS

PAGE 04

SB-3691 INSTRUCTION & OPERATION MANUAL

PACKAGE CONTENTS

INTRODUCTION

The SB-3691 is the professional 2x1 HDMI™ PiP PoP Selector Switch Scaler. Supporting two(2) HDMI™ inputs

and one(1) HDMI™ output with Picture in Picture(PiP) and Picture of Picture(PoP) features that can be easily

configured and controlled. Support video resolution up to 1080p with a signal bandwidth of 165MHz

and data rate up to 4.95Gbps with no signal degradation. The SB-3691 is HDMI™ 1.3 and HDCP 1.2

compliant, with CE and FCC certifications. Zoom management can be selected between 5 modes. Input

resolutions can be scaled up to 1080p or down to 480p. Support menu for controlling brightness, contrast

and saturation. Control is provided via front panel buttons, RS-232 or wireless IR remote control (included).

1.

2.

3.

4.

5.

6.

1 inch Wall mount

SB-3691 Selector Switch Scaler Operating Instructions RS-232 V.36.01 Protocol Instructions Master wireless IR Remote Control (SW-3691) Wall mount bracket (Part # 1INCH-130MM) Power Supply : DC12V, 1.25A, (Worldwide Universal 100~240 VAC, AC 50/60Hz.)

Ear Rack: #WM-1INCH-130MM

PAGE 05

SB-3691 INSTRUCTION & OPERATION MANUAL

FEATURES

2x HDMI™ inputs and 1xHDMI™ output Selector switch Scaler Box.

Support Picture in Picture(PiP) and Picture of Picture(PoP)

Link speeds up to 4.95Gbps(link clock rate of 165MHz), HDMI 1.3 and HDCP 1.2 compliant

Digital Video TMDS formats Resolution up to 1080p with Deep color 36bit

Input supports: 2x HDMI (480i/p to 1080p).

Outputs supports: 1x HDMI 1080P-60Hz.

1x S/PDIF.

1x Stereo audio (AR/AL). Audio output support PCM 2ch

Zoom management can be selected between 5 sizes

(16) Control Buttons : SW1/ SW2/ PiP/ PoP/ A/ B/ MENU/ ENTER/ RESOLUTION/

LOCK/ RESET/ ZOOM/ Up/ Down/ Right/ Left.

Support menu for control color brightness, contrast and saturation.

Scaler supports : - Scaling down to 480p

- Scaling up to 1080p

HDMI Cable Distance 1080p-60Hz up to 98feet(30M)

Provide IR remote control Frequency (38KHz).

Various User Interface control:

‧ Front Panel push button

‧ IR wireless remote control

‧ RS 232 interface control driver for 2000/

XP/WIN7-32/WIN7-64/WIN8

Power supply DC12Volt, Universal Type switch 100~240VAC, 50/60Hz.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

PAGE 06

SB-3691 INSTRUCTION & OPERATION MANUAL

FRONT PANEL - I/O SELECT BUTTONS

FRONT PANEL

2

IR SENSOR

The IR sensor receives IR commands from the supplied remote controller or third party IR emitter.

SW1 BUTTON : SOURCE (1) SELECT BUTTON

1

Source inputs #1 select buttons are provided HDMI source #1 selection.

1

SB-3691

HDMI PiP BOX

IR

ENTER

MENU

LOCK

PiP

PoP

SW-1

SW-2

A

B RESET

ZOOM

RES.

Resolution

3 4 5 6 7 8 9

MENU BUTTON

- Press ENU button to open the On-Screen display interface. Press again to exit Menu. For guidance on the OSD optiona, please refer to the OSD instruction manual.

M

ENTER BUTTON

Press ENTER to confirm entries.

8

9

3

SW2 BUTTON : SOURCE (2) SELECT BUTTON

Source inputs #2 select buttons are provided HDMI source #2 selection.

4

PiP BUTTON

Press PiP button is provided Source #1 (A) & Source #2 (B) Picture in Picture function.

5

PoP BUTTON

Press PoP button provided Source #1 (A) & Source #2 (B) Picture of Picture function.

6

“A” BUTTON

Press “A” button is provided Source #1 (A) instead of Source #2 (B) picture on screen.

7

“B” BUTTON

Press “B” button is provided Source #1 (B) instead of Source #2 (A) picture on screen.

To Enable the PiP option on a specific Output, perform the follow steps:

- Press the PiP button, The Screen will return to PiP mode status.

- Press the PiP button again, To select the PiP four modes.

- Press the ZOOM button repeatedly, PiP picture will reduce screen size from 1 thru 5.

- Press the A or B button,To setup the A,B position source. (the button will illuminate).

The new configuration will be stored.

A/B button (A and B position)

B

PiP Mode-1

A

PiP Mode-2

B

A

PiP Mode-3 PiP Mode-4

Zoom

PiP

B

A

B

A

B

A

B

A

B

A

A A

B

Size-1 Size-2 Size-3 Size-4 Size-5

B

A

Type-1 : Source #1/Source #2

Type-2 : Source #2/Source #1

PiP A,B Source position Table :

PAGE 07

SB-3691 INSTRUCTION & OPERATION MANUAL

FRONT PANEL - I/O SELECT BUTTONS

FRONT PANEL

SB-3691

HDMI PiP BOX

IR

ENTER

MENU

LOCK

PiP

PoP

SW-1

SW-2

A

B RESET

ZOOM

RES.

Resolution

4 5 6 7 8

A

Zoom

PiP

B

PAGE 08

SB-3691 INSTRUCTION & OPERATION MANUAL

FRONT PANEL - I/O SELECT BUTTONS

FRONT PANEL

SB-3691

HDMI PiP BOX

IR

ENTER

MENU

LOCK

PiP

PoP

SW-1

SW-2

A

B RESET

ZOOM

RES.

Resolution

4 5 6 7 8

PoP Mode-1 PoP Mode-2

BA BA

To Enable the PoP option on a specific Output, perform the follow steps:

- Press the PoP button, The Screen will return to PoP mode status.

- Press the PoP button again, To select the PoP Two modes.

- Press the A or B circular button,To setup the A,B position source. (the button will illuminate).

The new configuration will be stored.

A/B button (A and B position)

Type-1 : Source #1/Source #2

Type-2 : Source #2/Source #1

B

A

PoP A,B Source position Table :

A B

PAGE 09

SB-3691 INSTRUCTION & OPERATION MANUAL

FRONT PANEL - FUNCTION KEYS

10

LEFT BUTTON

Press the LEFT button to move left the screen when enable the SCN-ADJ function.

13

RIGHT BUTTON

Press the RIGHT button to move right the screen when enable the SCN-ADJ function.

12

DOWN BUTTON

Press the DOWN button to move down the screen when enable the SCN-ADJ function.

11

UP BUTTON

Press the UP button to move up the screen when enable the SCN-ADJ function.

FRONT PANEL

SB-3691

HDMI PiP BOX

IR

ENTER

MENU

LOCK

PiP

PoP

SW-1

SW-2

A

B RESET

ZOOM

RES.

Resolution

10 11 12 13 14 15 16 17

LOCK BUTTON

- Press and hold LOCK button for three seconds lockout the front panel.

- Press and hold LOCK button for three seconds to enable the front panel.

RESET BUTTON

Press the RESET button to disable the SCN-ADJ screen function.

17

ZOOM BUTTON

Press the ZOOM button to zoom out the screen when enable the SCN-ADJ function.

14

SELECT OUTPUT RESOLUTION BUTTON

Press the RES Resolution’s button to selection embedded the output resolutions.

15

16

PAGE 10

SB-3691 INSTRUCTION & OPERATION MANUAL

REAR PANEL

1

2

RS 232 CONNECTION

Connect a serial cable to the RS 232 port for control of the converter or update the firmware via a computer. * Firmware procedure is included in a separate document

and utilizes the pin marked “P”.

DC POWER INLET / OUTLET

The converter suits a DC power plug-pack input connector. Please ensure the plug-pack used is of an approved type and of correct current, voltage output, and connector polarity. DV 12 Volt, power supply 1.25A.

Powe r Jack: DC Jac k - inner OD O 2.1mm ( + ) Outs id e OD O 5. 5mm (GN D) Powe r input - 1 2VDC, 1 .25A

DC-1 2V I N

This port also for Firmware update

RS-232 control Terminal Block female socket (pitch=3.5mm)

port :

REAR PANEL - I/O DEFINE

2 1

TXRXGNDP

HDMI INPUT-1

Connect a signal of HDMI to the HDMI female connector, which supports HDMI digital video and audio to HDMI display.

HDMI digital video and audio Female connector

3

4567

HDM I-1

DC 12V

AUDIO L/R SPDIF

HDMI-2

HDMI

3691

OUTPUT

INPUT

HDMI-1

TXRXGNDP

RS-232

HDMI INPUT-2

Connect a signal of HDMI to the HDMI female connector, which supports HDMI digital video and audio to HDMI display.

HDMI digital video and audio Female connector

4

HDM I-2

3

HDMI OUTPUT

HDMI f emale c onnet or Note: With proper adapters, the scaler can be used with DVI digital video signals.

7

6

SPDIF OUTPUT

Connect the digital audio output from source digital audio.

AUDIO OUTPUT

Connect the stereo audio output port of your source audio device to the stereo audio (AR/AL) inputs.

Female RCA connector

Stereo Audio (AR/AL) Via 1x OD3.5mm jack connector

l

Connect a signal link of HDMI direct digital video/audio

to this Female HDMI connector, which supports HDMI

digital video/audio and DVI digital video sources.

AUDI O

SPDI F

HDMI

5

PAGE 11

SB-3691 INSTRUCTION & OPERATION MANUAL

SPECIFICATION

2xHDMI inputs and 1xHDMI output Selector Switch Scaler Box

HDMI 1080P-@60Hz, H36-bit Deep color

HDCP 1.2 Compliant, HDMI 1.3 version

Double Data Rates: 165Mhz, Total 4.95Gbps bandwidth.

HD:480i/ 480p/ 720p and up to 1080i/p

2x HDMI (HDMI or DVI digital source).

1x HDMI (To Destination).

1x Select & Function buttons on front panel

1x IR Remote Controller (switch control)

1x RS232

- Scaler down to 480p

- Scaler up to 1080p

Distance 1080p Cable 98 feet (30M).

38 Khz

Firmware update via RS232

HDMI Type A - SMD 19pin Female Type

Operating Temperature 32 °F - 100 °F (0 °C - 32 °C)

1 inch High Wall Mount pairs ( P/N: WM-1INCH-80mm )

LxWxH= 6.69” x 5.71” x 1.14” (170 x 145 x 29mm)

DC12V, Powr Input : AC 100~240 VAC 50/60Hz (universal Type Supply)

CE, FCC, REACH.

0.677 Kgs / 1.5 lb

Type of Switcher :

HDMI Support :

HDCP / HDMI Support :

Video Bandwidth :

Digital Video Support :

Input :

Output :

Switch Controls :

Scaling mode:

HDMI Signal Booster :

Infrared Frequency:

Firmware Update :

HDMI I/O Connector :

Temperature :

Wall Mount :

Dimensions :

Power Supply :

Safety Approvals :

Product Weight :

_____________________________________________________________________________________________________________

SPECIFICATION

“As product improvements are continuous, specifications are subject to change without notice”

PAGE 12

SB-3691 INSTRUCTION & OPERATION MANUAL

___________________________________________________________________________________________________________________

640x480 @60 Hz

640x480 @75 Hz

800x600 @60 Hz

800x600 @75 Hz

848x480 @75 Hz

852x480 @60 Hz

1024x768 @60 Hz

1024x768 @75 Hz

1152x864 @75 Hz

1280x720 @60 Hz

1280x768 @60 Hz

1280x800 @60 Hz

1280x800 @75 Hz

1280x960 @60 Hz

1280x1024 @60 Hz

1280x1024 @75 Hz

1366x768 @60 Hz

1365x1024 @60 Hz

1400x788 @60 Hz

1400x1050 @60 Hz

1400x1050 @75 Hz

V

HDMI INPUT & OUTPUT RESOLUTION TABLE

V

HDMI OUTPUT Resolution

HDMI INPUT

(PC) Input Resolution

576p 720p

1080i

1080p480pSVGAVGA

1920x10801680x10501680x10501680x1050 1680x1050 1680x1050 1680x1050

___________________________________________________________________________________________________________________

HDMI (PC) INPUT RESOLUTION

PAGE 13

SB-3691 INSTRUCTION & OPERATION MANUAL

___________________________________________________________________________________________________________________

HDMI OUTPUT Resolution

HDMI INPUT

(PC) Input Resolution

1440x900 @60Hz

1440x900 @75Hz

1600x1200 @60 Hz

1600x1200 @75 Hz

1680x1050 @60 Hz

1680x1050 @75 Hz

1792x1344 @60 Hz

1792x1344 @75 Hz

1856x1392 @60 Hz

1856x1392 @75 Hz

1152x864 @75 Hz

1920x1080@60 Hz

1920x1200 @75 Hz

832x6248 @75Hz

1152x870 @75 Hz

576p 720p

1080i

1080p

V

HDMI INPUT &OUTPUT RESOLUTION TABLE

HDMI (PC) INPUT RESOLUTION

480pSVGAVGA

V

1920x10801680x10501680x10501680x1050 1680x1050 1680x1050 1680x1050

___________________________________________________________________________________________________________________

HDMI INPUT & OUTPUT RESOLUTION TABLE

PAGE 14

SB-3691 INSTRUCTION & OPERATION MANUAL

___________________________________________________________________________________________________________________

HDMI OUTPUT Resolution

HDMI INPUT

(HDMI) Input Resolution

480i

480p

576i

576p

720p

1080i

1080p

576p 720p

1080i

1080p

V

HDMI INPUT RESOLUTION

480pSVGAVGA

V

1920x10801680x10501680x10501680x1050 1680x1050 1680x1050 1680x1050

___________________________________________________________________________________________________________________

PAGE 15

SB-3691 INSTRUCTION & OPERATION MANUAL

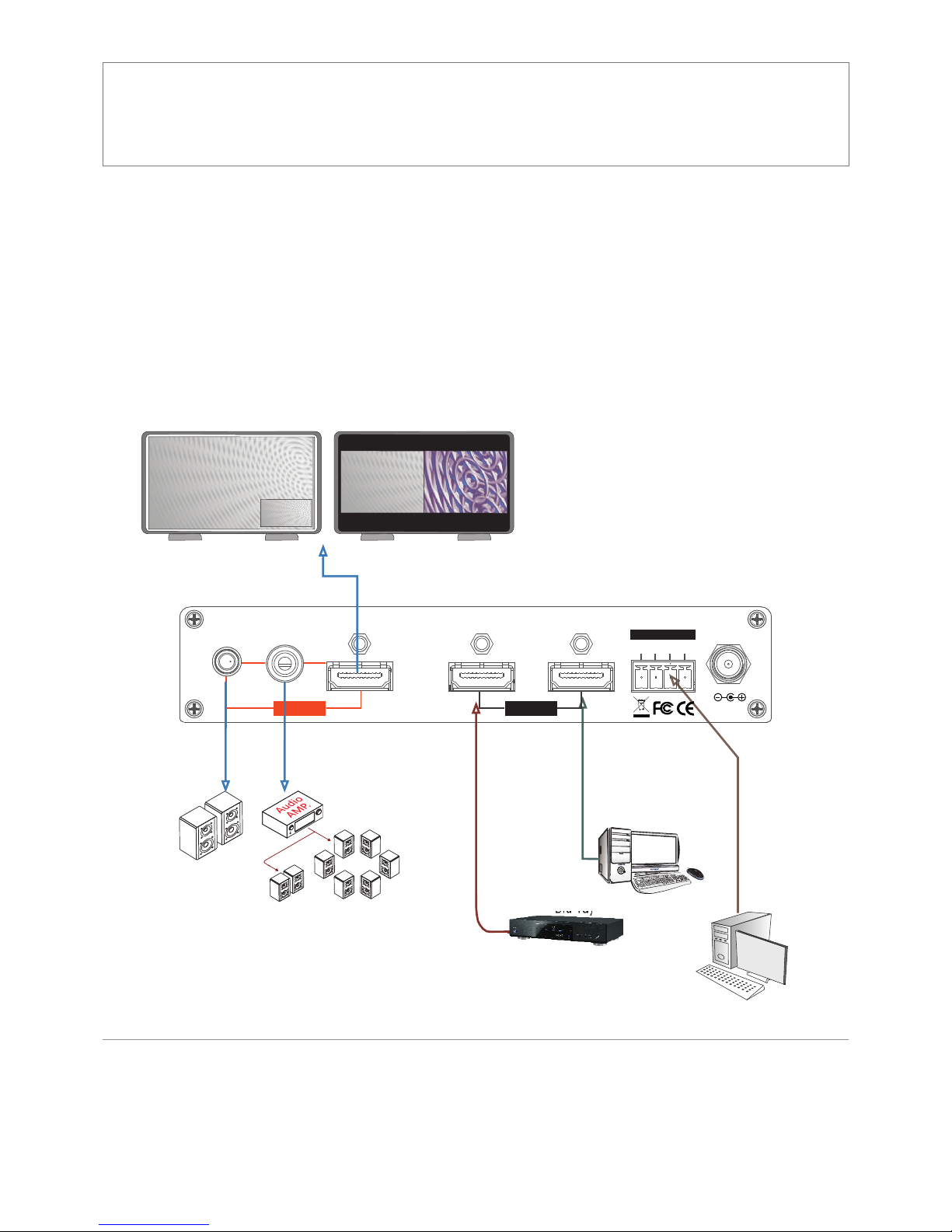

INSTALLING DIAGRAM

TYPICAL APPLICATION

Application RS-232 series control the Selector Switcher.

Blu-ray

HDMI DISPLAY

PiP

PC RS232 To Control Switcher

NOTE :

1. Output TV Support :

- Switch

- PiP function

- PoP functin

2. Control Switch via a PC RS232.

Samples connection :

1. Using RS-232 command to control Selector Switch Scaler (SB-3691) for PiP-PoP function via PC.

2. Input supports : 2x HDMI™ source devices.

3. Output support : 1x HDMI™ to displays.

HDMI cable in

Audio output : Stereo Audio (LPCM)

HDMI

DC 12V

AUDIO L/R SPDIF

HDMI-2

HDMI

3691

OUTPUT

INPUT

HDMI-1

TXRXGNDP

RS-232

B

A

Audio output : S/PDIF: Digital Audio source

HDMI DISPLAY

PoP

A B

POWER

ENT ER

SW-1

OFFON

SW-2

2:1 HDMI PiP-PoP Box

ENIRPA3691000A0

HDMI Output Resolution

1080i

1080p

A

Menu

A15E A25D

A55A

B

PiP

PoP

9F60 EF10 ED12

956A EE11 EC13

Zoom

Reset Lock

480p

576p 720p

F10E F40BF708

F50A F609

Af50 9B64 B54A

PAGE 16 SB-3691 INSTRUCTION & OPERATION MANUAL

Before making any connections to the scaler, observe the following:

> Ensure the mains voltage supply matches the label on the supplied plug-

pack (+/- 10%).

> Ensure that the power switch is OFF.

> Ensure that all system grounds (earth) are connected to a common point.

> A

void powering the device within a system of multiple power sources

that are separated by large distance.

REMOTE CONTROL

> Connect all audio/video source and display devices.

> Power up all source and display audio-visual devices.

> To yield video/audio to an output, select the input source by using

> Upon powering up, the scaler will automatically apply the setting

the front panel input buttons, the supplied IR remote control, or through the RS 232 serial communication port.

2

6

IR REMOTE : SW-3691

IR REMOTE CONTROL KEY :

last used.

5

6

1 2

3

4

Power on and off: turn on or off the scaler

SW-1 : Select HDMI #1 source signal.

Enter: confirm your selection/enter the next layer of OSD options

Arrow keys: move up, down, left or right between

the OSD options. Use left and right keys to adjust the value of a parameter. Use down key to enter the next layer of options and up key to move back.

LOCK: - Press and hold LOCK button for three seconds lockout

the front panel.

- Press and hold LOCK button for three seconds to enable

the front panel.

HDMI Output Resolution : 480p

12

1

3

Picture in Picture (PiP) function.

“A” : Change the A via others source signal.

SW-2 :Select HDMI #2 source signal.

11

10

13

14

12

11

10

13

14

171615

1918

15

16

17

18

19

20

Reset : open SCN-ADJ to RESET SCN-ADJ configuration.

Zoom: open SCN-ADJ zoom out function.

9

Menu: open & setup OSD options.

7

748

5

222120

8

21

22

HDMI Output Resolution : 576p HDMI Output Resolution : 720p

HDMI Output Resolution : 1080i

HDMI Output Resolution : 1080p

Picture of Picture (PoP) function. “B” :Change the B via others source.

REMOTE CONTROL

SB-3691 INSTRUCTION & OPERATION MANUAL

PAGE 17

CUSTOM CODE: 5A69

POWER ON: POWER OFF:

Menu Enter

AV Source : HDMI

SCN-ADJ.: ENTER UP RIGHT LEFT DOWN

ZOOM RESET LOCK

Resolutions: HDMI

SCN-ADJ.:

5A69 5A69

IR DATA CODE LIST

A15E A25D

A55A AB54

BB44 926D

AB54 A758 AA55 A956 A857

956A

AF50 9B64 B54A

Example 1: Select input VGA and output HDMI

The IR Data Code: 5A69 0AF5 5A69 07F8

Example 2: Video -> move right -> move down to next layer -> enter to confirm selection

The IR Data Code: 5A69 BB44 5A69 AA55 5A69 AB54

PAGE 18

SB-3691 INSTRUCTION & OPERATION MANUAL

RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V.36.01

RS-232 Configuration

For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual.

RS-232 SERIAL INTERFACE PROTOCOL COMMANDS

The Shinybow switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC,

The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. When the unit recognises a complete command it will perform the requested action - there is no delimiter character required.

or similar third party control system.

RS-232 cable is a straight thru cable and not null-modem

1

2

3

1

2

3

4

5

6

7

8

9

Definition

DCD

RX

TX

DTR

GND

DSR

RTS

CTS

RI

Definition

TX

RX

GND

P

____________________

PC

Device

RS-232 Pin Diagram

RS-232 SERIAL INTERFACE

Example of the commanded string to select Inputs:

TX

RX

GNDP

This port also for Firmware update RS-232 control

Terminal Block female socket (pitch=3.5mm)

port :

1 2 3 4 5

6 7 8 9

RS-232 Pin Diagram

Firmware

update

mode

Function Command Variables

Select source Source xxx, xxx = Input Channel

(001=Source1, 002=Source2)

Command Example Response Description

Source 001,

Source 001#ok; Select source number 1

PAGE 19

SB-3691 INSTRUCTION & OPERATION MANUAL

WARRANTY

LIMITED WARRANTY

SHINYBOW WARRANTY

SHINYBOW Technology warrants this product against defects in materials and workmanship for a period of 1 year from the date of purchase. Should this product, in SHINYBOW Technology's opinion, prove defective within this warranty period, SHINYBOW Technology, at its option, will repair this product without charge, to whatever extent it shall deem necessary to restore the product to proper operation condition. This does not extend the warranty period. This warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, and abnormal operating condition or non-SHINYBOW Technology authorized modification to the product. If repairs are necessary under the warranty policy, the original purchaser must return the product to local distributor, freight prepaid. After repairs are complete, the product will be returned.

REGULATORY COMPLIANCE

The product complies with the relevant standards for CE, FCC and RoHS approval. The power Adaptor/Supply has been tested for compliance with UL.CSA and CE standards.

DISCLAIMER OF WARRANTIES AND LIABILITY

Neither Shinybow nor its suppliers or licensors makes any warranty whatsoever, including without limitation, that the operation of the Site will be uninterrupted or error-free; that any defects will be corrected; that the Site, including the server that makes it available, is free of viruses or other harmful components; or as to the accuracy, completeness, reliability, availability, suitability, quality, non-infringement, operation or result obtained from the use of any Content, product or service provided on, accessible from or distributed through the Site.

THE SITE AND ALL CONTENT, PRODUCTS AND SERVICES INCLUDED IN OR ACCESSIBLE FROM THE SITE ARE PROVIDED "AS IS" AND WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND (EXPRESS, IMPLIED AND STATUTORY, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF TITLE AND NONINFRINGEMENT AND THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE), ALL OF WHICH SHINYBOW DISCLAIMS TO THE FULLEST EXTENT PERMITTED BY LAW. YOUR USE OF THE SITE AND ITS CONTENT, PRODUCTS AND SERVICES IS AT YOUR SOLE RISK.

To the extent permitted under applicable law, no responsibility is assumed for any injury and/or damage to persons, animals or property as a matter of products liability, negligence or otherwise, or from any use or operation of any ideas, instructions, methods, products or procedures contained in the Site.

TO THE EXTENT PERMITTED UNDER APPLICABLE LAW, IN NO EVENT SHALL SHINYBOW OR ITS SUPPLIERS OR LICENSORS BE LIABLE FOR ANY DAMAGES (INCLUDING, WITHOUT LIMITATION, CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, OR SIMILAR DAMAGES, PERSONAL INJURY (INCLUDING DEATH), LOSS OF PROFITS, CORRUPTION OR LOSS OF DATA, BUSINESS INTERRUPTION OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES) ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE SITE OR ITS CONTENT, PRODUCTS OR SERVCES, OR SHALL THE LIABILITY OF SHINYBOW OR ITS SUPPLIERS AND LICENSORS EXCEED A SUM EQUAL TO THE FEES PAID BY YOU HEREUNDER, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Shinybow does not claim ownership, endorse or take responsibility for any third-party products, information, guidelines, materials or services that may be offered, advertised, provided or displayed on the Site or incorporated in the Content, products or services contained on, accessible from or distributed through the Site.

INDEMNIFICATION

You hereby agree to indemnify and hold Shinybow, its directors, officers, shareholders, predecessors, successors in interest, employees, agents, suppliers and licensors harmless from and against any and all third-party claims of liability, losses, damages and costs, including, without limitation, reasonable attorneys' fees, arising out of or in connection with your use of or inability to use the Site or its Content, products or services.

M U LT I M ED I A A U D I O A N D V I S U A L

w w w . s h in yb o w . c o m

Shinybow USA SB-3691 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
