ShinewayTech WFT-20 User Manual

WFT-20 Wi-Fi Tester
User's Manual
Copyright © 2011, Shineway Technologies, Inc.
All rights reserved.
WFT-20 User's Manual
2
WFT-20 User's Manual
Product Overview ………………………… Hardware Specification …………………. Functions ………………………………….. External Buttons …………………………. Starting Page ……………………………… Main Functions …………………………… The Setup Page …………………………... Country Domain List …………………….. Channel Survey …………………………... BSS Survey ………………………………. Connecting Monitor ……………………. Roaming Test ……………………………. Auxiliary Tools …………………………... Example …………………………………… Trouble Shooting …………………………
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
3 4 7
9 13 14 16 21 27 31 37 40 41 48 53
3

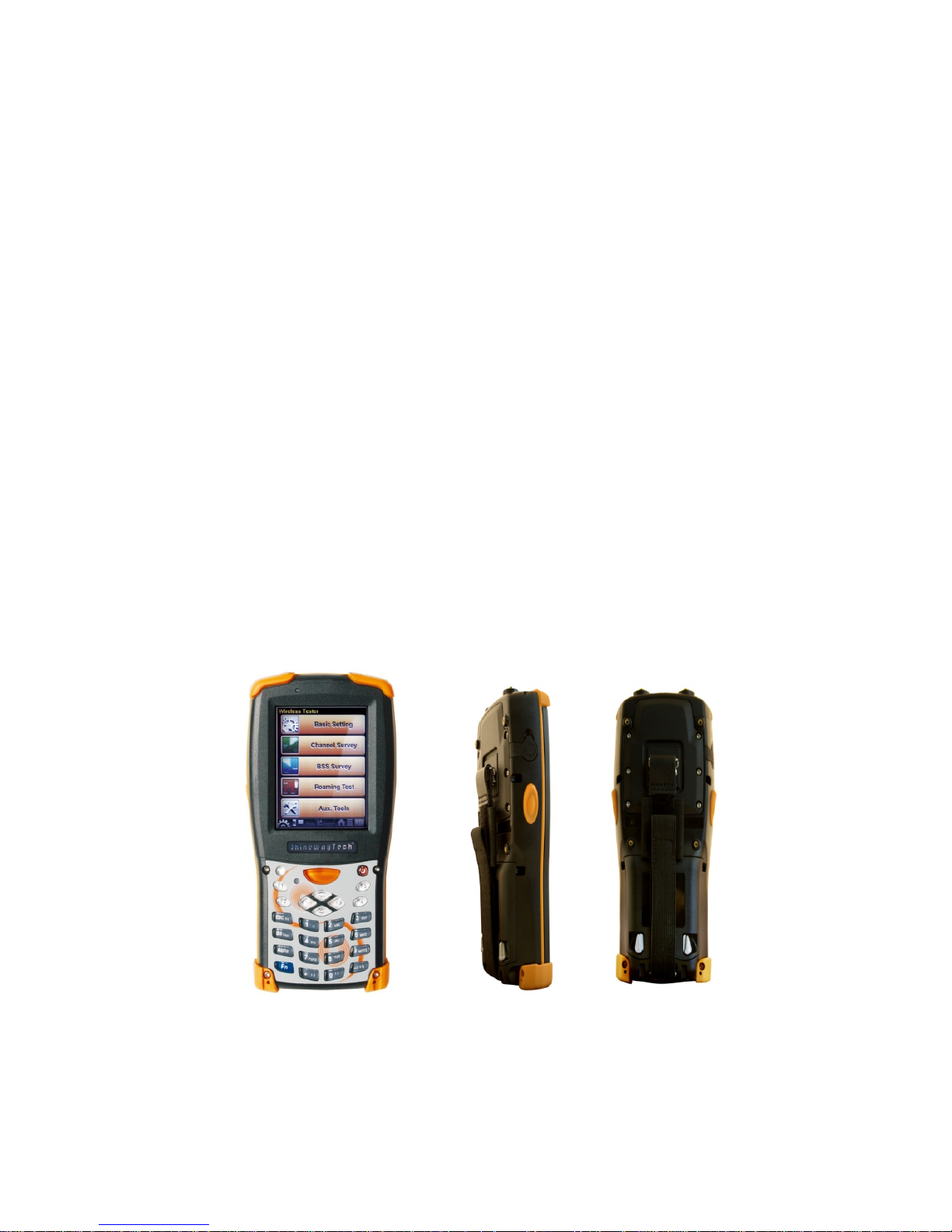

WFT-20 is a wireless testing device that operates in Win CE platform. Supporting 802.11a/b/g/n protocol, it not only provides the chosen wireless environment with complete information such as the signal quality of each channel and the numbers of base stations, but also monitors all base station of channels.
In addition, WFT-20 can help users to trace the information of selected base stations, including the encryptions, the packets and the stations connecting to base station.
WFT-20 also offers the engineers some practical tools for reference during site survey or setting.
WFT-20 User's Manual
1. Product Overview
4
Intel PXA270 520MHz 32 bits RISC Processor 128 MB SDRAM and 128 MB Flash ROM
802.11 A/B/G/N, 5 dBi Dual Band Detachable Antenna x2 Antenna Connector, RP-SMA Jack One USB port built in 240 x 320, 3.5” Color TFT Display 1 Numeric Keyboard with LED backlight Wolfson WM9705 AC’ 97 codec with Touch screen controller 3000mAH, 7.4V Li-Ion battery pack One rechargeable backup battery Dimension 192.5mm (L) x 91.3mm / 78mm (W) x 42.2mm /
60.6mm (H) Weight560g with Standard Battery Pack OS. WinCE. NET5.0 Professional Environmental Operation: -10~50; Storage: -20~79 Humidity: Operation- 10%~80% IP54Certificated, IP64 compliant
1.2m (4ft) drop to concrete certificated
1.5m (5ft) drop to concrete, System no broken
WFT-20 User's Manual
2. Hardware Specification
5
WFT-
20 Unit
Dual Band
Antenna x2
Carrying bag with
strap
USB Host Cable
Li-ion
Battery
DC
Adapte
r
Power
Cord
Stylus
U Disk
WFT-20 User's Manual

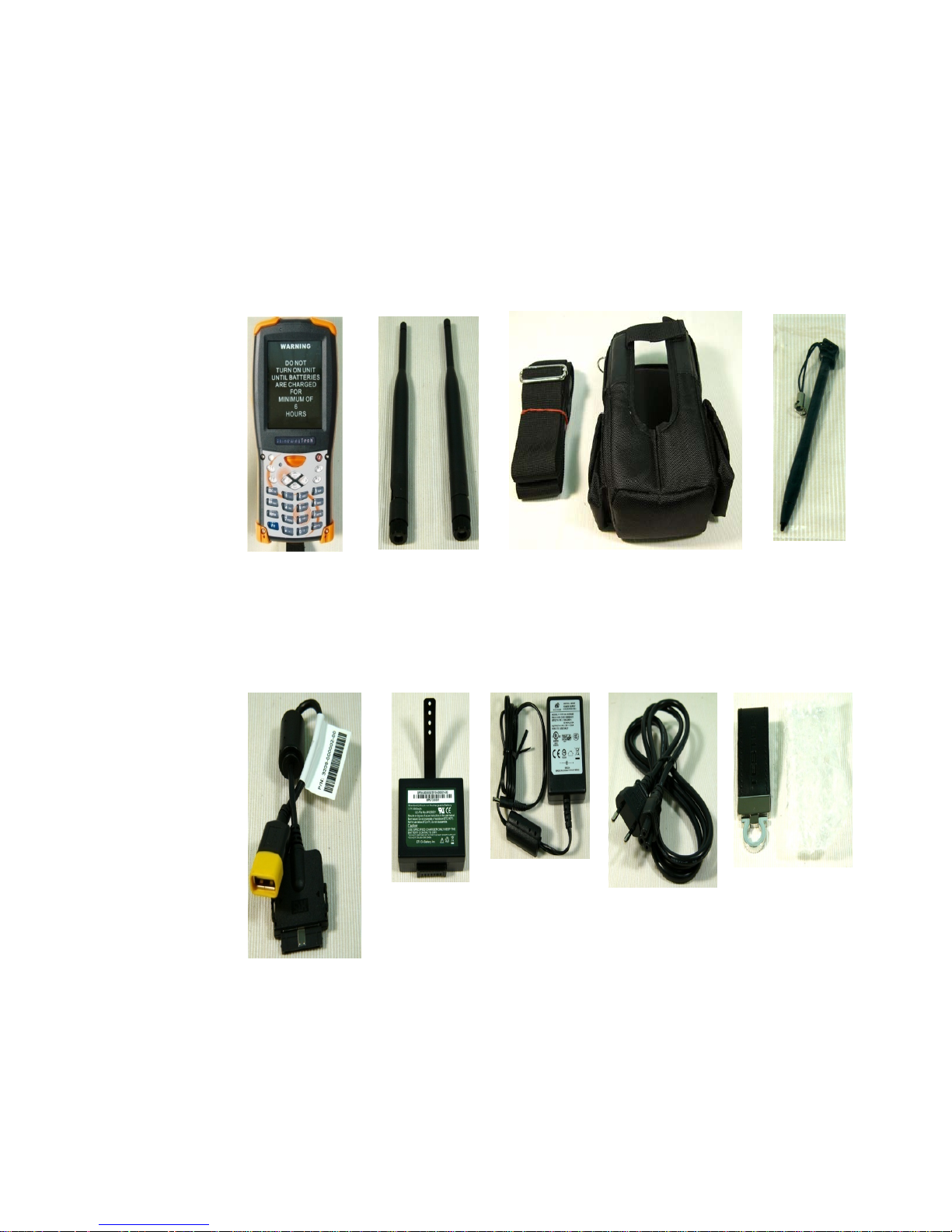

2a. Package Content
6
Connector 1Connector
2
Description
RP-SMA Plug
N Plug For Outdoor Antenna
RP-SMA Plug
RP-SMA Jack
For Indoor Antenna
RP-SMA Plug
RP-TNC Jack
For Cisco Antenna
RP-SMA Plug
SMA Jack
For Attenuator (Tester Side)
RP-SMA Plug
SMA Plug
For Attenuator (Normal AP Side))
RP-TNC Plug
SMA Plug
For Attenuator (Cisco AP Side)
N Plug SMA Plug
For Attenuator (Outdoor AP Side)
SMA Plug SMA Jack Attenuator 10dB SMA Plug SMA Jack Attenuator 20dB SMA Plug SMA Jack Attenuator 30dB
WFT-20 User's Manual
2b. Accessories
7
Sensitivity Up to -100 dbm Instant Power On
Yes
Operation
Easy
Equipment Design
Industrial PDA
Continuous Operation
4 Hrs
Defense
IP64 Water-Proof / Dust-Proof Passable with dropping to Concrete Ground from 1.5Meters
Package
Dual-Purpose Holster ; Usage for Shoulder and Waist
Data Output
USB / USB host Cable
Signal Strength Test
Yes, All Channels
Usage of Channel (Quantity of Base Station in each Channel)
Yes
Score of Channels
Yes
Scanning Base Station
A/B/G/N in the same time
Information of Base Station
SSID/BSSID/RSSI, Sorting, Channel Selection
Base Station Tracing
Yes
Information of Specified Base Station
Yes

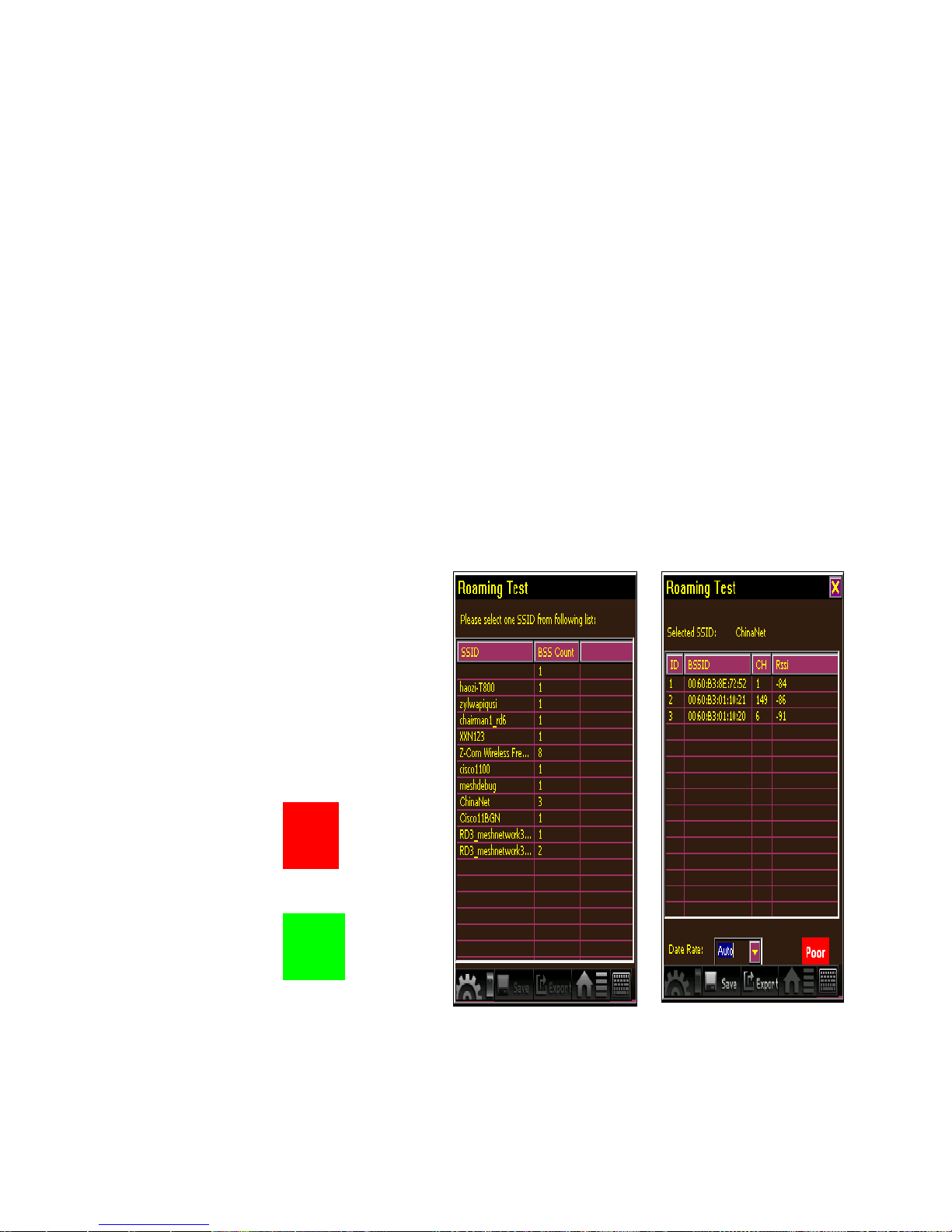

Roaming-Test Report
Yes
Security’s Detecting
Yes
Clients’Status of Specified Base Station
Yes
WFT-20 User's Manual
3. Functions
8
Clients’Status of Specified Base Station
Yes
Status of Base Station
Data Rate (54/48/../6/11/../1 Mbps ; Frame (Ctl/Mgt/Data/Error/retry)
Rogue AP Detecting
Yes
Rogue Client Detecting
Yes
Linking Test
Offer the ratio of transition and Revelation of Signal’s Strength
Aux. Tools

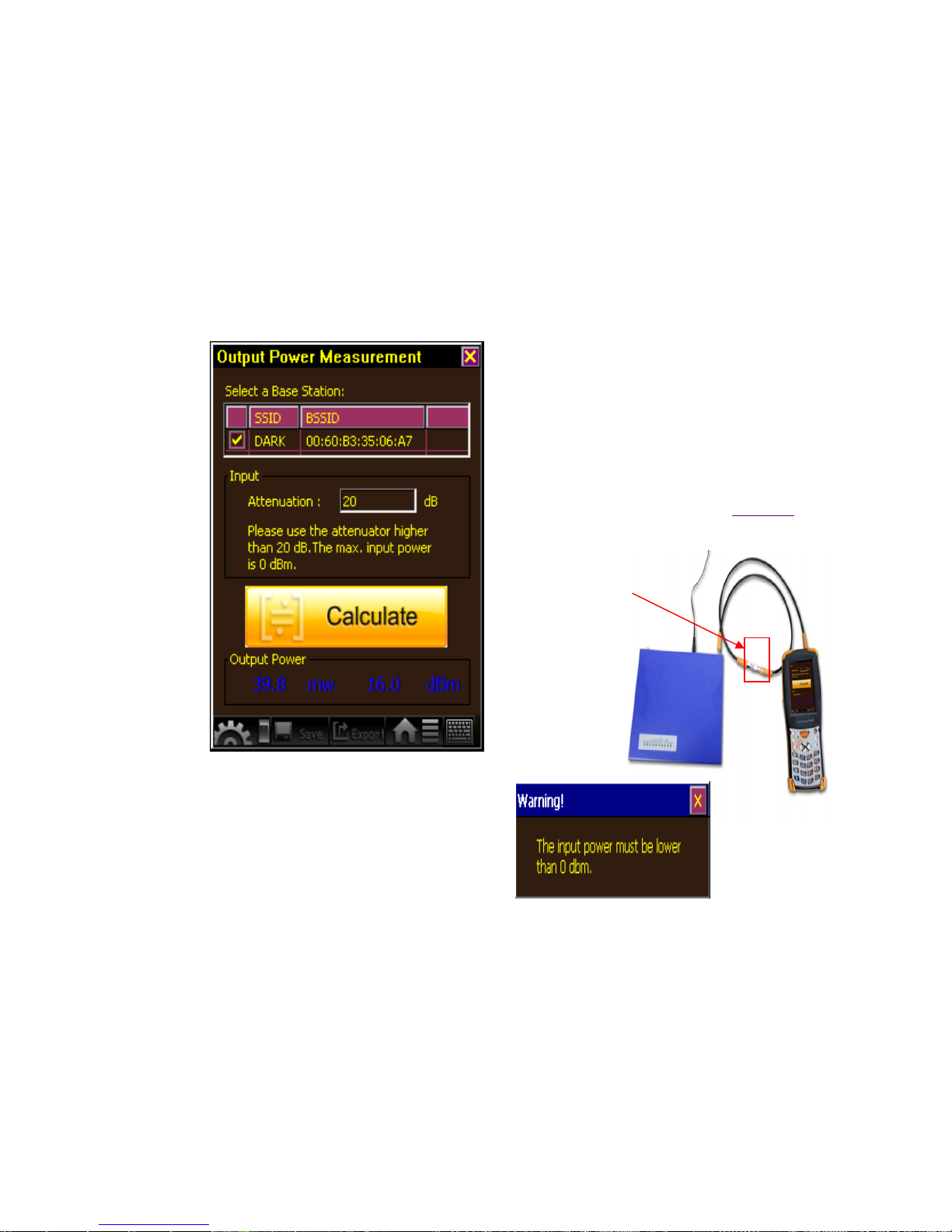

Free Space Attenuation ; Power Meter Effective Range Calculation ; Output Power Translator (mW/ dBm) Base Station Detector ; Network User Detector
WFT-20 User's Manual
3. Functions
9
Antenna B for
2.4GHz
Antenna A for 5GHz
Scan Button
Power Button
USB Host
Power Socket
Scan Button
WFT-20 User's Manual
4. External Buttons
10
Pen Holder
There are 2 Positions for selection
Touch Pen
Insert Stylus into the holder
WFT-20 User's Manual
4a. Stylus
11
A
B
Antenna B for
2.4GHz
Antenna A for 5GHz
USB Host
Power Socket
USB Host Cable
USB socket
WFT-20 User's Manual
4b. USB Interface
12
Battery Status LED
Battery Low
Battery Charging Status LED Red: Charging Green: Charging Completely
Other hot keys F1 + F4, Reset System F1 + F4 + Power, Reset to Factory Default F2, Back Light Setting,
Push the button to keep the backlight shining. Press one more time to go back to original setting.
F3, Calibration for Touch Screen
WFT-20 User's Manual
4c. LED Signal
13
The function table will be right on after starting the system.
WFT-20 User's Manual
5. Starting Page
14
WFT-20 is designed to offer various kind of reliable functions to detect, analyze and observe the assigned wireless environments for the purpose of trouble shootings. With the collected information we can optimize the best infrastructure or setup certain Precautions to the negative impacts that will cause To the network.
There are 5 main functions for users to quick switching the option: Basic Setting: Set up the region (Country/Area), time and
check the status of Battery

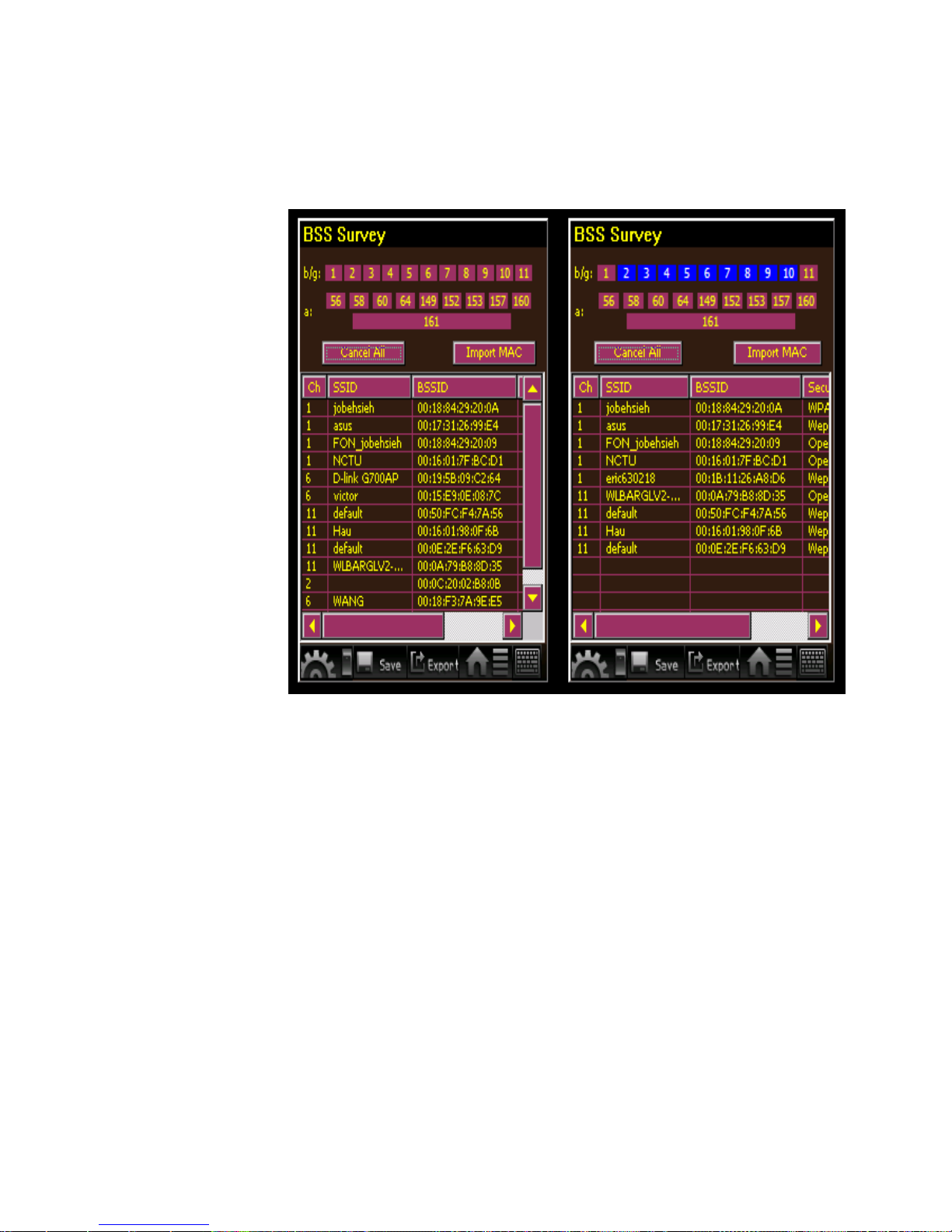

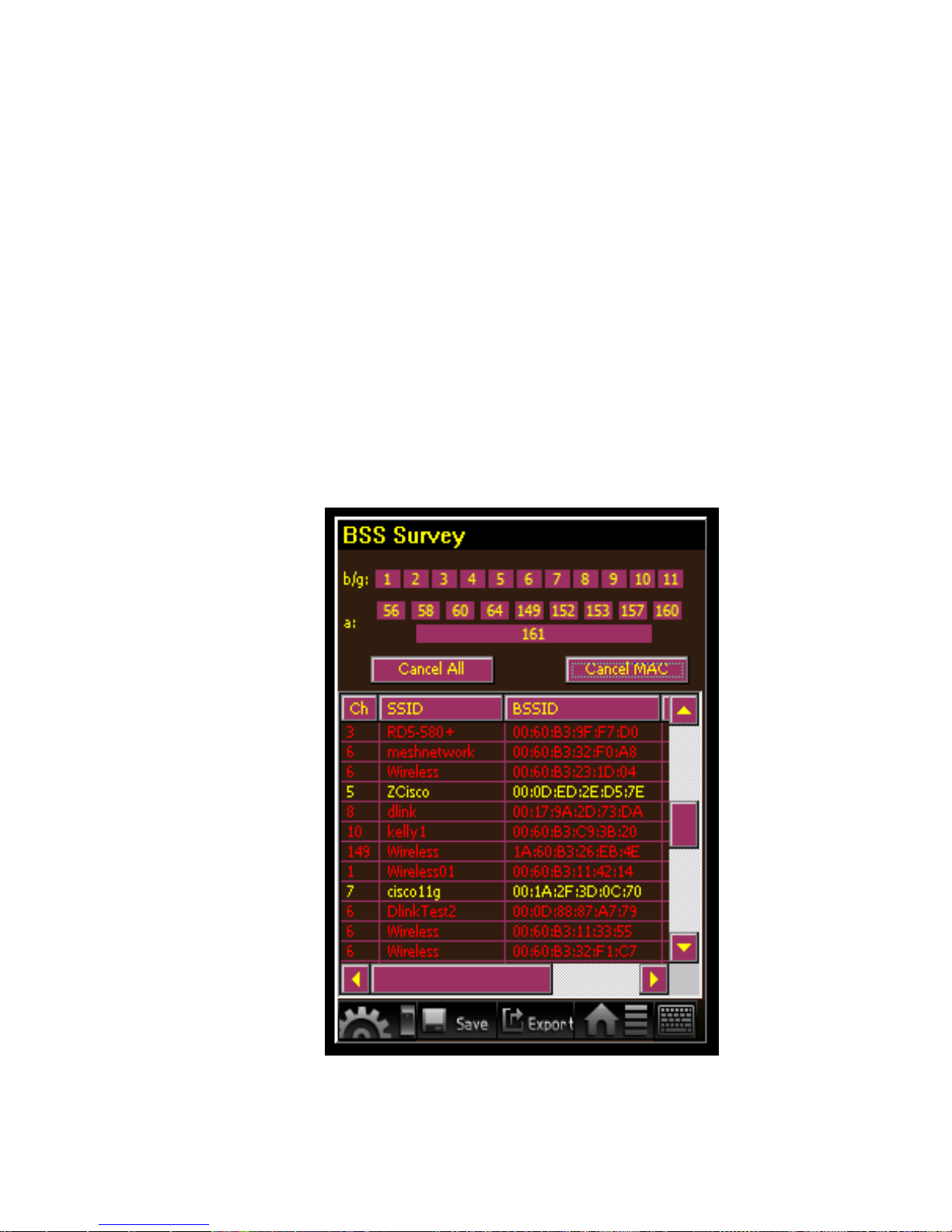

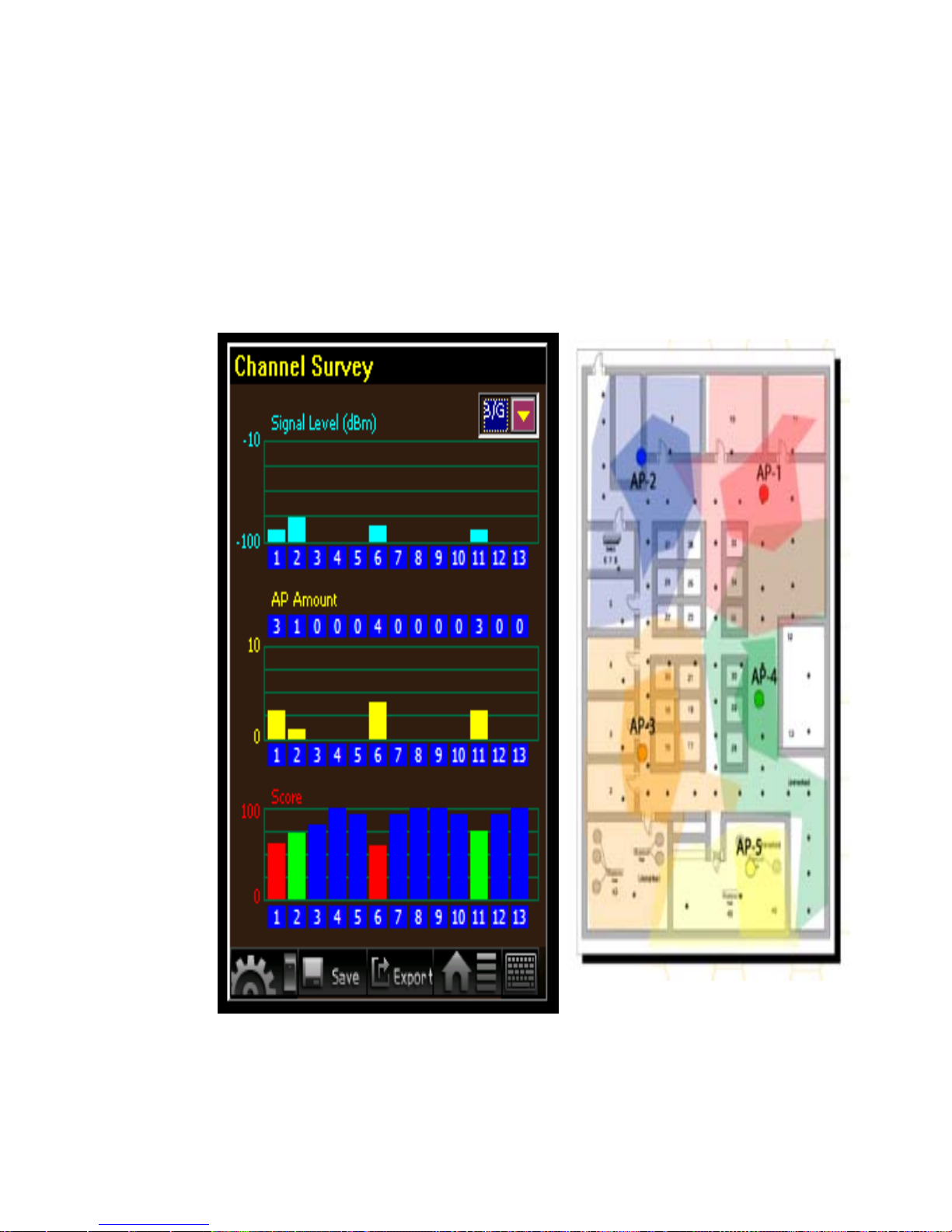

Channel Survey: Information of each channel BSS Survey: Information of the base station on each channel Roaming Test: Check if the construction of base station is

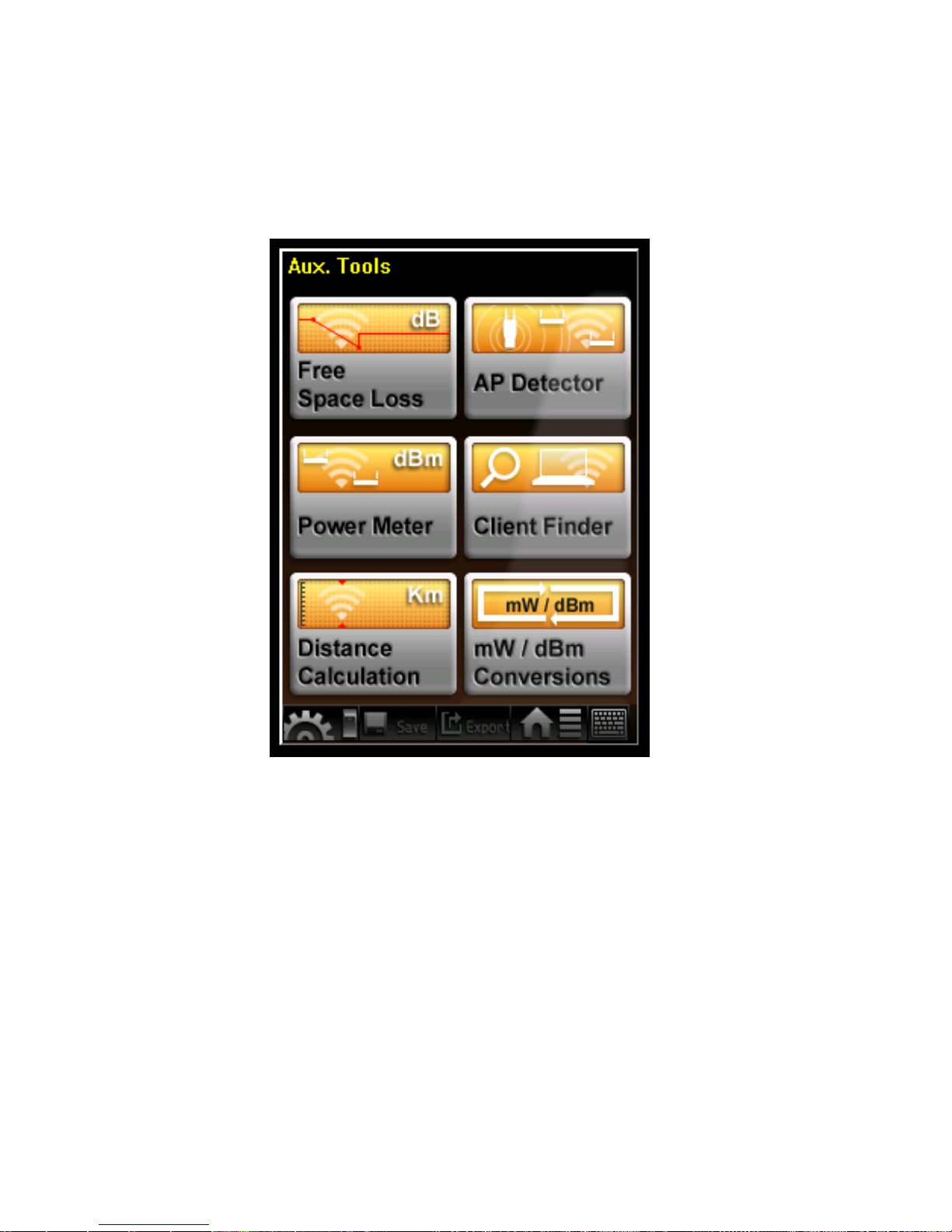

suitable for roaming Aux. Tools: Including the Attenuation of Free Space ; Measurement of Power ; Calculation of Effective Range ; Conversion of power unit (mW/ dBm) Detection of Base Station ; Detection of Wireless Client
WFT-20 User's Manual
6. Main Function
15
These keys help users switch to various pages.
Setup Save Export Home Soft
Keyboard
Setup: <click the button> WFT-20 will be switched to basic setting page Save: <click the button> The page and the collected data can be stored Export: <click the button> The saved files can be exported to external USB disk Home: <click the button> Switch to main page Soft Keyboard: <click the button> the keyboard will be showed on the screen
WFT-20 User's Manual
6a. Instant Function Keys
16
The setup contains the region
(WLAN) settings and the system settings

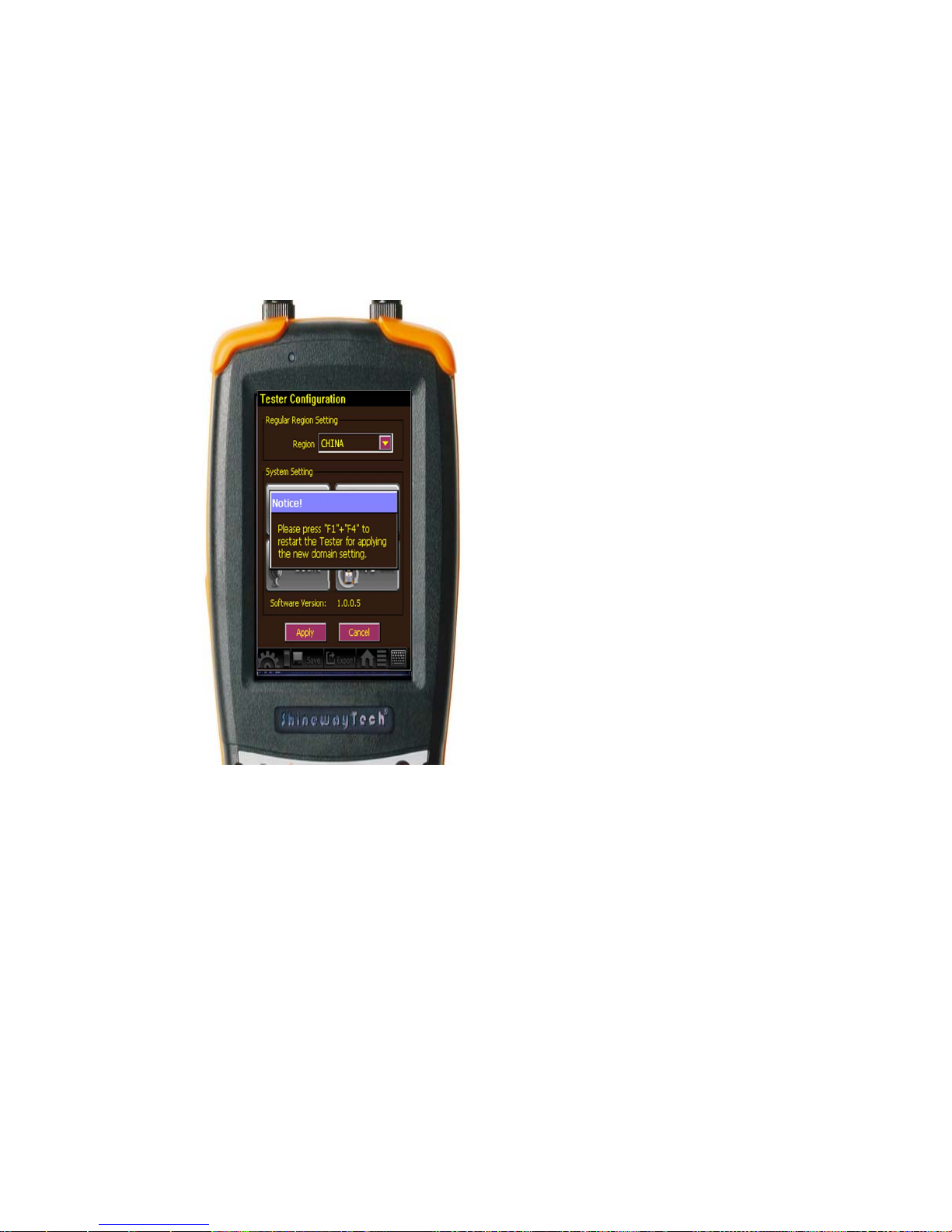

1. Region settings: Choose the proper area. While
changing the settings, please push both “F1” and “F4” buttons at the same time to save and start the new setting.
2. System settings: The page displays battery status, the
configuration of time, date as well as volume, and tools for firmware upgrading.
And firmware upgrade tools (picture
showed as below)
<NOTICE> The storage will be filed as the name of date. Please adjust the right time and date before using WFT-20 at first.
WFT-20 User's Manual
7. The Setup Page
17
Status of battery
Setup for data and time
Control of
volume and
sound
WFT-20 User's Manual
7. The Setup Page
18

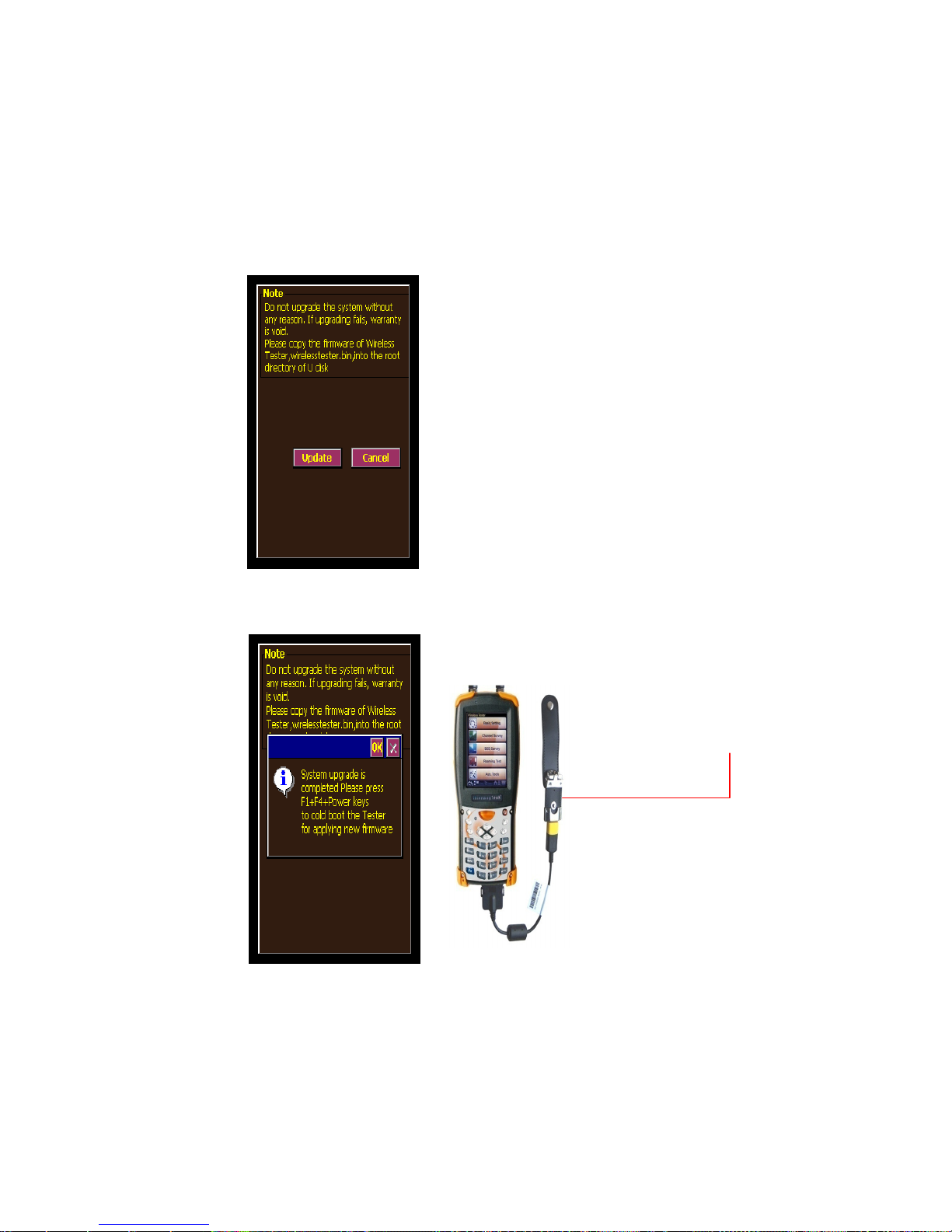

Steps in upgrading firmware:
1. Connect U disk which contains the file,
wirelesstester.bin, to WFT-20 with USB
host cable.
2. Click “Update” button in Basic Setting page, displayed as the left picture.
3. Click “Update” button
4. After the updating is completed, a new page will show up as below.
5. Click F1+F4+Power to restart WFT-20 for completing upgrade.
Copy wirelesstester.bin to the root directory of U dis
k
WFT-20 User's Manual
7a. Firmware Update
19
6. A caution as left picture will appear on the screen if U disk is not properly connected or the file wirelesstester.bin cannot be found, please renew the upgrading.
WFT-20 User's Manual
7a. Firmware Update
20

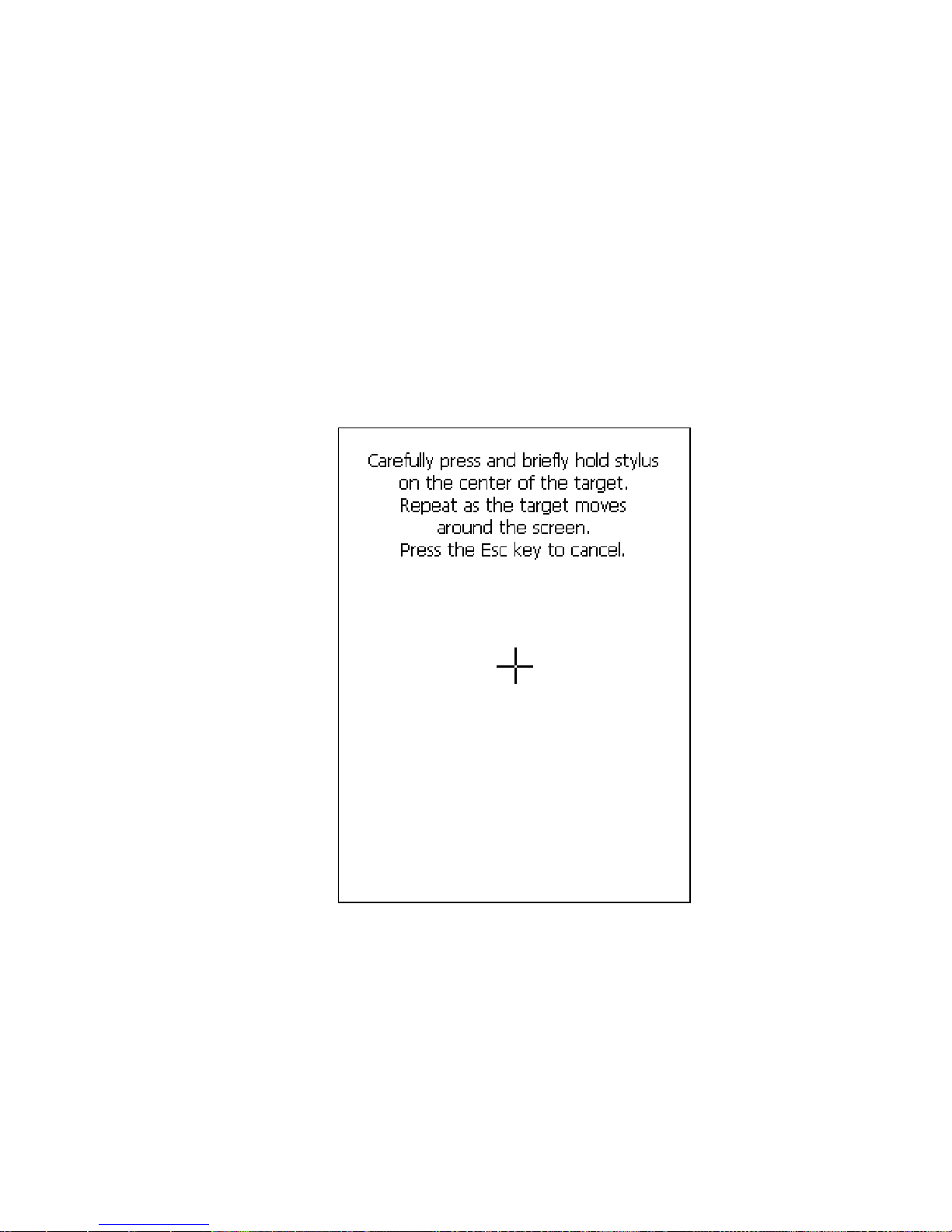

When you feel the touch screen function is poor or the operation does not match the exact location it should be, please recalibrate the screen by using “F3” function key to recalibrate again.
WFT-20 User's Manual
7b. Calibration of Touch Screen
21
Region
2.4G( B/G)
5G (A)
Albania 1-13 Algeria 1-13 Argentina 1-13 56,60,64,149,153,157,161 Armenia 1-13 36,40,44,48,52,56,60,64
Australia 1-13
36,40,42,44,48,50,52,56,58,60,64,149,152,153,157,
160,161,165 Austria 1-13 36,40,44,48 AZERBAIJA
N
1-13 36,40,44,48,52,56,60,64
BAHRAIN 1-13 36,40,44,48,52,56,60,64,149,153,157,161,165 BALARUS 1-13
BELGIUM 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120,
124,128,132,136,140 BELIZE 1-13 149,152,153,157,160,161,165 BOLIVIA 1-13 149,152,153,157,160,161,165
BRAZIL 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120,
124,128,132,136,140,149,153,157,161,165 BRUNEI
DARUSSAL AM
1-13 149,152,153,157,160,161,165
BULGARIA 1-13
36,40,44,48,52,56,100,104,108,112,116,120,124,12
8,132,136,140
CANADA 1-11
36,40,42,44,48,50,52,56,58,60,64,149,152,153,157,
160,161,165
CHILE 1-13
36,40,42,44,48,50,52,56,58,60,64,149,152,153,157,
160,161,165 CHINA 1-13 149,152,153,157,160,161,165 COLOMBIA 1-11 36,40,44,48,52,56,60,64,149,153,157,161,165 COSTA_RI
CA
1-13
WFT-20 User's Manual
8. Country Domain List (1)
22
Region
2.4G( B/G)
5G (A)
CROATIA 1-13 36,40,44,48,52,56,60,64 CYPRUS 1-13 36,40,44,48,52,56,60,64 CZECH 1-13 36,40,44,48,52,56,60,64
DENMARK 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116, 120,124,128,132,136,140
DOMINICA N REPUBLIC
1-11
36,40,42,44,48,50,52,56,58,60,64,149,152,153, 157,160,161,165
ECUADOR 1-13 EGYPT 1-13 36,40,44,48,52,56,60,64 EL_SALVA
DOR
1-13
ESTONIA 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116, 120,124,128,132,136,140
FAEROE_I SLANDS
1-13
36,40,44,48,52,56,60,64,100,104,108,112,116, 120,124,128,132,136,140
FINLAND 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,
120,124,128,132,136,140 FRANCE 1-13 36,40,44,48,52,56,60,64 FRANCE2 1-13 36,40,44,48,52,56,60,64 GEORGIA 1-13 36,40,44,48,52,56,60,64
GERMANY 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,
120,124,128,132,136,140
GREECE 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,
120,124,128,132,136,140 GUATEMAL
A
1-11
36,40,42,44,48,50,52,56,58,60,64,149,152,153,
157,160,161,165 HONDURA
S
1-13
HONG_KO NG
1-13
36,40,42,44,48,50,52,56,58,60,64,149,152,153,
157,160,161,165 HUNGARY 1-13 36,40,44,48,52,56,60,64
WFT-20 User's Manual
8. Country Domain List (2)
23
Region
2.4
G(B/
G)
5G (A)
ICELAND 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140 INDIA 1-13 36,40,44,48,52,56,60,64,149,153,157,161,165 INDONES
IA
1-13 149,153,157,161,165
IRAN 1-13 149,152,153,157,160,161,165 IRAQ 1-13 149,152,153,157,160,161,165
IRELAND 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140 ISRAEL 1-13
ITALY 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140
JAMAICA 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140 JAPAN 1-14 34,38,42,46 JAPAN1 1-14 34,38,42,46 JAPAN2 1-11 34,38,42,46 JAPAN3 1-14 8,12,16,34,38,42,46,184,188,192,196 JAPAN4 1-14 34,38,42,46 JAPAN5 1-14 34,38,42,46 JAPAN6 1-13 34,38,42,46 JORDAN 1-13 36,40,44,48,149,153,157,161,165 KAZAKHS
TAN
1-13
KENYA 1-13 KOREA_N
ORTH
1-13 149,152,153,157,160,161
WFT-20 User's Manual
8. Country Domain List (3)
24
Region
2.4G( B/G)
5G (A)
KOREA_RO C
1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12 0,145,149,153,157,161,165
KOREA_RO C2
1-13 149,153,157,161
KUWAIT 1-13
LATVIA 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140 LEBANON 1-13 LIBYA 1-13 LIECHTENS
TEIN
1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140
LITHUANIA 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140 LUXEMBOU
RG
1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140
MACAU 1-13
36,40,42,44,48,50,52,56,58,60,64,149,152,153,1
57,160,161,165 MACEDONI
A
1-13
MALAYSIA 1-13 56,60,64,149,153,157,161
MALTA 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140
MAXICO 1-11
36,40,42,44,48,50,52,56,58,60,64,149,152,153,1
57,160,161,165 MONACO 1-13 36,40,44,48,52,56,60,64 MOROCCO 1-13 NETHERLA
NDS
1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140 NEW_ZEAL
AND
1-13 36,40,44,48,52,56,60,64,149,153,157,161,165
NICARAGU A
1-13 36,40,44,48,52,56,60,64,149,153,157,161,165
NORWAY 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,12
0,124,128,132,136,140
WFT-20 User's Manual
8. Country Domain List (4)
25
Region
2.4G( B/G)
5G (A)
OMAN 1-13 36,40,44,48,52,56,60,64,149,153,157,161,165 PAKISTAN 1-13
PANAMA 1-11
36,40,42,44,48,50,52,56,58,60,64,149,152,153,157, 160,161,165
PARAGUAY 1-11
36,40,42,44,48,50,52,56,58,60,64,149,152,153,157,
160,161,165 PERU 1-13 149,153,157,161,165 PHILIPPINE
S
1-13 149,152,153,157,160,161,165
POLAND 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120,1
24,128,132,136,140
PORTUGAL 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120,1
24,128,132,136,140 PUERTO_RI
CO
1-11
36,40,42,44,48,50,52,56,58,60,64,149,152,153,157,
160,161,165 QATAR 1-13 ROMANIA 1-13 RUSSIA 1-13 SAUDI_ARA
BIA
1-13
SINGAPOR E
1-13
36,40,42,44,48,50,52,56,58,60,64,149,152,153,157,
160,161,165
SLOVAKIA 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120,1
24,128,132,136,140
SLOVENIA 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120,1
24,128,132,136,140 SOUTH_AF
RICA
1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120,1
24,128,132,136,140,149,153,157,161,165
SPAIN 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120,1
24,128,132,136,140
SWEDEN 1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120,1
24,128,132,136,140 SWITZERLA
ND
1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120,1
24,128,132,136,140
WFT-20 User's Manual
8. Country Domain List (5)
26
Region
2.4G (B/G)
5G (A)
SYRIA 1-13 Taiwan 1-11 56,58,60,64,149,152,153,157,160,161 THAILAND 1-13 TRINIDAD_
Y_TOBAGO
1-13 36,40,44,48,52,56,60,64
TUNISIA 1-13 36,40,44,48,52,56,60,64 TURKEY 1-13 36,40,44,48,52,56,60,64 UAE 1-13 UKRAINE 1-13 UNITED_KI
NGDOM
1-13
36,40,44,48,52,56,60,64,100,104,108,112,116,120, 124,128,132,136,140
UNITED_ST ATES
1-11
36,40,42,44,48,50,52,56,58,60,64,149,152,153,157 ,160,161,165
UNITED_ST ATES_FCC 49
1-11
36,40,42,44,48,50,52,56,58,60,64,149,152,153,157 ,160,161,165,188,189,190,192,193,194, 196,197
URUGUAY 1-13 149,153,157,161
UZBEKISTA N
1-11
36,40,42,44,48,50,52,56,58,60,64,100,104,108,112 ,116,120,124,128,132,136,140,149,152, 153,157,160,161,165
VENEZUEL A
1-13 149,153,157,161
VIET_NAM 1-13 YEMEN 1-13 ZIMBABWE 1-13
WFT-20 User's Manual
8. Country Domain List (6)
27
Select 802.11b/g or 802.11a from
the bar. (Default value is b/g)
Signal Level
show the signal
strength on each channel
AP Amount
Calculate the total quantities of the detected base station. For example: number 4 on channel 1 stands for that there are 4 base stations on channel 1
Score
According to the signal strength, WFT-20 will score the channels to 3 levels: Blue one means excellent Green means middle and Red means poor
Users may select different Radio Mode in detecting, like the current frequency is 802.11b/g showed above, it might be switched to be 802.11a. The default value is B/G pattern. Select the wanted channel, system will lead you to enter the function of selected channel
WFT-20 User's Manual
9. Channel Survey
28
Net Mode
B/G
Signal Level
Channel No.
Signal Level
AP Amount
Score
1-68440 2-74152 3 -100 0 81 4-100 0100 5 -100 0 92 6-90374 7 -100 0 92 8-100 0100
9-100 0100 10 -100 0 92 11 -88 4 65
File name: all_bg_channel_survey_time_03_52_12.csv
The saved information
Click the "Save" button, the following information will be
stored: a. Channel Survey Page b. All scoring information in each channel
WFT-20 User's Manual
9. Channel Survey
29

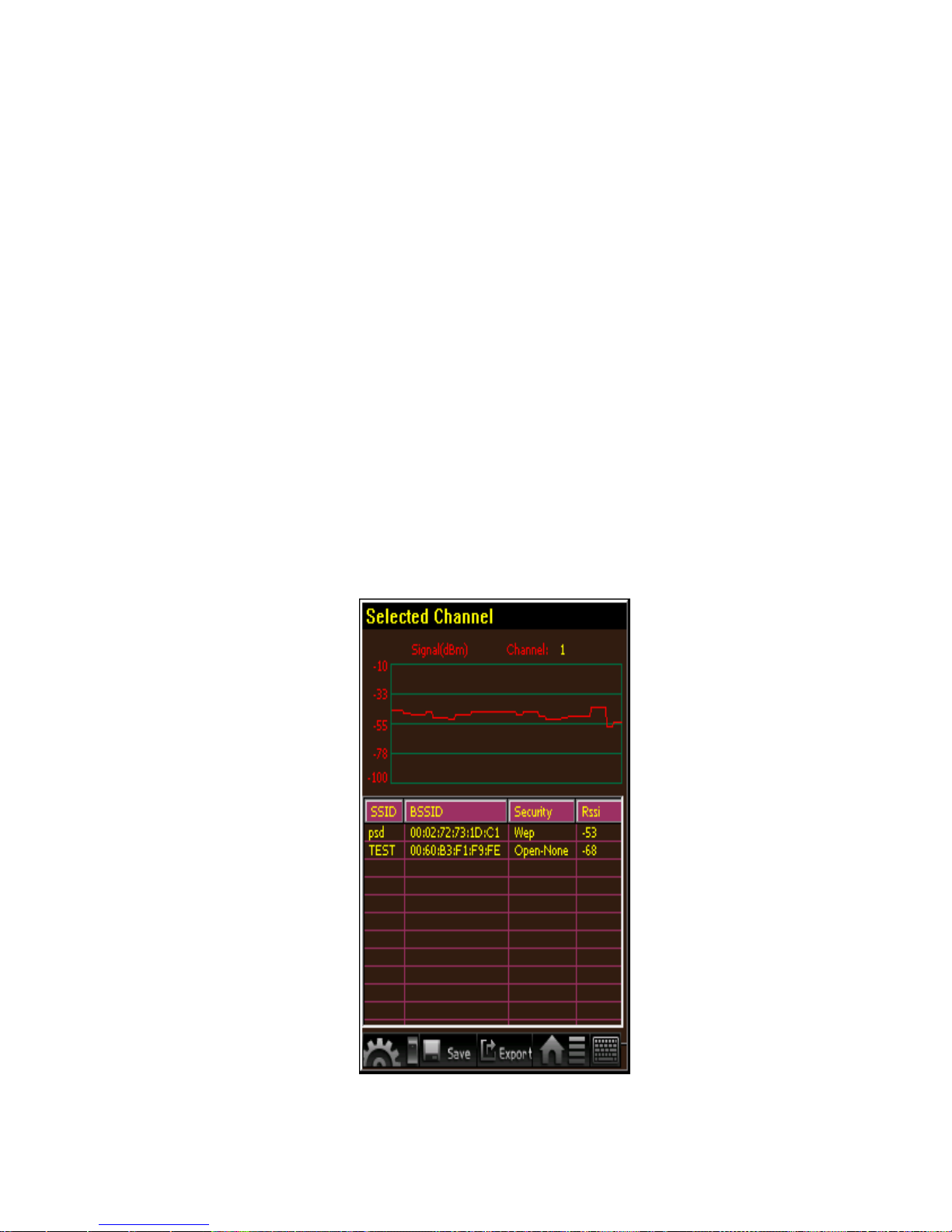

This page shows the detailed information of the selected
channel:
a. The red curve on the top of the graph indicates a real-
time status of the wireless signal. The range of sensitivity is from -100 dBm to -10 dBm as detecting.
b. The table in the middle lists the detailed information for
of the base stations in the detected channel, such as SSID, BSSID, Security and RSSI.
c. Click one of the base stations, the system will lead you
to the function of BSS Survey.
WFT-20 User's Manual
9a. The Selected Channel
30
File name: bg_channel_6_time_04_14_19.csv
The saved information
Click the "Save" button, the following information will be
stored: a. The selected channel page b. All information of base stations in the present channel,
including SSID, BSSID, Security and RSSI.
WFT-20 User's Manual
Current Channel Signal
Net Mode Channel Number Signal (dBm) b/g 6 -87
Current Channel BSS List
SSID BSSID Security RSSI Seednet WT II 00:19:CB:51:94:04 Wep -90 D-link G700AP 00:19:5B:09:C2:64 WPA-PSK-TKIP -91 victor 00:15:E9:0E:08:7C Wep -89 WANG 00:18:F3:7A:9E:E5 WPA-PSK-TKIP -87
9a. The Selected Channel
31
All channels Selected channel
a. This function is to detect the distributing status of base
station in each channel. All base stations are listed on the table to reveal their signal strength and other related information.
b. User may filter out unnecessary channels to make the
detecting more clear. Only informations of wanted channels are listed on the table, including SSID, BSSID, Security and RSSI.
WFT-20 User's Manual
10. BSS Survey
32
c. WFT-20 is designed to detect any "unfriendly" base station That is operating in the existed wireless environments.
As it is necessary to recognize whether the disallowed base stations exist in the surrounding, users may click “ImportMAC” button to check the file APLIST.txt, that is exported from U disk. Allowed base stations will be showed in yellow, and disallowed ones will be in red. If APLIST.txt is unseen, all defaults will be revealed in yellow.
WFT-20 User's Manual
10. BSS Survey
33
The saved information
Click the "Save" button, the following
information will be stored: a. BSS Survey Page b. Information of all base stations in the
surroundings, including channel, SSID,
BSSID, Security and RSSI.
WFT-20 User's Manual
BSS List Channel SSID BSSID Security RSSI
1 jobehsieh 00:18:84:29:20:0A WPA-PSK-TKIP -90 1 asus 00:17:31:26:99:E4 Wep -65 1 FON_jobehsieh 00:18:84:29:20:09 Open-None -89 1 NCTU 00:16:01:7F:BC:D1 Open-None -91 1 eric630218 00:1B:11:26:A8:D6 Wep -92
11
WLBARGLV2-00-0A-79­B8-8D-35
00:0A:79:B8:8D:35 Open-None -88
11 default 00:50:FC:F4:7A:56 Wep -94 11 Hau 00:16:01:98:0F:6B Wep -92 11 default 00:0E:2E:F6:63:D9 Wep -87
10. BSS Survey
34

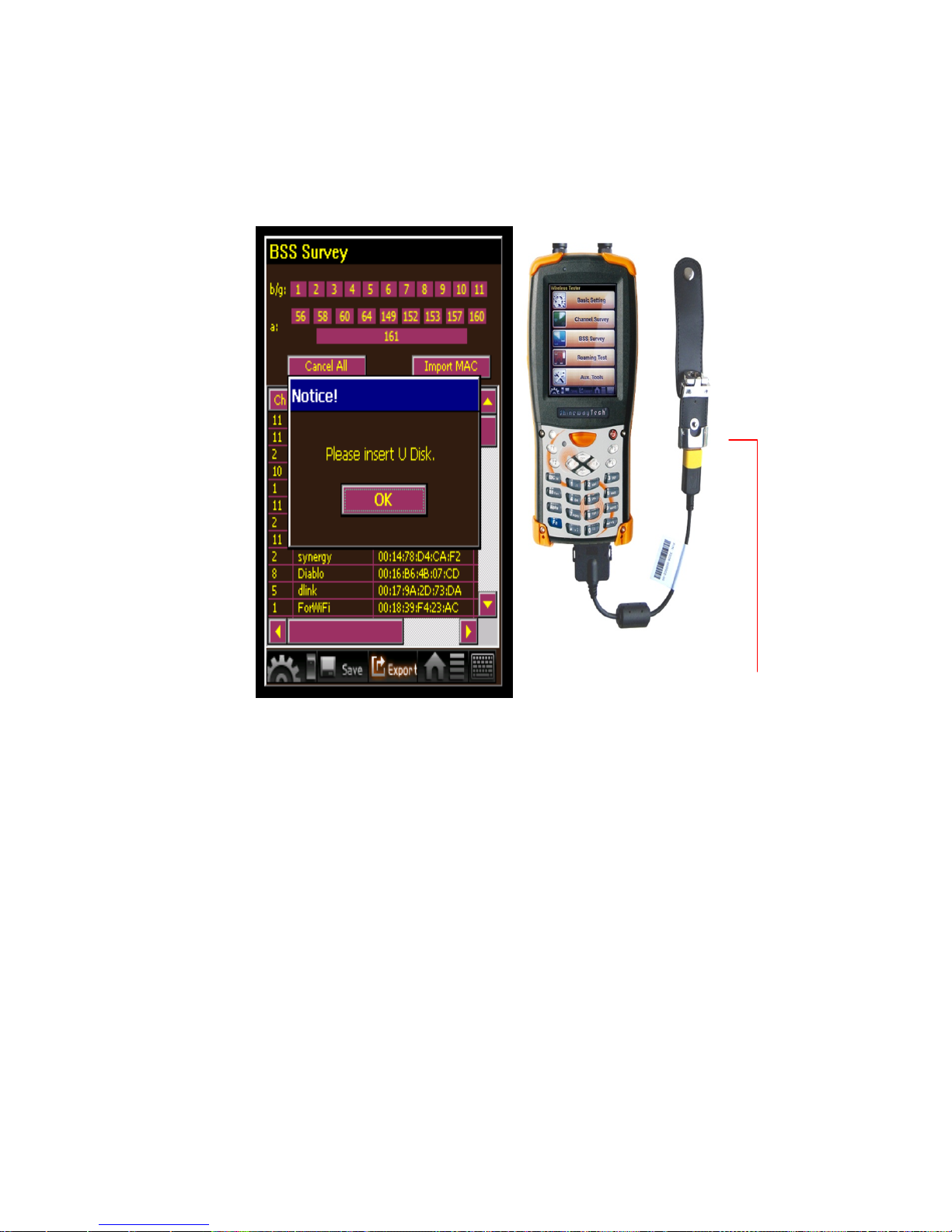

Connect U disk to WFT-20
The saved files can be exported to the portable USB disk: a. Connect U disk to WFT-20 with the USB Host Cable b. Click "Export" button to export datas from WFT-20 to U
Disk
c. If U Disk is not connected to WFT-20, a caution will
appear on the page, please plug U Disk in again.
WFT-20 User's Manual
10a. Exporting Data
35
Base station information Client list Base station status

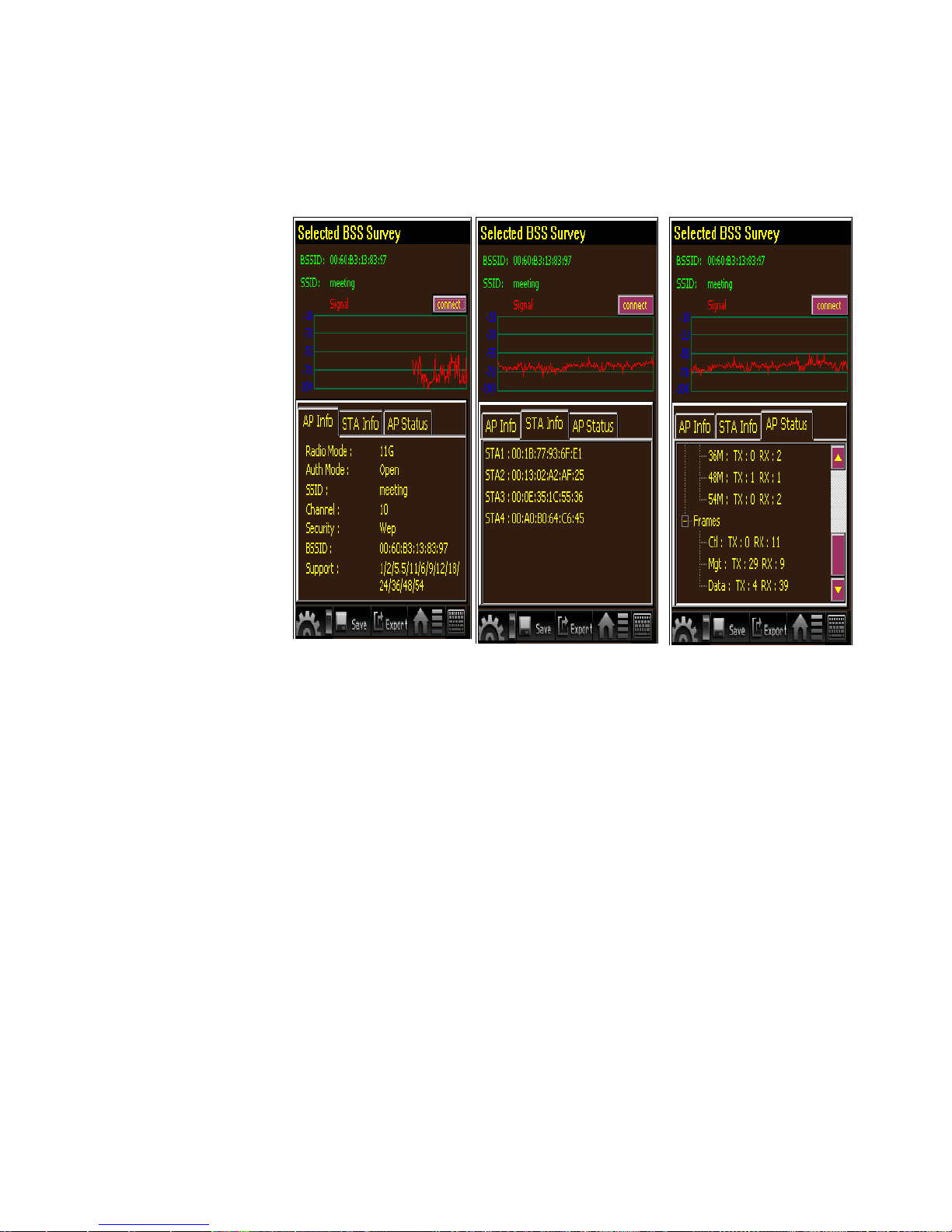

a. This function displays the real status of the selected base
stations for detecting and tracing, such as the continuous performance of signal strength.
b. The page displays 3 main detail information, including the
data as well as status of base station and something about the client connecting to this base station. If necessary, click “Connect” button, WFT-20 will connect the base station in client mode for further detecting.
WFT-20 User's Manual
10b. Observation of The Selected Base Station
36
Information of the base station:
Wireless Mode Authorization Method Identification Code of Wireless Network Channel Encryption Method Base Station ID Supportive Bandwidth
Information of Clients:
The list to connected clients, including the MAC address, RSSI, Packet information.
Status of Base Station:
Supporting Standard (11A / 11B / 11G / 11N) Status of packet, including control, management, data and warning included retry times. Network is supported to be something wrong which having a serious retry.
About:
About showing IP address.
WFT-20 User's Manual
10b. Observation of The Selected Base Station
37
Bandwidth
Wireless Data Rate
Base Station’s RSSI
Ping Test
The function is designed to proceed online test, it not only reveals data rate and signal intensity but also responds the ping reaction of WFT-20 to base station so that efficiency of base station can be figured out.
Column Bandwidth reveals the transporting bandwidth between WFT-20 and the base station that is expected to be tested.
WFT-20 User's Manual
11. Connection Monitor
38

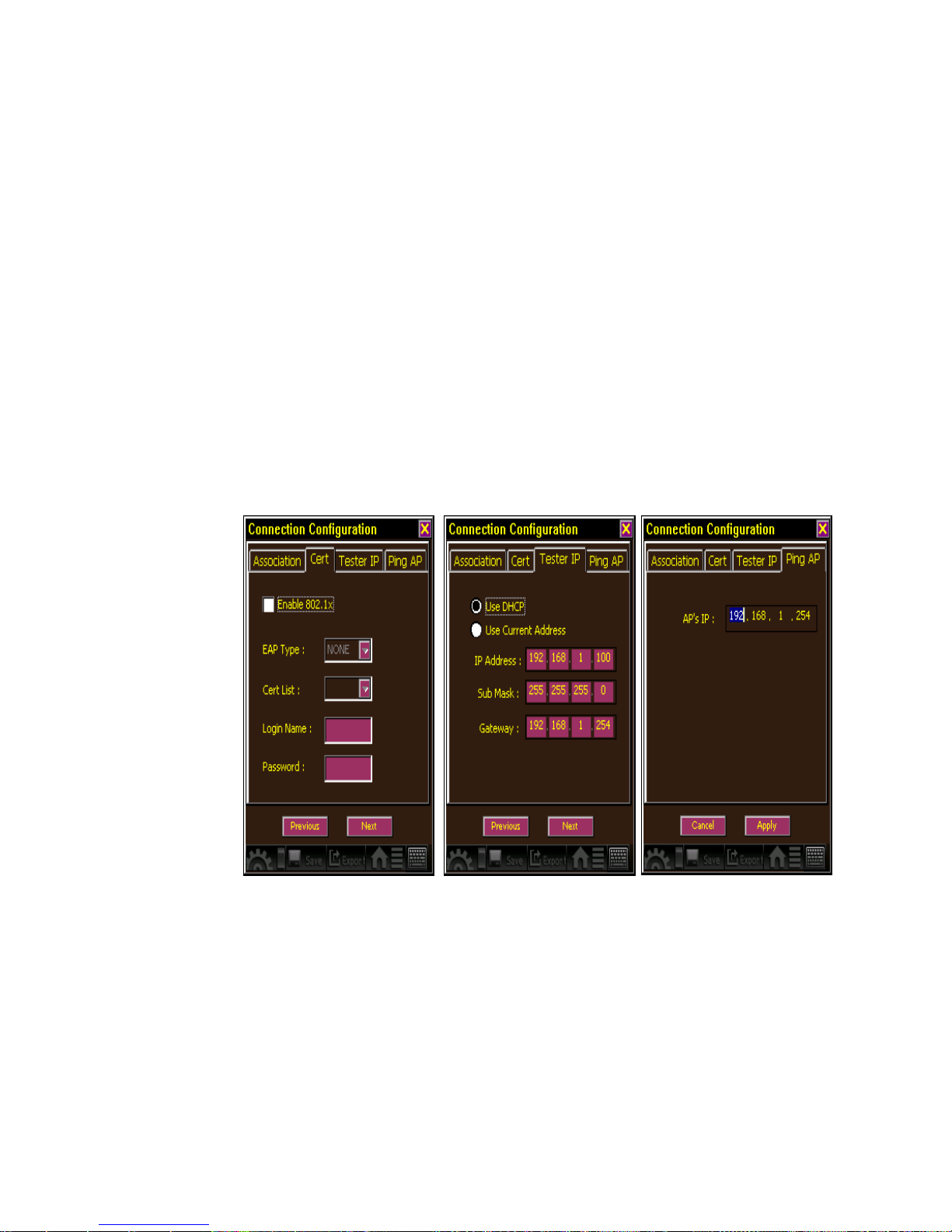

Before connecting to the base station expected to be tested, users have to previously complete the setup of basic parameters, including the relevant parameters of base station, the certification method, the tested IP address and WFT-20’s IP address.
Certification method: Open / Share / WPA /
WPA2 /
WPA-PSK /WPA-PSK2 Encryption method: Open >>
None / WEP Share >> None / WEP WPA >> AES / TKIP WPA2 >> AES / TKIP WPA-PSK >> AES / TKIP
WPA2-PSK >> AES / TKIP
Golden Key Index: Key 1 ~ Key
4
Golden Key Input:
Certification Method:
Enable 802.1x
EAP Type (None / TLS / TTLS /
PEAP)
WFT-20 User's Manual
11a. Connection Configuration
39
Certification List
Login Name Password
IP Reference Setting
Use DHCP (Dynamic Host Configuration Protocol) Use Current IP Address (Use fixed IP address for setting) Contains IP Network Address, Subnet Mask, Default Gateway
Relevant setup of Ping
Base Station’s IP address
After the connecting is completed, WFT-20 will display real Data Rate and Strength. As settings are correct, WFT­20 will immediately show the responses that it pings on base stations and the real throughput.
WFT-20 User's Manual
11a. Connection Configuration
40
The steps of roaming test: a. Select the preferred SSID
(Attention: All APs are requested to have the same SSID.)
b. When a SSID is selected, there goes a page that
represents the signal strength and channel of the base stations receiving the same SSID according to the current location.
c. Based on the mobile location, users observe the signal
strength of base station to judge whether the connection will be interrupted as removing, or not.
Po or
Poor for Roaming
Go od
Good for Roaming
WFT-20 User's Manual
12. Roaming Test
41
This function contains 6 auxiliary tools:
1. Free Space Loss
2. Power Meter
3. Distance Calculation
4. AP Detector
5. Client Finder
6. mW / dBm Conversions
WFT-20 User's Manual
13. Auxiliary Tool
42
This table offers the calculation of decline in power under different frequency and range
WFT-20 User's Manual
13a. Free Space Loss
43
The tool is designed to measure the real output power of base station, to our suggest, connect a 20 dB attenuator at least before measuring to avoid the damage to WFT-20.
Reminder: A 20dB attenuator is recommended to be connected and used before
the
measurement is started.
A P
Attenuat
or
Warning: It will cause the damage to WFT-20 if an attenuator is not used before measuring the output power.
WFT-20 User's Manual
13b. Output Power Measurement
44
Assign different modulation, data rate, output power and antenna gain to calculate the maximum range (effective distance) between the 2 base stations.
WFT-20 User's Manual
13c. Distance Calculation
45
This function assists users to quickly find the base station. Entering this page, WFT-20 will list out all base stations, users need to select the preferred one and click “Searching” button to detect. The closer WFT-20 approaches to the preferred base station, the hurrier the sound from WFT-20 will be.
Please click “STOP” button to suspend the detecting if need.
WFT-20 User's Manual
13d. AP Detector
46
This function makes users search the target client quickly. User have to key in the MAC address of the target client and then click “ Searching” button, WFT-20 will find this target client and reveal the results on the page below, including the status, the MAC address of base station, the signal strength, the radio mode, the modulation and total packets.
Please click “STOP” button to suspend the detecting if need.
WFT-20 User's Manual
13e. Client Finder
47
This function provides an instant conversion of mW into dBm or dBm into mW.
WFT-20 User's Manual
13f. mW / dBm Conversion
48
[Quality Analysis of Wireless Environment]
WFT-20 User's Manual
14. Sample Applications
49
[Detecting of the Base Station in the environment]
WFT-20 User's Manual
14. Sample Applications
50
[Detecting of illegal base station]
WFT-20 User's Manual
14. Sample Applications
51
Bridge + Antenna
WFT-20 +
Antenna
[Test of Bridging]
WFT-20 User's Manual
14. Sample Applications
52
Fixed
distance
Alteration to the antennas.
[Test of Antenna Efficiency]
WFT-20 User's Manual
14. Sample Applications
53
a. Notice before starting WFT-20
@ Charge the battery at least 6 hours before using WFT-20
which contains 2 rechargeable Li-ION batteries. One of them is the main battery that supplies electric power to whole system, another is the backup battery that provides necessary electric power for maintaining the data in Flash ROM. Both the batteries will charge at the same time while the system is charging.
When the charging light turn green, it means the
batteries are finished charging.
b. How to handle the situation of no display as booting and a
red light shows up above of screen?
@ This might be the problem of starting electric power. Please push F1+F4+Power button to restart the system several times until WFT-20 is booted correctly.
WFT-20 User's Manual
15. Trouble Shooting
c. How to deal with the problem of LED light above screen
turns red?
@ This indicates the electric capacity of main battery is in a
weak position. Please charge or replace the battery as soon as possible to keep the work normally executed.
d. How to solve the problem that a blue page shows up while
the testing page suddenly disappears as using?
@ This is caused by wrong execution of programs. Please
push F1+F4 button to restart WFT-20, or execute the step of power off / power on.
54
e. No messages can be found when scanning the base
stations :
@ This often occurs due to a repeated scanning within a
short period. It takes 10 seconds for WFT-20 to make a complete scan, but a hurried scan could probably enforce WFT-20 to continue the next scan without ending previous one, then a programming error might happen. Please restart WFT-20 by the step of power off / power on.
WFT-20 User's Manual
15. Trouble Shooting
f. Upgrading is unavailable
@ Possibilities
1. The firmware has not been copied to the root directory
of U disk.
2. Use other USB Flash Disk instead of the U disk attached
by WFT-20.
3. USB Host cable is broken or connected incorrectly.
4. An error happens to the file name. The correct file name
should be
Wirelesstester.bin
55
WFT-20 User's Manual
15. Trouble Shooting
g. The files done with WFT-20 cannot be exported to the U
Disk (Some possibilities):
@ 1. The Disk included in the package should be used in the first place
instead of other USB flash disk.
2. The USB host cable may be broken or has not been
installed properly.
3. The U Disk memory is full, in order to preserve more
space, some of
the files in the disk should be cleaned and removed,
after that please try to
export the files again.
h. Data can not be exported
@ Possibilities
1. Use other USB Flash Disk instead of the U Disk
attached by WFT-20.
2. USB Host Cable is broken or unconnected correctly.
3. The memory of the U Disk is full, some of files should
be cleaned out,
then export the data again
56
WFT-20 User's Manual
15. Trouble Shooting
i. How to clear up the problem of firmware’s upgrading
incomplete?
@ This is resulted from the insufficient power. Please charge the battery with AC adapter and restart WFT-20 again, if it still cannot be booted, push F1+F4 to restart once more. If it doesn’t work still, please contact the dealer to send WFT-20 back to the manufactory.
NOTICE: To our strong suggestion, please charge WFT-20 with AC adapter all the time during the upgrading procedure.
57
THANK YOU FOR CHOOSING
SHINEWAY TECHNOLOGIES !
Shineway Technologies (China), Inc.
Address: Floor 5, Office Building, No.14 Huayuan North Rd.
Haidian District, Beijing 100083, P.R.China
Tel: +86-10-51551122 Fax: +86-10-62386994
Email: support@shinewaytech.com
Website: www.shinewaytech.com
WFT-20 User's Manual
Loading...
