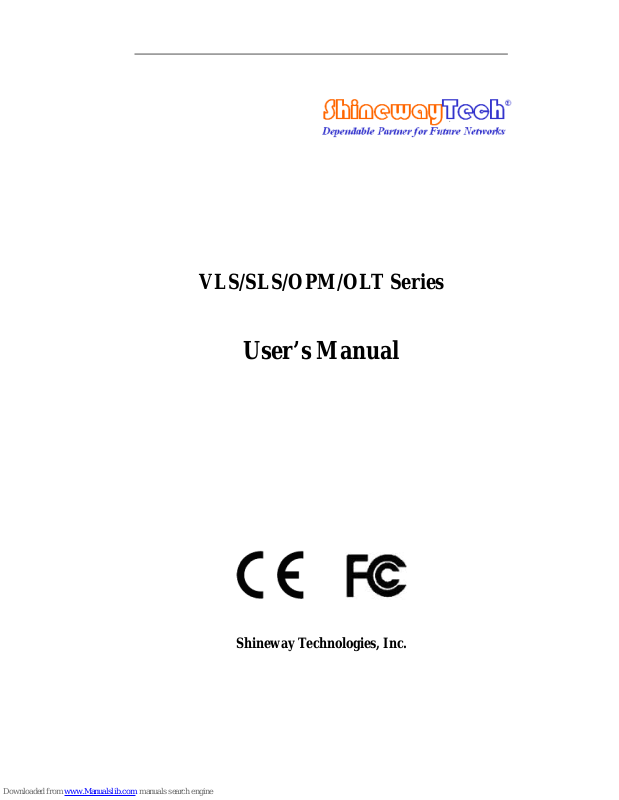

ShinewayTech VLS Series, SLS Seriesl OLT Series User Manual

VLS/SLS/OPM/OLT Series

User’s Manual

Shineway Technologies, Inc.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - i -

Safety Information

Safety Terms in This Manual

“WARNING” identifies procedures or practices that if not followed
could result in serious injury.

“CAUTION” identifies any procedure or practice that if not followed
could result in damage to the instrument or serious injury.

“NOTE” identifies information that may be beneficial during the use
and maintenance of the instrument.

SLS/VLS/OLT series is a laser instrument. Users should always avoid looking directly
into the optic output port. And the use of microscope or magnifier should also be avoided,
for the use of such devices can focus a highly intense beam onto the retina, which may
result in permanent eye damage.

Battery: Battery for all palm optical fiber testers is a 9V lamination alkaline battery.

Please make sure to use the right type of battery.

Battery Power: Do not expose batteries to fire or intense heat. Do not open or mutilate

batteries. Avoid touching the electrolyte in the batteries, which is corrosive and may cause
injuries to eyes, skin or damage to clothes.

External Power: All hand-held instruments from our company support external power.

Power requirements: 9V DC@250mA. Power adapter is optional fitting.

Laser Radiation: To avoid serious eye injury, never look directly into the optic

outputs of fiber optic network equipment, test equipment, patch cords, or test jumpers.

 Always avoid looking directly into the optic output port when the instrument is

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - ii -

working.

 Always place protective dust caps on the detector port when the instru ment is

not being used.

 Always avoid looking directly at the unconnected end of optic fiber in testing

and make the unconnected end pointing at a non-reflective object, if possible.

Protective Sleeve: When the instrument is not in use, don’t remove the rubber

protective sleeve so as to avoid possible damage in case of a fall or collision.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - iii -

Table of Contents

SAFETY INFORMATION ................................................................................. I

SAFETY TERMS IN THIS MANUAL ......................................................................................... I

1. GENERAL INFORMATION ......................................................................... 1

1.1 SCOPE OF THIS MANUAL ................................................................................................ 1

1.2

UNP ACKING AND INSPECTION ........................................................................................ 1

1.3

INTRODUCTION AND FEATURES ...................................................................................... 2

1.3.1V i si ble Laser Source ................................................................................................ 2

1.3.2 Stabilized Laser Source .......................................................................................... 3

1.3.3 Optical Power Meter .............................................................................................. 3

1.3.4 Optical Loss T ester ................................................................................................. 4

2. BASIC OPERATION ...................................................................................... 5

2.1FOREWORD ..................................................................................................................... 5

2.2

BATTERY INSTALLATION AND REPLACEMENT ................................................................ 5

2.3

TURN OFF AUTO-OFF FUNCTION .................................................................................... 5

2.4

CLEANING OF CONNECTORS .......................................................................................... 5

2.5

LCD OF LASER SOURCE AND OPTICAL POWER METER ................................................. 6

2.6

LCD OF OPTICAL LOSS TESTER ..................................................................................... 7

2.7

PROHIBITION OF USE OF CALIBRATION KNOB ................................................................ 7

3. SPECIFIC OPERATION ............................................................................... 9

3.1 VISIBLE LASER SOURCE ................................................................................................. 9

3.1.1 Connectors .............................................................................................................. 9

3.1.2 Keypad Functions ................................................................................................. 10

3.1.3 Indicator Functions .............................................................................................. 10

3.2

SLS-10 SINGLE-WAVELENGTH LASER SOURCES ......................................................... 11

3.2.1 Connectors ............................................................................................................ 11

3.2.2 Keypad Functions ................................................................................................. 11

3.3

SLS-21 DUAL-WAVELENGTH/SLS-25 TRIPLEX-WAVELENGTH LASER SOURCES .......... 13

3.3.1 Connectors ............................................................................................................ 13

3.3.2 Keypad Functions ................................................................................................. 13

3.4

OPM-10/OPM-15 OPTICAL POWER METER ................................................................ 15

3.4.1 Connectors ............................................................................................................ 15

3.4.2 Keypad Functions ................................................................................................. 16

3.5

OPM-21/OPM-25 OPTICAL POWER METER ................................................................ 17

3.5.1 Connectors ............................................................................................................ 17

3.5.2 Keypad Functions ................................................................................................. 17

3.6

OPTICAL LOSS METER .................................................................................................. 19

3.6.1 Connectors ............................................................................................................ 19

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - iv -

3.6.2 Keypad Functions ................................................................................................. 19

4. DATA UPLOAD APPLICATION SYSTEM ............................................... 21

4.1 INTRODUCTION ............................................................................................................ 21

4.2

SOFTWARE INSTALLATION ............................................................................................ 21

4.2.1 Computer System Requirement ............................................................................. 21

4.2.2 Install and Run Data Upload Application System ................................................ 21

4.3

SOFTWARE OPERATION ................................................................................................ 22

4.3.1 GUI ....................................................................................................................... 22

4.3.2 Menu and Tool Bar ............................................................................................... 22

4.3.3 Upload Records .................................................................................................... 23

4.3.4 Save Records ......................................................................................................... 23

4.3.5 Browse Saved Records .......................................................................................... 24

4.3.6 Print Saved Records ............................................................................................. 25

4.3.7 Exit ........................................................................................................................ 25

5. TYPICAL APPLICATIONS ......................................................................... 27

5.1 CONNECTOR INSERTION LOSS ...................................................................................... 27

5.2

LINK LOSS TESTING ..................................................................................................... 29

5.3

LOCA TE A BREAK WITHIN A FIBER BY VISIBLE LASER SOURCE ................................... 32

5.4

LOCA TE A FAILURE OF CONNECTORS WITH VISIBLE LASER SOURCE ........................... 33

5.5

TEST SINGLE-MODE FIBER LOSS WITH DUAL-WAVELENGTH LASER SOURCE .............. 34

5.6

LOOP LOSS TESTING BY OPTICAL LOSS TESTER .......................................................... 36

6. MAINTENANCE AND CALIBRATION .................................................... 39

6.1 BATTERY REPLACEMENT .............................................................................................. 39

6.2

CLEANING OF CONNECTORS ........................................................................................ 39

6.3

AUTO ZEROING ............................................................................................................ 39

6.4

CALIBRATION REQUIREMENTS ..................................................................................... 39

7 WARRANTY INFORMA TION .................................................................... 40

7.1 TERMS OF WARRANTY ................................................................................................. 40

7.2

EXCLUSIONS ................................................................................................................. 40

7.3

WARRANTY REGISTRATION .......................................................................................... 40

7.4

RETURNING EQUIPMENT .............................................................................................. 40

7.5

CONTACTING CUSTOMER SERVICE ............................................................................... 41

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - v -

Figure List

F

IGURE1. LCD OF LASER SOURCE AND OPTCIAL POWER METER .............................................. 6

F

IGURE2. LCD OF OPTICAL LOSS TESTER ............................................................................... 7

F

IGURE3. POSITION OF CALIBRATION KNOB ............................................................................. 8

F

IGURE4. PANEL OF VLS ........................................................................................................... 9

F

IGURE5. PANEL OF SLS-10 ................................................................................................. 11

F

IGURE6. PANEL OF SLS-21 / SLS-25 ................................................................................. 13

F

IGURE7. PANEL OF OPM-10 /OPM-15 ............................................................................... 15

F

IGURE8. PANEL OF OPM-21/OPM-25 ................................................................................ 17

F

IGURE9. PANEL OF OLT ...................................................................................................... 19

F

IGURE10. GUI OF OPM DATA UPLOAD APPLICATION SYSTEM .................................. 22

F

IGURE11. FILE MENU ........................................................................................................... 23

F

IGURE12. GUI OF UPLOADING RECORDS ............................................................................. 23

F

IGURE13. GUI OF SAVING RECORDS .................................................................................... 24

F

IGURE14. GUI OF OPENING SAVED RECORDS ...................................................................... 24

F

IGURE15. GUI OF BROWSING SAVED RECORDS ................................................................... 25

F

IGURE16. GUI OF PRINTING SAVED RECORDS ..................................................................... 25

F

IGURE17. INITIAL CONNECTION OF CONNECTOR INSERSION LOSS TESTING ......................... 27

F

IGURE18. SAVE REFERENCE POWER VALUE .......................................................................... 28

F

IGURE19. CONNECTOR INSERTION LOSS TESTING ................................................................ 29

F

IGURE20. CONNECTION OF LINK LOSS TESTING ................................................................... 30

F

IGURE21. FORWARD LOSS TESTING ...................................................................................... 31

F

IGURE22. REVERSE LOSS TESTING ....................................................................................... 32

F

IGURE23. APPLICATION OF VISIBL E LA SER SOURCE ............................................................. 33

F

IGURE24. SKETCH MAP OF OPTICAL JUMPERE ...................................................................... 34

F

IGURE25. SKETCH MAP OF CONNECTION .............................................................................. 35

F

IGURE26. OPTIC FIBER LOSS TESTING .................................................................................. 36

F

IGURE 27. TESTING CONNECTION OF OPTICAL LOOP LOSS TESTER ..................................... 37

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 1 -

1. General Information

1.1 Scope of This Manual

Thank you for purchasing ShinewayTech instruments. Please read this manual carefully
before using any of ShinewayTech



series fiber-optic instruments. Always observe the
warnings and cautions appearing throughout this manual, for any inobservance may cause
body injuries or damage to the instrument.

This manual contains the information necessary for proper operation and maintenance

of ShinewayTech



series palm optical fiber testers, troubl eshooting instructions as well as

information regarding obtaining services.

All ShinewayTech series hand-held fiber optical instruments are carefully
assembled and undergo a rigorous mechanical, electrical, and optical inspection prior to
shipment. Beside the instrument, the package should also include a 9V alkaline battery, a
power adapter (optional), an optical jumper cable (optional), a flange (FC/PC flange if no
special requirements) and this users’ manual etc.. For detailed information, refer to the
packing list.

Upon receiving the instrument, please check for any obvious signs of physical
damage that may have occurred during shipment. Report any damage to the shipping agent
or the representative of Shineway Technologies Inc. immediately. Retain the original
packing mate.

1.2 Unpacking and Inspection

This instrument has been carefully packed in accordance with standard shipping
procedures. Examine the instrument for damage that may have occurred during shipment. If
you find any damage or the instrument is not working, or if any of the following items are
not included, please contact your representative of Shineway Technologies, Inc.

If necessary, you may contact the Representative of Shineway Technologies or directly

contact Shineway Technologies, Inc via this email:

[e-mail]

To return the instrument in the case of repair, calibration or other maintenance, please note
the following:

 Be sure to pack the instrument with soft cushion like Polyethylene, so as to

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 2 -

protect the shell of the instrument.

 Please use the original hard packing box. If use other packing material, please

ensure at least 3 cm soft material around the instrument.

 Be sure to correctly fill out and return the warranty registration card which

should include the following information: company name, postal address,
contact, phone number, email address and problem description.

 Be sure to seal the packing box.
 Be sure to ship to your representative or the agent of the Company in a reliable

way.

1.3 Introduction and Features

ShinewayTech palm optical instruments feature compact, light weight, easy to use,
easy to carry, power switch between internal battery and external power. According to the
ergonomics, the series are designed to fully embody the user’s convenience with friendly
graphical interface. The series are shockproof and moisture-proof, suitable for long time
field operation.

1.3.1Visible Laser Source

The VLS series is compact, easy-to-use visible red laser source for accurately
locating breaks and tight bends in optic fibers. The VLS generates red laser that escapes
from bare optic fiber or optic fiber with tight bends, breaks or bad connectors, therefore
the instrument can be used to identify failures in optical jumper cable, jumper board, and
bad connectors. Besides, it is also regarded as a perfect complementary tool for OTDR,
due to its capability of finding breaks in the blink area of OTDR.

Battery of VLS series is 9V alkaline battery. Battery state can be displayed on LED.
The low volume battery-state indicates replacing battery for the power is low. VLS has
function of auto power off. If auto off is on, the instrument will auto power off after 5
minutes of idleness. This function can be canceled by control key of panel.

Features:

 Pocketsize, easy to use
 Fast response, no warm up
 Damp, dust, shock proof design
 Dual-way powering system including a 9V battery and an optional AC adapter
 Auto off function conserving battery life
 Interchangeable fiber optic connectors (FC/PC, or optional SC,ST)

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 3 -

1.3.2 Stabilized Laser Source

The SLS series have three models: SLS-10 Single-wavelength, SLS-21

Dual-wavelength, and SLS-25 Triplex-wavelength. The SLS series are powerful, pocketsize,
lightweight, easy-to-use stabilized laser sources with dual-way power supply. Based on
advanced technologies of precision laser control, the SLS models have been designed to
provide high capability of laser source for engineering, R&D and equipment manufactures,
and being favored for its quality, value, reliability and safety. Designed according to the
ergonomics, the SLS series also have auto off function. Inside MPU and liner amplification
technology ensures long time accuracy.

Together with optical power meter, the SLS series can measure attenuation of

single-mode and multiple-mode optic fiber link, and can be also used for installation and
maintenance of single-mode SONET/SDH, Cable TV, ATM and other optic fiber ring.

Features:

 Pocketsize, easy to use
 Fast response, no warm up
 Damp, dust and shock proof design
 Modulation in CW and modulated frequencies
 Single connector, dual wavelength output
 Single/dual/triplex wavelength selectable
 Interchangeable fiber optic connectors (FC/PC, or optional SC,ST)
 High stabilized output of optical signal
 Dual-way powering system including a 9V battery and an optional AC adapter
 Auto off function conserving battery life

1.3.3 Optical Power Meter

The OPM series is a high-performance palm optical power meter for optic fiber

network, which features field speed test, and is favored by customers for its quality, value,
liability, accuracy and safety.

The series is designed for installation, verification and maintenance with advanced

precise laser detection and processing technology. The OPM series features by small size,
large LCD display, damp and shock proof design, dual-way powering system and support
for single-mode/multi-mode testing. The OPM series is ideal for both laboratory and field
applications by using concise function keys to implement quick, high accuracy testing.

There are five series of OPM, which are OPM-10, OPM-15, OPM-21, OPM-25. The

wavelength range of OPM series covers from 850nm to 1625 nm, and the measurement
power range is from +27dBm to -70dBm. Besides, OPM-21/25 has a large memory capacity
of 3000 records and can transfer the measurement data to a PC for editing and printing,
which make data management faster, more convenient, and more accurate.

Under the situation of laboratory, LANs, WANs and CATV as well as long-distance

optical network, the Optical Power Meters, together with ShinewayTech’s stabilized laser

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 4 -

sources, can be used to identify optic fiber, measure optical attenuation, verify continuity
and evaluate fiber link transmission quality

Features:

 Pocketsize, large easy to read LCD display, easy to use

 Fast response, no warm up
 Accurate measurement multi-wavelengths through a single connector
 Direct loss measurement units in dB(only available for OPM-15/21/25)
 Absolute power measurement units in dBm or µW
 Wide testing range
 Dual-way powering system including a 9V battery and an optional AC adapter
 Damp, dust and shock proof design
 Large memory capacity of 3000 records(only for OPM-21 and above)
 PC software available for testing data collection and report generation (only

available for OPM-21 and above)

 Auto off function conserving battery life

1.3.4 Optical Loss T ester

The OLT series is a comprehensive testing instrument for optic fiber network, which
features by palm size, intelligentized, multi-function and is specially designed for the
current need in optic fiber installation, verification and daily maintenance. The OLT series
is compact, light-weighted, easy to carry, powerful, dual-way power supply, and has high
performance-price rate. According to the ergonomics, the series are designed to fully
embody the user’s convenience with friendly graphical interface. Inside MPU and liner

amplification technology ensures long time accuracy.

OLT series is an integration of laser source module and power meter module, which

can perform loop testing of optic fiber network conveniently

Features:

 Pocketsize, large easy to read LCD display, easy to use
 Multi-wavelength measurement
 Direct loss measurement units in dB
 Absolute power measurement units in dBm or µW
 Modulation in CW and modulated frequencies
 270/1K/2K Hz Modulated frequencies
 Single optic output, dual-wavelength output
 Dual-way powering system including a 9V battery and an optional AC adapter
 Low power indicator
 Auto off conserving battery life

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 5 -

2. Basic Operation

2.1Foreword

This part introduces the basic operations of the ShinewayTech series hand-held
optical testing instruments. Specific operations of each type are elaborated in “Specific
Operation”, chapter 4 of this manual. Please read this manual carefully for optimal operation.
Should you encounter any problems during operation, you are welcome to contact the
technical staff of our company or agents

2.2 Battery Installation and Replacement

ShinewayTech series palm optic al instruments use an alkaline battery. Before use of

the instrument, make sure the battery is correctly installed.

When the battery power is low, low battery indicator is shown on LCD. As long as
there is any character on LCD, the instrument can still be in operation. However, when LCD
turns dark, the output power becomes unstable, therefore measured power value will not be
accurate and in consequence, the measurement accuracy is degraded.

2.3 T urn off Auto-off Function

With default setting, the Auto-off function of ShinewayTech series palm optical fiber
tester is on, for this can conserve power and battery life. Auto-off function needs to be
turned off, when long-time test is performed. Please follow the following procedures.

T urn off Auto-off:

 VLS: when power on the instrument, hold[On/Off] until the indicator light turns
green to disable Auto-off.

 SLS, OPM and OLT：when power on the instrument, hold[On/Off] until letter “P”

is displayed on LCD to disable Auto-off. In the coming measurement, “AUTO OFF” will
not be displayed on LCD. With the default setting, the series will c onserve battery life by
automatically turning itself off if no keys have been pressed for approximately 5 minutes.

 With default setting, the Auto-off function is on after each power on.

2.4 Cleaning of Connectors

Please observe the following safety instructions when cleaning this instrument:

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 6 -

 Make sure the instrument is power off when cleaning.

 Any inobservance may cause hazardous laser radiation.
 Make sure laser source is off, when cleaning any optical output port.
 When the instrument is working, under no conditions should the operator try to

look at the end of optical output facilities. Laser radiation is invisible, but it can
severely harm people’s eyesight.

 Be careful of electric shock. Make sure to separate the instrument with electric

power supply. Always use dry or slightly damp cloth to clean the outside of the
instrument. And cleaning of the inside of the instrument should always be
avoided.

 Do not attach any fittings or alter the instrument at discretion.
 For maintenance, please always refer to qualified and certificated professionals.

In order to keep the accuracy of the instrument, proper cleaning should be performed
before conducting any test procedures. Use optic fiber cleaning rod to wipe the connectors
softly.

If without no proper maintenance, it may cause performance degradation as follows:

 An increase in distance measurement errors;

 Linear errors;

 Attenuation of optical power;

 Received optical power value exceeds the normal range of measurement.

2.5 LCD of Laser Source and Optical Power Meter

dBm

AUTO OFF

nm

270Hz

1KHz

2KHz

①
②

③

④

⑤

FIGURE1. LCD OF LASER SOURCE AND OPTCIAL POWER METER

① : Current wavelength
② : Current modulated frequency
③ : Low battery power indicator

④ : Auto Of f indicator
⑤ : Power value of current wavelength

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 7 -

2.6 LCD of Optical Loss Tester

Ref

Hz

nm

LS

LT

dBm

uW

uW

dBm

PM

Auto Off

Hz

nm

nm

①
②
③
④

⑤

⑥
⑦

⑧

⑨

FIGURE2. LCD OF OPTICAL LOSS TESTER

① : LT indicates the current operation is link loss testing.
② : PM indicates the current operation is switched to optical power meter module.
③ : LS indicates the current operation is switched to laser source module.
④ : AUTO OFF indicates Auto-off function is on.
⑤ : Low battery power indicator
⑥ : Wavelength or Modulated Frequency
⑦ : Output power of laser source
⑧ : Current wavelength or frequency under mode of power meter module
⑨ : Tested Power value under mode of power meter module

2.7 Prohibition of Use of Calibration Knob

Users are strongly prohibited to use this knob, which is designed for
calibration. Any use of this knob without technical staff’s help may result in system
paralysis. Shineway Technologies will not be responsible for any damage and loss resulting
from this.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 8 -

F

IGURE3. POSITION OF CALIBRATION KNOB

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 9 -

3. Specific Operation

3.1 V isible Laser Source

①

②

Stabilized Laser Source

on/off

λ

ShinewayTech

®

uW

dBm

CW

MOD

CW
Mod

Visible Laser Source

Power On

Low Batt

Mod

Ext. Power

ShinewayTech

®

On
Off

F

IGURE4. PANEL OF VLS

3.1.1 Connectors

① Optical output

FC/PC(interchangeable ST,SC)

② External power jack

Power jack requirement: 9V DC@250mA.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 10 -

3.1.2 Keypad Functions

[On/Off] Power on and off the instrument.

]CW/Mod] P ress to switch between Continuous Wave and Modulated Frequency; After

power on, the default setting of the instrument is Continuous Wave; Press this key to switch
to 1Hz Modulated Frequency.

3.1.3 Indicator Functions

Power On: Power on indicator: 1. Default setting—Auto-off function is on(Red);

VLS-20 will automatically turn off if no key is pressed for 5 minutes. 2. Auto-off function is
off (green). Hold[On/Off] till the indicator light turns red to activate Auto-off function.

Low Batt: Low battery power indicator: When the battery power is too low, the light

turns red to remind users to replace battery.

Mod: Modulated Frequency indicator: When output of visible laser source is 1Hz

signal, the indicator turns green.

Ext Power: External power indicator: The indicator turns green when using power

adapter.

In the process of measurement, please always avoid looking directly into open optic

fiber, optical output, optical connectors or other laser source, for it might cause eye injuries.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 11 -

3.2 SLS-10 Single-Wavelength Laser Sources

Stabilized Laser Source

ShinewayTech

®

②

①

uW

dBm

CW

MOD

On
Off

F

IGURE5. PANEL OF SLS-10

3.2.1 Connectors

① Optical output

FC/PC (interchangeable ST,SC) connectors

② External power jack

Power jack requirement: 9V DC@250mA.

3.2.2 Keypad Functions

[On/Off]Power on and off the instrument. With default setting, SLS-10 will

automatically turn off if no key is pressed for 5 minutes.

[µW/dBm]Press this key to switch between µW and dBm unit; the current optical

power will be displayed on LCD.

[CW/Mod]Press this key to switch output of SLS-10. SLS-10 provides two types of

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 12 -

wave output: generally, continuous wave(CW) will be set to work with the measurement of
optical power or quality of optical communication; Modulated Frequency (Mod) is set
mainly for the purpose of identification of optic fiber. Wave output type in use will be
displayed on LCD.

[

]: External power supply indicator. When the indicator is on, the instrument is using

external power supply.

In the process of measurement, please always avoid looking directly into open optic fiber,
optical output, optical connectors or other laser source, for it might cause eye injuries.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 13 -

3.3 SLS-21 Dual-wavelength/SLS-25 Triplex-wavelength
Laser Sources

Stabilized Laser Source

λ

ShinewayTech

®

uW

dBm

CW

MOD

①

②

Stabilized Laser Source

λ

ShinewayTech

®

uW

dBm

CW

MOD

①

②

On
Off

On
Off

FIGURE6. PANEL OF SLS-21 / SLS-25

3.3.1 Connectors

① Optical output

FC/PC (interchangeable ST, SC) connectors

② External power jack

Power jack requirement: 9V DC@250mA.

3.3.2 Keypad Functions

[On/Off] P ower on and off the instrument. With default setting, SLS-21/SLS-25 will

automatically turn off if no key is pressed for 5 minutes.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 14 -

[µW/dBm] Press this key to switch between µW and dBm unit; the current optical

power will be displayed on LCD.

[CW/Mod] Press this key to switch output of SLS-21/SLS-25. SLS-21/SLS-25

provides two types of wave output: generally, Continuous Wave(CW)will be set to work
with the measurement of optical power or quality of optical communication; Modulated
Frequency (Mod)is set mainl y for the purpose of identification of optic fiber. Wave output
type in use will be displayed on LCD.

[λ] Press this key to select the desired wavelength. The current wavelength will be

displayed on LCD.

[

] External power supply indicator. When the indicator is on, the instrument is using

external power supply.

 Two optical outputs for triplex wavelength laser source, and single optical output

for dual wavelength laser source.

 In the process of measurement, please always avoid looking directly into open

optic fiber, optical output, optical connectors or other laser source, for it might
cause eye injuries.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 15 -

3.4 OPM-10/OPM-15 Optical Power Meter

OPM-15 is basically OPM-10 with relative measurement function. The following

operation will only take OPM-15 as an example.

Optical Power Meter

λ

ShinewayTech

®

uW

dBm

Zero

Optical Power Meter

λ

ShinewayTech

®

dB

dBm

Zero

uW

Ref

Set

①

②

①

②

On
Off

On
Off

F

IGURE7. PANEL OF OPM-10 /OPM-15

3.4.1 Connectors

① Optical output

FC/PC(interchangeable ST,SC) connectors

② External power jack

Power jack requirement: 9V DC@250mA.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 16 -

3.4.2 Keypad Functions

[On/Off] Power on and off the instrument. With default setting, OPM-10/OPM-15 will

automatically turn off if no key is pressed for 5 minutes.

[dB/dBm] For OPM-15, press this key to switch the measurement mode between

absolute power (dBm) and relative loss (dB). Hold the key until "HELD" is displayed
(approximately several seconds) switches to µW mode.

[Zero] Press this key, OPM-10/OPM-15 will start automatic zeroing.
[Ref] Press this key to display the reference value stored in memory. Hold the key

down until "HELD" appears in the display (approximately several seconds), and store this
value in internal memory as the reference power level.

When OPM-15 is switched to dB

mode, LCD displays the difference in dB between the reference level and the current input
signal.

[λ] Press the key to select the wavelength, which must be consistent with the

wavelength of the optic fiber to be measured.

[

External Power Supply Indicator] When the indicator is on, the instrument is

using external power supply.

For OPM-10, there is no function of relative measurement, then[µW/dBm] becomes

the key to switch between units of µW and dBm.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 17 -

3.5 OPM-21/OPM-25 Optical Power Meter

Optical Power Meter

On
Off

λ

ShinewayTech

®

dB

dBm

Ref

Recall

Store

RS232

Clear

uW Set

②

①

③

F

IGURE8. PANEL OF OPM-21/OPM-25

3.5.1 Connectors

① Optical output

FC/PC(interchangeable ST, SC)connectors

② External power jack

Power jack requirement: 9V DC@250mA.

③ Data port

RS-232 serial port. Use PC data analysis software to upload saved data in the
instrument to a PC through this port.

3.5.2 Keypad Functions

[dB/dBm] For OPM-21/OPM-25, press this key to switch the measurement mode

between absolute power (dBm) and relative loss (dB). Hold the key until "HELD" is

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 18 -

displayed (approximately several seconds) switches to µW mode.

[Ref] Press this key to display the reference value stored in memory. Hold the key

down until "HELD" appears in the display (approximately several seconds), and store this
value in internal memory as the reference power level.

When OPM-21/OPM-25 is switched

to dB mode, LCD displays the difference in dB between the reference level and the current
input signal.

[Store] Press this key to save the current measurement under different wavelength

categories and flashes the location number. The OPM-21/OPM-25 stores 500 measurements
for each wavelength.

[Recall] Press the key to enter the "Recall mode" to allow viewing, editing, and

transferring of stored measurements. Hold the key for several seconds until "HELD"
displays. Then the stored data is transferred to a PC via the RS-232 serial port (The supplied
Data Collection Software need to be installed in the PC).

[▲and▼] After pressing Recall, use the ▲ and ▼ keys to browse the stored data in the

memory. Holding ▲and▼ together can start auto zeroing.

[On/Off] Power on and off the instrument. With default setting, OPM-21/OPM-2

5 will

automatically turn off if no key is pressed for 5 minutes.

[λ] Press the key to select the wavelength, which must be consistent with the

wavelength of the optic fiber to be measured.

[Clear] Hold the Store & Recall keys down together until "HELD" displays to clear all

stored data at the currently selected wavelength

[

] External power supply indicator. When the indicator is on, the instrument is using

external power supply.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 19 -

3.6 Optical Loss Meter

Optical Loss Tester

On
Off

λ

ShinewayTech

®

set

Ref

LS On

CW/MOD

Fun

Exit.Power

Zero

Loss

dB

dBm

uW

②

①

F

IGURE9. PANEL OF OLT

3.6.1 Connectors

① Optical output

FC/PC(interchangeable ST, SC) connectors
External power jack: 9V DC@250mA.

3.6.2 Keypad Functions

[On/Off] Power on and off the instrument. With default setting, OLT-20 will

automatically turn off if no key is pressed for 5 minutes.

[Fun] Press to switch between panel of OLT-20 laser source and optical power meter.

The default panel is optical power meter.

[λ] Key to selec t wavelength. After power on, the default set is optical power meter, so

the key is used to select wavelength of optical power meter. Press[Fun] to s witch to laser

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 20 -

source, and the key is used to select wavelength of laser source.

[dB/dBm] For OLT-20, press this key to switch the measurement mode between

absolute power (dBm) and relative loss (dB). Hold the key until "HELD" is displayed
(approximately several seconds) switches to µW mode.

[Ref] Press this key to display the reference value stored in memory. Hold the key

down for several seconds until "HELD" appears in the display, and store this value in
internal memory as the reference power level.

When OLT-20 is switched to dB mode, LCD

displays the difference in dB between the reference level and the current input signal.

[Loss] Key for link testing. Press this key, OLT-20 will display loss of optic fiber at

relative wavelength; Hold this key for several seconds until “HELD” displays to start
auto-zeroing.

[Ls On] Key to activate laser source. Press to activate laser source. Press [Fun] to

switch to LCD display of laser source.

[CW/Mod] Press the key when laser source is on, OLT-20 will switch the mode of

optical power output OLT-20 provides two modes of wave outputs: normally, it is
Continuous Wave(CW) to work with the measurement of optical power or quality of optic
communication. Modulated frequency (Mod) is mainly used for identification of optic fiber.
Wave mode is displayed on the LCD.

[

] External Power Supply Indicator. When the indicator is on, the instrument is using

external power supply.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 21 -

4. Data Upload Application System

4.1 Introduction

OPM Upl oad Application System is a special application developed for OPM-21/25. It
allows the previously stored measurement records in the instrument to be uploaded to a PC
to be displayed, saved or printed via RS-232 serial port. Users are provided with convenient
data management function, including browsing, saving, graphic plotting, form reporting and
printing.

The data saving format is compatible with Microsoft EXCEL, therefore uses can also

use EXCEL to browse, edit and print saved records.

4.2 Software Installation

4.2.1 Computer System Requirement

Requirements for operating system and hardware:

 CPU: Pentium or above
 Operating System: Microsoft Windows 98/2000/XP
 Internal memory: 64MB or above
 Hard disk: 10 MB or above (Space available)
 CD-ROM driver: 8 speed or above
 RS-232 serial port: at least one 9 pin series port

4.2.2 Install and Run Data Upload Applicat ion System

 Start Windows98/2000/XP, if windows is running, exit all other running

applications;

 Insert the installation disk into CD-ROM;
 Double click setup.exe to install;
 Follow the instructions of installation wizard step by step till the installation

completed.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 22 -

4.3 Software Operation

4.3.1 GUI

After installation of OPM U pload Application System, click run, and the GUI will be as
follows:

F

IGURE10. GUI OF OPM DATA UPLOAD APPLICATION SYSTEM

4.3.2 Menu and Tool Bar

Click File, (as in Figure 11.), the following contents will be displayed:
Upload: First select the right COM port, then click Upload to upload records.
Open: Open a saved data file to browse the previous testing results.
Close: Close the file.
Save: Save the record currently displayed.
Print: Print the data displayed on screen via a printer
Exit: Exit the software

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 23 -

F

IGURE11. FILE MENU

4.3.3 Upload Records

Power off the instrument first, and connect it with PC via serial port cable; Then
power on the instrument, and run OPM Upload Application System software. Click
Upload menu bar under menu “File”, the uploading will start automatically. The GUI is as
in Figure 12.

FIGURE12. GUI OF UPLOADING RECORDS

4.3.4 Save Records

After uploading records, click Save menu bar under File to save the records. The GUI

is as in Figure 13. The following information needs to be filled out by users.

Date: Automatically set according to PC’s internal setting.

Time: Automatically set according to PC’s internal setting.

Cable: Fill in the number of the cable under test.

From: Fill in the starting point of the cable under test
To: Fill in the destination of the cable under test
Company: Fill in the name of the company
Operator: Fill in the name of the operator
Location: Fill in the location of fiber

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 24 -

F

IGURE13. GUI OF SAVING RECORDS

4.3.5 Browse Saved Records

Saved records can be reopened, browsed, reviewed, and edited. Click Open Menu Bar

on the File menu and select a file, and the GUI will display as follows:

F

IGURE14. GUI OF OPENING SAVED RECORDS

Press Enter, measure records will display as shown in the following figure. Users can
browse the records via mouse clicking. To close opened file, click Close menu bar on the
File menu.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 25 -

F

IGURE15. GUI OF BROWSING SAVED RECORDS

4.3.6 Print Saved Records

After uploading records or opening a saved record file, user can print the records via a

printer, as shown in Figure16.

F

IGURE16. GUI OF PRINTING SAVED RECORDS

4.3.7 Exit

Click the Exit menu bar under the “File” menu to terminate the application.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 26 -

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 27 -

5. Typical Applications

This section will discuss the use of ShinewayTech instruments. We hope this would

be beneficial to your operation.

Please read the cautions and notes carefully before carrying out actual measurement.

5.1 Connector Insertion Loss

To measure the insertion loss of a connector, a stabilized laser source and an optical
power meter (with relative measurement function) are needed. Please follow the procedure
described below:

1. Initialization: Connect the SLS series laser source to the OPM series optical power

meter using a suitable optical jumper cable with a length of 6-9 feet (2 to 3 meters) to
measure the actual optical power of stabilized laser source, as shown in Figure17.

Stabilized Laser Source

λ

ShinewayTech

®

uW

dBm

CW

MOD

dBm

AUTO OFF

nm

Optical Power Meter

λ

ShinewayTech

®

dB

dBm

Zero

uW

Ref

Set

dBm

AUTO OFF

nm

On
Off

On
Off

FIGURE17. INITIAL CONNECTION OF CONNECTOR INSERSIO N LOSS TESTING

2. Ch eck the instrument status: Ensure that the source is in Continuous Wave (CW)

output mode. Set the optical power to the appropriate wavelength (using the [

λ] key) and to

dBm units (using the [dB/dBm] key). Note that only under the dBm mode, the reference
power value can be set.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 28 -

3. Store the reference power value: Press the [Ref] key for several seconds until

“HELD” appears on the LCD screen, OPM-15/OPM-21/OPM-25 will set the current
measured dBm as reference value. The display should read 0.00dB, as shown in Figure 18.

Stabilized Laser Source

λ

ShinewayTech

®

uW

dBm

CW

MOD

dBm

AUTO OFF

nm

Optical Power Meter

λ

ShinewayTech

®

dB

dBm

Zero

uW

Ref

Set

dB

AUTO OFF

nm

On
Off

On
Off

F

IGURE18. SAVE REFERENCE POWER VALUE

4. Measure Connector Insertion Loss: Disconnect the optical jumper cable end from

the power meter and connect the power meter through flange. The power meter reads the
connector insertion loss as shown in Figure19.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 29 -

Optical Power Meter

λ

ShinewayTech

®

dB

dBm

Zero

uW

Ref

Set

dB

AUTO OFF

nm

F;amge

On
Off

Stabilized Laser Source

λ

ShinewayTech

®

uW

dBm

CW

MOD

dBm

AUTO OFF

nm

On
Off

F

IGURE19. CONNECTOR INSERTION LOSS TESTING

 To ensure the accuracy of measurement, optical connectors should be kept clean.

 In the process of measurement, please always avoid looking directly into open

optic fiber, optical output, optical connectors or other laser source, for it might
cause eye injuries.

 Only under the dBm mode, reference power value can be set.

5.2 Link Loss T esting

For link loss testing, a stabilized laser source and an accurate optical power meter are
needed to measure the attenuation of a single-mode or multimode link.

Please follow the following procedures:

1. If users want to make full use of the measurement function of the instruments(laser

source and power meter), then test of the output power of laser source connected to optical
jumper cable must be performed before link testing. And connect laser source and power
meter with tested optical jumper cable, as in Figure20. Power value is noted as P1.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 30 -

Stabilized Laser Source

λ

ShinewayTech

®

uW

dBm

CW

MOD

dBm

AUTO OFF

nm

Optical Power Meter

λ

ShinewayTech

®

dB

dBm

Zero

uW

Ref

Set

dBm

AUTO OFF

nm

Flange

Emitting optical jumpper Receiving optical jumper

On
Off

On
Off

P1

F

IGURE20. CONNECTION OF LINK LOSS TESTING

Note: Laser source should be working under CW mode; and power meter should be in
relevant wavelength, and the unit is dBm.

2. Connect laser sources and optical power meters to their respective patch panel ports

using the test jumpers, as shown in Figure21.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 31 -

Stabilized Laser Source

λ

ShinewayTech

®

uW

dBm

CW

MOD

dBm

AUTO OFF

nm

Optical Power Meter

λ

ShinewayTech

®

dB

dBm

Zero

uW

Ref

Se
t

dBm

AUTO OFF

nm

flange

Flange

Fiber to be tested

Emitting optical jumper Receiving optical jumper

P2

Front end

Reverse end

On
Off

On
Off

F

IGURE21. FORWARD LOSS TESTING

3. Use the formula “FORWARD L OSS (dB ) = P1 – P2”, take the dBm reading on the

power meter (P3) in step 2) and the source output power value (P1) in step 1). For example,
if P2 = -8.50dBm, and P1=-6.85dBm, then the FORWARD link loss is 1.65dB.

4. Connect laser sources and optical power meters to their respective patch panel ports

using the test jumpers, as shown in Figure22. Calculate the reverse link loss using the
formula “REVERSE LOSS (dB) = P1 – P3”.

5.Report both forward and reverse loss values.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 32 -

flangeFiber to be tested

Optical Power Meter

λ

ShinewayTech

®

dB

dBm

Zero

uW

Ref

Set

dBm

AUTO OFF

nm

Stabilized Laser Source

λ

ShinewayTech

®

uW

dBm

CW

MOD

dBm

AUTO OFF

nm

Emitting optical jumper

Receiving optical jumper

P3

Front end

Reverse end

flange

On
Off

On
Off

F

IGURE22. REVERSE LOSS TESTING

 To ensure the accuracy of measurement, optical connectors should be kept clean.

 In the process of measurement, please always avoid looking directly into open

optic fiber, optical output, optical connectors or other laser source, for it might
cause eye injuries.

5.3 Locate a Break within a Fiber by Visible Laser
Source

The VLS-20 injects visual red light into a fiber. The visible light escapes from the fiber
wherever the continuity is interrupted. A break always generates a highly visible output. If
the fiber is only under stress, a smaller effect may be produced. In general, however, if any
light is seen escaping from the fiber, it is an unmistakable sign that there is a problem that
must be repaired, as shown in Figure23.

The light in jacketed fiber is heavily attenuated; sometimes it necessary to darken the
room to see where the light is escaping from the fiber and locate the break.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 33 -

Stabilized Laser Source

on/o

ff

λ

ShinewayTe
ch

®

uW

dBm

CW

MOD

CW
Mod

Visible Laser Source

Power On
Low Batt
Mod
Ext. Power

ShineWayTech

®

On
Off

Break

F

IGURE23. APPLICATION OF VISIBL E LA SER SOURCE

 To ensure the accuracy of measurement, optical connectors should be kept clean.

 In the process of measurement, please always avoid looking directly into open

optic fiber, optical output, optical connectors or other laser source, for it might
cause eye injuries.

 When locating the breaks and escaping light, eyes should be kept away from optic

fiber for at least 30cm.

5.4 Locate a Failure of Connectors with Visible Laser
Source

Optic fiber wearing out often happens near or even inside connectors. It is not easy to
present convincing evidence for such failures. The following instructions may be of some
help.

If visible laser is injected into the optic fiber, however, in the far end, there is no visible

laser output. Normally, those failures occur.

The following can verify those problems.

Reverse the connection of the optic fiber, inject visible laser from the far end, and
visible laser will escape from the break.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 34 -

①

Optical jumper

① Connector

FIGURE24. SKETCH MAP OF OPTICAL JUMPERE

If there is failure in the connector, bend optic fiber slightly till visible laser escapes

from the optic fiber, when your finger gradually move to the far end of the fiber, slowly
bend the optic fiber till there is no light escaping. If when reaches the far end, there still is
visible laser. Then, for sure, there is a break or are breaks near the connector.

 To ensure the accuracy of measurement, optical connectors should be kept clean.

 In the process of measurement, please always avoid looking directly into open

optic fiber, optical output, optical connectors or other laser source, for it might
cause eye injuries.

 When locating the breaks and escaping light, Eyes should be kept away from optic

fiber for at least 30cm.

5.5 Test Single-mode Fiber Loss with Dual-wavelength
Laser Source

The SLS-21 is a dual-wavelength laser source designed for measurement of attenuation
of single mode optic fiber. At present, most long-distance optic fiber communication are
transmitting via 1310nm and 1550nm wavelength. Therefore, we might encounter either
wavelength in testing, in this case, dual wavelength laser source becomes very important in
testing.

Now please follow the procedures below to measure attenuation of single-mode optic

fiber.

1. Connect SLS-21 with OPM-15 (or OPM-21/OPM-25) with one at leas t 3-meter lo ng
optical jumper cable. Power on both instruments and set the wavelengths of laser source and
optical power meter both to 1310nm. Reading from the optical power meter is from

-6.5dBm to -7.25dBm in our expectation per Figure25.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 35 -

Stabilized Laser Source

λ

ShinewayTech

®

uW

dBm

CW

MOD

dBm

AUTO OFF

nm

Optical Power Meter

λ

ShinewayTech

®

dB

dBm

Zero

uW

Ref

Set

dBm

AUTO OFF

nm

flange

Emitting optical jumper Receiving optical jumper

On
Off

On
Off

F

IGURE25. SKETCH MAP OF CONNECTION

2. Press the [Ref] key on OPM for several seconds until “HELD” appears on the LCD
screen, optical power meter will set the current measured dBm as reference value. The
display should read 0.00dB.

3. Connect both ends of optic fiber to be tested with laser source and power meter

through optical jumper, as in Figure26.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 36 -

Stabilized Laser Source

λ

ShinewayTech

®

uW

dBm

CW

MOD

dBm

AUTO OFF

nm

Optical Power Meter

λ

ShinewayTech

®

dB

dBm

Zero

uW

Ref

Set

dBm

AUTO OFF

nm

Fiber to be tested

On
Off

On
Off

Emitting optical jumper

flange

Receiving optical jumper

flange

F

IGURE26. OPTIC FIBER LOSS TESTING

4. The reading on optical power meter is the loss at 1310nm wavelength of the tested
optic fiber.

5. Set the wavelengths of both laser source and power meter to 1550nm, start from step

1. all over again, and loss at 1550nm wavelength can be measured.

6. For measurement of next optic fiber, start from step 1. all over again.

 To ensure the accuracy of measurement, optical connectors should be kept clean.

 In the process of measurement, please always avoid looking directly into open

optic fiber, optical output, optical connectors or other laser source, for it might
cause eye injuries.

5.6 Loop Loss Testing by Optical Loss T ester

The OLT-20 provides loop testing function which enables fast testing of optic fiber

loss.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 37 -

1. Connect optic link to the instrument, as in Figure27.

fange

Fiber to be tested

Optical Loss Tester

On
Off

λ

ShinewayTech

®

set

Ref

LS On

CW/MOD

Fun

Exit.Power

Zero

Loss

dB

dBm

uW

Fiber to be tested

F

IGURE 27. TESTING CONNECTION OF OPTICAL LOOP LOSS TESTER

2. Press [Loss] after power on, and OLT-20 will automatically provide loss in the optic
link at 1310nm/1550nm wavelength.

 To ensure the accuracy of measurement, optical connectors should be kept clean.

 In the process of measurement, please always avoid looking directly into open

optic fiber, optical output, optical connectors or other laser source, for it might
cause eye injuries.

Notes during operation of all instruments:

 Be sure to keep connectors and butt clean which must be kept free from dirt, oils,

or other contaminants.

 Make sure optical output not scratched.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 38 -

 Always replace protective dust caps on the optical output.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 39 -

6. Maintenance and Calibration

6.1 Battery Replacement

Every instrument has a 9V alkaline battery. For battery replacement, remove the battery
compartment cover located at the back of the unit and replace the battery. Ensure that the
polarization of the battery is correct.

If the instrument is left unused for a long time (idle for over 2 months), it is recommended to
take the battery out of the compartment

6.2 Cleaning of Connectors

Connectors must be kept clean. Detector need to be cleaned from time to time, the protective
dust caps must be kept clean.

6.3 Auto Zeroing

Follow the following procedures to start auto zeroing:

 Replace the dust cap to connectors(to prevent laser leakage).
 After power on, press Zero(for OPM-21/OPM-25, press▲ and ▼ together), until

“SUCC” displays. This means auto zeroing is successful.

 If “ERR” displays, this means auto zeroing is unsuccessful. Check whether the

dust cap is tightly fastened to connectors, then proceed with auto zeroing.

 If still unsuccessful, please contact customer service of ShinewayTech



or our

agents to solve the problem.

6.4 Calibration Requirements

Calibration of the SLS, VLS, OPM, OLT is recommended every three years. Please contact
Shineway Technologies, Inc. or our agent for proper calibration.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 40 -

7 Warranty Information

7.1 Terms of Warranty

All ShinewayTech products are warranted against defective material and
workmanship for a period of one (1) year from the date of shipment to the original customer.
Any product found to be defective within the warranty period would be repaired or replaced
by Shineway Technologies Inc. free of charge. In no case will Shineway Technologies, Inc.
liabilities exceed the original purchase price of the product.

This warranty does not cover accessories or optional parts.

7.2 Exclusions

The warranty on your equipment shall not apply to defects resulting from the
following:

 Unauthorized repair or modification

 Misuse, negligence, or accident

Shineway Technologies, Inc. reserves the right to make changes to any of its products

at any time without having to replace or change previously purchased units.

7.3 W arranty Registration

A warranty registration card is included with the original shipment of equipment.
Please take a few moments to fill out the card and mail or fax it to the local Customer
Service Center of Shineway Technologies, Inc. to ensure proper initiation of your warranty
term and scope of your warranty.

7.4 Returning Equipment

To return equipment for reasons of yearly calibration or other, please contact the local
Customer Service Center of Shineway Technologies, Inc. to obtain additional information
and a RMA# (Return Materials Authorization number). And describe briefly reasons for the
return of the equipment, to allow us offer you more efficient service.

User’s Manual for Palm Optical Fiber Tester

Shineway Technologies, Inc. - 41 -

7.5 Contacting Customer Service

Please check our web site (www.shinewaytech.com) for updates to this manual and
additional application information. If you need technical or sales support, please contact
local Customer Service.

Shineway Technologies Customer Service, Greater China Region:

Address: 5th Floor Office Building, No. 14 Huayuan North Road, Haidian District,

Beijing, P.R.China
Postal code: 100083
Tel: [phone]
Fax: [phone]
Email:

[e-mail]

THANK YOU FOR CHOOSING SHINEWAY TECHNOLOGIES!
